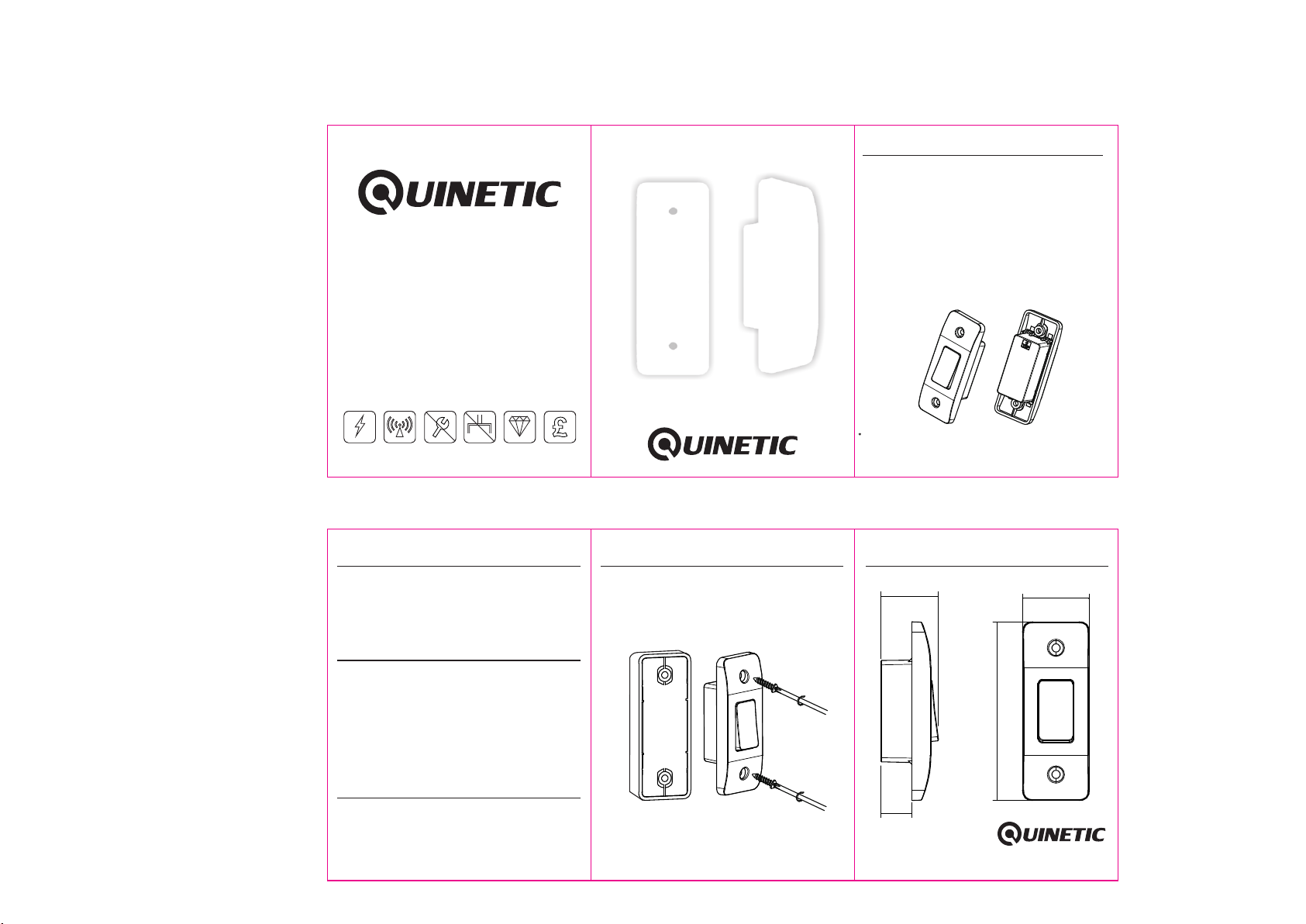

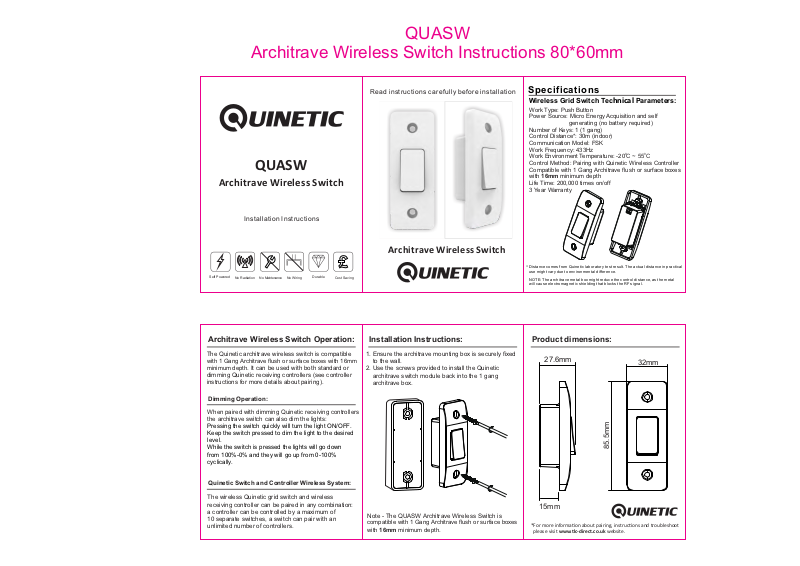

QUASW
Architrave Wireless Switch Instructions 80*60mm
QUASW
Architrave Wireless Switch
Installation Instructions
Self Powered
No Radiation No Maintenance No Wiring
Architrave Wireless Switch Operation:
The Quinetic architrave wireless switch is compatible
with 1 Gang Architrave flush or surface boxes with 16mm
minimum depth. It can be used with both standard or
dimming Quinetic receiving controllers (see controller
instructions for more details about pairing).
Dimming Operation:
When paired with dimming Quinetic receiving controllers
the architrave switch can also dim the lights:
Pressing the switch quickly will turn the light ON/OFF.
Keep the switch pressed to dim the light to the desired
level.
While the switch is pressed the lights will go down
from 100%-0% and they will go up from 0-100%
cyclically.
Durable
Cost Saving
Read instructions carefully before installation
Architrave Wireless Switch
Installation Instructions:
1. Ensure the architrave mounting box is securely fixed
to the wall.
2. Use the screws provided to install the Quinetic
architrave switch module back into the 1 gang
architrave box.
Specifications
Wireless Grid Switch Technical Parameters:
Work Type: Push Button
Power Source: Micro Energy Acquisition and self
generating (no battery required)
Number of Keys: 1 (1 gang)
Control Distance*: 30m (indoor)
Communication Model: FSK
Work Frequency: 433Hz
Work Environment Temperature: -20 C ~ 55 C
Control Method: Pairing with Quinetic Wireless Controller
Compatible with 1 Gang Architrave flush or surface boxes
with 16mm minimum depth
Life Time: 200,000 times on/off
3 Year Warranty
Dist ance co mes fro m Quine tic lab orato ry test r esult . The act ual dis tance i n pract ical
use mi ght var y due to en viron menta l diffe rence .
NOTE : The arc hitra ve meta l box mig ht redu ce the co ntrol d istan ce, as th e metal
wil l cause e lectro magne tic shi eldi ng that bl ocks th e RF sign al.
Product dimensions:
27.6mm
0 0
32mm
85.5mm
Quinetic Switch and Controller Wireless System:
The wireless Quinetic grid switch and wireless
receiving controller can be paired in any combination:
a controller can be controlled by a maximum of
10 separate switches, a switch can pair with an
unlimited number of controllers.
Note - The QUASW Architrave Wireless Switch is
compatible with 1 Gang Architrave flush or surface boxes
with 16mm minimum depth.
15mm
*For more informaon about pairing, instrucons and troubleshoot
please visit www.tlc-direct.co.uk website.
