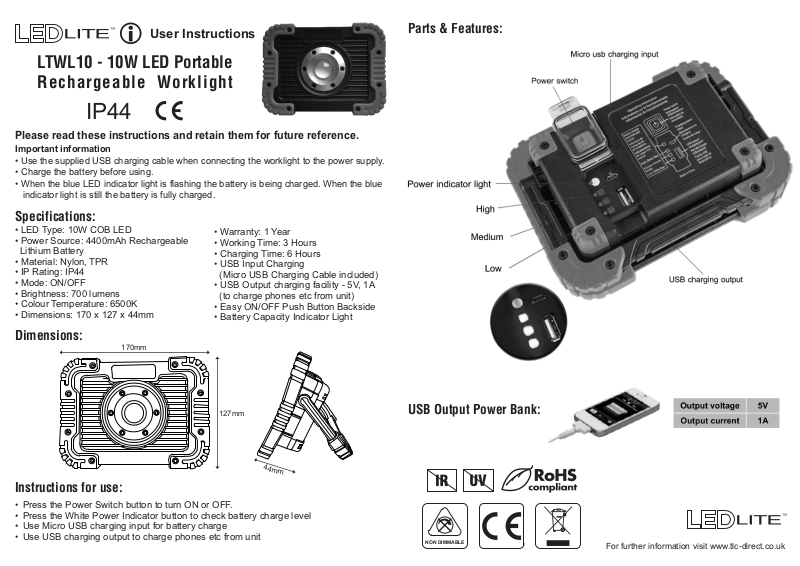

User Instructions
LTWL10 - 10W LED Portable
Rechargeable Worklight
IP44
Please read these instructions and retain them for future reference.
Important information
• Use the supplied USB charging cable when connecting the worklight to the power supply.
• Charge the battery before using.
• When the blue LED indicator light is flashing the battery is being charged. When the blue
indicator light is still the battery is fully charged.
Specifications:
• LED Type: 10W COB LED
• Power Source: 4400mAh Rechargeable
Lithium Battery
• Material: Nylon, TPR
• IP Rating: IP44
• Mode: ON/OFF
• Brightness: 700 lumens
• Colour Temperature: 6500K
• Dimensions: 170 x 127 x 44mm
• Warranty: 1 Year
• Working Time: 3 Hours
• Charging Time: 6 Hours
• USB Input Charging
(Micro USB Charging Cable included)
• USB Output charging facility - 5V, 1A
(to charge phones etc from unit)
• Easy ON/OFF Push Button Backside
• Battery Capacity Indicator Light

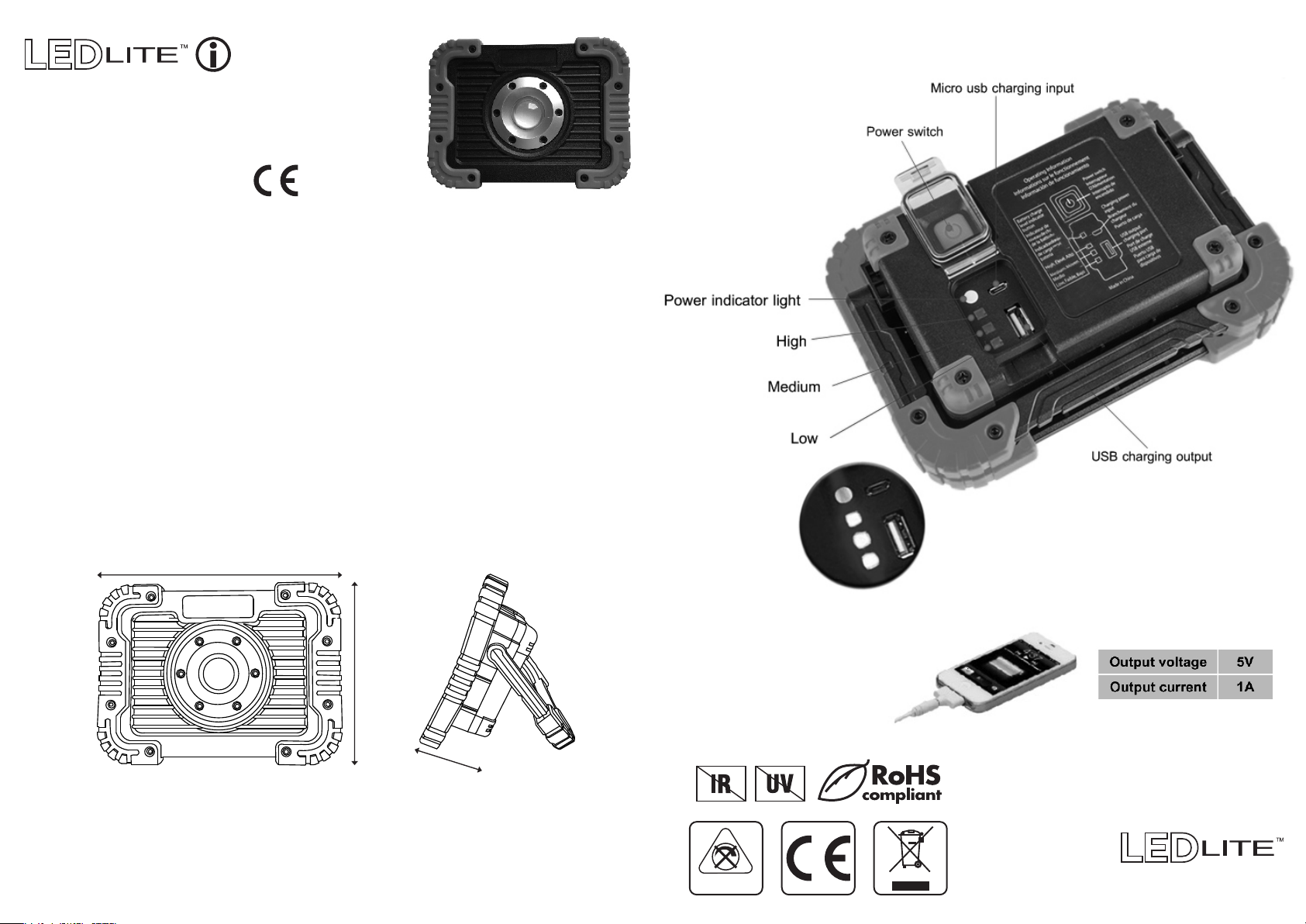

Parts & Features:
Dimensions:
170mm
127mm
44mm
Instructions for use:
• Press the Power Switch button to turn ON or OFF.
• P ress the White Power Indicator button to check battery charge level
• Use Micro USB charging input for battery charge
• Use USB charging output to charge phones etc from unit
USB Output Power Bank:
NON DIMMABLE
For further information visit www.tlc-direct.co.uk
