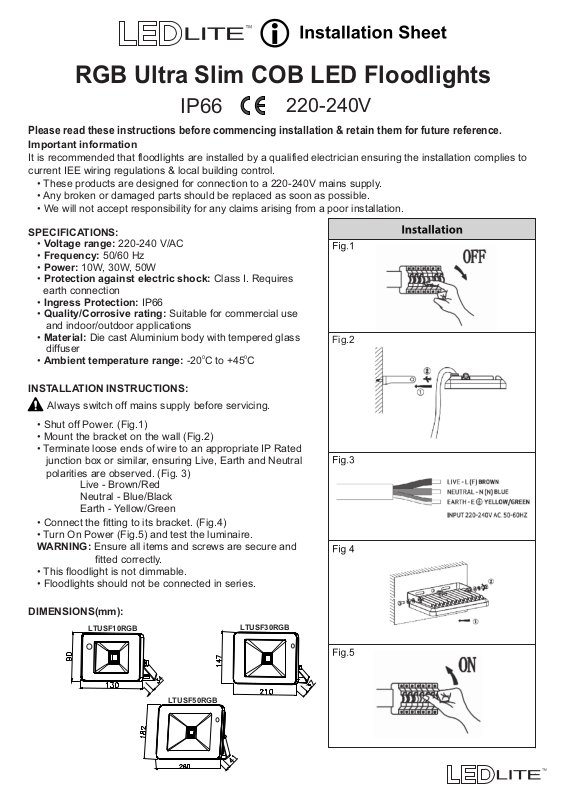

Page 1
RGB Ultra Slim COB LED Floodlights
IP66
220-240V
Please read these instructions before commencing installation & retain them for future reference.
Important information
It is recommended that floodlights are installed by a qualified electrician ensuring the installation complies to
current IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• Any broken or damaged parts should be replaced as soon as possible.
• We will not accept responsibility for any claims arising from a poor installation.
SPECIFICATIONS:
• Voltage range: 220-240 V/AC
• Frequency: 50/60 Hz
• Power: 10W, 30W, 50W
• Protection against electric shock: Class I. Requires
earth connection
• Ingress Protection: IP66
• Quality/Corrosive rating: Suitable for commercial use
and indoor/outdoor applications
• Material: Die cast Aluminium body with tempered glass
diffuser
• Ambient temperature range: -20 C to +45 C
0 0
Fig.2

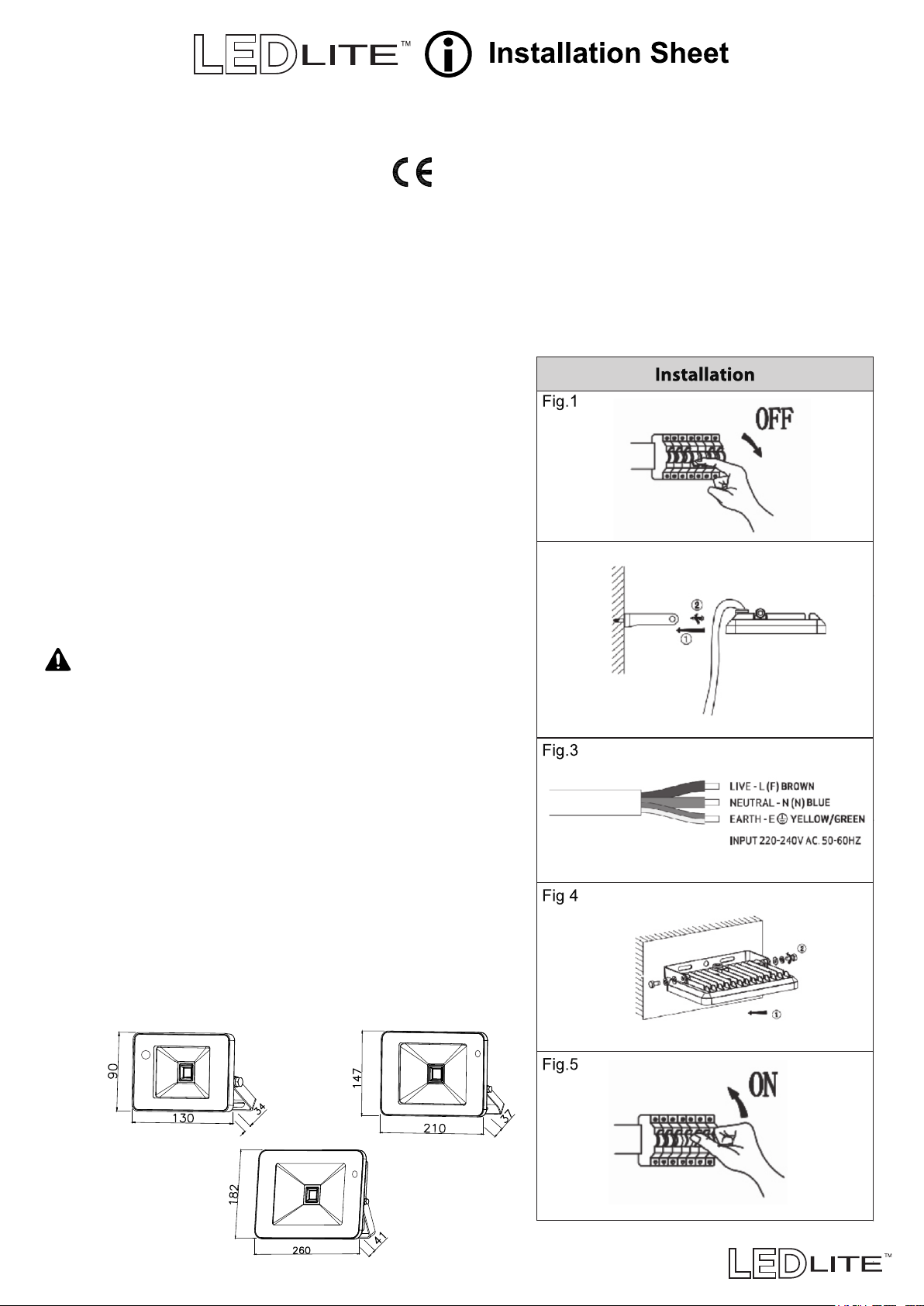

INSTALLATION INSTRUCTIONS:
Always switch off mains supply before servicing.
• Shut off Power. (Fig.1)
• Mount the bracket on the wall (Fig.2)
• Terminate loose ends of wire to an appropriate IP Rated
junction box or similar, ensuring Live, Earth and Neutral
polarities are observed. (Fig. 3)
Live - Brown/Red
Neutral - Blue/Black
Earth - Yellow/Green
• Connect the fitting to its bracket. (Fig.4)
• Turn On Power (Fig.5) and test the luminaire.
WARNING: Ensure all items and screws are secure and
fitted correctly.
• This floodlight is not dimmable.
• Floodlights should not be connected in series.
DIMENSIONS(mm):
LTUSF10RGB
LTUSF30RGB
LTUSF50RGB
Page 2
RGB Ultra Slim COB LED Floodlights

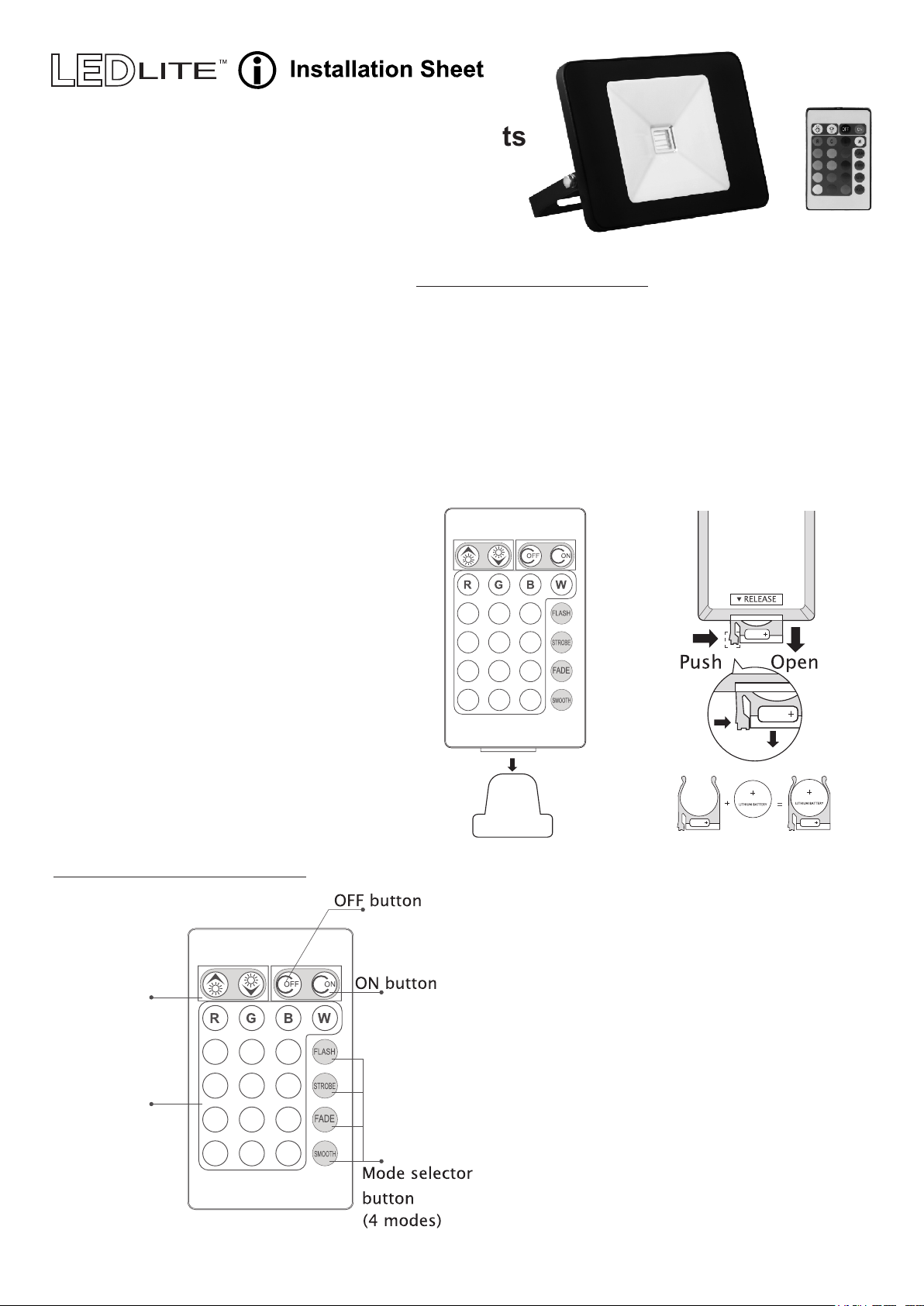

Remote Control Functions
Remote Control Setup:
● Control Distance: up to 10m
● Mode: 4 modes adjustable
● Brightness and speed adjustments
● Battery Type: CR2025
All buttons on remote control have a
memory function; after setting the fixture
will keep working on the mode it was set,
even after turning it OFF from mains.
● Pull plastic protection from battery compartment to
activate remote control (see Fig.6).
● The floodlight is controlled by the IR remote control.
Please ensure the remote control aims at the lamp
when changing colours or modes.
● If the IR remote control becomes insensitive after a
period of time or the control distance becomes much
shorter please replace the battery (see Fig.7).
Remote Control Buttons:
Dimming and
speed adjusting
button
Static monochrome
shortcut button
(16 colour choices)
CR2025 CR2025
Fig.6
Fig.7
ON/OFF Button - Switch the unit on or off.
Dimming and Speed - When in static
monochrome mode use it to adjusts the
brightness; when the set mode is in FADE,
STROBE, FLASH or SMOOTH it adjusts the speed
Static Monochrome - Use the buttons to directly
select the desired colour (16 choices)
FLASH - Automatic change of colours (fast)
STROBE - Automatic jumping change of colours
(slow)
FADE - Fast automatic change of colours with
blending effect
SMOOTH - Slow automatic change of colours
with blending effect
