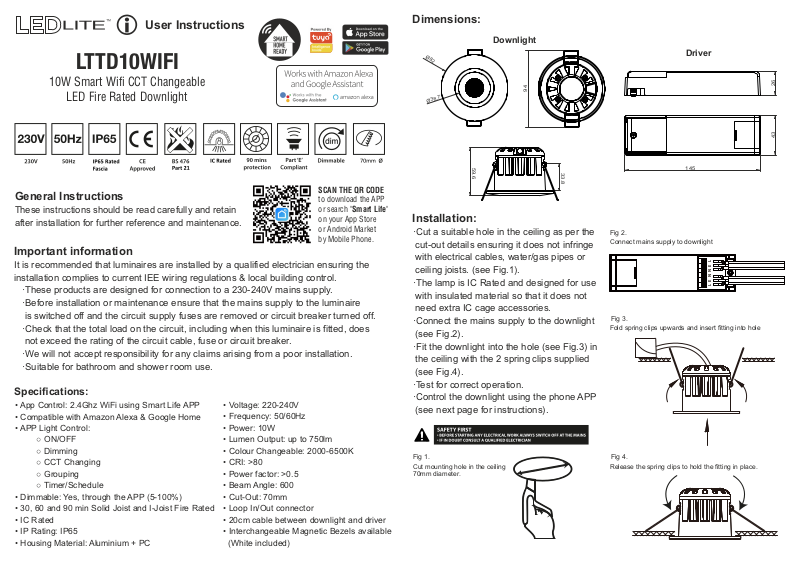

Page 1
User Instructions
LTTD10WIFI
Dimensions:
Ø82
Downlight
Driver
10W Smart Wifi CCT Changeable
LED Fire Rated Downlight
General Instructions
These instructions should be read carefully and retain
after installation for further reference and maintenance.
Important information
It is recommended that luminaires are installed by a qualified electrician ensuring the
installation complies to current IEE wiring regulations & local building control.
·T hese products are designed for connection to a 230-240V mains supply.
·B efore installation or maintenance ensure that the mains supply to the luminaire
is switched off and the circuit supply fuses are removed or circuit breaker turned off.
·C heck that the total load on the circuit, including when this luminaire is fitted, does
not exceed the rating of the circuit cable, fuse or circuit breaker.
·W e will not accept responsibility for any claims arising from a poor installation.
·S uitable for bathroom and shower room use.
Specifications:
• App Control: 2.4Ghz WiFi using Smart Life APP
• Compatible with Amazon Alexa & Google Home
• APP Light Control:
○ ON/OFF
○ Dimming
○ CCT Changing
○ Grouping
○ Timer/Schedule
• Dimmable: Yes, through the APP (5-100%)
• 30, 60 and 90 min Solid Joist and I-Joist Fire Rated
• IC Rated
• IP Rating: IP65
• Housing Material: Aluminium + PC
• Voltage: 220-240V
• Frequency: 50/60Hz
• Power: 10W
• Lumen Output: up to 750lm
• Colour Changeable: 2000-6500K
• CRI: >80
• Power factor: >0.5
• Beam Angle: 600
• Cut-Out: 70mm
• Loop In/Out connector
• 20cm cable between downlight and driver
• Interchangeable Magnetic Bezels available
(White included)
SCAN THE QR CODE
to download the APP
or search "Smart Life"
on your App Store
or Android Market
by Mobile Phone.
94
Ø38.7
59.6
33.8
Installation:
·C ut a suitable hole in the ceiling as per the
cut-out details ensuring it does not infringe
with electrical cables, water/gas pipes or
ceiling joists. (see Fig.1).
·T he lamp is IC Rated and designed for use
with insulated material so that it does not
need extra IC cage accessories.
·C onnect the mains supply to the downlight
(see Fig.2).
·F it the downlight into the hole (see Fig.3) in
the ceiling with the 2 spring clips supplied
(see Fig.4).
·T est for correct operation.
·C ontrol the downlight using the phone APP
(see next page for instructions).
Fig 1.
Cut mounting hole in the ceiling
70mm diameter.
26
43
145
Fig 2.
Connect mains supply to downlight
L E N N E L
Fig 3.
Fold spring clips upwards and insert fitting into hole
Fig 4.
Release the spring clips to hold the fitting in place.
Page 2
LTTD10WIFI - 10W Smart Wifi CCT Changeable LED Fire Rated Downlight
NO.1
Download the Smart Life APP
Scan the QR code present on the packaging box or in the instructions to download the APP. You can also
search "Smart Life" in either App Store or Google Play to install the APP.
Connection Failed
If the Application shows the page as in Picture 5, it means that the light connection
has failed.
By pressing "Got it" you can try to connect it again in EZ mode or select the AP Mode
by pressing on the top right as shown in Picture 6.
Add New Device - AP Procedure
To connect the device in AP mode switch the light on and, after 10 seconds, switch it
off then on 3 times until it flashes quickly (about 3 times per second). Continue
switching the light off then on 3 times and it will start flashing slowly (about once every
3 seconds). At this point press "Confirm light slowly blink" (Pic.7), enter the password
of the WiFi network you are connected to, press "OK" (Pic.8) and you will open the
page as shown in Picture 9. By pressing "Go connect" your mobile phone will take
you to the WiFi Setting page. Select the "Smartlife-XXX" network, go back to the
Smart Life APP and your new device will connect correctly.
Note: This item works only on a 2.4GHz WiFi network, not on a 5GHz WiFi network. Please consult the
manual of your router for settings.
Login/Registration Add New Device
After downloading the free Smart Life App from Apple Store or Play Store create
a new account by following these steps:
1. Press "Login"
2. Select Your country code, enter the e-mail address or phone number you want
to use to login and press "Obtain verification code"
3. Enter the code received by e-mail or phone, set your personal password and
press "Completed". Now you can access the pages for the creation of your
Smart Home.
To add your new device open Smart Life APP on "My Home" page, press"+"
in the upper right corner and then " Lighting Devices".
The Application offers two different procedures to add your device:
EZ and AP mode.
Please use the default EZ mode. If it fails, please try again or use AP mode.
Add New Device - EZ Procedure Add New Device - EZ Procedure
Make sure your new device is in EZ mode, otherwise reset it by switching on
the light and, after 10 seconds, switching it off then on 3 times. The light will
start blinking quickly (about 3 times per second).
After resetting the device:
1. Press "Confirm light blinks rapidly" (Pic.1). A new page will open (Pic.2).
2. Enter the password of the WiFi network you are connected to and press
"OK" to connect. The WiFi network supported is 2.4Ghz (disable the 5Ghz
WiFi network).
When connecting the device, you can see the connection status as shown in
Picture 3. Once connected, a page will open as shown in Picture 4.
Select the location of the device in your smart home and press "Completed"
to access the control page of your new device.
Now your new light is ready to be controlled via the APP, even remotely.
Device Control
After connecting the device, the control page will
be opened automatically.
Here you can do the following:
• Change the colour of the white, from warm white
to cool white.
• Dim the light.
• Select one of the scenes already created
for you.
• Use Schedule to program the switching on and
off at predefined times.
Creation of Scenarios and Automations
You can create an infinite number of Scenarios and Automations enabling other devices
to interact with each other.
By pressing "Smart" at the bottom centre of the home page and then "+" in the upper
right corner, you can choose whether to add a new scenario or a new automation.
• A Scenario is a set of commands assigned to the various devices that will be
activated simultaneously whenever you click on the created scenario or in the days
and hours programmed.
• An Automation is the execution of a specific command given to a device when a
specific condition has been activated.
Device Menu
Profile
By pressing on the menu symbol at the top right
you can:
• Change the name of your device.
• Select the location of the device in your home.
• Check how to connect it to your voice control
device (Google Home or Amazon Alexa).
• Share control of the device with other family
members or friends.
• Create a group of multiple devices so that you
can control them together.
• Update the device firmware.
• Remove the device.
"Me" is the page where you can change your
settings:
1. Your Profile.
2. Home Management.
3. Message Centre.
4. Additional services, such as the list of devices
that can be associated with the application
(Google Home, Amazon Alexa) in order to
control your home via voice commands.
5. Settings to activate push notifications and
other features.
Sharing Devices
You can share your devices with your family and friends who have downloaded the Smart Live APP and have a registered account. The people you share your devices with
will be able to control them, but they will not be able to add new devices to your home or delete any devices shared with them.
You have two different ways to share your devices:
A. Enter the page of your profile, press "Home Management" and "Share Devices" to enter the page where you can select the devices you want to share.
Enter the e-mail address used in the Smart Life APP by the user you want to share the devices with.
If you want to delete sharing with a user, place your finger on the user's name, drag to the left and then press "Delete".
B. Enter the menu of the device you want to add, press "Shared Devices" and enter the e-mai address used in the Smart Life APP by the user you want to share the devices with.
If you want to delete sharing with a user, place your finger on the user's name, drag to the left and then press "Delete".
