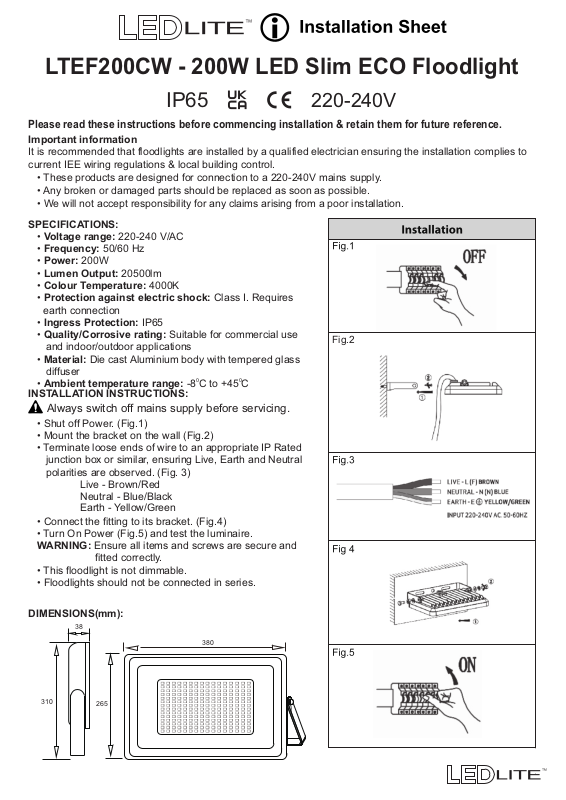

LTEF200CW - 200W LED Slim ECO Floodlight
IP65
220-240V
Please read these instructions before commencing installation & retain them for future reference.
Important information
It is recommended that floodlights are installed by a qualified electrician ensuring the installation complies to
current IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• Any broken or damaged parts should be replaced as soon as possible.
• We will not accept responsibility for any claims arising from a poor installation.
SPECIFICATIONS:
• Voltage range: 220-240 V/AC
• Frequency: 50/60 Hz
• Power: 200W
• Lumen Output: 20500lm
• Colour Temperature: 4000K
• Protection against electric shock: Class I. Requires
earth connection
• Ingress Protection: IP65
• Quality/Corrosive rating: Suitable for commercial use
and indoor/outdoor applications
• Material: Die cast Aluminium body with tempered glass
diffuser
• Ambient temperature range: -8 C to +45 C
INSTALLATION INSTRUCTIONS:
0 0

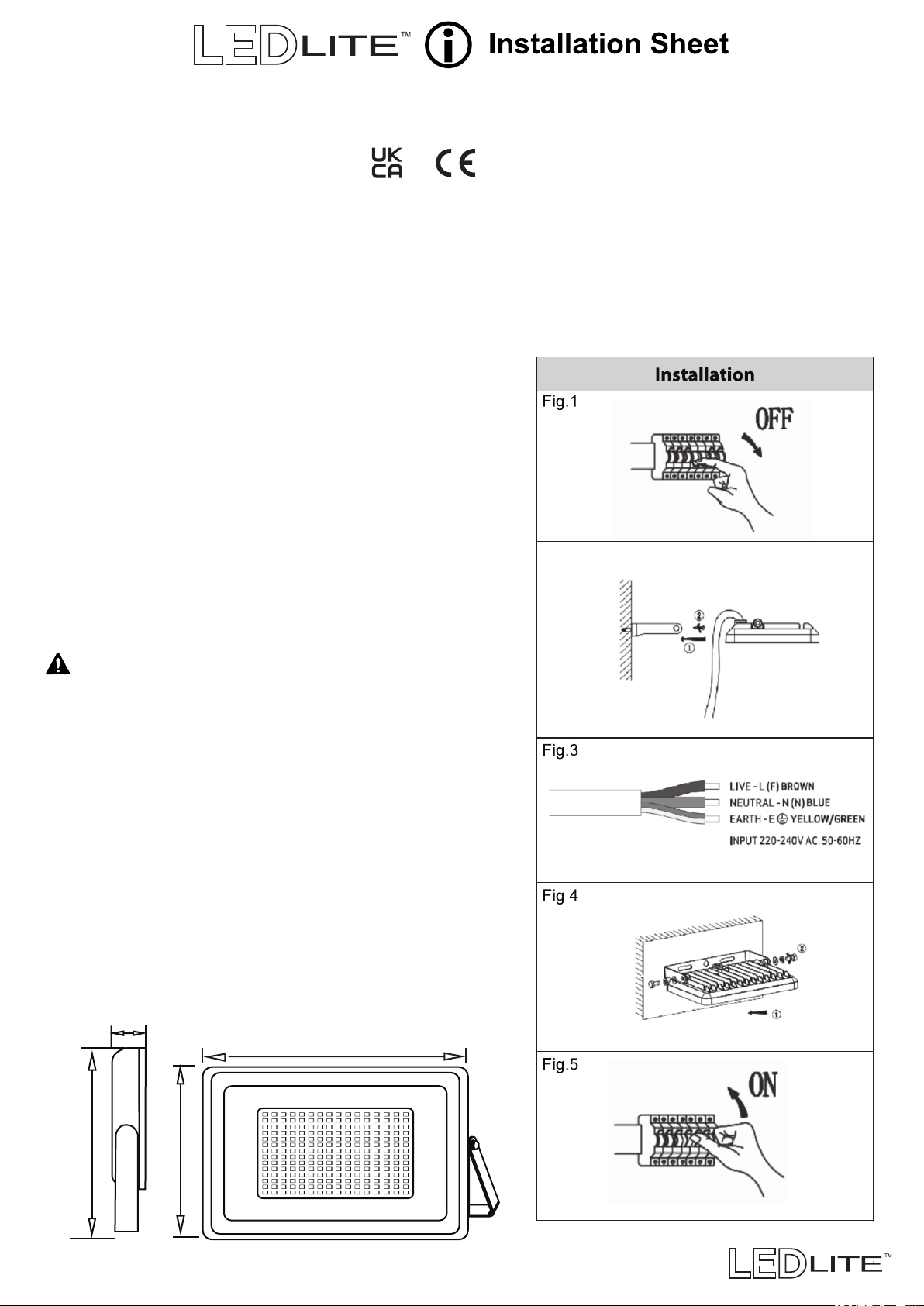

Fig.2
Always switch off mains supply before servicing.
• Shut off Power. (Fig.1)
• Mount the bracket on the wall (Fig.2)
• Terminate loose ends of wire to an appropriate IP Rated
junction box or similar, ensuring Live, Earth and Neutral
polarities are observed. (Fig. 3)
Live - Brown/Red
Neutral - Blue/Black
Earth - Yellow/Green
• Connect the fitting to its bracket. (Fig.4)
• Turn On Power (Fig.5) and test the luminaire.
WARNING: Ensure all items and screws are secure and
fitted correctly.
• This floodlight is not dimmable.
• Floodlights should not be connected in series.
DIMENSIONS(mm):
38
310
265
380
