Laufen 8.4097.5 Datasheet

TECHNICAL DATA

Order no. 84097.5
Certified to EN 80, EN 13407
matching for LIS CU2 Concealed frame for urinal without
integrated control, order no. 89266.4
Specification 1-l flushing siphonic urinal
only in combination with fixing set
order no. 89280.8
Water inlet concealed
Outlet horizontal
Flushing 1 l
Flushing rate minimum 0.3 l/s
Weight 10,0 kg
Mounting acc. incl. Wall fixing set M8 LAUFEN,
order no. 89280.8
Mounting acc. excl. LIS CU2 horizontal inlet connection,
order no.
all siphons has to be used in combination with
the outlet connection pipe (order no.
1-litre siphon with horizontal outlet DN 50
(standard Europe, except CH and UK),
order no. 89418.1

89009.7

89497.3)

SET IL BAGNO ALESSI ONE

Siphonic urinal

84097.5

Mounting acc. excl. Stone screw fixing set M12
Changing set LAUFEN
Stone screw fixing set M8
Adaption set for stone screws M10,
order no.
Adaption set for stone screws M12,
order no. 89281.4
Colours see colour table
SPECIFICATION TEXT
Siphonic urinal Laufen-IL BAGNO ALESSI ONE sanitary ceramic
EN 80, EN 13407, dimensions 325 x 290 x 585 mm
1-l flush, water inlet concealed, outlet horizontal,
flushing rate minimum 0.3 l/s
Special feature: Surface refinement LCC (only white), vacuum and
performance tested
Further options / accessories: LIS CU2 horizontal inlet connection,
1-litre siphon with horizontal outlet DN 50 (standard Europe, except
CH and UK), LIS CU2 concealed frame for urinal without integrated
control
Order no. 84097.5

89281.6

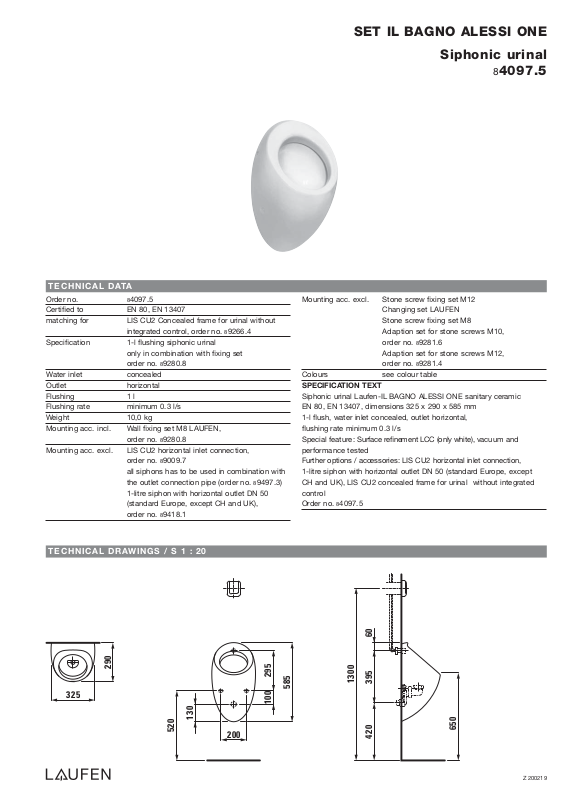

TECHNICAL DRAWINGS / S 1 : 20

290

325

130

520

200

295

100

585

1300

60

395

650

420

Z 200219
