Thank you for choosing the LEC-2280. The LEC-2280 is
an upgrade platform of Lanner LEC-2280 and features
Intel Ivy Bridge i3, i5, and i7 processors. It has dual LAN
as well as HDMI and DVI-D connectors for high demand
of Internet and video playback applications. The LEC-2280
also features slim and compact chassis design to allow
heat to dissipate off directly from the top of the platform.

The LEC-2280 also offers a variety of different expansion
opportunities to further customize the platform. Two
different expansions are possible.

On model LEC-2280E, it comes with one PCIe.

On model LEC-2280P2, it comes with 2 PCI slots.

These expansions adds capabilities of video capture or
extended LAN connections.

The following highlight the functionalities of the LEC­2280 system:

Intel HD Graphics Engine •

Dual video output of VGA and HDMI or VGA and DVI-D •
with Intel integrated HD graphic engine

Dual 10/100/1000 Mbps LAN •

USB x 6 (2 by internal pin header) and COM x 2 •

1 SATA 6Gbps HDD bay support and 1 SATA-DOM •
connector

Totally 2 serial ports supporting Hardware Auto flow •
Control: DB9 x2 for RS232/422/485

Audio input and output through Mic-in and Line-out •
jack

Dual Mini-PCIe Socket (with on SIM card reader for 3G •
wireless Internet connection) can extend the capability
for Wi-Fi or Bluetooth

Aluminum extrusion enclosure which helps heat •
dissipation

Customization opportunity for expansion of extra LAN •
and serial port (board LEK-IOA5) or eSATA and DI/DO

(LEK-IOA3)

System Specification

Dimensions (WxHxD)

Processor
Chipset

System
Memory

Storage

Ethernet Controller
Graphic Controller
Audio Controller

IO

Power Input
Hardware Monitor

OS Support

Certications

Operating
Temperature
Range

Ordering Information

LEC-2280E

LEC-2280P2

Technology DDR3 SO-DIMM x2

Max. Capacity Up to 16GB
IDE N/A

SATA

LAN RJ45 10/100/1000Mbps x2
Display

Dual Display
Dual Display Mode Clone, Independent, Extend

Audio Phone Jack x2 for Mic-In and Line-Out
Serial I/O DB9 x2 for RS232./422/485

Digital I/O

USB 2.0 Type A x6
Power Input Terminal Block 2-pin

Expansion

With Industrial
Components

With Commercial
Components
High/Low Extend­ed Temperature
Tested

Intel i5/i7/Celeron on-board CPU,
2 DDR3 SO-DIMM Sockets,
2 COM Ports,
1 HDMI, 1 DVI-D, 1 VGA, Audio Ports
2 LAN Ports, DIO (4 in, 4 out) – optional
+9~30V DC input support with one PCIe expansion

Intel i5/i7/Celeron on-board CPU,
2 DDR3 SO-DIMM Sockets,
2 COM Ports,
1 HDMI, 1 DVI-D, 1 VGA, Audio Ports
2 LAN Ports, DIO (4 in, 4 out) – optional
+9~30V DC input support with two PCI expansion

277x(67/89)x194mm
(10.91”x(2.64/3.50)”x7.64”)
i5-3610ME/i3-3120ME (Ivy Bridge),
i7-3612QE, i7-3555LE
Intel HM65

2.5” SSD/HDD drive bay x1, SATA-DOM
x1
Intel 82574L x2
Intel integrated HD graphic engine
ALC886

HDMI x1 , DVI-D x1 , VGA x1
VGA+HDMI, VGA+DVI

DB9 Female x1 for DI x4 &DO x4 (TTL,
DO Max 100ma) - optional

Mini-PCIe x1 with SIM card reader
Mini-PCIe x1
PCI x 2 or PCIe (x1) x 1
+9~+30v Input, Support ATX Function
Fintek F81865 integrated
Watchdog Timer 1~255 level

Win7/XP/7Embedded/XP Embed­ded, Redhat Enterprise 5/Fedora
14, Linux Kernel 2.6.18 or Later

CE, FCC Class A

-10 to +45°C/14~113°F for processor
power consumption of 35W

-10 to +50°C/14~122°F for processor
power consumption below 25W

-5~45°C / 23~113°F

Bootable after 24 hours @ -40°C

Embedded and Industrial Computing

4

Chapter 1

Package Contents

Your package contains the following items:

LEC-2280 Fanless Embedded System •

Serial-ATA/Power Cable (P/N: 080W1N0002001) •

Wall-Mounting Kit (P/N: SE9ESA900R100) •

Drivers and User’s Manual CD (087W0200V1001) •

Power Adapter (P/N: 0P0W075190001) •

Optional Accessories

The system has a variety of optional accessories including
the power cords and Wi-Fi or 3G modules for extended
capabilities. For details of these modules, visit:

http://www.lannerinc.com/products/all-purpose-box­computers/industrial-automation/lec-2280

Introduction

Embedded and Industrial Computing

5

Chapter 2

Chapter 2:
System Components

System Drawing

Mechanical dimensions of the LEC-2280

Unit: mm

System Components

276.4

190

66

193.5

Embedded and Industrial Computing

6

Chapter 2

Block Diagram

The block diagram depicts the relationships among the
interfaces and modules on the motherboard..

System Components

Embedded and Industrial Computing

7

Chapter 2

Front Components

F1 HDD (Yellow) and

Power LED (Green)

F2 Four USB 2.0 Ports An USB type A connector. In addi-•

F3 Reset Reset switch RST1 on page 19

System Components

F1

F2

Component Description Pin Definition Reference

HDD

Blinking: data access activities•

Off: no data access activities•

Power

On: The computer is on.•

Off: The computer is off .•

USB1, USB2 on Page 17
tion to this connector, an internal
pin header is also provided.

F3

Embedded and Industrial Computing

8

Chapter 2

System Components

Rear Components

R1

R9

Component Description Pin Definition Reference

R1 DC-In (power) 1x2 Pin
Phoenix Contact Connector

R2

R3

Power-in Connector. The LEC-2280
support power range between

R4

R5

CN4 on page 19

+9~+30V DC-in.

R2 Two USB 2.0 Ports An USB type A connector. In addition to

USB3 Connector on Page 17
this connector, an internal pin header is
also provided..

R3 Two 10/100/1000Mbps LAN
ports

Two RJ-45 (network) jacks with LED
indicators as described below. The LAN

LAN1/LAN2 on page 20

ports are provided by Intel 82574L.
They both support WOL/Remote­wake-up/PXE function.

LINK/ACT (Yellow)

LINK/ACT

SPEED

On/Flashing: The port is linking •
and active in data transmission.

Off: The port is not linking.•

SPEED (Green/Amber)

Amber: The connection speed is •
1000Mbps.

Green: The connection speed is •
100Mbps

Off: .The connection speed is •
10Mbps.

R4 DVI-D A DVI-D port (single link) which is

DVID1 Connectors on page 18
provided by Intel HD Graphic Engine.
This port can support up to 1920x1200
@ 60 Hz resolution.

R5 HDMI A HDMI (High-Definition Multimedia

HDMI1 on page 18
Interface).This port can support up to
1920x1200 @ 60 Hz resolution.

R6 VGA Port(†) The displays can support VGA up to

VGA1 on page 18
2048x1536 resolution.

R7 MIC IN/LINE OUT(†) Connect the audio devices to these

CN1, CN2 on page 15
ports. The Microphone and line out
port are provided by Realtek ALC
ALC886.

F8 Serial Ports Serial ports through the DB-9

COM1/COM2 on page 15
connector; Both COM1 and COM2
support RS-232/422/485 with jumper
selection among RS-232/422/485.

R9 Slot for PCIe expansion (*) The PCIe/PCI expansion capability

PCIEIO1 Connector on page 18
is accomplished via the riser card
connected to the system

Embedded and Industrial Computing

†Note that the driver for these ports should be installed with the following order: Chipset INF->Graphic->Audio

* Model LEC-2280P2 can support 2 PCI expansion.

R6

R8

R7

9

Chapter 3

Chapter 3:
Board Layout

Connectors

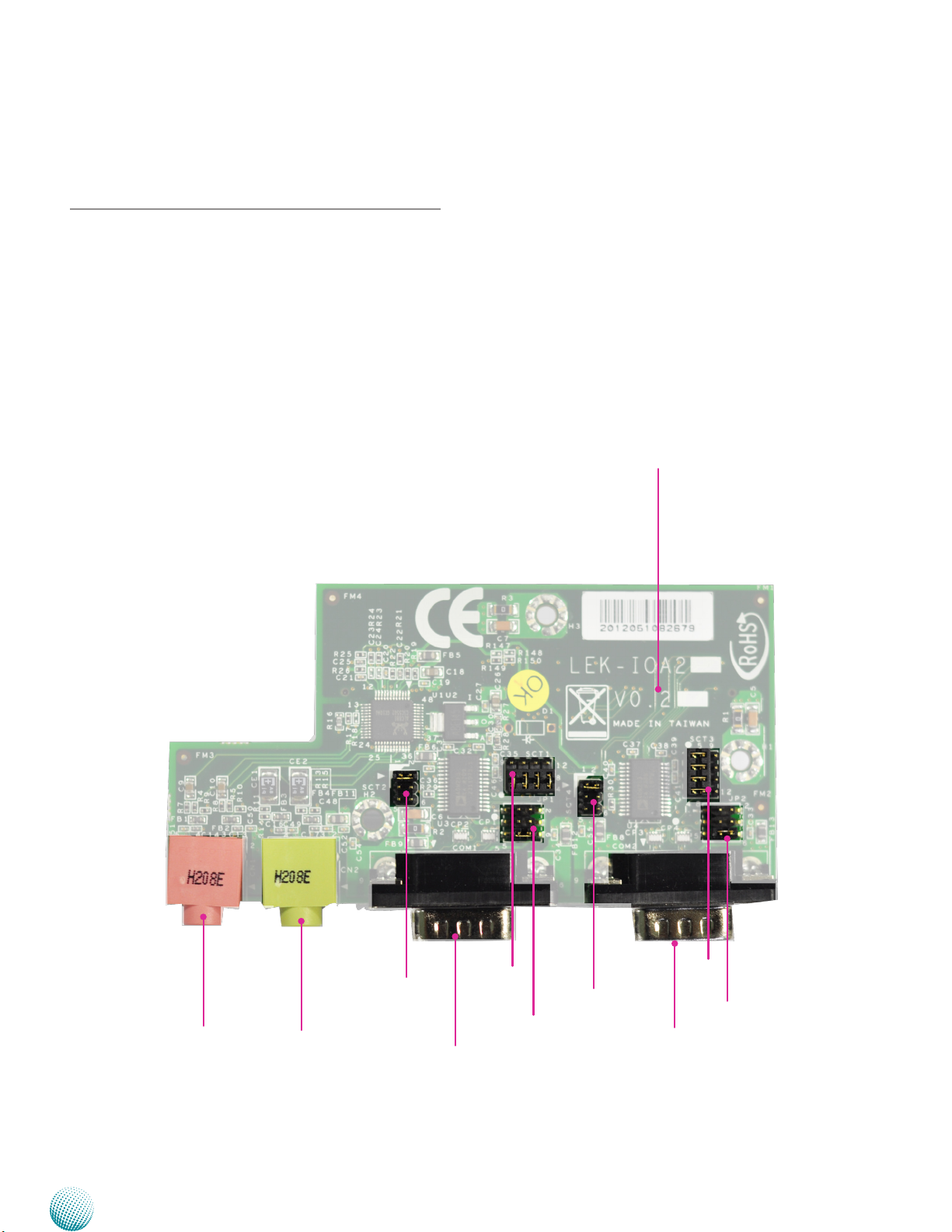

The following picture highlights the location of the COM
port and audio expansion card. Refer to the table 3.1
Connector List for more details.

Note: Daughter boards such as COM ports and
low-profile PCIe extension boards can only be
inserted to the mainboards with the same version.
Failure to do so may damage the system. The
board version is shown on top of the boards.

Board Layout

Board Version

CN1

Embedded and Industrial Computing

CN2

SCT2

COM1

SCT1

JP1

SCT3

SCT4

JP2

COM2

LEK-IOA2

10

Chapter 3

External Connectors

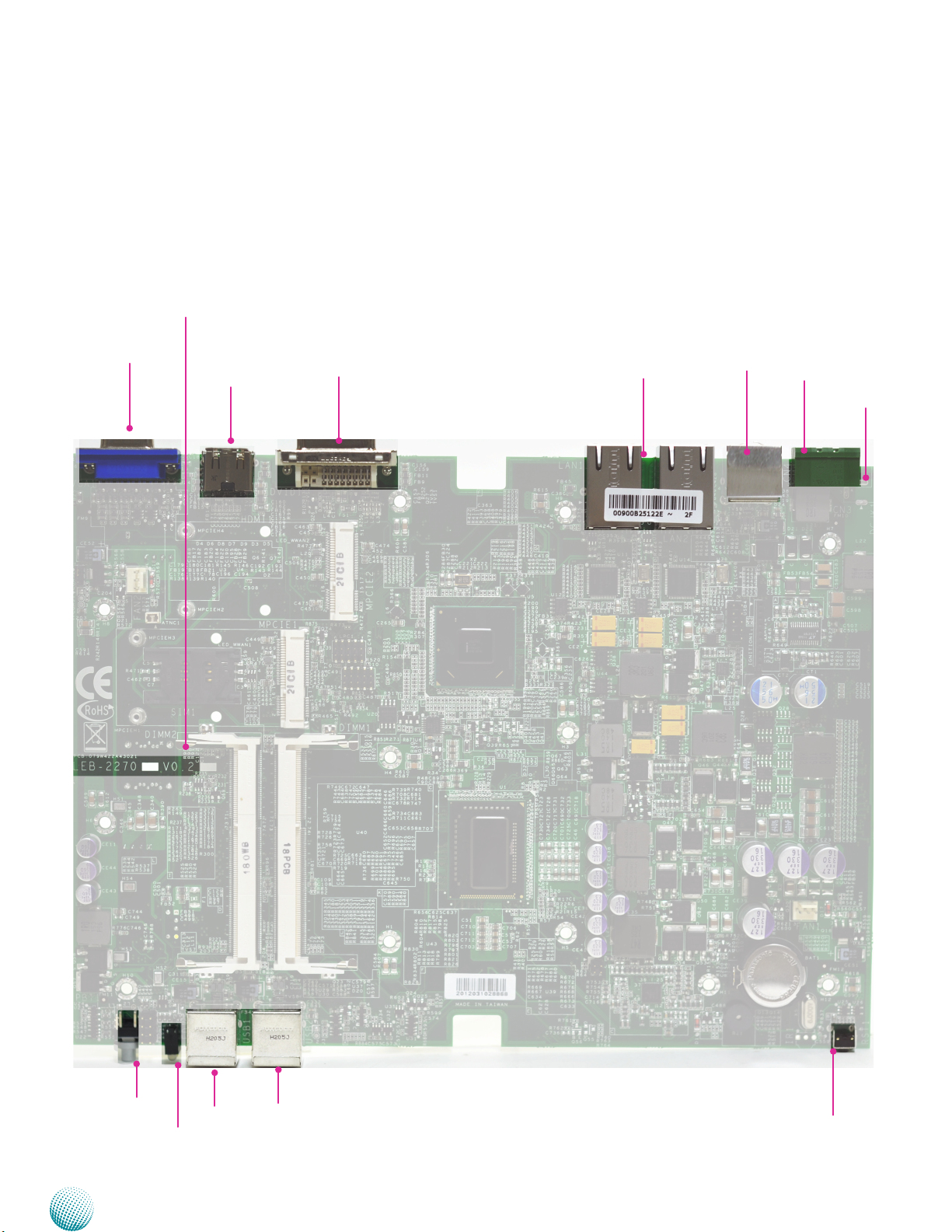

The following picture highlights the location of system
input/output connectors. Refer to the table 3.2 Connector
List for more details.

Board Version

Board Layout

VGA1

HDMI1

DVID1

LAN1/LAN2

USB3

CN4

CN3/
DCJK1
(optional)

POWER1

Embedded and Industrial Computing

LED1

USB1

USB2

RST1

LEB-2280

11

Chapter 3

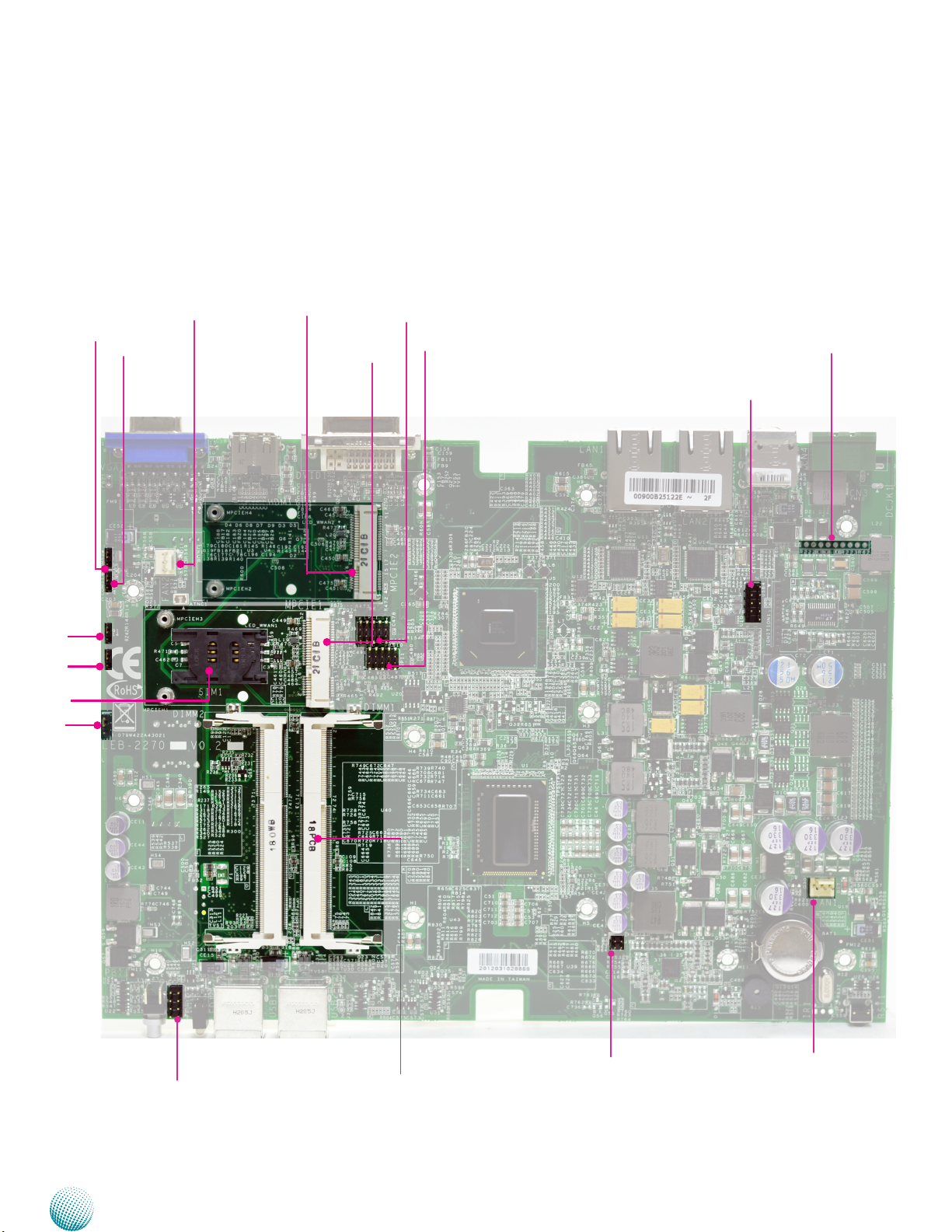

Internal Connectors and Jumpers

The following picture highlights the location of internal
connectors and jumpers. Refer to the table 3.2 Connector
List for more details.

Board Layout

CMOS2

COMSLT1

COMSLT2

SIM1

SATA_PW2

CMOS1

FAN2

MPCIE2

MPCIE1

LPC1

SPI1

Ignition1

USB4

FRONT1

Embedded and Industrial Computing

SO-DIMM

J1

FAN1

LEB-2280

12

Chapter 3

Internal Connectors and Jumpers
(backside)

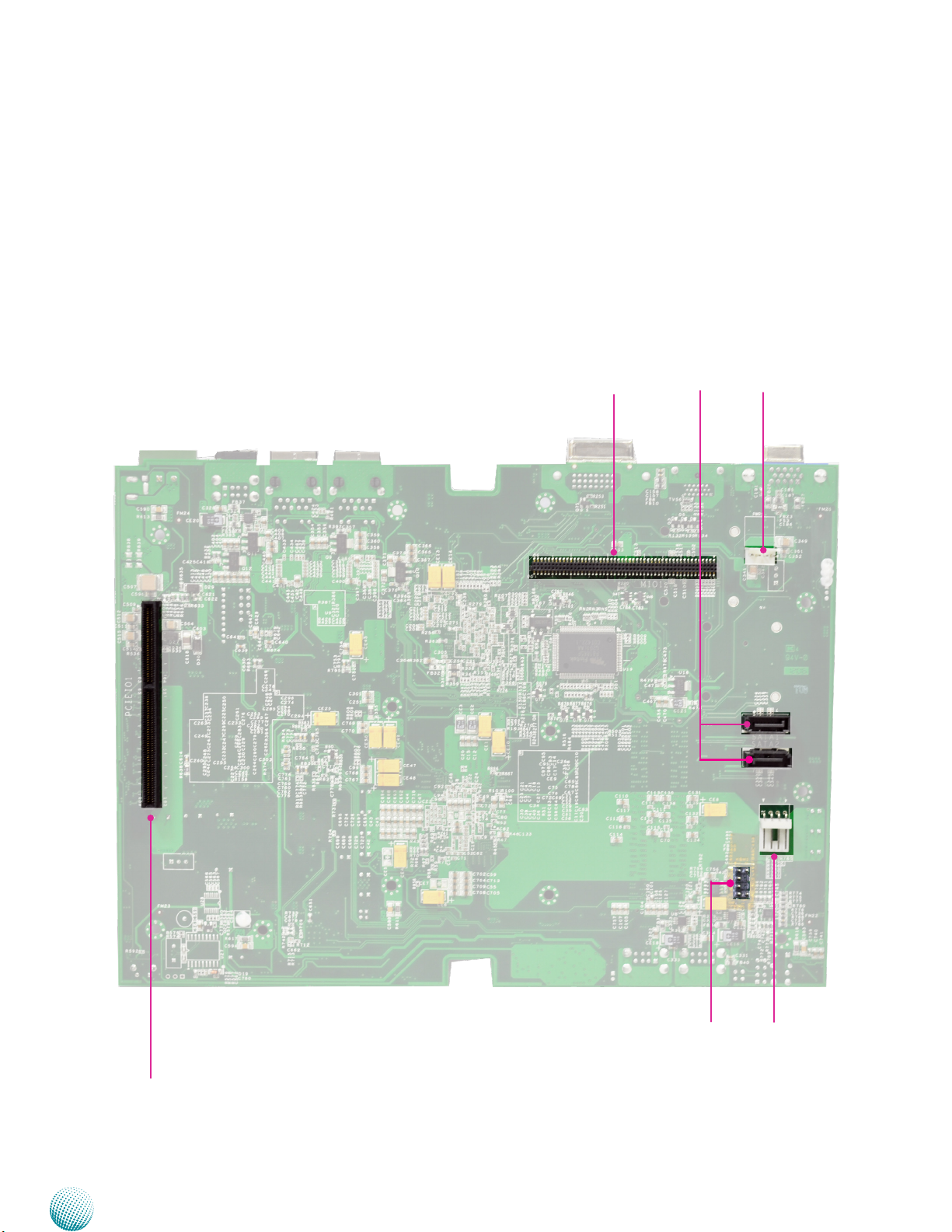

The following picture highlights the location of internal
connectors and jumpers on the backside of the board.
Refer to the table 3.2 Connector List for more details.

MIO1

SATA1
SATA2

Board Layout

SATA_PWR1

PCIEIO1

Embedded and Industrial Computing

PWR1KBM1

LEB-2280

13

Chapter 3

Connectors and Jumpers List

The tables below list the function of each of the board
jumpers and connectors by labels shown in the above
section. The next section in this chapter gives pin
definitions and instructions on setting jumpers.

Table 3.1 Connector List for LEK-IOA2 Board

Labels Function Pin Denition Reference

Page

CN1 Microphone-in Audio Jack P15
CN2 Line-out Audio Jack P15
COM1 RS232/422/485 Serial Port P15
COM2 RS232/422/485 Serial Port P15
MIO1 Connector for connecting the COM port and

audio expansion board to the LEC-2280 main

board
SCT1/SCT2 Select COM1 Protocol Setting P15
SCT3/SCT4 Select COM2 Protocol Setting P15
JP1 Select COM1 Pin No. 9 function P16
JP2 Select COM2 Pin No. 9 function P16

Note: Daughter boards such as COM ports and low-profile PCIe extension boards can only be inserted
to the mainboards that has the same version as the extension boards. The board version is shown on
top of the boards. Failure to do so may damage the system.

P16

Board Layout

Table 3.2 Connector List for LEB-2280 Board
Labels Function Pin Denition Reference

Page

CMOS1 Cleaning CMOS data including RTC P16
CMOS2 Cleaning CMOS data only P16
COMSLT1 Daughter board LEK-IOA3 enable/disable P20
COMSLT2 Daughter board LEK-IG1 enable/disable P20
CN3 (optional) Optional Power Connector with Power

-ignition Control
CN4 DC-in Power Connector P19
DCJK1 (optional) Optional DC Jack type of Power Connector P20
DVID1 DVI-D Connector P18
FAN1/FAN2 System Fan Connector P18
Front1 Front Panel Function Pin Header P17
HDMI1 HDMI Port P18
Ignition1(optional) Connector for power Ignition Control P20
J1 PEG16X Lane Function Selection P19
LAN1/LAN2 Ethernet Connector 1/Ethernet Connector 2 P20
LPC1 Low Pin Count Interface Reserved for factory use
KBM1 Keyboard and Mouse Connector P20
MIO1 COM and Audio Expansion Card Connector P17
MPCIE1 Mini-PCIe Connector P19
MPCIE2 Mini-PCIe Connector P19
PCIEIO1 PCI/PCIE Expansion connector for PCI or PCIe

low prole card (PCIEIO1, on the backside)
PWR1 Right-angled SATA Power Connector P17
RST1 Reset Button P19
SATA1/SATA2 Serial-ATA Connector (SATA2 supports SATA-

DOM)
SATA_PW2 Switch for SATA port 2 power state P21
SATA_PWR1 SATA Power Connector P17
SIM1 SIM Card Reader P17
SPI1 Serial Peripheral Interface Bus Reserved for factory use
USB1/USB2/USB3 USB Type A Connector #0,1; #2,3; #4,5 P17
USB4 USB Pin Header P17
VGA1 VGA Port P18

Embedded and Industrial Computing

P20

P18

P16

14

Chapter 3

Board Layout

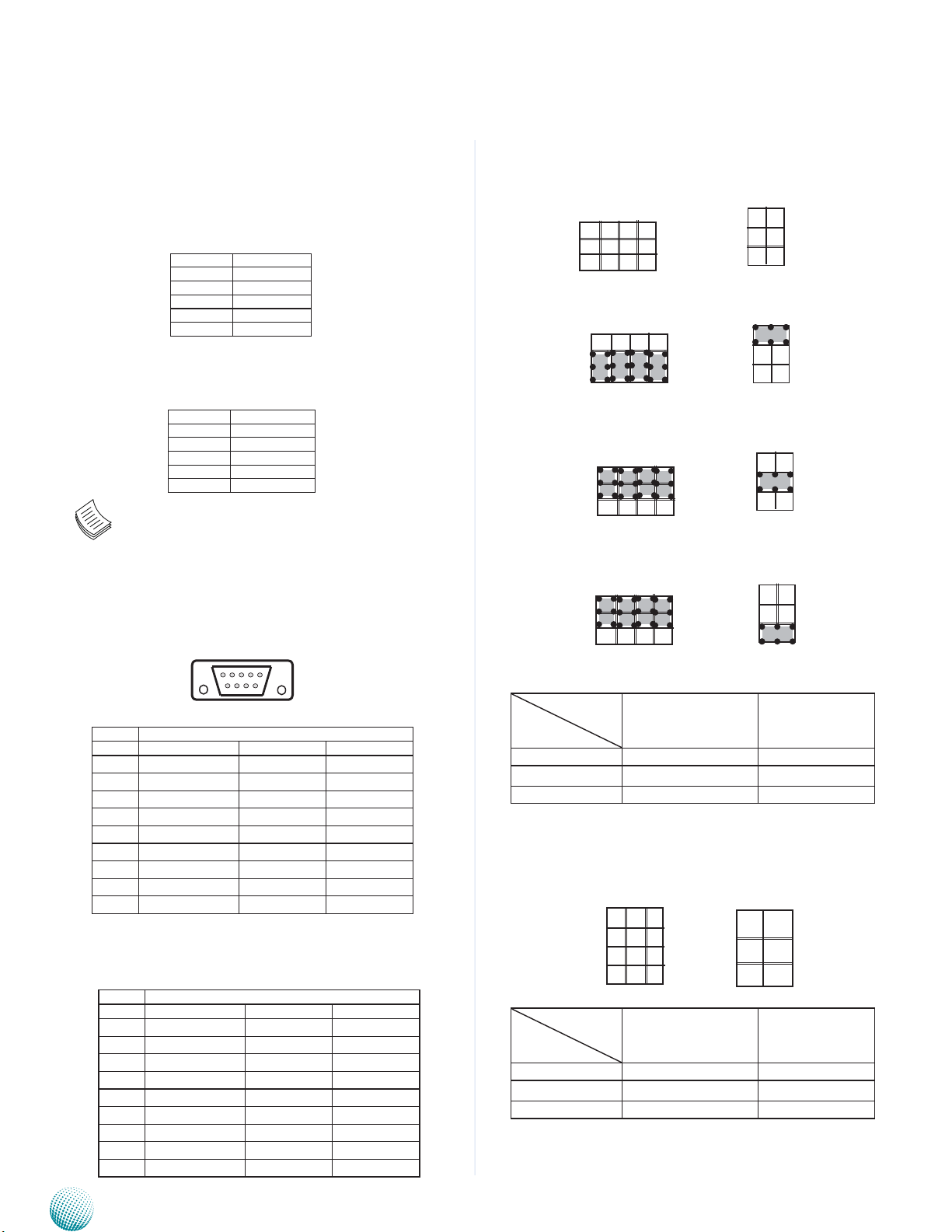

Jumper Settings

LEK-IOA2 Board

Microphone-in Audio Jack (CN1)

Pin No. Function

1 CO_GND
2 MIC_INL
3 CO_GND
4 INSULATOR
5 MIC_INR

Line-out Audio Jack (CN2)

Pin No. Function

1 CO_GND
2 LINOUT-L
3 CO_GND
4 INSULATOR
5 LINOUT- R

Note: The driver for the VGA and Audio ports
should be installed with the following order:
Chipset INF->Graphic->Audio

COM1 RS-232 Serial Port(COM1): It is a RS-232/422/485
port through the D-SUB9 connector.

12345

SCT1, SCT2: Select COM1 Protocol Setting

SCT2

SCT1

1
9
5
1

RS-232

9
5
1

RS-422

9
5
1

RS-485

9
5
1

12

8
4

12

8
4

12

8
4

12

8
4

3

5

1

3

5

1

3

5

1

3

5

2

4

6

2

4

6

2

4

6

2

4

6

6789

Pin No. Pin Name

RS-232 RS-422 RS-485

1 DCD TXD- DATA­2 RXD TXD+ DATA+
3 TXD RXD+
4 DTR RXD­5 GND
6 DSR
7 RTS
8 CTS
9 RI

RS-232/422/485 Serial Port(COM2): It is a RS-232/422/485
port through the D-SUB9 connector.

Pin No. Pin Name

RS-232 RS-422 RS-485

1 DCD TXD- DATA­2 RXD TXD+ DATA+
3 TXD RXD+
4 DTR RXD­5 GND
6 DSR
7 RTS
8 CTS
9 RI

Switch

SCT1 SCT2

Protocol

RS-232 (default) 1-5, 2-6, 3-7, 4-8 1-2

RS-422 5-9, 6-10, 7-11, 8-12 3-4
RS-485 5-9, 6-10, 7-11, 8-12 5-6

SCT3, SCT4: Select COM2 Protocol Setting

SCT3

1

2

3

4

Switch

9

10

11

12

SCT3 SCT4

SCT4

1

3

5

2

4

6

Protocol

RS-232 (default) 1-5, 2-6, 3-7, 4-8 1-2

RS-422 5-9, 6-10, 7-11, 8-12 3-4
RS-485 5-9, 6-10, 7-11, 8-12 5-6

Embedded and Industrial Computing

15

Chapter 3

Board Layout

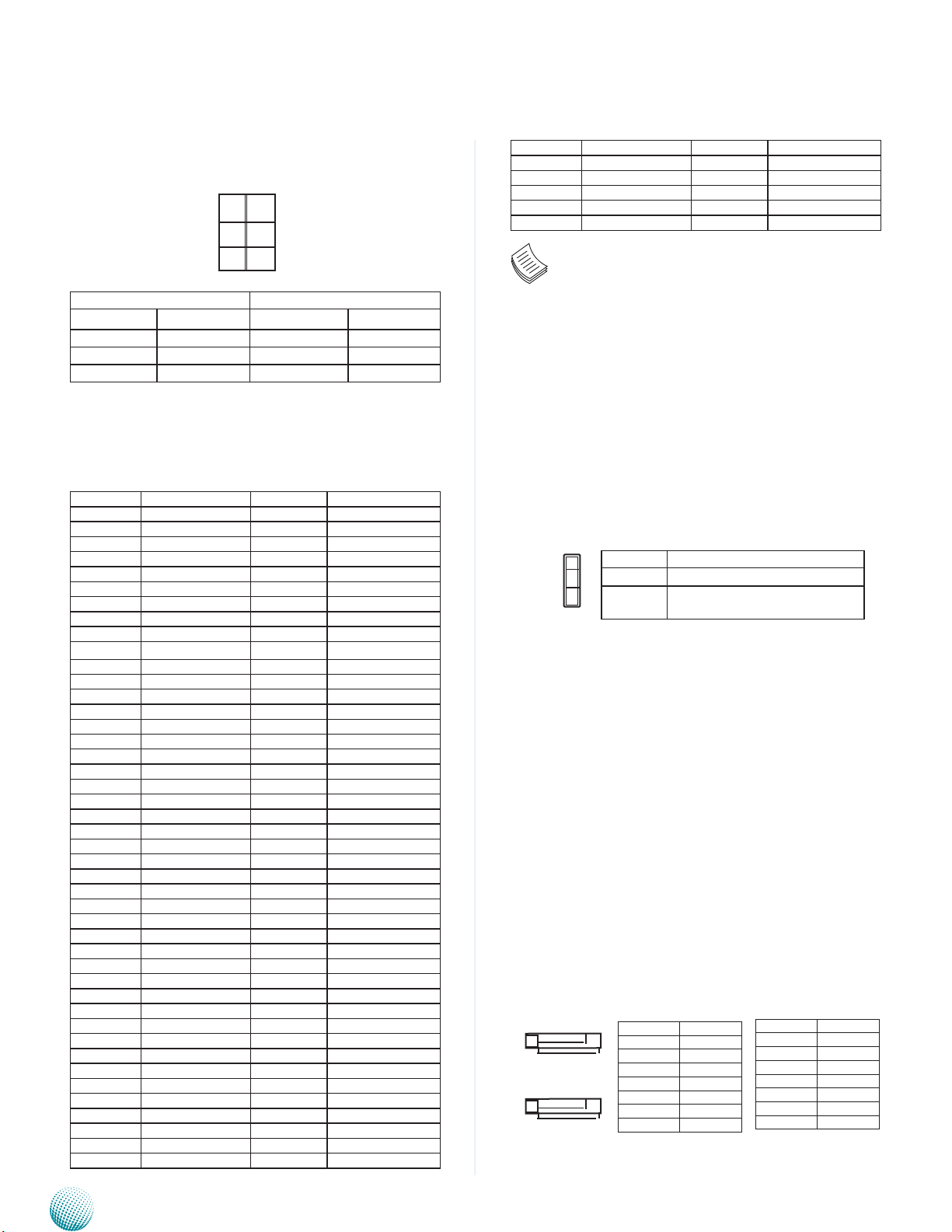

JP1, JP2: Select COM1 and COM2 Pin No9 (Ring Indicator)
function respectively

1

3

5

2

4

6

JP1 JP2

Pin Signal Pin Signal
1-2 VCC5 1-2 VCC5

3-4 VCC12 3-4 VCC12
5-6 SPI_RI 5-6 SPI_RI

MIO1 on the expansion card: Connector for connecting
the COM port and audio expansion board to the LEC-2280
main board.

PIN Pin Name PIN Pin Name

1 GND 51 HDA_BCLK
2 N/A 52 HDA_SYNC
3 N/A 53 HDA_RST
4 GND 54 HDA_SDIN0
5 N/A 55 HDA_SDO
6 N/A 56 SPK
7 GND 57 GND
8 VCC5 58 VCC3
9 VCC5 59 VCC3

10 N/A 60 N/A
11 GND 61 GND

12 N/A 62 N/A
13 N/A 63 N/A
14 N/A 64 N/A
15 N/A 65 N/A
16 N/A 66 N/A
17 N/A 67 N/A
18 GND 68 GND
19 N/A 69 N/A
20 N/A 70 N/A
21 GND 71 N/A
22 +12V 72 N/A
23 N/A 73 N/A
24 VCC5 74 N/A
25 VCC5 75 GND
26 VCC5 76 N/A
27 VCC5 77 N/A
28 GND 78 GND
29 N/A 79 N/A
30 N/A 80 N/A
31 N/A 81 N/A
32 N/A 82 N/A
33 GND 83 GND
34 N/A 84 COM1_DCD#
35 N/A 85 COM1_RI#
36 N/A 86 COM1_CTS#
37 N/A 87 COM1_DTR#
38 N/A 88 COM1_RTS#
39 N/A 89 COM1_DSR#
40 N/A 90 COM1_SOUT
41 N/A 91 COM1_SIN
42 GND 92 GND
43 N/A 93 COM2_DCD#
44 N/A 94 COM2_RI#

45 N/A 95 COM2_CTS#
46 N/A 96 COM2_DTR#
47 N/A 97 COM2_RTS#
48 N/A 98 COM2_DSR#
49 N/A 99 COM2_SOUT
50 N/A 100 COM2_SIN

Note: Daughter boards such as COM ports and
low-profile PCIe extension boards can only be
inserted to the mainboards with the same version.
Failure to do so may damage the system. The
board version is shown on top of the boards.

LEB-2280 Board

Clear CMOS jumper (CMOS1/CMOS2): It is for clearing
the CMOS data. CMOS 1clears CMOS data with real-time
clock (RTC) whereas CMOS2 clears CMOS data only.

1
2
3

Pin No. Pin Name

1-2 Normal (Default)
2-3 Clear CMOS and RTC (CMOS1)

Clear CMOS only (CMOS2)

To erase the CMOS data:

Turn off the computer and unplug the power cord.

Move the jumper cap from pins 1-2(default) to pins 1.
2-3. Keep the cap on pins 2-3 for about 5-10 seconds,
then move the cap back to pins 1-2.

Plug the power cord and turn on the computer.2.

Enter BIOS setup to re-enter data.3.

Serial-ATA Connector (SATA1/SATA2): It is for connecting
a 2.5’’ hard disk to be served as your system’s storage. It
can support SATA 3.0 which features Data transfer rates
up to 6.0 Gb/s (600 MB/s). SATA 2 connector also supports
SATA-DOM (the power line of SATA-DOM can be disabled
with a jumper on, see SATA_PW2).

1 2 3 4 5 6 7

SATA1

7 6 5 4 3 2 1

SATA2

Pin No. Function

1 GND
2 TX0_P
3 TX0_N
4 GND
5 RX0_N
6 RX0_P
7 GND

Pin No. Function

1 GND
2 TX1_P
3 TX1_N
4 GND
5 RX1_N
6 RX1_P
7 VCC5

Embedded and Industrial Computing

16

Chapter 3

Board Layout

The controller contains two modes of operation—a
legacy mode using I/O space, and an AHCI mode using
memory space. Software that uses legacy mode will not
have AHCI capabilities.

The AHCI ( Advanced Host Controller Interface) is a
programming interface which defines transactions
between the SATA controller and software and enables
advanced performance and usability with SATA. Platforms
supporting AHCI may take advantage of performance
features such as no master/slave designation for SATA
devices—each device is treated as a master—and
hardware assisted native command queuing. AHCI also
provides usability enhancements such as Hot-Plug.

Use the BIOS menu to configure your hard disk
to be AHCI compatible.

4-pin Serial-ATA Power Connector (PWR1/SATA_PW1):

It is for connecting the SATA power cable.

Pin No. Function

1 +12V

1 2 3 4

4 3 2 1

2 GND
3 GND
4 +5V

Dual USB 2.0 Port Connector #0 and #1 (USB1)

Dual USB 2.0 Port Connector #2 and #3 (USB2)

Dual USB 2.0 Port Connector #4 and #5 (USB3)

5 6 7 8

1 2 3 4

Pin No. Pin Name

1 VCCUSB
2 USB0N
3 USB0P
4 GND
5 VCCUSB1
6 USB1N
7 USB1P
8 GND

USB 2.0 Pin Header (USB4):

1

2

3

4

5

6

7

8

9

10

Pin No. Pin Name

1 VCCUSB10
3 N/A
5 USB10N
7 USB10P
9 GND

Pin No. Pin Name

2 GND
4 USB11P
6 USB11N
8 N/A

10 VCCUSB11

SIM Card Socket (SIM1):

C1 C3

C5 C7

Embedded and Industrial Computing

Pin No. Description

C1 UIM_PWR
C2 UIM_RST
C3 UIM_CLK
C5 GND
C6 UIM_VPP
C7 UIM_DAT

Front Panel Function Pin Header (FRONT1): It provides
LED signal and button function on the front panel.

10

Pin No. Pin Name Function Pin No. Pin Name Function

1 HD_LED+ HDD LED 2 PWR_LED+ Power LED
3 HD_LED- 4 PWR_LED­5 Reset System Reset
7 GND 8 GND

Button

9

8

7

6

5

4

3

2

1

6 POWER_BTN Power On/Off

Push Button

Mini PCI Express Connector (MIO1) on the mainboard:
COM and Audio Expansion Card Connector

PIN Pin Name PIN Pin Name

1 GND 51 HDA_BCLK
2 SATATXN2 52 HDA_SYNC
3 SATATXP2 53 HDA_RST
4 GND 54 HDA_SDIN0
5 SATARXN2 55 HDA_SDO
6 SATARXP2 56 SPK
7 GND 57 VCC3_SB
8 VCC3P3_PS 58 VCC3_SB
9 VCC3P3_PS 59 VCC3_SB

10 VCC3P3_PS 60 VCC3_SB
11 GND 61 VCC3_SB

12 PCIE_RXN5 62 PCIE_RXN6
13 PCIE_RXP5 63 PCIE_RXP6
14 PCIE_TXN5 64 PCIE_TXN6
15 PCIE_TXP5 65 PCIE_TXP6
16 PCIE_CKN5 66 PCIE_CKN6
17 PCIE_CKP5 67 PCIE_CKP6
18 IGN_DI2 68 IGN_DI1
19 PLTRST 69 SMBCLK_
20 WAKE_N 70 SMBDATA
21 DCIN_VCC 71 REMOTE_POWER_

22 VCC12_PS 72 3G_POWER_ON
23 VCC5_SB 73 USB_N12
24 VCC5_SB 74 USB_P12
25 VCC5 75 GND
26 VCC5 76 USB_N13
27 VCC5 77 USB_P13
28 GND 78 GND
29 DGOUT_0 79 DGIN_0
30 DGOUT_1 80 DGIN_1
31 DGOUT_2 81 DGIN_2
32 DGOUT_3 82 DGIN_3
33 GND 83 GND
34 COM3_DCD# 84 COM1_DCD#
35 COM3_RI# 85 COM1_RI#
36 COM3_CTS# 86 COM1_CTS#
37 COM3_DTR# 87 COM1_DTR#
38 COM3_RTS# 88 COM1_RTS#
39 COM3_DSR# 89 COM1_DSR#
40 COM3_SOUT 90 COM1_SOUT
41 COM3_SIN 91 COM1_SIN
42 GND 92 GND
43 COM4_DCD# 93 COM2_DCD#
44 COM4_RI# 94 COM2_RI#
45 COM4_CTS# 95 COM2_CTS#
46 COM4_DTR# 96 COM2_DTR#
47 COM4_RTS# 97 COM2_RTS#
48 COM4_DSR# 98 COM2_DSR#
49 COM4_SOUT 99 COM2_SOUT
50 COM4_SIN 100 COM2_SIN

ON

17

Chapter 3

Board Layout

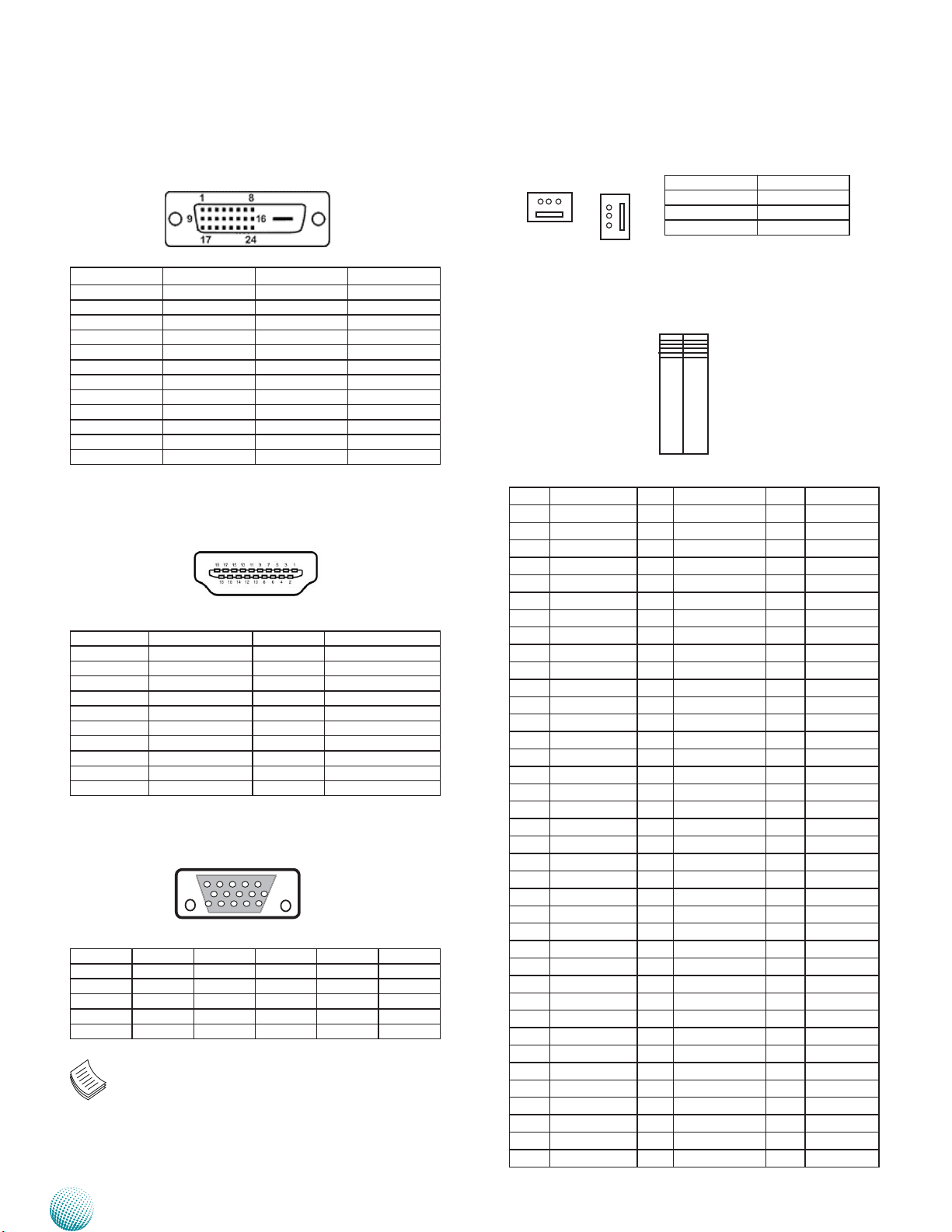

DVI-D Connector (DVID1): A single link DVI-D Connector

Pin No. Description Pin No. Description

1 TXD_2- 2 TXD_2+
3 GND 4 N/A
5 N/A 6 DDC_CLK
7 DDC_DATA 8 N/A

9 TXD_1- 10 TXD_1+
11 GND 12 N/A
13 N/A 14 VCC5
15 GND 16 HPD
17 TXD_0- 18 TXD_0+
19 GND 20 N/A
21 N/A 22 GND
23 TXD_CLK_P 24 TXD_CLK_N

HDMI Connector (HDMI1): An HDMI Connector

Pin No. Description Pin No. Description

1 HDMI_DATP2_P 2 GND
3 HDMI_DATP2_N 4 HDMI_DATP1_P
5 GND 6 HDMI_DATP1_N
7 HDMI_DATP0_P 8 GND

9 HDMI_DATP0_N 10 HDMI_CLK_P
11 GND 12 HDMI_CLK_N
13 N/A 14 N/A
15 HDMI_DDC_CLK 16 HDMI_DDC_DAT
17 GND 18 PHDMI
19 HDMI_HPD

VGA (VGA1)

5 4 3 2 1

15 14 13 12 11

Pin Signal Pin Signal Pin Signal

1 RED 6 CRT DET 11 N/A
2 GREEN 7 GND 12 DDC DAT
3 BLUE 8 GND 13 HSYNC
4 N/A 9 VCC5 14 VSYNC
5 GND 10 GND 15 DDC CLK

Note: The driver for the VGA and Audio ports
should be installed with the following order:
Chipset INF->Graphic->Audio

System FAN Connector (FAN1/FAN2)

FAN1

3 2 1

FAN2

Pin No. Description

3
2
1

1 GND
2 VCC5
3 FAN TAC

PCI/PCIE Expansion connector for PCI or PCIe low
prole card (PCIEIO1, on the backside)

1

159

2

160

PIN SIGNAL PIN SIGNAL PIN SIGNAL

1 VCC3P3_SB 53 PCIE_CKP1 105 PEG_RXP9
2 VCC5_SB 54 PCIE_TXP1 106 PEG_TXP9
3 VCC3P3_SB 55 PCIE_CKN1 107 GND
4 VCC5_SB 56 PCIE_TXN1 108 GND
5 N/A 57 GND 109 PEG_RXN8
6 N/A 58 GND 110 PEG_TXN8
7 VCC3P3_ 59 PEGACLKN 111 PEG_RXP8
8 V1P5 60 PEGBCLKN 112 PEG_TXP8

9 VCC3P3_ 61 PEGACLKP 113 GND
10 N/A 62 PEGBCLKP 114 GND
11 VCC3P3_ 63 GND 115 PEG_RXN7
12 VCC5 64 GND 116 PEG_TXN7
13 VCC3P3_ 65 GND 117 PEG_RXP7
14 VCC5 66 GND 118 PEG_TXP7
15 VCC3P3_ 67 PEG_RXN15 119 GND
16 VCC5 68 PEG_TXN15 120 GND
17 VCC3P3_ 69 PEG_RXP15 121 PEG_RXN6
18 VCC5 70 PEG_TXP15 122 PEG_TXN6
19 N/A 71 GND 123 PEG_RXP6
20 VCC5 72 GND 124 PEG_TXP6
21 GND 73 PEG_RXN14 125 GND
22 VCC5 74 PEG_TXN14 126 GND
23 N/A 75 PEG_RXP14 127 PEG_RXN5
24 N/A 76 PEG_TXP14 128 PEG_TXN5
25 +12V 77 GND 129 PEG_RXP5
26 GND 78 GND 130 PEG_TXP5
27 +12V 79 PEG_RXN13 131 GND
28 GND 80 PEG_TXN13 132 GND
29 +12V 81 PEG_RXP13 133 PEG_RXN4
30 CLKRQ1 82 PEG_TXP13 134 PEG_TXN4
31 +12V 83 GND 135 PEG_RXP4
32 CLKRQ2 84 GND 136 PEG_TXP4
33 N/A 85 PEG_RXN12 137 GND
34 GND 86 PEG_TXN12 138 GND
35 PLTRST 87 PEG_RXP12 139 PEG_RXN3
36 SMBCLK 88 PEG_TXP12 140 PEG_TXN3
37 WAKE_N 89 GND 141 PEG_RXP3
38 SMBDATA 90 GND 142 PEG_TXP3

Embedded and Industrial Computing

18

Chapter 3

Board Layout

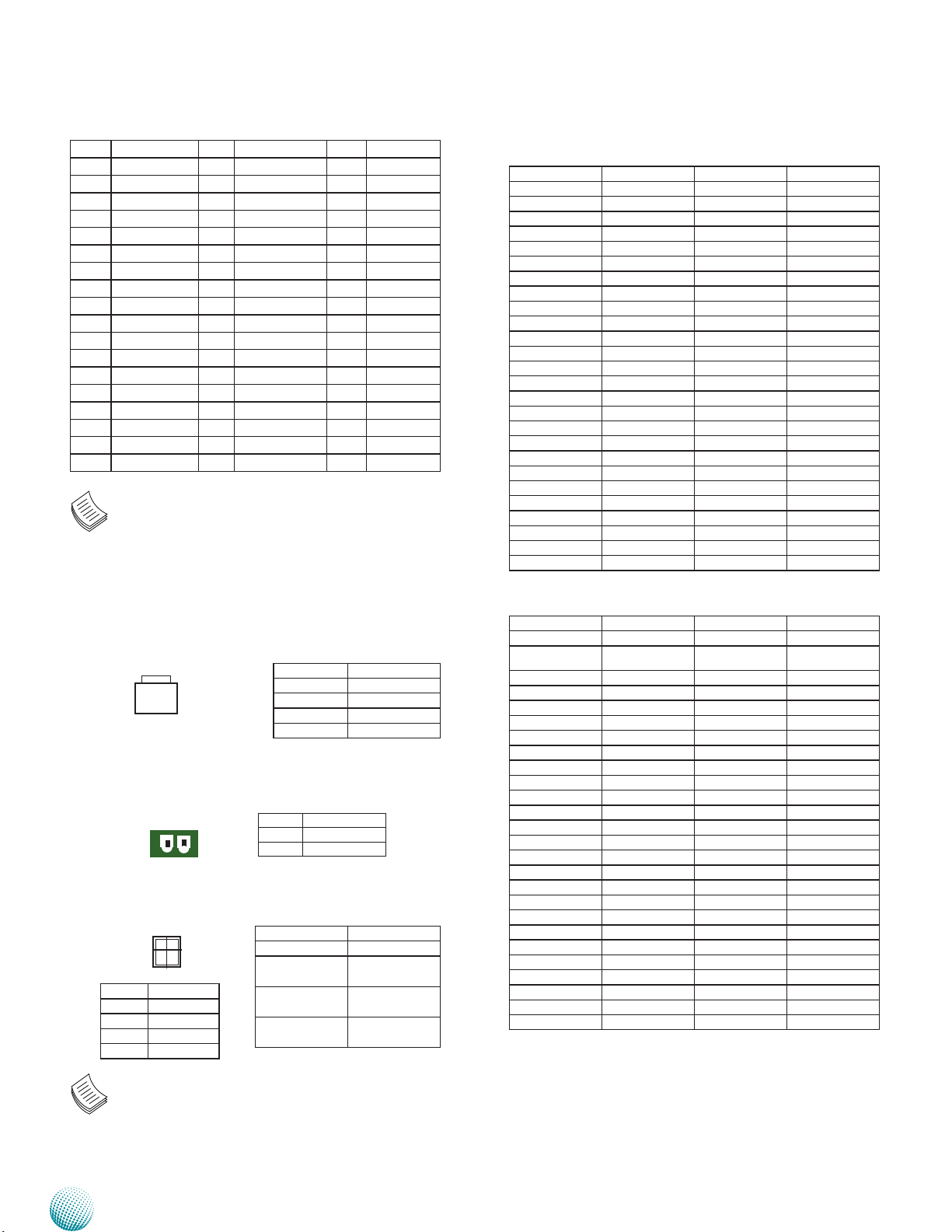

PIN SIGNAL PIN SIGNAL PIN SIGNAL

39 GND 91 PEG_RXN11 143 GND
40 GND 92 PEG_TXN11 144 GND
41 PCIE_RXN2 93 PEG_RXP11 145 PEG_RXN2
42 PCIE_CKN2 94 PEG_TXP11 146 PEG_TXN2
43 PCIE_RXP2 95 GND 147 PEG_RXP2
44 PCIE_CKP2 96 GND 148 PEG_TXP2
45 GND 97 PEG_RXN10 149 GND
46 GND 98 PEG_TXN10 150 GND
47 PCIE_RXP1 99 PEG_RXP10 151 PEG_RXN1
48 PCIE_TXN2 100 PEG_TXP10 152 PEG_TXN1
49 PCIE_RXN1 101 GND 153 PEG_RXP1
50 PCIE_TXP2 102 GND 154 PEG_TXP1
51 GND 103 PEG_RXN9 155 GND
52 GND 104 PEG_TXN9 156 GND

157 PEG_RXN0
158 PEG_TXN0
159 PEG_RXP0
160 PEG_TXP0

Note: Daughter boards such as COM ports and
low-profile PCIe extension boards can only be
inserted to the mainboards with the same version.
Failure to do so may damage the system. The
board version is shown on top of the boards.

Reset Button (RST1)

Pin NO. Description

2
4

1
3

1 RST_BTN
2 GND
3 GND
4 N/A

DC_IN CONNECTOR (CN4): A Phoenix connector for
external power supply.

1 2

Pin No. Pin Name

1 GND
2 DC_VIN

J1(PEG 16X lane Configuration): PCI/PCIe (PCIEIO1)
expansion connector signal selection

1

2

3

4

Pin No. Signal

1 GND
2 H_CFG5
3 GND
4 H_CFG6

Pin Lane

All Off x16

1-2 ON

3-4 Off (default)

1-2 OFF

3-4 ON
1-2 ON
3-4 ON

x8, x8

Reserved

x8, x4, x4

MPCIE1: Mini-PCIe Connector with SIM Card Reader

Pin Signal Pin Signal

1 WAKE# 2 VCC3.3
3 N/A 4 GND
5 N/A 6 VCC1.5
7 CLKREQ# 8 USIM_PWR

9 GND 10 UIM_DATA
11 PCIE_CLK_N3 12 UIM_CLK
13 PCIE_CLK _P3 14 UIM_RESET
15 GND 16 UIM_VPP
17 RSV 18 GND
19 RSV 20 N/A
21 GND 22 PLTRST
23 PCIE_RX_N3 24 VCC3.3
25 PCIE_RX_P3 26 GND
27 GND 28 VCC1.5
29 GND 30 SMBCLK
31 PCIE_TX_N3 32 SMBDATA
33 PCIE_TX_P3 34 GND
35 GND 36 USB_N8
37 GND 38 USB_P8
39 VCC3.3 40 GND
41 VCC3.3 42 N/A
43 GND 44 N/A
45 RSV 46 N/A
47 RSV 48 VCC1.5
49 RSV 50 GND
51 RSV 52 VCC3.3

MPCIE2: Mini-PCIe Connector

Pin Signal Pin Signal

1 WAKE# 2 VCC3.3

3 N/A 4 GND

5 N/A 6 VCC1.5

7 CLKREQ# 8 N/A

9 GND 10 N/A
11 PCIE_CLK _N4 12 N/A
13 PCIE_CLK _P4 14 N/A
15 GND 16 N/A
17 RSV 18 GND
19 RSV 20 N/A
21 GND 22 PLTRST
23 PCIE_RX_N4 24 VCC3.3
25 PCIE_RX_P4 26 GND
27 GND 28 VCC1.5
29 GND 30 SMBCLK
31 PCIE_TX_N4 32 SMBDATA
33 PCIE_TX_P4 34 GND
35 GND 36 USB_N9
37 GND 38 USB_P9
39 VCC3.3 40 GND
41 VCC3.3 42 N/A
43 GND 44 N/A
45 RSV 46 N/A
47 RSV 48 VCC1.5
49 RSV 50 GND
51 RSV 52 VCC3.3

Note: For PEG riser card, PEG lanes is reversed for
layout limited

Embedded and Industrial Computing

19

Chapter 3

Board Layout

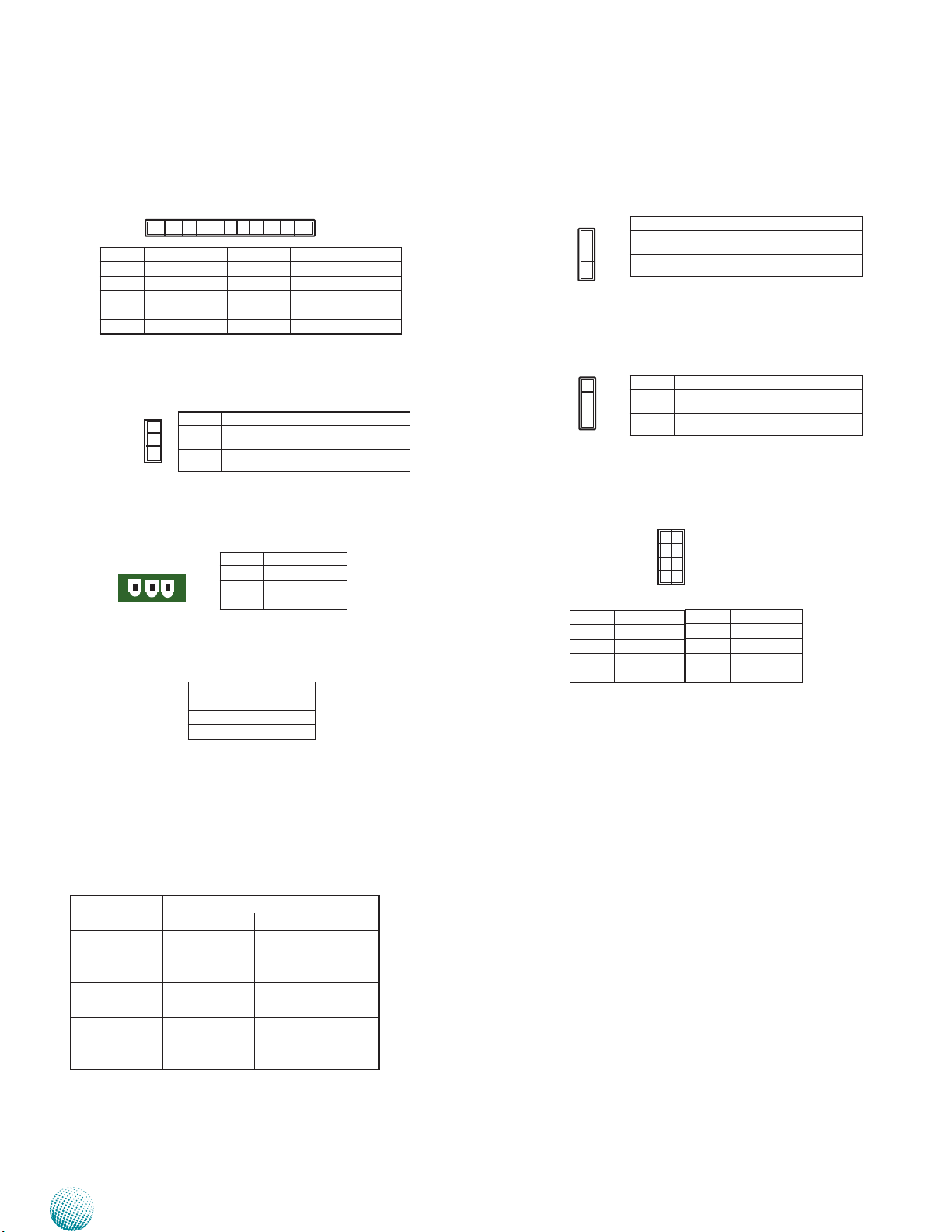

Ignition Connector on board (ignition1): Power
ignition connector.

1 2 3 4 10

Pin No. Pin Name Pin No. Pin Name

1 DCIN_VCC 6 DC2DC_PWROK
2 DC_VIN 7 COM5_SIN
3 GND 8 SOUT
4 SYS_PWROK 9 PWR_BTN_IGN
5 DC2DC_EN 10 IGNITION

SATA_PW2: A switch for supply of SATA Connector II’s
power.

1
2
3

Pin No. Pin Name

1-2 SATAII Connector without power

2-3 SATA II Connector with 5V power

CN3 (optional): An optional power connector with
power -ignition Control

1 2 3

Pin No. Pin Name

1 Ignition
2 GND
3 DC_VIN

DCJK1 (Optional): An optional DC Jack type of Power
Connector

Pin No. Pin Name

1 DC_VIN
2 GND
3 GND

Enable or Disable Daughter Board LEK-IOA3 (COMSLT1):
This jumper is for enabling or disabling the COM3, COM4
ports on daughter board LEK-IOA3.

1
2
3

Pin No. Pin Name

1-2 Disable

2-3 Enable

Enable or Disable Daughter Board LEK-IG1 (COMSLT2):
This jumper is for enabling or disabling the COM5, COM6
ports on daughter board LEK-IG1.

1
2
3

Pin No. Pin Name

1-2 Disable

2-3 Enable

Keyboard and Mouse Connector (KBM1)

1

2

3

4

5

6

7

8

Pin No. Pin Name

1 VCC5
3 MDATA
5 KDATA
7 GND

Pin No. Pin Name

2 MCLK
4 NC
6 NC
8 KCLK

LAN1/LAN2 Ports (LAN1/LAN2): The LAN ports are
provided by Intel 82574L Ethernet controller whose
interface complies with PCI-e 1.1 (2.5 Ghz). It has advanced
management features including IPMI pass-through via
SMBus or NC-SI, WOL, PXE remote boot, ISCSI boot and
VLAN filtering.

Pin No. Description

Fast Ethernet Gigabit Ethernet
1 TX+ BI_DA+
2 TX- BI_DA­3 RX+ BI_DB+
4 -- BI_DC+
5 -- BI_DC­6 RX- BI_DB­7 -- BI_DD+
8 -- BI_DD-

Embedded and Industrial Computing

20

Chapter 4

Hardware Setup

Chapter 4:
Hardware Setup

Preparing the Hardware Installation

To access some components and perform certain service
procedures, you must perform the following procedures
first.

WARNING: To reduce the risk of personal injury,

electric shock, or damage to the equipment,
remove the power cord to remove power from
the server. The power switch button does not
completely shut off system power. Portions of the
power supply and some internal circuitry remain
active until power is removed.

Unpower the LEC-2280 and remove the power cord.1.

Unscrew the 4 threaded screws from the top cover.2.

Open the cover.3.

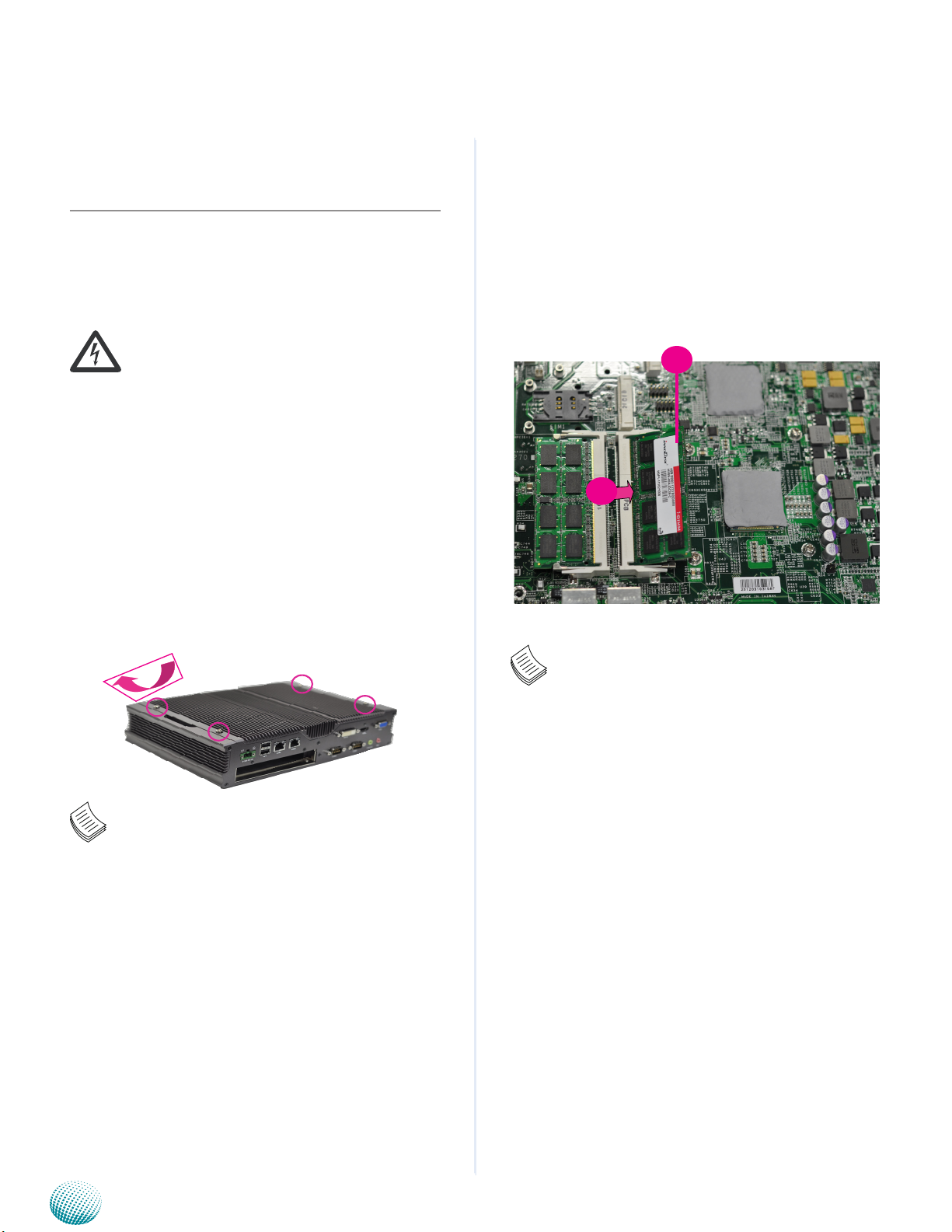

Installing the System Memory

The motherboard supports DDR3 memory to meet the
higher bandwidth requirements of the latest operating
system and Internet applications. It comes with two
Double Data Rate Three (DDR3) Small Outline Dual Inline
Memory Module (SO-DIMM) socket.

Align the memory module’s cutout with the SO-DIMM 1.
socket’s notch.

Install the SO-DIMM.2.

2

1

Note:

If the CPU thermal pad mounting breaks apart,

use your hands to reattach the falling parts and

stick them together.

Note:

The system can support memory of DDR3 SO­DIMM up to 16 GB in maximum with 2 SO-DIMM
sockets.

Embedded and Industrial Computing

21

Chapter 4

Hardware Setup

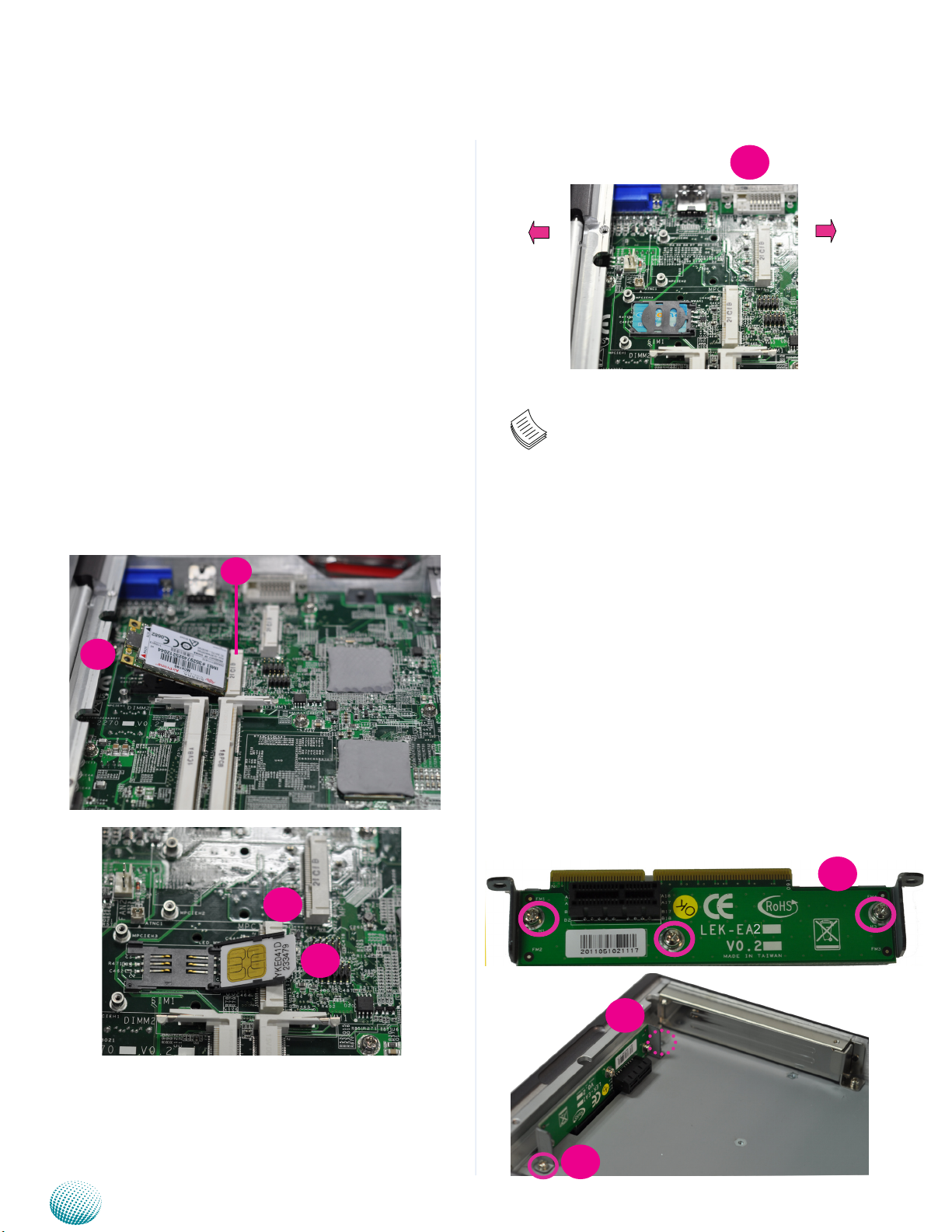

Wireless Module Installation

Align the wireless module’s cutout with the Mini-PCIe 1.
slot notch.

Insert the wireless module into the connector 2.
diagonally.

Hold down the other end of the wireless module and 3.
tighten it with the screws.

3G SIM Card Installation

Unlink the SIM card reader first by sliding it outward.1.

Flip the SIM card reader diagonally.2.

Align the cut corner of the SIM card pointing toward 3.
SIM card reader. Make sure the ICs will be in contact
with the SIM card reader.

Insert the 4. SIM card into the reader and close the tray.
You should feel a click when the SIM card is locked
securely in the SIM card reader.

2

3

4

Lock

Note: To remove the SIM card, slide the card
reader outward to unlock it.

Unlock

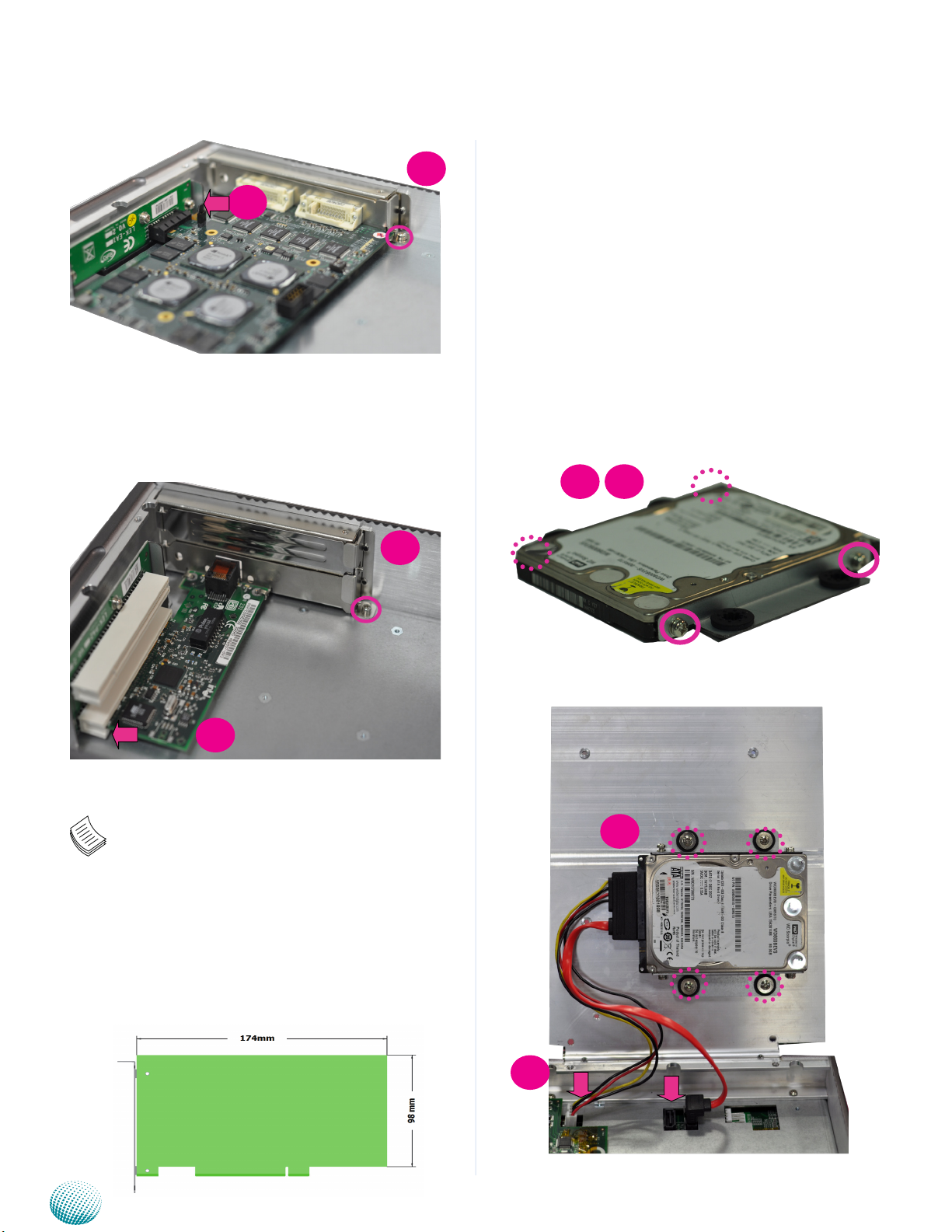

PCI/PCIe Riser Card Installation

The system can accommodate one PCIe expansion (or two
PCI expansion on model P2) module. In order the install
the PCIe expansion module, a low-profile riser card has
to be installed first. Follow these steps to install the riser
card:

Fix the riser card on the bracket with 3 screws.1.

Install the riser card to the system by connecting the 2.
connectors with the system’s PCIEIO1 connector.

Fix the riser card on the board.3.

Connect the PCIe expansion card to the riser.4.

Fix the card holder back to the system.5.

On 2280E with one PCIe slot

1

2

3

2

3

Embedded and Industrial Computing

22

Chapter 4

Hardware Setup

4

On 2280P2 with 2 PCI slot

5

Installing the Hard Disk

The system can accommodate one Serial-ATA disk. Follow
these steps to install a hard disk into the system:

Take out the hard disk tray and fix the hard disk on 1.
the tray with 4 mounting screws as illustrated in the
following picture.

Plug the Serial-ATA cable to the hard disk.2.

Place the hard disk back to the system’s chassis and fix 3.
it with the mounting screws.

Connect the Serial-ATA power and data disk cables to 4.
the Serial-ATA power and disk connectors on the main
board respectively.

2

1

5

4

Note: Using a PCIe or PCI riser card, users have
choice of either PCI Express x1 or PCI expansions.

1 PCIe is supported on model LEC-2280E1.
2 PCI are supported on model LEC-2280P22.
Both PCI or PCIe support the Max. Dimension 3.
as the following illustrated and the Max.
Power consumption reserved for expansion is

25W in total.
Daughter boards such as COM ports and 4.
low-profile PCIe extension boards can only
be inserted to the mainboards with the same
version. The board version is shown on top of
the boards.

5.

3

4

Embedded and Industrial Computing

23

Chapter 4

Hardware Setup

Connecting Power

Connect the LEC-2280 to a +9~+30V DC-in power source.
The DC power-in connector comes with a 2-pin terminal
block for its Phoenix contact. This power socket can only
accept the power supply with the right pin contact so be
cautious when inserting power to the system.

DC IN

– +

Wall Mounting

The product ships with wall mounting kit. To mount your
product on the wall, follow the instructions below:

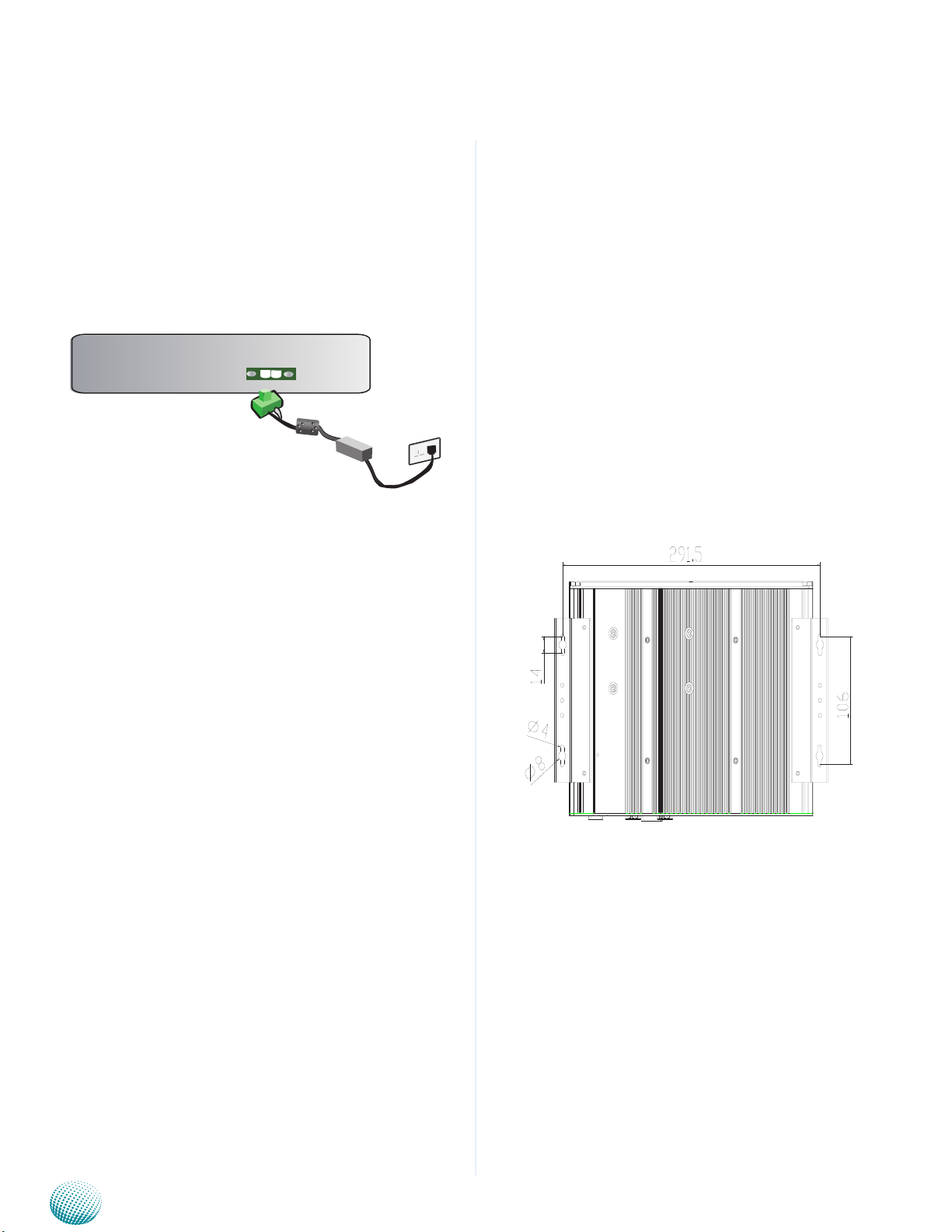

First make a hole for the anchor in the surface on the 1.
wall. Use the following diagram as a guideline for
placing the anchors.

Then press the anchor into the hole until it is flush with 2.
the surface. You may need a hammer to tap the wall
anchor.

Use a screwdriver to screw the threaded screw into the 3.
plastic anchor.

Attach the wall mounting bracket to the back of the 4.
device, securing it in place with four of the flat-head
screws provided.

Hang the device on the wall.5.

Embedded and Industrial Computing

Unit: mm

24

Appendix A

Appendix A:
Programming System
Watchdog Timer

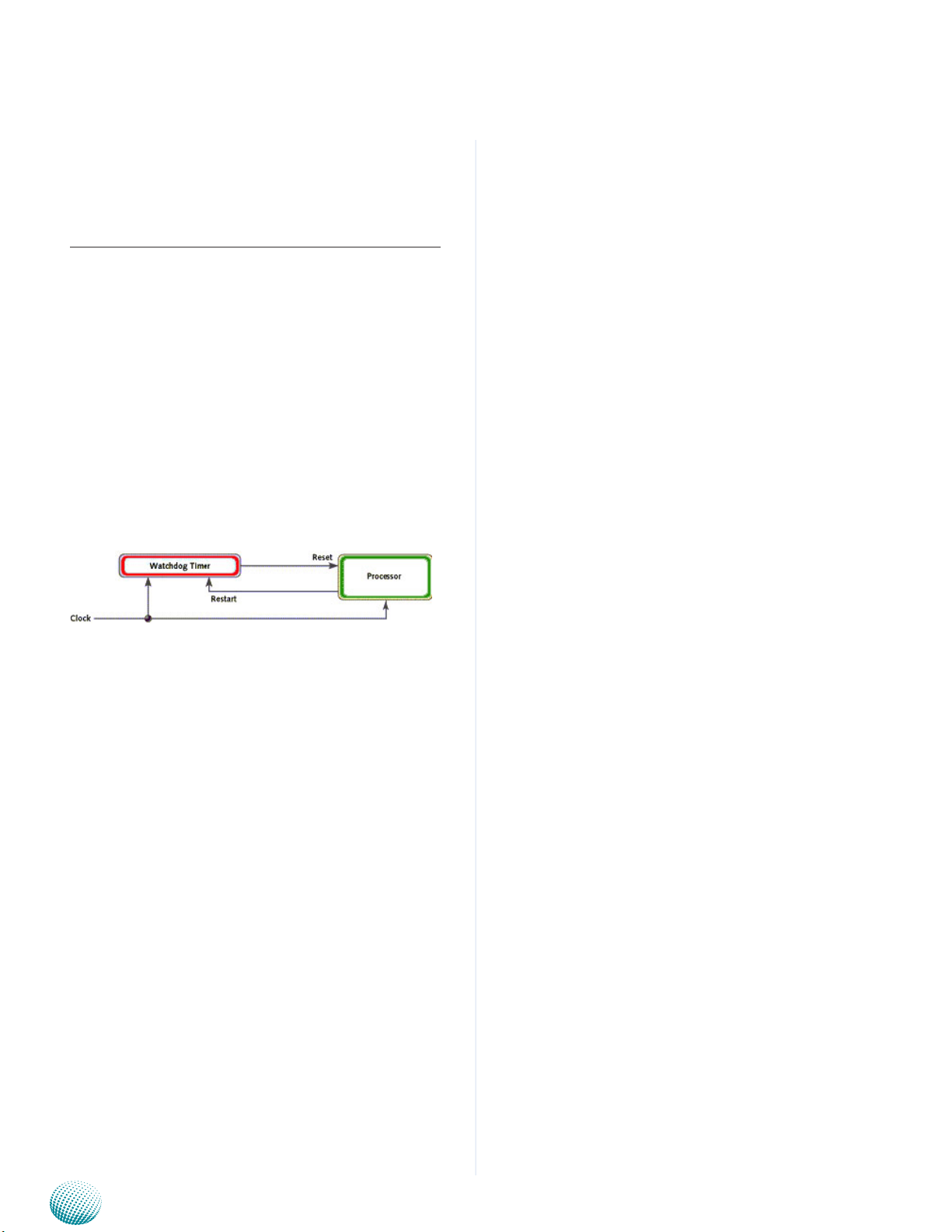

A watchdog timer is a piece of hardware that can be
used to automatically detect system anomalies and reset
the processor in case there are any problems. Generally
speaking, a watchdog timer is based on a counter that
counts down from an initial value to zero. The software
selects the counter’s initial value and periodically restarts
it. Should the counter reach zero before the software
restarts it, the software is presumed to be malfunctioning
and the processor’s reset signal is asserted. Thus, the
processor will be restarted as if a human operator had
cycled the power.

For sample watchdog code, see watchdog folder under
LEC-2280 Utility in the Driver and Manual CD

Programming Watchdog Timer

Executing through the Command Line:

Execute the WD.EXE file under DOS (WD.EXE and
CWSDPMI.EXE should be placed in the same directory),
then enter the values from 0~255. The system will reboot
automatically according to the time-out you set.

Embedded and Industrial Computing

25

Appendix B

Terms and Conditions

Appendix B:
Terms and Conditions

Warranty Policy

All products are under warranty against defects in 1.
materials and workmanship for a period of one year
from the date of purchase.

The buyer will bear the return freight charges for 2.
goods returned for repair within the warranty period;
whereas the manufacturer will bear the after service
freight charges for goods returned to the user.

The buyer will pay for repair (for replaced components 3.
plus service time) and transportation charges (both
ways) for items after the expiration of the warranty
period.

If the RMA Service Request Form does not meet the 4.
stated requirement as listed on “RMA Service,” RMA
goods will be returned at customer’s expense.

The following conditions are excluded from this 5.
warranty:

RMA Service

Requesting a RMA#

To obtain a RMA number, simply fill out and fax the 1.
“RMA Request Form” to your supplier.

The customer is required to fill out the problem code 2.
as listed. If your problem is not among the codes listed,
please write the symptom description in the remarks
box.

Ship the defective unit(s) on freight prepaid terms. Use 3.
the original packing materials when possible.

Mark the RMA# clearly on the box. 4.

Note: Customer is responsible for shipping

damage resulting from inadequate/loose packing
of the defective unit(s). All RMA# are valid for 30
days only; RMA goods received after the effective
RMA# period will be rejected.

Improper or inadequate maintenance by the customer,
unauthorized modification, misuse, or reversed
engineering of the product Operation outside of the
environmental specifications for the product.

Embedded and Industrial Computing

26

Appendix B

RMA Service Request Form

When requesting RMA service, please fill out the following form. Without
this form enclosed, your RMA cannot be processed.

RMA No:

Reasons to Return: Ŀ Repair(Please include failure details)
Ŀ Testing Purpose

Company: Contact Person:

Phone No. Purchased Date:

Fax No.: Applied Date:

Return Shipping Address:
Shipping by: Ŀ Air Freight Ŀ Sea Ŀ Express ___
Ŀ Others:________________

Item Model Name Serial Number Configuration

Item Problem Code Failure Status

*Problem Code:
01:D.O.A.
02: Second Time
R.M.A.
03: CMOS Data Lost
04: FDC Fail
05: HDC Fail
06: Bad Slot

07: BIOS Problem
08: Keyboard Controller Fail
09: Cache RMA Problem
10: Memory Socket Bad
11: Hang Up Software
12: Out Look Damage

13: SCSI
14: LPT Port
15: PS2
16: LAN
17: COM Port
18: Watchdog Timer

19: DIO
20: Buzzer
21: Shut Down
22: Panel Fail
23: CRT Fail
24: Others (Pls specify)

Request Party

Confirmed By Supplier

Authorized Signature / Date Authorized Signature / Date

Terms and Conditions

Embedded and Industrial Computing

27
