Thank you for choosing the LEC-2260. The LEC-2260 is a
compact embedded system featuring Intel i3 or Celeron
processors. The system equips with three video output
interfaces: DVI-D, HDMI and VGA. In addition, it also
supports dual RCA ports for both line-in and line-out left
and right connection.
The LEC-2260 answers the demand for versatile I/O
interfaces by offering the following functions:
Supporting the latest memory technology with 2 DDR3 •
SO-DIMM sockets for a maximum capacity of 16GB
Audio and video displays powered by Realtek ALC886- •
GR and Intel HD Graphics Engine respectively
Two 10/100/1000 Mbps LAN •
USB x 6 (2 by internal pin header) and COM x 2 •
1 hard disk bay for 2.5" SATA/SSD installation •
Totally 4 serial ports: Two of them are DB9 connector •
type and support hardware auto flow control with
jumper settings to switch among RS232/422/485; the
other two are provided via pin headers and support
only RS-232
Dual Mini-PCIe Socket (One of them comes with a SIM •
card reader for 3G wireless Internet connection.) to
extend the capability for Wi-Fi or Bluetooth
Supporting distant power-on switch through terminal •
block type
System Specification
Dimensions (WxHxD)
277.65x59x175mm (10.93” x 2.32”
x 6.89”)
Processor
Intel Celeron 807UE
Chipset
Intel HM65
System
Memory
Technology
DDR3 1066/1333/1600MHz SODIMM
x2
Max. Capacity Up to 16GB
Storage
IDE 1 x CF socket
SATA 2.5” HDD/SSD drive bay x1
Ethernet Controller
Intel 82583Vx2
Graphic Controller
Intel® integrated HD Graphics Engine
IO
LAN GbE RJ45 x2
Display
Dual Display
VGA(2048x1536)/HDMI/DVI-D
(1920x1200)
Serial I/O
DB9 x4 for RS232 x2 and
RS232/422/485 x2
Digital I/O
1 x female DB9 for DI x4 and DO x4
(5V TTL)
USB 2.0 Type A x4; Internal x2
Power Input 2-pin Phoenix contact
Expansion
Half-size Mini-PCIe x1
Mini-PCIe x1(with a SIM card reader)
Others
External: Power-on button, Power-on
switch, reset.
Internal: PS/2 keyboard and mouse
Power Input
+18~36Vdc, ATX mode
AC Adapter
Hardware Monitor
Fintek F81865
To monitor voltages & temperature for
CPU & System
OS Support
Linux kernel 2.6 or later, Windows
7/XP/XP Embedded/7 embedded
Certications
CE, FCC Class A
Operating
Temperature
Range
With Industrial
Components
LEC-2260A:-20~55°C, LEC-2260B:-
20~45°C
With Commercial
Components
LEC-2260A:-5~45°C, LEC-2260B:-5-
~40°C
Ordering Information
LEC-2260A
Intel® Celeron® 847E 1.1GHz CPU support, DDR3
SODIMM x2, w/ 4 COM, DVI-D/VGA/HDMI, LAN x2, DIDO
(4 in, 4 out), Audio, +24V DC input
LEC-2260B
Intel® CoreTM i3-2310E 2.1GHz CPU support, DDR3
SODIMM x2, w/ 4 COM, DVI-D/VGA/HDMI, LAN x2, DIDO
(4 in, 4 out), Audio, +24V DC input
Page 5
4
Introduction
Chapter 1
Embedded and Industrial Computing
Package Contents
Your package contains the following items:
LEC-2260 Fanless Embedded System •
Serial-ATA/Power Cable (P/N: 080W1N0002001) •
Drivers and User’s Manual CD (P/N: S09OADA23H010) •
Power Adapter (P/N: 0P0W060240A01) •
Optional Accessories
The system has a variety of optional accessories including
the power cords and Wi-Fi or 3G modules for extended
capabilities. For details of these modules, visit:
http://www.lannerinc.com/products/all-purpose-boxcomputers/lec-2260
Page 6
5
System Components
Chapter 2
Embedded and Industrial Computing
Chapter 2:
System Components
System Drawing

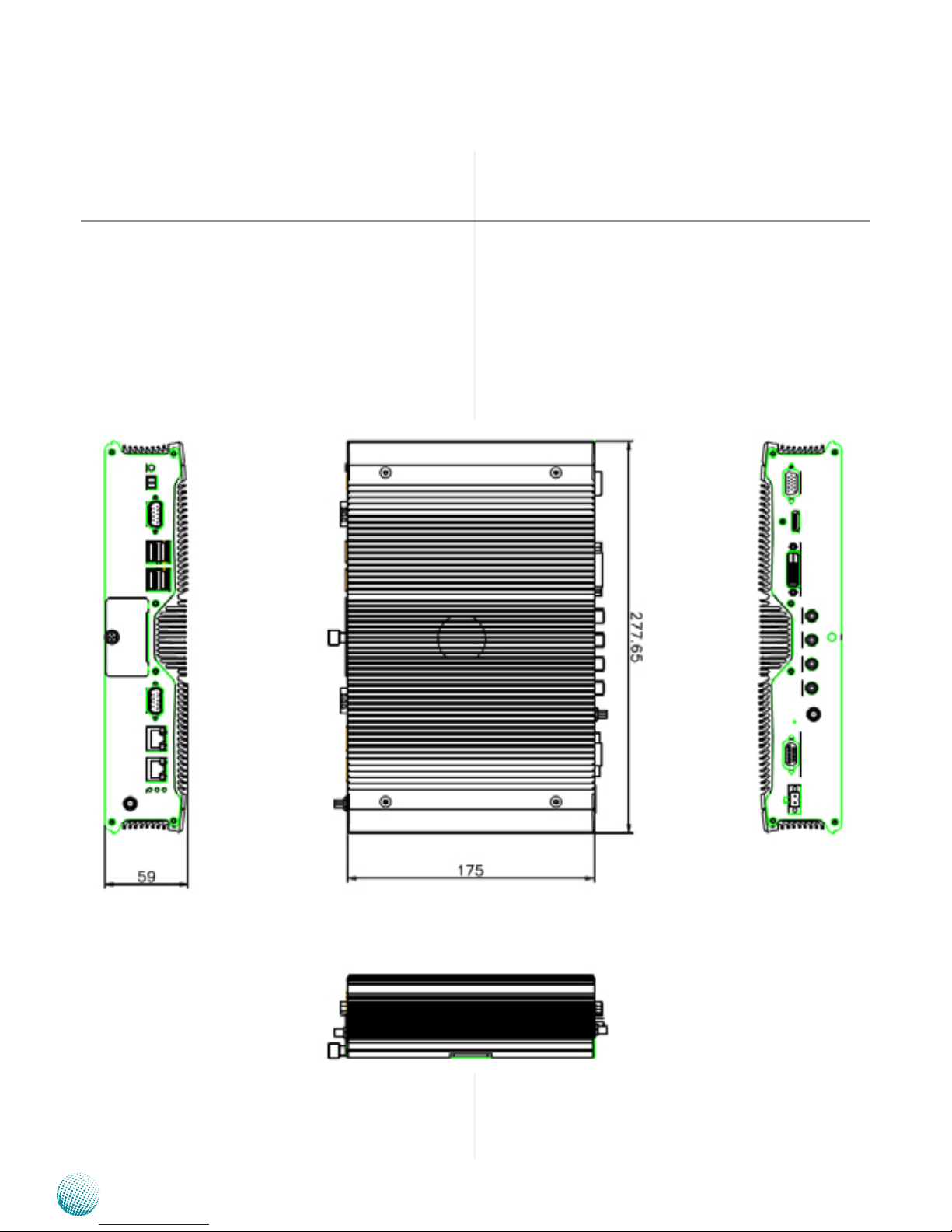

Mechanical dimensions of the LEC-2260
Unit: mm
Page 7
6
System Components
Chapter 2
Embedded and Industrial Computing

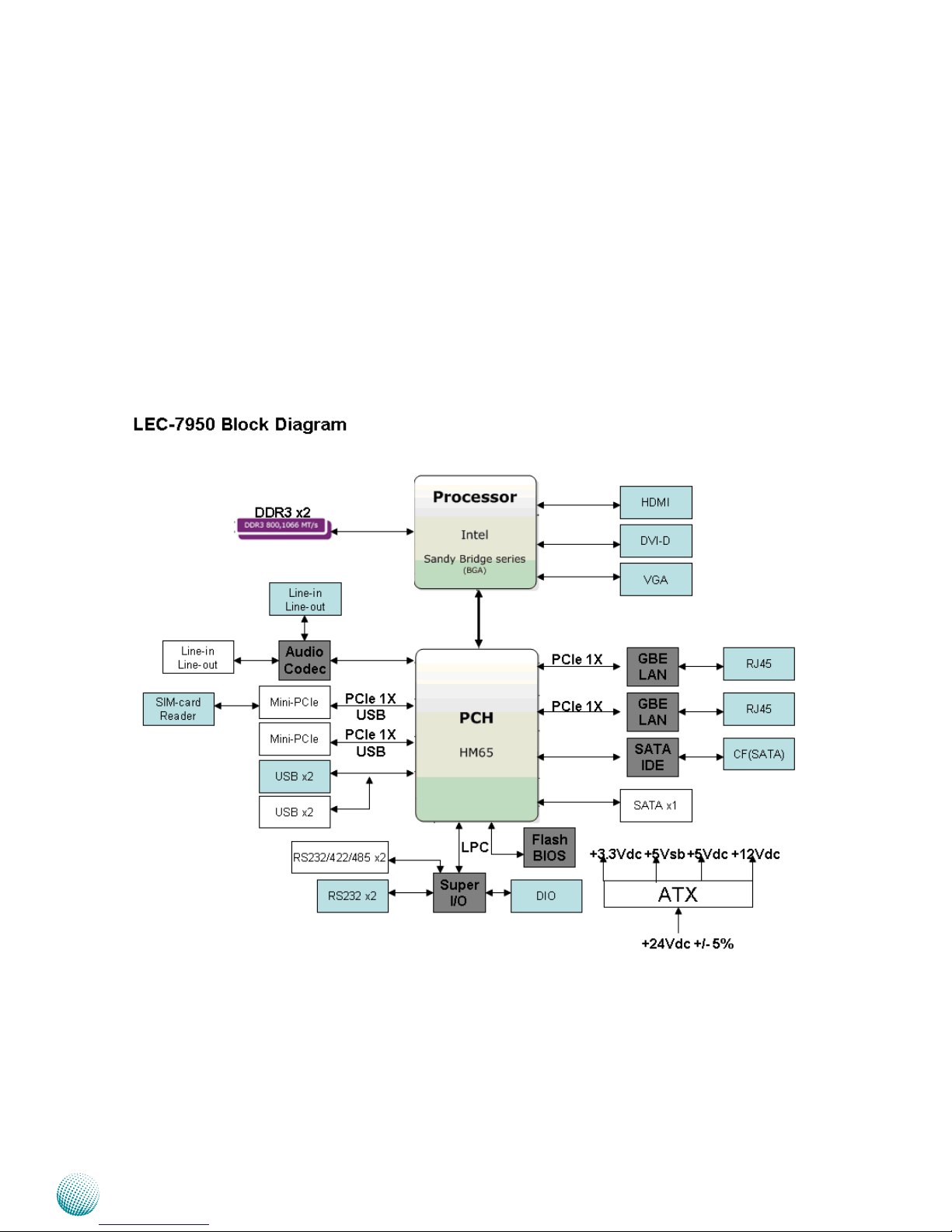

Block Diagram
The block diagram depicts the relationships among the
interfaces and modules on the motherboard..
Page 8
7
System Components
Chapter 2
Embedded and Industrial Computing
Component Description Pin Definition
Reference
F1 Power Button with dual LED ATX Power-on button with LEDs: Standby mode in
Red; Power-on mode in Green
PBT1 on page 15
F2 Power-on Switch A power-on switch through the terminal block for
distant power-on/off control
J1 on page 16
F3 Serial Port COM1 and COM2,
COM3 and COM4
Serial ports through the DB-9 connector; both
COM1 and COM2 support RS-232/422/485 with
jumper and BIOS menu selection among RS232/422/485. They also support hardware auto
flow control. COM3 and COM4 support only
RS-232.
CN3/CN4 on page 12
J7/J8 on page 13
F4 Dual USB 2.0 Ports An USB type A connector. USB1 on page 17
F5 Two 10/100/1000Mbps LAN
ports
Two RJ-45 (network) jacks with LED indicators as
described below. Both LAN ports are provided by
Intel 82583V. The 82583V supports PXE remote
boot
LINK/ACT (Yellow)
On/Flashing: The port is linking and active in •
data transmission.
Off: The port is not linking.•
SPEED (Green/Amber)
Amber: The connection speed is 1000Mbps.•
Green: The connection speed is 100Mbps•
Off: The connection speed is 10Mbps.•
LAN1/LAN2 on page
15
F6 Power LED (Green)
Status (Green)
HDD (Yellow)
HDD
Blinking: data access activities•
Off: no data access activities•
Status
A programmable dual green/orange LED which
can be used for indicating system status.
Power
On: The computer is on.•
Off: The computer is off .•

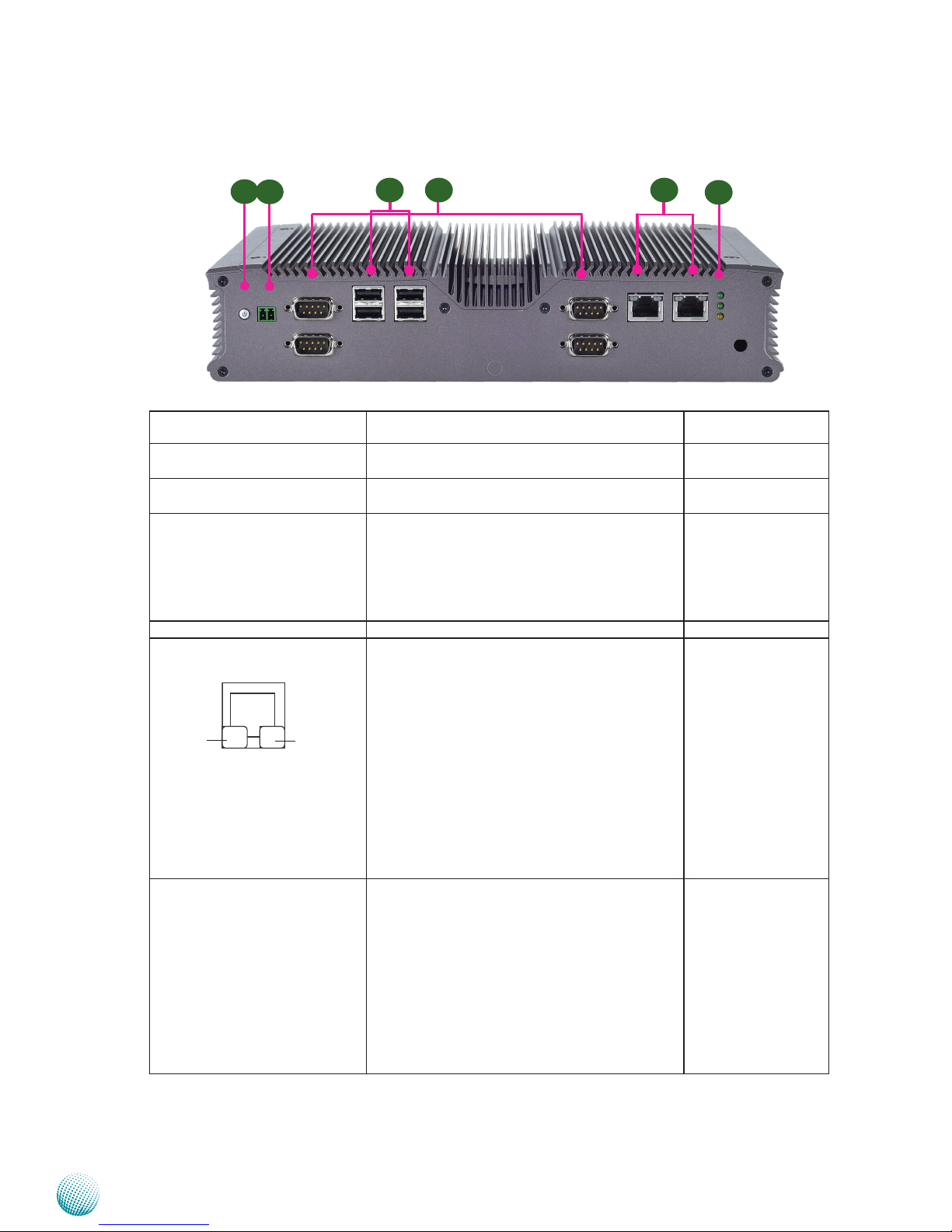

Front Components
SPEED LINK/ACT
F2
F5F4
F1
F3
F6
COM2COM1
COM4COM3
Page 9
8
System Components
Chapter 2
Embedded and Industrial Computing

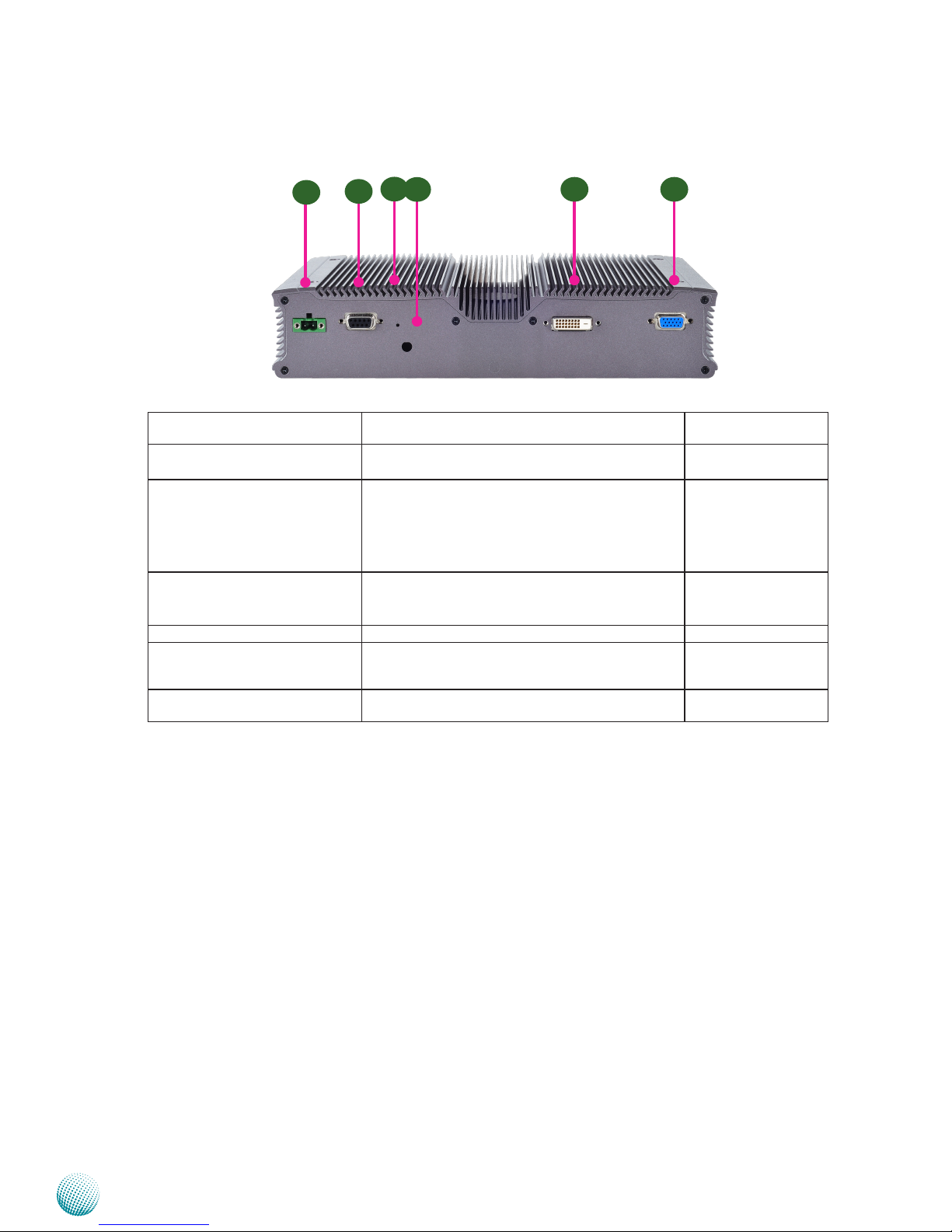

Rear Components
R2
R1
Component Description Pin Definition
Reference
F1 DC-In (power) 1x2 Pin Phoenix
Contact Connector
Power-in Connector. The LEC-2260 supports power
input of +24V DC-in.
CN1 on page 15
F2 DIO Port The general-purpose input/output1 (GPIO)
peripheral provides dedicated general-purpose
pins. The digital input helps triggering between
open and closed circuit such as PIRs, door/window
contact, glass break detector. And the output can
connect to devices such as relays and LEDs.
CN2 on page 15
F3 Reset Switch A hardware reset switch. Use a pointed object to
press it 5 seconds then release it to reset the system
without turning off the power.
RST1 on page 15
F4 Antenna Hole Reserved for antenna
F5 DVI-D A DVI-D port (single link) which is provided by
Intel HD Graphic Engine. This port can support up
to 1920x1200 @ 60 Hz resolution.
DVID1 on page 15
F6 VGA Port The displays can support VGA up to 2048x1536
resolution.
VGA1 on page 15
R5 R6
R3
R4
Page 10
9
Board Layout
Chapter 3
Embedded and Industrial Computing
Chapter 3:
Board Layout
External Connectors

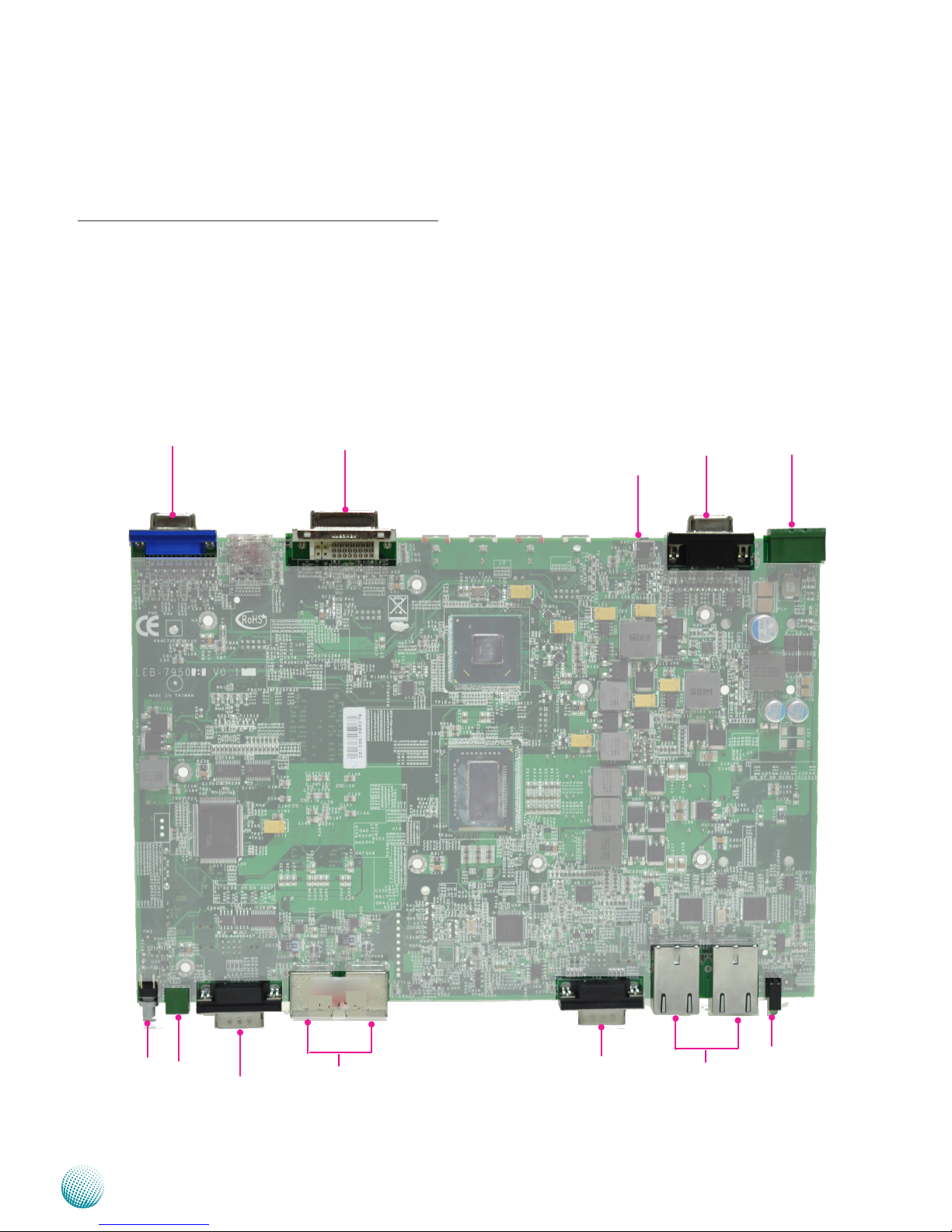

The following picture highlights the location of system
input/output connectors. Refer to the table 3.2 Connector
List for more details.
DVID1
VGA1
PBT1
J1
CN3
USB1/USB2
CN4
LAN1/LAN2
LED1
CN2
CN1
RST1
Page 11
10
Board Layout
Chapter 3
Embedded and Industrial Computing
Internal Connectors and Jumpers

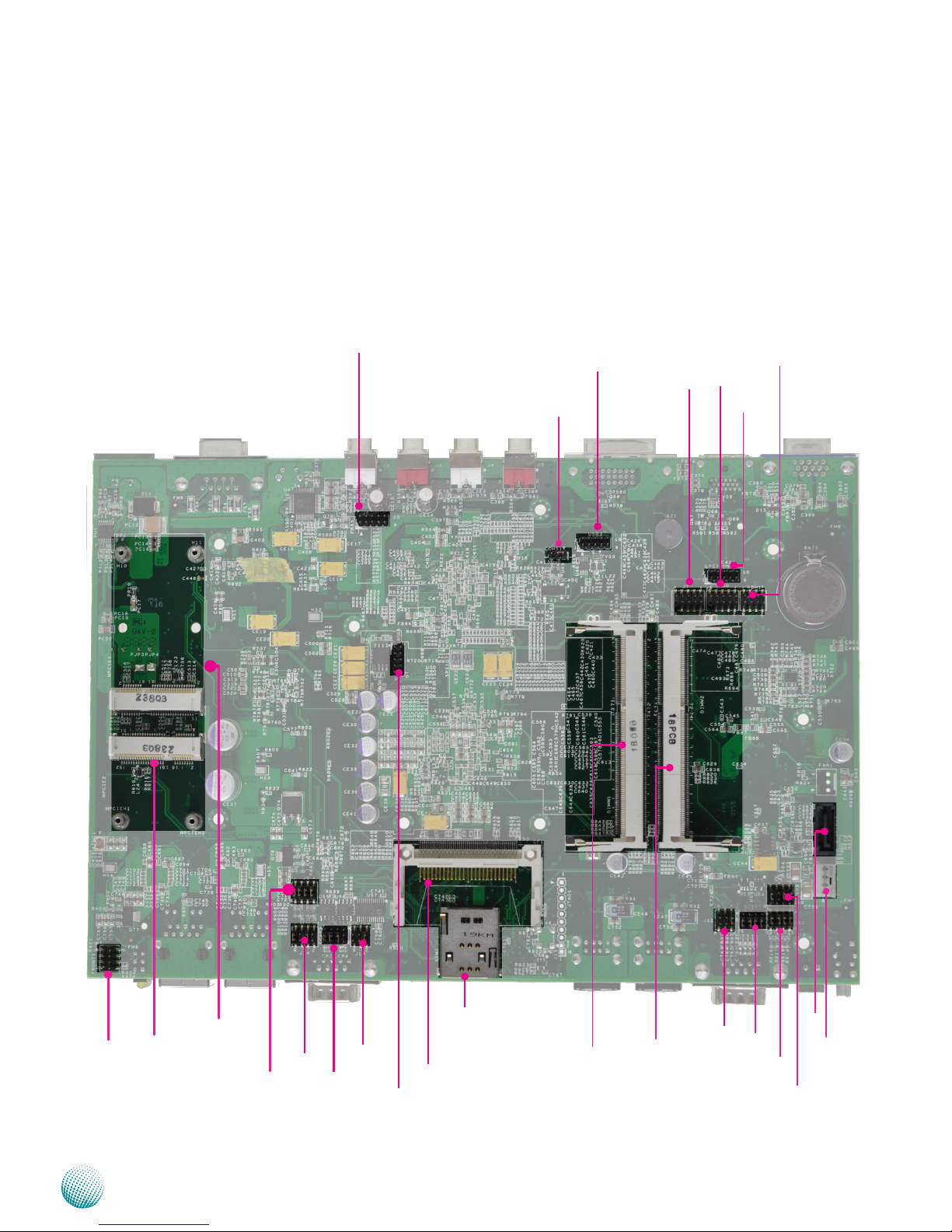

The following picture highlights the location of internal
connectors and jumpers. Refer to the table 3.2 Connector
List for more details.
LEB-2260
DIMM1
J12
SIM1
J7
DIMM2
J10
J6
MPCIE2 SC2T1
FRONT1
J11
SATA_PW1
SATA1
SC2T2
LPC1
KBM1
SPI1
J14
J9
CMOS1
CF1
USB3
MPCIE1
J8
J13
Page 12
11
Board Layout
Chapter 3
Embedded and Industrial Computing
Connectors and Jumpers List
The tables below list the function of each of the board
jumpers and connectors by labels shown in the above
section. The next section in this chapter gives pin
definitions and instructions on setting jumpers.
Table 3.2 Connector List for LEB-2260 Board
Labels Function Pin Denition Reference
Page
CMOS1 Cleaning CMOS data including RTC P14
CN1 DC-in Connector P15
CN2 DIO Connector P15
CN3 COM1 P12
CN4 COM2 P12
DVID1 DVI-D Connector P15
FRONT1 Front Panel Function Pin Header P14
J1 External Power Button P16
J7 COM3 P12
J8 COM4 P12
J6 Audio Connector P16
KBM1 Keyboard and Mouse P14
LAN1/LAN2 Ethernet Connector 1/Ethernet Connector 2 P15
LPC1 Low Pin Count Interface Reserved for factory use
MPCIE1 Mini-PCIe Connector (with SIM Card Reader) P16
MPCIE2 Half-size Mini-PCIe Connector P16
PBT1 Power Button Connector P15
RST1 Reset Button P15
SATA_PW1 SATA Power Connector P14
SATA1 Serial-ATA Connector P14
SIM1 SIM Card Reader P14
SPI1 Serial Peripheral Interface Bus Reserved for factory use
USB1/USB2/USB3 USB Type A Connector #0,1; #2,3; #4,5 P14
USB4 USB Pin Header P14
VGA1 VGA Port P15
Page 13
12
Board Layout
Chapter 3
Embedded and Industrial Computing

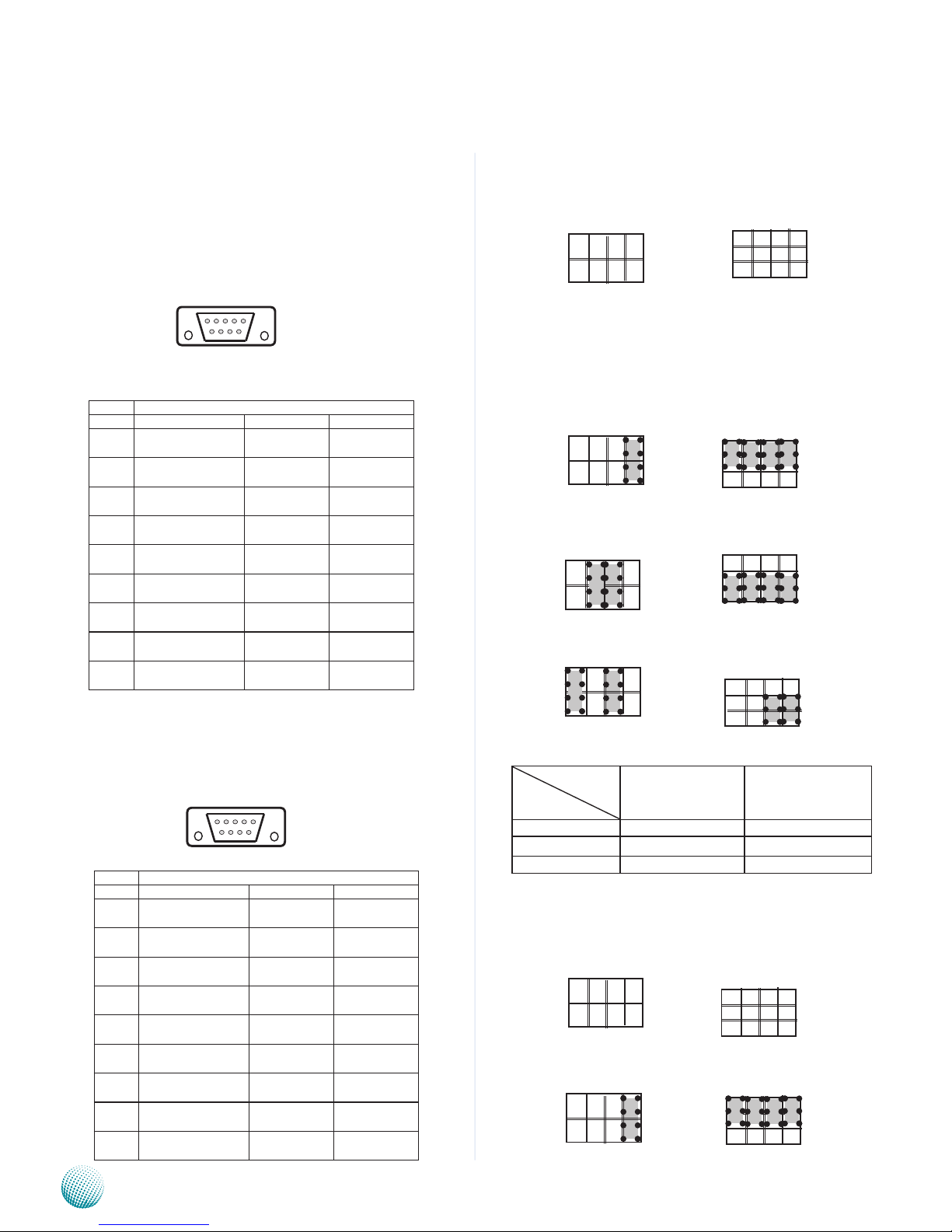

J10, SC2T1: Select COM1 Protocol Setting
RS-232
RS-422
RS-485
Switch
Protocol
J10 SC2T1
RS-232 (default) 1-2, 1-5, 2-6, 3-7, 4-8
RS-422 3-4, 5-6 5-9, 6-10, 7-11, 8-12
RS-485 3-4, 7-8 5-9, 6-10
J14, SC2T2: Select COM2 Protocol Setting
RS-232
Jumper Settings
COM1 RS-232/422/485 Serial Port (CN3): It is a RS232/422/485 port through the D-SUB9 connector.
COM2 RS-232/422/485 Serial Port(CN4): It is a RS232/422/485 port through the D-SUB9 connector.
J10
1
2
6789
12345
Pin No. Pin Name
RS-232 RS-422 RS-485
1 Data Carrier Detect
(DCDA # )
TXD- DATA-
2 Receive Data
(RXDA )
TXD+ DATA+
3 Transmit Data
(TXDA )
RXD+
4 Data Terminal Ready
(DTRA # )
RXD-
5 Ground
(GND )
6 Data Set Ready
(DSRA # )
7 Request To Send
(RTSA # )
8 Clear To Send
(CTSA # )
9 Ring Indicator
(RIA # )
6789
12345
Pin No. Pin Name
RS-232 RS-422 RS-485
1 Data Carrier Detect
(DCDA # )
TXD- DATA-
2 Receive Data
(RXDA )
TXD+ DATA+
3 Transmit Data
(TXDA )
RXD+
4 Data Terminal Ready
(DTRA # )
RXD-
5 Ground
(GND )
6 Data Set Ready
(DSRA # )
7 Request To Send
(RTSA # )
8 Clear To Send
(CTSA # )
9 Ring Indicator
(RIA # )
7
8
SC2T1
4
8
12
1
5
9
1
2
7
8
J14
SC2T2
4
8
12
1
5
9
Page 14
13
Board Layout
Chapter 3
Embedded and Industrial Computing
RS-422
RS-485
Switch
Protocol
SCT3 SCT4
RS-232 (default) 1-2 1-5, 2-6, 3-7, 4-8
RS-422 3-4, 5-6 5-9, 6-10, 7-11, 8-12
RS-485 3-4, 7-8 5-9, 6-10
J11, J9: Select Termination in RS-485 for COM1 and COM2
respectively. We strongly recommend that you disable
termination when the port is configured as RS-232 and
enable it when the port is configured as RS-485/RS-422.
Pin No. Function
1-2, 3-4, 5-6, 7-8 Termination TX, RX
on
Termination off
J12, J13 : Select COM1 and COM2 Pin No9 (Ring Indicator)
function respectively
JP1
Pin Signal
1-2 RI
3-4 5V
5-6 12V

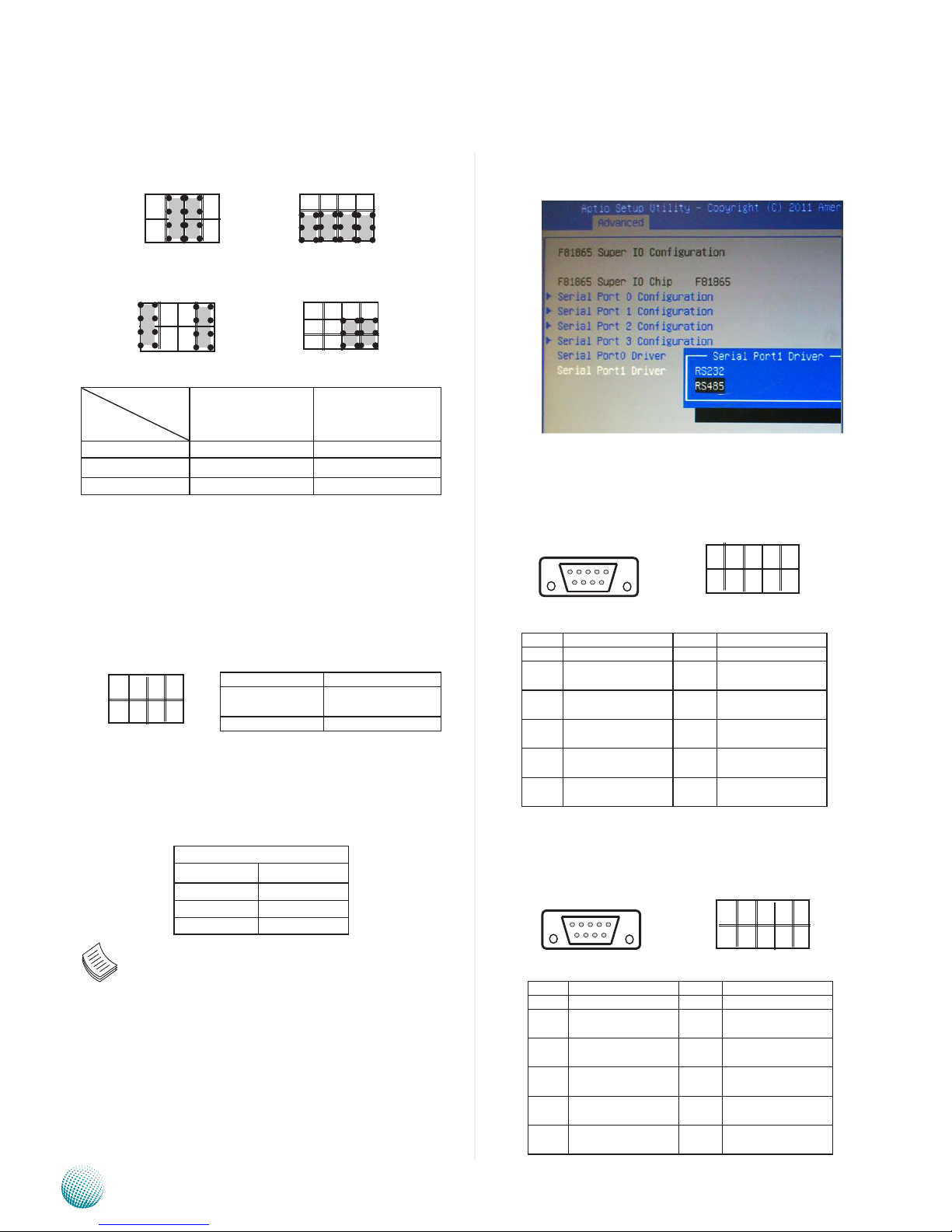

Note: Besides jumper settings, you should also
select the communication protocol in the BIOS as
shown in the following picture, select Advanced
->F81865 SuperIO Configuration->Serial Port 0/1
Driver->RS232 or RS485
COM3 RS-232 Serial Port (J8)
COM4 RS-232 Serial Port (J7)
1
2
7
8
J9 (COM2), J11(COM1)
Pin No. Pin Name Pin No. Pin Name
RS-232
1 Data Carrier Detect
(DCDA # )
6 Clear to send
(CTS)
2 Data Set Ready
(DSRA # )
7 Data Terminal Ready
(DTR )
3 Receive Data
(RXD)
8 Ring Indicator
(RI)
4 Request to send
(RTS )
9 GND
5 Transmit Data
(TXD)
1
2
9
10
1
2
9
10
Pin No. Pin Name Pin No. Pin Name
RS-232
1 Data Carrier Detect
(DCDA # )
6 Clear to send
(CTS)
2 Data Set Ready
(DSRA # )
7 Data Terminal Ready
(DTR )
3 Receive Data
(RXD)
8 Ring Indicator
(RI)
4 Request to send
(RTS )
9 GND
5 Transmit Data
(TXD)
6789
12345
6789
12345
Page 15
14
Board Layout
Chapter 3
Embedded and Industrial Computing

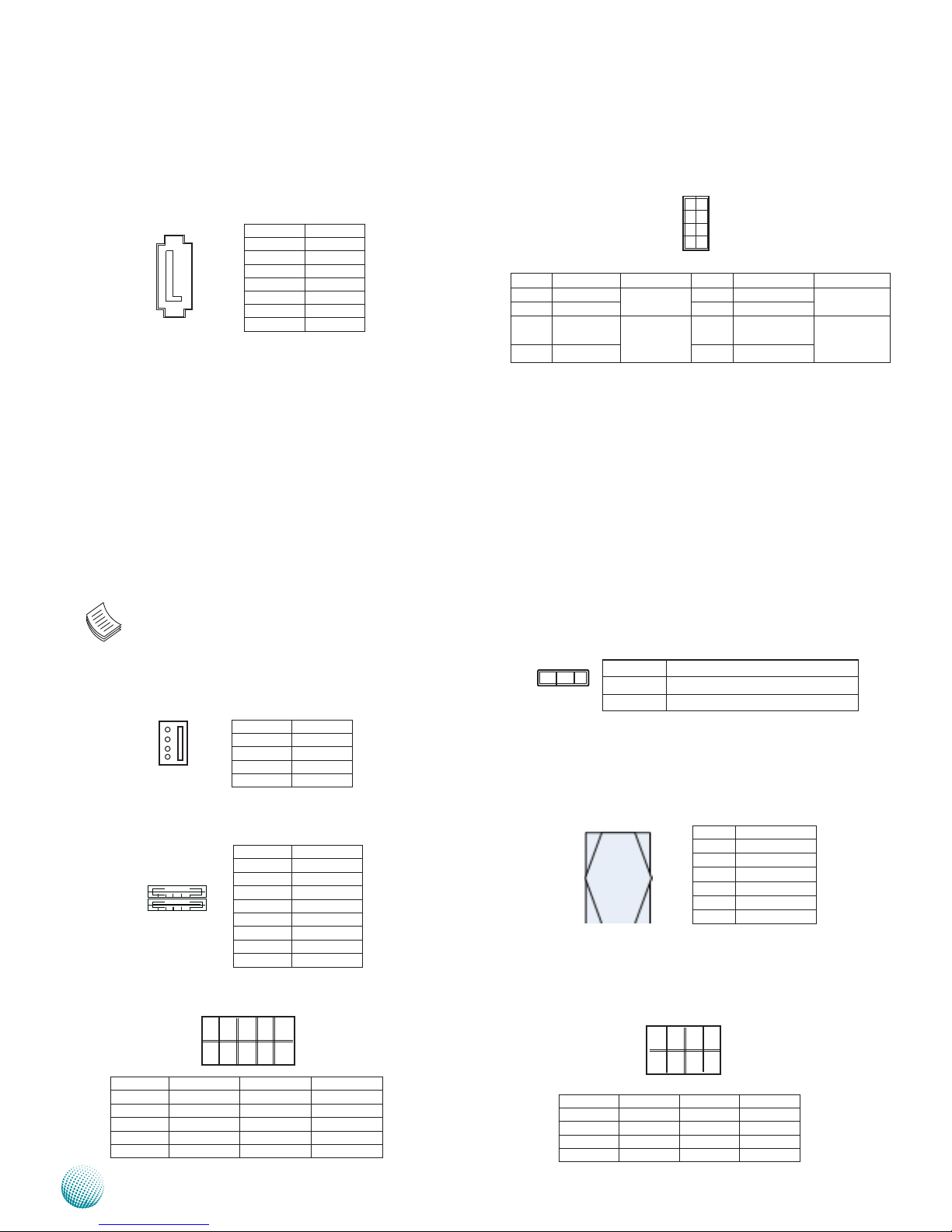

Front Panel Function Pin Header (FRONT1): It provides
LED signal and button function on the front panel.
Clear CMOS jumper (CMOS1): It is for clearing the CMOS
data.
To erase the CMOS data:
Turn off the computer and unplug the power cord.
Move the jumper cap from pins 1-2(default) to pins 1.
2-3. Keep the cap on pins 2-3 for about 5-10 seconds,
then move the cap back to pins 1-2.
Plug the power cord and turn on the computer.2.
Enter BIOS setup to re-enter data.3.
SIM Card Socket (SIM1):
Keyboard and Mouse Connector (KBM1)
Serial-ATA Connector (SATA1): It is for connecting a 2.5’’
hard disk to be served as your system’s storage. It can
support SATA III which features Data transfer rates up to
6.0 Gb/s (600 MB/s).
The controller contains two modes of operation—a
legacy mode using I/O space, and an AHCI mode using
memory space. Software that uses legacy mode will not
have AHCI capabilities.
The AHCI ( Advanced Host Controller Interface) is a
programming interface which defines transactions
between the SATA controller and software and enables
advanced performance and usability with SATA. Platforms
supporting AHCI may take advantage of performance
features such as no master/slave designation for SATA
devices—each device is treated as a master—and
hardware assisted native command queuing. AHCI also
provides usability enhancements such as Hot-Plug.
Use the BIOS menu to configure your hard disk
to be AHCI compatible.
4-pin Serial-ATA Power Connector (SATA_PW1): It is for
connecting the SATA power cord.
Dual USB 2.0 Port Connector #0 and #1 (USB1)
Dual USB 2.0 Port Connector #2 and #3 (USB2)
Dual USB 2.0 Pin Header #4 and #5 (USB3)
1
3
5
7
2
4
6
8
Pin No. Description
C1 UIM_PWR
C2 USIM_RST
C3 USIM_CLK
C5 GND
C6 USIM_VPP
C7 USIM_DAT
C5 C7
C1 C3
1 2 3 4
5 6 7 8
Pin No. Pin Name
1 USB_VCC
2 USBD03 USBD0+
4 GND
5 USB_VCC
6 USBD17 USBD1+
8 GND
Pin No. Function
1 +12V
2 GND
3 GND
4 +5V
Pin No. Pin Name Function Pin No. Pin Name Function
1 HD_LED+ HDD LED 2 PWR_LED+ Power LED
3 HDD_ACT# 4 PWR_LED5 FP_RST_
BTN_N
System Reset
Button
6 FP_PWR_
BTN_N
Power On/Off
Push Button
7 GND 8 GND
4
3
2
1
Pin No. Pin Name
1-2 Normal (Default)
2-3 Clear CMOS
3 2 1
Pin No. Function
1 GND
2 TX_P
3 TX_N
4 GND
5 RX_N
6 RX_P
7 GND
1
2
7
8
Pin No. Function Pin No. Function
1 +5V 2 MSCLK
3 MSDATA 4 KEY
5 KBDATA 6 KEY
7 GND 8 KBCLKs
Pin No. Pin Name Pin No. Pin Name
1 USB_VCC 2
3 USBD4- 4 GND
5 USBD4+ 6 USBD5+
7 GND 8 USBD5-
10 USB_VCC
10
9
2
1
1
2
3
4
5
6
7
Page 16
15
Board Layout
Chapter 3
Embedded and Industrial Computing

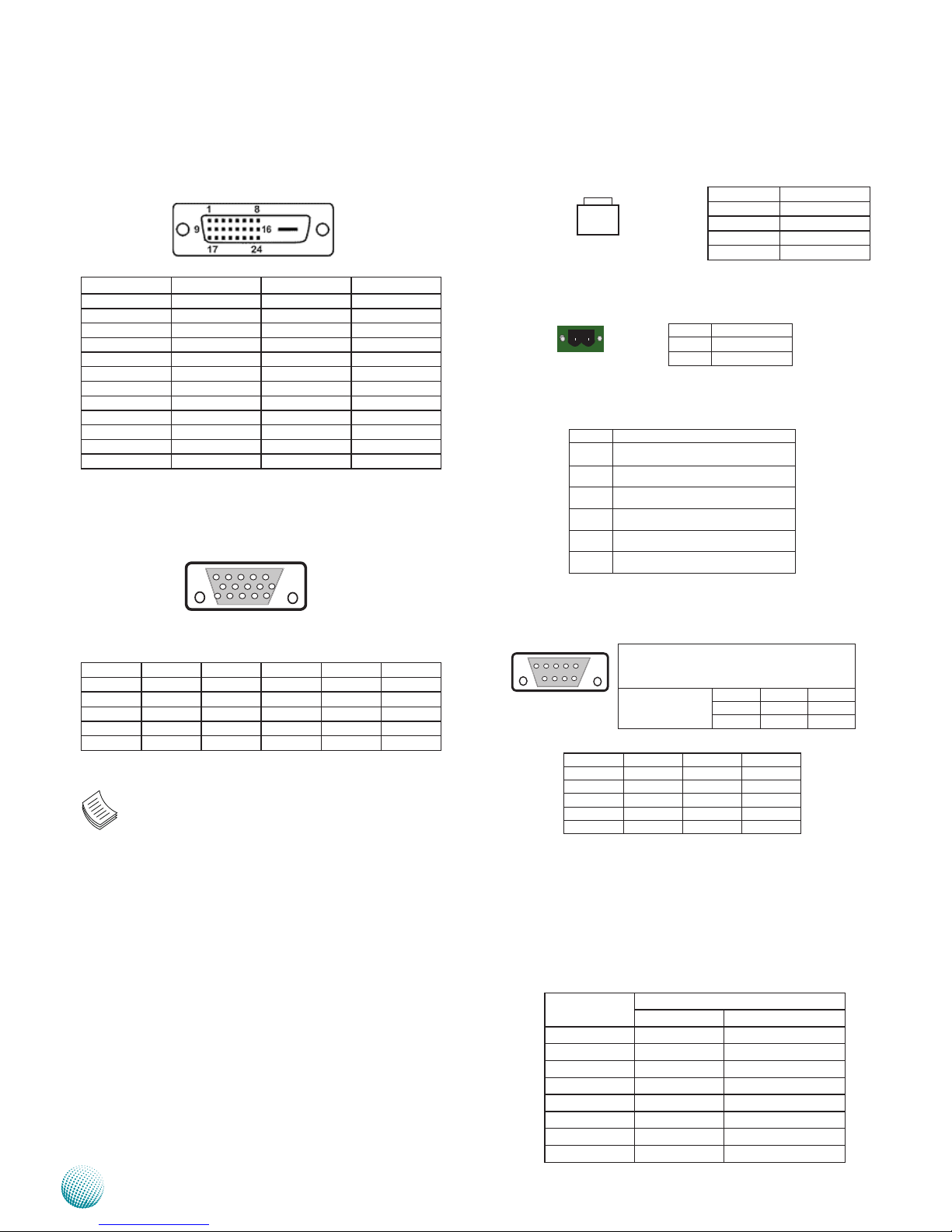

DVI-D Connector (DVID1): A single link DVI-D Connector
Pin No. Description Pin No. Description
1 DATA_2N 2 DATA_2P
3 GND 4 NC
5 NC 6 DDC_CLK
7 DDC_DAT 8 NC
9 DATA_1N 10 DATA_1P
11 GND 12 NC
13 NC 14 +5V
15 GND 16 HPD
17 DATA_0N 18 DATA_0P
19 GND 20 NC
21 NC 22 GND
23 CLK_P 24 CLK_N
VGA (VGA1)
Pin Signal Pin Signal Pin Signal
1 RED 6 CRT DET 11 N/A
2 GREEN 7 GND 12 DDC DAT
3 BLUE 8 GND 13 HSYNC
4 N/A 9 VCC5 14 VSYNC
5 GND 10 GND 15 DDC CLK
Note: The driver for the VGA and Audio ports
should be installed with the following order:
Chipset INF->Graphic->Audio
Reset Button (RST1)
Pin NO. Description
1 RST_BTN
2 GND
3 GND
4 N/A
DC_IN CONNECTOR (CN1): A Phoenix connector for
external power supply.
Power Button (PBT1): Power button with dual LEDs
Digital Input/Output Connector (CN2): The 8 pins of
General Purpose Input/Output (GPIO) support input and
output operations through the DB-9 female connector.
LAN1/LAN2 Ports (LAN1/LAN2): The LAN ports are
provided by Intel 82574L Ethernet controller whose
interface complies with PCI-e 1.1 (2.5 Ghz). It has advanced
management features including IPMI pass-through via
SMBus or NC-SI, WOL, PXE remote boot, ISCSI boot and
VLAN filtering.
15 14 13 12 11
5 4 3 2 1
1
3
2
4
Pin No. Pin Name
1 PWR_BTN_N
2 PWR_BTN_N
3 GND
4 GND
L1 PWR_SW_P
L2 PWR_SW_N
Pin No. Description
Fast Ethernet Gigabit Ethernet
1 TX+ BI_DA+
2 TX- BI_DA3 RX+ BI_DB+
4 -- BI_DC+
5 -- BI_DC6 RX- BI_DB7 -- BI_DD+
8 -- BI_DD-
TTL Level is +5V; Maximum input current for
each port is 10mA; Maximum output current
for each port is 100uA
Input/Output Voltage Logic Register
0~2V Low 0
2~5V High 1
9 8 7 6
5 4 3 2 1
Pin No. Pin Name Pin No. Pin Name
1 IN0 6 OUT0
2 IN1 7 OUT1
3 IN2 8 OUT2
4 IN3 9 OUT3
5 GND
Pin No. Pin Name
1 DC_GND
2 DC_IN
1 2
Page 17
16
Board Layout
Chapter 3
Embedded and Industrial Computing

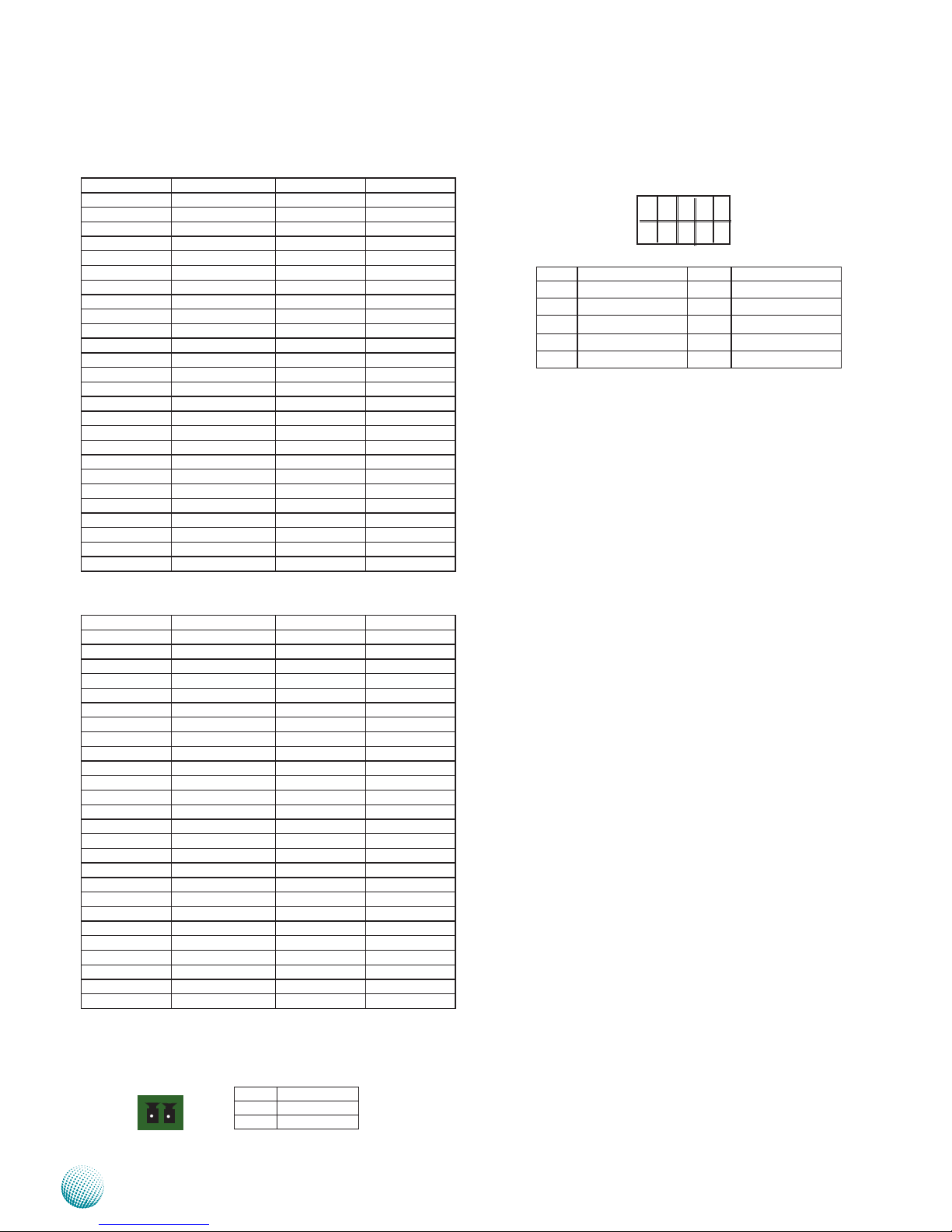

MPCIE1: Mini-PCIe Connector with SIM Card Reader
Pin Signal Pin Signal
1 WAKE# 2 VCC3.3
3 Reserved 4 GND
5 Reserved 6 1.5V
7 CLKREQ# 8 UIM_PWR
9 GND 10 UIM_DATA
11 REFCLK- 12 UIM_CLK
13 REFCLK+ 14 UIM_RESET
15 GND 16 UIM_VPP
17 Reserved (UIM_C8) 18 GND
19 Reserved (UIM_C4) 20 ENABLE
21 GND 22 PERST#
23 PERn0 24 +3.3Vaux
25 PERp0 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D37 Reserved 38 USB_D+
39 Reserved 40 GND
41 Reserved 42 Reserved
43 Reserved 44 Reserved
45 Reserved 46 Reserved
47 Reserved 48 +1.5V
49 Reserved 50 GND
51 Reserved 52 +3.3V
MPCIE2: Half-size Mini-PCIe Connector
Pin Signal Pin Signal
1 WAKE# 2 VCC3.3
3 Reserved 4 GND
5 Reserved 6 1.5V
7 CLKREQ# 8 Reserved
9 GND 10 Reserved
11 REFCLK- 12 Reserved
13 REFCLK+ 14 Reserved
15 GND 16 Reserved
17 Reserved (UIM_C8) 18 GND
19 Reserved (UIM_C4) 20 ENABLE
21 GND 22 PERST#
23 PERn0 24 +3.3Vaux
25 PERp0 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D37 Reserved 38 USB_D+
39 Reserved 40 GND
41 Reserved 42 Reserved
43 Reserved 44 Reserved
45 Reserved 46 Reserved
47 Reserved 48 +1.5V
49 Reserved 50 GND
51 Reserved 52 +3.3V
Power-on Switch through a terminal block (J1): A
Phoenix connector for distant power switch.
J6: Audio Connector
1 2
Pin No. Pin Name
1 BUTTON2 Ground
10
9
2
1
Pin No. Pin Name Pin No. Pin Name
1 LINE_OUT_R2 2 LINE_OUT_L2
3 GND_AUD 4 GND_AUD
5 MIC_IN_R 6 MIC_IN_L
7 LINE_IN_R 8 LINE_IN_L
9 FRONT_OUT_R 10 FRONT_OUT_L
Page 18
17
Hardware Setup
Chapter 4
Embedded and Industrial Computing
Note:
The motherboards can support up to 16 GB 1.
memory capacity in maximum.
The system supports DDR3 2.
1066/1333/1600MHz SO-DIMM. Do not install
memory module with different specifications.
Chapter 4:
Hardware Setup
Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal injury,
electric shock, or damage to the equipment,
remove the power cord to remove power from the
server. The front panel Power On/Standby button
does not completely shut off system power.
Portions of the power supply and some internal
circuitry remain active until AC power is removed.

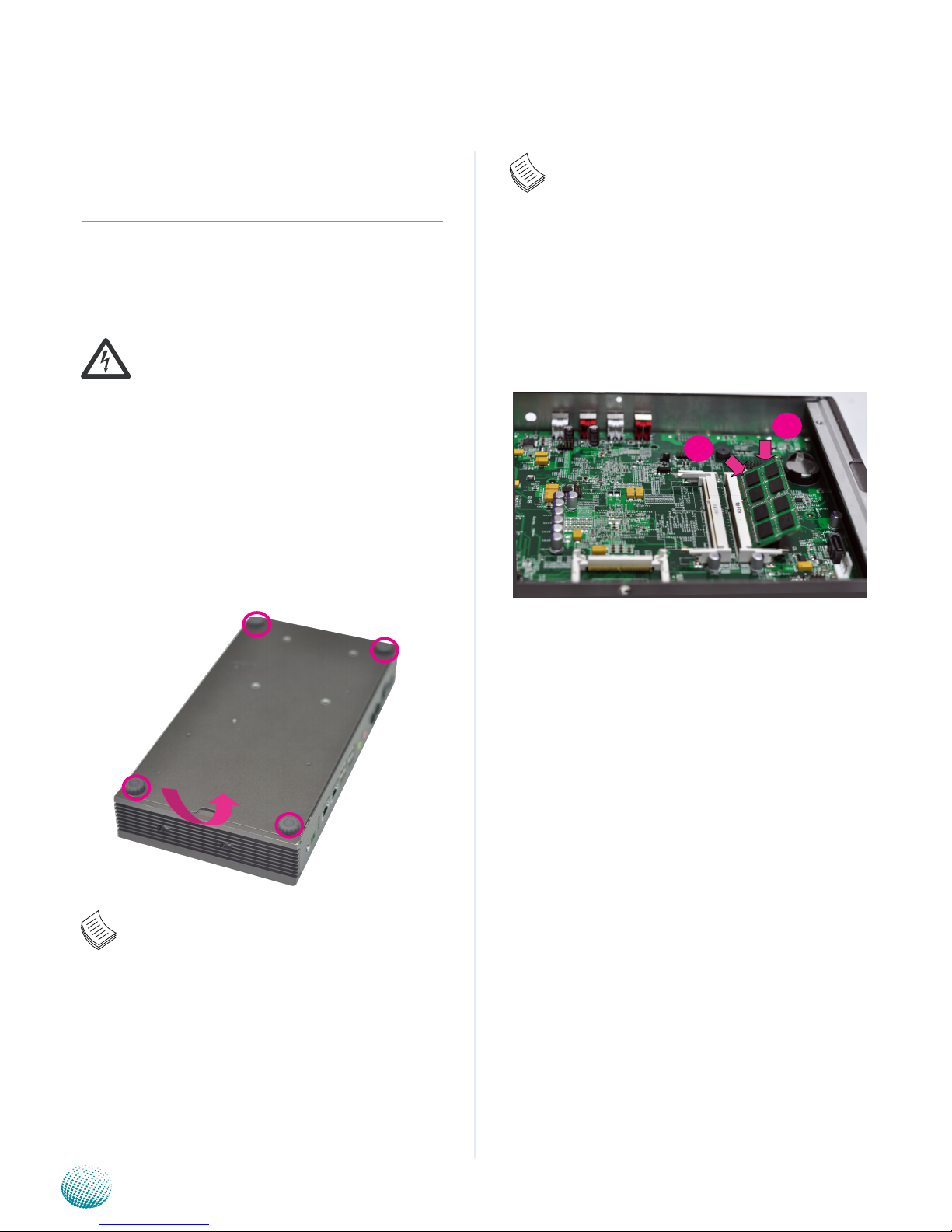

Unpower the LEC-2260 and remove the power cord.1.
Unscrew the 4 rubber feet from the bottom cover of 2.
the LEC-2260 System.
Open the cover.3.
Note: In order to take off the bottom cover, you
will also need to take off the SIM card protection
cover first.
Installing the System Memory
The motherboard supports DDR3 memory to meet the
higher bandwidth requirement of the latest operating
system and Internet applications. It comes with two
double data rate type three (DDR3) small outline dual inline memory module (SO-DIMM) sockets.
1
2
Page 19
18
Hardware Setup
Chapter 4
Embedded and Industrial Computing

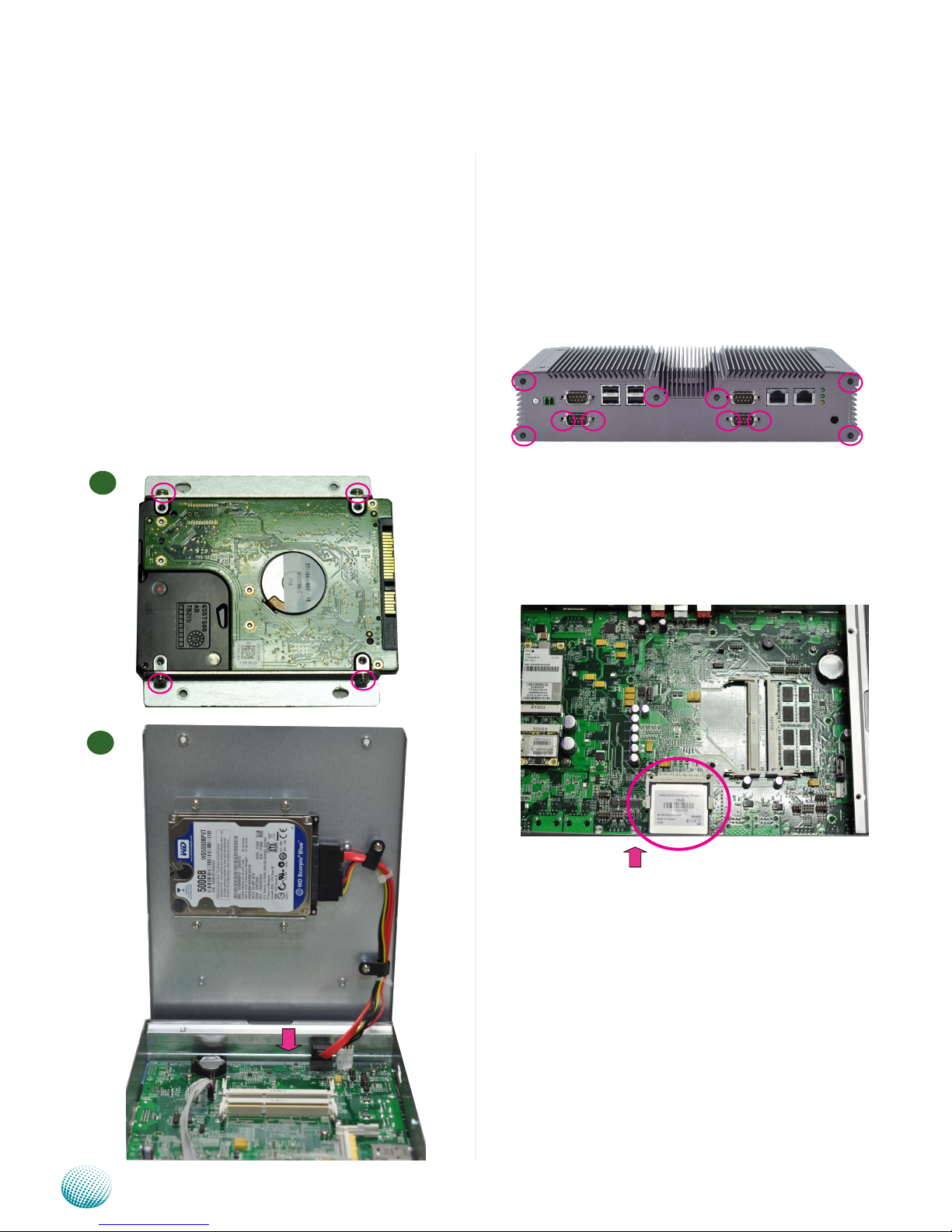

Installing the Hard Disk
The system can accommodate one Serial-ATA disks. Follow
these steps to install a hard disk into the LEC-2260:
Take off the HDD tray from the chassis cover.1.
Secure the hard disk with 4 mounting screws on the 2.
HDD tray.
Place hard disk back on the system and align the holes 3.
of the hard disk with the mounting holes of the chassis
cover.
Connect the Serial-ATA power and data cables to the 4.
hard disk’s connectors.
Plug the Serial-ATA cables (power and data) to the 5.
Serial-ATA Connectors on the main board.
Installing the CompactFlash Card
LEC-2260 provides one CompactFlash slot. Follow the
procedures bellow for installing a CompactFlash card.
Take off the front panel first by unscrewing the 1.
case screws and the connector’s hex cap screws as
illustrated below.
Align CompactFlash card and the card slot with the 2.
arrow pointing toward the connector.
Push the card to insert into the connector.3.
1
2
Page 20
19
Hardware Setup
Chapter 4
Embedded and Industrial Computing

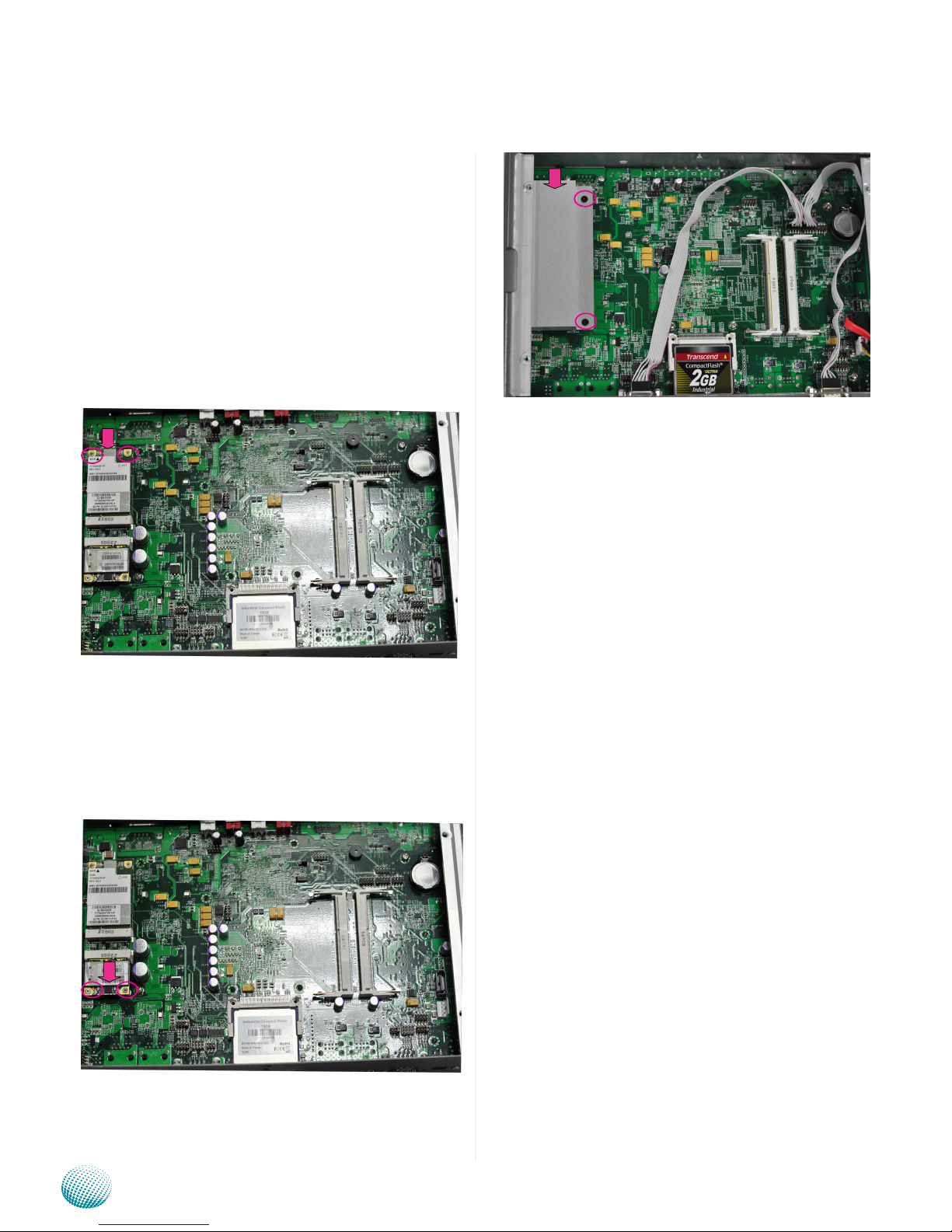

Installing the Wireless 3G Module
Align the wireless module’s cutout with the Mini-PCIe 1.
slot notch.
Insert the wireless module into the connector 2.
diagonally.
Fasten the wireless module to the board with the 3.
screws (Use the Mini-PCIe module screws contained
within the package).
Installing the Wi-Fi Module
Follow the same steps as the Wireless 3G Module 1.
Installation.
Install the heat sink as illustrated below.2.
Installing 3G and Wi-Fi module on the PCIe socket
Page 21
20
Hardware Setup
Chapter 4
Embedded and Industrial Computing

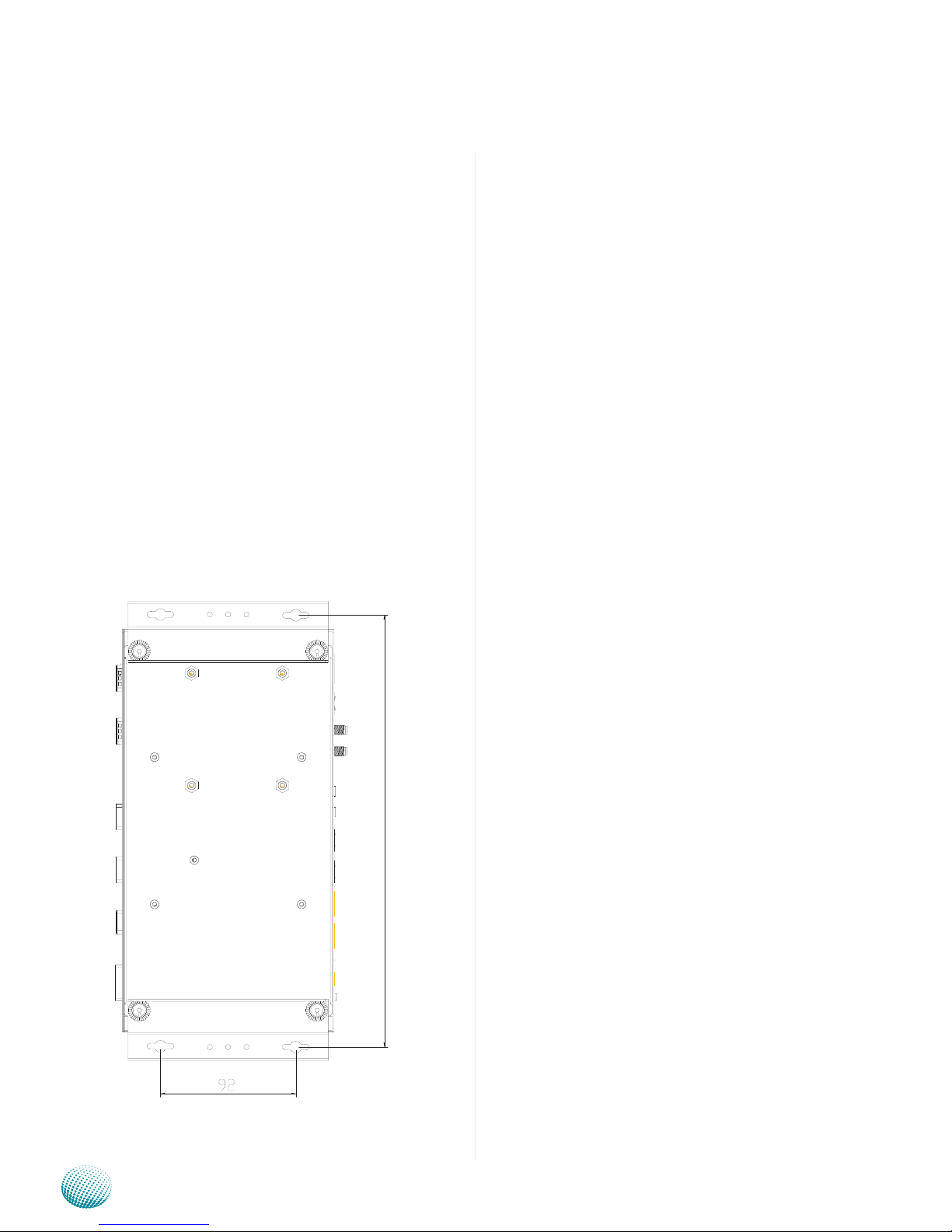

Wall Mounting
The product ships with wall mounting kit. To mount your
product on the wall, follow the instructions below:
First make a hole for the anchor in the surface on the 1.
wall.
Then press the anchor into the hole until it is flush with 2.
the surface. You may need a hammer to tap the wall
anchor.
Use a screwdriver to screw the threaded screw into the 3.
plastic anchor.
Attach the wall mounting bracket to the back of the 4.
device, securing it in place with four of the flat-head
screws provided.
Hang the device on the wall.5.
Unit: mm
290
Page 22
21
Programming Watchdog Timer
Embedded and Industrial Computing
Appendix A
Appendix A:
Programming Watchdog
Timer

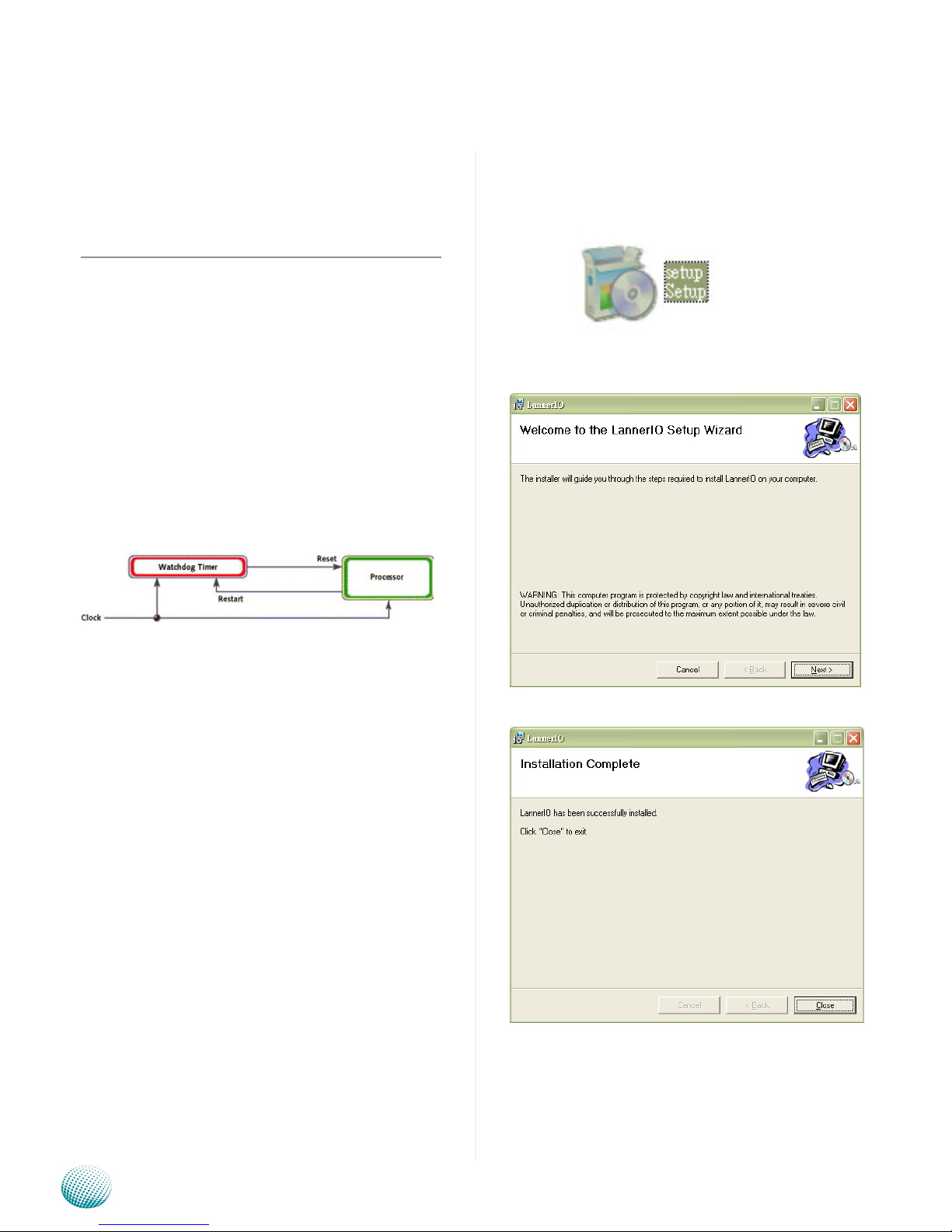

A watchdog timer is a piece of hardware that can be
used to automatically detect system anomalies and reset
the processor in case there are any problems. Generally
speaking, a watchdog timer is based on a counter that
counts down from an initial value to zero. The software
selects the counter’s initial value and periodically restarts
it. Should the counter reach zero before the software
restarts it, the software is presumed to be malfunctioning
and the processor’s reset signal is asserted. Thus, the
processor will be restarted as if a human operator had
cycled the power.
For sample watchdog code, see Watch dog and DIO folder
in the Driver and Manual CD
Driver Installation
Before you could access or control the operation of the
watchdog and Digital I/O functions, install the the L_IO
driver which is the library and driver needed for Lanner
General Purpose Input/Output interface or functions.
To install the L_IO driver:
Restart the computer, and then log on with 1.
Administrator privilege.
Insert the Drivers and User’s Manual CD to the USB-2.
optical drive.
Browse the contents of the support CD to locate the 3.
file LannerIO v101.rar under the \WD_DIO\ folder and

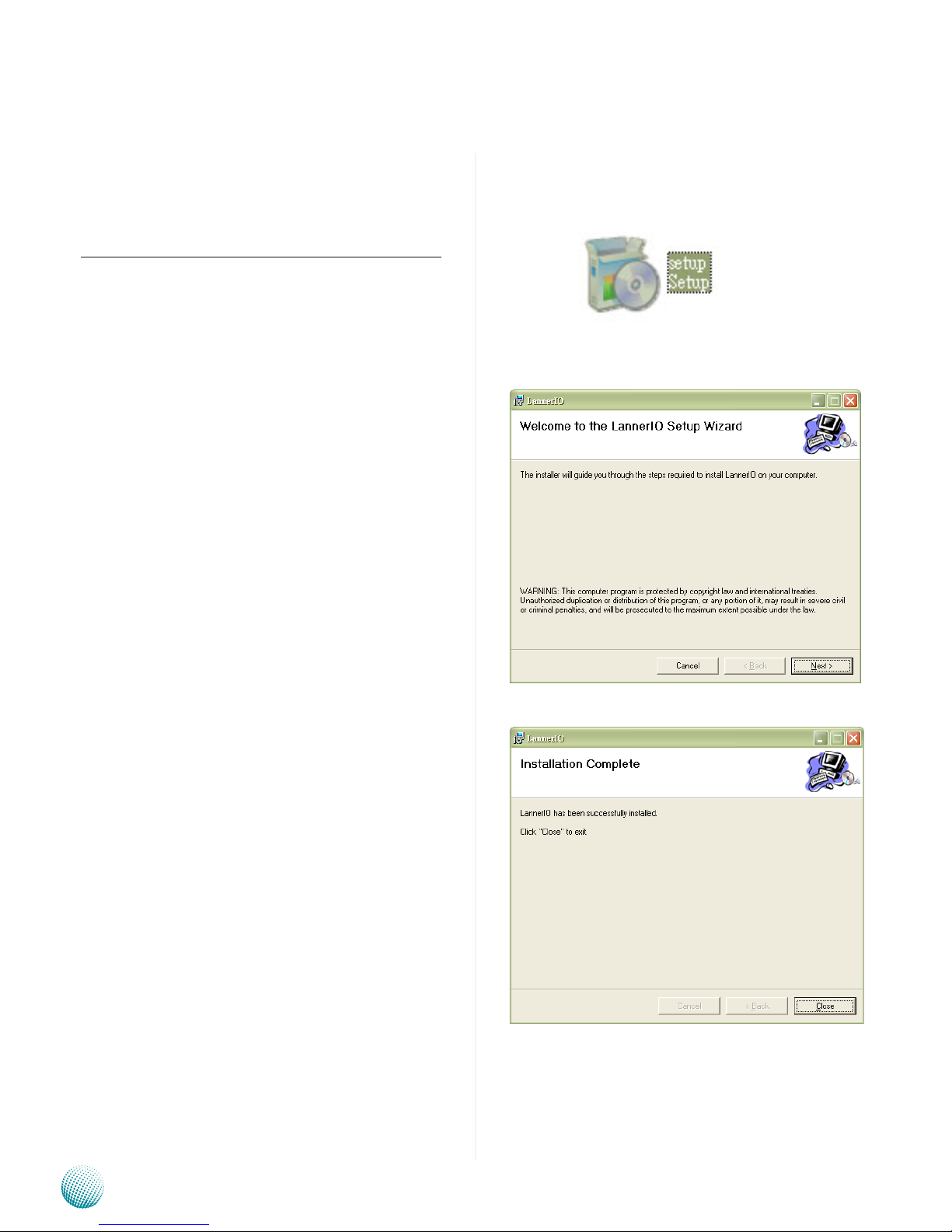

unzip the file.
Click the Setup program in the unzipped folder.4.
Click the Setup program.1.
The welcome screen appears. Click Next to proceed.2.
The installation process proceeds. Click Close when the 3.
process completes.
Page 23
22
Programming Watchdog Timer
Embedded and Industrial Computing
Appendix A

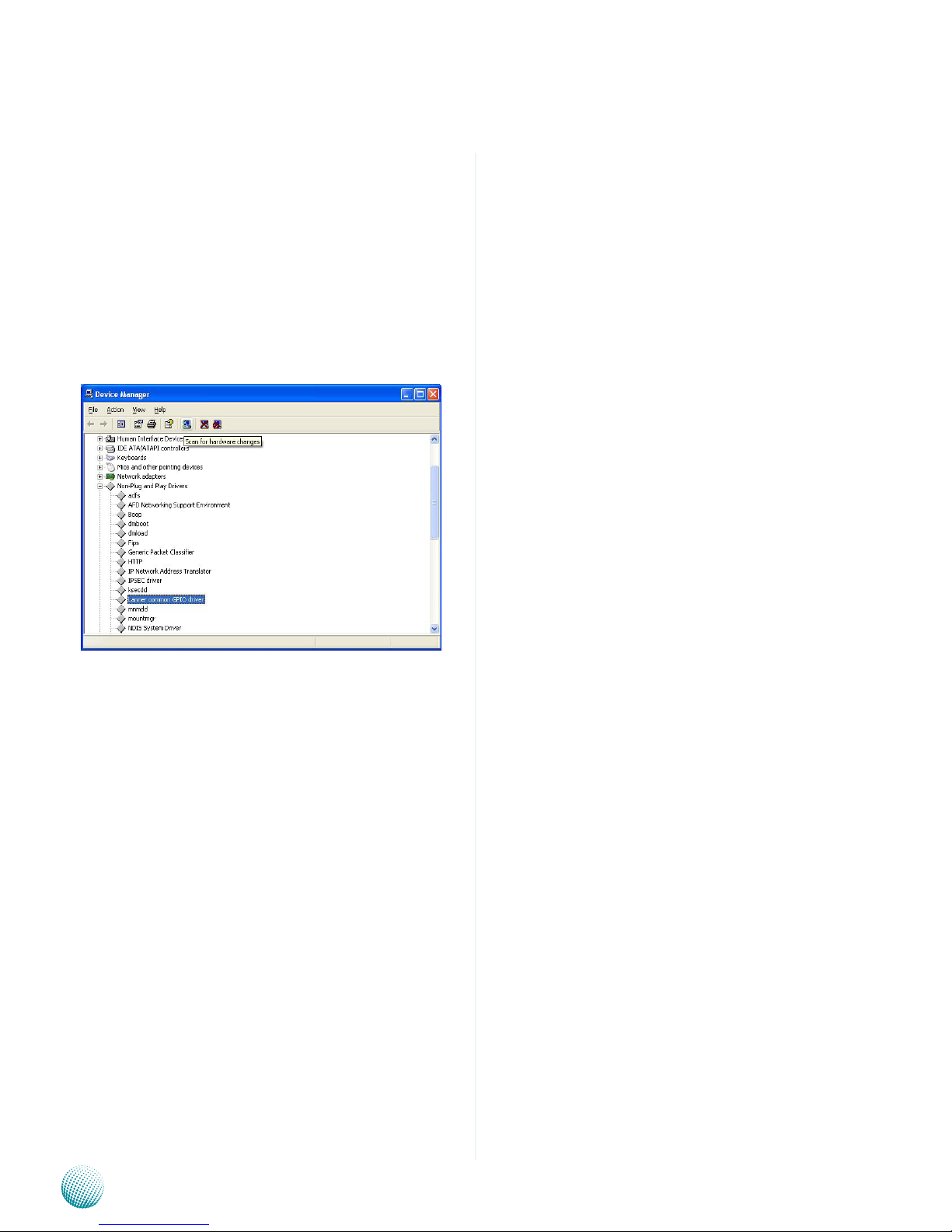

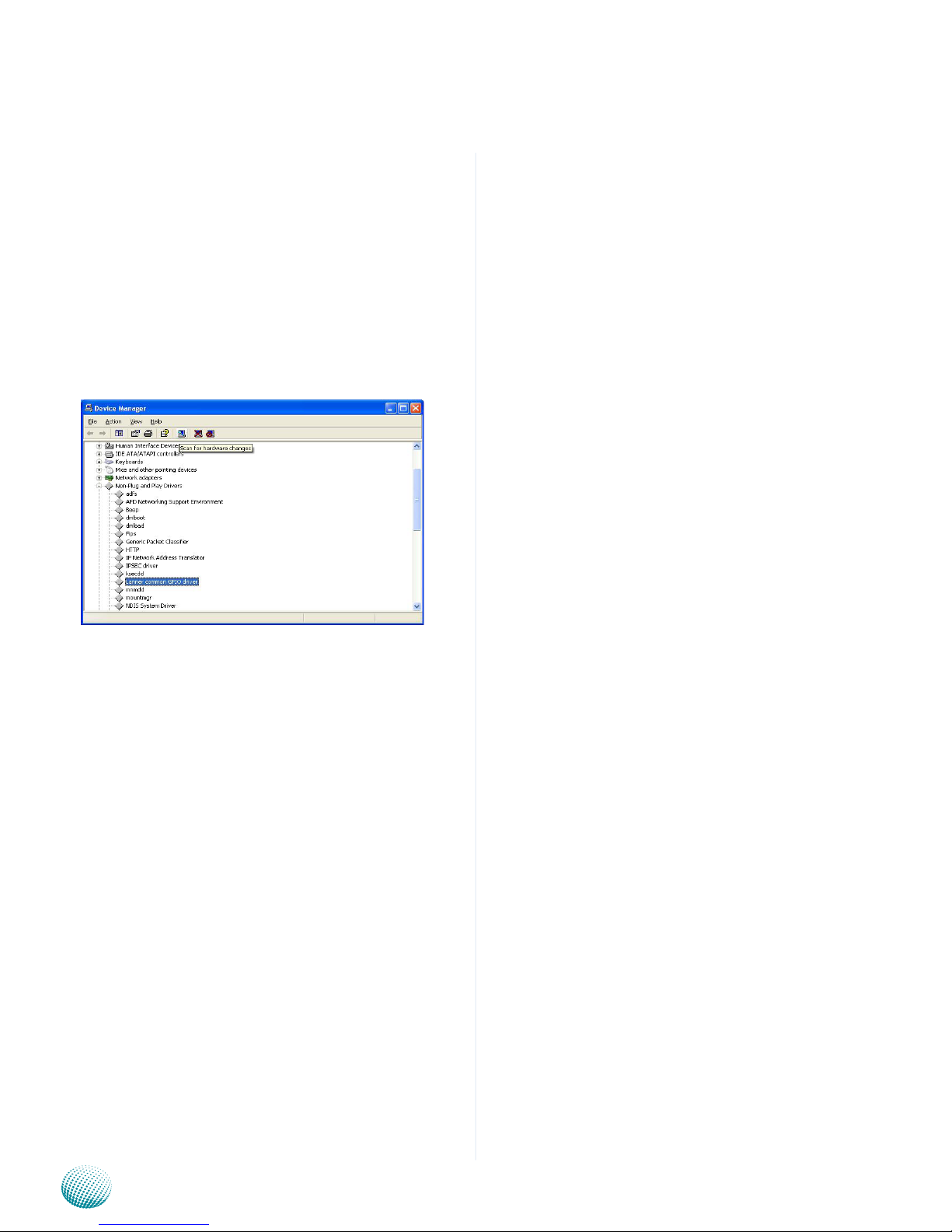

To verify the GPIO driver installation, do the following
steps:
Right-click on the My Computer icon, and then select 1.
Properties form the menu.
Click the Hardware tab, then click the Device Manager 2.
button.
Select 3. View from the menu and select show hidden
devices .
The Lanner common GPIO driver should be listed 4.
under the Non-Plug and Play Drivers. If not, click the
San for hardware changes button from the tool bar.
Sample Program
You can write your own program by modifying the source
code F81865_Test.cpp.. The index address is 2EH.
/////////////////////////////////////////////////////////////////////
////
// F81865_Test.cpp : F81865_test.exe utility for F81865.lib
APIs demonstration.
//
// History:
// 7/15/2011 Brand new F81865_test
program.
#include <winsock2.h>
#include “Windows.h”
#include “stdio.h”
#include “F81865.h”
#define PARAMETER_HELP “\n”\
“The F81865 GPIO utility of Lanner\n”\
“-------------------------------------\n”\
“Usage:\n”\
“ F81865_test DIO_IN port_
number\n”\
“ F81865_test DIO_OUT port_number
value\n”\
“ F81865_test PIO port_number
value\n”\
“ F81865_test RunLED port_number
value\n”\
“ F81865_test AlarmLED port_number
value\n”\
“ F81865_test GPS_LED port_number
value\n”\
“ F81865_test WirelessLED port_number
value\n”\
“ F81865_test WatchDog seconds\n”\
“ F81865_test CaseOpen\n”\
“ F81865_test CaseOpen_Clear\n”\
Page 24
23
Programming Watchdog Timer
Embedded and Industrial Computing
Appendix A
“ F81865_test Sleep
milliseconds\n”\
“\n”\
“Argement:\n”\
“ DIO_IN Read state from DIO
In.\n”\
“ DIO_OUT Set DIO Out state.\n”\
“ PIO Set PIO LED state.\n”\
“ RunLED Set RUN LED state.\n”\
“ AlarmLED Set Alarm LED state.\n”\
“ GPS_LED Set GPS LED state.\n”\
“ WirelessLED Set Wireless LED state.\n”\
“ Watchdog Set
Watchdog timer.\n”\
“ CaseOpen Check case opened state.\n”\
“ CaseOpen_Clear Clear case open state.\n”\
“ port_number The port number.\n”\
“ value 1 for on and 0 for off.\n”\
“ seconds The
watchdog count down seconds. 0 for disable.\n”\
“ milliseconds Milliseconds to
delay\n”
#define RETMSG(a,b) {printf (b) ; return a;}
#define CHECK_ARGC(a) {if (argc
!= a) throw PARAMETER_HELP ;}
// Translate Hex string to a long value
LONG Hex2Long (char *str)
{
LONG nLong ;
if (scanf (str, “%x”, &nLong) != 1)
throw “Error parsing parameter\n” ;
return nLong ;
}
// Make sure the argument is numeric
void CheckNumeric (char *szBuf )
{
int nLen = strlen (szBuf) ;
for (int i = 0 ; i < nLen ; i++)
if (!strchr (“01234567890ABCDEFabcdef”, szBuf[i]) )
throw “Wrong argument\n” ;
}
// Common GPIO output function definition
#define GPIO_OUT(a,b,c) \
int a (int argc, char *argv[]) \
{
\
CHECK_ARGC (4) ;
\
CheckNumeric (argv[2]) ; \
CheckNumeric (argv[3]) ; \
\
int nPort = atoi (argv[2]) ; \
int nValue = atoi (argv[3]) ; \
\
c (nPort, nValue) ;
\
\
printf (b “ #%d = %d\n”, nPort, nValue) ; \
\
return 0
; \
}
// Function generate by common function definition
GPIO_OUT (mDIO_
OUT , “DIO_OUT” , Write_DIO)
G P I O _ O U T
(mPIO , “DIO_OUT” , PIO)
G P I O _ O U T
(mRunLED , “RunLED” , RunLED)
G P I O _ O U T
(mAlarmLED , “AlarmLED” , AlarmLED)
GPIO_OUT (mGPS_
LED , “GPS_LED” , GPS_LED)
Page 25
24
Programming Watchdog Timer
Embedded and Industrial Computing
Appendix A
G P I O _ O U T
(mWirelessLED , “WirelessLED” , WirelessLED)
// Check case open
int mCaseOpen (int argc, char* argv[])
{
CHECK_ARGC (2) ;
BOOL bOpen = CaseOpen () ;
printf (“Case is %s\n”, bOpen ? “Open” : “Close”) ;
return bOpen ;
}
// Clear case open state
int mCaseOpen_Clear (int argc, char* argv[])
{
CHECK_ARGC (2) ;
CaseOpen_Clear () ;
BOOL bOpen = CaseOpen () ;
printf (“CaseOpen state %s”, bOpen ? “not cleared”
: “cleared”) ;
return bOpen ;
}
// Get DIO_IN state
int mDIO_IN (int argc, char* argv[])
{
CHECK_ARGC (3) ;
CheckNumeric (argv[2]) ;
int nPort = atoi (argv[2]) ;
BOOL ret = Read_DIO (nPort) ;
printf (“DIO_IN #%d = %d\n”, nPort, ret) ;
return ret ;
}
// Milli-second delay
int mSleep (int argc, char *argv[])
{
CHECK_ARGC (3) ;
CheckNumeric (argv[2]) ;
Sleep (atoi (argv[2]) ) ;
return 0 ;
}
// Watchdog
int mWatchDog (int argc, char *argv[])
{
if (argc != 3 && argc != 2)
RETMSG (-1, PARAMETER_HELP) ;
if (argc == 3)
{
CheckNumeric (argv[2]) ;
int nValue = atoi (argv[2]) ;
WatchDog_Enable (nValue) ;
}
int nLeft = WatchDog_GetLeft () ;
printf (“Watchdog timer left %d seconds\n”, nLeft)
;
Page 26
25
Programming Watchdog Timer
Embedded and Industrial Computing
Appendix A
return nLeft ;
}
// Argument - function mapping
typedef struct
{
char *szCmd ;
int (*function) (int argc, char *argv[]) ;
} CMD2FUN ;
CMD2FUN c2f[] =
{
{“DIO_IN” , mDIO_IN
},
{“DIO_OUT” , mDIO_OUT
},
{“PIO” , mPIO
},
{“RunLED” , mRunLED
},
{“AlarmLED” , mAlarmLED
},
{“GPS_LED” , mGPS_LED
},
{“WirelessLED” , mWirelessLED },
{“CaseOpen” , mCaseOpen },
{“CaseOpen_Clear”,mCaseOpen_Clear},
{“Watchdog” , mWatchDog
},
{“Sleep” , mSleep }
} ;
// Program start here
int main(int argc, char *argv[])
{
try
{
// The total argument allowed
int num = sizeof (c2f ) / sizeof (c2f[0]) ;
// Too few argument
if (argc < 2)
RETMSG (-1, PARAMETER_HELP)
;
// Find the match argument and execute
the mapping function
for (int i = 0 ; i < num ; i++)
if (stricmp (argv[1], c2f[i].szCmd)
== 0)
return c2f[i].function
(argc, argv) ;
// No match argument
RETMSG (-1, “Wrong Argument\n”) ;
}
catch (char *str)
{
// Output the error message
printf (“\n%s\n”, str) ;
}
catch (...)
{
// Unknown exception
printf (“\nUnknown Exception\n”) ;
}
return -1 ;
}
Page 27
26
Digital Input/Output Control
Appendix B
Embedded and Industrial Computing
Appendix B:
Digital Input/Output
Control on the GPIO port
The Digitanl I/O on the panel is designed to provide the
input and output operations for the system. For sample
DIO code, see Watch dog and DIO in the Driver and Manual
CD.
Driver Installation
Before you could access or control the operation of the
watchdog and Digital I/O functions, install the the L_IO
driver which is the library and driver needed for Lanner
General Purpose Input/Output interface or functions.
To install the L_IO driver:
Restart the computer, and then log on with 1.
Administrator privilege.
Insert the Drivers and User’s Manual CD to the USB-2.
optical drive.
Browse the contents of the support CD to locate the 3.
file LIO.rar under the \Watch dog and DIO\LIO folder
and unzip the file.
From the control panel, click the ADD Hardware 4.
program
Click the Setup program.1.
The welcome screen appears. Click Next to proceed.2.
The installation process proceeds. Click Close when the 3.
process completes.
Page 28
27
Digital Input/Output Control
Appendix B
Embedded and Industrial Computing
To verify the GPIO driver installation, do the following
steps:
Right-click on the My Computer icon, and then select 1.
Properties form the menu.
Click the Hardware tab, then click the Device Manager 2.
button.
Select 3. View from the menu and select show hidden
devices .
The Lanner common GPIO driver should be listed 4.
under the Non-Plug and Play Drivers. If not, click the
San for hardware changes button from the tool bar.
Executing the Sample Program:
To test the sample program, execute the F81865_test with
the appropriate parameters.
DIO:
Usage:
F81865_test DIO_In port_number (reads Digital input
port 0, 1, 2 or 3)
F81865_test DIO_Out port_number value (writes
Digital output port 0, 1, 2 or 3; For port description, refer
to Jumper Settings on Chapter3 Board Layout)
You can also write your own program by modifying the
source code F81865_Test.cpp.. The index address is 2EH.
Page 29
28
Terms and Conditions
Appendix C
Embedded and Industrial Computing
Appendix C:
Terms and Conditions
Warranty Policy
All products are under warranty against defects in 1.
materials and workmanship for a period of one year
from the date of purchase.
The buyer will bear the return freight charges for 2.
goods returned for repair within the warranty period;
whereas the manufacturer will bear the after service
freight charges for goods returned to the user.
The buyer will pay for repair (for replaced components 3.
plus service time) and transportation charges (both
ways) for items after the expiration of the warranty
period.
If the RMA Service Request Form does not meet the 4.
stated requirement as listed on “RMA Service,” RMA
goods will be returned at customer’s expense.
The following conditions are excluded from this 5.
warranty:
Improper or inadequate maintenance by the customer
Unauthorized modification, misuse, or reversed
engineering of the product Operation outside of the
environmental specifications for the product.
RMA Service
Requesting a RMA#
To obtain a RMA number, simply fill out and fax the 6.
“RMA Request Form” to your supplier.
The customer is required to fill out the problem code 7.
as listed. If your problem is not among the codes listed,
please write the symptom description in the remarks
box.
Ship the defective unit(s) on freight prepaid terms. 8.
Use the original packing materials when possible.
Mark the RMA# clearly on the box. 9.
Note: Customer is responsible for shipping
damage(s) resulting from inadequate/loose
packing of the defective unit(s). All RMA# are valid
for 30 days only; RMA goods received after the
effective RMA# period will be rejected.
Page 30
29
Terms and Conditions
Appendix C
Embedded and Industrial Computing
RMA Service Request Form
When requesting RMA service, please fill out the following form. Without
this form enclosed, your RMA cannot be processed.
RMA No:
Reasons to Return: Ŀ Repair(Please include failure details)
Ŀ Testing Purpose
Company: Contact Person:
Phone No. Purchased Date:
Fax No.: Applied Date:
Return Shipping Address:
Shipping by: Ŀ Air Freight Ŀ Sea Ŀ Express ___
Ŀ Others:________________
Item Model Name Serial Number Configuration
Item Problem Code Failure Status
*Problem Code:
01:D.O.A.
02: Second Time
R.M.A.
03: CMOS Data Lost
04: FDC Fail
05: HDC Fail
06: Bad Slot
07: BIOS Problem
08: Keyboard Controller Fail
09: Cache RMA Problem
10: Memory Socket Bad
11: Hang Up Software
12: Out Look Damage
13: SCSI
14: LPT Port
15: PS2
16: LAN
17: COM Port
18: Watchdog Timer
19: DIO
20: Buzzer
21: Shut Down
22: Panel Fail
23: CRT Fail
24: Others (Pls specify)
Request Party
Confirmed By Supplier
Authorized Signature / Date Authorized Signature / Date
Loading...
