Thank you for choosing the LEC-2260. The LEC-2260 is a
compact embedded system featuring Intel i3 or Celeron
processors. The system equips with three video output
interfaces: DVI-D, HDMI and VGA. In addition, it also
supports dual RCA ports for both line-in and line-out left
and right connection.
The LEC-2260 answers the demand for versatile I/O
interfaces by offering the following functions:

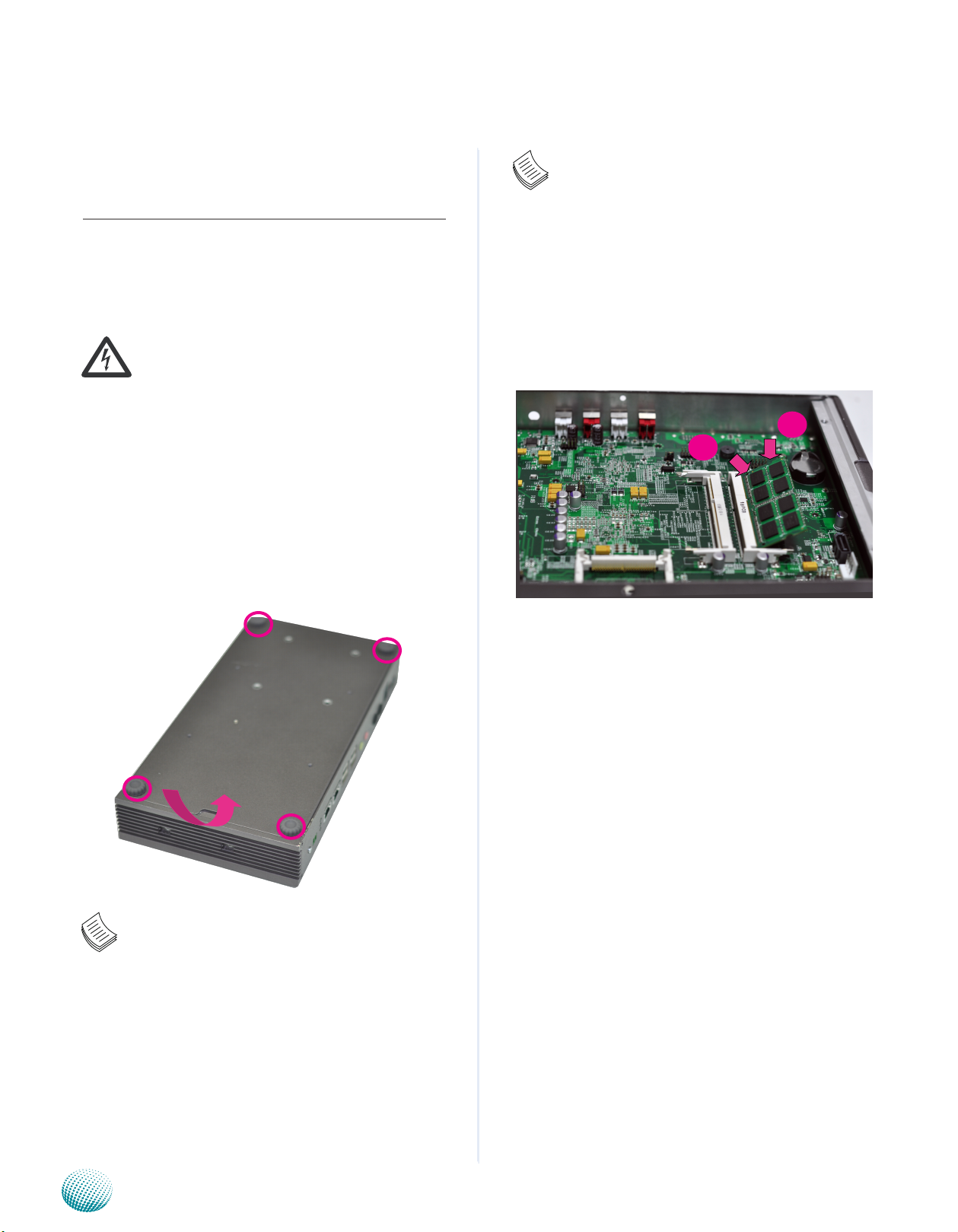

Supporting the latest memory technology with 2 DDR3 •
SO-DIMM sockets for a maximum capacity of 16GB
Audio and video displays powered by Realtek ALC886- •
GR and Intel HD Graphics Engine respectively
Two 10/100/1000 Mbps LAN •
USB x 6 (2 by internal pin header) and COM x 2 •

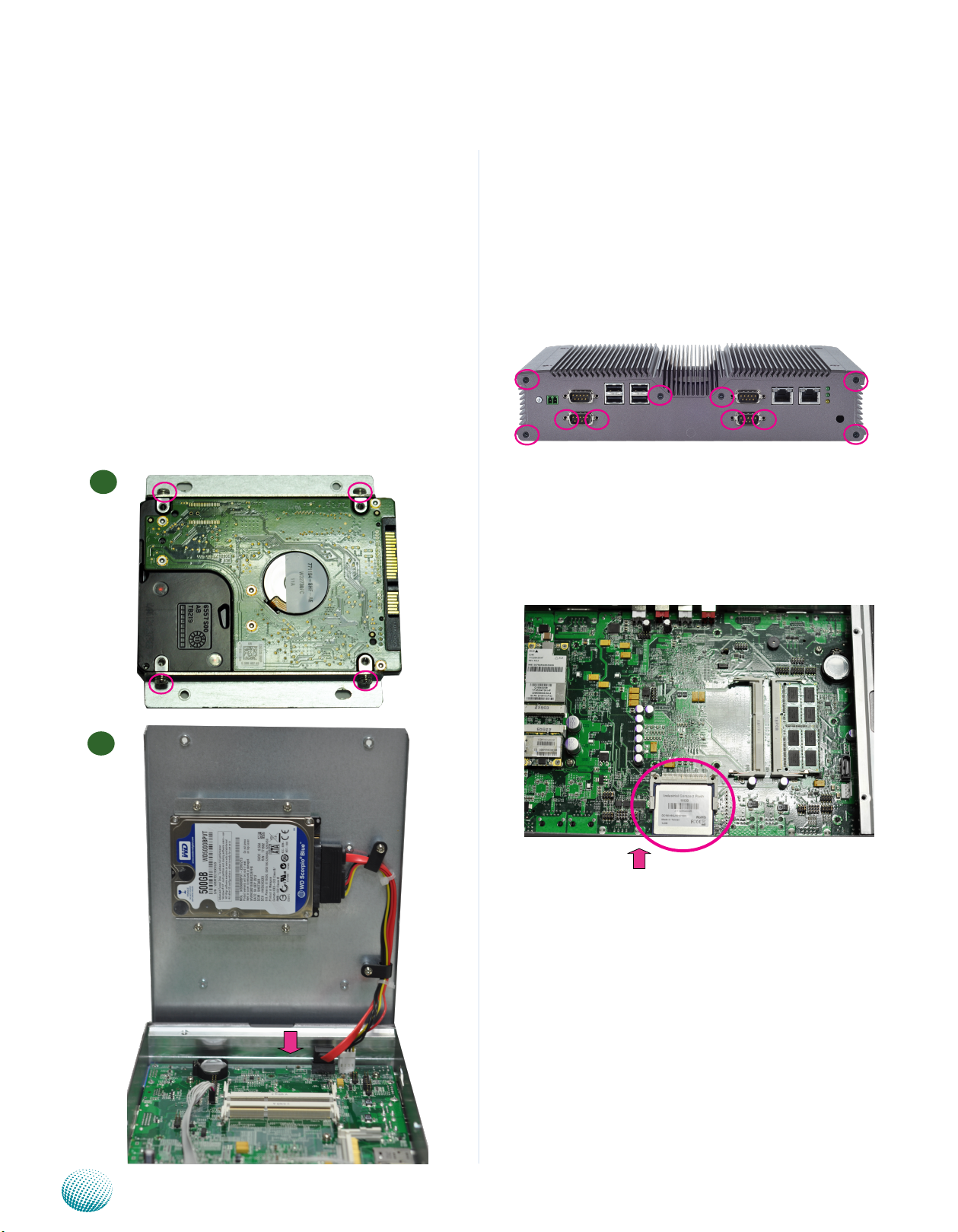

1 hard disk bay for 2.5" SATA/SSD installation •
Totally 4 serial ports: Two of them are DB9 connector •
type and support hardware auto flow control with
jumper settings to switch among RS232/422/485; the
other two are provided via pin headers and support
only RS-232

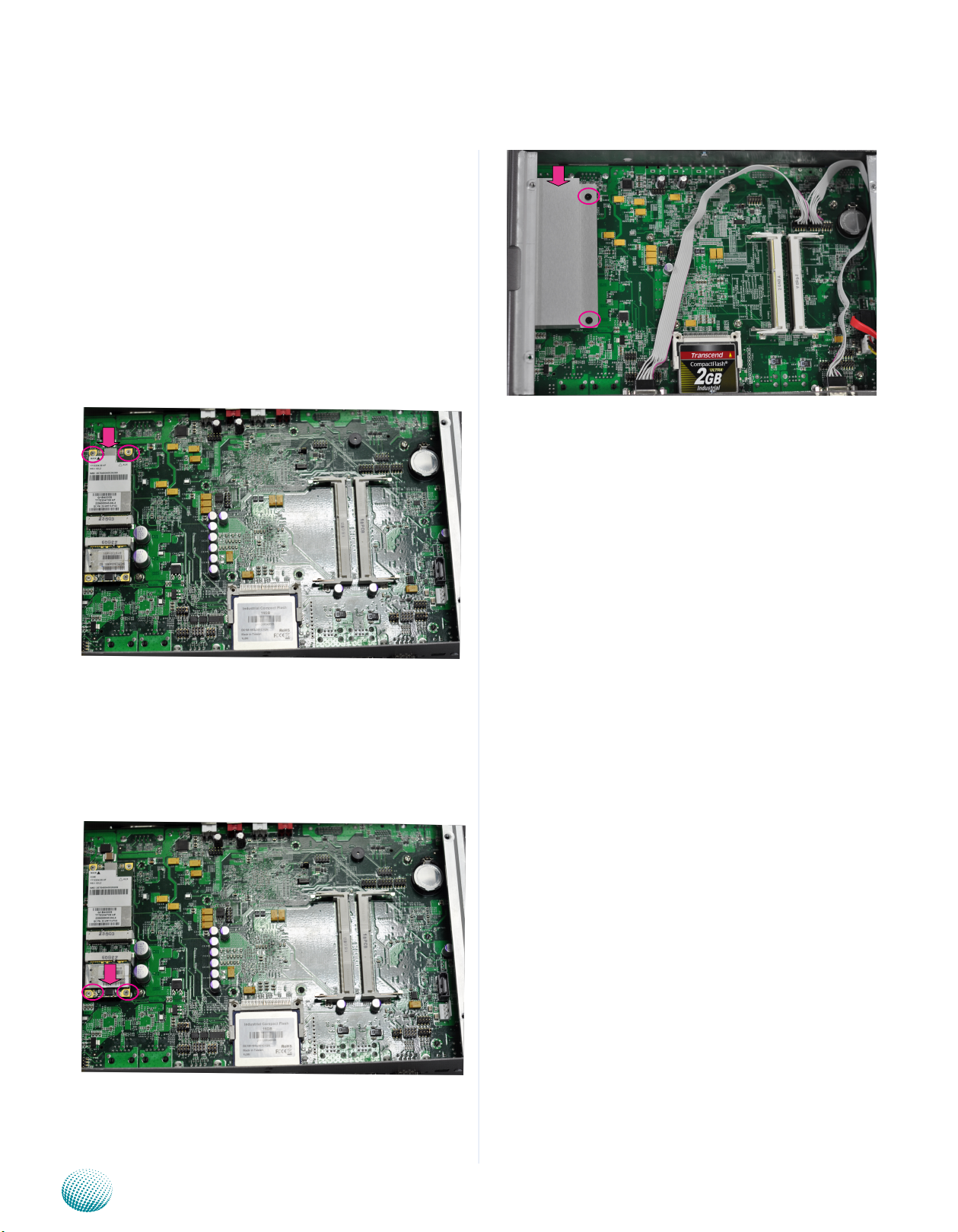

Dual Mini-PCIe Socket (One of them comes with a SIM •
card reader for 3G wireless Internet connection.) to
extend the capability for Wi-Fi or Bluetooth
Supporting distant power-on switch through terminal •
block type
System Specification
Dimensions (WxHxD)
Processor
Chipset
System
Memory
Storage
Ethernet Controller
Graphic Controller
IO
Power Input
AC Adapter
Hardware Monitor
OS Support
Certications
Operating
Temperature
Range
Ordering Information
Technology
Max. Capacity Up to 16GB
IDE 1 x CF socket
SATA 2.5” HDD/SSD drive bay x1
LAN GbE RJ45 x2
Display
Dual Display
Serial I/O
Digital I/O
USB 2.0 Type A x4; Internal x2
Power Input 2-pin Phoenix contact
Expansion
Others
With Industrial
Components
With Commercial
Components
277.65x59x175mm (10.93” x 2.32”
x 6.89”)
Intel Celeron 807UE
Intel HM65
DDR3 1066/1333/1600MHz SODIMM
x2
Intel 82583Vx2
Intel® integrated HD Graphics Engine
VGA(2048x1536)/HDMI/DVI-D
(1920x1200)
DB9 x4 for RS232 x2 and
RS232/422/485 x2
1 x female DB9 for DI x4 and DO x4
(5V TTL)
Half-size Mini-PCIe x1
Mini-PCIe x1(with a SIM card reader)
External: Power-on button, Power-on
switch, reset.
Internal: PS/2 keyboard and mouse
+18~36Vdc, ATX mode
60W +24V@2.5A
Fintek F81865
To monitor voltages & temperature for
CPU & System
Linux kernel 2.6 or later, Windows
7/XP/XP Embedded/7 embedded
CE, FCC Class A
LEC-2260A:-20~55°C, LEC-2260B:-
20~45°C
LEC-2260A:-5~45°C, LEC-2260B:-5~40°C
Embedded and Industrial Computing
LEC-2260A
LEC-2260B
Intel® Celeron® 847E 1.1GHz CPU support, DDR3
SODIMM x2, w/ 4 COM, DVI-D/VGA/HDMI, LAN x2, DIDO
(4 in, 4 out), Audio, +24V DC input
Intel® CoreTM i3-2310E 2.1GHz CPU support, DDR3
SODIMM x2, w/ 4 COM, DVI-D/VGA/HDMI, LAN x2, DIDO
(4 in, 4 out), Audio, +24V DC input
3
Chapter 1
Package Contents
Your package contains the following items:
LEC-2260 Fanless Embedded System •
Serial-ATA/Power Cable (P/N: 080W1N0002001) •
Drivers and User’s Manual CD (P/N: S09OADA23H010) •
Power Adapter (P/N: 0P0W060240A01) •
Optional Accessories
The system has a variety of optional accessories including
the power cords and Wi-Fi or 3G modules for extended
capabilities. For details of these modules, visit:
http://www.lannerinc.com/products/all-purpose-boxcomputers/lec-2260
Introduction
Embedded and Industrial Computing
4
Chapter 2
Chapter 2: System Components

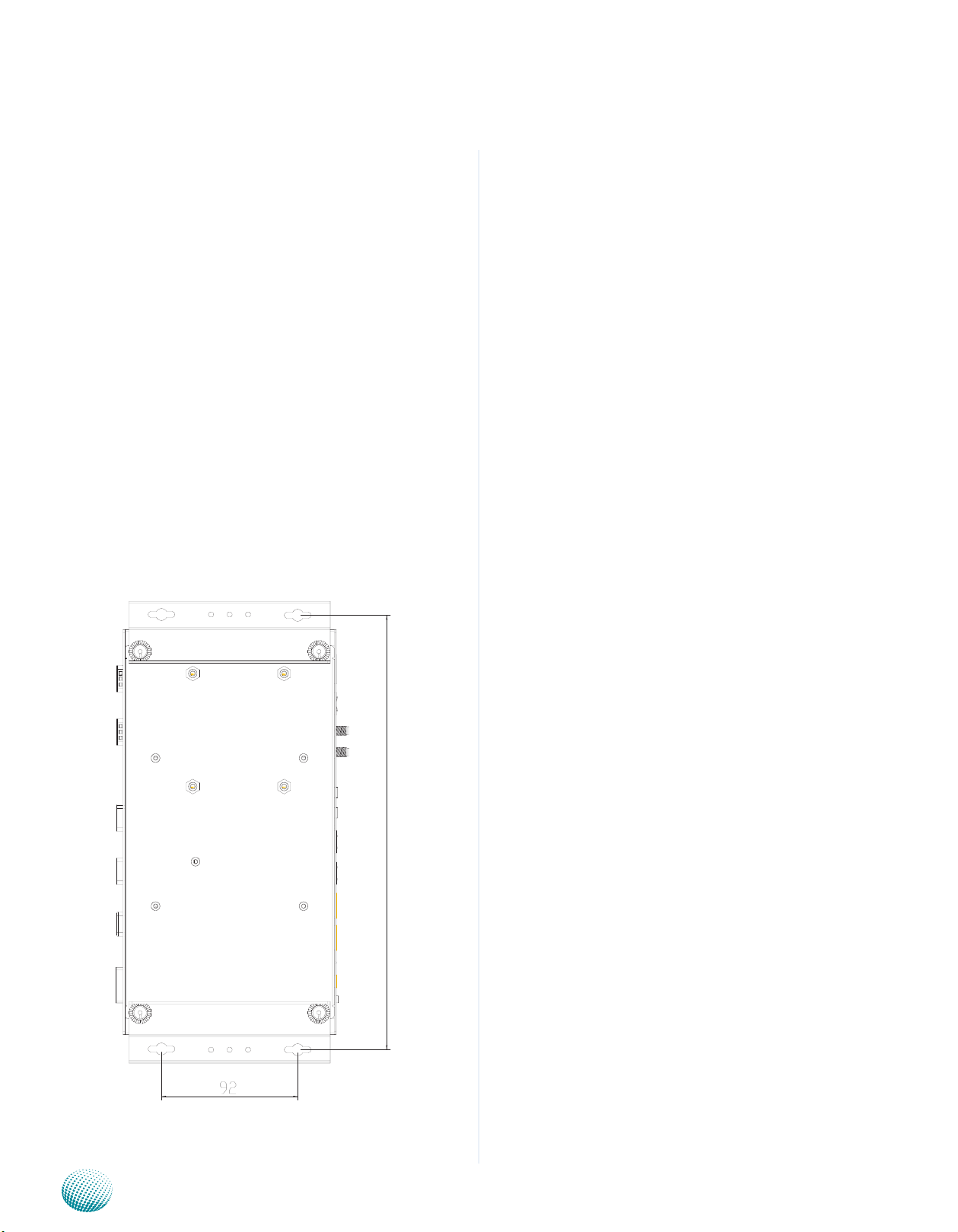

System Drawing
Mechanical dimensions of the LEC-2260
Unit: mm
System Components
Embedded and Industrial Computing
5
Chapter 2
Block Diagram
The block diagram depicts the relationships among the
interfaces and modules on the motherboard..
System Components
Embedded and Industrial Computing
6
Chapter 2
Front Components
Component Description Pin Definition
F1 Power Button with dual LED ATX Power-on button with LEDs: Standby mode in
F2 Power-on Switch A power-on switch through the terminal block for
F3 Serial Port COM1 and COM2,
COM3 and COM4
F4 Dual USB 2.0 Ports An USB type A connector. USB1 on page 17
F5 Two 10/100/1000Mbps LAN
ports
SPEED LINK/ACT
F6 Power LED (Green)
Status (Green)
HDD (Yellow)
F1
F2
F3
COM2COM1
COM4COM3
Red; Power-on mode in Green
distant power-on/off control

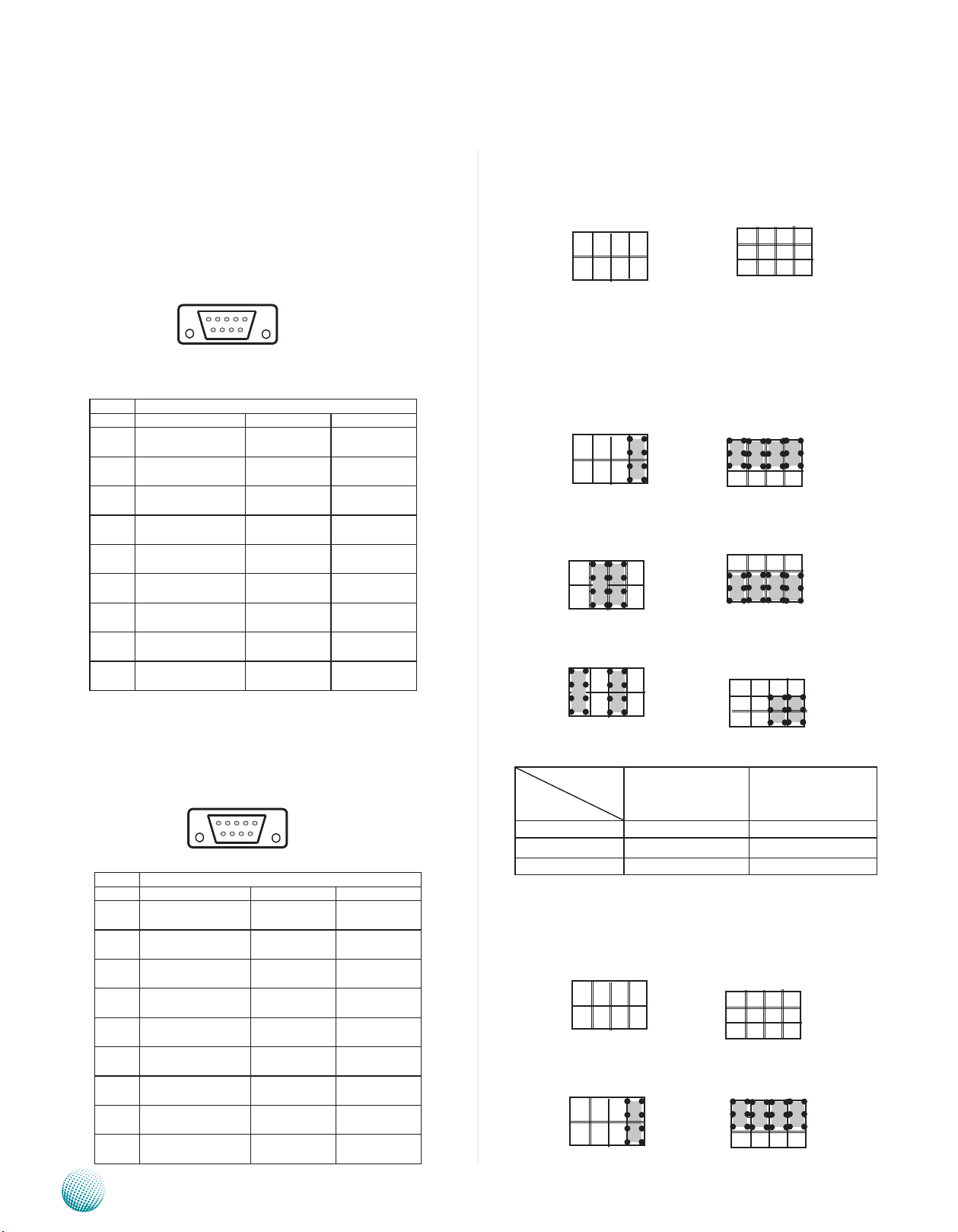

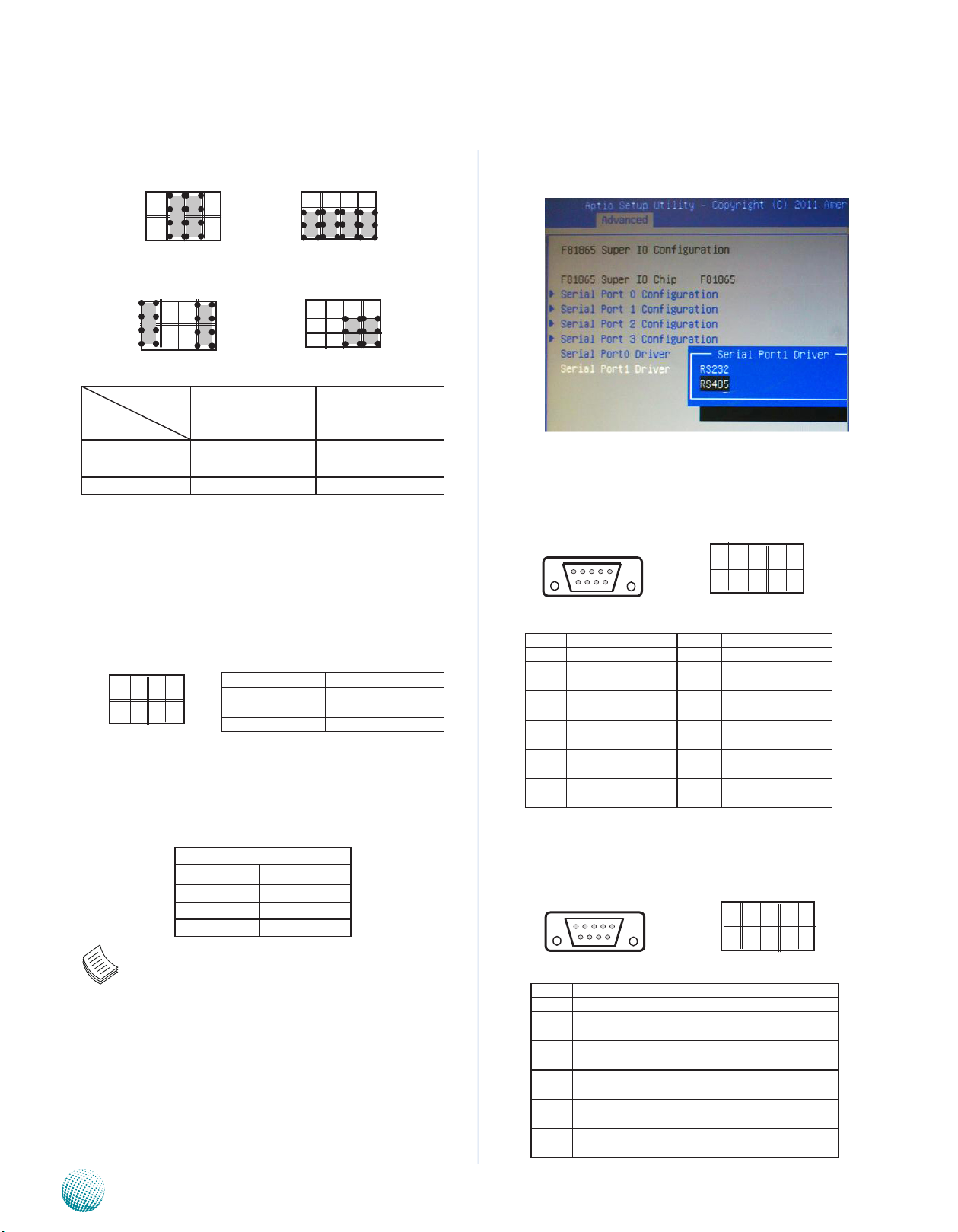

Serial ports through the DB-9 connector; both
COM1 and COM2 support RS-232/422/485 with
jumper and BIOS menu selection among RS232/422/485. They also support hardware auto
flow control. COM3 and COM4 support only
RS-232.
Two RJ-45 (network) jacks with LED indicators as
described below. Both LAN ports are provided by
Intel 82583V. The 82583V supports PXE remote
boot
LINK/ACT (Yellow)
On/Flashing: The port is linking and active in •
data transmission.
Off: The port is not linking.•
SPEED (Green/Amber)
Amber: The connection speed is 1000Mbps.•
Green: The connection speed is 100Mbps•
Off: The connection speed is 10Mbps.•
HDD
Blinking: data access activities•
Off: no data access activities•
Status
A programmable dual green/orange LED which
can be used for indicating system status.
Power
On: The computer is on.•
Off: The computer is off .•
F5F4
System Components
F6
Reference
PBT1 on page 15
J1 on page 16
CN3/CN4 on page 12
J7/J8 on page 13
LAN1/LAN2 on page
15
7
Embedded and Industrial Computing
Chapter 2
Rear Components
Component Description Pin Definition
F1 DC-In (power) 1x2 Pin Phoenix
Contact Connector

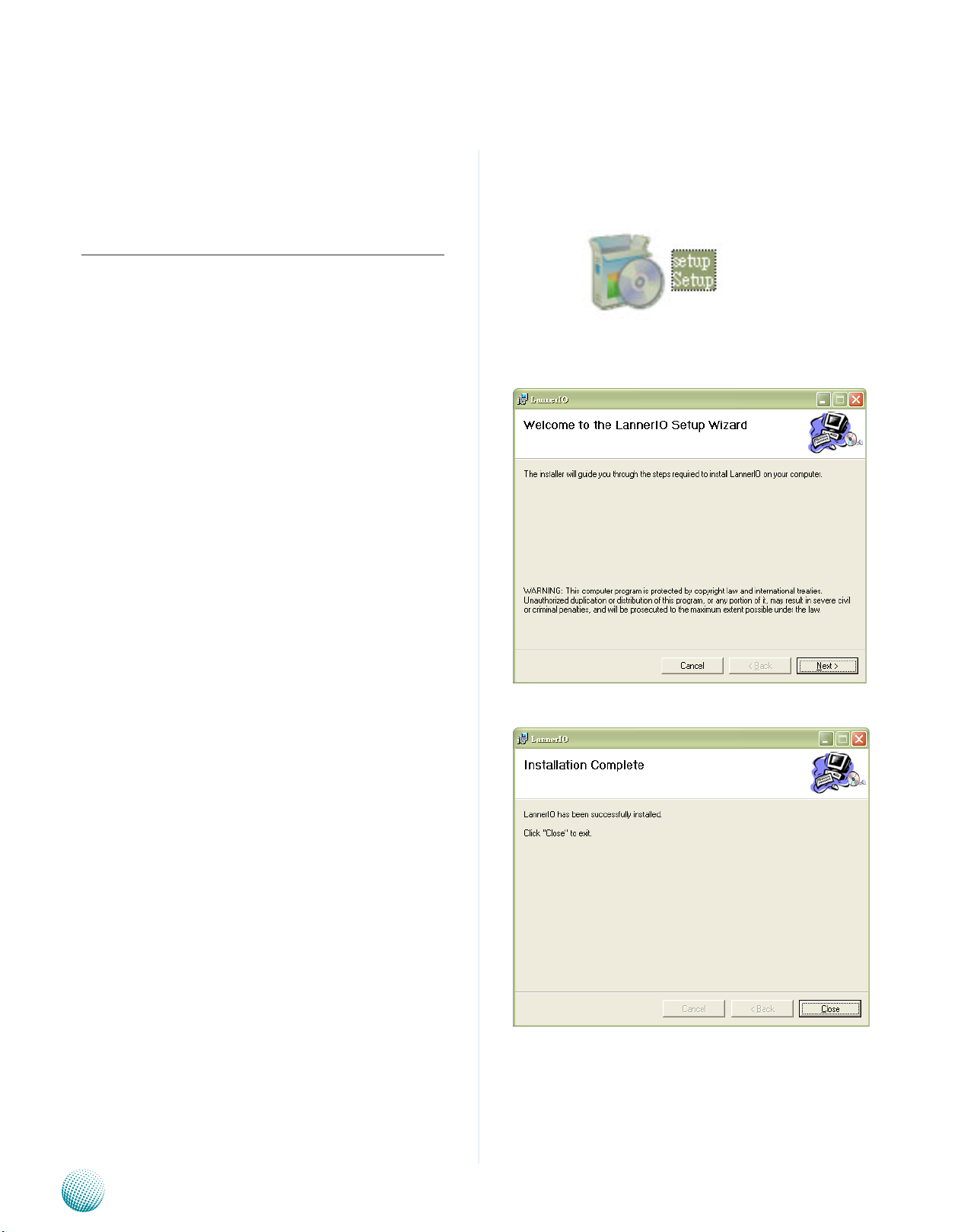

F2 DIO Port The general-purpose input/output1 (GPIO)
F3 Reset Switch A hardware reset switch. Use a pointed object to
F4 Antenna Hole Reserved for antenna
F5 DVI-D A DVI-D port (single link) which is provided by
F6 VGA Port The displays can support VGA up to 2048x1536
R1
R3
R2
Power-in Connector. The LEC-2260 supports power
input of +24V DC-in.
peripheral provides dedicated general-purpose
pins. The digital input helps triggering between
open and closed circuit such as PIRs, door/window
contact, glass break detector. And the output can
connect to devices such as relays and LEDs.
press it 5 seconds then release it to reset the system
without turning off the power.
Intel HD Graphic Engine. This port can support up
to 1920x1200 @ 60 Hz resolution.
resolution.
R4
R5 R6
System Components
Reference
CN1 on page 15
CN2 on page 15
RST1 on page 15
DVID1 on page 15
VGA1 on page 15
Embedded and Industrial Computing
8
