Lanner FW-6486 User Manual

Network
Application Platforms

Hardware platforms for next generation networking infrastructure

FW-6486

>>

User's Manual

Publication date:2012-07-26

About

About

Overview

Icon Descriptions

The icons are used in the manual to serve as an indication
of interest topics or important messages. Below is a
description of these icons:

NOTE: This check mark indicates that

there is a note of interest and is something
that you should pay special attention to
while using the product.

Online Resources

The listed websites are links to the on-line product
information and technical support.

Resource Website

Lanner http://www.lannerinc.com

Product Resources http://assist.lannerinc.com

WARNING: This exclamation point

indicates that there is a caution or
warning and it is something that could
damage your property or product.

Acknowledgement

Intel, Pentium and Celeron are registered trademarks of
Intel Corp.

Microsoft Windows and MS-DOS are registered trademarks
of Microsoft Corp.

All other product names or trademarks are properties of
their respective owners.

Compliances

CE

This product has passed the CE test for environmental
specifications. Test conditions for passing included the
equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly
recommend the use of CE-compliant industrial enclosure
products.

FCC Class A

This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required
to correct the interference at his own expense.

RMA http://eRMA.lannerinc.com

Copyright and Trademarks

This document is copyrighted © 2012. All rights are
reserved. The original manufacturer reserves the right to
make improvements to the products described in this
manual at any time without notice.

No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means
without the prior written permission of the original
manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties that
may result from such use.

Network Application Platforms

i

TTaTTable of Contentsbeable of Contents

Chapter 1: Introduction 1

System Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front Panel Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2: Hardware Setup 5

Preparing the Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

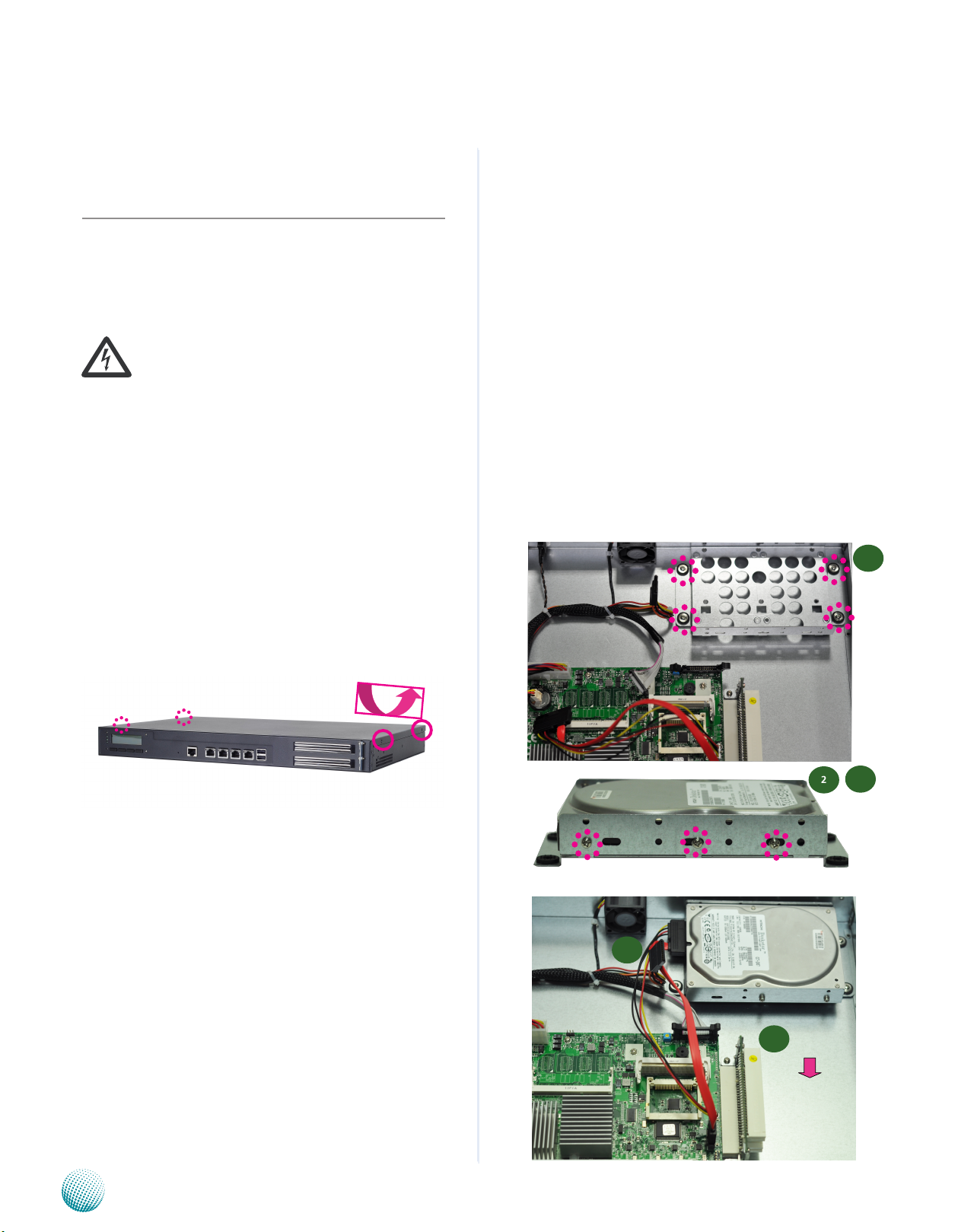

Installing the Hard Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

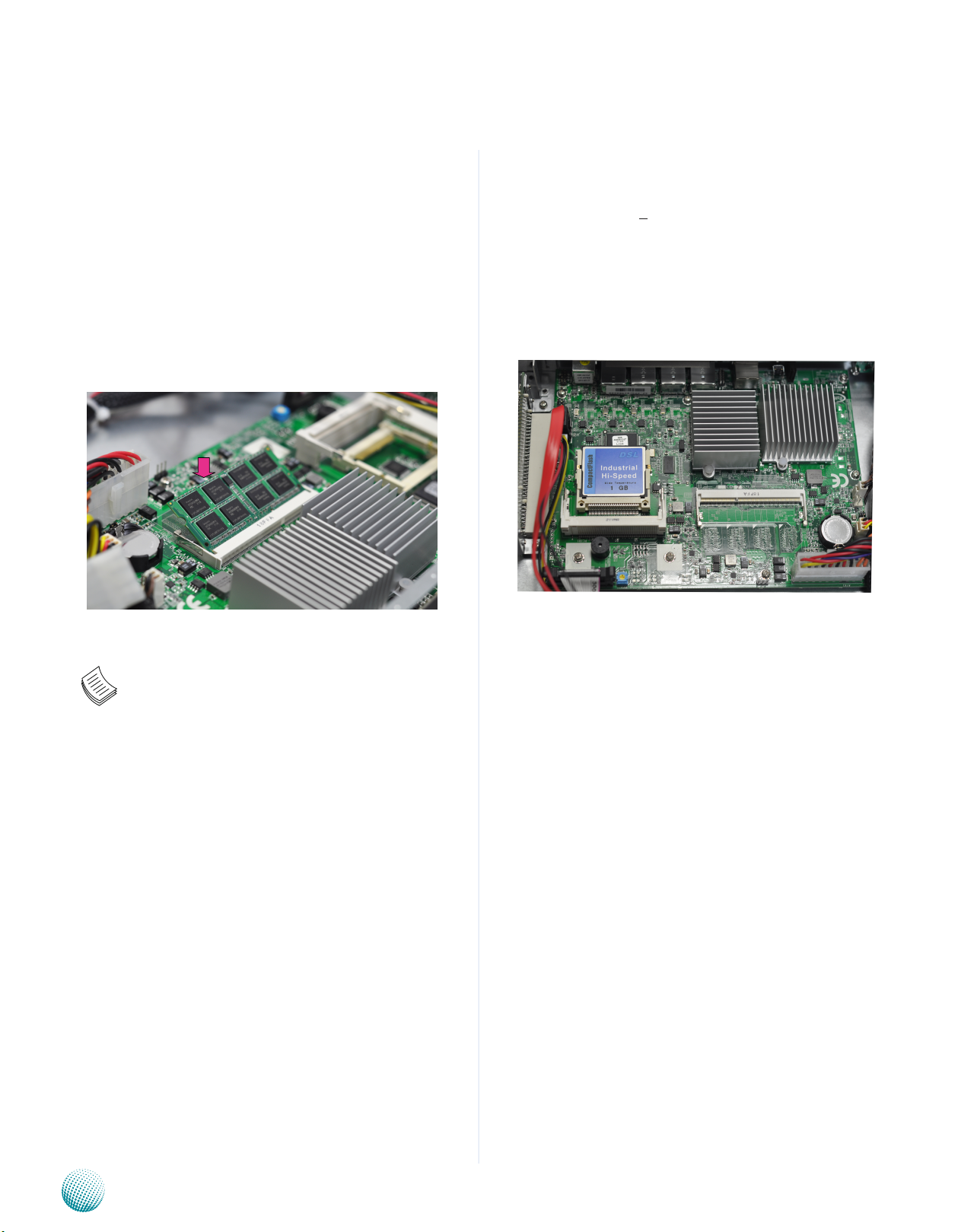

Installing the System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing a CompactFlash Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 3: Motherboard Information 7

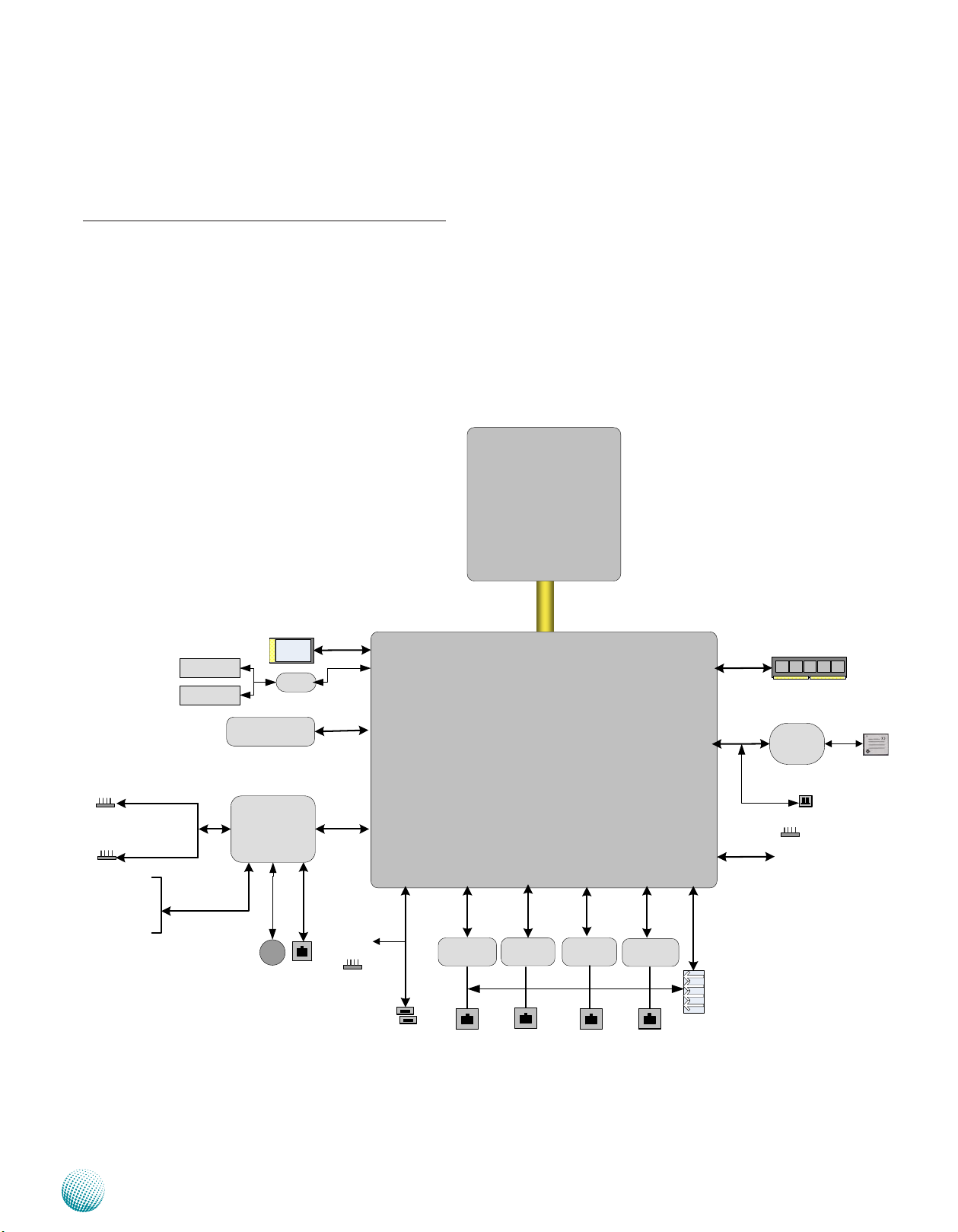

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

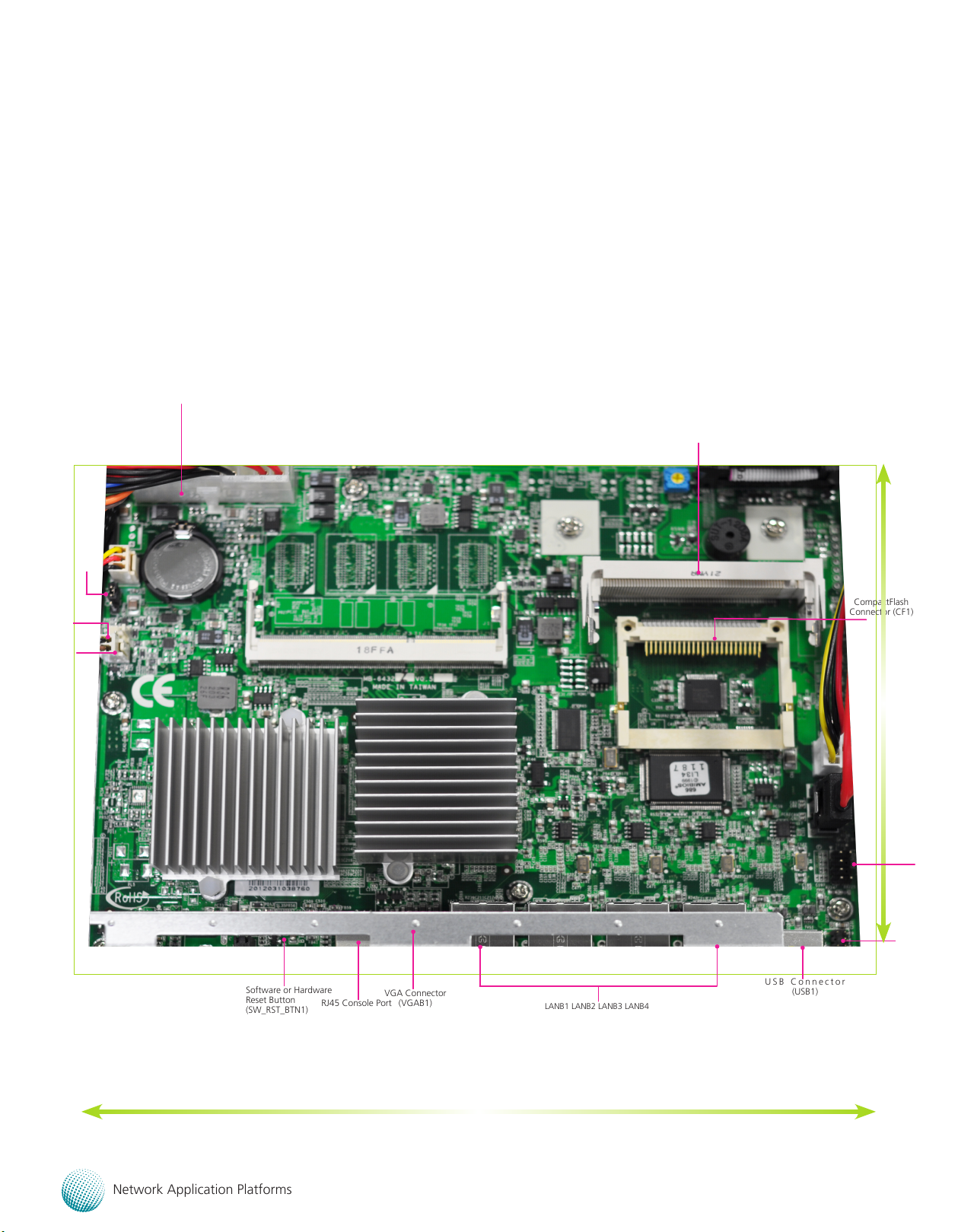

Motherboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

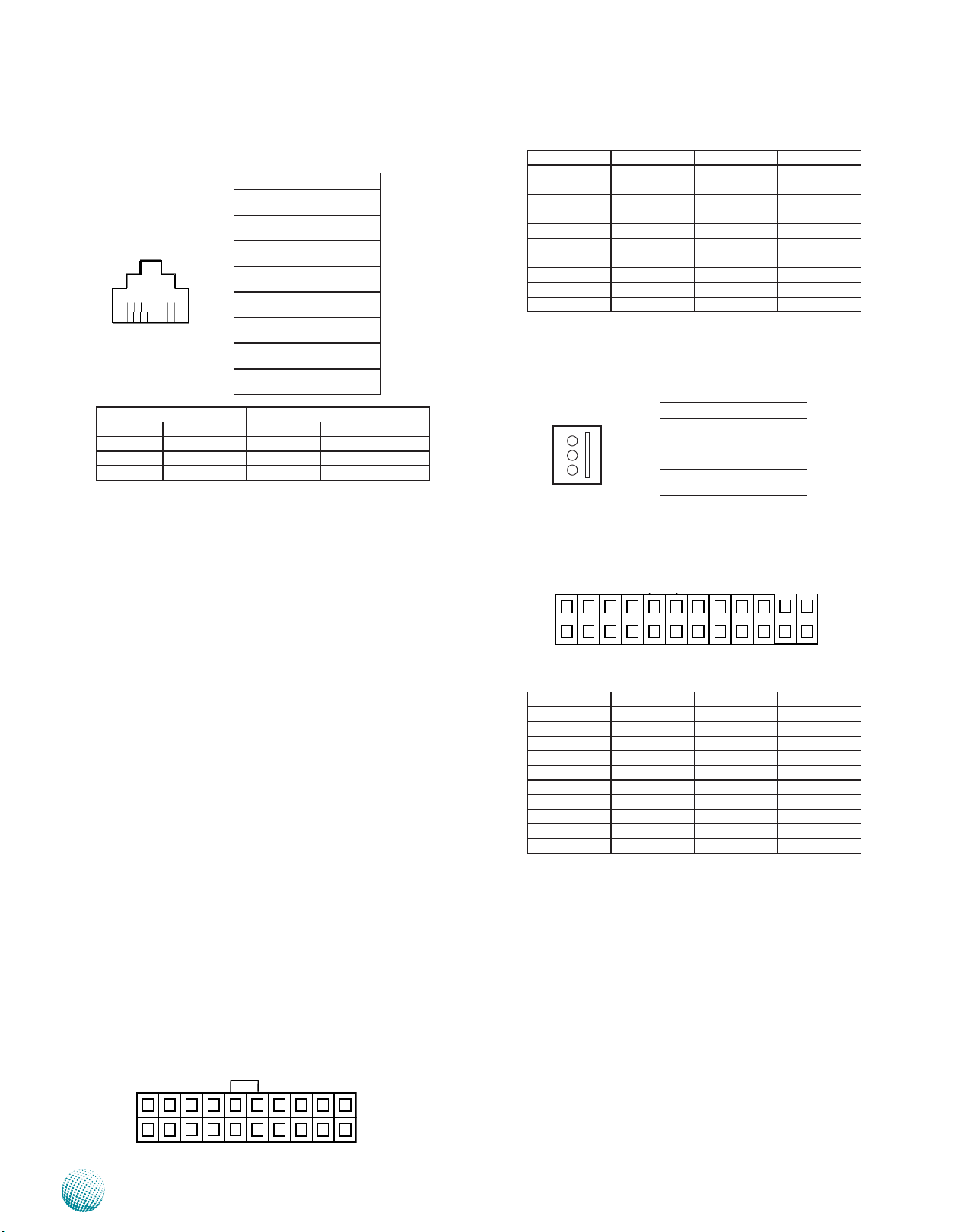

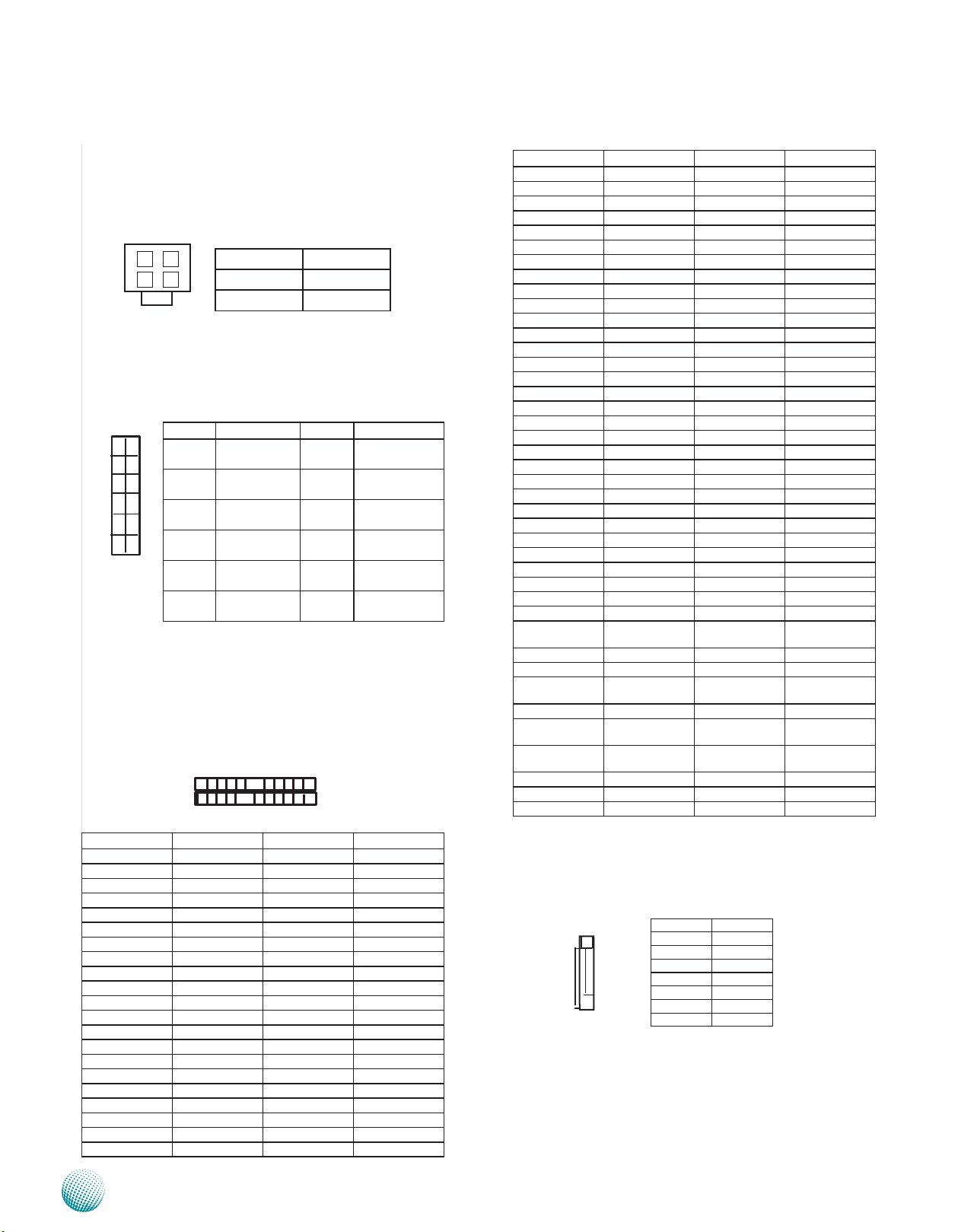

Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Appendix A: Driver Installation 12

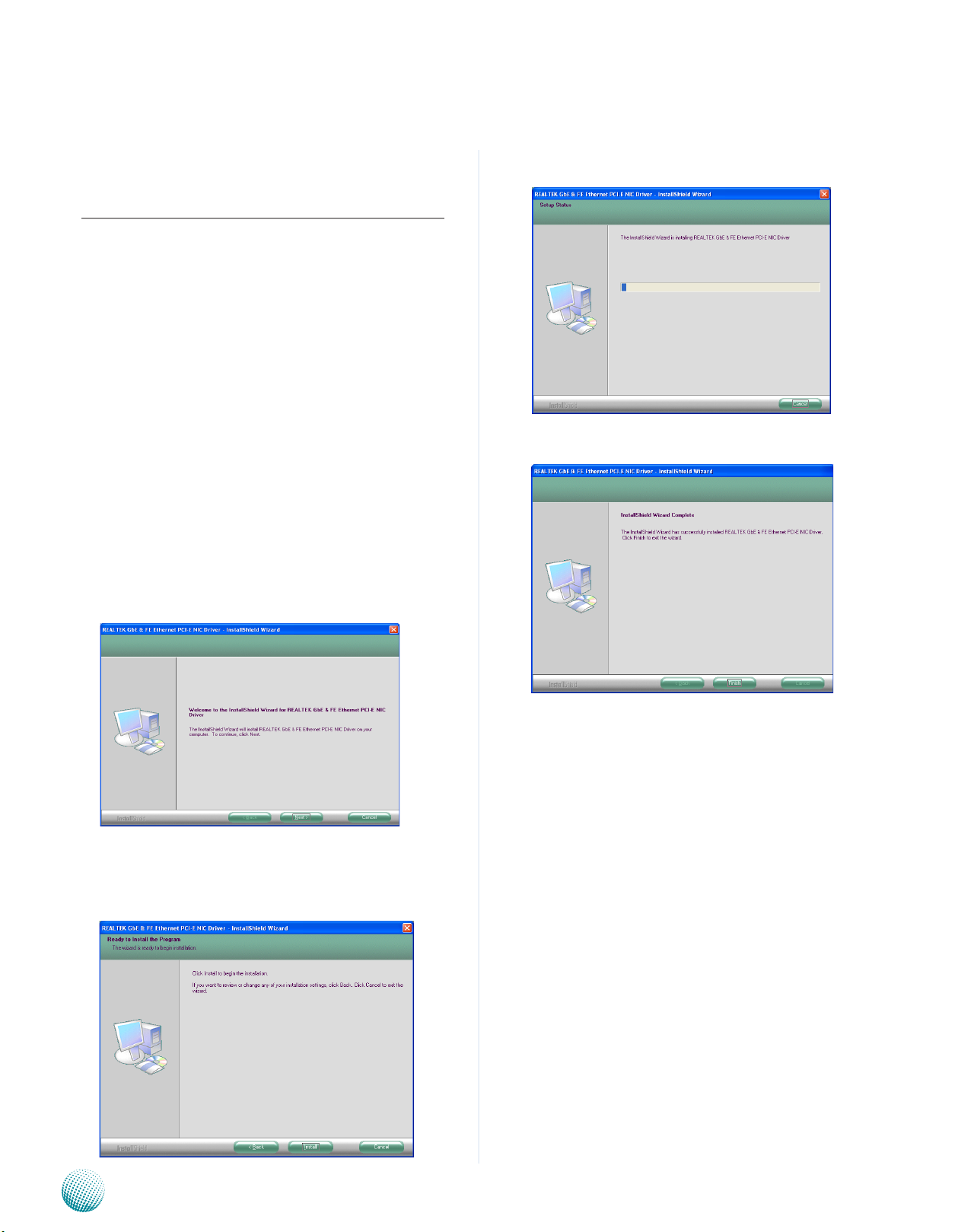

LAN Adapters Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Windows Operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Chipset Platform Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Windows Operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

VGA Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Windows Operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Appendix B: Terms and Conditions 14

Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

RMA Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ii

Chapter 1

Introduction

Chapter 1: Introduction

Based on a new generation high-performance VIA
VX900 chipset the FW-6486 offers a system with a 1U
rackmount chassis for secured data exchange and media
services. The chipset integrates the high-performance VIA
ChromotionHD 2.0 video processor, offering advanced
filtering and cutting edge post-processing to perform
ultra smooth decoding of MPEG-4, H.264, MPEG-2, and
VC-1.

Furthermore, you can take advantage of the integrated
security engines to the CPU to increase system
performance and throughput when doing the following
secure computations:

Secure Hash Algorithm • –SHA-1 & SHA-256 and AES
Encryption

RSA Public key algorithm • –the security engine can
accelerate public key generation enabling up to 900
signings of RSA 1024-bit per second.

Random number generation • –the engine can produce
truly random numbers at a sustained rate of 12 million
per second.

Prevention of worm executing and spreading during •
system run-time

The system also supports a variety of I/O interfaces
including 4 Gigabit Ethernet, 2 USB and 2 PCI expansion
slots.

Please refer to the chart below for a summary of the
system’s specifications.

System Specification

Form Factor 1U

Platform

BIOS

System
Memory

OS Support

Storage

Networking

I/O Interface

Expansion

Cooling

Environmen­tal Param­eters

Miscellane­ous

Processor Options
Chipset

Technology DDR3 800/1066MHz
Max. Capacity 4GB
Socket 1 x 204P SO-DIMM

HDD Bays
CompactFlash
Ethernet Ports

Bypass

Controllers

Ethernet Modules
Management Port N/A

Security Accelera­tion

Reset Button

Console
USB
IPMI via OPMA slot
PCIe

PCI

Processor

System

Temperature,
ambient operating /
storage

Humidity (RH),
ambient operating
/ ambient non­operating
LCD Module
Watchdog
Internal RTC with Li
Battery

VIA C7 1.5GHz
VIA VX900
AMI BIOS
8Mbit SPI Flash ROM

Windows 2000, 2003, XP,

7. Linux kernel 2.4 and up,
OpenBSD, FreeBSD

1 x 2.5” or 1 x 3.5”
1 x Type II CompactFlash
4 x GbE RJ45
N/A

4 x Realtek RTL8111E-VB­CG

N/A

N/A

1 x reset button
Software reset by default

1 x RJ45
2 x USB 2.0
N/A
N/A
1 x Mini-PCI
2 x PCI slots

Passive CPU heatsink
1 x cooling fan with smart
fan control

0 ~ 40º C / -20~70º C

5~95%, non-condensing

2 x 20 characters
Yes
Yes

Network Application Platforms

1

Chapter 1

Introduction

Physical
Dimensions

Power

Approvals and Compliance

Dimensions
(WxHxD)
Weight
Type / Watts
Input

431 x 44 x 317 mm

4 kg
1U ATX SPS / 100W
AC 100~240V @50~60 Hz
CE emission, FCC Class A,
RoHS

Package Contents

Your package contains the following items:

FW-6486 Network Security Platform•

Power cable•

1 crossover Ethernet cable (1.8 meters)•

1 straight-through Ethernet cable (1.8 meters)•

1 RJ45 to DB-9 console cable•

Serial-ATA hard drive cable •

1 threaded screw set•

1 pair of ear bracket for mounting•

Installation environment precaution:

Elevated Operating Ambient - If installed in a 1.
closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment
may be greater than room ambient. Therefore,
consideration should be given to installing
the equipment in an environment compatible
with the maximum ambient temperature (Tma)
specified by the manufacturer.
Reduced Air Flow - Installation of the equipment 2.
in a rack should be such that the amount of air
flow required for safe operation of the equipment
is not compromised. Mechanical Loading ­Mounting of the equipment in the rack should
be such that a hazardous condition is not created
due to uneven mechanical loading.
Mechanical Loading - Mounting of the equipment 3.
in the rack should be such that a hazardous
condition is not achieved due to uneven
mechanical loading.
Circuit Overloading - Consideration should be 4.
given to the connection of the equipment to the
supply circuit and the effect that overloading
of the circuits might have on over-current
protection and supply wiring. Appropriate
consideration of equipment nameplate ratings
should be used when addressing this concern.
Reliable Earthing - Reliable earthing of rack-5.
mounted equipment should be maintained.
Particular attention should be given to supply
connections other than direct connections to the
branch circuit (e.g. use of power strips).

Network Application Platforms

2

Chapter 1

Front Panel Features

Introduction

F1

F1 LED

System (Green) Green: when the system is on.

Status (Green/Amber) It is a programmable LED to show the operating status of the system. For

Hdd (Yellow) Flashing: when there are data access activities or when the CompactFlash

F2 LCM Module

The front LCM module with touch pad can be programmed to show the operating status or to display certain characters
or graphics.

F3 Reset Switch

F2

F3 F6 F7F4

O: when the system is o.

more details, look for the software utility folder in the Driver and User Manual
CD.

card or SATA disk (on model FW-6486B only) is present or both
O: when there is no CF or SATA disk present..

F5

A hardware (default) or a software reset switch. You will need to set it to either hardware or software reset in the BIOS.

F4 Console Port

It is a console port via RJ45 connector. Using suitable RS-232 cable, you can connect an appropriate device, for example,
a terminal console for diagnostics.

Terminal Configuration Parameters: 115200 baud, 8 data bits, no parity, 1 stop bit , no flow control.

F5 4 10/100/1000 Gigabit Ethernet Ports

The Gigabit Ethernet ports are provided by Realtek RTL8111E-VB-CG Integrated 10/100/1000 Ultra Gigabit Ethernet
Transceiver through the PCI-e interface. They support both Wake-on-LAN and remote wake-up. They also support the
IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q VLAN tagging.

LED Indicator LED Function LED Color On O Blinking
Left Link/Activity Yellow connected Not connected Linking/there is

trac

Right Data Speed Green

Orange

F6 USB 2.0 Ports

It connects to any USB devices, for example, a flash drive. Besides this external USB port, there is another one with the
internal pin headers (refer to Jumper Setting on Chapter 3 Motherboard Information)

F7 PCI Expansion Slot

In addition to these two PCI expansion slots, there is also one internal Mini-PCI connector .

100 Mbps
1000 Mbps

10 Mbps

Network Application Platforms

3

Chapter 1

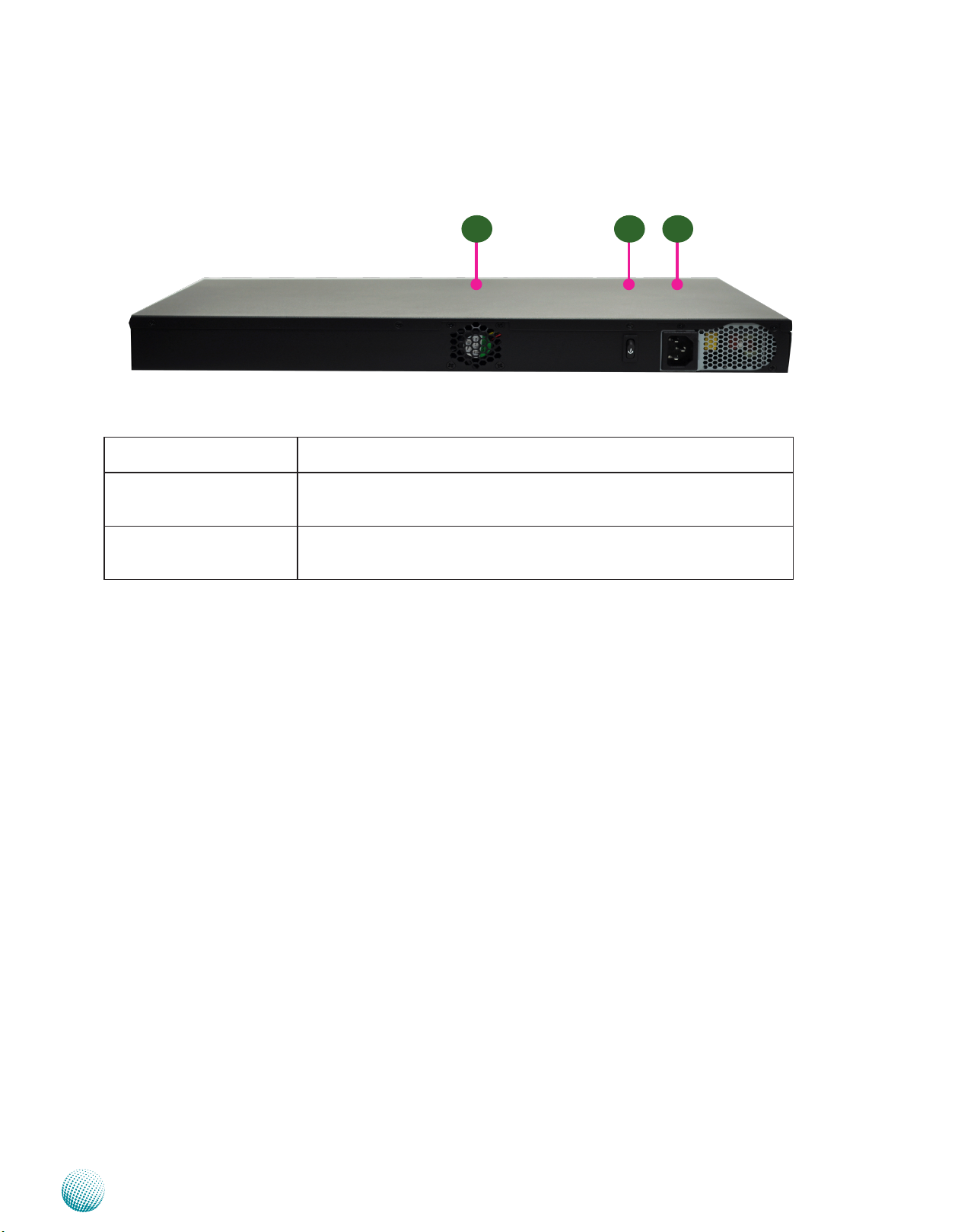

Rear Panel Features

Introduction

R1

R1 LED

System (Green) Green: when the system is on.

O: when the system is o.

Status (Green/Amber) It is a programmable LED to show the operating status of the system. For

more details, look for the software utility folder in the Driver and User Manual
CD.

Hdd (Yellow) Flashing: when there are data access activities or the presence of the Com-

pactFlash card or SATA disk (on model FW-6486B only) or both
O: when there is no CF or SATA disk present

R2 LED for 1-4 (from left to right) LAN Ports

Data Speed LED (Orange/Green/Off ): Orange indicates that the data is communicating at 1000Mbps. Green indicates that
the data is communicating at 100Mbps. Off means that the data is communicating at 10Mbps.

R2 R3

Link/Active (Yellow): If the LED is on, the port is connected to the LAN. If it blinks, it indicates there is traffic.

R3 AC Power-in Socket

Network Application Platforms

4

Chapter 2

Hardware Setup

Chapter 2: Hardware Setup

Preparing the Hardware Installation

To access some components and perform certain service
procedures, you must perform the following procedures
first.

WARNING: To reduce the risk of personal injury,

electric shock, or damage to the equipment,
remove the power cord to remove power from the
server. The front panel Power On/Standby button
(if there is one) does not completely shut off
system power. Portions of the power supply and
some internal circuitry remain active until power
supply is removed.

Unpower the FW-6486 and remove the power cord.1.

Unscrew 2 screws from the two sides and three screws 2.
on the back of the top cover of the FW-6486 System.

Installing the Hard Disk

The system can accommodate one Serial-ATA disk (2.5” or

3.5”). Follow these steps to install a hard disk into the FW­6486:

Unscrew the 4 screws on the hard disk tray to take out 1.
the hard disk tray from the system.

Place hard disk on the hard disk tray and align the holes 2.
of the hard disk with the mounting holes on the tray.

Secure the hard disk with 4 mounting screws on the 3.
hard disk tray.

Connect the Serial-ATA power and data cables to 4.
the hard disk’s power and hard drive connectors
respectively.

Plug the Serial-ATA cable to the Serial-ATA Connector 5.
on the main board.

Put the hard disk tray with the installed hard disk back 6.
to the system and secure it with the mounting screws.

1

Slide the cover backwards to open it.3.

3

2

5

4

Network Application Platforms

5

Chapter 2

Hardware Setup

Installing the System Memory

The motherboard supports DDR3 memory that features
data transfer rates of 800 or 1066 MHz to meet the higher
bandwidth requirements of the latest operating system
and Internet applications. It comes with one Double­Data-Rate Three (DDR3) Small Outline Dual Inline Memory
Modules (SO-DIMM) socket.

Align the memory module’s cutout with the SO-DIMM’s 1.
slot notch.

Install the SO-DIMM.2.

Installing a CompactFlash Card

FW-6486 provides one CompactFlash slot slot. Follow the

procedures bellow too install a CompactFlash card.

Align CompactFlash card and the card slot with the 1.
arrow pointing toward the connector.

Push the card to insert into the connector.2.

Note:

SO-DIMM installed must meet the following 1.
speed requirement: DDR3 800 or 1066 MHz. Do
not install DIMMs with different speeds.
The motherboards can support a total memory 2.
capacity of 4 GB in maximum.

Network Application Platforms

6

Chapter 3

VIA Eden ULV

1.5GHz

VIA

VX900

LPC

FSB

400/533/800/1066MHz

4x GbE RJ-45

4x PCI-E x1

Compact Flash

2x pin

headers

USB 2.0

DDR3 SO-DIMM Slot

Realtek

8111E

Winbond

83697HG

SPI

Front

LED

Realtek

8111E

Realtek

8111E

Realtek

8111E

SATAII

VGA

DDR3

RJ45

console

LCM/Key Pad

KB/Mouse

2x USB

Connectors

VGA pin
headers

SPIF223

PCI

Mini-PCI

Riser
Card

Connector

Connector

1x SATAII Ports

Reset

Button

GPIO

Fan Monitor

Thermal Monitor

Watchdog

Chapter 3: Motherboard Information

Block Diagram

The block diagram depicts the relationships among the
interfaces or modules on the motherboard. Please refer
to the following figure for your motherboard’s layout
design.

Motherboard Information

Network Application Platforms

7

Chapter 3

Motherboard Layout

The motherboard layout shows the connectors and
jumpers on the board. Refer to the following picture
as a reference of the pin assignments and the internal
connectors.

20-Pin ATX Power
Connector (ATX1)

Motherboard Information

Mini-PCI Connector (PCIB1)

Reset Button
(JRST_BTN1)

Power
Button
(JPWBTN1)

Clear CMOS
Jumper
(CMOS1)

Software or Hardware
Reset Button
(SW_RST_BTN1)

RJ45 Console Port

VGA Connector

(VGAB1)

LANB1 LANB2 LANB3 LANB4

USB Connector

(USB1)

CompactFlash

Connector (CF1)

158.5mm

Keyboard and
Mouse Connector

(PKMB1)

USB Connector (J2)

Network Application Platforms

203mm

8

Chapter 3

Motherboard Information

Jumper Settings

CMOS Jumper (CMOS1): It is for clearing the CMOS

memory and system setup parameters by erasing
the data stored in the CMOS RAM such as the system
password.

PIN NO. Function

1
2
3

USB 2.0 Ports (J2) for USB Port #2 and #3: This port is for

connecting the USB module cable. The high-speed
USB port complies with USB2.0 and support up to
480 Mbps connection speed. It is.

10

8

6

4

2

9

7

5

3

1

Dual USB 2.0 Ports (USB1): This provides two USB 2.0

ports in the front panel.

5 6 7 8

1 2 3 4

Keyboard and Mouse Interface Connectors (PKMB1):

a 2 x 4 pin header for connecting the PS/2 keyboard
and mouse interface cable.

1

3

5

7

1-2 Normal (Default)

2-3 Clear CMOS

Pin No. Function

Pin No. Function

Pin No. Function

2

4

6

8

1 VCC
2 MSCLK

3 MSDATA
4 KEY
5 KBDATA
6 KEY
7 GND
8 KBCLK

1 USB_VCC
2 Ground

3 Key
4 USBD3+
5 USBD2­6 USBD3­7 USBD2+
8 Key
9 Ground

10 USB_VCC

1 USB_VCC
2 USBD0-

3 USBD0+
4 GND
5 USB_VCC
6 USBD1­7 USBD1+
8 GND

Reset Button Connector (JRST_BTN1): a 2-pin header

for connecting the reset switch. It can be either a
hardware or a software reset depending on the BIOS
setting. It serves the same function as the Front

Panel Reset Switch (SW_RST_BTN1).

1

2

PIN NO. Function

1 RST_BTN

2 Ground

2-Pin Power Button Connector (JPWBTN1)

1

2

PIN NO. Function

1 PWRBTN

2 Ground

CompactFlash Connector (CF1): It is for connecting a

Compact Flash card to be served as your system’s
storage. The connector is a CF Type II slot which could
fit both CF Type I or CF Type II cards.

26...................50

1......................25

PIN DESCRIPTION PIN DESCRIPTION

1 GND 26 CD1­2 DATA3 27 DATA11
3 DATA4 28 DATA12
4 DATA5 29 DATA13
5 DATA6 30 DATA14
6 DATA7 31 DATA15
7 CE1# 32 CE2#
8 A10 33 VS1#

9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
12 A7 37 READY#
13 CFVCC3 38 CFVCC3
14 A6 39 CSEL
15 A5 40 VS2#
16 A4 41 RESET
17 A3 42 WAIT#
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 DASP#
21 DATA0 46 DIAG#
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 WP 49 DATA10
25 CD2- 50 GND

Network Application Platforms

9

Chapter 3

Motherboard Information

Front Panel Reset Switch (SW_RST_BTN1): This switch

can be a hardware or software reset depending
on the BIOS setting. It works the same as the Reset

Button Connector (JRST_BTN1).

3 4

1 2

Pin No. Function

1 RST_BTN
2 GND

Internal VGA Pin Header (VGAB1)

PIN NO. Function PIN NO. Function

1

3

5

7

9

11

2

1 R 2 Ground

4

3 G 4 Ground

6

5 B 6 Ground

8

10

12

7 H-SYNC 8 Ground

9 V-SYNC 10 Ground

11 Detect-display

Data

12 Det eck -dis pla y

CLOCK

124 Pin Mini PCI Socket (PCIB1)

123......................1

124......................2

Pin No. Description Pin No. Description

43 RESERVED 44 AD26
45 C_BE-3 46 AD24
47 AD23 48 IDSEL
49 GROUND 50 GROUND
51 AD21 52 AD22
53 AD19 54 AD20
55 GROUND 56 PAR
57 AD17 58 AD18
59 C_BE-2 60 AD16
61 IRDY 62 GROUND
63 +3.3V 64 FRAME
65 CLKRUN 66 TRDY
67 SERR 68 STOP
69 GROUND 70 +3.3V
71 PERR 72 DEVSEL
73 C_BE-1 74 GROUND
75 AD14 76 AD15
77 GROUND 78 AD13
79 AD12 80 AD11
81 AD10 82 GROUND
83 GROUND 84 AD9
85 AD8 86 C_BE-0
87 AD7 88 +3.3V
89 +3.3V 90 AD6
91 AD5 92 AD4
93 RESERVED 94 AD2
95 AD3 96 AD0
97 +5V 98 RESERVED-WIP

99 AD1 100 RESERVED-WIP
101 GROUND 102 GROUND
103 AC_SYNC 104 M66EN
105 AC_SDATA_IN 106 AC_SDATA_

107 AC_BIT_CLK 108 AC_CODEC_ID0
109 AC_CODEC_ID1 110 AC_RESET
111 MOD_AUDIO_

MON
113 AUDIO_GND 114 GROUND
115 SYS_AUDIO_

OUT

117 SYS_AUDIO_

OUT GND
119 AUDIO_GND 120 AUDIO_GND
121 RESERVED 122 MPCIACT
123 VCC5VA 124 3.3AUX

112 RESERVED

116 SYS_AUDIO_IN

118 SYS _AUDI O_ IN

OUT

GND

Pin No. Description Pin No. Description

1 TIP 2 RING
3 8PMJ-3 4 8PMJ-1
5 8PMJ-6 6 8PMJ-2
7 8PMJ-7 8 8PMJ-4

9 8PMJ-8 10 8PMJ-5
11 LED1_GRNP 12 LED2_YELP
13 LED1_GRNN 14 LED2_YELP
15 CHSGND 16 RESERVED
17 INT-B 18 +5V
19 +3.3V 20 INT-A
21 RESERVED 22 RESERVED
23 GROUND 24 3.3VAUX
25 CLK 26 RST
27 GROUND 28 +3.3V
29 REO 30 GNT
31 +3.3V 32 GROUND
33 AD31 34 PME
35 AD29 36 RESERVED
37 GROUND 38 AD30
39 AD27 40 +3.3V
41 AD25 42 AD28

Network Application Platforms

SATA Connector (SATA1)

1
2
3
4

5

6
7

Pin No. Function

1 GND
2 TX_P
3 TX_M
4 GND
5 RX_M
6 RX_P
7 GND

10

Chapter 3

Motherboard Information

Ethernet ports 4~1(LANB1~LANB4)

PIN NO. Function

1 BI_DA+

2 BI_DA-

3 BI_DB+

LED1

Status Description Status Description

Off No Link Off 10 Mb Connection

On Linked Green 100 Mb Connection

Blinking Data Activity Amber 1 Gb Connection

LED2

LED1 LED2

4 BI_DC+

5 BI_DC-

6 BI_DB-

7 BI_DD+

8 BI_DD-

Ethernet 1 and Ethernet 2 Port : These RJ45 gigabit

Ethernet ports are provided by Realtek RTL8111E GbE
controller. The major feature of this controller is the
Energy Efficient Ethernet (EEE). The EEE works with
MAC layer to support operation in Low Power Idle
mode. Some of the key capabilities are listed below:

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS-ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 Power Good 18 -5V
9 Stand-By 5V 19 +5V

10 +12V 20 +5V

3 Pin FAN Connector (FAN1~2):

PIN NO. Function

1 Ground

3
2
1

2 +12V

3 FAN Status

LCM Connector (LCMA1):

2 24

Integrated 10/100/1000 transceiver •

Auto-Negotiation with Next Page capability •

Supports PCI Express 1.1 •

Supports pair swap/polarity/skew correction •

Crossover Detection & Auto-Correction •

Wake-on-LAN and remote wake-up support •

Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, •
TCP, UDP) and Segmentation Task-offload (Large send
v1 and Large send v2) support

Supports Full Duplex flow control (IEEE 802.3x) •

Supports jumbo frame to 9K bytes •

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE •

802.3ab

Supports IEEE 802.1P Layer 2 Priority Encoding •

Supports IEEE 802.1Q VLAN tagging •

Supports IEEE 802.3az Draft 3.0 (EEE) •

20-Pin ATX Power Connector (ATX1)

1 19

1 23

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC 11 LPD5
2 PGND 12 LPD4
3 LSTIN- 13 LPD7
4 VEE 14 LPD6
5 LAFD- 15 LCD
6 LINIT- 16 VCC
7 LPD1 17
8 LPD0 18
9 LPD3 19

10 LPD2 20

2 20

Network Application Platforms

11

Appendix A

Driver Installation

Appendix A: Driver Installation

LAN Adapters Driver Installation

This section provides the instructions on how to install
Realtek® Gigabit LAN adapter drivers.

Windows Operating systems

To install the Realtek® Gigabit LAN controller driver on a
Windows Operating System:

Restart the computer, and then log on with 1.
Administrator privileges.

Insert the Drivers and User’s Manual CD to the USB-2.
Optical drive.

Browse the contents of the Drivers and User’s Manual 3.
CD to locate the file SETUP.EXE from the \Driver\
RTL8111_Driver folder. Double-click the SETUP.EXE

The4. REALTEK GbE & FE Ethernet PCI-E NIC Driver
installer program starts. Click Next to begin the
installation.

Please wait while the installation is in progress.6.

Click7. Finish to close the installation program.

When the 5. Ready to Install the Program window
appears, click Install to proceed .

Network Application Platforms

12

Appendix A

Driver Installation

Linux

Follow these instructions to install the Realtek® LAN
controller base driver for the Red Hat® and Linux operating
system.

Insert the Drivers and User’s Manual CD to the USB-1.
Optical drive and mount the optional drive in the
Linux platform.

Copy the archive driver in BZ2 file from the Drivers and 2.
User’s Manual CD to the directory of your local hard
disk. The Realtek® LAN driver for Linux OS is located in
the following directory:

\Driver\RTL8111_Driver\LINUX. The name format of
driver file is “r8168-<Version>.tar.bz2”.

Untar/unzip the archive file:3.

tar xvfj <driver-file-in>.tar.bz2

Compile the driver module by typing the following 4.
command:

make install

The binary will be installed as:5.

/lib/modules/<kernel_version>/kernel/drivers/net/

The install locations listed above are the default
locations. They might not be correct for certain Linux
distributions.

Chipset Platform Driver Installation

The VIA chipset drivers help increase the stability and
performance of the system with VIA chipsets as well as
tools which are useful for advanced configurations. These
drivers include IDE Device driver, AGP Driver, RAID Driver
and Raid Tools, and so on.

To download the chipset driver, visit:

http://www.via.com.tw/en/support/drivers.jsp

Windows Operating systems

Restart the computer, and then log on with 1.
Administrator privileges.

Insert the Drivers and User’s Manual CD to the USB-2.
Optical drive.

Browse the contents of the Drivers and User’s Manual 3.
CD under the directory: \Driver\.

Execute the installer program, “SETUP.exe” by double-4.
clicking the icon.

Note: For drivers installing on linux based operating
systems such as Ubuntu and SuSE Linux , visit Via’s
download page at http://linux.via.com.tw/support/
downloadFiles.action

Assign an IP address to the interface by entering the 6.
following, where <x> is the interface number:

ifconfig eth<x> <IP_address>

Verify that the interface works. Enter the following, 7.
where <IP_address> is the IP address for another
machine on the same subnet as the interface that is
being tested:

ping <IP_address>

Note: For LAN drivers installing on other operating
systems, visit Realtek’s download page at
http://www.realtek.com.tw/Downloads/
downloadsView.aspx?Langid=1&PNid=13&PFid=5
&Level=5&Conn=4&DownTypeID=3&GetDown=fa
lse.

VGA Driver Installation

This section provides the instructions on how to install
VGA adapter drivers.

Windows Operating systems

Restart the computer, and then log on with 1.
Administrator privileges.

Insert the Drivers and User’s Manual CD to the USB-2.
Optical drive.

Browse the contents of the Drivers and User’s Manual 3.
CD under the directory: \ Driver.

Execute the installer program, “SETUP.exe” by double-4.
clicking the icon.

Network Application Platforms

13

Appendix B

Terms and Conditions

Appendix B: Terms and Conditions

Warranty Policy

All products are under warranty against defects in 1.
materials and workmanship for a period of one year
from the date of purchase.

The buyer will bear the return freight charges for 2.
goods returned for repair within the warranty period;
whereas the manufacturer will bear the after service
freight charges for goods returned to the user.

The buyer will pay for repair (for replaced components 3.
plus service time) and transportation charges (both
ways) for items after the expiration of the warranty
period.

If the RMA Service Request Form does not meet the 4.
stated requirement as listed on “RMA Service,” RMA
goods will be returned at customer’s expense.

The following conditions are excluded from this 5.
warranty:

RMA Service

Requesting a RMA#

To obtain a RMA number, simply fill out and fax the 6.
“RMA Request Form” to your supplier.

The customer is required to fill out the problem code 7.
as listed. If your problem is not among the codes listed,
please write the symptom description in the remarks
box.

Ship the defective unit(s) on freight prepaid terms. 8.
Use the original packing materials when possible.

Mark the RMA# clearly on the box. 9.

Note: Customer is responsible for shipping

damage(s) resulting from inadequate/loose
packing of the defective unit(s). All RMA# are valid
for 30 days only; RMA goods received after the
effective RMA# period will be rejected.

Improper or inadequate maintenance by the customer
Unauthorized modification, misuse, or reversed
engineering of the product Operation outside of the
environmental specifications for the product.

Embedded and Industrial Computing

14

Appendix B

RMA Service Request Form

When requesting RMA service, please fill out the following form. Without
this form enclosed, your RMA cannot be processed.

RMA No:

Reasons to Return: Ŀ Repair(Please include failure details)
Ŀ Testing Purpose

Company: Contact Person:

Phone No. Purchased Date:

Fax No.: Applied Date:

Return Shipping Address:
Shipping by: Ŀ Air Freight Ŀ Sea Ŀ Express ___
Ŀ Others:________________

Item Model Name Serial Number Configuration

Item Problem Code Failure Status

*Problem Code:
01:D.O.A.
02: Second Time
R.M.A.
03: CMOS Data Lost
04: FDC Fail
05: HDC Fail
06: Bad Slot

07: BIOS Problem
08: Keyboard Controller Fail
09: Cache RMA Problem
10: Memory Socket Bad
11: Hang Up Software
12: Out Look Damage

13: SCSI
14: LPT Port
15: PS2
16: LAN
17: COM Port
18: Watchdog Timer

19: DIO
20: Buzzer
21: Shut Down
22: Panel Fail
23: CRT Fail
24: Others (Pls specify)

Request Party

Confirmed By Supplier

Authorized Signature / Date Authorized Signature / Date

Terms and Conditions

Embedded and Industrial Computing

15
