EM-F345 Fanless Embedded System User’s Manual
EM-F345 Series
Intel® Atom N270(1.6Ghz)
CPU onboard
Fanless Embedded System
User’s Manual
1
EM-F345 Fanless Embedded System User’s Manual
EM-F345 Series
User’s Manual
© Copyright 2007, Lanner Electronics, Inc. All rights reserved. This document contains
proprietary information that is protected by copyright. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written express of Lanner Electronics, Inc.
The author and Lanner Electronics, Inc. have used their best efforts in preparing this manual.
However, the author and Lanner Electronics, Inc. make no warranties of any kind, expressed
or implied, with re gard to the informatio nal content, docume ntation, or files con tained in this
manual, and shall not be liable for technical or editorial errors or omissions contained herein.
In no event shall the author or publisher be responsible or liable for any incidental or
consequential damages resulting from the furnishing, performance, or use of this material.
TRADEMARKS Internet Explorer, Windows Explorer, and Windows are trademarks or
registered trademarks of Microsoft Corporation. Other products mentioned herein may be
trademarks/or registered trademarks of their respective owners.
2
EM-F345 Fanless Embedded System User’s Manual
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your
tie or scarf and roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to
your eyes.
Do not perform any action that creates a potential hazard to people or makes the
equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before
installing or removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
LITHIUM BATTERY CAUTION:
Risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to
cool equipment to acceptable operating temperatures without adequate circulation. Be
sure that the room in which you choose to operate your system has adequate air
circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to
circulate effectively. An open chassis permits air leaks, which may interrupt and
redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circui try. ESD
damage occurs when electronic components are improperly handled and can result in
complete or intermittent failures. Be sure to follow ESD-prevention procedures when
removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no
wrist strap is available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between
1 and 10 megohms (Mohms).
3
EM-F345 Fanless Embedded System User’s Manual
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case users will be required to correct the
interference at their own expense.
Class A Notice for FCC
Modifying the equipment without the authorization of Lanner Electronics, Inc. may result in
the equipment no longer complying with FCC requirements for Class A digital devices. In that
event, your right to use the equipment may be limited by FCC regulations, and you may be
required to correct any interference to radio or television communications at your own
expense.
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
4
EM-F345 Fanless Embedded System User’s Manual
Contents
Safety Guidelines ....................................................................... 3
EMC Notice ………………………………………………………………………..4
Contents……............................................................................... 5
1. Product Overview.................................................................. 6
1.1 Product Introduction ........................................................ 6
1.2 Features and Benefits....................................................... 6
1.3 Specifications ................................................................... 7
1.4 Block Diagram .................................................................. 8
1.5 Package Contents............................................................. 8
1.6 Technical Assistance......................................................... 9
2. System Components............................................................ 10
2.1 EM-9345 System Board................................................... 10
2.1.1 Board Layout ................................................................ 11
2.1.1 Board Dimensions......................................................... 12
2.1.2 Jumper Settings and I/O Connectors ........................... 13
2.2.1 Connector Pin Assignments .......................................... 14
2.2 EM-F345 Embedded System Mechanisms........................ 19
2.2.1 Front View................................................................... 19
2.2.2 Rear View .................................................................... 20
3. Hardware Installation Guide ............................................... 21
3.1 EM-F345 Embedded System............................................ 21
3.1.1 Begin Installation......................................................... 21
3.1.2 System Memory Installation......................................... 22
3.1.3 CompactFlash Card Installation.................................... 22
3.1.4 HDD Installation........................................................... 23
3.1.5 System Complete.......................................................... 25
3.2 Mounting Kits ................................................................. 26
3.2.1 Wall Mount (Optional) .................................................. 26
3.2.2 VESA Mount (Optional)................................................. 27
3.2.3 Rack Mount Kit (Optional) ............................................ 27
A. Appendix A: LAN Port LED Indicators.................................. 28
B. Appendix B: Watchdog Timer .............................................. 29
B.1 Introduction ................................................................... 29
B.2 Detail Register Descriptions ........................................... 29
B.2.1 To used the watch-dog timer........................................ 29
Terms and Conditions............................................................... 30
Warranty Policy........................................................................ 30
RMA Service ............................................................................. 30
5
EM-F345 Fanless Embedded System User’s Manual
1. Product Overview
1.1 Product Introduction
Figure 1 – EM-F345 Outlook
The EM-F345 Fanless Embedded System built-in Intel Atom N270 (1.6Ghz CPU) onboard and
the board integrates chipsets Intel® 945GSE+ICH7M deliver lower Power consumption,
multiple I/O functions for interactive applications and various embedded computing
solutions. EM-F345 built-in in DDR2 SO-DIMM socket for DDR2 400/533 memory, Maximum
memory capacity up to 2GB. The board also features CRT VGA Output and DVI-D VGA output
for Dual Display, Dual PCIex1 Ethernet Port one Serial ATA channels for total one Serial ATA
hard drives at maximum transfer rate up to 150MB/sec, Four USB 2.0 high speed compliant,
built-in high definition audio codec that can achieve the best stabil ity and reliability for Digital
Signage Platform, Industrial controller applications.
1.2 Features and Benefits
Intel® Atom™ 1.6 GHz onboard CPU
Robust fanless enclosure
Slim 36mm case with heat dispersing fins
-20°C to 50°C operating temperature
Supports up to 2GB DDR2 memory
Dual Display (CRT+DVI-D)
Dual 10/100/1000 Mbps LAN
USB x 4, COM x 2
Compact Flash Type I/II or SATA HDD support
Wall or VESA or Rack or DIN Rail mounting Kit (optional)
6
EM-F345 Fanless Embedded System User’s Manual
1.3 Specifications
FEATURE DESCRIPTION
Form Factor Fanless Embedded System
Platform
System Memory
Display Controller Intel 945GSE built-in Intel Extreme
Audio Codec ALC888 HD Codec
Front I/O
Rear I/O
Expansion
Hardware
Monitoring
OS Supported Win XP Embedded, Win XP 32-bit,
Environmental
Parameters
Mounting
Power Input DC +12V, 60W
Processor Onboard Intel® Atom™ 1.6 GHz
Chipset Intel 945GSE+ICH7M
BIOS AMIBIOS with 8Mbit BIOS Flash
Technology DDR2 400/533 SDRAM
Maximum Capacity 2GB
Socket 200P SODIMM x1
CompactFlash I/II 1 Storage Interface
SATA Port 1
Lan Ports 2 Networking
Speed 10/100/1000 Mbps
Graphics
Serial 2 ports (Default RS-232)
VGA 1
DVI-D 1
Power Swi tch 1
USB 4
LAN RJ45 x 2
Mic In / Line Out 1 / 1
Mini-PCI socket for Mini-PC Wireless
Controller Winbond W83627UHGintegrated
Watchdog timer 255 level software programmable
Temperature, ambient
operating
Humidity (RH), ambient
operating
Storage Temperature -20°~70°C (-4°~158°F)
Shock CFD: 100g peak acceleration (6
Wall mounting kit (Optional)
VESA mounting kit (Optional)
Rack Mounting Kit (Optional)
DIN Rail mounting Kit (Optional)
Dimensions 145D x 190W x 36H mm Physical Dimensions
Weight 1.07Kg
7
Module
hardware monitor
watchdog timer
Win 2000, Linux kernel 2.4.16 or
above
-20°~50°C (with industrial
components - CF card, memory,
adapter)
0~40°C (with 2.5” HDD)
10~95% relative humidity,
non-condensing
msec duration)
EM-F345 Fanless Embedded System User’s Manual
Note: All specifications and images are subject to change without notice.
1.4 Block Diagram
Figure 2 – Block Diagram
1.5 Package Contents
Carefully unpack your package and make sure that you have the following items.
EM-F345 Embedded System x 1
DC+12V 60W Power Adapter x 1
Power Cord x 1
Rubber foot / Screw x 4
E Drivers and User’s Manual CD x 1
Note: If you should find any components missing or damaged, please contact your dealer
immediately for assistance.
8
EM-F345 Fanless Embedded System User’s Manual
1.6 Technical Assistance
Should you have any questions or problems with your product, please contact the Lanner
sales team.
Phone: 886-2-8692-6060
Fax: 886-2-8692-6101
E-mail:
Prior to contacting us, we ask that you first check the electronic product documentation for
assistance. Should you still have questions, we recommend you have the following
information on hand in order to expedite the process:
1. EM-F345 model name
2. Part number
3. Local network configuration details
4. Abnormal behavior and/or error messages reported by your network system
sales@lannerinc.com
5. Your questions, or a description of the problem you are experiencing
9
EM-F345 Fanless Embedded System User’s Manual
2. System Components
2.1 EM-9345 System Board
EM-9345 is the system board bundled with the EM-F345 Fanless Embedded System platform.
The succeeding sections list E-9345 related jumper settings and connector pin assignments.
Figure 3 – EM-9345 System Board
10
EM-F345 Fanless Embedded System User’s Manual
2.1.1 Board Layout
Figure 4 – EM-9345 Jumpers and Connectors
11
EM-F345 Fanless Embedded System User’s Manual

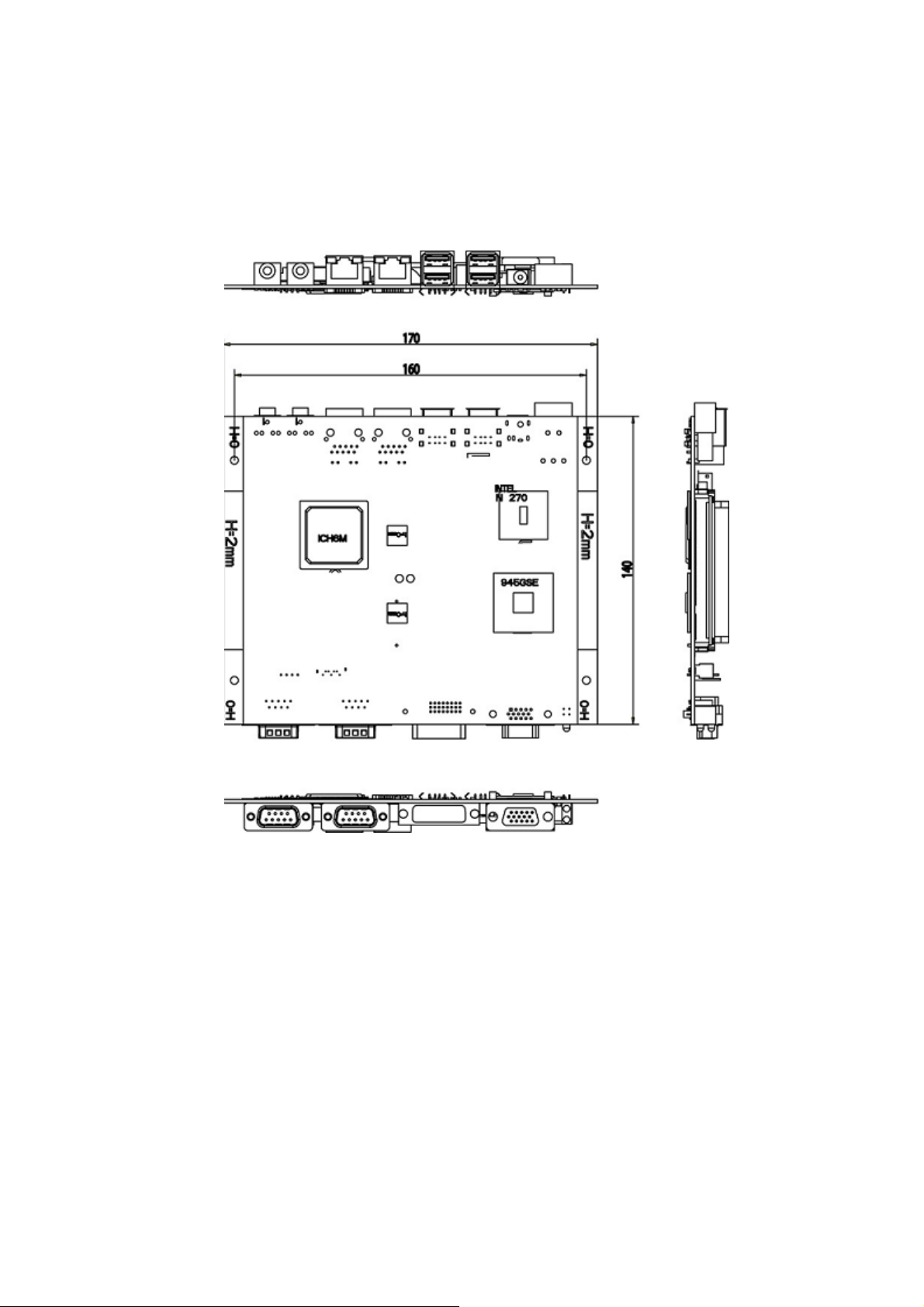

2.1.1 Board Dimensions
Figure 5 – Board Dimension
12
EM-F345 Fanless Embedded System User’s Manual
2.1.2 Jumper Settings and I/O Connectors
The jumper settings and I/O connectors of the EM-9345 board are specific to the EM-F345.
Changing these settings may result in malfunctions or damages to your system.
Jumper Settings and I/O Connector Summary for EM-9345：
Item JUMPER FUNCTION
M1 J14 PS/2 K/B & M/S Header
M2 CON2 4-Pin Power Connector
M3 PCOM1 COM1 Type Setup Jumper
M4 J3 Serial ATA-SATA Socket
M5 CONN2 System Reset Connector
M6 CN1 200 pin SODIMM Socket
M7 J1 Clear CMOS Jumper
M8 CF1 Compact Flash Connector
M9 CON1 Mini-PCI Connector
13
EM-F345 Fanless Embedded System User’s Manual
2.2.1 Connector Pin Assignments
M1
J14: 2 x 4-Pin PS/2 Keyboard & Mouse Header (2.54mm)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 5V 2 MSCLK
3 MSDATA 4 -
5 KBDATA 6 7 Ground 8 KBCLK
M2
CON2: 4-Pin Power Connector
PIN NO. DESCRIPTION
1 +12V
2 GND
3 GND
4 +5V
14
EM-F345 Fanless Embedded System User’s Manual
M3
PCOM1: COM1 Type Setup Jumper
PIN NO. DESCRIPTION
1-2 5V
3-4 12V
5-6 RI
J3: SATA Connector
M4
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
15
EM-F345 Fanless Embedded System User’s Manual
CONN2: System Reset Connector
M5
PIN NO. DESCRIPTION
1 Reset
2 GND
M6
CN1：200 pin SODIMM Socket
2 1
J1: Clear CMOS Jumper
M7
PIN NO. DESCRIPTION
1-2 1-2 Normal (Default)
2-3 2-3 Clear CMOS
16
EM-F345 Fanless Embedded System User’s Manual
M8
CF1: Compact Flash Connector
50 26
25 1
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 26 CD1-
2 DATA3 27 DATA11
3 DATA4 28 DATA12
4 DATA5 29 DATA13
5 DATA6 30 DATA14
6 DATA7 31 DATA15
7 CE1# 32 CE2#
8 A10 33 VS1#
9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
12 A7 37 READY#
13 CFVCC3 38 CFVCC3
14 A6 39 CSEL
15 A5 40 VS2#
16 A4 41 RESET
17 A3 42 WAIT#
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 DASP#
21 DATA0 46 DIAG#
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 WP 49 DATA10
25 CD2- 50 GND
17
EM-F345 Fanless Embedded System User’s Manual
M9
CON1: Mini-PCI Connector
PIN
NO.
11 NC 73 C_BE#1 12 NC 74 GND
13 NC 75 A_D14 14 NC 76 A_D15
15 NC 77 GND 16 NC 78 A_D13
17 PIRQD# 79 A_D12 18 VCC 80 A_D11
19 VCC3 81 A_D10 20 PIRQC# 82 GND
21 NC 83 GND 22 NC 84 A_D9
23 GND 85 A_D8 24 VCC3 86 C_BE#0
25
27 GND 89 VCC3 28 VCC3 90 A_D6
29 REQ#1 91 A_D5 30 GNT#1 92 A_D4
31 VCC3 93 NC 32 GND 94 A_D2
33 A_D31 95 A_D3 34 PCI_PME# 96 A_D0
35 A_D29 97 VCC 36 NC 98 NC
37 GND 99 A_D1 38 A_D30 100 NC
39 A_D27 101 GND 40 VCC3 102 GND
41 A_D25 103 NC 42 A_D28 104 M66EN
43 NC 105 NC 44 A_D26 106 NC
45 C_BE#3 107 NC 46 A_D24 108 NC
47 A_D23 109 NC 48 MiniPCIDSEL 110 NC
49 GND 111 NC 50 GND 112 NC
51 A_D21 113 NC 52 A_D22 114 GND
53 A_D19 115 NC 54 A_D20 116 NC
55 GND 117 NC 56 PAR 118 NC
57 A_D17 119 NC 58 A_D18 120 NC
59 C_BE#2 121 NC 60 A_D16 122 NC
61 IRDY# 123 VCC 62 GND 124 VCC3
DESCRIPTION
1 NC 63 VCC3 2 NC 64 FRAME#
3 NC 65 TP 4 NC 66 TRDY#
5 NC 67 SERR# 6 NC 68 STOP#
7 NC 69 GND 8 NC 70 VCC3
9 NC 71 PERR# 10 NC 72 DEVSEL#
CK_33M_MINIPCI
R
PIN
NO.
DESCRIPTION PIN
NO.
87 A_D7 26 PCI_RST# 88 VCC3
DESCRIPTION PIN
NO.
DESCRIPTIO
N
18
EM-F345 Fanless Embedded System User’s Manual
2.2 EM-F345 Embedded System Mechanisms
This section of the manual describes the mechanical and device nomenclature of the
EM-F345.
2.2.1 Front View
Figure 6 – EM-F345 Front View
1. COM2
2. COM1
3. DVI-D
4. CRT
5. HDD/POWER LED
19
EM-F345 Fanless Embedded System User’s Manual
2.2.2 Rear View
Figure 7 – EM-F345 Front View
Figure 6 – EM-F345 Rear View
1. Power Switch: Click the Power Switch to turn on the system
2. DC Jack
3. USB
4. LAN1
5. LAN2
6. MIC IN
7. LINE OUT
20
EM-F345 Fanless Embedded System User’s Manual
3. Hardware Installation Guide
3.1 EM-F345 Embedded System
Figure 8 – EM-F345 Embedded System Outlook
3.1.1 Begin Installation
Unscrew 10 thumbscrews of the chassis bottom cover and than remove the chassis bottom
cover.
Note: For Safety reasons, please ensure that the power cord is disconnected
before opening the case.
21
EM-F345 Fanless Embedded System User’s Manual
3.1.2 System Memory Installation
Install the memory module into the socket and push it firmly down until it is fully seated.
3.1.3 CompactFlash Card Installation
Carefully insert the CompactFlash card into the slot as shown in the illustration above.
22
EM-F345 Fanless Embedded System User’s Manual
3.1.4 HDD Installation
1. Place the HDD (upside down) in the rack of bottom.
Note: Please install 2.5” HDD
2. Secure with 4 screws from the side
23
EM-F345 Fanless Embedded System User’s Manual
3. Connect the Serial ATA/Power Cable to the HDD
4. Plug the Serial ATA cable to the SATA Connector (J3)
24
EM-F345 Fanless Embedded System User’s Manual
5. Plug the Power cable to the 4-Pin Power Connector (CON2)
3.1.5 System Complete
1. Replace the cover
25
EM-F345 Fanless Embedded System User’s Manual
2. Refasten the thumbscrews and than EM-F343 Embedded System Installation Complete
Note: Please load the optimized BIOS values.
3.2 Mounting Kits
3.2.1 Wall Mount (Optional)
Figure 9 – Wall Mount View
26
EM-F345 Fanless Embedded System User’s Manual
3.2.2 VESA Mount (Optional)
Figure 10 – Wall Mount View
3.2.3 Rack Mount Kit (Optional)
Figure 11 – Rack Mount View
Notes：Mounting Kit Order Information (Optional)
Item Lanner Model
1
2
3
4
WALL MOUNT-1 V1.0
VESA MOUNT V1.0
RACK MOUNT V1.0
DIN RAIL MOUNT V1.0
Lanner Part
Number
PE9ESA8330100
PE9ESA8300100
PE9ESA8310100
PE9ESA8320100
Description
RoHS 219x160mm T=2.0mm
Black
RoHS 130x132mm T=2.0mm
Black
RoHS 489x145mm T=2.0mm
Black
RoHS 219.5x118x8mm
T=2.0mm Black
27
EM-F345 Fanless Embedded System User’s Manual
A. Appendix A: LAN Port LED Indicators
LED/ Color Status Description
Green Off LAN is link to a 10 Mbps device.
Yellow Blinks LAN port is receiving and transmitting packets.
Green On LAN is link to a 10 or 100Mbps device.
Yellow Blinks LAN port is receiving and transmitting packets.
Orange On LAN is link to a 1G bps device.
Yellow Blinks LAN port is receiving and transmitting packets.
28
EM-F345 Fanless Embedded System User’s Manual
B. Appendix B: Watchdog Timer
B.1 Introduction
systems need to be self-reliant. If an error should occur it is typically not possible to wait for
the system to be rebooted manually. In some cases, such as space probes, the system is
simply not accessible to human operators. If such systems should ever hang, they would be
permanently disabled. In other cases, the speed at which a human operator would reset the
system would be too slow to meet the uptime requirements of the product.
A watchdog timer is a piece of hardware that can be used to automatically detect system
anomalies and reset the processor in the case any problems are found. Generally speaking,
a watchdog timer is based on a counter that counts down from an initial value to zero. The
software selects the counter's initial value and periodically restarts it. Should the counter
reach zero before the software restarts it, the software is presumed to be malfunctioning,
and the processor's reset signal is asserted. Thus, the processor will be restarted as if a
human operator had cycled the power.
B.2 Detail Register Descriptions
A watchdog action consists of a series of watchdog instructions. A watchdog instruction is
the operation on a register region. This section describes the detail register in LPD I/O
(W83697UHG)
B.2.1 To used the watch-dog timer
For DOS system:
Execute the WD.EXE file under DOS (WD.EXE and CWSDPMI.EXE should be placed on same
directory), then key-in 0~255. The system will reboot automatically according to the
time-out you set.
29
EM-F345 Fanless Embedded System User’s Manual
Terms and Conditions
Date:2007.03.19
Warranty Policy
1. All products are under warranty against defects in materials and wor kmanship for
a period of one year from the date of purchase.
2. The buyer will bear the return freight charges for goods returned for repair within
the warranty period; whereas the manufacturer will bear the after service freigh t
charges for goods returned to the user.
3. The buyer will pay for repair (for replaced components plus service time) and
transportation charges (both ways) for items after the expiration of the warranty
period.
4. If the RMA Service Request Form does not meet the stated requirement as listed
on “RMA Service,” RMA goods will be returned at customer’s expense.
5. The following conditions are excluded from this warranty:
Improper or inadequate maintenance by the customer
Unauthorized modification, misuse, or reversed engineering of the product
Operation outside of the environmental specifications for the product..
RMA Service
Requesting a RMA#
1. To obtain a RMA number, log on to the leRMA web interface at
http://erma.lannerinc.com . Use you user name and password as supplied to you
from your Lanner account manager.
2. Once you have logged on, follow the onscreen instructions to complete the RMA
process.
3. Ship the defective unit(s) on freight prepaid terms. Use the original packing
materials when possible.
4. Mark the RMA# clearly on the box.
Note: If you have any issues with the eRMA system, email
assistance.
support@lannerinc.com for
30
Loading...
