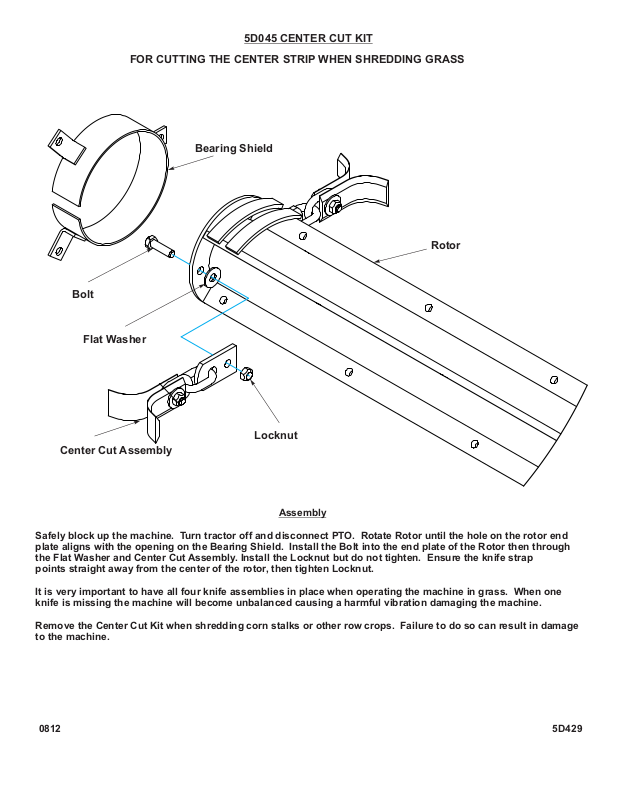

5D045 CENTER CUT KIT

FOR CUTTING THE CENTER STRIP WHEN SHREDDING GRASS

Bearing Shield

Rotor

Flat Washer

Locknut

Center Cut Assembly

Assembly

Safely block up the machine. Turn tractor off and disconnect PTO. Rotate Rotor until the hole on the rotor end
plate aligns with the opening on the Bearing Shield. Install the Bolt into the end plate of the Rotor then through
the Flat Washer and Center Cut Assembly. Install the Locknut but do not tighten. Ensure the knife strap
points straight away from the center of the rotor, then tighten Locknut.

It is very important to have all four knife assemblies in place when operating the machine in grass. When one
knife is missing the machine will become unbalanced causing a harmful vibration damaging the machine.

Remove the Center Cut Kit when shredding corn stalks or other row crops. Failure to do so can result in damage
to the machine.
