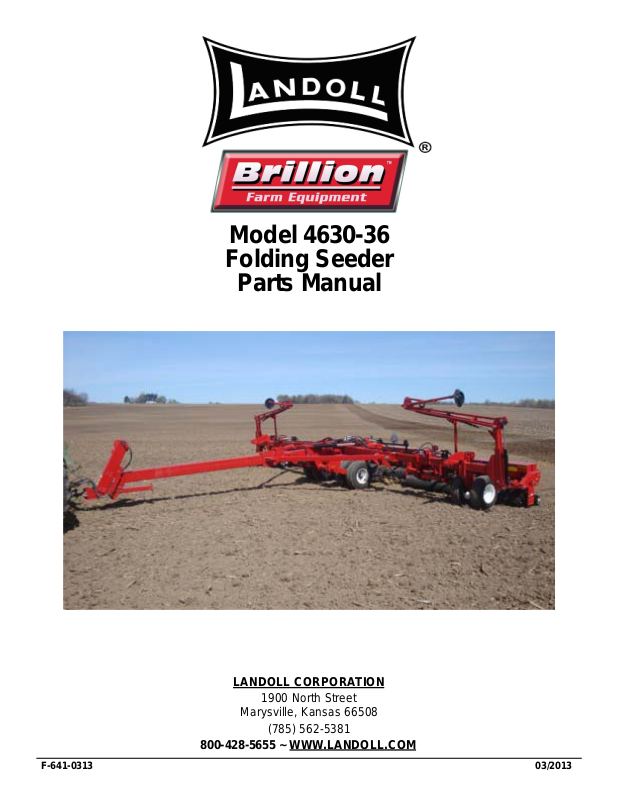

Landoll 4630-36 User Manual
Model 4630-36
Folding Seeder
Parts Manual
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
F-641-0313 03/2013
1-2 F-641-__12 Edition
Table of Contents
GENERAL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
MAIN HITCH FRAME ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
HUB AND SPINDLE ASSEMBLY, 8 BOLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
FRAME AND WING BRACE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
6 BOLT HUB ASSEMBLY, 2” SPINDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
THREE POINT LIFT ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
COIL TINE HARROW ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
HARROW TRACK REMOVER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
ROW MARKER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
SEEDER ASSEMBLY OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
LIGHTING AND ELECTRIC CLUTCH ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29
HYRAULIC CYLINDER AND MANIFOLD INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
HITCH LIFT HYRAULIC ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35
WING FOLD HYDRAULIC ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-37
THREE POINT LIFT HYDRAULIC ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
4 X 24" HYDRAULIC CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-41
4 X 20 HYDRAULIC CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
4 X 10 HYDRAULIC CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
4 X 8 HYDRAULIC CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
3-1/2” X 6" HYDRAULIC CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49
2-1/2 X 20 MARKER CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-51
CYLINDER HYDRAULIC 1-3/4” X 6" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-53
DECAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55
F-641-0313 Edition i
ii F-641-0313 Edition
Chapter 1
36’ Seeder Hitch id plate and location
Instructions for Ordering Part s
ORDER PARTS FROM LANDOLL PARTS DISTRIBUTION CENTER
** Repair parts must be ordered through an Authorized Dealer **
PHONE NO.: 1-800-423-4320 OR 1-800-428-5655 OR 1-785-562-5381 FAX NO.: 888-527-3909
ORDER ONLINE: companystore.landoll.com
IDENTIFICATION PLATE
The identification plate, which lists the model number and serial number, is located on the left side of the hitch (See
Figure 1-1.)
SERIAL NUMBER NOMENCLATURE
The serial number for the 4630-36 Folding Seeder is located on the identification plate.
Figure 1-1: Identification Plate and Location
1-1
INSTRUCTIONS FOR ORDERING PARTS
Page Intentionally Blank
1-2 F-641-0313 Edition
Illustrated Parts List
36’ Seeder Hitch gen assy
5
2
1
7
3
6
8
4
GENERAL ASSEMBLY
ITEM PAGE NO. DESCRIPTION QTY.
1 2-2 - 2-7 MAIN HITCH AND 8 BOLT HUB AND SPINDLE ASSEMBLIES
2 2-8 - 2-13 WING, 6 BOLT HUB AND SPINDLE, AND REAR TOOL BAR
3 2-14 - 2-15 THREE POINT LIFT ASSEMBLY
4 2-16 - 2-19 HARROW ASSEMBLIES
5 2-20 - 2-24 MARKER ASSEMBLIES
6 2-26 - 2-27 SEEDER ASSEMBLY OPTIONS
7 2-28 - 2-29 LIGHTING AND ELECTRIC CLUTCH ASSEMBLY
8 2-30 - 2-53 HYDRAULIC ASSEMBLIES
9 2-54 - 2-55 DECAL INSTALLATION
ASSEMBLIES
Figure 2-1: General Assembly
2-1
ILLUSTRATED PARTS LIST
11
50
55
35
57
13
4
54
36’ main hitch frame assy p1
32
8
24
20
5
19
31
25
1
49
18
22
21
12
7293451525625
13
60
2-2 F-641-0313 Edition
Figure 2-2: Main Hitch Frame Assembly (1 of 3)
39
36’ main hitch frame assy p2
35
14
53
5
37
233342
38
41
263616
53
7
18
94335330
10
ILLUSTRATED PARTS LIST
Figure 2-3: Main Hitch Frame Assembly (2 of 3)
2-3
ILLUSTRATED PARTS LIST
44
45
48
27
47
6
40
46
2
215141710
28143
5
36’ main hitch frame assy p3
Figure 2-4: Main Hitch Frame Assembly (3 of 3)
MAIN HITCH FRAME ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
1 1-242-010172-3 CYLINDER, HYDRAULIC 4 X 24 (SEE PAGE 2-41) 1
2 1-511-010001-05 NUT, HEX JAM 1/2-13 4
3 1-512-010005-01 NUT, HEX LOCK 1/4-20 GRB 4
4 1-512-010005-05 NUT, HEX LOCK 3/8-16 GRB 2
5 1-512-010005-09 NUT, HEX LOCK 1/2-13 GRB 13
6 1-512-010005-13 NUT, HEX LOCK 5/8-11 GRB 1
7 1-512-010005-15 NUT, HEX LOCK 3/4-10 GRB 10
8 1-512-010005-19 NUT, HEX LOCK 1-8 GRB 3
9 1-647-010004240 PIN, SPRING SLOTTED 5/16 X 2-1/2 2
10 1-654-010047-10 SCREW, HEX HEAD CAP 1/4-20 X 2 GR5 4
11 1-654-010051-13 SCREW, HEX HEAD CAP 3/8-16 X 3 GR5 2
12 1-654-010055-01 SCREW, HEX HEAD CAP 1/2-13 X 1 GR5 32
13 1-654-010055-03 SCREW, HEX HEAD CAP 1/2-13 X 1-1/2 GR5 2
14 1-654-010055-05 SCREW, HEX HEAD CAP 1/2-13 X 2 GR5 7
15 1-654-010055-09 SCREW, HEX HEAD CAP 1/2-13 X 3 GR5 1
16 1-654-010055-14 SCREW, HEX HEAD CAP 1/2-13 X 4-1/2 GR5 4
17 1-654-010059-09 SCREW, HEX HEAD CAP 5/8-11 X 3 GR5 1
18 1-654-010061-05 SCREW, HEX HEAD CAP 3/4-10 X 2 GR5 10
19 1-861-010032-11 WASHER, FLAT 3/8W 2
2-4 F-641-0313 Edition
ILLUSTRATED PARTS LIST
MAIN HITCH FRAME ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
20 1-861-010032-24 WASHER, FLAT 1"N 2
21 1-861-010034-13 WASHER, SPLIT LOCK 1/2 32
22 114616 SCREW, HEX HEAD CAP 1-8 X 8-1/2 GR5 1
23 140519 BEARING, UHMW 4" 3
24 141434 SAFETY CHAIN, 21,000 LB 1
161536 HOOK, SAFETY CHAIN 21,000 LB 1
25 143916 PLATE, SLIDE 8
26 144003 HUB AND SPINDLE ASSEMBLY, 8 BOLT (SEE PAGE 2-7) 4
27 144113 SPRING, COMPRESSION 8" 1
28 144138 VALVE, STOP 1
29 144355 PIN, 1 X 8 1
30 144356 PIN, 1-1/2 X 4-5/8 2
31 151533 SHIM, HITCH SLIDE 8
32 153696 BOLT, HITCH CLEVIS 1-8 X 7-1/2 2
33 153827 SHIM, LIFT BEARING 6
34 153859 PIN 1-1/2 X 10 1
35 167272 HITCH, SEEDER 36’ 1
36 167299 TIRE AND WHEEL ASSEMBLY 12.5 X 15 FI (INCL ITEMS 37-39) 4
37 167298 WHEEL, 15 X 10 LB 8 BOLT 3/8 1
38 2-798-010106 TIRE 12.5L X 15 1
39 TR416 VALVE STEM, TUBELESS TIRE 1
40 167310 CYLINDER, HYDRAULIC 3-1/2 X 6 (SEE PAGE 2-49) 1
41 167311 LIFT WELDMENT, CENTER 1
42 167314 CAP BEARING WELDMENT, LIFT 3
43 167315 LINK WELDMENT, TRANSPORT LOCK 2
44 167316 ROD WELDMENT, TRANSPORT LOCK 1
45 167317 BRACKET, TRANSPORT LOCK 1
46 167318 MOUNT, RELEASE VALVE 1
47 167319 COUPLER WELDMENT, TRANSPORT LOCK 1
48 167320 SLEEVE, TRANSPORT LOCK 1
49 167321 TUBE, TELESCOPING HITCH 1
50 167322 BRACKET, HOSE HOLDER 1
51 167323 JACKSTAND WELDMENT 1
52 167324 BRACKET, JACK STAND 2
53 2-150-010008 BUSHING, STEEL 6
54 2-181-010001 HOSE CLAMP 4
55 2-375-010602 HITCH RING, CAT IV 1
56 70239854 PIN, QUICK HITCH 2
57 70592442 PIN, SNAPPER 2
58 1-397-010369054 HOSE ASSEMBLY 3/8 X 54 (SEE PAGE 2-35) 1
59 71508988 HOSE ASSEMBLY 3/8 X 80 (SEE PAGE 2-35) 1
60 2062-8-8S ADAPTER, 90 2
2-5
ILLUSTRATED PARTS LIST
m144003
5
2
4
7
6
9
8
3
1
10
121311
Figure 2-5: Hub and Spindle Assembly, 8 Bolt
2-6 F-641-0313 Edition
ILLUSTRATED PARTS LIST
HUB AND SPINDLE ASSEMBLY, 8 BOLT
ITEM PART NO. DESCRIPTION QTY.
144003 HUB AND SPINDLE ASSEMBLY, 8 BOLT 4
1 1-516-010001-20 NUT, HEX SLOT 1-14 4
2 1-557-010362-40 PIN, COTTER 5/32 X 1-1/4 4
3 1-861-010005 WASHER, SPINDLE 1" 4
4 102499 SEAL, GREASE 1
5 144002 SPINDLE, 2-7/8 X 15 4
6 2-406-010073 HUB ASSEMBLY, 8 BOLT 6000 LBS (INCL ITEMS 7-11) 4
7 102497 CONE, INNER 1
8 102498 CONE, OUTER 1
9 102600 NUT 8
10 102601 HUB CAP 1
11 102602 HUB AND CUP ASSEMBLY (INCL ITEMS 12-13) 1
12 102603 BEARING CUP, INNER 1
13 102604 REARING CUP, OUTER 1
2-7
ILLUSTRATED PARTS LIST
36’ wing and rear tool bar assy p1
25
3
19479
272016
174530
22
2
21515446126
33
38
3
41
40
2-8 F-641-0313 Edition
Figure 2-6: Wing and Rear Tool Bar Assembly (1 of 3)
31
6
35
32
25
27
4
29342493
1
8
23
48
48
36
71862749
36’ wing and rear tool bar assy p2
3
ILLUSTRATED PARTS LIST
Figure 2-7: Frame and Wing Brace Assembly (2 of 3)
2-9
ILLUSTRATED PARTS LIST
37
11
10
36’ wing and rear tool bar assy p3
26
9
48
1
8
29
444328
42
6
4
27
3
5
23
13
18
39
14
49
Figure 2-8: Frame and Wing Brace Assembly (3 of 3)
FRAME AND WING BRACE ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
1 1-298-010001-1 ZERK, FITTING 1/4 4
2 1-512-010005-13 NUT, HEX LOCK 5/8-11 GRB 3
3 1-512-010005-19 NUT, HEX LOCK 1-8 GRB 20
4 1-516-010001-27 NUT, HEX SLOT 1-1/2-6 4
5 1-647-010004240 PIN, SPRING SLOTTED 5/16 X 2-1/2 10
6 1-647-010004257 PIN, SPRING SLOTTED 3/8 X 2-1/2 4
7 1-654-010065-08 SCREW, HEX HEAD CAP 1-8 X 2-3/4 GR5 12
8 1-654-010065-15 SCREW, HEX HEAD CAP 1-8 X 5 GR5 4
2-10 F-641-0313 Edition
ILLUSTRATED PARTS LIST
FRAME AND WING BRACE ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
9 1-861-010032-32 WASHER, FLAT 1-1/2 10
10 171635 SCREW, HEX HEAD CAP 1-1/4-7 X 7-1/2 GR5 2
11 101385 NUT, HEX LOCK 1-1/4-7 GRB 2
12 107-0023 SCREW, HEX HEAD CAP 5/8-11 X 11 GR5 3
13 101988 NUT, HEX LOCK 7/16-14 GRB 4
14 70239854 PIN, QUICK HITCH 2
15 13519 SCREW, HEX HEAD CAP 1-1/8-7 X 4 GR5 2
16 140599 BEARING, FLANGE 1-1/2 8
17 141254 NUT, HEX LOCK 1-1/8-7 2
18 141808 SCREW, HEX HEAD CAP 7/16-14 X 3-1/2 GR5 4
19 144010 BUSHING, SLIDE CLAMP 4
20 144012 PAD, HITCH SLIDE 4
21 144057 BUSHING, TRANSPORT CLAMP 3
22 144059 BUSHING, TRANSPORT LOCK 2
23 144341 BUSHING, SPRING 3-1/4 X 3 X 2 8
24 144356 PIN, 1-1/2 X 4-5/8 2
25 144371 PIN, 1-1/2 X 18 2
26 144372 PIN, 1-1/2 X 18-5/8 2
27 144373 WASHER, 3-3/4 X 1-9/16 X 1/2 4
28 147552 6 BOLT HUB ASSEMBLY, 2” SPINDLE (SEE PAGE 2-13) 4
29 153859 PIN 1-1/2 X 10 2
30 154888 SCREW, HEX HEAD CAP 1-8 X 9 GR5 4
31 155828 WASHER, 3.063 X 4 X .188 2
32 166503 WING, INNER LH 1
33 166504 WING, INNER RH 1
34 166505 MOUNT WELDMENT, WING BRACE 2
35 166506 BRACE, WING 2
36 166533 MOUNT, REAR SEEDER 1
37 167281 WING, LH 1
38 167282 WING, RH 1
39 167287 LATCH, WING LOCK 1
40 167288 HOOK, WING LOCK 1
41 167297 TIRE AND WHEEL ASSEMBLY (INCL. ITEMS 42-44) 4
42 11L-15_12PLY TIRE 11L X 15 12 PLY 1
43 167296 WHEEL, 15 X 10 LB 6 BOLT 1
44 415 VALVE STEM 1
45 167312 SLIDE WELDMENT, HITCH 2
46 167313 LATCH, WING BRACE 2
47 167326 ROLLER, SLIDE CLAMP 4
48 2-150-010008 BUSHING, STEEL 1-1/4 X 1 X 1 5
49 144355 PIN, 1 X 8 1
2-11
ILLUSTRATED PARTS LIST
m147552
5
10
4
7
12
3
11
9
1
6
13
2
8
Figure 2-9: 6 Bolt Hub Assembly, 2” Spindle
2-12 F-641-0313 Edition
ILLUSTRATED PARTS LIST
6 BOLT HUB ASSEMBLY, 2” SPINDLE
ITEM PART NO. DESCRIPTION QTY.
147552 6 BOLT HUB ASSEMBLY, 2” SPINDLE
1 1-076-010007 CONE, OUTER BEARING 1
2 1-516-010001-20 NUT, HEX SLOT 1-14 1
3 1-557-010362-51 PIN, COTTER 3/16 X 1-1/2 1
4 102498 BEARING CONE, OUTER 1.625 1
5 140554 SEAL, GREASE 1
6 140645 HUB W/ CUPS, 6 BOLT 1
7 141197 SPINDLE, 2" 1
8 141236 DUST CAP, WHEEL HUB 1
9 141238 WASHER, SPINDLE 1
10 102604 CUP, BEARING 1
11 1-076-010010 CUP, BEARING 1
12 210606 LUG NUT (6 BOLT) 6
13 143066 STUD BOLT (6 BOLT) 6
141866 HUB ASSEMBLY (INCL. ITEMS 1, 4-6, 8)
2-13
ILLUSTRATED PARTS LIST
36’ three point lift assy
15
13
2
6
17
17
11
16
7
10
14
1
12
4
5
8
3
18
9
2
2-14 F-641-0313 Edition
Figure 2-10: Three Point Lift Assembly
ILLUSTRATED PARTS LIST
THREE POINT LIFT ASSEMBLY
ITEM PART NO. DESCRIPTION QTY.
1 1-512-010005-13 NUT, HEX LOCK 5/8-11 GRB 3
2 1-512-010005-19 NUT, HEX LOCK 1-8 GRB 20
3 1-557-010327 PIN, LYNCH 1/4 X 1-1/4 6
4 1-654-010125-09 SCREW, HEX HEAD CAP 1-8 X 3 GR8 6
5 1-861-010032-24 WASHER, FLAT 1"N 2
6 123096 SCREW, HEX HEAD CAP 5/8-11 X 7-1/2 GR5 16
7 141251 SPRING PIN, SLOTTED 1/2 X 2-1/4 6
8 164293 PIN, 1 X 5-1/8 3
9 166510 LIFT, THREE POINT 2
10 166511 LINK LIFT WELDMENT 6
11 166529 PIN, LIFT 6
12 166556 STOP LINK WELDMENT 3
13 166565 ROCKSHAFT LIFT WELDMENT 1
14 167277 BUSHING, 1.75 X 1.94 X 2 6
15 2-150-010008 BUSHING, STEEL 1-1/4 X 1 X 1 5
16 2P793 BEARING INSERT 4-1/2 16
17 29794 BEARING HALF 4-1/2 INSERT 16
18 7K286 TOP LINK, CAT II 3
2-15
Loading...
