WS-7136U
Wireless 433 MHz
Temperature Station
Instruction Manual
TABLE OF CONTENTS
Topic Page
Inventory of Contents 3
Additional Equipment 4
Quick Setup 5-9
Detailed Setup Guide
Battery Installation 10-12
Setting the Time Format 13
Setting the Temp. Format 13-14
Setting the Time 14-15
Features
Minimum and Maximum
Temperatures
Resetting Minimum and
Maximum Temperatures
Adding additional remote
temperature sensors (optional)
Viewing and operating multiple
remote temperature sensors
Mounting 21-22
Troubleshooting 23-26
Maintenance and Care 26
Specifications 27-28
Warranty Information 28-31
16-17
17
17-19
20
2
INVENTORY OF CONTENTS
1. The
2.
3.
4.
indoor
temperature
station (Figure 1)
The remote
temperature
sensor (TX6U)
and mounting
bracket. (Figure 2)
Mounting
hardware.
Instruction
Manual and
Warranty Card.
Figure 2
Figure 1
3
ADDITIONAL EQUIPMENT
(not included)
1.
1 Philips screwdriver.
2.
2 Fresh AAA 1.5V batteries.
(for the indoor temperature station)
3.
2 Fresh AA 1.5V batteries.
(for the temperature sensor)
4
QUICK SETUP
Hint: Use good quality Alkaline Batteries
and avoid rechargeable batteries.
1. Have the indoor temperature station and
remote temperature sensor 3 to 5 feet
apart.
2. Batteries should be out of all units for
10 minutes.
3. Place the batteries into the remote
temperature sensor first, then into the
indoor temperature station.
(All remote temperature sensors must
be started before the indoor weather
stations)
4. DO NOT PRESS ANY BUTTONS
FOR 15 MINUTES.
5
In this time the indoor temperature station
and remote temperature sensor will start to
talk to each other and the display will show
both the indoor temperature and an outdoor
temperature. If the indoor temperature
station does not display both the indoor
temperature and the outdoor temperature
after the 15 minutes please retry the set up as
shown on page five.
After both the indoor temperature and
outdoor temperature are displayed for 15
minutes you can place your remote
temperature sensor outdoors and set your
time.
6
Notes on Outdoor Sensor Placement
The remote temperature sensor should be
placed in a dry, shaded area. Fog and mist
will not harm your remote temp/humidity
sensor but direct rain must be avoided.
The remote temperature sensor has a range
of 80 feet. Any walls that the signal will
have to pass through will reduce distance.
An outdoor wall or window can have up to
30 feet of resistance and an interior wall can
have up to 20 feet of resistance. Your
distance plus resistance should not exceed 80
ft. in a straight line.
7
To complete the set up of your indoor
temperature station after the 15 minutes have
passed, please follow the steps below.
1. Press and hold the “SET” button for 5
seconds.

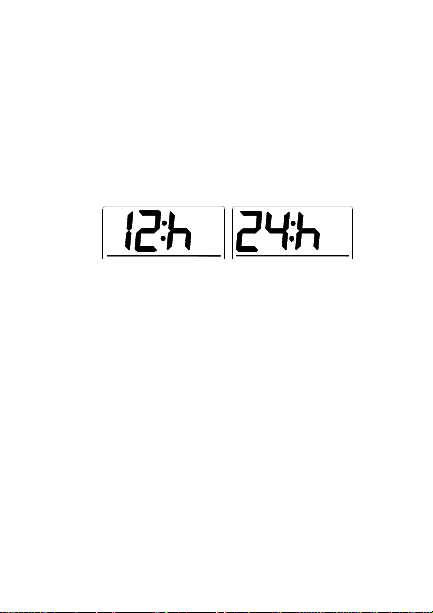

Note: A “12h” or “24h” will appear on
the top line. (“12h” for AM/PM, “24h”
for military time)
a. To change between “12h” and
“24h” press and release the
“RESET/+” button.
b. When you have your choice
shown on the display press
and release the “SET” button
once.
2. Degree Fahrenheit will now show.
a. To change between
Fahrenheit and Celsius, press
and release the “RESET/+”
button.
b. When you have your choice
shown on the display press
8
and release the “SET” button
once.
3. An hour will now be flashing.
a. Press and release the
“RESET/+” button until the
correct hour is shown.
Note: When in the 12h mode
“PM” is displayed in the upper left
corner of the display between noon
and midnight. During the AM
hours this area will be blank.
b. When the correct hour is
shown, press and release the
“SET” button once.
4. A minute will now be flashing.
a. Press and release the
“RESET/+” button until the
correct minutes are displayed.
Press and release the SET button once
more and you are done.
9
DETAILED SETUP GUIDE
I.
BATTERY INSTALLATION
A.
REMOTE TEMPERATURE
SENSOR
Battery
compartment
Battery cover
1. Remove the mounting bracket.
2. Remove battery cover.
3. Observing the correct polarity, install
2 AA batteries—make sure they do not
spring free, or start-up problems may
occur.
4. Replace cover.
10
INDOOR TEMPERATURE
B.
STATION
Note: After the batteries are installed, DO
NOT press any buttons for 15 minutes. This
may interfere with the signals, causing
temperatures to register incorrectly.
1. Remove the
battery
cover on the
Battery cover
backside.
To do this,
push up and
pull out.
2. Observing
the correct
Battery
Compartment
polarity, install 2 AAA batteries.
3. Replace battery cover.
4. Wait 15 minutes or until both the
indoor and outdoor temperatures are
shown on the indoor temperature
station.
5. The indoor temperature station should
now show: “-:- -” in the TIME LCD,
11
indoor temperature in the INDOOR
LCD and outdoor temperature in the
OUTDOOR LCD.
II.
PROGRAMMING SEQUENCE
The programming sequence and default
(factory) settings for the indoor temperature
station is as follows:
1. Time Format (default 12h)
2. Temperature Format (default °F)
3. Time-Hour (default 12)
4. Time-Minute (default 00)
Programming Note: The instructions are
arrange so that you can program each feature
independently. If you would like to program
the indoor temperature station completely at
one time please disregard the first three steps
of sections IV and V. When you get to the
last steps in sections III and IV, proceed to
step 4 in the next section without waiting 15
seconds for the display to return to the
normal mode.
12
SETTING THE TIME FORMAT
III.
1. Press and hold the “SET” button for 5
seconds.
2. “12:h” will begin to flash.
3. Press and release the “RESET/+”
button to select your desired time
format.
4. Press and release the “SET” button to
advance to the temperature format
setting or wait 15 seconds for the
display to return to the normal mode.
IV.
SETTING THE TEMPERATURE
FORMAT
1. Press and hold the “SET” button for 5
seconds.
2. “12:h” will begin to flash.
3. Press and release the “SET” button.
4. “°F” will begin to flash.
13
5. Press and release the “RESET/+”
button to select your desired
temperature format.
6. Press and release the “SET” button to
advance to the time setting or wait 15
seconds for the display to return to the
normal mode.
V.
SETTING THE TIME
1. Press and hold the “SET” button for 5
seconds.
2. “12:h” will begin to flash.
3. Press and release the “SET” button
twice.
4. The hour will begin to flash.
5. Press and release the “RESET/+”
button to advance the hour to your
desired hour.
6. Press and release the “SET” button to
14
move to the minute setting.
7. The minutes will begin to flash.
8. Press and release the “RESET/+”
button to set the minutes.
9. Press and release the “SET” button to
advance to the time setting or wait 15
seconds for the display to return to the
normal mode.
Note: There is “PM” displayed to the left of
the hour when between noon and midnight.
During the AM hours this area will be blank.
15
FEATURES
A.
MINIMUM AND MAXIMUM
TEMPERATURES
1.
Press and release
the “MIN/MAX”
button, “MIN”
appears above and
to the right of each
temperature and the
recorded minimum
temperatures are
displayed along
with the time of the recorded minimum
outdoor temperature.
2.
Press and release
the “MIN/MAX”
button to toggle to
the maximum
temperatures,
“MAX” appears
above and to the
right of each
16
temperature and the recorded
maximum temperatures are displayed
along with the time of the recorded
maximum outdoor temperature.
Please note that the flashing time is the time
of the recorded outdoor temperature
minimum or maximum.
B.
RESETTING THE MINIMUM AND
MAXIMUM TEMPERATURES
To reset both the minimum and
maximum temperatures—press and hold
the “MIN/MAX” button for 5 seconds.
C. ADDING ADDITIONAL
REMOTE TEMPERATURE
SENSORS (OPTIONAL)
The WS-7136U is able to receive signals
from 3 different remote temperature
sensors. Following are some brief
instructions for the basic set-up of
17
additional remote sensor units with the
WS-7136U. These extra sensors can be
purchased through the same dealer as
this unit, or by contacting La Crosse
Technology directly. A TX6U will
monitor temperature only, a TX3U will
monitor temperature and display the
temperature on its LCD, the TX3UP will
monitor the temperature via a probe for
use in pools, spas, etc.
Note: When setting up multiple units it
is important to remove the batteries from
all existing units in operation, then to
insert batteries first into all the remote
temperature sensor units, and in numeric
sequence. Second, install batteries into
the indoor temperature station.
Transmission problems will arise if this
is not done correctly and if the total time
for set-up exceeds 6 minutes.
18
It is necessary to remove the batteries
1.
from all units currently in operation.
2.
Remove the battery covers to all
remote sensor units.
3.
Place all remote sensor units in a
numeric sequential order.
4.
In sequential order, install batteries
(follow the same battery installation
procedures seen in section “I” of the
Detailed Set-Up Guide) into the
remote sensors.
5.
Install batteries into the indoor
temperature station.
6.
Follow the Detailed Set-Up Guide for
programming and operating
instructions.
19
VIEWING AND OPERATING
D.
WITH MULTIPLE REMOTE
SENSOR UNITS
1.
To view the temperature of a different
remote sensor unit, press and release
the “CH” button. A shift from one
“boxed” number to the next should be
observed in the OUTDOOR LCD.
2.
To view the Minimum/Maximum
temperature: first select from which
remote temperature sensor to read data
from (indicated by the “boxed”
number). Pressing and releasing the
“MIN/MAX” button will toggle
through the minimum and maximum
indoor temperature, and the minimum
and maximum outdoor temperature.
3.
To reset the Minimum/Maximum
readings, press and hold the
“MIN/MAX” button for five seconds.
20
MOUNTING
Note: To achieve a true temperature
reading, avoid mounting in direct sunlight.
We recommend that you mount the remote
temperature sensor on an outside Northfacing wall. The sending range is 80ft;
obstacles such as walls, concrete, and large
metal objects will reduce the range. Place
both units in their desired location
temporarily to test reception capability
before permanently mounting.
A.
REMOTE TEMPERATURE
SENSOR
1.
Remove the mounting bracket from
the remote temperature sensor.
2.
Mount using either screws or
adhesive tape.
3.
Reattach the remote temperature
sensor to the mounting bracket.
21
THE TEMPERATURE STATION
B.
1.
The indoor temperature station comes
with the table stand already mounted.
If you wish to use the table-stand, all
that is required is to place the indoor
weather station in your desired
location.
2.
To wall mount:
a)
Remove the table stand by pulling
down on the stand from the rear and
rotating forward.
b)
Fix a screw (not included) into the
desired wall.
c)
Place the indoor weather station
onto the screw using the hanging
hole on the backside.
d)
Gently pull the indoor weather
station down to lock the indoor
weather station into place.
22
TROUBLESHOOTING
NOTE: For problems not solved, please
contact La Crosse Technology via e-mail or
phone, or visit our website,
www.lacrossetechnology.com
Problem: The LCD is faint
Solution: Replace batteries
Problem: No outdoor temperature is
displayed.
Solution:
1) First try to re-establish communication
between the remote sensor and indoor
temperature station by moving both units
to within three to five feet of each other.
Wait about ten minutes and then check
for a temperature.
2) If this does not work please remove the
batteries from both units and restart the
system (please see Detailed Set-up on
page nine through eleven).
Note: Please make sure when restarting the
system that all batteries are fresh.
23
3) Once the system has been reset and you
have a temperature reading from the
sensor, temporarily place the remote
temperature sensor in the previous
location.
Note: If there is an outdoor temperature
displayed when the two units are close
together there was either too much distance
between the two units previously or some
type of interference that was causing poor
reception.
4) If after 15 minutes the temperature is not
displayed you will need to choose
another location for placement of the
temperature sensor.
5) The best way of doing this is to move the
sensor 10 feet closer to the indoor
temperature station.
6) After moving the remote temperature
sensor please wait 15 minutes to give the
indoor temperature station time to reacquire the signal.
24
Problem: Temperatures do not match if
units are placed next to each other.
Solution: Each temperature sensor is
manufactured to be accurate to within 2
degree plus or minus and under normal
conditions. It is possible for two
temperature sensors to be as much as 4
degrees different. The difference can be
exaggerated further because the temperature
sensors are designed for different working
environments. The indoor sensor is less
responsive to ambient air currents because of
the shielding effect of the indoor
temperature station’s case. In addition, the
casing can act as a heat sink to absorb and
store heat from external sources (i.e.
handling of the case or radiant heat). In
addition, the much greater range of the
outdoor temperature sensor requires a
different calibration curve than the indoor
range. Error is usually greater at the extreme
ends of a range, making it harder to compare
different ranges with different curves. Under
non-laboratory conditions, it is difficult to
25
compensate for the above factors and obtain
an accurate comparison.
MAINTENANCE AND CARE
INSTRUCTIONS
• Extreme temperatures, vibration, and
shock should be avoided to prevent
damage to the units.
• Clean displays and units with a soft,
damp cloth. Do not use solvents or
scouring agents; they may mark the
displays and casings.
• Do not submerge in water.
• Do not subject the units to unnecessary
heat or cold by placing them in the
oven or freezer.
• Opening the casings invalidates the
warranty. Do not try to repair the unit.
Contact La Crosse Technology for
repairs.
26
SPECIFICATIONS
Transmitting
Frequency
Measuring Range - Temperature
Indoor
Temperature
Station: Indoor
Indoor
Temperature
Station: Outdoor
Temp accuracy
Temperature Checking Interval
Indoor: Every 10 seconds
Outdoor: Three times in 10
Transmitting
range:
Batteries—(Alkaline recommended)
Remote
Temperature
Sensor
433MHz
32°F to 140°F with 0.1°F
resolution.
-21.8 °F to 156.2°F with
0.1°F resolution.
+/- 2°F
minutes
Maximum 80 feet (25m)
open space
2 x AA, 1.5V
27
Indoor
2 x AAA, 1.5V
Temperature
Station
Dimensions: (H x W x D)
Indoor
Temperature
Station
Remote
Temperature
4.75” x 3.15” x 0.85”
(excluding table stand)
(120 x 80 x 21.8 mm)
5.04” x 1.57” x 0.9”
(128 x 40 x 23 mm)
Sensor
Battery life Approximately 1 year
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited
warranty on this product against manufacturing
defects in materials and workmanship.
This limited warranty begins on the original date of
purchase, is valid only on products purchased and
used in North America and only to the original
purchaser of this product. To receive warranty
service, the purchaser must contact La Crosse
Technology, Ltd for problem determination and
service procedures. Warranty service can only be
performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of
sale must be presented upon request as proof of
28
purchase to La Crosse Technology, Ltd or La
Crosse Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this
product, at our option and at no charge as stipulated
herein, with new or reconditioned parts or products if
found to be defective during the limited warranty
period specified above. All replaced parts and
products become the property of La Crosse
Technology, Ltd and must be returned to La Crosse
Technology, Ltd. Replacement parts and products
assume the remaining original warranty, or ninety
(90) days, whichever is longer. La Crosse
Technology, Ltd will pay all expenses for labor and
materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty,
or if a product is examined which is not in need or
repair, you will be charged for the repairs or
examination. The owner must pay any shipping
charges incurred in getting your La Crosse
Technology, Ltd product to a La Crosse Technology,
Ltd authorized service center. La Crosse
Technology, Ltd will pay ground return shipping
charges to the owner of the product to a USA
address only.
Your La Crosse Technology, Ltd warranty covers all
defects in material and workmanship with the
following specified exceptions: (1) damage caused
by accident, unreasonable use or neglect (including
the lack of reasonable and necessary maintenance);
29
(2) damage occurring during shipment (claims must
be presented to the carrier); (3) damage to, or
deterioration of, any accessory or decorative
surface; (4) damage resulting from failure to follow
instructions contained in your owner’s manual; (5)
damage resulting from the performance of repairs or
alterations by someone other than an authorized La
Crosse Technology, Ltd authorized service center;
(6) units used for other than home use (7)
applications and uses that this product was not
intended or (8) the products inability to receive a
signal due to any source of interference.. This
warranty covers only actual defects within the
product itself, and does not cover the cost of
installation or removal from a fixed installation,
normal set-up or adjustments, claims based on
misrepresentation by the seller or performance
variations resulting from installation-related
circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT
ASSUME LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, OR OTHER
SIMILAR DAMAGES ASSOCIATED WITH THE
OPERATION OR MALFUNCTION OF THIS
PRODUCT. THIS PRODUCT IS NOT TO BE USED
FOR MEDICAL PURPOSES OR FOR PUBLIC
INFORMATION. THIS PRODUCT IS NOT A TOY.
KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You
30
may also have other rights specific to your State.
Some States do no allow the exclusion of
consequential or incidental damages therefore the
above exclusion of limitation may not apply to you.
For warranty work, technical support, or information
contact:
La Crosse Technology
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.782.1610
Fax: 608.796.1020
e-mail:
support@lacrossetechnology.com
(warranty work)
sales@lacrossetechnology.com
(information on other products)
web:
www.lacrossetechnology.com
FCC DISCLAIMER
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
31
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Freq. 433.92 MHz
La Crosse Technology
Made in China
WS-7136U
FCC ID: OMO-01RX (Receiver)
OMO-01TX (Sensor)
081303
All rights reserved. This handbook must not be
reproduced in any form, even in excerpts, or
duplicated or processed using electronic, mechanical
or chemical procedures without written permission of
the publisher.
This handbook may contain mistakes and printing
errors. The information in this handbook is regularly
checked and corrections made in the next issue. We
accept no liability for technical mistakes or printing
errors, or their consequences.
All trademarks and patents are acknowledged.
32
Loading...
