WS-7048U
WIRED RAIN METER
Instructional Manual
Introduction:
Thank you for purchasing this innovative Wired Rain Meter for
display of rainfall data through a connected wired rain gauge.
With two easy to use function keys, this innovative product is
ideal for use in the home or office.
Wired Rain Meter
Hanging Hole
RESET
Rain Gauge
Foldout Stand
RESET
Features:
• Three displays of rainfall quantity
• Transmission of rainfall data through a connected wired rain
gauge
• Rainfall unit display in inch or millimeter
• Manual and auto reset of rainfall data
• Auto OFF function
• Wall mounting or table standing
Setting Up:
Note:
When opening the battery cover make sure that the batteries do not
spring free from the contacts since this will cause start and transmission
problems.
Battery Change:
It is recommended to replace the batteries in the unit on an annual basis
to ensure optimum accuracy.
Batte
Rain Gauge
Wire
1. Connect the wire of the rain gauge to the jack of the Rain Meter
2. Observing the correct polarization, insert 2 x AA, IEC LR6
batteries into the compartment at the back of the Rain Meter and
replace the cover.
3. All segments of the LCD will light up briefly. Then 0.00 inch or
0.00mm (default in inch units) will be displayed in all 3 counters.
If the “0.0” is not displayed after a few seconds, remove the
batteries and wait for at least 10 seconds before reinserting them.
4. Place the rain gauge in an appropriate location (wire length is 33
feet/ 10 meters)
r
r
Counte
Counter
Counte
Keys Function:
The simple design of this product features two RESET keys.
RESET 1 Key: Press for 5 seconds to reset the rainfall data of
counter 1 to “0”
RESET 2 Key: Press for 5 seconds to reset the rainfall data of
counter 2 to “0”
Pressing both the RESET 1 and RESET 2 keys:
Changes the display between inch and mm
Display of rainfall data:
When raining, the rainfall data will be collected through the rain gauge
and transmitted to the Rain Meter (receiver) in counter 1, 2, and
“AUTO”.
Counter 1 & 2
The rain quantity data will be displayed in counters 1 and 2. New rain
data will be added to the previous records and unless the counters are
manually reset by pressing RESET 1 or RESET 2 key, the rain data will
increase continuously to a maximum of 999.99 inch or 9999.9 mm.
Above this amount, the data in counters 1 and 2 will be overflowed and
start from 0.
Counter “AUTO”
The rain quantity data will also be displayed and added to the previous
recorded data in the “AUTO” counter. The rain data cannot be reset
manually.
Note: If no rain is recorded during a period of 2 hours the
“AUTO” counter will display the last recorded data. The
“AUTO” counter will automatically reset to 0.00 inch or 0.0 mm
when rain begins again.
Auto Off Function:
The Rain Meter will automatically power OFF when no rain has been
recorded the last 12 hours and no keys have been pressed during that
period.
Note: When measurable rain begins again or a button is pressed
the Rain Meter will automatically power ON and the counters
will display:
• Counter 1 and 2:
New rain data will be collected and added to the last
record before the Rain Meter was automatically powered
down.
• Counter AUTO:
The counter will automatically reset to 0.00 inch or 0.0
mm and begin displaying current rain data.
Positioning The Rain Meter:

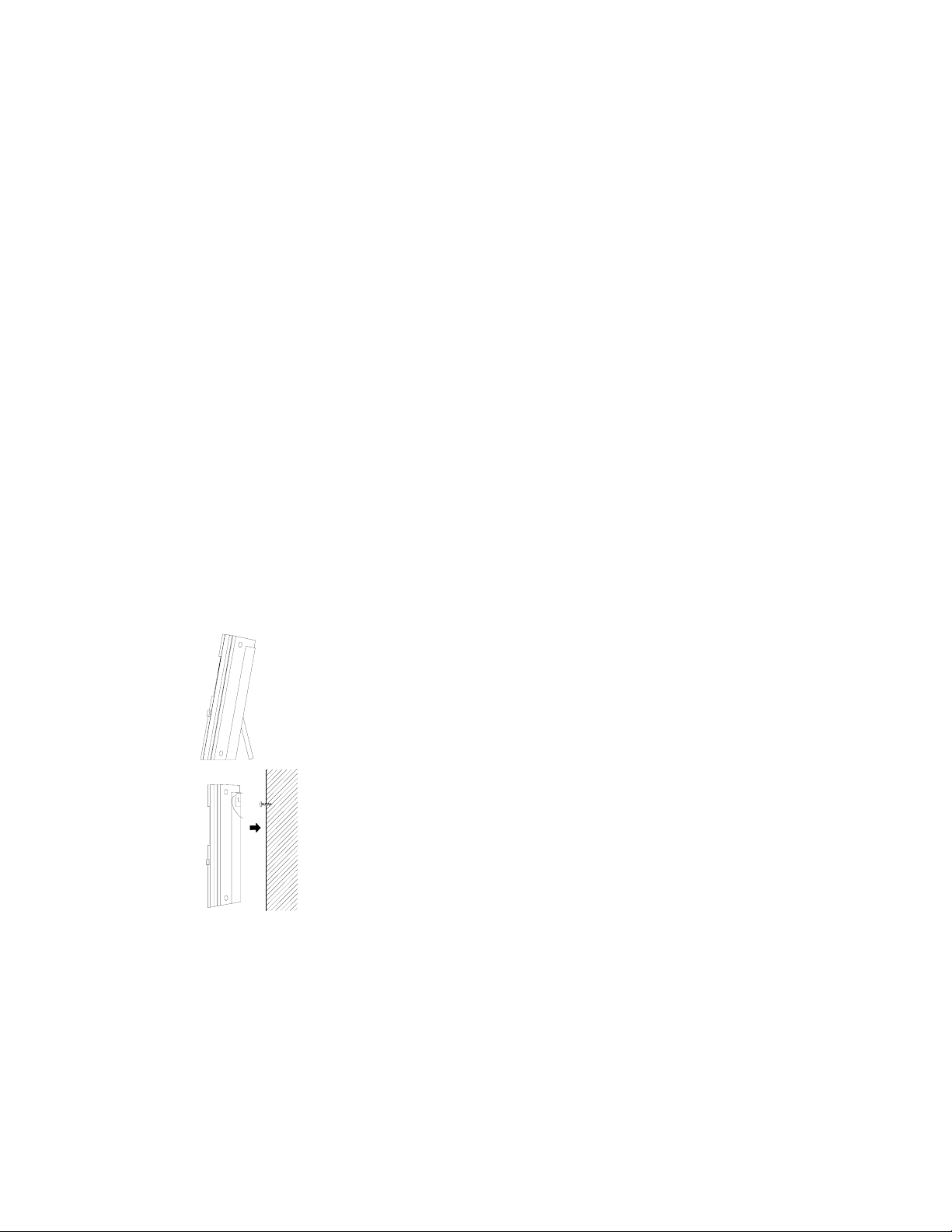

The Rain Meter can be positioned on a flat surface or on a wall.
Foldout Table Stand
The foldout table stand is located on the backside of the
Rain Meter. Carefully pull out the stand and place the
Rain Meter in the desired location.
Wall Mounting
Place a screw in the desired location leaving the
head extended about ¼” from the wall. Hang the
Rain Meter on the screw ensuring that the Rain
Meter locks into place.
Positioning The Rain Gauge
Position the connected rain gauge outdoor to collect rainfall data
(maximum length of wire: 33 feet/ 10m). Ensure that the rain gauge is
placed in a secure and flat location where it can properly collect properly
rain quantity without obstruction. Ensure also that the rain gauge is
securely mounted at the appropriate location otherwise it may not
transmit accurate rainfall data.
Maintenance
• Avoid placing the units in locations prone to extreme
temperatures, vibration and shock since these may cause
damage and inaccurate readings.
• When cleaning the display and casing of the Rain Meter
use a soft damp cloth only. Do not use solvents or
scouring agents as they may mark the casing and LCD.
• Do not submerge the Rain Meter in water.
• Immediately remove all low powered batteries to avoid
leakage and damage. Replace only with new batteries of
the recommended type.
• Please do not make any attempt to make any repairs to the
units. Return them to their original point of purchase for
repair by qualified personnel. Opening and tampering
with the units will invalidate the warranty.
Specifications Rainfall display range: 0 to 9999.99 inch/ 0 to 9999.9 mm (overflow and will automatically
restart from zero)
Rain meter data updating: immediate when raining
Transmission period-Rain Sensor: immediate when raining
Rain gauge wire length: about 33 feet/ 10 meters
Power source: 2 x AA, IEC LR6 1.5V batteries
Rain Meter dimensions (LxWxH)
Rain Meter: 3.62”x1.22”x4.52”/ 92x31x15mm
Rain Sensor: 5.51”x2.75”x5.39”/140x70x137mm
Liability Disclaimer
• The manufacturer and supplier cannot accept any responsibility
for any incorrect readings and any consequences occurring
should an inaccurate reading take place.
• This product is not to be used for medical purposes or for public
information.
• This product is designed for strict home use as an indication of
rain quantities and is not 100% accurate. Readouts given by this
product should be taken only as an indication and not as being
totally accurate.
• The specifications of this product may change without prior
notice.
• This product is not a toy. Keep out of the reach of children.
• No part of this manual may be reproduced without written
consent of the manufacturer.
