Initial Setup

Power Up

Bottom of Breeze Pro Sensor

Model No. LTV-WSDTH01

1. Remove the Insulation Tab from the

Battery Compartment of your Breeze Pro Sensor, and make sure the power switch is turned ON.

2. Insert the 5V Power Adapter into

an outlet, and then plug it into the Power Jack on the back of the station. Next, remove the Insulation Tab from the station’s Battery Compartment.

Note: It may take up to 10 minutes for your sensor data to appear on your

station’s screen.

Back of Station

Model No. C80758

LA CROSSE VIEW LA CROSSE VIEW

Connecting to the App Connecting Your Station

Now that you’ve created your La Crosse View account, it’s time to connect your station to your home router using the La Crosse View app.

Stay connected to your home anytime, anywhere with the La Crosse View app.

Monitor home conditions and set alerts so your home can get ahold of you when something seems o.

Connecting your station is optional and the display will function as a standalone unit without the Wi-Fi connection. However, we recommend connecting during the initial setup, as it will save you time and unlock all of the advanced features right away.

Download the La Crosse View

Visit the App Store or Google Play Store to download the free La Crosse View app onto your mobile device.

Launch the App

Open the La Crosse View app and follow the on-screen setup instructions.

For more troubleshooting tips and support, scan the QR code or visit:

www.lacrossetechnology.com/lacrosseviewsupport

Connecting to Your Wi-Fi Network

Ensure your station’s Wi-Fi Indicator

is ﬂashing. This is located on the bottom of the station’s LCD and indicates that the station is searching for your Wi-Fi network.

If the icon isn’t ﬂashing, press and

hold the +/- buttons down together until it begins to ﬂash.

When connected, the indicator

will become solid.

Having troubles connecting? Make sure your mobile device is connected to your router’s

separate 2.4GHz Wi-Fi network, and that you’ve correctly entered your Wi-Fi password.

Checking Your Station’s Wi-Fi Status

Press the SET button on the top of the station to view your Wi-Fi Status.

• ALL OK CONNECTED: Your station is

connected to your Wi-Fi and its data should be available on the station and in the app.

• SEE APP TO CONNECT: Check your La Crosse

03 04

View app for notiﬁcations.

• NO WEATHER SERVICE: Your Internet weather

and time services are not connecting. These should resolve on their own, please be patient.

• LOST WIFI: Check your router and network

connections.

BASICS BASICS

Station Settings Buttons

1.2.When the station is ﬁrst power on, it will begin searching for your outdoor

sensor, which should connect shortly.

To manually set your time, date, and other settings, hold the SET button to enter the Settings Menu.

Settings Menu Order

Language • Greeting • 12/24 Hour Time • Hour • Minutes • Year • Month Date • Fahrenheit/Celsius • Pressure Units (InHg/hPa) • Pressure Number Setting* • Wind Speed Units (MPH or KMH) • Wind Direction (Letters or Degrees)

1. WIND ALERTS

Hold to enter Wind Alert Settings. Press to turn Wind Alert on/o.

6 8

2. WIND

Press to view Wind Speed History. While viewing, hold the

MINUS button to delete the

history reading.

3. TEMP.

Press to view Temperature and Humidity History. While viewing, hold MINUS button to delete the history reading.

Side View

Use the +/- buttons on the top of the station to adjust the values.

* The default pressure reading is 29.92 INHg (1013 hPa). The station will acclimate on it’s own if the pressure number is not set. Learn more on page 15

Press the SET button to conﬁrm selection and move to next step.

You may exit the Settings Menu at any time by pressing the LIGHT button.

Notes: Weekday will set automatically after year, month, & date settings are adjusted.

If you’re connected to the Wi-Fi, the time and date will automatically update from the Internet. See pages 3-4 for more information.

05 06

4. SET

Press to view Wi-Fi status. Hold to enter Settings Menu.

7. SENSOR

Press to view sensor ID numbers. While viewing, hold the MINUS button delete the sensor.

* Your display must be connected to Wi-Fi to receive Daily/Hourly forecast information.

5. PLUS/MINUS (+/-)

Use to adjust values. Hold both together to search for Wi-Fi signal.

8. LIGHT

Press to adjust backlight. Hold to enter Auto-Dim settings.

6. EXTRA

Press to toggle through extra sensors and pressure. Hold to add sensors. While viewing, hold the MINUS button delete the sensor.

9. DAILY/HOURLY

Press to see Daily or Hourly Forecast*

BASICS BASICS

LCD Display Brightness Positioning the Breeze Pro Sensor

For Accurate Measurements

Adjusting the LCD Display Brightness

Press the LIGHT button to adjust the backlight intensity. There are 4 brightness levels, plus an o option.

Auto-Dim Settings

Program your display to automatically dim during preselected times.

Hold the LIGHT button to enter the Auto-Dim Settings Menu.

Press the +/- buttons to turn the Auto-Dim feature on or o. Press

LIGHT to conﬁrm.

Press the +/- buttons to adjust the starting hour. Press LIGHT to conﬁrm.

Press the +/- buttons to adjust the stopping hour. Press LIGHT to conﬁrm and exit.

The icon will appear on the LCD when the Auto-Dim feature activated.

Avoid areas that may obstruct wind gusts such as eaves, rooﬂines, or trees.

07 08

For additional sensor information, visit: www.lacrossetechnology.com/support

The illustrations above are not to scale and are for informative purposes only.

• Mount the Breeze Pro Sensor horizontally and ensure it’s level.

• The sensor should be mounted with the wind cups on top.

• Your Breeze Pro Sensor should be the tallest object in the area to

avoid reduced wind speed values.

• To optimize the use of the Breeze Pro Sensor’s Solar Panel, battery

life, and wind direction readings, ensure that the sensor is mounted with the solar panel facing directly to the South.

• Make sure all the screws on the mounting bracket, wind cups, wind

vane, and battery compartment are securely fastened.

• Ensure the knob on the mounting bracket is secure and stays in

your desired conﬁguration.

The Breeze Pro Sensor should be the tallest object in the area. An unobstructed rooftop is an ideal location.

The sensor may be mounted on a pole away from any objects that may cause inaccurate readings.

WIND WIND

Viewing Your Wind Data Wind Speed History and Alerts

1. WIND SPEED TREND INDICATOR

Shows wind speed trends over the past 60 minutes

4. WIND DIRECTION

Choose between cardinal points (letters) or degrees in the Settings Menu

7. WIND SPEED ALERT

Appears if a wind speed alert is set & active

2. COMPASS ROSE

Displays cardinal direction with animated arrows (16 directions total)

5. RECEPTION INDICATOR

Indicates if the station is receiving data from the sensor

8. TOP WIND SPEED

The top wind speed in the past 60 minutes

3. LOW BATTERY ICON

Appears when the sensor battery needs to be replaced

6. “NOW” WIND SPEED

The top wind speed in the past 31 seconds

Viewing Wind Speed History Records

Press the WIND button to toggle through wind speed history records with time and date stamps.

The wind speed records include: past 24 hours, 7 days, 1 month, & 1 year.

Setting the Wind Speed Alert

Monthly Wind Speed Record Example

1. Hold the WIND ALERTS button for to enter the Alert Settings Menu.

2. Use the +/- buttons adjust the on/o and wind speed settings. Press the

WIND ALERTS button to conﬁrm your selection.

3. Your wind speed alert is active when the icon on.

Activate/Deactivate Wind Speed Alert Important Notes:

• The alert is defaulted to be o.

• When the armed alert value is reached, the station

will beep and the icon will ﬂash. Press any button to stop the alert sound.

• The Alert Icon will remain ﬂashing until out of the

Press and release the WIND ALERTS button to

09 10

activate/deactivate the alert. WIND SPEED ALERT

ON or OFF will appear on the bottom of the LCD.

alert range.

• This Wind Speed Alert is for the station only

and will not aect the app.

2 3

7. INDOOR TEMPERATURE

Current Indoor Temperature

8. INDOOR HUMIDITY

Current Indoor Humidity

FORECAST FORECAST

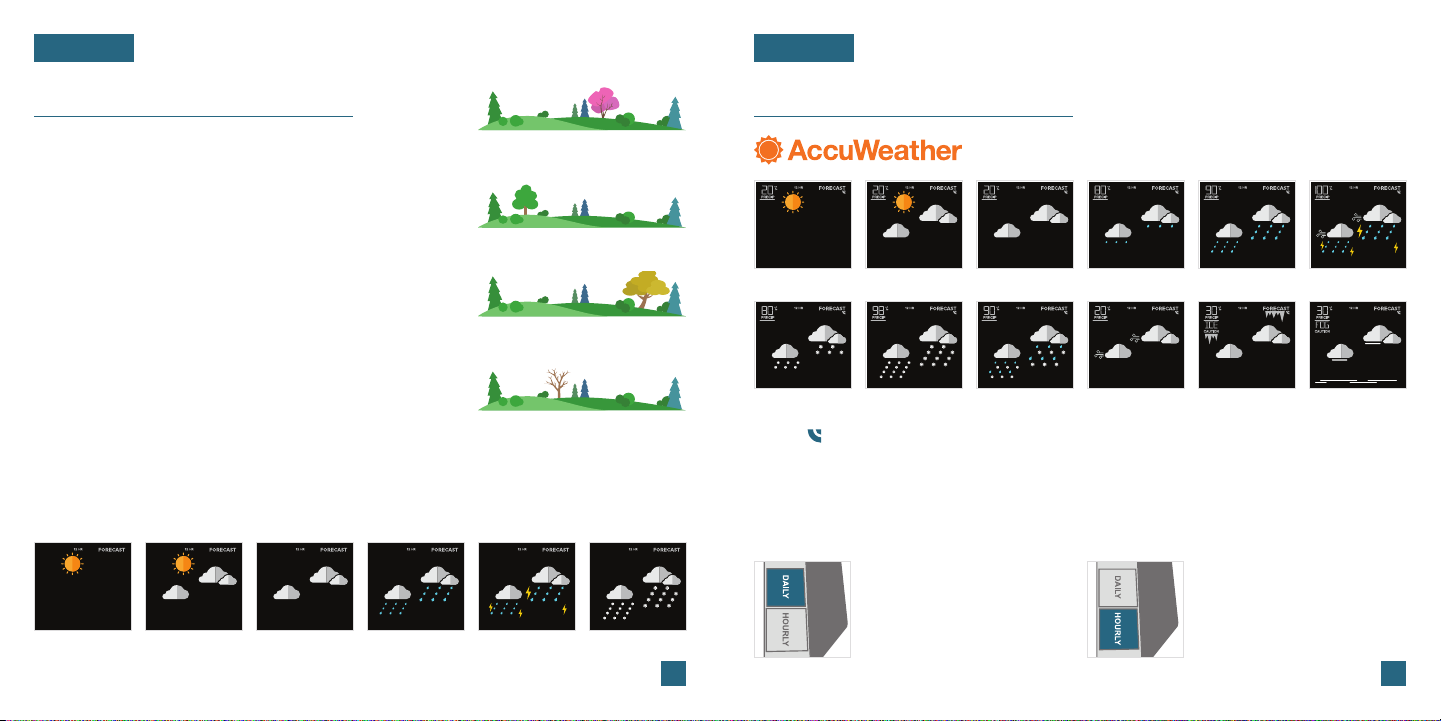

Foliage Scenes

Viewing Your Forecast Data Viewing Your Forecast Data

Seasonal Trees

Spring (March 20th to June 20th)

The foliage scene in the forecast section changes seasonally. The dates are pre-programmed.

Forecast Icons

When using as a standalone station, the display

Summer (June 21st to Sept. 20th)

will use changes in barometric pressure to predict your weather to come in the next 12 hours. This is represented by the 6 forecast scenes below. However, when connected to Wi-Fi, the station

Fall (Sept. 21st to Dec. 20th)

will receive additional weather icons, chance of precipitation values, and future forecast information. These enhanced Internet features are powered by AccuWeather.*

Please Note: The Forecast Icons may not represent your current weather. They are a future prediction

of the weather to come over the next 12 hours.

Winter (Dec. 21st to March 19th)

Available Forecast Icons on Standalone Station

Sunny Clouds T-StormPartly Sunny Rain Snow

*Your display must be connected to Wi-Fi to receive AccuWeather forecast data.

Available Forecast Icons when Connected*

Sunny

Light Snow

Tip: The icon will appear in the top right corner of the forecast section when your display is

connected and receiving AccuWeather forecasts.

Partly Sunny

Snow

Clouds

Wintry Mix

Light Rain

Windy

Rain

Ice

T-Storm

Fog

Daily & Hourly Forecast Buttons

When connected to Wi-Fi, use the DAILY & HOURLY buttons on the side of the station to view future forecast information.

Daily Forecast: Press the DAILY

button on the side of the station to automatically scroll through 7 days of forecast data, including forecast icons and highs and lows.

13 14

Hourly Forecast: Press the

HOURLY button to view 12 hours

of future forecasts, including forecast icons and forecasted temp. & humidity with time stamps.

PRESSURE

EXTRA SENSORS

Relative Pressure

• Your Relative Pressure reading will come from your

station’s internal barometer.

• Please allow up to 10 days for automatic calibration, or

program your local pressure value in the Settings Menu.

• The arrows located to the left of the values represents

Pressure Reading Example

Pressure Tendency (rising/falling).

EXTRA SENSORS

Add-On Temperature & Humidity Sensor

If you feel the temperature & humidity is not reading correctly from your Breeze Pro Sensor, you can add a separate sensor to your system.

Visit: www.lacrossetechnology.com/view to learn more.

Adding a Separate Temperature & Humidity Sensor

1. Press the SENSOR button until you see the

Outdoor Temperature and Humidity section light up on screen. “ID WTH 123” and “TWH SENSOR” will appear below.

2. Hold the MINUS (-) button to delete these

Temperature & Humidity readings.

3. Press the SENSOR button until this Outdoor

Temp. and Humidity section lights up again. Then hold the PLUS (+) button until the blue Sensor Reception Indicator starts to animate.

4.5.Install new batteries into the add-on sensor

and press the TX button inside its battery compartment. The LED light on the sensor will ﬂash.

The sensor should connect almost instantly with its data appearing on screen. The icon will appear when an add-on TH sensor is being used.

Additional Add-On Sensors

Whether you choose to connect with the La Crosse View app or not, this station can display data for up to 4 extra sensors. This data will appear in the green EXTRA SENSOR section on the LCD, and in your La Crosse View app if connected.

Adding Sensors to Your StationWould you like backyard rain data as well?

1. Hold the EXTRA button until you see the Sensor

Reception Indicator start to animate.

2. Install batteries into your sensor. If the sensor

has a TX button, press it to force a transmission signal. This button is usually located in or near

Model Number

LTV-R3

Scan the QR code above or visit:

www.lacrossetechnology.com/R3RainSensor

To learn about all of your add-on sensor options,

scan the QR code or visit:

15 16

www.lacrossetechnology.com/view

the sensor’s battery compartment. The LED light on the sensor will ﬂash once.

3. Your sensor should connect within the next 3

minutes, brieﬂy displaying its ID and type on the LCD. The Sensor Reception Indicator will show solid on the screen when a sensor is connected.

4. Press the EXTRA button to cycle through the

data you’d like displayed on the LCD. The Auto Scroll Icon ( ) will appear if activated.

Note: When ﬁrst powering up, or after a factory

reset, extra sensors should automatically connect to your station.

Rain Data Example

APPENDIX

Speciﬁcations

Wi-Fi NETWORK REQUIREMENTS

• Broadcast Frequency: 2.4GHz (802.11 b/g/n)

• Network Name/Password: Must Not Exceed

45 Characters

• Network Speed: Must Be Greater than 1 Mbps

Please Note: If you have multiple band router, be sure your mobile device is connected to the 2.4GHz frequency when connecting your station to the app.

MOBILE REQUIREMENTS

• Apple phones require iOS with cellular or Wi-Fi

service.

• Android phones require Android OS with cellular

or Wi-Fi service.

STATION SPECIFICATIONS (C80758)

• Indoor Temp. Range: 32°F to 122°F (0°C to 50°C)

• Indoor Humidity Range: 10 to 99%RH

• Relative Pressure Range: 23.62 to 32.48 InHg

(800 to 1100 hPa)

• Power Requirements:

• Primary Power: 5.0V AC Adapter (included) XH0500-0600W

• Battery Backup: 1 “CR2032” Coin Cell Battery (included)

• Station Dimensions: 8.22” L x 1.18” W x 5.83” H

(20.88cm L x 2.99cm W x 14.81cm H)

• LCD Brightness: 4 Intensity Levels + OFF

(Programmable Auto-Dim Backlight Option)

• Language Options:

English, Spanish, French, and German

(Translation Available for Menus & Calendar)

SENSOR SPECIFICATIONS (LTV-WSDTH01)

• Wind Speed Range: 0 to 111 mph (0 to 178 kMh)

• Degrees of Wind Direction: 360° with 16 Cardinal

Directions

• Outdoor Temp. Range: -40°F to 140°F (-40°C to 60°C)

• Outdoor Humidity Range: 10 to 99%RH

• Transmission Range: 400 Feet (121.92 Meters)

• Power Requirements: 1 Rechargeable ML2032

Coin Cell Battery (included) Please Note: Using a non-rechargeable coin cell

battery can potentially ruin the sensor. Ensure the replacement battery speciﬁcally states that it’s a ML2032 Rechargeable Battery.

• Update Interval: Every 31 Seconds

• Sensor Dimensions:

• With Bracket: 6.21” L x 12.28” W x 9.87” H (15.77cm L x 31.19cm W x 25.07cm H)

• Without Bracket: 6.21” L x 8.25” W x 6.67” H (15.77cm L x 20.96cm W x 16.94cm H)

WARNING

This product contains a button battery.

If swallowed, it could cause severe injury or death in just 2 hours.

Seek medical attention immediately.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the esophagus.

If you suspect your child has swallowed or inserted a button battery, immediately seek urgent medical assistance.

Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened.

Do not use if compartment is not secure.

Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.

Tell others about the risk associated with button batteries and how to keep their children safe.

APPENDIX

Warranty

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product, relating to manufacturing defects in materials and workmanship.

For full warranty details, you can visit: www.lacrossetechnology.com/support

La Crosse Technology, Ltd • 2830 S. 26th Street • La Crosse, WI 54601

Recycling & Disposal Caution!

Please consider the environment when deciding to dispose of this product. Although household electronics are generally safe to use on a daily basis, incorrect disposal can cause negative and potentially irreversible impacts on our environment.

Check with local donation centers to see if your product can be donated for future use. If disposal is the only option, federal agencies, local governments, and certiﬁed retailers may have electronic recycling programs in place. Programs may vary based on location.

Please Recycle

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modiﬁcations to this equipment. Such changes or modiﬁcations could void the user authority to operate the equipment.

All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.

APPENDIX

SUPPORT

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Increase separation between equipment & receiver.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Canada Statement California Residents

This device complies with CNR Industry Canada license-exempt devices.

Operation is subject to the following two conditions:

(1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Designed in La Crosse, Wisconsin • Made in China • Printed in China • DC 062019

WARNING:

This product can expose you to chemicals including styrene, which is known in the State of California to cause cancer.

For more information, go to: www.P65Warnings.ca.gov

Having Trouble? We’re here to help.

For detailed product videos, manuals, and more, visit our support website:

www.lacrossetechnology.com/lacrosse view support

Make sure you have your product’s model number handy (C80758)

If you need additional support, get in touch with our friendly customer support team:

Online: bit.ly/contact_techsupport Phone Number: 1.844.200.8752 Representatives are available Monday-Friday, 8:00am to 6:00pm CST

Factory Reset Stay in Touch

Ask questions, watch set up videos, and provide feedback on our social media outlets.

If you’re still experiencing issues, press and hold the WIND ALERTS and LIGHT buttons down together until the display beeps. You do not need to remove the button cell battery to restart the station.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

App Store is a service mark of Apple Inc.

Google Play and the Google Play logo are trademarks of Google Inc.

Follow La Crosse Technology on Youtube, Facebook, Twitter, and Instagram.

La Crosse Technology LTV WSDTH01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
