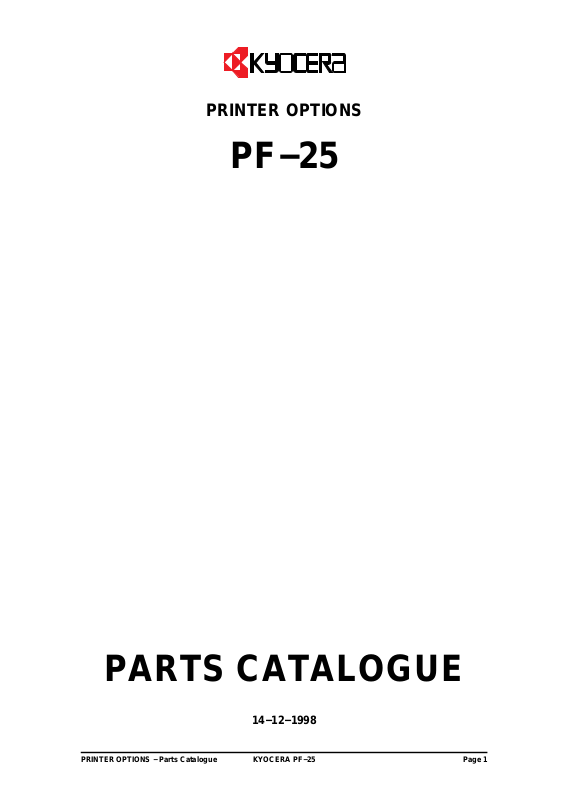

PRINTER OPTIONS
PF−25
PARTS CATALOGUE
14−12−1998
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 1
Page 2
PF−25 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
3Lower Main Body (Fig.1)
5Upper Main Body (Fig.2)
7Paper Cassette (Fig.3)
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 2
Page 3
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 3
01−003
05−001
08−006
08−002
Fig.1 − Lower Main Body
01−006
08−001
05−002
08−003
08−005
08−004
08−008
08−007
02−003
03−003
02−005
03−002
01−001
02−002
02−006
01−011
02−001
02−004
03−001
06−002
01−013
01−012
04−001
01−004
06−001
19−002
19−001
04−002
01−002
06−003
Page 4
QuantityDescriptionPart CodeRef No.
1BRACKET DRIVE ASSY5SNSAPF25J0201−001
1FRAME RIGHT ASSY5SNSP000973801−002
1FRAME LEFT ASSY5SNSP000973901−003
1COVER PANEL UNIT5SNSAPF25J0701−004
1PLATE BASE ASSY5SNSP000974201−006
1PWB CONTROL5SNSP001248301−011
1SENSOR PA55SNSP000974701−012
1CONN. CORD ASSY5SNSP000974801−013
1BKT MOTOR5SNSP001247602−001
1MOTOR ASSY5SNSP000975002−002
1PLATE ARM ASSY5SNSAPF25J0102−003
2GEAR IDLE Z155SNSP000975302−004
1GEAR B5SNSP001247402−005
1PLATE EARTH5SNSP000975502−006
1ARM5SNSP001247503−001
2GEAR A5SNSP001247303−002
1WASHER5SNSP000975703−003
1FRAME RIGHT5SNSP000976004−001
2FOOT5SNSP000975904−002
1FRAME LEFT5SNSP000975805−001
2FOOT5SNSP000975905−002
1COVER PANEL ASSY5SNSAPF25J0406−001
1PWB PANEL5SNSP001247706−002
1CONN. CORD ASSY5SNSP000976306−003
1PLATE BASE5SNSP000977608−001
1COVER SENSOR REAR5SNSP000977708−002
1PWB SENSOR REAR5SNSP000977808−003
1COVER SENSOR WIDE5SNSP000977908−004
1PWB SENSOR WIDE5SNSP000978008−005
4SPRING ACTUATOR5SNSP000978108−006
1CONN. CORD ASSY5SNSP000978208−007
4NYLON CLAMP5SNSP000978308−008
1PANEL LED5SNSP001247219−001
1SHEET PANEL5SNSP001248019−002
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 4
Page 5
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 5
01−005
07−009
07−001
07−006
Fig.2 − Upper Main Body
10−003
01−008
10−001
01−009
01−007
09−001
01−010
09−003
10−002
09−002
07−007
07−008
07−007
07−003
07−002
07−008
07−009
07−005
07−004
07−005
07−004
01−003
Page 6
QuantityDescriptionPart CodeRef No.
1FRAME ASSY5SNSAPF25J0801−000
1COVER TOP ASSY5SNSP000974101−005
1ROLL FEED ASSY5SNSP000974301−007
1BUSHING5SNSP000974501−008
1ROLL DRIVE ASSY5SNSP000974401−009
1BUSHING5SNSP000974501−010
1COVER TOP5SNSP000976607−001
1PE SENSOR ASSY5SNSP000976707−002
1ACTUATOR SENSER5SNSP000976807−003
2CHANNEL BEAM5SNSP000976907−004
3PLATE EARTH5SNSP000977007−005
1SHEET COVER5SNSP000977107−006
2GUIDE PAPER5SNSP000977207−007
2SPRING GUIDE PAPER5SNSP000977307−008
1CONNECTOR ASSY5SNSP000977407−009
1CABLE EARTH5SNSP000977507−010
1ROLL FEED5SNSP000978409−001
1GEAR FEED Z305SNSP000978509−002
1BUSHING5SNSP000974509−003
1ROLL DRIVE5SNSP000978610−001
1GEAR DRIVE Z155SNSP000978710−002
1BUSHING5SNSP000974510−003
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 6
Page 7
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 7
11−003
11−005
15−001
15−002
11−007
Fig.3 − Paper Cassette
14−002
17−003
14−001
12−003
18−002
14−003
18−001
12−002
16−002
16−001
16−003
11−006
11−004
11−002
13−003
13−004
17−001
12−001
11−001
12−003
13−001
13−002
Page 8
QuantityDescriptionPart CodeRef No.
1CASSETTE ASSY5SNSAPF25J0511−000
1BASE CASSETTE ASSY5SNSP000978811−001
1BASE CASSETTE ASSY E5SNSP000984011−001
1GUIDE PAPER R ASSY5SNSP000978911−002
1GUIDE PAPER R ASSY E5SNSP000984111−002
1GUIDE PAPER L ASSY5SNSP000979011−003
1GUIDE PAPER L ASSY E5SNSP000984211−003
1GEAR PINION Z165SNSP000979111−004
1PLATE BOTTOM ASSY5SNSP000979211−005
2SPRING CASSETTE5SNSP000979311−006
1BACK END ASSY5SNSP000979411−007
1BACK END ASSY E5SNSP000984411−007
1COVER FRONT ASSY5SNSAPF25J0611−008
1BASE CASSETTE5SNSP000979712−001
1BASE CASSETTE E5SNSP000984512−001
1SHEET GUIDE A5SNSP000979812−002
1SHEET COVER B5SNSP000979912−003
1GUIDE PAPER R5SNSP000980013−001
1LEVER LOCK5SNSP000980113−002
1NAIL R5SNSP000980213−003
1NAIL R (E)5SNSP000984613−003
1SPRING NAIL5SNSP000980313−004
1SPRING NAIL (E)5SNSP000984713−004
1GUIDE PAPER L5SNSP000980414−001
1NAIL L5SNSP000980514−002
1NAIL L (E)5SNSP000984814−002
1SPRING NAIL5SNSP000980314−003
1SPRING NAIL (E)5SNSP000984714−003
1PLATE BOTTOM5SNSP000980615−001
1PAD FRICTION5SNSP000980715−002
1BACK END F5SNSP000980816−001
1BACK END R5SNSP000980916−002
1SPRING PRESS5SNSP000981016−003
1COVER FRONT5SNSP001247117−001
2ROLL PINCH ASSY5SNSP000981317−003
2ROLL PINCH5SNSP000981418−001
2SPRING ROLL PINCH5SNSP000981518−002
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−25 Page 8
