Kyocera KM 6330 P Diagram

KM-6330

Contains: Printing System (R)

PARTS LIST

Published in Oct. ’02

2CJ70771

Revision 1

NOTE

1.Indicate parts number and machine model when placing an order.
eg.Parts Number Parts Name Machine Model Cycle Quantity

2CJ04060 UPPER FRONT COVER 6330 60Hz 1

2.Service calls and freight will be charged separately.

3.Symbols in the "Parts Number" column.

• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.

• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

eg.Parts Number Parts Name Parts Number Parts Name

2CJ93010 PARTS,ASS'Y CLEANING,SP •M2105000 NYLON CLAMP 2N,NK-2N

•M2307010 BINDING BAND,T18R

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

eg.Parts Number Parts Name Parts Number Parts Name

•2CJ60020 COVER CLEANING ASS'Y SP ••2CJ18250 COVER,CLEANING

••2CJ00520 SEPARATION CLAW ASS'Y

• Parts with "•••" are component parts or sub-assembly with "• •" appearing immediately above them.

eg.Parts Number Parts Name Parts Number Parts Name

••2CJ00520 SEPARATION CLAW ASS'Y •••2CJ18240 MOUNT,SEPARATION CLAW

•••2A018160 CLAW A,SEP ARATION

4.See the last page of this parts list for the classification of the screws in the illustrations.

5.Items indicated by shaded areas ( ) are supply parts and should be ordered through your Regional Office.

Parts List

KM-6330

CONTENTS

FIG.1 EXTERIOR COVERS · · · · · · · · · · · · · · · · · · · · · · 2
FIG.2 FRAMES · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG.3 CASSETTE (120V) · · · · · · · · · · · · · · · · · · · · · · · · 6
FIG.3 CASSETTE (230/240V) · · · · · · · · · · · · · · · · · · · · 8
FIG.4 DECK UNIT I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10
FIG.5 DECK UNIT II · · · · · · · · · · · · · · · · · · · · · · · · · · · · 12
FIG.6 DECK UNIT III · · · · · · · · · · · · · · · · · · · · · · · · · · · · 14
FIG.7 PAPER FEED-IN SECTION I · · · · · · · · · · · · · · · · 16
FIG.8 PAPER FEED-IN SECTION II· · · · · · · · · · · · · · · · 18
FIG.9 PAPER FEED-IN SECTION III · · · · · · · · · · · · · · · 20
FIG.10 PAPER FEED-IN SECTION IV · · · · · · · · · · · · · · · 22
FIG.11 PAPER CONVEYING SECTION I· · · · · · · · · · · · · 24
FIG.12 PAPER CONVEYING SECTION II · · · · · · · · · · · · 26
FIG.13 OPTICAL SECTION I · · · · · · · · · · · · · · · · · · · · · · 28
FIG.14 OPTICAL SECTION II · · · · · · · · · · · · · · · · · · · · · · 30
FIG.15 IMAGE FORMATION SECTION I · · · · · · · · · · · · · 32
FIG.16 IMAGE FORMATION SECTION II · · · · · · · · · · · · 34
FIG.17 DEVELOPING SECTION I · · · · · · · · · · · · · · · · · · 36
FIG.18 DEVELOPING SECTION II· · · · · · · · · · · · · · · · · · 38
FIG.19 TONER HOPPER SECTION · · · · · · · · · · · · · · · · 40
FIG.20 CLEANING SECTION I· · · · · · · · · · · · · · · · · · · · · 42
FIG.21 CLEANING SECTION II · · · · · · · · · · · · · · · · · · · · 44
FIG.22 FIXING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · 46
FIG.23 FIXING SECTION II · · · · · · · · · · · · · · · · · · · · · · · 48
FIG.24 DRIVING, COOLING SECTION I · · · · · · · · · · · · · 50

FIG.25 DRIVING, COOLING SECTION II· · · · · · · · · · · · · 52
FIG.26 DRIVING, COOLING SECTION III · · · · · · · · · · · · 54
FIG.27 DUPLEX UNIT I · · · · · · · · · · · · · · · · · · · · · · · · · · 56
FIG.28 DUPLEX UNIT II · · · · · · · · · · · · · · · · · · · · · · · · · · 58
FIG.29 DUPLEX UNIT III · · · · · · · · · · · · · · · · · · · · · · · · · 60
FIG.30 REVERSING SECTION · · · · · · · · · · · · · · · · · · · · 62
FIG.31 PAPER EJECT SECTION · · · · · · · · · · · · · · · · · · · 64
FIG.32 ELECTRICAL COMPONENTS I (120V) · · · · · · · · 66
FIG.32 ELECTRICAL COMPONENTS I (230/240V)· · · · · 68
FIG.33 ELECTRICAL COMPONENTS II · · · · · · · · · · · · · 70
FIG.34 OPERATION UNIT · · · · · · · · · · · · · · · · · · · · · · · · 72
FIG.35 WIRE SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · 74
FIG.36 WIRE SECTION II· · · · · · · · · · · · · · · · · · · · · · · · · 76
FIG.37 EXTERIOR COVERS (DF) · · · · · · · · · · · · · · · · · · 78
FIG.38 FRAMES (DF) · · · · · · · · · · · · · · · · · · · · · · · · · · · · 80
FIG.39 PAPER FEED-IN SECTION (DF) · · · · · · · · · · · · · 82
FIG.40 PAPER CONVEYING SECTION (DF) · · · · · · · · · 84
FIG.41 REVERSING SECTION (DF) · · · · · · · · · · · · · · · · 86
FIG.42 PAPER EJECT SECTION (DF)· · · · · · · · · · · · · · · 88
FIG.43 DRIVING SECTION (DF) · · · · · · · · · · · · · · · · · · · 90
FIG.44 ELECTRICAL COMPONENTS (DF) · · · · · · · · · · · 92
FIG.45 ACCESSORIES & TOOL · · · · · · · · · · · · · · · · · · · 94
FIG.46 OPTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 96
FIG.46 OPTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 98

• INDEX · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 100

– 1 –

FIG. 1 EXTERIOR COVERS

26

25

HCA

HCA

HCA

14

EAH

16

HBC

18

31

22

20

20

21

RDC

APF

19

APF

BAN

BAN

19

HCA

27

2CJ

24

HCA

BGB

BGB

BGB

23

BGB

7

32

BGB

BUA

3

BAN

15

HCA
HCA

1

44

30

HBC

13

HBC

40

HBC

42

BHD

43

38

11

10

HBC

28

39

BHC

9

BBB

12

BHC

41

35

HCA

33

29

HCA

HCA

8

37

HBO

36

6

HAQ

5

4

HAQ

2

BBB

17

HCA

34

– 2 –

FIG. 1 EXTERIOR COVERS

Ref.

SP Part. No. Description

No.

'

1 2CJ04250 LOWER COVER,IMAGE FORMATION 1 1 1

'

2 2CJ04060 UPPER FRONT COVER 1 1 1
3 2A004150 FRONT MOUNT,COVER HINGE 1 1 1
4 2A004160 FEED GUIDE,SAFETY SWITCH 1 1 1
5 2A004170 FRONT FEED GUIDE,COVER MAGNET 1 1 1
6 2A004330 FRONT HINGE,COVER(B) 1 1 1

'

7 2CJ04020 LOWER REAR COVER 1 1 1
8 67505110 LABEL,STOPPER 1 1
8 2AD05050 LABEL,STOPPER(EUR) 1

9 2A005130 LABEL,FEED OPERA TION(EUR) 1 1 1
10 2CJ04240 LOWER RIGHT INNER COVER 1 1 1
11 2CJ04290 UPPER FRONT FEED GUIDE,COVER 1 1 1
12 60804120 MAGNET CATCH 1 1 1
13 20305090 LABEL,HIGH VOLTAGE CAUTION 1 1

'

13 2A005060 LABEL,HIGH VOLTAGE CAUTION(EUR) 1

'

14 2CJ04070 COVER,ROM 1 1 1

'

15 2CJ04200 LOWER LEFT COVER 1 1 1
16 62207620 MAGNET, FEED SHIFT 2 2 2
17 2A004130 PIN,ORIGINAL TRAY 2

'

18 2CJ04210 LOWER REAR LEFT COVER 1 1 1
19 36704210 LOWER REAR LEFT HINGE,COVER 2 2 2
20 36704220 LOWER REAR LEFT MOUNT,COVER HINGE 2 2 2
21 36704350 LEFT PROJECTION,COVER MAGNET 2 2 2
22 36718620 SPONGE,DISPOSAL TANK PRESSURE 1 1 1
23 2A004020 UPPER REAR MOUNT,COVER 1 1 1

'

24 2CJ04010 REAR COVER,MIDDLE 1 1 1

'

25 2CJ04080 UPPER LEFT COVER 1 1 1

'

26 2CJ04090 LEFT COVER,MIDDLE 1 1 1

'

27 2CJ04100 UPPER REAR COVER 1 1 1

'

28 2CJ04110 UPPER RIGHT COVER 1 1 1

'

29 2CJ04120 RIGHT COVER,MIDDLE 1 1 1

'

30 2CJ04130 UPPER INNER COVER 1 1 1

'

31 2CJ04140 LEFT COVER,IMAGE FORMATION 1 1 1

'

32 2CJ04150 RIGHT COVER,IMAGE FORMATION 1 1 1

'

33 2CJ04170 LOWER FRONT RIGHT COVER 1 1 1

'

34 2CJ04180 LOWER REAR RIGHT COVER 1 1 1

'

35 2CJ04190 LOWER RIGHT COVER 1 1 1
36 2A004320 UPPER FRONT HINGE A,COVER 1 1 1
37 2A004350 PIN,HINGE STOP 1 1 1
38 2A004370 LOWER LEFT MOUNT,COVER 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

39 2A004380 LOWER FRONT RIGHT MOUNT,COVER 2 2 2

'

40 2CJ04270 COVER,TRANSFER CONVEYING 1 1 1
41 36704560 LOWER FRONT RIGHT MOUNT A,COVER 1 1 1

'

42 20305100 LABEL,TRANSFER BELT 1 1

'

42 2A005070 LABEL,TRANSFER BELT(EUR) 1

'

43 36705040 LABEL,CONVEYING OPERATION 1 1

'

43 2A005080 LABEL,CONVEYING OPERATION(EUR) 1
44 2A004100 MOUNT,ORIGINAL TRAY 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 3 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 2 FRAMES

71

HBC

BHC

42

BAN

C

52

2CJ

BHC

37

52

BBE

EDB

65

21

29

BBE

8

59

NAK

77

74

BBE

72

39

BAN

49

38

NAK

BHC

BBE

2

37

49

BAN

BHC

44

45

33

6

27

BBE

40

52

43

BHC

49

23

BBE

22
19

BBE

64

BBE

BBE

46

63

36

BAN

34

BAN

A

35

BAN

BBD

51

69

1

BAN

C

BHD

30

73

31

BBE

67

BBE

BHD

NAK

59

50

18

EDB

BBE

B

BHC

E07

67

BHD

30

EDB

72

33

61

32

76

BBE

BHC

60

BHC

26

NAK

68

56

B

53

D

55

BHC

54

62

70

57

BHD

52

49

52

78

BHC

D

5

BHD

12

11

BHC

14

BHC

52

38

BAN

41

15

AXB

16

HCA

39

13

9

BHD

17

10

E05

33

BBE

58

52

37

4

25

BAN

BAN

4

EDB

BBE

28

4

75

EDB

48

47

BHC

A

24

EDB

EDB

BBE

EDB

20

BBE

52

3

37

7

BVX

66

– 4 –

FIG. 2 FRAMES

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 2A002010 FRONT FRAME 1 1 1

2 2A002020 REAR FRAME 1 1 1

3 2A002030 BASE 1 1 1

4 2A002040 RIGHT STAY,MIDDLE 4 4 4

5 2A002110 FRONT STAY,FRAME 1 1 1

6 2A002120 REAR STAY,FRAME 1 1 1

7 2A002130 RIGHT MOUNT,CASTER 1 1 1

8 36721140 REAR FULCRUM PLATE,EJECT UNIT SUPPORT 1 1 1

9 M2107120 BINDING BAND SG-130 3 3 3
10 2AC07360 HOOK,DUPLEX LOCK 1 1 1
11 2A016200 LOWER STAY,CONVEYING 1 1 1
12 36717130 GUIDE FILM,DUPLEX FAN 1 1 1

'

13 36717140 GUIDE FILM,DUPLEX FAN AUXILIARY 1 1 1

'

14 36717190 FILM,DUPLEX 1 1 1
15 36727640 JUNCTION WIRING,DUPLEX FAN 1 1 1

'

16 63523010 FAN MOTOR 1 1 1
17 48571305 TENSION SPRING,DEVELOPER UNIT DRIVE 1 1 1
18 36721370 FRONT PIN,FEED SHIFT UNIT SUPPORT 1 1 1
19 33902160 SPRING,CASSETTE LOCK 1 1 1

'

20 36708260 SLIDER,IMAGE FORMATION 1 1 1
21 36716010 RIGHT MOUNT,SLIDER 1 1 1
22 36716620 HOOK,CONVEYING 1 1 1
23 71807770 PIN,DETECTION SWITCH 2 2 2
24 36721380 UPPER REAR PIN,FEED SHIFT UNIT SUPPORT 1 1 1
25 36716020 LEFT MOUNT,SLIDER 1 1 1

'

26 36716830 SLIDER,IMAGE FORMATION 1 1 1
27 36726110 MOUNT,KEY COUNTER 1 1 1

'

28 36708260 SLIDER,IMAGE FORMATION 1 1 1
29 36708280 RIGHT MOUNT,IMAGE FORMATION SLIDER 1 1 1
30 66502120 BOLT,LEVEL 2 2 2
31 2A008020 LEFT MOUNT,IMAGE FORMATION SLIDER 1 1 1

'

32 36708260 SLIDER,IMAGE FORMATION 1 1 1
33 M2105740 MINIATURE CLAMP,UAMS-05S-2 4 4 4
34 2A007300 SLIDER,DECK 1 1 1
35 2A007670 RIGHT MOUNT,DECK RAIL 1 1 1
36 2A007720 RIGHT MOUNT,DECK RAIL 1 1 1
37 M2109020 WIRE SADDLE,WS-2WS 4 4 4
38 36702150 MOUNT A,HANDLE 2 2 2
39 74302310 HANDLE 2 2 2
40 2CJ02010 REAR FRAME,MIDDLE 1 1 1

41 36702160 MOUNT B,HANDLE 1 1 1
42 74302310 HANDLE 1 1 1
43 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1
44 36702170 RIGHT REAR MOUNT,HANDLE 1 1 1
45 74302310 HANDLE 1 1 1
46 M7009000 WIRE SADDLE,LCT-3.5SI(TAKEUCHI) 1 1 1
47 33902070 LEFT MOUNT,RAIL 2 2 2

'

48 66107084 SLIDER,CASSETTE 2 2 2
49 M2107120 BINDING BAND SG-130 7 7 7
50 2A007310 LEFT SLIDER,DECK 1 1 1
51 2A007680 LEFT MOUNT,DECK RAIL 1 1 1
52 M2109010 WIRE SADDLE,WS-2NS 19 19 19
53 M2109010 WIRE SADDLE,WS-2NS 3 3 3
54 2A007660 FRONT STAY,DECK FEED 1 1 1
55 2A007710 LEFT STAY,DECK PAPER FEED 1 1 1
56 2A027620 JUNCTION WIRING,FEED UNIT 1 1 1

'

57 2CJ04160 LOWER FRONT COVER 1 1 1
58 2A023030 PARTITION,MACHINE INSIDE COOLING 1 1 1
59 2A026180 GROUND PLATE,SCANNER FRAME 4 4 4
60 33902120 HOOK,CASSETTE RETAINING 2 2 2
61 33902130 SPRING,CASSETTE HOOK 2 2 2
62 M2108000 SPACER,KGLS-3S 2 2 2
63 33902060 RIGHT REINFORCEMENT 2 2 2
64 36707881 RIGHT MOUNT,RAIL 2 2 2

'

65 66107084 SLIDER,CASSETTE 2 2 2

'

66 2A002170 CASTER UA 4 4 4
67 36702270 MOUNT,LEVEL BOLT 2 2 2
68 36704230 MOUNT,COVER 1 1 1
69 36704240 MOUNT B,COVER 1 1 1
70 36704300 LOWER FRONT MOUNT,COVER 1 1 1

'

71 2CJ04230 LOWER LEFT INNER COVER 1 1 1
72 2A026180 GROUND PLATE,SCANNER FRAME 6
73 36706210 MOUNT 3000,FEED 1 1 1
74 36706230 RETAINING PIN,UNIT 1 1 1
75 36707250 FRONT RETAINING PIN,BYPASS 1 1 1
76 36708290 FRONT PIN,IMAGE FORMATION POSITIONING 2 2 2
77 36716681 PIN,CONVEYING POSITIONING 2 2 2
78 36721130 FRONT FULCRUM PLATE,EJECT UNIT SUPPORT 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 5 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 3 CASSETTE(120V)

2CJ

– 6 –

FIG. 3 CASSETTE(120V)

Ref.

SP Part. No. Description

No.

'

1 2CJ00370 CASSETTE ASS’Y 2

'

2 •2CJ06150 LOWER COVER,CASSETTE 2

3 •36705270 LABEL,CASSETTE OPERATION 2

4 •33907012 CASSETTE 2

5 •33907020 WORK PLATE,CASSETTE 2

6 •33907030 WORK PLATE,LIFT CASSETTE 2

7 •33968220 CASSETTE LIFT SHAFT ASS’Y 2

8 •33907050 RAIL A,CURSOR 2

9 •33907060 CURSOR A,CASSETTE 2
10 •33907070 CURSOR B,CASSETTE 2
11 •33907080 LEVER,CASSETTE CURSOR 4
12 •33907090 LID A,CURSOR 2
13 •33907100 RACK,CASSETTE 4
14 •33907110 TERMINAL,PAPER SIZE PCB 2
15 •33907120 RAIL C,CURSOR 2
16 •33907130 CURSOR C,CASSETTE 2
17 •33907140 LID C,CURSOR 2
18 •33907160 LID,PAPER SIZE DETECTION 2
19 •33907170 DETECTION PLATE,PAPER SIZE 2
20 •33907190 GROUND PLATE,CASSETTE 2
21 •33907210 CUSHION,CASSETTE WORK PLA TE 4
22 •33927210 WIRE,CASSETTE UNIT 2

'

23 •33928111 SIZE DETECTION PCB 2
24 •60907170 CUSHION,CASSETTE R 4
25 •61705110 LABEL,PAPER UPPER LIMIT 2

'

26 •65914120 GEAR 18,IDLE DEVELOPING 2
27 •66007120 SPRING,CURSOR C 4
28 •66007310 PIN,CASSETTE WORK PLATE 2
29 •66106080 SPRING,PAD 2
30 •66107100 PAD,CASSETTE 2

'

31 •2CJ06140 UPPER COVER,CASSETTE 2
32 •J0463080 PLUG,QR/P15-8S-C(HIROSE) 2
33 •36707850 SPACER,DRAWER 4

'

34 2A005050 LABEL,PAPER(INCH) 2

'

35 68205110 LABEL,CASSETTE SIZE(INCH K M) 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 7 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 3 CASSETTE(230/240V)

2CJ

– 8 –

FIG. 3 CASSETTE(230/240V)

Ref.

SP Part. No. Description

No.

'

1 2CJ00380 CASSETTE ASS’Y(EUR) 2 2

'

2 •2CJ06140 UPPER COVER,CASSETTE 2 2

'

3 •2CJ06150 LOWER COVER,CASSETTE 2 2

4 •33907012 CASSETTE 2 2

5 •33907020 WORK PLATE,CASSETTE 2 2

6 •33907030 WORK PLATE,LIFT CASSETTE 2 2

7 •33968220 CASSETTE LIFT SHAFT ASS’Y22

8 •33907050 RAIL A,CURSOR 2 2

9 •33907060 CURSOR A,CASSETTE 2 2
10 •33907070 CURSOR B,CASSETTE 2 2
11 •33907080 LEVER,CASSETTE CURSOR 4 4
12 •33907090 LID A,CURSOR 2 2
13 •33907100 RACK,CASSETTE 4 4
14 •33907120 RAIL C,CURSOR 2 2
15 •33907130 CURSOR C,CASSETTE 2 2
16 •33907140 LID C,CURSOR 2 2
17 •33907180 DETECTION PLATE,CASSETTE 2 2
18 •33907190 GROUND PLATE,CASSETTE 2 2
19 •33907210 CUSHION,CASSETTE WORK PLATE 4 4
20 •36705270 LABEL,CASSETTE OPERATION 2 2
21 •60907170 CUSHION,CASSETTE R 4 4
22 •61705110 LABEL,PAPER UPPER LIMIT 2 2

'

23 •65914120 GEAR 18,IDLE DEVELOPING 2 2
24 •66007120 SPRING,CURSOR C 4 4
25 •66007310 PIN,CASSETTE WORK PLATE 2 2
26 •66107100 PAD,CASSETTE 2 2

'

27 2A005040 LABEL,PAPER(METRIC) 2 2

'

28 68205100 LABEL,CASSETTE SIZE(METRIC K M) 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 9 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 4 DECK UNIT I

2CJ

– 10 –

FIG. 4 DECK UNIT I

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 5A707390 C-PAPER REAR GIDE 2 2

'

2 2CJ06140 UPPER COVER,CASSETTE 1 1 1

'

3 2CJ06160 COVER,DECK 1 1 1

4 5A707130 CA-CASSETTE 1 1 1

5 2CJ06170 GUIDE,PAPER SIDE 2 2 2

6 2CJ06010 LIFT PLATE,MAIN 2 2 2

7 2CJ06020 FRONT LIFT PLATE,SUB 2 2 2

8 2CJ06030 REAR LIFT PLATE,SUB 2 2 2

9 5A707540 C-SFT-LIFT MAIN 2 2 2
10 5A707550 C-SFT-LIFT SUB 2 2 2

'

11 51608690 GER-1.0-24 8 8 8
12 2A005140 LABEL,PAPER SUPPLY CAUTION 1 1 1
13 54106950 AIR DAMPER 2 2 2
14 54107130 DAMPER SUPPORT 2 2 2
15 54107330 DAMPER MAT 2 2 2

'

16 5A707160 C-ARBOR-64 1 1 1

'

17 5A707570 C-SFT-PULLEY 1 1 1

'

18 5A707580 C-PICK PULLEY 1 1 1

'

19 5A707680 C-SP-PICK PULLEY60 1 1 1
20 5A707530 C-SFT-DRIVING FULCRUM 2 2 2
21 54106020 LIFT PULLEY 2 2 2
22 5A707560 C-SFT-CAM 2 2 2

'

23 5AA08420 BUSH-8P 2 2 2

'

24 54106930 RIGHT LIFT BELT ASS’Y111

'

25 54106940 LEFT LIFT BELT ASS’Y111
26 53310020 SLIDER MG 1 1 1
27 5A708030 BKT-MG SLIDER 1 1 1
28 5A708010 MG SLIDER 2 2 2
29 5A708040 BKT-SLIDE GUIDE 1 1 1
30 53310030 RUBBER,SIDE STOPPER 1 1 1
31 53310100 GROUND PLATE,CASSETTE 2 2 2

'

32 36707820 RETAINING PIN,DECK COVER 4 4 4

'

33 36707830 WASHER,DECK COVER 4 4 4
34 5A708020 BKT-MG STOPPER 2 2 2
35 5A707210 C-BKT-LIFTER DRIVING 1 1 1
36 5A707220 C-CAM STOPPER 1 1 1

'

37 51608740 BINDING TAP-TITE SCREW CVM3X8 5 5 5
38 54106740 PARALLEL KEY 3X3X10 2 2 2
39 2A005150 LABEL,UPPER LIMIT 2 2 2

'

40 68205110 LABEL,CASSETTE SIZE(INCH K M) 1

'

40 68205100 LABEL,CASSETTE SIZE(METRIC K M) 1 1

'

41 2A005050 LABEL,PAPER(INCH) 1

'

41 2A005040 LABEL,PAPER(METRIC) 1 1
42 2A007340 FRONT MOUNT,COVER 1 1 1

'

43 33906400 FRICTION PLATE,BYPASS 1 1 1

'

44 51608740 BINDING TAP-TITE SCREW CVM3X8 2 2
45 2A007320 MOUNT,MAGNET 1 1 1
46 2A007330 HOLDER,RELEASE 1 1 1
47 2A007880 MAGNET,DECK 1 1 1

'

48 2CJ06040 PAD,DECK 1 1 1
49 2A006160 GUIDE,CASSETTE PAPER FEED 2 2 2
50 2CJ07200 REAR SEAL,CASSETTE 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 11 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 5 DECK UNIT II

2CJ

35

10

33

E07

12

13

E07

34

DJB

E07

14

12

BAL

E09

E09

KKG

16

13

EGA

BAN

BAL

E09

1

BAN

E09

15

E09

E09

31

29

E09

2

31

2

2

4

2

E09

3

12

32

BAL

23

21

9

8

KKG

HAD

19

5

E03

E03

BAL

18

EGA

26

20

E03

36

17

19

25

20

24

E07

30

E07

12

BAL

22

BAJ

7

6

5

28

27

BAN

31

31

2

2

2

BAL

– 12 –

11

4

2

FIG. 5 DECK UNIT II

Ref.

SP Part. No. Description

No.

1 2A007040 SHAFT,PAPER FEED IDLE 1 1 1

'

2 2A007020 PULLEY,PAPER FEED BELT 8 8 8

3 2A007030 SHAFT,PAPER FEED DRIVE 1 1 1

'

4 2A007120 UPPER ROLLER,CONVEYING 2 2 2

5 2A007960 FILM,SEPARATION DUCT(INCH) 2

6 2A007070 LOWER DUCT,PAPER FEED BELT 1 1 1

'

7 66006360 PAPER SWITCH 1 1 1

8 2CJ27100 RIGHT WIRE,FEED UNIT 1 1 1

9 2A007060 UPPER DUCT,PAPER FEED BELT 1 1 1
10 2A007050 SUPPORT PLATE,PAPER FEED BELT 1 1 1
11 36816380 TORQUE LIMITER,ROLLER FEED IN 1 1 1

'

12 28107400 BEARING,688ZZNR 4 4 4
13 M2107120 BINDING BAND SG-130 2 2 2
14 2CJ07110 UPPER DUCT,INHALATION JOINT 1 1 1
15 2CJ07120 LOWER DUCT,INHALATION JOINT 1 1 1
16 2A007640 REAR LOWER SUPPORT PLATE,GUIDE CONVEYING 1 1 1
17 2CJ07080 MOUNT,PULLEY CONVEYING 1 1 1
18 2A007110 LOWER SHAFT,CONVEYING 1 1 1

'

19 60820010 EJECT PULLEY 2 2 2
20 34806050 LOWER SPRING,PAPER FEED 2 2 2
21 2A007090 LOWER GUIDE,CONVEYING 1 1 1

'

22 33906630 STOPPER 5,RING 1 1 1
23 2CJ07090 RETAINER,TORQUE LIMITER 1 1 1
24 2A007130 UPPER MOUNT,SEPARATION DUCT 1 1 1
25 2A007200 UPPER DUCT,SEPARATION 1 1 1
26 2CJ07070 GUIDE,BLADE 2 2 2
27 2A007260 LOWER GUIDE,DUCT 1 1 1
28 2A007400 LOWER FILM,DUCT 1 1 1
29 2CJ07150 SEAL,INHALATION JOINT 1 1 1
30 2CJ07140 REAR SEAL,SEPARATION 1 1 1

'

31 2A007990 BELT LCF,PAPER FEED 4 4 4
32 2A007450 FRONT GUIDE,DUCT 1 1 1
33 2A007490 FILM,COVER CLUTCH 1 1 1

'

34 2A007980 CLUTCH,PAPER FEED BELT 1 1 1
35 2A007770 FRONT SPONGE,INHALATION 1 1 1
36 2A007441 FRONT BLADE,BELT 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 13 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 6 DECK UNIT III

2CJ

BBC

6

25

24

18

BAA

E05

15

E05

KAK

11

E05

11

11

20

6

KAK

41

BAJ

11

BAA

20

E05

26

11

39

BAA

5

2

E05

11

14

8

KAL

11

13

E05

10

12

14

E05

34

1

4

10

11

E05

39

E05

30

E05

39

BBC

41

43

11

E05

28

35

11

KAN

29

KAL

E05

E05

E05

11

7

39

9

E05

KAL

19

E05

E05

11

E05

17

22

KAL

16

42

13

E05

21

23

E05

BAJ

37

BAJ

37

3

36

42

38

31

37

33

42

27

BAJ

42

38

40

HAD

32

42

– 14 –

FIG. 6 DECK UNIT III

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 2A006220 RIGHT WEIGHT LCF 1 1 1

'

2 61727540 INTERLOCK SWITCH B 1 1 1

3 2CJ07050 LEFT BASE,DECK PAPER FEED 1 1 1

4 2CJ07020 RIGHT HOLDER LCF 1 1 1

5 2A007560 FRONT MOUNT,LIFT UP PI 1 1 1

'

6 35327400 SWITCH,FEED 2 2 2

7 2A007740 LEFT HOLDER LCF 1 1 1

8 45728105 GEAR 24,DEV.UNIT 1 1 1

'

9 2A006190 LEFT PULLEY LCF 1 1 1

'

10 73210370 GEAR 18,LOOP 2 2 2

'

11 73210450 BUSH, 6 12 12 12
12 2A007580 SHAFT LCF,CLUTCH 1 1 1

'

13 63506100 CLUTCH 35,PAPER FEED 2 2 2

'

14 78722210 GEAR 18 EJECT 2 2 2
15 2A007540 MOUNT LCF,PAPER FEED IDLE 1 1 1

'

16 36211130 GEAR 19,IDLE 1 1 1

'

17 66506640 GEAR 20,FEED CONVEYING 1 1 1

'

18 36322010 GEAR 31,IDLE 1 1 1
19 2A007610 FRONT SHAFT LCF,CLUTCH 1 1 1

'

20 66014120 GEAR 14,MAGNET ROLLER 2 2 2

'

21 45728116 GEAR 28,JOINT 1 1 1
22 2A007530 SHAFT,IDLE DECK PAPER FEED 1 1 1
23 18506140 LOWER GEAR 18,REGISTRATION 1 1 1

'

24 63122130 GEAR,33 1 1 1
25 2CJ07040 RIGHT MOUNT,LIFT UP PI 1 1 1
26 2A007620 PIN C,LCD IDLE 1 1 1
27 2A007570 LEVER,RELEASE 1 1 1
28 2A007650 PIN LCF,SLIDER 2 2 2
29 2A007520 LEFT MOVING PLATE,PAPER FEED PULLEY 1 1 1
30 72418140 SPRING, BLADE 1 1 1
31 72918050 PIN,BLADE ARM 1 1 1
32 2A007890 BRUSH,PAPER FEED 2 2 2
33 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1

'

34 75122090 GEAR , FRONT 1 1 1

'

35 2CJ07010 RIGHT PULLEY LCF 1 1 1
36 2CJ27090 LEFT WIRE,FEED UNIT 1 1 1

'

37 66006360 PAPER SWITCH 3 3 3
38 M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2

'

39 65106140 STOPPER,5 4 4 4
40 2CJ07060 UPPER GUIDE LCF 1 1 1

41 2CJ07030 RIGHT SHAFT LCF,PULLEY 2 2 2
42 M2107120 BINDING BAND SG-130 6 6 6
43 2A006230 LEFT WEIGHT LCF 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 15 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 7 PAPER FEED-IN SECTION I

2CJ

BBE

31

BBE

23

50

BBE

22

BBE

44

20

48

41

55

22

BAN

21

E06

E07

50

32

49

52

19

58

20

42

E07

53

17

16

BAJ

45

19

40

E05

E07

E07

42

BAN

33

47

22

KAL

KAM

29

56

20

KAM

37

25

26

28

43

57

18

49

KAM

24

49

51

27

39

30

46

BBB

E07

KAM

49

E07

34

BBE

51

BBB

35

54

38

E07

BBE

18

BBE

47

51

E07

E07

1

6

HAI

HAI

7

HAI

3

12

BHI

BHI

4

9

15

10

11

RDD

13

HAU

2

EAH

36

10

17

BBE

HAU

5

8

14

– 16 –

14

8

FIG. 7 PAPER FEED-IN SECTION I

Ref.

SP Part. No. Description

No.

'

1 2CJ00400 BYPASS TABLE ASS’Y(INCH) 1

'

1 2CJ00390 BYPASS TABLE ASS’Y(METRIC) 1 1

'

2 •18505180 ORIGINAL SIZE INDICATOR,BYPASS (INCH) 1

'

2 •2AC05160 ORIGINAL SIZE INDICATOR,BYPASS(EUR) 1 1

'

3 •2CJ06090 UPPER TABLE,BYP ASS 1 1 1

'

4 •2CJ06100 INNER TABLE,BYP ASS 1 1 1

'

5 •2CJ06110 LOWER TABLE,BYPASS 1 1 1

'

6 •2CJ06120 FRONT CURSOR,BYPASS 1 1 1

'

7 •2CJ06130 REAR CURSOR,BYPASS 1 1 1

8 •33906880 STOPPER,BYP ASS TABLE 2 2 2

'

9 •33906990 SWITCH,BYPASS SIZE DETECTION 1 1 1
10 •33907100 RACK,CASSETTE 2 2 2
11 •33907110 TERMINAL,PAPER SIZE PCB 1 1 1

'

12 •33928111 SIZE DETECTION PCB 1 1 1
13 •36727380 WIRE,BYPASS UNIT 1 1 1
14 •63516110 SPRING,TRANSFER 2 2 2

'

15 •65914120 GEAR 18,IDLE DEVELOPING 1 1 1
16 77607140 TENSION PLATE FEED GUIDE 1 1 1

'

17 G3006780 BEARING 678ZZ 2 2 2
18 M2104210 EDGING,EDS-2 2 2 2
19 M2105720 MINIATURE CLAMP,UAMS-05-2 2 2 2
20 M2107120 BINDING BAND SG-130 3 3 3
21 2A006150 SPRING,BYPASS LIFT 1 1 1

'

22 33906630 STOPPER 5,RING 3 3 3
23 36707010 FRONT FRAME,BYPASS 1 1 1
24 36707020 REAR FRAME,BYPASS 1 1 1
25 36707030 UPPER GUIDE,BYPASS 1 1 1
26 36707040 LOWER GUIDE,BYPASS 1 1 1

'

27 36707050 ROLLER,SB LEADING FEED 1 1 1
28 36707060 UPPER SHAFT,SEPARATION 1 1 1
29 36707070 SHAFT,JOINT 1 1 1
30 36707080 BUSHING,BYPASS 1 1 1
31 36707090 MOUNT,PAPER EMPTY 1 1 1

'

32 36707103 ACTUATOR,EMPTY SWITCH 1 1 1
33 36707110 SHAFT,BYPASS LIMITER 1 1 1
34 36707120 GUIDE,BYPASS LIFT 1 1 1
35 36707131 SHAFT,BYPASS LIFT 1 1 1
36 36707141 LEVER,MOVING GUIDE 1 1 1
37 36707200 FRONT MOUNT,BYPASS TABLE 1 1 1
38 36707210 REAR MOUNT,BYPASS TABLE 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

'

39 36707260 PAD,BYPASS 1 1 1

'

40 36707270 FILM,BYPASS 1 1 1
41 36727090 WIRE,BYPASS PAPER FEED 1 1 1
42 61706470 SPRING,BYPASS SWITCH BACK 2 2 2

'

43 61706770 UPPER PULLEY,BYPASS 1 1 1

'

44 61706780 LOWER PULLEY,BYPASS 1 1 1

'

45 63227020 SWITCH,FEED 1 1 1
46 63420470 SHEET,BIN 1 1 1
47 65707510 SPRING,TENSION PAPER FEED 2 2 2

'

48 66006350 SWITCH,CASSETTE LIFT 1 1 1

'

49 67322230 BUSHING 8 4 4 4

'

50 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2

'

51 72107280 IDLE GEAR 20 3 3 3

'

52 72107531 SPRING,LIMITTER 1 1 1

'

53 72107710 BOSE,LIMITTER 1 1 1

'

54 72107730 ONE-WAY GEAR 20 1 1 1

'

55 72707190 COLLAR, LIMITTER 1 1 1

'

56 73210450 BUSH, 6 1 1 1
57 74306520 JOINT,PULLEY DRIVE SHAFT 1 1 1
58 75706040 STOPRING PAPER FEED PULLEY 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 17 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 8 PAPER FEED-IN SECTION II

2CJ

BHO

16

E07

BBE

44

BHO

HAI

BBE

44

E07

45

43

35

29

BBC

9

19

BHO

28

24

30

26

17

25

34

20

22

28

6

17

31

18

17

E05

14

4

13

5

7

BHO

17

23

8

10

15

2

27

11

BHO

KAM

BBE

33

21

3

BHO

E07

36

E05

46

E07

1

32

39

47

E05

42

37

12

48

BBE

49

38

41

40

– 18 –

FIG. 8 PAPER FEED-IN SECTION II

Ref.

SP Part. No. Description

No.

'

1 2A006510 UPPER ROLLER,VERTICAL CONVEYING 1 1 1

2 2A006140 LOWER SPRING,PAPER FEED 2 2 2

'

3 45727501 GEAR,TONER FEED ROLLER 2 2 2

4 33906012 UPPER HOUSING,PAPER FEED 2 2 2

5 33906030 LOWER HOUSING,PAPER FEED 2 2 2

6 33906040 SUPPORT PLATE,LEADING FEED PULLEY 2 2 2

7 33968191 LOWER PAPER FEED SHAFT ASS’Y222

'

8 33906060 LOWER PULLEY,PAPER FEED 2 2 2

9 33906080 SHAFT,LEADING FEED PULLEY 2 2 2
10 33906090 LOWER LEVER,PAPER FEED PULLEY RELEASE 2 2 2
11 33906100 REINFORCEMENT,PAPER FEED HOUSING 2 2 2

'

12 33906110 CLUTCH,PAPER FEED 2 2 2

'

13 33906150 ACTUATOR,PAPER EMPTY 2 2 2

'

14 33906160 GEAR 16,PAPER FEED 2 2 2
15 33906211 VIBRATION INSULATOR,RELEASE LEVER 2 2 2
16 33906291 UPPER REINFORCEMENT,HOUSING PAPER FEED 2 2 2

'

17 33906630 STOPPER 5,RING 8 8 8
18 33927160 WIRE,PAPER FEED UNIT 2 2 2
19 36706220 WEIGHT,LEADING FEED PULLEY 2 2 2

'

20 36706290 PULLEY,PAPER FEED 2 2 2
21 36706300 SHAFT,PAPER FEED 2 2 2
22 36706310 BUSHING,PAPER FEED 2 2 2

'

23 36706900 TORQUE LIMITER,PAPER FEED 2 2 2

'

24 60906161 PULLEY,PICK-UP 2 2 2
25 60907880 BUSHING,BYPASS SHAFT 2 2 2

'

26 63511220 STOP RING,4 2 2 2
27 63806290 BUSHING,6 2 2 2

'

28 66006350 SWITCH,CASSETTE LIFT 4 4 4

'

29 66014120 GEAR 14,MAGNET ROLLER 2 2 2

'

30 66022190 GEAR,21 DEVELOPING 2 2 2

'

31 67322230 BUSHING 8 2 2 2

'

32 71815110 IDLE GEAR 18,SUB UNIT 2 2 2

'

33 73210450 BUSH, 6 2 2 2

'

34 75207370 GEAR16 ORIGINAL FEEDBACK 2 2 2

'

35 75817010 STATIC BRUSH FRONT TRANSFER 2 2 2

'

36 29806490 GEAR 16T 1 1 1
37 M2105720 MINIATURE CLAMP,UAMS-05-2 3 3 3
38 2AC27600 WIRE,VERTICAL CONVEYING 1 1 1

'

39 33906140 SWITCH,VERTICAL CONVEYING 1 1 1
40 33906620 MOUNT BASE,PAPER FEED SWITCH 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 36706400 LEFT GUIDE,VERTICAL CONVEYING 1 1 1
42 2A017220 RIGHT GUIDE FILM,DUPLEX 1 1 1

'

43 2AC06240 CLUTCH,PAPER FEED 1 1 1

'

44 33906610 BEARING,FEED 2 2 2

'

45 34806150 STOPPER 5 1 1 1

'

46 63511220 STOP RING,4 1 1 1
47 36706271 UPPER GUIDE,DUPLEX FEED 1 1 1
48 36706280 LOWER GUIDE,DUPLEX FEED 1 1 1

'

49 36706880 FILM,CONFLUENCE GUIDE 2 2 2

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 19 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG. 9 PAPER FEED-IN SECTION III

BBE

53

BBU

51

2CJ

BBE

65

59

E05

BBE

61

BBE

BBE

60

48

50

46

43

55

37

58

BBU

57

56

BBB

BHD

3

3

E05

3

9

E05

BHF

6

7

7

BBE

52

D

C

A

E07

51

E07

7

B

51

E07

62

BHD

17

6

54

51

45

44

49

51

E07

39

38

25

BBE

38

BBE

21

E05

24

25

E05

BHF

25

27

21

24

35

42

BBE

47

41

BBE

40

BAN

25

D

19

1

3

7

17

15

11

HAG

63

64

BBE

C

A

BAC

8

16

4

E07

10

BAC

13

5

E05

BHD

12

8

E07

14

2

18

35

33

29

HAG

B

BAC

26

BHD

23

22

E05

34

30

E07

28

BAC

E07

26

32

20

31

36

– 20 –

FIG. 9 PAPER FEED-IN SECTION III

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 2CJ07100 DUCT,INHALATION 1 1 1

'

2 2CJ06070 UPPER COVER,VERTICAL CONVEYING 1 1 1

'

3 29812291 CUSHION,CONTACT GLASS 4 4 4

'

4 33906630 STOPPER 5,RING 1 1 1

5 33906640 RIGHT SPRING,FEED RELEASE 1 1 1

6 33906651 SHAFT,FEED PULLEY 2 2 2

'

7 33906660 RIGHT PULLEY,FEED 4 4 4

8 33906670 RIGHT HOOK,FEED RELEASE 2 2 2

9 36706733 UPPER GUIDE,VERTICAL CONVEYING 1 1 1
10 36706750 SHAFT,VERTICAL CONVEYING FULCRUM 1 1 1
11 36706760 SHAFT,VERTICAL CONVEYING RELEASE 1 1 1
12 36706770 SUPPORT PLATE,VERTICAL CONVEYING RELEASE 1 1 1
13 36706780 PIN,VERTICAL CONVEYING RELEASE 1 1 1
14 36706800 SPRING,VERTICAL CONVEYING DAMPER 1 1 1
15 36706811 UPPER MOUNT,VERTICAL CONVEYING GUIDE 1 1 1
16 36706850 UPPER REAR FRAME,VERTICAL CONVEYING 1 1 1
17 66106610 SPRING,FEED 4 4 4

'

18 2CJ06060 RIGHT HANDLE,FEED RELEASE 1 1 1

'

19 78627520 DUCT FAN 1 1 1

'

20 2CJ06080 LOWER COVER,VERTICAL CONVEYING 1 1 1

'

21 29812291 CUSHION,CONTACT GLASS 4 4 4

'

22 33906630 STOPPER 5,RING 1 1 1
23 33906640 RIGHT SPRING,FEED RELEASE 1 1 1
24 33906651 SHAFT,FEED PULLEY 2 2 2

'

25 33906660 RIGHT PULLEY,FEED 4 4 4
26 33906670 RIGHT HOOK,FEED RELEASE 2 2 2
27 36706740 LOWER GUIDE,VERTICAL CONVEYING 1 1 1
28 36706750 SHAFT,VERTICAL CONVEYING FULCRUM 1 1 1
29 36706760 SHAFT,VERTICAL CONVEYING RELEASE 1 1 1
30 36706770 SUPPORT PLATE,VERTICAL CONVEYING RELEASE 1 1 1
31 36706780 PIN,VERTICAL CONVEYING RELEASE 1 1 1
32 36706800 SPRING,VERTICAL CONVEYING DAMPER 1 1 1
33 36706820 LOWER MOUNT,VERTICAL CONVEYING GUIDE 1 1 1
34 36706860 LOWER REAR FRAME,VERTICAL CONVEYING 1 1 1
35 66106610 SPRING,FEED 4 4 4

'

36 2CJ06060 RIGHT HANDLE,FEED RELEASE 1 1 1

'

37 2A006500 ROLLER,VERTICAL CONVEYING MIDDLE 1 1 1
38 M2105720 MINIATURE CLAMP,UAMS-05-2 6 6 6
39 2AC27600 WIRE,VERTICAL CONVEYING 2 2 2

'

40 33906140 SWITCH,VERTICAL CONVEYING 2 2 2

41 33906620 MOUNT BASE,PAPER FEED SWITCH 2 2 2
42 36706190 LEFT GUIDE B,VERTICAL CONVEYING 1 1 1

'

43 2AC06240 CLUTCH,PAPER FEED 3 3 3
44 M2105720 MINIATURE CLAMP,UAMS-05-2 3 3 3
45 2AC27600 WIRE,VERTICAL CONVEYING 1 1 1

'

46 33906140 SWITCH,VERTICAL CONVEYING 1 1 1
47 33906620 MOUNT BASE,PAPER FEED SWITCH 1 1 1

'

48 33906630 STOPPER 5,RING 1 1 1
49 33906700 GUIDE,CONFLUENCE 1 1 1
50 33906780 LEFT GUIDE,FEED 1 1 1

'

51 33906610 BEARING,FEED 6 6 6
52 36706790 MOUNT,VERTICAL CONVEYING RELEASE SWITCH 1 1 1

'

53 61727540 INTERLOCK SWITCH B 1 1 1

'

54 33906730 ROLLER C,FEED 1 1 1
55 36706790 MOUNT,VERTICAL CONVEYING RELEASE SWITCH 1 1 1
56 36706831 COVER,VERTICAL CONVEYING RELEASE SWITCH 1 1 1

'

57 61727540 INTERLOCK SWITCH B 1 1 1

'

58 34806150 STOPPER 5 3 3 3

'

59 33906630 STOPPER 5,RING 1 1 1
60 33906700 GUIDE,CONFLUENCE 1 1 1
61 68202140 LOWER RIGHT STAY 1 1 1

'

62 36706260 ROLLER B,VERTICAL CONVEYING 1 1 1
63 2A007150 DUCT,SEPARATION JOINT 1 1 1

'

64 78627520 DUCT FAN 1 1 1
65 36706840 PIN,VERTICAL CONVEYING HOOK 2 2 2

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 21 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.10 PAPER FEED-IN SECTION IV

14

E07

15

12

16

2CJ

E06

E05

BBE

BHD

HAI

E06

E07

E07

33

11

13

10

18

37

E05

33

E07

15

BBE

BBE

35

14

E05

35

E05

34

17

BBE

BBE

BBE

KAL

KAL

6

7

KAL

8

3

KAL

5

2

36

31

34

E07

21

19

9

BBE

BBE

E07

20

31

E05

32

23

27

1

BBE

BBE

BBE

E05

BGB

4

29

24

KAL

20

28

20

30

22

25

32

26

E05

E05

23

BBE

BBE

– 22 –

BBE

FIG.10 PAPER FEED-IN SECTION IV

Ref.

SP Part. No. Description

No.

1 36706240 REAR RETAINING PIN,FEED 1 1 1

2 36706010 UPPER FRONT FRAME,FEED 1 1 1

3 36706020 UPPER REAR FRAME,FEED 1 1 1

4 36706030 UPPER RIGHT GUIDE,FEED 1 1 1

5 36706040 UPPER LEFT GUIDE,FEED 1 1 1

6 36706050 UPPER ROLLER,FEED 1 1 1

'

7 36706060 LOWER ROLLER,FEED 1 1 1

'

8 36706180 FILM,FEED 1 1 1

9 36706320 UPPER STAY,FEED 1 1 1

'

10 36706410 BELT,FEED HANDLE 1 1 1
11 36706420 HANDLE,FEED 1 1 1

'

12 36706530 UPPER GEAR 16,REGISTRATION 1 1 1

'

13 65722030 PULLEY 22,FEED 1 1 1

'

14 67322230 BUSHING 8 2 2 2

'

15 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2

'

16 73210370 GEAR 18,LOOP 1 1 1
17 77706461 PRESSING SPRING 1 1 1
18 77706492 FRONT PRESSING SPRING 1 1 1
19 36706230 RETAINING PIN,UNIT 1 1 1
20 M0207000 BINDING BAND,KB-100-1 3 3 3

'

21 29806490 GEAR 16T 1 1 1

'

22 2A027720 SWITCH,FEED 1 1 1

'

23 33906660 RIGHT PULLEY,FEED 2 2 2

'

24 36706141 LEFT ROLLER,FEED 1 1 1
25 36706150 SHAFT,FEED PULLEY 1 1 1
26 36706331 LOWER FRONT FRAME,FEED 1 1 1
27 36706341 LOWER REAR FRAME,FEED 1 1 1
28 36706350 LOWER RIGHT GUIDE,FEED 1 1 1
29 36706360 LOWER LEFT GUIDE,FEED 1 1 1
30 36727390 WIRE,FEED 1 1 1

'

31 67322230 BUSHING 8 2 2 2
32 77706461 PRESSING SPRING 2 2 2

'

33 72407330 PULLEY,PF GEAR 30 2 2 2

'

34 29816080 GEAR 20,IDLE 2 2 2

'

35 33522090 GEAR 22/32,FEED 2 2 2
36 36706370 MOUNT,FEED DRIVE 1 1 1

'

37 36706390 BELT,FEED DRIVE 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 23 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.11 PAPER CONVEYING SECTION I

HAG

49

HAP

18

58

KAL

KAN

XAC

55

1

BEA

57

9

50

16

54

E05

2CJ

40

59

HAU

10

37

E07

20

22

10

XAE

63

KAN

E07

15

27

E07

13

4

23

62

25

BAN

8

47

24

BAL

BEA

A

61

39

2

2

53

3

36

12

29

46

38

35

32

BAL

19

18

50

14

5

33

31

43

BHF

BAL

16

42

E05

40

XAC

30

17

60

7

11

53

45

41

34

33

17

48

28

E07

KAL

A

56

13

41

26

57

10

BHI

6

51

21

52

20

44

FAA

– 24 –

FIG.11 PAPER CONVEYING SECTION I

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 36720640 FRONT POSITIONING PLATE,FIXING 1 1 1

2 G3001360 BEARING 686ZZ 2 2 2

'

3 2A016020 ROLLER,TRANSFER 1 1 1

'

4 36793281 PAR TS,BELT TRANSFER(SP) 1 1 1

'

5 2A016040 BRUSH,BELT CLEANING 1 1 1

'

6 2CJ16010 ROLLER,BELT DRIVE 1 1 1

'

7 2A016061 ROLLER,MIDDLE 1 1 1

'

8 2A016070 ROLLER,IDLE 1 1 1

'

9 67322230 BUSHING 8 1 1 1

'

10 2A016100 BUSHING,MIDDLE ROLLER 4 4 4

'

11 2A016111 FRONT ROLLER,TRANSFER 1 1 1
12 48527520 SPRING,CASSETTE 1 1 1

'

13 45592554 BEARING 688ADD 2 2 2
14 2A016120 SEAL,BELT CLEANING 1 1 1

'

15 45728115 IDLE GEAR 22 1 1 1

'

16 49028116 BUSHING 6,CLEANING UNIT 2 2 2

'

17 36718360 SPONGE B,CLEANING 2 2 2

'

18 29806810 BUSHING,6 REGISTRATION 2 2 2

'

19 33906630 STOPPER 5,RING 1 1 1
20 35316030 SPRING,TRANSFER 2 2 2

'

21 36716240 BUSHING,IDLE ROLLER 1 1 1
22 36716263 STAY,TRANSFER 1 1 1
23 36716271 RETAINER,TRANSFER ROLLER 1 1 1

'

24 36716290 ELECTRODE,TRANSFER 1 1 1
25 36716300 ELECTRODE B,TRANSFER 1 1 1
26 36716311 FRONT FRAME,TURN 1 1 1
27 36716321 REAR FRAME,TURN 1 1 1

'

28 36716360 GEAR 15,CLEANING DRIVE 1 1 1
29 36716383 REAR GUIDE,TRANSFER 1 1 1
30 36716390 SPIRAL,BELT CLEANING 1 1 1

'

31 36716411 ELECTRODE,BRUSH 1 1 1

'

32 36793670 PARTS FRONT SHIELD,CLEANING(SP) 1 1 1

'

33 36718400 LOWER SPONGE,BLADE 2 2 2
34 36716481 HOUSING,BELT CLEANING 1 1 1
35 36716490 NOZZLE,DISPOSAL 1 1 1
36 36716510 SHUTTER,BELT CLEANING 1 1 1
37 36716530 SHIELD A,SHUTTER 1 1 1

'

38 36716610 SCRAPER,BELT CLEANING 1 1 1
39 36716670 SPRING,TRANSFER ELECTRODE 1 1 1
40 36716750 SHIELD,DISPOSAL DUCT 2 2 2

41 36716800 SPACER,BELT CLEANING 2 2 2
42 36716810 SEAL A,NOZZLE 1 1 1
43 36716820 SEAL B,NOZZLE 1 1 1
44 36716840 SUPPORT PLATE,TRANSFER 1 1 1

'

45 36716850 GEAR 17,CLEANING IDLE 1 1 1
46 36716900 REAR SPONGE,TRANSFER 1 1 1
47 36716920 FILM,TRANSFER SPRING 1 1 1
48 36716930 FILM,TRANSFER 1 1 1
49 36716940 GROUND PLATE,BELT CLEANING 1 1 1
50 2A016130 SEAL,CLEANING WIND SHIELD 2 2 2

'

51 2A016300 GROUND PLATE A,MIDDLE ROLLER 1 1 1
52 36727650 GROUND WIRE,TRANSFER BELT 1 1 1
53 63520170 BUSHING,PRESSING ROLLER 2 2 2
54 63814660 UPPER SEAL,DOCTOR BLADE 1 1 1

'

55 45771201 GEAR36,PC CLUTCH 1 1 1
56 60912270 BEARING,688ZZ 1 1 1
57 75706040 STOPRING PAPER FEED PULLEY 2 2 2

'

58 75915120 GEAR 16,SUB DEV .UNIT 1 1 1
59 68720170 MOUNT,FEED SHIFT PULLEY 1 1 1

'

60 68720160 PULLEY,FEED SHIFT 1 1 1
61 74718091 BUSHING CLEANING UNIT 1 1 1
62 48528213 SPRING,FIXING UNIT SOL 1 1 1
63 2A016310 TERMINAL A,DRIVE ROLLER 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 25 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

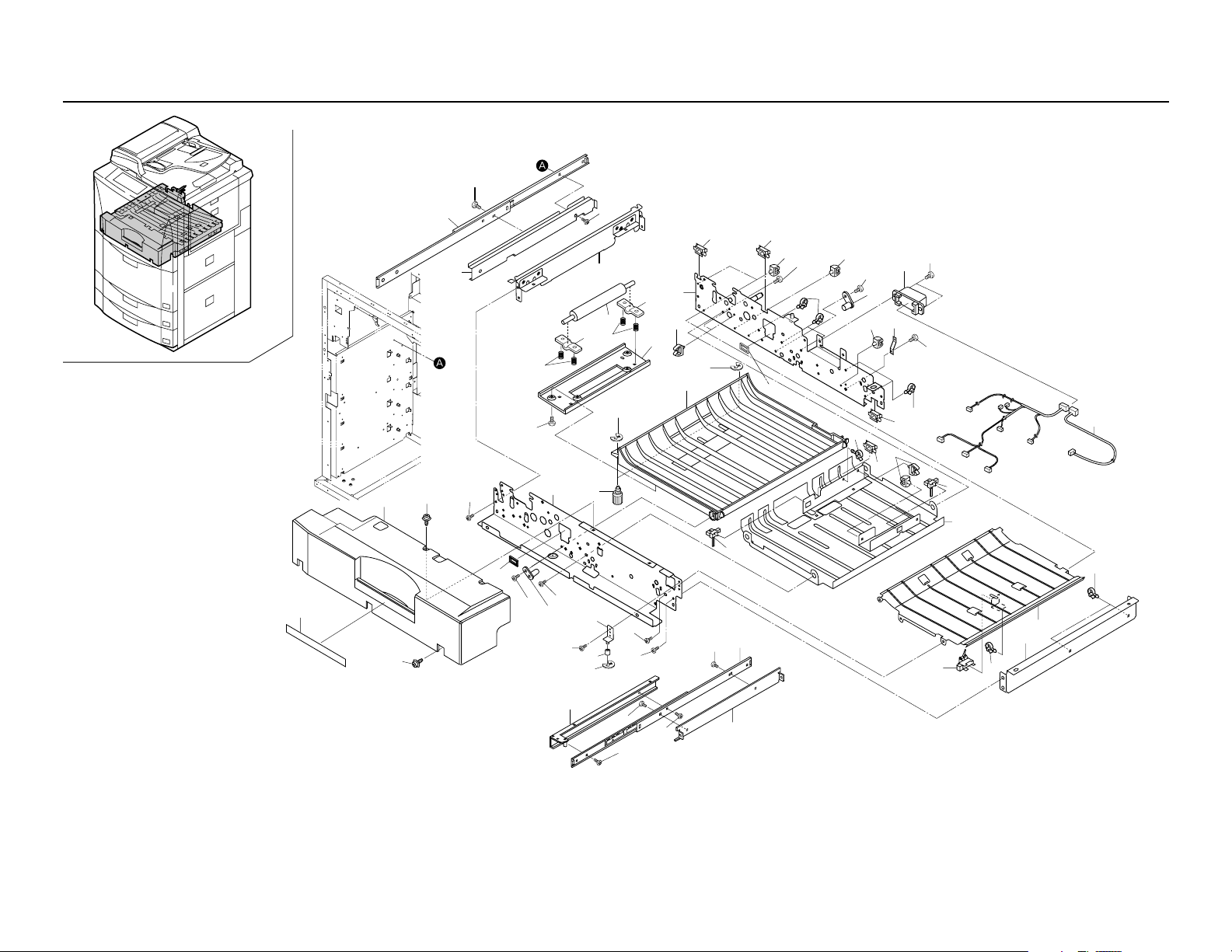

FIG.12 PAPER CONVEYING SECTION II

2CJ

35

3

BAN

NAK

47

NAK

42

E04

AAU

E05

BEA

BAN

48

E07

15

17

43

45

18

E05

31

37

20

BAN

16

19

17

E05

46

KAM

32

36

E04

41

2

E05

45

15

34

30

22

30

13

21

23

14

E07

40

E07

44

4

39

1

GEF

NAK

9

E07

29

HAI

33

BAP

11

28

24

BAA

E05

29

HAI

NAK

28

33

5

6

24

E05

BAA

25

10

E07

38

E05

BAP

11

7

27

33

26

12

8

HAP

– 26 –

FIG.12 PAPER CONVEYING SECTION II

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 36716123 BASE,CONVEYING 1 1 1

2 M2104210 EDGING,EDS-2 1 1 1

3 M2105740 MINIATURE CLAMP,UAMS-05S-2 3 3 3

4 M2107120 BINDING BAND SG-130 2 2 2

5 M2108640 SPACER,KGLS-10RT(KITAGAWA) 3 3 3

6 M2108870 SPACER,KGPS-10RF(KITAGAWA) 2 2 2

7 M2109230 WIRE SADDLE,LWS-3S(KITAGAWA) 1 1 1

8 2A005090 LABEL,CONVEYING RELEASE(EUR) 1 1 1

9 2A027500 JUNCTION WIRING,TRANSFER BELT 1 1 1

'

10 2A028091 TRANSFER BELT HIGH VOLTAGE PCB 1 1 1
11 48927324 PULLEY,CLEANING UNIT 2 2 2

'

12 49028101 BUSH 8 1 1 1
13 36716960 GROUND PLATE,TRANSFER 1 1 1

'

14 29820200 GEAR,FULCRUM 1 1 1
15 77706461 PRESSING SPRING 2 2 2
16 36768220 SHAFT BELT PRESSURE ASS’Y111
17 36716150 CAM,BELT PRESSURE 2 2 2
18 36716160 FRONT SPRING,PRESSURE 1 1 1
19 36716170 REAR SPRING,PRESSURE 1 1 1

'

20 36706520 LOWER ROLLER,REGISTRATION 1 1 1
21 36706552 LOWER GUIDE,REGISTRATION 1 1 1

'

22 36706570 FILM,REGISTRATION 1 1 1

'

23 36706580 RIGHT FILM,RESISTANCE 1 1 1
24 36708290 FRONT PIN,IMAGE FORMATION POSITIONING 2 2 2
25 36716031 HANDLE,CONVEYING 1 1 1
26 36716040 PIN,RELEASE RETAINING 1 1 1
27 36716091 SHAFT,TRANSFER RELEASE 1 1 1
28 36716100 SUPPORT PLATE,TRANSFER RELEASE 2 2 2
29 36716110 SHAFT,RELEASE PULLEY 2 2 2

'

30 2A016221 LOWER FRONT FILM,REGISTRATION 2 2 2
31 36716131 BASE,TRANSFER 1 1 1
32 36716180 LEVER,BELT PRESSURE 1 1 1
33 36716330 SPRING,TRANSFER PRESSING 4 4 4
34 36716470 LOWER FRONT GUIDE,TRANSFER 1 1 1
35 36716540 PIN,TRANSFER FULCRUM 1 1 1
36 36716570 SPRING,LEVER PRESSURE 1 1 1
37 36716590 STOPPER,TRANSFER RELEASE 1 1 1
38 36716600 SPACER,CONVEYING HANDLE 1 1 1
39 36716700 PIN 45,TRANSFER 1 1 1
40 36716710 PIN 25/32,TRANSFER 1 1 1

'
'
'
'

41 60907880 BUSHING,BYPASS SHAFT 1 1 1
42 61716260 TERMINAL A,TC CA TCHER 1 1 1
43 63706260 SPRING,STACK BYPASS GEAR 1 1 1
44 67322050 GEAR 45 DEVELOPING DRIVE 1 1 1
45 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2
46 73210370 GEAR 18,LOOP 1 1 1
47 74718091 BUSHING CLEANING UNIT 1 1 1
48 72906070 BUSHING 4,REGISTRATION 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 27 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.13 OPTICAL SECTION I

41

BAN

2CJ

1

BAN

64

23

54

BAL

50

RDE

HBO

HBA

BAL

59

12

59

E05

RDE

59

60

12

55

BAL

59

52

36

42

18

20

30

53

BHV

21

BBB

19

27

55

65

52

22

38

33

BAL

BBB

50

21

4

37

BBB

12

58

BBB

59

44

BAL

RDE

28

59

HBC

47

HBA

HBA

4

69

BBE

64

32

BBE

68

54

10

62

HBO

BAN

49

56

2

BAN

3

8

52

5

E05

11

24

BAL

6

E07

51

BAL

BAL

3

52

5

HDA

E05

26

17

39

HBA

48

14

43

15
16

13

3

4

BBE

BBE

45

34

HBA

11

66

67

66

67

BAL

29

35

E05

52

40

9

E07

57

59

59

5

58

12

BBB

46

7

BBB

44

4

4

9

E07

25

31

HBC

11

40

E05

E07

52

BAL

7

BAN

49

24

61

BBE

63

BBE

63

– 28 –

FIG.13 OPTICAL SECTION I

Ref.

SP Part. No. Description

No.

'

1 2A301021 SCANNER DRIVE ASS’Y111

2 M1203510 OPEN BUSHING,OCB-1000 1 1 1

3 M2104250 EDGING,EDS-17L(KITAGAWA) 5 5 5

4 M2105730 MINIATURE CLAMP,UAMS-07-0 4 2 2

5 36512430 BASE RUBBER,SCANNER SECTION 4 4 4

6 M2108490 SPACER,KGLS-12RT 2 2 2

7 M2109010 WIRE SADDLE,WS-2NS 3 3 3

8 M2109230 WIRE SADDLE,LWS-3S(KITAGAWA) 1 1 1

'

9 18314080 PULLEY,MOVING IDLE 2 2 2

'

10 2AR12200 FILM,FFC 1 1 1
11 76610320 PIN TENSION PULLEY 4 4 4
12 75712080 MIRROR HOLDER 4 4 4
13 2AC12230 MOUNT,RELEASE SWITCH 1 1 1
14 2AC12360 GUIDE,RELEASE SWITCH 1 1 1
15 2AC12370 SWITCH,RELEASE DETECTION 1 1 1
16 2AC12380 SPRING,RELEASE SWITCH 1 1 1

'

17 35327400 SWITCH,FEED 1 1 1
18 2AC12121 LOWER MIRROR FRAME A,SCANNER 1 1 1
19 2AC12130 REFLECTOR,SCANNER 1 1 1

'

20 2AC12140 MIRROR A 1 1 1

'

21 2AC12150 MIRROR B 2 2 2
22 2AC12160 MIRROR FRAME B 1 1 1

'

23 2AC12170 WIRE,SCANNER 1 1 1
24 2AC12180 ADJUSTING PLATE,SCANNER WIRE 2 2 2
25 2AC12210 SHAFT,SCANNER DRIVE 1 1 1
26 2AC12250 MOUNT,SCANNER MOTOR 1 1 1
27 2AC12261 LIGHT SHIELD,PI 1 1 1
28 2AC12270 GUIDE FFC1 1 1 1
29 2AC12300 HOLDER FFC 1 1 1
30 2AC12400 ADJUSTING PLATE B,MIRROR FRAME 1 1 1
31 2AC12410 SPACER,RETAINING PIN 1 1 1

'

32 2AC12420 WIRE S,SCANNER 1 1 1
33 2AC12440 GROUND PLATE,INVERTER 1 1 1

'

34 2A093010 PARTS,ASS’Y ISU(SP) 1 1 1
35 2AV27200 WIRE,SCANNER INVERTER 1 1 1

'

36 2BC12150 LAMP,SCANNER 1 1 1
37 2AC12110 UPPER MIRROR FRAME A,SCANNER 1 1 1
38 2AC12240 COVER,INVERTER 1 1 1

'

39 2A012060 MOTOR,SCANNER 1 1 1
40 2A012130 MOUNT,SCANNER PULLEY 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 2CJ27110 WIRE,SCANNER UNIT 1 1 1

'

42 2BC28120 INVERTER PCB 1 1 1
43 2A312010 COVER,ISU 1 1 1
44 2A312020 MOUNT BASE,ORIGINAL DETECTION SENSOR 2 1 1
45 2A312030 LID,SCANNER BASE 1 1 1
46 2A327350 WIRE,ORIGINAL SIZE DETECTION(INCH) 1
47 2A327360 WIRE,ORIGINAL SIZE DETECTION(METRIC) 1 1
48 2A105180 LABEL,CAUTION CONTACT GLASS 1 1 1

'

49 28107400 BEARING,688ZZNR 2 2 2
50 29912420 HOLDER,WIRE ROPE 2 2 2

'

51 33522100 BELT 117,VERTICAL CONVEYING 1 1 1

'

52 2BC12120 PULLEY,SCANNER 8 8 8

'

53 34806150 STOPPER 5 1 1 1

'

54 35912060 PULLEY,SCANNER DRUM 2 2 2
55 35912210 SPRING,MIRROR HOLDER 2 2 2

'

56 35912340 PULLEY,SCANNER DRIVE 1 1 1
57 35912360 GUIDE FFC2 1 1 1

'

58 35927290 SENSOR,ORIGINAL DETECTION 2 1 1

'

59 2AV12450 SLIDER,SCANNER 8 8 8
60 2BC12160 UPPER FILM,SCANNER 1 1 1
61 66212080 MOUNT,SCANNER SWITCH 1 1 1

'

62 72127100 PI SWITCH,OPTICAL SECTION 1 1 1
63 36708090 GROUND PLATE,STAY DRUM 7 7
64 72112520 TENSION SPRING,SCANNER WIRE 2 2 2
65 18526211 GROUND PLATE A,NOISE 1 1
66 33927590 CORE 7-15X18 2 2
67 M2505170 CLAMP,GNK-2N(NIKKO) 2 2
68 2CJ26100 MOUNT,DF CONNECTOR 1 1 1
69 2CJ27130 SHIELD A,GASKET 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 29 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.14 OPTICAL SECTION II

BAL

1

2CJ

2

BAL

1

12

10

11

5

6

8

9

7

4

3

– 30 –

FIG.14 OPTICAL SECTION II

Ref.

SP Part. No. Description

No.

1 2AC12280 HOLDER,ADF CONTACT GLASS 2 2 2

'

2 2AC12430 FILM,GLASS DUST SHIELD 1 1 1

'

3 2BC68220 CONTACT GLASS ASS’Y(METRIC S P) 1 1

'

3 2BC68230 CONTACT GLASS ASS’Y(INCH S P) 1

4 •2AV12470 REAR ORIGINAL SIZE INDICATOR(INCH) 1

4 •2AV12460 REAR ORIGINAL SIZE INDICATOR(METRIC) 1 1

5 •2AV12491 LABEL,ORIGINAL SIZE INDICATOR(INCH) 1

5 •2AV12481 LABEL,ORIGINAL SIZE INDICATOR(METRIC) 1 1

'

6 •2A305070 LEFT ORIGINAL SIZE INDICATOR 1 1 1

'

7 •35912010 CONTACT GLASS 1 1 1

8 •2BC12130 STANDARD PLATE,SHADING 1 1 1

'

9 •2AV12640 FRONT SEAL,CONTACT GLASS 1 1 1

'

10 35912531 SPONGE,ORIGINAL SIZE INDICATOR 1 1 1

'

11 29812291 CUSHION,CONTACT GLASS 9 9 9

'

12 35911450 CONTACT GLASS,ADF 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 31 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.15 IMAGE FORMATION SECTION I

2CJ

BAC

AXD

23

17

15

WEA

5

CHB

20

14

6

25
13

BEA

27

BHV

BMF

AHA

11

21

4

12

22

BHI

2

GEF

19

42

35

HAP

12

21

28

29

38

16

31

GEF

38

BHV

1

24

7

8

46

41

36

44

BBE

34

BBE

39

XEC

HAG

XEC

GEF

HAG

32

37

30

BHI

BHI

40

40

33

GEF

BHI

GEF

10

BEA

E03

9

BBE

3

WEA

BEA

BHI

18

18

BHI

43

26

45

– 32 –

FIG.15 IMAGE FORMATION SECTION I

Ref.

SP Part. No. Description

No.

'

1 2A000073 MAIN CHARGER ASS’Y111

2 •2A010011 BASE,MAIN CHARGER 1 1 1

'

3 •2A068171 GRID ASS’Y111

4 •2A010030 INNER SHIELD,MC 1 1 1

5 •2A010040 SHEET,DUCT 1 1 1

6 •2A010081 SPIRAL,CHARGER CLEANING 1 1 1

'

7 •2A068180 REAR CHARGER HOUSING ASS’Y111

8 ••36710050 REAR HOUSING,MC 1 1 1

9 ••33910230 PIN CHARGER 1 1 1
10 ••36710100 TERMINAL,MAIN CHARGER 1 1 1

'

11 •2AR10160 WIRE,MAIN CHARGER 1 1 1

'

12 •2A068220 MC CLEANING PAD ASS’Y222
13 •2A010140 PULLEY,MAIN CHARGER ADJUSTMENT 1 1 1
14 •2A010151 MOVING BASE,MAIN CHARGER ADJUSTMENT 1 1 1

'

15 •2A027780 UNIT,CLEANING MOTOR 1 1 1
16 •48527200 SPRING,CHARGER 1 1 1

'

17 •36908040 LAMP,CLEANING LAMP 1 1 1
18 36708470 SHAFT,DRUM 2 2 2
19 •33917211 WORK PLATE,CLEANING SLIDER 1 1 1
20 •36710041 FRONT HOUSING,MC 1 1 1

'

21 •36768071 CHARGER CLEANING SLIDER ASS’Y222

'

22 •36768081 GRID CLEANING PAD ASS’Y111
23 •36710230 INSULATING PLATE,CLEANING LAMP 1 1 1
24 •36710271 RETAINING PIN,MAIN CHARGER 1 1 1
25 •36716670 SPRING,TRANSFER ELECTRODE 1 1 1

'

26 2A060080 HEATER,DRUM 1 1 1
27 2A008310 FRONT RETAINER,DRUM 1 1 1
28 36708020 FRONT FLANGE,DRUM 1 1 1
29 36708070 SPRING,FLANGE 2 2 2

'

30 36708190 ELECTRODE B,DRUM HEATER 1 1 1
31 36708390 TERMINAL BASE B,DRUM HEATER 1 1 1

'

32 2A082010 SET,DRUM FOR 6230 1 1 1
33 2A008300 REAR RETAINER,DRUM 1 1 1
34 36708480 GROUND PLATE A,DRUM 1 1 1
35 36727191 JUNCTION WIRING,DRUM FLANGE 1 1 1
36 36708491 GROUND PLATE B,DRUM 1 1 1
37 M2104210 EDGING,EDS-2 1 1 1
38 M2107120 BINDING BAND SG-130 2 2 2
39 2CJ08010 REAR FLANGE,DRUM 1 1 1

'

40 36708040 ELECTRODE A,DRUM HEATER 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 36708090 GROUND PLATE,STAY DRUM 1 1 1

'

42 36708190 ELECTRODE B,DRUM HEATER 1 1 1
43 36708380 TERMINAL BASE A,DRUM HEATER 1 1 1
44 36708400 TERMINAL BASE C,DRUM HEATER 1 1 1
45 36708410 TERMINAL BASE D,DRUM HEATER 1 1 1
46 36708460 MOUNT,DRUM 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 33 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.16 IMAGE FORMATION SECTION II

WAE

68

60

BBE

HBO

BBE

65

HBO

58

59

61

62

BAL

E05

67

58

HBO

59

58

66

BAN

BAC

1

64

48

HAS

63

44

37

43

BHB

12

E05

BAL

BAN

45

42

HAI

E07

BAN

57

2CJ

HAS

BAC

NAK

8

BAY

E03

25

10

E07

21

BAW

54

BAY

22

52

25

E03

11

BAW

NAK

14

2

55

18

34

4

BAW

A

53

2

55

FAA

16

21

FAA

17

15

46

BAP

20

C

7

3

BAN

41

56

47

BAN

HAI

3

32

33

5

19

5

5

E07

BAC

27

5

5

A

5

BAL

35

13

NAK

28

50

39

40

57

18

BAL

29

45

38

E05

BAC

E06

B

41

36

9

51

E07

23

56

24

49

KAL

HAI

30

BAC

BAC

BAL

6

5

B

5

26

C

31

– 34 –

FIG.16 IMAGE FORMATION SECTION II

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 2A013010 BASE,LSU 1 1 1

2 78618510 SPRING RETAINER LEVER 2 2 2

3 M2104210 EDGING,EDS-2 2 2 2

4 M2104250 EDGING,EDS-17L(KITAGAWA) 1 1 1

5 M2107120 BINDING BAND SG-130 11 11 11

6 M2107250 BAND,RSG-100(KITAGAWA) 1 1 1

7 2A006120 UPPER GUIDE,REGISTRATION 1 1 1

8 2A008030 LEFT STAY,IMAGE FORMATION 1 1 1

9 2A008220 REAR FRAME,IMAGE FORMATION 1 1 1
10 2A008320 REAR RETAINER,DRUM BEARING 1 1 1
11 2A008330 FRONT RETAINER,DRUM BEARING 1 1 1
12 2CJ10010 FRONT POSITIONING PLATE,MAIN CHARGER 1 1 1
13 2A010070 REAR POSITIONING PLATE,MAIN CHARGER 1 1 1
14 2A014500 FRONT HOLDER,DRUM 1 1 1
15 2A014510 REAR HOLDER,DRUM 1 1 1
16 2A014520 REAR LID,DRUM HOLDER 1 1 1
17 2A014530 FRONT LID,DRUM HOLDER 1 1 1
18 2A014550 TERMINAL,DEVELOPING BIAS 2 2 2
19 2A027430 WIRE,IMAGE FORMATION UNIT 1 1 1

'

20 2A027570 SWITCH,DUPLEX CONVEYING 1 1 1
21 48128606 PIN,WIRE TENSION 2 2 2
22 294221 10 TERMINAL BASE(GND),DRUM 1 1 1

'

23 29806490 GEAR 16T 1 1 1

'

24 3AK16240 TORQUE LIMITER,MIDDLE DRIVE 1 1 1
25 33408341 PIN,DRUM RETAINING 2 2 2

'

26 36701012 REAR DRUM ELECTRODE WIRE ASS’Y111

'

27 36701021 FRONT DRUM ELECTRODE WIRE ASS’Y111

'

28 36706511 UPPER ROLLER,REGISTRATION 1 1 1

'

29 36706530 UPPER GEAR 16,REGISTRATION 1 1 1
30 36706870 RETAINER,TORQUE LIMITER 1 1 1
31 36708150 SPACER,ELECTRODE 1 1 1
32 36708211 FRONT FRAME,IMAGE FORMATION 1 1 1
33 36708240 RIGHT STAY,IMAGE FORMATION 1 1 1
34 36708250 MOUNT,IMAGE FORMATION WIRE 1 1 1
35 36708300 LEFT REAR PIN,IMAGE FORMATION POSITIONIN 1 1 1
36 36708330 RIGHT REAR PIN,IMAGE FORMATION POSITIONI 1 1 1

'

37 36710290 PLATE SPRING,MC HOLDER 2 2 2
38 36714190 REAR GUIDE,DEVELOPING PRESSURE 1 1 1
39 36714200 REAR HOLDER,DEVELOPING PRESSURE 1 1 1
40 36714210 REAR BASE,DEVELOPING PRESSURE 1 1 1

41 36714220 FULCRUM PIN,DEVELOPING PRESSURE 2 2 2
42 36714300 FRONT GUIDE,DEVELOPING PRESSURE 1 1 1
43 36714310 FRONT HOLDER,DEVELOPING PRESSURE 1 1 1
44 2A014590 FRONT BASE,DEVELOPING PRESSURE 1 1 1

'

45 2A014580 SPRING,DEVELOPING PRESSURE 2 2 2
46 36714520 UPPER FRONT SPONGE,TRANSFER 1 1 1
47 36715170 RIGHT RETAINER,HOPPER 1 1 1
48 36715180 LEFT RETAINER,HOPPER 1 1 1
49 36716550 UPPER FRONT GUIDE,TRANSFER 1 1 1
50 2CJ16020 REAR SPONGE A,TRANSFER 1 1 1
51 2CJ16030 REAR SPONGE B,TRANSFER 1 1 1
52 36718910 FRONT LEVER,CLEANING RETAINING 1 1 1
53 36718920 REAR LEVER,CLEANING RETAINING 1 1 1
54 36718940 SHAFT,CLEANING RETAINING 1 1 1
55 36718950 SLIDER,CLEANING RETAINING 2 2 2

'

56 67322230 BUSHING 8 2 2 2
57 71802210 PIN,DRUM LIFT 2 2 2
58 M2109010 WIRE SADDLE,WS-2NS 8 8 8
59 M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2
60 M2607010 BINDING BAND,PLT1M 1 1 1
61 2A010120 MOUNT,POTENTIAL SENSOR 1 1 1
62 34010300 MOUNT,POTENTIAL SENSOR 1 1 1

'

63 2CJ28050 SENSOR,SURFACE POTENTIAL 1 1 1
64 M2108120 SPACER,KGLS-4S 4 4 4

'

65 2CJ93110 PARTS,UNIT LSU,SP 1 1 1
66 M2105730 MINIATURE CLAMP,UAMS-07-0 1 1 1
67 2AC13030 PIN,LSU ADJUSTMENT 1 1 1
68 2AC13040 MOUNT,LSU ADJUSTMENT 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 35 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.17 DEVELOPING SECTION I

2CJ

E05

XAD

21

17

14

18

BHI

30

25

HAD

1

19

28

16

E05

32

24

34

20

27

23

15

22

31

25

2

26

E05

KAL

HAD

HAG

36

35

BEA

E05

29

BEA

11

37

10

12

13

BEA

33

2

9

BEA

E06

3

BEA

7

4

5

8

6

– 36 –

FIG.17 DEVELOPING SECTION I

Ref.

SP Part. No. Description

No.

'

1 2A000216 DEVELOPING ASS’Y111

2 •M2607010 BINDING BAND,PLT1M 3 3 3

'

3 •2A000220 DEVELOPING BLADE ASS’Y111

4 ••2A014190 LOWER STAY,DEVELOPING ROLLER 1 1 1

5 ••2A014610 LOWER SPONGE,DEVELOPING BLADE 2 2 2

6 ••36714660 SPONGE,LOWER DEV.STAY 1 1 1

7 ••61714240 HOLDER,LOWER DEV.ROLLER 1 1 1

8 ••61714250 HOLDER PLATE,LOWER DEV.ROLLER 1 1 1

9 ••61714320 FILM,DEV.BLADE REINFORCEMENT 1 1 1
10 •2A014230 MOUNT,DOCTOR BLADE 1 1 1

'

11 •2A014240 DOCTOR BLADE,DEVELOPING 1 1 1
12 •2A014310 UPPER MOUNT,SHIELD 1 1 1

'

13 •33914190 TONER SENSOR 1 1 1
14 •36715740 SPONGE B,TONER SUPPLY CASE 1 1 1
15 •29806560 BUSHING 6 1 1 1
16 •49028113 BUSHING 6-19,DEV.UNIT 1 1 1

'

17 •49028116 BUSHING 6,CLEANING UNIT 1 1 1
18 •36715030 CASE,TONER SUPPLY 1 1 1
19 •36715040 SPIRAL,TONER SUPPLY 1 1 1
20 •36715110 JOINT,HOPPER 1 1 1
21 •36715190 SPONGE,TONER SUPPLY CASE 1 1 1
22 •36706310 BUSHING,PAPER FEED 1 1 1
23 •36714270 COVER,DEVELOPING 1 1 1

'

24 •36714410 SPONGE L,DEVELOPING COVER 1 1 1

'

25 •36714420 SPONGE S,DEVELOPING COVER 2 2 2
26 •36715020 SHAFT,TONER SUPPLY DRIVE 1 1 1

'

27 •36715150 UPPER SPONGE,DEVELOPING COVER 1 1 1
28 •36715340 COVER,TONER CONVEYING CASE 1 1 1

'

29 •71815100 GEAR 28,SUB UNIT AGITATION 1 1 1

'

30 •74315190 SPONGE H,TONER HOPPER 1 1 1

'

31 •77616280 SEAL A SEPARATION DUCT 1 1 1
32 •36714180 HANDLE,DEVELOPING 1 1 1
33 •2A027610 WIRE,DEVELOPING UNIT 1 1 1
34 •36768190 SHAFT DEVELOPING ASS’Y111

'

35 2A014460 FILTER,DEVELOPING 1 1 1
36 2A014350 HOLDER,DEVELOPING FILTER 1 1 1

'

37 2A014360 UPPER SEAL,DEVELOPING 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 37 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.18 DEVELOPING SECTION II

27

28

49

11

63

26

33

HAD

2

27

52

51

22

BAB

24

DJV

HAD

33

28

45

E05

E04

26

30

19

62

53

13

HAD

E05

E05

35

16

E05

34

KAM

60

2CJ

E05

E07

HAD

E07

47

KAM

E05

2

8

E07

6

2

E07

18

9

51

52

21

57

E05

59

17

BAB

15

E05

BHO

23

56

29

48

14

RAH

E05

31

25

E05

BHO

E07

44

38

E05

59

58

61

61

36

3

32

HAD

42

KAM

39

37

1

27

28

50

63

10

KAL

5

KAL

27

28

12

4

46

53

30

7

43

E07

20

BHO

29

31

25

BHO

58

41

55

40

KAM

54

– 38 –

FIG.18 DEVELOPING SECTION II

Ref.

SP Part. No. Description

No.

'

1 2A000216 DEVELOPING ASS’Y111

2 •18514170 REAR PULLEY,DS 3 3 3

3 •2A014011 HOUSING,DEVELOPING 1 1 1

4 •2A014021 LOWER MAGNET,DEVELOPING 1 1 1

5 •2A014031 UPPER MAGNET,DEVELOPING 1 1 1

'

6 •2A014041 GEAR,DEVELOPING IDLE 1 1 1

7 •2A014050 PADDLE,DEVELOPING 1 1 1

'

8 •2A014060 UPPER GEAR,DEVELOPING 1 1 1

'

9 •2A014070 LOWER GEAR,DEVELOPING 1 1 1
10 •2A014081 UPPER REAR BUSHING,SLEEVE 1 1 1
11 •2A014090 UPPER FRONT BUSHING,SLEEVE 1 1 1
12 •2A014100 LOWER REAR BUSHING,SLEEVE 1 1 1
13 •2A014110 LOWER FRONT BUSHING,SLEEVE 1 1 1
14 •2A014120 FRONT COVER,SLEEVE 1 1 1
15 •2A014130 REAR COVER,SLEEVE 1 1 1
16 •2A014140 BUSHING,DEVELOPING PADDLE 1 1 1
17 •2A014151 LOWER LEVER,DEVELOPING ROLLER 1 1 1

'

18 •2A014160 LOWER CAM,DEVELOPING ROLLER 1 1 1

'

19 •2A014170 GEAR,DEVELOPING PADDLE 1 1 1

'

20 •2A014180 GEAR,PADDLE IDLE 1 1 1

'

21 •2A014200 REAR BUSHING,LOWER DEVELOPING ROLLER 1 1 1

'

22 •2A014210 FRONT BUSHING,LOWER DEVELOPING ROLLER 1 1 1

'

23 •2A014220 LOWER GEAR,DEVELOPING IDLE 1 1 1

'

24 •2A014250 BUSHING,DS 1 1 1
25 •2A014290 STOPPER,DS HOLDER 2 2 2
26 •2A014280 ADJUSTING PLATE,MAGNET 2 2 2
27 •2A014380 UPPER FELT,DEVELOPING 4 4 4
28 •2A014410 UPPER SEAL,SLEEVE 4 4 4

'

29 •2A014440 UPPER SPONGE,DEVELOPING 2 2 2

'

30 •2A014450 LOWER SEAL,DEVELOPING ROLLER 2 2 2
31 •2A014560 SPRING,MAGNET PRESSURE 2 2 2
32 •2A014570 LOWER COVER,DEVELOPING 2 2 2
33 •2A027441 WIRE,DEVELOPING BIAS 1 1 1

'

34 •71814180 GEAR 35,MAIN UNIT MIXING 1 1 1

'

35 •45727604 GEAR 34,AGITATION ROLLER 1 1 1
36 •2A014620 BUSHING,AGITATION SPIRAL 1 1 1

'

37 •36714130 GEAR 27,DEVELOPING 1 1 1

'

38 •36714140 REAR GEAR 25,DEVELOPING 1 1 1
39 •71814130 BUSHING 6-23,MAIN UNIT 1 1 1
40 •36714230 LEFT SPIRAL,DEVELOPING 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 •2A014640 CENTER SPIRAL,DEVELOPING 1 1 1
42 •36714250 RIGHT SPIRAL,DEVELOPING 1 1 1

'

43 •36714280 LOWER SHAFT,DEVELOPING 1 1 1

'

44 •36714340 GEAR 27/36,IDLE DEVELOPING 1 1 1

'

45 •36714360 FRONT FELT,DISPOSAL ROLLER 1 1 1

'

46 •36714370 REAR FELT,DISPOSAL ROLLER 1 1 1

'

47 •36714390 FRONT SPONGE,DEVELOPING 1 1 1

'

48 •36714400 REAR SPONGE,DEVELOPING 1 1 1

'

49 •36714450 FRONT SPONGE,SLEEVE BUSHING 1 1 1

'

50 •36714460 REAR SPONGE,SLEEVE BUSHING 1 1 1

'

51 •36714480 LOWER FELT,DEVELOPING ROLLER BUSHING 2 2 2

'

52 •36714530 SHIELD,DEVELOPING DISPOSAL ROLLER 2 2 2

'

53 •36714550 LOWER SPONGE,DEVELOPING BUSHING 2 2 2

'

54 •36714580 FRONT SEAL,SENSOR CLEANING 1 1 1

'

55 •36714590 REAR SEAL,SENSOR CLEANING 1 1 1

'

56 •36714680 GEAR,JOINT DEVELOPING 1 1 1

'

57 •61714290 SPRING,LOWER DEV.ROLLER 1 1 1
58 •61714440 SPONGE,LOWER DEVELOPING 2 2 2
59 •65914430 SEAL,DEVELOPING 2 2 2
60 •71614080 BUSHING 6-31,AGITATION ROTOR 1 1 1
61 •71615050 BUSHING,AGITATION ROLLER 3 3 3
62 •2A014600 FILM,BUSHING PADDLE 1 1 1
63 •48128107 PIN,CLEANING BLADE 2 2 2

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 39 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.19 TONER HOPPER SECTION

2CJ

32

27

BHI

BAL

31

E05

E05

25

37

47

61

59

39

BAL

34

46

44

43

BHI

BAL

43

21

BAL

22

26

33

27

59

59

XCC

XCC

62

E05

E05

20

29

32

32

65

53

55

50

E05

28

E05

E05

58

51

34

60

E05

30

E05

BHI

64
63

2

1

10
4

8

BUF

BHI

E03

11

66

18

9

6

3

15

4

E03

BHI

7

12
13

12

13

5

17

BHI

BHF

14

BHI

24

35

60

E05

38

19

35

54

41

56

42

BHI

40

48

52

23

57

16

49

BUG

45

36

BAL

BAL

– 40 –

FIG.19 TONER HOPPER SECTION

Ref.

SP Part. No. Description

No.

'

1 2CJ93050 UPPER PARTS,ASS’Y HOPPER,USA-SP 1

'

1 2CJ93060 UPPER PARTS,ASS’Y HOPPER,EUR-SP 1 1

'

2 •2CJ15010 LID,TONER SUPPLY 1 1 1

3 •2A004200 HINGE,TONER SUPPLY 1 1 1

4 •2A004210 HOLDER,HINGE 2 2 2

5 •2A015060 LOWER MOUNT BASE,HOPPER 1 1 1

6 •2BC15280 SHUTTER,HOPPER(USA) 1

6 •2BC15290 SHUTTER,HOPPER(EUR) 1 1

7 •36704181 SHAFT,TONER SUPPLY HINGE 1 1 1

8 •36704520 RETAINER,MAGNET 1 1 1

9 •36704530 MAGNET,TONER SUPPLY 1 1 1
10 •36705060 LABEL,TONER SUPPLY 1 1 1
11 •36715550 SEAL,HOPPER 1 1 1
12 •36715560 STOPPER,HOPPER 2 2 2
13 •36715570 SPRING,HOPPER 2 2 2
14 •36715600 SPONGE,DUCT HOPPER 1 1 1
15 •36717120 GUIDE FILM,DUPLEX CONVEYING 1 1 1
16 •2A015240 UPPER SPONGE,HOPPER HOUSING 2 2 2
17 •2CJ15020 UPPER HOUSING,HOPPER 1 1 1
18 •2CJ15050 UPPER MOUNT BASE G,HOPPER(USA) 1
18 •2CJ15060 UPPER MOUNT BASE H,HOPPER(EUR) 1 1
19 20305090 LABEL,HIGH VOLTAGE CAUTION 1 1

'

19 2A005060 LABEL,HIGH VOLTAGE CAUTION(EUR) 1
20 2A015230 SPONGE F,HOPPER HOUSING 1 1 1
21 2CJ05050 LABEL,JAM REMOVEMENT PAPER FEED 1 1 1
22 2CJ15030 LOWER HOUSING,HOPPER 1 1 1
23 M2105740 MINIATURE CLAMP,UAMS-05S-2 1 1 1
24 2A015030 COVER,TONER DRAW 1 1 1
25 2A015040 SPRING,CLEANING 1 1 1
26 2A015050 COVER,DRAW SPIRAL 1 1 1
27 2A015080 SPONGE A,HOPPER HOUSING 2 2 2
28 2A015090 SPONGE B,HOPPER HOUSING 1 1 1
29 2A015100 SPONGE C,HOPPER HOUSING 1 1 1
30 2A015110 SPONGE D,HOPPER HOUSING 1 1 1
31 2A015120 FILM A,HOPPER HOUSING 1 1 1
32 2A015130 FILM B,HOPPER HOUSING 3 3 3
33 2A015140 SEAL,DRAW SPIRAL COVER 1 1 1
34 2A015200 SPONGE E,HOPPER HOUSING 2 2 2
35 2A015210 SPONGE,TONER DRAW 2 2 2

'

36 33415181 GEAR,TONER SUPPLY 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

'

37 33915180 TONER EMPTY DETECTION SENSOR 1 1 1
38 34806140 STOPPER 4 1 1 1
39 36715050 SPIRAL,TONER CONVEYING 1 1 1
40 36715060 SPIRAL,TONER DRAW 1 1 1
41 36715120 LEVER,SHUTTER 1 1 1
42 36715130 HOLDER,SHUTTER 1 1 1
43 36715140 SPRING,HOPPER AGITATION 2 2 2
44 36715200 SHAFT ,HOPPER AGIT A TION 1 1 1

'

45 36715210 MOTOR,TONER AGIT A TION 1 1 1
46 36715230 MOUNT,CLEANING SPRING 1 1 1
47 36715240 HOLDER,CLEANING SPRING 1 1 1
48 36715300 SUPPORT PLATE,HOPPER 1 1 1

'

49 36793270 PARTS,MOTOR TONER SUPPLY(SP) 1 1 1

'

50 36715380 GEAR 41,HOPPER AGITATION 1 1 1

'

51 36715410 GEAR 17,IDLE 1 1 1
52 36715420 SEAL,SHUTTER LEVER 1 1 1
53 36715430 SEAL,SUPPLY JOINT 1 1 1

'

54 36715630 GEAR 13,HOPPER DRAW 1 1 1

'

55 36715640 GEAR 22,HOPPER 1 1 1

'

56 36715650 GEAR 22/13,IDLE 1 1 1

'

57 36715660 GEAR 23/44,TONER MOTOR 1 1 1
58 36715710 SPONGE,TONER SUPPLY JOINT 1 1 1
59 63814070 BUSHING,SPIRAL ROLLER 3 3 3
60 65814420 FRONT BUSHING 12B,AGITATION 2 2 2
61 71814100 BUSHING 6-21,MAIN UNIT 1 1 1
62 2A015220 FILM,TONER LIMITATION 1 1 1
63 2A015170 FILTER A,HOPPER 1 1 1
64 2A015180 FILTER B,HOPPER 1 1 1
65 2A015190 FILM,HOPPER FILTER 1 1 1

'

66 36715730 FILM,HOPPER LID 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 41 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.20 CLEANING SECTION I

2CJ

24

E04

KAL

E05

16

19

42

41

4

20

32

5

HAD

7

4

37

32

43

34

46

26

45

17

11

16

49

35

31

44

BAL

2

29

27

XAB

E05

12

36

3

BAL

51

25

BAY

40

50

21

15

BAL

1

28

BAL

E07

E05

E05

48

22

30

E05

16

KAL

8

47

12

XAB

E05

16

6

14

17

19

46

20

45

52

KAL

33

43

35

49

53

64

61

BAL

60

63

10

62

64

63

BAL

60

65

59

BAL

E1E

55

57

15

BAL

58

56

13

57

E1E

18

56

57

9

39

23

38

BAL

BAL

BAL

E1E

57

54

58

– 42 –

FIG.20 CLEANING SECTION I

Ref.

SP Part. No. Description

No.

'

1 2CJ93010 PARTS,ASS’Y CLEANING,SP 1 1 1

2 •M2105000 NYLON CLAMP 2N,NK-2N 1 1 1

3 •M2307010 BINDING BAND,T18R 2 2 2

'

4 •61718420 SEAL A,CLEANING STAY 2 2 2

'

5 •61718430 SEAL B,CLEANING STAY 1 1 1

'

6 •2CJ18170 GEAR 26,SPIRAL 1 1 1

7 •72114320 PIN,DEV.UNIT HANDLE 1 1 1

'

8 •2CJ18140 GEAR 19,CLEANING IDLE 1 1 1

9 •74318590 PIN,MAIN BLADE 1 1 1

'

10 •2A018051 BRUSH,CLEANING 1 1 1
11 •2A018040 SPIRAL,CLEANING 1 1 1

'

12 •49028116 BUSHING 6,CLEANING UNIT 2 2 2
13 •2A018150 SCRAPER,SPIRAL 1 1 1

'

14 •2CJ18160 GEAR 23,FUR BRUSH 1 1 1
15 •77618200 BUSHING 7 CLEANING UNIT 2 2 2

'

16 •29806810 BUSHING,6 REGISTRATION 4 4 4

'

17 •33906630 STOPPER 5,RING 2 2 2

'

18 •36793312 P ARTS,BLADE CLEANING(SP) 1 1 1
19 •2A018140 SPONGE,BLADE SIDE 2 2 2
20 •2A018110 SPONGE A,CLEANING SIDE 2 2 2
21 •36718050 MOUNT,BLADE 1 1 1
22 •2CJ18300 STAY,CLEANING 1 1 1
23 •2CJ18260 SCRAPER,CLEANING BRUSH 1 1 1

'

24 •2CJ18130 GEAR 18,CLEANING DRIVE 1 1 1

'

25 •36718110 TERMINAL,CLEANING BRUSH 1 1 1

'

26 •36793341 PARTS,UPPER COVER CLEANING(SP) 1 1 1
27 •2CJ18210 SHUTTER,CLEANING 1 1 1
28 •2A023100 WIND SHIELD PLATE,CLEANING 1 1 1
29 •36718150 SPRING,SHUTTER 1 1 1
30 •2CJ18100 FRONT FRAME,CLEANING 1 1 1
31 •2CJ18110 REAR FRAME,CLEANING 1 1 1

'

32 •36718180 SEAL,BRUSH MOUNT 2 2 2

'

33 •2A018070 FRONT SEAL A,CLEANING 1 1 1

'

34 •2A018080 REAR SEAL A,CLEANING 1 1 1
35 •2A018120 FILM B,CLEANING 2 2 2

'

36 •2CJ18220 SEAL,CLEANING SHUTTER 1 1 1
37 •36718260 SLIDE PLATE,BLADE RELEASE 1 1 1
38 •36718270 INSULA TING PLATE,CLEANING BRUSH 1 1 1
39 •36718281 SPACER,SCRAPING 1 1 1
40 •36918040 WEIGHT,MAIN BLADE 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 •2A018100 FILM,CLEANING 1 1 1
42 •2CJ18120 REAR SHAFT,CLEANING DRIVE 1 1 1

'

43 •36718360 SPONGE B,CLEANING 2 2 2

'

44 •36718370 INNER SEAL,CLEANING SHUTTER 1 1 1

'

45 •36718390 UPPER SPONGE,SEAL 2 2 2

'

46 •36718400 LOWER SPONGE,BLADE 2 2 2

'

47 •36718411 SHEET,BLADE THRUST 1 1 1

'

48 •2CJ18150 GEAR 45,THRUST 1 1 1
49 •2A018090 LOWER SPONGE A,CLEANING 2 2 2
50 •78606250 SPRING PAPER FEED SECTION 1 1 1
51 •36727160 WIRE,CLEANING 1 1 1

'

52 •2CJ60020 COVER CLEANING ASS’Y SP 111

'

53 ••2CJ18250 COVER,CLEANING 1 1 1
54 ••2CJ00520 SEPARATION CLAW ASS’Y 222
55 •••2CJ18240 MOUNT,SEPARATION CLAW 2 2 2

'

56 •••2A018160 CLAW A,SEPARA TION 4 4 4
57 •••62218020 RATCHET,SEPARATION 8 8 8
58 •••2A018170 SHAFT,SEPARATION CLAW 4 4 4

'

59 ••2A068210 LOWER BLADE ASS’Y 111
60 •••2A018130 LOWER SPONGE,FUR BRUSH 2 2 2

'

61 •••36793330 PARTS,MOUNT CLEANING(SP) 1 1 1
62 •••36718041 GUIDE,CLEANING BRUSH 1 1 1

'

63 •••36718230 SPONGE,BRUSH GUIDE 2 2 2
64 •••2A018230 LOWER SPONGE,FUR BRUSH SIDE 2 2 2

'

65 ••36718180 SEAL,BRUSH MOUNT 1 1 1

Quantity

230V120V 240V

2CJ

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 43 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.21 CLEANING SECTION II

BAN

BBD

2CJ

7

3

2

21

19

22

12

13

BBE

KAN

18

16

8

BAN

4

8

6

BAN

BBE

5

17

16

11

15

18

E07

1

10

20

E05

24

31

BBE

23

BBE

E07

9

26

NAK

E07

32

KAL

BAN

32

E07

E07

14

E07

16

28

25

E07

27

30

E07

29

– 44 –

FIG.21 CLEANING SECTION II

Ref.

SP Part. No. Description

No.

1 36723510 MOUNT,DISPOSAL PIPE 1 1 1

2 M2109020 WIRE SADDLE,WS-2WS 3 3 3

3 2A018200 COVER,DISPOSAL TANK 1 1 1

4 2A018210 SPRING,DISPOSAL TANK 1 1 1

5 2A018220 LOWER MOUNT,DISPOSAL SUPPORT 1 1 1

6 36718500 MOUNT BASE,DISPOSAL TANK 1 1 1

7 36718530 MOUNT,DISPOSAL SUPPORT 1 1 1

'

8 66127010 SWITCH,COVER OPEN 2 2 2

9 2AG05200 LABEL,HIGH VOLTAGE CAUTION(EXP) 1 1 1
10 36718610 BASE,DISPOSAL PIPE 1 1 1
11 33922360 PULLEY 36,FIXING DRIVE 1 1 1
12 36718560 SPRING,DISPOSAL 1 1 1
13 36718570 HOUSING,DISPOSAL 1 1 1
14 36722310 MOUNT,DISPOSAL SPIRAL DRIVE 1 1 1
15 36722470 SHAFT,DISPOSAL SPIRAL DRIVE 1 1 1

'

16 67322230 BUSHING 8 3 3 3
17 74318070 BUSHING 8,TONER DISPOSAL 1 1 1

'

18 74318080 GEAR 25,TONER DISPOSAL 2 2 2
19 36700522 DISPOSAL T ANK ASS’Y222
20 •36505111 LABEL,TONER DISPOSAL TANK 2 2 2
21 •36718510 TANK,DISPOSAL 2 2 2
22 •74318310 TAPE,TONER DISPOSAL TANK 2 2 2

'

23 74722080 GEAR 17 PF CLUTCH 1 1 1
24 2CJ22100 MOUNT,CLEANING DRIVE 1 1 1
25 2CJ22110 SHAFT,CLEANING IDLE 1 1 1
26 2CJ22120 SHAFT,CLEANING DRIVE 1 1 1

'

27 2CJ22130 GEAR 16/22,CLEANING DRIVE 1 1 1

'

28 2CJ22140 BUSHING,CLEANING DRIVE 1 1 1

'

29 45728115 IDLE GEAR 22 1 1 1

'

30 61714140 GEAR,DEVELOPING SLEEVE 1 1 1

'

31 66018160 GEAR 19,SPIRAL ROLLER 1 1 1

'

32 67322230 BUSHING 8 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 45 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.22 FIXING SECTION I

2CJ

BAB

25

19

HAD

22

41

HAD

20

21

34

E05

E07

BHF

14

24

1

BAO

42

E07

E07

2

15

32

14

7

KAM

39

E07

6

35

5

39

E07

E03

40

8

38

BAL

10

18

43

12

KAM

33

25

BAB

24

17

29

32

13

E03

31

13

30

7

39

7

39

7

HAG

17
5

40

E03

6

18

BAN

BHF

36

BAN

BAN

KAM

23

16

26

9

4

BBE

37

BAN

3

28

9

11

16

27

BAN

– 46 –

FIG.22 FIXING SECTION I

Ref.

SP Part. No. Description

No.

'

1 2CJ93030 PARTS 120,ASS’Y FIXING UNIT(S P) 1

'

1 2CJ93040 PARTS 240,ASS’Y FIXING UNIT(S P) 1 1

'

2 •G3006980 BEARING #698ZZ 1 1 1

3 •2A020230 UPPER LEFT STAY,FIXING 1 1 1

'

4 •2A068250 COVER FIXING ASS’Y111

5 •78012030 PRESSING SPRING CIS 2 2 2

6 •73902220 SPRING SHAFT HOOK 2 2 2

'

7 •68320310 SPRING,SEPARATION CLAW 4 4 4

'

8 •61720760 SPRING,SEPARATION CLAW 7 7 7

'

9 •61720460 BUSH,FIXING CLEANING 2 2 2

'

10 •20305080 LABEL,HIGH TEMPERATURE CAUTION(EXP) 1

'

10 •2A005200 LABEL,HIGH TEMPERATURE CAUTION(EXP) 1 1

'

11 •2CJ93130 PARTS,LOWER ROLLER A CLEANING(SP) 1 1 1

'

12 •2A020420 ROLLER,FIXING EJECT 1 1 1

'

13 •2A020450 REAR PULLEY,FIXING 4 4 4

'

14 •49028101 BUSH 8 2 2 2

'

15 •45728104 GEAR 20,DEV.UNIT 1 1 1
16 •29717220 PRESSING SPRING B,SB 2 2 2
17 •29804160 PIN,ORIGINAL HOLDER 2 2 2
18 •29820420 PIN,BEARING 2 2 2
19 •33906640 RIGHT SPRING,FEED RELEASE 1 1 1
20 •33920310 DIAL,FIXING DRIVE 1 1 1
21 •33920320 JOINT,FIXING DRIVE 1 1 1
22 •33920330 SPRING,FIXING DRIVE 1 1 1
23 •33920570 PIN,FIXING COVER 1 1 1
24 •34920170 FULCRUM PIN,FIXING 2 2 2
25 •36720600 HOOK,FIXING EJECT RELEASE 2 2 2
26 •36720180 LOWER LEFT STAY,FIXING 1 1 1
27 •36720200 LOWER MOUNT,CLEANING ROLLER 1 1 1
28 •36720220 LOWER HOUSING,FIXING 1 1 1

'

29 •2A068260 COVER FIXING EJECT ASS’Y111

'

30 •2A020463 UPPER GUIDE,FIXING EJECT 1 1 1
31 •36720251 LOWER GUIDE,FIXING EJECT 1 1 1
32 •36720280 PLATE SPRING,FIXING EJECT PULLEY 2 2 2
33 •36720290 HANDLE,FIXING EJECT RELEASE 1 1 1
34 •36720300 SHAFT,FIXING EJECT RELEASE 1 1 1

'

35 •36720390 GEAR,FIXING EJECT JOINT 1 1 1
36 •36720430 FRONT HOLDER,FIXING EJECT UNIT 1 1 1
37 •36720440 REAR HOLDER,FIXING EJECT UNIT 1 1 1

'

38 •61720750 SEPARATION CLAW B 7 7 7

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

'

39 •36720493 CLAW,PRESS ROLLER 4 4 4
40 •36720581 SHAFT,FIXING EJECT PULLEY 2 2 2
41 •2A020500 REINFORCEMENT,FIXING EJECT COVER 1 1 1
42 •2A020470 SUPPORT BAR,SEPARATION CLAW 1 1 1
43 •2A020480 BASE,SUPPORT BAR SEPARATION CLAW 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 47 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.23 FIXING SECTION II

2CJ

29

RKD

HCA

5

BAN

E05

53

43

51

RAL

32

9

NAL

BAN

E05

56

BAN

NAE

3

45

42

1

BAL

E05

54

56

KAK

56

48

KAN

47

50

BAN

54

E05

E07

49

41

14

2

E07

BHF

NAE

40

NAL

16

31

43

57

E07

BAN

26

7

RAL

E07

24

51

E05

34

52

46

KAM

KAK

BHF

38

23

2

20

BAW

19

AAV

19

37

20

E07

15

57

40

E07

4

5

39

22

BAW

RAH

33

E07

18

BAN

30

12

13

10

6

21

BAL

AVS

55

35

8

28

E07

25

27

XCE

58

17

11

36

3

5

BAN

42

BBE

21

BAN

44

– 48 –

FIG.23 FIXING SECTION II

Ref.

SP Part. No. Description

No.

'

1 2CJ93030 PARTS 120,ASS’Y FIXING UNIT(S P) 1

'

1 2CJ93040 PARTS 240,ASS’Y FIXING UNIT(S P) 1 1

'

2 •G3169070 BEARING 6907ZZNRC4ENS 2 2 2

3 •M2104230 EDGING,EDS-3 2 2 2

4 •M2105800 CLAMP,HEAT PROOF KCA-44 1 1 1

5 •M2109280 WIRE SADDLE,LWS-1S-F(KITAGAWA) 4 4 4

'

6 •18520201 THERMISTOR,FIXING 1 1 1

'

7 •2A020010 ROLLER,HEAT 1 1 1

'

8 •2BC20260 PRESS ROLLER 1 1 1

9 •2A020030 LOWER REAR FRAME,FIXING 1 1 1
10 •2A020040 UPPER FRONT GUIDE,FIXING 1 1 1
11 •2A020080 MOUNT,FIXING DRAWER 1 1 1

'

12 •2A020130 HEATER MU,FIXING(120) 1

'

12 •2A020150 HEATER MU,FIXING(240) 1 1

'

13 •2A020140 HEATER SU,FIXING(120) 1

'

13 •2A020160 HEATER SU,FIXING(240) 1 1
14 •2A020210 UPPER FRONT FRAME,FIXING 1 1 1
15 •2A020220 UPPER REAR FRAME,FIXING 1 1 1
16 •2CJ93140 PARTS,ROLLER PRESSING CLEANING A(SP) 1 1 1
17 •2A027420 WIRE,FIXING UNIT 1 1 1

'

18 •45728900 GEAR 38T 1 1 1
19 •29620330 INSULATOR D 2 2 2
20 •29620340 INSULA TOR T 2 2 2
21 •2A020370 SPRING,PRESSURE 2 2 2

'

22 •36714680 GEAR,JOINT DEVELOPING 1 1 1

'

23 •36720061 GEAR,HEAT ROLLER 1 1 1
24 •36720090 FRONT PRESSING PLATE,PRESS ROLLER 1 1 1
25 •36720100 REAR PRESSING PLATE,PRESS ROLLER 1 1 1
26 •36720120 LOWER FRONT FRAME,FIXING 1 1 1
27 •36720160 LOWER FRONT GUIDE,FIXING 1 1 1
28 •36720170 LOWER RIGHT STAY,FIXING 1 1 1
29 •36720341 FRONT SUPPORT PLATE,HEATER 1 1 1
30 •36720351 REAR SUPPORT PLATE,HEATER 1 1 1
31 •36720370 FRONT GUIDE,FIXING EJECT TURN AUXILIARY 1 1 1
32 •36720380 REAR GUIDE,FIXING EJECT TURN AUXILIARY 1 1 1
33 •36720410 TENSION PLATE,FIXING DRIVE 1 1 1
34 •36720460 SHAFT,PRESS ROLLER 1 1 1

'

35 •36720590 THERMAL PROTECTOR 180,FIXING 1 1 1
36 •36720610 LOWER FRONT SPRING,FIXING 1 1 1
37 •61720290 TERMINAL,MAIN HEATER 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

38 •61720300 TERMINAL,SUB HEATER 1 1 1

'

39 •67322180 GEAR 28,IDLE DRIVE 1 1 1
40 •71802210 PIN,DRUM LIFT 2 2 2
41 •73818100 SPRING, BLADE THRUST 2 2 2
42 •74318650 PIN WEIGHT DETECTOR 2 2 2

'

43 •78620531 BUSHING HEAT ROLLER 2 2 2

'

44 •2A020350 FRONT STATIC ELIMINATOR,FIXING 1 1 1
45 •2A020250 SUPPORT PLATE,FIXING CLEANING SHAFT 1 1 1
46 •2A020260 SHAFT A,FIXING CLEANING DRIVE 1 1 1
47 •2CJ20030 STA Y A,FIXING CLEANING 1 1 1
48 •2A020310 SHAFT B,FIXING CLEANING DRIVE 1 1 1
49 •2A020320 SHAFT,FIXING CLEANING RETAINING 2 2 2

'

50 •2A020330 FELT,CLEANING 1 1 1

'

51 •36520931 GEAR 16,OIL ROLLER 2 2 2

'

52 •66022131 GEAR 30,DEVELOPING DRIVE 1 1 1

'

53 •66222140 BUSHING,BYPASS CAM 1 1 1

'

54 •61720460 BUSH,FIXING CLEANING 2 2 2
55 •2BC20520 PIN,FIXING DRAWER 2 2 2

'

56 •73210450 BUSH, 6 3 3 3
57 •M2104380 EDGING,EDS-3-F(KITAGAWA) 2 2 2
58 •M2607010 BINDING BAND,PLT1M 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 49 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.24 DRIVING, COOLING SECTION I

48

GHA

RAH

47

60

BAN

E07

59

51

42

61

44

E09

53

50

56

46

55

E07

KAM

58

44

45

KAN

E07

KAM

52

E07

54

49

57

11

BAW

E07

10

BBE

63

18

E06

2CJ

43

HAI

30

E07

39

37

7

E05

HBR

E07

22

5

BBE

HAI

HAI

E05

41

4

41

2

36

E05

35

1

34

28

35

E06

KAM

E07

E07

38

19

17

KAM

27

35

E07

E07

3

2

E06

6

E07

8

RPE

KAX

6

20

13

12

E05

3

64

62

40

E07

24

14

31

33

E07

E07

29

BAN

HBR

21

BAN

25

26

16

KAM

BAN

39

BAN

E07

15

BAN

E07

KAN

E09

9

35

BAN

23

32

32

BAN

E05

32

E05

– 50 –

FIG.24 DRIVING, COOLING SECTION I

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 2A022070 MOUNT A,IMAGE FORMATION DRIVE 1 1 1

2 M2107120 BINDING BAND SG-130 2 2 2

'

3 2AC06260 CLUTCH 32,FEED 2 2 2

4 2A022060 SHAFT B,FEED DRIVE 1 1 1

5 72418140 SPRING, BLADE 1 1 1

'

6 45727303 GEAR 26,CLUTCH 2 2 2

'

7 28107400 BEARING,688ZZNR 1 1 1

'

8 45729404 GEAR B,PF PULLEY 1 1 1

9 33904160 SPRING,EJECT COVER 1 1 1

'

10 2A022210 JOINT,DEVELOPING DRIVE 1 1 1

'

11 2A022220 COUPLING,DEVELOPING DRIVE 1 1 1

'

12 36707230 CLUTCH,BYPASS 1 1 1

'

13 36707242 CLUTCH,BYPASS LIFT 1 1 1

'

14 36722050 BELT,DRUM DRIVE 1 1 1
15 36722220 MOUNT B,IMAGE FORMATION DRIVE 1 1 1
16 36722350 SHAFT,REGISTRATION DRIVE 1 1 1
17 36722360 SHAFT A,FEED DRIVE 1 1 1
18 2A022200 SHAFT,DEVELOPING DRIVE 1 1 1
19 36722390 SHAFT,BYPASS CLUTCH 1 1 1
20 36722400 SHAFT SP,BYPASS CLUTCH 1 1 1

'

21 36722500 BUSHING,DEVELOPING DRIVE 1 1 1
22 36722510 MOUNT C,IMAGE FORMATION DRIVE 1 1 1
23 36722520 RETAINER,REGISTRATION CLUTCH 1 1 1
24 36722690 COLLAR,DRUM DRIVE BELT 1 1 1
25 36722760 COLLAR,DEVELOPING JOINT 1 1 1

'

26 36722770 GEAR 30,DEVELOPING DRIVE 1 1 1

'

27 36722780 GEAR 30/15,IDLE 1 1 1

'

28 36722790 GEAR 45,DRUM IDLE 1 1 1

'

29 36722800 GEAR 53/44/33 1 1 1
30 36722821 TENSION PLATE,IMAGE FORMATION DRIVE 1 1 1

'

31 36722830 GEAR 27,DEVELOPING IDLE 1 1 1

'

32 36722860 GEAR 18 3 3 3

'

33 36722870 PULLEY 24/72,IDLE 1 1 1

'

34 61522040 DRIVE GEAR,FIXING SECTION 1 1 1

'

35 67322230 BUSHING 8 4 4 4

'

36 68314090 GEAR,DEVELOPING SPIRAL 1 1 1

'

37 72107640 IDLE GEAR 27 1 1 1

'

38 73210450 BUSH, 6 1 1 1

'

39 74718091 BUSHING CLEANING UNIT 4 4 4
40 78622270 IDLE PULLEY 1 1 1

41 M2107120 BINDING BAND SG-130 3 3 3

'

42 G3169000 BEARING 6900ZZNR 1 1 1

'

43 2A027311 MOTOR,MAIN 1 1 1

'

44 28107400 BEARING,688ZZNR 2 2 2

'

45 45728115 IDLE GEAR 22 1 1 1

'

46 45729502 IDLE GEAR 40 1 1 1

'

47 33422290 JOINT,DRIVE 1 1 1
48 36723560 JUNCTION PLATE,JOINT 1 1 1
49 36722290 MOUNT A,CONVEYING MOTOR 1 1 1
50 36722300 MOUNT B,CONVEYING MOTOR 1 1 1
51 36722420 SHAFT,FIXING DRIVE 1 1 1
52 36722480 SHAFT,CONVEYING DRIVE 1 1 1

'

53 36722680 GEAR 36,FIXING JOINT 1 1 1

'

54 36722880 GEAR 45,MOTOR IDLE 1 1 1

'

55 36722890 GEAR 56/25,MOTOR IDLE 1 1 1

'

56 36722990 COUPLER,FIXING JOINT 1 1 1

'

57 36723600 BUSHING 8,MOTOR 1 1 1
58 71707240 SPRING,CASSETTE LOCK SOL 1 1 1

'

59 72114110 GEAR 20,DEVELOPER UNIT 1 1 1
60 73808100 SPRING, MC BRUSH 1 1 1

'

61 73820080 GEAR, OIL ROLLER 1 1 1
62 36723590 FLANGE 30,BELT 1 1 1

'

63 36722750 PULLEY 26/26,DRUM 1 1 1
64 36722810 JUNCTION PLATE,DRUM DRIVE 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 51 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.25 DRIVING, COOLING SECTION II

2CJ

BBE

46

33

HBO

38

BBG

BBE

43

40

44

43

37

39

44

BBG

41

BBE

42

52

53

45

BBE

1

36

E05

41

BBG

3

BAL

KAK

14

7

4

8

12

6

11

BBE

49

25

BAN

E09

32

15

31

54

BBE

28

E06

NAD

27

E07

30

BBE

29

XAE

BAL

24

E09

47

9

13

51

10

BBE

23

5

50

BBF

BAL

BBE

E05

48

26

27

BAL

2

18

BBE

BAN

E07

35

E10

KAX

KAO

E06

34

HAS

21

E05

22

BBE

64

57

16

19

60

63

E05

BAN

61

56

BAN

HAD

20

BAN

58

59

62

E07

55

BAN

63

17

– 52 –

FIG.25 DRIVING, COOLING SECTION II

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 34823010 DUCT,COOLING 1 1 1

'

2 2AC18300 SPRING,CLEANING 1 1 1

3 2A022310 MOUNT,FIXING CLEANING DRIVE 1 1 1

4 2A022330 SHAFT,FIXING CLEANING DRIVE 1 1 1

'

5 2A022340 LEVER,FIXING CLEANING DRIVE 1 1 1

6 2A022350 SUPPORT PLATE,FIXING CLEANING DRIVE 1 1 1

'

7 2A022360 COUPLER A,FIXING CLEANING DRIVE 1 1 1

'

8 2A022370 COUPLER B,FIXING CLEANING DRIVE 1 1 1

'

9 33906370 SOLENOID,BYPASS 1 1 1

'

10 34909030 FRONT BUSHING,DRUM SHAFT 1 1 1

'

11 73210450 BUSH, 6 1 1 1

'

12 66018160 GEAR 19,SPIRAL ROLLER 1 1 1

'

13 66222140 BUSHING,BYPASS CAM 1 1 1

'

14 2A022390 SPRING,FIXING CLEANING 1 1 1

'

15 74322310 GEAR 44,DUPLEX 1 1 1
16 M2107120 BINDING BAND SG-130 2 2 2
17 36707220 CAM,MOVING GUIDE 1 1 1
18 2CJ22150 SHAFT,DRUM DRIVE 1 1 1

'

19 2A022050 PLATE SPRING,DRUM GROUND 1 1 1
20 49029408 BUSHING,DRUM DRIVE 1 1 1

'

21 36722320 GEAR 60/54,DRUM 1 1 1
22 36722700 HOLDER,DRUM DRIVE 1 1 1
23 36722710 RETAINER,DRUM DRIVE 1 1 1
24 74722290 SPRING DRUM DRIVE COUPLER 1 1 1
25 2CJ22160 COUPLER,DRUM DRIVE 1 1 1
26 2CJ22170 BUSHING A,DRUM DRIVE 1 1 1

'

27 67322230 BUSHING 8 2 2 2

'

28 74718091 BUSHING CLEANING UNIT 1 1 1
29 74706580 JOINT SPRING UPPER PF PULLEY SHAFT 1 1 1

'

30 36720390 GEAR,FIXING EJECT JOINT 1 1 1
31 36720420 REINFORCEMENT,FIXING EJECT JOINT 1 1 1

'

32 74718091 BUSHING CLEANING UNIT 1 1 1

'

33 2BC27780 FAN,FIXING 1 1 1

'

34 45727303 GEAR 26,CLUTCH 1 1 1
35 36722410 SHAFT,BYPASS CAM 1 1 1

'

36 2A023060 FILTER,COOLING 1 1 1
37 2A022080 RETAINER,FLYWHEEL 1 1 1
38 34022051 FLYWHEEL A 1 1 1
39 34022060 FLYWHEEL B 2 2 2
40 2CJ00140 JUNCTION DUCT ASS’Y111

41 •18523030 DUCT 80,COOLING 2 2 2

'

42 •2A023020 DUCT,JUNCTION 1 1 1

'

43 •2A023040 FILM 80,FAN 2 2 2

'

44 •2BC27780 FAN,FIXING 2 2 2
45 •2A023110 SPONGE,JUNCTION DUCT 1 1 1
46 2A023080 SPONGE,COOLING FAN 1 1 1

'

47 2A023010 DUCT,CHARGE 1 1 1

'

48 2A023050 FILM 60,FAN 1 1 1
49 2A023090 SPONGE,CHARGE DUCT 1 1 1

'

50 2BC27790 FAN,COOLING 1 1 1
51 36722530 RETAINER,BYPASS CAM 1 1 1

'

52 2BC27780 FAN,FIXING 1 1 1
53 34823010 DUCT,COOLING 1 1 1
54 36723520 PIN,CONVEYING IDLE 1 1 1
55 M2105740 MINIATURE CLAMP,UAMS-05S-2 1 1 1

'

56 36593510 PARTS CLUTCH PRESSURE(SP) 1 1 1
57 36722130 CAM,TRANSFER BELT 1 1 1
58 36722441 SHAFT,TRANSFER BELT CLUTCH 1 1 1
59 36722611 MOUNT,CUTTER PI 1 1 1
60 36722620 MOUNT A,TRANSFER BELT CLUTCH 1 1 1
61 36722720 LIGHT SHIELD,PI 1 1 1

'

62 66006350 SWITCH,CASSETTE LIFT 1 1 1

'

63 67322230 BUSHING 8 2 2 2
64 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 53 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.26 DRIVING, COOLING SECTION III

39

27

NAK

28

NAK

NAK

AAI

BHC

27

28

AAI

23

42

23

BHC

BAN

9

2CJ

BBE

KAN

11

E07

E07

1

E05

47

13

E07

37

29

26

44

E05

BBG

5

37

11
3

13

12

E07

4

6

E07

13

E07

11

KAN

E07

10

7

8

E07

E07

43

25

2

11

BBE

45

BBE

24

E07

46

40

37

E07

E07

46

BBE

BBE

35

38

E07

33

E07

32

E07

15

18

16

E05

E07

34

BAN

30

19
21

30

34

17

BAN

E07

36

20

14

BBE

22

BBE

E07

E07

BBE

41

31

– 54 –

FIG.26 DRIVING, COOLING SECTION III

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 34914410 GEAR 31,DEVELOPING 1 1 1

2 2A022010 MOUNT A,CONVEYING DRIVE 1 1 1

3 2A022020 MOUNT B,CONVEYING DRIVE 1 1 1

4 2A022030 SHAFT,DUPLEX IDLE 1 1 1

'

5 45729430 GEAR 36,CLEANING UNIT 1 1 1

'

6 29721040 GEAR,24 SB 1 1 1

'

7 33922241 PULLEY 31/42,IDLE 1 1 1

'

8 33922250 BELT,PAPER FEED DRIVE 1 1 1

'

9 36722021 GEAR 40,IDLE 1 1 1
10 36723540 SHAFT,BELT DRIVE 1 1 1

'

11 67322230 BUSHING 8 4 4 4

'

12 74322340 GEAR 32,DUPLEX 1 1 1

'

13 36722850 GEAR 42/32 3 3 3
14 2AC22370 GEAR 29 1 1 1

'

15 2AC22440 GEAR 55/45,FEED 1 1 1
16 2CJ22020 MOUNT,PAPER FEED MOTOR 1 1 1

'

17 45728900 GEAR 38T 1 1 1

'

18 3AK22030 GEAR 29,IDLE 1 1 1
19 33922330 GEAR 30,IDLE 1 1 1

'

20 68322210 PULLEY,21 IDLE 1 1 1

'

21 71814180 GEAR 35,MAIN UNIT MIXING 1 1 1
22 34916750 PULLEY,RESISTANCE TENSION 1 1 1
23 36722590 PIN A,TENSION 2 2 2
24 36722731 TENSION PLATE C,PAPER FEED 1 1 1

'

25 68322210 PULLEY,21 IDLE 1 1 1
26 36722580 PIN C,PAPER FEED DRIVE 1 1 1
27 2A007690 MOUNT LCF,LIFT MOTOR 2 2 2

'

28 2A027590 MOTOR,DECK 2 2 2
29 36722560 PIN A,PAPER FEED DRIVE 1 1 1
30 M2109010 WIRE SADDLE,WS-2NS 2 2 2

'

31 36722021 GEAR 40,IDLE 1 1 1
32 36722281 LOWER MOUNT,PAPER FEED DRIVE 1 1 1

'

33 36722540 GEAR 26,IDLE 1 1 1

'

34 74718091 BUSHING CLEANING UNIT 2 2 2

'

35 75722040 DRIVE IDLE GEAR 24 1 1 1
36 M2108730 SPACER,KGTS-5T(KITAGAWA) 1 1 1
37 72622141 TENSION PULLEY 20 3 3 3
38 36722731 TENSION PLATE C,PAPER FEED 1 1 1
39 2A007600 PIN LCF,IDLE 2 2 2
40 2A022120 LOWER HOLDER,PULLEY 1 1 1

41 2CJ22030 UPPER HOLDER,PULLEY 1 1 1
42 2A022140 PIN 8,IDLE 1 1 1

'

43 2CJ22010 BELT,PAPER FEED DRIVE 1 1 1

'

44 2AC06250 MOTOR,LIFT CASSETTE 2 2 2

'

45 2AC22520 MOTOR,PAPER FEED 1 1 1
46 72418140 SPRING, BLADE 2 2 2
47 34920200 GEAR 30,IDLE EJECT 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 55 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.27 DUPLEX UNIT I

2CJ

EDB

30

1

HAI

HAI

29

28

BAN

14

BHI

BAN

BAN

16

11

9

3

26

3

4

4

23

5

E05

2

E05

14

15

23

BAN

19

23

19

BAN

20

23

22

15

17

19

18

BAN

17

23

16

7

6

13

8

13

21

BAN

20

HAD

E04

24

25

BAN

BAN

BBE

27

13

10

12

21

32

BBE

BBE

– 56 –

BBE

31

FIG.27 DUPLEX UNIT I

Ref.

SP Part. No. Description

No.

'

1 2CJ04260 COVER,DUPLEX UNIT 1 1 1

2 2AC07231 LEFT GUIDE,DUPLEX CONVEYING 1 1 1

3 68721220 PRESSING PLATE,DUPLEX REGISTRATION 2 2 2

4 78112040 SPRING CIS 4 4 4

5 68721210 RETAINER,DUPLEX REGISTRATION 1 1 1

6 68721780 RETAINING PIN,CONVEYING 2 2 2

7 2A017010 FRONT FRAME,DUPLEX 1 1 1

8 2A017140 UPPER GUIDE,DUPLEX CONVEYING 1 1 1

9 2A017020 REAR FRAME,DUPLEX 1 1 1
10 2AC07220 RIGHT GUIDE,DUPLEX CONVEYING 1 1 1
11 2AC07321 LEFT SUPPORT PLATE,DUPLEX UNIT 1 1 1
12 2AC07330 RIGHT SUPPORT PLATE,DUPLEX UNIT 1 1 1

'

13 68727030 SWITCH,DUPLEX CONVEYING 3 3 3
14 M2104250 EDGING,EDS-17L(KITAGAWA) 2 2 2
15 M2104210 EDGING,EDS-2 2 2 2
16 M2104260 EDGING,EDS-0607U(KITAGAWA) 2 2 2
17 2A027400 WIRE,DUPLEX UNIT 1 1 1
18 72518060 PIN B,DISPOSAL TANK FULCRUM 2 2 2
19 M2107120 BINDING BAND SG-130 6 6 6
20 68721740 PIN,DUPLEX CONVEYING FULCRUM 2 2 2
21 M2607010 BINDING BAND,PLT1M 3 3 3
22 68721840 GROUND PLATE,DUPLEX 1 1 1
23 M2105740 MINIATURE CLAMP,UAMS-05S-2 8 8 8
24 2A017230 AUXILIARY PLATE,DUPLEX POSITION 1 1 1
25 28801300 BUSING, PAPER FEED 1 1 1

'

26 68721080 LOWER ROLLER,DUPLEX REGISTRATION 1 1 1

'

27 66107084 SLIDER,CASSETTE 1 1 1
28 2AC02110 MOUNT,RAIL DUPLEX 1 1 1

'

29 66107084 SLIDER,CASSETTE 1 1 1
30 36705050 LABEL,DUPLEX UNIT 1 1
30 2A005100 LABEL,DUPLEX UNIT(EUR) 1
31 33902060 RIGHT REINFORCEMENT 1 1 1
32 36707881 RIGHT MOUNT,RAIL 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 57 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.28 DUPLEX UNIT II

BAN

2CJ

8

BAN

BAL

BAL

25

28

BAN

26

7

36

37

5

14

BAP

6

E07

E07

11

12

12

BAN

33

34

1

E05

16

17

8

35

29

24

23

E07

26

KAO

25

23

E07

26

E05

17

12

15

12

10

13

11

BAA

BAN

18

32

14

BAP

24

8

BAL

BAA

9

BAN

2

27

26

3

BAN

BAN

BAN

32

KAL

4

20

21

E07

19

KAM

22

KAO

BAW

8

30

CIA

31

30

CIA

– 58 –

FIG.28 DUPLEX UNIT II

Ref.

SP Part. No. Description

No.

1 2A017120 GUIDE,TURN OVER FEED SHIFT 1 1 1

2 2AC07120 SUPPORT PLATE,GUIDE TURN OVER FEED SHIFT 1 1 1

3 63213360 SPRING,PAPER EJECT HOLDER 1 1 1

4 2A017030 MOUNT B,FEED SHIFT SOLENOID 1 1 1

5 2A017070 MOUNT,REFEED PULLEY 1 1 1

6 2A017060 GUIDE,DUPLEX REFEED 1 1 1

7 66717100 SPRING PLATE,PULLEY 4 4 4

8 M2107120 BINDING BAND SG-130 7 7 7

9 M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2
10 2A017110 SHAFT,REFEED PULLEY 1 1 1
11 2A017200 LEVER,SWITCHBACK RELEASE 2 2 2

'

12 36808230 PULLEY,ARM LARGE 4 4 4
13 2A017050 UPPER GUIDE,DUPLEX ADMISSION 1 1 1

'

14 2A027570 SWITCH,DUPLEX CONVEYING 2 2 2

'

15 72107760 BUSHING 6,REGISTRATION ROLLER 1 1 1

'

16 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 1 1 1
17 29717150 PRESSING SPRING,FEED BACK 2 2 2
18 2A017210 MOUNT,SWITCHBACK RELEASE SOLENOID 1 1 1
19 2A017160 SHAFT,DUPLEX CONVEYING 1 1 1
20 68721630 PULLEY 40,DUPLEX CONVEYING 1 1 1

'

21 45727303 GEAR 26,CLUTCH 1 1 1

'

22 67322230 BUSHING 8 1 1 1
23 2A017180 SHAFT,DUPLEX CLUTCH 2 2 2

'

24 2AC22460 GEAR 40,FEED 2 2 2

'

25 2AC06240 CLUTCH,PAPER FEED 2 2 2

'

26 28107400 BEARING,688ZZNR 4 4 4

'

27 73210450 BUSH, 6 1 1 1
28 2A017190 MOUNT,SWITCHBACK DRIVE 1 1 1
29 68721771 RIGHT GUIDE,MIDDLE TRAY 1 1 1
30 65973030 MAGNET,CARTRIDGE 2 2 2
31 68705040 RIGHT LABEL,MIDDLE TRAY RELEASE 1 1 1

'

32 18327130 SOLENOID,STOPPER 2 2 2

'

33 68721600 GEAR,DUPLEX JOINT 1 1 1
34 33973300 STOPPER 7,CARTRIDGE 1 1 1
35 2A017040 GUIDE,MIDDLE TRAY 1 1 1
36 74716140 PAPER CONVEYING PULLEY 4 4 4
37 78621570 SHAFT FEEDBACK PULLEY 4 4 4

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 59 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.29 DUPLEX UNIT III

KAO

2CJ

E07

27

KAO

E07

E07

E07

26

8

E07

25

15

E05

E05

E04

24

E05

15

13

11

E05

15

E05

30

E05

30

29

KAM

29

6

E07

6

E07

KAO

14

28

5

7

20

16

18

17

19

E06

23

E07

E04

22

E07

29

24

29

E07

21

E05

E05

KAM

9

2

KAK

12

4

8

10

15

1

E05

15

13

3

11

15

3

E05

1

E05

– 60 –

FIG.29 DUPLEX UNIT III

Ref.

SP Part. No. Description

No.

'

1 72107760 BUSHING 6,REGISTRATION ROLLER 2 2 2

'

2 68721750 ROLLER B,DUPLEX CONVEYING 1 1 1

3 68721640 PULLEY 20,DUPLEX CONVEYING 2 2 2

'

4 2AC07301 ROLLER C,DUPLEX CONVEYING 1 1 1

5 2A017100 SHAFT D,REFEED ROLLER 1 1 1

'

6 3AK16030 PULLEY,CONVEYING 2 2 2

'

7 2A017170 ROLLER,SWITCHBACK DUPLEX 1 1 1

'

8 28107400 BEARING,688ZZNR 2 2 2

9 2A017150 SHAFT D,DUPLEX DRIVE 1 1 1

'

10 2AC07311 LOWER ROLLER B,DUPLEX CONVEYING 1 1 1
11 29717220 PRESSING SPRING B,SB 2 2 2

'

12 2AC07210 LOWER ROLLER,DUPLEX CONVEYING 1 1 1
13 76007150 SPRING PAPER PAD PULLEY 2 2 2

'

14 45727303 GEAR 26,CLUTCH 1 1 1

'

15 73210450 BUSH, 6 6 6 6
16 34922530 COLLAR,PULLEY 1 1 1
17 68721571 TENSION PLATE,DUPLEX CONVEYING 1 1 1
18 75722252 IDLE PULLEY 15 1 1 1
19 48129000 PIN,ORIGINAL HOLDER 1 1 1

'

20 68721660 BELT 600,DUPLEX CONVEYING 1 1 1

'

21 68321260 GEAR 18,SWITCH BACK 1 1 1

'

22 45729103 GEAR 17,PF BELT ROLLER 1 1 1
23 68721760 SPRING,TRAILING EDGE TAPPING 1 1 1

'

24 72118160 GEAR 22,SPIRAL ROLLER 2 2 2

'

25 45728116 GEAR 28,JOINT 1 1 1

'

26 2AC07050 GEAR 20/30,DUPLEX REGISTRATION 1 1 1

'

27 45729418 DRIVE GEAR,PRE-TRANSFER 1 1 1

'

28 2AC07040 UPPER ROLLER,DUPLEX REGISTRATION 1 1 1

'

29 67322230 BUSHING 8 4 4 4

'

30 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 61 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.30 REVERSING SECTION

47

2CJ

BAN

44

45

20

48

E03

32

KAL

46

43

E05

27

49

18

BAN

BBE

BBE

33

KAK

18

28

30

34

BAN

18

42

3

13

BAN

BAN

10

3

39

14

38

12

16

22

17

25

21

11

18

7

BAN

E05

BAN

3

4

BAL

41

40

29

E07

KAM

E07

BAN

1

E07

26

8

E05

35

27

E05

24

BAN

37

E07

36

E05

6

31

24

5

5

23

2

5

15

BAA

BAN

E07

BAN

3

9

37

19

5

5

5

– 62 –

FIG.30 REVERSING SECTION

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 36721400 COVER,FEED SHIFT WIRE 1 1 1

2 M0207000 BINDING BAND,KB-100-1 2 2 2

3 M2104260 EDGING,EDS-0607U(KITAGAWA) 4 4 4

4 M2105730 MINIATURE CLAMP,UAMS-07-0 2 2 2

5 M2107120 BINDING BAND SG-130 7 7 7

'

6 18308260 PULLEY,CONVEYING BELT 1 1 1

'

7 18327130 SOLENOID,STOPPER 1 1 1

'

8 2AC21650 PULLEY 22,FEED SHIFT 1 1 1

9 2A021010 FRONT FRAME,FEED SHIFT 1 1 1
10 2A021020 REAR FRAME,FEED SHIFT 1 1 1
11 2A021031 LOWER GUIDE,FEED SHIFT 1 1 1
12 2A021040 LEFT GUIDE,FEED SHIFT 1 1 1
13 2A021050 UPPER GUIDE,FEED SHIFT EJECT 1 1 1
14 2A021060 LOWER GUIDE,FEED SHIFT EJECT 1 1 1
15 2A021070 MOUNT,FEED SHIFT SOLENOID 1 1 1

'

16 2A021080 RIGHT ROLLER,TURN OVER FEED 1 1 1
17 2A021090 LOWER RIGHT GUIDE,TURN OVER EJECT 1 1 1

'

18 74808080 BEARING,686ZZNR 4 4 4

'

19 2A021310 ROLLER,FEED SHIFT 1 1 1
20 2A021320 LEVER A,CONVEYING SHIFT 1 1 1

'

21 2A021390 RIGHT ROLLER,FEED SHIFT(A) 1 1 1

'

22 2A021351 LEFT ROLLER,FEED SHIFT 1 1 1
23 2A027410 WIRE,FEED SHIFT UNIT 1 1 1
24 28801300 BUSING, PAPER FEED 2 2 2
25 48129208 PIN,TENSION 1 1 1

'

26 45729403 GEAR 19,S.B 1 1 1
27 29717220 PRESSING SPRING B,SB 2 2 2

'

28 33920560 SWITCH,FIXING 1 1 1

'

29 35911520 PULLEY 16,ADF 1 1 1
30 36721220 UPPER GUIDE,FEED SHIFT 1 1 1
31 36721300 TENSION PLATE,FEED SHIFT DRIVE 1 1 1
32 36721340 LEVER B,CONVEYING SHIFT 1 1 1

'

33 36721350 GEAR,EJECT JOINT 1 1 1
34 36721360 COLLAR 31,EJECT JOINT 1 1 1

'

35 36921170 BELT 300,DUPLEX CONVEYING 1 1 1

'

36 63212180 PULLEY 24,EJECT 1 1 1

'

37 67322230 BUSHING 8 2 2 2

'

38 68720160 PULLEY,FEED SHIFT 4 4 4
39 68720170 MOUNT,FEED SHIFT PULLEY 4 4 4

'

40 76514050 PULLEY 20 DRIVE 1 1 1

'

41 68720180 STATIC ELIMINATOR,FEED SHIFT 1 1 1

'

42 68727030 SWITCH,DUPLEX CONVEYING 1 1 1
43 73226040 SPRING,REVERSE SOLENOID 1 1 1
44 36721420 COVER,PAPER EJECT FAN CONNECTOR 1 1 1

'

45 2A023070 FILM,EJECT WIND SHIELD 1 1 1

'

46 20305130 LABEL L,HIGH TEMPERATURE CAUTION(EXP) 1 1 1
47 M2109180 WIRE SADDLE,LWS-1S 1 1 1
48 36721411 MOUNT,PAPER EJECT COOLING FAN 1 1 1

'

49 36727500 FAN,FIXING 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 63 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.31 PAPER EJECT SECTION

HCA

HCA

27

20

19

2CJ

BAC

5

E07

31

KAM

6

36

BAN

E07

30

24

E07

16

9

35

HBA

45

40

36

25

18

26

41

BAN

BAL

BHC

NAK

29

E07

2

44

2

15

E07

E07

BAC

36

E05

30
33

E07

36

BAN

3

1

34

42

43

18

26

BAN

4

E07

8

21

23

E04

11

13

39

E04

22

BAL

28

12

17

38

14

39

BAN

37

28

10

BAL

7

32

– 64 –

FIG.31 PAPER EJECT SECTION

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 36720470 PLATE SPRING,RELEASE HOLDER 1 1 1

2 M2107120 BINDING BAND SG-130 2 2 2

'

3 18308260 PULLEY,CONVEYING BELT 1 1 1

4 2A021110 FRONT FRAME,EJECT 1 1 1

5 2A021120 REAR FRAME,EJECT 1 1 1

'

6 2A021130 ROLLER,EJECT 1 1 1

7 2A021140 UPPER GUIDE,EJECT 1 1 1

8 2A021150 GUIDE,CONVEYING SHIFT 1 1 1

9 2A021160 TENSION PLATE,EJECT DRIVE 1 1 1

'

10 2A021170 LEFT ROLLER,TURN OVER FEED 1 1 1
11 2A021180 LEFT GUIDE,TURN OVER EJECT 1 1 1
12 2A021190 UPPER RIGHT GUIDE,TURN OVER EJECT 1 1 1
13 2A021200 INNER RIGHT GUIDE,TURN OVER EJECT 1 1 1
14 2A021210 RIGHT SUPPORT PLATE,GUIDE TURN OVER MIDD 1 1 1

'

15 2A021230 BELT 214,TURN OVER DRIVE 1 1 1
16 2A021240 COLLAR 47.2,EJECT JOINT 1 1 1
17 2A021250 GUIDE FILM,TURN OVER EJECT 1 1 1
18 2A021260 SUPPORT PLATE,TURN OVER EJECT RELEASE 2 2 2

'

19 2CJ21020 COVER,EJECT 1 1 1

'

20 2CJ21010 HANDLE,EJECT COVER RELEASE 1 1 1
21 2A021360 SHAFT,EJECT UNIT FULCRUM 1 1 1

'

22 2A021370 UPPER ROLLER,EJECT 1 1 1
23 2A027470 JUNCTION WIRING,TURN OVER EJECT SW 1 1 1

'

24 45729502 IDLE GEAR 40 1 1 1
25 72418140 SPRING, BLADE 1 1 1
26 29820110 FRONT PIN,FULCRUM 2 2 2
27 29820420 PIN,BEARING 1 1 1

'

28 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2
29 33906640 RIGHT SPRING,FEED RELEASE 1 1 1
30 33906670 RIGHT HOOK,FEED RELEASE 2 2 2
31 36721100 SHAFT,EJECT UNIT RELEASE 1 1 1
32 61714370 FRONT FELT,LOWER DEV.ROLLER 2 2 2

'

33 63212180 PULLEY 24,EJECT 1 1 1

'

34 65722030 PULLEY 22,FEED 1 1 1

'

35 67322180 GEAR 28,IDLE DRIVE 1 1 1

'

36 67322230 BUSHING 8 4 4 4

'

37 68317050 STATIC ELIMINATOR 1 1 1

'

38 68727030 SWITCH,DUPLEX CONVEYING 1 1 1
39 72707161 SPRING, PRESSING 2 2 2
40 33921170 COLLAR 16,EJECT DRIVE 1 1 1

41 M2109180 WIRE SADDLE,LWS-1S 1 1 1
42 2A021280 FRONT PIN,TURN OVER EJECT SUPPORT 1 1 1
43 36721110 FULCRUM PLATE,EJECT UNIT 1 1 1
44 2A021380 REAR MOUNT,EJECT UNIT SUPPORT 1 1 1
45 36721110 FULCRUM PLATE,EJECT UNIT 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 65 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.32 ELECTRICAL COMPONENTS I (120V)

BBE

19

4

56

65

56

49

61

45

BAN

BBE

BAL

42

53

57

47

BHC

50

60

40

BAL

BBE

44

44

BBE

54

54

56

59

GEF

59
56

62

23

46

14

27

25

16

63

BAN

BAN

2CJ

66

26

35

39

32

F301

F302

22

39

34

20

37

24

21

22

24

34

33

37

HBA

41

BBE

18

BAL

43

55

17

31

28

BAN

29

20

30

36

BAL

BAL

37

39

20

BAN

34

1

63

39

38

39

64

39

F1

15

BBE

51

BBE

BHD

51

60

13

BBE

58

BAN

59

10

7

– 66 –

F201

52

BAN

12

11

3

2

BHD

GEF

BAN

6

BBE

52

8

BAB

9

5

48

F202

FIG.32 ELECTRICAL COMPONENTS I (120V)

Ref.

SP Part. No. Description

No.

'

1 2CJ01060 JUNCTION ASS’Y A 1

2 36726120 MOUNT,POWER CORD (120) 1

3 M1203520 BUSHING,USR-40 1

4 36906390 MOUNT,PAPER SIZE DETECTION 2

5 2BC27640 WIRE GND,FINISHER 1

6 2AC27880 WIRE FG,FINISHER 1

7 2A004011 REAR MOUNT B,COVER 1

8 2CJ27120 JUNCTION WIRING L,DECK 1

9 2CJ26070 LOWER LEFT MOUNT,MAIN PCB 1
10 34027070 RELAY 4P,POWER 1
11 34027120 MOUNT BASE,POWER RELAY 1
12 36701160 POWER CORD ASS’Y (120) 1
13 2CJ26080 LOWER RIGHT MOUNT,MAIN PCB 1
14 2A026010 MOUNT,POWER SOURCE 1
15 M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W 1
16 M2109270 WIRE SADDLE,LWS-5S-2W(KITAGAWA) 3
17 2BC26270 MOUNT,HDD 1
18 2BC26280 GROUND PLATE,HDD 1

'

19 66127010 SWITCH,COVER OPEN 2
20 M2104200 EDGING EDS-1 3
21 M2104270 EDGING,EDS-2323U(KITAGAWA) 3
22 M2107120 BINDING BAND SG-130 3
23 M2109020 WIRE SADDLE,WS-2WS 1
24 M2109270 WIRE SADDLE,LWS-5S-2W(KITAGAWA) 2
25 2AC27880 WIRE FG,FINISHER 1
26 2CJ26010 SHIELD,MAIN PCB 1
27 2CJ26050 MOUNT,SORTER CONNECTOR 1
28 36726140 LID,VENDOR 1
29 77502090 LID FINISHER CABLE 1
30 2BC27640 WIRE GND,FINISHER 1
31 2CJ26040 MOUNT,INTERFACE 1
32 2CJ26090 STAY,SHIELD 1
33 2BM26020 GUIDE CF CARD 1
34 M2104220 EDGING,EDS-1717U 3
35 M2108000 SPACER,KGLS-3S 4
36 M2108930 SPACER,KGLS-8RT(KITAGAWA) 2
37 M2108670 SPACER,KGPS-6RF(KITAGAWA) 2
38 2CJ27020 WIRE S-BOX 1
39 M2107250 BAND,RSG-100(KITAGAWA) 14
40 2BC04230 LID,INTERFACE 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 2BC26070 LID,CONTROLLER 1
42 2A026140 LID,CCD JUNCTION WIRING 1

'

43 2A093020 PARTS,UNIT HDD(S)SP 1
44 M2104210 EDGING,EDS-2 2
45 2CJ27060 WIRE LCF 1
46 2A027690 JUNCTION WIRING LCF,FAN 1
47 2CJ27080 JUNCTION WIRING,CCD 1

'

48 2A028121 POWER SOURCE PCB 120 1
49 M2505190 CLAMP,GNK-4N(NIKKO) 1
50 33927450 RETAINING PIN,DRAWER 4
51 36726020 SUPPORT PLATE,POWER SOURCE MOUNT 2
52 34960140 RESISTOR 15,OHM 2
53 36726051 MOUNT,WIRE MAIN 1
54 36727300 JUNCTION WIRING,PAPER FEED UNIT 2
55 72114870 V-RING 6 DIA 4
56 74327180 PIN,CONNECTOR 8
57 J0464080 RECEPTACLE,QR/P15-8S-C(02)(HIROSE) 2
58 M2607010 BINDING BAND,PLT1M 2
59 M2107120 BINDING BAND SG-130 3
60 M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W 3
61 2A026130 MOUNT,CCD JUNCTION WIRING 1
62 2A626120 LID,NIC 1
63 M2108120 SPACER,KGLS-4S 4
64 M2108130 SPACER,KGPS-4S 3
65 M2505170 CLAMP,GNK-2N(NIKKO) 1
66 2CJ27130 SHIELD A,GASKET 1

'

F1 M1661000 FUSE 15A,314015 1

'

F201 M5558000 FUSE,UL-TSC-8A-N1(S.O.C) 1

'

F202 M5558000 FUSE,UL-TSC-8A-N1(S.O.C) 1

'

F301 M5554030 FUSE,TSC-AC125V-4A(SOC) 1

'

F302 M5554030 FUSE,TSC-AC125V-4A(SOC) 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 67 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.32 ELECTRICAL COMPONENTS I (230/240V)

BBE

19

13

61

BBE

65

70

65

74

69

40

47

BAN

BBE

BHD

61

54

BAL

16

41

62

46

BHC

BBE

55

43

54

BAN

BAL

BBE

59

2CJ

66

BAN

31

30

BAL

28

27

39

29

BAN

59

BBE

52

BBB

GEF

23

25

BAN

1

67

39

67

63

63

65

57

57

65

49

56

17

68

BBB

18

57

60

BAN

10

11

BAL

4

12

7

GEF

75

15
14

3

2

BHD

BAL

4

GEF

60
74

8

BAB

BAN

9

6

5

53

BAL

73

20

37

34

20

BBE

71

38

F2

50

39

39

F1

26

36

BAN

BBE

39

35

F201

32

F301

F302

F202

22

39

34

20

37

24

51

21

22

24

34

33

37

72

HBA

42

BBE

45

BAL

48

64

44

58

– 68 –

FIG.32 ELECTRICAL COMPONENTS I (230/240V)

Ref.

SP Part. No. Description

No.

'

1 2CJ01060 JUNCTION ASS’Y A 1 1

2 2AC27830 WIRING,INLET N 1 1

3 2AC27840 WIRING,INLET L 1 1

4 18512731 PLATE SPRING,OPERATION UNIT PCB 2

5 2BC27640 WIRE GND,FINISHER 1 1

6 2AC27880 WIRE FG,FINISHER 1 1

7 2A004011 REAR MOUNT B,COVER 1 1

8 2CJ27120 JUNCTION WIRING L,DECK 1 1

9 2CJ26070 LOWER LEFT MOUNT,MAIN PCB 1 1
10 34027070 RELAY 4P,POWER 1 1
11 34027120 MOUNT BASE,POWER RELAY 1 1
12 2A026240 MOUNT,INLET 1 1
13 36906390 MOUNT,PAPER SIZE DETECTION 2 2
14 L0023080 ROUND TYPE TERMINAL,173638-1 1 1
15 2A027670 NOISE FILTER(200) 1
16 2CJ26080 LOWER RIGHT MOUNT,MAIN PCB 1 1
17 2A026011 MOUNT,POWER SOURCE 1 1
18 M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W 1 1

'

19 66127010 SWITCH,COVER OPEN 2 2
20 M2104200 EDGING EDS-1 3 3
21 M2104270 EDGING,EDS-2323U(KITAGAWA) 3 3
22 M2107120 BINDING BAND SG-130 3 3
23 M2109020 WIRE SADDLE,WS-2WS 1 1
24 M2109270 WIRE SADDLE,LWS-5S-2W(KITAGAWA) 2 2
25 2AC27880 WIRE FG,FINISHER 1 1
26 2CJ26010 SHIELD,MAIN PCB 1 1
27 2CJ26050 MOUNT,SORTER CONNECTOR 1 1
28 36726140 LID,VENDOR 1 1
29 77502090 LID FINISHER CABLE 1 1
30 2BC27640 WIRE GND,FINISHER 1 1
31 2CJ26040 MOUNT,INTERFACE 1 1
32 2CJ26090 STAY,SHIELD 1 1
33 2BM26020 GUIDE CF CARD 1 1
34 M2104220 EDGING,EDS-1717U 3 3
35 M2108000 SPACER,KGLS-3S 4 4
36 M2108930 SPACER,KGLS-8RT(KITAGAWA) 2 2
37 M2108670 SPACER,KGPS-6RF(KITAGAWA) 2 2
38 2CJ27020 WIRE S-BOX 1 1
39 M2107250 BAND,RSG-100(KITAGAWA) 14 14
40 2A026130 MOUNT,CCD JUNCTION WIRING 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

Quantity

230V120V 240V

2CJ

Ref.

SP Part. No. Description

No.

41 2A026140 LID,CCD JUNCTION WIRING 1 1
42 2BC26070 LID,CONTROLLER 1 1
43 2BC04230 LID,INTERFACE 1 1
44 2BC26270 MOUNT,HDD 1 1
45 2BC26280 GROUND PLATE,HDD 1 1
46 2CJ27080 JUNCTION WIRING,CCD 1 1
47 2CJ27060 WIRE LCF 1 1

'

48 2A093020 PARTS,UNIT HDD(S)SP 1 1
49 2A027690 JUNCTION WIRING LCF,FAN 1 1

'

50 2A028071 POWER SOURCE PCB 200 1 1
51 18527460 POWER CORD 220 1
52 18526211 GROUND PLATE A,NOISE 1
53 18526340 GROUND PLATE,LCD 2
54 M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W 3 3
55 M2607010 BINDING BAND,PLT1M 2 2
56 M2109270 WIRE SADDLE,LWS-5S-2W(KITAGAWA) 3 3
57 M2107120 BINDING BAND SG-130 3 3
58 29927231 POWER CODE AS(240) 1
59 M2104210 EDGING,EDS-2 2 2
60 34960140 RESISTOR 15,OHM 2 2
61 36726020 SUPPORT PLATE,POWER SOURCE MOUNT 2 2
62 36726051 MOUNT,WIRE MAIN 1 1
63 36727300 JUNCTION WIRING,PAPER FEED UNIT 2 2
64 72114870 V-RING 6 DIA 4 4
65 74327180 PIN,CONNECTOR 8 8
66 2A626120 LID,NIC 1 1
67 M2108120 SPACER,KGLS-4S 4 4
68 M2108130 SPACER,KGPS-4S 3 3
69 M2505190 CLAMP,GNK-4N(NIKKO) 1 1
70 M2505170 CLAMP,GNK-2N(NIKKO) 1 1
71 2CJ27130 SHIELD A,GASKET 1 1
72 2BC27860 SHIELD B,GASKET PRINTER 1
73 2AV27440 CORE 15-26X13 1
74 2A627930 CORE 11-25X14 2
75 2A627930 CORE 11-25X14 1 1

'

F1 M5558010 FUSE,MT4(SOC) 1 1

'

F2 M5558010 FUSE,MT4(SOC) 1 1

'

F201 M5558000 FUSE,UL-TSC-8A-N1(S.O.C) 1 1

'

F202 M5558000 FUSE,UL-TSC-8A-N1(S.O.C) 1 1

'

F301 M1654030 FUSE,218004(LITTLE-FUSE) 1 1

'

F302 M1654030 FUSE,218004(LITTLE-FUSE) 1 1

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

Quantity

230V120V 240V

– 69 –

FIG.33 ELECTRICAL COMPONENTS II

BBB

19

14

15

BBB

HAI

HBR

12

9

11

10

77

BBE

13

BBE

BBB

18

20

16

BBE

13

2CJ

BBE

BBE

BBE

BBE

3

BEF

4

BBB

BEA

6

7

2

8

BEF

5

4

BHC

38

39

BAY

39

34

BBE

41

GEF

40

21

BBE

33

BBE

BBE

BBE

32

35

BBE

BBE

36

BBE

BBE

42

25

28

BHD

26

27

BHD

31

– 70 –

BBU

BBB

24

23

22

17

BHD

29

37

30

BBE

BBE

BBE

1

BBE

BBE

BBE

BBE

FIG.33 ELECTRICAL COMPONENTS II

Ref.

SP Part. No. Description

No.

'

1 2CJ93080 PARTS,ASS’Y ENGINE OUTPUT PCB,SP 1 1 1

2 2A010050 TERMINAL BASE,MAIN HIGH VOLTAGE 1 1 1

3 2A027600 JUNCTION WIRING,DEVELOPING BIAS 1 1 1

4 36710220 TERMINAL,MAIN HIGH VOLTAGE 2 2 2

5 36727361 WIRE,MAIN HIGH VOLTAGE 1 1 1

6 36727371 WIRE,GRID 1 1 1

7 61710610 TERMINAL,GRID CATCHER 1 1 1

8 2CJ26060 UPPER LEFT MOUNT,MAIN PCB 1 1 1

9 M2105740 MINIATURE CLAMP,UAMS-05S-2 1 1 1
10 36721070 MOUNT,EJECT COVER SW 1 1 1
11 36721080 COVER,EJECT SW 1 1 1

'

12 61727540 INTERLOCK SWITCH B 1 1 1

'

13 66006350 SWITCH,CASSETTE LIFT 2 2 2
14 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1

'

15 2AC01140 TOTAL COUNTER ASS’Y111
16 72418400 GROUND PLATE, CLEANING 1 1 1

'

17 2CJ01070 JUNCTION ASS’Y B 1 1 1
18 M2107250 BAND,RSG-100(KITAGAWA) 1 1 1
19 2A026200 MOUNT,TOTAL COUNTER 1 1 1
20 2A026020 UPPER RIGHT MOUNT,MAIN PCB 1 1 1
21 M2104270 EDGING,EDS-2323U(KITAGAWA) 2 2 2
22 36702231 MOUNT,SAFETY SWITCH 1 1 1

'

23 61727540 INTERLOCK SWITCH B 1 1 1
24 71804400 MAGNET,LOWER FRONT COVER 1 1 1

'

25 2A327010 SENSOR,HUMIDITY 1 1 1
26 2A026150 MOUNT,MAIN SWITCH 1 1 1
27 36702221 MOUNT,MAIN SWITCH 1 1 1

'

28 2BC27750 SWITCH,MAIN 1 1 1

'

29 2CJ93070 PARTS,ASS’Y MAIN PCB,SP 1 1 1

'

30 •NAS09020 BACKUP RAM,M48T35Y-70PC1 1 1 1
31 M2108120 SPACER,KGLS-4S 3 3 3
32 J5016020 CASE,BU02P-TR-PC-H(JST) 1 1 1
33 M2105730 MINIATURE CLAMP,UAMS-07-0 1 1 1

'

34 2BL27630 FAN COOLING(80-NMB) 1 1 1
35 2CJ26020 UPPER LID,SHIELD 1 1 1
36 2CJ26030 LOWER LID,SHIELD 1 1 1

'

37 2CJ04030 COVER CF 1 1 1
38 M2107120 BINDING BAND SG-130 1 1 1
39 M2108000 SPACER,KGLS-3S 3 3 3
40 2A026080 MOUNT,HIGH VOLTAGE 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

'

41 2A028080 MAIN HIGH VOLTAGE PCB 1 1 1
42 2CJ27140 SHIELD B,GASKET 1 1 1

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 71 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.34 OPERATION UNIT

2CJ

25

27

14

BHI

40

47

24

35
37

21

19

26

34

39

17

38

12

13

33

20

23

BUH

46

18

22

37

1

45

10

11

9

8

3

32

BHI

7

6

5

4

15

49

16

2

19

44

BHI

36

BHV

22

BUH

36

BHV

48

31

BBE

BHI

43

BHI

BBB

BBE

29

41

42

BHI

30

BHI

BBE

– 72 –

30

28

BHI

FIG.34 OPERATION UNIT

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'

'
'
'
'
'
'
'
'

2CJ93100 PARTS,ASS’Y OPERATION UNIT,EXP-SP 1 1 1
1 •2CJ25080 COVER,OPERATION UNIT(EXP) 1 1 1
2 •2BJ25370 SHEET TABLET 1 1 1
3 •2BJ25101 UPPER KEY FUNCTION 5 5 5
4 •2BJ25020 KEY OPERATION 10 1 1 1
5 •2BJ25300 KEY PRINT E 1 1 1
6 •2BJ25040 KEY STOP 1 1 1
7 •2BJ25050 KEY RESET 1 1 1
8 •2BJ25060 KEY SAVER 1 1 1
9 •2BJ25070 KEY INTERRUPT 1 1 1

10 •2BJ25080 KEY CONTROL 1 1 1
11 •2BJ25090 KEY INIT 1 1 1
12 •2BJ25250 VOLUME OPE UNIT 1 1 1
13 •2BJ25240 BARRIER TABLET 1 1 1
14 •2BJ25230 RIGHT DUST SHIELD 1 1 1
15 •2BJ25210 LEFT DUST SHIELD 1 1 1
16 •2BJ01071 OPERATION ASS’Y B 1 1 1
17 •2BJ27060 TABLET OPERATION 1 1 1
18 •2BJ25270 SPONGE LCD A 2 2 2
19 •2BJ25280 SPONGE LCD B 2 2 2
20 •2CJ28080 LCD PCB 1 1 1
21 •2BJ27140 WIRE LCD 1 1 1
22 •2BJ04220 GROUND PLATE LCD A 2 2 2
23 •2BJ04240 GROUND PLATE LCD C 1 1 1
24 •2BJ25220 CENTER DUST SHIELD 1 1 1
25 •2BJ01031 OPERATION ASS’Y A 1 1 1
26 •2BJ04230 GROUND PLATE LCD B 1 1 1
27 •2BJ04210 SHIELD LCD 1 1 1
28 •2CJ25020 RIGHT MOUNT,OPERATION COVER 1 1 1
29 •2CJ25030 CENTER MOUNT,OPERATION COVER 1 1 1
30 •M2104250 EDGING,EDS-17L(KITAGAWA) 2 2 2
31 •2CJ25040 LEFT MOUNT,OPERATION COVER 1 1 1
32 •2CJ25130 RIGHT LID,OPERATION UNIT 1 1 1
33 •2BJ25310 LEFT KEY COPIER E 1 1 1
34 •2BJ25320 LEFT KEY PRINTER E 1 1 1
35 •2BJ25330 LEFT KEY SCANNER E 1 1 1
36 •2BJ25390 RETAINER LCD 2 2 2
37 •2CJ25090 LEFT LID,OPERATION UNIT 2 2 2
38 •2CJ25100 LID,OPERATION UNIT COPIER 1 1 1
39 •2CJ25110 LID,OPERATION UNIT PRINTER 1 1 1

'

40 •2CJ25120 LID,OPERATION UNIT SCANNER 1 1 1
41 •M2108850 SPACER,KGPS-8RF(KITAGAWA) 1 1 1
42 •M2108880 SPACER,KGPS-5RF(KITAGAWA) 1 1 1
43 •2CJ25050 RETAINER,OPERATION COVER 1 1 1

'

44 •2BJ25380 SHEET OPERATION PCB 1 1 1

'

45 •2BC25020 SHEET FUNCTION (EXP) 1 1 1

'

46 •2BJ25400 SHEET LCD A 1 1 1

'

47 •2BJ25410 SHEET LCD B 1 1 1

'

48 •2BJ25420 SHEET LCD C 1 1 1

'

49 •2CJ25010 OUTER COVER,OPERATION 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 73 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.35 WIRE SECTION I

2

2CJ27040 WIRE,PRIMARY

PSPCB

CN 10

CN 12

FIXING
UNIT

2CJ27070 WIRE A,JUNCTION

4

2CJ

2CJ27030 WIRE,SECONDARY

1

SHIELD

CASE 2

SHIELD

CASE 1

JOINT
CONNECTOR

L DECK

POWER

L DECK

PG

CN 11

TB 3

SCANNER UNIT
JUNCTION
CONNECTOR

K

C

E

D

L

O

I

T

C

N

U

J

N

5

JUNCTION
SAFTY
SW

MSW

FB BIAS

EPCB

CN11 CN9 CN22

DH

CN4

CN9

PRY

CH

CN8 CN7 CN6 CN5 CN3 CN2 CN1

PSPCB

MCFM

FBB GND

2BC27510 WIRE,HDD

3

CFM

FORMATION
UNIT

JPCB-A

CN7CN10

CN5

HDD MPCB

FWEB SOL

FFM

CN4

LSUFM 2

SSW 3

BRANCH

UNIT

LSUFM 1

FIXING

UNIT

– 74 –

FIG.35 WIRE SECTION I

Ref.

SP Part. No. Description

No.

1 2CJ27030 WIRE,SECONDARY 1 1 1
2 2CJ27040 WIRE,PRIMARY 1 1 1
3 2BC27510 WIRE,HDD 1 1 1
4 2CJ27070 WIRE A,JUNCTION 1 1 1
5 2A627930 CORE 11-25X14 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 75 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.36 WIRE SECTION II

2CJ

MPCB

S.P
SENSOR

LSU
LD CIRCUIT

SSW4

OPCB

CN1

CN3

CN2

TC

MAIN SW
JUNCTION

2

BYP
PFCL

JPCB-B

CN8-B

PAPER
FEED UNIT

CN9

S-DF
OPTICAL
JUNCTION

S-DF
OPTICAL
JUNCTION

CN8-A

CN10

IFM

PFSW1

BYPLCL

BYPPSW

MAIN

H.V.U.

BFM2

CN 8 CN 2

CN7-A CN7-B CN4-A

PAPER
FEED UNIT

CN7

FCL 1

SAFTY SW
JUNCTION

FCL 3

PFSW 3

PWSW4

CN5

CN4

TCBDSW

CN 6

PCLM4

LSU
BD CIRCUIT

CN6

RCL

CN 3

PWSW 3

DM

PCLM 3

KEY CARD

2

CN11

CN10

CN9CN8CN7

BYPASS

UNIT
FEED
SAFTY SW UP

PFSW2

FCL2

PFM

LPDCCL

FEED

SAFTY SW

DOWN

EPCB

CN 21

PFSW4

FCL4

L DECK

PFSW5

FCL5

BFM1

TCBRCL

LSU

CN 10

CN 5

DUPFM

PLSW 4

PLSW3

3

OPFM

CN 23

WTDSW

CN 17

DUPLEX UNIT

WTDSW

MSW OFF

SBESW

HUMPCB

1

2CJ27010 WIRE,MAIN

– 76 –

FIG.36 WIRE SECTION II

Ref.

SP Part. No. Description

No.

1 2CJ27010 WIRE,MAIN 1 1 1
2 2A627930 CORE 11-25X14 2
3 2A627940 CORE 10-20X10 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 77 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.37 EXTERIOR COVERS (DF)

2CJ

1

25

BUH

BHN

24

XBC

7

BUH

7

19

10

6

BHN

XBC

9

8

24

BAL

2

5

19

BAN

13

5

BAN

BAL

22

8

BAL

23

12

3

21

BAL

20

23

BAL

11

HCA

18

BAL

HCA

14

4

HCA

HCA

15

26

HCA

18

17

HCA

– 78 –

HCA

16

27

FIG.37 EXTERIOR COVERS (DF)

Ref.

SP Part. No. Description

No.

'

1 3C004050 LEFT COVER 1 1 1

'

2 3AL05090 LABEL,JAM REMOVEMENT 1 1 1
3 3C007010 FRONT HOOK,LEFT COVER 1 1 1
4 3C007020 REAR HOOK,LEFT COVER 1 1 1

'

5 3AL08140 UPPER PULLEY,CONVEYING 2 2 2
6 3AL08180 UPPER SHAFT,CONVEYING PULLEY 1 1 1
7 3AL08220 UPPER PLATE SPRING,CONVEYING PULLEY 2 2 2
8 3AL08270 PLATE SPRING,REGISTRATION GUIDE 2 2 2
9 3AL08360 STOPPER,LEFT COVER FRONT 1 1 1

10 3AL08370 STOPPER,LEFT COVER REAR 1 1 1

'

11 3BC04011 COVER,PAPER FEED 1 1 1

'

12 3AL05080 LABEL,ORIGINAL SET 1 1 1

'

13 3C004010 FRONT COVER 1 1 1

'

14 3C004020 REAR COVER 1 1 1

'

15 3AL04110 RIGHT COVER(K M) 1 1 1
16 3AL04060 MAT,ORIGINAL HOLDER 1 1 1

'

17 3C004030 STOPPER,EJECT ORIGINAL 1 1 1
18 3AL04080 FILM,ORIGINAL HOLDER 2 2 2
19 63202120 SUPPORT PLATE,COVER 2 2 2

'

20 3AL05111 LABEL,OPERATION 1 1 1
21 3C004040 HANDLE,HOOK 1 1 1
22 3AL07290 SHAFT,HOOK 1 1 1
23 72118141 SPRING,CLEANING BLADE 2 2 2

'

24 3AL08500 PULLEY,REGISTRATION 2 2 2

'

25 3AL05120 LABEL,DF ORIGINAL CAUTION 1 1 1

'

26 3C005020 LABEL,HINGE CAUTION 1 1 1
27 3C002010 RIGHT REINFORCEMENT,COVER 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 79 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.38 FRAMES (DF)

2CJ

BAN

1

10

21

12

12

23

20

16

3

12

24

16

22

13

9

9

24

25

BAN

BAL

19

10

11

10

15

BAL

10

BAL

11

BAL

4

BAN

2

18

17

17

14

E05

HAH

BMF

5

HAD

6

8

7

– 80 –

FIG.38 FRAMES (DF)

Ref.

SP Part. No. Description

No.

'

1 3AL03013 LEFT HINGE 1 1 1

'

2 3AL03023 RIGHT HINGE 1 1 1
3 3AL02200 SPACER,SRDF 1 1 1
4 3AL02050 MOUNT,RELEASE SWITCH 1 1 1

'

5 36827140 SWITCH A,INTERLOCK 1 1 1
6 3AL02080 HOLDER,SPRING 1 1 1
7 3AL02070 STOPPER,ORIGINAL DETECTION SWITCH 1 1 1
8 66008070 SPRING,DRUM DRIVE 1 1 1

9 M2104200 EDGING EDS-1 2 2 2
10 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 4 4 4
11 3BC02040 MOUNT,DF PCB 2 2 2
12 M1203200 OPEN BUSHING,OCB-375 3 3 3
13 3AL03032 LEFT STAY,HINGE 1 1 1
14 3AL03045 RIGHT STAY,HINGE 1 1 1
15 3AL02100 GUIDE,INTERFACE WIRE 1 1 1
16 M2105730 MINIATURE CLAMP,UAMS-07-0 3 3 3
17 29820110 FRONT PIN,FULCRUM 4 4 4
18 3AL03050 PIN,HINGE ADJUSTMENT(M) 1 1 1
19 M2109080 LOCKING WIRE SADDLE,LWS-4NS 1 1 1
20 3BC02010 FRONT FRAME 1 1 1
21 3BC02020 REAR FRAME 1 1 1
22 3BC02030 STAY,PAPER FEED 1 1 1
23 65907610 SEAL,PAPER EMPTY 1 1 1
24 23227350 SHIELD B,GASKET 2 2 2
25 M2108950 SPACER,KGPS-18S(KITAGAWA) 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 81 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.39 PAPER FEED-IN SECTION (DF)

BAN

2CJ

7

4

3

6

16

12

5

14

11

BAN

HAO

1

1

13

HAO

15

8

HAO

HAO

8

HAO

2

HAO

9

BAP

17

10

HAO

– 82 –

FIG.39 PAPER FEED-IN SECTION (DF)

Ref.

SP Part. No. Description

No.

1 3AL06102 FULCRUM PIN,TABLE 2 2 2

'

2 18327100 SWITCH,SIZE DETECTION 1 1 1

'

3 3AL05040 LABEL,ORIGINAL SIZE(METRIC) 1 1 1

4 3AL05060 LABEL,ORIGINAL CURSOR(METRIC) 1 1 1

'

5 3C006010 TABLE,ORIGINAL 1 1 1

6 3AL06130 FRONT GUIDE,ORIGINAL(K M) 1 1 1

7 3AL06140 REAR GUIDE,ORIGINAL(K M) 1 1 1

8 3AL06041 RACK,TABLE 2 2 2

'

9 3C006020 COVER,TABLE 1 1 1
10 3AL06060 MOUNT,SIZE DETECTION 1 1 1
11 3AL06072 FRONT SUPPORT PLATE,TABLE 1 1 1
12 3AL06090 CUSHION,ORIGINAL GUIDE 1 1 1

'

13 3C006030 COVER,ORIGINAL GUIDE 1 1 1
14 3AL27030 WIRE,TABLE 1 1 1

'

15 65907210 GEAR 20,CASSETTE 1 1 1

'

16 78706241 FILTER CF SENSOR 1 1 1

'

17 78727110 JAM DETECTION SWITCH 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 83 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.40 PAPER CONVEYING SECTION (DF)

46

BAL

2CJ

E05

24

25

12

11

KAM

23

KAV

KAM

10

3

2

KAV

3

33

6

16

XAD

50

42

15

33

20

5

WAE

23

23

20

HBA

9

7

40

37

17

26

E05

HBA

20

BAL

21

BMF

35

38

51

20

HBA

14

27

E04

44

23

19

29

49

BAN

48

KAM

HAD

29

30

1

BAL

28

39

E05

E05

23

HBA

22

13

43

E04

31

4

34

E05

41

39

HAD

8

32

47

BAL

KBC

18

45

BBA

36

– 84 –

FIG.40 PAPER CONVEYING SECTION (DF)

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 3BR07180 SPRING,SEPARATION PULLEY 2 2 2

2 M2109350 WIRE SADDLE,YMC-15-0(KITAGAWA) 1 1 1

'

3 66206190 LOWER PULLEY 26,FEED 2 2 2

4 3BC07250 SPRING,LIFT PLATE 1 1 1

'

5 3BC07010 PULLEY,LEADING FEED 1 1 1

'

6 3BC07020 PULLEY,SEPARATION 1 1 1

7 3BC07031 UPPER GUIDE,PAPER FEED 1 1 1

8 3BC07050 LIFT PLATE,PAPER FEED 1 1 1

9 3BC07260 STOPPER,ORIGINAL 1 1 1
10 3BC07080 SHAFT,LEADING FEED 1 1 1
11 3BC07090 FRONT SHAFT,PAPER FEED 1 1 1
12 3BC07100 REAR SHAFT,PAPER FEED 1 1 1
13 3BC07230 GUIDE,SEPARATION 1 1 1

'

14 33906430 TORQUE LIMITER,BYPASS 1 1 1

'

15 3BC07170 BELT 138,LEADING FEED 1 1 1

'

16 35327400 SWITCH,FEED 1 1 1

'

17 63227150 SWITCH L,FEED 1 1 1

'

18 3AL27070 SOLENOID,LEADING FEED 1 1 1

'

19 3AL28020 SET LED PCB 1 1 1

'

20 34806150 STOPPER 5 4 4 4

'

21 36827140 SWITCH A,INTERLOCK 1 1 1

'

22 3BC07320 PAD,LIFT 1 1 1

'

23 73210450 BUSH, 6 5 5 5
24 73818100 SPRING, BLADE THRUST 1 1 1
25 74306520 JOINT,PULLEY DRIVE SHAFT 1 1 1

'

26 29806560 BUSHING 6 1 1 1

'

27 3BC07020 PULLEY,SEPARATION 1 1 1
28 3BC07060 MOUNT,SEPARATION PULLEY 1 1 1
29 3BC07071 ARM,SEPARATION PULLEY 2 2 2
30 3BC07111 SHAFT,SEPARATION 1 1 1

'

31 3AL93010 PARTS,CLUTCH PAPER FEED,SP 1 1 1
32 3BC07120 SHAFT,LIFT PLATE 1 1 1

'

33 3BC07130 ONE-WAY CLUTCH 6 2 2 2
34 3BC07300 LEVER B,LIFT 1 1 1

'

35 63212210 STATIC ELIMINATOR,EJECT 1 1 1
36 3BC07161 MOUNT,LIFT SOLENOID 1 1 1

'

37 3BC07181 ACTUATOR,ORIGINAL SET 1 1 1
38 M0207000 BINDING BAND,KB-100-1 1 1 1
39 3BC07040 LOWER GUIDE,PAPER FEED 2 2 2
40 3BC07200 MOUNT,SET SWITCH 1 1 1

'

41 73210450 BUSH, 6 1 1 1
42 3BC07210 SPRING,ACTUATOR 1 1 1
43 65706200 SEAL B,RACK 1 1 1

'

44 65710330 PULLEY,EJECT TENSION 1 1 1
45 M2607010 BINDING BAND,PLT1M 1 1 1
46 M2105720 MINIATURE CLAMP,UAMS-05-2 1 1 1
47 3BC07270 SHEET,LIFT PLATE PAPER FEED 2 2 2

'

48 3BC07311 STATIC ELIMINATOR,EJECT 1 1 1
49 3BC07290 UPPER SHEET,GUIDE PAPER FEED 1 1 1

'

50 34806140 STOPPER 4 1 1 1

'

51 3BC07340 FRONT STATIC ELIMINATOR,EJECT 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 85 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.41 REVERSING SECTION (DF)

E07

2CJ

40

31

4

42

KBC

1

30

7

E04

42

14

15

8

24

20

E03

22

40

20

E03

23

32

BAL

BAL

37

43

33

KFB

25

E05

38

BBA

BAL

KFB

21

26

27

41

3

36

E07

28

E04

27

18

9

17

41

16

39

E05

1

45

39

6

5

12

19

4

2

BHN

13

15

11

BAL

15

3

34

8

46

44

29

BAA

BAL

E05

35

BHN

13

10

15

11

46

– 86 –

FIG.41 REVERSING SECTION (DF)

Ref.

SP Part. No. Description

No.

'

1 29806560 BUSHING 6 2 2 2

2 3BC08031 GUIDE,RESISTANCE 1 1 1

3 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 2 2 2

4 3BC08190 HANDLE,REGISTRATION GUIDE 2 2 2

5 3BC08090 SHAFT,REGISTRATION PULLEY 1 1 1

'

6 3AL10020 ROLLER,LOOP 1 1 1

'

7 33918100 GEAR 18,FUR BRUSH 1 1 1

8 3BC08061 SHAFT,EJECT PULLEY 2 2 2

9 3AL10281 LOWER LEFT SHEET B,GUIDE LOOP 1 1 1
10 3BC08042 GUIDE,EJECT 1 1 1

'

11 3AL08170 PULLEY,EJECT 2 2 2

'

12 3BC08220 PULLEY B,REGISTRATION 3 3 3
13 3AL08260 PLATE SPRING,EJECT GUIDE 2 2 2
14 3AL08410 SHEET,GUIDE EJECT 1 1 1
15 3AL08560 SPRING,EJECT PULLEY 4 4 4
16 3AL10032 GUIDE,LOOP FEED SHIFT 1 1 1
17 3AL10166 LEFT GUIDE,LOOP 1 1 1
18 3AL10181 LEFT SHEET,GUIDE LOOP 1 1 1
19 3BC08180 REINFORCEMENT,REGISTRATION GUIDE 1 1 1

'

20 3AL08170 PULLEY,EJECT 2 2 2
21 3AL10040 SHAFT,FULCRUM PULLEY 1 1 1
22 3AL10060 SHAFT,LOOP PULLEY 1 1 1
23 3AL10120 FRONT HOLDER,LOOP PULLEY 1 1 1
24 3AL10200 REAR HOLDER,LOOP PULLEY 1 1 1
25 3AL10011 GUIDE,LOOP 1 1 1
26 3AL10170 SHEET,GUIDE LOOP 1 1 1
27 3AL10210 SHEET,LOOP PULLEY 2 2 2
28 3AL10091 LEVER,LOOP PULLEY SOLENOID 1 1 1
29 3AL10143 MOUNT,LOOP PULLEY SOLENOID 1 1 1

'

30 3AL27111 SOLENOID,LOOP PULLEY 1 1 1
31 3AL10230 SPRING,LOOP PULLEY SOLENOID 1 1 1
32 3AL10081 LEVER,LOOP FEED SHIFT 1 1 1
33 3AL10110 LEVER,LOOP FEED SHIFT SOLENOID 1 1 1
34 3AL10100 LEVER,LOOP PULLEY 1 1 1
35 60606101 BUSHING FEED BACK ROLLER 1 1 1
36 3BC07330 PIN B,PAPER FEED GUIDE 1 1 1

'

37 3AL27080 SOLENOID,FEED SHIFT 1 1 1
38 3AL08490 SPRING,EJECT FEED SHIFT 1 1 1
39 3BC08130 SPRING,REGISTRATION PULLEY 2 2 2
40 63526080 SPRING,SAFETY SWITCH LEVER 2 2 2

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

41 3AL08590 UPPER SHEET B,CONVEYING PULLEY 2 2 2
42 3BC08140 SHEET,EJECT PULLEY 2 2 2

'

43 34806140 STOPPER 4 1 1 1
44 M2607010 BINDING BAND,PLT1M 1 1 1
45 3AL10290 LEFT PIN,GUIDE LOOP 1 1 1

'

46 65016080 STOP RING E3 2 2 2

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 87 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.42 PAPER EJECT SECTION (DF)

2CJ

5

24

4

7

6

HAD

47

HAD

E05

2

5

7

3

BAL

23

E05

49

48

E05

38

E05

WAE

E05

BAL

BHN

31

KAL

25

20

40

54

41

60

33

HAD

E05

E05

25

34

37

E04

BAL

E05

1

3

E05

KFJ

44

E04

46

BAL

36

59

16

42

E04

14

13

BBA

43

28

45

32

BAL

30

55

9

KAM

27

22

BAL

E05

25

BAL

35

23

43

56

44

29

10

BAP

BAL

57

19

11

21

12

58

61

17

BBB

26

18

39

8

BAL

52

51

51

52

BAL

53

50

BAL

BAL

E05

15

– 88 –

FIG.42 PAPER EJECT SECTION (DF)

Ref.

SP Part. No. Description

No.

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

1 3AL08033 GUIDE,CONVEYING 1 1 1

2 3AL08190 LOWER SHAFT,CONVEYING PULLEY 1 1 1

3 3AL08240 LOWER PLATE SPRING,CONVEYING PULLEY 2 2 2

4 3AL08302 COVER,CONVEYING PULLEY 1 1 1

5 3AL08421 OUTER SHEET,GUIDE CONVEYING 2 2 2

6 3AL08430 INNER SHEET,GUIDE CONVEYING 1 1 1

'

7 3AL08480 FRONT PULLEY,READING 2 2 2

8 3AL08451 SHEET,GUIDE PLATE EJECT 1 1 1

9 3AL08072 GUIDE,READING 1 1 1
10 3AL08401 SHEET,ORIGINAL HOLDER 1 1 1
11 3AL10073 LIGHT SHIELD,LOOP 1 1 1
12 3AL10131 MOUNT,LIGHT SHIELD 1 1 1
13 3AL08310 MOUNT,EJECT SOLENOID 1 1 1

'

14 3AL27080 SOLENOID,FEED SHIFT 1 1 1

'

15 63806290 BUSHING,6 1 1 1

'

16 73210450 BUSH, 6 1 1 1
17 3BC08011 RIGHT GUIDE,REGISTRATION 1 1 1
18 3BC08020 GUIDE PLATE,EJECT 1 1 1

'

19 3BC08150 INNER ROLLER,CONVEYING 1 1 1
20 3BC22110 SPRING,CONVEYING ROLLER 1 1 1
21 3AL10190 SPRING,LIGHT SHIELD 1 1 1

'

22 3C027020 SENSOR,TIMING SWITCH 1 1 1
23 63511541 PIN,ADF 2 2 2
24 3AL08530 INNER SHEET,GUIDE CONVEYING LARGE 1 1 1

'

25 74808080 BEARING,686ZZNR 6 6 6
26 3BC08160 GUIDE,EJECT FEED SHIFT 1 1 1
27 3BC08081 LEVER,EJECT 1 1 1
28 3AL08341 LEVER,EJECT SOLENOID 1 1 1
29 M2105720 MINIATURE CLAMP,UAMS-05-2 3 3 3

'

30 3AL08161 UPPER ROLLER,CONVEYING 1 1 1

'

31 3AL02150 GEAR 24,JAM REMOVEMENT 1 1 1

'

32 3AL08112 LOWER ROLLER,CONVEYING 1 1 1

'

33 18307370 PULLEY 25/18P2M,PAPER FEED 1 1 1

'

34 3AL22040 GEAR Z18/T25P2M 1 1 1

'

35 29806560 BUSHING 6 2 2 2
36 75714210 COLLAR DEVELOPING UNIT 1 1 1

'

37 33918100 GEAR 18,FUR BRUSH 1 1 1

'

38 18307550 PULLEY 18P2M,LEADING FEED 2 2 2

'

39 3AL08130 ROLLER,EJECT 1 1 1
40 3BC22010 TENSION PLATE,CONVEYING ROLLER 1 1 1

'

41 48928800 PULLEY,TIMING BELT 1 1 1
42 63814260 SPRING,DEV. SHUTTER 1 1 1
43 72418480 SPRING, SPIRAL ROLLER 2 2 2
44 3AL07230 PIN,PAPER FEED 2 2 2
45 3AL08013 LEFT GUIDE,REGISTRATION 1 1 1

'

46 3AL02160 GEAR 14,JAM REMOVEMENT 1 1 1
47 3AL02121 MOUNT,JAM REMOVEMENT DIAL 1 1 1
48 3AL02110 DIAL,JAM REMOVEMENT 1 1 1

'

49 3AL02170 GEAR 14,JOINT 1 1 1
50 3AL08280 MOUNT,CONVEYING PULLEY 1 1 1
51 3AL08250 INNER PLATE SPRING,CONVEYING PULLEY 2 2 2

'

52 3AL08100 INNER PULLEY,CONVEYING 2 2 2
53 3AL08201 INNER SHAFT,CONVEYING PULLEY 1 1 1
54 73918080 PIN,CLEANING BLADE 1 1 1
55 M2107120 BINDING BAND SG-130 1 1 1

'

56 3BC08050 ROLLER,REGISTRATION 1 1 1
57 3BC08071 MOUNT,TIMING SWITCH 1 1 1

'

58 35327400 SWITCH,FEED 1 1 1

'

59 3BC22080 BELT 112,REGISTRATION ROLLER 1 1 1

'

60 3BC22090 BELT 140,MIDDLE ROLLER 1 1 1

'

61 65016080 STOP RING E3 1 1 1

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 89 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.43 DRIVING SECTION (DF)

2CJ

BAL

22

BAL

10

BAL

8

E05

17

18

16

E04

E05

E04

23

HAD

3

E04

DJU

7

DJU

2

5

HAD

E05

14

12

HAD

1

20

E05

21

13

19

E05

15

BAL

6

11

BAL

HAD

7

4

5

DJU

DJU

– 90 –

HAD

9

FIG.43 DRIVING SECTION (DF)

Ref.

SP Part. No. Description

No.

1 3BC22020 MOUNT,IDLE GEAR 1 1 1

'

2 63814100 IDLE GEAR 15,AGITATION 1 1 1

'

3 65011310 GEAR 20,IDLE 1 1 1

4 3BC22030 MOUNT,PAPER FEED MOTOR 1 1 1

'

5 3AL27011 MOTOR,PAPER FEED 2 2 2

6 34920190 GROUND PLATE,FIXING UNIT 1 1 1

7 78722151 PULLEY 20 2 2 2

8 3BC22040 MOUNT,CONVEYING MOTOR 1 1 1

9 3AL02190 GUIDE B,WIRE PAPER FEED MOTOR 1 1 1
10 34920190 GROUND PLATE,FIXING UNIT 1 1 1
11 75018250 SPRING CLEANING SOLENOID 1 1 1

'

12 66018180 GEAR 26,SPIRAL ROLLER 1 1 1

'

13 3AL22010 PULLEY T35/T22/Z22 1 1 1
14 3BC22050 TENSION PLATE,PAPER FEED MOTOR 1 1 1
15 48928800 PULLEY,TIMING BELT 1 1 1

'

16 76221040 GEAR 28 FD 1 1 1

'

17 3AL22030 GEAR Z22/T35P2M 1 1 1

'

18 3AL22020 PULLEY T28/Z18 1 1 1

'

19 3BC22070 BELT 190,PAPER FEED MOTOR 1 1 1

'

20 3BC22080 BELT 112,REGISTRATION ROLLER 1 1 1
21 75714210 COLLAR DEVELOPING UNIT 1 1 1
22 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 1 1 1

'

23 3BC22100 BELT 100,CONVEYING 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 91 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.44 ELECTRICAL COMPONENTS (DF)

SBPSOL

2CJ

NAQ

2

4

1

SBFSSOL

DFTSW

OSBSW

DFSSW2

FESSOL

OSLEDSOL

OFSW

OSSW

OCM

OFSOL

OFCL

OFM

GEC

TO TABLE

3

5

DFDPCB

HAD

DFSSW1

7

6

– 92 –

FIG.44 ELECTRICAL COMPONENTS (DF)

Ref.

SP Part. No. Description

No.

1 65027470 CORE,7-15X18 1 1 1

2 M2105040 NYLON CLAMP 6N,NK-6N 1 1 1

'

3 3AL93020 PARTS,DRIVER PCB,SP 1 1 1

4 3BC27020 WIRE,INTERFACE 1 1 1

5 3BC27013 WIRE,PAPER FEED 1 1 1

6 3BC22060 MOUNT,DF WIRE 1 1 1

7 M1203550 STRAIN RELEAF BUSHING,SR-7W-2 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 93 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.45 ACCESORIES & TOOL

2CJ

2

3

1

4

6

– 94 –

58

7

FIG.45 ACCESORIES & TOOL

Ref.

SP Part. No. Description

No.

'

1 2BC60020 JUNCTION PCB ASS’Y222

'

2 18568120 PIN B,POSITIONING 2 2 2

'

3 2AC68230 SPECIAL TOOL,FRAME RETAINING 2 2 2

4 2AC68241 SHEET,SCANNER ADJUSTMENT 1 1 1

'

5 35968110 STOPPER WIRE ASS’Y SP 2 2 2

6 •35912300 HOLDER,SCANNER DRUM 2 2 2

7 •35912310 STOPPER,WIRE 2 2 2

'

8 2A068021 SHEET ,DF ADJUSTMENT 1 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 95 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.

FIG.46 OPTION I

2CJ

10

20

17

COPY TRAY (EXP)

20

10

22

17

9

15

11

22

20

21 23

20

18

2019

20

8

6

16

13

24

7

22

12

20

3

5

20

8

20

20

6

14

14

1

4

12

20

5

20

20

20

2

– 96 –

20

16

22

FIG.46 OPTION I

Ref.

SP Part. No. Description

No.

'

1 2A304190 COPY TRA Y(EXP) 1 1 1

2 3B803500 FRONT RETAINER,SLIDER 1 1 1

3 3B803510 REAR RETAINER,SLIDER 1 1 1

4 3B803520 MOUNT,SLIDER 1 1 1

5 3B803530 JUNCTION PLATE,SLIDER 2 2 2

6 3B803540 JUNCTION PLATE,MACHINE 2 2 2

7 3B803550 MOUNT,MACHINE 1 1 1

8 3B803560 STOPPER,JUNCTION PLATE 2 2 2

9 3B803570 RAIL,RELEASE 1 1 1
10 3B803580 HOOK,RELEASE 2 2 2
11 3B803590 RETAINER,RELEASE 1 1 1
12 3B803600 SLIDER,FINISHER 2 2 2
13 3B803610 HANDLE,RELEASE 1 1 1
14 3B803620 REINFORCEMENT,MACHINE INSTALLATION 2 2 2
15 3B803630 ADJUSTING PLATE,RELEASE 1 1 1
16 18526211 GROUND PLATE A,NOISE 2 2 2
17 3AK02210 PLATE SPRING,HOOK RELEASE 2 2 2
18 B4344120 TRIPLE TAP-TITE P SCREW M4X12(BLACK) 2 2 2
19 B4344060 TRIPLE TAP-TITE P SCREW M4X6(BRONZE) 2 2 2
20 B1304060 BINDING SCREW BVM4X6 (BLACK) 24 24 24
21 B1304100 BINDING SCREW BVM4X10 (BLACK) 4 4 4
22 B1303050 BINDING SCREW BVM3X5 (BLACK) 4 4 4
23 M2505150 CLAMP,GNK-5N(NIKKO) 1
24 2AZ27510 SHIELD 10X20X50,GASKET 1 1

Quantity

230V120V 240V

Ref.

SP Part. No. Description

No.

2CJ

Quantity

230V120V 240V

•

Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.

– 97 –

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.

•

Parts with "• • •" are component parts or sub-assembly with "• •" appearing immediately above them.
