LASERBEAM PRINTER
F−2200/F−2200S
PARTS CATALOGUE
18−11−1998
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 1
F−2200/F−2200S Parts Catalogue
Table of Contents
3Covers (Fig.1)
5Upper Frame (Fig.2)
7Lower Frame (Fig.3)
9Unit Bottom (Fig.4)
11Drive Mechanism (Fig.5)
13Paper−Feed Assembly (Fig.6)
16Face−Down Unit (Fig.7)
18Laser Scanner Unit (Fig.8)
20Developer (Fig.9)
22Upper−Half (Electrical) (Fig.10)
24Lower−Half (Electrical) (Fig.11)
26Paper−Feed Electrical (Fig.12)

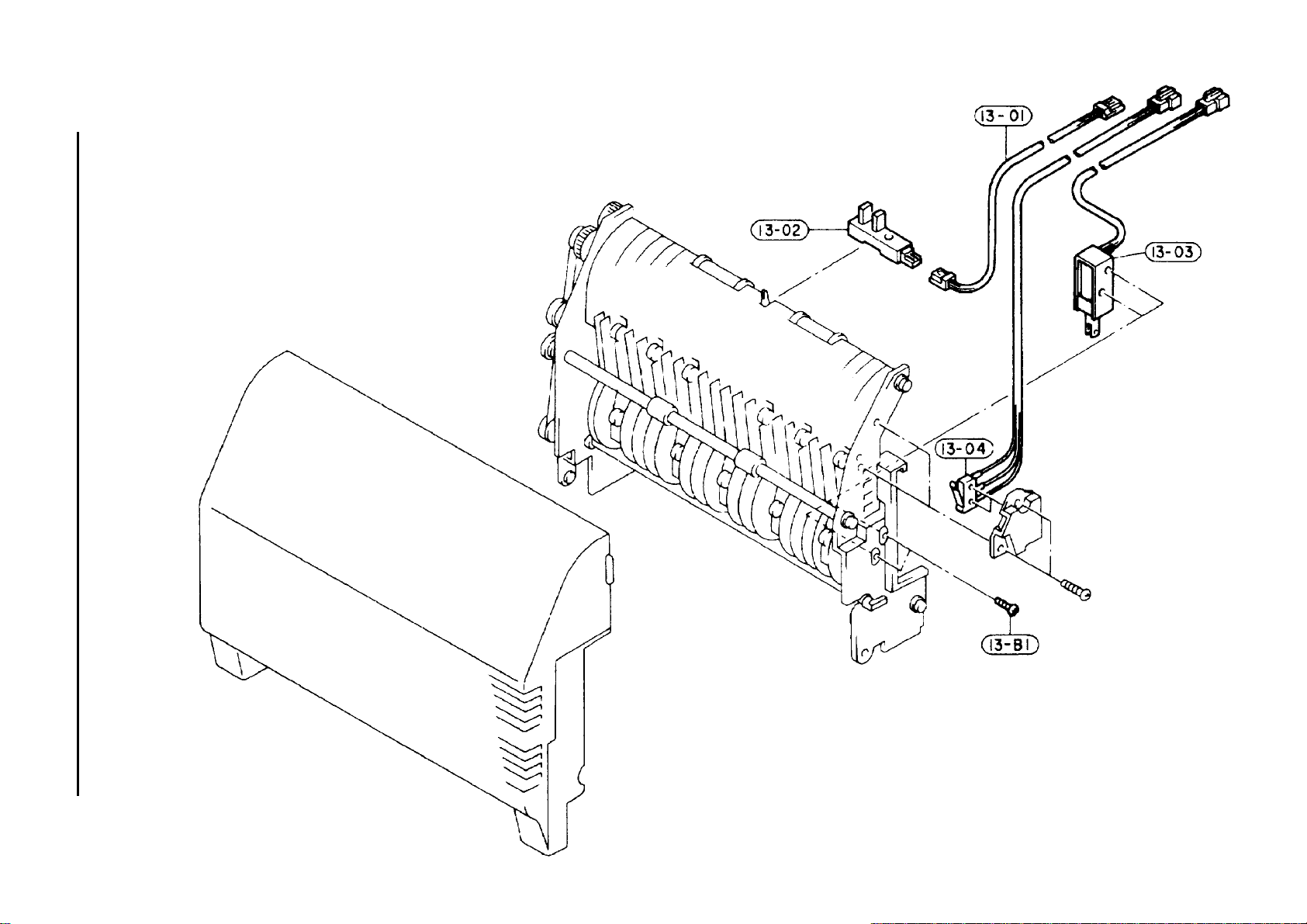

28Face−Down Unit (Electrical) (Fig.13)

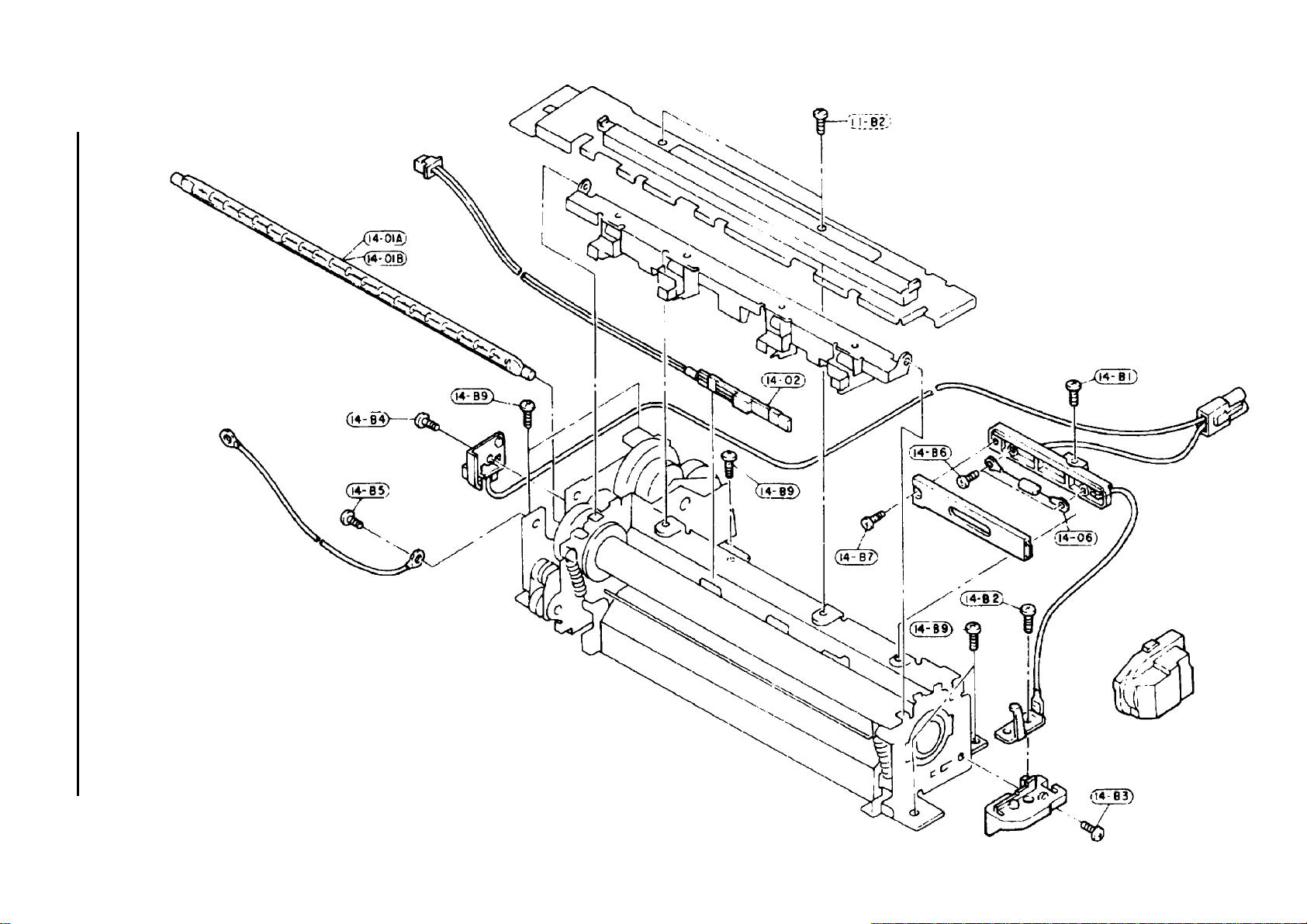

30Fuser (Electrical) (Fig.14)
32Upper−Half (Harness) (Fig.15a)
34Lower−Half (Harness) (Fig.15b)
36Sorter (Optional) (Fig.16)
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
Consumables and Maintanence Kits
Toner KitTK−3
Drum (10K pages)DK−3
Developer (50K pages)DV−5
Fuser (80K pages)FK−3
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 2
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 3
Fig.1 − Covers
QuantityDescriptionPart CodeRef No.
2TRAY ASSY5AAMWl****O901−00A
1TOP COVER ASSY5AAVCOVER12101−00B
1FRONT COVER ASSY5AAVCOVER12801−00C
1BASE ASSY5AAVBASE*00501−00D
1RIGHT COVER5MVX875SW00301−005
1KEYBOARD ASSY5AAYF2010*2301−006
3LOCK NUT5MMS117SL00101−009
1CONTROLLER PANEL F5MVX864SW00301−011
1PANEL COVER 5MVX531SH00301−012
1REAR COVER 5MVX962SW00301−013
1BLIND COVER5MVX942SWOO101−014
1LEFT COVER 5MVB762SW01201−015
1CONTROLLER PANEL R 5MVB873SW01101−016
2CORD PRESS 5MVB222RB00101−017
1OPTION COVER 5MVX631SW00401−018
1FD SUB COVER 5MVX866SW003.01−019
1FD ES ELMINATOR 5MMX863SX00101−020
2PAPER STOPPER 5MMW904LJ00201−022
1DLP COVER5MVB873SH01201−023
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 4
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 5
Fig.2 − Upper Frame
QuantityDescriptionPart CodeRef No.
1DLP LEVER ASSY5AAVLEVER007 02−00A
1DLP GUIDE R5MVX662SB01102−007
1DLP GUIDE F5MVX662SB01202−008
1TORSION BAR A5MMW905SM00102−009
1TORSION BAR B5MMW905SM00202−010
1FRAME ASSY5AAVFRAME05202−011
1WIRE SUPPORT5MMX744SL00102−012
1DRUM GEAR Z30 5MVG138DB00202−013
1DRUM BEARING 5MVX665CB01%02−014
1NOZZLE B 5MVB773SB00202−015
1FILTER ASSY 5AAYW3****0102−016
1NOZZLE SEAL 5MVS229RB00802−017
1WIND SEAL 5MVS619RB00102−018
1TOP COVER PLATE 5MMS876SL00302−019
1TONER SHUTTER 5MVS732KN00102−020
1SCANNER PAD 5MVS838RB00202−021
2CLEANER PRESSURE 5MMX433LJ00102−022
1FUSER UPPER PAD B 5MVS648RB00302−023
1FUSER UPPER PAD A 5MVS768RB00302−024
1EARTH PLATE C 5MMX474RJOO102−025
1CONNECTOR BKT 5MMX653SL00602−026
1INTER LOCK SW LEVER 5MVU122DB00202−027
1INTER LOCK SW BKT B 5MVX443DBOO102−028
1HOPPER SW ASSY 5AAXSW020GEA02−029
1M FEED UPPER GUIDE 5MVB862SB00102−030
1FRAME EARTH F 5MMP153CJOO102−031
1SENSOR SPRING A 5MMW161LJ00802−032
1M FEED SENS ACTUATOR 5MVX442SB00302−033
1DRUM BUSHING R 5MVM177DJ00102−034
1DLP CAM LEVER B 5MVX622DBOO102−035
1DLP CAM LEVER 5MVX643CXOO102−036
1HINGE ARM 5MMX861SL00302−037
1HOOK PLATE B 5MML144SL00102−038
1HINGE HOOK B 5MVX632DNOO102−039
1HINGE SPRING 5MMW172LJ00302−040
1UNIT RAIL C ASSY 5AAMF3000*0202−041
1SORTER CONNECTOR BKT 5MMU541SL00102−042
1HOOK PLATE A 5MMX433SL00202−043
1HINGE HOOK A 5MVX654DHOO102−044
1EDGING SADDLE5MVK121NN00102−045
1WIRE SADDLE5MVX331NN00202−046
1FRAME GUIDE R5MVX221DN00502−047
1FRAME GUIDE F5MVX221DB00602−048
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 6
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 7
Fig.3 − Lower Frame
QuantityDescriptionPart CodeRef No.
1LOCK PLATE ASSY5AAYF3000*0103−00A
1PRESSURE ARM ASSY5AAYF3000*0203−00B
1SEAL A5MVS618RB00503−001
1TC UP SPRING5MMX641LJ00103−002
1TC DISCHARGER5MMX852AJ00203−003
1BLIND SHEET5MVS533KN00103−004
1PAPER GUIDE PLATE5MMU863SX00103−005
1SEAL D5MVS218RB00503−006
1SEAL C5MVS618RB00303−007
1BASE HINGE PLATE R5MMX662SL00303−008
1FRAME ARM R5MMX764SL00203−009
1FRAME ARM L5MMX764SL00403−010
1INNER COVER R5MMX865SB00203−011
8CORD PRESS5MVB222RB00103−012
1BASE HINGE PLATE L5MMX622SL00103−013
1BAR STOPPER5MMT264LJ00603−014
1BAR STOPPER SPRING5MML622LJ00103−015
1CONTROLLER EARTH B5MMX762CJOO103−016
1EARTH PLATE5MMX173SL00103−017
1INNER COVER F5MVX964SB00203−018
1SENSOR EARTH PLATE5MMX222RJOO103−021
1SENSOR PLATE5MMS746SBOO103−022
1GUIDE SHEET R5MVS622KFOO103−023
1GUIDE SHEET F5MVS722KFOO103−024
1TANK PAD A5MVS428RH00203−025
1TANK PAD B5MVS439RH00203−026
1BASE SUPPORT5MMC832SL00103−027
1CONTROLLER GUIDE B5MVX832DB00103−029
1CONTROLLER EARTH A5MMX752CJ00103−030
1CONTROLLER GUIDE A5MVX822DB00103−031
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 8
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 9
Fig.4 − Unit Bottom
QuantityDescriptionPart CodeRef No.
2KNOB04−001
1FAN MOTOR 5EZNF2402501*0104−002
1CONT.BOX R COV ASSY04−003
1CONN CORD ASSY CA404−004
1CONN CORD ASSY CA304−005
1DC POWER SUPPLY 220V−240V5AAEZF1000*404−006
1P/S SUPPORT KC04−007
1SHEET MT04−008
4SOCKET MAIN LOGIC04−009
2PCB GUIDE RAIL04−011
1MAIN PWB F−22005AAPRCZG4004DH04−012
1MAIN PWB F−2200S5AAPRLGG4002CH04−012
1CONT MIDDLE PLATE KC04−013
1CONN CORD ASSY CAD04−014
1CONT BOX STOPPER KC04−015
1CONT BOO ASSY KC04−016
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 10
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 11
Fig.5 − Drive Mechanism
QuantityDescriptionPart CodeRef No.
1DRIVE UNIT5AAYF3000*0905−00A
1MOTOR GEAR Z305MMG138SX00505−010
1DC MOTOR ASSY5EZNS200R701*0105−011
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 12
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 13
Fig.6 − Paper−Feed Assembly
QuantityDescriptionPart CodeRef No.
1PAPER−FEED ASSEMBLY5AAYF2200*2406−000
1MANUAL FEED CLUTCH5AAVCLTCH00506−00A
2PAPER−FEED CLUTCH5AAVCLTCH00406−00B
1REGIST CLUTCH5AAVCLTCH00306−00C
4FEED TIRE ASSY5AAVROLL*00806−00D
1MF PLATE ASSY5AAMF2010*0106−00E
1FEED SOL BKT5MMX876SL00506−001
3M FEED CL CAM SPRING5MMW171LJ00406−002
1M FEED CL CAM LEVER5MVX432DW00106−003
3SOLENOIS PAD B5MVS226RB00506−004
8METAL BUSH KD5MMM176CJ00306−013
2FEED UNIT GEAR Z285MVG138DN01106−016
1FEED UNIT GEAR Z655MVG169DB00106−017
2REGIST ROLLER BUSH5MMM121XJ00106−018
2REGIST SPRING A5MVX664SB00506−019
1CASSETTE GUIDE UR5MVX664SB00506−020
1CASSETTE GUIDE LR5MVX664SB00106−021
2M FEED SPRING5MMW341LJ00106−022
2MF BUSH5MVX211DB00306−023
1FEED UNIT FRAME R5MMX876SL01306−024
1GUIDE SHEET PS5MVS412KF00106−025
1M FEED PAPER CHUTE A5MMS876SN00106−026
1M FEED PAPER CHUTE B5MMS866SN00106−027
1PAPER GUIDE5MVX866SB00106−028
1ACTUATOR B5MVX331DB00306−029
1ACTUATOR A5MVX532DB00206−030
1SENSOR SPRING5MMW163LJ00206−031
1TC GUIDE5MVX532DD00206−032
1TC SUPPORTER5MML833SL00706−033
1SEAL B5MVS618RB00406−034
1COVER SHEET5MVS852KN00106−035
1FEED UNIT STAY A5MMX862SL00106−042
2SENSOR COVER5MVX652SB00606−043
4PAPER HOLDER5MMX653SN00106−044
1FEED UNIT STAY B5MMX875WM00106−045
1SENSOR PLATE A5MMS866SL00106−046
1M FEED ROLLER B5MMT876SN00906−047
1M FEED ROLLER A5MMT876SN00806−048
1REGIST ROLLER A5MMT866SN00306−049
1REGIST ROLLER B5MMT876SN02406−050
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 14
QuantityDescriptionPart CodeRef No.
1CASSETTE GUIDE UR5MVX663SB00706−051
1CASSETTE GUIDE LR5MVX663SB00806−052
1REGIST GEAR Z205MVG127DN01706−053
1REGIST GEAR Z325MVG147DN00106−054
1FEED UNIT FRAME F5MMX875SL00106−055
1MAIN SW BKT5MVX532SB00206−056
2PAPER CHUTE GUIDE5MVS521KC00106−057
2FEED ROLL SHAFT5MMT866SN00406−059
1JOINT GEAR PLATE5MMX632SL00206−063
1GEAR Z365MVG148DN00806−064
1COLLAR 405MVM197DN00106−065
1FEED GEAR Z655MVG169DB00306−066
1JOINT SUPPORT5MMZ327SL00106−067
1REGIST SPRING5MMW241LJ00906−068
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 15
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 16
Fig.7 − Face−Down Unit
QuantityDescriptionPart CodeRef No.
1FACE−DOWN UNIT5AAYF2200*2207−000
1JAM ACTUATOR5MVX422DB00207−001
1FU ACTUATOR SPRING5MMW161LJ01907−002
1FD PAPER GUIDE5MVX852CB00107−003
4EXIT PULLEY BRACKET5MMX321LJ00507−004
4FD FEED PULLEY5MVM123DB00107−005
1FD ENTER ROLLER5MMT876SN02007−006
2SEAL C5MVS618RB00307−007
1FD EXIT ROLLER5MMT876SN01507−008
1FD ACTUATOR SP5MMW163LJOO107−009
1FD JAM ACTUATOR5MVX422DB00307−010
1FD GUIDE5MVX876SW00507−011
1SIDE PLATE5MMX864SL00407−012
6BEARING5MVM176DNOO907−013
1FD EXIT GEAR5MVG127DB00207−014
1BELT PULLEY GEAR5MVG022DBOO107−015
1PULLEY FLANGE5MVF176DB00107−016
1FD BELT5MVX917RBOO107−017
3BELT IDLE PULLEY5MVM177DB00407−018
2BELT PULLEY5MVG327DBOO107−019
1IDLE SPRING5MMW161LJ01807−020
1IDLE BRACKET5MMX421SL00107−021
1FD JOINT GEAR Z205MVG127DBOO107−022
1FD SPRING R5MMW167LJ00207−023
4FD MAGNET PLATE5MMS216SN00307−024
2FD MAGNET5MMS218FJ00107−025
1FD COVER5MVX886SW00407−026
11FD EXIT PULLEY5MVM174DBOO107−028
2FD PIN5MVM366SW00107−029
4FD PRESSER5MMU131LXOO107−030
2FD PULLEY B5MVM474DBOO107−031
1FD MIDDLE ROLLER5MMT876SN01707−032
1FD OUTLET COVER ASSY5AAVBRUSH01607−033
1FD SWITCH COVER5MVX442SW00207−034
1SOLENOID SPRING5MMW161LJ01707−035
1FD SPRING F5MMW167LJ00107−036
1LINK PLATE5MVX221DB00207−037
1CHANGE PLATE5MVX842SB00107−038
2FD ENTER PLATE5MMC432LJOO107−039
1FD ENTER PLATE GUIDE5MML303LJOO107−040
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 17
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 18
Fig.8 − Laser Scanner Unit
QuantityDescriptionPart CodeRef No.
1SCANNER UNIT 220V−240V5AAYF1010*1408−000
1SCANNER COVER LID5MVS442SB00108−002
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 19
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 20
Fig.9 − Developer
QuantityDescriptionPart CodeRef No.
1DEVELOPER UNITDV−509−000
1TONER SENSOR ASSY5AAXTS010GEA09−009
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 21
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 22
Fig.10 − Upper−Half (Electrical)
QuantityDescriptionPart CodeRef No.
1ERASER ASSY5AAMW1****0210−00A
1DEVELOPER BIAS PWB5ETNB58101***0110−001
1PANEL CONT. BOARD5AAPRCZG2003EH10−002
1MOTOR CONTROL PWB5AAPRZZ003CA10−003
1TOTAL COUNTER5EZKD6Z02301*0110−004
1COUNTER BET KC5MMZ252SL00110−005
1PANEL BOARD BKT5MMC777SL00910−006
1MAIN HV UNIT5ETNB66202***0110−007
1MCH CONNECT5MVX543XNOO110−008
2PHOTO SENSOR GPlA05HR5ENXGP1A05HR*O110−009
1FAN MOTOR A5EZNF2403001*0110−010
1APC PWB5AAPRAPC1004*AH10−011
1POLYGON DRIVER PWB5AAPRZZC1004*CH10−012
1POLYGON DRIVER PWB5AAXAP005GEA10−015
1PWB ASSY LIFE COUNT5AAPRZZ005AA10−016
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 23
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 24
Fig.11 − Lower−Half (Electrical)
QuantityDescriptionPart CodeRef No.
1POWER CORD− ASSY 250V 6A5AACAC278EEA11−001
1INLET COVER5MMX763SL00711−002
1INLET ASSY CCA40015AACCNDE7GEA11−003
1INLET BRACKET5MML643SL00311−004
1TRANSFER HV UNIT HVC−3MC605ETNB66201***0111−005
2EDGING SADDLE EDS−15MVK121NB00211−006
1CORD PART PLATE5MMX765SL00411−007
1NOISE FILTER 250V 15A(EUROPE)5EFNZSB2210050111−008
1SOLID STATE RELAY 220V−240V5EZRlG012301*0111−009
1ELEC.PLATE5MMX866SL00311−010
1HEAT CONTROL PWB5AAPRHCG2003AH11−011
1CASSETTE SENSOR ASSY5AAXAP002GEA11−012
1PEP BOARD ASSY B5AAPRSS005FA11−013
1SW BRACKET5MMS633SL00611−015
1MAIN SWITCH J−U10545ESC020103***0111−016
1LINE FUSE 125U lOA5EYFBP10301**0111−017
1FUSE BLOCK 120V5EYHF103101**0111−018
1LINE FUSE 250V 5A5EYFBQ50205**0111−019
1FUSE BLOCK 220V−240V5EYHF102004**0111−020
1TC RECEPTACLE5MVX332XHOO111−021
1HARNESS11−022
1HVC PLATE5MMX642SL00611−023
1HVC HOLDER5MMZ337SL00111−024
1HVC SPRING5MMW261LJ02511−025
1SENSOR PLATE5MMS746SB00111−026
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 25
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 26
Fig.12 − Paper−Feed Electrical
QuantityDescriptionPart CodeRef No.
1CABLE ASSY PCA20325AACCNAN8GEA12−001
1SOLENOID A−3 CN:WHITE TDS−08B−21D5EZSA240301030512−002
1SOLENOID A−2 CN:BLUE TDS−08B−21C5EZSA240301030412−003
1SOLENOID A−1 CN: BLACK TDS−08B−215EZSA240301030212−004
1SOLENOID B CN:WHITE F12B−325EZSA240301010212−005
1SOLENOID PAD5MVS227RB00312−006
1PHOTOSENSOR GPlA05HR5ENXGPlA05HR*O112−007
1CASSETTE SENSOR ASSY5AAXAP002GEA12−008
1PEP PWB ASSY H LED5AAPRSS005HA12−009
1PEP BOARD ASSY E5AAPRSS005EA12−010
1PEP BOARD ASSY D5AAPRSS005DA12−011
1CABLE ASSY CCA50225AACCNBS9GEA12−012
1MINI CLAMP5MVX221NN00712−013
1INTER LOCK SW ASSY5AAXSW018GEA12−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 27
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 28
Fig.13 − Face−Down Unit (Electrical)
QuantityDescriptionPart CodeRef No.
1CABLE ASSY CCA20205AACCNBD1GEA13−001
1PHOTO SENSOR GP1A05HR5ENXGP1A05HR*0113−002
1SOLENOID C TDS−KN07A5EZSA240102030113−003
1FDSWASSY5AAXSW019GEA13−004
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 29
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 30
Fig.14 − Fuser (Electrical)
QuantityDescriptionPart CodeRef No.
1FUSER EUR/AUSFK−314−000
1HEATER EUR/AUS5EZPB241332020214−001
1THERMISTOR TC180PR25ENTTC180P1.20314−002
1THERMAL FUSE ASSY E/A5AAXTF005VDA14−006
1FIXING ROLLER5MMT887AM00314−007
1PRESS ROLLER5MMT886SX01214−008
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 31
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 32
Fig.15a − Upper−Half (Harness)
QuantityDescriptionPart CodeRef No.
1CABLE ASSY PCA20395AACCNAP2GEA15−001
1CABLE ASSY PCA30415AACCNAP4GEA15−002
2BUSHING5MVF277NB00615−003
1CABLE ASSY S001425AACCNFQ7GEA15−004
1CABLE ASSY CCA30215AACCNBD2GEA15−005
1CABLE ASSY SORTER5AACCNCK0ULA15−006
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 33
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 34
Fig.15b − Lower−Half (Harness)
QuantityDescriptionPart CodeRef No.
1CABLE ASSY CA8 EUR/AUS5AACCNBS4GEA15−002
1CABLE ASSY CCA40025AACCNBS7GEA15−009
1CABLE ASSY CCA40235AACCNBY4GEA15−010
1CABLE ASSY CCA4004 E/A5AACCNBB4GEA15−011
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 35
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 36
Fig.16 − Sorter (Optional)
QuantityDescriptionPart CodeRef No.
1Cabinet16−001
1Base Plate16−002
3Foot16−003
1Photo Sensor Assy L5SNSP000696416−004
2Cushioning16−005
1Stand16−006
2Stand Cover16−007
1Stand Spring16−008
1Solenoid Assy5SNSP000697016−010
1Stopper Assy16−011
2Cable Clamp DNK−0516−012
1Side Frame R H16−013
2Tray Guide16−014
1Sheet R16−015
1Motor5SNSP000698116−016
1Motor Harness Assy16−017
1Motor Gear16−018
1SE RING16−019
2Ground Wire Assy16−020
1Left Frame16−021
1Sheet L16−023
2Arm16−025
2Stud Spring16−027
2Link Plate B16−028
3Bearing Bush16−029
1Drive Shaft16−030
1Clank Pulley Gear16−031
1Stopper Plate16−032
1Link Plate C16−033
1Sensor Plate16−035
1Feed Roller Shaft16−037
2Roller16−038
2Feed Pulley16−039
2Bearing Bush16−040
1Down B Baffle16−041
2Front Paper Stopper16−042
1Up B Baffle16−043
1Feed Shaft16−045
2Roller16−046
1Idler Bkt Assy16−047
1Idler Spacer16−048
1Feed Roller Gear16−049
1Idler Gear Collar16−050
1Idler Gear16−051
1Gear Idler16−052
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 37
QuantityDescriptionPart CodeRef No.
2Roller Rension Spring16−053
1Main PWB Assy5SNSP000702116−054
1PWB Spacer16−055
1Joint Bracket16−056
1Control Cable Assy16−057
1Sensor Bracket16−059
1Up Sensor5SNSP000702816−060
1L−50 Support Wire16−064
2Tray Spring16−065
15 Bin A Tray16−067
12Tongue16−068
2Paper Stopper16−069
2Paper Guide Tongue16−070
45 Bin B Tray16−071
8Rear Paper Stopper16−072
2Cushion Tray Assy16−073
8A Plate Link16−074
1Erase Assy16−075
1Support Bracket16−076
1#1 Paper Holder16−077
1PWB Support16−078
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2200/F−2200S Page 38
Loading...
