LASERBEAM PRINTER
F−2010
PARTS CATALOGUE
13−11−1998
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 1
F−2010 Parts Catalogue
Table of Contents
Fuser (Electrical) (Fig.18)
3Covers (Fig.1)
5Upper Frame (Fig.2)
8Lower Frame (Fig.3)
10Unit Bottom (Fig.4)
12Drive Mechanism (Fig.5)
14Paper−feed Assembly (Fig.6)
17Face−down Unit (Fig.7)
19Laser Scanner Unit (Fig.8)
21Drum Cartridge (Fig.9)
24Developer (Fig.10)
26Fuser (Fig.11)

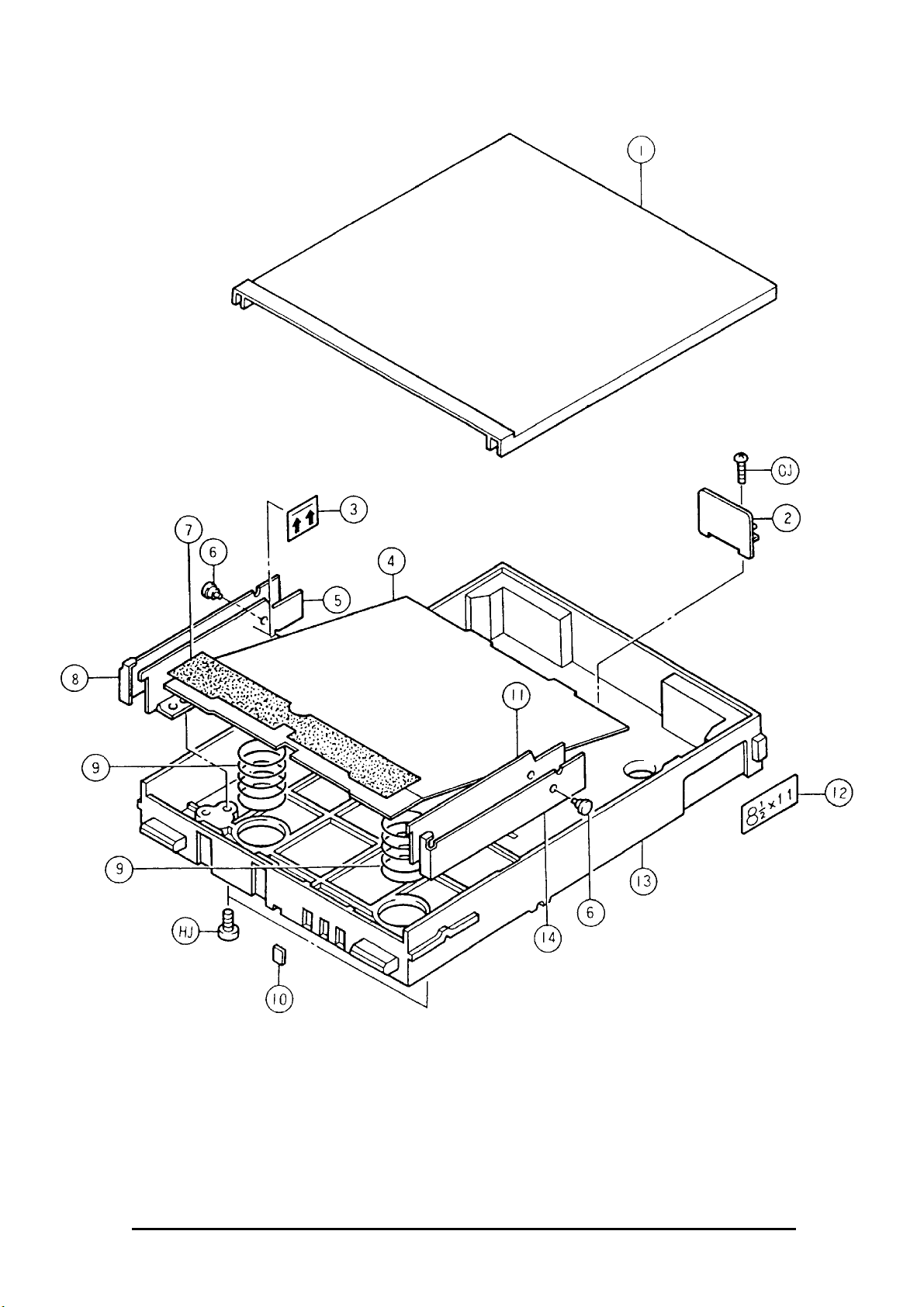

28Paper Cassette (Fig.12)
30Transfer Charger (Fig.13)
32Upper−Half (Electrical) (Fig.14)
34Lower−Half (Electrical) (Fig.15)
36Paper−Feed (Electrical) (Fig.16)
38Face−Down Unit (Electrical) (Fig.17)
40
42Upper−Half (Harness) (Fig.19a)
44Lower−Half (Harness) (Fig.19b)
46Sorter (Optional) (Fig.20)
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
Consumables and Maintanence Kits
Toner KitTK−3
Drum (10K pages)DK−3
Developer (50K pages)DV−5
Fuser (80K pages)W−3
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 2
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 3
Fig.1 − Covers
QuantityDescriptionPart CodeRef No.
2Tray Assy5AAMW1****0901−00A
2Print Tray B01−001
2Print Tray A01−002
1DLP Cover5MVB873SH00801−003
1FD Sub Cover01−004
1Top Cover01−005
1Right Cover01−006
1Keyboard Assy5AAYF2010*2301−007
1Base01−008
1Front Cover01−009
3Lock Nut01−010
1Open−Cover01−011
2Controller Panel F01−012
1FD ES Eliminator01−013
1Rear Cover01−014
1Blind Cover5MVX942SW00101−015
1Left Cover01−016
1Controller Panel R01−017
2Cord Press01−018
1Option Cover01−019
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 4
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 5
Fig.2 − Upper Frame
QuantityDescriptionPart CodeRef No.
1DLP Lever Assy5AAYF1010*6302−00A
2DLP Spring5MMW162LJ00302−001
1DLP Lever R5MVX632CX00202−002
1Lever B Spring5MMW162LJ00402−003
2DLP Lever B5MVX622CB00702−004
1DLP Lever F5MVX632CX00102−005
1DLP Shaft5MMT866SZ01302−006
1DLP Guide R02−007
1DLP Guide F02−008
1Torsion Bar A02−009
1Torsion Bar B02−010
1Frame Assy02−011
1Wire Support02−012
1Drum Gear Z305MVG138DB00202−013
1Drum Bearing5MVX665CB01%02−014
1Nozzle B02−015
1Filter Assy5AAYW3****0102−016
1Nozzle Seal02−017
1Wind Seal02−018
1Top Cover Plate02−019
1Toner Shutter02−020
1Scanner Pad02−021
2Cleaner Pressure02−022
1Fuser Upper Pad B02−023
1Fuser Upper Pad A02−024
1Earth Plate C5MMX474RJ00102−025
1Connector BKT5MMX653SL00602−026
1Inter Lock SW Lever5MVU122DB00202−027
1Inter Lock SW Bkt B5MVX443DB00102−028
1Hopper SW Assy5AAXSW020GEA02−029
1M Feed Upper Guide02−030
1Frame Earth F‘5MMP153CJ00102−031
1Sensor Spring5MMW161LJ00802−032
1M Feed Sens Actuator5MVX442SB00302−033
1Drum Bushing R02−034
1DLP Cam Lever B5MVX622DB00102−035
1DLP Cam Lever5MVX643CX00102−036
1Hinge Arm02−037
1Hook Plate B5MML144SL00102−038
1Hinge Hook B5MVX632DN00102−039
1Hinge Spring02−040
1Unit Rail A02−041
1Hook Plate A5MMX433SL00202−043
1Hinge Hook A5MVX632DN00102−044
1Edging Saddle02−045
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 6
QuantityDescriptionPart CodeRef No.
1Wire Saddle02−046
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 7
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 8
Fig.3 − Lower Frame
QuantityDescriptionPart CodeRef No.
1Seal A5MVS618RB00503−001
1TC UP Spring5MMX641LJ00103−002
1TC Discharger5MMX852AJ00103−003
1Blind Sheet03−004
1Paper Guide Plate5MMU833SN00203−005
1Seal D5MVS218RB00503−006
1Seal C03−007
1Base Hinge Plate R03−008
1Frame Arm R03−009
1Frame Arm L03−010
1Inner Cover R5MVX865SB00103−011
8Cord Press03−012
1Base Hinge Plate L03−013
1Bar Stopper03−014
1Bar Stopper Spring03−015
1Controller Earth B5MMX762CJ00103−016
1Earth Plate03−017
1Inner Cover F5MVX964SB00103−018
1Toner Tank Cap03−019
1Toner Tank03−020
1Sensor Earth Plate5MMX222RJ00103−021
1Sensor Plate5MMS746SB00103−022
1Guide Sheet R5MVS622KF00103−023
1Guide Sheet F5MVS722KF00103−024
1Tank Pad A03−025
1Tank Pad B03−026
1Base Support03−027
4Foot03−028
1Controller Guide B03−029
1Controller Earth A03−030
1Controller Guide A03−031
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 9
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 10
Fig.4 − Unit Bottom
QuantityDescriptionPart CodeRef No.
2Knob04−001
1Fan Motor B5EZNF2402501*0104−002
1Cont. Box R Cov Assy04−003
1Conn Cord Assy CA404−004
1Conn Cord Assy CA304−005
1DC Power Supply 240V5AAEZW−1***304−006
1P/S Support KC04−007
1Sheet MT04−008
4Socket Main Logic04−009
2Pan Head Screw04−010
2PCB Guide Rail04−011
1P.W.B Assy KP−0175AAPRCZG4001AH04−012
1Cont Middle Plate KC04−013
1Conn Cord Assy CA904−014
1Cont Box Stopper04−015
1Cont Boc Assy KC04−016
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 11
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 12
Fig.5 − Drive Mechanism
QuantityDescriptionPart CodeRef No.
1Drive Unit5AAYMT910*2005−00A
1Joint Spring05−001
1Joint Gear Plate05−002
1Collar 5805−003
1Joint Gear Z5405−004
1Drum Earth05−005
1Plate B05−006
1Gear Z4405−007
2Gear Z4805−008
1Plate A05−009
1Motor Gear Z305MMG138SX00505−010
1DC Motor Assy5EZNS180R401*0105−011
1Wire Saddle05−012
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 13
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 14
Fig.6 − Paper−feed Assembly
QuantityDescriptionPart CodeRef No.
1Paper−Feed Assembly5AAYF2010*0706−000
1Feed Sol Bracket06−001
3M Feed CL Cam Spring06−002
1M Feed CL Cam Lev B5MVX432DW00106−003
3Solenoid Pad06−004
2M Feed CL Cam Lev A5MVX442DN00106−005
1Manual Feed Clutch5AAVCLTCH00506−00A
3M Feed Clutch Boss06−006
1M Feed Wrap Spring B06−007
3Ratchet Spring06−008
3Brake Ring06−009
1M Feed CL Ratchet B06−010
8M Feed CL Spring06−011
2Spring Stopper06−012
2M Feed Clutch Gear Z1606−013
2Metal Bush KD5MMM176CJ00106−014
2Paper Feed Clutch A5AAVCLTCH00406−00B
2M Feed Wrap Spring A06−015
2M Feed CL Ratchet06−016
2Feed Clutch Gear Z2606−017
2Feed Unit Gear Z285MVG138DN01106−018
2Feed Unit Gear Z655MVG169DB00106−019
2Regist Roller Bush5MMM121XJ00106−020
2Regist Spring5MMW241LJ00906−021
1Regist Clutch5AAVCLTCH00306−00C
1Feed Clutch Boss06−022
1Regist Clutch Cam06−023
1Regist Wrap Spring06−024
1Regist CL Gear Z1606−025
1Cassette Guide UR06−026
1Cassette Guide LR06−027
2M Feed Spring5MMW341LJ00106−028
2MF Bush06−029
1Feed Unit Frame R06−030
1Guide Sheet PS06−031
1M Feed Paper Chute A06−032
1M Feed Paper Chute B06−033
1Paper Guide06−034
1Actuator B5MVX331DB00306−035
1Actuator A5MVX532DB00206−036
1TC Guide5MVX532DD00206−038
1TC Supporter06−039
1Seal B06−040
1Cover Sheet06−041
1MF Plate Assy5AAMF2010*0106−00E
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 15
QuantityDescriptionPart CodeRef No.
1MF Size Label06−042
2MF Paper Guide06−043
1MF Plate06−044
2SAM Screw M4X1006−045
1MF Gear Z2006−046
2MF Guide Rack06−047
1Feed Unit Stay A06−048
2Sensor Cover06−049
4Paper Holder06−050
1Feed Unit Stay B06−051
1Sensor Plate A06−052
1M Feed Roller B06−053
1M Feed Roller A5MMT876SN00806−054
2Feed Roll Shaft06−055
1Regist Roller A06−056
1Regist Roller B5MMT876SN00606−057
4Feed Tyre Assy5AAVROLL*00706−00D
4Feed Tyre06−058
4Feed Wheel06−059
1Cassette Guide UF06−060
1Cassette Guide LF06−061
1Regist Gear Z205MVG127DN01706−062
1Regist Gear Z325MVG147DN00106−063
1Feed Unit Frame F06−064
1Main SW BKT06−065
2Paper Chute Guide06−066
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 16
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 17
Fig.7 − Face−down Unit
QuantityDescriptionPart CodeRef No.
1Face−Down Unit5AAYF2010*0207−000
1Jam Actuator5MVX422DB00207−001
1FU Actuator Spring07−002
1FD Paper Guide07−003
4Exit Pulley Bracket07−004
4FD Feed Pulley07−005
1FD Enter Roller5MMT876SN01107−006
2Seal C07−007
1FD Exit Roller5MMT876SN01207−008
1FD Actuator SP5MMW163LJ00107−009
1FD Jam Actuator5MVX422DB00307−010
1FD Guide07−011
1Side Plate07−012
6Bearing5MVM176DN00907−013
1FD Exit Gear5MVG127DB00207−014
1Belt Pulley Gear5MVG022DB00107−015
1Pulley Flange07−016
1FD Belt5MVX917RB00107−017
3Belt Idle Pulley5MVM177DB00407−018
2Belt Pulley5MVG327DB00107−019
1Idle Spring07−020
1Idle Bracket07−021
1FD Joint Gear Z205MVG127DB00107−022
1FD Spring R07−023
4FD Magnet Plate07−024
2FD Magnet07−025
1FD Cover07−026
1FU ES Eliminator5MMX822LJ00107−027
11FD Exit Pulley5MVM174DB00107−028
2FD Pin07−029
4FD Pressure5MMU131LJ00107−030
2FD Pulley B5MVM474DB00107−031
1FD Middle Roller5MMT876SN01007−032
1FD Outlet Cover07−033
1FD Switch Cover07−034
1Solenoid Spring07−035
1FD Spring F07−036
1Link Plate5MVX211DB00207−037
1Change Plate07−038
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 18
Fig.8 − Laser Scanner Unit
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 19
QuantityDescriptionPart CodeRef No.
1Scanner Unit 240V5AAYF1010*1408−000
1Scanner Cover08−001
1Scanner Cover Lid5MVS422SB00108−002
1LENS SUPPORT ASSY08−003
1LENS A08−004
1LENS B08−005
1LENS SPRING A08−006
2MIRROR STOPPER A08−007
1MIRROR A08−008
1MIRROR STOPPER BE08−009
1MIRROR B08−010
1MIRROR STOPPER BR08−011
2MIRROR C08−012
1MIRROR HOLDER ASSY08−013
1MIRROR BASE ASSY08−014
1S MIRROR CAM08−015
1SENSOR HOLDER08−016
1POLYGON UNIT08−017
1LASER MODULE08−00A
1LO PWB08−018
1LASER BRACKET08−019
1LASER DIODE08−020
1S LENS BRACKET08−021
1APERTURE08−022
1SELFOC LENS08−023
1S LENS HOLDER08−024
1SCANNER FRAME08−025
1MIRROR C SUPPORT08−026
1C LENS SUPPORT08−027
1CLYNDRICAL LENS08−028
1TORIC LENS08−029
1COVER GLASS08−030
2TORIC PAD08−031
1T LENS GUIDE08−032
1SCANNER SEAL08−033
1PD PWB08−034
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 20
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 21
Fig.9 − Drum Cartridge
QuantityDescriptionPart CodeRef No.
1DRUM CARTRIDGEDK−309−000
1DRUM WIPER R09−001
1COVER MAGNET09−002
1DRUM WIPER F09−003
1DRUM COVER09−004
1ERASE CLEANING PAD09−005
1MCH SPRING09−006
1MCH END BLOCK R09−007
1CORONA WIRE09−008
1CHG SPRING B09−009
1MCH WIRE HOOK F09−010
1MCH END BLOCK F09−011
1MCH SHIELD09−012
1MCH CLEANER ROD09−013
1MCH CLEANER ASSY09−014
1DRUM ACTUATOR09−015
1ACTUATOR SPRING09−016
1DRUM SPRING STOPPER09−017
1DRUM BUSHING R09−018
1DRUM SHAFT09−019
1PRINTED W.BOARD09−020
1SCREW GEAR Z2009−021
2SCREW BUSHING09−022
1CLEANER SCREW09−023
1SEAL EARTH TAB A09−024
2M3 PLATE09−025
1DRUM FRAME09−026
1REFRECTOR SHEAL09−027
1ERASE REFLECTOR09−028
1BLADE BUSHING09−029
1CL BLADE ASSY09−030
2CLEANER SPRING09−031
1BLADE HOLDER09−032
1BLADE EARTH TAB09−033
1DRUM ASSY09−034
1MCH GRID09−035
1BLADE SEAL R09−036
1SEAL MAGNET09−037
1DRUM SEAL09−038
1BLADE SEAL F09−039
1MCH F STOPPER09−040
1REFRECTOR SHEAL R09−041
2CLEANER PLATE09−042
3GUIDE SPUR RING09−043
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 22
QuantityDescriptionPart CodeRef No.
1REFRECTOR SHEAL F09−044
1DRUM FRAME COVER F09−045
1MCH CLEANER KNOB09−046
1DRUM BUSHING F09−047
1MCH GRID SPRING09−048
1ZENER DIODE ASSY09−049
1SCREW BRACKET ASSY09−050
1CABLE ASSY PCA203309−051
1DRUM EARTH PLATE09−052
1MCH GRID TAB 09−053
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 23
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 24
Fig.10 − Developer
QuantityDescriptionPart CodeRef No.
1DEVELOPER DV−4 10−000
1DLP HANDLE 10−001
2DLP SEAL A 10−003
1DLP BLADE BKT B 10−004
1PADDLESHAFT ASSY 10−00A
3DLP SPRING 10−006
1TONER SPRING 10−007
1CABLE ASSY PCA5040 10−008
1TONER SENSOR ASSY 10−009
1CARTRIDGE STOPPER 10−010
1Z50 SPRING 10−011
1GEAR Z50 10−012
1DLP COVER CAM 10−013
1DLP SIDE COVER 10−014
1MAGNET BRACKET 10−015
2DLP PULLEY 10−016
2DLP BEARING 10−017
1DLP SIDE FRAME 10−018
1MAGNET BKT B 10−019
1DLP SEAL F 10−020
2DLP SEAL J 10−021
2DLP SEAL G 10−022
2DLP SEAL D 10−023
1DLP SEAL C 10−024
1DLP SEAL E 10−025
1DLP SEAL H 10−026
1DLP SEAL B 10−027
1DLP SEAL K 10−028
1DLP CASE 10−029
1SCREW BUSHING 10−030
1GEAR Z28 M 10−031
1GEAR Z12−Z22 10−032
1GEAR Z14−Z20 10−033
1DLP BLADE BKT A 10−034
1DLP BLADE 10−035
1BLADE MAGNET 10−036
1MAGNET ROLLER10−037
1ROLLER COVER 10−038
1GEAR Z11 10−039
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 25
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 26
Fig.11 − Fuser
QuantityDescriptionPart CodeRef No.
1FUSER 220V−240V 5AAYW3****0211−000
1FUSER COVER SHEET B 11−001
1ROLLER CLEANER 11−002
1FUSER COVER A 11−003
4SEPARATOR 11−004
4SEPARATOR SPRING 11−005
1FUSER COVER B 11−006
1FUSER PAPER GUIDE B 11−007
1GEAR Z28 11−008
1FUSER GEAR Z31−Z43 11−009
1GEAR PIN 11−010
1GEAR SPRING 11−011
1GEAR PLATE 11−012
1FUSER GEAR Z35 11−013
1GEAR BRACKET 11−014
1FUSER GEAR Z20 11−015
1FUSER JOINT COLLAR 11−016
1FUSER GEAR Z15 B 11−017
1JOINT PIN 11−018
2FUSER GEAR Z15 A 11−019
1FUSER JOINT SPRING 11−020
1FUSER JOINT PLATE 11−021
2STOP RING 11−022
1FUSER GEAR Z28 11−023
2FUSER BEARING 11−024
2BEARING SLEEVE 11−025
2PRESS PLATE PIN 11−026
2FUSER SPRING 11−027
2PRESSURE PLATE 11−028
1PAPER CHUTE ASSY 11−029
1FIXING ROLLER 5MMT877AX00111−030
1FUSER FRAME 11−031
1PRESS ROLLER 5MMT886SX00911−032
2PRESS ROLLER BEARING 11−033
4SEPARATE PLATE 11−034
1FUSER PAPER GUIDE A 11−035
1EXIT COVER 11−036
2SEPARATOR GUIDE 11−037
2FUSER PAPER GUIDE C 11−038
1FUSER HEATER LAMP5EZPB241332020211−039
1THERMISTOR5ENTTC180P1.20311−040
1THERMAL FUSE5AAXTF00SVDA11−041
1FUSER CLEANING PAD5AAVCLEAN00611−042
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 27
Fig.12 − Paper Cassette
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 28
QuantityDescriptionPart CodeRef No.
1CASSETTE LETTER PC2−LTR 12−000
1CASSETTE A4 PC2−A412−000
1CASSETTE B5 PC2−B412−000
1CASSETTE LEGAL PC2−LGL12−000
1CASSETTE COVER LETTER/A4/B5 12−001
1CASSETTE COVER LEGAL 12−001
1PAPER END M 12−002
1PAPER LIMIT LABEL 12−003
1PAPER BOTTOM LTR 12−004
1PAPER BOTTOM A4 12−004
1PAPER BOTTOM B5 12−004
1NAIL SUPPORT R 12−005
2CASSETTE PIN 12−006
1PAD LETTER 12−007
1PAD A4 12−007
1PAD B5 12−007
1NAIL R 12−008
2CASSETTE SPRING 12−009
1MAGNET 12−010
1NAIL SUPPORT F 12−011
1SIZE PLATE LTR 12−012
1SIZE PLATE A4 12−012
1SIZE PLATE B5 12−012
1SIZE PLATE RGL 12−012
1CASSETTE CASE LETTER A4 B5 12−013
1CASSETTE CASE B LEGAL 12−013
1NAIL F 12−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 29
Fig.13 − Transfer Charger
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 30
QuantityDescriptionPart CodeRef No.
1Transfer Charger5AAVSHILD03313−000
1TC End Block Lid A13−001
1TC Wire Hook A13−002
1TC Contact13−004
1TC End Block A13−005
1TC End Block Lid B13−006
1TC Corona Wire5MMW801XJ00313−007
1CHG Spring B13−007
1TC Wire Hook B13−008
1TC End Block B13−009
1TC Paper Chute A13−010
1Shield Sheet13−011
1TC Paper Chute B13−012
1Earth Plate13−013
1TC Shield Case13−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 31
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 32
Fig.14 − Upper−Half (Electrical)
QuantityDescriptionPart CodeRef No.
1Developer Bias PWB5ETNB60101***0114−001
1P.W.B Assy KP−0185AAPRCZG2001AH14−002
1TR−Press Plate14−003
1Total Counter14−004
1Counter Bkt KC5MMZ252SL00114−005
1Panel Cont Bkt5MMC776SL00114−006
1Main HV Unit5ETNB66202***0114−007
1MCH Connect5MVX543XN00114−008
2Sensor GP1A05HR5ENXGP1A05HR*0114−009
1Fan Motor A5EZNF2403001*0114−010
1APC PWB14−011
1Eraser Assy5AAMW****0214−0A
1L.E.D. Assy14−012
1Erase Lamp Holder14−013
1P.W.Board Assy5AAPRAPC1004AH14−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 33
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 34
Fig.15 − Lower−Half (Electrical)
QuantityDescriptionPart CodeRef No.
1Power Cord 250V 6A5AAACAC278EEA15−001
1Inlet Assy CCA40015AACCNBB2GEA15−003
1Inlet Bracket5MML643SL00315−004
1Transfer HV Unit HVC−3MC605ETNB66201***0115−005
2Edging Saddle EDS−115−006
1Cord Part Plate15−007
1Noise Filter 250V 15A5EFNZSB2210050115−008
1Solid State Relay 120V5EZR1G012301*0115−009
1Elec. Plate15−010
1Heat Control PWB5AAPRHC002BA15−011
1Cassette Sensor Assy5AAXAP002GEA15−012
1PEP Board Assy B5AAPRSS005FA15−013
1SW Bracket5MMX633SL00615−015
1Main Switch J−U10545ESC020103***0115−016
1Line Fuse 125V 10A5EYFBP10301**0115−017
1Fuse Block 120V5EYHF103101**0115−018
1Line Fuse 250V 5A5EYFBQ50205**0115−019
1Fuse Block 220V−240V5EYHF102004**0115−020
1TC Receptable5MVX332XH00115−021
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 35
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 36
Fig.16 − Paper−Feed (Electrical)
QuantityDescriptionPart CodeRef No.
1Cable Assy PCA203216−001
1Solenoid A−35EZSA240301030516−002
1Solenoid A−25EZSA240301030416−003
1Solenoid A−15EZSA240301030216−004
1Solenoid B5EZSA240301010216−005
1Solenoid Pad16−006
1Sensor GP1A05HR5ENXGP1A05HR*0116−007
1PEP PWB Assy C LED5AAPRSS005CA16−009
1PEP Board Assy E5AAPRSS005EA16−010
1PEP Board Assy D5AAPRSS05DA16−011
1Cable Assy CCA502216−012
1Mini Clamp16−013
1Inter Lock SW Assy16−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 37
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 38
Fig.17 − Face−Down Unit (Electrical)
QuantityDescriptionPart CodeRef No.
1Cable Assy CCA202017−001
1Sensor GP1A05HR5ENXGP1A05HR*0117−002
1Solenoid C TDS−KN07A5EZSA240102030117−003
1FD SW Assy5AAXSW019GEA17−004
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 39
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 40
Fig.18 − Fuser (Electrical)
QuantityDescriptionPart CodeRef No.
1HEATER 240V 800W 18−001
1THERMISTOR TC180PR2KBW−3 18−002
1FUSE BRACKET 18−003
1CABLE ASSY PCA4024 18−004
1CABLE ASSY PCA3023 18−005
1THERMAL FUSE ASSY18−006
1TEMP FUSE COVER 18−007
1LAMP HOLDER R 18−008
1CABLE ASSY PCA2031 18−009
1TERMINAL COVER 18−010
1LAMP HOLDER F 18−011
1LAMP HOLDER BRACKET 18−012
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 41
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 42
Fig.19a − Upper−Half (Harness)
QuantityDescriptionPart CodeRef No.
1Cable Assy PCA203919−101
1Cable Assy PCA304119−102
1Hopper SW Assy19−103
2Bushing19−104
1Cable Assy CA219−105
1Cable Assy CCA302119−106
1Cable Assy CA119−107
2Ferrite Core NF35UU2619−109
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 43
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 44
Fig.19b − Lower−Half (Harness)
QuantityDescriptionPart CodeRef No.
1Cable Assy CA119−201
1Cable Assy CA819−202
1Cable Assy CCA400219−203
1Cable Assy CCA302319−204
1Cable Assy CCA400419−205
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 45
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 46
Fig.20 − Sorter (Optional)
QuantityDescriptionPart CodeRef No.
1Sorter EntiretyAAVSORTR00220−000
1Sensor Plate20−001
2Link Plate (C)20−002
2Spring Roll Tension20−003
4Bearing BushU20−004
2Spring Arm20−005
1Gear Feed Roller20−006
2Arm Assy20−007
1Idle Gear20−008
1Collar Idle Gear20−009
1Idler B20−010
1Spring−Idler20−011
1PWB Assy Main20−012
2Cushion Up−side Frame20−013
1P/S Bracket20−014
1Pib Phiti Assy (U)20−015
1Paper Holder (#1)20−016
1PWB Spacer20−017
1Side Frame L Assy20−018
2Tray Guide20−019
1Baffle (B) Up20−020
1Cont. Cable Assy20−021
2Roller20−022
1Shaft Feed20−023
2Feed Pulley20−024
1Cushion Motor (S)20−025
1Harness Assy Motor20−026
1Side Frame R Assy20−027
1Motor Gear20−028
1Baffle (B) Down20−029
1Tray (A)20−030
3Tongue #220−031
4Tray (B)20−032
8Link Plate (A)20−033
1Paper Gate (R)20−034
2Link Plate (B)20−035
1Clank Pulley Gear20−036
1PWB Support20−037
1Grd Wire Assy20−038
2Cushion20−039
1Erase Assy20−040
1Joint Bracket20−041
1Cabinet20−042
1Base Plate20−043
1Pib Photo Assy (L)20−044
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 47
QuantityDescriptionPart CodeRef No.
12Support Tongue20−045
2Stand Cover20−046
1Stand20−047
1Spring Stand20−048
1Paper Gate (L)20−049
1Drive Shaft20−050
1Harness Cover20−051
1Tie Plate20−052
2Paper Stopper F20−053
9Tongue #3−#520−054
8Paper Stopper R20−055
1Serial No. ID20−056
1Feed R/L Assy20−057
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−2010 Page 48
Loading...
