17. BULBS REMOVAL/INSTRUMENT/HORN
17-1
Mongoose/KXR 90/50
BULBS REMOVAL
HEADLIGHT (ON ROAD ONLY)
Remove the front fender. (See page 2-5)
Disconnect the headlight wire coupler.
Remove the rubber boot from the bulb
socket.
Relax the lock clip to remove the bulb and
replace with a new one.
Install the bulb, aligning the bulb socket
groove with the bulb tab and set the lock
clip.
Install the rubber boot.
Install the front fender in the reverse order
of removal.
TAIL/BRAKE LIGHT
Remove the two screws and then remove
lens.
Remove the bulb by turning it
counterclockwise and replace the bulb with
a new one.
Installation is in the reverse order of
removal.
Headlight Wire Coupler
Lens
Bulb
Rubber Boot
Lock Clip
Bulb
Screws
17. BULBS REMOVAL/INSTRUMENT/HORN
17-2
Mongoose/KXR 90/50
INDICATOR LIGHTS
Remove the handlebar cover (see page 2-3)
and raise it.
Remove the bulb sockets by pulling them
out.
Pull the bulb out of the socket and replace it
with a new one.
Installation is in the reverse order of
removal.
POSITION LIGHT (ON ROAD ONLY)
Pull the bulb socket out of the position light
case.
Pull the bulb out of the socket and replace it
with a new one.
Installation is in the reverse order of
removal.
FRONT TURN SIGNAL LIGHT (ON
ROAD ONLY)
Remove the turn signal light lens by a flat
screwdriver.
Pull the bulb socket out from the signal light
case and remove bulb.
Install the bulb, aligning the bulb socket
groove with the bulb tab.
Bulb Socket
Turn Signal Light Lens
Bulb
Bulb
Bulb Socket
Bulb
Bulb Socket
17. BULBS REMOVAL/INSTRUMENT/HORN
17-3
Mongoose/KXR 90/50
Install the bulb socket, aligning the bulb
socket groove with the turn signal case tab.
Install the turn signal lens, aligning the turn
signal lens groove with the turn signal case
tab.
REAR TURN SIGNAL LIGHT (ON
ROAD ONLY)
Remove the screw and remove the turn
signal light lens.
Pull the bulb socket outside from the signal
light case and remove bulb.
Install the bulb, aligning the bulb socket
groove with the bulb tab.
Install the bulb in the reverse order of
removal.
Screw
Bulb Socket
Bule
17. BULBS REMOVAL/INSTRUMENT/HORN
17-4
Mongoose/KXR 90/50
INSTRUMENT (ON ROAD)
REMOVAL
Remove the handlebar cover. (See page 2-3)
Disconnect the meter connectors.
Remove the two screws and then remove
the instrument.
Installation is in the reverse order of
removal.
HORN (ON ROAD)
REMOVAL
Disconnect the horn wire connectors.
Remove the bolt and remove horn.
Installation is in the reverse order of
removal.

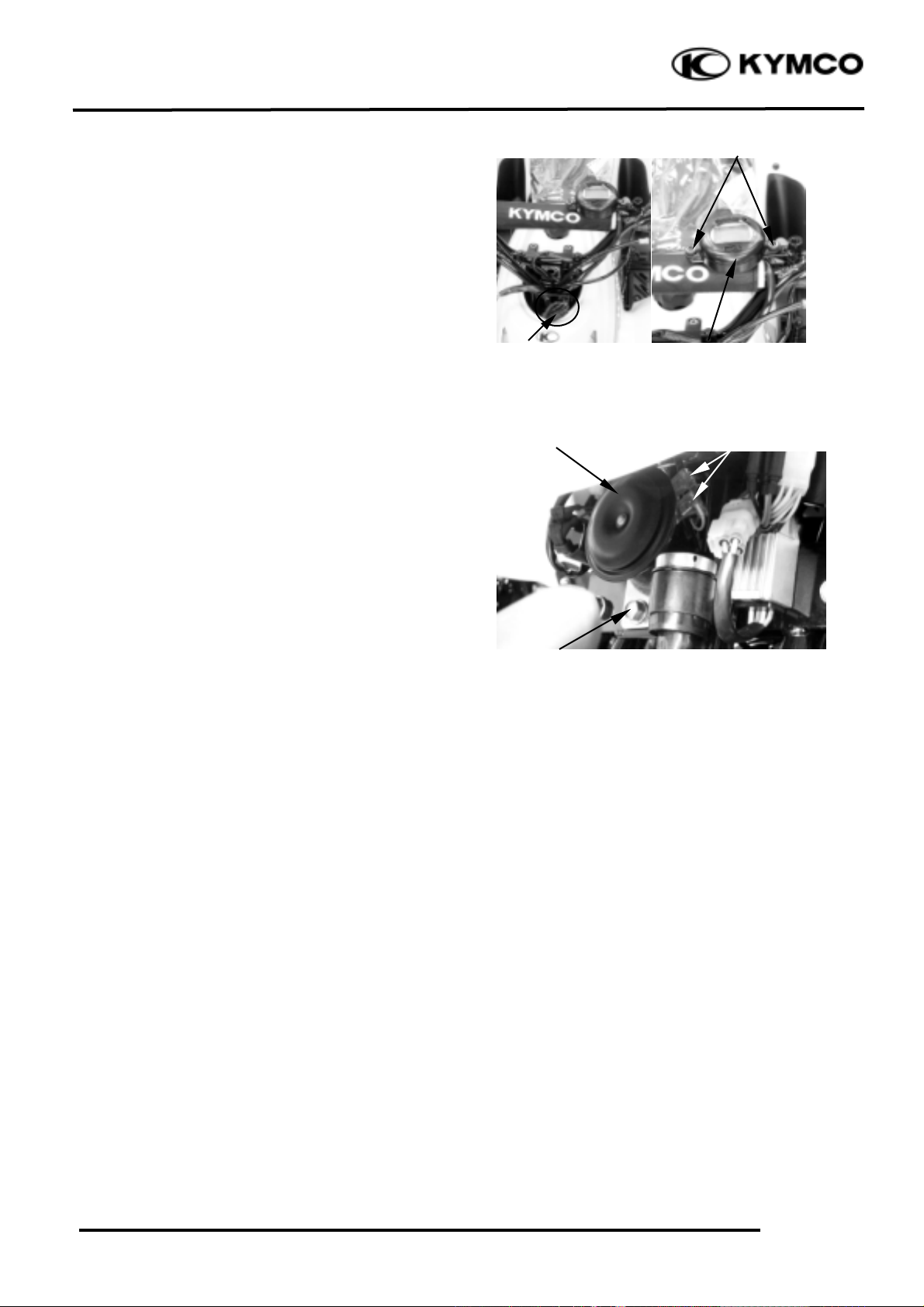

Instrument
Connectors
Screws
Horn
Bolt
Connectors
