Kymco MO D200 Service Manual - chap 00 (indice)

PREFACE

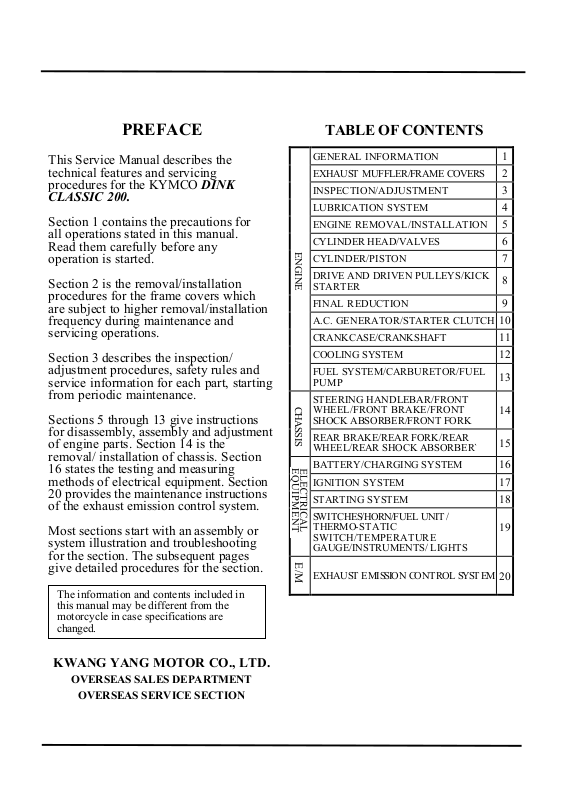

This Service Manual describes the technical features and servicing procedures for the KYMCO DINK
CLASSIC 200.
Section 1 contains the precautions for all operations stated in this manual. Read them carefully before any operation is started.
Section 2 is the removal/installation procedures for the frame covers which are subject to higher removal/installation frequency during maintenance and servicing operations.
Section 3 describes the inspection/ adjustment procedures, safety rules and service information for each part, starting from periodic maintenance.
Sections 5 through 13 give instructions for disassembly, assembly and adjustment of engine parts. Section 14 is the removal/ installation of chassis. Section 16 states the testing and measuring methods of electrical equipment. Section 20 provides the maintenance instructions of the exhaust emission control system.
Most sections start with an assembly or system illustration and troubleshooting for the section. The subsequent pages give detailed procedures for the section.
KWANG YANG MOTOR CO., LTD.
OVERSEAS SALES DEPARTMENT
OVERSEAS SERVICE SECTION
TABLE OF CONTENTS
GENERAL INFORMATION
1
EXHAUST MUFFLER/FRAME COVERS
2
INSPECTION/ADJUSTMENT
3
LUBRICATION SYSTEM
4
ENGINE REMOVAL/INSTALLATION
5
CYLINDER HEAD/VALVES
6
CYLINDER/PISTON
7
DRIVE AND DRIVEN PULLEYS/KICK STARTER
8
FINAL REDUCTION
9
A.C. GENERATOR/STARTER CLUTCH
10
CRANKCASE/CRANKSHAFT
11
COOLING SYSTEM
12
FUEL SYSTEM/CARBURETOR/FUEL PUMP
13
STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK ABSORBER/FRONT FORK
14
REAR BRAKE/REAR FORK/REAR WHEEL/REAR SHOCK ABSORBER`
15
BATTERY/CHARGING SYSTEM
16
IGNITION SYSTEM
17
STARTING SYSTEM
18
SWITCHES/HORN/FUEL UNIT/ T HERMO-STATIC SWITCH/TEMPERATURE GAUGE/INSTRUMENTS/ LIGHTS
19
E/M
EXHAUST EMISSION CONTROL SYSTEM
20
The information and contents included in this manual may be different from the motorcycle in case specifications are changed.
