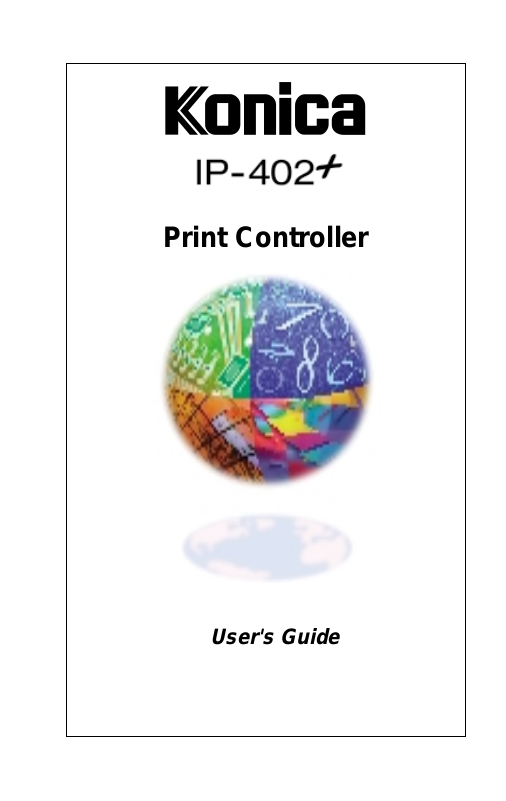

Konica Minolta IP-402+ User Manual
Print Controller
User's Guide
© 1999 by Konica Business Technologies, Inc.
Acknowledgments
All brands and product names are trademarks or registered trademarks of their respective companies.
PostScript ®
A registered trademark of Adobe Systems, Inc.
Agfa Intellifont® Scalable Typefaces
A registered trademark from Agfa Corporation
TrueType ™
A trademark of Apple Computer, Inc.
Centronics ®
A registered trademark of Centronics Data Computer Corporation
HP ®, PCL ®, HP-GL ®
A registered trademark of Hewlett-Packard Company
Microsoft ®
A registered trademark of Microsoft Corporation
Windows ™
A trademark of Microsoft Corporation
PowerPage ® & Power Smoothing ®
A trademark of Electronics for Imaging, Inc. (EFI)
This product contains the PowerPage ® interpreter from EFI.
Web Site Address on the Internet
http://www.konicabt.com
Disclaimer Notice
Konica Business Technologies, Inc. has made every effort to ensure that information in this manual is
complete and accurate. However, constant efforts are also being made to improve and upda te the
product. Therefore, Konica Business Technologies, Inc. shall not be liable for errors in this manual or
for any consequential damages resulting from the use of this manual. Information contained herein is
subject to change without notice.
ii
e l c o m e t o y o u r n e w p r i n t c o n t r o l l e r.
WW
W
WW
print directly from your wor kstation.
Use this equipment according to instructions in this User's Guide, which includes
print controller specifications, and describes details of the printer functions, printer
drivers, and driver screens. A description of fonts, symbol sets and printer commands
is also included in this manual.
Other product-related manuals are provided under separate cover. For example, the
printer engine comes with a separate User's Manual, which is to be kept with the
main body equipment. The optional network interface card comes with the User's
Guide for the Network Administrator, which ma nual is formatted to fit into this
binder.
Should you need assistance on technical matters not covered in this manual, please
phone the Konica National Technical Support Center at 1(800)825-5664.
K onica is committed to serving you the best way possible. We welcome your comments on this manual.
We also invite you to visit our Konica Web Site to learn more about our product line
and to view user's manuals directly on your screen. Our Web Site address is:
This device interfaces with your Konica printer main body, enabling you to
http://www.konicabt.com
Please send correspondence regarding the User's Guide to the address shown below.
KONICA BUSINESS TECHNOLOGIES, INC.
Digital Systems Solutions Group & New P roduct Development
500 Day Hill Road
Windsor, CT 06095
iii
Definition of Terms
CIC - Copier Interface Card
The hardware component inside the print controller (communication via PCI Bus)
that interfaces with the 7040 print engine. Also referred to a PED (Print Engine
Controller).
EIC - Engine Interface Card
The hardware component inside the 7040 engine that interfaces with the print
controller.
DPI - Dots Per Inch
The image resolution of the printer engine.
Double-Buffering
The print controller is designed with an asynchronous connection between the Main
CPU and the CIC. This allows the main CPU to rasterize pages into memory even
when the print engine is busy printing pages from a previous job, or is being fed
pages by the CIC. This is commonly known as 'double-buffering' and allows higher
throughput.
E-RDH - Electronic Recirculating Document Handler
An electronic memory and processing system where each image is scanned once and
stored in memory. Each image is output face down in the desired order and according
to special options.
Error Diffusion
A 'dithering' or half toning system that does not use 'patterns' of dots, but places the
dots in a pseudorandom distribution.
I/O - Input/Output
Refers to the Input and Output channels of the system.
OHP - Overhead Projection
The transparency media used in the bypass.
PCL - Printer Control Language
A term introduced by Hewlett Packard in their LaserJet series of printers. This
product utilizes PCL-5E.
PostScript
A page description language designed by Adobe Systems Inc. This product utilizes
Adobe PostScript Level 2.
VIS - Video Interface Specifications
Refers to the 7040 Video Interface Specifications.
iv
NONEXCLUSIVE LICENSE AGREEMENT
READ THE TERMS AND CONDITIONS OF THIS
LICENSE AGREEMENT CAREFULL Y.
BY USING THE PRODUCTS DESCRIBED IN THIS USER MANUAL OR
DOWNLOADING SOFTWARE OR PRINTER DRIVERS TO YOUR COMPUTER YOU AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE.
The computer programs embedded in the equipment, the accompanying printer drivers (the “Software”)
and user documentation are copyrighted and licensed (not sold) to you by Konica Business Technologies,
Inc. (“KONICA or LICENSOR”), 500 Day Hill Road, Windsor, Connecticut. This license agreement represents the entire agreement concerning the Software between you and KONICA and it supersedes any
prior proposal, representation, or understanding between the parties. KONICA reserves any rights not
expressly granted to you.
1. LICENSE GRANT. You do not receive title to the Software or User Documentation. Licensor grants to
you, and you accept, a nonexclusive license to use the Software embedded in the Equipment in machinereadable, object code form only (referred to as the “Computer Program”), the accompanying User Documentation, and Printer Drivers furnished to you, (collectively the “Licensed Articles”) only as authorized
in this License Agreement. The Computer Program may be used only on the Equipment in which it is
embedded and may not be shared with or transferred to any other equipment. The Printer Drivers shall be
used only with printer products designed to work with the equipment containing the embedded Computer
Program. You may make a single archival copy of the Printer Drivers, provided that it includes all copyright notices, markings and proprietary legends on the original, including the markings of any other company contained therein. This archival copy may not be in use at any time and must remain in your
possession and control. You may not copy the drivers to a bulletin board or other similar system.
2. RESTRICTIONS. YOU MAY NOT ASSIGN, SUBLICENSE, MODIFY , ADAPT , TRANSFER, PLEDGE,
LEASE, RENT OR SHARE YOUR RIGHTS UNDER THIS LICENSE AGREEMENT. YOU MAY
NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR OTHERWISE TRANSLATE THE SOFTWARE OR PRINTER DRIVERS, OR USE ANY OTHER METHOD TO DISCOVER THE
PRINTER DRIVER’S OR SOFTWARE’S SOURCE CODE. YOU MAY NOT CREATE DERIVATIVE WORKS BASED UPON THE SOFTWARE OR ANY PART THEREOF. YOU MAY NOT
COPY THE LICENSED ARTICLES EXCEPT AS SPECIFICALLY PROVIDED IN THIS LICENSE
AGREEMENT.
3. LICENSOR’S RIGHTS. You acknowledge and agree that the Licensed Articles are proprietary products of
Licensor or its suppliers and are protected under U.S. copyright law. You further acknowledge and agree
that all right, title and interest in and to the Licensed Articles, including associated intellectual property
rights, are and shall remain with Licensor or its supplier. Licensor’s suppliers may protect their rights in
the Licensed Articles in the event of a violation of this License Agreement. This License Agreement does
not convey to you an interest in or to the Licensed Articles, but only a limited right of use revocable in
accordance with the terms of this License Agreement.
(continued on next page)
NONEXCLUSIVE LICENSE AGREEMENT (continued)
4. LICENSE FEES. The license fees of $250.00 (included in the purchase price of the Equipment) paid by
you are paid in consideration of the licenses granted under this License Agreement.
5. TERMINATION. This License Agreement is effective upon the purchase and acceptance of the Equipment
by you or the downloading of any Software or Printer Driver from KONICA’s Website or other authorized
electronic medium and shall continue until terminated. This License Agreement will terminate upon your
sale, transfer or disposal of the Equipment having the Software embedded therein. Licensor may terminate
this License Agreement upon the breach by you of any term hereof. Upon such termination by Licensor,
you agree to delete the Software and Printer Drivers from the hard drive of the Equipment and destroy all
copies of the Software and Printer Drivers and User Documentation.
6. LIMITED WARRANTY. Licensor warrants, for your benefit alone, for a period of 90 days from the date of
commencement of this License Agreement (referred to as the “Warranty Period”) that the Software and
Printer Drivers shall operate substantially in accordance with the functional specifications in the User
Documentation. KONICA specifically does not warrant that the Software or Printer Drivers will operate
uninterrupted or error-free. If during the Warranty Period, a defect in the Software or Printer Drivers
appears, you may contact the Licensor for either a replacement or, if so elected by Licensor, refund of
amounts paid by you under this License Agreement. You agree that the foregoing constitutes your sole and
exclusive remedy for breach by Licensor of any warranties made under this Agreement. EXCEPT FOR
THE W ARRANTIES SET FOR TH ABOVE, THE LICENSED ARTICLES, AND THE SOFTWARE CONT AINED THEREIN, ARE LICENSED “AS IS,” AND LICENSOR DISCLAIMS ANY AND ALL OTHER
WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY
IMPLIED W ARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR TICULAR PURPOSE.
7. LIMITATION OF LIABILITY. Licensor ’s cumulative liability to you or any other party for any loss or
damages resulting from any claims, demands, or actions arising out of or relating to this Agreement shall
not exceed $250.00. In no event shall Licensor be liable for any indirect, incidental, consequential, special,
or exemplary damages or lost profits, even if Licensor has been advised of the possibility of such damages.
SOME ST A TES DO NOT ALLOW THE LIMITA TION OR EXCLUSION OF LIABILITY FOR INCIDENT AL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMIT A TION OR EXCLUSION MAY NOT
APPLY TO YOU.
8. GOVERNING LAW. This License Agreement shall be construed and governed in accordance with the laws
of the State of Connecticut. Should any term of this License Agreement be declared void or unenforceable
by any court of competent jurisdiction, such declaration shall have no effect on the remaining terms hereof.
9. COSTS OF LITIGATION. If any action is brought by either party to this License Agreement against the
other party regarding the subject matter hereof, the prevailing party shall be entitled to recover, in addition
to any other relief granted, reasonable attorney fees and expenses of litigation.
10. NO WAIVER. The failure of any party to enforce any rights granted hereunder or to take action against
the another party in the event of any breach hereunder shall not be deemed a waiver by that party as to
subsequent enforcement of rights or subsequent actions in the event of future breaches.
11. U.S. GOVERNMENT RESTRICTED RIGHTS. The Licensed Articles are provided with restricted rights. Use,
duplication, or disclosure by the government is subject to restrictions set forth in subparagraph (c)(1)(ii) of
the Rights in Technical Data and Computer Software clause at DFARS 252.277-7013, and paragraph
(c)(1) and (2) of the Commercial Computer Software - Restricted Rights clause at FAR 52.277-19. The
manufacturer is: Konica Business Technologies, Inc., 500 Day Hill Road, Windsor, Connecticut 06095.
Konica IP-402+
FCC Regulations
The Konica IP-402+ generates, uses, and can radiate radio frequency energy. If the equipment is not
installed and used in accordance with the instruction manual, interference with radio communications
may result. This equipment has been tested and found to comply with the limits for a Class A
computing device, pursuant to Subpart J, Part 15, of FCC rules, which are designed to provide
reasonable protection against interference from such equipment when it is operating in a commercial
environment.
Users operating this equipment in a residential area are like ly to cause interference, in whi ch case they
may be required to correct the interference at their own expense.
Canadian Department of Communications Regulations
Le présent appareil n’émet pas de bruits radioélectriques dépassant les limites applicables aux de Class
A prescrites dans le règlement sur la brouillage radioélectrique édicté par Le Ministère des Communications du Canada.
This equipment does not exceed the Class A limits for radio noise emissions as set out in the radio
interference regulations of the Canadian Department of Communications.
EN60950
EN50081-1
EN50082-1
************************************************************************************
W elcome to Your Printer Controller .............................................................. iii
Definition of Terms .........................................................................................iv
Section 1: The Print Controller
Introduction .....................................................................................................1-2
System Configuration .....................................................................................1-3
The Settings .................................................................................................... 1-3
Media Support ................................................................................................ 1-4
Layout ............................................................................................................. 1-5
I/O Interfaces ..................................................................................................1-6
Memory Configuration ............................................................................ 1-7
Specifications ...........................................................................................1-8
Section 2: Printer Drivers
Installing Printer Drivers ..........................................................................2-2
Checking the Version of A Printer Driver ................................................2-4
Printer Driv er Screens ..............................................................................2-5
Contents
PostScript Driver Screens for Windows 3.1 .............................................2-6
PCL Driver Screens for Windows 3.1 ......................................................2-17
PostScript Driver Screens for Windows 95 ..............................................2-34
PCL Driver Screens for Windows 95 .......................................................2-53
Printing Modes .........................................................................................2-71
Tray Selection/Paper Selection ................................................................2-73
Font Selection ...........................................................................................2-74
Font Characteristics ..................................................................................2-75
PostScript Printer Language Fonts .................................................................2-76
PCL 5 Printer Language Fonts .......................................................................2-77
Section 3: Symbol Sets
Symbol Sets .................................................................................................... 3-2
Roman-8 Character Conversion Tables ....................................................3-20
Section 4: PCL Printer Commands
PCL 5 Printer Commands .............................................................................. 4-2
Section 1: The Print Controller
The Print Controller
Introduction
The print controller interfaces directly with your Konica printer main body,
enabling you to print directly from your PC or network.
This print controller supports PCL 5E and PostScript Level 1 & 2 compliant
files and automatically uses the correct language for each print job, p rovided the
print job follows specific industry standard conventions for detecting the
beginning and end of each job.
Basically, print controller language detection works like this:
• To determine the language in which the job was created, the preprocessor
checks the beginning of each job.
• When a specific language code is detected, the preprocessor switches to that
language, and then processes the job.
• If the preprocessor cannot determine which language to use, the default
language will be used for the job.
• The system determines when the end of job is reached by the end-of-file
command of each language or by a 30-second time-out.
• For language switching to function correctly, the system must be able to detect
when the end of job is reached.
PCL 5E: The PCL 5E interpreter of the print controller is PowerPCL from
Pipeline Associates, Inc. It is an HP PCL 5E clone that supports multiple
resolutions and PJL commands.
PostScript: The optional PostScript interpreter for the print controller is
PowerPage2 from Pipeline Associates, Inc. This is a Le vel 2 PostScript interpreter that also has Level 1 compatibility. The PostScript programming language
is specifically tailored to produce images in a device independent manner.
PostScript language programs are reproducible on virtually any device without
significant differences, except for differences created in the devices themselves.
PJL Commands: Many of the PJL commands, as defined by HP, are supported
by the print controller. Several special functions are controlled in PCL mode via
the PJL commands. In addition, commands to provide bidirectional (BiDi)
functionality are also supported.
The Print Controller 1-2
The Print Controller
System Configuration
Your Konica print controller is based on an IBM compatible PC system that
includes the following:
Intel Pentium Celeron 333
Motherboard
PCI
ISA bus slots
Standard168 pin DIMM memory
IDE Hard Disk
3.5" floppy disk
VGA V ideo Card
A keyboard or monitor may be used for diagnostic functions of the print
controller.
The Copier Interface Card (CIC) of the print controller acts as a bridge between
the Motherboard and the Engine Interface Card (EIC) installed in the print
engine.
The CIC board contains a Motorola 68331 CPU and custom hardware and
software for communicating with and controlling the print engine. The CIC card
can be reprogrammed in the field via floppy disk, or through the network.
Settings
Default Settings
Default Paper Size Letter
Default Resolution 400 dpi
Default Emulation PCL 5E
Default Printer Quality Text Mode
Serial Port Parameters 19,200,N,8,1,Xon/Xoff
Other Settings
E-RDH Print Order Normal
Duplex Off
Sheet Insertion Off
Paper Thickness Normal
Print Density Engine default
Finisher Mode Job Offset
The Print Controller 1-3
The Print Controller
Media Support
The Print Controller supports the following paper dimensions and orientations
through the printer's main body.
USA (inches)
Tabloid-R (11 x 17)
Legal-R (8.5 x 14)
Letter-R (8.5 x 11)
Letter (11 x 8.5)
Half-Letter-R (5.5 x 8.5)
A4 (297 x 210 mm)
A4R (210 x 297 mm)
B4R (364 x 257)
Europe (millimeters)
A3R (297 x 420)
A4 (297 x 210)
A4R (210 x 297)
A5R (210 x 148)
B4R (364 x 257)
B5 (182 x 257)
B5R (257 x 182)
F4R (330.2 x 203.2)
NOTE: An 'R' next to the paper size indicates that the short edge feeds first.
Special Media
Paper type can be specified from the print job screen. Overhead transparency
material (OHT/OHP), thick paper, and thin paper can only be used through the
manual bypass tray. After selecting the manual bypass tray, you will be
prompted to insert the requested paper size into the tray.
The Print Controller 1-4
The Print Controller
Layout
Print Controller
Front V ie w
Disk Drive
Reset
Button
Power
On/OFF
Print Controller
Rear V iew
Serial
Port
Parallel Port to PC
CN1/CN2
Power
Cord
IMPORTANT:
1. Before connecting cables to the print controller, be sure to turn power Off.
2. Plastic caps are provided to cover the Serial Port and Parallel Port (see Rear
View illustration). When the printer connection port is not used, be sure to
cover the port with a plastic cap.
The Print Controller 1-5
The Print Controller
I/O Interfaces
Server Mac PC
-------Ethernet--------
Network
Interface Card
KN-301
KN-201
>
Input Buffe r
PC or Print
Server
Parallel
Port
PC or Print
Server
VVV
Serial
Port
PCL 5E
Interpreter
The Print Controller 1-6
Print Controller
plus Memory
V
Controller
Interface
PostScript
Interpreter
7040 Engine
Cable
Interface
Card (EIC)
The Print Controller
Memory Configuration
Most of the print controller memory is used for rasterizing the image. A small
portion is used for the system operation (see NOTE).
The basic print controller configuration includes 32 MB of RAM, which allows
1-bit mode printing at 400 dpi on all paper sizes. The print controller may be
upgraded to 512 MB in 32/64/128 MB increments to allow 8-bit Grayscale
printing on Tabloid (11"x17") A3 paper, or double buffering on smaller paper
sizes.
When using the E-RDH in the one-sided mode, printing will be performed
simultaneously while the print controller rasterizes the pages in the print job and
sends them to the E-RDH memory. While pages are being printed from the ERDH memory, the print controller continues to rasterize the next print job in the
sequence.
The more memory in the print controller, the more pages it can rasterize while
waiting for the previous job to print. A typical example of the memory requirements for a Letter page is as follows:
1-Bit 8-Bit
400 DPI 1,870 Kbytes 14.96 Mbytes
600 DPI 4,207 Kbytes 33.66 Mbytes
32 MBytes installed = 15 pages @ 1-Bit, 400 DPI
NOTE: ~2.7 MB used for system.
You may select various image quality modes from your print driver screen to
produce various levels of grayscale. The following Table shows the available
image quality modes and the grayscale levels they produce.
Print Mode Print Engine Print Controller Grayscale
Text 1-Bit Mode 1-Bit Mode 2 Levels
(PCL/PS)
High 8-Bit Mode 8-Bit Mode 256 Levels
(PS)
Memory Upgrade Modules
To obtain optimal printer performance, Konica recommends that DIMM
modules be installed by a Konica certified technician. For details, contact your
Konica service representative; or the Konica National Technical Support Center,
at 1(800) 825-5664.
The Print Controller 1-7
The Print Controller
Specifications
System
Architecture IBM Compatible PC System
Processor Intel Pentium Celeron 333
Memory 32 MB standard/512 MB max.
Hard Drive IDE compatible
Floppy Drive 3.5" Floppy Disk
Input/Output Interfaces
Serial RS-232C Serial Standard
Connector DB9 male
Baud Rates 4,800~19,200 (default: 19,200)
Parallel IEEE 1284 compatible bidirectional
Network Connectivity Compatible
Optional KN-101, KN-201, or KN-301
Ethernet Network Interface: 10/100BaseT
PDL Support
Standard PCL 5E
Optional PostScript
Font Support
PCL 45 PCL Fonts
PostScript 35 PostScript Fonts (optional)
Driver Software Windows 3.1, 3.11, Windows 95
Windows NT Workstation & Server
ver. 3.x, 4.x
Macintosh and UNIX, AS400/IBM
environment
Print Controller Features
Multiple Page Buffering
Real Time Mode Prin t
Automatic Emulation Switching
Automatic Port Switching
Job Spooling
The Print Controller 1-8
Section 2: Printer Drivers
Printer Drivers
Installing Printer Drivers
Windows 3.x
The Printer Drivers that come with the IP-402 Print Controller are actually
software programs that enable you to control all the printing settings for the
selected printer.
Before you can print from your application (e.g., spreadsheet or word processor),
the appropriate printer driver must be installed on your computer system.
Installing Printer Drivers is a simple procedure that includes the following:
• Installing a specific printer driver
• Assigning a port to the printer
• Specifying settings for your printer (optional)
• Setting the default printer
Installing a Specific Printer Driver (ex. Windows 3.x Printer Driver)
1. Double-click the Main icon in Program Manager.
2. Choose the Control Panel icon.
3. In the control Panel window, choose the Printers icon.
4. Choose the Add button.
5. In the List Of Printers box, select Install Unlisted or Updated Printer.
Depending upon the printer driver version, you may need to use the Browse
button to find and select the driver. Then, click on OK until you get to the
Add Unlisted or Updated Printer box.
NOTE: To install a driver that is listed, but not installed, simply highlight it in List of Printers box.
6. Choose the Install button.
7. Insert the disk containing the printer driver into your floppy drive, The
default for the Konica drivers is drive A. If you are using a different drive,
specify it. When the appropriate drive is selected, click on OK.
8. In the Add Unlisted or Updated Printer box, select the appropriate driver and
click on OK.
9. The printer name will appear in the list of installed printers.
2-2 Printer Drivers
Printer Drivers
Installing Printer Drivers
Windows 3.x
Assigning a Port
By default, LPT1 will be assigned to the newly installed printer.
1. To assign a different port, click on the Connect button.
2. In the Ports list, select the port you want to assign to the printer.
NOTE: When installing to a network, up to three LPT printers can be assigned (LPT1, LPT2, LPT3)
without having to add more through the WIN.INI file. Should it be necessary to add more than three
printers, click on the Help button in the Connect box for instructions.
Tip: If you print to LPT1 in Windows 3.x and LPT1 is redirected to another port,
the printer will not print. To correct this, select LPT1.DOS in the Connect dialog
box.
Specifying Printer Settings
This is an optional step for making changes to the default printer settings, such as
paper size or orientation. These settings can be temporarily overridden from
within your application.
1. Click on the Setup button in the Printers dialog box.
2. When the Setup box is displayed, make the desired selections.
Setting the Default Printer
When you install a printer, it will automatically be highlighted in the Printers
dialog box.
1. Highlight the printer you want as the default printer.
2. Click on the Set As Default Printer button.
NOTE: Some applications act as a control panel, making their settings become the system default.
This is not a function of the driver.
Printer Drivers 2-3
Printer Drivers
Checking the Version of A Printer Driver
Windows 3.x
There may be times when you need to know if you are using the most up-to-date
printer driver. Use the following procedure to check the version of a printer
driver.
1. Highlight the driver in the Printers dialog box.
2. Click on the Setup button.
3. Click on the About button.
4. The About dialog box will be displayed with the printer version shown.
2-4 Printer Drivers
Printer Drivers
Printer Driver Screens
For convenience, selected printer driver screens are displayed starting on the
next page to show the various screens for making printing selections. Samples
include PostScript printer driver screens for Windows 3.1; and PCL and
PostScript printer driver screens for Windows 95.
The Windows 3.1 screens are similar to those in Windows for Workgroups.
Many Windows 95 screens are similar to those in WindowsNT.
When you select Print from your application, a screen displays that is specific for
your installed driver. You may use the default settings shown on the screen, or
you may select options associated with each printing mode.
For a description of Printing Modes and Fonts that are available, see the pages
following sample driver screens.
Making Print Selections From Your Printer Driver Screen
1. From your printer driver screen, click on the desired printing mode.
2. Scroll options associated with the mode by clicking the up or down arrows.
3. When all desired settings are indicated on the screen, click on OK.
Printer Drivers 2-5
Printer Drivers
PostScript Driver Screens for Windows 3.1 Paper Source
The Paper Source screen allows you to select a specific tray, or use
the Auto Select mode, which is the default setting.
Auto Select mode means that the printer will select an appropriate
tray that contains the paper size indicated.
2-6 Printer Drivers
Printer Drivers
PostScript Driver Screens for Windows 3.1 Options
The Options screen displays printer features that allow you to
control the finishing style of your print job by selecting,
Offsetting or stapling when printing multiple sets
Print quality mode for graphic images
Print density mode for reducing toner consumption
Edge Smoothing to close feathered edges
Printer Drivers 2-7
Printer Drivers
PostScript Driver Screens for Windows 3.1 Advanced Options
The Advanced Options screen allows you to select:
Fonts
To change the default font currently in use, click the arrow in the
Send to Printer field to display the options.
Memory
Increase the amount of memory allocated for storing pages.
Graphics
Change resolution to handle complicated text or halftone images.
2-8 Printer Drivers
Printer Drivers
PostScript Driver Screens for Windows 3.1 Offset Mode
When printing multiple sets, use the Offset mode to separate one
printed set from another.
Click Offset On, then click on OK.
Printer Drivers 2-9
Printer Drivers
PostScript Driver Screens for Windows 3.1 Staple Mode
When printing multiple sets, use the Staple mode to staple each set.
Click on Staple to display the current setting.
If the current setting is acceptable, then click on OK.
Click on the arrow to view further available setting options.
Single Portrait mode places a staple in the upper left corner
of a portrait document.
Single Landscape mode places a single staple in the upper left
corner of a landscape document.
Double Staple mode places two staples along the left edge of
a portrait or landscape document.
2-10 Printer Drivers
Printer Drivers
PostScript Driver Screens for Windows 3.1 Print Quality
Use the Print Quality mode when your image includes graphics or
halftones requiring a resolution that is higher than the Text mode.
Click on Print Quality to display the current setting. Select the mode
that is appropriate for the original image. Click the arrow to view
further available setting options.
Use the Very high mode for true grayscale printing.
Printer Drivers 2-11
Printer Drivers
PostScript Driver Screens for Windows 3.1 Print Density
Print Density allows you to print with reduced toner consumption.
Click on Print Density. The current setting will be displayed in the
field below it. To change the setting, click on the desired mode or
click on the arrow to view further options.
Toner Saver mode uses 80% of the amount of toner normally
used.
Draft mode uses 60% of the amount of toner normally used.
2-12 Printer Drivers
Printer Drivers
PostScript Driver Screens for Windows 3.1 Paper Size
Paper Size allows you to select a specific tray size.
The default paper size is indicated.
Click the arrow for Paper Size to scroll to the desired size.
Double click on your selection, then click OK.
Printer Drivers 2-13
