komatsu PC228US-3EO, PC228USLC-3EO SPECIFICATIONS

OPTIONAL EQUIPMENT
Alternator, 60 Ampere, 24 V
Arms
2925 mm 9'7" arm assembly
Batteries, large capacity
Boom, 5700 mm 18'8"
Cab accessories
Cab front guard —Full height guard —Half height guard
Heater with defroster
Long lubricating intervals for work equip-
ment bushing (500 hours) except bucket pin bushings
Seat belt, retractable
Seat, suspension
Service valve
Shoes, triple grouser
—PC228US-3E0:
700 mm 28", 800 mm 31.5"
—PC228USLC-3E0:
600 mm 24", 800 mm 31.5"
Track frame undercover
Track roller guards (full length)
STANDARD EQUIPMENT
Air conditioner with defroster
Alternator, 35 Ampere, 24 V
Anti-slip plates
Auto-Decel
Automatic de-airation system for fuel line
Automatic engine warm-up system
Batteries, 110 Ah/2 x 12 V
Boom holding valve
Cab, OPG top guard level 1
Counterweight
Dry type air cleaner, double element
Electric horn
EMMS monitoring system
Engine, Komatsu SAA6D107E-1
Engine overheat prevention system
Fan guard structure
Hydraulic track adjusters (each side)
Multi-function color monitor
Power maximizing system
PPC hydraulic control system
Radiator and oil cooler dust proof net
Rear reflector
Rearview mirrors, RH, LH, rear, sidewise
Starting motor, 4.5 kW/24 V x 1
Suction fan
Track guiding guard, center section
Track roller
—PC228US-3E0, 7 each side —PC228USLC-3E0, 9 each side
Track shoe —PC228US-3E0, 600 mm 24" triple grouser —PC228USLC-3E0, 700 mm 28" triple
grouser
Travel alarm
Working light, 3 (boom and cab)
Working mode selection system
www.Komatsu.com
CEN00131-02 Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd. Japan.
Printed in Japan 200804 IP.As(10)
FLYWHEEL HORSEPOWER
Gross:116 kW 155 HP @ 2000 rpm
Net:110 kW 148 HP @ 2000 rpm
OPERATING WEIGHT
PC228US-3E0:21900– 22530 kg
48,280– 49,670 lb
PC228USLC-3E0:22630– 23180 kg
49,890– 51,100 lb
Photo may include optional equipment.
PC228US-3E0 PC228USLC-3E0
PC
228US
HYDRAULIC EXCAVATOR
HORSEPOWER
Gross:116 kW 155 HP @ 2000 rpm
Net:110 kW 148 HP @ 2000 rpm
OPERATING WEIGHT
PC228US-3E0:21900 – 22530 kg
48,280 – 49,670 lb
PC228USLC-3E0:22630 – 23180 kg
49,890 – 51,100 lb
BUCKET CAPACITY
0.50 – 0.93 m
3
0.65 – 1.22 yd
3
WALK-AROUND
H YDRAULIC E XCAVATOR
HYDRAULIC EXCAVATOR
PC228US-3E0
PC228US-3E0
0
32
Ecology and Economy Features
Low Emission Engine
A powerful, turbocharged and air-to-air aftercooled Komatsu SAA6D107E-1 provides 110 kW 148 HP. This engine meets EPA Tier 3 and EU stage 3A emissions regulations, without sacrificing power or machine productivity.
• Economy mode improves fuel consumption.
Low Operation Noise
The dynamic noise is reduced compared with the PC228US-3, realizing a low noise operation.
See page 4.

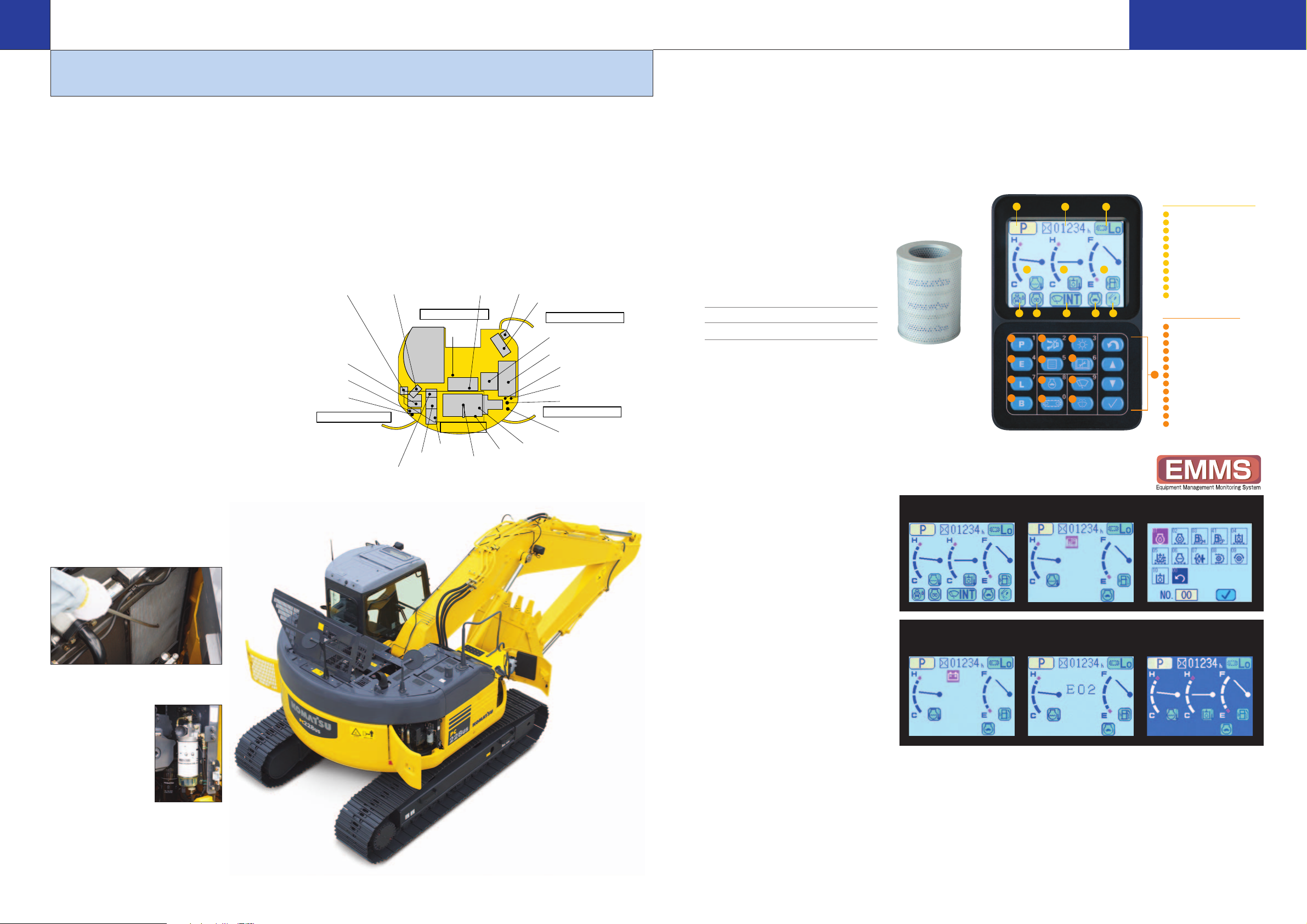

Easy Maintenance
• Long replacement interval of engine oil, engine oil filter, and hydraulic filter
• Remote mounted engine oil filter and fuel drain valve for easy access
• Equipped with the fuel pre-filter as standard (with water separator)
• Side-by-side cooling function enables only the cooling unit to be attached and detached.
• Equipped with the EMMS monitoring system.
See page 10.
Safety Features
• Anti-slip plates for safe work on machine
• Safety enhancement with large side-view, sidewise, and rear mirrors added.
See page 9.
Photo is PC228USLC-3E0. Photo may include optional equipment.

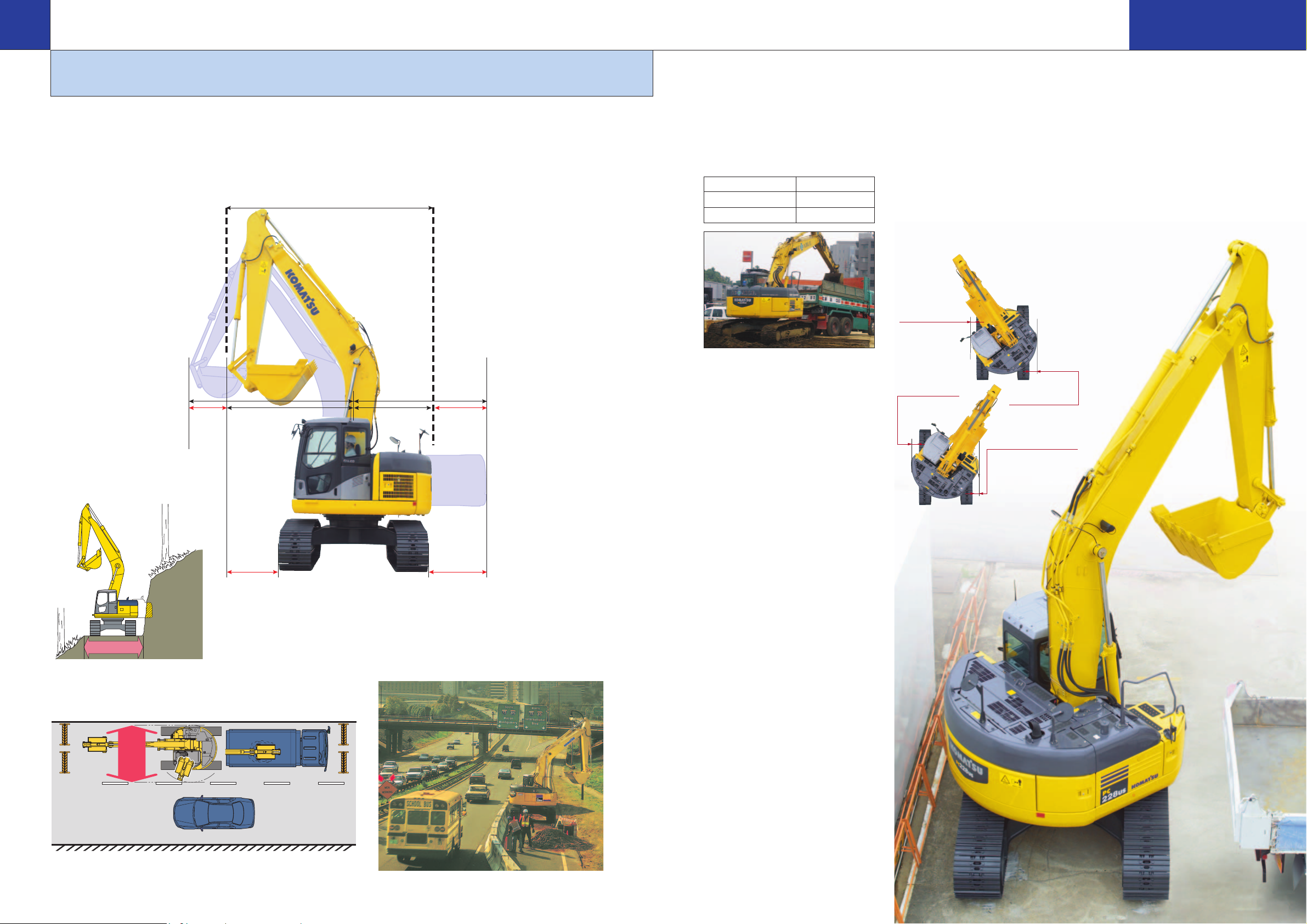

Safety Operation
• Excellent safety and operability in tight quarters with small tail swing radius design
• Short protrusion of front and rear portion of the upper structure from the track at swing thanks to its round profile
• Small road width occupation for the work
See page 7.
Wide Working Ranges
Job sites that require a long upper reach, such as demolition and slope cutting also benefit from the increased digging and dumping ranges of the PC228US-3E0.
High Mobility
• Large drawbar pull and steering force display its ability when operating on a slope.
• Excellent mobility with automatic three-travel speed.
High Stability
The PC228US-3E0 offers exceptional lifting capacity and high stability with a large counterweight that requires no additional clearance.
See page 5.
Productivity Features
Multi-function Color Monitor
• Four working modes designed to match engine speed, pump delivery and system pressure.
• Power mode for maximum production/power
• Breaker mode for optimum engine rpm, hydraulic flow, and pressure
• Economy mode for lower fuel consumption and noise
• Lifting mode for high lifting capacity
See page 11.

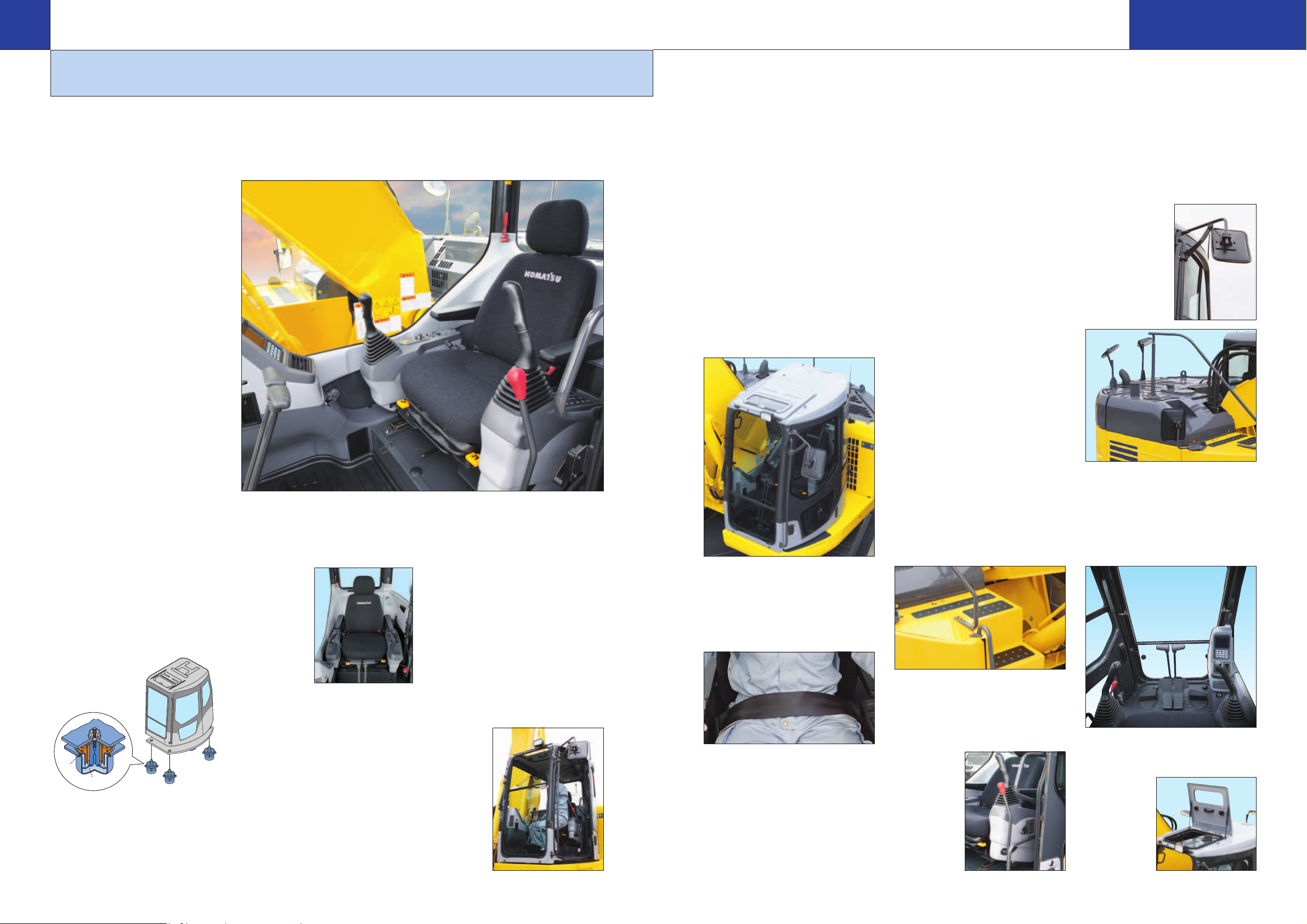

Larger Comfortable Cab
• Low noise design cab with viscous cab mounting
• Sliding convex door facilitates easy entrance in confined areas.
• Large cab meets ISO working space stan­dards.
See page 8.
Komatsu’s PC228US-3E0 Series Hydraulic Excavators have a short tail swing profile, designed
specifically for work in confined areas. By reducing tail swing, the PC228US-3E0 can work in areas where conventional profile excavators would pose a safety risk.

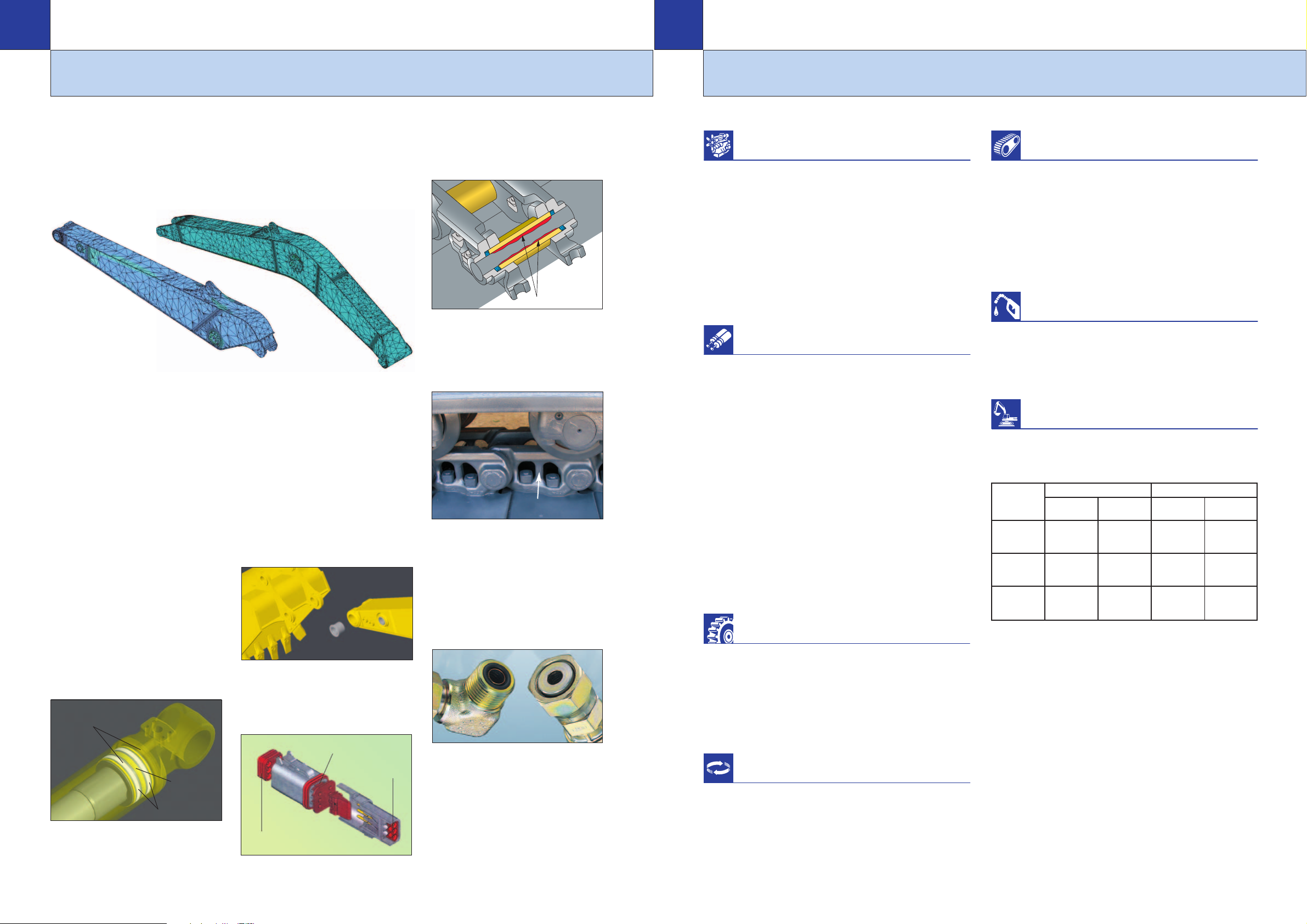

Excellent Reliability and Durability
• High rigidity work equipment
• Sturdy frame structure
• Reliable Komatsu manufactured major components
• Highly reliable electronic devices
See page 12.
Komatsu Technology
Komatsu develops and produces all major
components, such as engines, electronics
and hydraulic components, in house.
With this “Komatsu Technology,” and adding
customer feedback, Komatsu is achieving
great advancements in technology.
To achieve both high levels of productivity and
economical performance, Komatsu has devel-
oped the main components with a total control
system.
The result is a new generation of high perfor-
mance and environment-friendly excavators.
4
PRODUCTIVITY & ECOLOGY FEATURES
HYDRAULIC EXCAVATOR
5
Low Emission Engine
Komatsu SAA6D107E-1 meets EPA, Tier 3 and EU stage
3A emissions regulations and reduced NOx
emission by 29% compared with the
PC228US-3.
Low Operation Noise
Enables a low noise operation using the low-noise engine
and methods to cut noise at source.
Electronically controlled common rail type engine
• Multi-staged injection
• Highly rigid cylinder block
Dynamic noise is reduced.
(Compared with the PC228US-3)
Low-noise muffler
Optimal arrangement of sound absorbing materials
H YDRAULIC E XCAVATOR
PC228US-3E0
PC228US-3E0
0
Large Digging Force
The machine has a digging force equal to that of PC200-8.
Furthermore, the operator can increase the power by 8 %
using single-touch power increase function when requiring
an extra power.
Excellent Travel Performance
With large drawbar pull and automatic gearshift function that
changes the travel speed between Hi and Lo speed at the
optimum shift point according to the load, the machine can
travel over the sever job site. The machine can also travel
quickly and speedy and comfortably travel while making a
turn.
Working Mode Application Advantage
Power mode
Maximum production/power
P
Fast cycle time
E Economy mode Excellent fuel economy
L
Lifting mode
Hydraulic pressure is increased by 7%
Breaker
Optimum engine rpm,
B
mode
hydraulic flow for breaker operation
Working Mode Selection
The PC228US-3E0 excavator is equipped with four working
modes (P, E, L and B mode). Each mode is designed to
match engine speed, pump speed, and system pressure with
the current application. This provides the flexibility to match
equipment performance to the job at hand.
Economy Mode
Economy mode is environmentally friendly. Fuel consumption
is reduced 14% (compared with PC228US-3 Active mode).
Lifting Mode
When the lifting mode is selected, lifting capacity is
increased 7% by raising hydraulic pressure.
Breaker Mode
Flow can be adjusted from the cab to match various attach-
ment requirements.
E
P
Economy mode
L
Lifting mode
B
Breaker mode
Power mode
High Stability
The PC228US-3E0 offers exceptional lifting capacity and
high stability with a large counterweight that requires no
additional clearance.
LCD color monitor
Hydraulic system controller
Electronic control unit for engine
Engine Heavy duty HPCR Common Rail)
system
(High Pressure
Hydraulic control valve Flow divide/merge control with EPC
Main pump Two pump independent control
