KOHLER K-T10593, K-T10594, K-T10595, K-T10596 User Manual

Homeowners Guide

Thermostatic Valve Trim

K-T10593 K-T10594

K-T10595 K-T10596

M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
M corresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”

1049066-5-B

Thank You For Choosing Kohler Company

Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.

All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.

Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.

Care and Cleaning

For best results, keep the following in mind when caring for your
KOHLER product:

•

Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.

•

Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.

•

Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.

•

Do not allow cleaners to sit or soak on the surface.

•

Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.

•

Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.

For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.

1049066-5-B 2 Kohler Co.

Warranty

KOHLER®Faucet Lifetime Limited Warranty

Kohler Co. warrants its Faucets* manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his or her home. If the Faucet
should leak or drip during normal use, Kohler Co. will, free of charge,
mail to the purchaser the cartridge necessary to put the Faucet in good
working condition. This warranty applies only to Kohler Faucets
installed in the United States of America, Canada or Mexico (″North
America″).

Kohler Co. also warrants all other aspects of the faucet or accessories
(″Faucet″)*, (except gold, non-Vibrant
of defects in material and workmanship during normal residential use
for as long as the original consumer purchaser owns his or her home.
This warranty applies only to Kohler Faucets installed in North
America. If a defect is found in normal residential use, Kohler Co. will,
at its election, repair, provide a replacement part or product, or make
appropriate adjustment. Damage to a product caused by accident,
misuse, or abuse is not covered by this warranty. Improper care and
cleaning will void the warranty**. Proof of purchase (original sales
receipt) must be provided to Kohler Co. with all warranty claims.
Kohler Co. is not responsible for labor charges, installation, or other
incidental or consequential costs. In no event shall the liability of
Kohler Co. exceed the purchase price of the Faucet.

If the Faucet is used commercially or is installed outside of North
America, or if the finish is gold, non-Vibrant or a painted or powder
coated color finish, Kohler Co. warrants the Faucet to be free from
defects in material and workmanship for one (1) year from the date the
product is installed, under Kohler Co.’s standard one-year limited
warranty.

If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444
Highland Drive, Kohler, WI 53044, USA. Please be sure to provide all
pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4KOHLER (1-800-456-4537) from within the USA
and Canada, and 001-877-680-1310 from within Mexico.

KOHLER CO. AND/OR SELLER ARE PROVIDING THESE
WARRANTIES IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO

, non-chrome finishes) to be free

®

Kohler Co. 3 1049066-5-B

Warranty (cont.)

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. KOHLER CO. AND/OR
SELLER DISCLAM ALL LIABILITY FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states/provinces do not

allow limitations of how long an implied warranty lasts or the
exclusion or limitation of such damages, so these limitations and
exclusions may not apply to you. This warranty gives the consumer
specific legal rights. You may also have other rights that vary from
state/province to state/province.

This is Kohler Co.’s exclusive written warranty.

*Trend

faucets, MasterShowerTM tower, BodySpaTM systems and

®

components; WaterHavenTM tower, systems and components; TripointTM
faucets, Polished Gold, non-Vibrant and painted or powder coated
finishes, fittings; all items within the ″Fixture Related″ section of the
Kohler Faucets Price Book, drains, Duostrainer

sink strainers,

®

soap/lotion dispensers; and faucets used in commercial settings, and
outside North America, are covered by Kohler Co.’s one-year limited
warranty.

**Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, waxes, alcohol, solvents or other products not recommended for
chrome. This will void the warranty.

1049066-5-B 4 Kohler Co.

75604

Bearing

1030451

Screw

1033047

Stem Extension

1006719

Spring Washer

1006720

Washer

1015190

Washer

75604

Bearing

1043578**

Bonnet

1034705**
1037044**

Handle

(Metal)
(Ceramic)

**Finish/color code must be specified when ordeing.

Service Parts

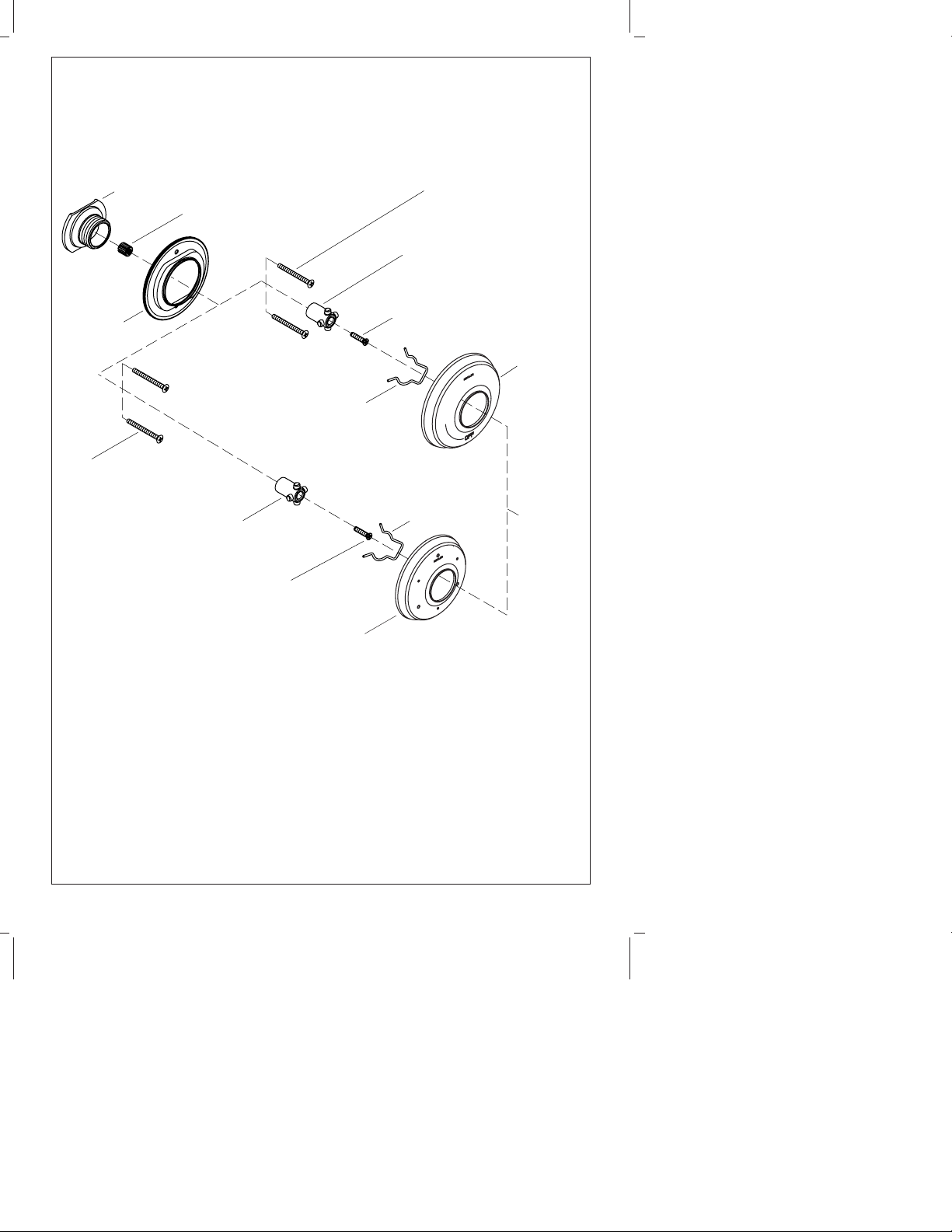

Kohler Co. 5 1049066-5-B

1032290

Seal

1024419

Hub

78125

Spline Adapter

1034484

Retaining Clip

1050806
1050807

Screw

1031782**
1032871**
1032872**

Stem Adapter

1032960
1013970
1041322

Screw

[3/4" (1.9 cm)]
[1-3/8" (3.5 cm)]
[1-3/4" (4.4 cm)]

[1-3/4" (4.4 cm)]
[2-1/2" (6.4 cm)]

[7/8" (2.2 cm)]
[1-3/8" (3.5 cm)]
[1-7/8" (4.8 cm)]

1046294**

Escutcheon

1041322
1047054

Screw

[1-3/4" (4.4 cm)]
[2-1/2" (6.4 cm)]

1030840** [1/2" (1.3 cm)]
1031782**
1032871** [1-3/8" (3.5 cm)]

Stem Adapter

[7/8" (2.2 cm)]

1012476
1035311 [1-3/8" (3.5 cm)]

Screw

1034484

Retaining Clip

[13/16" (2.1 cm)]

1036331**

Escutcheon

**Finish/color code must be specified when ordeing.

To Handle

1049066-5-B 6 Kohler Co.

1024419

Hub

78125

Spline Adapter

1035854

Seal

1031782**
1032872**
1032871**

Stem Adapter

[7/8" (2.2 cm)]
[1-7/8" (4.8 cm)]
[1-3/8" (3.5 cm)]

1034484

Retaining Clip

1038645

Stud

1035311
1048476
1035320 [1-3/4" (4.4 cm)]

Screw (M4 Metric Thread)

41517

Nut

[1-3/8" (3.5 cm)]
[2-3/8" (6 cm)]

**Finish/color code must be specified when ordeing.

1032960
1041322 [1-3/4" (4.4 cm)]
1013970 [1-3/8" (3.5 cm)]

Screw (#8-32 US Thread)

[3/4" (1.9 cm)]

1046296**

Escutcheon

To Handle

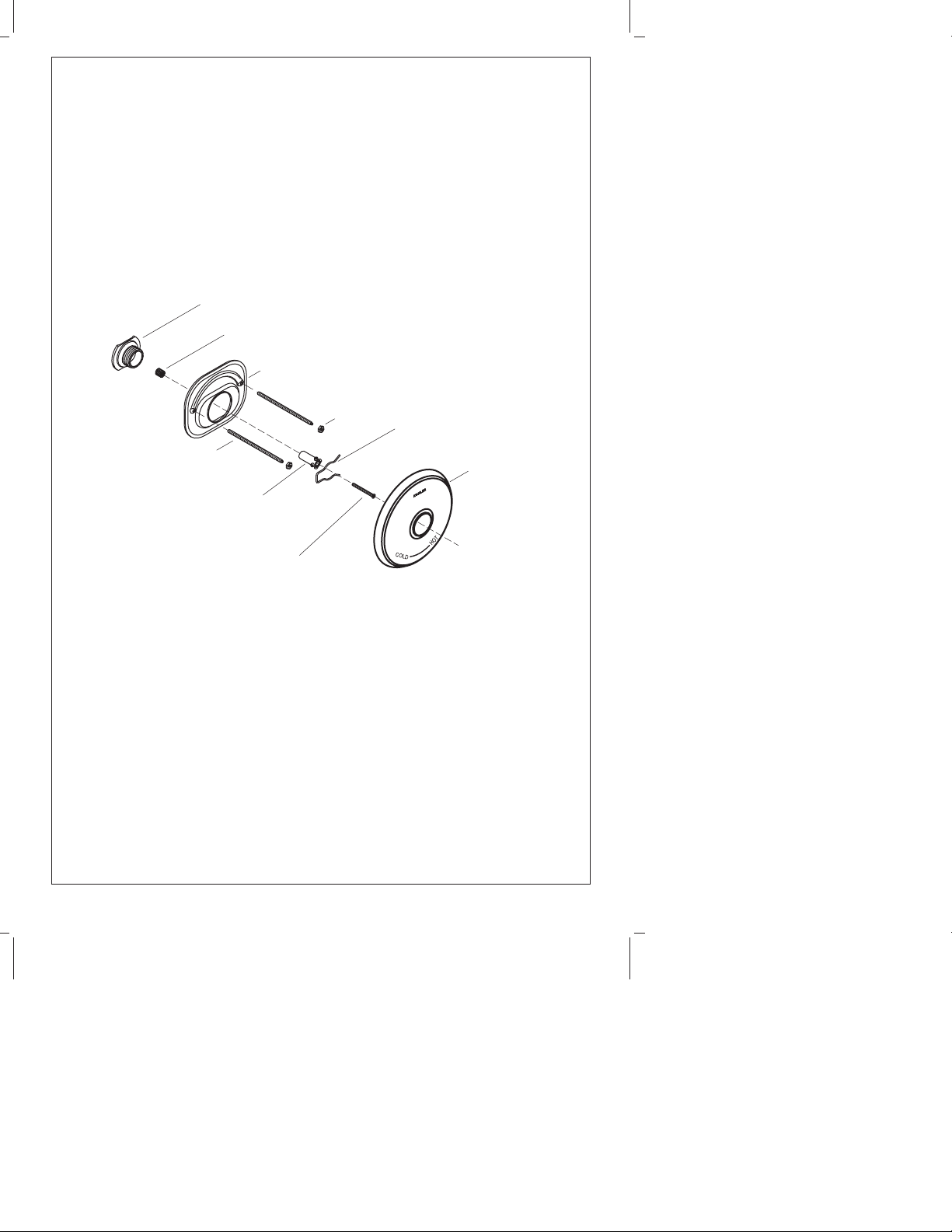

Kohler Co. 7 1049066-5-B

1024419

Hub

78125

Spline Adapter

1035783

Seal

1038645

Stud

1031782**
1032872**
1032871**

Stem Adapter

[7/8" (2.2 cm)]
[1-7/8" (4.8 cm)]
[1-3/8" (3.5 cm)]

1035311
1048476
1035320

Screw

**Finish/color code must be specified when ordeing.

[1-3/8" (3.5 cm)]
[2-3/8" (6 cm)]
[1-3/4" (4.4 cm)]

41517

Nut

1034484

Retaining Clip

1046295**

Escutcheon

To Handle

1049066-5-B 8 Kohler Co.
