Homeowners Guide

Wall Hung Toilet

K-5402

M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de M corresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”

1247364-5-A

JOBNAME: No Job Name PAGE: 2 SESS: 17 OUTPUT: Wed Apr 6 16:10:51 2016

Important Information

READ AND FOLLOW ALL INSTRUCTIONS

Important Safeguards

WARNING: To reduce the risk of burns, electrocution, fire, or injury to persons:

DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault

Circuit-Interrupter (GFCI)*.

WARNING: Risk of electric shock. Do not immerse or flush the product with water.

WARNING: Risk of personal injury. UV light emitted from this light can cause injury to skin or

eyes. Avoid exposure to unshielded lamp.

WARNING: Risk of personal injury. Replacement of the UV lamp must only be performed by
qualified service personnel.

CAUTION: Risk of personal injury. Do not remove the UV lamp protective cover. Eye damage
may result from viewing the UV light directly.

For Service Personnel:

WARNING: Risk of personal injury. This cover has an interlock designed to reduce the risk of
excessive ultraviolet radiation. Do not bypass the interlock. Reinstall the interlock after servicing.

WARNING:Exposure to Radio Frequency Energy: The radiated power output of the radar module is below
the RF exposure limits for uncontrolled exposure. This device should be operated with a minimum distance
of at least 20 cm between the antenna and a person’s body.

Attention: évaluation d'exposition aux RF: L’intensité de champ RF émis par la carte radar est inferieures
aux limites d'intensité de champ RF prévues pour l’environnement non contrôlé. Les dispositifs à un élément
rayonnant fonctionnant normalement à des distances de séparation entre l'utilisateur et le dispositif
supérieures à 20 cm.

IMPORTANT! The r

*Outside North America, this device may be known as a Residual Current Device (RCD).

IMPORTANT! When using electrical products, especially when children are present, basic safety
precautions should always be followed, including the following:

Close supervision is necessary when this product is used by, on, or near children or invalids.

Use this product only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.

Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the product to a service center for
examination and repair.

Keep the cord away from heated surfaces.

Never block the air openings of the product. Keep the air openings free of lint, hair, and other
debris.

Never use while sleeping or drowsy.

Never drop or insert any object into any opening or hose.

Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is
being administered.

Connect this product to a properly grounded outlet only.

emote control must be paired for proper functionality.

SAVE THESE INSTRUCTIONS

1247364-5-A 2 Kohler Co.

JOBNAME: No Job Name PAGE: 3 SESS: 17 OUTPUT: Wed Apr 6 16:10:51 2016

rear

front flush lighting

Bidet
Wand

Manual Controls

Seat
Sensor
Area

Seat
Sensor
Area

dryer

stop

Features - Toilet

NOTE: Many of the features listed here can be adjusted, enabled or disabled using the remote control.
Specific directions for these procedures are listed later in this manual.

General Features

Automatic Flushing - When enabled, this feature automatically flushes the toilet after the user
stands up, lowers the seat, or leaves the area 60 seconds after use. The toilet arrives with this feature
enabled.

Automatic Open/Close - When enabled, the seat cover will automatically open when the toilet is
approached. The seat and seat cover will automatically close 3 minutes after the toilet is used. The
toilet arrives with this feature enabled.

Energy Saving Mode - The toilet can be programmed to conserve energy. When the energy saving
function is on, the toilet will reduce the heating temperature to save electricity.

Deodorizer - The deodorizer eliminates or reduces unpleasant odors when enabled. It will begin
operation when the user sits down. The toilet arrives with this feature enabled.

Side Controls - Allows the user to control basic toilet features without the remote control.

Heated Seat - When activated, the seat features an adjustable heating option that will keep the seat

warm. The toilet arrives with this feature enabled.

Night Light - The night light will automatically turn on in low light conditions when this feature is
enabled. The toilet arrives with this feature enabled.

Bidet Features

Front/Rear Wash - Front and rear wash feature adjustable positioning, adjustable water temperature,
adjustable water pressure, and massage and spiral water action.

Kohler Co. 3 1247364-5-A

JOBNAME: No Job Name PAGE: 4 SESS: 17 OUTPUT: Wed Apr 6 16:10:51 2016

Features - Toilet (cont.)

Dryer - The dryer features adjustable air temperature.

UV Sterilization - The sterilization feature uses ultra violet rays and sterilized water to clean the

bidet wand when enabled. It will begin operation only when the seat is closed.

1247364-5-A 4 Kohler Co.

JOBNAME: No Job Name PAGE: 5 SESS: 17 OUTPUT: Wed Apr 6 16:10:51 2016

On/Off

Seat and Seat Cover Open/Close

Seat Cover Open / Seat Close

"Stop"

Cover

Stop

Bidet Water
Temperature

Water temp

"Front" Bidet
Wash

Massage

Features - Remote Control

Top of Remote Control

Eco Flush

"Rear"
Bidet
Wash

Spiral

Wand

Seat temp Flush-fullFlush-ecoSeat

UV

Clean Dryer RearFront

PressureSpiralMassage

Wand Position

Full Flush

Seat Temperature

"Clean"

Water Pressure

"Dryer"

On/Off - Press to turn the remote control on or off.

Front of Remote Control

Seat Cover Open/Close - Press to open or close the cover.

Seat Open/Close - Press to open the cover and seat when both are closed, or the seat only when the

cover is already open.

Eco Flush - Press to flush the toilet with .8 gpf (3 lpf).

Full Flush - Press to flush the toilet with 1.28 gpf (4.85 lpf).

Seat Temperature - Press to adjust the seat temperature. Press the icon again to increase or decrease

the seat temperature.

Stop - Press to stop the bidet wash, dryer, deodorizer and UV cleaner. Press and hold to turn the
remote control off.

Front - Press to activate the front bidet wash.

Rear - Press to activate the rear bidet wash.

Dryer - Press to activate the dryer. Press the icon again to increase or decrease the dryer.

Clean - When the seat is closed, press to activate the UV sterilization. The feature is activated when

the icon is blinking.

Water Temperature - Press to adjust the water temperature when the bidet features are in use. Press
the icon again to increase or decrease the water temperature.

Kohler Co. 5 1247364-5-A

JOBNAME: No Job Name PAGE: 6 SESS: 17 OUTPUT: Wed Apr 6 16:10:51 2016

Features - Remote Control (cont.)

Massage - Press to activate massaging action from the bidet wand. Water pressure will vary while
the massage action is activated.

Spiral - Press to activate or deactivate spiraling action on the bidet wand. This function operates in
the rear wash mode only.

Wand Position - Select this icon to adjust the position of the wand. Press the icon again to increase
or decrease the wand position.

Wand Pressure - Select this icon to adjust the pressure of the water. Press the icon again to increase

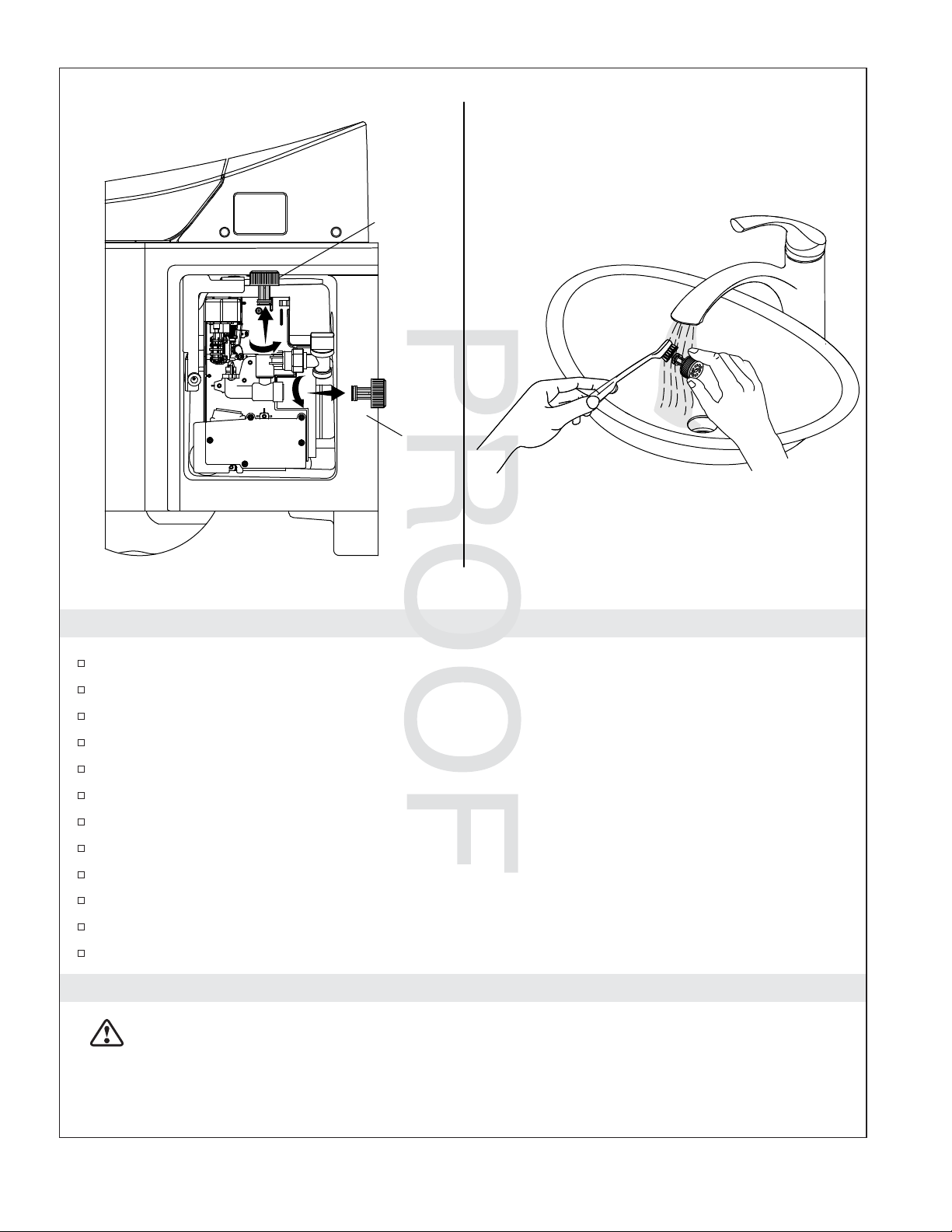

or decrease the wand pressure.
