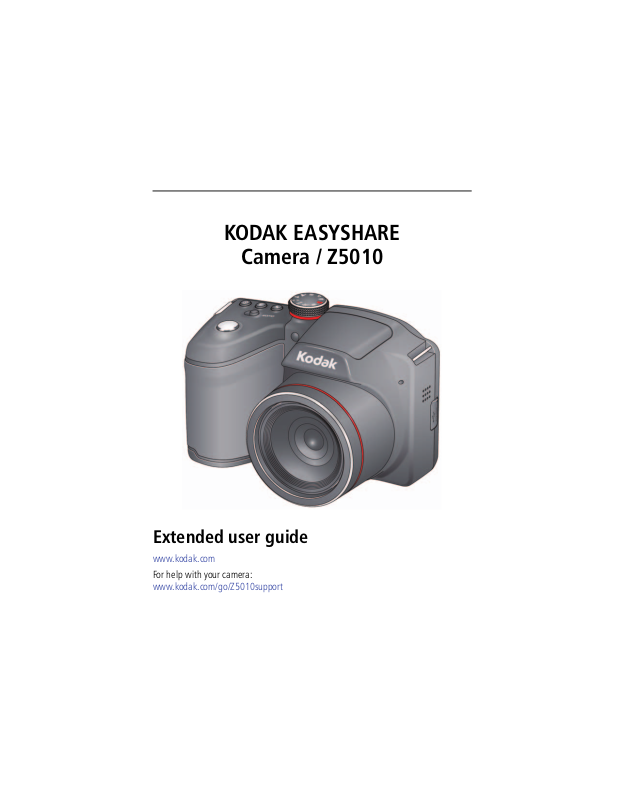

Page 1
KODAK EASYSHARE
Camera / Z5010
Extended user guide
www.kodak.com
For help with your camera:
www.kodak.com/go/Z5010support
Page 2
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2011
All screen images are simulated.
Kodak, EasyShare, and Pulse are trademarks of Eastman Kodak Company.
4H8713_en
Page 3
Front view
Lens
Microphone
Flash
AF Assist/Self-timer/Video light
Micro USB,
AV O ut
Speaker
Product features
www.kodak.com/go/support
i
Page 4
Product features
Mode dial
Shutter button
• Flash
• Focus Mode,
• Self-timer/Burst
Share
OK,
• Delete
• Menu
• Info
• Review
LCD
Power
Power light
Strap post
Zoom
Back view
ii www.kodak.com/go/support
Page 5
Bottom view
Tripod socket
Battery
compartments
Slot for SD/SDHC
Card (accessory)
www.kodak.com/go/support iii
Page 6
Table of contents 1
1 Setting up your camera .........................................................................1
Charging the rechargeable batteries..............................................................1
Loading the batteries ....................................................................................2
Turning on the camera ..................................................................................3
Setting the language and date/time...............................................................3
Storing pictures on an accessory SD/SDHC Card.............................................4
Attaching the strap .......................................................................................5
2 Taking pictures/videos ...........................................................................6
Taking pictures in Smart Capture mode .........................................................6
Understanding the picture-taking icons..........................................................8
Watch the battery level .................................................................................8
Taking videos................................................................................................9
Using the zoom...........................................................................................10
Using the flash............................................................................................11
Using the Focus feature...............................................................................12
Using the Self-timer feature.........................................................................13
Using the Burst feature ...............................................................................14
Using different modes .................................................................................15
Using SCN (Scene) modes ...........................................................................16
Program and Manual modes .......................................................................17
Using the histogram to view picture brightness............................................19
Using exposure compensation to adjust brightness ......................................19
Taking panoramic pictures...........................................................................20
Turning on the Date Stamp feature..............................................................21
iv www.kodak.com/go/support
Page 7
Table of contents
3 Reviewing and editing .........................................................................22
Reviewing pictures/videos ...........................................................................22
Deleting pictures/videos ..............................................................................23
Viewing pictures/videos in different ways.....................................................24
A smarter way to find and enjoy your pictures..............................................25
Understanding the review icons...................................................................26
Cropping pictures........................................................................................27
Trimming a video ........................................................................................27
Making a picture from a video.....................................................................28
Making an action print from a video............................................................28
Selecting multiple pictures/videos ................................................................28
Displaying pictures/videos on a television.....................................................29
4 Sharing pictures/videos .......................................................................30
Sharing pictures/videos through social networks ..........................................30
Tagging pictures .........................................................................................32
Marking pictures/videos for emailing ...........................................................34
5 Doing more with your camera .............................................................35
Using the Capture menu .............................................................................35
Using the Setup menu.................................................................................37
6 Install software ...................................................................................40
Install software, transfer pictures, and share................................................40
Printing pictures..........................................................................................41
Marking your pictures for print ....................................................................42
7 Troubleshooting ..................................................................................43
Getting help on the Web.............................................................................47
www.kodak.com/go/support
v
Page 8
8 Appendix .............................................................................................48
Specifications..............................................................................................48
Care and maintenance ................................................................................50
Upgrading your software and firmware........................................................50
Storage capacities.......................................................................................51
Important safety instructions .......................................................................51
Battery replacement, battery life..................................................................52
Limited warranty .........................................................................................53
Regulatory compliance ................................................................................54
vi www.kodak.com/go/support
Page 9
1 Setting up your camera
Lights are on while the charger
is plugged in. (See the charger
documentation for instructions
and charging times.)
All batteries lose power over time–even if they’re not being
used. For longer life, fully charge KODAK Ni-MH Rechargeable
Batteries AA prior to use.
Your plug may differ.
IMPORTANT! If your package includes:
■ Ni-MH batteries and a charger, continue to Charging the rechargeable batteries.
■ Alkaline batteries (and no charger), skip to Loading the batteries, page 2. (You
may purchase Ni-MH rechargeable AA batteries and a charger at
www.kodak.com/go/accessories.)
Charging the rechargeable batteries
Watch the battery level See page 8
Purchase extra batteries www.kodak.com/go/accessories
www.kodak.com/go/support 1
Page 10
Setting up your camera
1
2
Press the door lock
while sliding the door open.
Loading the batteries
Watch the battery level See page 8
Extend battery life See page 52
Purchase extra batteries www.kodak.com/go/accessories
2 www.kodak.com/go/support
Page 11
Turning on the camera
to change current field.
for previous/next field.
OK
to accept.
At the prompt, press
OK
.
to change.
OK
to accept.
Language:
Date/Time:
Sharing Destinations:
You can tell the camera which sharing sites to
offer when it’s time to share pictures/videos.
to highlight a site.
to check/uncheck the site.
OK
Setting the language and date/time
Setting up your camera
NOTE: To change language in the future, use the Setup menu (see page 37).
www.kodak.com/go/support
3
Page 12
Setting up your camera
CAUTION:
Insert a card until it clicks. To remove a
card, press and release it.
1 2
Accessory
Press the door lock
while sliding the door open.
Storing pictures on an accessory SD/SDHC Card
Your camera has internal memory. We recommend purchasing an SD or SDHC Card
(Class 4 or higher) to store more pictures/videos. You must use a Class 4 or
higher card to record HD video.
A card can only be inserted one way; forcing it may cause
damage. Inserting or removing a card while the camera is on may
damage the pictures, the card, or the camera.
IMPORTANT:
pictures/videos are stored on the card. If no card is inserted, new pictures/videos are stored in the
camera’s internal memory.
4 www.kodak.com/go/support
When you turn on the camera, it checks to see if a card is inserted. If so, new
Purchase cards www.kodak.com/go/accessories
Page 13
Attaching the strap
Setting up your camera
www.kodak.com/go/support
5
Page 14
Framing
marks
Mode
dial
2 Taking pictures/videos
Taking pictures in Smart Capture mode
1 Turn the Mode dial to Smart Capture .
2 Use the LCD to compose the picture
.
3 Press the Shutter button halfway to focus and set exposure.
indicate successful focus. If the camera is not focusing on the desired subject, or if red
brackets or “AF” appear, release the Shutter button and recompose the scene.
4 Press the Shutter button completely down.
you don’t like it, press the Delete button, then follow the prompts. (To delete a picture
later, see page 23.)
6 www.kodak.com/go/support
The new picture is briefly displayed. If
Green framing marks
Page 15
Taking pictures/videos
Info
OK
Review
Other picture-taking features
■ To view available tools, press the Info button . Press to choose a tool, then
press OK.
■ To review, tag, and edit pictures and videos, press the Review button (see
page 22).
■ To change camera settings, see page 35.
■ If it’s hard to see the LCD, you can adjust the brightness (see page 37).
www.kodak.com/go/support
7
Page 16
Taking pictures/videos
Battery level
Capture mode
Pictures/time remaining
Zoom indicator
Self timer
Flash mode
Focus mode
Date Stamp
Flash Compensation
Exposure Compensation
Shutter speed
Aperture
ISO
Histogram
Understanding the picture-taking icons
Watch the battery level
Don’t miss out on great pictures and videos—keep your batteries fully charged.
8 www.kodak.com/go/support
Full
Three quarters
Half
Critical
AC Power
Charge the batteries See page 1
Purchase extra batteries www.kodak.com/go/accessories
Page 17
Taking videos
IMPORTANT:
How long can I record video?
You must use a Class 4 or higher card to record HD video.
1 Turn the Mode dial to Video .
2 To start recording, press and release the Shutter
button. To stop recording, press and release the
button again.
The first frame of the new video and the play button
are displayed for a few seconds.
■ To play/pause the video, press the OK button.
■ If you don’t like the video, press the Delete
button, then follow the prompts. (To delete a
video later, see page 23.)
Taking pictures/videos
Video Size
setting
HD720p < 2 GB or approximately 10 minutes
VGA < 2 GB or approximately 25 minutes
Approximate file size/video length
(depending on scene content)
To switch from HD720p (higher quality, larger file size) to VGA, press the Menu
button, highlight Video Size, and press OK.
www.kodak.com/go/support
9
Page 18
Taking pictures/videos
Using the zoom
Use optical zoom to get up to 21X closer to your subject.
1 Use the LCD to frame your subject. (For focus
distances, see Specifications, page 48.)
2 Press Telephoto (T) to zoom in. Press Wide Angle
(W) to zoom out.
3 Take the picture or video.
NOTE: To get a focused picture every time, see page 6.
Using digital zoom
Digital zoom is not available in Smart Capture mode.
NOTE: You may notice decreased image quality when using digital zoom.
10 www.kodak.com/go/support
Page 19
Taking pictures/videos
Press the Flash button repeatedly to scroll
through flash modes.
The current flash mode appears on the LCD.
Using the flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows.
Flash settings are limited in some capture modes.
Flash modes The flash fires
Auto When the lighting conditions require it.
Fill Every time you take a picture, regardless of the lighting conditions.
Use when the subject is in shadow or is “backlit” (when the light is
behind the subject). In low light, hold the camera steady or use a
tripod.
NOTE: Not available in Smart Capture mode.
Red-eye
Reduction
Off Never.
A preflash fires, shrinking the eye pupil, before the picture is taken.
www.kodak.com/go/support
11
Page 20
Taking pictures/videos
Press the Focus button
repeatedly to scroll through focus modes.
The current focus mode appears on the LCD.
Using the Focus feature
IMPORTANT:
Focus mode availability varies by picture-taking mode.
1 Press the Focus button until the desired focus icon is displayed on the LCD.
Mode Icon For
Normal AF No icon Normal picture taking.
Distant scenery or for taking pictures through a window.
Infinity AF
Macro AF Subjects that are 0.1–1 m (0.3–3.3 ft) from the lens.
(Turn off the flash when taking pictures through glass. See
page 11.)
2 Press the Shutter button halfway to focus and set exposure, then completely
down to take the picture.
IMPORTANT:
If red focus brackets or “AF” appear, adjust the distance to your subject or
the amount of zoom.
12 www.kodak.com/go/support
Page 21
Taking pictures/videos
Press the Self-timer button
repeatedly to scroll through Self-timer/Burst
modes.
The current self-timer mode appears on
the LCD.
10
2
2x
Using the Self-timer feature
Use the self-timer when you want to be included in a picture, or to ensure a steady
Shutter button press. Place the camera on a tripod or flat surface.
1 Press the Self-timer button until the desired self-timer icon is displayed on the LCD.
10 seconds— A picture is taken after a 10-second delay (so you have time
to get into the scene).
2 seconds— A picture is taken after a 2-second delay (for a steady, shutter
release on a tripod).
2 shot— The first picture is taken after a 10-second delay. A second picture
is taken 8 seconds later.
2 Press the Shutter button halfway to focus and set exposure, then completely
down to take the pictures.
The camera takes the picture(s) after the delay.
Use the same procedure to take a 2- or 10-second self-timer video, but press the
Shutter button completely down.
www.kodak.com/go/support
13
Page 22
Taking pictures/videos
Press the Self-timer/Burst button
repeatedly to scroll through Self-timer/Burst
modes.
The burst mode appears on the LCD.
Using the Burst feature
1 Press the Self-timer/Burst button until the burst icon is displayed on the LCD.
2 Press the Shutter button halfway to focus and set exposure, then press and
hold it completely down to take the pictures.
The camera stops taking pictures when you release the Shutter button, when the
pictures are taken, or when there is no more storage space. The flash is disabled in Burst
mode. During quickview, you can delete all pictures in the burst series.
Capture mode Picture Size (MP) Burst rate (fps) Burst depth (pictures)
14 0.8 8
12 0.8 9
Smart Capture
P or M
Example: When the camera is in Smart Capture mode and the Picture Size is set to
10 MP, you can take approximately 10 pictures at 0.9 fps (frames per second).
10 0.9 10
60.9 17
31.0 31
14 0.9 8
12 1.0 9
10 1.0 10
61.0 17
31.0 31
14 www.kodak.com/go/support
Page 23
Using different modes
Choose the mode that best suits your
subjects and surroundings.
P
M
SCN
Capture mode For
Smart Capture Excellent image quality and ease of use.
■ The scene is analyzed for other content and for lighting.
■ KODAK PERFECT TOUCH Technology is applied, for better
pictures.
Video Videos with sound.
Taking pictures/videos
Program
Manual
Night Landscape Distant scenery at night. Flash does not fire.
Landscape Distant scenes.
Panorama R-L,
L-R
Scene A suite of features that let you take pictures in unique
Sport Subjects that are in motion. Shutter speed is fast.
Portrait Full-frame portraits of people.
More control over your camera and pictures. (See page 17.)
“Stitching” 2 or 3 pictures into 1 panoramic scene. (See
page 20.)
environments, but with point-and-shoot simplicity. (See
page 16.)
www.kodak.com/go/support
15
Page 24
Taking pictures/videos
Using SCN (Scene) modes
1 Turn the Mode dial to SCN (Scene).
2 Press and to read Scene mode descriptions.
3 Press OK to choose the Scene mode that you’ve highlighted.
SCN mode For
Flower Close range. Use available light instead of flash, if possible.
Sunset Subjects at dusk.
Backlight Subjects that are in shadow or “backlit.”
Candle Light Subjects illuminated by candle light.
Children Action pictures of children in bright light.
Bright Bright beach or snow scenes.
Fireworks Fireworks. For best results, place the camera on a steady surface or tripod.
Self-Portrait Close-ups of yourself. Assures proper focus and minimizes red eye.
Night Portrait Reduces red eye of people in night scenes or low-light conditions.
Stage People on a lit stage. Fast shutter speed, high ISO. Flash and sounds are
off. (Flash setting can be changed.)
High ISO People indoors, in low-light scenes.
16 www.kodak.com/go/support
Page 25
Taking pictures/videos
Program and Manual modes
Use these modes when you want more control over your camera and pictures.
Mode When to use Press to control
Program mode offers the ease of auto
shooting with full access to all menu options.
The camera automatically sets the shutter speed
and aperture (f-stop) based on the scene
lighting.
Manual mode offers a high level of control.
(To prevent blur, use a tripod for slow shutter
speeds.)
NOTE: Settings you change in P or M modes apply only to pictures taken in those modes. The settings,
including Flash, are maintained for P and M modes—even when you change modes or turn off the
camera. Use Reset Camera (see page 38) to reset P or M modes to their default settings.
Exposure compensation (how
much light enters the camera),
flash compensation, and ISO
speed
Aperture, shutter speed, flash
compensation, and ISO speed
www.kodak.com/go/support
17
Page 26
Taking pictures/videos
Flash Compensation
Exposure Compensation
Shutter speed
Aperture
ISO
Changing P or M mode settings
1 Turn the Mode dial to P or M.
NOTE: P and M give access to different settings. (See page 17.)
2 Press the Info button .
3 Press to choose a setting, then press OK to edit the setting.
Press to change a setting, then press OK to save it.
ISO—adjust the camera’s sensitivity to light. Higher ISO indicates greater sensitivity.
NOTE: A higher ISO may produce unwanted “noise” in a picture.
Flash Compensation—adjust flash brightness.
Exposure Compensation—adjust the exposure. If the scene is too light, decrease
the setting; if it’s too dark, increase the setting.
Shutter speed—control how long the shutter stays open. (Use a tripod for slow
shutter speeds.)
Aperture—(also known as f-stop) control the size of the lens opening, which
determines the depth of field.
■ Smaller aperture numbers indicate a larger lens opening; good for low-light.
■ Larger aperture numbers indicate a smaller lens opening; keeps the main subject
sharp; good for landscapes and well-lit conditions.
18 www.kodak.com/go/support
Page 27
Taking pictures/videos
Dark picture Balanced picture Bright picture
Using the histogram to view picture brightness
Use the histogram to evaluate the distribution of light before you take a picture.
Optimal exposure is achieved when the peak is in the middle of the histogram. The
flash may affect a picture’s light and shadow (see page 37).
Using exposure compensation to adjust brightness
In P and Panorama modes, you can adjust exposure compensation before you take a
picture to make your pictures darker or lighter. Only the first picture in Panorama
mode can be adjusted—that adjustment is applied to the remaining pictures.
1 Press to choose Exposure Compensation, then press OK to edit the setting.
Press to change the setting, then press OK to save it.
An exposure compensation level is shown on the LCD and the image gets darker or
lighter.
2 Take the picture when you are satisfied with the exposure compensation level.
Using exposure compensation with exposure bracketing
You can use exposure compensation in conjunction with exposure bracketing to get
the best exposure.
If the exposure
compensation is set to:
0.0
+1.0
–1.0
www.kodak.com/go/support
And if the exposure
bracketing interval is set to:
0.3 steps –0.3, 0.0, +0.3
Then the exposures
taken are:
+0.7, +1.0, +1.3
–1.3, –1.0, –0.7
19
Page 28
Taking pictures/videos
Take
2 or 3
pictures.
Get 1
panoramic
picture.
Taking panoramic pictures
Use panorama to “stitch” up to 3 pictures into a panoramic scene.
NOTE: For best results, use a tripod. Only the panoramic picture is saved; individual pictures are not.
(Exposure and white balance are set with the first picture. The flash is set to Off.)
1 Turn the Mode dial to SCN.
2 Press to choose Panorama Left-Right or Panorama Right-Left
(depending on the direction you want to pan), then press OK.
3 Take the first picture.
After a quickview, the LCD displays the liveview and an “overlay” from the first picture.
4 Compose the second picture. Make the overlay from the first picture cover the
same portion in the new picture.
5 If you are taking/stitching only 2 pictures, press OK to stitch them together.
After you take 3 pictures, the pictures are automatically stitched together.
NOTE: To use the self-timer 10-second or 2-second setting, see page 13.
20 www.kodak.com/go/support
Page 29
Taking pictures/videos
Turning on the Date Stamp feature
You can add a stamp—showing the date taken—to pictures you take next.
IMPORTANT:
1 Press the Menu button.
2 Press to choose the Date Stamp, then press OK.
3 Follow the prompts to turn on the Date Stamp feature.
The date is added to pictures you take next. The feature stays on until you turn it off.
To return to picture-taking mode, press the Shutter button halfway down.
You cannot add a date stamp to pictures already taken. Once a date stamp
is applied, it cannot be removed on the camera.
www.kodak.com/go/support
21
Page 30
3 Reviewing and editing
Review
4X
4X
1X2X 2X
Playback speed
Reviewing pictures/videos
1 Press the Review button.
2 Press for previous/next picture/video.
■ To exit, press the Review button or press the
Shutter button halfway down.
■ To view pictures/videos as thumbnails, press the
Wide Angle (W) button. (For more information,
see page 24.)
■ For tips on finding your pictures/videos, see
page 25.
Playing a video
Press OK to play a video. Press OK to pause/resume.
During playback:
■ Press to adjust the volume.
■ Press to play at 2X speed; press again for 4X.
■ Press to reverse at 2X speed; press again for 4X.
22 www.kodak.com/go/support
Page 31
Reviewing and editing
Deleting pictures/videos
1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Delete button.
4 Follow the screen prompts.
Using the undo delete picture feature
If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it.
This feature is only available immediately after you delete a picture.
www.kodak.com/go/support
23
Page 32
Reviewing and editing
Viewing pictures/videos in different ways
Magnifying a picture
1 Press Telephoto (T) to magnify 2X–8X.
2 Press to view other parts of a picture.
■ Press OK to return to 1X.
Viewing pictures/videos as thumbnails (multi-up)
1 Press the Review button.
The camera shows the last picture/video that was taken.
2 Press the Wide Angle (W) button to view pictures/videos as thumbnails. (Press it
again to see more, smaller thumbnails.)
To view all pictures/videos, choose the All tab.
To sort pictures/videos by date, people, favorites, or keywords, press and
choose the appropriate tab.
3 To see a single picture/video, press to choose it. Then press the
Telephoto (T) button.
■ To select multiple pictures/videos, see page 28.
■ Press the Review button to exit Review.
24 www.kodak.com/go/support
Page 33
Reviewing and editing
Keywords
FavoritesPeople
Date
All
A smarter way to find and enjoy your pictures
Tag pictures—by people or keywords—to make them easy to find, later. For example,
the camera can find all pictures that contain “Mary” or “Dad’s 60th Birthday.” (See
Tagging people, page 32 or Tagging with keywords, page 34.)
You can also find pictures by date taken or if it’s marked as a favorite.
1 Press the Review button.
2 Press the Wide Angle (W) button to view pictures by thumbnail (or choose View
Thumbnails shortcut).
3 Press to choose a tab and sort pictures/videos by All, Date, People,
Favorite, or Keyword.
4 Press to choose a picture or picture stack.
Press Telephoto (T) see pictures in a stack or to see an individual picture. Press Wide
Angle (W) to see thumbnails or picture stacks.
To return to picture-taking mode, press the Shutter button halfway down.
Tip: For best results, make sure the camera’s date/time is current (see page 37).
www.kodak.com/go/support
25
Page 34
Email
Favorite
Print/number of prints
Picture/Video number
Upload
Video duration
Select
picture/video
Battery level
Keyword or
People Tag
Edit tags
View thumbnails
Play video
Shortcuts
Reviewing and editing
Understanding the review icons
Watch the battery level See page 8
26 www.kodak.com/go/support
Page 35
Reviewing and editing
Cropped picture
Cropping pictures
You can crop a picture so that only the desired portion of the picture remains.
1 Press the Review button, then to find a
picture to crop.
2 Press the Menu button, then to choose the
Edit tab. Choose Crop, then press OK.
3 Press Telephoto (T) to shrink the crop area or Wide (W) to stretch it.
Press to move the crop box. When satisfied with the crop box, press
OK.
4 Follow the screen prompts.
The picture is cropped. (The original is saved.) Cropped pictures cannot be cropped
again on the camera.
■ To return to picture-taking mode, press the Shutter button halfway down.
Trimming a video
You can remove the start or end from a video, saving only the desired portion.
1 Press the Review button, then to find a video.
2 Press the Menu button, then to choose the Edit tab. Choose Trim, then
press OK.
3 Follow the screen prompts.
The video is trimmed. (You can save it as a new video or replace the original.)
To return to picture-taking mode, press the Shutter button halfway down.
www.kodak.com/go/support
27
Page 36
Reviewing and editing
Selected
pictures
Making a picture from a video
You can choose a single frame from a video, then make a picture suitable for a
4 x 6-inch (10 x 15 cm) print.
1 Press the Review button, then to find a video.
2 Press the Menu button, then to choose the Edit tab. Choose Make
Picture, then press OK.
3 Follow the screen prompts.
A picture is created. (The original video is saved.)
Making an action print from a video
From a video, you can make a 9-up picture, suitable for a 4 x 6-inch
(10 x 15 cm) print.
1 Press the Review button, then to find a video.
2 Press the Menu button, then to highlight the Edit tab.
3 Press to highlight Action Print, then press OK.
A 9-up image is created.
Selecting multiple pictures/videos
Use the multi-select feature when you have two or more pictures to print, share,
delete, tag with keyword, etc. Multi-select is used most effectively in Multi-Up mode
(see page 24).
1 Press the Review button, then (and
if you’re in multi-up mode) to find a picture/video.
2 Press OK to select pictures/videos.
A check mark appears on the picture. (Press OK again
to remove a check mark.) You can now print, transfer,
delete, etc. the selected pictures.
28 www.kodak.com/go/support
Page 37
Reviewing and editing
Displaying pictures/videos on a television
You can display pictures/videos on a television, computer monitor, or any device
equipped with a composite video input. To connect the camera directly to a television,
use a composite cable (may be sold separately). Use the camera controls to navigate
through pictures/videos on the television.
Purchase cables www.kodak.com/go/accessories
www.kodak.com/go/support
29
Page 38
4 Sharing pictures/videos
Sharing pictures/videos through social networks
It’s never been easier to share pictures on your favorite social networking sites.
IMPORTANT:
1 Press the Share button, then to find a picture.
If it’s your first time, a Help screen appears.
2 Press to choose a social networking site, then press OK.
A check mark appears. Repeat this step to choose more sites. (You can press OK again
to remove a check mark.)
3 Press to choose Done, then press OK.
The picture is displayed with the Share icon. When you transfer the picture to your
computer, it is uploaded to the networking site(s) that you chose.
Tip: Do you send pictures to the same sites each time?
Find a picture, then press and hold the Share button for about 1 second.
The camera applies the settings that you used previously and adds the Share icon to the
picture.
To use the sharing and social networking features, you must install KODAK
Software. (See page 40.)
30 www.kodak.com/go/support
Page 39
Sharing pictures/videos
Choose which social networking sites to display on your camera
You can show/hide social networking sites on your camera so that only your favorite
sites appear.
1 Press the Menu button.
2 Press to choose the Setup tab, then to choose Share Button Settings,
then press OK.
3 Press to choose a social networking site, then press to choose Show or
Hide. Repeat this step until you have chosen Show/Hide for each social network.
4 When finished, press to choose Done, then press OK.
To return to picture-taking mode, press the Shutter button halfway down. When you
are in Review and press the Share button, only chosen sites are shown.
Manage email addresses and KODAK PULSE Digital Frames
You can add, edit, or delete email addresses and KODAK PULSE Digital Frames on
your camera.
1 Press the Share button. Press to choose Manage Email Addresses (or
Manage Frames), then press OK.
2 To add an email address or frame, press to choose Add Email or Add Frame,
then press OK. Use the on-screen keyboard to make the addition.
(Example: JohnDoe@domain.com) Add a familiar, unique nickname.
To edit an email address or a KODAK PULSE Digital Frame, press to choose
the address’s nickname or the frame, then press OK. Use the on-screen keyboard
to make edits.
To delete an email address or frame, choose Delete Email or Delete Frame, then
press OK. Press to choose the address or frames, then press OK so that a
check mark appears. Press to choose Delete, then press OK.
3 When finished, press to choose Done, then press OK.
To return to picture-taking mode, press the Shutter button halfway down.
www.kodak.com/go/support
31
Page 40
Sharing pictures/videos
Tagging pictures
Tag pictures to make them easy to find, later. You can tag pictures in 2 ways:
■ People, and then find all pictures of “Mary.”
■ Keywords, and then find all pictures from “Dad’s 60th Birthday.”
Tagging people
When you tag faces, your camera “learns” to recognize people by name. Then it
and
matches names and faces in pictures you’ve taken
1 Press the Review button, then to find a picture that contains faces.
2 Press the Menu button. Press to choose Tag People, then press OK.
3 Press to choose Apply Tags, then press OK.
4 Press to choose an existing name, or New Name to add a new one (see
Using the keyboard, page 33), then press OK.
If more than one face is detected, a name or question mark is assigned to each detected
face. To resolve an incorrect name or a question mark, press to select a face,
then press OK.
those you take in the future.
5 If prompted to Update People Tags, press to choose Yes, then press OK.
Other pictures are scanned and updated with the name(s) you applied here.
Press to add names to other pictures. When finished, press to choose
Done, then press OK. To return to picture-taking mode, press the Shutter button
halfway down.
Tip: Are faces not always detected?
If a face is turned sideways, is too distant, or if the contrast between face and
background is insufficient, then the camera might not detect the face.
32 www.kodak.com/go/support
Page 41
Sharing pictures/videos
Need to update a name?
If you meet a new friend—James—but you already have pictures tagged with your
old friend, James, you can:
■ Tag the new James with “James Smith” and/or
■ Update the old James to “James Monroe”
Here’s how:
1 Press the Review button.
2 Press the Menu button. Press to choose Tag People, then press OK.
3 Press to choose Modify Names List, then press OK.
4 Press to choose the name you want to modify, then press OK.
5 Edit the name, press to choose OK, then press OK.
To return to picture-taking mode, press the Shutter button halfway down.
Tip: You can have up to 20 active names.
Using the keyboard
The keyboard appears when you need to enter text.
1 Press to choose a letter, then press OK.
2 When finished, press to choose OK, then press OK.
www.kodak.com/go/support
33
Page 42
Sharing pictures/videos
Tagging with keywords
1 Press the Review button, then to find a picture to tag.
2 Press the Menu button. Press to choose Keyword Tag, then press OK.
3 Press to choose an existing keyword, or New Keyword (see Using the
keyboard, page 33) to add a new one, then press OK.
4 Press to add keywords to other pictures. When finished, press to
choose Done, then press OK.
To return to picture-taking mode, press the Shutter button halfway down.
Marking pictures/videos for emailing
It’s simple to mark pictures so that they’re ready to email when you transfer them to
your computer and use the KODAK Share Button App. First, create a new email
address. (See Using the keyboard.)
1 Press the Share button. Press to find a picture.
2 Press to find an email address, then press OK.
To mark other pictures/videos with the same address, press , then press OK.
To return to picture-taking mode, press the Shutter button halfway down.
When you transfer the marked pictures/videos to your computer, the software prompts
you to send the pictures/videos.
34 www.kodak.com/go/support
Page 43
5 Doing more with your camera
You can change settings to get the best results from your camera.
NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you
change modes or turn off the camera.
1 Press the Menu button.
2 Press to choose a tab:
■ Capture/Video for the most common picture- and video-taking settings
■ Setup for other camera settings (page 37)
3 Press to choose a setting, then press OK.
4 Choose an option, then press OK.
Using the Capture menu
Setting More information
Picture or Video Size
Choose a picture or video
resolution.
White Balance
Choose your lighting
condition. (Available only in
Program and Panorama
modes.)
See Specifications, starting on page 48.
Auto—Automatically corrects white balance. Ideal for general
picture taking.
Daylight—For pictures in natural lighting.
Tungsten—Corrects the orange cast of incandescent light
bulbs. Ideal for indoor pictures under tungsten or halogen
lighting without flash.
Fluorescent—Corrects the green cast of fluorescent lighting.
Ideal for indoor pictures under fluorescent lighting without
flash.
Open Shade—For pictures in shade in natural lighting.
www.kodak.com/go/support 35
Page 44
Doing more with your camera
Setting More information
Color Mode
Choose color tones.
Unavailable in Video mode.
Face Detect Capture
Choose if faces get focus
priority.
Exposure Metering
Evaluate light levels at specific
areas of a scene.
AF Zone
Select a large or concentrated
area of focus.
AF Control (Still)
Choose an auto-focus setting.
Sharpness
Control picture sharpness or
softness.
Contrast
Control picture contrast.
High Color
Natural Color
Low Color
Black & White
Sepia—For a reddish-brown, antique look.
On—In P mode (and in SCN modes designed for pictures of
people), the camera attempts to focus on faces.
Off
Multi-Pattern—Evaluates 5 zones to give an even picture
focus. Ideal for general picture taking.
Center-Weighted—Evaluates the small area centered in the
lens. Ideal for focusing on a precise area.
Multi-zone—Evaluates 5 zones to give an even picture focus.
Ideal for general picture taking.
Center-zone—Evaluates the small area centered in the LCD.
Ideal when precise focus of a specific area in the picture is
needed.
Continuous AF—Because the camera is always focusing,
there is no need to press the Shutter button halfway down to
focus.
Single AF—Focuses when the Shutter button is pressed
halfway down. (This setting uses less battery power.)
High
Normal
Low
High
Normal
Low
36 www.kodak.com/go/support
Page 45
Setting More information
Liveview Histogram
Turn on to evaluate the
distribution of light before you
take a picture. Optimal
exposure is achieved when the
peak is in the middle of the
histogram. (See page 19.)
On
Off
Using the Setup menu
Setting More information
Date & Time Set date and time.
LCD Brightness
Choose LCD brightness during
picture/video capture. (During
Review, the LCD is set to High
Power.)
Date Stamp
Add the date to pictures you
take next.
Share Button Settings
Choose what is displayed
when the Share button is
pressed.
Capture Frame Grid
In a P and M modes, show a
framing grid.
High Power—Brighter LCD; uses more battery power.
Power Save—Dimmer LCD; uses less power.
Auto—LCD brightness is automatically adjusted according to
environment.
See page 21.
Show or hide:
■ Individual social networking sites
■ E-mail addresses (all or none)
■ KODAK PULSE Digital Frames (all or none)
On
Off
Doing more with your camera
www.kodak.com/go/support
37
Page 46
Doing more with your camera
Setting More information
Orientation Sensor
Orient pictures so that they are
displayed with the correct side
up.
Camera Sounds
Choose volume, and choose
sound effects for each
function.
Video Out
Choose the regional setting
that lets you connect the
camera to a television or other
external device.
Image Storage
Choose a storage location for
pictures/videos.
Language Choose your language.
Reset Camera Reset settings to their default.
Computer Connection
Choose which application is
downloaded or launched when
you connect the camera to the
computer.
On—The camera rotates pictures so that all appear in the
same orientation on the camera.
On Transfer—The camera rotates pictures when they are
transferred to your computer.
Off—Pictures are not rotated.
Exit On
Volume
Power On
Focus Lock
Shutter
Error
Self-timer
NTSC—Used in North America and Japan; most common
format.
PAL—Used in Europe and China.
Auto—The camera uses the card if one is in the camera. If
not, the camera uses internal memory.
Internal Memory—The camera always uses internal
memory, even if a card is installed.
KODAK Software
Other Application (APPLE iPHOTO, etc.)
IMPORTANT:
To use the social networking features, you
must install the KODAK Share Button App
(see page 40).
38 www.kodak.com/go/support
Page 47
CAUTION:
Setting More information
Format
Formatting deletes all
pictures/videos.
Memory Card—Deletes everything on the card; formats the
card.
Cancel—Exits without making a change.
Internal Memory—Deletes everything in internal memory
including email addresses; formats the internal memory.
Removing a card during
formatting may
damage the card.
About View camera information.
Doing more with your camera
www.kodak.com/go/support
39
Page 48
6 Install software
Install software, transfer pictures, and share
IMPORTANT:
KODAK Share Button App.
1 Make sure the computer is connected to the Internet.
5 After the software is installed, follow the prompts to transfer pictures and videos
to your computer.
Pictures/videos that you tagged for sharing are emailed or uploaded to the desired
social networking sites.
NOTE: You can also use a card reader to transfer pictures/videos to your computer.
To use the sharing and social networking features, you must install the
2 Turn off the camera.
3 Using the KODAK Camera USB Cable,
Micro B / 5-Pin, connect the camera to the
computer. (Use only the cable included with this
camera.)
4 Turn on the camera.
The camera works with your computer to download
and install the Share Button App on your computer.
IMPORTANT:
If the installer does not run, choose and
install the right version for your computer:
www.kodak.com/go/camerasw.
Download KODAK Software later www.kodak.com/go/camerasw
Get Software help www.kodak.com/go/support
See How-To videos
40 www.kodak.com/go/support
www.kodak.com/go/Z5010demos
Page 49
Install software
Printing pictures
Direct printing with a KODAK All-in-One Printer
IMPORTANT:
You need a camera, a PICTBRIDGE enabled Printer, and a USB cable.
Connecting the camera to a KODAK All-in-One Printer
1 Turn off the camera and printer.
2 Use the KODAK Camera USB Cable, Micro B / 5-Pin (included with the camera) to
connect the camera to the printer.
Printing from a KODAK All-in-One Printer
1 Turn on the printer. Turn on the camera.
The PictBridge logo is displayed, followed by the current picture and menu. (If no
pictures are found, a message is displayed.) If the menu turns off, press any button to
redisplay it.
2 Choose a printing option, then press OK.
Current Picture—Press to choose a picture.
Tagged Pictures—If your printer is capable, print pictures that you marked for
printing.
Index Print—Print thumbnails of all pictures. (This option requires one or more
sheets of paper.)
All Pictures—Print all pictures in internal memory or on a card.
NOTE: During direct printing, pictures are not permanently transferred or saved to the printer. To transfer
pictures to your computer, see page 40.
To print using PICTBRIDGE Technology, you must change the Computer
Connection setting (in the Setup menu) to Other Application (see page 38).
Purchase cables, accessories www.kodak.com/go/accessories
www.kodak.com/go/support
41
Page 50
Install software
Ordering prints online
KODAK Gallery (www.kodakgallery.com) makes it easy to:
■ Upload your pictures.
■ Edit, enhance, and add borders to your pictures.
■ Store pictures, and share them with family and friends.
■ Have prints, photo greeting cards, frames, and albums delivered to your door.
Printing from an optional SD or SDHC Card
■ Automatically print tagged pictures when you insert your card into a printer. See
your printer user’s guide for details.
■ Make prints at a KODAK Picture Kiosk. Go to www.kodak.com/go/picturemaker.
■ Take the card to your local photo retailer for professional printing.
Marking your pictures for print
You can mark your pictures so they are easy to print:
1 Press the Review button. Press to find a picture.
2 Press the Menu button.
3 Press to choose Print, then press OK.
4 Press to choose the number of copies.
5 Press OK.
■ To return to picture-taking mode, press the Shutter button halfway down.
42 www.kodak.com/go/support
Page 51
7 Troubleshooting
Camera problems
Status Solution
Camera does not
turn on, off; buttons do
not function
Camera freezes up
when a card is inserted
or removed.
LCD is too dark. ■ Adjust the LCD Brightness setting (see page 37).
In Review, a blue or
black screen is
displayed instead of
a picture
In Review, you do not
see a picture (or the
expected picture) on
the LCD
Pictures remaining
number does not
decrease after taking a
Camera displays a
High Temperature
error
■ Remove then reinsert batteries.
■ Replace non-rechargeable alkaline batteries. Charge rechargeable
batteries (see page 1).
■ Turn the camera off, then back on. Make sure the camera is
turned off before inserting or removing a card. For compatible
card types, see page 4.
■ Transfer the picture to the computer (see page 40), then format
the card or internal memory.
Caution: Formatting a card deletes all pictures and
videos.
■ Take another picture.
■ Format the card in the camera (see page 39)
Caution: Formatting a card deletes all pictures and
videos.
■ Continue taking pictures. The camera is operating normally.
(The camera estimates the number of pictures remaining after each
picture is taken, based on picture size and content.)
■ If camera temperature rises to a certain level, a high temperature
error (Video recording will stop in 5 seconds) appears. Turn the
camera off as soon as possible and let it cool down. The camera
cannot capture more videos until it has cooled down. (Captured
videos are not lost.)
www.kodak.com/go/support 43
Page 52
Troubleshooting
Status Solution
Flash does not fire ■ Check the flash setting, and change as needed (see page 11).
NOTE: The flash does not fire in all modes.
Memory card is almost
or entirely full
The Reset Camera
feature did not take
effect.
Battery life is short ■ Make sure the correct battery type is installed (see page 52).
Shutter button does
not work.
Memory card not
recognized or camera
freezes with card
Pictures on card (or in
internal memory) are
corrupted
■ Transfer the pictures to the computer (see page 40).
■ Delete pictures from the card (see page 23) or insert a new card.
■ After using the Reset Camera feature (see page 38), turn the
camera off and then on again.
■ Charge the batteries (see page 1). Watch the battery level (see
page 8).
■ Use a power-saving LCD Brightness setting (see page 37).
■ Limit on-camera reviewing, which consumes power.
■ Turn on the cam era ( see page 3).
■ Transfer pictures to the computer (see page 40), delete pictures
from the camera (see page 23), or insert a card with available
memory (see page 4).
■ Card may be corrupted. Format the card in the camera (see
page 39).
Caution: Formatting a card deletes all pictures and
videos.
■ Use another memory card. Only SD or SDHC Cards are supported.
■ Retake pictures.
■ Do not remove card while the camera is on.
■ Keep rechargeable batteries charged.
■ Transfer pictures to the computer (see page 40), then format the
card or internal memory (see page 39).
Caution: Formatting a card deletes all pictures and
videos.
44 www.kodak.com/go/support
Page 53
Troubleshooting
Computer/connectivity problems
Status Solution
Slide Show does not
run on an external
video device
■ Adjust the camera Video Out setting to NTSC or PAL (see
page 38).
■ Make sure the external device settings are correct. (See the
device’s user guide.)
Computer does not
communicate with
the camera
■ Turn off the camera, then turn it back on.
■ Make sure the batteries are charged and installed correctly (see
page 1).
■ Make sure the KODAK Camera USB Cable, U-8 is connected to the
camera and the computer (see page 40). Then turn on the
camera.
■ See KODAK Software Help at www.kodak.com/go/camerasw.
Picture quality problems
Status Solution
Picture is not clear ■ To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ Clean the lens (see page 50).
■ Make sure the camera is not in Macro mode (see page 12).
■ Place the camera on a flat, steady surface or use a tripod (especially
in high-zoom settings or in low light).
■ Use a larger picture size (see page 35).
■ If you’re manually adjusting the ISO speed, realize that high ISO
setting may cause grainy pictures.
www.kodak.com/go/support
45
Page 54
Troubleshooting
Status Solution
Picture is too dark ■ Reposition the camera for more available light.
■ Use Fill flash (see page 11) or change your position so light is not
behind the subject.
■ Move so that the distance between you and the subject is within the
effective flash range. (See Camera Specifications, starting on
page 48.)
■ To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ In Program mode, adjust the Exposure Compensation (see page 17).
Picture is too light ■ Reposition the camera to reduce the amount of available light.
■ Turn the flash off (see page 11).
■ Move so that the distance between you and the subject is within the
effective flash range. (See Camera Specifications, starting on
page 48.)
■ To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ In Program mode, adjust the Exposure Compensation (see page 17).
Pictures that have
KODAK PERFECT
TOUCH Technology
applied (twice) are
of lower image
quality.
■ If PERFECT TOUCH Technology has been applied to a picture on the
camera, do not apply it again when the picture is on the computer
(or on a KODAK Picture Kiosk).
NOTE: PERFECT TOUCH Technology is automatically applied to pictures
taken in Smart Capture mode.
46 www.kodak.com/go/support
Page 55
Troubleshooting
Direct printing (PICTBRIDGE enabled printer) problems
Status Solution
The Direct printing
menu interface turns
off
Cannot print pictures ■ Make sure there is a connection between the camera and the
Camera or printer
displays an error
message
■ Press any camera button to redisplay the menu.
printer (see page 41).
■ Make sure the printer and the camera have power.
■ Follow the prompts to resolve the issue.
Getting help on the Web
Get support for your product (FAQs, troubleshooting
information, etc.)
Purchase camera accessories www.kodak.com/go/accessories
Download the latest camera firmware www.kodak.com/go/Z5010downloads
Register your camera www.kodak.com/go/register
Chat, email, write, or phone Kodak
(Chat not available in all languages)
www.kodak.com/go/Z5010support
www.kodak.com/go/contact
www.kodak.com/go/support
47
Page 56
8 Appendix
Specifications
CCD—1/2.3-type
Effective pixels—14 MP (4368 x 3256)
LCD—3.0 in. (7.6 cm) LCD; 230K dots; 30 fps; 4:3 aspect ratio
Image storage—Optional SD/SDHC Card (The SD logo is a trademark of the
SD Card Association.) Maximum supported card size: 32 GB
Internal storage capacity—128 MB internal memory (
storage. 1 MB equals one million bytes.)
Taking lens—21X optical zoom; f/3.1–f/5.8; 35 mm equivalent: 25–525 mm
Digital zoom—5X continuous
Focus system—TTL-AF (through-the-lens auto focus); Multi-Zone, Center-Zone,
Face Priority. Working range:
0.6 m (2.0 ft)–infinity @ wide, normal
2.0 m (6.6 ft)–infinity @ telephoto, normal
0.1–1 m (0.3–3.3 ft) @ wide, Macro mode
1.6–3.0 m (5.2–9.8 ft) @ tele, Macro mode
Image stabilization—Optical (CCD shift)
Auto focus control—Continuous and Single AF
Face detection—Yes
Face recognition—Yes
Shutter speed—1/2–1/1500 seconds
ISO speed—Auto: 64–400; Manual: 64, 100, 200, 400, 800, 1600
Focus/Exposure Zone—TTL-AE; Multi-Zone, Center-Zone
84.8 MB available for image
48 www.kodak.com/go/support
Page 57
Appendix
Exposure compensation—+/-2.0 EV with 1/3 EV step
White Balance—Auto, Daylight, Tungsten, Fluorescent, Open Shade
Electronic Flash—Auto flash; Auto, Fill, Red Eye, Off; Guide No. 9.0 (m) @ ISO
400; working range in Smart Capture mode:
0.5–11.6 m (1.6–38.1 ft) @ wide;
1.0–6.2 m (3.3–20.3 ft) @ telephoto
Self-timer mode—2 seconds, 10 seconds, 2 picture timer
Burst mode—See page 14.
Capture modes—See page 15.
Image file format—
Still: EXIF 2.3 (JPEG compression); file organization DCF
Video: AVI, CODEC H.264
Picture size—14 MP (4:3):
12 MP (3:2):
10 MP (16:9):
4288 x 2848 pixels
4288 x 2416 pixels
4288 x 3216 pixels
6 MP (4:3): 2832 x 2128 pixels
3 MP (4:3): 2048 x 1536 pixels
Video size—
HD720p: 1280 x 720 @ 30 fps
VGA (iPad compatible): 640 x 480 @ 30 fps
Recording limit —
HD720p: < 2 GB or approximately 10 minutes
VGA: < 2 GB or approximately 25 minutes
Color modes—Viv id Co lor, Full Col or, Ba sic Colo r, Bl ack & Whi te, Sep ia
Sharpness modes—Sharp, Normal, Soft
Communication with computer—USB 2.0 high speed (PIMA 15740 protocol);
via KODAK Camera USB Cable, Micro B / 5-Pin
Microphone—Mono
www.kodak.com/go/support
49
Page 58
Appendix
Speaker—Mono
PICTBRIDGE support—Yes
Power—(4) AA alkaline or Ni-MH rechargeable batteries; 5V 1.5A DC required if an
AC adapter is used
Tripod mount—1/4 inch
Size—117.7 x 80.8 x 78.7 mm (4.6 x 3.2 x 3.1 in.) @ power off
Weight—Camera, alkaline batteries, and SD card: 473g (16.7 oz)
Camera, Ni-MH batteries, and SD card: 493g (17.4 oz)
Operating temperature—0–40
° C (32–104° F)
Care and maintenance
■ If you suspect water has gotten inside the camera, remove the batteries and card.
Allow all components to air-dry for at least 24 hours before using the camera.
■ Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft,
lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions
unless designed specifically for camera lenses. Do not allow chemicals, such as
suntan lotion, to contact painted surfaces.
■ Service agreements may be available in your country. Contact a dealer of KODAK
Products for more information.
■ For digital camera disposal or recycling information, contact your local authorities.
In the US, go to the Electronics Industry Alliance site at www.eiae.org or go to
www.kodak.com/go/support.
Upgrading your software and firmware
We occasionally update KODAK Software and firmware (the software that runs on the
camera). For instructions on installing the latest version, go to
www.kodak.com/go/Z5010downloads.
50 www.kodak.com/go/support
Page 59
Appendix
CAUTION:
Storage capacities
The LCD displays the approximate number of pictures (or minutes/seconds of video)
remaining. Actual storage capacity varies depending on subject composition, card
size, and other factors. You may be able to store more or fewer pictures and videos.
Important safety instructions
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. KODAK AC Adapters
and Battery Chargers are intended for indoor use only. The use of
controls, adjustments, or procedures other than those specified herein
may result in exposure to shock and/or electrical or mechanical hazards. If
the LCD breaks, do not touch the glass or liquid. Contact Kodak customer
support.
■ The use of an accessory that is not recommended by Kodak may cause fire, electric
shock, or injury. For approved accessories, go to www.kodak/go/accessories.
■ Use only a USB-certified computer equipped with a current-limiting motherboard.
Contact your computer manufacturer if you have questions.
■ If using this product in an airplane, observe all instructions of the airline.
■ When removing the batteries, allow them to cool; they may be hot.
■ Follow all warnings and instructions supplied by the battery manufacturer.
■ Use only batteries approved for this product to avoid risk of explosion.
■ Keep batteries out of the reach of children.
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a battery
may short circuit, discharge energy, become hot, or leak.
■ Do not disassemble, install backward, or expose batteries to liquid, moisture, fire,
or extreme temperature.
www.kodak.com/go/support
51
Page 60
Appendix
■ Remove the batteries when the product is stored for an extended period of time. In
the unlikely event that battery fluid leaks inside the product, contact Kodak
customer support.
■ In the unlikely event that battery fluid leaks onto your skin, wash immediately with
water and contact your local health provider. For additional health-related
information, contact your local Kodak customer support.
■ Go to www.kodak.com/go/reach for information about the presence of substances
included on the candidate list according to article 59(1) of Regulation (EC) No.
1907/2006 (REACH).
■ Dispose of batteries according to local and national regulations. Go to
www.kodak.com/go/kes.
■ Do not charge non-rechargeable batteries.
Battery replacement, battery life
KODAK Rechargeable Digital Camera AA Batteries: 300 pictures per charge. Battery
life per CIPA testing method. (Approximate number of pictures in Smart Capture
mode, using an SD Card.) Actual life may vary based on usage.
Extending battery life
■ Limit on-camera reviewing, which consumes battery power.
■ Use a power-saving LCD Brightness setting (see page 37).
■ Dirt on the battery contacts can affect battery life. Wipe the contacts with a pencil
eraser before loading batteries in the camera.
■ Battery performance is reduced at temperatures below 41° F (5° C). When using
your camera in cold weather, carry spare batteries and keep them warm. Do not
discard cold batteries that do not work; when they return to room temperature,
they may be usable.
52 www.kodak.com/go/support
Page 61
Appendix
Limited warranty
Kodak warrants its digital cameras and accessories (excluding batteries) to be free
from malfunctions and defects in both materials and workmanship for the warranty
period specified on your KODAK Product packaging. Retain the original dated sales
receipt. Proof of purchase date is required with any request for warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to ship Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak
will repair or replace Products if they fail to function properly during the warranty
period, subject to any conditions and/or limitations stated herein. Warranty service
will include all labor as well as any necessary adjustments and/or replacement parts. If
Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the Product has been returned to Kodak
along with proof of the purchase price paid. Repair, replacement, or refund of the
purchase price are the sole remedies under the warranty. If replacement parts are
used in making repairs, those parts may be remanufactured, or may contain
remanufactured materials. If it is necessary to replace the entire Product, it may be
replaced with a remanufactured Product. Remanufactured Products, parts and
materials are warranted for the remaining warranty term of the original Product, or 90
days after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty
does not apply when failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use with incompatible accessories
or attachments (such as third party ink or ink tanks), failure to follow Kodak's
operation, maintenance or repacking instructions, failure to use items supplied by
Kodak (such as adapters and cables), or claims made after the duration of this
warranty. Kodak makes no other express or implied warranty for this product. In the
event that the exclusion of any implied warranty is ineffective under the law, the
duration of the implied warranty will be the length of the express warranty period
www.kodak.com/go/support
53
Page 62
Appendix
specified on your Kodak product packaging. The option of repair, replacement, or
refund is Kodak's only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of this
product regardless of the cause. Liability for any special, consequential or incidental
damages (including but not limited to loss of revenue or profit, downtime costs, loss
of the use of the equipment, cost of substitute equipment, facilities or services, or
claims of your customers for such damages resulting from the purchase, use, or failure
of the Product), regardless of cause or for breach of any written or implied warranty is
expressly disclaimed. The limitations and exclusions of liability set forth herein apply
to both Kodak and its suppliers.
Your righ ts
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of
this warranty may be different. Unless a specific Kodak warranty is communicated to
the purchaser in writing by a Kodak company, no warranty or liability exists beyond
any minimum requirements imposed by law, even though defect, damage, or loss may
be by negligence or other act.
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful
54 www.kodak.com/go/support
Page 63
Appendix
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: 1) reorient or relocate the
receiving antenna; 2) increase the separation between the equipment and the
receiver; 3) connect the equipment to an outlet on a circuit different from that to
which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be
used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation. The KODAK High Performance USB AC Adapter
K20-AM complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
Waste Electrical and Electronic Equipment/Battery disposal
In Europe: For human/environmental protection, it is your responsibility to
dispose of this equipment and batteries at a collection facility established for
this purpose (separate from municipal waste.) For more information, contact
your retailer, collection facility, or appropriate local authorities; or go to
www.kodak.com/go/recycle. Product weight:
Camera, alkaline batteries, and SD card: 473 g (16.7 oz)
Camera, Ni-MH batteries, and SD card: 493 g (17.4 oz)
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian
ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est
www.kodak.com/go/support
55
Page 64
Appendix
N137
Eastman Kodak Company
Rochester, NY 14650
conforme à la norme NMB-003 du Canada.
CE
Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Australian C-Tick
VCCI Class B ITE
Korean Class B ITE
Russian GOST-R
56 www.kodak.com/go/support
Page 65
China RoHS
Appendix
www.kodak.com/go/support
57
Page 66
Index 1
A
A/V out, 29
about this camera, 39
accessories
batteries, 52
buying, 47
SD/SDHC Card, 4
action print, 28
add keywords, names, 33
AF control, 36
AF zone, 36
auto
flash, 11
focus control, 36
focus framing marks, 6
auto focus (AF)
zone, 36
B
backlight, 16
battery
expected life, 52
icons, 8
load, 1, 2
types, 52
bright, 16
burst, use, 14
button
Burst, 14
Display, 7
Flash, 11
focus, 12
Review, 35
Share, 30
Zoom, 10
C
cable
audio/video, 29
USB, 40
Camera Setup App, 40
camera sounds, 37, 38
Canadian compliance, 55
care and maintenance, 50
charging
battery icon, 8
children, 16
clock, setting, 3
color mode, 36
computer
connect camera, 40
transfer to, 40
computer connection, 38
connector, USB / A/V, 29
copy pictures to computer, 40
cropping pictures, 27
D
date setting, 3
date/time stamp, 21
deleting
from internal memory, 23
from SD/SDHC Card, 23
Display button, 7
58 www.kodak.com/go/support
Page 67
Index
disposal, recycling, 50
download
KODAK Software, 40
download pictures, 40
E
edit videos, 27
emailing pictures, videos, 34
erase, 39
expected battery life, 52
exposure
compensation, 17, 19
long time, 37
external video device
viewing pictures, videos, 29
F
face detect capture, 36
faces, tagging, recognition, 32
FCC compliance, 54
find pictures, 25
fireworks, 16
firmware, upgrading, 50
flash settings, 11
flower, 16
focus
zone, 36
focus button, 12
focus framing marks, 6
format, 39
framing marks, 6
G
guidelines, battery, 52
H
help
Web links, 43
High ISO, 16
histogram, 19
I
icons
battery, 8
mode dial, 15
image storage, 38
infinity focus, 12
install
batteries, 1, 2
SD/SDHC Card, 4
K
keyboard, 33
keywords, 34
KODAK Camera Setup App, 40
KODAK EASYSHARE Software
upgrading, 50
KODAK Software, download, 40
Kodak Web sites, 43
L
language, 38
LCD
brightness, 37
reviewing pictures, 22
reviewing videos, 22
lens, clean, 50
load
batteries, 1, 2
SD/SDHC Card, 4
www.kodak.com/go/support 59
Page 68
Index
locate pictures, 25
long time exposure, 37
M
macro focus, 12
magnify a picture, 24
maintenance, camera, 50
make picture from video, 28
manual mode, 17
marking
for email, 34
memory
insert card, 4
menu settings, 35
mode dial, 15
modes
backlight, 16
bright, 16
children, 16
fireworks, 16
flower, 16
High ISO, 16
manual, 17
Night Landscape, 15
night portrait, 16
self-portrait, 16
modes, picture-taking, 15
multiple selections, 28
multi-up, 24
N
names, tagging, 32
Night Landscape, 15
night portrait, 16
O
online prints, ordering, 42
optical zoom, 10
orientation sensor, 38
P
P and M modes, 15
panoramic pictures, 20
people, tagging, 32
PICTBRIDGE enabled printer, 41
picture size, 35, 37
picture taking, 6
pictures
adding date/time stamp, 21
cropping, 27
emailing marked, 34
marking, 42
review icons, 26
reviewing, 22
taking, modes, 15
transfer to computer, 40
pictures/video
deleting, 23
playing a video, 22
Portrait mode, 15
power icon, 8
power, camera, 3
print from a video, 28
printing
from a card, 42
optimizing printer, 43
order online, 42
PICTBRIDGE, 41
tagged pictures, 42
60 www.kodak.com/go/support
Page 69
Index
R
recognizing faces, 32
record button, 9
recycling, disposal, 50
red-eye, flash, 11
regulatory information, 54
reset camera, 38
Review button, 35
reviewing pictures/video
deleting, 23
LCD, 22
S
safety, 51
Scene (SCN) mode, 15
Scene (SCN) modes, 16
scene modes
Stage, 16
SD/SDHC Card
insert, 4
printing from, 42
search pictures, 25
select multiple pictures/videos, 28
self-portrait, 16
setting
about this camera, 39
AF zone, 36
auto focus, 36
auto-focus, 36
camera sounds, 37, 38
color mode, 36
computer connection, 38
date and time, 3
flash, 11
focus zone, 36
format, 39
image storage, 38
language, 38
LCD brightness, 37
long time exposure, 37
orientation sensor, 38
picture size, 35, 37
picture taking modes, 15
reset all settings, 38
sharpness, 36
video out, 38
white balance, 35
setting up the camera, 1
settings
picture, video size, 35, 37
setup menu, 35
Share button, 30, 37
sharpness, 36
shutter
problems, 44
speed, 17
shutter button, 6
single frame, 28
Smart Capture mode, 15
smart find, 25
software
upgrading, 50
software downloader, 40
sounds, 37, 38
specifications, camera, 48
Sport mode, 15
Stage, 16
strap, 5
www.kodak.com/go/support 61
Page 70
Index
T
tagging
keywords, 34
people, faces, 32
taking a picture, 6
taking a video, 9
television, slide show, 29
time, setting, 3
tips
battery guidelines, 52
care & maintenance, 50
transfer pictures, 40
trimming a video, 27
troubleshooting, 43
turning camera on/off, 3
typing, 33
U
undelete, undo, 23
upgrading software, firmware, 50
URLs, Kodak Web sites, 43
USB
transfer pictures, 40
V
VCCI compliance, 56
video
edit, 27
emailing marked, 34
out, 38
playback, 22
recording, 9
review icons, 26
transfer to computer, 40
viewing, 22
video action print, 28
video out, 38
video record button, 9
video size, 35, 37
viewing
by multi-up, 24
picture, after taking, 22
W
warranty, 53
white balance, 35
Z
zoom
optical, 10
62 www.kodak.com/go/support
Loading...
