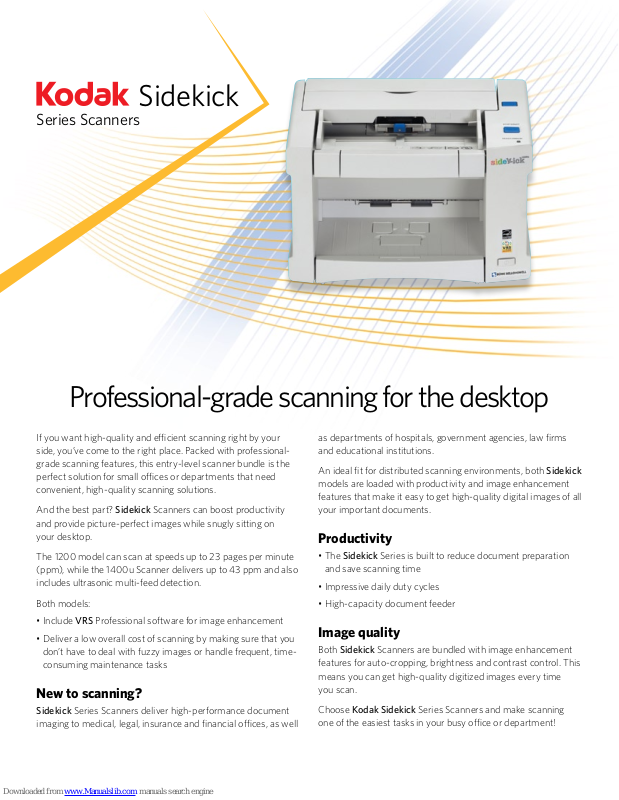

Kodak Sidekick 1400U, Sidekick 1200 Specifications
Series Scanners
Sidekick
Professional-grade scanning for the desktop
If you want high-quality and ecient scanning right by your
side, you’ve come to the right place. Packed with professionalgrade scanning features, this entry-level scanner bundle is the
perfect solution for small oces or departments that need
convenient, high-quality scanning solutions.
And the best part? Sidekick Scanners can boost productivity
and provide picture-perfect images while snugly sitting on
your desktop.
The 1200 model can scan at speeds up to 23 pages per minute
(ppm), while the 1400u Scanner delivers up to 43 ppm and also
includes ultrasonic multi-feed detection.
Both models:
• Include VRS Professional software for image enhancement
• Deliver a low overall cost of scanning by making sure that you
don’t have to deal with fuzzy images or handle frequent, timeconsuming maintenance tasks
New to scanning?
Sidekick Series Scanners deliver high-performance document
imaging to medical, legal, insurance and financial oces, as well
as departments of hospitals, government agencies, law firms
and educational institutions.
An ideal fit for distributed scanning environments, both Sidekick
models are loaded with productivity and image enhancement
features that make it easy to get high-quality digital images of all
your important documents.
Productivity
• The Sidekick Series is built to reduce document preparation
and save scanning time
• Impressive daily duty cycles
• High-capacity document feeder
Image quality
Both Sidekick Scanners are bundled with image enhancement
features for auto-cropping, brightness and contrast control. This
means you can get high-quality digitized images every time
you scan.
Choose Kodak Sidekick Series Scanners and make scanning
one of the easiest tasks in your busy oce or department!
Sidekick 1200 Scanner Sidekick 1400u Scanner
Scanning Mode Duplex
Scanning Speed
Letter Size, Portrait,
200 dpi
Resolution Optical: 600 dpi
Output Options Black-and-White, Grayscale (8 bit), and Color (24 bit)
Image Enhancement
Multi-feed Detection Length Ultrasonic
Document Size 50.8 x 70 mm (2.0 x 2.8 in .) to 216 x 356 mm (8.5 x 14 in.), Up to 216 x 635 mm (8. 5 x 25 in.)
Paper Thickness Single Paper Feeding: 0.05 to 0.15 mm (2.0 to 5.9 mils)
Paper Weight Single Paper Feeding: 10.7 to 33.9 lbs.
Interface USB 2.0 (cable included)
Feeder Capacity 120 sheets of 75 g/m
Scanner Size 35.5 x 32 x 24.1 cm (14 x 12. 5 x 9.25 in.)
Scanner Weight 8.5 kg (18.7 lbs .) 9.1 kg (20.1 lbs.)
Power Requirement AC 100-120 V 50/60 Hz AC 220-240 V 50/60 Hz AC 100-120 V 50/60 Hz AC 220-240 V 50/60 Hz
Power Consumption Maximum (Scanning) 37 W 38 W 50 W 50 W
Environment Operating Temperature
Daily Duty Cycle 4,000 pages
Additional Features End User Replaceable Feeder Rollers, Electronic Color Dropout (Red, Green, Blue)
Additional Contents Power Cord, USB Cable, Roller Cleaning Paper,
Bundled Software EMC Captiva QuickScan Pro Demo Software
Consumables Options Roller Exchange Kit S005503
Black-and-White
Color
Minimum (Standby) 17 W 19 W 17 W 19 W
Sleep Mode 6 W 8 W 3.5 W 6 W
and Humidity
Storage Temperature
and Humidity
To learn more:
Visit www.kodak.com/go/docimaging
Printed using Kodak Technologies.
Simplex 2 3 ppm (pages per minute)
Duplex 42 ipm (images per minute)
Simplex 8 ppm
Duplex 14 ipm
Black-and-White or Grayscale Output: 100–600 dpi;
Color Output (with the VR S application): 100–400 dpi
VRS Professional software features include Auto Cropping, Deskew, Auto Brightness, Advanced Clarity,
Auto Color Detect, Auto Orientation, Bar Code Detection and Blank Page Deletion
Continuous Paper Feeding: 0.06 to 0.15 mm (2.36 to 5.9 mils)
Continuous Paper Feeding: 13. 3 to 33.9 lbs.
and SCSI III (50 pin)
With Tray Extended: 35.5 x 50 x 27 cm (14 x 19.75 x 10.6 in.)
CD-ROM (Installation and Operator Manual, VRS Professional Software, User Utility Software),
Printed Documents (Quick Installation Guide and Warranty Card)
Roller Cleaning Kit S005504
As an Energy Star® Par tne r,
Eastman Kodak Company has
determined that the 1400u Scanner
meets Energy Star® guidelines for
energy eciency.
Note: 1 mil = 1/ 1000 in.
2
(20 lb.) paper
Temperature 15°C to 30°C (59°F to 86°F)
Humidity: 30% to 80% RH
Temperature 15°C to 35°C (59°F to 95°F)
Humidity: 10% to 80% RH
Pre-scan Front-page Imprinter Kit 0123085
Simplex 43 ppm
Duplex 76 ipm
Simplex 14 ppm
Duplex 24 ipm
USB 2.0 (cable included)
Roller Exchange Kit S005503
Roller Cleaning Kit S005504
Ink Cartridge S005506
Kodak Sidekick Scanners
1-800-SCAN-494
Eastman Kodak Company
343 State Street
Rochester, NY 14650 USA
1-800-944-6171
©Kodak, 2010. Kodak and Sidekick are trademarks of Kodak.
Speci fications are s ubject to chan ge without noti ce.
A-5813 CAT No. 138 4080 Printed in USA 1/10
Kodak Canada, Inc.
Toronto, Ontario
M9R 0A1
1-800-465-6325
