Kodak EKTAPRO 4010, EKTAPRO 3000, EKTAPRO 5000, EKTAPRO 3010, EKTAPRO 7010 Quick Reference Manual

The Quick Reference - is designed to be
your ultimate source to all applications,
technical constellations, accessories etc. for

Kodak Ektapro Slide Projectors

Quick Reference

EKTAPRO

Edition

2001!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

2

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

50 questions regarding projection techniques with EKTAPRO. This is our most important

improvement in this revised edition. You will find an answer to all questions in this Quick
Reference. We will take you there. With the help of these questions, we would like to help the user
not only to find problem solutions but we would like to point out the variety of applications/AV­solutions possible with Ektapro projectors.

Not only the 50 questions but the index on page 76 will help you to get quick and specific
information.

Should we have missed something - please let us know. Our address is found in the appendix.

Stuttgart, January 2001

Introduction to the Millenium Edition of the

Quick Reference

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

3

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Content

Introduction to the Millenium Edition of the Quick Reference.............................. ...2

Content .............................................................................................................3

50 FAQs ...............................................................................................................4

Global Usage ....................................................................................................7

Optional Accessories..................................................................................................8

Cable Remote Control ........................................................................................9

IR Remote Control ...............................................................................................10

Parallel Projection ..............................................................................................14

Endless Projection .............................................................................................18

Fading ................................................................................................................22

Trays ................................................................................................................23

Autofocus ......................................................................................................26

No-slide-no-light ..............................................................................................27

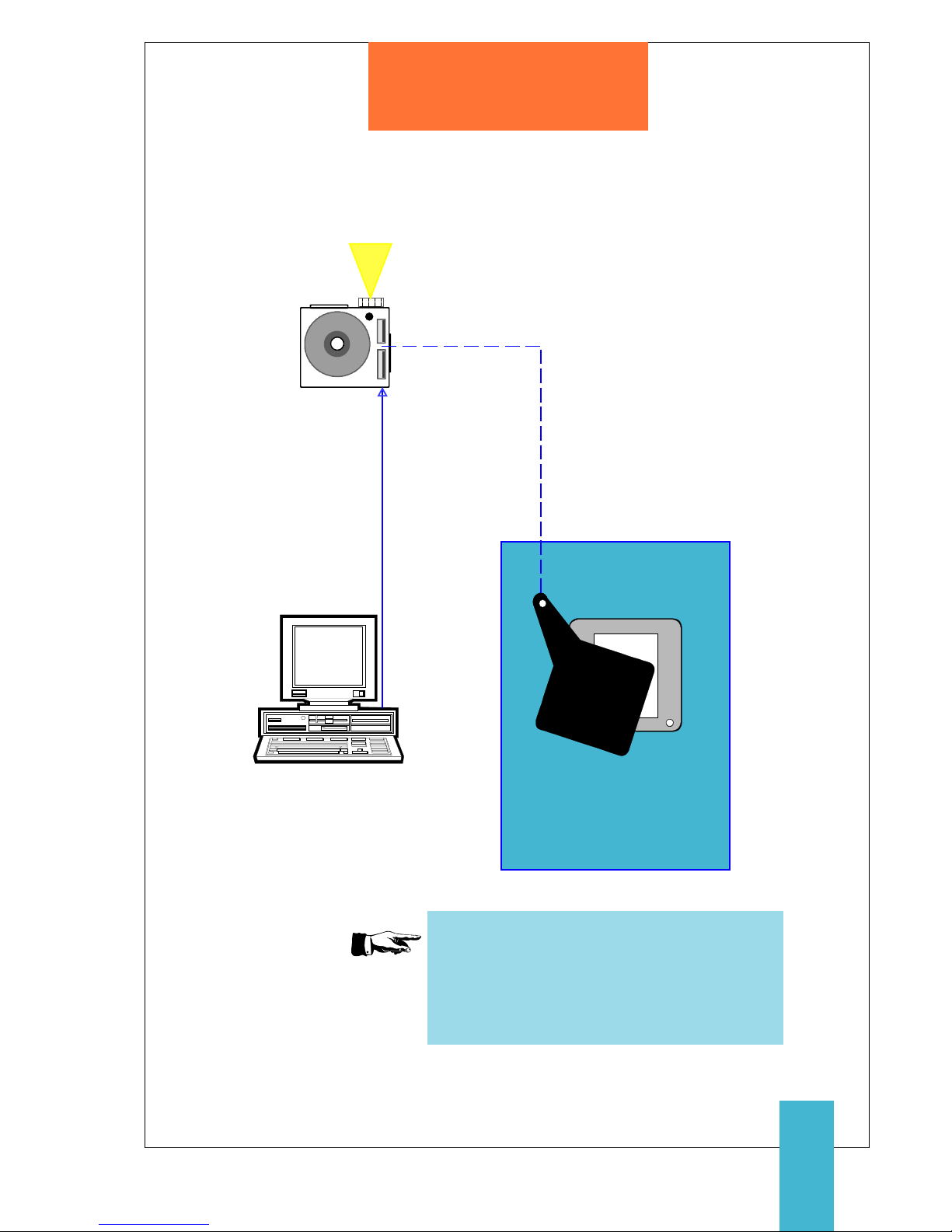

Slide Recording ...............................................................................................28

Lenses ..................................................................................................................29

Lamps .................................................................................................................34

Extra Bright Lamp Module ......................................................................................36

External Control ..............................................................................................42

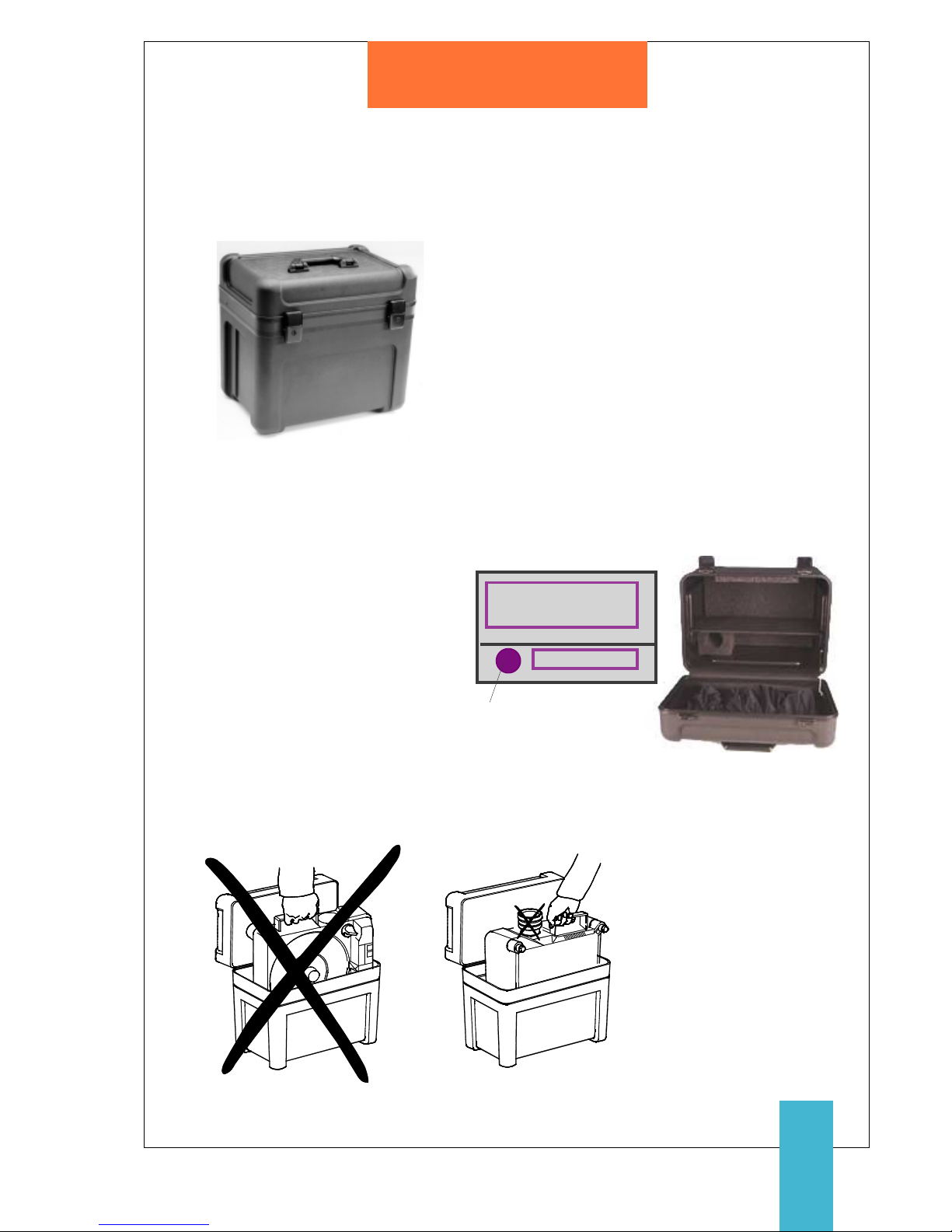

Carrying Case .......................................................................................................50

Professional Installation ....................................................................................51

Specification .......................................................................................................56

DMX Application .............................................................................................58

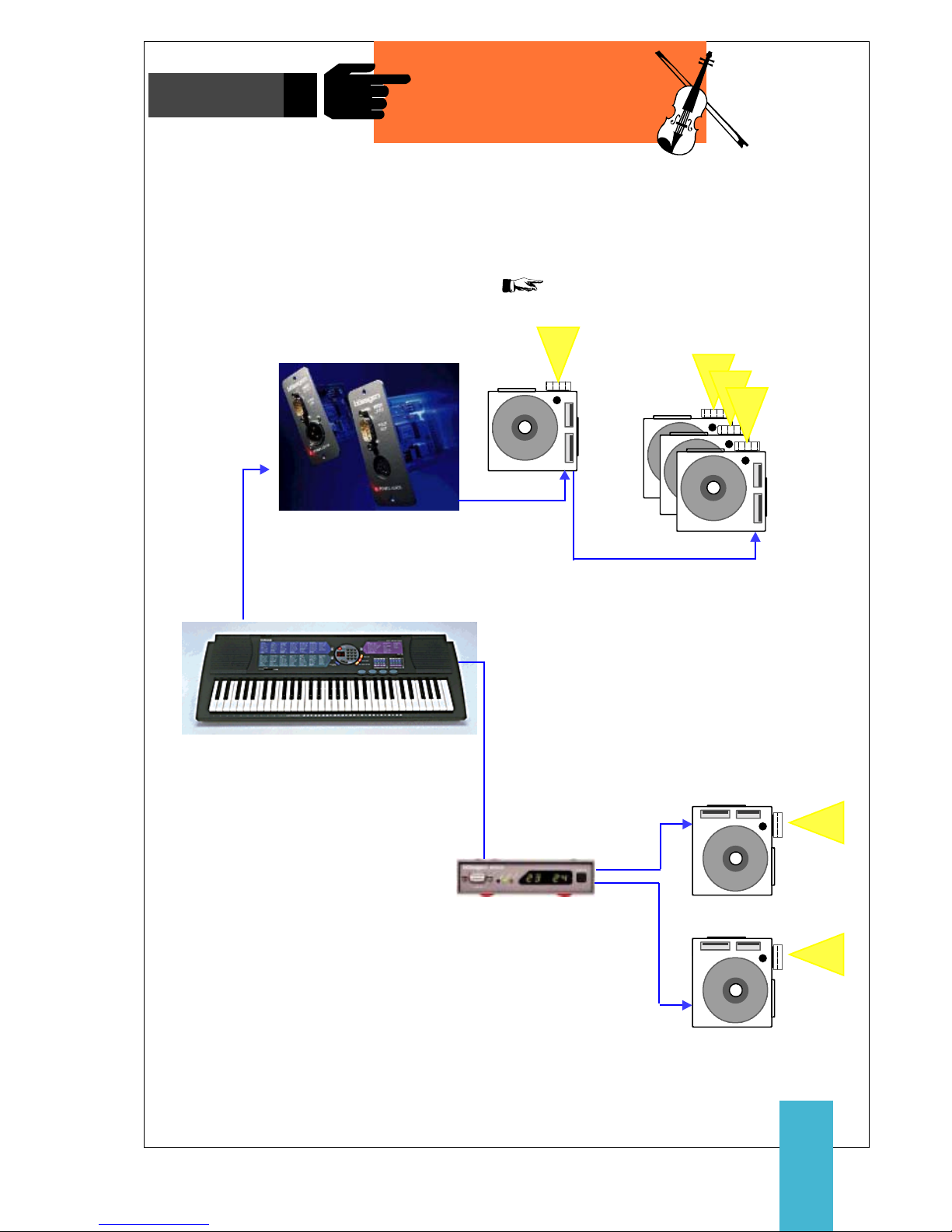

MIDI Application ...........................................................................................59

Business Presentations ...................................................................................60

Addresses .......................................................................................................69

Quality ................................................................................................................73

History ...............................................................................................................74

Editorial ..............................................................................................................75

Index ..................................................................................................................76

For a detailed search, please use the INDEX at page 76

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

4

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

50 FAQs

Compatibility

1. Q: I still own lenses with spiral rack for my old Kodak S-AV projectors. Can I use these for the

Kodak EKTAPROs as well?

PAGE 30

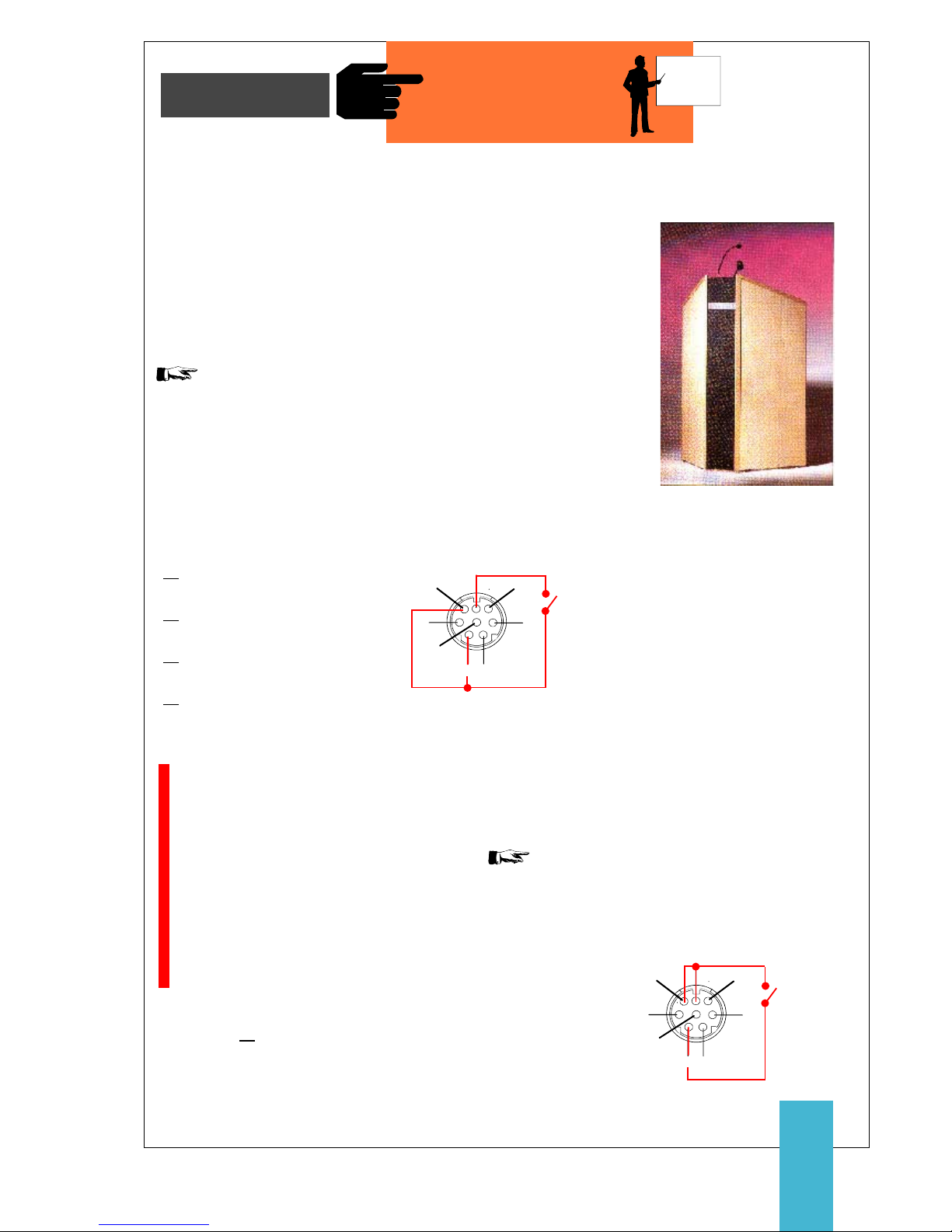

2. Q: I would like to install an EKTAPRO in an auditorium/conference room. Is it possible to

use the 6 pole cable of the speaker’s desk for controlling the EKTAPRO?

PAGE 67

3. Q: I would like to take my EKTAPRO projector when I travel internationally. Is there anything

I need to consider?

PAGE 7

4. Q: I had a slide show programmed in Germany and would like to show it in the U.S.A. What

do I need to consider?

PAGE 7

Slide Trays/Transport

5. Q: Since I make very many presentations, using the 140 slide tray seems very reasonable.

What are the differences between the 140 and the 80 slide tray?

PAGE 24

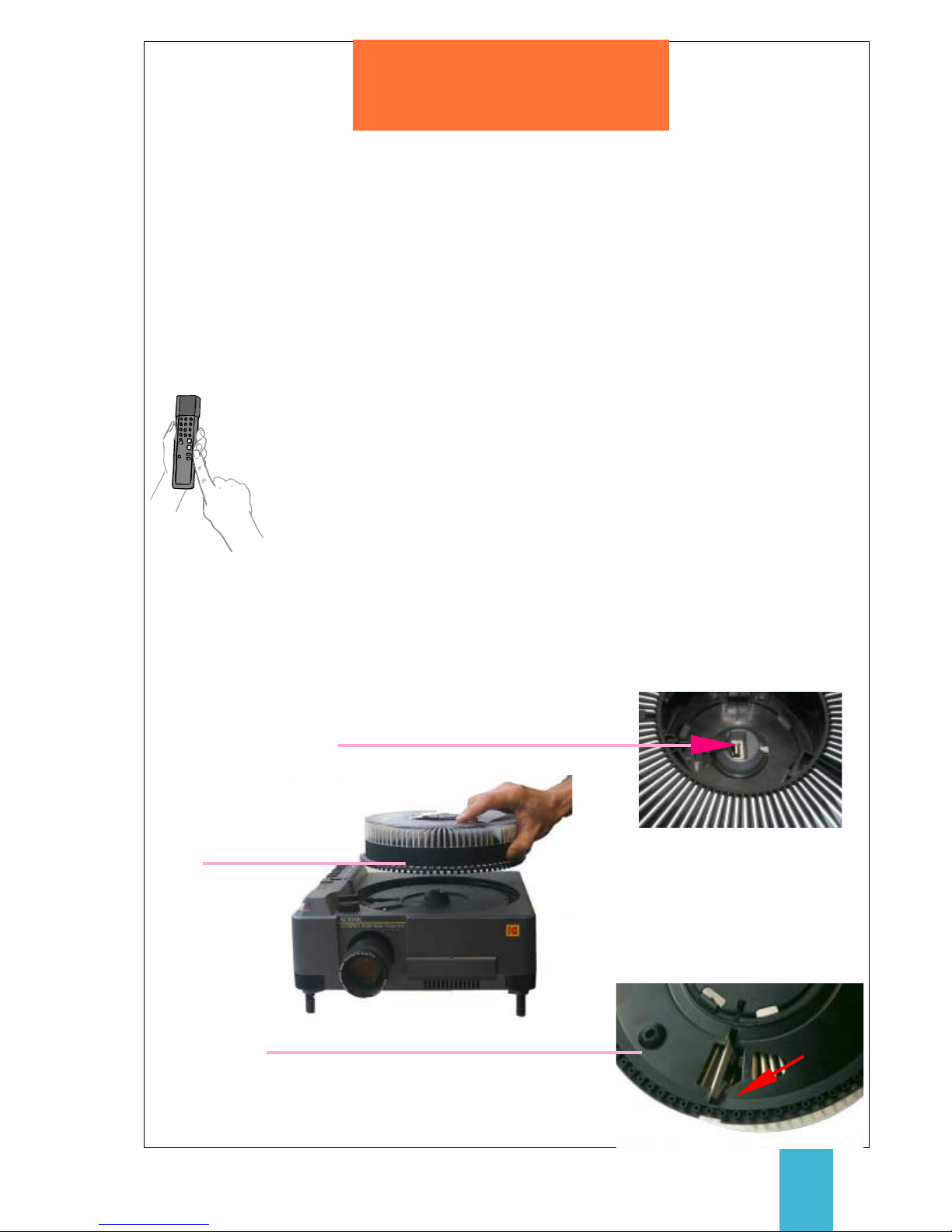

6. Q: I already projected several slides. How can I take the slide tray off quickly?

PAGE 25

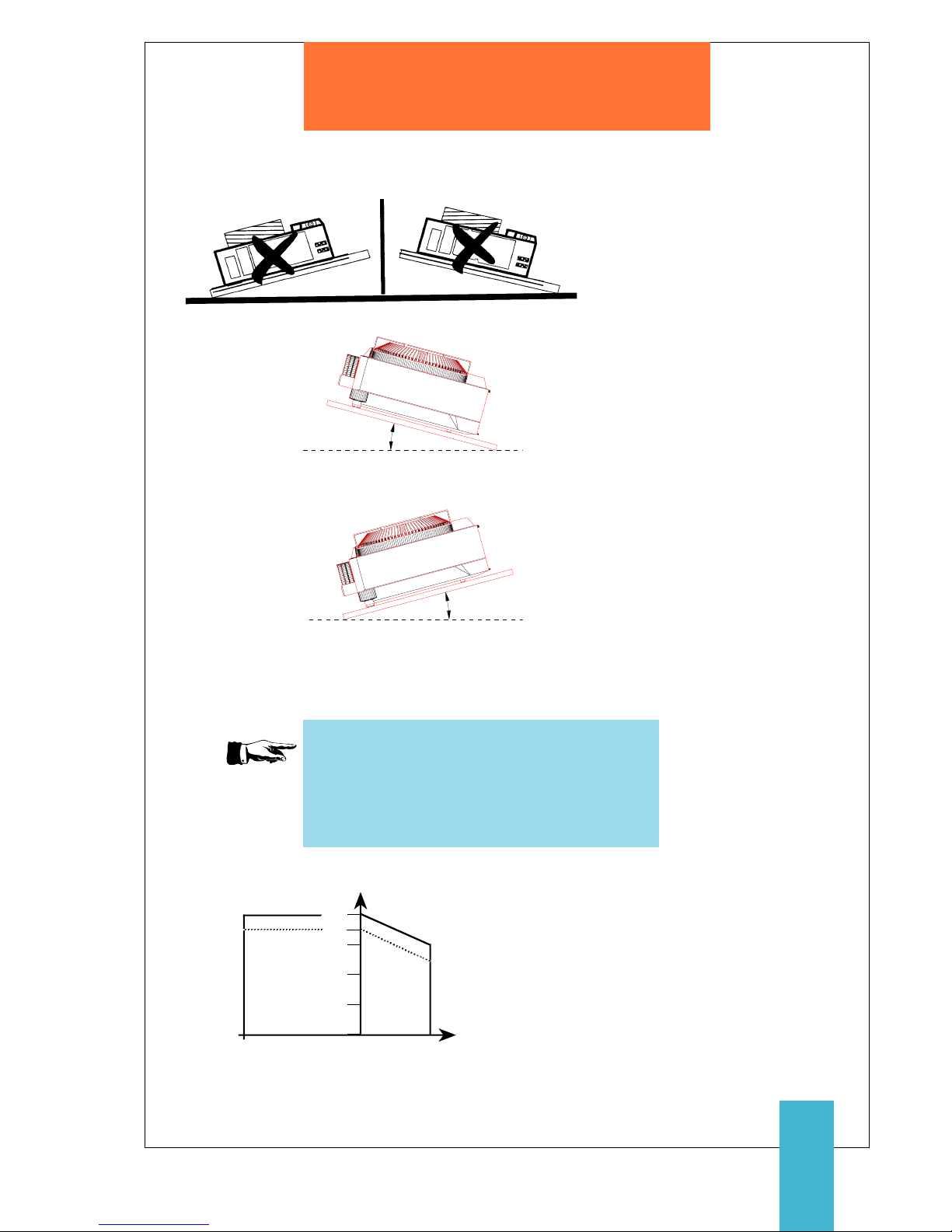

7. Q: I would like to tilt the projector for a special application. What do I need to consider?

PAGE 53

8. Q: Sometimes it is hard to put the slide tray onto the projector. What do I need to

consider?

PAGE 25

9. Q: I would like to project slides endless with built-in timer. Anything to consider?

PAGE 18

10. Q: I would like to show several slides in continuous operation with built-in timer. After the last

slide has been projected, I want the slide tray to go back to 0-position and show the first slide
again. What do I do?

PAGE 18

11. Q: I have an Ektapro without built-in timer. How can I make an automatic slide change

anyhow?

PAGES 19 - 21

Autofocus

12. Q: Even though the AF is on, I feel like the slides are not focussed.

PAGE 26

13. Q: The AF does not always work with my 4 x 4 slides. Why is that?

PAGE 26

Control

14. Q: I was able to control my old S-AV projectors via an AV tape recorder. Does this work

with the EKTAPROs as well?

PAGE 48

15. Q: I would like to turn the projector on and off via the power switch. However, I don’t want

the slide tray to go into 0-position. I would like to continue with the last slide that had been
shown.

PAGE 48

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

5

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

16. Q: Is there any way to lock certain buttons on my IR transmitter in order to avoid pressing a

wrong button during my presentation? PAGE 66

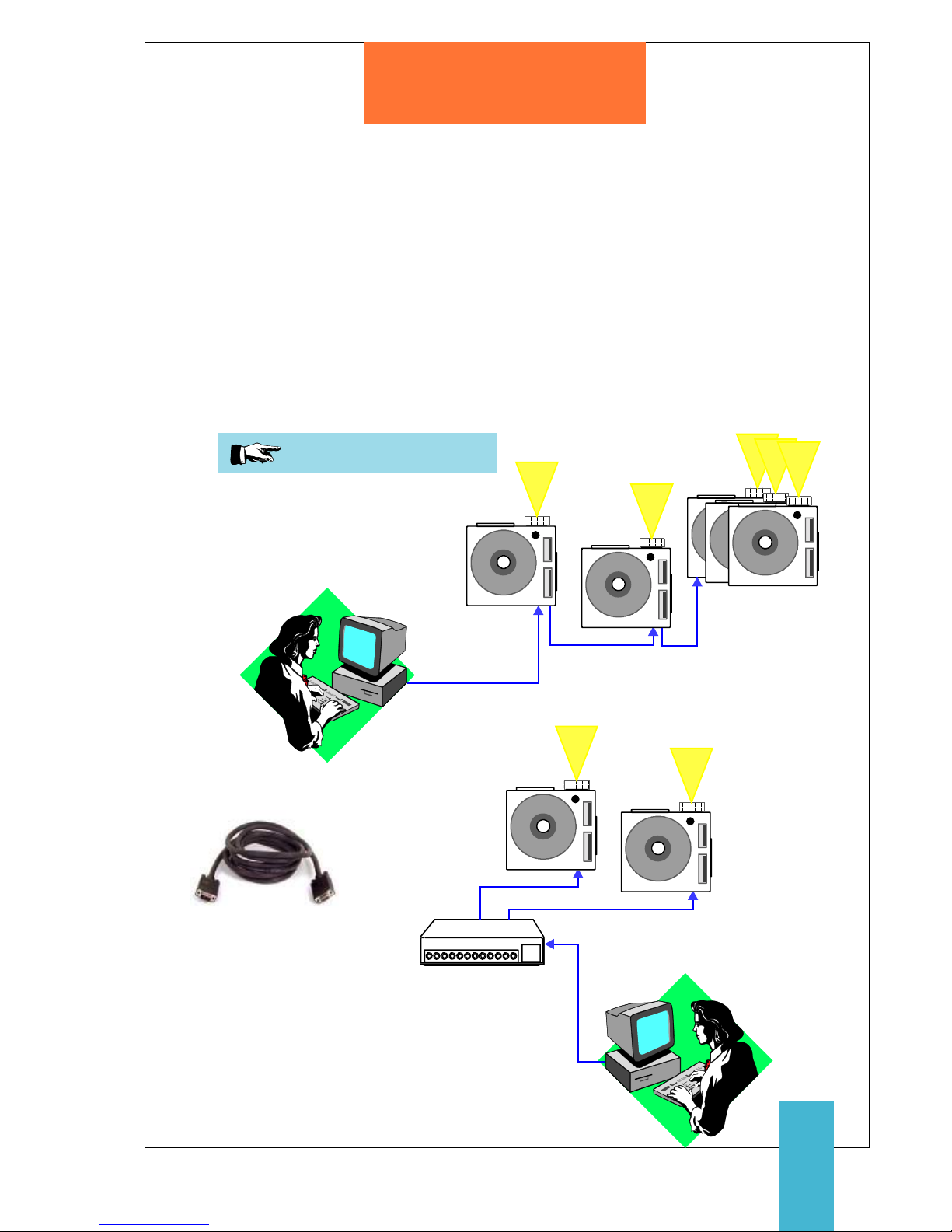

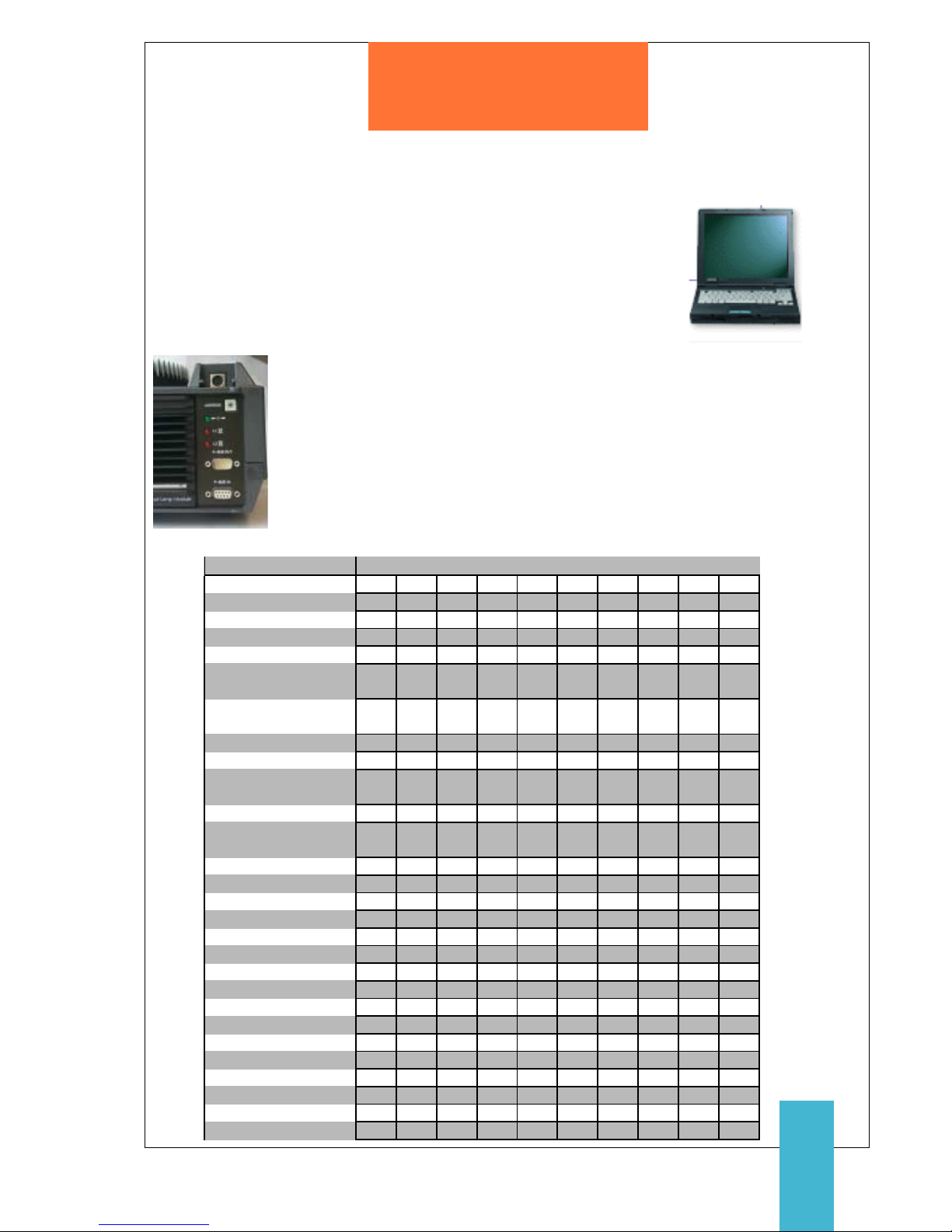

17. Q: Can I connect and control the projector directly via the computer? PAGES 42, 45

18. Q: Can I control the projector directly via my Apple Macintosh computer? PAGE 44

19. Q: I would like to make a quick slide change. The slide should only be visible for a fraction of

a second. How do I program this? PAGE 46

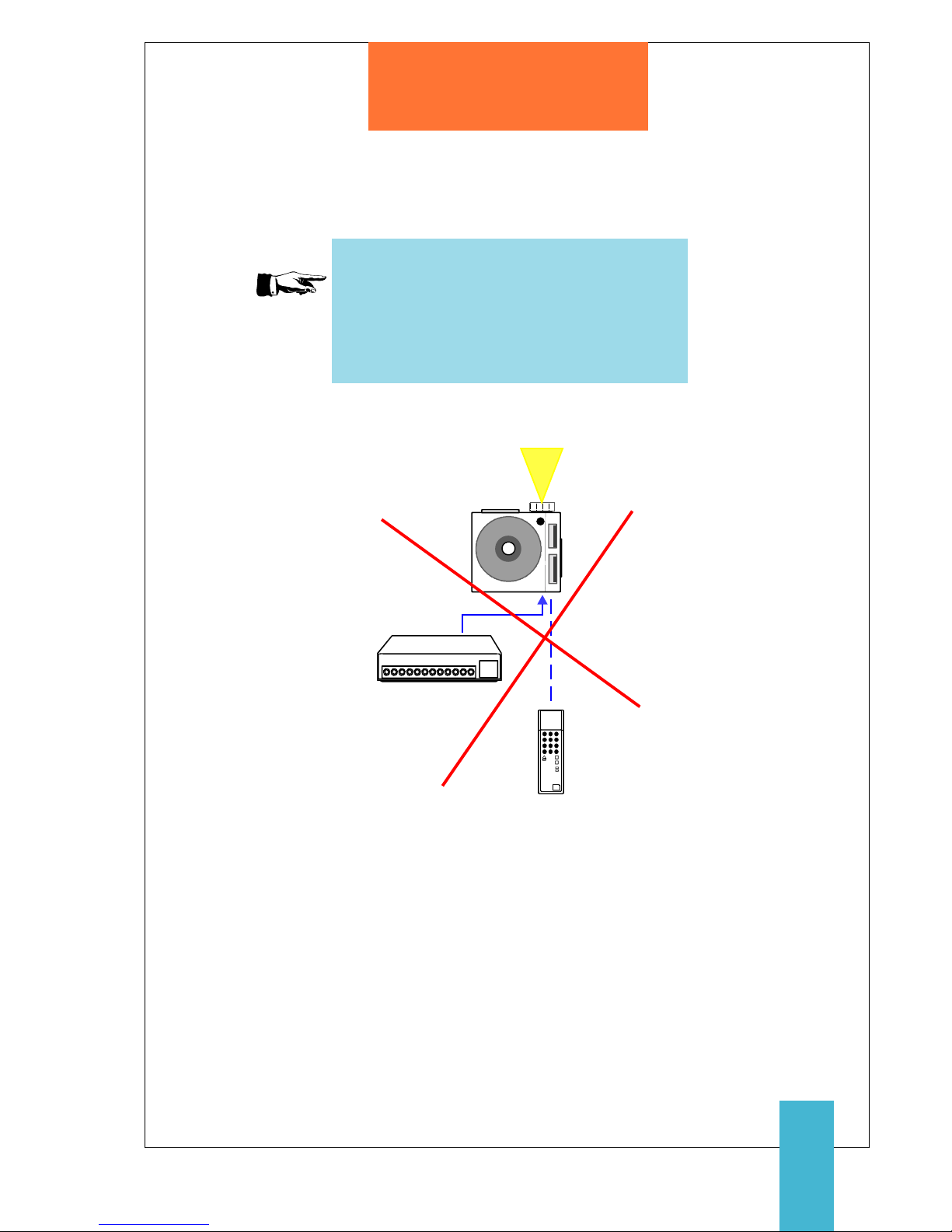

20. Q: Can I connect and operate a computer and an IR remote control simultaneously?

PAGE 47

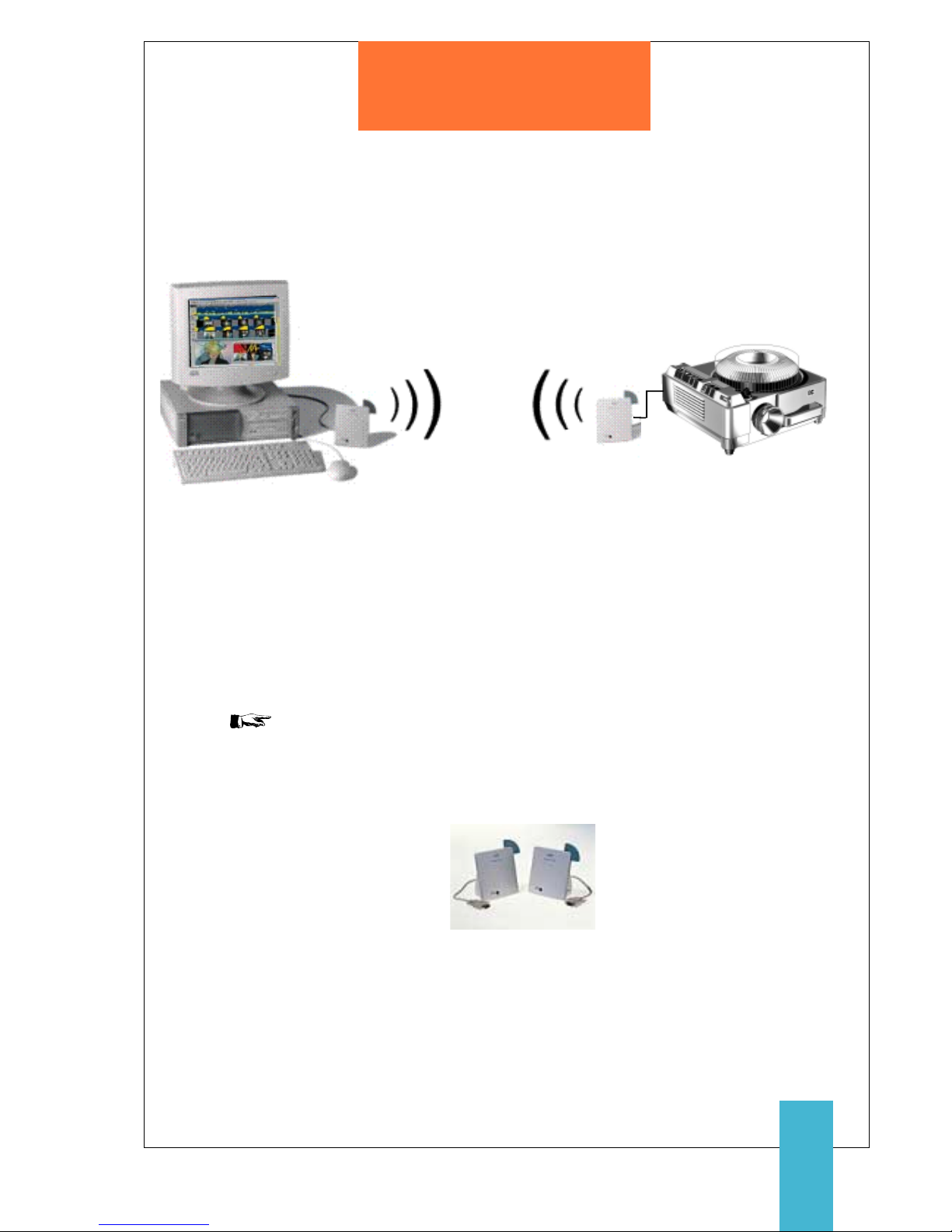

21. Q: Is it possible to transmit computer data over a greater distance – possibly cable-free?

PAGE 49

22. Q: We would like to utilize projectors in theaters. Is it possible to integrate the projectors in

the already existing light installation? PAGE 58

23. Q: Is a smart solution available to connect the projector with different control systems ?

PAGE 60

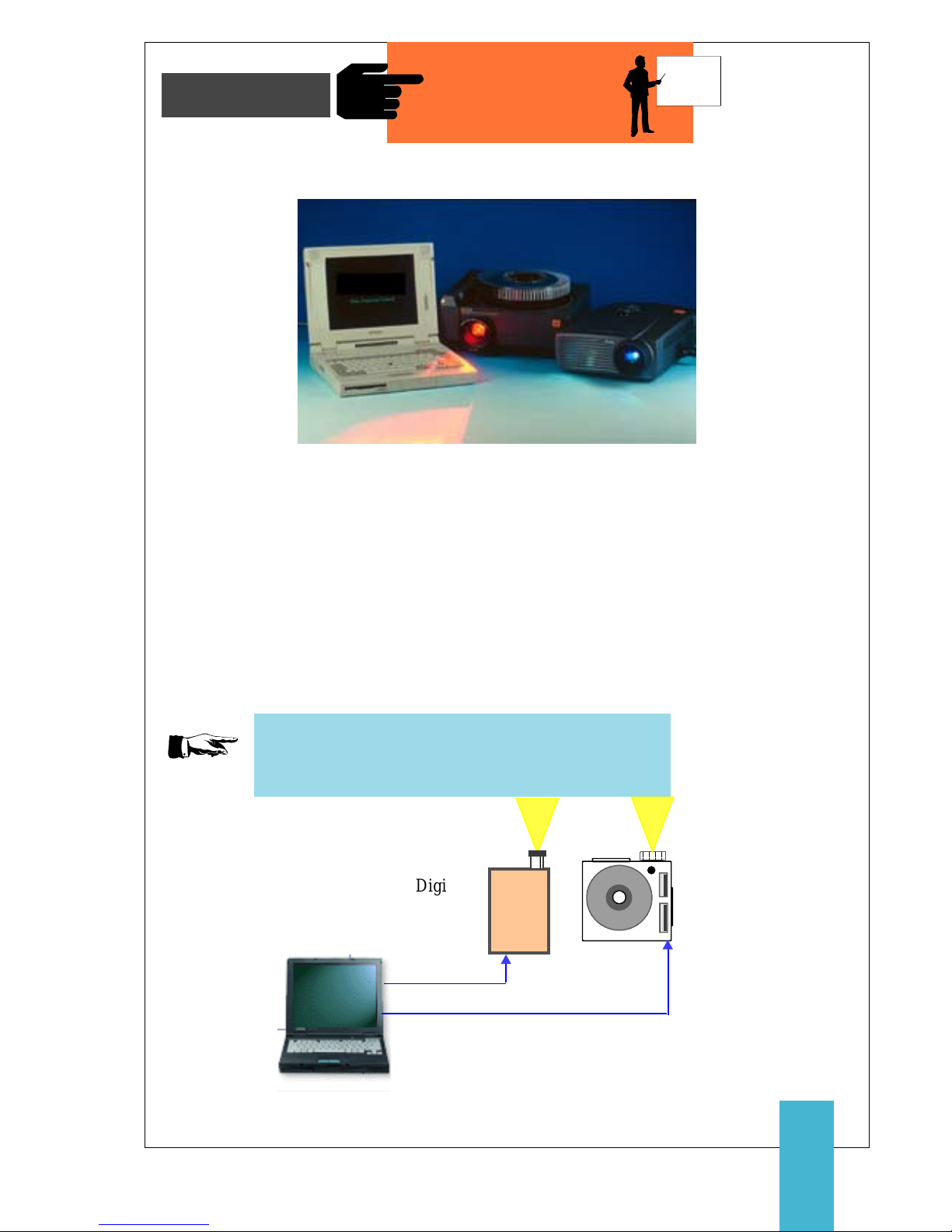

24. Q: I have an enormous stock of slides. I want to present my Power Point charts together with

my slides for my business presentations. Is it possible to connect a slide projector and a data
projector simultaneously to a laptop? PAGE 68

25. Q: I am a musician and would like to combine slide projection with my music. Is it possible to

control the projector synchronous to my live music? PAGE 59

Lamp Module/Light

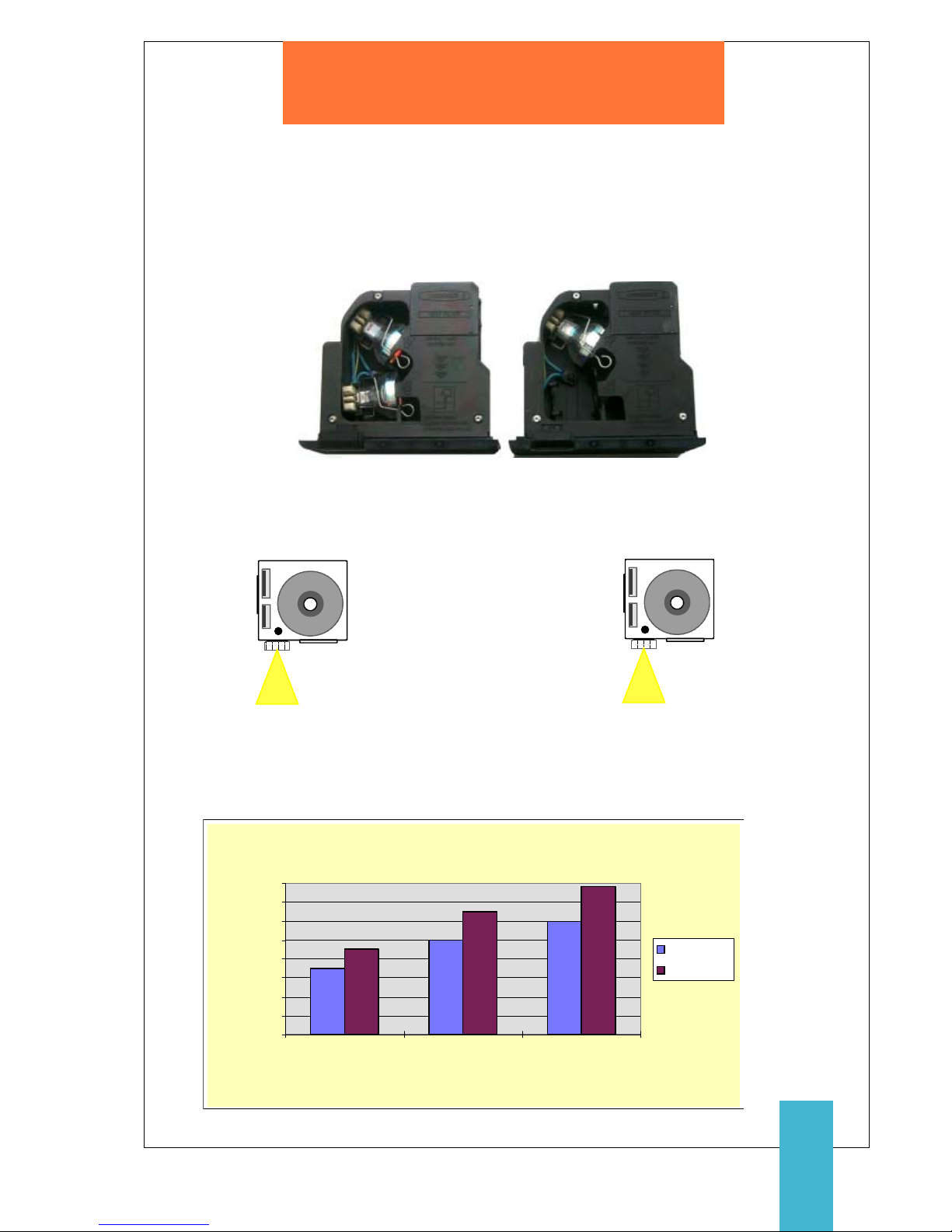

26. Q: How can I assure that an unused spare lamp with full life time is always available in the

dual lamp module? PAGE 35

27. Q: Can I also utilize the dual lamp module into the EKTAPRO 3020 resp. 320? PAGE 37

28. Q: Can I also utilize the single lamp module into projectors with the dual lamp modules?

PAGE 37

29. Q: My slides regularly develop sweat spots. How do I avoid this? PAGE 41

30. Q: I already have two older EKTAPRO models (5000) and now bought an EKTAPRO 5020

with Extra Bright Lamp Module. Is it possible to adjust the new projector in brightness resp.
color temperature to the EKTAPRO 5000? PAGE 39

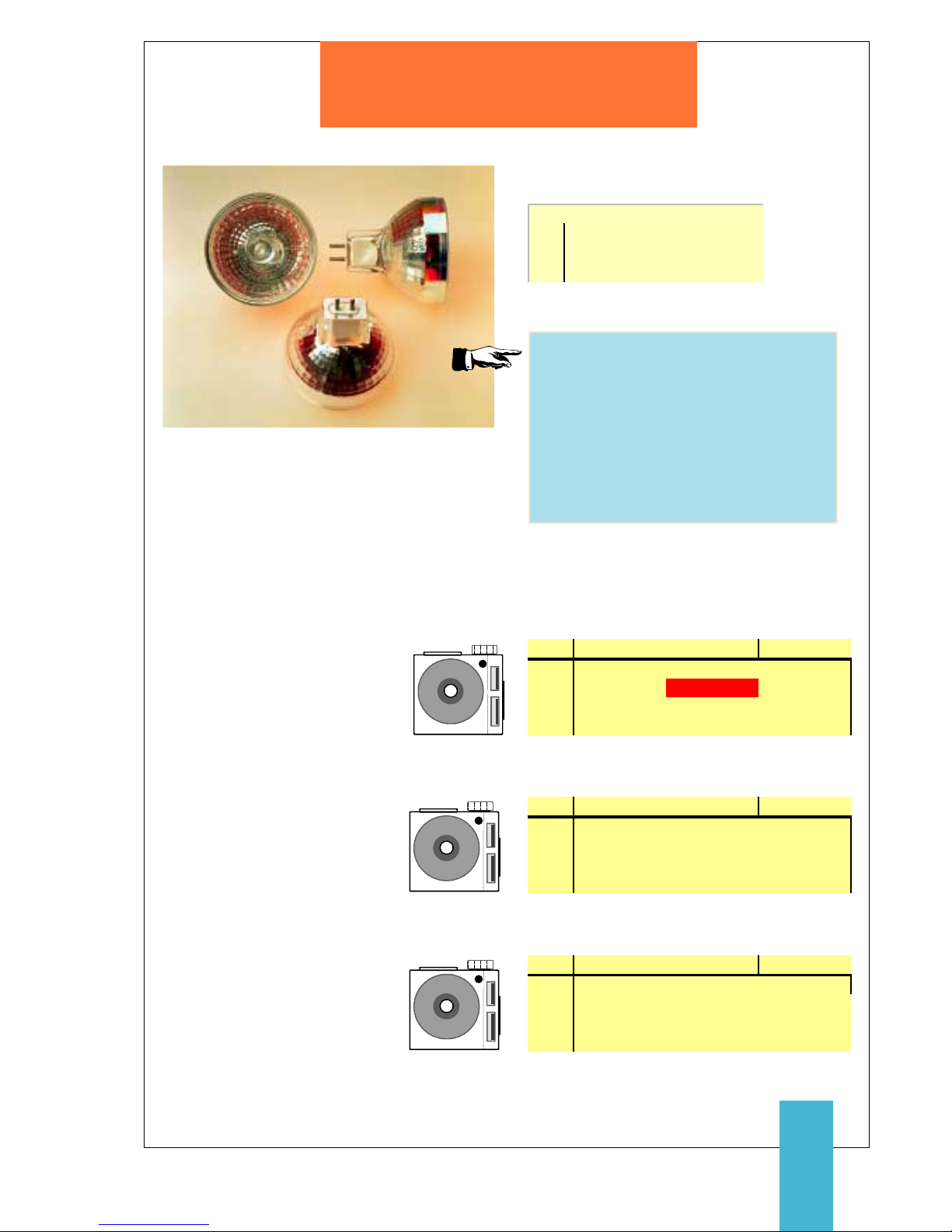

31. Q: How bright are the various lamps actually? PAGE 34

32. Q: What actually makes the Bright Light Lamp Module special? PAGE 36

33. Q: My slide frames are black. Can they be used with the Extra Bright Lamp Module?

PAGE 40

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

6

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

34. Q: How bright are the projectors actually? PAGE 37

Remote Control

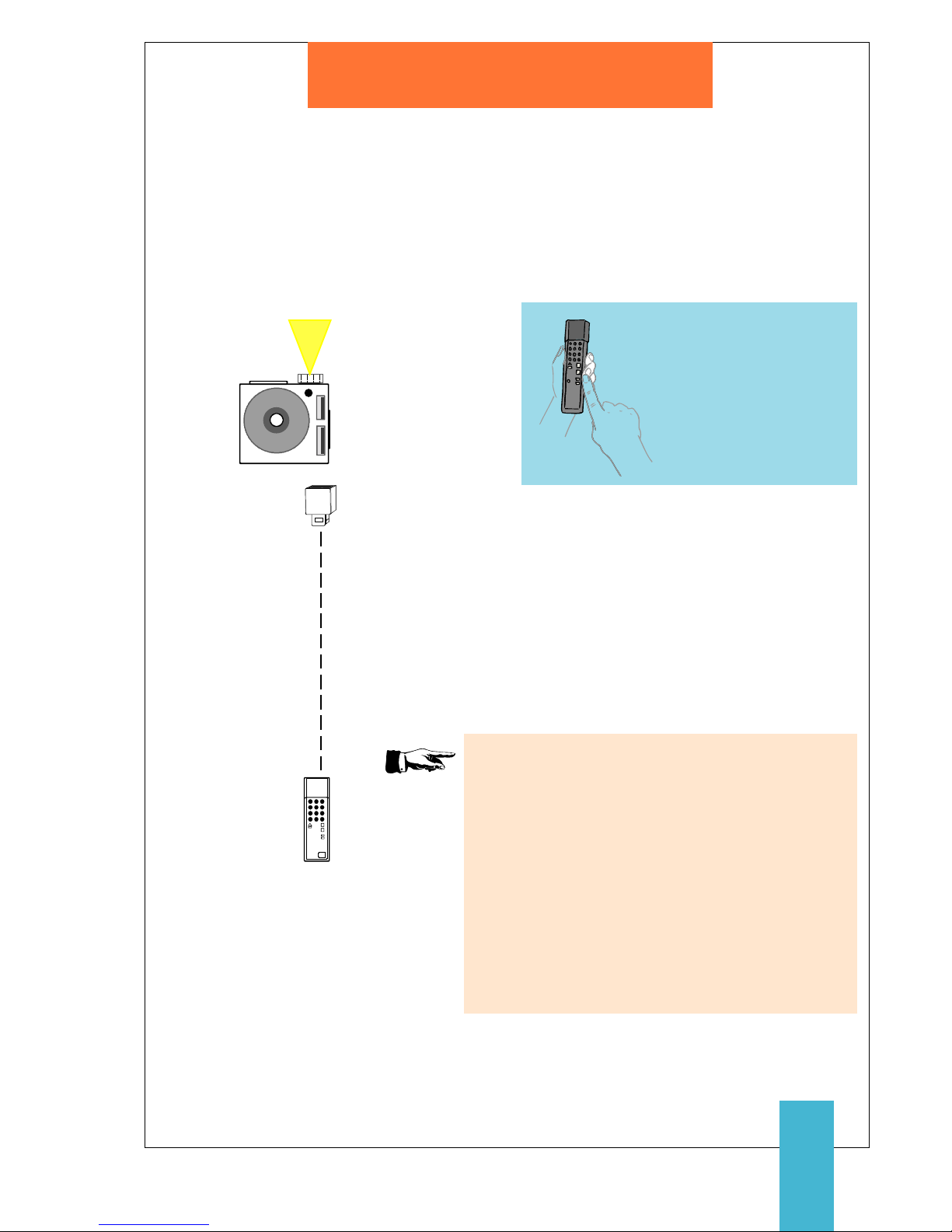

35. Q: Although the IR remote control is supposed to reach a 30 m range, I get no response at

10 m. Why is that? PAGE 11

36. Q: The range of the IR remote control (of 30 m) is not sufficient for my application. Is it

possible to extend the range? PAGE 11

37. Q: The premises are so adverse that I cannot aim directly at the projector from the lectern. Is

it possible to place the receiver somewhere else? PAGE 11

38. Q: Is it possible to operate two IR systems in one room? PAGE 13

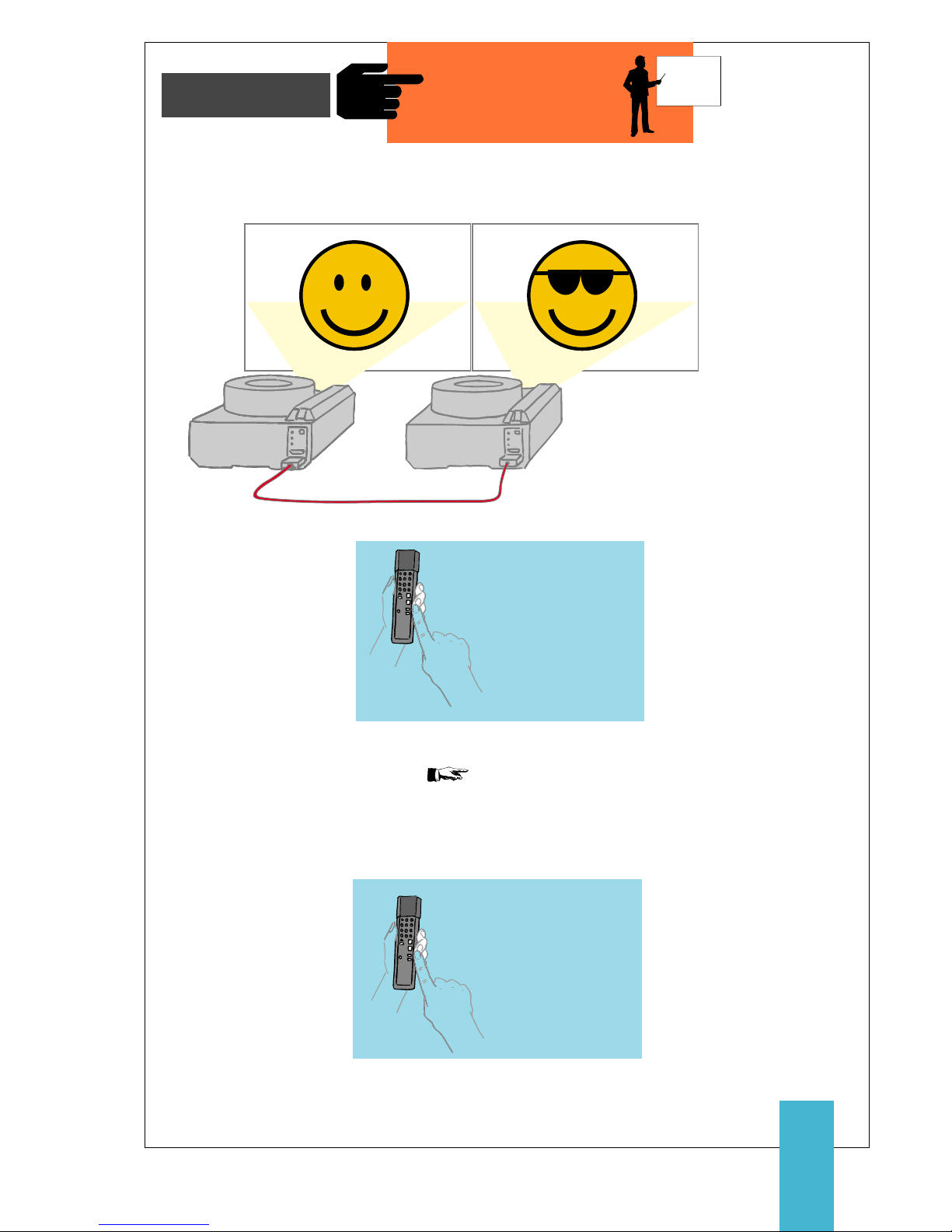

39. Q: Is it possible to control two projectors individually with one IR transmitter? PAGE 13

40. Q: Can an IR remote control be connected to the twin socket adapter instead of the cable

remote? PAGE 15

Lenses

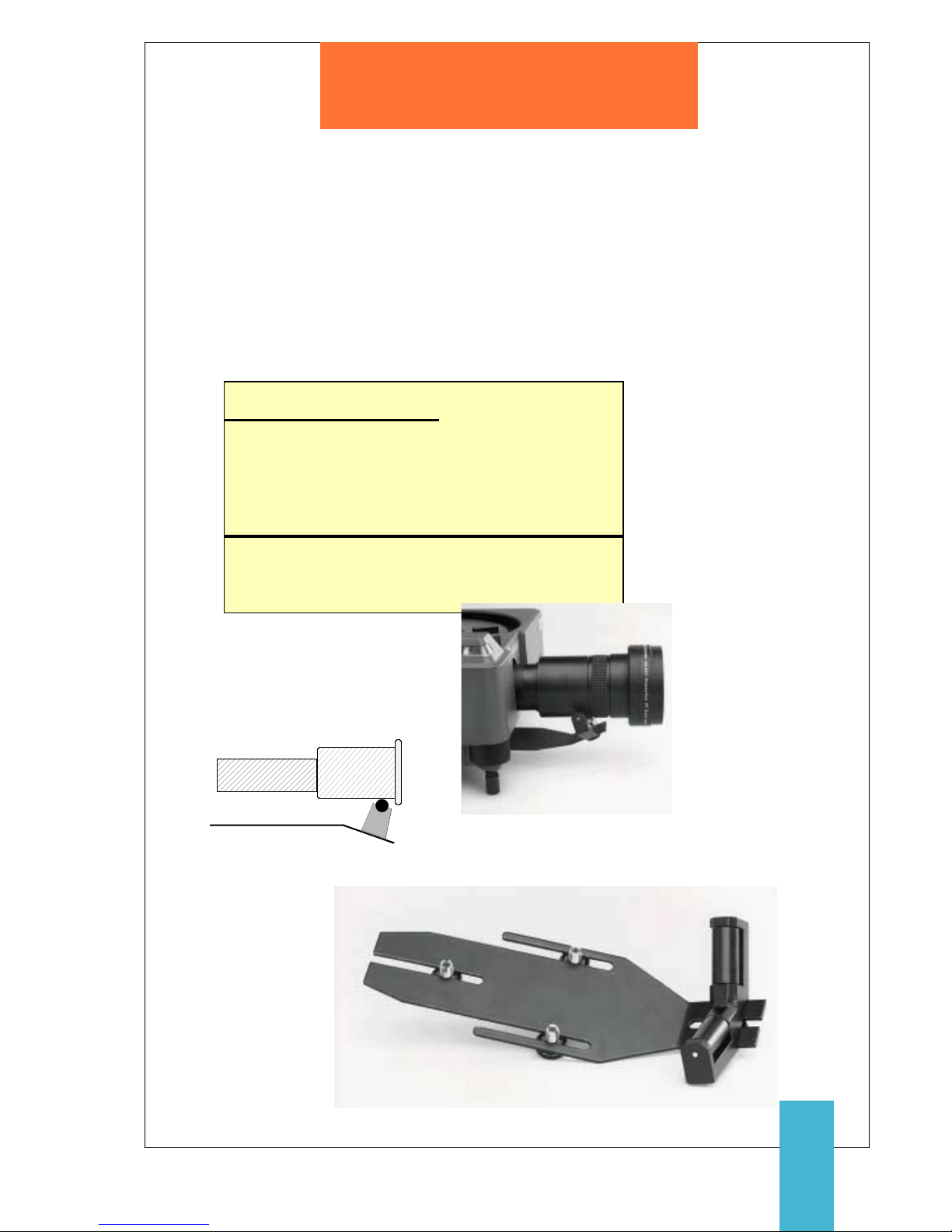

41. Q: Long focal distance lenses have the disadvantage that the projected image moves e.g.

during slide change. Is there a solution? PAGE 31

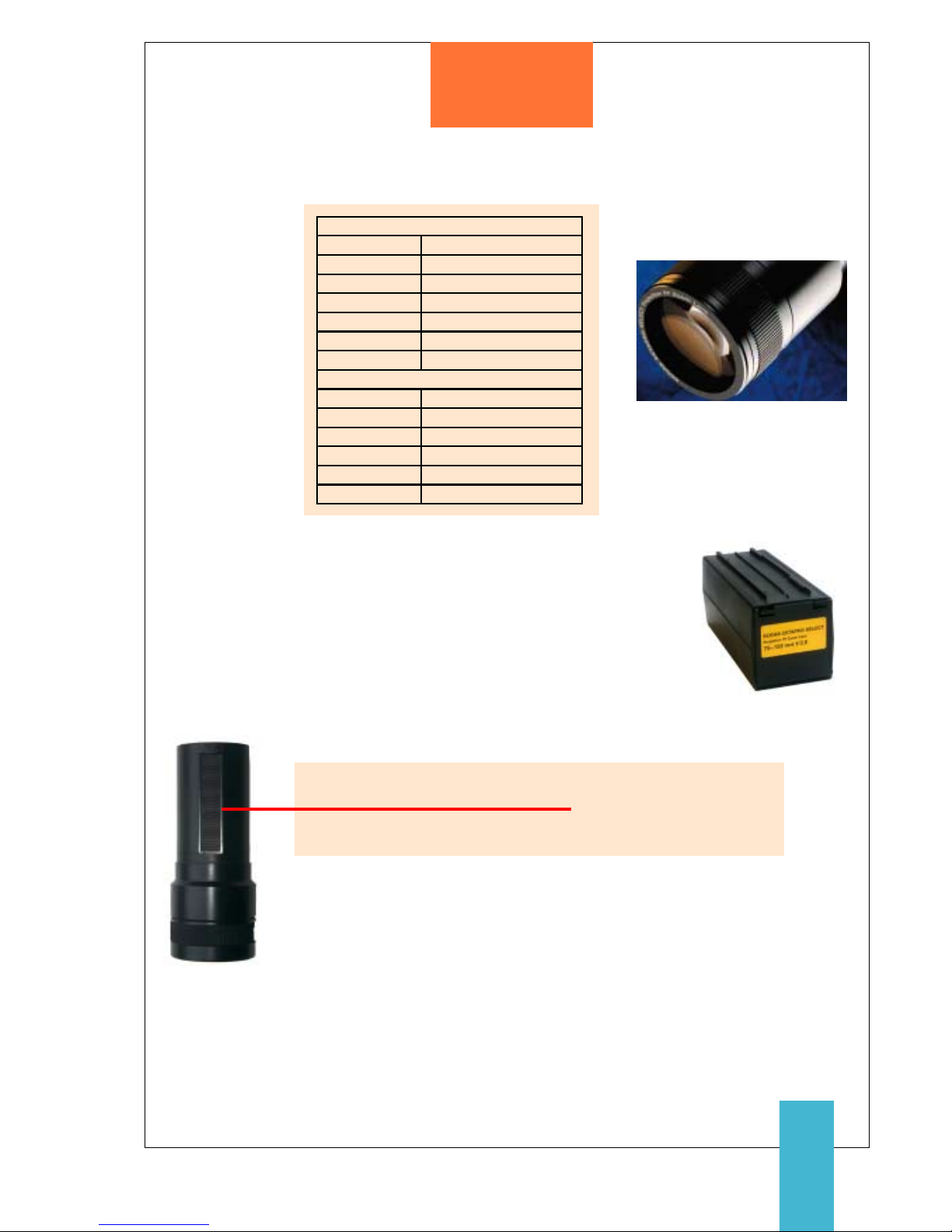

42. Q: Why can’t all lenses be used for 4x4 projections? PAGE 33

43. Q: What is the difference between EKTAPRO Standard and Select lenses? PAGE 29

Miscellaneous

44. Q: For a special application I would like to turn off the ”No Slide No Light” feature. The

projector aperture should remain open if no slide is in the slide gate. Is that possible?

PAGE 27

45. Q: What is fade in/out? How do I activate this on my projector? PAGE 22

46. Q: I would like to get a longer dissolve cable for my Master/Slave application (dissolve with 2

EKTAPROs). Can I use an ordinary RS232 extension cable? PAGE 65

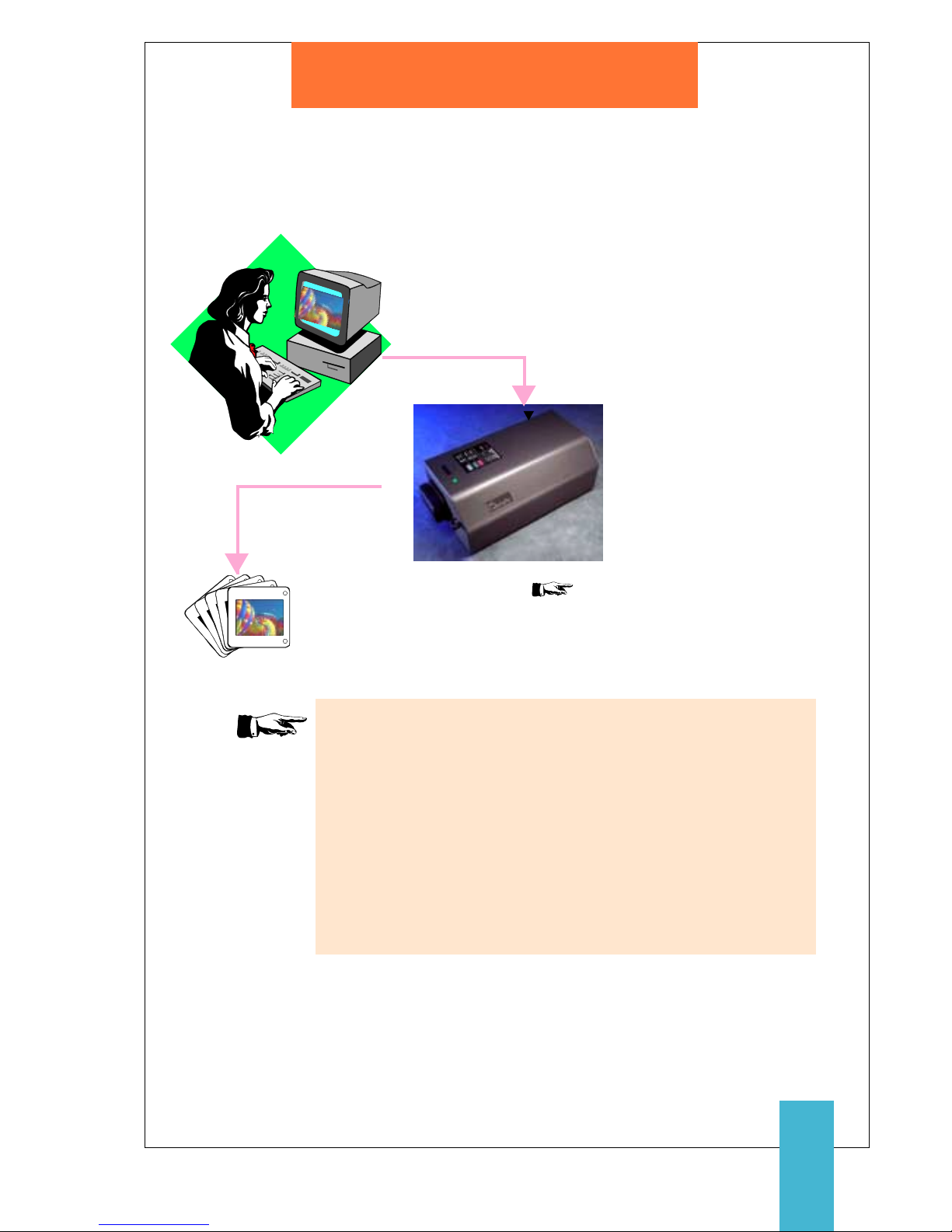

47. Q: Is it possible to get the images on my computer onto slide material?

PAGE 28

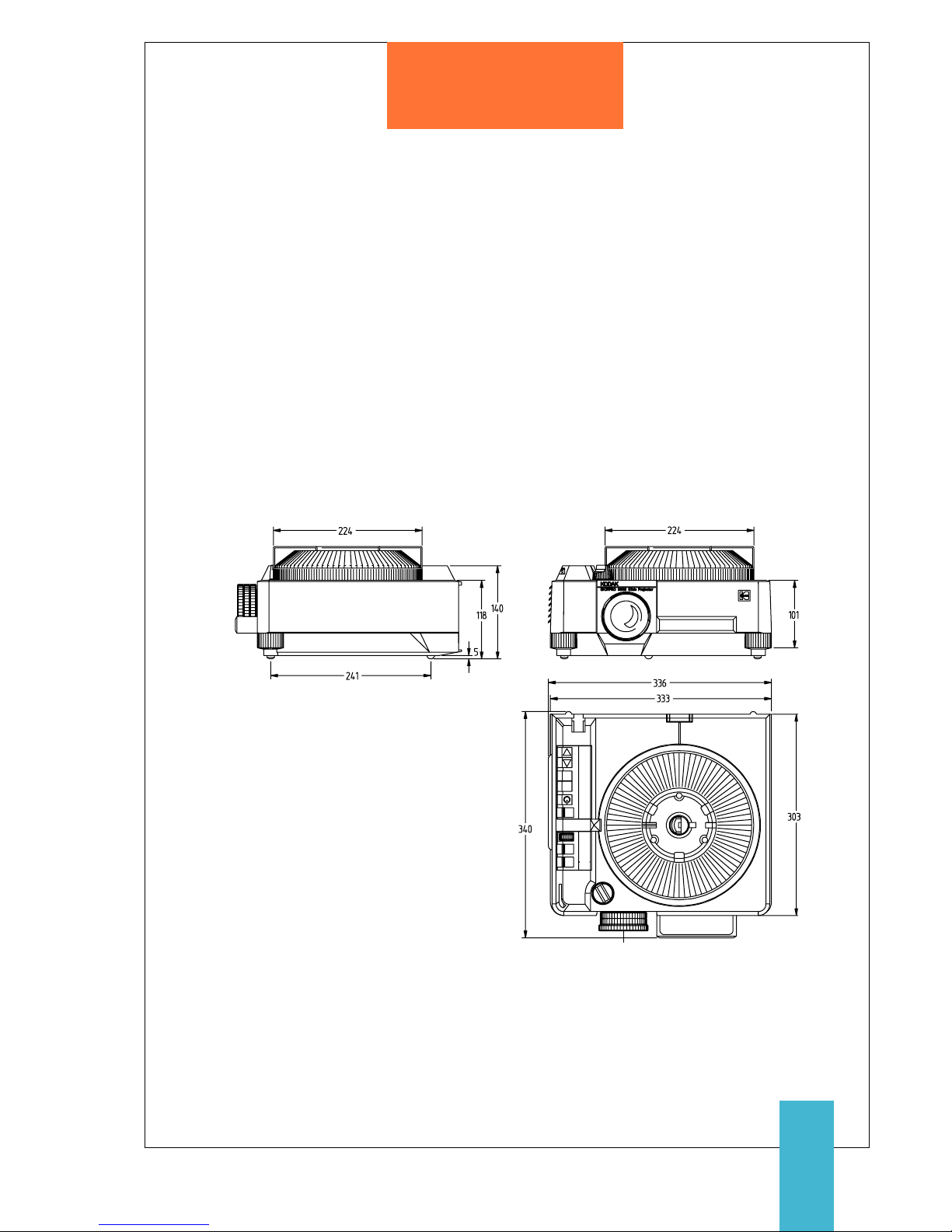

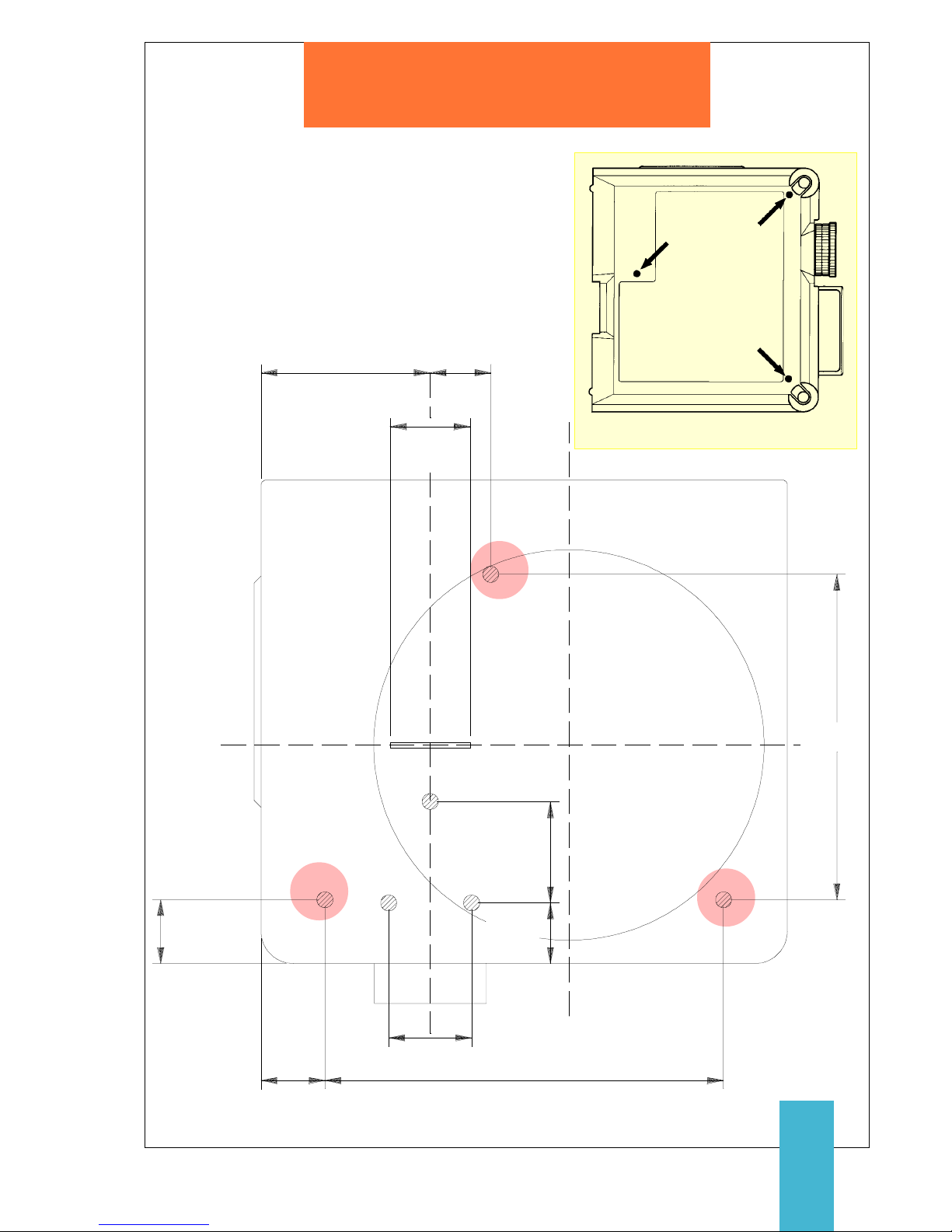

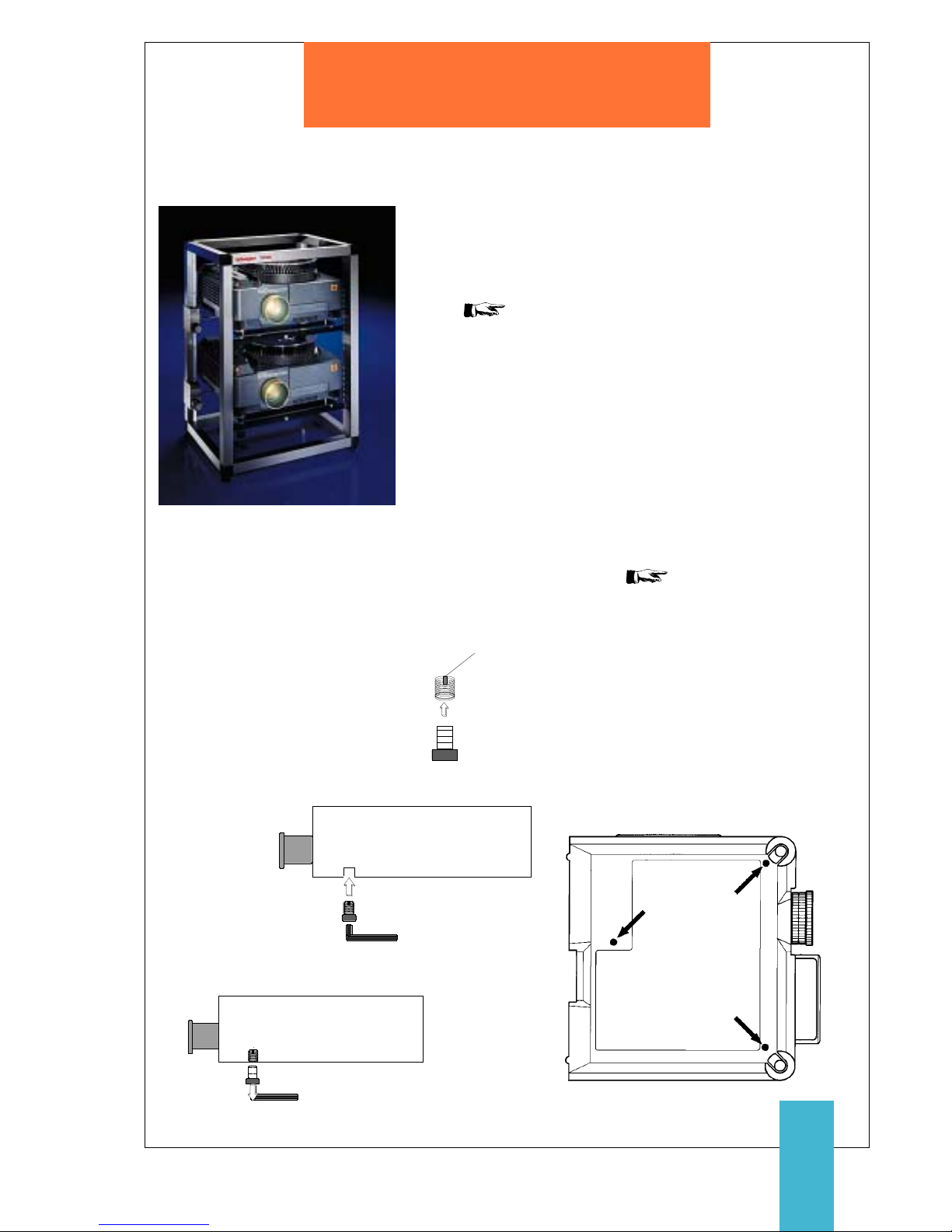

48. Q: I would like to build the projector into a special rack/furniture. Are there any specified

fixing holes? PAGE 54

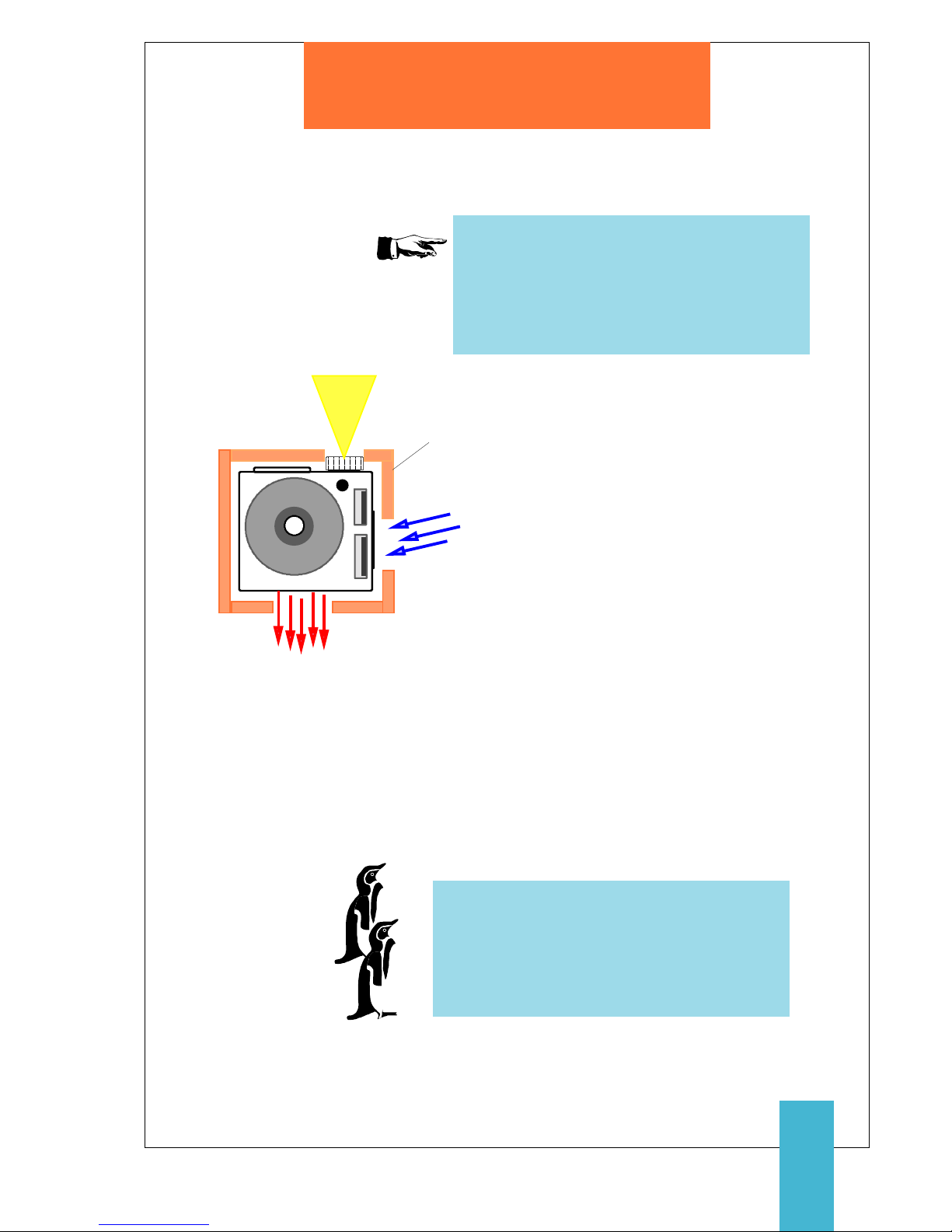

49. Q: To eliminate fan and slide change noises, we would like to build the projector into a noise

insulation. What do I need to consider? PAGE 54

50. Q: Before starting my multivision show I need to adjust the projectors accurately. Are there

any aids available? PAGE 55

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

7

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Global Usage

EKTAPRO Slide Projectors can be used around the world if you pay attention to
the following:

1. Get informed about the local mains plug at your destination. Different wall plugs need

a different mains cable or an adaptor!

2. Get informed about the local mains voltage. You need to set the voltage selector to the

local mains voltage at your destination. An incorrectly adjusted mains voltage can
damage the projector! For correct voltage setting, see the instruction manual.

3. Different fuse: countries with 100 or 120 V mains need a 4 A slow blow/250 V fuse;

countries with 220, 230 or 240 V mains need a T 2A L/250 V fuse. For fuse exchange,
see the instruction manual.

Use of slide shows:

Please note the following when travelling international with
Ektapro projectors and multivision slide shows:
Due to different voltage frequencies (50 Hz or 60 Hz), some fast
programmed slide sequences may be projected a little bit faster or
slower!

Voltage

indication

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

8

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Optional Accessories

EKTAPRO Accessories CAT NO See page

4 x 4 Condens er K it 714 4967 33
80 Slide Tray 712 8580 24
Cable Remot e (4 m) 712 1080 9
Carrying Case 718 1993 50
Diss olve Cable 715 3992 61
Ex t ra Bright Dual Lam p M odule 712 4369 37
Ex t ra Bright S ingle Lam p M odule 718 3379 37
Heatfilter [phone]
IR Remote Rec eiver RA 712 8606 14
IR Remote S y s tem RA 712 1072 10
IR Remote Sy s tem RA /LP
with built in Laser Point er

712 1064 10

Lens S upport 715 1335 31
Lenses (s ee s ect ion "Lens es " ) 29
Remot e E x tens ion Cable 8 m 712 5925 9,11
St andard Heatfilter 717 7140 39
Twin Sock et A dapter 712 5909 15,16
Twin Sock et A dapter Cable 712 5917 15,16
CARO US E L TRANS V UE 140 Slide Tray 184 0768 24
Project ion Lam p E XR -35 h 145 2259 34
Project ion Lam p E XY- 200 h 145 2143 34
Project ion Lamp F HS - 70 h 147 7678 34

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

9

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

All current

and all former

Ektapro

models

Ektapro Cable

Remote

CAT No

712 1080

4 m

n General

Remote Control

Cable

Max. 3 extension
cables = 28 m!

Extension cable
CAT No
712 5925
8 m

Your Control Di s t anc e: up to 4 m

You Need: cabl e rem ot e, only

Your Control Di s t anc e: up to 12 m

You Need: cabl e rem ot e and 1 ex tensi on cable

Your Control Di s t anc e: up to 20 m

You Need: cabl e rem ot e and 2 ex tensi on cables

Your Control Di s t anc e: up to 28 m

You Need: cabl e rem ot e and 3 ex tensi on cables

Ektapro Cable

Remote

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

10

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Remote Control

Infrared

30 m!

All current and all
former Ektapro
models

Note

Dimmed fluorescent light (neon) may
reduce max. achievable IR distance! For
more information see page 12!

The Kodak IR Remote System
always consists of a transmitter and
a receiver!

n General

IR Remote System RA

CAT No 712 1072

and RA/LP

CAT No 712 1064

IR Receiver

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

11

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Remote Control

IR + Extension Cable

n One Ektapro Projector, IR Remote System and 8 m extension cable for

optimal placement of IR receiver

30 m!

Max. 3 extension
cables

CAT No
712 5925
8 m

IR Remote System RA

CAT No 712 1072

and RA/LP

CAT No 712 1064

IR Receiver

All current and all
former Ektapro
models

Extension cable

CAT No 712 5925

8 m

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

12

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Remote Control

Reduced operation distance with IR remote controls

Solution

We recommend the following two solutions:

1. Use of an extension cable (CAT No. 712 5925, see page 11)

2. A shield for the IR Receiver

As the housing is transmissive for IR radiation we recommend to use a black carton to shield the
top and rearside of the receiver. According to our experience in most cases the problem will be
overcome.

Reduced operation distance

A reason for reduced operation distance could be fluorescent light which is dimmed. The light itself
emits IR radiation that is influencing the IR operation of the projectors in a negative way.

Shield

IR Receiver

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

13

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Remote Control

2 IR Systems

n Individual control of two projectors in one room via 2 IR Systems

0

Channel 1

Channel 0

1

1

0

Note

Individual control of two
projectors with one IR
transmitter and two IR
receivers is not practicable.
A solution for this
application can be found on
page 63.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

14

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

IR Remote Receiver

CAT No 712 8606

30 m!

IR Remote System RA

CAT No 712 1072

and RA/LP

CAT No 712 1064

○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

All current and all
former Ektapro
models

Parallel Projection

Via IR Receivers

n IR Remote System and additional receivers in a single room

Parallel Projection

You want t o c ont rol : 2 project ors

You Need: 1Remote System RA and 1 IR Recei ver

You want t o c ont rol : 3 project ors

You Need: 1Remote System RA and 2 IR Recei vers

You want t o c ont rol : 4 project ors

You Need: 1Remote System RA and 3 IR Recei vers

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

15

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Parallel Projection

IR and a Twin Socket

n IR Remote System and a Twin Socket

Twin

Socket

CAT No

712 5909

Extension cable
CAT No 712 5925
8 m

Twin Socket
Connecting Cable 2 m
CAT No 712 5917

All current and all
former Ektapro
models

30 m!

IR Remote Receiver
CAT No 712 8606

IR Remote System RA
CAT No 712 1072
and RA/LP
CAT No 712 1064

Twin Socket

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

16

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Cable Remote and Twin Socket(s) for max. three projectors*

CAT No

712 1080

4 m

Twin

Socket

CAT No

712 5909

Twin Socket
Connecting Cable
2 m
CAT No 712 5917

Parallel Projection

Cable Remote + Twin Socket

All current and all
former Ektapro
models

Twin Socket
Connecting Cable
2 m
CAT No 712 5917

*Maximum of 3 projectors
Please note: With this configuration we guarantee that 3

projectors will work in parallel. Additional projectors or longer
cables bear the risk that noise will execute unwanted transport
commands.

Paralle l P rojection

You want t o control: 2 projectors

You Need:

1Cable Remot e
1Twin Sock et
1 Twin Soc ket Connec ting Cables

You want t o control: 3 projectors

You Need:

1Cable Remot e
1Twin Sock et
2 Twin Soc ket Connec ting Cables

Note

If cable length is not
sufficient, it can be
extended. See page 9.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

17

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

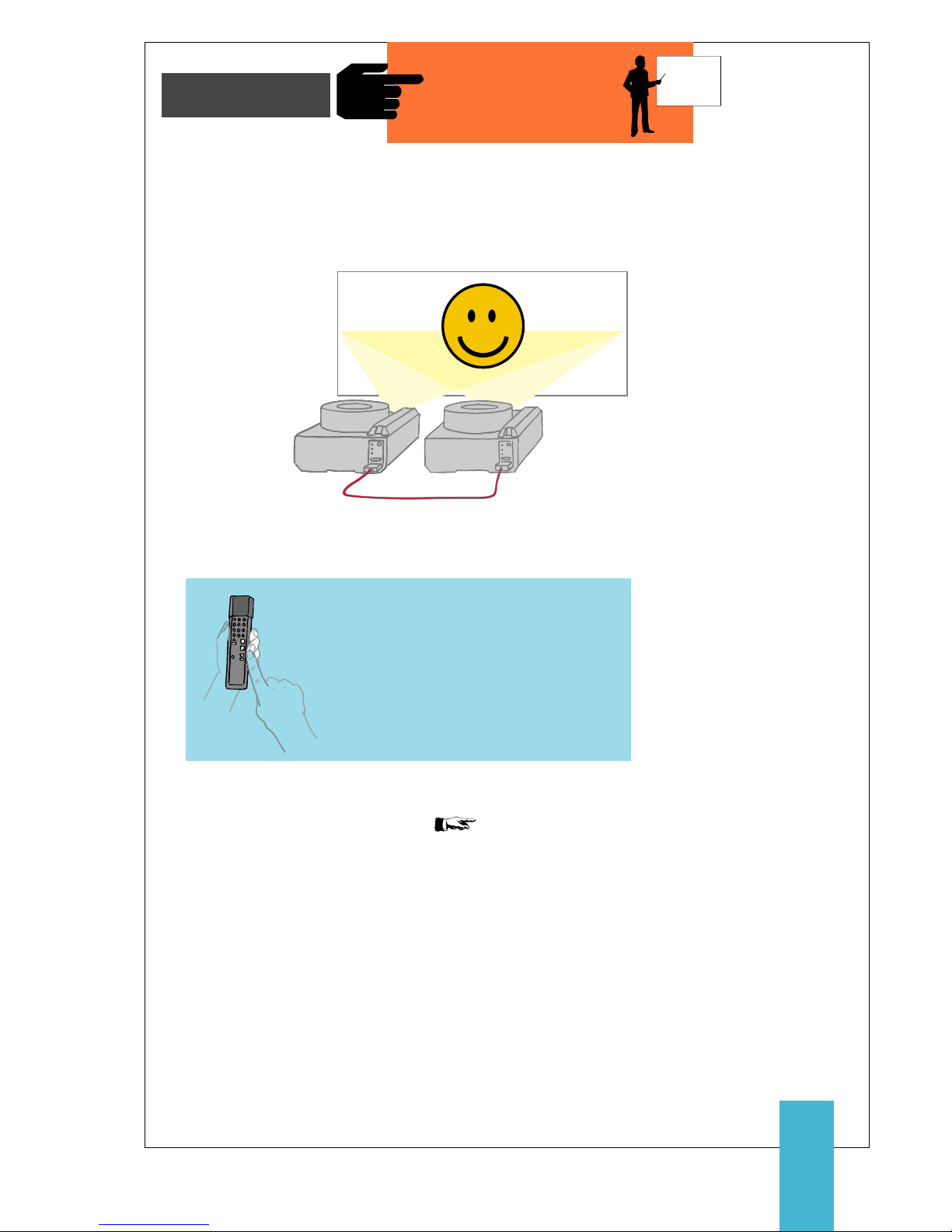

Parallel Projection

Parallel Mode Setting

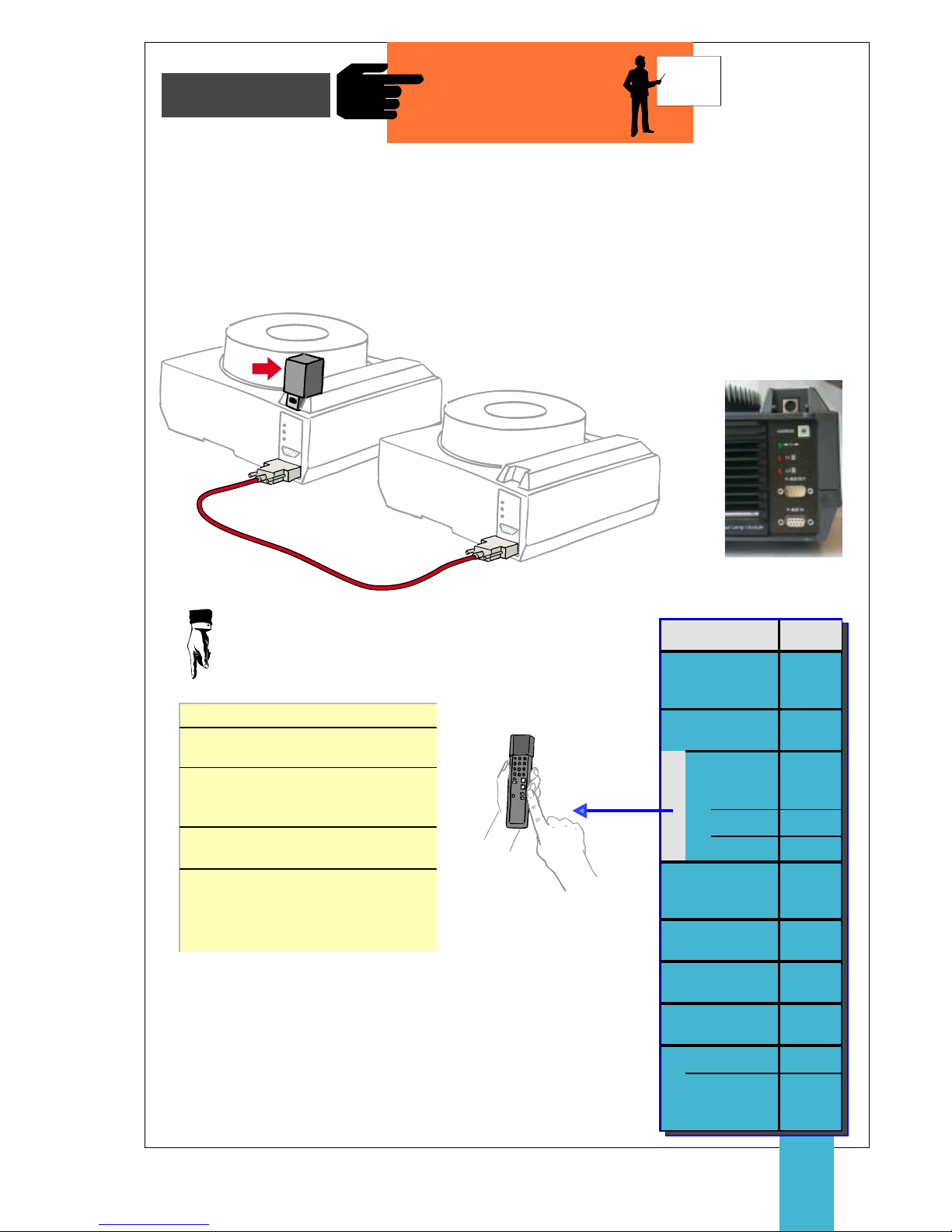

n One IR Remote and two Ektapro 7020 or 9020 Projectors

EKTAPRO
7020, 9020

MASTER

Dissolve Cable

CAT NO 715 3992

max.
30 m!

Note

The Parallel Mode (970) must be set again
after projector has been switched off/on
again! If you want to keep the setting,
switch projector to standby! Do not switch
it off!

EKTAPRO
4010, 4020, 5000, 5020,
7000, 7010, 9000, 9010,
9020

SLAVE

Need a third projector in parallel?

With a special cable available from AVSZ ( address page 69) you can connect a third
projector

IR Remote System RA
CAT No 712 1072
and RA/LP
CAT No 712 1064

To activate the Parallel Mode
input <970> and confirm
with <*>

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

18

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Integrated Timer

EKTAPRO
5020, 9020

Endless Projection

Timer

Note Ektapro 5020 Projector:

In order to avoid "dark pause" it is recommended that the slide tray is filled as
completely as possible (81 or 141 slides):

The built-in timer enables the projector to
automatically transport your slides. Eleven time
settings between 1 and 60 seconds can be made.

1. Due to the tray design, it is

not possible to insert a slide
directly into the zero
compartment

2. Insert the slide

directly into the slide
gate

3. Place the tray as usual

in the zero-position (see
page 25)

4. With the next slide

transport the slide will be
lifted from the slide gate into
the zero compartment of the
tray

Note EKTAPRO 9020 Projector:

You can immediately bring the tray back to the zero
position after the last slide with the help of the automatic
zero positioning feature. This is useful when continuous
projection is required using only a few slides.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

19

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Endless Projection

Timer

n External Timer (no Kodak product)

External Timer

EKTAPRO

320, 4020,

7020

Note

An external timer is offered by AVSZ
( Address on page 69).

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

20

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n One Projector, IR Remote System and Autotimer Mode Setting

EKTAPRO
5020,
7020,
9020

30 m!

Settings 1-60 sec. To activate
the autotimer mode input codes
600 - 660.

Example: 4 s
Input <604> and confirm
with <*>

Note

The Autotimer Mode must be set again after
projector has been switched off/on!

Endless Projection

Autotimer Setting

IR Remote System RA
CAT No 712 1072
and RA/LP
CAT No 712 1064

IR Remote Receiver
CAT No 712 8606

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

21

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Two Projectors, IR Remote System and Autotimer Mode Setting

30 m!

Ektapro
7020, 9020

MASTER

Dissolve Cable

CAT No 715 3992

Ektapro
4010, 4020, 5000, 5020,
7000, 7010, 9000, 9010,
9020

SLAVE

Note

The Autotimer Mode must be set again after
the projector has been switched off/on!

Endless Projection

Autotimer Setting

IR Remote System RA
CAT No 712 1072
and RA/LP
CAT No 712 1064

IR Remote Receiver
CAT No 712 8606

Settings 1-60 sec. To activate the
autotimer mode input codes
600 - 660.

Example: 4 s
Input <604> and confirm
with <*>

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

22

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Soft Slide Change

(One Projector)

n Fading up and down (Soft Slide Change) with one projector via IR

Remote System

max.

30 m!

EKTAPRO
7020, 9020

IR Remote System RA

CAT No 712 1072

and RA/LP

CAT No 712 1064

IR Remote Receiver
CAT No 712 8606

Fading

avoids hard

light changes

during slide

transport!

○○○○○○○○○○○

Note

The Fading Mode must be set again after
projector has been switched off/on! If you
want to keep the setting, switch projector to
standby! Do not switch it off!

Input fade times of 0 sec (hard cut) up for
a long fade of 9.9 sec in increments of a
tenth of a second

Code: <801 - 899>

Example: 4 s
Input <840> and confirm with <*>

Fade Up: Set time via IR. Within this time lamp increases brightness!

Fade Down: Set time via IR. Within this time lamp decreases brightness!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

23

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

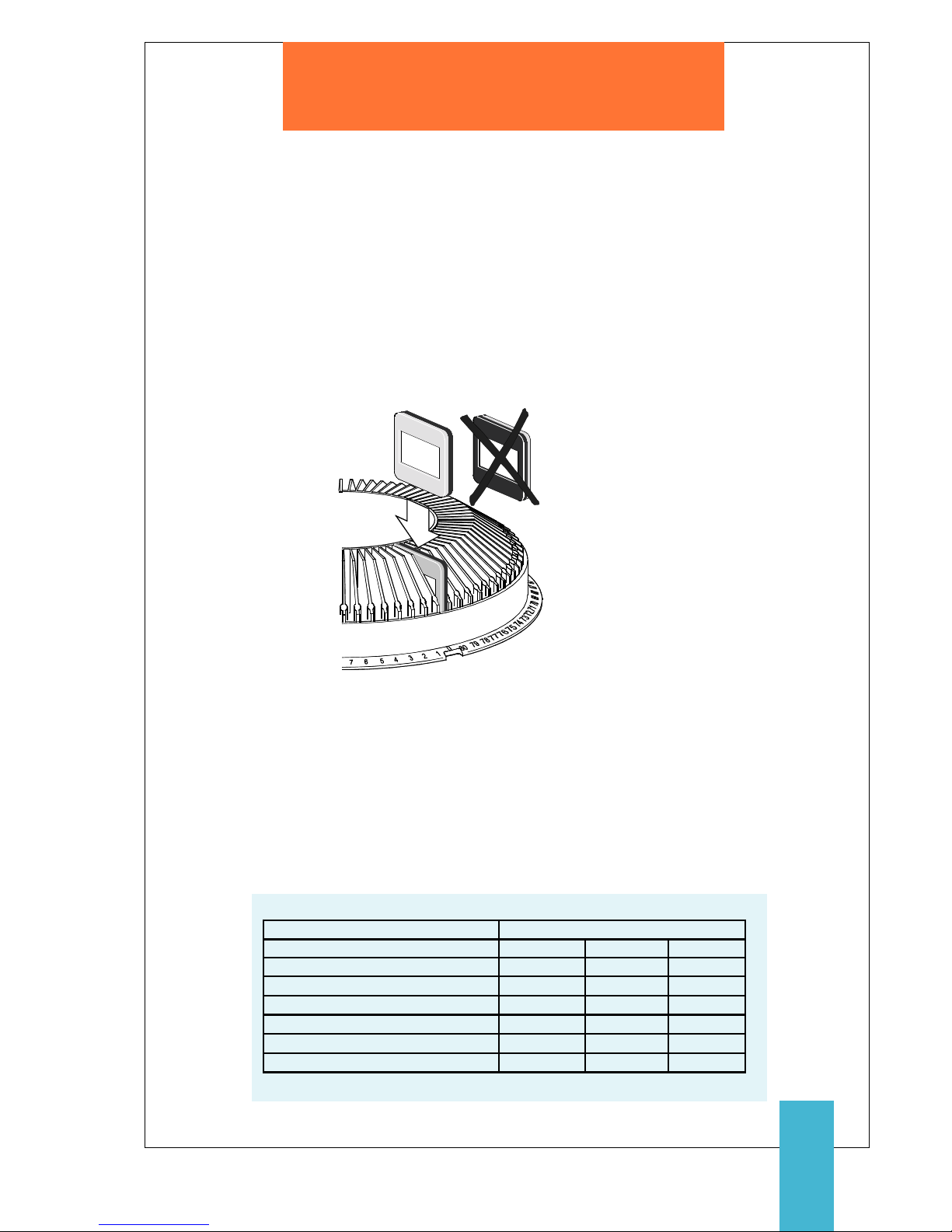

Trays

Inserting Slides

n General

BEFORE:

n Check each slide’s orientation (horizontal or vertical), and arrange them in the order

you wish to show them. Then turn the slide upside down.

n Number each mount in the upper right-hand corner of the film’s shiny side.

n Insert your first slide into the first slot in the tray so that the number is visible on the

outer circumference of the tray. Insert your second slide in the second slot with the
emulsion (dull side) facing your first slide, and so on.

AFTER:
n View each slide against a light source and orient for projection (check for proper

horizontal, vertical, right and left positioning.)

n Arrange the slides in the order you wish to show them.

n Rotate them 180 degrees - upside down.

n Number (or mark) each mount in the upper right-hand corner.

n Insert the slides into the tray slots so that the number (or mark) is on the outer

circumference of the tray.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

24

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5





max 3.2 mm

max 1.6 mm

EKTAPRO
4020,
5020,
7020, 9020

KODAK
EKTAPRO Slide
Tray for 80 slides
CAT. No. 712 8580

KODAK CAROUSEL TRANSVUE
Slide Tray for 140 slides
CAT. No. 184 0768

Trays

Tray Selector Switch

For use with all types
of mounts (e.g. 3 mm,

2.3 mm CS,
cardboard, LKM,

For use with cardboard and very
thin glassless plastic mounts,
only!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

25

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Trays

Installation and Removal

n Installing the slide tray

Important note: First switch on the projector before you install the slide tray. This will ensure
that the projector’s transport ring is in the zero position. Otherwise the tray cannot be placed
properly and will not be transported.

n Removing the slide tray

Always lift off the slide tray in the zero position!
(Indication: The tray is in zero position when the green LED at the front of the projector lights up

(not Ektapro 320!))

Move tray to zero position:

a) Using the slide change button on your projector or remote control units

Hold the slide transport-backwards button down. The slide tray goes into rapid
search and stops automatically in the zero position.

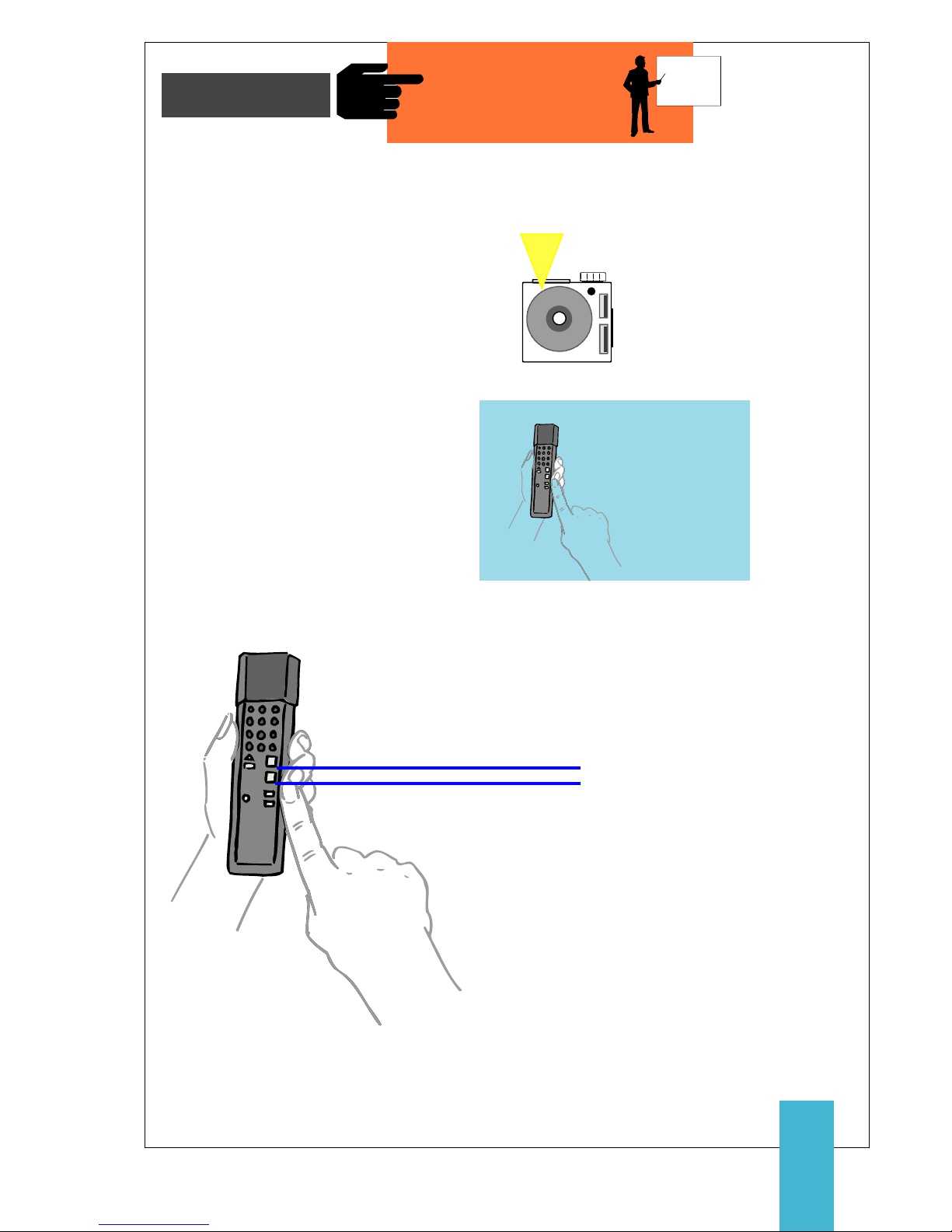

b) Using the IR Remote Control

Select "0" on the keypad and confirm with "*". The slide tray moves to the zero
position.

c) Using the mains switch

Turn the projector off by the mains switch. When the projector is turned on again, it will complete
a system check and bring the slide tray back to the zero position!

Removing the slide tray in any position (e.g. after a slide jam)

1. Push aside and hold the slide tray lock

2. Lift off the slide tray.

3. Turn slide tray over and rotate the base plate until it locks

into the zero position, otherwise the slide tray cannot be
replaced on the projector in the zero position. Do not forget
to take the slide out of the slide gate!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

26

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Important Note for use of Autofocus

Autofocus

n Important
Use either glass or glassless (cardboard) mounted slides! Never
mix them!

n AF and Superslides

Use of Autofocus with 4 x 4 slides and 4 x 4 condensor is not
recommended. As the sides of the condensor are too smooth (not
grounded, IR radiation from the lamp can enter the condensor and
may interfere the IR detectors of the AF.

n AF and slide mount material

Some slide mounts consist of plastic material that allows the IR
radiation to pass through. As not reflected it will not be detected
by the IR sensor. The AF will not work properly. In this case you
need to replace these mounts.

Ektapro
5020, 9020

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

27

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Switchable “no slide no light” feature

To switch off (and on again)
the “no slide no light feature”
input <550> and confirm with
<*>

No slide no light

Ektapro
4020, 5020, 7020
and 9020

No slide no light means: If no slide is in the tray compartment (and therefore, in the slide
gate of the projector) the shutter will not open. No disturbing white light will interrupt your
presentation.

IR Remote System RA

CAT No 712 1072

and RA/LP

CAT No 712 1064

IR Receiver

Note

There are two reasons to switch off this feature:

1. High IR-transmissive slide mounts

There are some mounts on the market which do not
reflect IR radiation. That means they cannot be de­tected by the IR sensor in the slide gate. The result is
that the shutter will not open.

2. Light on the screen

Tray replacement is easier done if the room is not
totally dark. You will appreciate to have light on the
screen.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

28

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Slide Recording

n Creating 35 mm slides with film recorders

Computer

Film recorder ( Addresses
page 71)

35 mm slides

Nowadays it is very easy to create 35 mm slides from images
generated by the computer. Modern film recorders are easily set
up as they support WINDOWS. Therefore, they are as easily used
as printers.
You can use any software (e.g. PowerPoint, Word, Photoshop)
to create templates (with regards to the 2:3 image ratio).

In almost every city you will find service companies which will
offer the recording of your electronic files. Mostly they are
listed in the yellow pages of the phonebook. Some offer their
service via the Internet

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

29

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lenses

General

n Available lenses from Kodak

Why Select?

√√

√√

√ Select stands for a Higher Quality Lens. There are four main

differences:

√√

√√

√ All lenses have a metal housing
√√

√√

√ All lenses are multicoated
√√

√√

√ Each lens has individual focal length information accurate to 0.1 mm.
√√

√√

√ For safety carrying and practical storage they are delievered in plastic

system boxes

Kodak EKTAPRO FF Lenses

75-120 Zoom CAT 847 0346
100-150 Zoom CAT 143 3432
100-200 Zoom CAT 712 5743
85 mm CAT 712 5503
100mm CAT 712 5511
180mm CAT 712 5529

Kodak EKTAPRO Select FF Lenses

75-120 Zoom CAT 712 5479
87-200 Zoom CAT 712 5487
200-300 Zoom CAT 712 5495
36 mm CAT 712 5446
93 mm CAT 712 5453
150mm CAT 712 5461

Note:

All Ektapro Lenses are GEAR RACK lenses! Therefore, not all are
compatible with former Kodak S-AV slide projectors. For further
information about compatibility see page 30.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

30

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lenses

Compatibility with former S-AV Projectors

WEB User

Lens Calculator

You do not know what kind of lens you need for your projection venue?
Two well made lens calculators are available on the WEB. It is freeware
and can be easily downloaded.

Lens calculator by Bässgen:
Go to http://www.dia.de Click on Bässgen and go to Download and click
on SCREEN 2.0.

Lens calculator by Stumpfl:
Go to http://www.stumpfl.com/E/Service/

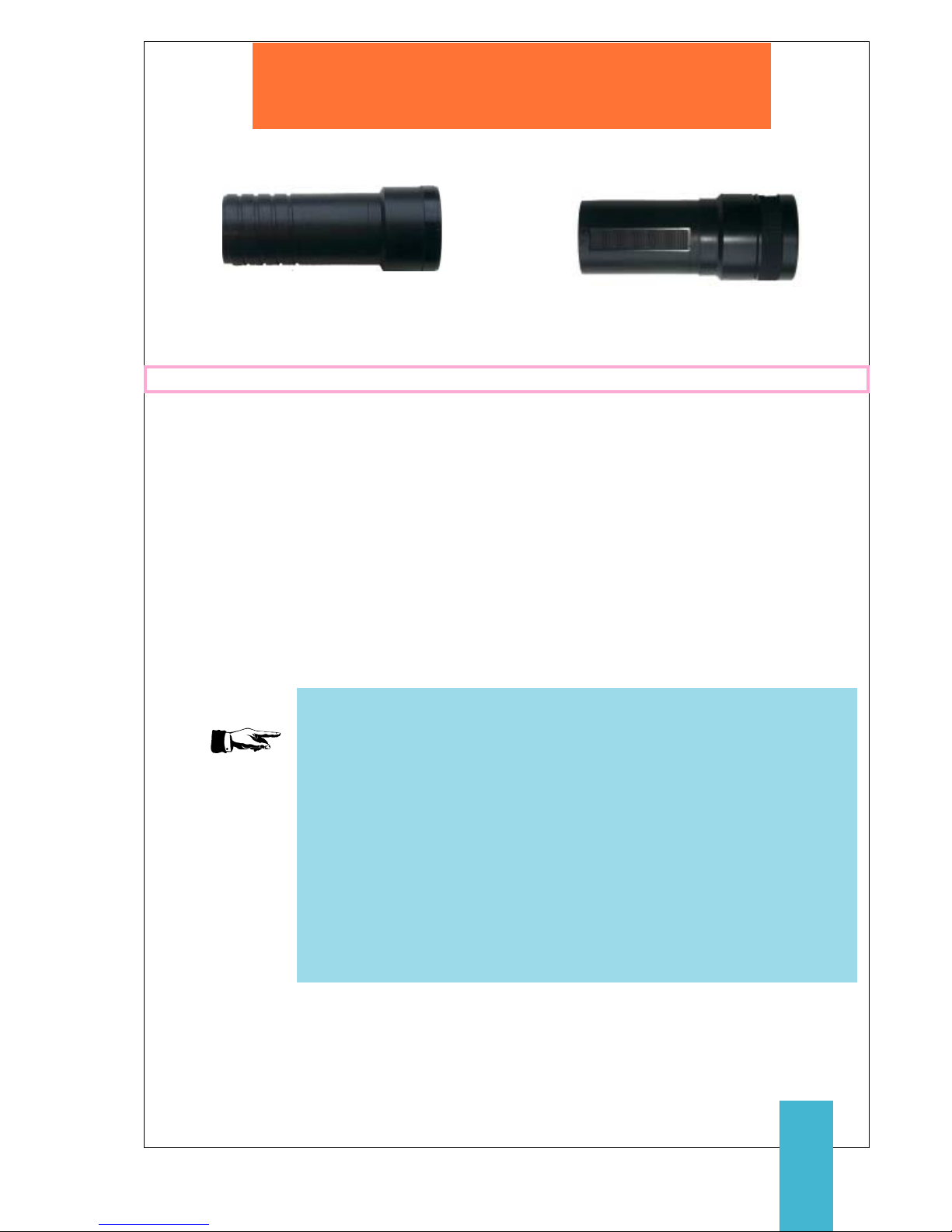

Kodak S-AV Retinar Lenses

SPIRAL LENSES

Kodak Ektapro FF Lenses

GEAR RACK LENSES

1992

Suitable for:

n All Kodak S-AV Slide Projectors
n All Kodak Ektapro Models

Suitable for:

n All Kodak Ektapro Models
n Kodak S-AV models 1010, 1030 1050,

2010, 2050, 2060

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

31

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lenses

Lens Support

n KODAK EKTAPRO Lens Support CAT No 715 1335

√√

√√

√ Gives maximum hold for heavy lenses
√√

√√

√ Is ideal in fixed installations where lens positions (focus, image size)

should be kept

√√

√√

√ Supports smooth operation of focus/autofocus when heavy lenses are

used

KODAK FF Projection Lenses

75-120 Zoom CAT 847 0346
100-150 Zoom CAT 143 3432
100-200 Zoom CAT 712 5743
180mm CAT 712 5529

KODAK EKTAPRO SELECT FF Projection Lenses

75-120 Zoom CAT 712 5479
87-200 Zoom CAT 712 5487
200-300 Zoom CAT 712 5495
150mm CAT 712 5461

It is recomended to use the following lenses together with the lens
support:

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

32

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lenses

Lens Support

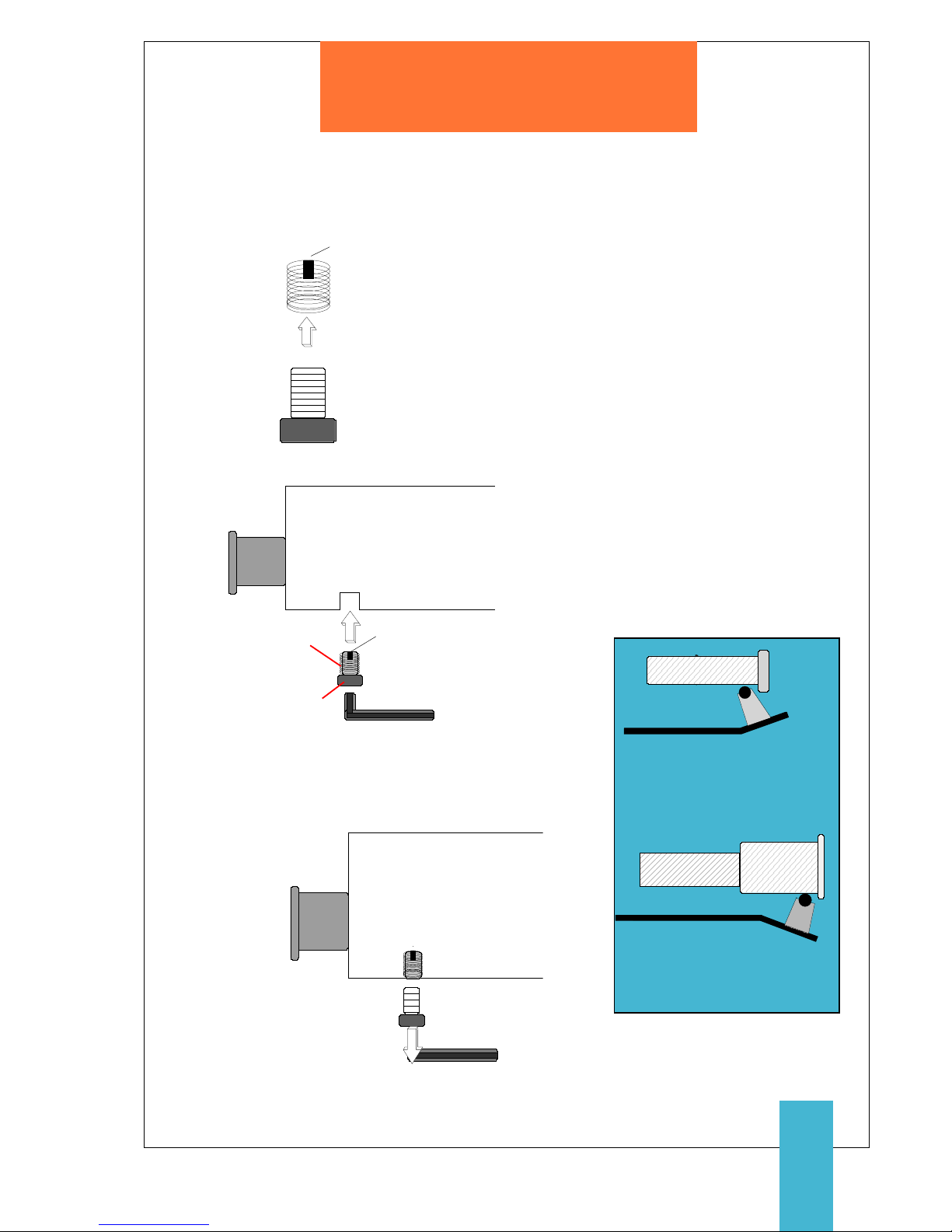

n Installation

Hex Screw

1.

1. Screw hex screw into the insert.

2. Use the hex spanner to screw hex

screw with the insert into the
projector’s hole.

3. Remove hex screw and fix

baseplate as shown in the picture.
The insert remains in the hole.

Brass

Insert

Slot up!

3.

2.

Slot up!

Insert

Hex Screw

Hex Spanner

Hex Spanner

Hex Screw

Insert

Position for lenses with a
small diameter.

Position for lenses with a
large diameter. Turn
baseplate.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

33

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lenses

4 x 4 condensor

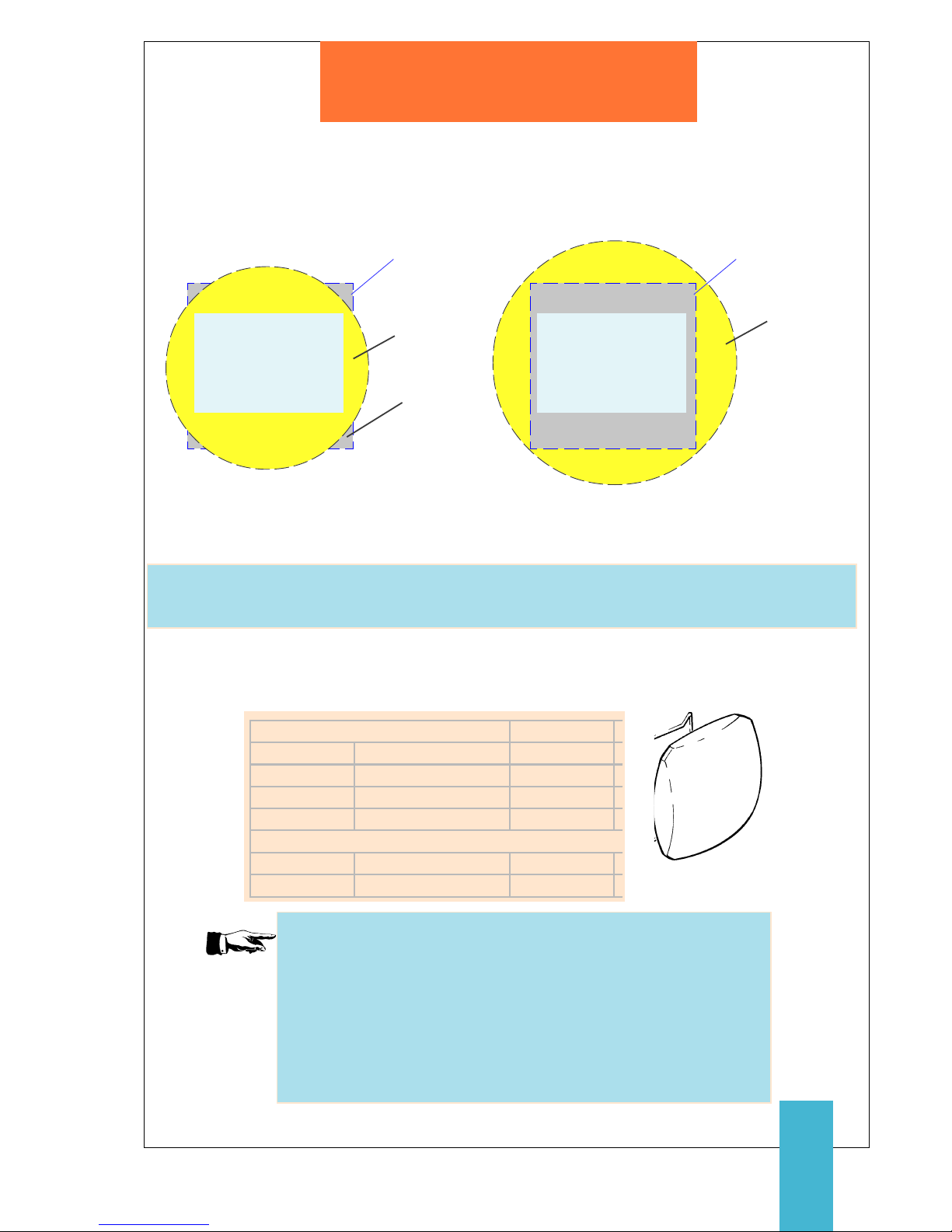

n Condensor for 4 x 4 (super slides) Projection

The projection of 4 x 4 slides is only recommended with the following KODAK Lenses
together with the 4x4 Condensor (CAT No 714 4967):

KODAK FF Projection Lenses

85 mm C AT No 712 5503
100 m m CAT No 712 5511
180 m m CAT No 712 5529

KODAK EKTAPRO SELECT FF Projection Lenses

93 mm C AT No 712 5453
150 m m CAT No 712 5461

Note:

The 35 mm EKTAPRO Select FF Lens cannot be
recommended for 4 x 4 projection!
In general Zoom lenses are not recommended, too. As
performance depends on quality of the lenses, we advice you to
test Zoom lenses before purchasing.

Illumination with standard condensor: The
condensor is adjusted for 24 x 36 mm
slides.When projecting 4 x 4 slides, the dark

corners will be seen clearly.

Illumination with 4 x 4 condensor: The condensor
enlarges the cone of light and minimize the dark
corners. When projecting 4 x 4 slides, the dark
corners are almost not visible.

Please note: The 4 x 4 condensor will not improve general eveness of illumination! It only will
reduce the dark corners when projecting 4 x 4 slides.

4 x 4
slide format

dark
corners

illumination
area

24 x 36 mm
slide format

STANDARD Condensor

4 x 4
slide format

illumination
area

24 x 36 mm
slide format

4 x 4 Condensor

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

34

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lamps

Brightness - Lifetime

n Standard - Economy - High Light Setting

CAT No

EXR 82V 300W 35h 145 2259
FHS 82V 300W 70h 147 7678
EXY 82V 250W 200h 145 2143

All Ektapro models

Note:

Due to manufacturing lamps can show
tolerances within a batch.
This is another reason for us not to
recommend the use of the EXW lamp,
which is available on the market. The
EXW is 15% brighter but this is often
compensated by tolerances.

STANDARD Lamp Mode

Lifetime

EXR

1300 lumens

100%* 35h

FHS

1030 lumens

80% 70h

EXY

780 lumens

60% 200h

Brightness

* All other percentage values are related to this
value!

Possible with

Ektapro 4020, 5020, 7020, 9020

ECONOMY Lamp Mode

Lifetime

EXR

975 lumens

75% 105h

FHS

780 lumens

60% 210h

EXY

585 lumens

45% 600h

Brightness

Possible with

Ektapro 7020, 9020, only

HIGH LIGHT Lamp Mode

Lifetime

EXR

1560 lumens

120% 25h

FHS

1240 lumens

96% 50h

EXY

936 lumens

72% 140h

Brightness

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

35

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Lamps

Active Lamp

n Ektapro Extra Bright DUAL Lamp Module. Choose of the active lamp

after lamp replacement

In case the active projection lamp fails, the system automatically activates the second projection
lamp. After having replaced the lamp you can choose whether the projector should use lamp 1 (L1)
or lamp 2 (L2).

If you want to check which lamp is active switch the economy button. The respective lamp LED
(L1 or L2) lights up for a short time.

Mode “Priority Lamp L1” (factory setting)

In this mode the projector will automatically go into lamp 1 position after
switching on. This is indicated by a short blinking of the LED L1 when
switching the projector on.

Mode “Lamp position on the last active lamp”

In this mode the projector stays -even after replacement of a defect lamp - on
the last active lamp in use after switching the projector back on. At
unsupervised continuous presentation (projection) this has the advantage that
an unused spare lamp with full life time is always available.

Choosing the individual mode

You can switch anytime to the other mode. For this purpose keep the standby
button pressed when switching the projector on.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

36

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

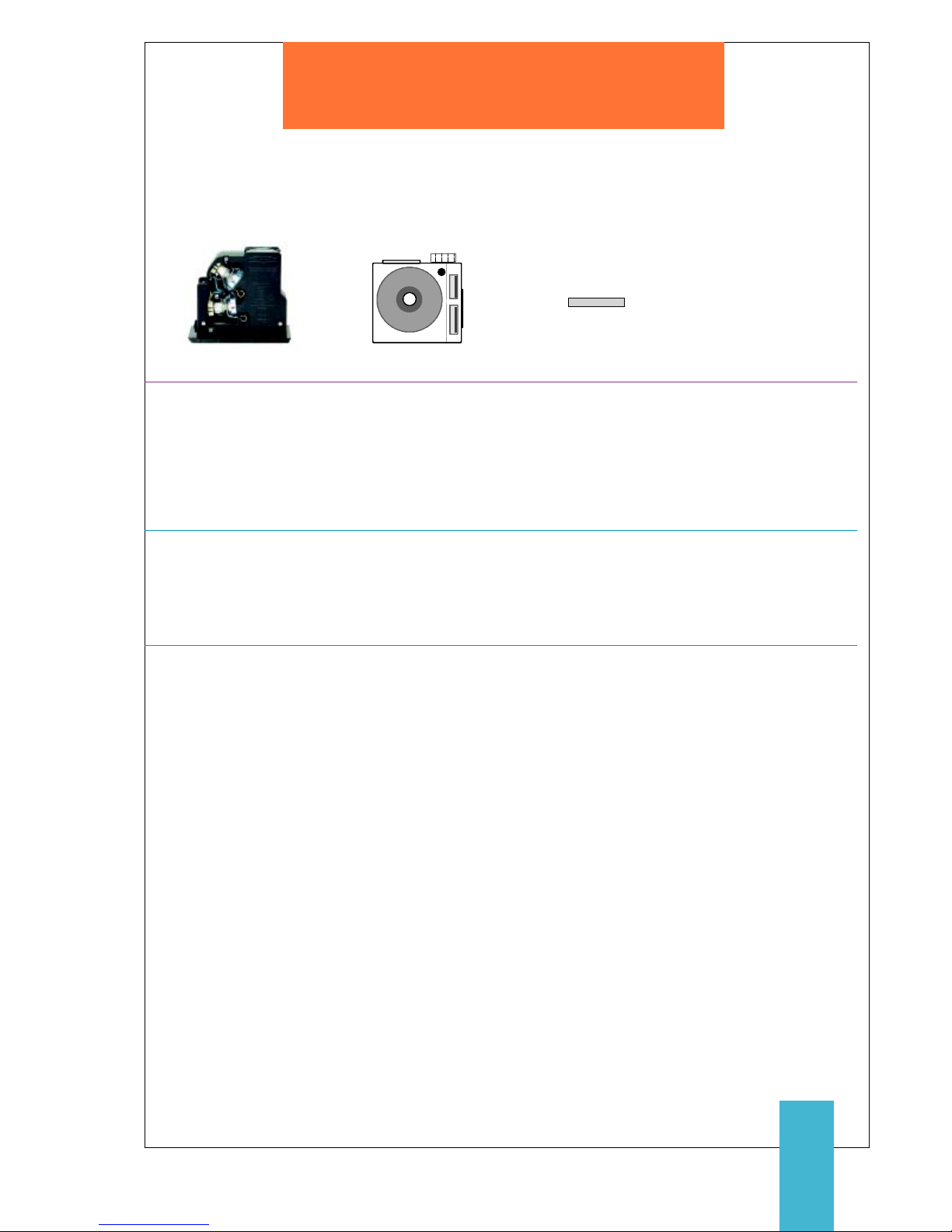

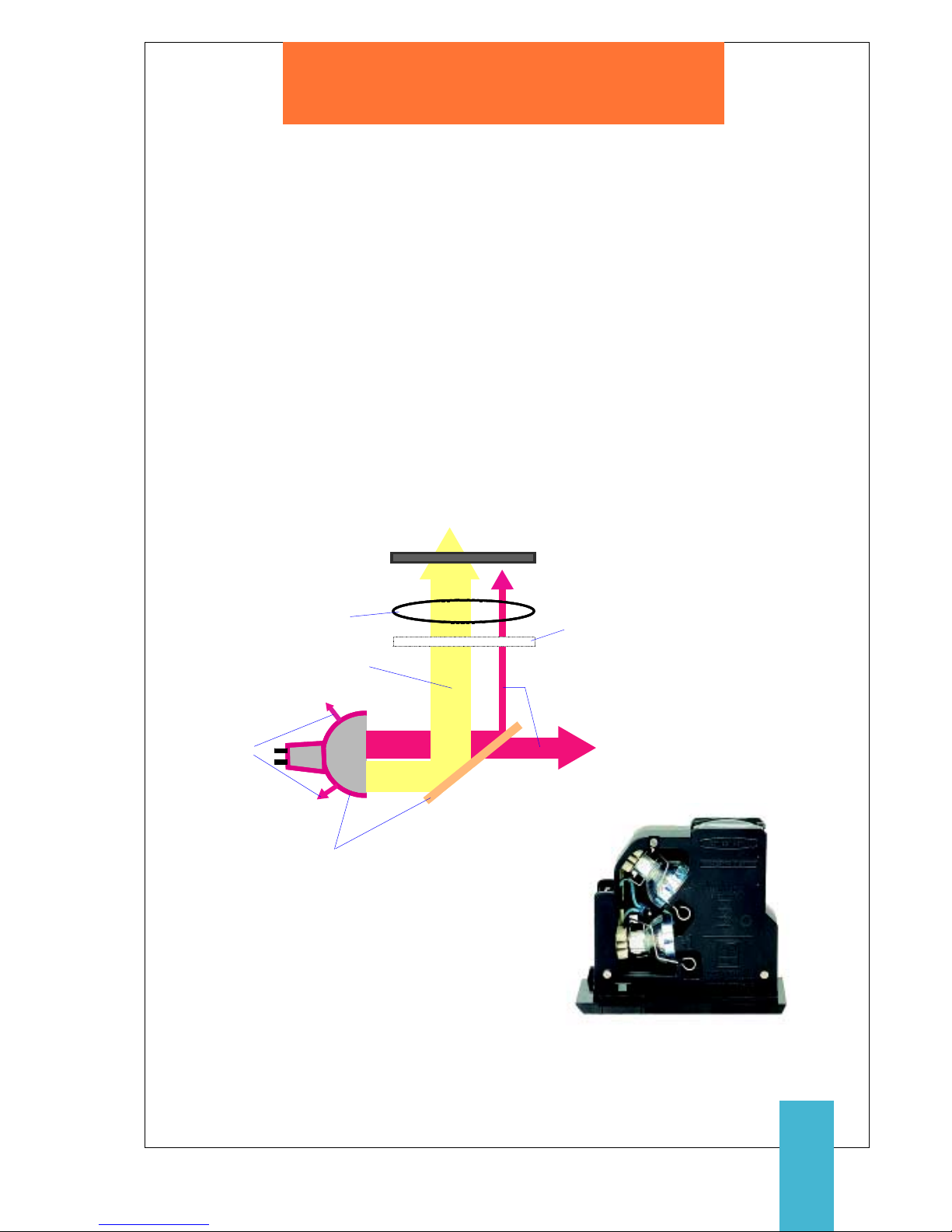

Extra Bright Lamp Module

General

n How it works

All current Kodak Slide Projectors are equipped with the Extra Bright Lamp Module offering
30% more light than compared to former models:

√ √

√ √

√ more light
√ √

√ √

√ more brillant colors
√ √

√ √

√ higher contrast
√ √

√ √

√ better legibility

Cold Light
Mirror

IR Light

IR
Light

Visible
Light

Condenser

Removed
Heat Filter

According to a new cold light mirror the biggest part of the IR (heat) light
will be absorbed and not reflected. Therefore, the heat filter could be re­moved (see illustration). This system is unique to Kodak.

Slide

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

37

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Extra Bright Lamp Module

General

n Specifications

Kodak Extra Bright SINGLE Lamp Module

CAT No 718 4351

Kodak Extra Bright DUAL Lamp Module

CAT No 718 4369

For use with Kodak Ektapro 3000, 3010, 3020
and 320, ONLY!

For use with Kodak Ektapro 4010, 4020, 5000,
5020, 7000, 7010, 7020, 9000, 9010 and 9020,
ONLY!

n Lumen output for standard, economy and high light mode.

Lume n Output

0

200

400

600

800

1000

1200

1400

1600

Econom y Standard Hi -Light*

*Ektapro 7020, 9020

Lumen

Standard
Extra Bright

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

38

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Extra Bright Lamp Module

History

n Versions of Kodak Ektapro Lamp Modules

Name Built- in Heat filter Comments

Kodak Ektapro
Single Lamp Module

Ektapro 3000 Yes - 6 mm thick

Kodak Ektapro
DUAL Lamp Module

Ektapro 5000, 7000,
9000

Yes - 6 mm thick

Kodak Ektapro Single
Lamp Module +10

Ektapro 3010 Yes - 3 mm thick

Kodak Ektapro DUAL
Lamp Module +10

Ektapro 4010, 7010,
9010

Yes - 3 mm thick

10 % light increase

10 % light increase

Kodak Ektapro Extra
Bright Single Lamp

Module

Ektapro 3020, 320 No heat filter!

See page 36 for
detailed information.

Kodak Ektapro Extra
Bright DUAL Lamp
Module

Ektapro 4020, 5020,
7020, 9020

No heat filter!

See page 36 for
detailed information.

30 % light increase

30 % light increase

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

39

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Extra Bright Lamp Module

Downgrading

n Downgrading (reducing brightness and heat)

There are two reasons for downgrading Ektapro lamp modules:

√ in order to match same slide gate temperature as your former models (e.g. an Ektapro

5020 should match the gate temperature of an Ektapro 5000).

√ in order to match same colour temperature as your former models (e.g. an Ektapro 9020

should match the colour temperature of an Ektapro 9000).

Downgrading is easily done by inserting the proper heat filter:

Note:

Never upgrade a lamp module by just taking out the heat
filter! This is not allowed as heat increases and could
damage your slides! If you need more light for any older
Ektapro projector, you can use the Ektapro Extra Bright
Light Module! For further information see pages 37 and
38!

To modify int o

Ektapro
Lam p Modul es +10 Ektapro La m p Modules

Ektapro Extra Bright
Lam p Modul es

Insert a 3 m m heat filter

CAT No 71 7 7 15 7

Insert a 6 mm he at filter

CAT No 717 7140

Ektapro
Lam p Modul es +10

Replac e the 3 m m heat

filter with the 6 mm one

CAT No 717 7140

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

40

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Extra Bright Lamp Module

Safety Precautions

√ Do not use a lamp type EXW/15 h for the projector (higher temperature - lamp not

available from Kodak).

√ Consider the room temperature! It may not exceed 35 degrees C!
√ High-Light-Mode (models 7010, 7020, 9010, 9020): Slide projection time per

slide may not exceed 1 minute!

If these hints are not considered, mounts may deform!

According to a temperature increase in the slide gate which, therefore, needs more careful
handling when using slides, mounts and lamps.

With the higher light output of the Extra Bright Lamp Module the temperature in the slide gate rises.
To enable a smooth operation following should be considered:

√ Use only light respectively light gray slide mounts (e.g.
Wess slide mounts). Slide mounts with only one dark or
black side have to be sorted in with the light side facing the
lamp. Please pay special attention when sorting your slide
mounts in rear projections:

n Slide Gate Temperature

Lamp Module

EXR lamp FHS lamp EXY lamp

Extra Bright 80 58 49
Extra Bright in High Light Setting 90 64 56
Extra Bright in Economy Setting 65 50 42

Standard 65
Standard +10 75

Temperature °C

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

41

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Extra Bright Lamp Module

Sweat Spots

n Sweat Spots

Due to the higher slide gate temperature of the Extra Bright Lamp Module, sweat spots may appear
faster when glass mounted slides are used (in long term projections). As soon as the slides warm up
the spots will disappear. Have a look at the following hints:

• Switch on the projector with the loaded tray approx.
half an hour before you start your presentation and let the
projector transport (using the built-in timer.) The slides
will warm up.

• Leave the projector with the loaded tray overnight in the
standby mode. Heat will be sufficient to warm up your
slides.

• If you do not need highest light output, use the economy
lamp setting or use the FHS or EXY lamp.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

42

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

General

n The state of the way to control Ektapro slide projectors

Thanks to the modern RS232 interface (P-Bus) of the Ektapro slide projectors controlling
and programming slide shows have never been so easy and comfortable as nowadays.
Hence, all systems on the market are based on the same controlling principals:
Either they do a direct control via a PC (see illustration 1) or control is done via a separate
hardware controller (see illustration 2).

Please note, you will still find systems on the market which do not use any software for the
programming and /or controlling. But the possibilities in creating shows are rather poor as
the systems have access to only a few of the features of the Ektapro projector. In most cases
such systems synchronize the dissolves to an audio tape.

addresses see page 69

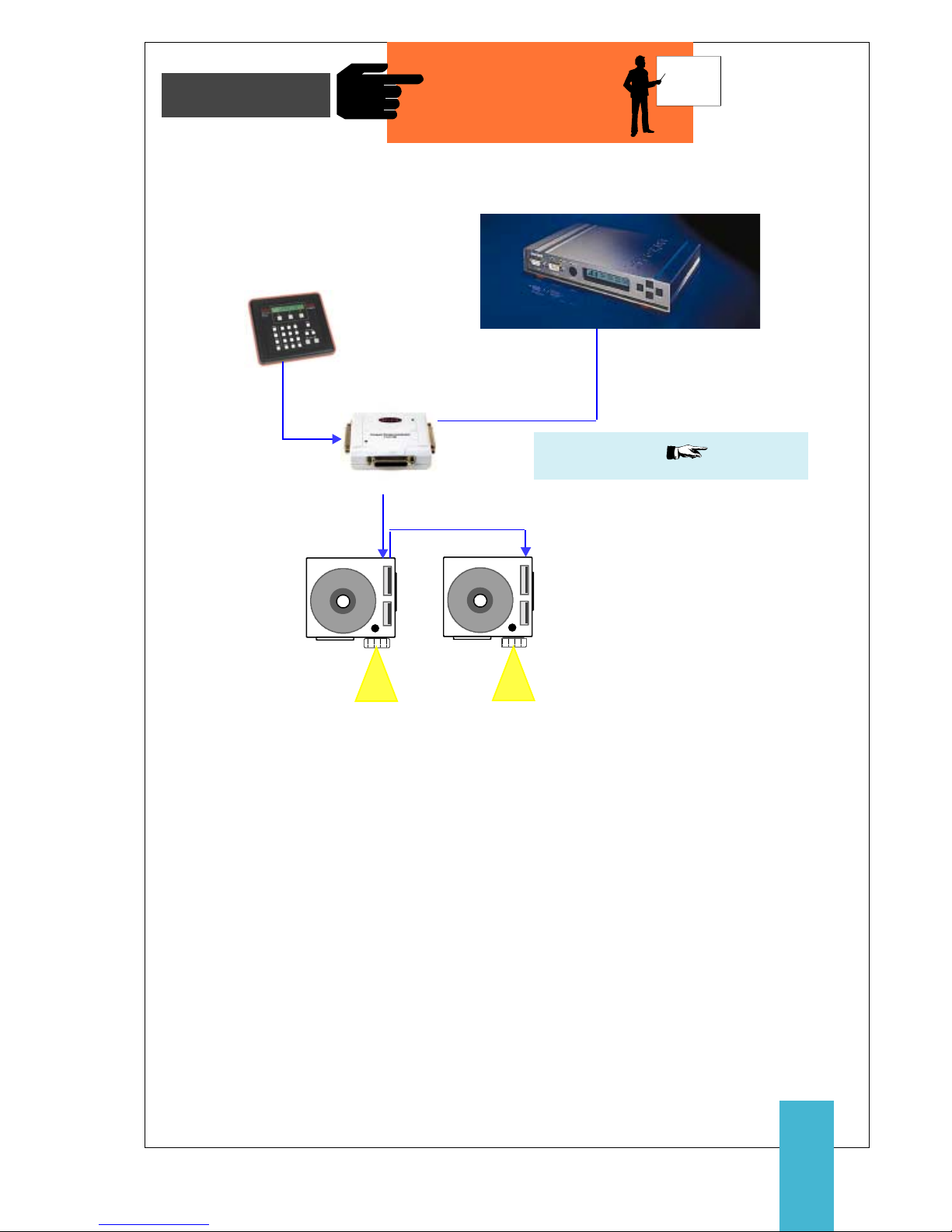

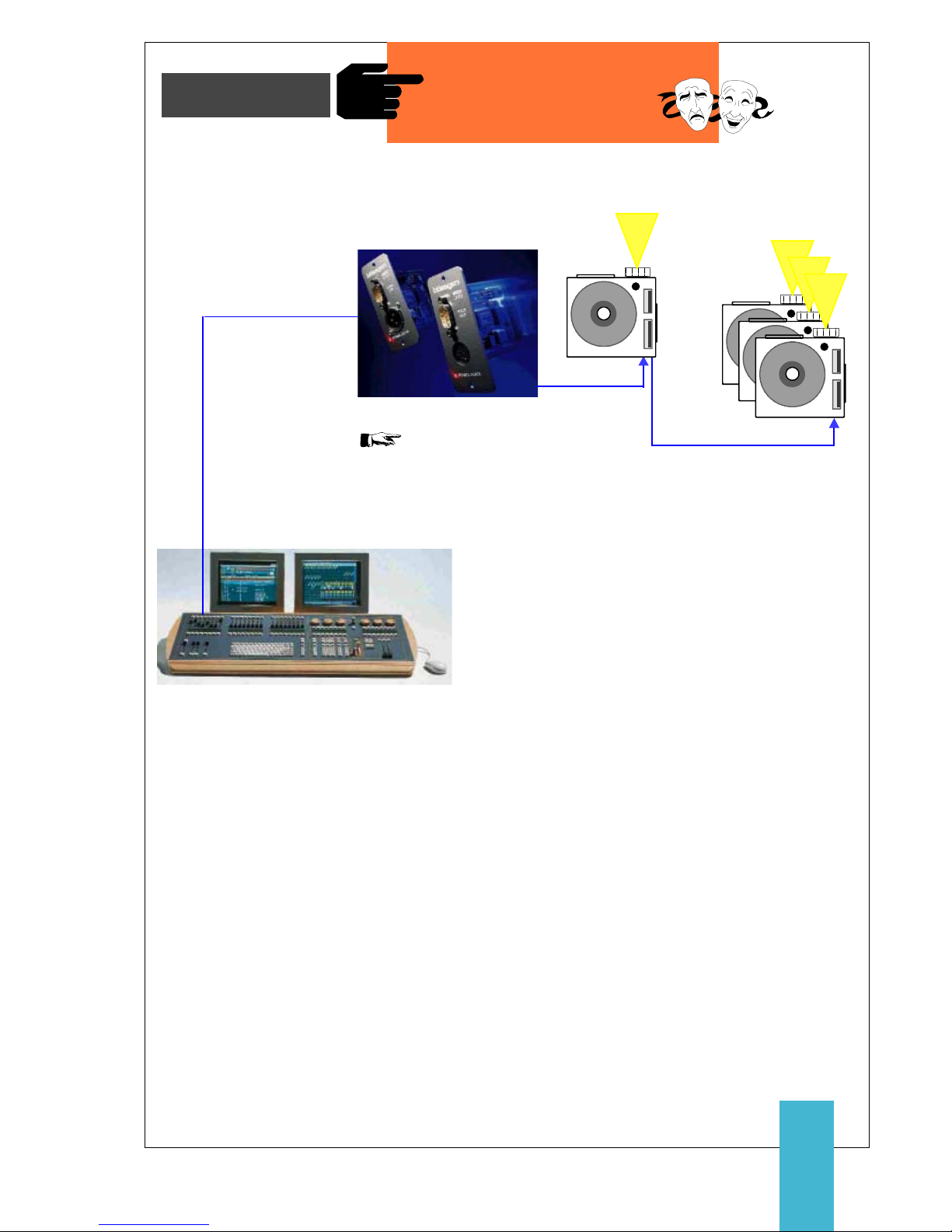

Illustration 1:

PC (Software) Direct Control

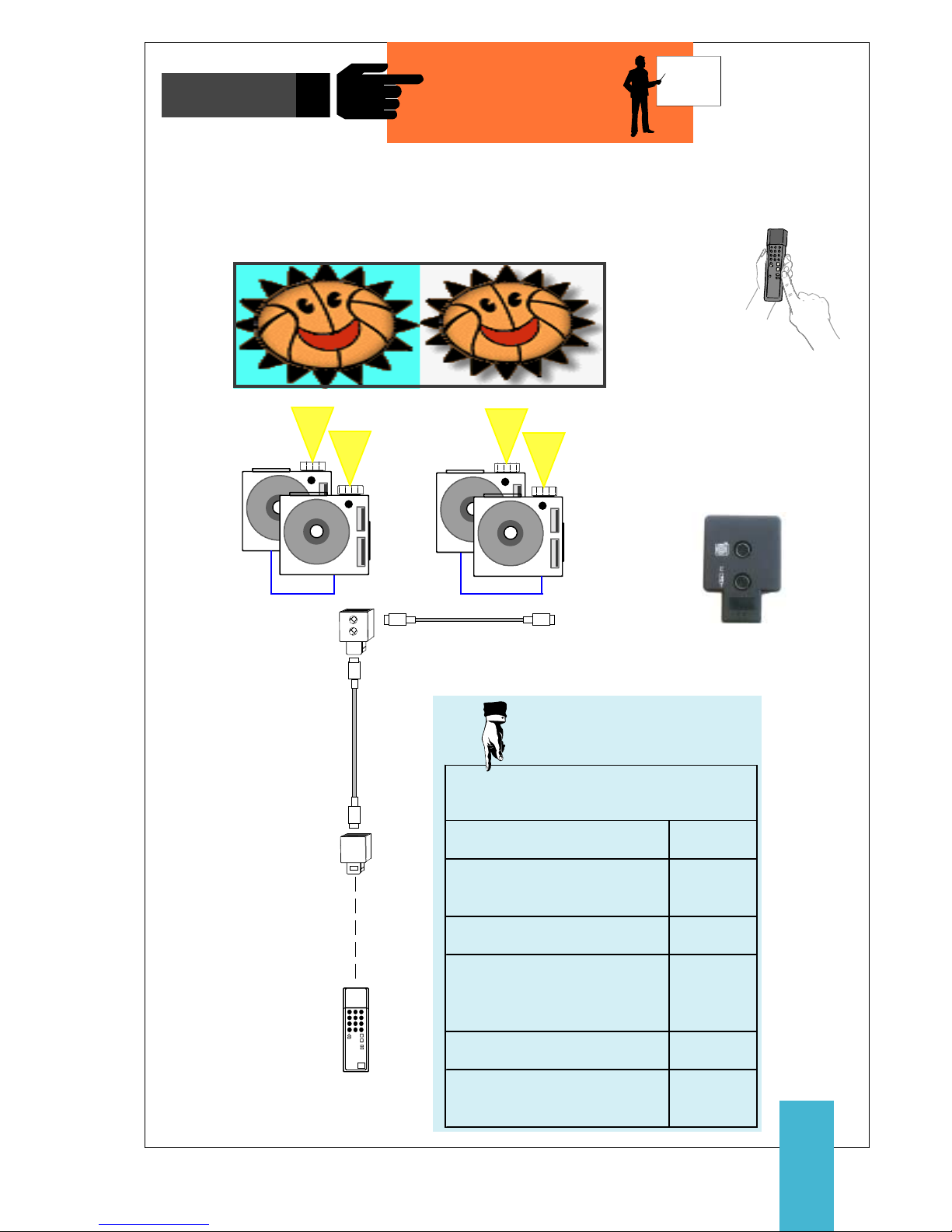

Illustration 2:

PC (Software) and Hardware
Controller

A standard RS232 cable (not a
Kodak product!)

standard RS232 cable

standard RS232 cables

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

43

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

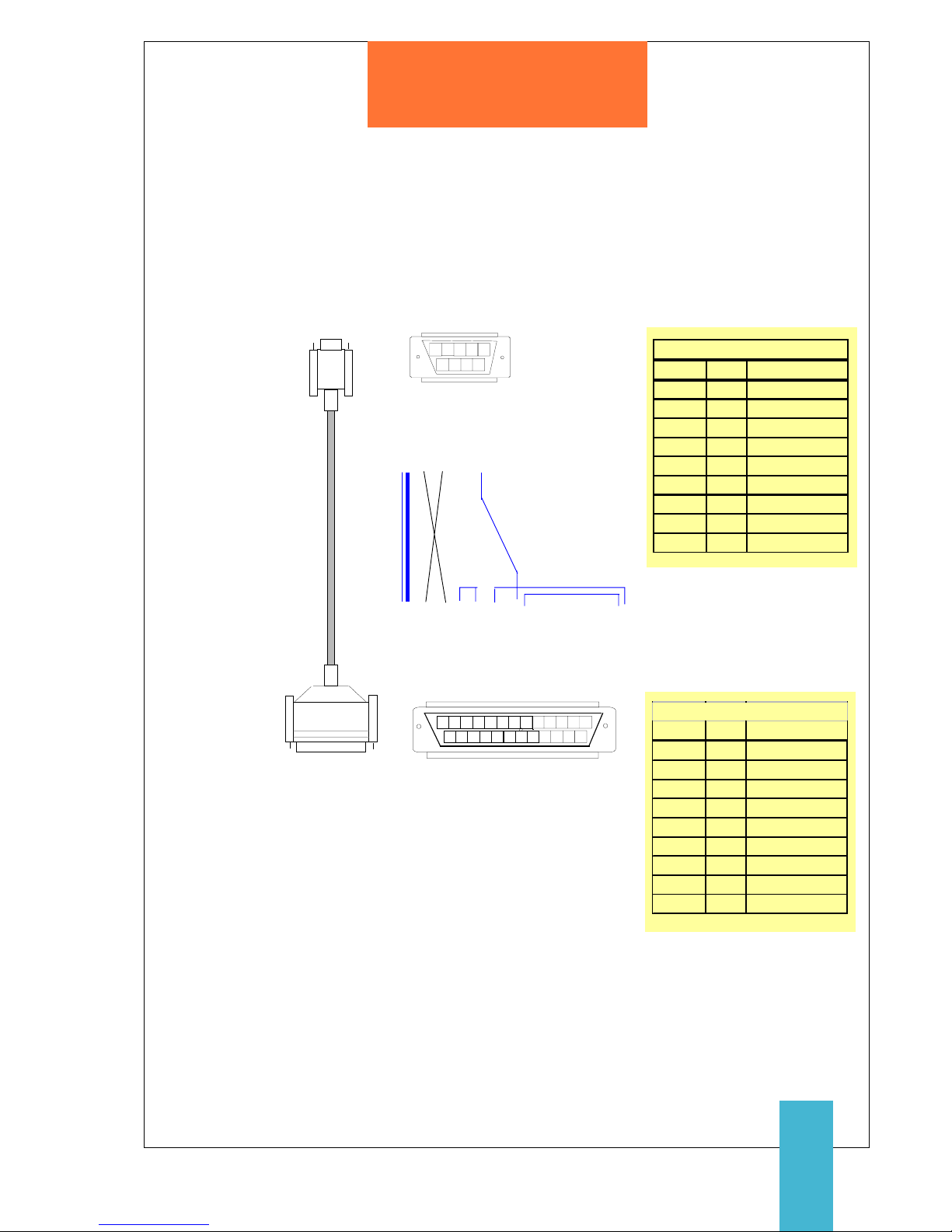

n PC cable for an older 25-pin computer serial interface

External Control

PC Cables

Some older PCs have a 25 pin instead of the current 9 pin serial interface. For these connectors you
either need an adapter or you have to configurate it on your own.

P-Bus Connector DB9 male

Pin No Description

1NC
2 RXD Transmit Data
3 TXD- Receive Data
4NC
5 GND Ground
6NC
7NC
8NC
9NC

98

76

54321

1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8 9 10 . . . . 20 . . 25

9-Pin Sub D
Connector

25 -Pin Sub D
Connector

Note: The following

bridging inside the 25-Pin
connector is necessary:

pin 4 with pin 5

pin 6 with pin 20 and

pin 8 with pin 20

shield

View from front side!

View from front side!

543219876

101112

13

14151617

182122232425

1920

max. length 30 m,

(not a Kodak product)

Connector 25-pin ma le

PIN No Description

2 TXD Transmit Data
3RXDReceive Data
4RTS
5CTS
6DSR
7 GND Ground

8DCD
20 DTR
22 RI

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

44

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

PC Cable

n Apple Macintosh Computer Cable with Mini DIN 8 connector

If you use an Apple Macintosh Computer with a Mini DIN 8 connector, you have to configurate
this cable on your own.

Ektapro 7020,

9020 (4020 and

5020 as a last in

the row, only)

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 9

shield

P-Bus Connector DB9 male

Pin No Description

1NC
2 RXD Transmit Data
3 TXD- Receive Data
4NC
5 GND Ground
6NC
7NC
8NC
9NC

Macintosh Mini DIN 8 male

Pin No Description

1 HSKo Handshake out
2 HSKi Handshake in

3 TXD-

Transmit Data

inverted
4 GND Ground
5 RXD- Receive Data
6 TXD+Transmit Data

7GPi

General

Purpose

In

p

ut

8 RXD+Receive Data

max. length 30 m,

(not a Kodak

product)

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

45

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

P-COM Protocol

n Need to create own software?

The Command Language

A character string that both the computer and the projector understand
must be defined in order to give the projector clear commands. The
defined character string for the KODAK EKTAPRO Slide Projectors is
called P-Com Protocol and is in binary form. Please note this is not a
software to be installed once on the computer to produce the necessary
commands. It is simply the character strings necessary in order to

program the commands. Hidden behind the name P­Com is, therefore, nothing other than the “projector’s communications
language”. Programms can be written for the individual needs of the user. The
booklet is available at Kodak.

Following we give you an overview about all command which can be created.

Note, due to model changing and different features not all commands (e.g.
fade up/down) can be used for all models!

Com m a nd Va lid for the follow in g EKTAPRO M ode ls

4010 4020 5000 5020 7000 7010 7020 9000 9010 9020

RandomAccess

XXXXXXXXXX

S etB r ightness

XXXXXXXXXX

GroupAddress

XXXXXXXXXX

Fade UP /DOW N

XX XX

SetFadeLimit High
Value

XX

XX

SetFadeLimit Low
Value

XX

XX

AutoFocu s ON/OF F

XX XXX

HighLight ON/OFF

XX XX

AutoShutter
ON/OFF

XXXXXXX

XXX

BlockKe ys ON/OF F

XXXXXXXXXX

BlockFocus ON/OFF

XXXX

XX

Standby ON/OFF

XXXXXXXXXX

Slide F orw a rd

XXXXXXXXXX

Slide Ba ckw a rd

XXXXXXXXXX

FocusForw a rd

XXXXXXXXXX

Focu sBackward

XXXXXXXXXX

FocusStop

XXXXXXXXXX

ShutterOpen

XXXXXXXXXX

ShutterClose

XXXXXXXXXX

ResetSystem

XXXXXXXXXX

SwitchLamp

XXXXXXXXXX

Clea rErrorF lag s

XXXXXXXXXX

StopFading

XX XX

Ge tTrayPosition

XXXXXX

GetKeys

XXXXXX

System Status

XXXXXXXXXX

System Return

XXXXXXXXXX

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

46

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

Shutter Control

n Shutter Control via PC

Ektapro 4020, 5020,

7020 and 9020

Speed:
Permanent use: 3
times per second
Solid use: approx. 8
times per second

Note

If shutter is moved in its fastest speed for some
seconds, the shutter may get slower or switch
off and on again (after some minutes) by the
internal thermal cut.

Control via P-COM Protocol

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

47

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

Important Hint

n Simultaneous Control via IR Remote and via RS232 controllers (AV

Slot, P-Bus)

Important

If you control the Ektapro via the RS232
computer interface (P-Bus or AV slot) you are
not allowed to send additional commands via a
remote control or vice versa! This will create
conflicts in the command executive!

Control via RS 232 Interface

(P-Bus or AV Slot)

Control via remote control

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

48

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

External Control

Important Hints

n Controlling an Ektapro via 1000 Hz Cassette Recorder

Years ago there have been cassette recorders on the market with a slide synchronizer installed. The
synchronizer allowed to send and record a 1000 Hz signal to the projector which actuated the slide
transport. The 1000 Hz recorders can be used with an Ektapro but a so called slide synchronizer
adapter between recorder and projector is needed. As only a simple closing contact is required it is
possible to solder such an adapter by your own. For further details see page 67.

n Last slide position memory

If the Ektapro is switched on and off the system executes a check up and turns the transport ring
and slide tray into the zero position. Hence, when switching the projector on again, it will not
proceed with the slide position at the time you switched it off.
If you need such a special feature we can offer you a modified Ektapro model. It is the Ektapro
9020 Cine - a model special modified for the needs of a cinema. When switched off, the projector
remembers the tray position. When switched on, the tray is automatically transported to this
position

Since these models have other modifications as well, we advise you to get further details from
Kodak before purchasing it.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

49

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

P-Bus-IN

External Control

Cordless RS 232 Control

n Cordless RS232 control of Ektapro Projectors

A new IR V.24/RS232 adapter by Siemens allows cordless connection (DECT standard) of an
Ektapro to a PC (or any other hardware with RS232 interface).*

Key Benefits

n If the distance between computer and projectors is greater than 30 m, data transfer with the
standard RS232 cable is not guaranteed. In this case you need special amplifiers or you can use
this cordless transfer device.
n Sometimes cordless transfer is a solution if -according to some other reasons - there is no way
to lay any cables.

Siemens ( address see page 72) offers a data adapter (Gigaset M 101 Data) with standard
V.24 interface for cordless DECT (digital enhanced cordless tele communications) data connection
with a high-speed transmission rate of up to 115 kbit/s.
Indoors the device will work properly up to 50 m, outdoors up to 300 m.

* there are also RC433 MHz infrared systens on the market available.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

50

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Carrying Case

n Low Weight
n Stackable

To carry projector, lens and tray

CAT No 718 1993

Projector

Tray

Lens

Dimensions
Inside: 380 x 260 x 255 mm (W x D X H)
Outside: 380 x 260 x 255 mm (W x D X H)

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

51

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Professional Installation

Racks - Fixing the projector

n Racks

Some companies offer racks for professional
use. ( Addresses pages 69 and 72)

n Fixing the projector

Inserts (expansion collars)

outer thread M7
inner thread M5

Screws M5

(max. length allowed 49 mm)

1.

Note the position of the slot!

2.

3.

diameter

6.4 mm
depth 10 mm

For fixing the projector you can use the three holes on the bottom ( see illustration next page!)
Into the holes you have to screw so called inserts (expansion collars) that can hold the screws. The
illustrations show how to put the inserts into the projector’s holes.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

52

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Professional Installation

Fixing Holes

n Fixing Holes

106,00 38 ,00

50,00

40,00

63,50

38,00

204,00

52,00

40,00

250,00

diameter

6.4 mm
depth 10 mm

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

53

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Professional Installation

Tilting - Operating Temperature

n Tilting

max.
30º

max.
30º

a

b

-10% +6%

40º

30º

20º
10º

35º

n Operating Temperature

a = Ambient temperature
(Co)
b = Nominal voltage

Note

Standard and economy setting:
Minimum 0o C and maximum +40o C
High Light setting (models 7020/9020):
Minimum 0o C and maximum + 35o C

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

54

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Professional Installation

Boxes, Furniture

n Installation in boxes, furniture

Important Note
Proper ventilation is required!

Check that the projector can draw-in
sufficient cool air and that warm air can be
freely expelled. Keep air inlet and air outlet
free from obstruction!

Note

Should the projector overheat, e.g., due to
lack of cooling air, the built-in thermal cut­out automatically switches the lamp off and
on again once it has cooled down.

cool air into the projector

(1m3 per minute)

warm air out

of the cabinet

Cabinet

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

55

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Professional Installation

Line-up

n Line -Up

Ektapro
4020, 5020,
7020, 9020

Aligning the projectors i.e. fully fading up all projectors, in
multivision operation is difficult, since dissolve units often do
not provide this kind of option.
With the Line-up feature you can turn the light of every
projector on and off independently. This means the projectors
can be aligned or checked at any time.
You can only set the line-up on the projector panel. (The
external controlling via P-Bus is rejected during setting. With
line-up standby will also be switched off and the shutter will be
opened):
Line-up on: Press both transport buttons on the projector
simultaneously for at least 1 second. The lamp now lights up at
a maximum output and the zero position indicator (green LED)
flashes.

Line-up off: Press the standby button!

Note, line up slides are offered by the professional

slide mount manufacturer. Sometimes manufacturer
of control systems offer them, too.

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

56

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Specifications

Dimensions

Length: 340 mm
Width: 336 mm
Height: 140 mm
Height with tray: 175 mm
Weight without tray: approx. 9000 g
Weight of tray without slides: 540 g

n Projector Dimensions

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

57

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Specifications

Connectors

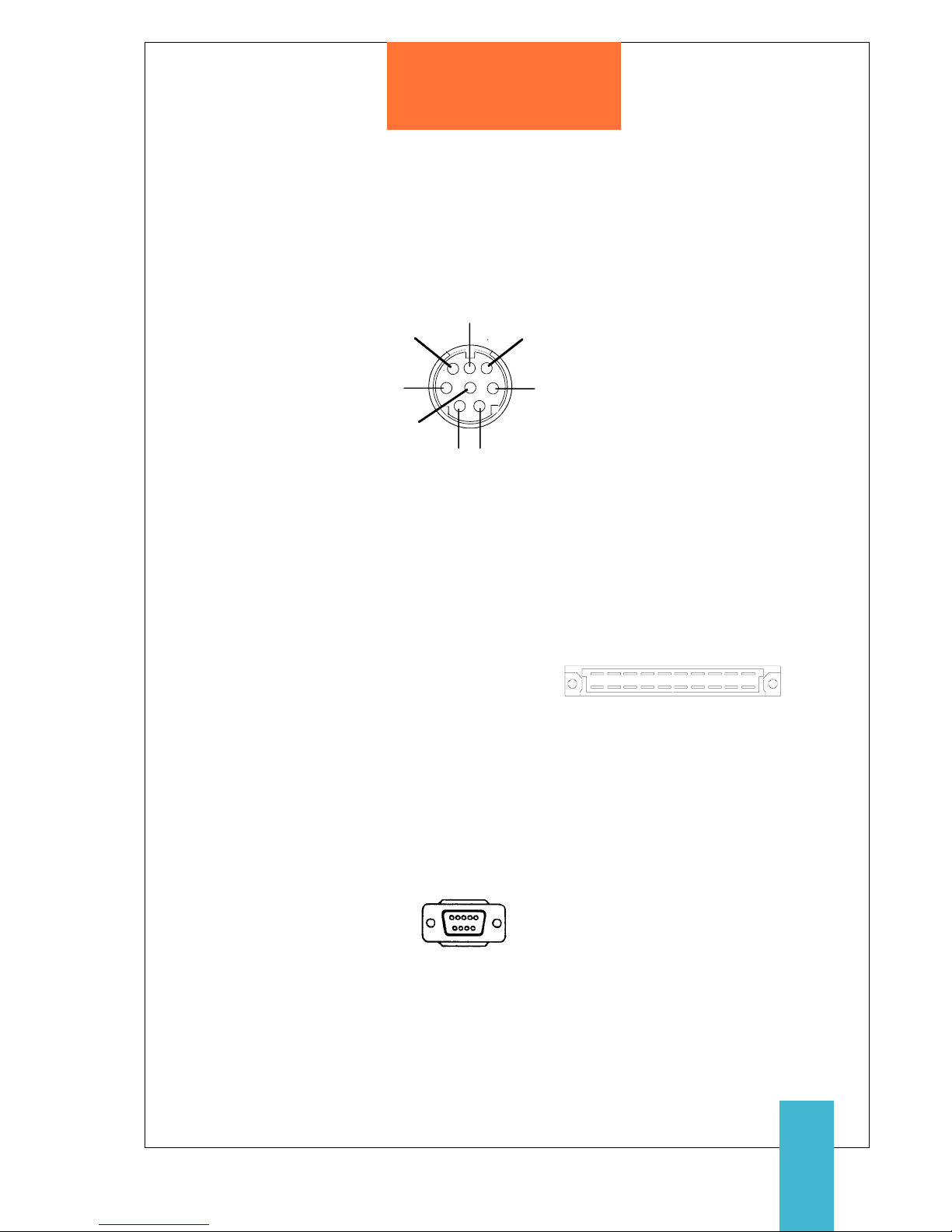

n 8-pin Standard Projector Socket

(For connecting the KODAK EKTAPRO
Remote Systems or KODAK EKTAPRO
Twin Socket Adapter).

Pin 1: 12 VDC
Pin 2: Gnd
Pin 3: Signal 1 (LSB)
Pin 4: Signal 2
Pin 5: Signal 3
Pin 6: Signal 4
Pin 7: Signal 5 (MSB)
Pin 8: Interrupt

5

1

2

3

4

6

7

8

n Slot for Modules

Pin a1: SDA Pin b1: SCL
Pin a2: - Pin b2: PLL_DISS
Pin a3: SLOT_232_R Pin b3: SLOT_232_T
Pin a5: SLOT_A Pin b4: STBY_DIS
Pin a6: SLOT_C Pin b5: SLOT_B
Pin a8: 12 VDC Pin b6: SL_DISS
Pin a9: 34 VDC Pin b8: VSS 12
Pin a10:24 VAC_N Pin b9: VSS 34

Pin b10: 24 VAC_L

a10 a9 a8 a7 a6 a5 a4 a3 a2 a1

b10 b9 b8 b7 b6 b5 b4 b3 b2 b1

n P-Bus-in and P-Bus-out

The following pin connections
are used for data transmission:

Pin 2: Transmit Data TxD
Pin 3: Receive Data RxD
Pin 5: Signal ground

5 4 3 2
1

9 8 7
6

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

58

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Opera Houses

(Theatre)

Applications

n Control via Lighting Control Console (DMX-512 standard signal line)

Lighting Console with DMX 512 Standard

Bässgen DMX Controllers
( Address page 69)

Ektapro 7020 or 9020,
(4020 or 5020 as a last
in the chain, only)
up to 4 projectors

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

59

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Keyboard with MIDI Interface

Solution 1:

Bässgen MIDI-Card

Ektapro 7020 or 9020,
(4020 and 5020 could
be used as the last in
the chain)

Music-Stages

(Performance)

Applications

n Control via MIDI Signal (from any MIDI music device and MIDI sequencers

The Bässgen MIDI Cards or the Bässgen BASIX controller allows to control and program Ektapro
slide projectors from any music instrument with MIDI interface (e.g. keyboard) and computers with
music sequencers. This allows new applications and might especially be interesting for musicians.
It allows them to have slide projection on stage ( Address page 69).

Solution 2:

Bässgen BASIX

Ektapro
4020, 5020,
7020, 9020

Ektapro
4020, 5020,
7020, 9020

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

60

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Business

Presentation

Applications

n Use of two control systems via standard computer switchboard

Ektapro
7020, 9020 (4020 and 5020 for stand alone
applications or as a last in a chain, only)

Control System 1

Control System 2

Control Systems page 69 - 72

T-Switch

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

61

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Applications

n Presenting with two projectors via integrated dissolver. Take control of the

presentation!

Business

Presentation

MASTER Ektapro

7020, 9020

SLAVE Ektapro

4010, 4020, 5000. 5020, 7000, 7010,
7020, 9000, 9010 9020

Function Code

•Dissolve times
(0.1 - 9.9 s)
CUT

801 - 899

800

Random
Access

0-160

Fade:
MASTER
SLAVE

770

707
Alternate 777
Freeze 789

•Independant
Projector Control
Mode

980

•Parallelprojection
Focus Slave*

970

666*

•Reactivating
dissolve mode

990

•Remote Security
Mode

989

Reset 999
Autotimer

(1-60 s)

----- off

601 - 660

600

Confirm
with <*>

MASTER SLAVE Projection

MASTER

Ektapro 7020 or 9020

1

SLAVE

Ektapro 4020, 5020,
7020, 9020

1

Dissolve Cable

CAT NO 715 3992

1

IR Remote System RA

CAT NO 712 1072 or

IR Remote System RA/LP

CAT NO 712 1064

1

For this configuration you need:

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

62

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Applications

n Presenting with two projectors (MASTER-SLAVE) via integrated dissolver.

1. One field (screen) application. Two projectors dissolve.

Business

Presentation

Input dissolve times of 0 sec (hard cut) up to a
long dissolve of 9.9 sec in increments of a
tenth of a second

Code: <801 - 899>

Example: 4 s
Input <840> and confirm with <*>

Setting the dissolve time:

For further details see the projectors manual!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

63

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Code: <970> and
confirm with <*>

Code: <980> and
confirm with <*>

3. Parallel independant

With the number combination <980> and <*> you can control the
transport of the two projectors individually with the remote control.

For further details see the projectors manual!

Applications

2. Two fields (screens) application parallel in harmony or panorama.

Business

Presentation

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

64

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

4. Two fields (screens) - application parallel in harmony or panorama

with four projectors

Dissolve
cable

Dissolve
cable

Extension cable 8 m

IR Remote

Receiver

IR Remote System RA

and RA/LP

Twin

Socket

Twin Socket
Connecting Cable 2 m

For setting the dissolve
time see page 62. Please
note, in this special
application MASTER 2
and SLAVE 2 will work in
parallel to MASTER 1 and
SLAVE 1!

Applications

Business

Presentation

MASTER 1

SLAVE 1

MASTER 2

SLAVE 2

MASTER/SLAVE Projection

with two dissolve pairs in parallel

MASTER

Ektapro 7020 or 9020

2

SLAVE

Ektapro 4020, 5020 ,
7020, 9020

2

Dissolve Cable

CAT NO 715 3992

2

IR Remote System RA

CAT NO 712 1072 or

IR Remote System RA/LP

CAT NO 712 1064

1

Ektap ro Tw i n S ocket

CAT No 712 5909

1

Ektap ro Tw i n S ocket
Conn ecti n g Cabl e

CAT No 712 5917

1

For this configuration you need:

Twin Socket

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

65

Ó by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Applications

Business

Presentation

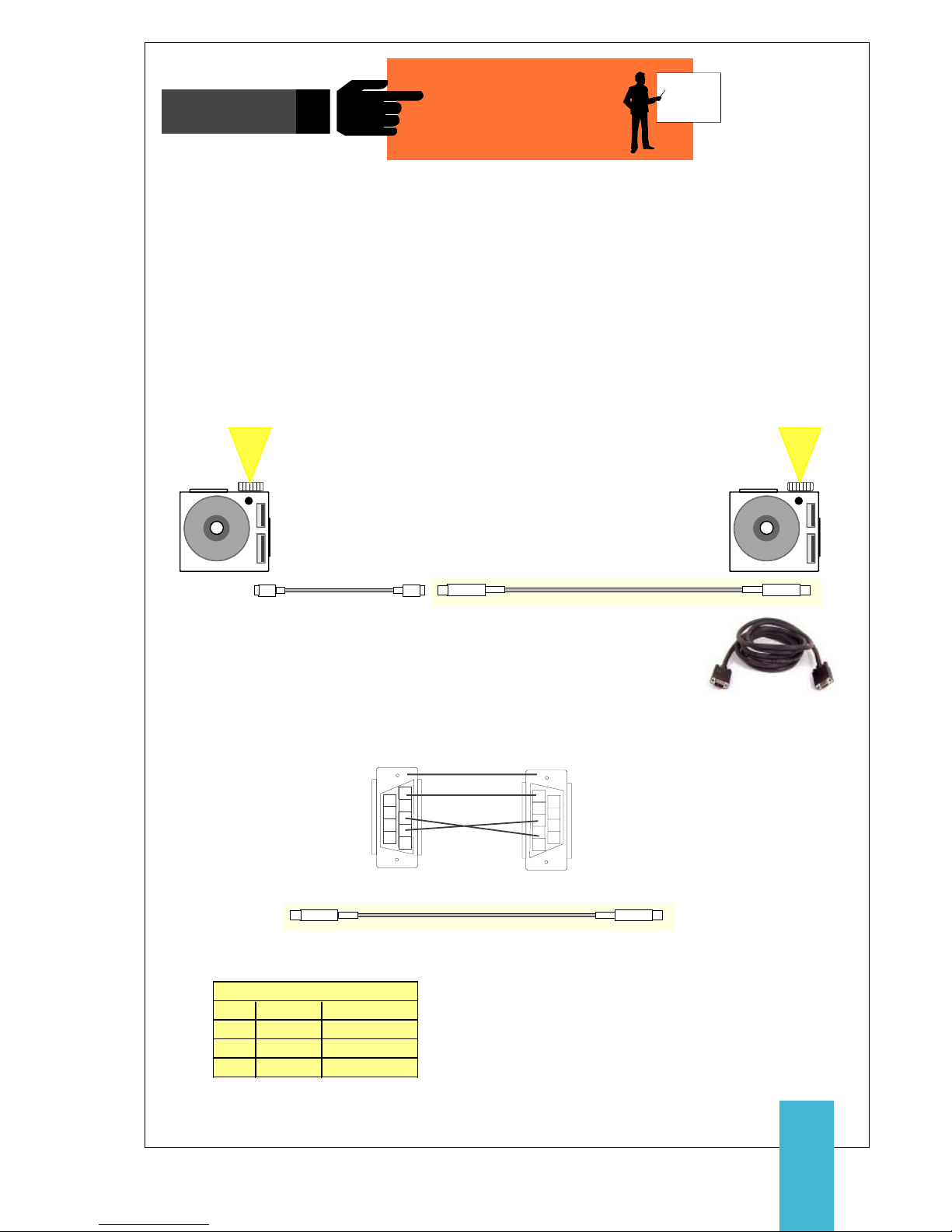

n Dissolve Cable Configuration

The Kodak Ektapro Dissolve cable has a length of 1 m sufficient enough to connect the MASTER
and SLAVE projector in almost any application. If for any reasons longer cables are requested you
have two choices:

1. You buy a standard RS232 extension cable (available at computer retailers) and extend the

dissolve cable. Do not use the extension cable alone! Neither will it fit, nor the pin
configuration will match!

98

76

54321

2. You configurate a cable at the length you need. Note, you need two sub D Male connectors!

Kodak Dissolve Cable
CAT NO 715 3992

Standard RS232 Cable
(not a Kodak product!)

MASTER

SLAVE

98

76

54321

5 4 3 2 1

9 8 7 6

Shield

9 pin sub D

Male

9 pin sub D

Male

Pin Description

2 RXD Receive Data
3 TXD Transmit Data
5 GND Ground

'LVVROYH&DEOH

'RQRWFRQQHFW*1'ZLWK6KLHOG

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

66

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Applications

n IR Remote Control Security Setting

Business

Presentation

Ektapro
4020, 5020,
7020, 9020

Code: <989> and
confirm with <*>

Transport backwards: A transport step will

be carried out if button is pressed longer than
2 seconds!

Transport forwards: Only one transport step,
regardless how long button is pressed.

With the security setting you can set
up your remote control so that when
the transport button is pressed, only
one transport step or only one dissolve
is executed. The focus buttons are also
disabled so that if you happen to press
the buttons, the focus on the projector
is not changed. All other functions
remain active (and can be secured by
the cover on the remote control).
Even novice presenters can now “not
put a foot wrong”!

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

67

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

n Using built-in control systems (control from a speaker’s desk) or former

S-AV Cable Remote Control

Almost all congress halls, lecture halls etc. have speaker’s desks. From
this desk the speaker is able to use installed remote controls for all
kinds of presentation equipment such as slide projectors. In many cases
the technique of control is based on “closing contacts”. All Ektapros
(except the Ektapro 320) accept digital commands only; and therefore,
can not directly be connected to the existing cables at the venue. For
connecting to such systems use a so called “slide synchronizer adapter”(

Addresses see page 71 and 72).

o Pin 8 must always be connected with pin 2!

o Slide transport forwards:

connect pin 7 with pin 2
o Slide transport reverse:
connect pin 6 with pin 2
o Focus forwards:
connect pin 5 with pin 2
o Focus backwards:
connect pin 4 with pin 2

Applications

Business

Presentation

Pin Configuration for the Ektapro 320:

The projector has an 8-pin connector. Hence an adapter between the
projector and existing 6 pin cable (or S-AV cable remote control) is
necessary.

Note: If you need a simple closing contact for a slide transport forwards, only (e.g. to
connect a 1000 Hz AV recorder or an external slide synchronizer) you have the following
options:

• Use of a slide synchronizer adapter ( Addresses see page 71 and 72) or

• Solder an adapter with the following pin configuration:
For Ektapro 320: See above

For all other Ektapro projectors:

o Pin 8 must always be connected with pin 7!

o Slide transport forwards:

connect pin 7 with pin 2

5

1

2

3

4

6

7

8

e.g. slide transport forwards

5

1

2

3

4

6

7

8

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

68

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Applications

Business

Presentation

n Controlling a projector via PC and PowerPoint software

Splint is a Microsoft PowerPoint® 97 or PowerPoint® 2000 add-in which allows you to link your
PowerPoint® presentation to slides in a Kodak Ektapro® slide projector (model 40XX and higher).
Once you have put your presentation together you can simultaneously show your PowerPoint®
screens with relevant slides from your projector.
This approach means you can use a computer-based presentation and yet still make excellent use of
your legacy 35 mm slides without the need to scan and digitize them.
While you are running your PowerPoint® presentation, the Splint controller appears as a narrow
band at the top of the screen, and can be hidden so as not to confuse your audience.

Ektapro
4020, 5020, 7020,
9020

Digital

Projector

Note

The software is FREEWARE and can be downloaded at
www.rightword.com.au/products/splint

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

69

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Addresses

Company Address Products

Alfi P.O.B 10 20 47

86010 Augsburg
Germany
FON: [phone]
FAX: [phone]

slide mounts

ARION 4952 Farmington Ave. SE

Delano, MN 55328 8158
U.S.A.
FON [phone]
FAX [phone]

www.arion.com

controllers,
slide show
presentation
equipment

AV&F Rijksweg 74a

6247 AK Gronsveld
The Netherlands

www.dia.nl

racks

AVSZ Tarweakker 63

2723 TB Zoetermeer
The Netherlands
FON: [phone]
FAX: [phone]

all kinds of
accessories,
e.g. external timer

Bässgen Hauptstraße 58

79104 Freiburg
Germany
FO+49-761 239 53
FAX: [phone]

www.dia.de

controllers,
slide show
presentation
equipment,
racks,
DMX - MIDI

Buhl 1009 Beech Avenue

Pittsburgh, PA 15233
U.S.A.
FON: [phone]
FAX: [phone]

www.buhloptical.com/

projection lenses

Califone Superior Street

Chatsworth, CA 91311
U.S.A.
FON: [phone]

www.califone.com

AV tape recorders

CCG Lorsbacherstr. 56A

65719 Hofheim
Germany
FON: [phone]

www.ccg-germany.com

slide recorders

Chief 14310 Ewing Avenue

South Burnsville, MN 55337
U.S.A.
FON: [phone]
FAX: [phone]

racks

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

70

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Addresses

Company Address Products

Da-Lite 3100 N. Detroit Str.

Warsaw, IN 46581 0137
U.S.A.
FON: [phone]
FAX:[phone]

www.da-lite.com

screens

Dataton Box 257

S-581 02 Linköping
Sweden
FON [phone]
FAX [phone]

www.dataton.se/

controllers,
slide show
presentation
equipment

Docter Industriegebiet

35641 Schoffengrund
Germany
FON: [phone]
FAX:[phone]

www.docteroptics.com

projection lenses

Electrosonic Hawley Mill Hawley Rd

Dartford Kent DA2 7SY
England
FON [phone]
FAX [phone]

www.electrosonic.com

controllers,
slide show
presentation
equipment

Fostex 15431 Blackburn Avenue

Norwalk, CA 90650
U.S.A.
FON: [phone]
FAX. [phone]

www.fostex.com

AV tape recorders

Gebuhr Imhoffstr. 4

90429 Nuernberg
Germany
FON: [phone]
FAX:[phone]

AV tape recorders

Geimuplast P.O.B 1364

82453 Garmisch- Partenkirchen
Germany
FON: [phone]
FAX: [phone]

slide mounts

GEPE Baarerstr. 43

6304 Zug
Switzerland
FON: [phone]
FAX: [phone]

www.gepe.com/

slide mounts

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

71

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Addresses

Company Address Products

Isco

Robert Bosch Breite 10
37013 Goettingen
Germany
FON:[phone]
FAX: [phone]

www.iscooptic-U.S.A..com/

projection lenses

Lasergraphics

20 Ada
Irvine, CA 92718
U.S.A.
FON: [phone]
FAX: [phone]

www.las ergraphics .com

slide recorders

Management
Graphics,

1401 E. 79 th Street
Minneapolis, MN 55425
U.S.A.
FON: [phone]
FAX: [phone]

www.mgi.com

slide recorders

Mirus

3 350 Scott Boul evard, Bldg. 4 8
Santa Clara, CA 9 5054
U.S.A.
FON: [phone]
FAX. [phone]

www.mirus .com

slide recorders

M-Objects

Auf dem B er g 7
59387 Ascheberg
Germany
FON [phone]
Fax: [phone]

www.mobjects .com/

software for PC
di rect contr ol

Müwo

I n de n Ma ltwiesen 11
72379 H echingen- Stetten
Germany
FON [phone]

controllers,
slide show
presentation
equipment

Navitar

200 Commerce Dr.
Rochester, NY 14623
U.S.A.
FON: [phone]
FAX:[phone]

www.navitar.com

projection lenses

Polaroid

5 49 Tec hnology Square
Cambridge, MA 02139
U.S.A.
FON: [phone]

www.polaroid.com

slide recorders

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

72

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Addresses

Company Address Products

Roha Bruno Jacoby Weg 11

70597 Stuttgart
Germany
FON: [phone]

racks

Siemens AG 80312 München

Germany

http://www.ic.siemens.com/

radio data transfer

Stumpfl Rudigierstr. 8

4701 Bad Schallerbach
Austria
FON [phone]
Fax: [phone]

www.stumpfl.com/

controllers,
slide show
presentation
equipment,
screens

Tascam 7733 Telegraph Rd.

Montebello, CA 90640
U.S.A.
FON: [phone]
FAX:[phone]

www.tascam.com

AV tape recorders

Wess 70 Commerce Drive

Hauppage, NY 11788
U.S.A.
FON: [phone]

slide mounts

VICOM Kuhnbergstr. 15

D-73037 Göppingen
Germany
FON:[phone]
FAX: [phone]

www.vicom.de

slide dryer cabinet

Yamaha 6600 Orangethorpe Av.

Buena Park, CA 90620
U.S.A.
FON: [phone]

www.yamaha.com

AV tape recorders

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

73

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

APPENDIX

Quality

n Lifetime of Ektapro Projectors

Quality find its strongest expression in reliability and in the lifetime of aproduct.
Lifetime is measured as the moment a major defect occurs and the projector has to be sent
for service. Kodak Ektapro projectors average lifetime has been constantly improved.
Starting with 450 000 cycles at launch in 1992 the projector is now backed by a full cycle
test of 10 million slide changes until first major defects occur.

10 million slide changes means having projected approximately 125 000 full 80 slide trays ­giving when piled on top of each other a height of approx. 8.5 km!

10 000 000

SLIDE CHANGES

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

74

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

APPENDIX

History

n Models - Year of Launch and Modifications

Year Model Replaces Import ant New Feature

1992 3000
1992 5000

1994 3010 3000

New lamp m odule + 10 (offering 10% more light)
Random Acc ess

1994 4010 New lamp m odule + 10 (offering 10% more light)

1995 7010 7000

Integrated Diss ol ver, Line up, Definite St andby,
"S l eepi ng m ode" after s witc hing on,
New lamp m odule + 10 (offering 10% more light)

1995 9010 9000

Integrated Diss ol ver, Line up, Definite St andby,
"S l eepi ng m ode" after s witc hing on,
New lamp m odule + 10 (offering 10% more light)

1995 3020 3010 Extra Bri ght l am p module (offering 30% more l i ght )

1997 7020 7010

Extra B ri ght l am p module (offering 30% more l i ght),
lamp i n use indicat ion

1997 9020 9010

Extra B ri ght l am p module (offering 30% more l i ght),
lamp i n use indicat ion

1997 320 3020

Only for use of t he 80 sli de t ray
No "no s l i de no light " func tion
No "s tandby" funct i on
No "power on" indi c at i on

1997 4020 4010

Extra B ri ght l amp module (offering 30% m ore l i ght)
"Lam p i n use" i ndi cati on
"Li ne-up" feat ure
"Definite standby" feature
"S l eepi ng m ode" after s witc hing on

1997 5020 5000

Extra B ri ght l amp module (offering 30% m ore l i ght)
"Lam p i n use" i ndi cati on
"Li ne-up" feat ure
"Definite standby" feature
"S l eepi ng m ode" after s witc hing on

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

75

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Editorial

The Quick Reference was created and published by Kodak GmbH, Germany. In case of any
questions, requests, useful ideas, please get in direct contact with Kodak. The address is:

Kodak GmbH
PT CMS
Hedelfingerstr. 60
70327 Stuttgart
Germany
Phone: int [phone]
Fax: int + 711 406 5367
E-mail: [e-mail]

Stuttgart, July. 1998

Last revision: 1/2001

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

76

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Index

4 x 4 slides 26
50 FAQs 4
9-Pin Sub D Connector 43

A

Accessories 8
Addresses 69, 70, 71, 72
Application

controlling with PowerPoint 68
stage 59
theatre 58
two projectors via integrated

dissolver 61

use of two control systems 60

Autofocus 26, 31

and superslides 26

problems 26
Autotimer Mode Setting 20, 21
AV Slot 57

B

Brightness 34

C

Cables

for external control 43, 44

for remote extension 9, 11
Cardboard Mounts 24
Carrying case 50

dimensions 50
Cassette Recorder 48
Cold Light Mirror 36
Colour temperature 39
Computer

creating slides 28

film recording 28
Computer switchboard 60
Condensor

4 x 4 26, 33
Connector

8-pin 67
Contact 75
Content 3
Control Security Setting 66
CS mounts 24

D

Dark Pause 18
Dimensions

projector 56
Dissolve Cable 21, 64

configuration 65

Dissolve time 62
DMX-512 58
DUAL Lamp Module 37, 38

+10 38

E

Editorial 75
Endless Projection 18

avoid dark pauses 18
with auto timer mode setting 20
with external timer 19
with few slides 18
with integrated timer 18
with two projectors 21

Extension Cable

dissolve cable 65
for cable remote 9
for IR remote 11
maximal distance 9, 11

External Control 42

cordless RS232 control 49
from a speaker’s desk 67
general 42
Last slide position memory 48
MIDI 59
PC cables 43
shutter 46
two systems same time 47
via a PC 42
via DMX 58
via lighting control console 58
via PC and PowerPoint 68
with cassette recorder 48
with two control systems 60

Extra Bright Lamp Module

35, 36, 37, 38, 39
basics 36
colour temperature 39
downgrading 39
history 38
lumen output 37
safety precautions 40
slide gate temperature 39
specifications 37
sweat spots 41

F

Fading 22
Film recorders 28
Fixing 51

holes 52

Fluorescent Light 10

Frequencies 7

50Hz 7
60 Hz 7

Fuse 7

G

Gear Rack 29
Global Usage 7

H

Hardware controller 42
Heatfilter 36, 38, 39

3 mm 38
6 mm 38

I

Inserts 32, 51
Installation 54

in boxes 54

Introduction 2

millenium Edition 2

L

Lamp Mode 34

economy 34
high light 34

standard 34
Lamp Module 38
Lamps 34, 35

active lamp after replacement 35

brightness 34

lifetime 34
Lens Calculator 30
Lens Support 31, 32

installation 32
Lenses 29, 30, 31

4 x 4 condensor 33

compatibility 30

gear rack 29

lens support 32

spiral lenses 30
Line-up 55
LKM 24
Lumen output 37

Quick Reference -- The ultimate reference for Kodak EKTAPRO Slide Projectors

77

 by Kodak GmbH Stuttgart, PT CMS edition 1/2001 -QR-Epro.pm6.5

Index

M

Mains Voltage 7
Master/Slave Application

21, 61, 62, 64
MIDI 59
Mounts 24

AF problems 26
cardboards 24
glassless 24
max. thickness 24
shutter problems 27

N

No slide no light 27

O

Operation Temperature 53

P

P-Bus 42, 57
P-COM Protocol 45, 46

commands 45
Panorama projection 63
Parallel Mode Setting 17

with 3 projectors 17
Parallel Projection 14, 63

independant control 63

IR parallel mode setting 17

with 3 projectors 16, 17

with IR receivers 14

with twin socket 15

with two dissolve pairs 64
PC Cables 43

for 25 pin serial interface 43

for Apple Macintosh Computer

44

Projector

history 74

lifetime 73

specification 56

connectors 57
dimensions 56

Q

Quality 73

R

Racks 51
Remote Control 9, 47

2 IR systems in one room 13
cable remote 9
control Security Setting 66
infrared 10, 22, 25

channel selector 13

parallel mode setting 17
receiver 14
reduced IR distance 10, 12

shield for IR receiver 12

RS232 interface 42, 49

S

Shutter 46
SINGLE Lamp Module 37
Single Lamp Module 38

+ 10 38

Slide gate temperature 39, 40
Slide Shows 7
Slide synchronizer adapter 67
Slides 23

creating slides 28
inserting 23
line up slides 55
mounts 24

for extra Bright lamp module 40

max. thickness 24

Soft Slide Change 22
Software

splint 68

Spiral Lenses 30
Standard RS232 cable 42
Superslides 26, 33

T

Tilting 53
Timer 18

external timer 19

Trays 23

for 140 slides 24
for 80 slides 24
installing 25
removing 25, 27
selector switch 24

Twin Socket 15, 64

connecting cable 15
for max. 3 projectors 16

V

Ventilation 54

Z

Zero Position 18, 25
