Kodak EKTALITE 500, EKTALITE 1500, EKTALITE 2000, Ektalite Series Quick Reference Manual

The Quick Reference - is designed to be your
ultimate source to all applications, technical
constellations, accessories etc. for Kodak

Ektalite Slide Projectors

Quick Reference

EKTALITE

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

2

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Accessories................................................................3

Remote Control

Cable ..................................................................4

Infrared...................................................5

IR + Extension Cable..........................................6

Parallel Projection

IR and 2 Receivers..............................................7

Cable Remote + Twin Socket..............................8

Endless Projection

Timer..................................................................9

Autofocus....................................................................10

Slide Recording..............................................................11

Lenses

General..............................................................12

Lamps

General..............................................................13

Extra Bright Light Module

General..............................................................14

Lumen Output / Compatibility.............................15

Safety Precautions............................................16

Carrying Case.............................................................17

Stackloader.................................................................18

External Control........................................................19

Specification

Dimensions.......................................................20

Connectors........................................................21

Applications

Control via MIDI.............................................22

Addresses.....................................................................23

Editorial......................................................................27

Content

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

3

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Accessories

Product CAT NO

EKTALITE IR Remote Control 873 5086
EKTALITE Cable Remote 861 8936
KODAK S-AV Extension Cable 4 m 701 5662
EKTALITE Extension Cable 16 m 866 0573
EKTALITE 12 Pin Adaptor 861 9629
EKTALITE Extra Bright Lamp Module 871 9767
EXR Projection Lamp - 35 h 145 2259
FHS Projection Lamp - 70 h 147 7678
EXY Projection Lamp - 200 h 145 2143
Lenses (see section "Lenses")
EKTALITE Carrying (Soft) Case 162 5136
KODAK EC Stack Loader 151 4249
EKTAPRO 80 Slide Tray 712 8580
TRANSVUE 140 Slide Tra

y 184 0768

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

4

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

EKTALITE

500, 1500 and

2000

CAT No

861 8936

3.5 m

CAT No

701 5662

4 m

Max. 3 extension
cables (4m) or 1 ex­tension cable (16 m)

CAT No

866 0573

16 m

n General

Remote Control

Cable

EKTALITE Cable Remot e 1 1 1 1 1
CAT No 861 3936
Ext ension Cable 4 m 1 2 3
CAT No 701 5662
Ext ension Cable 16 m 1
CAT No 866 0573

Total Cable Length 3.5 m 7.5 m 11.5 m 15.5 m 19,5 m

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

5

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Remote Control

Infrared

IR Remote System

CAT No 873 5086

○○○○○○○○○

Receiver

EKTALITE
500, 1500 and
2000

Note

Individual control of two IR systems in one
room is not possible. Hand transmitter offers
only one channel for transmitting data.

n General

Note

Dimmed fluorescent light (neon) may reduce
max. achievable IR distance!

An IR Control System always consists
of a transmitter and a receiver!

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

6

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Remote Control

IR + Extension Cable

n 1 Ektalite Projector, IR Remote Control and 16 m Extension

Cable for optimal placement of IR Receiver

CAT No
866 0573
16 m

IR Remote System

CAT No 873 5086

○○○○○○○○○

EKTALITE

500, 1500 and

2000

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

7

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

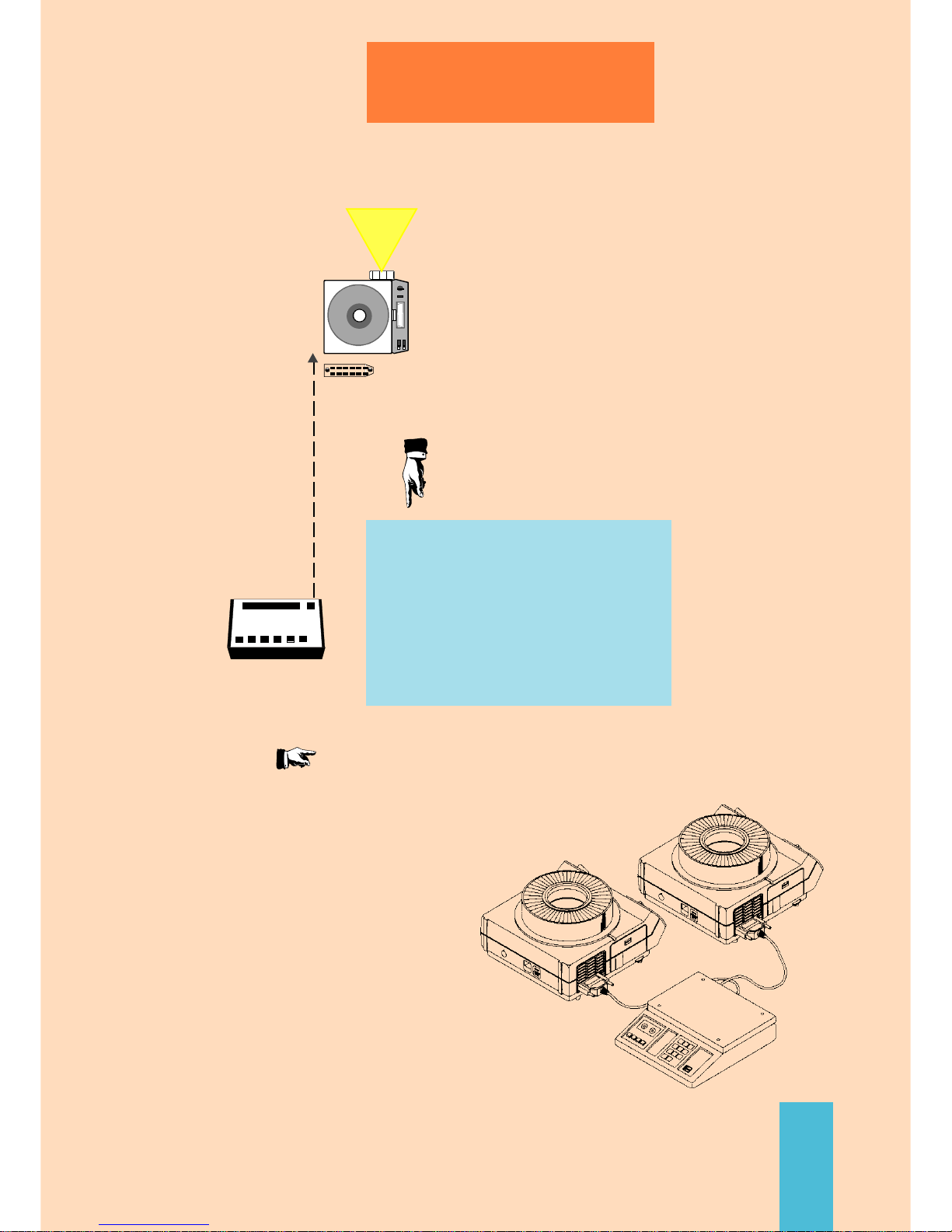

Parallel Projection

IR and 2 Receivers

EKTALITE
500, 1500 and
2000

IR Remote System

CAT No 873 5086

○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

n IR Remote System and a second receiver

Note

Parallel projection (side by side projection,
projection in harmony is only possible with a
second IR receiver. Unfortunately this item is
not available as an accessory. So a second IR
remote system is necessary.

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

8

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Parallel Projection

Cable Remote + Twin Socket

EKTALITE

500, 1500 and 2000

CAT No
861 8936

3.5 m

Note

Twin Sockets (Simultaneous Interfaces) and
Connecting Cables are not available from
Kodak. Please see address list page 24 for
OEM products.

n

Cable Remote and Twin Socket (OEM)

Projectors 2 3 4

EKTALITE Cable Remot e 1 1 1
CAT No 861 3936
OEM Tw in Socket 2 3 4
(Simultaneous Int erface)
OEM Connectin

g

Cable 123

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

9

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Endless Projection

Timer

Setting : 3 - 22 sec

EKTALITE

1500, 2000

Timer

n

Integrated Timer

n External Timer (no Kodak product)

EKTALITE 500

External Timer

Note

An external timer is offered by some compa­nies (see Addresses at page 24).

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

10

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

n Important Note for use of Autofocus

Autofocus

Important

Use either glass or glassless (cardboards)
mounted slides! Never mix up!

EKTALITE

1500, 2000

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

11

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

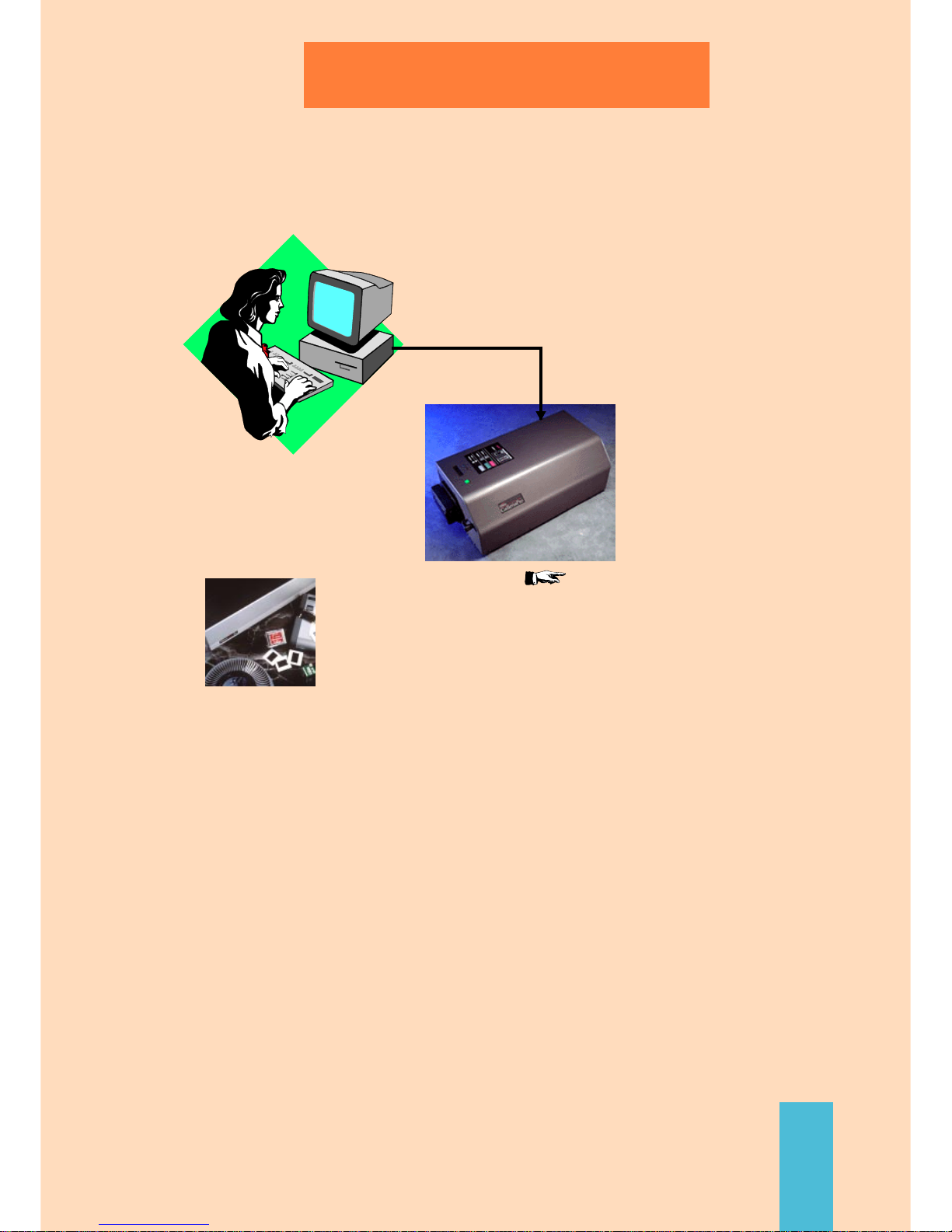

Slide Recording

n Creating 35 mm slides with film recorders

Computer

Filmrecorder ( Addresses
page 26)

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

12

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

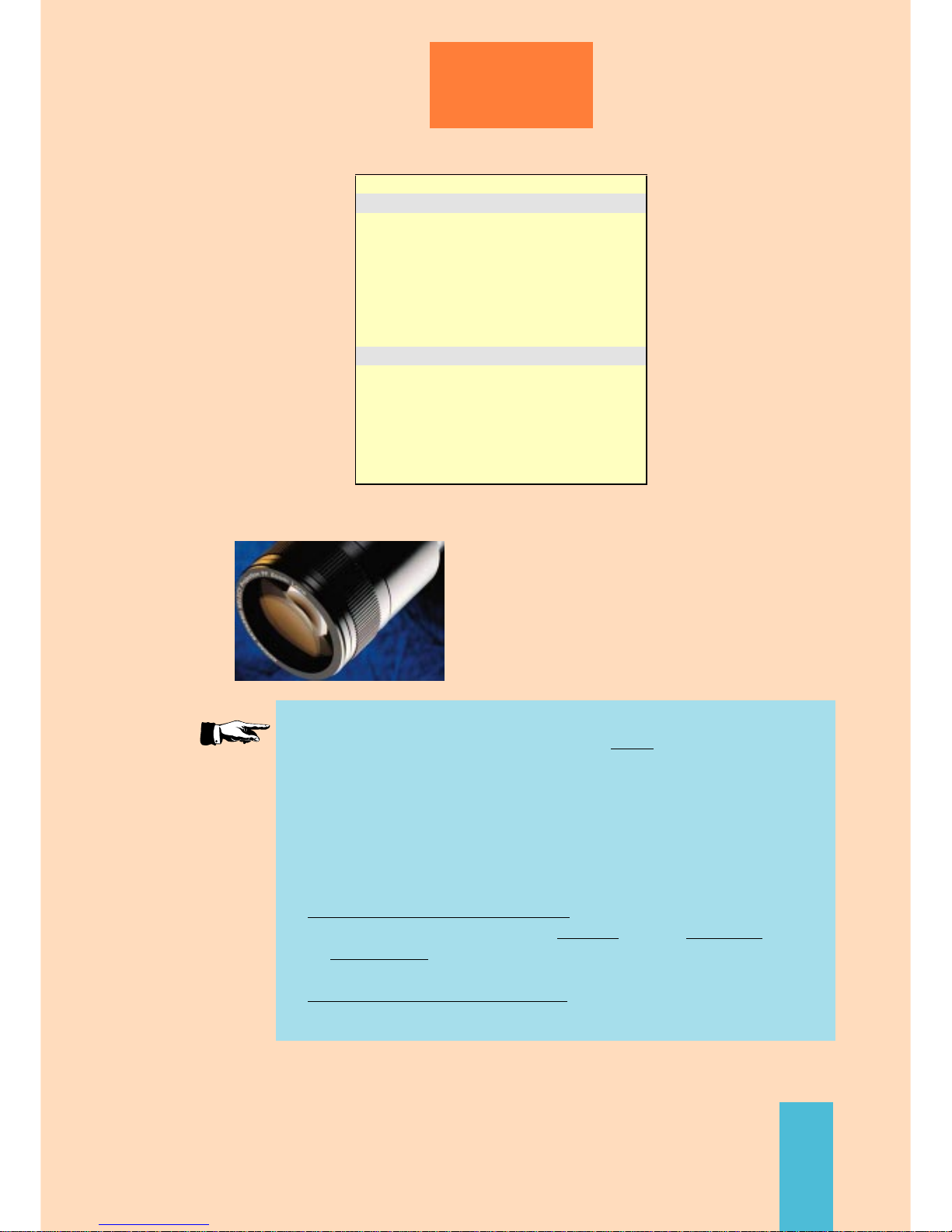

Lenses

General

WEB User

You will find more details on lenses under

lenses.

Lens Calculator

You do not know what kind of lens you need for your projection venue?
There is a formular but before getting nervous we can offer you a better
solution: There are two well made lens calculators available on the WEB. It
is freeware and can be easily downloaded.

Lenscalculator by Bässgen company:
Go to http://www.dia.de Click on

Bässgen and go to Download and click

on

SCREEN 2.0.

Lenscalculator by Stumpfl company:
Go to http://www.stumpfl.com/E/Service/

Ektalite

Kodak FF Lenses

75-120 Zoom CAT 847 034

6

X

100-150 Zoom CAT 143 343

2

X

100-200 Zoom CAT 712 574

3

X

85 mm CAT 712 550

3

X

100mm CAT 712 551

1

X

180mm CAT 712 552

9

X

Kodak Ektapro Se lect FF Lenses

75-120 Zoom CAT 712 547

9

X

87-200 Zoom

CAT 712 548

7

X

200-300 Zoom

CAT 712 549

5

X

36 mm

CAT 712 544

6

no

93 mm

CAT 712 545

3

X

150mm

CAT 712 5461

no

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

13

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

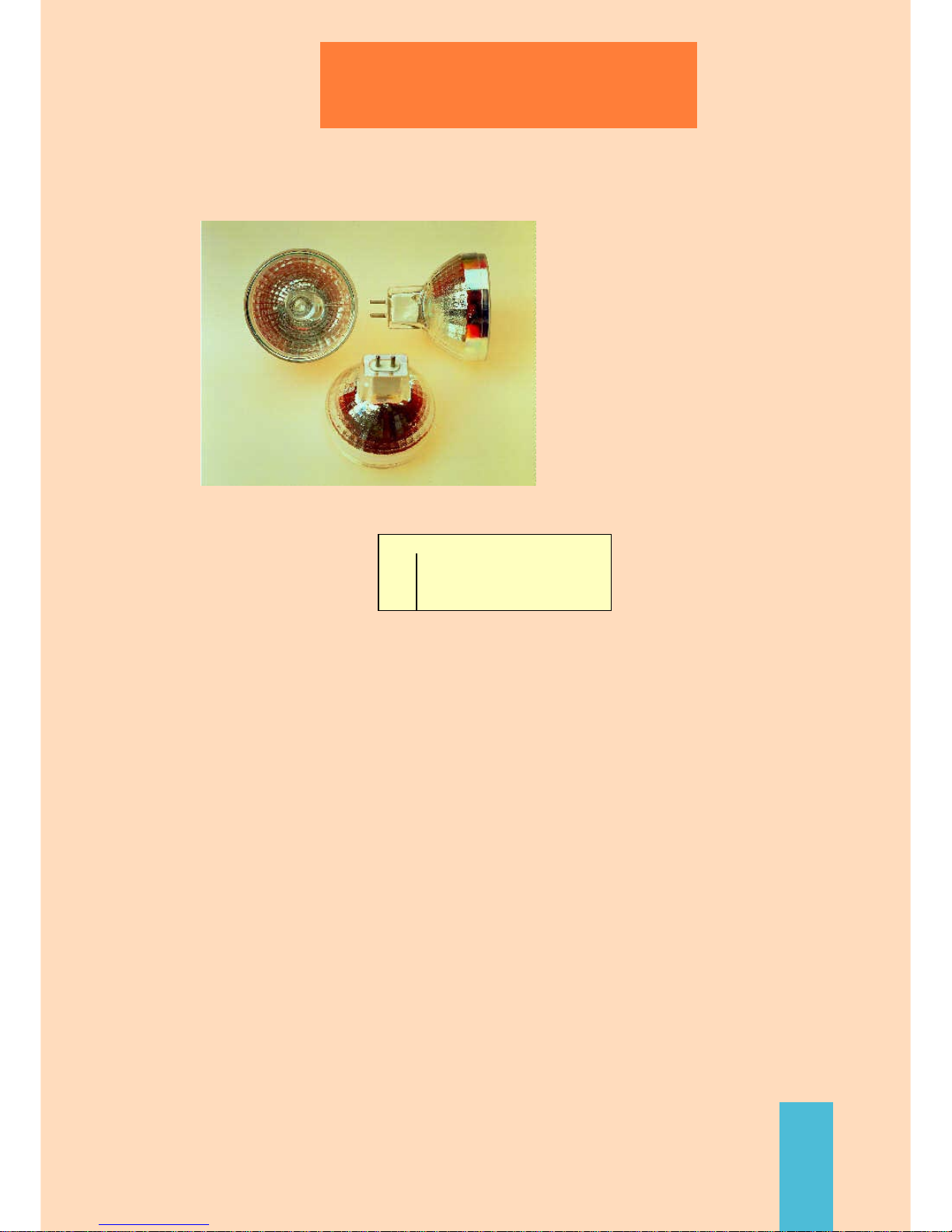

Lamps

General

CAT No

EXR 82V 300W 35h 145 2259
FHS 82V 300W 70h 147 7678
EXY 82V 250W 200

h

145 2143

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

14

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Extra Bright Lamp Module

General

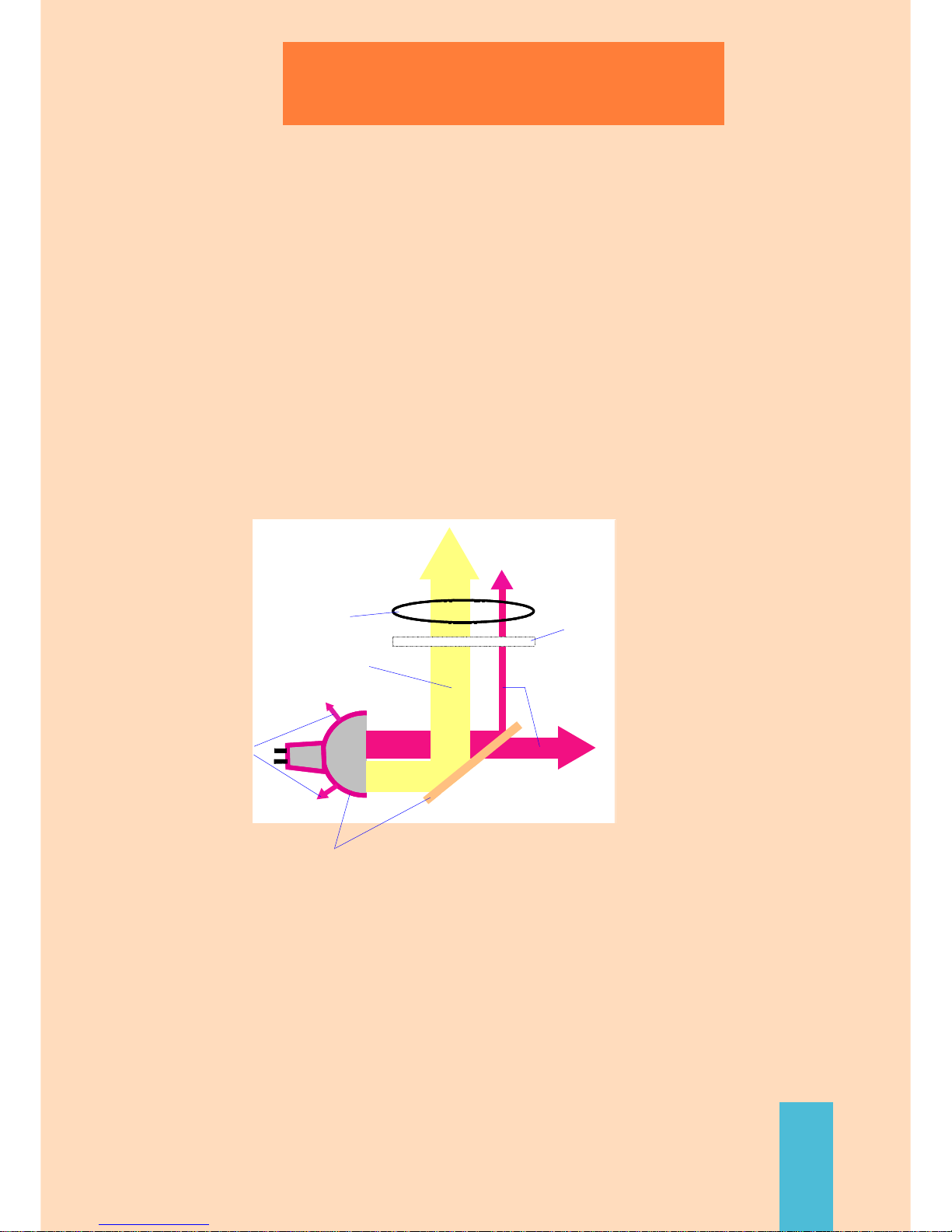

n How it works

All current Kodak Slide Projectors are equipped with the Extra Bright Lamp Module offering
30% more light than compared to former models:

Ö more light
Ö more brillant colors
Ö higher contrast
Ö better legibility

Cold Light Mirror

IR Light

IR Light

Visible Light

Condenser

Removed
Heatfilter

According to a new cold light mirror the biggest part of the IR (heat) light
will be absorbed and not reflected. Therefore the heatfilter could be re­moved (see illustration). This system is unique to Kodak.

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

15

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Extra Bright Lamp Module

Lumen Output/ Compatibility

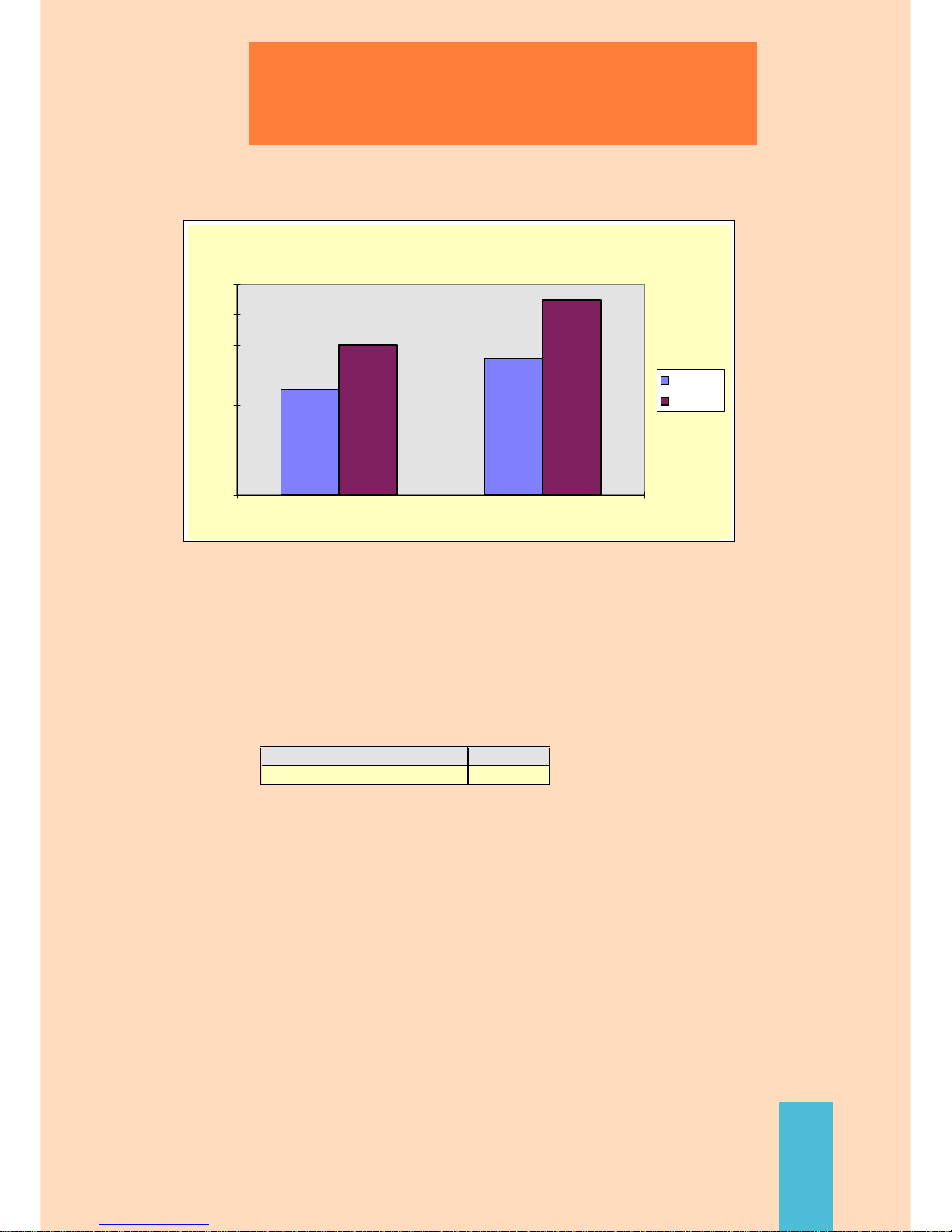

n Lumen output for standard and economy setting

/XPH Q2XWSXW

0

200

400

600

800

1000

1200

1400

Standard Extra Bright

Economy
Standard

n Upgrade

All former Ektalite Projectors can be upgraded with the Extra Bright Lamp Module:

([WUD%ULJKW/DPS0RGXOHV &$712

Ektalite 816 7181

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

16

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

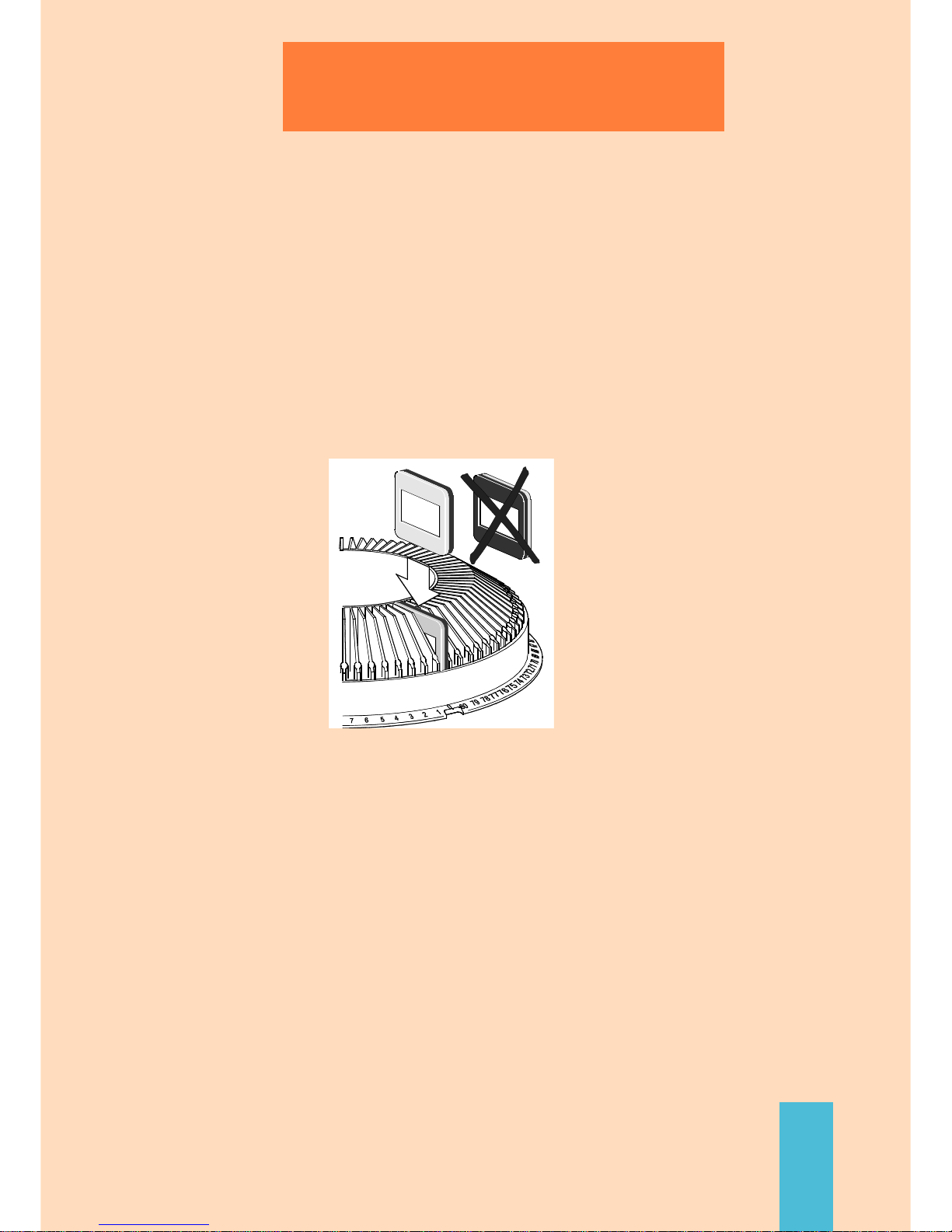

Extra Bright Lamp Module

Safety Precautions

√ Do not use a lamp type EXW/15 h for the projector (higher temperature - lamp not

available from Kodak).

√ Consider the room temperature! It may not exceed 35 degrees C!

If these hints are not considered, mounts may deform!

According to a temperature increase in the slide gate which, therefore, needs more careful
handling when using slides, mounts and lamps.

With the higher light output of the Extra Bright Lamp Module the temperature in the slide gate rises.
To enable a smooth operation following hints should be considered:

√ Use only light respectively light gray slide mounts (e.g.

Wess slide mounts). Slide mounts with only one dark side or
black side have to be sorted in respectively, mounted with the
side facing the lamp. Please pay special attention when sorting
your slide mounts in rear projections:

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

17

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

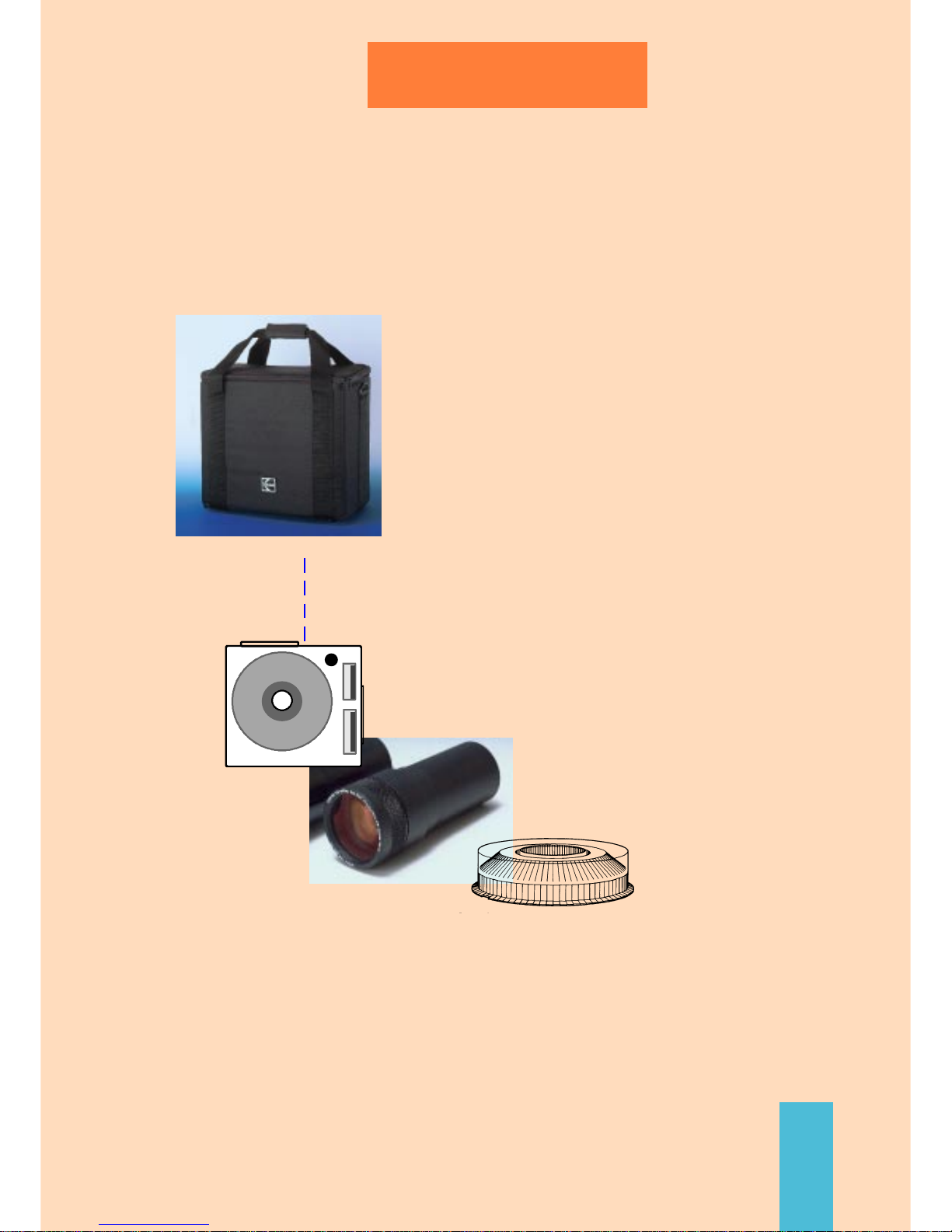

Carrying Case

n Less Weight
n Flexible
n Soft Case

To take projector, lens and tray

CAT No 162 5136

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

18

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

max 1.5 mm

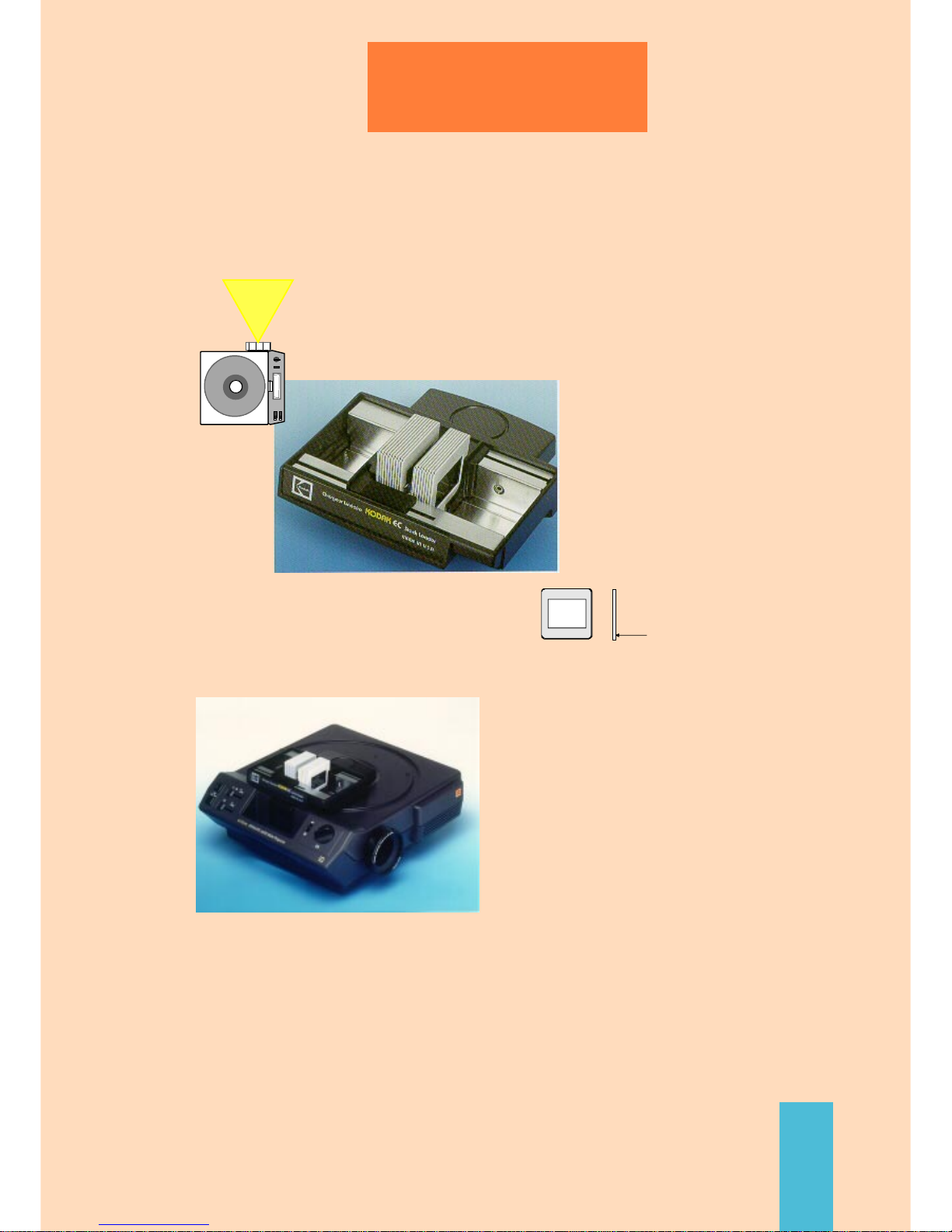

Stackloader

General

EKTALITE models

For a quick inspection of a stack of slides without the need to arrange them beforehand in a tray.
A stack of thin glassless slides is loaded directly in the Stack Loader. Use the transport forward
button to project the slides.

CAT No 151 4249

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

19

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

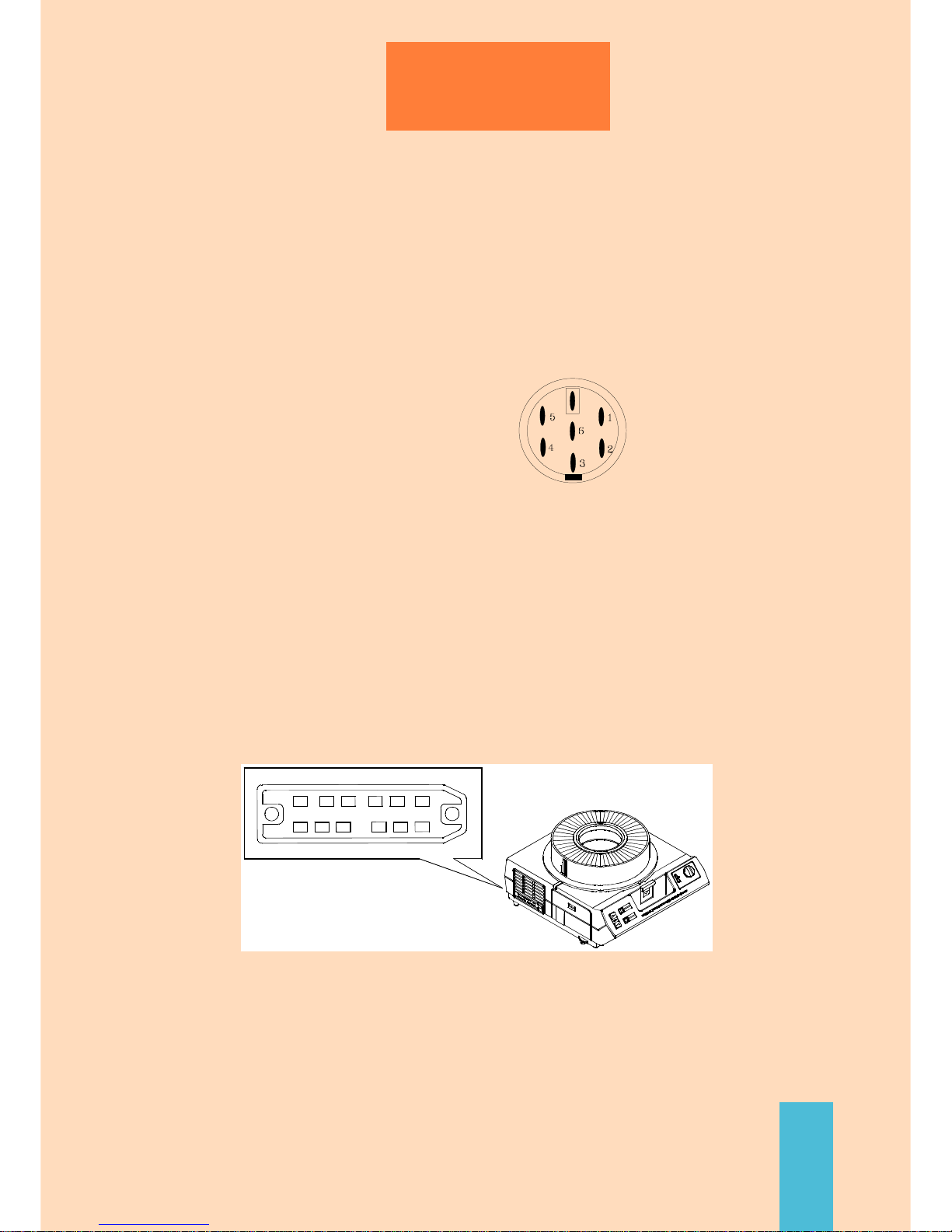

External Control

Hardware Controllers

n Hardware Controllers

EKTALITE

2000

Dissolve units (e.g. as
former Kodak PDC,
Stumpfl, Bässgen, ARION
etc) for 12 Pin Standard
(Addresses page 23 )

12 Pin Adaptor (Extension
Connector)
CAT No 861 9629

Note

Only necessary for all dissolvers with
external TRIAC adaptor! It is not al­lowed to plug such an adaptor unit di­rectly on top of the projector`s 12 pin
socket, as this could lead to a heat
build-up.

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

20

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Specification

Dimensions

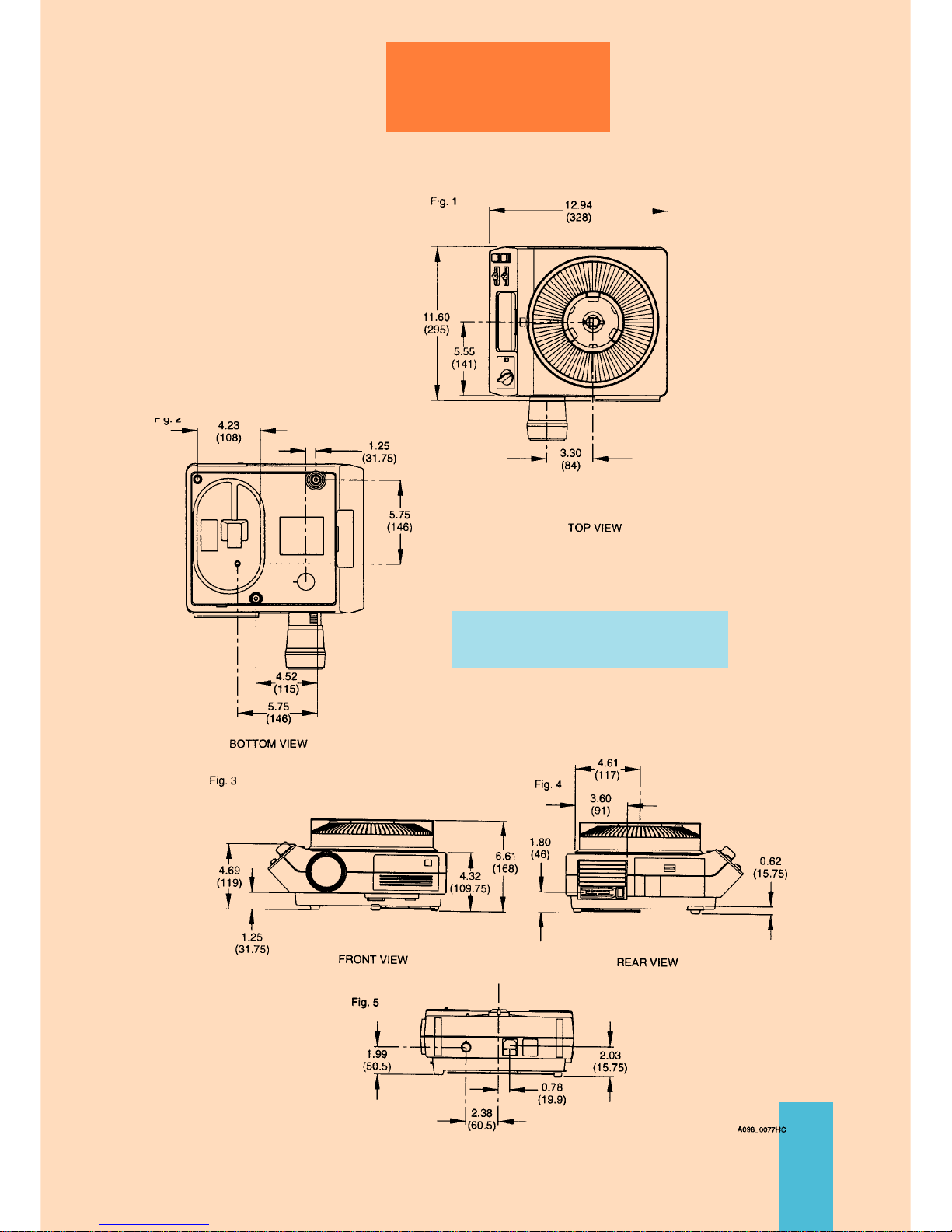

n Projector Measurements

Weight without tray: approx. 6700 g
Weight of tray without slides: 540 g

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

21

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Specification

Connectors

n 6-pin Standard Projector Socket (remote socket)

Pin 1 & 3 Slide Reverse
Pin 2 & 3 Slide Forward
Pin 3 Common (25.5 V ac)
Pin 4 Focus motor (Lens in) when connecting Pins 5 & 6, and

Pins 4 & 3

Pin 5 Focus motor (Lens out) when connecting Pins 5 & 6, and

Pins 4 & 3

Pin 6 & 3 25.5 volts ac 500 mA

*a1 & b4 AC Power Supply 25.5 VAC 500 mA
a2 Not used
a3 & a4 For external lamp dissolve
*a5 & b4 DC Power Supply, 20 VDC

Pulsating 500 mA
a6 & b1 Gate slide sensing shutter switch
b3 & b4 Forward slide change
b5 & b6 Zero position switch

*The combined total AC and DC current draw from the projector must not exceed
500 mA.

n 12 Pin DIN Socket

a

b

6

1

2

4

5

3

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

22

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

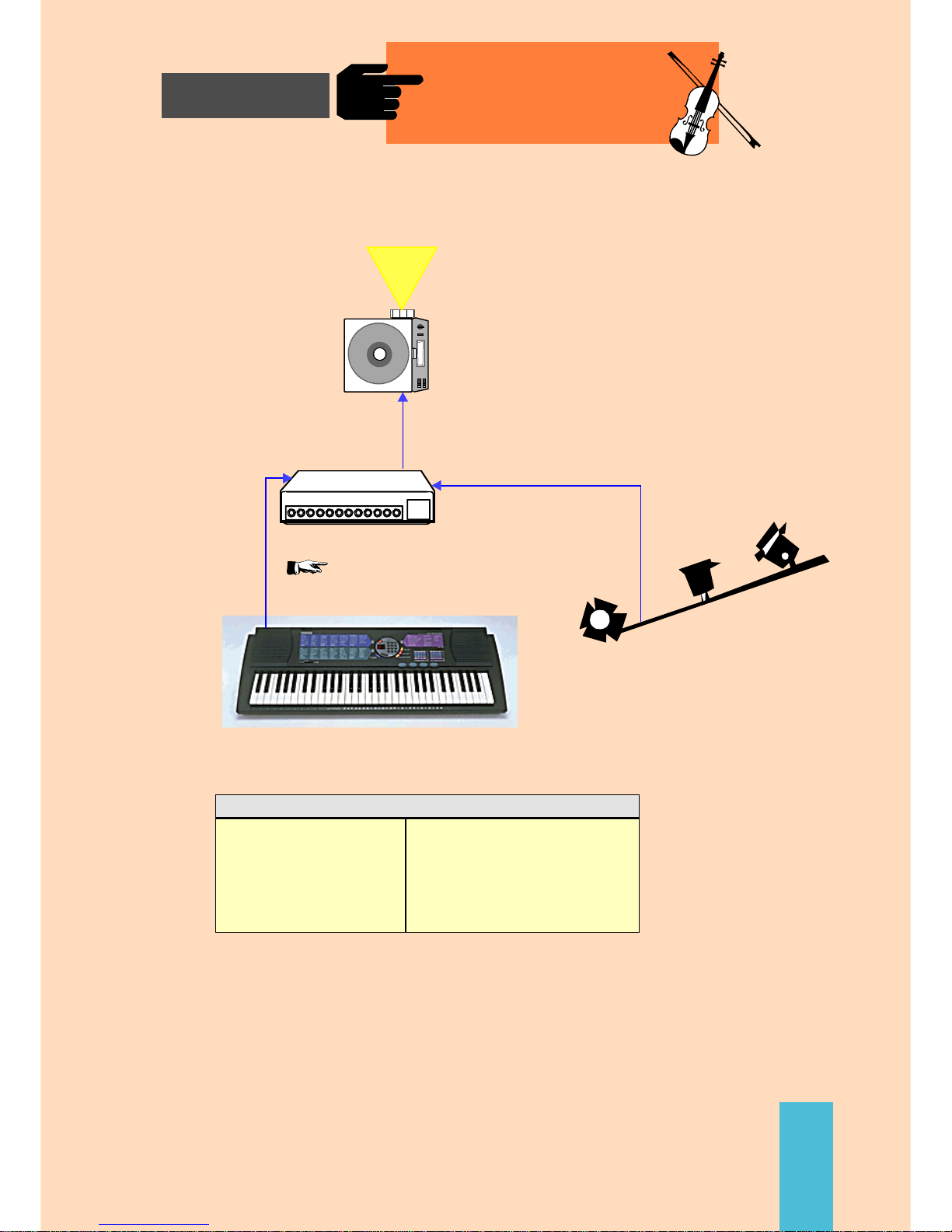

Music-Stages

(Performance)

Applications

EKTALITE

2000

n

Control via MIDI

Use of slides on stage by musicians, artists

Interface (e.g. Schubert
(

Addresses page 24)

Keyboard with MIDI Interface

A n al o gy between m u s i c and sl i d e seq u en c es

Music Image

Note is sent Slide t ransport will be execut ed
Sound level is increasing Slide is f ading up
Sound level stays const ant Freeze
Sudden sound level changeFlash
Sound level is decreasin

g

Slide is f ading dow n

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

23

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Addresses

Company Street City

Country

Phone/FAX/WEB

Project or Cont rol S yst e ms - Ha rdware

ARION 701 South 7th Str. Delano, MN 55328 USA [phone] 3351

F: [phone] 3524
www.arion-usa.com/

AV L 50 Barnes Park Nort h Wallingf ord, CT

06492

USA [phone]-8410

F: [phone]-8414
www.usa.net/icia/avl

Bässgen Hauptstraße 58 79104 Freiburg Germany (0049) 761 23953

F: (0049) 761 35042
www.dia.de/

Dataton Box 257 S-581 02 Linköping Sweden [phone]

F: [phone]
www.dataton.se/

Electrosonic Haw ley M ill Haw ley RdDart f o rd Kent DA 2

7SY

England (0044)-1322 282317

F: (0044)-1322 282215
www.electrosonic.co.uk

HEP Road 3005 EC Rotterdam The

Netherlands

(0031) 10 418 3689

Müwo 72379 Hechingen-

Stetten

Germany (0049) 7471 15830

RMF 12 75 Paramount

PKW

Batavia, IL 60510 USA [phone] 0020

F:

(

001) 708 879 6749

Stumpfl Rudigierstr. 8 A-4701 Bad

Schallerbach

Aust ria (0043) 7249 42811

F: (0043) 7249 42811

18 www.stumpfl.com/
Zygo
S

y

st . Ltd.

48 Fallow f ields Bicest er Oxon

OX6 7Qs

England (0044) 869 248261

F: [phone] 260

Softw are (Direct PC Control)

ARION 701 South 7th Str. Delano, MN 55328 USA [phone] 3351

F: [phone] 3524

www.arion-usa.com/
COMM­TEC

Siemensstr. 22 73066 Uhingen Germany [phone] 0 F:

(

0049)7161 3000 11

M-Objects Auf dem Berg 7 59387 Ascheberg Germany [phone] 88

F:[phone] 89

www.mob

j

ects.com/

P. Ziegler Van Gogh Platz 6 53844 Troisdorf Germany [phone] 217

F:[phone] 218

home.t-

online.de/home/zie

g

ler.av
Kodak
Taiw an Ltd .

35 , Chung Yang S,
Rd.

,

Sec. 2

,

Pei Tou, Taipei Taiw an (0088) 6 2 2893 8178

F:

(

0088) 6 2 2893

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

24

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Addresses

Company Street City Country Phone/FAX/WEB

Other Accessory (e.g. Sl ide Synchr onizer)

AVSZ Tarweakker 63 2723 TB Zoetermeer The

Netherlands

(0031) 79 341 43 46
F: [phone] 687

Müw o In den

Maltwies en 11

72379 Hechingen­Stetten

Germany (0049) 7471 15830

Zeller W etts teinallee 154058 Bas el Switz erland [phone]

F: [phone]

DMX 516 Theatre Controller

AVAB Salsmästa-

regatan 32

422 46 Hisings
Backa

Sweden [phone] 00

F. (0046) 31-582 999
www.avab.s e

Midi Con trolle r

Sc hubert Römerstr.29 52064 Aac hen Germany

(0049) 241 35 439
F:[phone] 961

1000 Hz Tape Decks

ARION

701 South 7t h
Street

Delano, MN 55328 US A

[phone] 3351
F:[phone] 3534
www.arion-usa.com

3-Track Tape D ecks

Califone Superior S treet

Chatsw orth
CA 91311

USA

[phone] 0500
www.califone.com

Yam aha 6600

Orangethorpe
Avenue

Buena P ark,
CA 90620

USA [phone] 9011

www.yam aha.com

Fostex

15431 Black burn
Avenue

Norwalk, CA 90650 USA

[phone]-1112
F. [phone]-1964
www.fostex .com

Gebuhr Imhoffstr. 4 90429 Nuernberg Germany [phone] 304

F:[phone] 738

Tascam 7733 Telegraph

Rd.

Mont ebello, Ca
90640

USA [phone]-0303

F:[phone] 7635
www.tasc am.c om

Single Projector dissolve

Entré 2184 S E 53rd

Avenue

Hillsboro OR 97123
7800

USA [phone] 4641

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

25

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Addresses

Company Street City Country Phone/FAX/WEB

Racks

Baumann Hauptstraße 58 79104 Freiburg Germany (0049) 761 23953 F:

(

0049) 761 35042

Chief 14310 Ew ing

Av enue

South Burnsville,
MN 55337

USA [phone]-6280

F:

(

001) 612 894-

Roha Bruno Jacoby

We

g

11

70597 Stuttgart Germany (0049) 711 723621

Project ion Lenses

Buhl 1009 Beech

Avenue

Pit t sburgh, PA
15233

USA [phone]-0076

F:

(

001) 412 322

Doct er Industriegebiet 35641

Schoffengrund

Germany [phone] 0

F:[phone]
165

Isco Robert Bosch

Bre i te 10

37013 Goettingen Germany [phone] 3

F: [phone]
410

Navitar 200 Commerce

Drv

Ro ch e s t er, N Y
14623

USA [phone] 4000

F:[phone]
4999

Project ion Scre ens

Da-Lite 3100 N. Detroit

Str

Warsaw, IN 46581
0137

USA [phone] 5101

F:[phone]
5101 www .da-

Stumpfl Rudigierstr. 8 A-4701 Bad

Schallerbach

Aust ria (0043) 7249 42811

F: (0043) 7249
42811 4

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

26

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Addresses

Company Street City Country Phone/FAX/WEB

Slide Recorders

Agfa Septest raat 27 B-2640 Mortsel Belgium

(0032) -3-4442111
F: (0032) - 3-444 7094
www.a

g

fa.com

Lasergraphics 20 Ada Irvine, CA 92718 USA

[phone]-8282
F: (001)[phone]
www.laser

g

raphics.com

Management
Graphics,

1401 E. 79th Street

Minneapolis, MN
55425

USA

[phone]-1220
F: [phone]-6159
www.m

g

i.com

Mirus

3350 Scott
Boulevard, Bldg. 48

Santa Clar a, CA
95054

USA

[phone]-660
F. [phone]-6601
www.mirus.com

Polaroid 549 Technology

S

q

uare

Cambridge, MA
02139

USA (001)[phone]

www.polaroid.com

Ot her Places of Int erest

Gavi 33 3 West M errik RD Valley St ream, NY

11580

USA F:[phone] 2057

Jobo Koelnerstr. 58 51645

Gummersbach

Germany (0049) 2261 54525

F:(0049) 2261 54542
www.

j

obo.com

Leica Saarbrueckenerstr.

263

38116
Braunschweig

Germany [phone] 479

F:[phone] 489
www.leica-camera.com

Pacon 106 Baker Techn.

Plaza 6121 Baker
Road

Minnet onka, M N
55345

USA [phone] 9500

F:[phone] 9509
www.pakon.com

Telex 9600 Aldrich Ave

Sou

g

h

Minneapolis, MN
55420

USA F: [phone] 5588

www.telex.com

Slide Mounts

Alfi P.O.B 10 20 47 86010 Augsburg Germany (0049)-821-80867-0

F:

(

0049)-821-80867-40

Geimuplast P.O.B 1364 82453 Garmisch-

Partenkirchen

Germany [phone]

F:

(

0049) 8821 685100

GEPE Baarerstr. 43 6304 Zug Sw itzer-

land

(0041) 41 711 7588
F:

(

oo41) 41 711 2870

Wess 70 Commerce Drive Hauppage, NY

11788

USA F:[phone] 0608

www.wesspl.com

Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors

27

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Epro.pm6.5

Editorial

The Quick Reference was created and published by Kodak AG, Germany. In case of any ques­tions, requests, useful ideas, please get in direct contact with Kodak. The address is:

Kodak AG
PT CMS
Hedelfingerstr. 60
70327 Stuttgart
Germany
Phone: int [phone]
Fax: int + 711 406 5367
E-mail: [e-mail]

Stuttgart, July 1998
