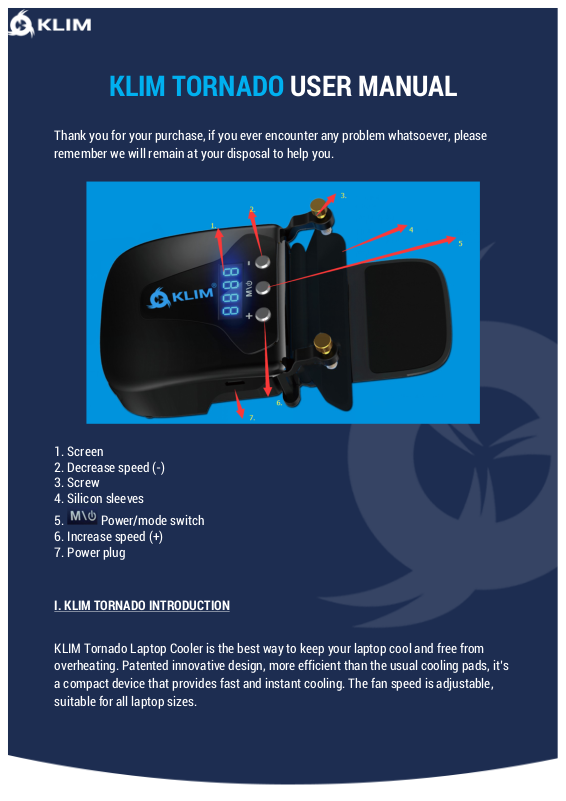

KLIM TORNADO USER MANUAL
Thank you for your purchase, if you ever encounter any problem whatsoever, please
remember we will remain at your disposal to help you.
1. Screen
2. Decrease speed (-)
3. Screw
4. Silicon sleeves
5. Power/mode switch
6. Increase speed (+)
7. Power plug
I. KLIM TORNADO INTRODUCTION
KLIM Tornado Laptop Cooler is the best way to keep your laptop cool and free from
overheating. Patented innovative design, more efficient than the usual cooling pads, it’s
a compact device that provides fast and instant cooling. The fan speed is adjustable,
suitable for all laptop sizes.
!
II. KLIM TORNADO SPECIFICATIONS
Material: ABS+ aluminum
Dimensions:100mm x 75mm x 41mm
Weight: 160gr
Power: DC 5V
Max airflow: 21.35CFM
Fan speed: 4500±10%RPM(5V)
Current: 0.47±10%A
Power input: 2.35W
Color: black
III. USAGE
1. Take out the KLIM Tornado, the silicon sleeves as well as the USB micro cable.
2. Select the suitable silicon sleeve to fit the air outlet of your laptop. Using a silicon
sleeve is not mandatory but it improves the KLIM Tornado‘s efficiency. Even if the
sleeve doesn’t fit perfectly, thanks to the suction effect the Tornado will still
remain effective.
3. Tear the 3m tape, place the KLIM Tornado besides the air outlet, adjust the screw
making them connect closely. The screws are a creative way to keep the laptop
cooler firmly attached, enabling it to move or hang in the air - perfect if you move
your laptop around for work or gaming.
4. After completing the installation, connect the USB micro cable (5V USB cable) to
the laptop.
5. Briefly press the button on the laptop cooler and release it to turn the KLIM
Tornado on.
!
IV. MANUAL MODE
On the first boot, the system starts in manual mode, you can briefly press (+) and (-)
buttons to increase or decrease the fan speed.
If you are in manual mode and wish to switch to automatic mode, press for 3
seconds.
V. AUTOMATIC MODE
On the first boot, the system starts in manual mode.
If you are in manual mode and wish to switch to automatic mode, press for 3
seconds.
The system automatically detects if the laptop is overheating. This triggers the fan. The
speed of the fan will depend on how bad the overheating is, the cooler will keep
increasing the speed to bring back to laptop to a reasonable temperature.
If this is not enough for you, you can switch to the manual mode.
VI. KLIM TORNADO DISPLAY
KLIM Tornado displays temperature and fan speed in real-time.
--
We would like to thank you, in the name of the entire team here at KLIM, for having
purchased the KLIM Tornado and we hope it will live up to your expectations!
Don’t hesitate to leave us a comment on the website you purchased it from, it really
helps us tremendously!
KLIM Team
