FOREWORD

Dear Customer,

Thank you for selecting your new Kia vehicle.

As a global car manufacturer focused on building high-quality vehicles with excep tional value, Kia Motors is dedicated to providing you with a customer service experi ence that exceeds your expectations.

If technical assistance is needed on your vehicle, authorized Kia dealerships can pro vide you with factory-trained technicians, recommended special tools, and genuine Kia replacement parts.

This Owner's Manual will acquaint you with the operation of features and equipment that are either standard or optional on this vehicle, along with the maintenance needs of this vehicle. Therefore, you may find some descriptions and illustrations not applicable to your vehicle. You are advised to read this publication carefully and follow the instructions and recommendations. Please always keep this manual in the vehicle for your, and any subsequent owner's, reference.

All information contained in this Owner's Manual was accurate at the time of publica tion. However, as Kia continues to make improvements to its products, the company reserves the right to make changes to this manual or any of its vehicles at any time without notice and without incurring any obligations.

Please drive safely, and enjoy your Kia vehicle!

󳚔 2020 KIA MOTORS AMERICA, Inc.

Printed in U.S.A.

Page 4

Page 5

How to use this manual

WARNING

CAUTION

NOTICE

We want to help you get the great est possible driving pleasure from your vehicle. Your Owner's Manual can assist you in many ways.

We strongly recommend that you read the entire manual. In order to minimize the chance of death or injury, you must read the WARNING and CAUTION sections in the man ual.

Illustrations complement the words in this manual to best explain how to enjoy your vehicle. By reading your manual, you learn about fea tures, important safety information, and driving tips under various road conditions.

The general layout of the manual is provided in the Table of Contents. Use the index when looking for a specific area or subject, it has an alphabetical listing of all information in your manual.

Chapters: This manual has nine chapters plus an index. Each chapter begins with a brief list of contents so you can tell at a glance if that chapter has the information you want.

You will find various WARNINGs, CAUTIONs, and NOTICEs in this man ual. These WARNINGs were pre pared to enhance your personal safety. You should carefully read and follow ALL procedures and rec ommendations provided in these WARNINGs, CAUTIONs and NOTICEs.

A WARNING indicates a situation in which harm, serious bodily injury or death could result if the warning is ignored.

A CAUTION indicates a situation in which damage to your vehicle could result if the caution is ignored.

A NOTICE indicates interesting or helpful information is being pro vided.

Page 6

Page 7

Table of Contents

Your vehicle at a glance

Safety features of your vehicle

Features of your vehicle

What to do in an emergency

Introduction

Driving your vehicle

Maintenance

Specifications & Consumer information

Abbreviation

Index

Page 8

Page 9

Introduction

Fuel requirements .................................................................... 1-2

Vehicle modifications ............................................................... 1-5

Vehicle break-in process ......................................................... 1-5

Vehicle data collection and Event Data Recorders.............. 1-6

1Introduction

Page 10

Introduction

WARNING

Fuel requirements

Introduction

Fuel requirements

Your new vehicle is designed to use only unleaded fuel having a pump octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol blended fuels.)

Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.

Never add any fuel system cleaning agents to the fuel tank other than what has been specified. (Consult an authorized Kia dealer for details.) 䳜 Tighten the cap until it clicks one

time, otherwise the Check Engine

light will illuminate.

Refueling

䳜 Do not "top off" after the nozzle

automatically shuts off. Attempts to force more fuel into the tank can cause fuel overflow onto you and the ground, causing a risk of fire.

䳜 Always check that the fuel cap is

installed securely to prevent fuel spillage, especially in the event of an accident.

Gasoline containing alcohol and methanol

Gasohol, a mixture of gasoline and ethanol (also known as grain alco hol), and gasoline or gasohol con

taining methanol (also known as wood alcohol) are being marketed along with or instead of leaded or unleaded gasoline.

Pursuant to Environmental Protec

tion Agency (EPA) regulations, etha nol may be used in your vehicle.

Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Ethanol provides less energy than gasoline and attracts water. Thus, it is likely to reduce your fuel efficiency and could lower your MPG results.

Methanol may cause drivability problems and damage to the fuel system, engine control system and emission control system.

Discontinue using gasohol of any kind if drivability problems occur.

Vehicle damage or drivability prob

lems may not be covered by the manufacturer's warranty if they result from the use of:

1. Gasoline or gasohol containing methanol.

2. Leaded fuel or leaded gasohol.

3. Gasohol containing more than 15% ethanol.

Page 11

Introduction Fuel requirements

NOTICE

"E85" fuel is an alternative fuel comprised of 85% ethanol and 15% gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. "E85" is not compatible with your vehicle. Use of "E85" may result in poor engine performance and damage to your vehicle's engine and fuel system. Kia recommends that customers do not use fuel with an ethanol content exceeding 15%.

Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance prob

lems caused by the use of "E85" fuel.

Never use any fuel containing meth anol. Discontinue use of any metha nol containing products which may inhibit proper drivability.

Other fuels

Using fuels that contain Silicone (Si), MMT (Manganese, Mn), Ferrocene (Fe), and Other metalic additives, may cause vehicle and engine dam

age or cause misfiring, poor acceler ation, engine stalling, catalyst melting, clogging, abnormal corro

sion, life cycle reduction, etc.

Also, the Malfunction Indicator Lamp (MIL) may illuminate.

Damage to the fuel system or per formance problems caused by the use of these other fuels may not be covered by your New Vehicle Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful manganese- based fuel additives Such as MMT (Methylcyclopentadie nyl Manganese Tricarbonyl). Kia does not recommend the use of gasoline containing MMT. This type of fuel can reduce vehicle perfor mance and affect your emission control system. The Malfunction Indicator Lamp (MIL) on the cluster

may come on.

Do not use methanol

Fuels containing methanol (wood alcohol) should not be used in your vehicle. This type of fuel can reduce vehicle performance and damage components of the fuel system, engine control system and emission control system.

Page 12

Introduction

Fuel requirements

Fuel Additives

Kia recommends that you use good quality gasolines treated with detergent additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the emission control system.

For more information on TOP TIER Detergent Gasoline, please go to the website (www.toptiergas.com) For customers who do not use TOP TIER Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, addi

tives that you can buy separately may be added to the gasoline.

If TOP TIER Detergent Gasoline is not available, one bottle of additive should be added to the fuel tank at every 7,500 miles (12,000 km) or every engine oil change is recom

mended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other addi

tives.

Operation in foreign countries

If you are going to drive your vehicle in another country, be sure to: 䳜 Observe all regulations regarding

registration and insurance.

䳜 Determine that acceptable fuel is

available.

Page 13

Introduction Vehicle modifications

Vehicle modifications

This vehicle should not be modified.

Modification of your vehicle could affect its performance, safety or durability and may even violate gov ernmental safety and emissions regulations. In addition, damage or performance problems resulting from any modification may not be covered under warranty. 䳜 If you use unauthorized electronic

devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire.

For your safety, do not use unau thorized electronic devices.

Vehicle break-in process

No special break-in period is needed. By following a few simple precau tions for the first 600 miles (1,000 km) you may add to the perfor

mance, economy and life of your vehicle.

䳜 Do not race the engine. 䳜 While driving, keep your engine

speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.

䳜 Do not maintain a single engine

speed for long periods of time, either fast or slow. Varying engine speeds is needed to prop erly break-in the engine.

䳜 Avoid hard stops, except in emer

gencies, to allow the brakes to seat properly.

䳜 Don't tow a trailer during the first

1,200 miles (2,000 km) of opera tion.

Page 14

Introduction

Vehicle data collection and Event Data Recorders

This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obsta cle, data that will assist in under standing how a vehicle's systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record data, such as: 䳜 How various systems in your

vehicle were operating;

䳜 Whether or not the driver and

passenger safety belts were buckled/ fastened;

䳜 How far (if at all) the driver was

depressing the accelerator and/or brake pedal; and,

䳜 How fast the vehicle was travel

ing.

These data can help provide a bet ter understanding of the circum stances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle, only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and

no personal data (e.g., name, gen der, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data rou tinely acquired during a crash inves tigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

Page 15

Your vehicle at a glance

Exterior overview...................................................................... 2-2

Interior overview....................................................................... 2-4

Instrument panel overview ..................................................... 2-6

Engine compartment ............................................................... 2-8

2Your vehicle at a glance

Page 16

Your vehicle at a glance

ODL3A010001

Your vehicle at a glance

Exterior overview

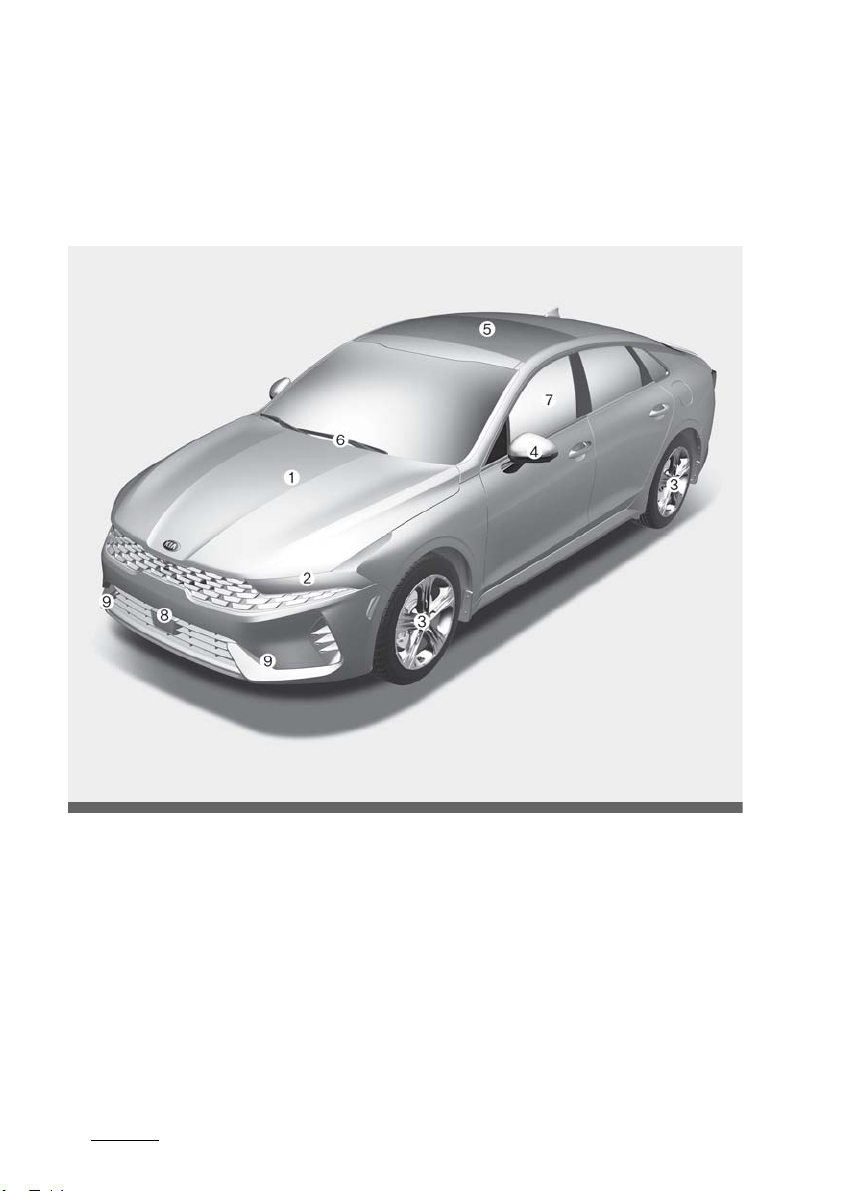

Front view

* The actual shape may differ from the illustration.

1. Hood 4-42

2. Head lamp 4-119, 7-61

3. Wheel and tire 8-5

4. Outside rear view mirror 4-72

5. Panorama sunroof 4-47

6. Front windshield wiper blades 4-119, 4-128

7. Windows 4-37

8. Front radar 5-73, 5-122, 5-150

9. Front fog lamp 4-119, 7-65

Page 17

Your vehicle at a glance Exterior overview

ODL3A010002

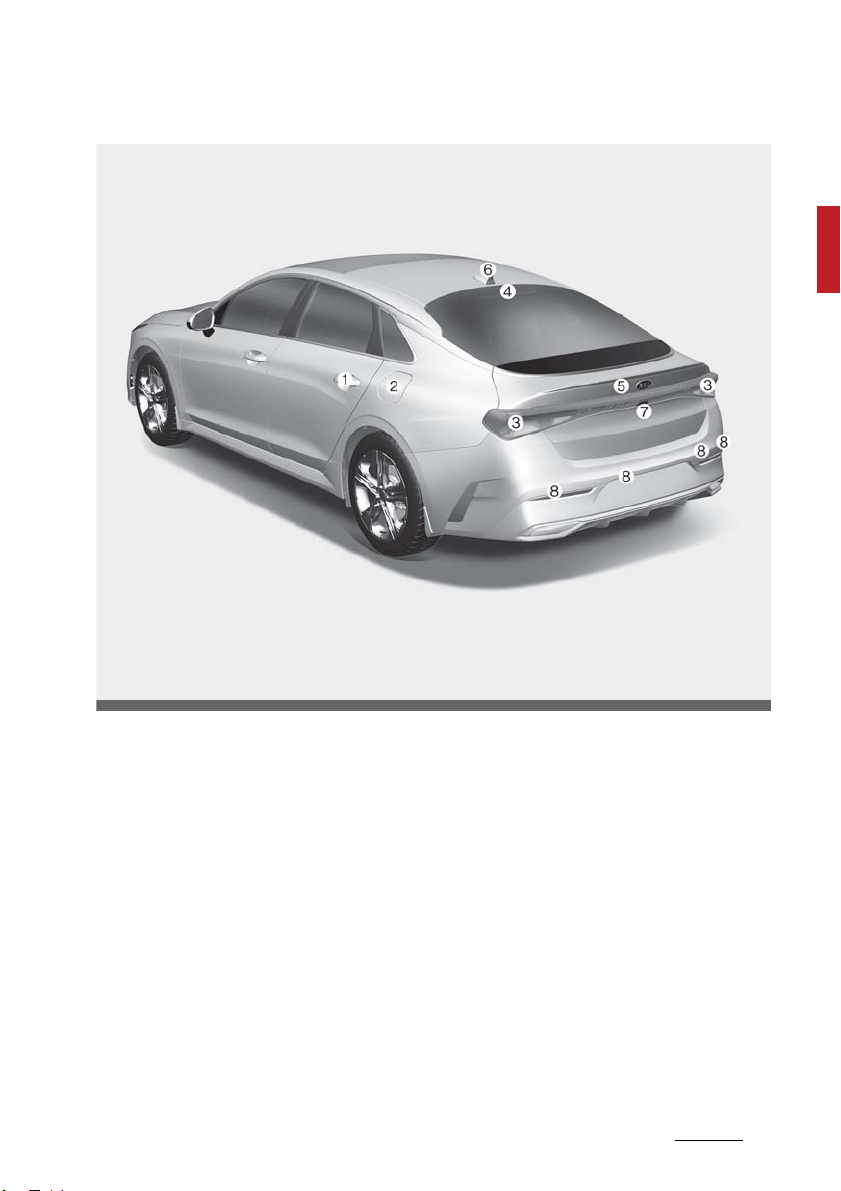

Rear view

* The actual shape may differ from the illustration.

1. Door locks 4-19

2. Fuel filler door 4-43

3. Rear combination lamp 7-66, 7-67

4. High mounted stop lamp 7-67

5. Trunk 4-30, 4-33

6. Antenna 4-168

7. Rear view camera 4-112, 5-168

8. Rear ultrasonic sensor 4-115, 5-168

Page 18

Your vehicle at a glance

ODL3A010003

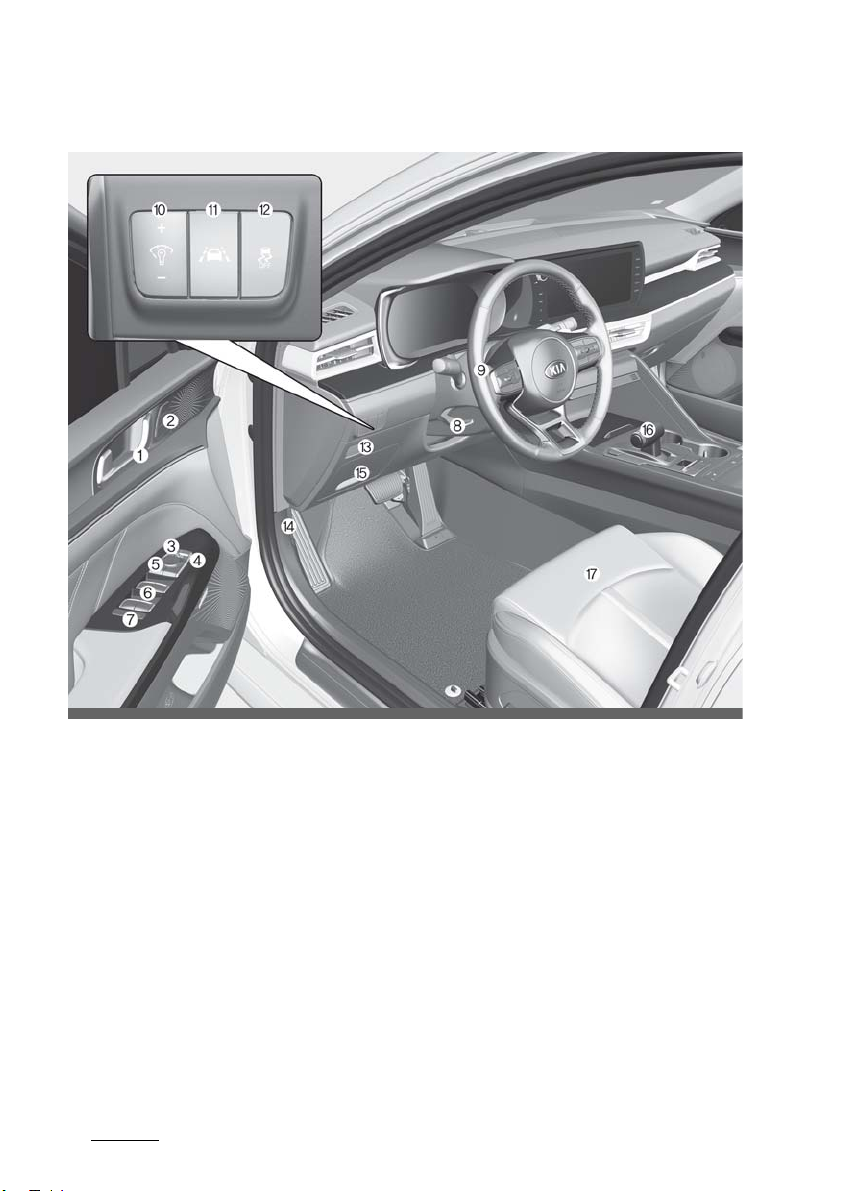

Interior overview

* The actual shape may differ from the illustration.

1. Inside door handle 4-19, 4-26

2. Seat position memory system 4-28

3. Outside rearview mirror folding switch 4-72

4. Outside rearview mirror control switch 4-72

5. Central door lock/unlock switch 4-22

6. Power window switches 4-37

7. Power window lock button 4-24 Electronic power child safety lock button 4-24

8. Steering wheel tilt/telescopic lever 4-56

9. Steering wheel 4-55

10.Instrument panel illumination control switch 4-76

11.Lane Safety button 5-88

12.ESC OFF button 5-28

Page 19

Your vehicle at a glance Interior overview

13.Trunk release button 4-30, 4-33

14.Hood release lever 4-42

15.Instrument panel fuse 7-46

16.Shift lever 5-34, 5-42

17.Seat 3-5

Page 20

Your vehicle at a glance

ODL3A010004

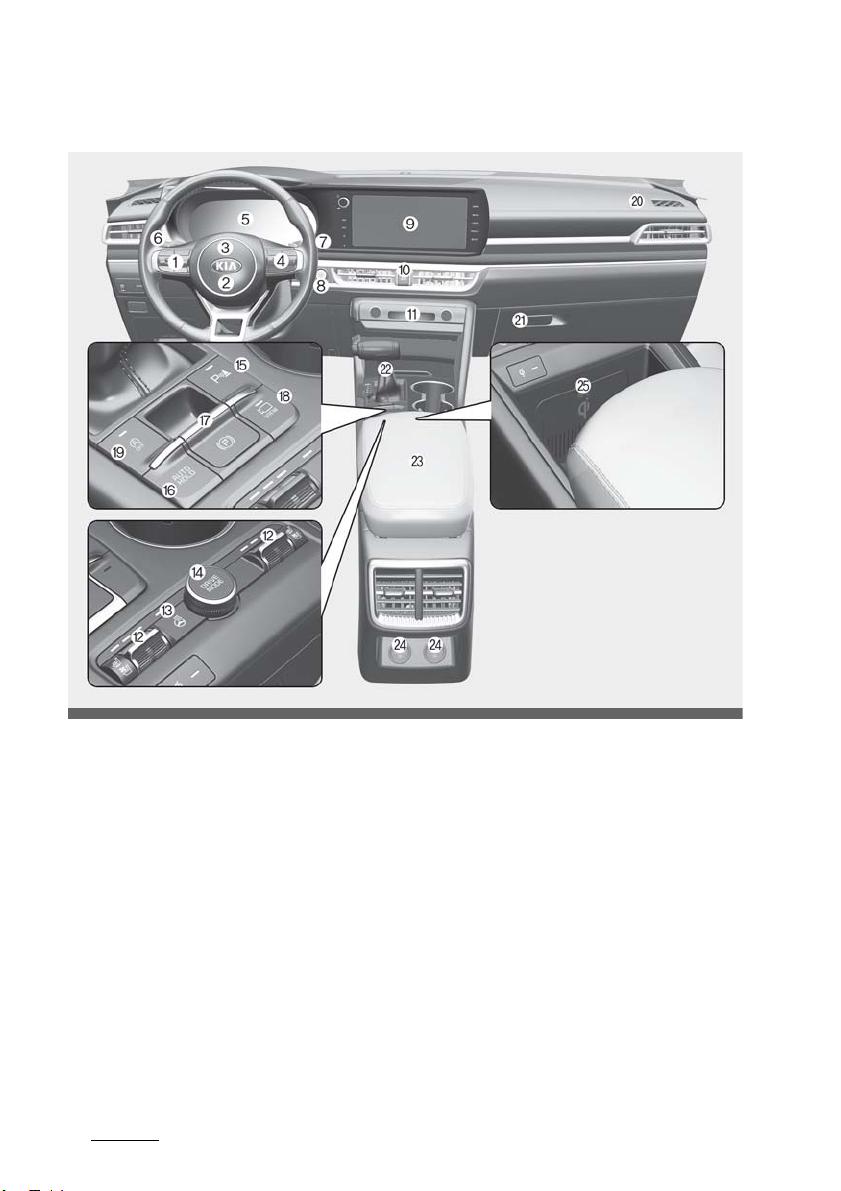

Instrument panel overview

* The actual shape may differ from the illustration.

1. Audio remote control button 4-168

2. Driver's front air bag 3-40

3. Horn 4-58

4. Driving Assist button 5-118, 5-122

5. Instrument cluster 4-74

6. Light control/Turn signals lever 4-119

7. Wiper and washer control lever 4-128

8. ENGINE START/STOP button 5-8, 5-10

9. Infotainment system 4-168

10.Hazard warning flasher switch 6-2

11.Climate control system 4-140

12.Front seat warmer and air ventilation seat button 4-157, 4-159

13.Steering wheel heater button 4-57

Page 21

Your vehicle at a glance Instrument panel overview

14.Drive mode integrated control system button 5-56

15.Parking Safety button 4-115

16.Auto Hold button 5-17

17.EPB switch 5-17

18.Parking/View button 4-112

19.ISG OFF Button 5-52

20.Passenger's air bag 3-40

21.Glove box 4-154

22.Shift lever 5-34, 5-42

23.Center console storage box 4-154

24.USB charger 4-160

25.Wireless charging system 4-163

Page 22

Your vehicle at a glance

ODL3A070003

ODL3A070107

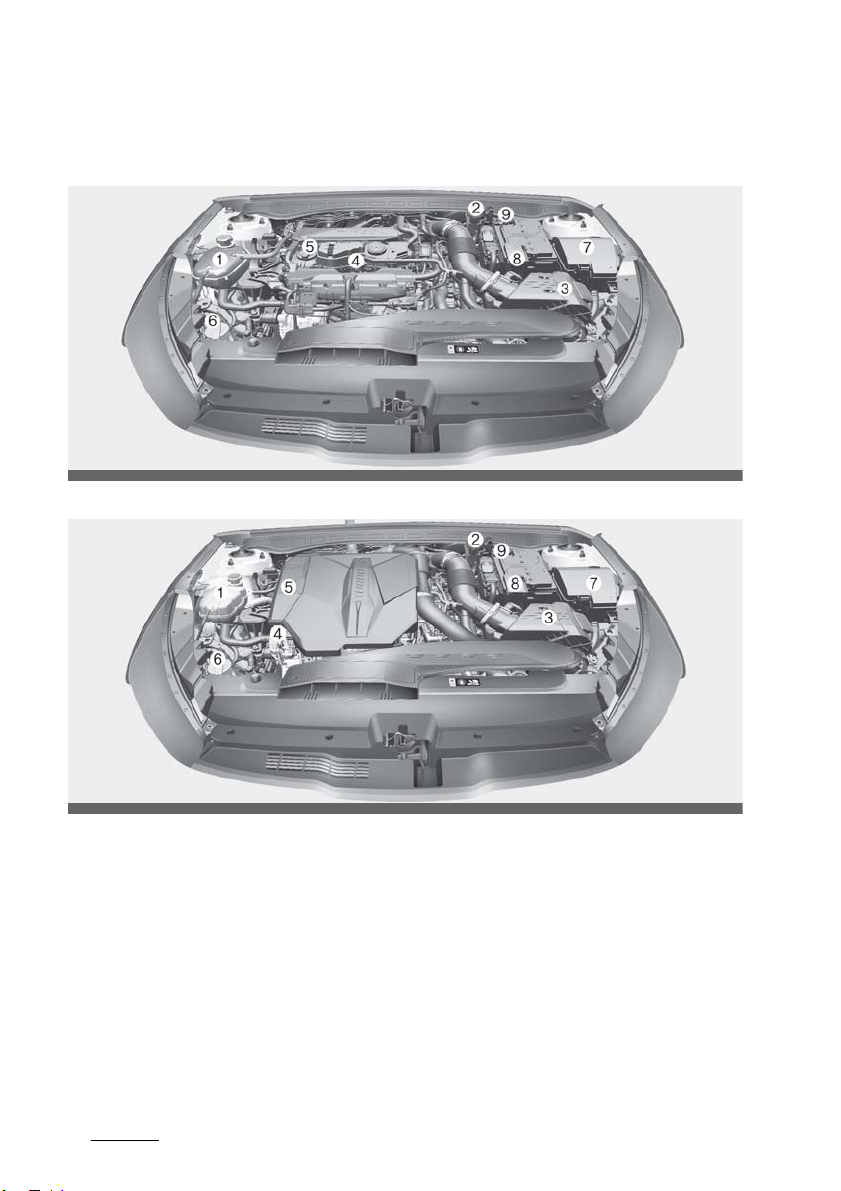

Engine compartment

Smartstream G1.6 T-GDi

Smartstream G2.5 T-GDi

* The actual engine room in the vehicle may differ from the illustration.

1. Engine coolant reservoir 7-19

2. Brake fluid reservoir 7-22

3. Air cleaner 7-25

4. Engine oil dipstick 7-17

5. Engine oil filler cap 7-17

6. Windshield washer fluid reservoir 7-24

7. Fuse box 7-46

8. Positive battery terminal 7-46

9. Negative battery terminal 7-46

Page 23

Safety features of your vehicle

Important safety precautions ................................................ 3-3

Seat ............................................................................................. 3-5

䳜 Feature of Seat Leather........................................................ 3-8

䳜 Front seat adjustment for manual seat ............................ 3-8

䳜 Front seat adjustment for power seat ............................3-10

䳜 Headrest for front seat....................................................... 3-11

䳜 Seatback pocket ...................................................................3-14

䳜 Rear seat adjustment.......................................................... 3-14

Seat belts ................................................................................. 3-18

䳜 Seat belt restraint system .................................................3-18

䳜 Seat belt warning .................................................................3-20

䳜 Seat belt - Driver's 3-point system with emergency

locking retractor ................................................................... 3-21

䳜 Seat belts - Front passenger and rear seat 3-point

system with combination locking retractor.....................3-23

䳜 Pre-tensioner seat belt....................................................... 3-25

䳜 Seat belt precautions........................................................... 3-27

䳜 Care of seat belts ................................................................. 3-29

Child Restraint System (CRS) ...............................................3-30

䳜 Children always in the rear................................................. 3-30

䳜 Selecting a CRS .....................................................................3-32

䳜 Installing a CRS......................................................................3-34

Air bag - Advanced Supplemental Restraint System....... 3-40

䳜 How does the air bag system operate? ...........................3-41

䳜 Air bag warning light............................................................3-43

䳜 Supplemental Restraint System (SRS) components

and functions......................................................................... 3-44

䳜 Occupant Detection System (ODS).................................... 3-47

䳜 Driver's and passenger's front air bag.............................. 3-54

3Safety features of your vehicle

Page 24

3 Safety features of your vehicle

䳜 Side air bag ............................................................................3-56

䳜 Curtain air bag.......................................................................3-58

䳜 Air bag collision sensors ......................................................3-60

䳜 Why didn't my air bag go off in a collision? (Inflation

and non-inflation conditions of the air bag) ....................3-61

䳜 Supplemental Restraint System (SRS) care ....................3-64

䳜 Additional safety precautions ............................................3-65

䳜 Adding equipment to or modifying your air bag-

equipped vehicle....................................................................3-66

䳜 Air bag warning label ...........................................................3-67

Page 25

Safety features of your vehicle Important safety precautions

Safety features of your vehicle

For the safety of the driver and vehicle passengers, you should become familiar with the vehicle's safety features.

Important safety precautions

You will find many safety precau tions and recommendations throughout this section, and throughout this manual.

The safety precautions in this sec tion are among the most important.

Always wear your seat belt

A seat belt is your best protection in all types of accidents. Air bags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with air bags, ALWAYS make sure you and your passengers wear your seat belts, and wear them properly.

Air bag hazards

While air bags can save lives, they can also cause serious or fatal inju

ries to occupants who sit too close to them, or who are not properly restrained. Infants, young children, and shorter adults are at the great est risk of being injured by an inflat ing air bag. Follow all instructions and warnings in this manual.

Driver distraction

Driver distraction presents a serious and potentially deadly danger, espe cially for inexperienced drivers. Safety should be the first concern when behind the wheel and drivers need to be aware of the wide array of potential distractions, such as drowsiness, reaching for objects, eating, personal grooming, other passengers, and using cellular phones.

Restrain all children

All children under age 13 should ride in your vehicle properly restrained in a rear seat, not the front seat. Infants and small children should be restrained in an appropriate child restraint. Larger children should use a booster seat with the lap/shoulder belt until they can use the seat belt properly without a booster seat.

Drivers can become distracted when they take their eyes and attention off the road or their hands off the wheel to focus on activities other than driving. To reduce your risk of distraction or getting into an acci

dent: 䳜 ALWAYS set up your mobile

devices (i.e., MP3 players, phones, navigation units, etc.) when your vehicle is parked or safely stopped.

Page 26

Safety features of your vehicle

䳜 ONLY use your mobile device

when allowed by laws and when conditions permit safe use. NEVER text or email while driving. Most states have laws prohibiting drivers from texting. Some states and cities also prohibit drivers from using handheld phones.

䳜 NEVER let the use of a mobile

device distract you from driving. You have a responsibility to your passengers and others on the road to always drive safely, with your hands on the wheel as well as your eyes and attention on the road.

Control your speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current driv

ing conditions, regardless of the maximum speed posted.

Important safety precautions

Keep your vehicle in safe condition

Having a tire blowout or a mechani

cal failure can be extremely hazard ous. To reduce the possibility of such problems, check your tire pres sures and conditions frequently, and perform all regularly scheduled maintenance.

Page 27

Safety features of your vehicle Seat

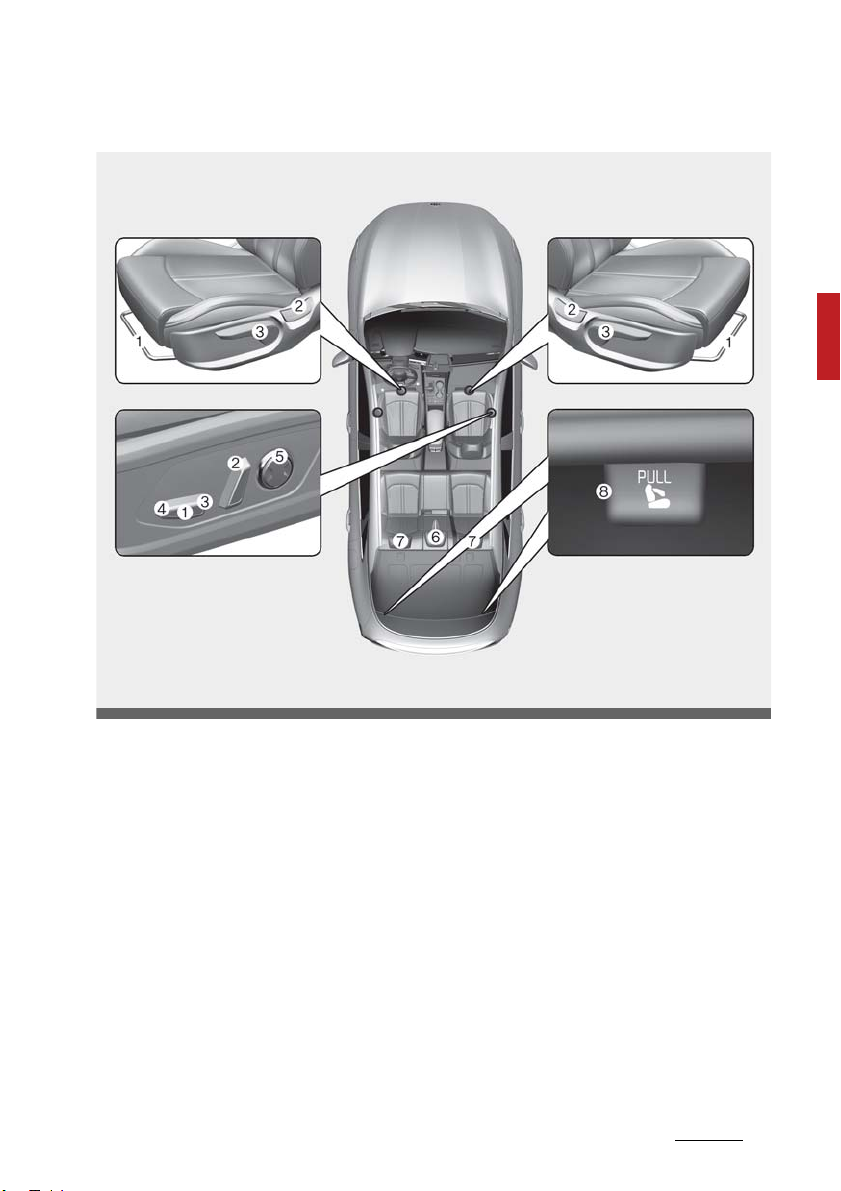

ODL3A030001

Seat

* The actual feature in the vehicle may differ from the illustration.

Driver's seat

1. Forward and backward

2. Seatback angle

3. Seat cushion height

Rear seats

6. Armrest

7. Headrest

8. Seatback folding

4. Seat cushion tilt

5. Lumbar support

Front passenger's seat

1. Forward and backward

2. Seatback angle

3. Seat cushion height

4. Seat cushion tilt

5. Lumbar support

Page 28

Safety features of your vehicle

WARNING

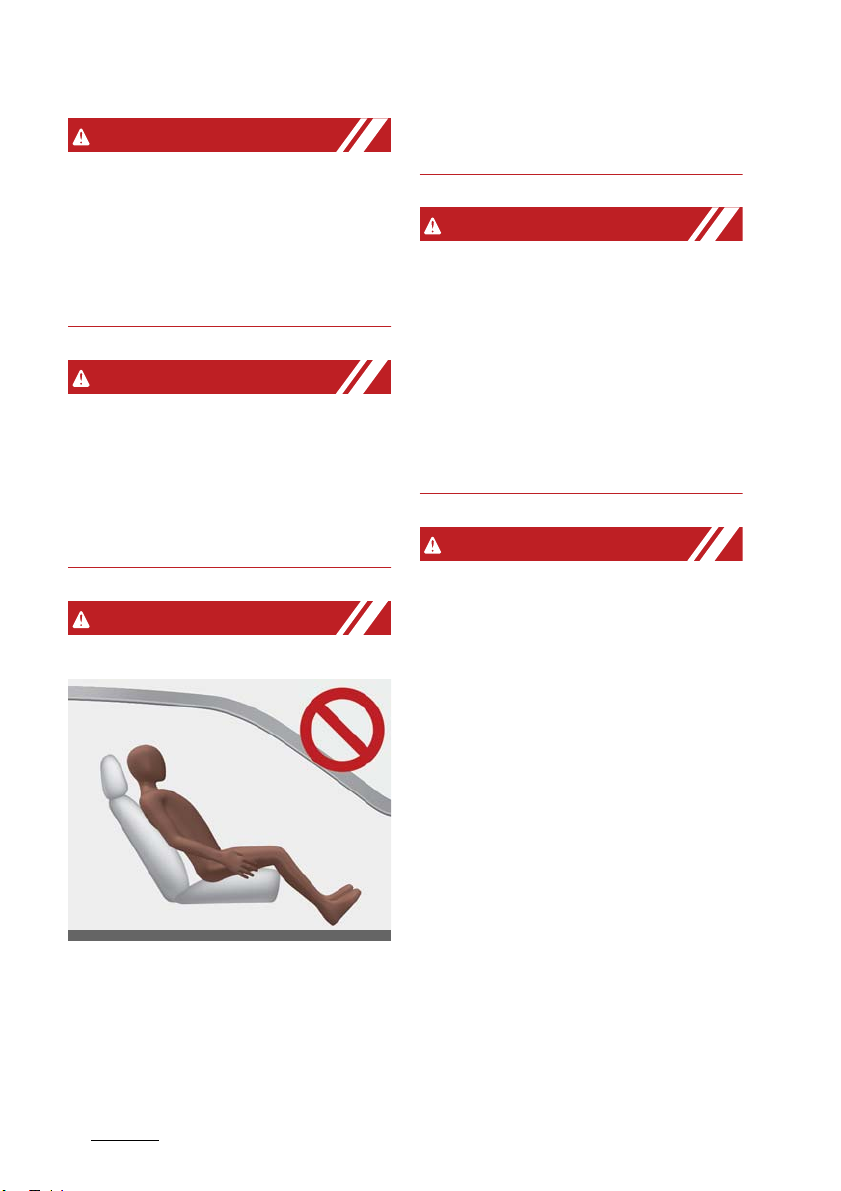

ODEEV058002NR

Seat

Loose objects

Loose objects in the driver's foot area could interfere with the opera

tion of the foot pedals, possibly causing an accident. Do not place anything under the front seats.

Uprighting seat

Do not press the release lever on a manual seatback without holding and controlling the seatback. The seatback will spring upright, possibly impacting you or other passengers.

Driver responsibility for passengers

The driver must advise the passen

gers to keep the seatback in an upright position whenever the vehi

cle is in motion. If a seat is reclined during an accident, the restraint

system's ability to restrain the pas

senger will be greatly reduced.

Seat cushion

Occupants should never sit on after

market seat cushions or sitting cushions. The passenger Occupant Detection System may not operate properly, or the passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop.

Driver's seat

䳜 Never attempt to adjust the seat

while the vehicle is moving. This could result in loss of control of your vehicle.

䳜 Do not allow anything to interfere

with the normal position of the seatback. For example, storing items against the seatback could result in serious or fatal injury in a sudden stop or collision.

䳜 Sit as far back as possible from

the steering wheel while still maintaining comfortable control of the your vehicle. A distance of at least 10 in (25 cm) from your chest to the steering wheel is rec

ommended. Failure to do so can

Page 29

Safety features of your vehicle Seat

WARNING

CAUTION

result in air bag inflation injuries to the driver.

Rear seatbacks

Always lock the rear seatback before driving. Failure to do so could result in passengers or objects being thrown forward, injuring vehicle occupants.

Unexpected seat movement

After adjusting a manual seat, always check that it is locked by shifting your weight to the front and to the back. Sudden or unex pected movement of the driver's seat could cause you to lose control of the vehicle.

Seat adjustment

䳜 Do not adjust the seat while

wearing seat belts. Moving the seat forward will cause strong pressure on the abdomen.

䳜 Do not place your hand near the

seat bottom or seat track while adjusting the seat. Your hand could get caught in the seat mechanism.

Luggage and cargo

Do not stack or pile luggage or cargo higher than the seatback in the cargo area. In an accident the cargo could strike and injure a passenger. If objects are large, heavy or must be piled, they must be secured in the cargo area.

Cargo area

Do not allow passengers to ride in the cargo area under any circum stance. The cargo area is solely for the purpose of transporting luggage or cargo.

Small objects

Use extreme caution when picking up small objects trapped under the seats or between the seat and the center console. Your hands might be cut or injured by the sharp edges of the seats mechanism.

Precautions with seat covers

Use caution when working on the seat cover. A short circuit or discon nection may occur, which could lead

Page 30

Safety features of your vehicle

WARNING

CAUTION

NOTICE

ODL3A030002

Seat

to noise, damage the ventilation system.

Seat short circuit risk

Be aware of wires or air vents when placing a seat cover or covering the seat with plastic cover. A short cir

cuit may occur, which could lead to fire.

Feature of Seat Leather (if equipped)

䳜 Wrinkles may appear as a natural

result of stretching and shrinking depending on the temperature and humidity.

䳜 The seat cover is made of

stretchable material to improve comfort of passengers.

䳜 The parts contacting the body are

curved and the side supporting area is high which provides driving comfort and stability.

䳜 Jeans or clothes which could

bleach may contaminate the sur

face of the seat covering fabric.

Wrinkles or abrasions may appear naturally from usage. It is not a fault of product. Wrinkles or abra

sions are not covered by warranty.

Front seat adjustment for manual seat (if equipped)

The front seat can be adjusted by using the control levers located on the outside of the seat cushion.

Moving forward and backward

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

䳜 Belts with metallic accessories,

zippers or keys inside the back pocket may damage the seat fab ric.

䳜 Make sure not to wet the seat. It

may change the nature of leather.

Page 31

Safety features of your vehicle Seat

WARNING

ODL3A030003

ODL3A030004

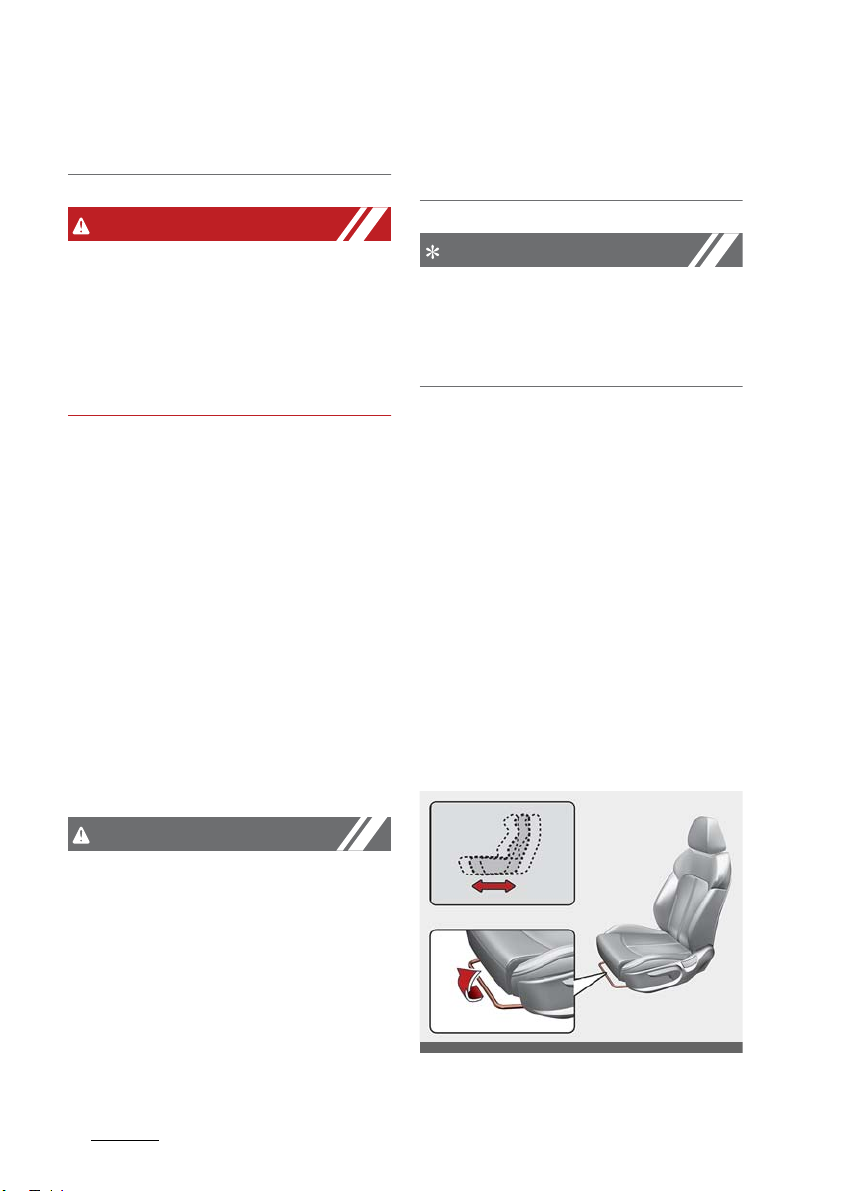

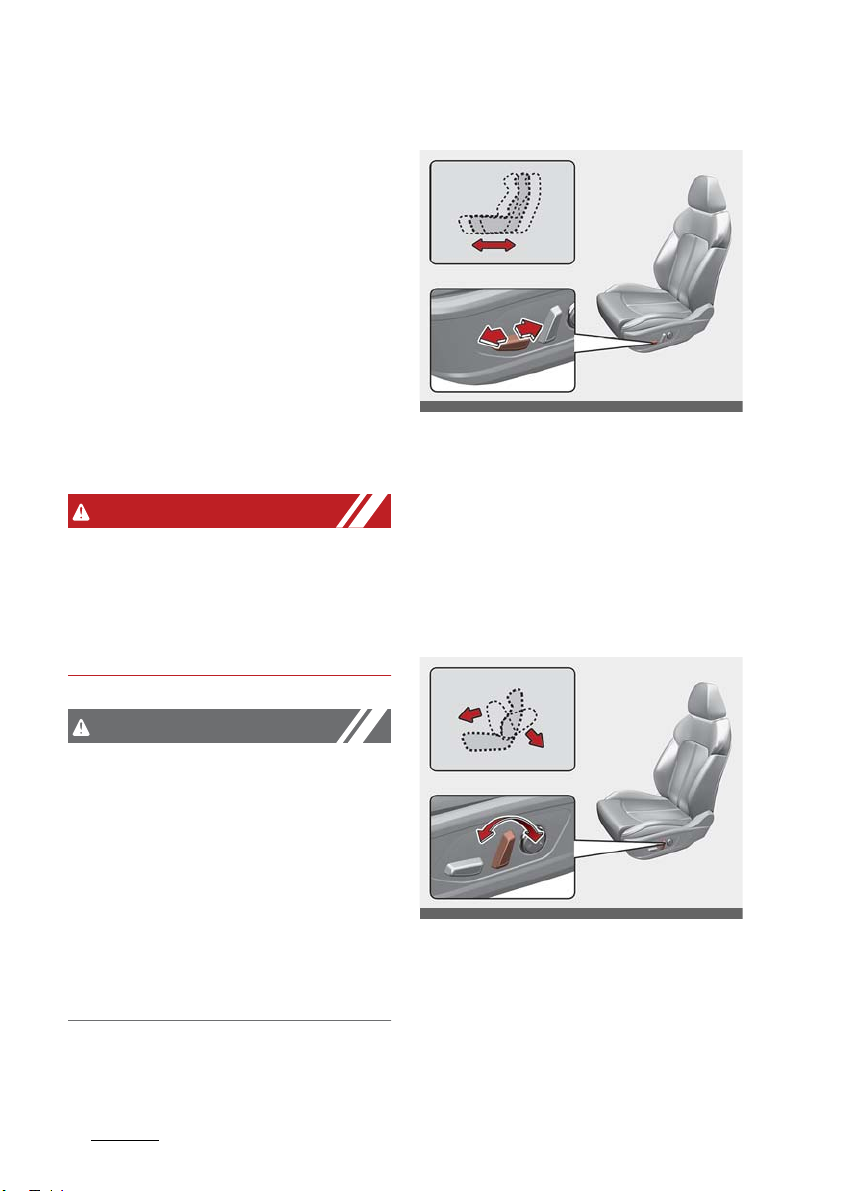

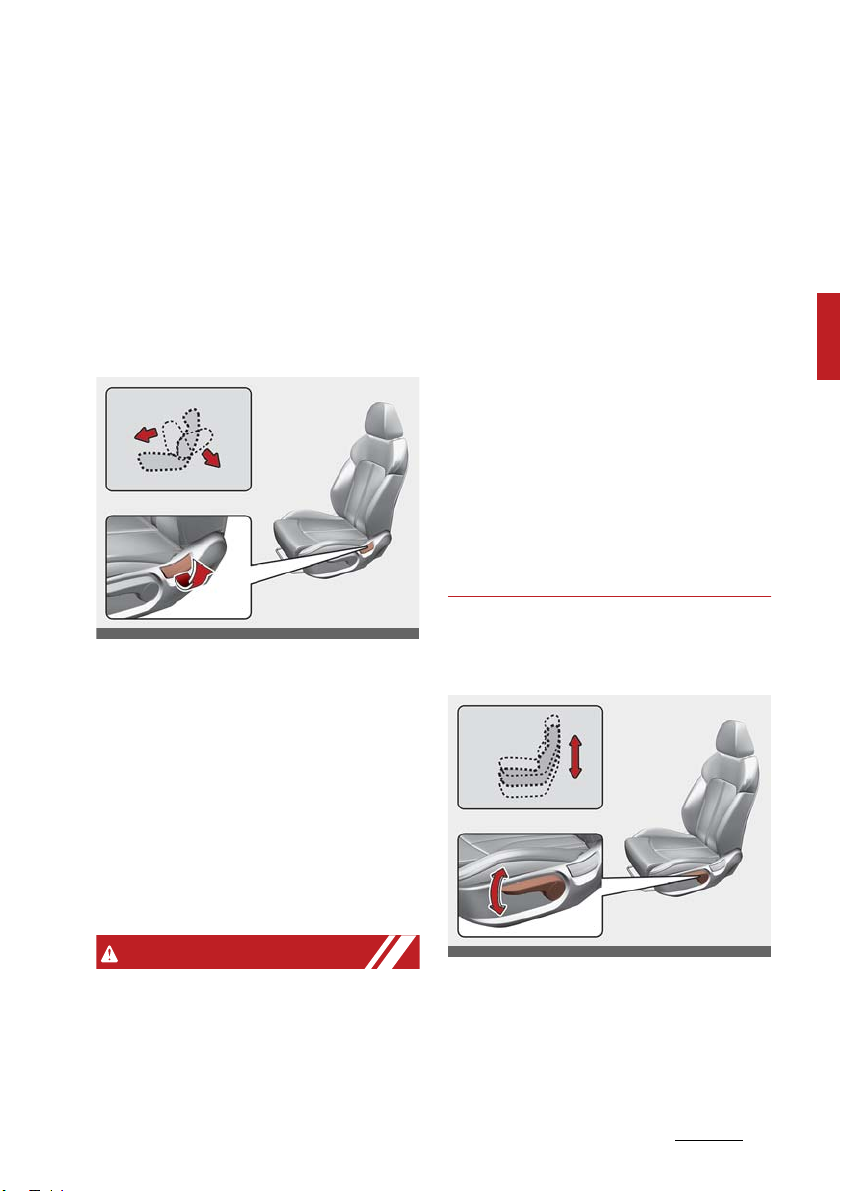

To move the seat forward or backward:

1. Pull the seat slide adjustment lever up and hold it.

2. Slide the seat to the position you desire.

3. Release the lever and make sure the seat is locked in place.

Reclining seatback

To recline the seatback:

1. Lean forward slightly and lift up the seatback recline lever.

2. Carefully lean back on the seat and adjust the seatback of the seat to the position you desire.

3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

protections of your restraint sys

tem (seat belts and/or air bags) is greatly reduced by reclining your seatback.

Seat belts must be snug against your hips and chest to work prop

erly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, caus

ing neck or other injuries. The more the seatback is reclined,

the greater chance the passenger's hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Changing seat cushion height (if equipped)

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dan gerous. Even when buckled up, the

To change the height of the seat cushion, push the lever upwards or downwards.

䳜 To lower the seat cushion, push

down the lever several times.

Page 32

Safety features of your vehicle

WARNING

CAUTION

ODL3A030005

ODL3A030006

Seat

䳜 To raise the seat cushion, pull up

the lever several times.

Front seat adjustment for power seat (if equipped)

The front seat can be adjusted by using the control switches located on the outside of the seat cushion.

Before driving, adjust the seat to the proper position so you can easily control the steering wheel, pedals and switches on the instrument panel.

Unattended children

Never leave children unattended in a vehicle. Children might operate fea tures of the vehicle that could injure them.

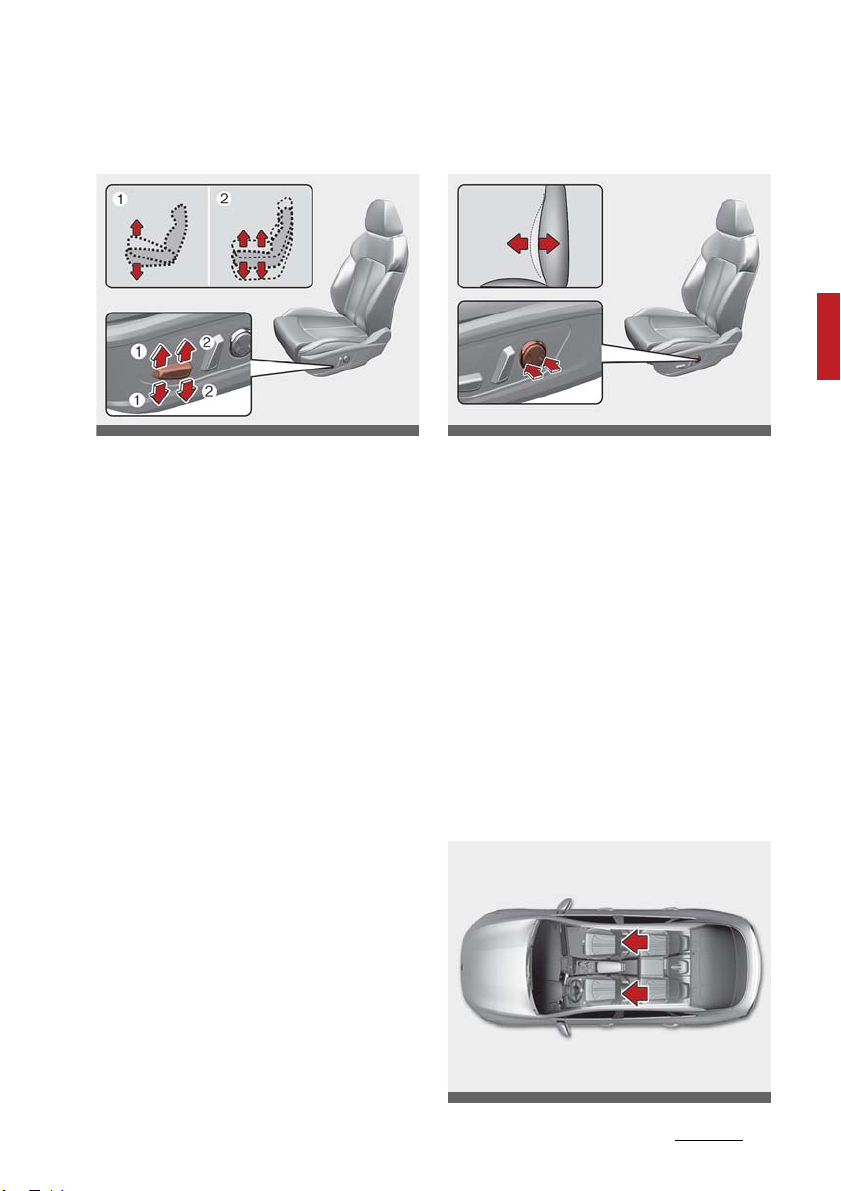

Moving forward and backward

To move the seat forward or backward:

1. Push the control switch forward or backward to move the seat to the desired position.

2. Release the switch once the seat reaches the desired position.

Reclining seatback

Power seating adjustments

䳜 The power seating controls func

tion by electronic motor. Exces sive operation may cause damage to the electrical equipment.

䳜 Do not operate two or more

power seat control switches at the same time. Doing so may damage the power seat motor or electrical components.

103

To recline the seatback:

1. Push the control switch forward or backward to move the seat back to the desired angle

2. Release the switch once the seat reaches the desired position.

Page 33

Safety features of your vehicle Seat

ODL3A030007

ODL3A030008

ODL3A030104

Changing seat cushion tilt and height

To change the tilt and height of the seat:

1. Pull the front portion (1) of the control switch up to raise or press down to lower the front part of the seat cushion.

2. Pull the rear portion (2) of the control switch up to raise or press down to lower the back part of the seat cushion.

3. Release the switch once the seat reaches the desired position.

Adjusting lumbar support for driver's seat (if equipped)

The lumbar support can be adjusted by pressing the lumbar support switch on the side of the seat.

1. Press the front portion of the switch to increase support, or the rear portion of the switch, to decrease support.

2. Release the switch once it reaches the desired position.

Headrest for front seat

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and com

fort.

Page 34

Safety features of your vehicle

WARNING

CAUTION

NOTICE

ODL3A030009

ODEEV058008NR

Seat

The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a rear collision.

For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is as high as the center of gravity of an occupant's head. Gen

erally, the center of gravity of most people's head is similar with the height of the top of their eyes.

Also, adjust the headrest as close to your head as possible. For this rea

son, the use of a cushion that holds the body away from the seatback is not recommended.

Headrest removal/adjustment

䳜 Do not operate the vehicle with

the headrests removed. Head

rests can provide critical neck and head support in a crash.

䳜 Do not adjust the headrest height

while the vehicle is in motion. Driver may lose control of the vehicle.

Adjusting the height up and down

To raise the headrest:

1. Pull it up to the desired position (1).

2. To lower the headrest, push and hold the release button (2) on the headrest support.

3. Lower the headrest to the desired position (3).

If you recline the seatback towards the front with the headrest and seat cushion raised, the headrest may come in contact with the sun visor or other parts of the vehicle.

Excessive pulling or pushing may damage the headrest.

123

Page 35

Safety features of your vehicle Seat

WARNING

ODL3A030011

ODL3A030012

ODL3A030013

ODL3A030014

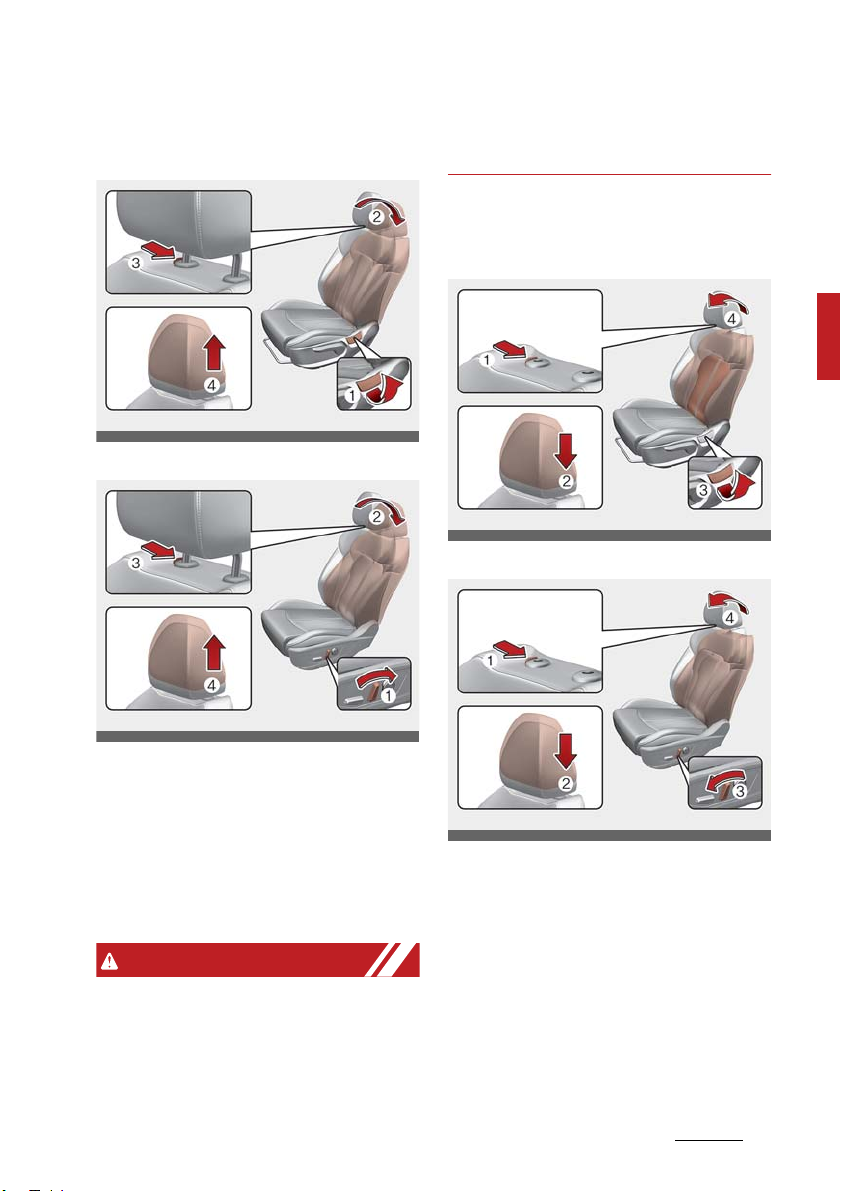

Removing headrest

Type A

Typ e B

critical neck and head support in a crash.

Reinstalling headrest

Type A

Type B

To remove the headrest:

1. Recline the seatback (2) with the recline lever or switch (1).

2. Raise headrest as far as it can go.

3. Press the headrest release button (3) while pulling the headrest up (4).

Removing headrest

NEVER allow anyone to ride in a seat with the headrest removed or reversed. Headrests can provide

To reinstall the headrest:

1. Put the headrest poles (2) into the holes while pressing the release button (1).

2. Recline the seatback (4) with the recline lever or switch (3).

3. Adjust the headrest to the appro priate height.

Page 36

Safety features of your vehicle

WARNING

ODL3A030108

ODL3A030106

Seat

Rear seat adjustment

Headrest reinstallation

To reduce the risk of injury to the head or neck, always make sure the headrest is locked into position and adjusted properly after reinstalling.

Seatback pocket (if equipped)

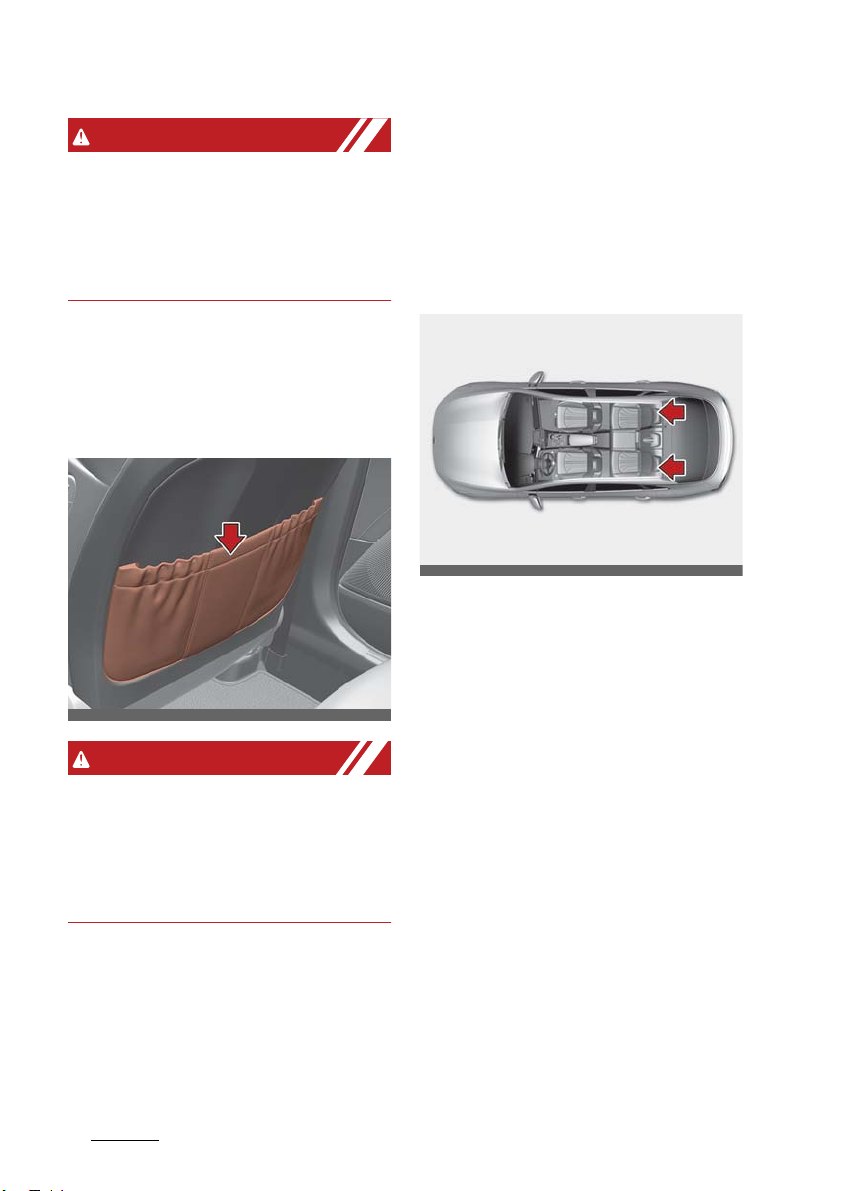

The seatback pocket is provided on the back of the front passenger's seatbacks.

Seatback pockets

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure vehicle occupants.

Headrest for rear seat

The rear seat is equipped with headrests in all the seating positions for the occupant's safety and com

fort.

The headrest not only provides comfort for passengers, but also helps protect the head and neck in the event of a collision.

To maximize the effectiveness in case of accidents, the headrest should be adjusted so the middle of the headrest is as high as the center of gravity of an occupant's head. Generally, the center of gravity of most people's heads is similar with the height as the top of their eyes.

Also, adjust the headrest as close to your head as possible. For this rea

son, the use of a cushion that holds the body away from the seatback is not recommended.

143

Page 37

Safety features of your vehicle Seat

NOTICE

ODL3A030101

ODL3A030026

ODL3A030027

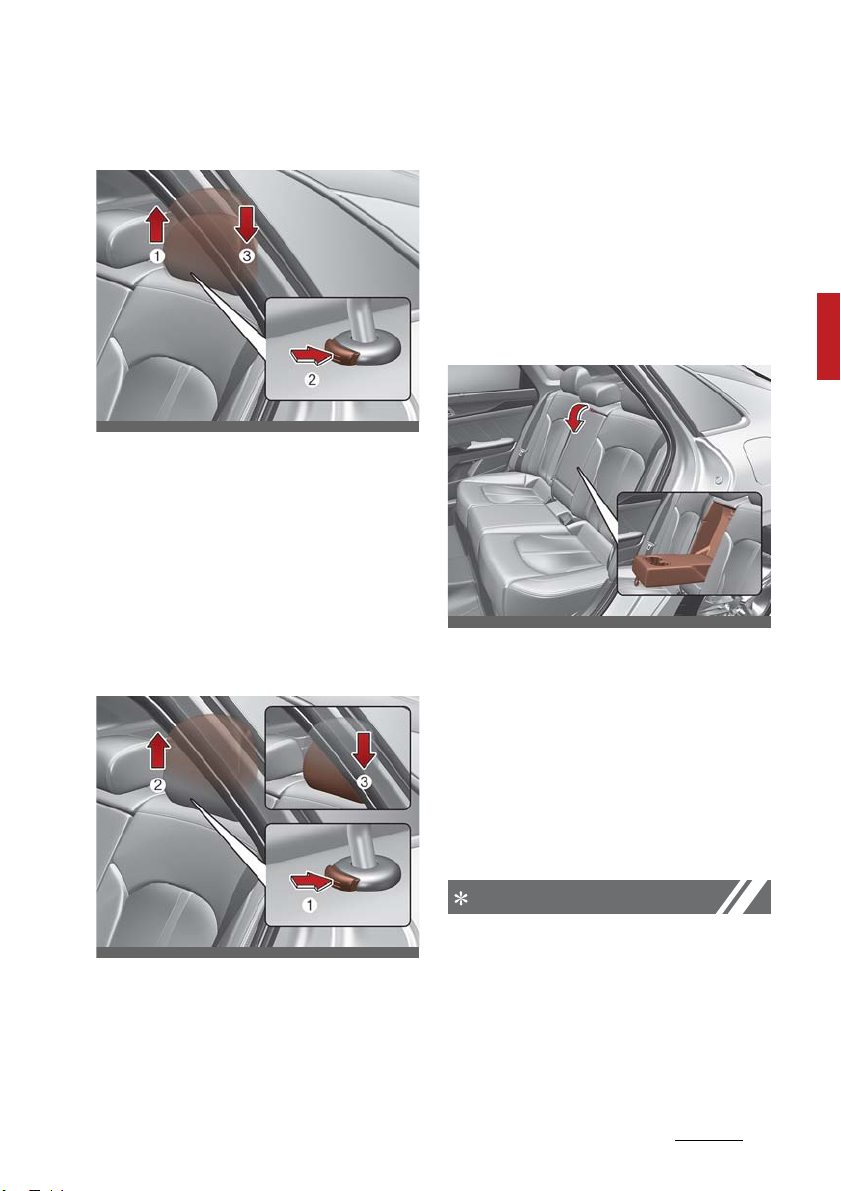

Adjusting the height up and down (if equipped)

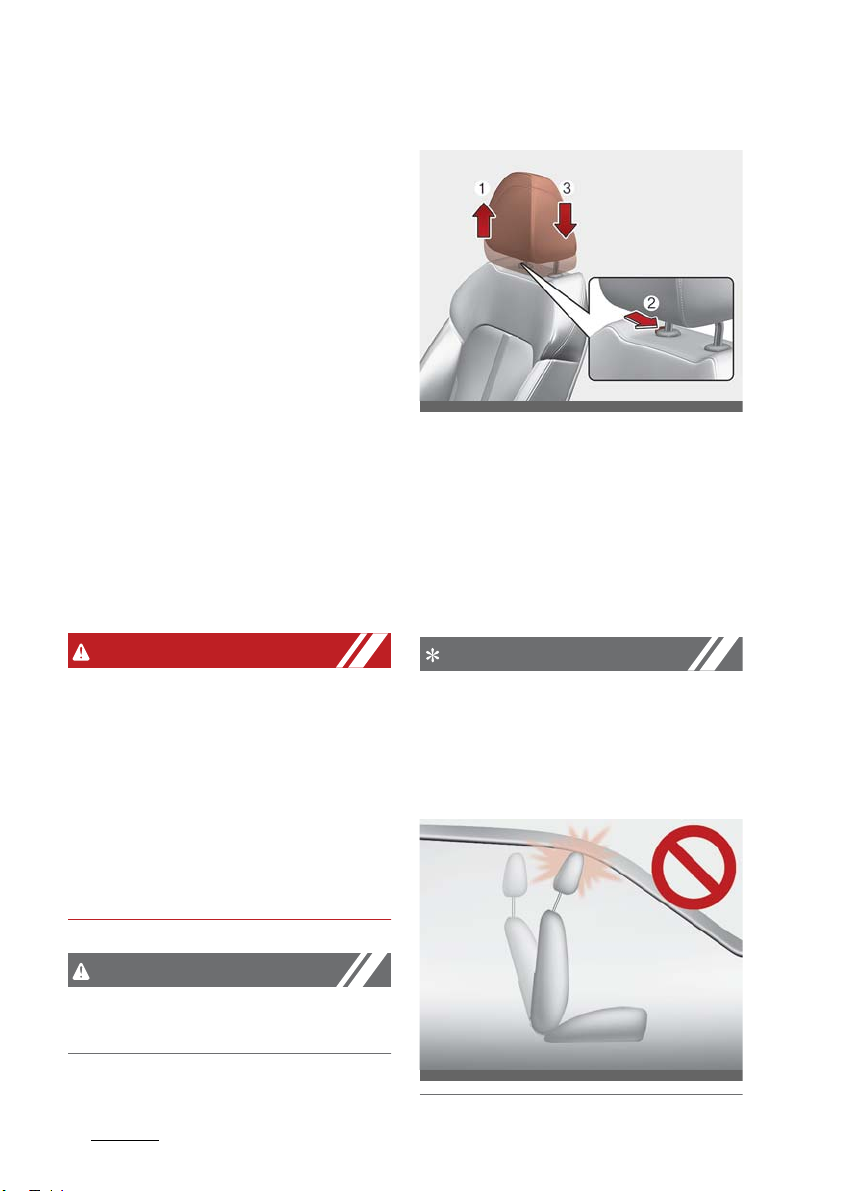

䳜 To raise the headrest, pull it up to

the desired position (1).

䳜 To lower the headrest, push and

hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Removal and reinstallation (if equipped)

䳜 To reinstall the headrest, put the

headrest poles (3) into the holes while pressing the release button (1).

Then adjust it to the appropriate height and ensure that it locks in position.

Armrest (if equipped)

To use the armrest, pull it forward from the seatback.

䳜 To remove the headrest, raise it

as far as it can go then press the release button (1) While pulling the headrest upward (2).

Folding the rear seat (if equipped)

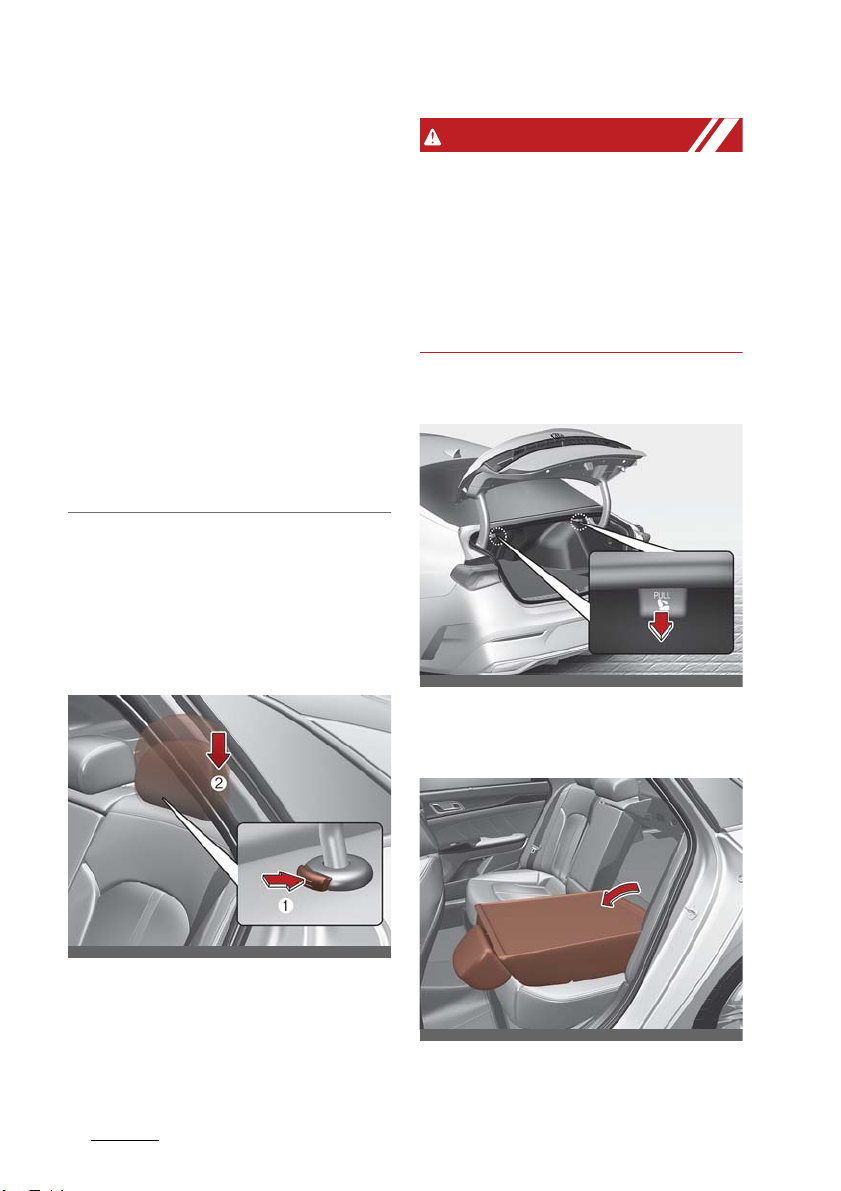

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

Folded Seatback

Do not sit on folded down seat

backs. The purpose of the folddown rear seatbacks is to allow you to carry longer objects that could not otherwise be accommodated.

Page 38

Safety features of your vehicle

WARNING

ODL3A030025

ODL3A030095

ODL3A030096

䳜 Never allow a passenger to sit on

top of the folded down seatback while the car is moving. This is not a proper seating position since the seat has important crash pro tection features and seat belts are not available in this seat con

figuration.

䳜 To reduce the risk of injury caused

by sliding cargo within the pas senger compartment of the vehi

cle, objects carried on the folded down seatback should not extend higher than the top of the front seats.

To fold down the rear seatback:

1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

2. Lower the rear headrests to the lowest position.

Objects

Objects carried on the folded down seatback should not extend higher

than the top of the front seatbacks. This could allow cargo to slide for ward and cause injury or damage during sudden stops.

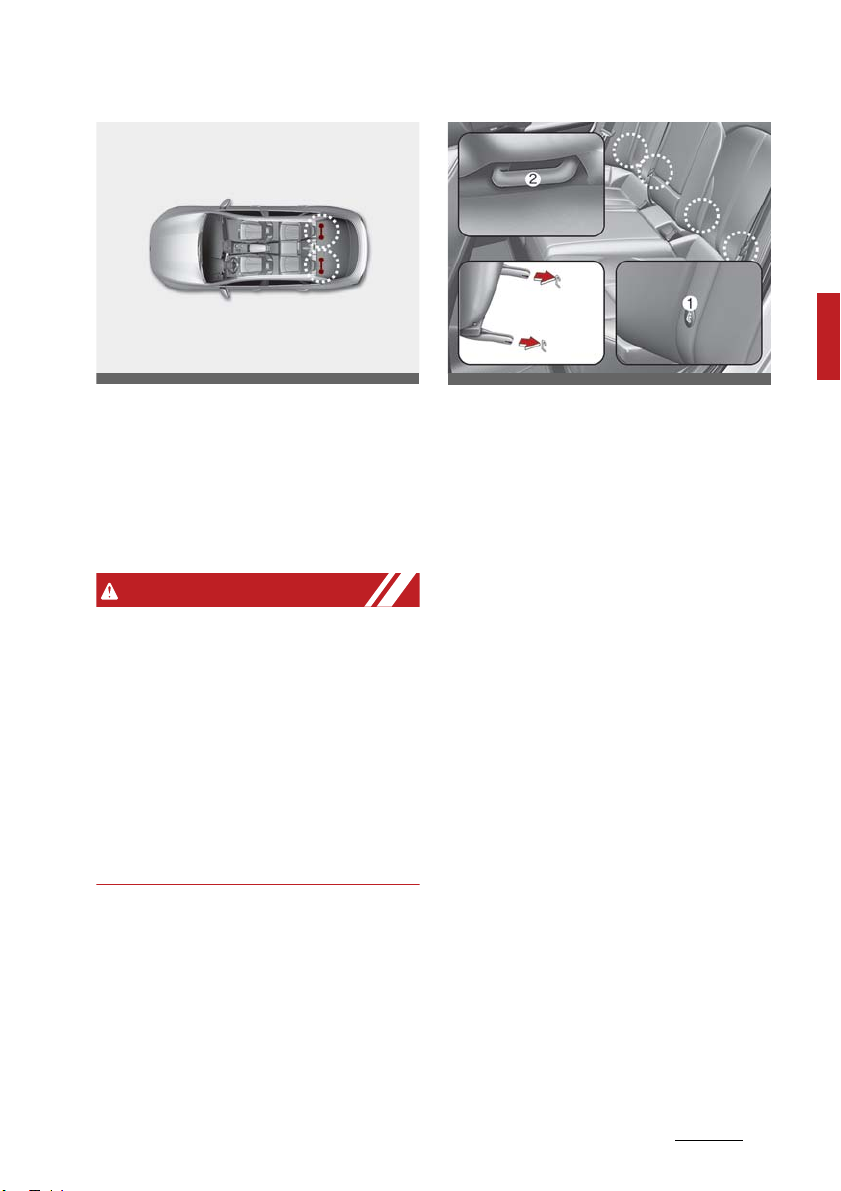

3. Pull on the seatback folding lever located in the trunk.

4. If you pull both seatback folding levers, all rear seatbacks will be folded.

Seat

163

5. To use the rear seat, lift and pull the seatback rearward. Pull the

Page 39

Safety features of your vehicle Seat

WARNING

CAUTION

WARNING

seatback firmly until it clicks into place. Make sure the seatback is locked in place.

Do not fold the rear passenger seats down until the driver has positioned his seat properly. Doing so can cause the driver to operate the vehicle out of position and increase the risk of bodily injury in a sudden stop or collision.

Uprighting seat

When you return the seatback to its upright position, hold the seatback and return it slowly. If the seatback is returned without holding it, the back of the seat could spring for ward, resulting in injury caused by being struck by the seatback.

䳜 Ensure the seatback is completely

locked into its upright position by pushing on the top of the seat back.

Damaging rear seat belt buckles

When you fold the rear seatback, insert the buckle between the rear seatback and cushion. Doing so can prevent the buckle from being dam aged by the rear seatback.

Rear seat belts

When returning the rear seatbacks to the upright position, remember to return the rear shoulder belts to their proper position.

Rear Seatback

To ensure maximum protection in the event of an accident or sudden stop, when returning the rear seat to the upright position:

䳜 Be careful not to damage the seat

belt webbing or buckle.

䳜 Do not allow the seat belt web

bing or buckle to become pinched or caught in the rear seat.

Cargo

Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.

Page 40

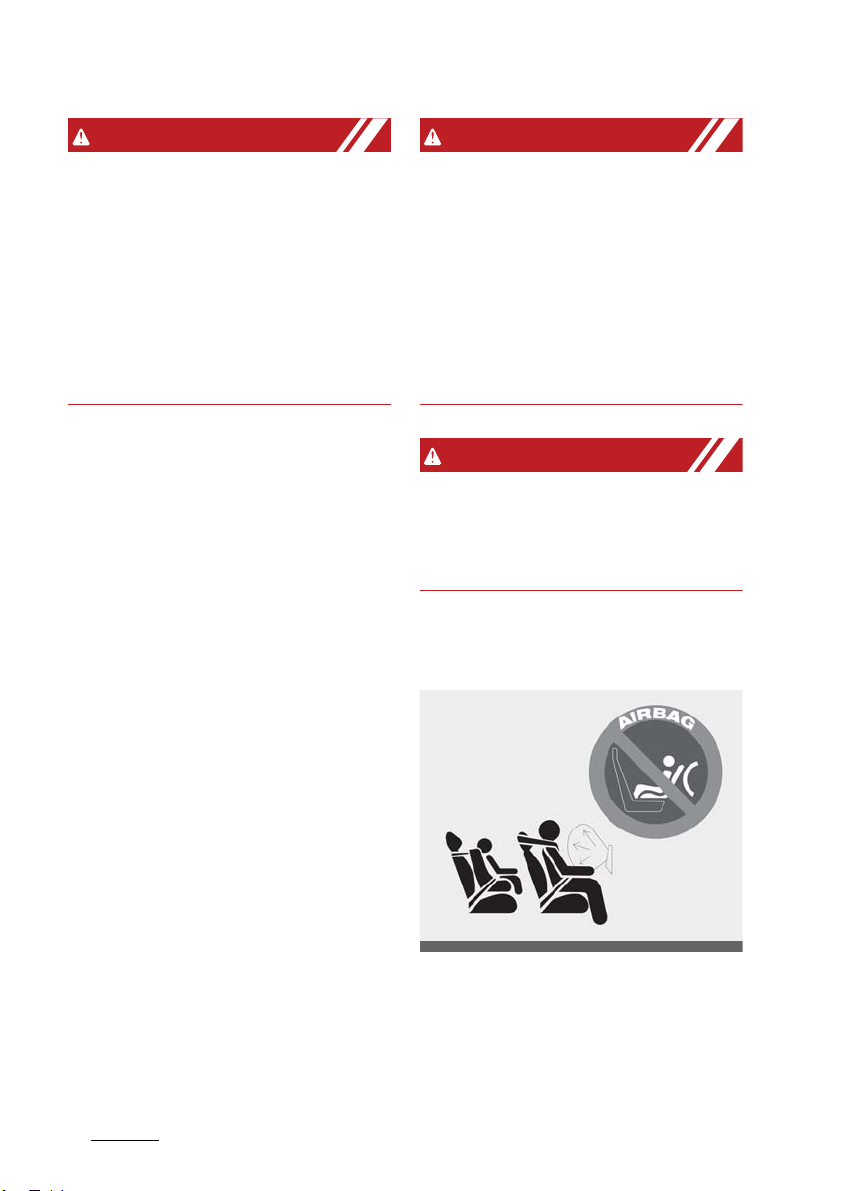

Safety features of your vehicle

WARNING

Seat belts

Cargo loading

Make sure the engine is off, the automatic transmission/dual clutch transmission is in P (Park) and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift lever is inadvertently moved to another position.

Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis, chest and shoulders.

Seat belt restraint system

For maximum restraint system pro tection, the seat belts must always be used whenever the vehicle is moving. 䳜 A properly positioned shoulder

belt should be positioned midway over your shoulder, across your collarbone.

䳜 Never allow children to ride in the

front passenger seat. See "Child Restraint System (CRS)" on page 3-30 for further discussion.

Twisted seat belt

Make sure your seat belt is not twisted when worn. A twisted seat belt may not properly protect you in an accident and could even cut into your body.

Shoulder Belt

䳜 Never wear the shoulder belt

under your arm or behind your back. An improperly positioned shoulder belt cannot protect the occupant in the event of a crash.

183

Page 41

Safety features of your vehicle Seat belts

WARNING

䳜 Always wear both the shoulder

portion and lap portion of the lap/ shoulder belt.

Damaged seat belt

Any damage in webbing or hardware may lead to serious injury or death in a crash. For your safety, replace the entire seat belt assembly when any part of the webbing or hard

ware is damaged.

Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis, chest and shoulders, as applicable; wearing the lap sec tion of the belt across the abdomi

nal area must be avoided.

Seat belts should be adjusted as firmly as possible, consistent with comfort, to provide the protection for which they have been designed.

䳜 No modifications or additions

should be made by the user which would either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

䳜 When you fasten the seat belt, be

careful not to latch the seat belt in buckles of other seats. It is very dangerous and you may not be protected by the seat belt prop

erly.

䳜 Do not unfasten the seat belt and

do not fasten and unfasten the seat belt repeatedly while driving. This could result in loss of control, and an accident causing death, serious injury, or property dam

age.

䳜 When fastening the seat belt,

make sure that the seat belt does not pass over objects that are hard or can break easily.

A slack belt will greatly reduce the protection afforded to the wearer.

Care should be taken to avoid con tamination of the webbing with pol ishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged.

Seat belt buckle

Do not allow foreign material (gum, crumbs, coins, liquids, etc.) to

obstruct the seat belt buckle. This

may prevent the seat belt from fas tening securely.

Page 42

Safety features of your vehicle

ODL3A030107

Seat belts

Seat belt warning

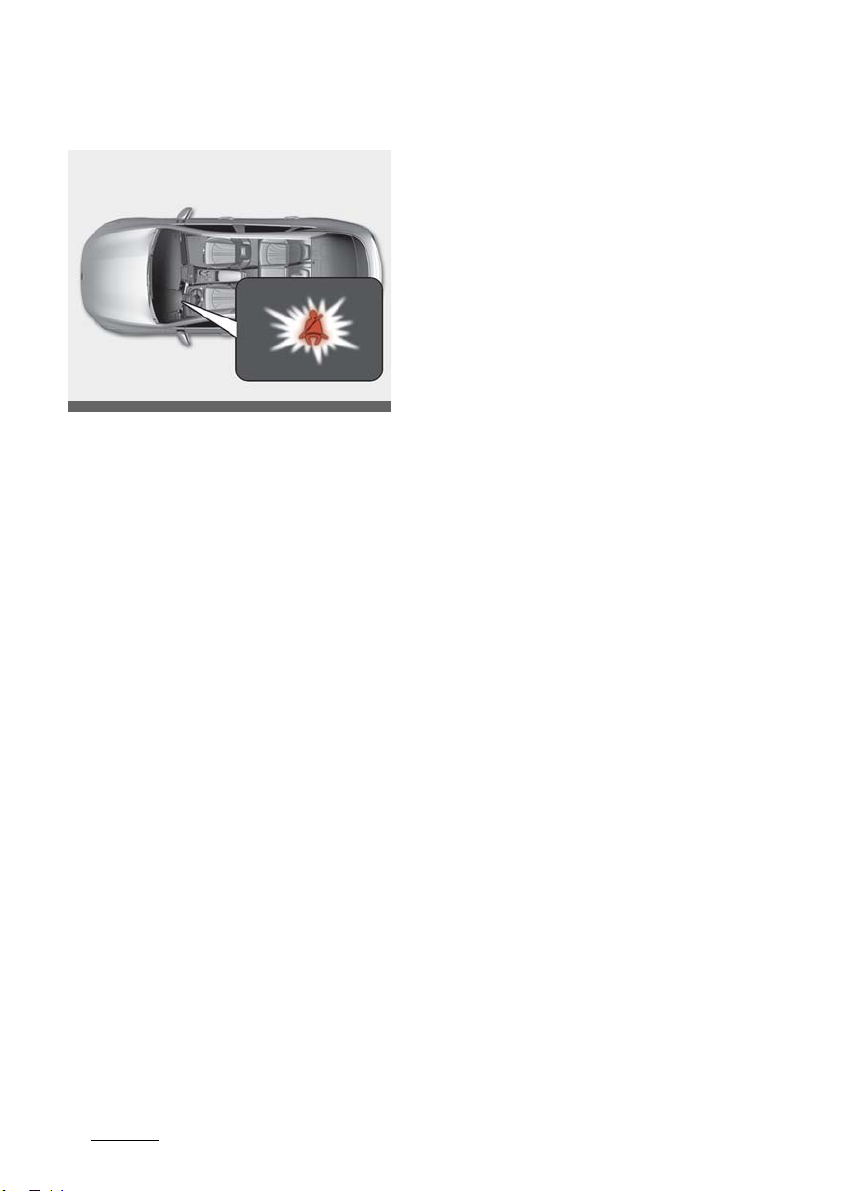

The seat belt warning light and warning chime operate under the following conditions.

Driver's seat belt warning

As a reminder to the driver, the driver's seat belt warning lights will illuminate for approximately 6 sec

onds each time you turn the ENGINE START/STOP button ON regardless of belt fastening. If the seatbelt is not fastened, the warning chime will sound for about 6 seconds.

If you start to drive without the seat belt fastened over 5 mph (9 km/h) and less than 12 mph (20 km/ h), the corresponding warning light will illuminate. The warning light will turn off when the vehicle speed drops below 5 mph (9 km/h).

If you start to drive without the seat belt fastened or you unfasten the seat belt when you drive 12 mph (20 km/h) and faster, the warning light will blink and warning

chime will sound for approximately 100 seconds. When the seat belt is unfastened during driving, the warning light will illuminate when the speed is under 12 mph (20 km/ h). When the speed is 12 mph (20 km/h) and faster, the warning light will blink and warning chime will sound for approximately 100 sec

onds.

Front passenger's seat belt warn

ing

As a reminder to the front passen

ger, the front passenger's seat belt warning lights will illuminate for approximately 6 seconds each time you turn the ENGINE START/STOP button ON regardless of belt fas

tening. If you start to drive without the passenger seat belt fastened when you drive over 5 mph (9 km/h) and less than 12 mph (20 km/h), the corresponding warning light will illu

minate. The warning light will turn off when the vehicle speed drops below 5 mph (9 km/h).

If you start to drive without the passenger seat belt fastened or you unfasten the seat belt when you drive 12 mph (20 km/h) and faster, the warning light will blink and warning chime will sound for approximately 100 seconds. When the passenger seat belt is unfas

tened during driving, the warning

203

Page 43

Safety features of your vehicle Seat belts

NOTICE

WARNING

ODEEV058025NR

ODEEV058026NR

light will illuminate when the speed is under 12 mph (20 km/h). When the speed is 12 mph (20 km/h) and faster, the warning light will blink and warning chime will sound for approximately 100 seconds.

䳜 Even if the front passenger seat

is not occupied, the seat belt warning light will illuminate for 6 seconds.

䳜 The front passenger's seat belt

warning may operate when lug gage is placed on the front pas

senger seat.

Seat belt - Driver's 3-point system with emergency locking retractor

The following explains how to fas

ten and adjust the driver's seat belt.

䳜 Pull it out of the retractor and

insert the metal tab (1) into the buckle (2).

There will be an audible "click" when the tab locks into the buckle.

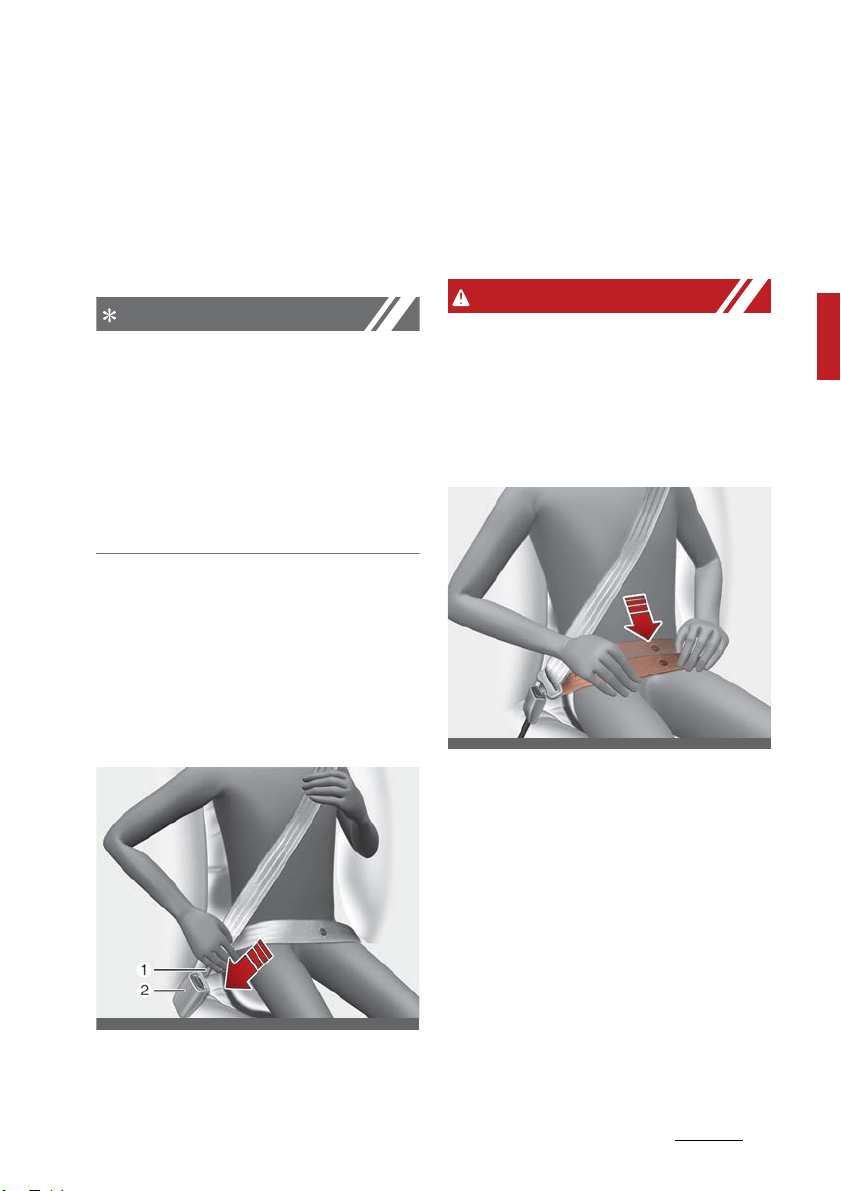

You should place the lap belt portion as low as possible and snugly across your hips. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision.

Fastening the your seat belt:

The arm closest to the seat belt buckle should be over the belt while the other arm should be under the belt as shown in the illustration. Never wear the seat belt under the arm closest to the door.

The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is

Page 44

Safety features of your vehicle

NOTICE

ODEEV058078NR

ODEEV058027NR

Seat belts

a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.

If you are not able to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.

Releasing the seat belt:

Adjusting the height of shoulder belt

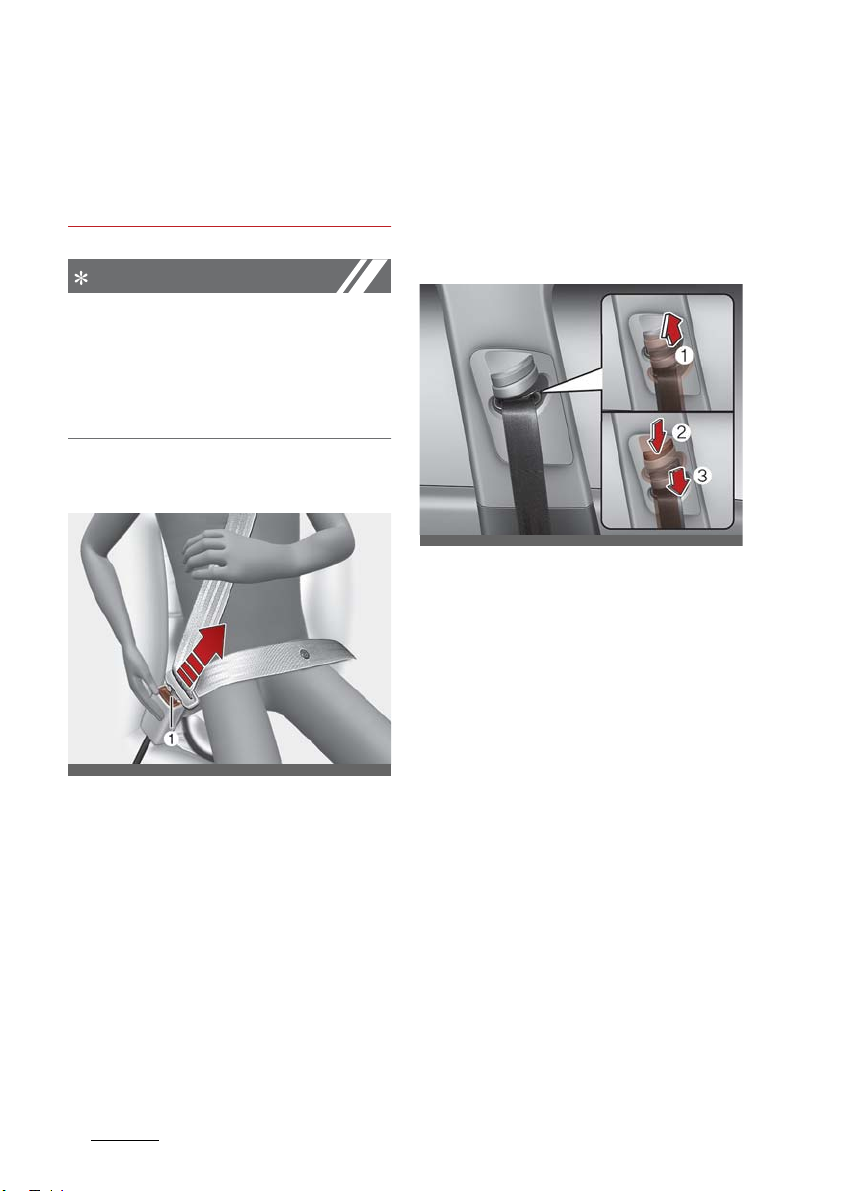

You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximum comfort and safety.

The height of the adjusting seat belt should not be too close to your neck. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoul

der near the door and not your neck.

䳜 Press the release button (1) in the

locking buckle.

When it is released, the belt should automatically draw back into the retractor.

If this does not happen, check the belt to be sure it is not twisted, then try again.

223

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate posi

tion. 䳜 To raise the height adjuster, pull it

up (1).

䳜 To lower it, push it down (3) while

pressing the height adjuster but

ton (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

Page 45

Safety features of your vehicle Seat belts

WARNING

Improperly positioned seat belts can cause serious injuries in an accident.

Shoulder belt positioning

Verify the shoulder belt anchor is locked into position at the appropri ate height. Never position the shoul der belt across your neck or face. Improperly positioned seat belts can cause serious injuries in an accident.

Seat belt replacement

Replace your seat belts after being in an accident. Failure to replace seat belts after an accident could leave you with damaged seat belts that will not provide protection in the event of another collision.

Seat belts - Front passenger and rear seat 3-point system with combination locking retractor

The following explains how to fas

ten the passenger's and rear seat belts.

Fastening your seat belt:

Combination retractor type seat belts are installed in the rear seat positions to help accommodate the installation of Child Restraint Sys

tem. Although a combination

retractor is also installed in the front passenger seat position, it is strongly recommended that children always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle.

This type of seat belt combines the

features of both an emergency locking retractor seat belt and an automatic locking retractor seat belts. 䳜 Pull it out of the retractor and

insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (emergency locking retractor type).

It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips.

When the seat belt is fully extended from the retractor to allow the installation of a Child Restraint Sys tem, the seat belt operation changes to allow the belt to retract, but not to extend (automatic locking retractor type). Refer to "Securing a child restraint with a lap/shoulder belt" on page 3-38.

Page 46

Safety features of your vehicle

NOTICE

CAUTION

WARNING

ODL3A030033

Although the combination retractor provides the same level of protec

tion for seated passengers in either emergency or automatic locking modes, have the seated passengers use the emergency locking feature for improved convenience. The automatic locking function is intended to facilitate child restraint installation. To convert from the automatic locking feature to the emergency locking operation mode, allow the unbuckled seat belt to fully retract.

Do NOT fold down the left portion of the rear seatback when the rear center seat belt is buckled. ALWAYS UNBUCKLE the rear center seat belt before folding down the left portion of the rear seatback. If the rear cen

ter seat belt is buckled when the left portion of the rear seatback is folded down, distortion and damage to the top portion of the seatback and seat belt garnish may result, causing the seatback to lock into the folded down position.

Seat belts

The seat belt should be locked into the buckle on each seat cushion to be properly fastened.

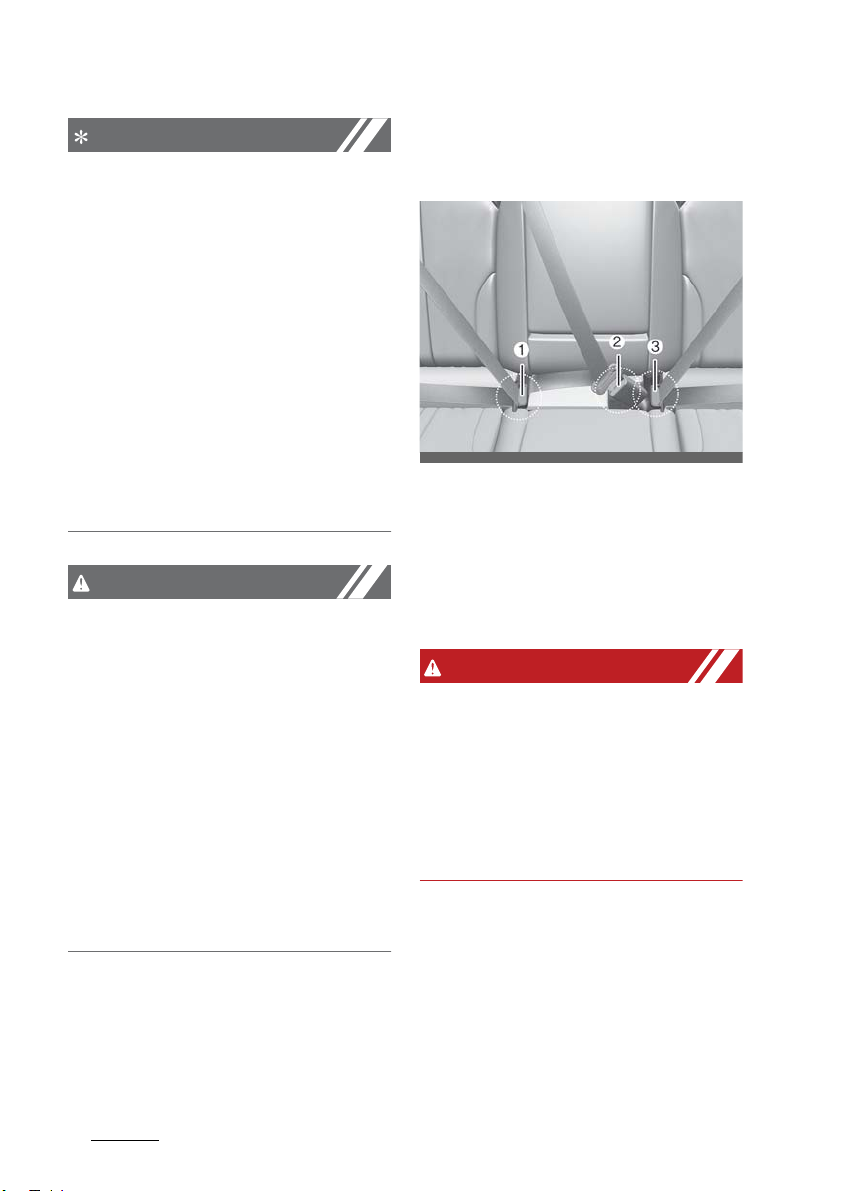

1. Rear right seat belt fastening buckle

2. Rear center seat belt fastening buckle

3. Rear left seat belt fastening buckle

Prior to fastening the rear seat belts, ensure the latch matches the seat belt buckle. Forcefully fasten

ing the left or right seat belt to the center buckle can result in an improper fastening scenario that will not protect you in an accident.

243

Page 47

Safety features of your vehicle Seat belts

CAUTION

ODL3A030034

ODL3A030029

OON038092NR

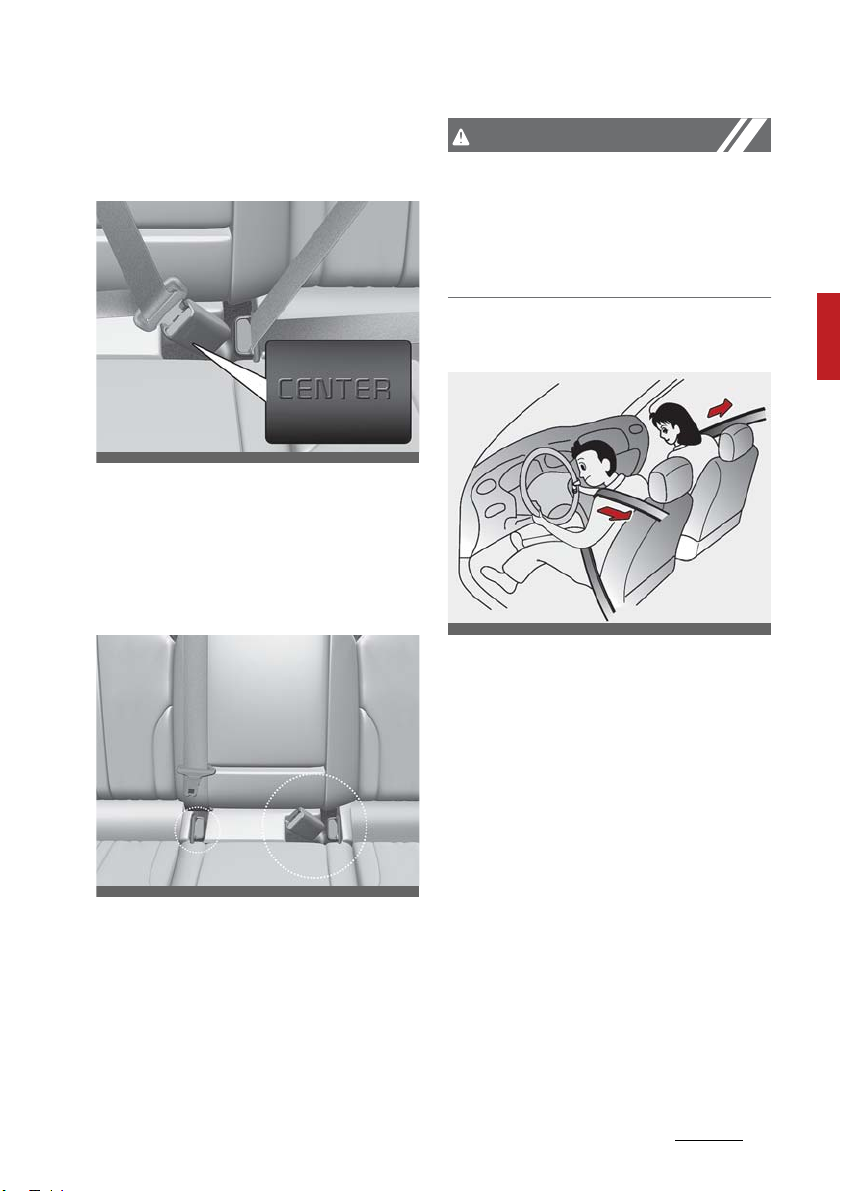

When using the rear center seat belt, the buckle with the "CENTER" mark must be used.

When pulling out to wear the seat belt, the tongue should be slowly pulled out of the seat belt guide so that the seat belt guide does not come off the trim.

Pre-tensioner seat belt

Stowing the rear seat belt

The rear seat belt buckles can be stowed in the pocket between the rear seatback and cushion when not in use.

1. Route the seat belt webbing through the rear seat belt guides. It will help keep the belts from being trapped behind or under the seats.

2. After inserting the seat belt, tighten the belt webbing by pull ing it up.

Your vehicle is equipped with pretensioner seat belts at the front outboard seating positions.

The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain collisions.

The pre-tensioner seat belts may be activated in a collision when the collision is severe enough.

When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner

will activate and pull the seat belt

Page 48

Safety features of your vehicle

WARNING

NOTICE

WARNING

NOTICE

OON039121NR

into tighter contact against the occupant's body

Seat belts

If the system senses excessive ten

sion on the driver or passenger's seat belt when the pre-tensioner activates, the load limiter inside the pre-tensioner will release some of the pressure on the affected seat belt. (if equipped)

For your safety, be sure that the belt webbing is not loose or twisted and always sit properly on your seat.

The pre-tensioner may activate not only in a frontal collision but also in a side collision, if the vehicle is equipped with a side or curtain air bag.

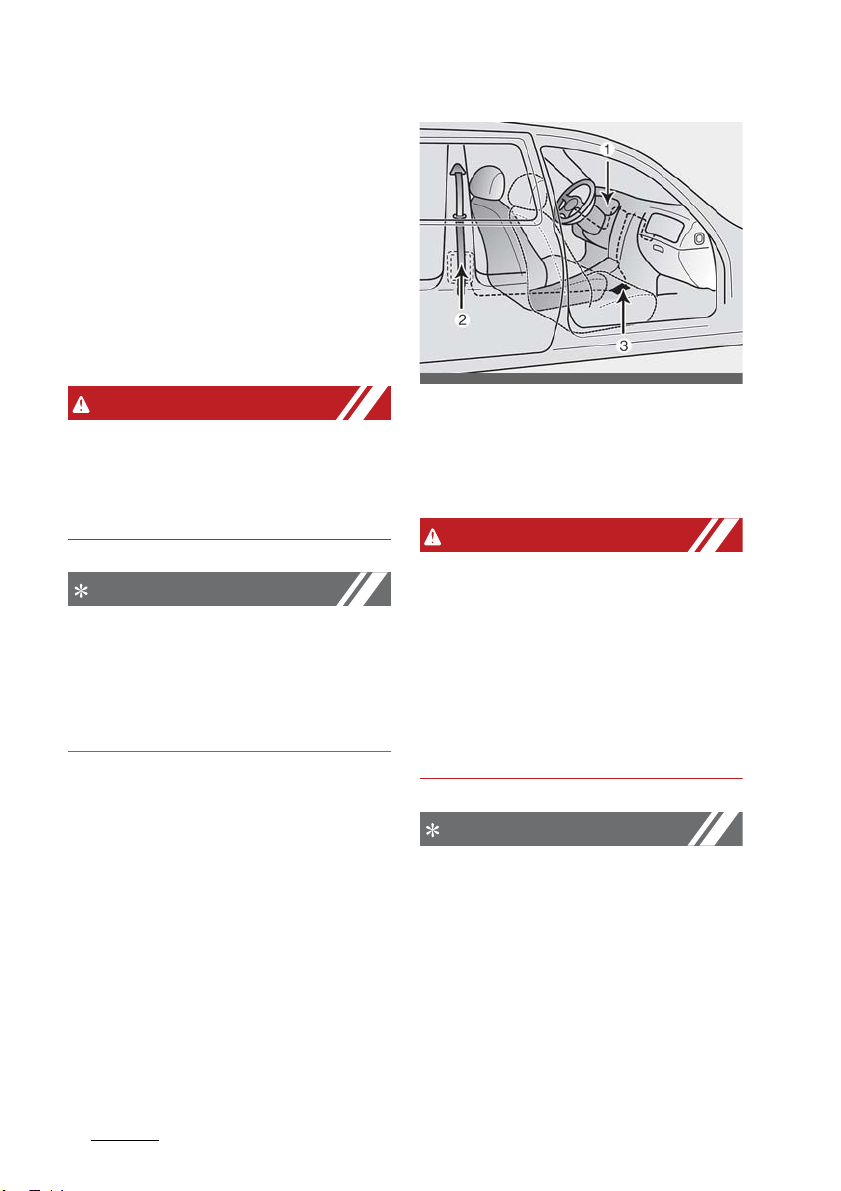

The seat belt pre-tensioner system consists mainly of the following components. Their locations are shown in the illustration:

1. Supplemental Restraint System (SRS) air bag warning light

2. Retractor pre-tensioner assembly

3. SRS Control Module

Skin Irritation

Wash all exposed skin areas thor

oughly after an accident in which the pre-tensioner seat belts were activated. The fine dust from the pre-tensioner activation may cause skin irritation and should not be inhaled for prolonged periods.

䳜 Both the driver's and front pas

senger's seat belt pre-tensioner systems may be activated not only in certain frontal collisions, but also in certain side collisions or rollovers, if the vehicle is equipped with a side or curtain air bag.

263

Page 49

Safety features of your vehicle Seat belts

NOTICE

WARNING

䳜 Because the sensor that activates

the SRS air bag is connected with the pre-tensioner seat belt, the

SRS air bag warning light on the instrument panel will illumi

nate for approximately 3~6 sec onds after the ignition switch has been turned to the ON position, and then it should turn off.

䳜 If the pre-tensioner seat belt sys

tem is not working properly, this warning light will illuminate even if there is not a malfunction with the SRS air bag. If the SRS air bag warning light does not illuminate when the ignition switch has been turned to the ON position, or if it remains illuminated after illumi nating for approximately 6 sec onds, or if it illuminates while the vehicle is being driven, have an

Hot pre-tensioner

Do not touch the pre-tensioner seat belt assemblies for several minutes

after they have been activated.

When the pre-tensioner seat belt mechanism fires during a collision the pre-tensioner becomes hot and can burn you.

Pre-tensioners are designed to operate only one time. After activa tion, pre-tensioner seat belts must be replaced. If the pre-tensioner must be replaced, contact an autho rized Kia dealer.

Seat belt precautions

Take the following precautions

when using seat belts. authorized Kia dealer inspect the pre-tensioner seat belt and SRS air bag system as soon as possi ble.

Infant or small child

All 50 states have child restraint

laws. You should be aware of the

specific requirements in your state.

Child and/or infant seats must be

properly placed and installed in the

Do not attempt to service or repair the pre-tensioner seat belt system in any manner. Do not attempt to inspect or replace the pre-ten

rear seat. For more information

about the use of these restraints,

refer to "Child Restraint System

(CRS)" on page 3-30.

sioner seat belts yourself. This must be done by an authorized Kia dealer.

Page 50

Safety features of your vehicle

NOTICE

WARNING

Small children are best protected from injury in an accident when properly restrained in the rear seat by a Child Restraint System that meets the requirements of the Fed eral Motor Vehicle Safety Standards (FMVSS). Before buying any Child Restraint System, make sure that it has a label certifying that it meets Federal Motor Vehicle Safety Stan

dard 213. The restraint must be appropriate for your child's height and weight. Check the label on the child restraint for this information. Refer to "Child Restraint System (CRS)" on page 3-30.

Larger children

Children who are too large for Child Restraint System should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened and snug on the hips as low as possible. Check periodically to insure that the belt fits. A child's squirming could put the belt out of position. Children are given the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat

should be placed in the rearmost position. Children age 13 and under should be restrained securely in the rear seat. NEVER place a child age 13 and under in the front seat. NEVER place a rear facing child seat

in the front seat of a vehicle.

If the shoulder belt portion slightly touches the child's neck or face, try placing the child closer to the center of the vehicle. If the shoulder belt still touches their face or neck they need to be returned to a Child Restraint System.

Small children

Do not allow small children to ride in the vehicle without an appropriate Child Restraint System. If the shoul der belt comes in contact with your child's neck or face, your child is too small to ride in the vehicle. In a crash, the seat belt will inflict injury to your child's neck, throat and face.

Restraint of pregnant women

Pregnant women should wear lap/ shoulder belt assemblies whenever possible according to specific rec ommendations by their doctors. The lap portion of the belt should be worn AS SECURELY AND LOW AS POSSIBLE.

Seat belts

283

Page 51

Safety features of your vehicle Seat belts

WARNING

front and rear seats are in a reclined

position.

Pregnant women

Pregnant women must never place the lap portion of the seat belt above or on the abdomen where the fetus is located. The force of the seat belt during a collision will crush the fetus.

Care of seat belts

Seat belt systems should never be

disassembled or modified. In addi

tion, care should be taken to assure

that seat belts and belt hardware

are not damaged by seat hinges,

doors or other abuse.

Injured person

A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommen dations.

Pinched seat belt

Make sure that the webbing and/or

buckle does not get caught or

pinched in the rear seat when

returning the rear seatback to its

One person per belt

Two people (including children) should never attempt to use a single seat belt. This could increase the

upright position. A caught or pinched

webbing/buckle may become dam

aged and could fail during a collision

or sudden stop.

severity of injuries in case of an accident.

Do not lie down

To reduce the chance of injuries in the event of an accident and to achieve maximum effectiveness of the restraint system, all passengers should be sitting up and the front and rear seats should be in an upright position when the vehicle is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the

Seatbelts can become hot in a vehi

cle that has been closed up in sunny

weather. Please handle with care, as

they could burn infants and children,

if used abruptly.

Periodic inspection

All seat belts should be inspected

periodically for wear or damage of

any kind. Any damaged parts should

be replaced as soon as possible.

Page 52

Safety features of your vehicle

WARNING

Child Restraint System (CRS)

Keep belts clean and dry

Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.

When to replace seat belts

The entire in-use seat belt assem

bly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional questions concerning seat belt operation should be directed to an authorized Kia dealer.

Child Restraint System (CRS)

Infants and younger children must be restrained in an appropriate rear-facing or forward-facing Child Restraint System (CRS) that has first been properly secured to the rear seat of the vehicle.

Children always in the rear

Children under age 13 must always ride in the rear seats and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver.

Restraint Location

Never install a child or infant seat on the front passenger's seat. A child riding in the front passenger seat can be forcefully struck by an inflat ing airbag and get seriously injured.

Hot Child Restraint

A Child Restraint System can become very hot if it is left in a closed vehicle on a sunny day. Be sure to check the seat cover, buckles and latches before placing a child in the restraint system.

303

Page 53

Safety features of your vehicle Child Restraint System (CRS)

According to accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Even with air bags, children can be seriously injured or killed. Children too large for a child restraint must use the seat belts provided.

All 50 states have child restraint laws which require children to travel in approved child restraint devices. The laws governing the age or height/weight restrictions at which seat belts can be used instead of child restraints differs among states, so you should be aware of the specific requirements in your state, and where you are traveling.

The CRS must be properly placed and installed in the rear seat. You must use a commercially available CRS that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS).

A CRS is generally designed to be secured in a vehicle seat by lap belt portion of a lap/shoulder belt, or by a LATCH system in the rear seats of the vehicle.

Child Restraint System (CRS)

Infants and younger children must be restrained in an appropriate rear-facing or forward-facing CRS that has first been properly secured to the rear seat of the vehicle. Read

and comply with the instructions for

installation and use provided by the

manufacturer of the CRS.

Child Restraint Installation

An improperly secured child

restraint can increase the risk of

serious injury or death in an acci

dent. Always take the following pre

cautions when using a Child

Restraint System:

䳜 Always follow the Child Restraint

System manufacturer's instruc

tions for installation and use.

䳜 Always properly restrain your

child in the child restraint.

䳜 If the vehicle head restraint pre

vents proper installation of a child seat (as described in the Child Restraint System manual), the head restraint of the respective seating position shall be read

justed or entirely removed.

䳜 Do not use an infant carrier or a

child safety seat that "hooks" over a seatback as it may not provide adequate protection in an accident.

䳜 A child restraint in the center

seating position may also contact or push up against the safety belt buckles, which can damage the buckles and make them unusable or unsafe. Always check that the child restraint does not contact any of the safety belt buckles. Check the placement of the child

Page 54

Safety features of your vehicle

NOTICE

WARNING

Child Restraint System (CRS)

restraint regularly to make sure that it has not shifted and come into contact with any of the safety belt buckles.

After an accident, have a Kia dealer check the Child Restraint System, seat belts, tether anchors and lower anchors.

Selecting a CRS

When selecting a CRS for your child, always: 䳜 Make sure the CRS has a label

certifying that it meets applicable Federal Motor Vehicle Safety Standards (FMVSS 213).

䳜 Select a child restraint based on

your child's height and weight. The required label or the instruc

tions for use typically provide this information.

䳜 Select a child restraint that fits

the vehicle seating position where it will be used.

䳜 Read and comply with the warn

ings and instructions for installa

tion and use provided with the CRS.

䳜 The American Academy of Pedi

atrics provides helpful fit and safety information about child restraints at www.healthychil

dren.org.

Holding children

Never hold a child in your arms or lap when riding in a vehicle. The vio lent forces created during a crash will tear the child from your arms and throw the child against the car's interior. Always use a Child Restraint System which is appropriate for your child's height and weight.

Unattended children

Never leave children unattended in a vehicle. The car can heat up very quickly, resulting in injuries to the child in the vehicle.

Seat belt use

Do not use one seat belt for two occupants at the same time. This will eliminate any safety benefit provided by the seat belt to the occupants.

323

Page 55

Safety features of your vehicle Child Restraint System (CRS)

ODEEV058035NR

ODEEV058036NR

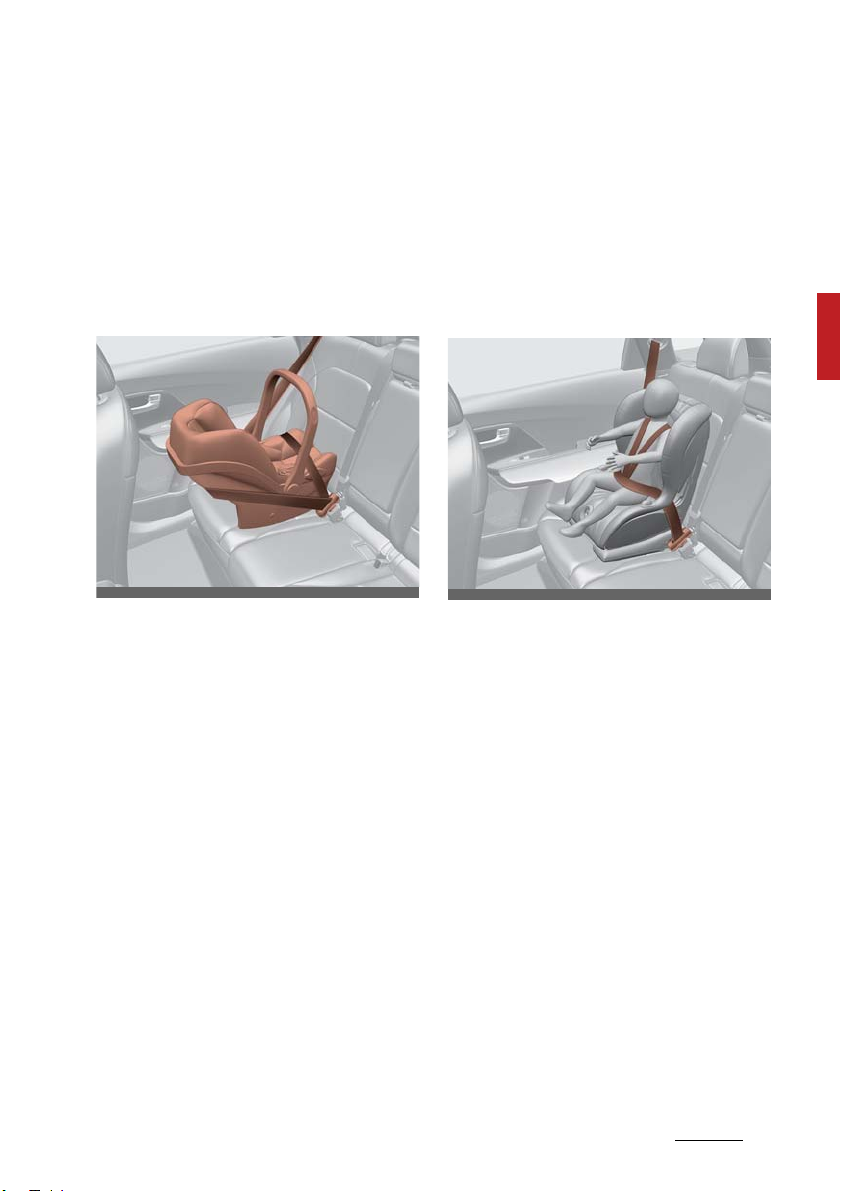

CRS types

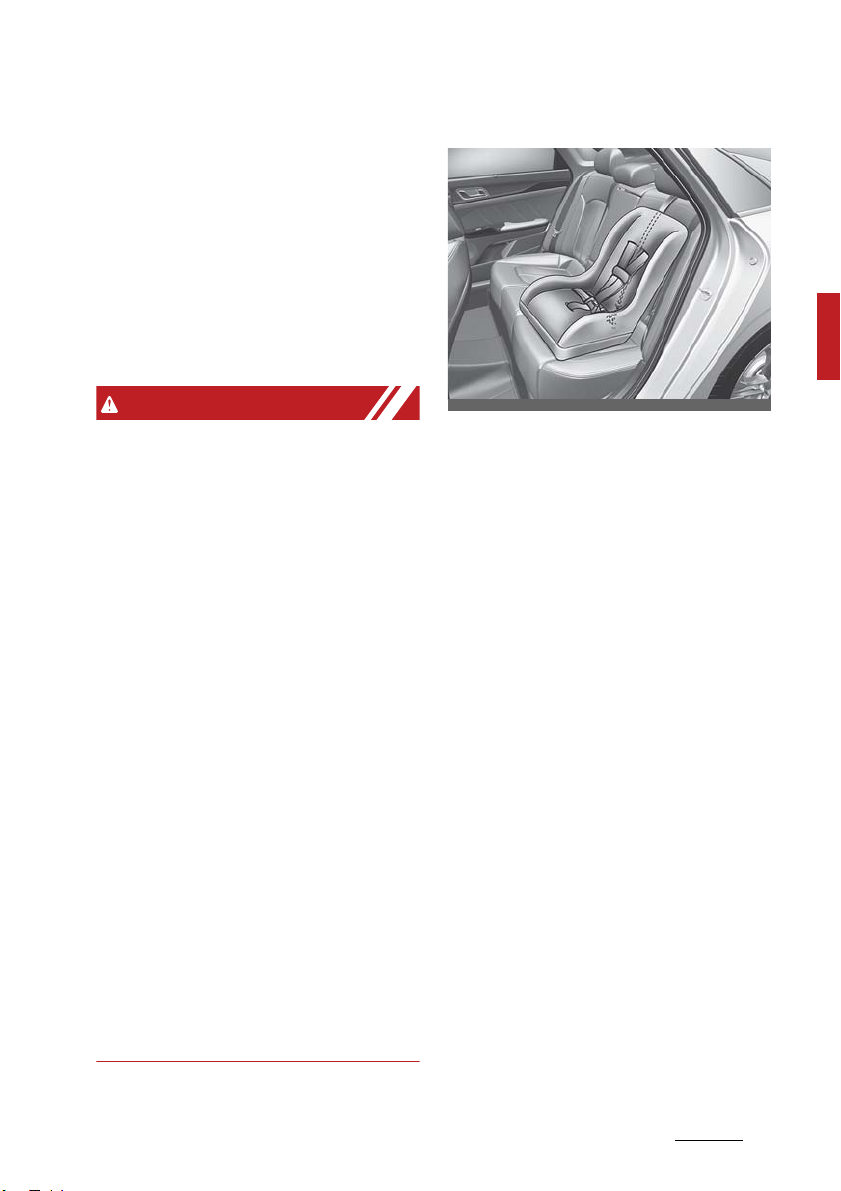

There are three main types of the CRS: rear-facing seats, forwardfacing seats, and booster seats. They are classified according to the child's age, height and weight.

Backward-facing child seats

A rear-facing child seat provides restraint with the seating surface against the back of the child. The harness system holds the child in place, and in an accident, acts to keep the child positioned in the seat and reduces the stress to the neck and spinal cord. All children under age one must always ride in a rear-facing infant child restraint. Convertible and 3-in-1 child seats typically have higher height and weight limits for the rear-facing position, allowing you to keep your child rear-facing for a longer period of time. Continue to use a rear-facing child seat for as long as your child will fit within the height and weight limits

allowed by the child seat manufac

turer. It's the best way to keep

them safe. Once your child has out

grown the rear-facing child

restraint, your child is ready for a

forward-facing child restraint with a

harness.

Forward-facing child restraints

A forward-facing child seat provides

restraint for the child's body with a

harness. Keep children in a forward-

facing child seat with a harness until

they reach the top height or weight

limit allowed by your child

restraint's manufacturer.

Once your child outgrows the for

ward-facing child restraint, your

child is ready for a booster seat.

Booster seats

A booster seat is a restraint

designed to improve the fit of the

vehicle's seat belt system. A booster

seat positions the seat belt so that

it fits properly over the lap of your

child.

Keep your child in a booster seat

until they are big enough to sit in

Page 56

Safety features of your vehicle

Child Restraint System (CRS)

the seat without a booster and still have the seat belt fit properly. For a seat belt to fit properly, the lap belt must lie snugly across the upper thighs, not the stomach. The shoul

der belt should lie snug across the shoulder and chest and not across the neck or face. Children under age 13 must always ride in the rear seats and must always be properly restrained to minimize the risk of injury.

Installing a CRS

After selecting a proper child seat for your child, check to make sure it fits properly in your vehicle.

Follow the instructions provided by the manufacturer when installing the child seat. Note these general steps when installing the seat to your vehicle:

䳜 Properly secure the child restraint

to the vehicle. All child restraints

must be secured to the vehicle with the lap part of a lap/shoulder belt or with the LATCH system.

䳜 Make sure the child restraint is

firmly secured. After installing a

child restraint to the vehicle, push and pull the seat forward and from side-to-side to verify that it is securely attached to the seat. A child restraint secured with a seat belt should be installed as firmly as possible. However, some sideto-side movement can be expected.

䳜 Secure the child in the child

restraint. Make sure the child is

properly strapped in the child restraint according to the manu

facturer instructions.

Lower Anchors and Tether for Chil dren (LATCH) system

The LATCH system holds a child restraint during driving and in an accident. This system is designed to make installation of the child restraint easier and reduce the pos sibility of improperly installing your child restraint. The LATCH system uses anchors in the vehicle and attachments on the child restraint. The LATCH system eliminates the need to use seat belts to secure the child restraint to the rear seats.

Lower anchors are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attach

ments.

To use the LATCH system in your vehicle, you must have a child restraint with LATCH attachments.

The child seat manufacturer will provide you with instructions on how to use the child seat with its attachments for the LATCH lower anchors.

343

Page 57

Safety features of your vehicle Child Restraint System (CRS)

WARNING

ODL3039097L

ODL3A030103

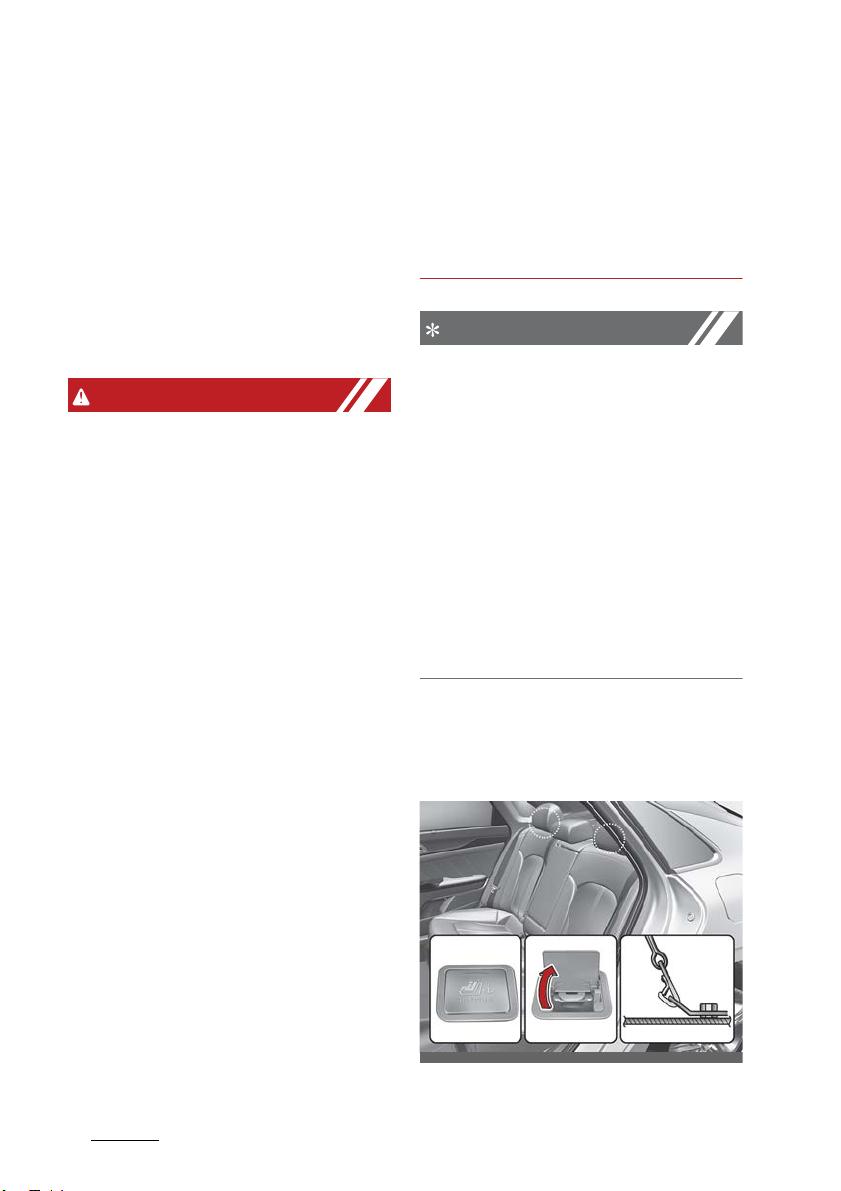

LATCH anchors have been provided in the left and right outboard rear seating positions. Their locations are shown in the illustration. There are no LATCH anchors provided for the center rear seating position.

1. Lower Anchor position indicator

2. Lower Anchor

The LATCH anchors are located

between the seatback and the seat

cushion of the rear seat left and

right outboard seating positions.

To use the lower anchor, push the

upper portion of the lower anchor

LATCH Lower Anchors

cover.

Never attempt to attach a LATCH equipped seat in the center seating position. LATCH lower anchors are only to be used in the left and right rear outboard seating positions. You may damage the anchors or the anchors may fail and break in a colli sion if the seat is in the center seat ing position.

Securing a child restraint with the

LATCH anchors system

To install a LATCH-compatible child

restraint in either of the rear out

board seating positions:

1. Move the seat belt buckle away

from the lower anchors. Other wise, the webbing or buckle can

be damaged by the latch anchor,

The lower anchor position indicator symbols are located on the left and right rear seatbacks to identify the position of the lower anchors in your vehicle (see arrows in illustra

tion).

which can make them become unusable or unsafe.

2. Move any other objects away from the anchors that could pre vent a secure connection between the child restraint and the lower

anchors.

Page 58

Safety features of your vehicle

WARNING

NOTICE

ODL3A030037

Child Restraint System (CRS)

3. Place the child restraint on the vehicle seat, then attach the seat to the lower anchors according to the instructions provided by the child restraint manufacturer.

4. Follow the child restraint instruc

tions for properly adjusting and tightening the lower attach

ments on the child restraint to the lower anchors.

Take the following precautions when using the LATCH system:

䳜 Read and follow all installation

instructions provided with your Child Restraint System.

䳜 To prevent the child from reaching

and taking hold of the unused seat belts, buckle all unused rear seat belts before the child is placed into the vehicle. Lock each unused seatbelt following the instructions in the "automatic locking mode" subsection, and place the webbing behind the child seat or against an unused seat

back. Children can be strangled if a shoulder belt becomes wrapped around their neck and the seat belt tightens.

䳜 NEVER attach more than one child

restraint to a single anchor. This could cause the anchor or attach ment to come loose or break.

䳜 Always have the LATCH system

inspected by your authorized Kia dealer after an accident. An acci dent can damage the LATCH sys tem and may not properly secure the child restraint.

The recommended maximum weight for the LATCH system is 65 lbs. (30 kg). When selecting a proper child restraint, consider that the maximum total weight of the child plus the child restraint should be less than 65 lbs. (30 kg).

As a guide, the MAX child restraint weight should be determined by the following calculation:

Child Restraint Weight = 65 - (child's total weight in lbs.)

Securing a child restraint seat with "Tether Anchor" system (if equipped)

363

Page 59

Safety features of your vehicle Child Restraint System (CRS)

WARNING

ODL3A030038

First secure the child restraint with the LATCH lower anchors or the seat belt. If the child restraint man

ufacturer recommends that the top tether strap be attached, attach and tighten the top tether strap to the top tether strap anchor.

Child Restraint hook holders are located on the package tray.

Take the following precautions when installing the tether strap:

䳜 Read and follow all installation

instructions provided with your Child Restraint System.

䳜 NEVER attach more than one child

restraint to a single tether anchor. This could cause the anchor or attachment to come loose or break.

䳜 Do not attach the tether strap to

anything other than the correct tether anchor. It may not work properly if attached to something else.

䳜 Do not use the tether anchors for

adult seat belts or harnesses, or for attaching other items or equipment to the vehicle.

䳜 Always fasten the seat belts

behind the child restraint seat when they are not used to secure the child seat. Failure to do so may result in child strangulation.

To install the tether anchor:

1. Route the Child Restraint System seat strap over the seatback. For vehicles with adjustable head rest, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback.

2. Connect the top-tether to the top-tether anchorage, then tighten the top-tether according to the instructions of your Child Restraint System's manufacturer to firmly attach the Child Restraint System to the seat.

3. Check that the child restraint is securely attached to the seat by pushing and pulling the seat for

ward and from side-to-side.

Page 60

Safety features of your vehicle

ODL3039078

ODL3039088

ODL3039079

Child Restraint System (CRS)

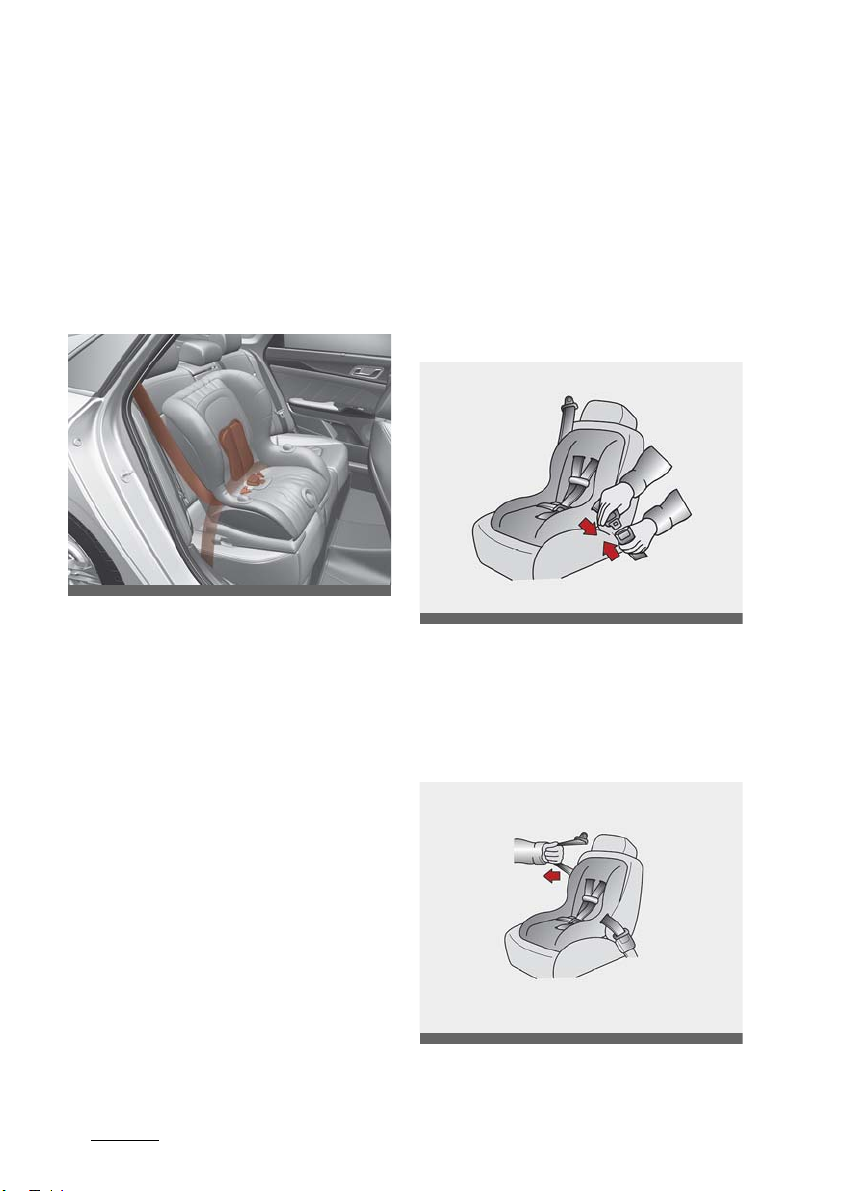

Securing a child restraint with a lap/shoulder belt

When not using the LATCH system, all child restraints must be secured to a vehicle rear seat with the lap part of a lap/shoulder belt.

Automatic locking mode

All passenger seat belts move freely under normal conditions and only lock under extreme or emergency conditions (emergency locking mode). So, in order to secure a child restraint, you must manually pull the seat belt all the way out to shift the retractor to the "automatic locking" mode. The "automatic locking" mode will help prevent the normal movement of the child in the vehicle from caus ing the seat belt to loosen and com promise the CRS.

To install a CRS on the rear seats, do the following:

1. Place the CRS on a rear seat and route the lap/shoulder belt around or through the child

restraint, following the restraint manufacturer's instructions. Be sure the seat belt webbing is not twisted.

2. Fasten the lap/shoulder belt latch into the buckle. Listen for the dis tinct "click" sound. Position the release button so that it is easy to access in case of an emergency.

3. Pull the shoulder portion of the seat belt all the way out. When the shoulder portion of the seat belt is fully extended, it will shift the retractor to the "automatic locking" (child restraint) mode.

383

Page 61

Safety features of your vehicle Child Restraint System (CRS)

NOTICE

WARNING

ODL3039080

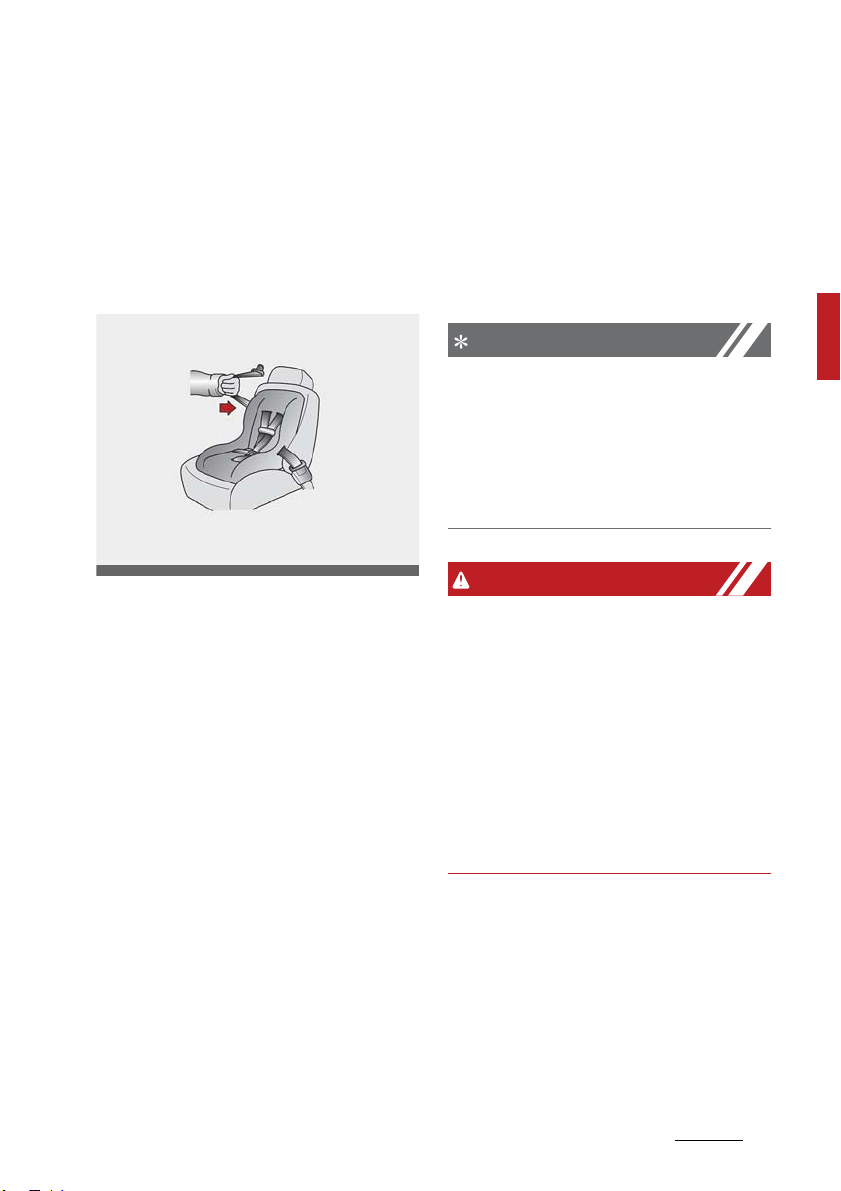

4. Slowly allow the shoulder portion of the seat belt to retract and lis ten for an audible "clicking" or "ratcheting" sound. This indicates that the retractor is in the "auto

matic locking" mode. If no distinct sound is heard, repeat steps 3 and

5. Remove as much slack from the belt as possible by pushing down on the CRS while feeding the shoulder belt back into the retractor.

6. Push and pull on the CRS to con

firm that the seat belt is holding it firmly in place. If it is not, release the seat belt and repeat steps 2 through 6.

7. Double check that the retractor is in the "automatic locking" mode by attempting to pull more of the seat belt out of the retractor. If you cannot, the retractor is in the "automatic locking" mode.

If your CRS manufacturer instructs

or recommends you to use a tether anchor with the lap/shoulder belt, refer to "Securing a child restraint seat with "Tether Anchor" system (if equipped)" on page 3-36 for more information.

When the seat belt is allowed to retract to its fully stowed position, the retractor will automatically switch from the "automatic locking" mode to the emergency lock mode for normal adult usage.

Auto lock mode

Set the retractor to Automatic Lock mode when installing any Child Restraint System. If the retractor is not in the automatic locking mode, the child restraint can move when your vehicle turns or stops sud denly. A child can be seriously injured or killed if the child restraint is not properly anchored in the car.

To remove the child restraint, press the release button on the buckle and then pull the lap/shoulder belt out of the restraint and allow the seat belt to retract fully.

Page 62

Safety features of your vehicle

ODL3A030041

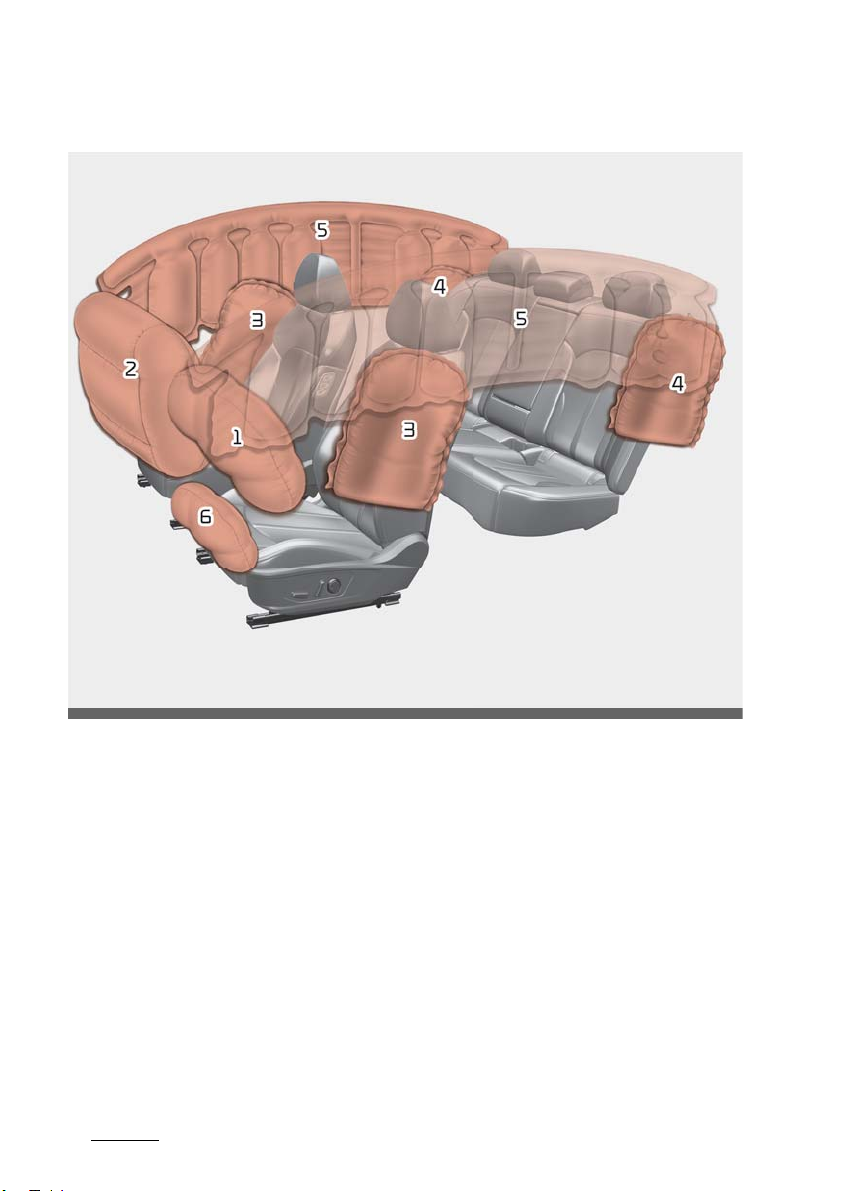

Air bag - Advanced Supplemental Restraint

Air bag - Advanced Supplemental Restraint System

System

* The actual air bags in the vehicle may differ from the illustration.

1. Driver's front air bag

2. Passenger's front air bag

3. Side air bag (front)

4. Side air bag (rear)

5. Curtain air bag

6. Driver's knee air bag

Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.

403

Page 63

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

System

How does the air bag system oper ate?

䳜 Air bags are activated (able to

inflate if necessary) only when the Engine START/STOP Button is in the ON Position or approxi

mately within 3 minutes after ignition off.

䳜 The appropriate air bags inflate

instantly in the event of a serious frontal collision or side collision in order to help protect the occu

pants from serious physical injury.

䳜 There is no single speed at which

the air bags will inflate. Generally, air bags are designed to inflate based upon the severity of a colli sion and its direction, etc. Several factors determine whether the sensors produce an electronic deployment / inflation signal.

䳜 Air bags will not deploy in every

crash or collision situations. Air bag deployment depends on a number of factors including vehi

cle speed, angles of impact, and, the density and stiffness of the vehicles or objects which your vehicle hits in the collision. The determining factors are not lim

ited to those mentioned above.

䳜 The front air bags will completely

inflate and deflate in an instant. It is virtually impossible for you to see the air bags inflate during an accident. It is much more likely that you will simply see the

deflated air bags hanging out of

their storage compartments after the collision.

䳜 In addition to inflating in serious

side collisions, side and/or curtain air bags will inflate if the sensing system detects a rollover.

䳜 When a rollover is detected, side

and/or curtain airbags will remain inflated longer. This helps provide protection from ejection, espe cially when used in conjunction with the seat belts.

䳜 In order to help provide protec

tion, the air bags must inflate rapidly. The airbag inflates extremely fast between the occupant and the vehicle struc

tures before the occupant impacts the vehicle structures. This speed of inflation reduces the risk of serious or life-threat ening injuries and is thus a neces sary part of the air bag design. However, airbag inflation can also cause injuries which can include facial abrasions, bruises and bro ken bones. This is because the rapid inflation also causes the air bags to expand with a great deal of force.

䳜 There are even circumstances

under which contact with the steering wheel or passenger air bag can cause fatal injuries, espe cially if the occupant is positioned excessively close to the steering wheel or passenger air bag.

Page 64

Safety features of your vehicle

WARNING

ODEEV058046NR

Air bag - Advanced Supplemental Restraint

System

Airbag inflation

Sit as far back as possible from the steering wheel while still maintain ing comfortable control of the vehi

cle. A distance of at least 10 in (25 cm) from your chest to the steering wheel is recommended. Failure to do so can result in airbag inflation inju

ries to the driver.

Noise and smoke

When inflated, the air bags make a loud noise and leave smoke and powder in the air inside the vehicle. This is normal and is a result of the ignition of the air bag inflator. After the air bag inflates, you may feel substantial discomfort in breathing due to the contact of your chest with both the seat belt and the air bag, as well as from breathing the smoke and powder. Open your doors

and/or windows as soon as possible after impact in order to reduce dis

comfort and prevent prolonged exposure to the smoke and powder.

Hot components

Do not touch the air bag storage area's internal components immedi ately after airbag inflation. The air bag related parts in the steering wheel, instrument panel and the roof rails above the front and rear doors are very hot. Hot components can result in burn injuries.

Do not install or place any accesso

ries near air bag deployment areas, such as the instrument panel, win

dows, pillars, and roof rails.

Do not install a child restraint on the front passenger's seat

Though smoke and powder are non toxic, it may cause irritation to the skin (eyes, nose and throat, etc). If this is the case, wash and rinse with cold water immediately and consult a doctor if the symptom persists.

423

Never place a rear-facing child restraint in the front passenger's seat.

Page 65

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

ODEEV068100NR

System

If the air bag deploys, it would impact the rear-facing child restraint, causing serious or fatal injury.

In addition, do not place front-facing child restraints in the front passen

ger's seat. If the front passenger air bag inflates, it could cause serious or fatal injuries to the child.

Air bag deployment

When children are seated in the rear outboard seats of a vehicle equipped with side and/or curtain air bags, install the Child Restraint System as far away from the door side as pos

sible. Inflation of the side and/or curtain air bags could impact the child.

Air bag warning light

The purpose of air bag warning light in your instrument panel is to alert you of a potential problem with your air bag system, which could include your side and/or curtain air bags used for rollover protection.

If the air bag warning light is illumi

nated for more than 6 seconds after the ENGINE START/STOP button has been turned to the ON position, or if it illuminates during vehicle opera

tion, an SRS component may not be functioning properly and you should have your vehicle checked by an authorized Kia dealer.

If any of the following conditions occur, this indicates a malfunction in the air bag system. Have an autho

rized Kia dealer inspect the air bag system as soon as possible. 䳜 The light does not turn on briefly

when you turn the ENGINE START/STOP button to the ON position.

䳜 The light stays on after illuminat

ing for approximately 6 seconds.

䳜 The light comes on while the vehi

cle is in motion.

䳜 The light blinks when the ENGINE

START/STOP button to the ON position.

Page 66

Safety features of your vehicle

WARNING

ODL3A030085

Air bag - Advanced Supplemental Restraint

System

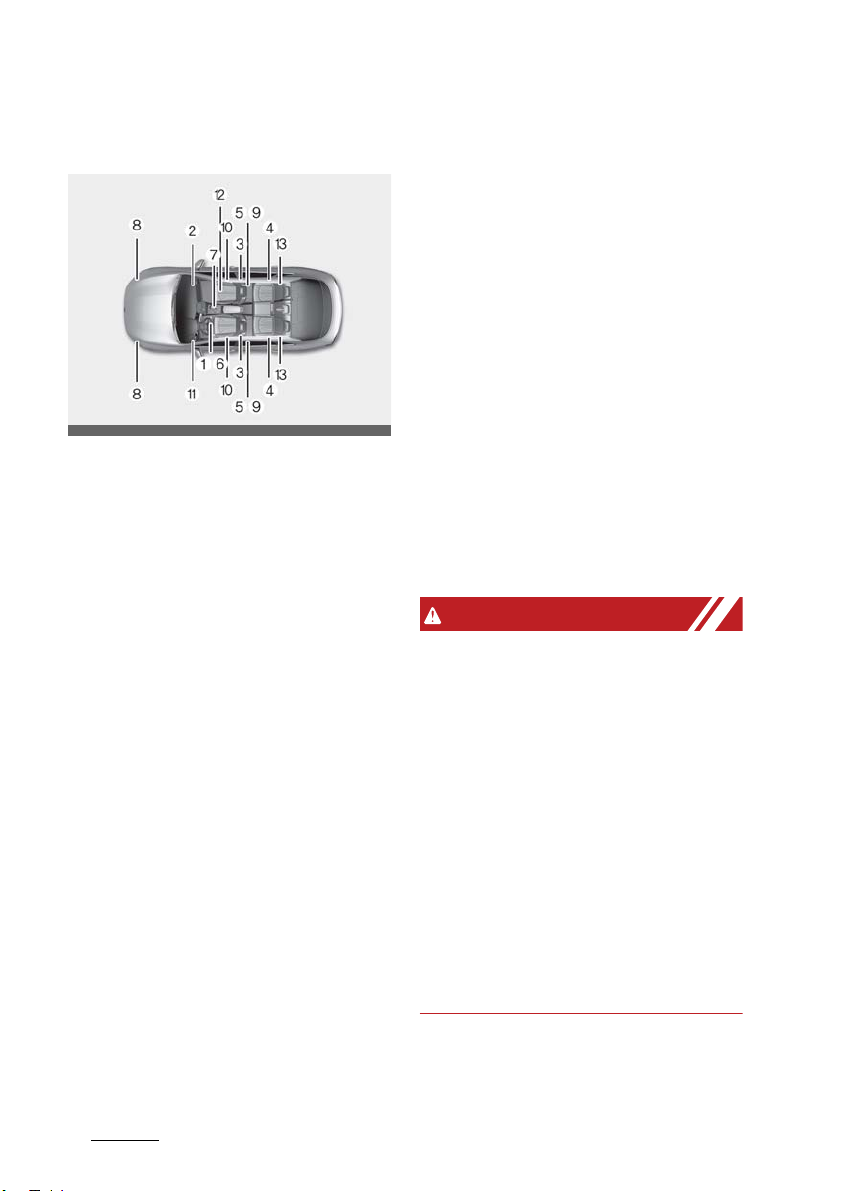

Supplemental Restraint System (SRS) components and functions

* The actual position of SRS compo

nents may differ from the illus

tration.

The SRS consists of the following components:

1. Driver's front air bag module

2. Passenger's front air bag module

3. Front side air bag modules

4. Curtain air bag modules

5. Retractor pre-tensioner assem

blies

6. Air bag warning light

7. SRS control module (SRSCM)

8. Front impact sensors

9. Side impact sensors

10.Side pressure sensors

11.Driver's knee air bag module

12.Occupant Detection System (ODS) (Front passenger's seat only)

13.Rear side air bag modules

The SRSCM continually monitors all elements while the ignition switch or ENGINE START/STOP Button is in the ON Position or approximately within 3 minutes after ignition off to determine if a frontal, near-frontal impact or side impact is severe enough to require air bag deploy ment or pre-tensioner seat belt deployment.

The SRS air bag warning light on the instrument panel will illuminate for about 3~6 seconds after the ignition

switch or ENGINE START/STOP but ton is turned to the ON position, after which the air bag warning light should go out.

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by an authorized Kia dealer.

䳜 The light does not turn on briefly

when you turn the ignition ON.

䳜 The light stays on after illuminat

ing for approximately 6 seconds.

䳜 The light comes on while the vehi

cle is in motion.

䳜 The light blinks when the ignition

switch or ENGINE START/STOP button is in ON position.

443

Page 67

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

ODEEV058048NR

ODEEV058049NR

ODEEV058050NR

ODEEV058051NR

System

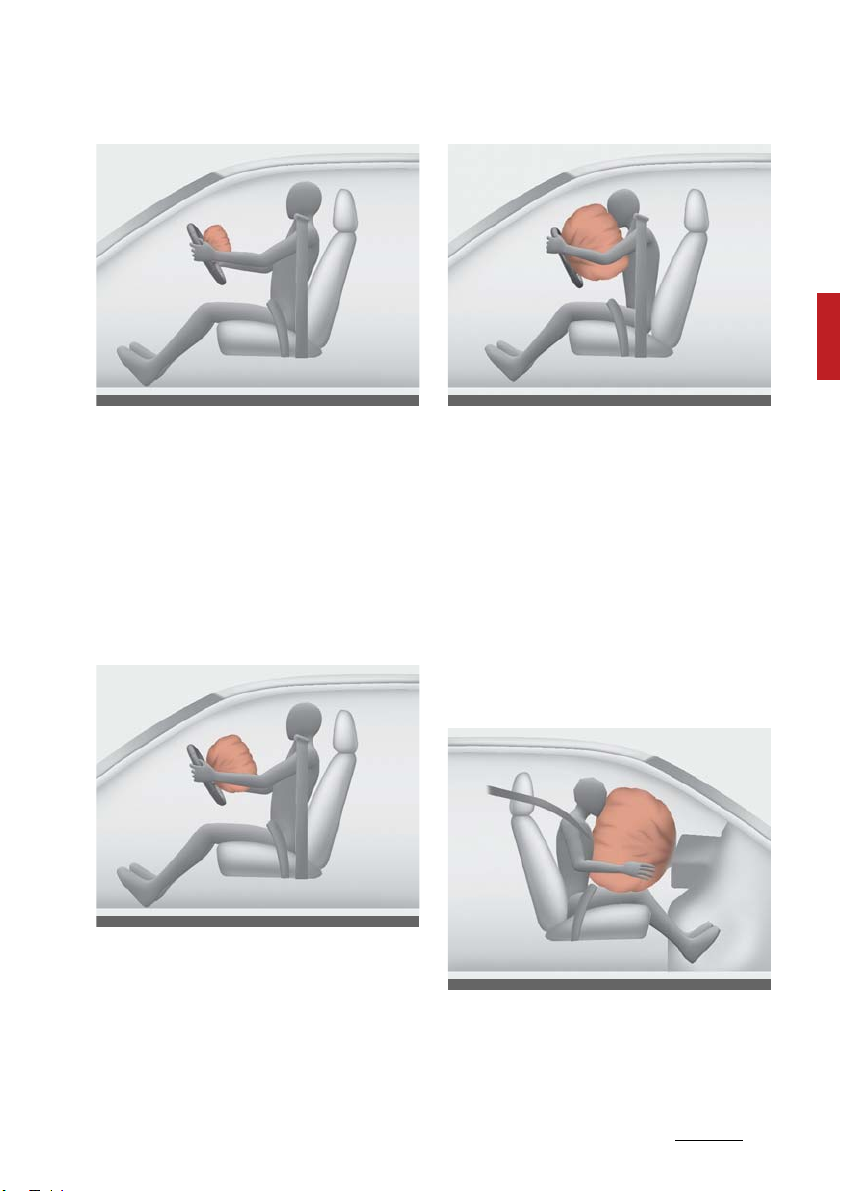

Driver's front air bag (1)

The air bag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

Driver's front air bag (2)

Driver's front air bag (3)

A fully inflated air bag, in combina

tion with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain for

ward visibility and the ability to steer or operate other controls.

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Fur

ther opening of the covers then allows full inflation of the air bags.

Passenger's front air bag

Page 68

Safety features of your vehicle

WARNING

NOTICE

Air bag obstructions

Do not install or place any accesso ries on the steering wheel, instru

ment panel, or on the front passenger's panel above the glove box in a vehicle. Such objects may become dangerous projectiles if the air bag deploys.

Flying objects

Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dangerous projectiles if the side airbag inflates.

䳜 If an air bag deploys, there may

be a loud noise followed by a fine dust released in the vehicle. These conditions are normal and are not hazardous - the air bags are packed in this fine powder. The dust generated during air bag deployment may cause skin or eye irritation as well as aggravate asthma for some persons. Always wash all exposed skin areas thor

oughly with cold water and a mild soap after an accident in which the air bags were deployed.

Air bag - Advanced Supplemental Restraint

System

䳜 The SRS can function only when

the ENGINE START/STOP Button is in the ON Position or approxi

mately within 3 minutes after ignition off. The SRS is not work ing properly if any of the follow

ing situations occur:

- the SRS airbag warning light does not illuminate

- the SRS airbag warning light remains on continuously after illuminating for about 3~6 sec

onds when the ENGINE START/ STOP button is turned to the ON position or after the vehicle is in ready mode

- the SRS airbag warning light comes on while driving

If this occurs, have your vehicle immediately inspected by an authorized Kia dealer.

Before you replace a fuse or discon nect a battery terminal, change the ENGINE START/STOP button to the OFF position. Never remove or replace the air bag related fuse(s) when the ENGINE START/STOP but ton is ON position. Failure to heed this warning will cause the SRS air bag warning light to illuminate.

463

Page 69

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

ODL3A030094

System

Occupant Detection System (ODS)

Your vehicle is equipped with an Occupant Detection System (ODS) in the front passenger's seat.

The ODS is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not. Only the front passenger front air bag is controlled by the ODS.

Do not put anything in front of the passenger air bag " " indicator.

Main components of the ODS

䳜 A detection device is located

within the front passenger seat cushion.

䳜 An electronic system determines

whether the passenger air bag systems should be activated or deactivated.

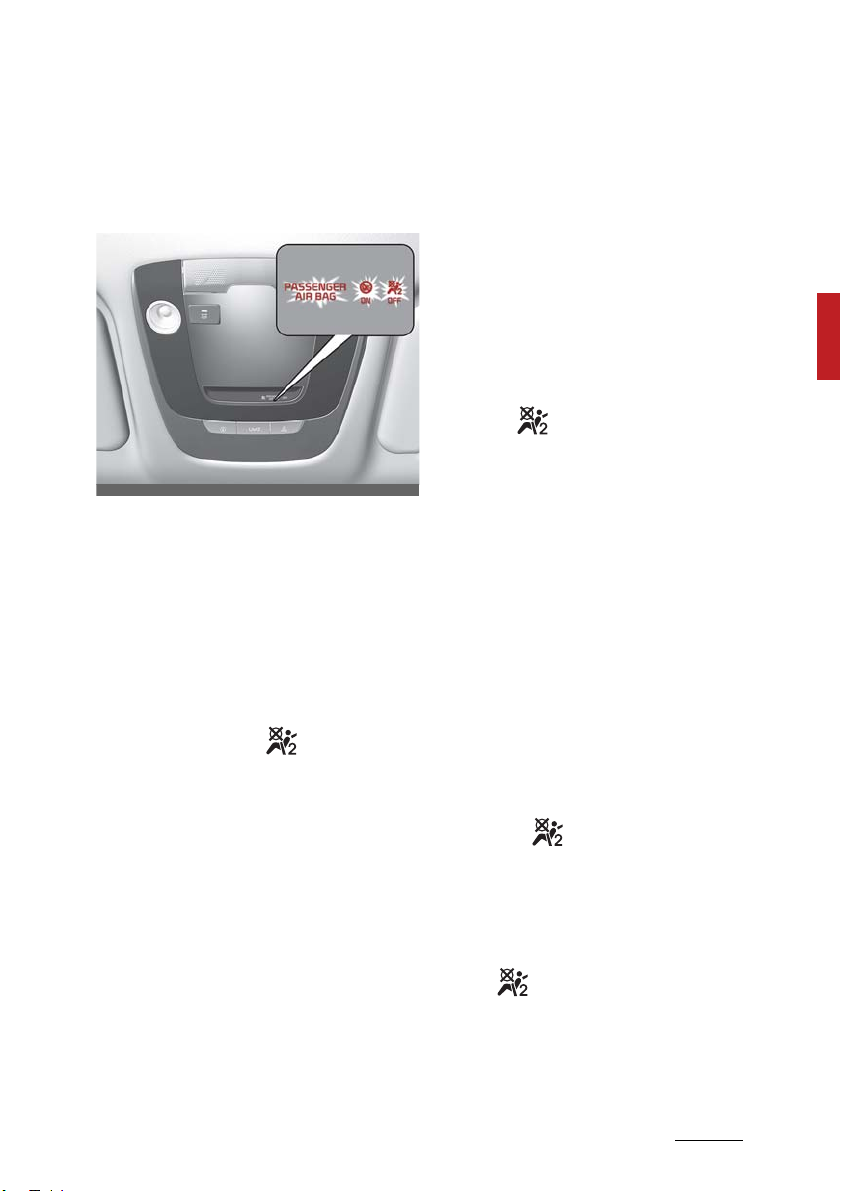

䳜 An indicator light located on the

overhead console which illumi

nates the words PASSENGER AIR BAG " " indicates the front pas senger air bag system is deacti

vated.

䳜 The overhead console air bag

warning light is interconnected with the ODS.

If the front passenger seat is occu

pied by a person that the system determines to be of appropriate size, and he/she sits properly (sit

ting upright with the seatback in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor), the PASSENGER

AIR BAG " " indicator will turn off and the front passenger's air bag

will be able to inflate, if necessary, in frontal crashes.

You will find the PASSENGER AIR BAG " " indicator on the overhead console. This system detects the

conditions 1~4 in the following table and activates or deactivates the

Page 70

Safety features of your vehicle

front passenger air bag based on these conditions.

Always be sure that you and all vehicle occupants are seated and restrained properly (sitting upright with the seat in an upright position, centered on the seat cushion, with the person's legs comfortably extended, feet on the floor, and wearing the safety belt properly) for the most effective protection by the air bag and the safety belt.

The ODS may not function properly if the passenger takes actions which can defeat the detection system. These include:

䳜 Failing to sit in an upright position. 䳜 Leaning against the door or cen

ter console.

䳜 Sitting towards the sides or the

front of the seat.

䳜 Putting legs on the dashboard or

resting them on other locations which reduce the passenger weight on the front seat.

䳜 Improperly wearing the safety

belt.

䳜 Reclining the seatback.

Air bag - Advanced Supplemental Restraint

System

483

Page 71

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

System

Conditions and operation of the front passenger ODS

Condition detected by the

occupant classification sys

tem

1. Adult

Indicator/Warning light Devices

"PASSENGER

AIR BAG OFF" indicator light

SRS warning

light

Off Off Activated

Front passenger

air bag

2. Child Restraint System (CRS) with child under 12

months old

*2*3*4

On Off Deactivated

3. Unoccupied On Off Deactivated

4. Malfunction in the system Off On Activated

*1. The system judges a person of adult size as an adult. When a smaller adult sits in

the front passenger seat, the system may recognize him/her as a child depend ing on his/her physique and posture.

*2. Do not allow children to ride in the front passenger seat. When a larger child who

has outgrown a CRS sits in the front passenger seat, the system may recognize him/her as an adult depending upon his/her physique or sitting position.

*3. Never install a CRS on the front passenger seat. *4. The PASSENGER AIR BAG " " indicator may turn on or off when a child above

12 months to 12 years old (with or without a CRS) sits in the front passenger seat. This is a normal condition.

䳜 Do not install a child restraint seat

in the passenger seat when the seat is heavily soaked with any type of liquid.

䳜 Do not alter or remodel the Occu

pant Detection System (ODS). This may damage the system and prevent its proper function in a collision.

Page 72

Safety features of your vehicle

NOTICE

WARNING

ODEEV058055NR

Air bag - Advanced Supplemental Restraint

System

䳜 Do not use car seat cushions that

cover up the surface of the seat and aftermarket manufactured passenger seat heaters.

䳜 After conducting car interior

cleaning using steam or deter

gent, the seat should be dried properly. Afterward, check for normal operation of the PASSEN

GER AIR BAG "OFF" and air bag warning lights.

䳜 Any service related to the pas

senger seat and the ODS must be done at an authorized Kia dealer

ship.

䳜 After the passenger seat has

been removed or installed for repair purposes, check for normal operation of the PASSENGER AIR

BAG " " and air bag warning lights with a person seated or not

seated in the passenger seat.

Do not modify or replace the front passenger seat. Don't place any

thing on or attach anything such as a blanket, front seat cover or after market seat heater to the front passenger seat. This can adversely affect the Occupant Detection Sys

tem.

Occupant Detection System

Riding in an improper position adversely affects the Occupant Detection System and may result in the deactivation of the front pas

senger airbag. It is important for the driver to instruct the passenger as to the proper seating instructions as contained in this manual.

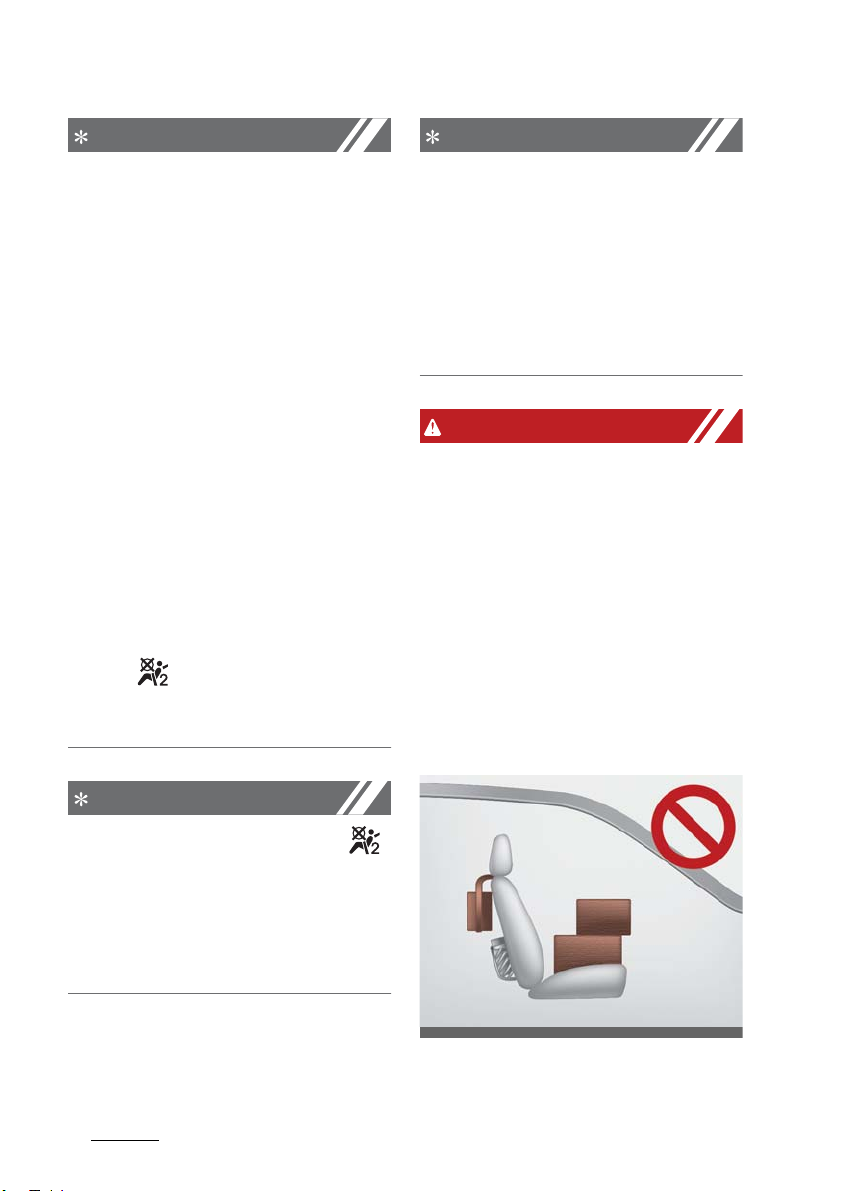

䳜 Do not place a heavy load in the

front passenger seatback pocket or on the front passenger seat.

When the PASSENGER AIR BAG " " symbol is illuminated, the passenger

air bag system will not operate. The passenger air bag system will oper ate when necessary if the symbol is not illuminated.

503

Page 73

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

ODEEV058056NR

OON039120NR

ODEEV058002NR

ODEEV058059NR

ODEEV058060NR

System

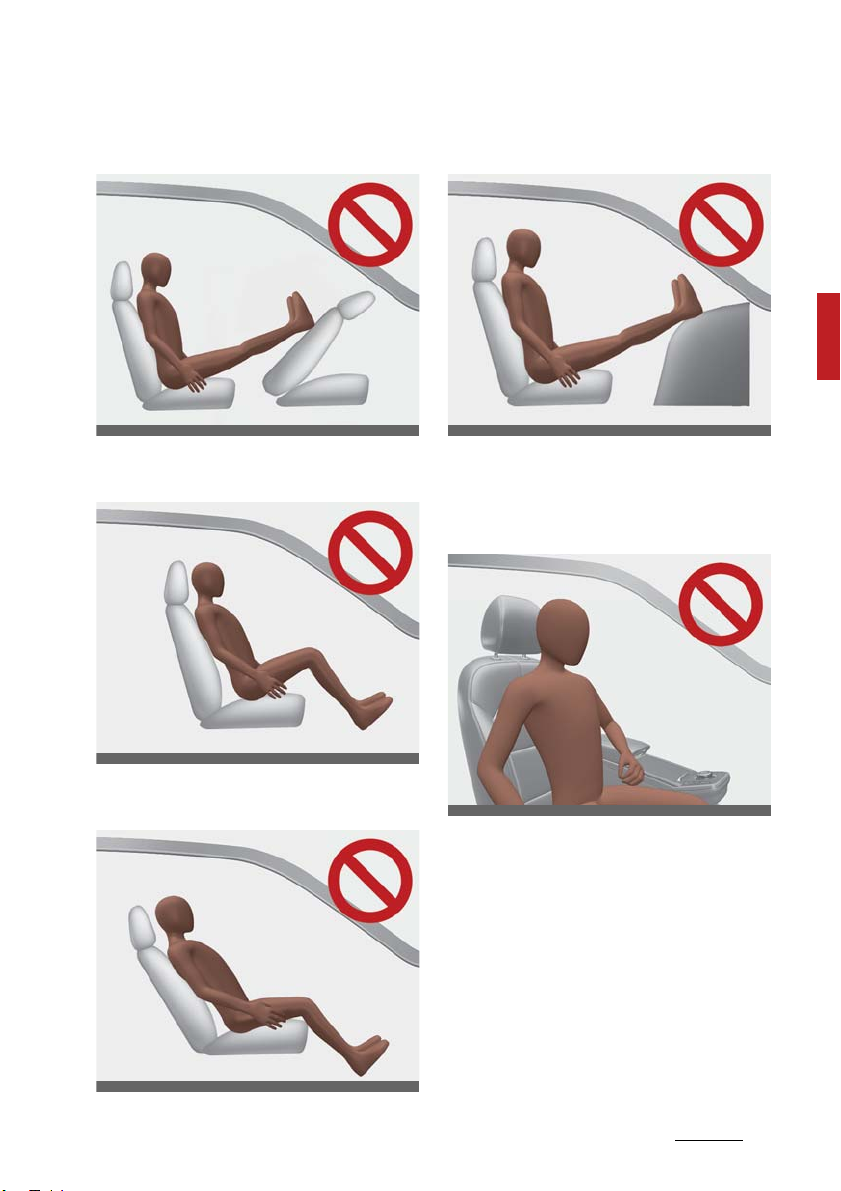

䳜 Do not place feet on the front

passenger seatback.

䳜 Never sit with hips shifted

towards the front of the seat.

䳜 Never place feet on the dash

board.

䳜 Never lean on the door or center

console.

䳜 Never sit on one side of the front

passenger seat.

䳜 Never excessively recline the

front passenger seatback.

䳜 Do not use car seat accessories

such as thick blankets and cush ions which cover up the car seat surface.

Page 74

Safety features of your vehicle

ODEEV058061NR

ODEEV058062NR

ODEEV058063NR

ODEEV058064NR

Air bag - Advanced Supplemental Restraint

System

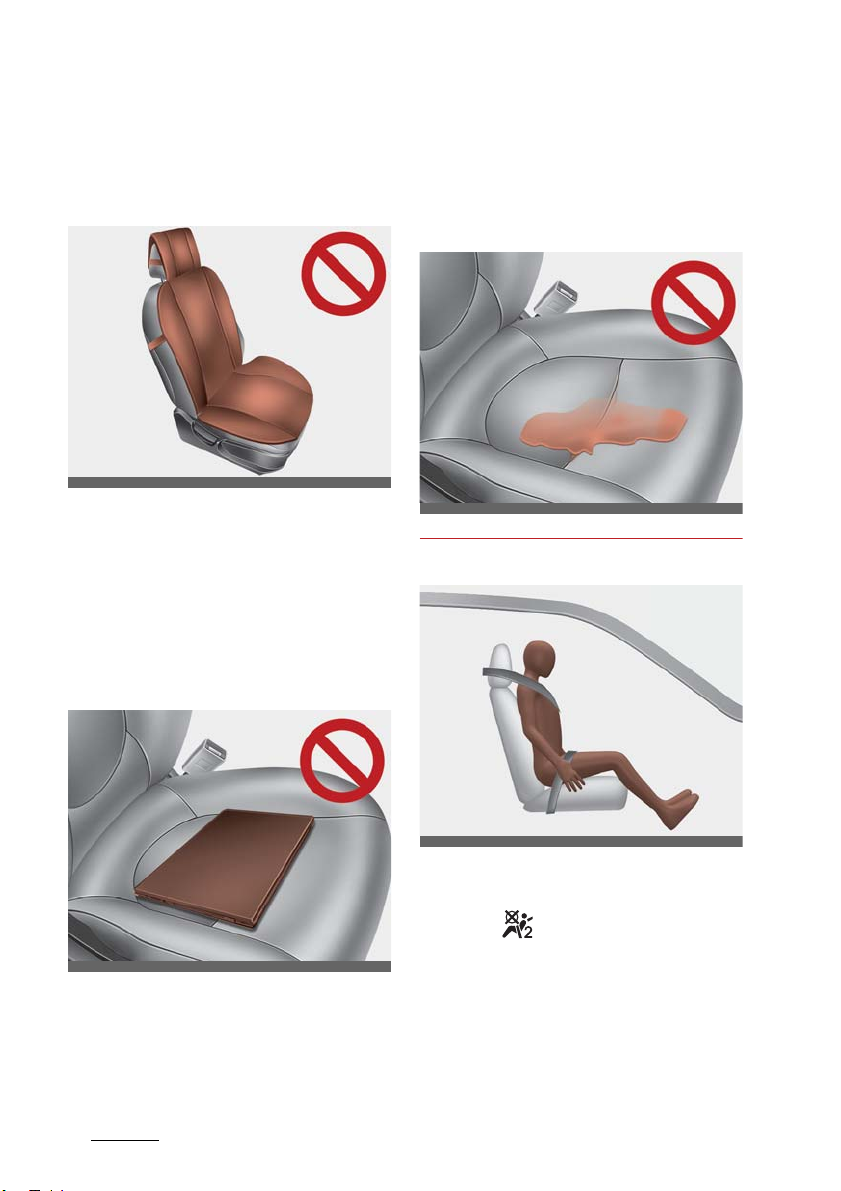

䳜 Do not sit on the passenger seat

wearing heavily padded clothes such as ski wear and hip protec

tor.

䳜 Do not place electronic devices

such as laptops, DVD player, or conductive materials such as water bottles on the passenger seat.

䳜 Do not use electronic devices such

as laptops and satellite radios which use inverter chargers.

warning light to illuminate or mal function. If any liquid is spilled, make sure the seat has been completely dried before driving the vehicle.

Proper position

䳜 Wet passenger seat:

Do not spill liquid in the passenger seat. Spilled liquid on the passen ger seat may cause the air bag

523

When an adult is seated in the front passenger seat, if the PASSENGER

AIR BAG " " indicator is on, change the ENGINE START/STOP button to

the OFF position and ask the pas senger to sit properly (sitting upright with the seatback in an

upright position, centered on the seat cushion with their seat belt on,

Page 75

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

NOTICE

System

legs comfortably extended and their feet on the floor). Restart the vehi cle and have the person remain in that position. This will allow the sys tem to detect the person and to enable the passenger air bag.

If the PASSENGER AIR BAG " " indicator is still on, ask the passen

ger to move to the rear seat.

The PASSENGER AIR BAG " " indi

cator does not illuminate if the front passenger seat is occupied, the occupant detection sensor will then classify the front passenger after several more seconds Also, if the

ENGINE START/STOP button is turned to the ON position when about 3 minutes have elapsed since the vehicle is in OFF position.

PASSENGER AIR BAG " " light

Do not allow an adult passenger to ride in the front seat when the PAS

SENGER AIR BAG " " indicator is illuminated, because the air bag will

not deploy in the event of a crash. The driver must instruct the pas

senger to reposition himself in the seat. Failure to properly position yourself may lead to air bag deacti

vation resulting in air bag nondeployment in a collision. If the PAS

SENGER AIR BAG " " indicator remains illuminated after the pas

senger repositions themselves properly and the car is restarted, it is recommended that passenger move to the rear seat because the passenger's front air bag will not deploy.

䳜 Even though your vehicle is

equipped with the Occupant Detection System, never install a Child Restraint System in the front passenger's seat. A deploy

ing air bag can forcefully strike a child resulting in serious injuries or death.

Any child age 13 and under should ride in the rear seat. Children too large for child restraints should use the available lap/shoulder belts. No matter what type of crash, children of all ages are safer when restrained in the rear seat.

If the ODS is not working properly, the Supplemental Restraint System (SRS) air bag warning light on the instrument panel will illuminate because the passenger's front air bag is connected with the ODS. If there is a malfunction of the ODS

the PASSENGER AIRBAG " " indi

cator will not illuminate. In this case,

Page 76

Safety features of your vehicle

ODL3039042

ODL3039053

ODL3039043

Air bag - Advanced Supplemental Restraint

System

the passenger's front airbag will inflate in frontal impact crashes even if there is no occupant in the front passenger seat.

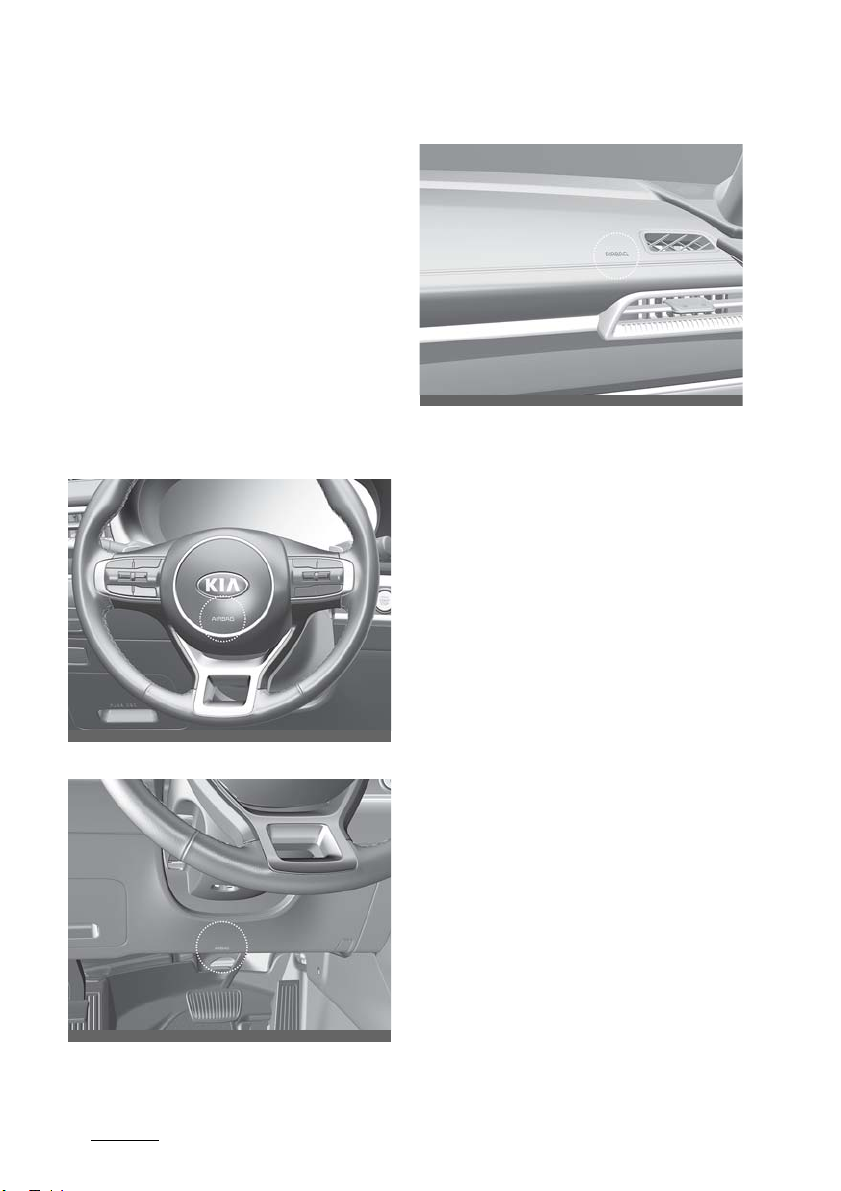

Driver's and passenger's front air bag

Your vehicle is equipped with an advanced supplemental restraint (air bag) system and lap/shoulder belts at both the driver and passen ger seating position.

Driver's front air bag

Passenger's front air bag

The indication of the system's pres ence are the letters "AIR BAG" located on the air bag pad cover on the steering wheel and the passen ger's side front panel pad above the glove box.

The Supplemental Restraint System (SRS) consists of air bags installed under the pad covers in the center of the steering wheel and the pas senger's side front panel above the glove box.

Driver's knee air bag

543

The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional protec

tion than that offered by the seat belt system alone in case of a fron

tal impact of sufficient severity. The SRS uses sensors to gather infor

mation about the driver's and front passenger's seat belt usage and impact severity.

The seat belt buckle sensor deter

mines if the front passenger's seat belt is fastened.

Page 77

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

System

These sensors provide the ability to control the SRS deployment based on whether or not the seat belts are fastened, and how severe the impact is.

The advanced SRS offers the ability to control the air bag inflation with two levels. A first stage level is pro

vided for moderate-severity impacts. A second stage level is pro vided for more severe impacts.

According to the impact severity and seat belt usage, the SRS Control Module (SRSCM) controls the air bag inflation. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

Additionally, your vehicle is equipped with an Occupant Detection System (ODS) in the front passenger's seat. The ODS detects the presence of a passenger in the front passenger's seat and will turn off the front pas

senger's air bag under certain condi tions. For more detail, see "Occupant Detection System (ODS)" on page 3-

47.

Modification to the seat structure can cause the air bag to deploy at a different level than should be pro

vided.

Manufacturers are required by gov ernment regulations to provide a contact point concerning modifica tions to the vehicle for persons with disabilities, which modifications may affect the vehicle's advanced air bag system. That contact is Kia's tollfree Customer Assistance center at 1-800-333-4Kia. However, Kia does not endorse nor will it support any

changes to any part or structure of the vehicle that could affect the advanced air bag system, including the ODS.

Replacement/modifications

The front passenger seat, dash board or door should not be replaced except by an authorized Kia dealer using original Kia parts designed for this vehicle and model. Any other such replacement or modification could adversely affect the operation

of the Occupant Detection System and your advanced air bags.

Advanced air bags are combined with pre-tensioner seat belts to help provide enhanced occupant protection in frontal crashes. Front air bags are not intended to deploy in collisions in which sufficient pro tection can be provided by the seat belt.

Page 78

Safety features of your vehicle

NOTICE

WARNING

ODL3039051

Air bags can only be used once 䳍 have an authorized Kia dealer replace the air bag immediately after deployment.

Front air bags are not intended to deploy in side-impact, rear-impact or rollover crashes. However, when frontal deployment threshold is sat isfied at side-impact, front air bags may deploy. In addition, front air bags will not deploy in frontal crashes below the deployment threshold.

SRS wiring

Do not tamper with or disconnect SRS wiring or other components of the SRS system. Doing so could result in injury, due to accidental deployment of the air bags or by rendering the SRS inoperative.

Air bag - Advanced Supplemental Restraint

cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy.

Do not place any objects over the air bag or between the air bag and yourself.

Additionally, never place or insert any object into any small opening near side airbag labels attached to the vehicle seats.

When the air bag deploys, the object may affect the deployment and result in unexpected accident or bodily harm.

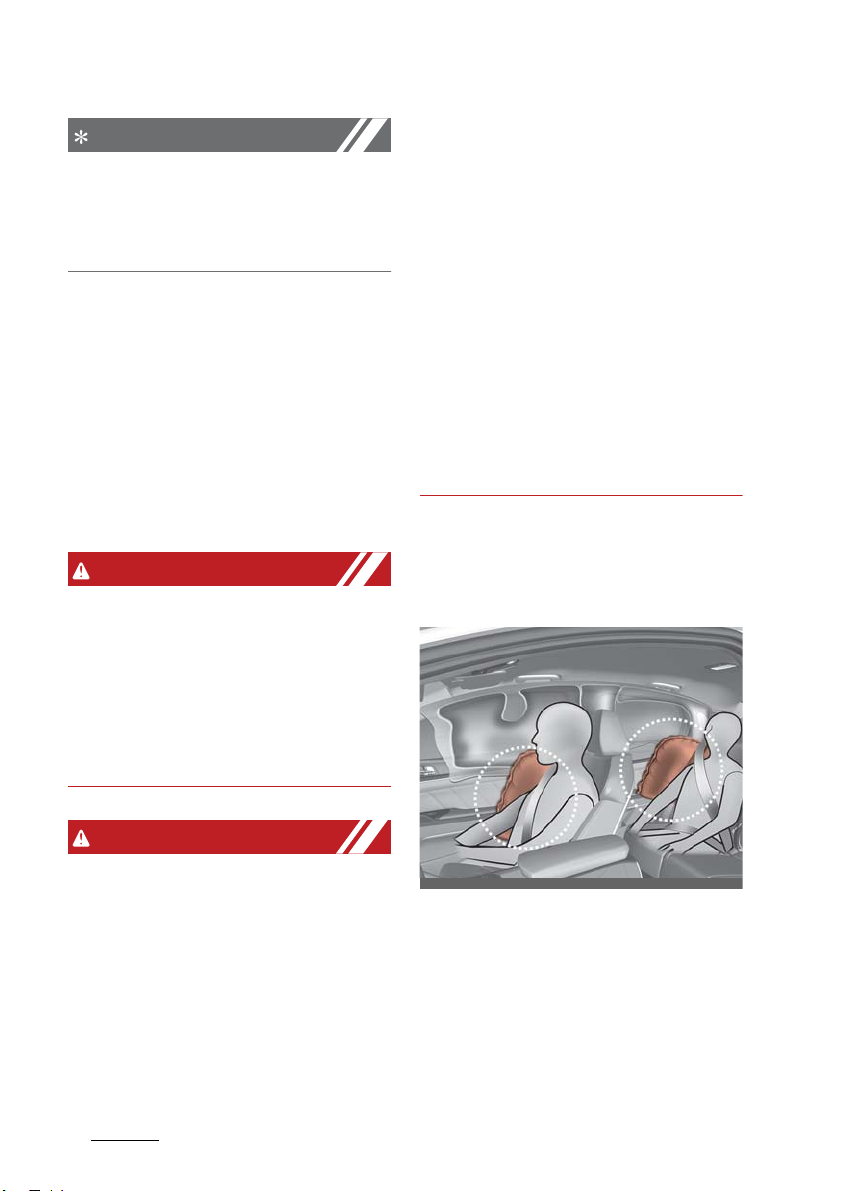

Side air bag

Your vehicle is equipped with a side air bag in each front seat.

System

No attaching objects

No objects (such as crash pad cover, cellular phone holder, cup holder, perfume or stickers) should be placed over or near the air bag mod ules on the steering wheel, instru ment panel, windshield glass, and the front passenger's panel above the glove box. Such objects could

563

Page 79

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

ODL3A030050

ODL3A030052

System

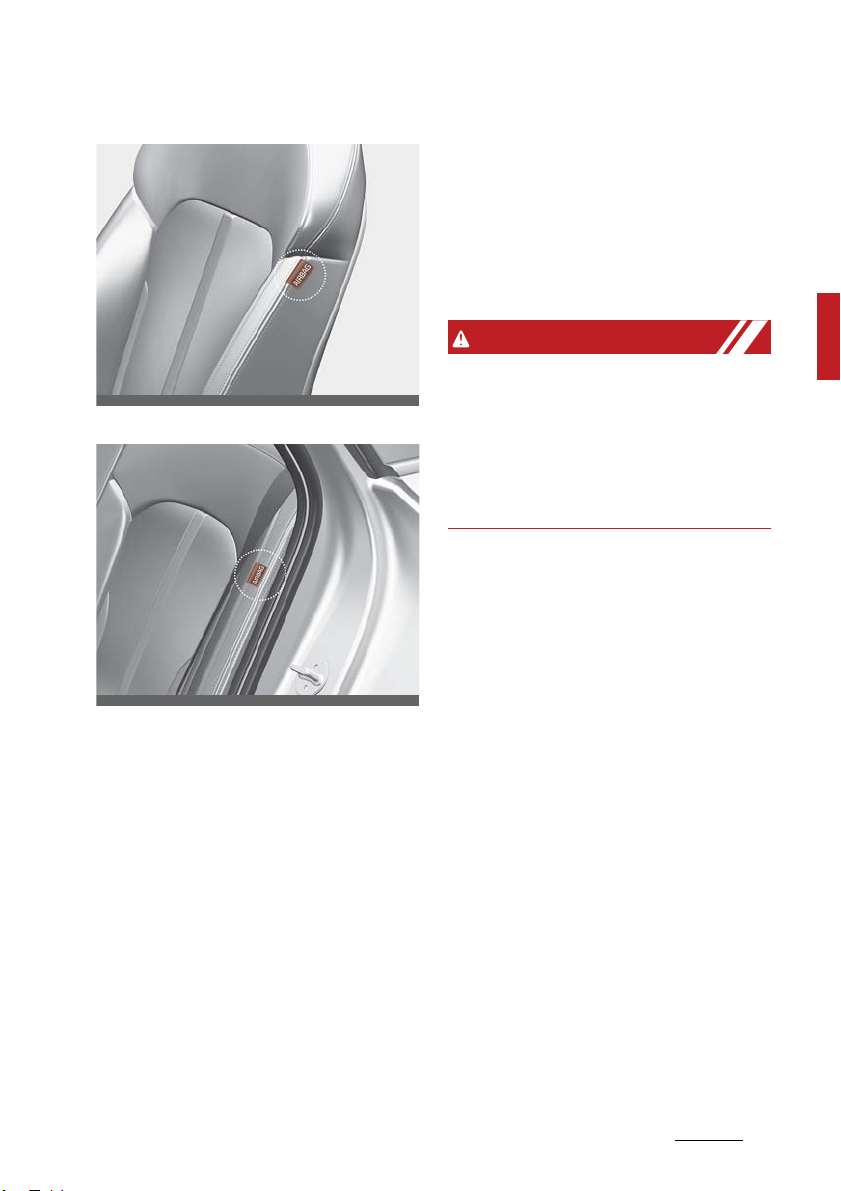

Front seat

Rear seat

* The actual air bags in the vehicle

may differ from the illustration.

The purpose of the air bag is to pro vide the vehicle's driver and/or the front passenger with additional pro tection than that offered by the seat belt alone. 䳜 The side air bags are designed to

deploy during certain side-impact collisions, depending on the crash severity of impact.

䳜 The side air bags may deploy on

the side of the impact or on both sides.

䳜 The side and/or curtain air bags

on both sides of the vehicle will deploy if a rollover or possible rollover is detected.

䳜 The side air bags are not designed

to deploy in all side impact or roll over situations.

Unexpected deployment

Avoid impact to the side impact air bag sensor when the ENGINE START/STOP button is ON to pre vent unexpected deployment of the side air bag.

䳜 The side air bag is supplemental

to the driver's and the passen ger's seat belt systems and is not a substitute for them. Therefore your seat belts must be worn at all times while the vehicle is in operation.

䳜 For best protection from the side

air bag system and to avoid being injured by the deploying side air

bag, both front seat occupants should sit in an upright position

with the seat belt properly fas tened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passenger's arms and hands should be placed on their laps.

Page 80

Safety features of your vehicle

WARNING

ODL3039055

Deployment

Do not install any accessories including seat covers, on the side or near the side air bag as this may affect the deployment of the side air bags.

䳜 If the seat or seat cover is dam

aged, have the vehicle checked and repaired by an authorized Kia dealer. Inform the dealer that your vehicle is equipped with side air bags and an Occupant Detec

tion System (ODS).

Flying objects

Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dangerous projectiles if the side airbag inflates.

Air bag - Advanced Supplemental Restraint

System

vehicle is in a crash severe enough to cause the air bags to deploy.

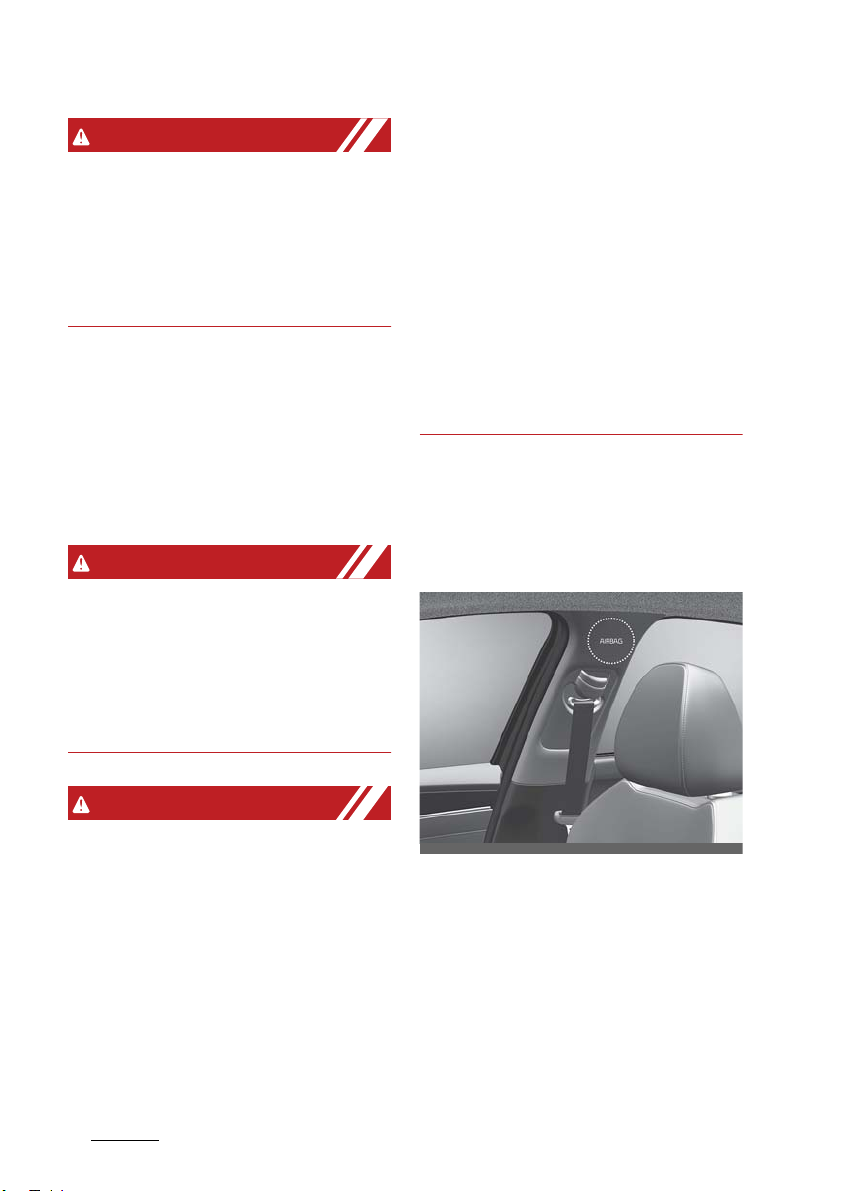

䳜 Never place or insert any object

into any small opening near side airbag labels attached to the vehi cle seats. When the air bag deploys, the object may affect the deployment and result in unexpected accident or bodily harm.

䳜 Do not install any accessories on

the side or near the side air bags.

Curtain air bag

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

No attaching objects

䳜 Do not place any objects over the

air bag or between the air bag and yourself. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar.

䳜 Do not put any objects between

the side airbag label and seat cushion. It could cause harm if the

583

Page 81

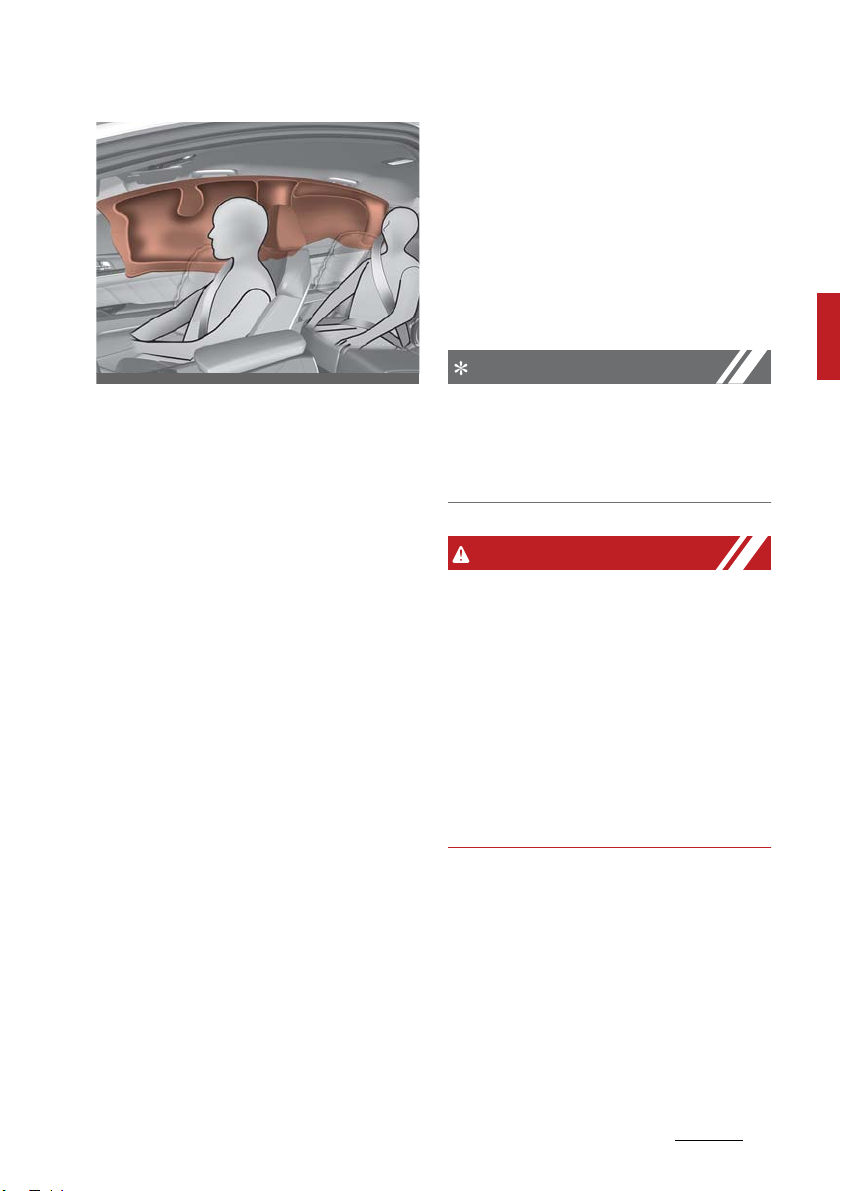

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

NOTICE

WARNING

ODL3039056

System

Do not allow the passengers to lean their heads or bodies against the doors, put their arms on the doors, stretch their arms out of the win

dow or place objects between the doors and passengers when they are seated on seats equipped with side impact and/or curtain air bags.

* The actual air bags in the vehicle

may differ from the illustration.

They are designed to help protect occupants in certain side impacts

Never try to open or repair any components of the side and curtain air bag system. This should only be done by an authorized Kia dealer.

and to help prevent them from ejecting out of the vehicle as a result of a rollover, especially when the seat belts are also in use. 䳜 The curtain air bags are designed

to deploy during certain side impact collisions, depending on the severity of impact. However, when side deployment threshold is satisfied at front-impact, side air bags may deploy.

䳜 The curtain air bags may deploy

on the side of the impact or on

No attaching objects

䳜 Do not place any objects over the

air bag. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar, roof side rail.

䳜 Do not hang hard, breakable, or

heavy objects on the coat hooks for safety reasons.

both sides.

䳜 Also, the curtain air bags on both

sides of the vehicle will deploy in certain rollover situations.

䳜 The curtain air bags are not

designed to deploy in all side impact or rollover situations.

Page 82

Safety features of your vehicle

ODL3A030102

Air bag - Advanced Supplemental Restraint

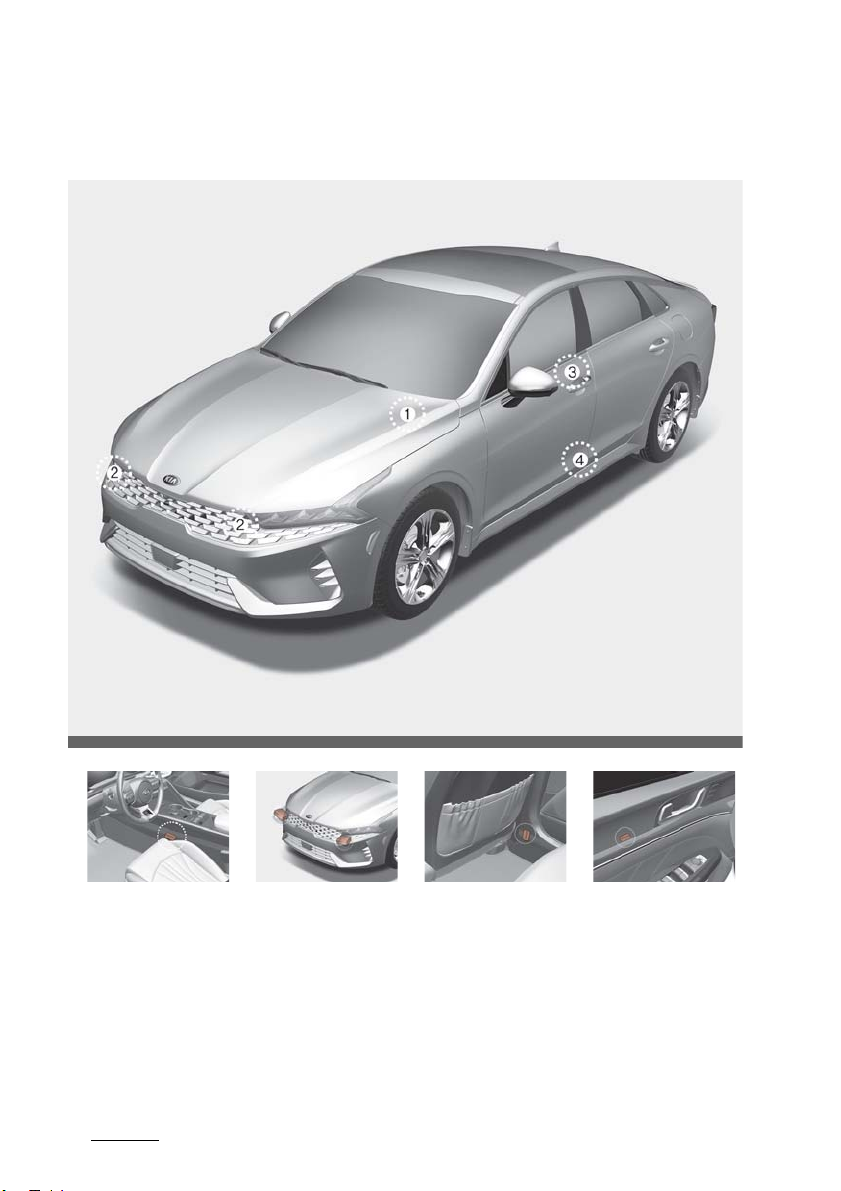

Air bag collision sensors

The air bag collision sensors are located in the following positions.

System

1234

* The actual shape and position of sensors may differ from the illustration.

1. Supplemental Restraint System (SRS) control module/rollover sensor

2. Front impact sensor

3. Side impact sensor

4. Side pressure sensor

603

Page 83

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

ODL3039063

System

non-genuine parts may adversely affect your vehicle's collision and air

Air bag sensors

bag deployment performance.

䳜 Do not hit or allow any objects to

impact the locations where air bags or sensors are installed. This may cause unexpected air bag deployment, which could result in serious personal injury or death.

䳜 If the installation location or angle

of the sensors is altered in any way, the air bags may deploy when they should not or they may not deploy when they should.

Why didn't my air bag go off in a collision? (Inflation and non-infla

tion conditions of the air bag)

There are many types of accidents in which the air bag would not be expected to provide additional pro

tection.

These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed impacts.

Therefore, do not try to perform maintenance on or around the air

Air bag inflation conditions

bag sensors. Have the vehicle checked and repaired by an

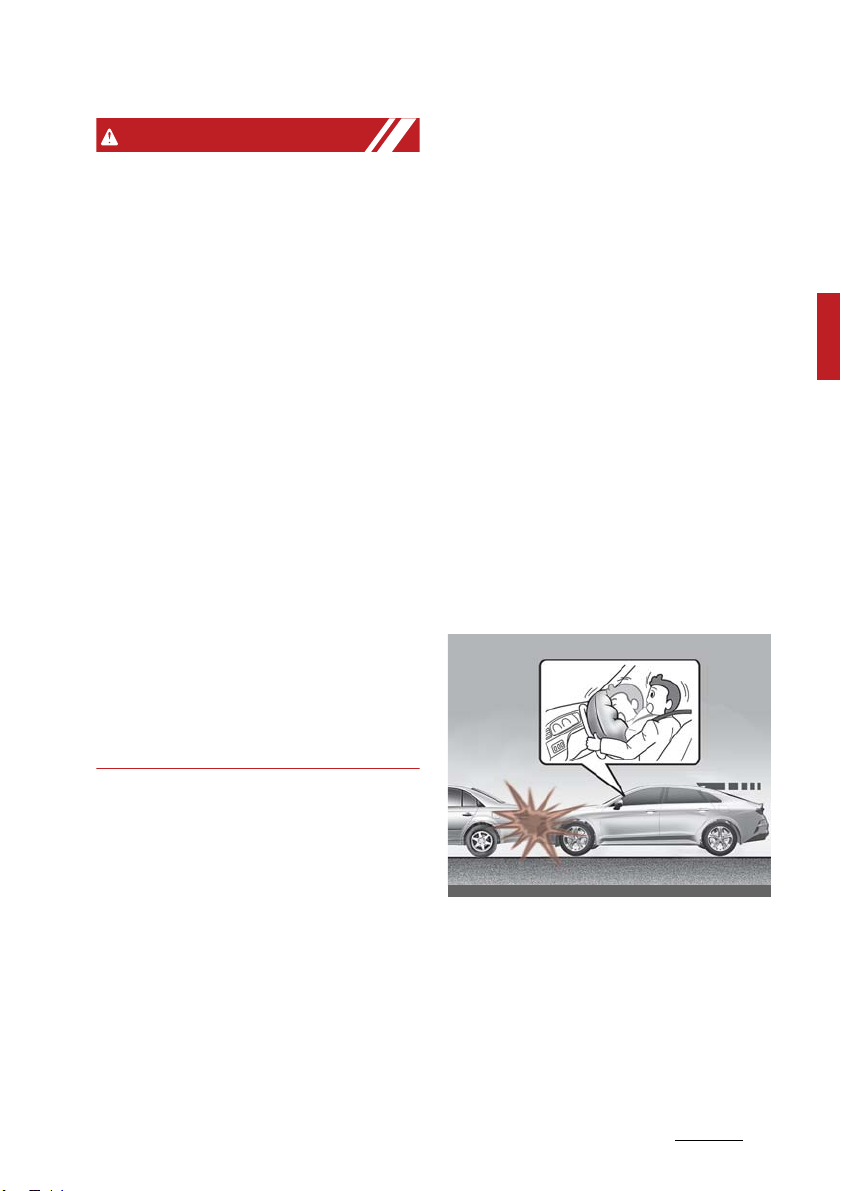

Front air bags

authorized Kia dealer.

䳜 Do not arbitrarily touch the front

impact sensor. When the angle of the sensor is changed, the air bag system may malfunction.

Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, front end module, body or front doors where side collision sen sors are installed. Have the vehicle checked and repaired by an autho rized Kia dealer.

Installing bumper guards (or side step or running board) or replacing a bumper (or front door module) with

Front air bags are designed to inflate in a frontal collision depend

ing on several factors, including the severity of impact of the front colli sion.

Page 84

Safety features of your vehicle

ODL3A030065

ODL3039064

Air bag - Advanced Supplemental Restraint

System

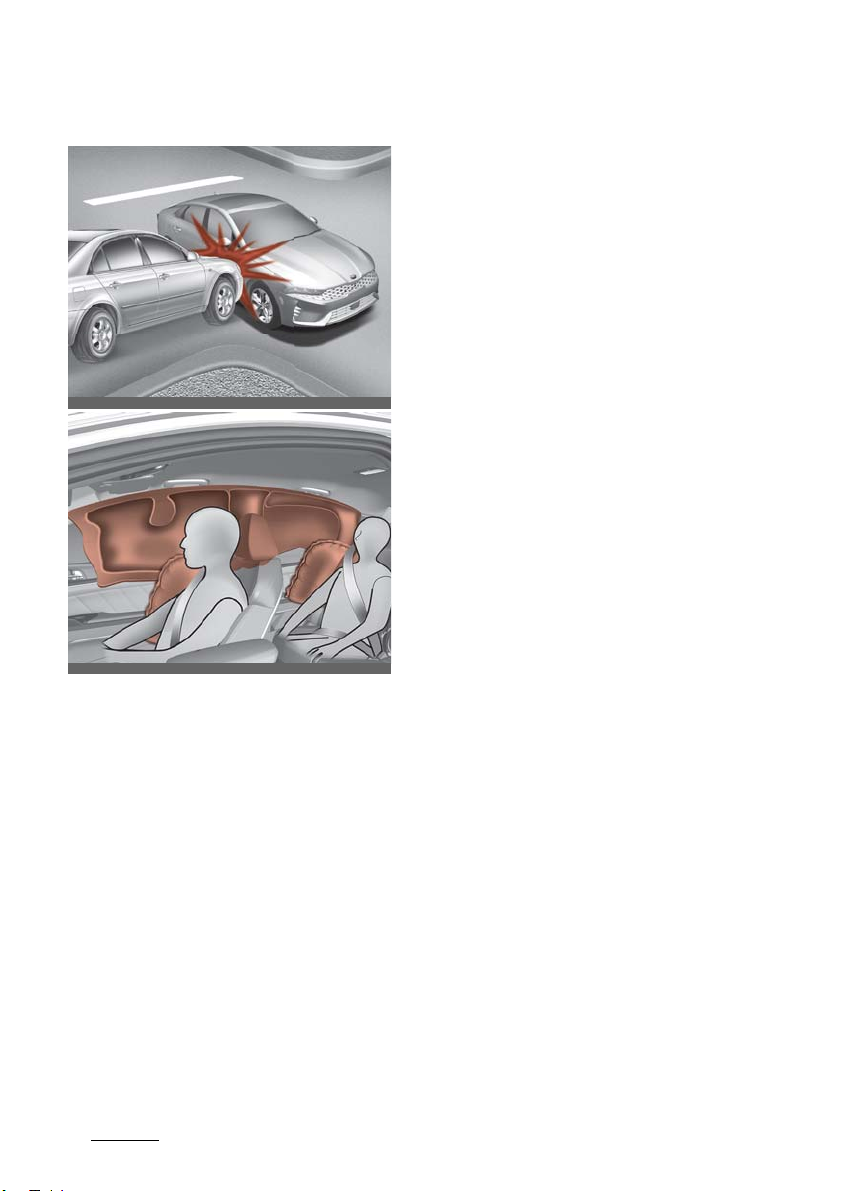

Side and/or curtain air bags

* The actual air bags in the vehicle

may differ from the illustration. Side and/or curtain air bags are designed to inflate when an impact is detected by side collision sensors depending on several factors, including the severity of impact resulting from a side impact colli

sion. Also, the side and curtain air bags are designed to inflate when a roll

over is detected by a rollover sensor. Although the front air bags (driver's and front passenger's air bags) are primarily designed to inflate in fron tal collisions, they may inflate in other types of collisions if the front

impact sensors detect a sufficient frontal force in another type of impact. Similarly, although side and curtain air bags are designed to inflate in certain side impact collisions, they may inflate in other types of colli sions where a side force is detected by the sensors. For instance, side air bag and/or curtain air bags may inflate if rollover sensors indicate the possibility of a rollover occurring (even if none actually occurs) or in other situations, including when the vehicle is tilted while being towed. Even if side and/or curtain air bags do not provide impact protection in a rollover, they will deploy to pre vent ejection of occupants, espe cially those who are restrained with seat belts. If the vehicle chassis is impacted by bumps or objects on unimproved roads, the air bags may deploy. Drive carefully on unimproved roads or on surfaces not designed for vehicle traffic to prevent unintended air bag deployment.

623

Page 85

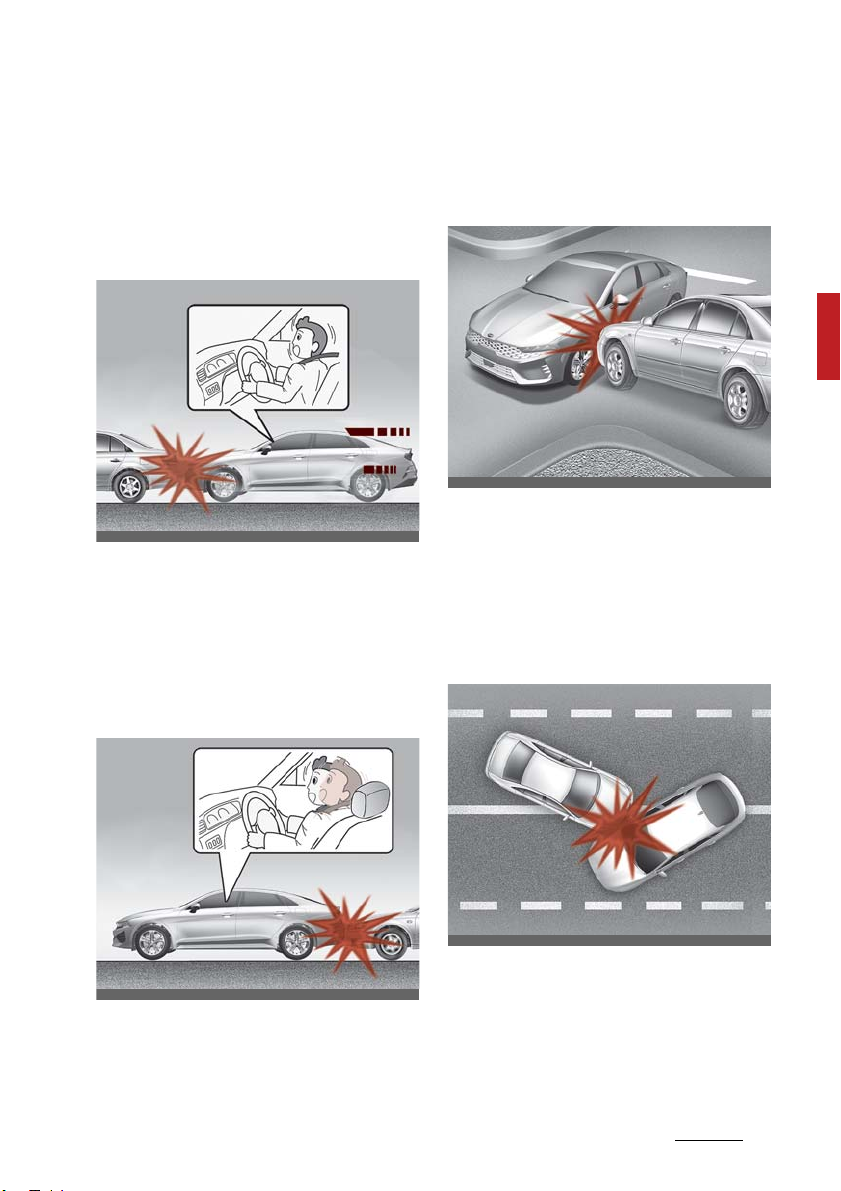

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

ODL3039066

ODL3039067

ODL3A030068

ODL3039069

System

Air bag non-inflation conditions

䳜 Air bags may not deploy in certain

low-speed collisions where the air bag would not add any benefit beyond the protection already offered by the seat belts.

䳜 Front air bags are not designed to

inflate in rear collisions, because occupants are moved backward by the force of the impact. In this case, inflated air bags would not be able to provide any additional benefit.

of the collision. Thus, in side impacts, frontal airbag deploy

ment would not provide additional occupant protection.

䳜 In an angled collision, the force of

impact may direct the occupants in a direction where the air bags would not be able to provide any additional benefit, and thus the sensors may not deploy any air bags.

䳜 Front airbags may not inflate in

side impact collisions, because passengers move in the direction

䳜 Just before impact, drivers often

brake heavily. Such heavy braking lowers the front portion of the vehicle causing it to "ride" under a vehicle with a higher ground

Page 86

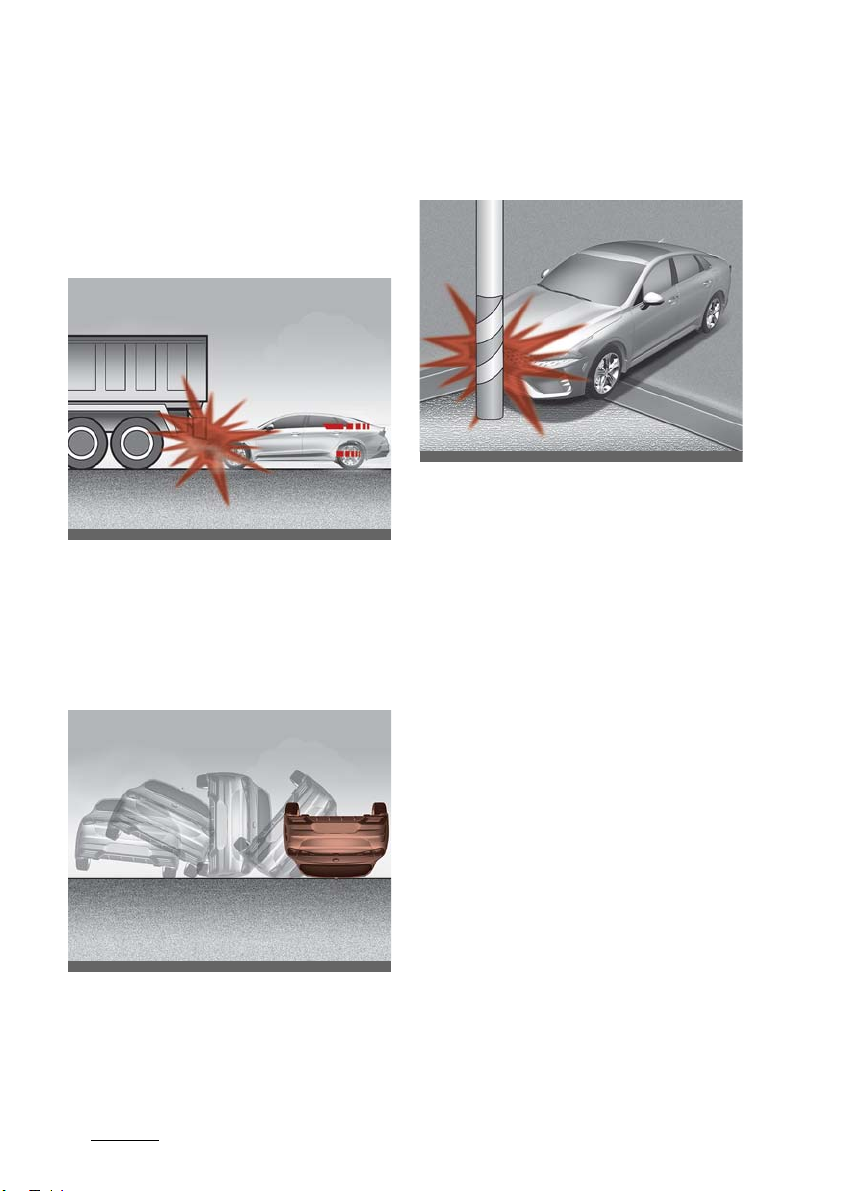

Safety features of your vehicle

ODL3039086

ODL3039070

ODL3A030071

Air bag - Advanced Supplemental Restraint

System

clearance. Air bags may not inflate in this "under-ride" situa tion because deceleration forces that are detected by sensors may be significantly reduced by such "under-ride" collisions.

䳜 Front air bags may not inflate in

all rollover accidents when the SRS Control Module (SRSCM) indi cates that the front air bag deployment would not provide additional occupant protection.

concentrated in one area and the

full force of the impact is not delivered to the sensors.

Supplemental Restraint System (SRS) care

The Supplemental Restraint System (SRS) is virtually maintenance-free and so there are no parts you can

safely service by yourself.

If the SRS air bag warning light does not illuminate, or continuously remains on, have your vehicle immediately inspected by an autho rized Kia dealer.

䳜 Airbags may not inflate if the

vehicle collides with an object such as a utility pole or tree. This is because the point of impact is

643

Any work on the SRS, such as removing, installing, repairing, or any work on the steering wheel, the front passenger's panel, front seats and roof rails must be performed by an authorized Kia dealer. Improper handling of the SRS may result in serious personal injury.

For cleaning the air bag pad covers, use only a soft, dry cloth or one which has been moistened with

Page 87

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

WARNING

System

plain water. Solvents or cleaners could adversely affect the air bag covers and proper deployment of the system.

If components of the air bag system must be discarded, or if the vehicle must be scrapped, certain safety precautions must be observed. An authorized Kia dealer knows these precautions and can give you the necessary information. Failure to follow these precautions and proce dures could increase the risk of bodily injury.

Tampering with SRS

Do not tamper with or disconnect SRS wiring or other components of the SRS system. Doing so could result in the accidental inflation of the air bag or render the SRS inop

erative.

Towing vehicle

Always have the ignition off when your vehicle is being towed. The side air bags may inflate if the vehicle is tilted such as when being towed because of the rollover sensors in the vehicle.

Additional safety precautions 䳜 Never let passengers ride in the

cargo area or on top of a foldeddown back seat. All occupants

should sit upright, fully back in their seats with their seat belts on and their feet on the floor.

䳜 Passengers should not move out

of or change seats while the vehi cle is moving. A passenger who is

not wearing a seat belt during a

crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle.

䳜 Each seat belt is designed to

restrain one occupant. If more

than one person uses the same seat belt, they could be seriously injured or killed in a collision.

䳜 Do not use any accessories on

seat belts. Devices claiming to

improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash.

䳜 Passengers should not place hard

or sharp objects between them selves and the air bags. Carrying

hard or sharp objects on your lap or in your mouth can result in injuries if an air bag inflates.

Page 88

Safety features of your vehicle

WARNING

䳜 Keep occupants away from the

air bag covers. All occupants

should sit upright, fully back in their seats with their seat belts on and their feet on the floor. If occupants are too close to the air bag covers, they could be injured if the air bags inflate.

䳜 Do not attach or place objects on

or near the air bag covers. Any

object attached to or placed on the front or side air bag covers could interfere with the proper operation of the air bags.

䳜 Do not modify the front seats.

Modification of the front seats could interfere with the opera

tion of the supplemental restraint system sensing components or side air bags.

䳜 Do not place items under the

front seats. Placing items under

the front seats could interfere with the operation of the supple

mental restraint system sensing components and wiring har

nesses.

䳜 Never hold an infant or child on

your lap. The infant or child could

be seriously injured or killed in the event of a crash. All infants and children should be properly restrained in appropriate child safety seats or seat belts in the rear seat.

Air bag - Advanced Supplemental Restraint

䳜 Sitting improperly or out of posi

System

tion can cause occupants to be shifted too close to a deploying air bag, strike the interior structure or be thrown from the vehicle resulting in serious injury or death.

䳜 Always sit upright with the seat

back in an upright position, cen

tered on the seat cushion with your seat belt on, legs comfort

ably extended and your feet on the floor.

Adding equipment to or modifying your air bag-equipped vehicle

If you modify your vehicle by chang ing your vehicle's frame, bumper system, front end or side sheet metal or ride height, this may affect the operation of your vehicle's air bag system.

663

Page 89

Safety features of your vehicle Air bag - Advanced Supplemental Restraint

ODL3A030100

ODL3A030109

System

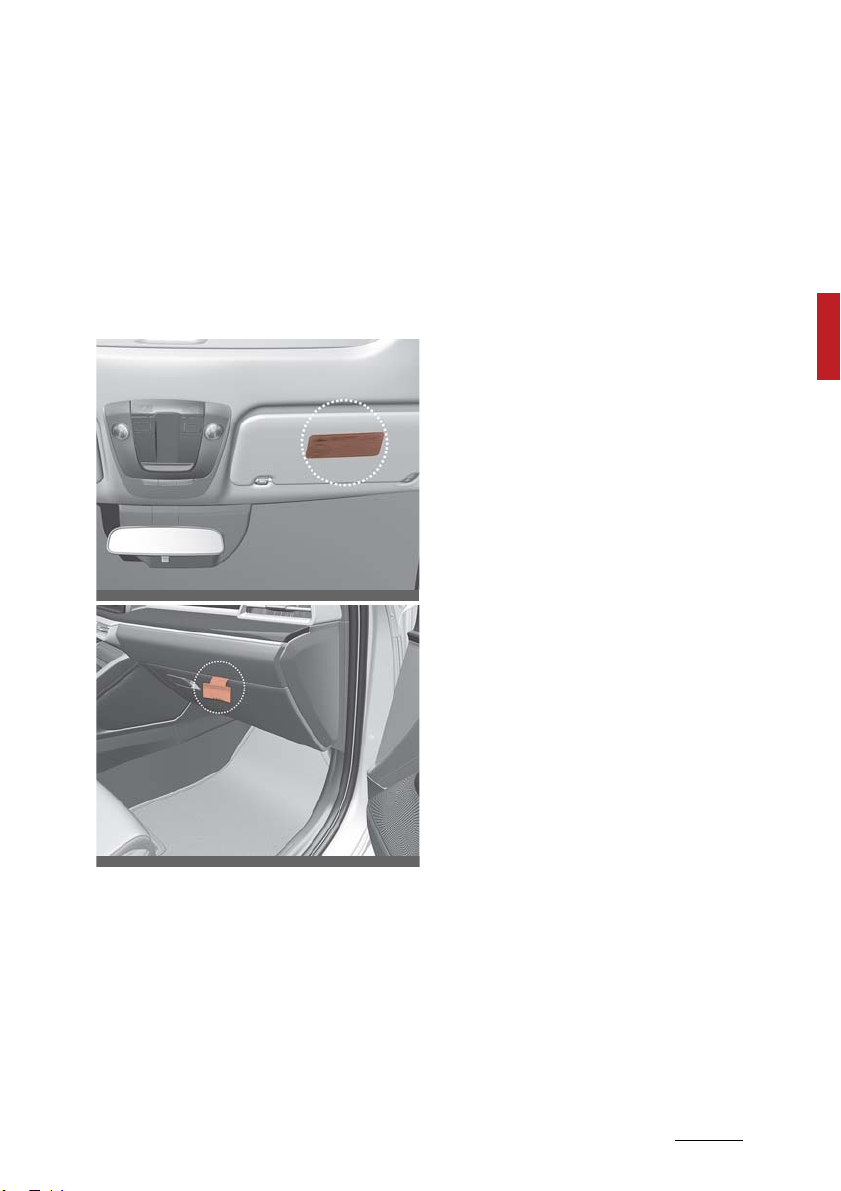

Air bag warning label

Air bag warning labels, some required by the U.S. National High

way Traffic Safety Administration (NHTSA), are attached to the sun visor to alert the driver and passen

gers of potential risks of the air bag system.

Page 90

Page 91

Features of your vehicle

Keys ............................................................................................ 4-6

Remote keyless entry.............................................................. 4-7

䳜 Battery replacement ............................................................. 4-9

Smart key.................................................................................4-11

䳜 Smart key functions ............................................................ 4-11

Immobilizer System ............................................................... 4-14

䳜 Folding key immobilizer system ........................................ 4-14

䳜 Smart key immobilizer system..........................................4-16

Theft-alarm system ..............................................................4-17

Door locks................................................................................. 4-19

䳜 With the smart key..............................................................4-19

䳜 With the mechanical key..................................................... 4-20

䳜 Operating door locks from inside the vehicle ..................4-22

䳜 Door lock/unlock features...................................................4-24

䳜 Electronic child safety lock system...................................4-24

䳜 In case of an emergency ..................................................... 4-25

䳜 Child-protector rear door lock ...........................................4-26

䳜 Rear Occupant Alert (ROA) .................................................4-26

Driver position memory system .......................................... 4-28

䳜 Storing memory positions ..................................................4-28

䳜 Recalling memory positions ............................................... 4-28

䳜 Driver position memory system reset ............................. 4-29

䳜 Easy access function ........................................................... 4-30

Trunk......................................................................................... 4-30

䳜 Opening the trunk ................................................................ 4-30

䳜 Closing the trunk .................................................................. 4-31

䳜 Emergency trunk safety release.......................................4-32

4Features of your vehicle

Page 92

4 Features of your vehicle

Smart Trunk with Auto Open................................................4-33

䳜 How to use the Smart Trunk with Auto Open.................4-33

䳜 How to deactivate the Smart Trunk with Auto Open

function using the smart key .............................................4-35

䳜 Detecting area.......................................................................4-36

Windows ...................................................................................4-37

䳜 Window opening and closing...............................................4-39

䳜 Power window lock button .................................................4-40

Hood ..........................................................................................4-42

䳜 Opening the hood .................................................................4-42

䳜 Hood open warning .............................................................. 4-42

䳜 Closing the hood ...................................................................4-42

Fuel filler door .........................................................................4-43

䳜 Opening the fuel filler door .................................................4-43

䳜 Closing the fuel filler door ...................................................4-44

Panorama sunroof..................................................................4-47

䳜 Sunroof open warning .........................................................4-49

䳜 Sunshade................................................................................4-50

䳜 Sliding the sunroof ............................................................... 4-50

䳜 Tilting the sunroof................................................................4-51

䳜 Closing the sunroof ..............................................................4-52

䳜 Resetting the sunroof .........................................................4-53

Steering wheel.........................................................................4-55

䳜 Electronic power steering (EPS) ........................................4-55

䳜 Tilt & telescopic steering wheel .........................................4-56

䳜 Heated steering wheel ........................................................4-57

䳜 Horn ........................................................................................4-58

Mirrors ......................................................................................4-59

䳜 Inside rear view mirror ........................................................4-59

Page 93

䳜 Outside rear view mirror.....................................................4-71

Instrument cluster..................................................................4-74

䳜 Instrument cluster ............................................................... 4-75

䳜 Adjusting instrument cluster illumination........................ 4-76

䳜 Gauges.................................................................................... 4-77

䳜 Transmission shift indicator ...............................................4-82

LCD display...............................................................................4-83

䳜 LCD display modes ............................................................... 4-84

LCD displays.............................................................................4-92

䳜 Trip information (trip computer)....................................... 4-92

䳜 Service mode.........................................................................4-94

䳜 Driving info display...............................................................4-95

䳜 LCD display messages ......................................................... 4-96

Warning and indicator lights...............................................4-100

䳜 Warning lights .....................................................................4-100

䳜 Indicator lights ....................................................................4-107

Head-Up Display (HUD)........................................................4-110

䳜 Head-Up Display Information...........................................4-111

䳜 Head-Up Display Setting...................................................4-111

Rear View Monitor (RVM)....................................................4-112

䳜 Detecting sensor ................................................................4-112

䳜 System Settings .................................................................4-113

䳜 System Operation ..............................................................4-113

䳜 System Malfunction and Limitations ..............................4-114

Reverse Parking Distance Warning (PDW) .......................4-115

Lighting...................................................................................4-119

䳜 Battery saver function ......................................................4-119

䳜 Headlamp delay function ..................................................4-120

4Features of your vehicle

Page 94

4 Features of your vehicle

䳜 Daytime Running Light (DRL) .......................................... 4-120

䳜 Lighting control.................................................................. 4-121

䳜 Operating high beam ....................................................... 4-122

䳜 Operating turn signals and lane change signals........... 4-123

䳜 Operating front fog light ................................................. 4-124

䳜 High Beam Assist (HBA) ................................................... 4-124

Wipers and washers ............................................................ 4-128

䳜 Auto control........................................................................ 4-128

䳜 Operating windshield washers ........................................ 4-130

Welcome system.................................................................. 4-131

Interior lights ........................................................................ 4-132

䳜 Automatic turn off function ............................................ 4-132

䳜 Map lamp ............................................................................ 4-132

䳜 Room lamp.......................................................................... 4-133

䳜 Luggage room lamp .......................................................... 4-134

䳜 Vanity mirror lamp............................................................ 4-134

Climate control system....................................................... 4-135

䳜 System operation.............................................................. 4-135

䳜 Climate control air filter ................................................... 4-137

䳜 Air conditioning refrigerant label .................................... 4-138

䳜 Checking the amount of air conditioner refrigerant

and compressor lubricant................................................. 4-138

Automatic climate control system ................................... 4-140

䳜 Heating and air conditioning automatically .................. 4-141

䳜 Heating and air conditioning manually .......................... 4-143

Windshield defrosting and defogging............................... 4-148

䳜 Defogging inside windshield with automatic climate

control.................................................................................. 4-149

Page 95

䳜 Defrosting outside windshield with automatic

climate control ....................................................................4-150

䳜 Auto defogging system (only for automatic climate

control system)...................................................................4-150

䳜 Defroster .............................................................................4-151

䳜 Front glass heater..............................................................4-152

䳜 Defogging logic ...................................................................4-153

Storage compartment .........................................................4-154

䳜 Center console storage .....................................................4-154

䳜 Glove box..............................................................................4-154

䳜 Luggage net holder ............................................................4-155

Interior features ...................................................................4-155

䳜 Ambient light.......................................................................4-155

䳜 Cup holder............................................................................4-156

䳜 Seat warmer .......................................................................4-157

䳜 Air ventilation seat.............................................................4-159

䳜 Sun visor ..............................................................................4-160

䳜 USB charger.........................................................................4-160

䳜 Power outlet .......................................................................4-162

䳜 Wireless smart phone charging system.........................4-163

䳜 Coat hook.............................................................................4-166

䳜 Floor mat anchor(s) ...........................................................4-167

Infotainment system ...........................................................4-168

䳜 Audio system ......................................................................4-168

Declaration of Conformity ..................................................4-172

4Features of your vehicle

Page 96

Features of your vehicle

WARNING

CAUTION

OSK3048401NR

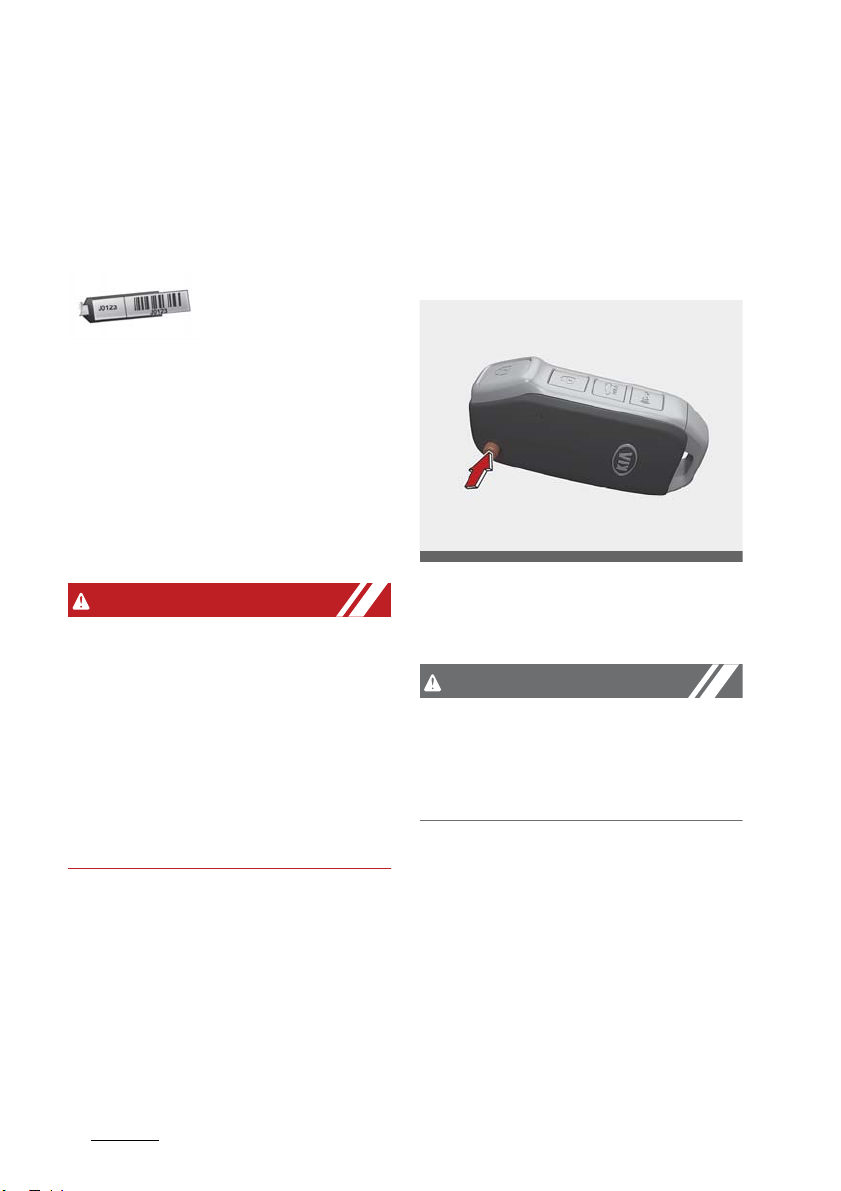

Keys

Features of your vehicle

Keys

Record your key number

The key code num ber is stamped on

the key code tag attached to the key set. Should you lose your keys, this number will enable an authorized Kia dealer to duplicate the keys easily. Remove the key code tag and store it in a safe place. Also, record the key code number and keep it in a safe and handy place, but not in the vehicle.

Aftermarket keys

Use only Kia original parts for the ignition key in your vehicle. If an aftermarket key is used, the ignition switch may not return to ON after START. If this happens, the starter will continue to operate causing possible fire due to excessive cur rent in the wiring.

Key operations

Folding key

To unfold the key, press the release button then the key will unfold automatically.

Folding key

To f ol d the k ey , f old the key manu ally while pressing the release but

ton.

Key button operation

Do not fold the key without pressing the release button. This may dam

age the key.

Page 97

Features of your vehicle Remote keyless entry

WARNING

OSK3048400NR

OSK3048093NR

OSP2049002

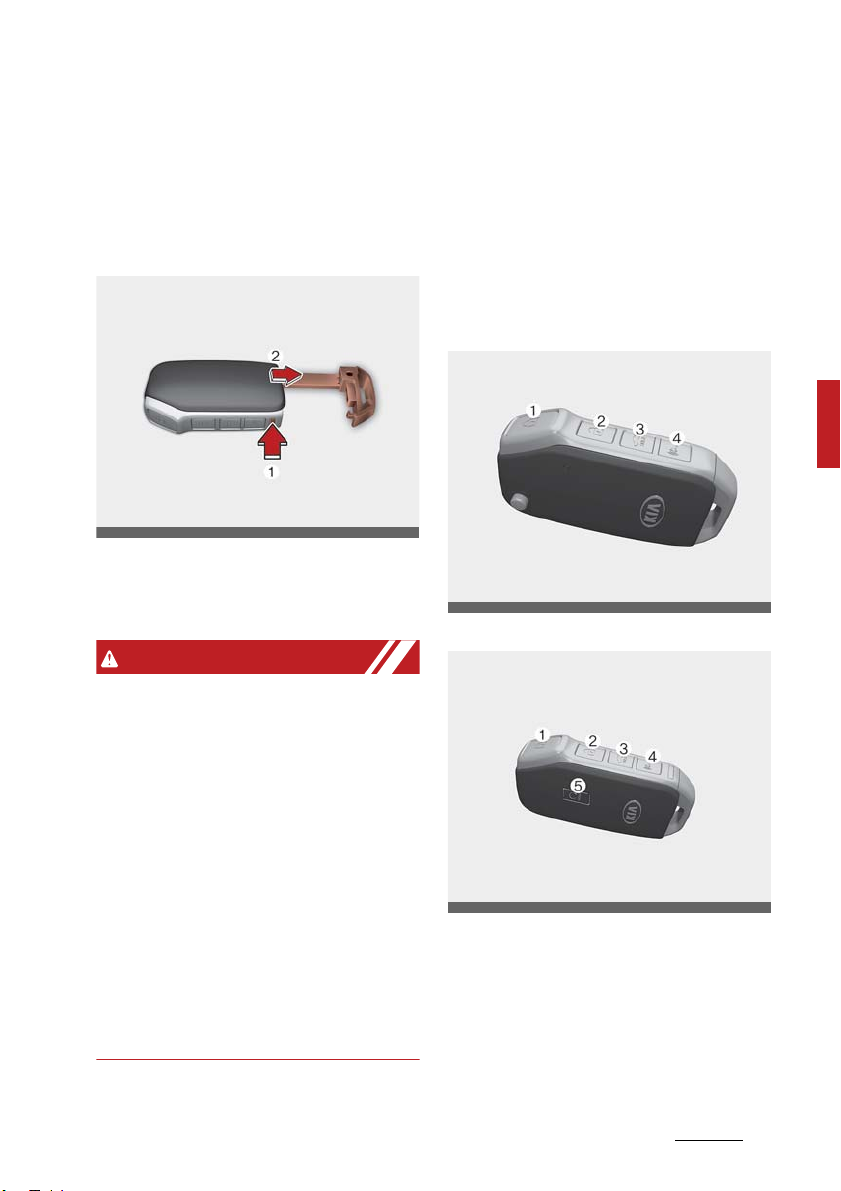

Smart key

To remove the mechanical key, press and hold the release button (1) and remove the mechanical key (2).

Smart key

To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.

Smart key

Never leave the keys in your vehicle with unsupervised children. Leaving children unattended in a vehicle with a manual ignition key or a smart key is dangerous.

Children copy adults and they could place the key in the ignition switch or press the start button. The key would enable children to operate power windows or other controls, or even make the vehicle move, which could result in serious bodily injury or death.

Remote keyless entry

Using the remote keyless entry, you can lock and unlock the doors remotely.

Remote keyless entry system operations

Folding key

Smart key

Lock (1)

All doors are locked if the lock but ton is pressed. If all doors are closed, the hazard warning lights will blink and the chime will sound once (for Type B) to indicate that all doors are locked.

Page 98

Features of your vehicle

NOTICE

Also, if the lock button is pressed once more within 4 seconds, the hazard warning lights will blink and the chime will sound once to confirm that the door is locked. However, if any door remains open, the hazard warning lights (and/or the chime) will not operate. But if all doors are closed after the lock but

ton is pressed, the hazard warning lights will blink once.

Remote keyless entry

If the keyless entry system is inop

erative due to exposure to water or liquids, it will not be covered by your manufacturer's vehicle warranty.

Trunk op en (3)

The trunk is opened if the button ispressed for more than 1 second.

Unlock (2)

The driver's door is unlocked if the unlock button is pressed once. The hazard warning lights will blink twice and the chime will sound twice (for Type B) to indicate that the driver's door is unlocked. All doors are unlocked if the unlock button is pressed once more within 4 seconds. The hazard warning lights will blink (for smart key, the chime also sounds) twice again to indicate that all doors are unlocked. After pressing this button, the doors will lock automatically unless you open any door within 30 seconds. If you attempt to lock or unlock the door by pressing the door lock/ unlock button in any of the following states, the door will not be locked or unlocked. 䳜 When you want to lock or unlock

the door in the ACC or ON state.

䳜 When you want to lock a door in a

car with one or more doors open.

Depending on the vehicle, the driver can turn off or set the 2-press unlock setting function.

Panic alarm (4)

The horn sounds and the hazard warning lights blink for about 30 seconds if this button is pressed for more than 0.5 seconds. To stop the horn and lights, press any button on the transmitter.

Remote start (5, if equipped)

You can start the vehicle using the remote start button (5) of the smart key. To start the vehicle remotely: 䳜 Lock the doors by pressing the

door lock button (1) within 32 ft (10 m) distance from the vehicle.

䳜 Press the remote start button for

over 2 seconds within 4 seconds

after locking the doors. Press the remote start button once to turn off the vehicle. If no further action for operating/ driving the vehicle is taken, the vehi cle will be turned off 10 minutes after starting the vehicle remotely.

Page 99

Features of your vehicle Remote keyless entry

CAUTION

NOTICE

Start-up

You can start the vehicle without inserting the key. * For more information, refer to

"ENGINE START/STOP button (if equipped)" on page 5-10.

Remote keyless entry precautions

The remote keyless entry will not work if any of the following occurs: 䳜 The ignition key is in the ignition

switch. (if equipped)

䳜 You exceed the operating dis

tance limit. (about 33 ft [10 m].)

䳜 The battery in the remote keyless

entry is weak.

䳜 Other vehicles or objects may be

blocking the signal.

䳜 The weather is extremely cold. 䳜 The remote keyless entry is close

to a radio transmitter such as a radio station or an airport which can interfere with normal opera

tion of the transmitter.

the phone is active such as mak ing calls, receiving calls, text mes

saging, and/or sending/receiving emails. Avoid placing the remote keyless entry and your cell phone or smart phone in the same pants or jacket pocket and maintain adequate distance between the two devices.

Transmitter Keep the transmitter away from water or any liquid as, it can become damaged and not func

tion properly.

If the keyless entry system is inop

erative due to exposure to water or liquids, it will not be covered by your manufacturer's vehicle warranty.

When the remote keyless entry does not work properly, open and close the door with the ignition key. If you have a problem with the remote keyless entry, contact an authorized Kia dealer. 䳜 If the remote keyless entry is in

close proximity to your cell phone or smart phone, the signal from the remote keyless entry could be blocked by normal operation of your cell phone or smart phone. This is especially important when

Battery replacement

A battery should last for several years, but if the remote keyless entry is not working properly, try replacing the battery with a new one.

Page 100

Features of your vehicle

CAUTION

NOTICE

OSP2N049054

If you are unsure how to use or replace the battery, contact an authorized Kia dealer.

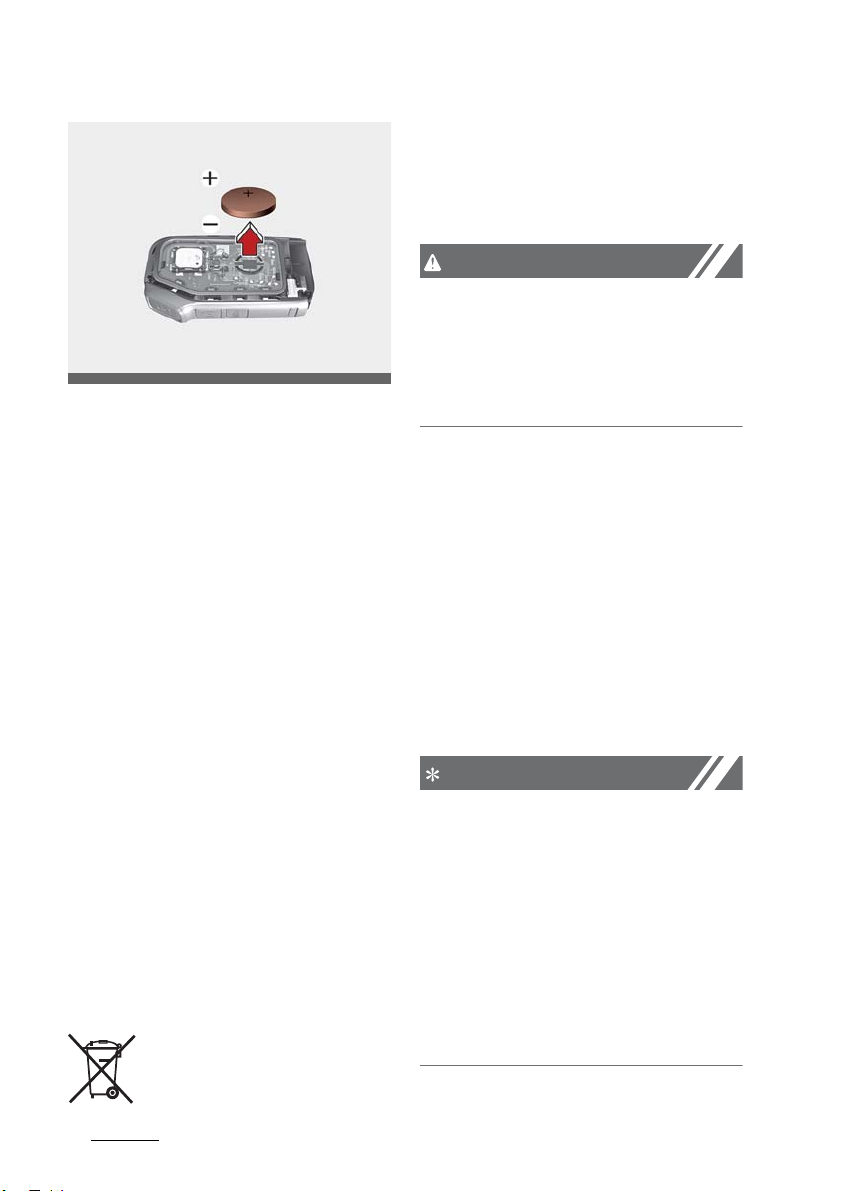

1. Detach mechanical key from your smart key.

2. Pry open the remote keyless entry cover.

3. Replace the smart key cover with a new battery. (CR2032) When replacing the battery, make sure the battery position is correct.

4. Install the battery in the reverse order of removal.

The remote keyless entry is designed to give you years of trou ble-free use, however it can mal

function if exposed to moisture or static electricity. If you are unsure how to use or replace the battery, contact an authorized Kia dealer.

Using the wrong battery can cause the remote keyless entry to mal

function. Be sure to use the correct battery.

An inappropriately dis

posed battery can be

Remote keyless entry

harmful to the environment and human health. Dispose the battery according to your local law(s) or regulation.

Remote keyless entry damage

The remote keyless entry can mal

function if dropped, exposed to moisture, static electricity, heat or direct sunlight.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harm

ful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If the smart key is inoperative due to changes or modi fications not expressly approved by the party responsible for compli

ance, it will not be covered by your manufacturer's vehicle warranty.

104
