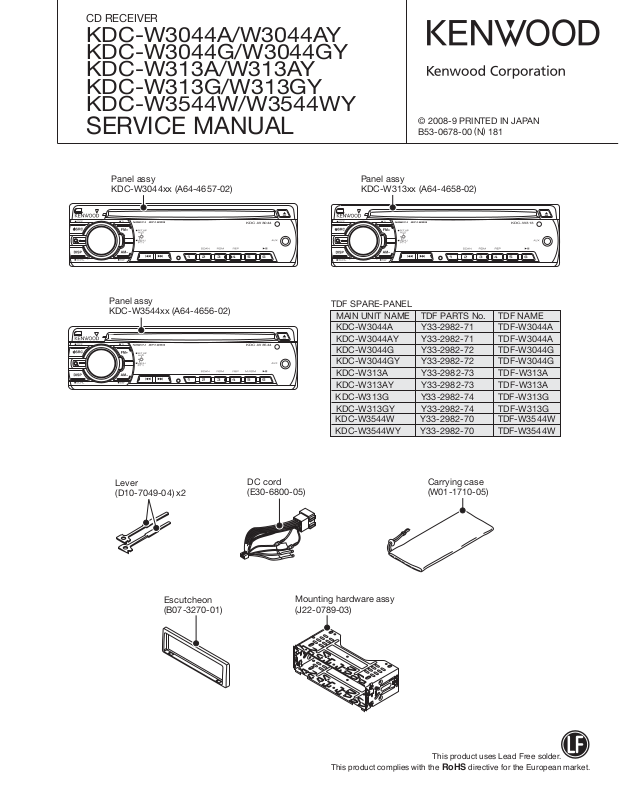

CD RECEIVER
KDC-W3044A/W3044AY
KDC-W3044G/W3044GY
KDC-W313A/W313AY
KDC-W313G/W313GY
KDC-W3544W/W3544WY
SERVICE MANUAL
© 2008-9 PRINTED IN JA PAN
B53-0678-00 (N) 181
Panel assy
KDC-W3044xx (A64-4657-02)
Panel assy
KDC-W3544xx (A64-4656-02)
KDC-W3044
KDC-W3544
Panel assy
KDC-W313xx (A64-4658-02)
KDC-W313
TDF SPARE-PANEL
MAIN UNIT NAME TDF PARTS No. TDF NAME
KDC-W3044A Y33-2982-71 TDF-W3044A
KDC-W3044AY Y33-2982-71 TDF-W3044A
KDC-W3044G Y33-2982-72 TDF-W3044G
KDC-W3044GY Y33-2982-72 TDF-W3044G
KDC-W313A Y33-2982-73 TDF-W313A
KDC-W313AY Y33-2982-73 TDF-W313A
KDC-W313G Y33-2982-74 TDF-W313G
KDC-W313GY Y33-2982-74 TDF-W313G
KDC-W3544W Y33-2982-70 TDF-W3544W
KDC-W3544WY Y33-2982-70 TDF-W3544W
Lever
(D10-7049-04) x2
Escutcheon
(B07-3270-01)
DC cord
(E30-6800-05)
Mounting hardware assy
(J22-0789-03)
Carrying case
(W01-1710-05)
This product uses Lead Free solder.
This product complies with the
RoHS directive for the European market.
Page 2
KDC-W3044A/W3044AY/W3044G/W3044GY/W313A
KDC-W313AY/W313G/W313GY/W3544W/W3544WY
BLOCK DIAGRAM
ELECTRIC UNIT (X34- )
J2
1
IC7
RDS
DECODER
3
ANT.
SW5
A1
TUNER
FRONT-END
3
3
IC1
IC8
RESET IC
BU5
PANEL DET
J2
S2
RESET
IC2
REMOTE
SWITCH UNIT (X16- )
J4
AM+B
LX-BUS
A8V
SW5
A8V
ROM CORRECTION (NOT USED)
8
12
RST
J3
J1
to GND
S1
FRONT
AUX
ROTARY
ENCODER DRIVER
SW5
SW5
BU
IC2
IC10
E2PROMSW5
SYSTEM u-COM
E-VOL
SW5
SERVO+B
111
Q301
PAN5V
BU5
CN
BU
DME1
BU5
CD
MECHA
16
1
1
MUTE
2
11
BU5
5
R11-15
1/2W
FL+B
Rx5
IC6
2
POWER
IC
1
Q701-704
PRE-OUT
MUTE
BU5
BU5
MUTE
9
DC-CN etc
PHONE
ACC DET / BU DET
P.ON FL
PS1-1 / PS1-2 / PS1-3
PS2-1 / PS2-2
CN4,J5
PRE-OUT
FRONT
REAR/SW
PS1 1 / PS1 2 / PS1 3
PS2 1 / PS2 2
Q705
BU DET
RST
1
AM+B
SERVO+B
ILLUMI+B
IC1
R61,62
FL+B
1/4W
Rx2
ED1
5
FL
9
KEY
ILLUMI
S3-20
KEY
MATRIX
D3-17
FL
ILLUMI+B
PHONE
ACC DET
BU DET
P STBY
FL+B
SW5
A8V
SW5
D5
BU5
R118
Q101
ACC-DET
Q103
Q102
IC4
POWER
SUPPLY
IC
Q2,3
Q11,12
Q7-10
PHONE
BU-DET
SURGE
DET
CD
SERVO
SW14V
ILLUMI
+B
BU5
BU5
SW5
J1
DC-CN
PHONE
SP-OUT
FRONT L/R
REAR L/R
ACC
B.U.
P-ANT
P-CON
DPU1
ACB
EF
FO COIL
TR COIL
DM1
SPINDLE
MOTOR
DM2
LOADING &
SLED
MOTOR
CD PLAYER UNIT (X32-6240-00)
IC4
SIGNAL A/B/C/E/F
Q1
APC
IC3
FO OUT
TR OUT
MOTOR
DRIVER
DM OUT
FM OUT
PD
LD
VREF
FO OUT
TR OUT
DM OUT
FM OUT
X1
CLOCK
16.934MHz
RF AMP
+
SERVO
PROCESSOR
+
MP3 DECODER
+
WMA DECODER
+
AAC DECODER
+
1M bit SRAM
D GND
BU1.5V
D1.5V
D3.3V
SRAM STB
BUCK
MRST MRST
Q11
LEVEL
SHIFT
SO
Q12
SI
LEVEL
SHIFT
Q10
CCE
LEVEL
PIO0
SHIFT
R15
LEVEL SHIFT
RESISTOR
C43
Lch Lch
FILTER
C44
Rch
FILTER
Q13
IC5
BU1.5V/
D3.3V
REG
REVERSAL
CIRCUIT
ZDET MUTE L/R
A3.3V
AGND
Q14
D1.5V
OUTPUT
S1
S2
S3
MOTHER
BOARD
(X34- )
SRAM STB
SO
SI
BUCK
CCE
PIO0
Rch
A.GND
BU5V
P.ON
D.GND
LOS-SW
12EJE-SW
LOE-SW
DRV MUTE
LO/EJ
MOTOR
S7.5V
S.GND
2
Page 3
KDC-W3044A/W3044AY/W3044G/W3044GY/W313A
KDC-W313AY/W313G/W313GY/W3544W/W3544WY
COMPONENTS DESCRIPTION
ELECTRIC UNIT (X34-621x-xx)
●
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 System μ-COM Controls FM/AM tuner, the changer, CD mechanism, panel, volume and tone.
IC2 E-VOL Controls the source, volume, tone.
IC4 Power Supply IC Outputs 5V×2, 8.1V×2, 10.2V, P-CON, P-ANT.
IC6 Power IC Amplifi es the front L/R and the rear L/R to 50W maximum.
IC7 RDS IC Decodes RDS.
IC8 Reset IC Lo when detection voltage goes below 3.6V.
Q2 Servo+B AVR When Q3’s base goes Hi, Servo+B AVR outputs 7.5V.
Q3 Control SW for Servo+B ON when the base goes Hi.
Q7 FL+B SW ON when the base goes Hi.
Q8 FL+B AVR When Q9’s base goes Hi, Servo+B AVR outputs 10.5V.
Q9 Control SW for FL+B ON when the base goes Hi.
Q10 FL+B SW ON when the base goes Lo.
Q11 14V SW ON when the base goes Hi.
Q12 14V SW ON when the base goes Lo.
Q101 ACC DET ON when the base goes Hi during ACC is applied.
Q102 Serge DET When the base goes Hi, surge voltage is detected.
Q103 BU DET ON when the base goes Hi during BU is applied.
Q104 Mute Control ON when the base goes Hi.
Q105 Mute Control ON when the base goes Hi.
Q301 Panel 5V SW ON when the base goes Lo.
Q701,702 Pre-out Mute SW When a base goes Hi, pre-out is muted.
Q705 Mute Driver for Pre-out ON when the base goes Lo.
SWITCH UNIT (X16-646x-xx)
●
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 FL Driver
IC2 Remote Control Sensor
CD PLAYER UNIT (X32-6240-00)
●
Ref. No. Application / Function Operation / Condition / Compatibility
IC3 4ch BTL Driver
IC4 Servo DSP with built-in Audio DAC With built-in MP3/WMA/ACC decoder and 1M-bit-SRAM.
IC5 BU1.5V/D3.3V REG.
Q1 APC (Auto Power Control) Drives LD (Laser Diode).
Q10~12 5V-3.3V Level Shift Converts signal from 5V to 3.3V, or from 3.3V to 5V.
Q13 Inverter Inverts ZDET (Zero data DETection) signal.
Driver for focusing & tracking coil, driver for sled & spindle motor, and operation for disc
loading & ejection.
Power supply for BU1.5V.
Power supply for digital/analogue/audio 3.3V.
3
Page 4
KDC-W3044A/W3044AY/W3044G/W3044GY/W313A
KDC-W313AY/W313G/W313GY/W3544W/W3544WY
COMPONENTS DESCRIPTION
Ref. No. Application / Function Operation / Condition / Compatibility
Q14 D1.5V Output
D1 Level Down
D2 Laser Diode Protection
D3,4 Static Electricity Countermeasure Prevents malfunction by static electricity.
Switches ON/OFF at one end of BU1.5V line which is separated into 2 directions.
Uses output voltage as D1.5V.
Lowers signal level by about 1.2V so that Lo level signal that turns the regulator ON/OFF
surely becomes Lo judgment level of the regulator SW.
Prevents reverse bias which is applied to laser.
Laser destruction prevention.
4
Page 5
KDC-W3044A/W3044AY/W3044G/W3044GY/W313A
KDC-W313AY/W313G/W313GY/W3544W/W3544WY
MICROCOMPUTER’S TERMINAL DESCRIPTION
SYSTEM μ-COM: IC1 on X34- (ELECTRIC UNIT)
●
Pin No. Pin Name I/O Application
1 LX DATA M I/O Data to slave unit
2 LX CLK I/O LX-BUS clock 125kHz~65kHz
