Kenwood DNX893S, DNX693S, DNX573S, DNX7160BTS, DNX5160BTS Instruction Manual

...

Download

Page 1

DNX893S

Check the latest edition

DNX773S DNX693S DNX573S DNX7160BTS DNX5160BTS

GPS NAVIGATION SYSTEM

INSTRUCTION MANUAL

Before reading this manual, click the button below to check the latest edition and the modified pages. http://manual.kenwood.com/edition/im391/

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product. Model DNX893S/ DNX773S/ DNX693S/ DNX573S/ DNX7160BTS/ DNX5160BTS Serial number

US Residence Only

Page 2

What Do You Want To Do?

Thank you for purchasing the KENWOOD GPS NAVIGATION SYSTEM.

In this manual, you will learn various convenient functions of the system.

Click the icon of the media you want to play.

With one-click, you can jump to the section of each media!

iPod

Disc Media

Apple

CarPlay

USB

Music CD

Android

Auto

VCD

DVD VIDEO

Mirroring

Radio

BT Audio

HD Radio

SiriusXM

Page 3

Contents

Before Use 4

# WARNING _______________________ 4

How to Read this Manual 5

Basic Operations 6

Functions of the Buttons on the Front Panel __________________ 6

Turning on the Unit _________________ 10

How to Play Media __________________ 13

Operating with the HOME Screen ______ 16

Common Operations ________________ 18

Navigation Operation ________________ 20

OEM Features Operation _____________ 22

DVD/Video CD (VCD) 24

DVD/VCD Basic Operation ____________ 24

DVD Disc Menu Operation ____________ 27

DVD Setup ________________________ 28

CD/Audio and Visual Files/ iPod/APPS 30

APP/iPod settings ___________________ 31

Music/Video Basic Operation __________ 32

Search Operation ___________________ 36

Mirroring Operation _________________ 39

Apple CarPlay Operation _____________ 40

Android Auto™ Operation ____________ 42

Radio and HD Radio™ Tuner 44

Radio/HD Radio Tuner Basic Operation __ 44

Memory Operation __________________ 47

Selecting Operation _________________ 48

Traffic Information __________________ 50

Receive Mode (HD Radio tuner only) ________________ 51

Bookmark (HD Radio tuner only) ________________ 51

Alert Message (HD Radio tuner only) ________________ 53

SiriusXM® 54

SiriusXM® Basic Operation ____________ 54

Storing Channels in Preset Memory ____ 57

Preset select _______________________ 57

Direct search _______________________ 58

Category/Channel search ____________ 58

Replay ____________________________ 60

SmartFavorites, TuneStart™ ___________ 61

TuneMix™ _________________________ 61

TuneScan™ ________________________ 62

SiriusXM Setup _____________________ 63

Page 4

Contents

Bluetooth Control 66

Registering and Connecting Bluetooth Unit _____________________ 66

Playing Bluetooth Audio Device _______ 70

Using Hands-Free Unit _______________ 72

Hands-Free Setup ___________________ 76

Setting Up 78

Monitor Screen Setup _______________ 78

Monitor Angle Control ______________ 79

View Camera Control ________________ 79

System Setup ______________________ 80

User Interface Setup _________________ 80

Special Setup ______________________ 82

Security Setup _____________________ 83

Display Setup ______________________ 84

Camera Setup ______________________ 86

Navigation Setup ___________________ 88

AV Setup __________________________ 88

Controlling Audio 90

Speaker/ X’over setup ________________ 90

Controlling General Audio ____________ 93

Equalizer Control ___________________ 94

Volume Offset ______________________ 95

Zone Control _______________________ 96

Sound Effect _______________________ 97

Listening Position/ DTA ______________ 98

Remote control 102

Battery Installation __________________ 102

Functions of the Remote control Buttons 103

Troubleshooting 106

Problems and Solutions ______________ 106

Error Messages _____________________ 107

Appendix 110

Playable Media and Files _____________ 110

Status Bar Indicator Items ____________ 114

Region Codes in the World ____________ 116

DVD Language Codes _______________ 117

Specifications ______________________ 118

About this Unit _____________________ 121

Page 5

Before Use

# WARNING

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio file tags, etc. See User Interface Setup

(P. 80).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

Protecting the monitor

Lens fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your KENWOOD dealer.

Precautions on handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move outward.

• When removing discs from this unit, pull them out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Cleaning the unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

• 8-cm (3 inch) discs cannot be used.

• Discs with coloring on the recording surface or discs that are dirty cannot be used.

• This unit can only play the CDs with

. This unit may not correctly play discs which do not have the mark.

• You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

Page 6

How to Read this Manual

CD/Audio and Visual Files/iPod/APPS

How to Read this Manual

Search Operation

You can search music, video or picture files by the following operations.

NOTE

• If you use a remote control, you can jump directly to the desired track/file with entering the track/ folder/file number, play time, etc. For details, see

Direct search mode (P.103).

List search

You can search tracks, folders, and files according to hierarchy.

1 Touch [1].

Category List screen appears.

2 Touch [ S ]. 3 Touch [Category List].

4 Touch the desired category.

Operation title

Introduces the function.

NOTE

Introduces some tips, notes, etc.

Reference mark

Displayed in blue notes. With one-click, you can jump to the

article related to the current section.

Operation procedure

Explains necessary procedures to achieve the operation.

< >: Indicates the name of panel

buttons.

[ ]: Indicates the name of touch

keys.

5 The list is sorted by selected category. 6 Touch desired item.

Playback starts.

3030

Screen shot

Shows some screen shots displayed during operation for reference. The area or keys to touch are surrounded with a red frame.

NOTE

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.

Page 7

Basic Operations

13456

Basic Operations

Functions of the Buttons on the Front Panel

DNX893S/ DNX773S/ DNX7160BTS

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

DNX893S: DNX773S, DNX7160BTS:

If above icon is showed, read the article applicable to the unit you use.

How to insert an SD Card

1) Press 7 <G> button.

2) Touch [OPEN] to the panel fully opens.

3) Hold the SD card as the illustration in the right and insert it into the slot until it clicks.

4) Press

<G> button.

ö To eject the card:

1) Press

<G> button.

2) Touch [OPEN].

3) Push the card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

4) Press

<G> button.

Labelled side

Page 8

Number Name Motion

• This indicator flashes when the vehicle ignition is off ( P.83).

Basic Operations

S, R (Volume)

NAV • Displays the navigation screen.

MENU • Displays the popup menu screen.

HOME • Displays the HOME screen ( P.16).

Disc insert slot

SD card slot • A slot to insert an SD card.

• Adjusts volume.

The volume will go up until 15 when you keep pressing [ R ].

• Pressing for 1 second switches view camera display on/off.

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

• Switch the APP (CarPlay/ Android Auto/ Mirroring) source.

• Pressing for 1 second displays the Voice Recognition screen. (P. 75)

• Displays the Angle Adjust screen.

– [DISC EJECT]: Ejects the disc.

– [OPEN]: Fully opens the panel to the location of the SD card slot.

• When the panel is opened, pressing closes the panel.

• To forcibly eject the disc, press it for 2 seconds and touch [OK] after the message is displayed.

• A slot to insert a disc media.

• You can play audio/visual file in the card. * (Only for DNX893S, DNX773S)

• An SD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

* If the map update file remains in the SD card, you cannot play audio/visual file.

Page 9

Basic Operations

312

678

DNX693S/DNX573S/DNX5160BTS

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

DNX693S:

DNX573S, DNX5160BTS:

If above icons are showed, read the article applicable to the unit you use.

How to insert a microSD Card

NOTE

• A dummy microSD card is inserted as the slot cover. Remove it before using and keep it in an appropriate place.

1) Hold the microSD card with the label side facing right and the notched section down, and insert it into the clicks.

ö To eject the card:

Push the card until it clicks and then remove your finger from the card.

The card pops up so that you can pull it out with your fingers.

slot until it

Page 10

Number Name Motion

Disc insert slot

G (Eject) • Ejects the disc.

HOME • Displays the HOME screen ( P.16).

NAV • Displays the navigation screen.

Volume Knob • Turning adjusts volume up or down.

microSD card slot

• A slot to insert a disc media.

• To forcibly eject the disc, press it for 2 seconds and touch [OK] after the message is displayed.

• This indicator flashes when the vehicle ignition is off ( P.83).

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

• Switch the APP (CarPlay/ Mirroring) source.

• Pressing for 1 second displays the Voice Recognition screen. (P. 75)

• Displays the popup menu screen.

• Pressing for 1 second switches view camera display on/off.

• A slot to insert a microSD card.

• You can play audio/visual file in the card. * (Only for DNX693S, DNX573S)

• A microSD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

Basic Operations

* If the map update file remains in the microSD card, you cannot play audio/visual file.

Page 11

Basic Operations

Turning on the Unit

The method of turning on is different depending on the model.

Press the <HOME> button.

The unit is turned on.

● To turn off the unit:

Press the <HOME> button for 1 second.

If it is your first time turning the unit on after installation, it will be necessary to perform

Initial setup (P.11).

1010

Page 12

Basic Operations

Initial setup

Perform this setup when you use this unit first time.

Set each item as follows.

Locale

Select the country for the navigation system. The language, the distance unit, and the gasoline unit are set.

1 Touch [Locale]. 2 Select the desired country.

Language

Select the language used for the control screen and setting items. Default is “American English (en)”.

1 Touch [Language]. 2 Touch [Language Select]. 3 Select the desired language. 4 Touch [

For detailed operation, see User Interface Setup (P.80).

Color

Set the screen and button illumination color. You can select whether to allow color scan operation or select a fixed color for operation.

1 Touch [Color]. 2 Touch [Panel Color]. 3 Select the desired color. 4 Touch [

For detailed operation, see Display Setup (P.84).

Camera

Set the parameters for the camera.

1 Touch [Camera]. 2 Set each item and touch [

For detailed operation, see Camera Setup (P.86).

OEM SETUP (North America Sales area only)

This function requires a commercial adaptor. Consult your KENWOOD dealer for details.

] twice.

Continued

Page 13

Basic Operations

DEMO

Set the demonstration mode. Default is “ON”. 1 Touch [DEMO] and set ON or OFF.

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu. See Setting Up (P.78).

1212

Page 14

Basic Operations

How to Play Media

Music CD and disc media

Press the <G> button.

Touch [DISC EJECT].

The panel opens.

Insert the disc into the slot.

The panel closes automatically. The unit loads the disc and playback

starts.

● To eject the disc:

Press the <G> button.

Touch [DISC EJECT].

When removing a disc, pull it horizontally.

Press the <G> button.

Insert the disc into the slot.

● To eject the disc:

Press the <G> button.

USB device

Connect the USB device with the

USB cable.

Press the <HOME> button.

Touch [USB]. ( P.16)

● To disconnect the device: Press the <HOME> button.

Touch a source other than [USB].

Detach the USB device.

iPod

Connect the iPod.

Press the <HOME> button.

Touch [iPod]. (P.16)

NOTE

• For the details of the necessary cable and adapter to connect with iPod/iPhone, refer to CD/Audio

and Visual Files/iPod/APPS (P.30).

The unit loads the disc and playback starts.

● To disconnect the iPod/iPhone connected with the cable:

Detach the iPod/iPhone.

Page 15

Basic Operations

SD card

Press the <G> button.

Touch [OPEN] to the panel fully

opens.

Insert the SD card into the slot

until it clicks.

Press the <G> button.

Press the <HOME> button.

Touch [SD]. (P.16)

● To remove:

Press the <G> button.

Touch [OPEN] to the panel fully

opens.

Push the SD card until it clicks and

then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

Press the <G> button.

DNX693S/ DNX573S

Insert the microSD card into the

slot until it clicks.

Press the <HOME> button.

Touch [SD]. (P.16)

● To remove:

Push the microSD card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

NOTE

• A dummy microSD card is inserted as the slot cover. Remove it before using and keep it in an appropriate place.

HDMI/ MHL source

You can display the screen of smartphones connected via the HDMI/MHL input terminal.

Press the <HOME> button.

Touch [

Touch [HDMI/ MHL]. ( P.16)

Start an application or playback

on your smartphone.

● About Wireless Display Adapter:

This unit is compatible with Wireless Display Adapter. Connecting a Wireless Display Adapter (KCA-WL100:optional accessory) to the HDMI/MHL input terminal enables you to enjoy listening to music, watching videos, or viewing pictures over a wireless connection.

1414

NOTE

• For details about Wireless Display Adapter settings, etc., refer to the instructions supplied with the Wireless Display Adapter.

Page 16

Basic Operations

TV tuner (DNX7160BTS/ DNX5160BTS)

You can connect the TV tuner (commercially available) with this unit and watch TV.

Before use

• When you use TV control function, connect the TV tuner (commercially available) and set 3rd Party TV Tuner Control in AV Setup (P.88) to ON.

• The TV tuner can be controlled with its supplied remote control through the remote sensor on the front panel of this unit.

Press the <HOME> button.

Touch [

Touch [AV-IN1]. (P.16)

1 Key display area

Touch to display the control screen.

Menu control screen:

Touch 1 Key display area.

Hides the indicators and buttons.

Touch [Hide].

Change the channel.

Touch [CHR], [CHS].

Page 17

Basic Operations

312

Operating with the HOME Screen

Most functions can be performed from the HOME screen.

Press the <HOME> button.

HOME screen appears.

Flick the screen left or right to select the widget.

Touch the widget to display the

detailed screen.

Selecting the playback source on the HOME screen

Displays the source selection screen.

Short-cut buttons.

Displays the Hands Free screen (P. 72).

Displays the control screen of current source.

1616

Page 18

Touch [ ].

From this screen, you can perform the following functions.

Function Icon Operation

Switch the audio source

etc.

Switch the video source

etc.

Switch the application installed in the iPhone/ iPod or Android.

Display navigation screen

Turn off all audio function

etc.

Basic Operations

Touch the icon of the desired source.

Touch the icon of the desired video source.

Touch the icon of the desired application.

Touch [NAV].

Touch [STANDBY].

Vehicle information display

etc.

Enter setup mode

● Customizing Short-cut buttons on HOME screen

You can arrange the position of the source icons as you like.

1. Touch and hold the icon which you want

to move to go into the customizing mode.

2. Drag it where you want to move.

Touch the icon of the desired vehicle information

Touch the icon of the desired setup function.

Customizing mode screen

Page 19

Basic Operations

Common Operations

Introduces the common operations.

Popup menu

Press the <MENU> button.

Press the volume knob.

Popup menu appears.

Touch to display the popup menu. The contents of the menu are as follows.

: Displays the Screen Adjustment screen. : Turns the display off. : Displays the view camera. : Displays the SETUP Menu screen. : Displays the Audio Control Menu screen. : Displays the control screen of current

source. Icon feature differs depending on the source.

Source control screen descriptions

There are some functions which can be operated from most screens.

Indicators

Navigation information

Short-cut buttons

Connected Bluetooth device information.

: Lights up when quick charging battery of the connected iPod/ iPhone/ Smartphone.

Displays the function panel (other operation button window).

All sources icon

Displays all sources.

Secondary screen

[<] [>] : The Secondary screen changes every

time you touch it.

• Indicators: Displays the current source condition and so on.

• Navigation information: Displays the current location and the direction. The screen changes to the navigation screen when you touch here.

• Short-cut buttons: The source changes to the one you have set as a short-cut. For the short-cut setting, refer to Customizing

Short-cut buttons on HOME screen (P. 17).

1818

Page 20

Basic Operations

[Û]

Touch to display the Hands Free screen.

(P. 72)

When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

List screen

There are some common function keys in the list screens of most sources.

Return

Returns to previous screen.

Tex t scroll

Scrolls the displayed text.

etc.

Keys with various functions are displayed here.

: Plays all tracks in the folder containing

the current track.

: Jump to the letter you entered

(alphabet search).

: Moves to the upper hierarchy.

[

] / [ ] / [ ] / [ ] Page scroll

You can change the page to display more items by pressing [ [ ]/[ ] : Displays the top or bottom

page.

]/[ ].

Flick scrolling

You can scroll the list screen by flicking the screen up/down.

Page 21

Basic Operations

Navigation Operation

For details on the navigation function, please refer to the Navigation Instruction Manual.

Display the navigation screen

Press the <NAV> button.

The navigation screen appears.

Control audio from the navigation screen

You can control audio sources while the navigation screen is displayed.

Also, you can view the navigation information while the source control screen is displayed.

Touch the Navigation information

of Secondary screen.

The navigation screen with audio information appears.

Each time you touch [ ]/ [ ]/

[ ] in the navigation screen,

2020

Touching this area displays the audio screen.

Displays the navigation and control keys of the current source.

Page 22

Displays the navigation and current video/ picture playback display.

NOTE

• The screen switches between playback screen and view camera each time the viewing area is touched.

To return to the full navigation screen:

NOTE

• For details on control keys, refer to the instructions in each section.

] : It does not appear if the control keys like

• [ AV-IN, HDMI/MHL, etc. are not exist.

• Touching the source icon in the bottom of the screen displays the full audio screen.

Basic Operations

KENWOOD Traffic Powered By INRIX (North America Sales area only)

You can receive INRIX traffic information and weather forecast by connecting your iPhone or Android smartphone in which the “KENWOOD Traffic Powered By INRIX” application is installed to this unit.

Preparation

• Install the latest version of the KENWOOD Traffic Powered By INRIX application on your iPhone or Android.

– iPhone: Search for "KENWOOD Traffic Powered

By INRIX" in the Apple App Store to find and install the most current version.

– Android: Search for "KENWOOD Traffic Powered

By INRIX" in Google play to find and install the most current version.

• For details, see “KENWOOD Traffic Powered By INRIX” application.

See APP/iPod settings (P.31).

Press the <NAV> button.

Navigation screen appears. Touch [Apps] on the Main Menu screen

and then an icon of your desired content For details, see Navigation system manual.

Page 23

Basic Operations

OEM Features Operation

By connecting this unit to the bus system of the vehicle using an iDataLink (commercially available), this unit can access the satellite radio source provided for the vehicle and vehicle information can be displayed on this unit.

Press the <HOME> button.

HOME screen appears.

Touch [ ] icon

: Displays information about the

instruments such as a speedometer.

: Displays information about the

Parking Distance Sensor of the vehicle.

: Displays information about the air

conditioner of the vehicle.

: Displays information about the tire

pressures of the vehicle.

2222

Page 24

Basic Operations

: Displays information about the Radar

Detector.

NOTE

• Displayable screens, button names, and screen names vary depending on the type of the connected iDataLink and the model of the vehicle. For more details, access the following URL: www.idatalink.com/

Page 25

DVD/Video CD (VCD)

DVD/VCD Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote control mode switch to DVD mode before starting operation, see Switching the operation mode

(P. 103).

• The screen shot below is for DVD. It may be different from the one for VCD.

1 When the operation buttons are not displayed on the screen, touch the

Video screenControl screen

1 Information display

Displays the following information.

• Title #, Chap #: DVD title and chapter number display

• Track #/Scene #: VCD track or scene number display Scene # is displayed only when Playback control (PBC) is on.

• [Hide]: Hides the control screen.

• [

] : Repeats the current content. Each time you touch the key, repeat mode switches in the

following sequence;

DVD: Title repeat ( ), Chapter repeat ( ), Repeat off ( ) VCD (PBC On): Does not repeat VCD (PBC Off ): Track repeat ( ), Repeat off ( )

2 Function bar

Various functions can be performed by using keys in this area. For details on the keys, see Function bar

(P. 25).

• [

] : Displays the Graphic Equalizer screen. (P. 94)

3 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.26).

4 Play mode indicator

• D, B, I, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), I (stop),

(resume stop), H (pause), (slow playback), (slow reverse playback).

area.

2424

Page 26

DVD/Video CD (VCD)

5 Searching area

Touch to search the next/previous content.

6 Key display area

Touch to display the control screen.

NOTE

• The control screen disappears when no operation is done for 5 seconds.

• If you use a remote control, you can jump directly to the desired image with entering the chapter number, scene number, play time, etc (P. 103).

Function bar

DVD VCD

The functions of each key are as follows.

[E] [F]

Searches the previous/next content. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50

seconds.)

[DH]

Plays or pauses.

Page 27

DVD/Video CD (VCD)

Function panel

1 Touch on the left side of the screen.

DVD VCD

The functions of each key are as follows.

[I]

Stops playback. When touched twice, the disc is played from the beginning when you play it the next time.

[<<] [>>]

Fast forward or fast backward. Each time you touch the key, the speed changes; 2 times, 8 times.

[<|] or [|>] (DVD only)

Plays in slow motion forward or backward.

[SETUP] (DVD only)

Touch to display the DVD SETUP screen. See DVD Setup (P.28).

[MENU CTRL] (DVD only)

Touch to display the DVD-VIDEO disc manu control screen. See DVD Disc Menu Operation (P.27).

[PBC] (VCD only)

Turn Playback control (PBC) on or off.

2626

Page 28

DVD/Video CD (VCD)

DVD Disc Menu Operation

You can set up some items in the DVD-VIDEO disc menu.

1 Touch illustrated area during playback.

2 Touch on the left side of the screen.

Touch [MENU CTRL].

Menu Control screen appears.

3 Perform desired operation as follows.

Enters selected item

Touch [Enter].

Enables direct operation

Touch [Highlight] to enter the highlight control mode (P. 27).

Moves the cursor

Touch [R], [S], [C], [D].

Switches the subtitle language

Touch [Subtitle]. Each time you touch this key, language is switched.

Switches the audio language

Touch [Audio]. Each time you touch this key, language is switched.

Switches the picture angle

Touch [Angle]. Each time you touch this key, picture angle is switched.

* These keys may not function depending on

the disc.

Highlight control

Highlight control lets you control the DVD menu by touching the menu key directly on the screen.

1 Touch [Highlight] in the Menu Control

screen.

2 Touch desired item on the screen.

Displays the top menu

Touch [TOP].*

Displays the menu

Touch [MENU].*

Displays the previous menu

Touch [Return].*

NOTE

• The highlight control is cleared automatically if you do not operate for a constant time.

Page 29

DVD/Video CD (VCD)

DVD Setup

You can set up the DVD playback functions.

NOTE

• Each operation in this section can be started from the HOME screen. For details, see Operating with

the HOME Screen (P.16).

• Some setup items can only be set in standby mode.

1 Touch on the left side of the screen.

Touch [SETUP].

DVD SETUP screen appears.

2 Set each item as follows.

Screen Ratio

Sets the screen display mode.

16:9: Displays wide pictures. 4:3 LB: Displays wide pictures in the Letter Box

format (having black stripes at the top and bottom of screen).

4:3 PS (Default): Displays wide pictures in the

Pan & Scan format (showing pictures cut at the right and left ends).

Menu/Subtitle/Audio Language

See Language setup (P.29).

Dynamic Range Control

Sets the dynamic range.

Wide: The dynamic range is wide. Normal: The dynamic range is normal. Dialog (Default): Makes the total sound

volume larger than other modes. This is effective only when you are using Dolby Digital software.

2828

Page 30

Language setup

This setting is for the language used in the menu, subtitle, and voice.

1 Touch the desired item;

[Menu Language], [Subtitle Language], [Audio Language].

Language Set screen appears.

2 Select a language.

For language code, refer to DVD Language

Codes (P.117).

Sets the entered language and returns to the DVD Setting screen.

NOTE

• To set the DVD’s original language for audio language, touch [Original].

DVD/Video CD (VCD)

Page 31

CD/Audio and Visual Files/iPod/APPS

See the following sections for each source operation.

• Music CD (P. 32)

• Disc media (P. 33)

• USB device (P. 33)

• iPod (P. 33)

Preparation

• To connect the Android device with this unit, the cable (sold separately) and the profile which your Android device supports are necessary as follows:

Use application Sold separately Automotive Mirroring

To Android Auto source (Android version 5.0 (Lollipop) or later)

Use application Sold separately APP Connection select Bluetooth Connection

To listen to music and watch video of Mirroring source

To listen to music of Bluetooth Audio source

• To connect the iPod/iPhone with this unit, the cable, adapter (both sold separately), and the profile which your iPod/iPhone supports are necessary as follows:

Use application Sold separately Automotive Mirroring

To Apple CarPlay source KCA-iP103

Use application Sold separately APP Connection select

To listen music and watch video with Lightning connector device

To listen music with Lightning connector device To listen music with 30-pin connector device To listen to music via Bluetooth

• When connecting with Lightning Digital AV Adapter some applications can be controlled from this unit. The operable functions depend on the application.

• Do not leave the cable or the adapter made by other makers inside the car. It might lead the malfunction caused by heat.

• Some settings are necessary to meet the connected iPod/iPhone or Android device. Refer to APP/iPod settings

(P. 31) and Connecting the Bluetooth unit (P.68) .

Micro USB to USB cable

• MHL or HDMI device

• KCA-MH100 (MHL) or KCA-HD100 (HDMI)

• Lightning Digital AV Adapter

• KCA-HD100

• KCA-iP103

KCA-iP103 iPhone USB (USB)

KCA-iP102 iPhone USB (USB)

• Mirroring (P. 39)

• Apple CarPlay (P. 40)

• Android Auto (P. 42)

ON (P. 42)

• Android Bluetooth

• HDMI/MHL

– –

ON (P. 40)

(iPod Connection)

• iPhone Bluetooth

• HDMI/MHL (Bluetooth+HDMI/MHL)

–

iPhone Bluetooth (Bluetooth)

Audio (A2DP)/App (SPP)

Bluetooth Connection

Audio (A2DP)/App (SPP)

–

Audio (A2DP)/App (SPP)

3030

Page 32

CD/Audio and Visual Files/iPod/APPS

APP/iPod settings

Select how to connect your android smartphone or iPhone to use apps like Mirroring, etc.

Preparation

• To connect an Android device or iPhone via Bluetooth, register it as the Bluetooth device and do the profile setting of the connection beforehand. See Registering from the Bluetooth

unit (P.67) and Connecting the Bluetooth unit (P.68).

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [AV].

AV screen appears.

4 Set [Automotive Mirroring] to [OFF].

5 Touch [APP/iPod SETUP].

App/iPod SETUP screen appears.

6 Set each item as follows.

APP Connection select

Select how to connect your smartphone. Android Bluetooth: Connect an Android

smartphone via Bluetooth.

iPhone Bluetooth: Connect an iPhone via

Bluetooth.

HDMI/MHL: Connect an Android smartphone

or iPhone via Bluetooth and watch its video via HDMI/MHL.

iPhone USB: Connect an iPhone through an

USB cable.

iPod Connection

It shows how the device that is used in the iPod source is connected. It changes depending on the “APP Connection select”.

7 Touch [Done].

Page 33

CD/Audio and Visual Files/iPod/APPS

Music/Video Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation

mode (P.103).

• In this manual, “Music CD” will be referred to as the general CDs which include music tracks in. “Disc media” will be referred to as CD/DVD disc which includes audio or video files.

• The screen shot below is for CD. It may be different from the one for disc media.

Music CD

Control screen Content list panel

1 [ ] / [ ]

• [

] : Repeats the current track. Each time you touch the key, repeat mode switches in the

following sequence; Track repeat ( ), Repeat all ( )

• [

] : Randomly plays all tracks in disc. Each time you touch the key, random mode switches in the

following sequence; Track random ( ), Random off ( )

2 Track information

Displays the information of the current track.

3 Function bar

Various functions can be performed by using keys in this area. For details on the menu, see Function

bar (P.34).

• [

] : Displays the Graphic Equalizer screen. (P. 94)

4 Content list

Touching on the screen or flicking the screen to left will display the Content list. Touching again or flicking to right will close the list.

5 Play mode indicator

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

6 Content list panel

Displays the playing list. When you touch a track/file name on the list, playback will start.

3232

Page 34

CD/Audio and Visual Files/iPod/APPS

15623

Disc media, USB device, SD card, and iPod

To enter USB/ SD/ iPod source, touch [USB], [SD] or [iPod] icon in the HOME screen.

NOTE

• SD card is for DNX893S, DNX773S, DNX693S, and DNX573S only.

• The screen shot below is for USB device. It may be different from the one for iPod.

Control screen Content list panel

1 [ ] / [ ]

• [

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the

following sequence;

Disc media, USB device, SD card: File repeat ( ), Folder repeat ( ), Repeat all ( ) iPod: Song repeat ( ), All songs repeat ( )

• [

] : Randomly plays all tracks in current folder/disc. Each time you touch the key, random mode

switches in the following sequence;

Disc media, USB device, SD card: File random ( ), Random off ( ) iPod: Song random ( ), Album random ( ), Random off ( )

2 Track information

• Displays the information of the current file. Only a file name and a folder name are displayed if there is no tag information.

• iPod: Touch to display the category list screen. See Category search (P.36).

3 Function bar

Various functions can be performed by using keys in this area. For details on the keys, see Function bar

(P. 34).

• [

] : Displays the Graphic Equalizer screen. (P. 94)

4 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.35).

5 Content list

Touching on the screen or flicking the screen to left will display the Content list. Touching again or flicking to right will close the list.

6 Artwork/ Play mode indicator

The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicatory The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

Continued

Page 35

CD/Audio and Visual Files/iPod/APPS

7 Content list panel

Displays the playing list. When you touch a track/file name on the list, playback will start.

Video screen

8 Searching file area (video file only)

Touch to search the next/previous file.

Key display area (video file only)

Touch to display the control screen.

Function bar

Music CD

Disc media

iPod

The following functions can be performed by using keys in this area.

[1] (Disc media, iPod, USB device, and SD card only)

Searches track/file. For details on search operation, see Search Operation (P.36).

[E] [F]

Searches the previous/next track/file. Touch and hold to fast forward or fast backward. (audio and video file only) (It will be cancelled

automatically after about 50 seconds.)

[DH]

Plays or pauses.

USB device and SD card

3434

Page 36

CD/Audio and Visual Files/iPod/APPS

Function panel

1 Touch on the left side of the screen.

Disc media and SD card USB device

The following functions can be performed by using keys in this area.

[ ] [ ] (disc media, USB device, and SD card only)

Searches previous/next folder.

[USB DEVICE CHANGE] (Only for USB device of DNX893S/ DNX7160BTS/ DNX693S/ DNX5160BTS)

Switches to another USB device when two USB devices are connected.

Page 37

CD/Audio and Visual Files/iPod/APPS

Search Operation

You can search music or video files by the following operations.

NOTE

• If you use a remote control, you can jump directly to the desired track/file with entering the track/ folder/file number, play time, etc. For details, see

Direct search mode (P.103).

List search

You can search tracks, folders, and files according to hierarchy.

1 Touch on the right side of the screen.

Control list appears.

2 Touch desired track/file.

Category search (iPod only)

You can search a file by selecting category.

1 Touch [1].

Category List screen appears.

2 Touch [ S ].

3 Touch [Category List].

4 Touch the desired category.

Playback starts.

NOTE

• For disc media, you cannot display the list during random play and stop.

3636

5 The list is sorted by selected category. 6 Touch desired item.

Playback starts.

NOTE

• Touch [A-Z] to narrow the search you can select a letter.

• For operations in the list screen, see List screen

(P. 19).

Page 38

CD/Audio and Visual Files/iPod/APPS

Link search (iPod only)

You can search a file of same artist/album/ genre/composer as the current track.

1 Touch [1].

Category List screen appears.

2 Touch [ S ].

3 Touch [Link Search].

4 Touch the desired item. You can

select from artist, album, genre and composer.

NOTE

• Touch [A-Z] to narrow the search you can select a letter.

• For operations in the list screen, see List screen

(P. 19).

The list corresponding to your selection appears.

NOTE

• The list is sorted by the way you selected.

• Artists: Displays the album list of the artist.

• Albums: Displays all tunes of the current album.

• Genres: Displays the artists list in which artists belong to the same genre.

• Composers: Displays the album list of the

composer of the current file.

5 Touch to select desired item in the

list. Repeat this step until you find the desired file.

Page 39

CD/Audio and Visual Files/iPod/APPS

Folder search (USB device, disc media, and SD card only)

You can search a file according to hierarchy.

1 Touch [1].

Folder List screen appears.

2 Touch the desired folder.

When you touch a folder its contents are displayed.

3 Touch desired item from the content

list.

Playback starts.

NOTE

• For operations in the list screen, see List screen

(P. 19).

3838

Page 40

CD/Audio and Visual Files/iPod/APPS

Mirroring Operation

You can listen to music or watch video from the Mirroring operating on Android.

Preparation

• The unit and the Android device are connected with MHL (KCA-MH100 ; sold separately) or HDMI (KCA-HD100 ; sold separately).

• Select how to connect the unit with your smartphone. For the details, refer to APP/iPod

settings (P.31).

Preparation

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [AV].

AV screen appears.

4 Set [Automotive Mirroring] to [OFF].

Operation

1 Press the <HOME> button. 2 Touch [ ]. 3 Touch [Mirroring].

5 Connect an Android device.

Page 41

CD/Audio and Visual Files/iPod/APPS

Apple CarPlay Operation

CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about CarPlay, visit https://ssl.

apple.com/ios/carplay/.

Compatible iPhone devices

You can use CarPlay with the following iPhone models.

• iPhone 5

• iPhone 5c

• iPhone 5s

• iPhone 6

• iPhone 6 Plus

• iPhone 6s

• iPhone 6s Plus

Preparation

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [AV].

AV screen appears.

4 Set each item as follows.

Automotive Mirroring

Select “ON” to use Apple CarPlay. "ON" (Default)/ "OFF"

CarPlay Sidebar

Select the position of the control bar (left or right) shown on the touch panel.

“Left” (Default)/ “Right”

4040

5 Connect iPhone using KCA-iP103.

When iPhone compatible with CarPlay is connected to the iPod terminal, the Bluetooth smartphone currently connected is disconnected.

6 Unlock your iPhone.

Page 42

CD/Audio and Visual Files/iPod/APPS

231

Operation buttons and available Apps on the home screen of CarPlay

You can use the Apps of the connected iPhone.

The items displayed and the language used on the screen differ among the connected devices.

To enter CarPlay mode, touch [Apple CarPlay] icon in the HOME screen.

1 [ ]

• On the App screen: Displays the home screen of CarPlay.

• On the home screen of CarPlay: Touch and hold to activates Siri.

2 Application buttons

Starts the application.

3 [ HOME ]

Exits the CarPlay screen and displays the Home screen.

Using Siri

You can activate Siri.

1 Press the < > button for 1 second.

Press for 1 second

2 Talk to Siri.

To deactivate

1 Press the < > button.

To exit the CarPlay screen

1 Press the <HOME> button.

Page 43

CD/Audio and Visual Files/iPod/APPS

Android Auto™ Operation

Android Auto enables you to use functions of your Android device convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android device while driving.

For details about Android Auto, visit https://

www.android.com/auto/ and https://support. google.com/androidauto.

Compatible Android devices

You can use Android Auto with Android devices of Android version 5.0 (Lollipop) or later.

Note

• Android Auto may not be available on all devices and is not available in all countries or regions.

Preparation

1 Press the <MENU> button.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [AV].

AV screen appears.

4 Set [Automotive Mirroring] to [ON].

5 Connect an Android device via iPod/

iPhone terminal.

To use the hands-free function, connect the Android device via Bluetooth.

• When an Android device compatible with Android Auto is connected to the iPod/iPhone terminal, the device is connected via Bluetooth automatically, and the Bluetooth smartphone currently connected is disconnected.

6 Unlock your Android device.

4242

Page 44

CD/Audio and Visual Files/iPod/APPS

Operation buttons and available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android device.

The items displayed on the screen differ among the connected Android devices.

To enter Android Auto mode, touch [Android Auto] icon in the HOME screen.

1 Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

1 Press the <HOME> button.

Using voice control

1 Press the < > button for 1 second.

Press for 1 second

To cancel

1 Press the < > button.

Page 45

Radio and HD Radio™ Tuner

14597

823

Radio and HD Radio™ Tuner

Radio/HD Radio Tuner Basic Operation

Most functions can be controlled from the source control screen. To enter Radio/HD Radio source, touch [Radio] or [HD Radio] icon in the HOME screen.

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode

(P. 103).

• HD Radio broadcasting can be received only by the DNX893S, DNX773S, DNX693S, and DNX573S.

• HD Radio broadcasting is for North American sales area only.

• The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.

Control screen Preset list screen

1 Indicator display

While receiving an HD Radio station, it lights with orange when the audio is digital and lights with gray when it is analog. While receiving an analog station, it is off.

2 Information display

Displays the information of the current station: Frequency and Channel Touching [

Content A Station name, Song Title, Artist Name PS name, Radio Text, Title & Artist Content B Station Message, Radio Text PTY Genre, Radio Text plus Content C PTY Genre, Album Name –

3 [AUTO1]/ [AUTO2]/ [MANUAL]

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• AUTO1: Tunes in a station with good reception automatically.

• AUTO2: Tunes in stations in memory one after another.

• MANUAL: Switches to the next frequency manually.

4 Function bar

Various functions can be performed by using keys in this area. For details on the menu, see Function

bar (P.45).

• [

] allows you to switch between Content A, Content B and Content C.

HD Radio tuner Radio

] : Displays the Graphic Equalizer screen. (P. 94)

4444

Page 46

Radio and HD Radio™ Tuner

5 Preset key

Recalls the memorized station or channel. Touching on the screen or flicking the screen to left will display the Preset list. Touching again or

flicking to right will close the list.

6 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.45).

7 Picture

The picture data or station Logo data is displayed if available from current content.

8 [FM] [AM]

Switches the band.

9 Preset list

Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving station or channel in memory.

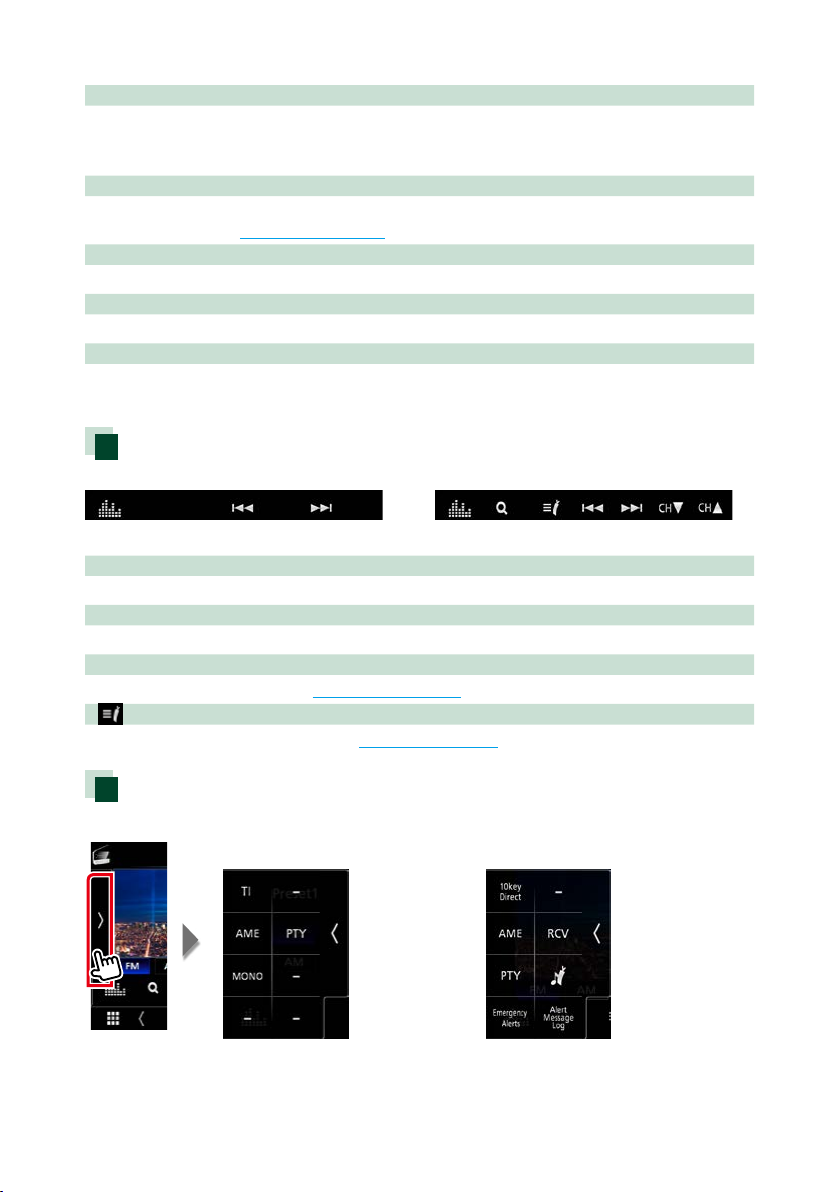

Function bar

Radio HD Radio tuner

The functions of each key are as follows.

[E] [F]

Tunes in a station. The method of frequency switching can be changed. (see 3 in table).

[CHS] [CHR] (HD Radio tuner only)

Selects a channel.

[1] (HD Radio tuner only)

Display the Cannel List screen. See Channel search (P.49).

[

] (HD Radio tuner only)

Display a list of registered bookmarks. See Bookmark list (P.52).

Function panel

1 Touch on the left side of the screen.

Radio HD Radio tuner

The functions of each key are as follows.

Continued

Page 47

Radio and HD Radio™ Tuner

[10key Direct] (HD Radio tuner only)

Display the direct station/ channel search screen. For details, see Direct search (P.49).

[TI] (Only for FM Tuner of DNX7160BTS/ DNX5160BTS)

Sets the traffic information mode on. For details, see Traffic Information (P.50).

[AME]

Presets stations automatically. For details, see Auto memory (P.47).

[RCV] (HD Radio tuner only)

Change the HD Radio reception mode. For details, see Receive Mode (P.51).

[PTY] (FM Tuner and HD Radio tuner only)

Searches a program by setting program type. For details, see Search by program type (P.48).

] (HD Radio tuner only)

[

Stores the information about the song being received. See Bookmark (P.51).

[Emergency Alerts] (HD Radio tuner only)

Turn on or off the alert message. See Alert Message (P.53).

[Alert Message Log] (HD Radio tuner only)

Displays the alert message received. See Alert Message (P.53).

[MONO] (FM Tuner only)

Select the Monaural reception.

• Adjacent to traditional main stations are HD2/HD3 Channels, providing new original programming on the FM dial

4646

• A music & product discovery feature that enables users to store information about content on the radio, and can deliver interactive information via QR codes

• Crystal clear, CD-like digital audio quality to consumers; eliminates background noise

• Provides song name, artist, station ID, and other relevant data to enrich the listening experience

• Visual images, such as album art of over-the-air broadcasts from HD Radio stations

• Delivers critical and life-saving messages to the public during emergency situations

Page 48

Radio and HD Radio™ Tuner

Memory Operation

Auto memory

You can store stations with good reception in memory automatically.

1 Touch desired band key.

2 Touch on the left side of the screen.

Touch [AME].

Manual memory

You can store the current receiving station or channel in memory.

1 Select a station or channel you wish to

store in memory.

2 Touch [FM#] (#:1-15) or [AM#] (#:1-5)

in which you want to store the station or channel for 2 seconds until a beep sounds.

3 Touch [Yes].

Auto memory starts.

Page 49

Radio and HD Radio™ Tuner

Selecting Operation

Preset select

You can list and select memorized station or channel.

Selecting from the preset list

1 Touch on the right side of the screen.

List Control screen appears.

2 Select a station or channel from the list.

Search by program type (FM tuner and HD Radio tuner only)

You can tune to a station with a specific program type when listening to FM.

1 Touch on the left side of the screen.

Touch [PTY].

TUNER PTY Mode screen appears.

2 Select a program type from the list. 3 Touch [Search].

4848

You can search a station of the selected program type.

Page 50

Radio and HD Radio™ Tuner

Direct search (HD Radio tuner only)

You can tune in by entering the desired frequency or channel number.

1 Touch on the left side of the screen.

Touch [10key Direct].

10Key Direct screen appears.

2 Select the search method.

Channel search (HD Radio tuner only)

You can specify the desired channel.

1 Touch [1].

Channel list appears.

2 Select the desired content from the list.

3 Enter the frequency or channel number. 4 Touch [Enter].

NOTE

• To clear the number you entered, touch [BS].

NOTE

• Touch [Info Change] in the channel list. Select the sequence of the list (Song title, artist name, album name).

Page 51

Radio and HD Radio™ Tuner

Traffic Information (Only for FM Tuner of DNX7160BTS/ DNX5160BTS)

You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Broadcast Data System that includes the TI information.

1 Touch on the left side of the screen.

Touch [TI].

Traffic information mode is set.

When the traffic bulletin starts

The Traffic Information screen appears automatically.

NOTE

• It is necessary to have Traffic Information function set to on in order to have the Traffic Information screen appear automatically.

• The volume setting during reception of traffic information is automatically stored. The next time the traffic information is received, this unit recalls the volume setting automatically.

5050

Page 52

Radio and HD Radio™ Tuner

Receive Mode (HD Radio tuner only)

You can set the radio broadcasts receive mode.

1 Touch on the left side of the screen.

Touch [RCV].

HD Radio tuner Mode screen appears.

2 Select a receive mode.

Bookmark (HD Radio tuner only)

Stores tag information (title, artist, album, URL, and description) about the song you are listening to now.

Detailed information and QR codes can be displayed according to the stored tag information.

Registering a bookmark

1 Touch on the left side of the screen.

Touch [

Registers a bookmark.

NOTE

• Up to 100 bookmarks can be registered to this unit.

[Auto]

Switch between digital and analog audio automatically.

[Digital]

Select this to tune to digital audio only

[Analog]

Select this to tune to analog audio only.

Page 53

Radio and HD Radio™ Tuner

Bookmark list

Displaying a list of registered bookmarks and detailed information and QR code of the song.

1 Touch [

The Bookmark List appears.

2 Select the desired bookmark from the

list.

The bookmark information appears.

Bookmark delete

Deleting a bookmark.

1 Touch [

The Bookmark List appears.

2 Touch [Delete].

The Bookmark Delete List appears.

3 Select the bookmark to delete from

the list.

[ Delete]

Deletes the bookmarks being displayed.

5252

[þ All]

Select all bookmarks.

[¨ All]

Erases all check marks.

4 Touch [ ].

Deletes all the selected bookmark(s)

Page 54

Radio and HD Radio™ Tuner

Alert Message (HD Radio tuner only)

This function is to receive alert messages. First, you need to turn on the “Emergency Alerts”. (P. 46)

When an Alert Message comes

[Snooze]

The alert message is erased. Same alert message cannot be displayed for next 10 minutes.

[Ignore]

The alert message is erased. Same alert message cannot be displayed for next 12 hours.

Display of the received Alert Message

You can read the received alert message afterward.

1 Touch on the left side of the screen.

Touch [Alert Message Log].

The Alert Message Log appears.

2 Select the desired Alert Message from

the list.

The Alert Message appears.

3 Touch [Close].

Page 55

SiriusXM®

58723

SiriusXM®

SiriusXM® Basic Operation

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

To enter SiriusXM source, touch [SiriusXM] icon in the HOME screen.

Activating subscription

• Check your Radio ID. The SiriusXM Satellite Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. The Radio ID does not include the letters I, O, S or F.

• Activate the SiriusXM Connect Vehicle Tuner using one of the two methods below:

– For users in the U.S.A.

Online: Visit www.siriusxm.com/activatenow Phone: Call SiriusXM Listener Care at 1-866-635-2349

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode

(P. 103).

• To use SiriusXM® Satellite Radio, the optional accessory is necessary.

• SiriusXM® Satellite Radio are for North American sales area only.

– For users in Canada:

Online: Visit www.siriusxm.ca/activatexm Phone: Call XM customer Care at 1-877-438-9677

Control screen Preset list screen

1 Indicator display

Displays the “Mix” (TuneMix™), “Scan” (TuneScan™) indicator and the received signal strength of the SiriusXM tuner.

2 Information display

Displays the information of the current channel: Channel Name Touching [

• Content A: Artist Name, Song Title, Content Info

• Content B: Category Name, Channel Description, Similar Channels

] allows you to switch between Content A and Content B.

5454

Page 56

SiriusXM®

3 [SEEK]

Switches the seek mode in the following sequence; [SEEK1], [SEEK2].

• SEEK1: Tunes channels one after the other.

• SEEK2: Selects channels in preset (memory) one after the other.

4 Function bar

Various functions can be performed by using keys in this area. For details on the menu, see Function

bar (P.55).

• [

] : Displays the Graphic Equalizer screen. (P. 94)

5 Preset key

Recalls the memorized channel. Touching on the screen or flicking the screen to left will display the Preset list. Touching again or flicking to right will close the list.

6 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.56).

7 Information display

Displays the following information.

• SXM#: Band display

• Preset #: Preset number

• #CH: Channel display

• Logo: Display album artwork for most SiriusXM music channels

8 Preset list

Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving station or channel in memory.

Function bar

The functions of each key are as follows.

[DH]

Plays or pauses. See Replay (P.60).

[CHS] [CHR]

Selects a channel.

[1]

Display the Category search screen. For details on search operation, see Category/Channel search

(P. 58).

Page 57

SiriusXM®

Function panel

1 Touch on the left side of the screen.

The functions of each key are as follows.

[Direct Channel]

Touch and enter the desired number. For details, see Direct search (P.58).

[SETUP]

Touch to display the SiriusXM SETUP screen. For details, see SiriusXM Setup (P.63).

[Band]

Switches the band. (SXM1/ SXM2/ SXM3/ SXM4)

[Replay]/ [Live]

Turns the replay mode on or off. See Replay (P.60).

[TuneScan]*

Hear a few seconds of the songs from each of the SmartFavorite music channels on the current preset band. See TuneScan™ (P.62).

[TuneMix]*

When you turn it ON, the preset channels on P1-P6 are shuffled to provide a playback which is a blend of songs from your favorite channels. See TuneMix™ (P.61).

*1 Compatible with SXV200 or later tuner models. *2 Compatible with SXV300 or later tuner models.

5656

Page 58

SiriusXM®

Storing Channels in Preset Memory

You can store the current channel in memory.

1 Tune to a channel you wish to store in

memory.

2 Touch on the right side of the screen.

3 Press and hold for 2 seconds (until

you hear a beep) the preset number [SXM(1-4) P(1-6)] in which you want to store the channel.

Preset select

You can list and select memorized station or channel.

Selecting from the preset list

1 Touch on the right side of the screen.

List Control screen appears.

2 Select a channel from the list.

Page 59

SiriusXM®

Direct search

You can tune to a channel directly.

1 Touch on the left side of the screen.

Touch [Direct Channel].

10Key Direct screen appears.

2 Enter the channel number and touch

[Enter].

NOTE

• To clear the number you entered, touch [BS].

Category/Channel search

You can specify the desired category and select a channel.

1 Touch [1].

Category list appears.

2 Select a category.

Channel list appears.

3 Select the desired content from the list.

5858

Page 60

NOTE

• All the channels in the selected category appear.

• Touching [All-Channels] displays all the channels.

• Touch [Info Change] in the channel list. Select the sequence of list as follows; Channel name, artist name, song title, category name, content info

• Categories which have the prefix “Featured - “ are Featured Favorites.

• Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing you to discover new channels. Featured Favorite channels are dynamic and can change often, allowing you to discover new channels.

SiriusXM®

Page 61

SiriusXM®

Replay

You can replay the last 60 minutes of the current channel.

1 Touch [L] or [Replay] on the function

panel.

[E] [F]

Press to skip to the previous/next track. Press and hold to rewind or fast forward. (It

will be cancelled automatically after about 50 seconds.)

[DH]

Plays or pauses.

[CHS] [CHR]

Tune in a channel.

Replay time bar/ Play mode indicator

Display recorded capacity and playback position.

• D, B, etc.: Current play mode indicatory.

[1]

Display a list of recorded data on a program basis.

Instant Replay List

Touching this plays back the displayed program.

[Info Change]

Touch [Info Change]. Select the sequence of the list as follows; Artist name, Song title, Category name, and Content info

Function panel

Touch on the left side of the screen.

[Live]

Return to live music/content.

2 Touch [1] to display an Instant Replay

list.

6060

Page 62

SiriusXM®

SmartFavorites, TuneStart™

Preset channels 1 through 6 of the current band are SmartFavorites channels. The SiriusXM Vehicle Tuner automatically buffers the broadcast audio content of the SmartFavorites channels in the background.

You can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content when you tune to a SmartFavorites channel. (see Replay (P.60))

When tuning from a SmartFavorites channel, songs will play from the beginning of each track (TuneStart™). You can enable/disable TuneStart. (see TuneStart™ (P.65))

NOTE

• Compatible with SXV200 or later tuner models.

TuneMix™

TuneMix™ plays a unique blend of songs from your Preset music channels from the current SiriusXM Preset Band, allowing you to build a custom channel from as few as two to as many as 6 music channels. You can even skip songs you don’t want to hear.

1 Touch on the left side of the screen.

2 Touch [TuneMix] to set ON or OFF.

NOTE

• Compatible with SXV300 or later tuner models.

Page 63

SiriusXM®

TuneScan™

TuneScan™ is a feature that plays samples from the starts of multiple buffered songs from each of the SmartFavorites channels that predominantly play music selections.

You have easy access to a large sampling of music content and can enjoy hearing a full song when stopping the scan on a song of interest.

1 Touch on the left side of the screen.

2 Touch [TuneScan] to begin scanning

your SmartFavorites channels.

You will hear a few seconds of the songs from each of the SmartFavorite channels.

3 Touch [TuneScan] again while your

favorite song is being played to start listening to that song.

Scan finishes and continues playing the song.

NOTE

• To cancel TuneScan™, Touch on the left side of the screen. Touch [TuneScan].

• Touch and hold [TuneScan] to cancel TuneScan, the channel before starting TuneScan will be played.

• Compatible with SXV200 or later tuner models.

6262

Page 64

SiriusXM®

SiriusXM Setup

1 Touch on the left side of the screen.

2 Touch [SETUP].

SiriusXM SETUP screen appears. See the following section for each setting.

• Set up the parental code (P. 63)

• Set up the Parental Control (P.64)

• Set up the skip channel select (P.65)

• Set up the TuneStart™ ( P.65)

• Reset to the default settings (P. 65)

Parental code

You can set a SiriusXM parental code for Parental Control.

1 Touch [Parental Code] in the SiriusXM

SETUP screen.

Parental Pass Check screen appears.

NOTE

• The code number is set to “0000” as default.

2 Enter the current code number.

Parental Pass 1st entering screen appears.

3 Enter the new code number and touch

[Enter].

Parental Pass 2nd entering screen appears.

4 Enter the same code number as you

input in step 3 and touch [Enter].

The code number is confirmed and SiriusXM parental code is now set.

Page 65

SiriusXM®

Parental Control

Parental Control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user selected channels.

1 Touch [Parental Control] in the

SiriusXM SETUP screen.

2 Touch [Mature], [User] or [OFF].

[OFF]

Deactivates the parental mature and user locks.

[Mature]

Locks channels classified as “mature” only.

[User]

Locks only the selected channels.

3 Enter the parental code you originally

input in Parental code (P.63) and touch [Enter].

When selecting [User]

This allows you to limit access to any SiriusXM channel (Parental Lock Channel).

1 Touch [Parental Lock Channel

Selection] in the SiriusXM SETUP screen.

Parental Pass Check screen appears.

3 Touch the desired category from the

list.

Displays all the channels in the selected category.

NOTE

• Touch [All-Channels] to display all the channels.

• To delete the parental lock channel setting, touch [Disable All] and then touch [YES] on the confirmation screen.

4 Touch each channel on the list and set

to ON or OFF.

On: If you wish to set the lock. Off: If you wish to unlock the channel.

NOTE

• You need to set up a Parental code (P.63) beforehand.

2 Enter the parental code you originally

input in Parental code (P.63) and touch [Enter].

Parental Lock Category Select screen appears.

6464

NOTE

• Touch [Info Change]. Select the sequence of the channel list as follows; Channel name, Artist name, Song title, Category name, Content information.

Page 66

SiriusXM®

Skip channel select

You can set the undesired channels to skip.

1 Touch [Skip Channel Select].

Skip Category Select screen appears.

2 Touch the desired category from the

list.

Displays all the channels in the selected category.

3 Touch each channel on the list and set

to ON or OFF.

TuneStart™

1 Touch [Tune Start] in the SiriusXM

SETUP screen.

The TuneStart is turned on or off. Default is “ON”.

Reset

1 Touch [SiriusXM Reset] in the SiriusXM

SETUP screen.

Confirmation screen appears.

2 Touch [YES].

All SiriusXM settings return to default.

NOTE

• To delete the skip channel setting, touch [Disable All] and then touch [YES] on the confirmation screen.

• Touch [Info Change]. Select the sequence of the channel list as follows; Channel name, Artist name, Song title, Category name, Content information.

Page 67

Bluetooth Control

Using the Bluetooth function, various functions can be used: listening to the audio file, making/receiving a call.

About the cell-phone and Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth Ver. 3.0

Profile

Cell-phone:

HFP (V1.6) (Hands Free Profile) SPP (Serial Port Profile) HID (Human Interface Device Profile) PBAP (Phonebook Access Profile) GAP (Generic Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile) AVRCP (V1.5) (Audio/Video Remote Control

Profile)

Sound codec

SBC, AAC

NOTE

• For the cell-phones verified for compatibility, access the following URL:

http://www.kenwood.com/cs/ce/bt/.

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG. However, it may be impossible for such units to communicate with your cell-phone depending on its type.

Registering and Connecting Bluetooth Unit

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

You can register up to 10 Bluetooth units.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Bluetooth].

Bluetooth SETUP screen appears. See the following section for each setting.

• Registering from the Bluetooth unit

(P. 67)

• Connecting the Bluetooth unit (P. 68)

• Change the PIN code (P. 69)

6666

Page 68

Bluetooth Control

Registering from the Bluetooth unit

Follow the step 1, 2 and 3 for registration.

Step 1: Registration from the Bluetooth device

1 Search the unit (“DNX****”) from your

smartphone/cell-phone.

2 Input the PIN code in your smartphone/

cell-phone.

PIN code is set to “0000” as the default.

SSP (Secure Simple Pairing of Bluetooth 2.1 or later)

1 Search the unit (“DNX****”) from your

smartphone/cell-phone.

2 Confirm the request both on the

smartphone/cell-phone and the unit.

NOTE

• A new device cannot be registered if there are 10 registered Bluetooth units. Delete unnecessary registration. See Connecting the Bluetooth unit

(P. 68).

• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device.

Step 2: Connection settings

1 Select the hands-free number to

connect.

A name of a smartphone is displayed when it has hands-free connection with the unit.

2 Select if you want to use the audio

player app in your smartphone over A2DP, and the other apps in your smartphone over SPP.

This message appears if the device supports BT audio (A2DP) or smartphone link (SPP).

Continued

Page 69

Bluetooth Control

Step 3: Phonebook transfer

1 Select if you want to transfer your

phonebook data.

This message appears if the device supports PBAP.

The phonebook data transmission starts. Some smartphones may request

permission to access the data. The data transmission will start with your permission.

When the data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

Connecting the Bluetooth unit

1 Touch [Select Device] in the Bluetooth

SETUP screen.

2 Touch the device name you want to

connect.

Profile select screen appears.

NOTE

• If the icon is lighted, it means that the unit will use that device.

6868

3 Set each profile as follows.

TEL (HFP) 1, TEL (HFP) 2

The device is connected with the unit as hands-free phone 1 or 2.

Page 70

Bluetooth Control

Audio (A2DP)/App (SPP)

The device is connected with the unit as an audio player or as a smartphone with apps installed.

4 Touch [Close].

NOTE

• If a device has been paired, the Bluetooth unit cannot be connected from the paired device.

Deleting the registered Bluetooth unit

1 Touch [Delete].

2 Touch the device name to check.

Change the PIN code

1 Touch [PIN Code] in the Bluetooth

SETUP screen.

PIN Code Set screen appears.

2 Input the PIN code

3 Touch [SET].

Change the device name

1 Touch [Device Name] in the Bluetooth

SETUP screen.

Change Device Name screen appears.

2 Input the device name

[þ All]

Select all Bluetooth unit.

[¨ All]

Erases all check marks.

3 Touch [Delete].

Confirmation message appears.

4 Touch [Yes].

3 Touch [Enter].

Page 71

Bluetooth Control

Playing Bluetooth Audio Device

Bluetooth basic operation

Control screen Function panel

1 Device name/ [ ] / [ ]

• Connected device name.

• [

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat ( ), Folder repeat ( ), All songs repeat ( ), Repeat off ( )

• [

] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; Folder random ( ), All random ( ), Random off ( )

2 Information display *

Displays the name of the track information.

3 Function bar

• [E] [F]: Searches the previous/next content.*

• [D]: Plays.*

• [H]: Pauses.*

• [1]: Searches file.* See Folder search (P.71).

• [

] : Displays the Graphic Equalizer screen. (P. 94)

4 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.71).

5 Play mode indicator

• D, H: Current play mode indicator The meanings of each icon are as follows; D (play), H (pause).

6 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.71).

* These items appear only when the audio player which supports AVRCP profile is connected.

NOTE

• If the operation keys do not appear, operate from the player.

• Depending on your cell-phone or audio player, audio may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cell-phone or audio player.

7070

Page 72

Bluetooth Control

Function panel

1 Touch on the left side of the screen.

The following functions can be performed by using keys in this area.

[BT DEVICE CHANGE]

Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP). See Connecting

the Bluetooth audio (P.71).

Connecting the Bluetooth audio

Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP).

1 Touch on the left side of the screen.

Touch [BT DEVICE CHANGE].

2 Touch the device name you want to

connect.

3 Touch [Close].

Folder search

1 Touch [1]. 2 Touch the desired file or folder.

When you touch a folder its contents are displayed.

3 Touch desired item from the content

list.

Playback starts.

NOTE

• For operations in the list screen, see List screen

(P. 19).

Page 73

Bluetooth Control

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

Making a call

1 Touch [Û].

Hands Free screen appears.

NOTE

• If your mobile phone supports PBAP, you can display the phone book and call lists on the touch panel screen when the mobile phone is connected.

– Phone book: up to 1000 entries

– Dialed calls, received calls, and missed calls: up

to 50 entries each

2 Select a dialing method.

• [ ]: Call by entering a phone number

• [

]: Call using call records

• [

]: Call using the phonebook

• [

]: Call using the preset number

• [

]: Voice Recognition ( P.75)

Select the cell-phone to use

When you connect two cell-phones 1 Touch [

you want to use.

Bluetooth SETUP

1 Touch [

Bluetooth SETUP screen appears.

NOTE

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.

• Setting the cell-phone in the private mode can disable the hands-free function.

] to select the phone

7272

Page 74

Bluetooth Control

Call using call records

1 Touch [ ]. 2 Select the phone number from the list.

Call by entering a phone number

1 Touch [ ]. 2 Enter a phone number with number

keys.

Call using the phonebook

1 Touch [ ]. 2 Touch [ ]. 3 Select the initial.

• Characters with no corresponding name will not appear.

• During search, a non-accent character such as “u” is searched for instead of an accent character such as “ü”.

4 Select the person you want to call from

the list.

3 Touch [ ].

Call using the preset number

1 Touch [ ]. 2 Touch the Name or phone number.

5 Select the phone number from the list.

NOTE

• You can set the list to arrange in the order of last name or first name. For details, see Hands-Free

Setup (P.76).

Page 75

Bluetooth Control

Receiving a call

1 Touch [ ] to answer a phone call or

[ ] to reject an incoming call.

NOTE

• While monitoring the view camera, this screen does not appear even if a call comes in. To display this screen, press the <TEL> button or return the shift knob of car to the driver position.

Operations during a call

Adjust the volume of your voice

1 Touch [Speech Quality]. 2 Touch [T] or [U] of [Microphone Level].

Adjust the receiver volume

Press the <S> or <R> button.

Turn the volume knob.

Mute your voice

Touch [ voice.

Output the dial tone

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys

on the screen.

Switching the speaking voice output

Touching [ switches the speaking voice output between cell-phone and speaker.

Call-waiting

When you receive a call while talking on another call, you can answer the newly received call by touching [ is on hold.

Each time you touch [ change.

When you touch [ and switch to the call in hold.

[ × ]

The Hands-Free popup screen is closed. To display it again, touch [

] to mute or not to mute your

]/ [ ] each time

]. The current call

], the caller will

], the current call will end

7474

Page 76

Bluetooth Control

Phone number preset

You can register frequently used phone numbers to this unit.

1 Touch [ ]. 2 Touch [Edit].

3 Select where to preset.

NOTE

• To delete the preset number, touch [Delete] and then touch [OK] on the confirmation screen.

Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

1 Press the < > button for 1 second.

Press for 1 second

4 Select how to preset.

• [Add number from phonebook]: Select the number to preset by referring to “Call using the phonebook”. See Call using the

phonebook (P.73).

• [Add number direct]: Enter the telephone number directly and touch [SET]. See Call by

entering a phone number (P.73).

Voice Recognition screen appears.

2 Start speaking.

NOTE

• You can use voice recognition function by touching [

] on the Hands Free screen.

Page 77

Bluetooth Control

Phonebook transfer

You can transfer the phonebook in your Bluetooth smartphone via PBAP.

1 Touch [ ]. 2 Touch [Edit].

3 Touch [Add to Phonebook].

The phonebook data transmission starts.

Phonebook deletion

1 Touch [ ]. 2 Touch [Edit].

3 Touch [Delete Phonebook].

4 Touch the name to check.

[þ All]

Checks all boxes.

[¨ All]

Erases all check marks.

5 Touch [Delete].

Confirmation message appears.

6 Touch [OK].

Hands-Free Setup

You can perform various setup about handsfree function.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

7676

SETUP Menu screen appears.

Page 78

Bluetooth Control

3 Touch [Bluetooth].

Bluetooth SETUP screen appears.

4 Touch [TEL SETUP].

TEL SETUP screen appears.

5 Set each item as follows.

Auto Response*

Sets an automatic response time to pick-up an incoming call.

OFF (Default): Automatic response is not

available.

1/ 5/ 10/ 15/ 20/ 25/ 30: Set calling ring time

(second).

Auto Pairing

When set to “ON”, the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit.

ON (Default): Uses Apple Auto Pairing

function.

OFF: Not uses Apple Auto Pairing function.

Sort Order

Sets how to arrange the cell-phone phonebook.

First: Arranges in the order of first name. Last (Default): Arranges in the order of last

name.

Echo Cancel Level

Adjusts the level of echo cancellation. Default is “0”.

Noise Reduction Level

Reduces the noises generated by surrounding environment without changing the microphone volume. Use this setting when the voice of caller is not clear. Default is “0”.

Bluetooth HF/Audio

Select the speakers to output the sound from cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player.

Front: Outputs from the front speakers. All (Default): Outputs from all speakers.

* Either the time interval for automatic

answer set on this unit or the time interval set on the cell-phone, whichever is shorter takes effect.

6 Touch [OK].

Page 79

Setting Up

Monitor Screen Setup

You can adjust image quality in video, menu screen, etc.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Screen Adjustment].

Screen Control screen appears.

3 Adjust each item as follows.

Backlight / Contrast / Black / Brightness / Color / Tint

Adjusts each item.

Aspect

Select screen mode. Full: Changes the aspect ratio of video and

displays fully on the screen.

Normal: Displays with 4:3 ratio. Auto:

DVD, VCD and disc media: Video of 16:9 ratio is displayed in Full and video of 4:3 ratio is displayed in Regular. USB device and SD card: Displays video fully on vertical or horizontal with no ratio change.

NOTE

• Adjusting items are different depending on the current source.

• The image quality can be set for each source. Backlight and Black are common to all sources.

7878

Page 80

Setting Up

Monitor Angle Control

You can adjust the position of the monitor.

1 Press the <G> button.

Angle Adjust screen appears.

2 Select a below number that represents

your desired angle setting.

Default is “0”.

Off Position

You can store the current monitor angle as the angle during power off. Touch [Memory] when the desired angle is selected.

View Camera Control

You can select the front or rear view camera.

1 Press the <MENU> button

for 1second/ volume knob for 1second.

Press for 1 second

View camera screen appears.

2 Adjust each item as follows.

1 Switching the View Camera

Touching each time changes between the front view camera and rear view camera.

2 Camera off

Touch to exit the camera screen.

Page 81

Setting Up

System Setup

NOTE

• Each operation in this section can be started from the multi function menu.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears. See the following section for each setting.

• Set up the user interface (P. 80)

• Set up special (P. 82)

• Set up security (P. 83)

• Set up display (P. 84)

• Set up camera (P. 86)

• Set up navigation (P. 88)

• Set up AV (P.88)

User Interface Setup

You can setup user interface parameters.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [User Interface].

User Interface screen appears.

4 Set each item as follows.

8080

Page 82

Setting Up

Steering Remote Controller (DNX7160BTS, DNX5160BTS)

Sets the desired function in the steering remote controller. (Contact your KENWOOD dealer for details.)

Beep

Turns the key touch tone on or off. Default is “ON”.

Parking Assist Display

When an ADS adapter is connected, you can display information about obstacles around the car.

ON: Always displays information. Dyn.: Displays information when the sensor

detects obstacles. OFF (Default): Cancels. This can be set when the iDataLink

(commercially available) is connected.

Parking Assist Position

Select where information about obstacles is displayed on the screen (left or right).

“Left” (Default)/ “Right” This can be set when the iDataLink

(commercially available) is connected.

Language Select Mode

Selects the mode to select a language.

Easy (Default): Selects a language easily. Advanced: Allows you to select languages for

respective items.*

Language Select

Selects a language.

Touch Panel Adjust (

Adjust the sensing position of touch panel.

(P. 82)

Clock

NAV-SYNC (Default): Synchronizes the clock

time with navigation. Manual: Sets the clock manually

Time Zone

If you have selected [Manual] for Clock, select the time zone.

Clock Adjust

If you select [Manual] for Clock, adjust the date and time manually. (P. 82)

/ )

* If you select [Advanced] for Language Select Mode, the following screen appears.

GUI Language Select

Selects the display language used for the control screen and so forth.

Navigation Language Select

Selects the language used for navigation.

Page 83

Setting Up

Adjust the date and time manually.

1 Touch [Clock Adjust] in the User

Interface screen.

Clock Adjust screen appears.

2 Adjust the date, then adjust the time.

3 Touch [Set].

Touch panel adjustment ( / )

1 Touch [Touch Panel Adjust] in the User

Interface screen.

Touch Panel Adjust screen appears.

2 Follow the instruction on the screen

and touch the center of each .

Special Setup

You can setup Special parameters.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Special].

Special screen appears.

4 Set each item as follows.

NOTE

• To cancel the touch panel adjustment, touch [Cancel].

• To reset to the initial status, touch [Reset].

8282

DEMO

Set the demonstration mode. Default is “ON”.

SETUP Memory

Locks or unlocks the Audio SETUP Memory/ Recall/Clear.

Audio SETUP Memory

Memorizes the current audio setting.

• Speaker / X’over, Equalizer, Position/DTA, Sound Effect (P.90)

Audio SETUP Recall

Recalls the memorized audio setting.

Page 84

Setting Up

Audio SETUP Clear

Clears the AUDIO SETUP Memory and the currently memorized audio setting.

Software Information

Check the software version of this unit.

(P. 83)

Open Source Licenses

Displays the open source licenses.

Initialize

Touch [Initialize] and then touch [Yes] to set all the settings to the initial default settings.

• Audio SETUP Memory is not initialized.

Software Information

Check the software version of this unit.

1 Touch [Software Information] in the

Special screen.

Software Information screen appears.

2 Confirm the software version.

Security Setup

You can set up a security code to protect your receiver system against theft.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Security].

Security screen appears.

4 Set each item as follows.

NOTE

• For how to update the software, see the relevant update procedure manual which comes with the software.

A red indicator will blink on the unit after the ACC is set to OFF, warning potential thieves. If turned to “ON” (default), the security indicator on the front panel flashes when the vehicle ignition is off.

Security Code Set *

Security Code Cancellation *

Clear the security code.

Security Code Change *

Change the security code.

*1 DNX7160BTS/ DNX5160BTS only

Page 85

Setting Up

Security Code

When the Security Code function is activated, the code cannot be changed and the function cannot be released. Note the Security Code can be set as the 4 digit number of your choice.

1 Touch [Security Code Set] on the

Security screen.

Security Code Set screen appears.

2 Enter a security code with four-digit

number and touch [Enter].

3 Enter the same code again and touch

[Enter].

Now, your security code is registered.

NOTE

• Touch [BS] to delete the last entry.

• If you enter a different security code, the screen returns to step 4 (for the first code entry).

• if you have disconnected the Receiver from battery, enter the correct security code as that you have entered in step 4 and touch [Enter]. You can use your receiver.

To change the security code:

1 Touch [Security Code Change] on the

Security screen, then repeat step 2 and

To clear the security code:

1 Touch [Security Code Cancellation] on

the Security screen.

Display Setup

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Display].

Display screen appears.

4 Set each item as follows.

Dimmer

Select dimmer mode.

OFF: The display and buttons do not dim. ON: The display and buttons dim. SYNC (Default): Turns the dimmer function on

or off when the vehicle light control switch is turned on or off.

NAV-SYNC: Turns the dimmer function on or

off according to the Navigation Day/Night display setting.

8484

Page 86

Setting Up

OSD Clock

Select if you want to display the clock while watching DVD video, etc.

"ON" (Default)/ "OFF"

Panel Color

You can set the screen and button illumination color. (P. 85)

Background

Changing background image. (P. 85)

Panel color coordinate

You can set the screen and button illumination color.

The selectable items differ depending on the unit.

1 Touch [Panel Color] in the Display

screen.

Panel Color Coordinate screen appears.

2 Touch the desired color.

Registering original color

You can register your original color.

1 Touch [User] in the Panel Color

Coordinate screen.

2 Touch [Adjust] .

Panel Color RGB Coordinate screen appears.

3 Use [−] and [＋] to adjust each color

value.

4 Touch [ ].

Changing background image

1 Touch [Background] in the Display

screen.

Background screen appears.

2 Select an image.

User

The color you have set in the process of [Adjust] is registered.

Scan

You can set the panel color to continuously scan through the color spectrum.

3 Touch [ ].

NOTE

• *1 The color you have selected at [Panel Color] is added on the image. If you select “Scan” at [Panel Color], you cannot select this image.

Page 87

Setting Up

Registering original image

You can load an image from the connected USB device and set it for the background image.

Before operating this procedure, it is necessary to connect the device which has the image to load.

1 Touch [User1 Select] or [User2 Select] in

the Background screen.

User Background File Select screen appears.

2 Select the image to load.

3 Touch [Enter].

Camera Setup

You can set camera parameters.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Camera].

Camera screen appears.

4 Set each item as follows.

The selected image is loaded and the display returns to the Background screen.

NOTE

• Touching [ ] rotates counter clockwise.

• Touching [

NOTE

• See Playable Media and Files (P.110) for readable image specifications.

] rotates clockwise.

8686

R-CAM Interruption

ON: Displays the picture from the rear view

camera when you shift the gear to the reverse (R) position.

OFF (Default): Select this when no camera is

connected.

Parking Guidelines

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position. Default is “ON”.

Guideline Setup

If you select [ON] for Parking Guidelines, adjust the parking guidelines. See Adjusting the

parking guidelines (P.87).

Page 88

Setting Up

Front Camera

On: Activates the front view camera. Select this

to use the front view camera.

OFF (Default): Select this when no camera is

connected.

Front Camera Mirror Image

If you select [ON] for Front Camera. On: Displays the picture from the front view

camera horizontally reversed.

OFF (Default): Displays the picture from the

front view camera as it is.

Adjusting the parking guidelines

1 Touch [ON] of [Parking Guidelines] in

the Camera screen.

2 Touch [Guideline Setup] in the Camera

screen.

3 Adjust the parking guidelines by

selecting the mark.

4 Adjusting the position of the selected

mark.

Make sure that A and B are horizontally parallel, and that C and D are the same length.

NOTE

• Touch [Initialize] and after touch [Yes] to set all the marks to the initial default position.

Page 89

Setting Up

Navigation Setup

You can set navigation parameters.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Navigation].

Navigation SETUP screen appears.

4 Set each item as follows.

AV Setup

You can set AV parameters.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [AV].

AV screen appears.

4 Set each item as follows.

NAV Voice Volume

Adjusts the volume for voice guidance of the navigation system. Default is “24”.

8888

APP/iPod SETUP

Set up APP/iPod connection. See APP/iPod

settings (P.31).

Page 90

TV Tuner Control (DNX7160BTS/ DNX5160BTS)

Sets when connecting the TV tuner to AV INPUT.

ON: Set to ON when connecting the 3rd party

TV tuner. AV-IN1 Name is set to TV. If you connect the TV tuner made by DOS and watch TV, you can perform some simple operations by touching the screen of this unit.

OFF (Default): Set to OFF when not

connecting the 3rd party TV tuner.

AV-OUT

You can select an AV source to be output from the AV OUTPUT port.

OFF, AV-IN, AV-IN1, AV-IN2, DISC, USB, SD, or iPod

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, SD, iPod, Disc, Mirroring, Bluetooth audio, Apple CarPlay or Android Auto as the main source, you cannot select USB, SD or iPod as the AV output source.

Automotive Mirroring

Select “ON” to use Apple CarPlay or Android Auto.

"ON" (Default)/ "OFF"

CarPlay Sidebar

Select the position of the control bar (left or right) shown on the touch panel.

“Left” (Default)/ “Right”

OEM SETUP

Confirm the information about/ change the settings for using the ADS adapter.

Setting Up

Page 91

Controlling Audio

NOTE

• Each operation in this section can be started from the multi function menu.

You can adjust the various settings such as audio balance or subwoofer level.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears. See the following section for each setting.

• Set up speakers (P. 90)

• Controlling audio (P. 93)

• Controlling equalizer (P. 94)

• Performing zone control (P. 96)

• Set sound effect (P. 97)

• Set volume offset (P. 95)

• Set listening position (P. 98)

Speaker/ X’over setup

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Speaker/X’over].

Speaker Select screen appears.

4 Touch the speaker you wish to adjust

and set each item as follows.

9090

Car Type

You can setup the car type and speaker network, etc.

Speaker

You can select a speaker type and its size to get the best sound effects.

When the speaker type and size are set, the speaker crossover network is set automatically.

Page 92

Controlling Audio

Location (Only for Front, Rear)

Select the speaker position you have fixed.

Tweeter (Only for Front)

You can set the tweeter when you are selecting front speakers.

None, Small, Middle, Large

X’over

Displays the speaker crossover setup screen. You can adjust the crossover setup that was set

automatically when you selected the speaker type.

For details, see Crossover network setup

(P. 92)

5 Select an item.

Car Type

You can setup the car type and speaker network, etc.

• If your car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.

Speaker

Front

OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10

Rear

None, OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10

Subwoofer

None, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15 inch over

Location

Front

Select the location from “Upper Door Area”/ “Lower Door Area”/ “On Dash”/ “Under Dash”.

Rear

Select the location from “Upper Door Area”/ “Lower Door Area”/ “Upper Cargo Area”* “Lower Cargo Area”*1/ “Upper 3rd Row Area”*2/ “Lower 3rd Row Area”*2/ “Parcel Shelf Area”*

*1 “Compact”/ “Wagon”/ “SUV” *2 “Minivan”/ “Minivan (Long)” *3 “OFF”/ “Full Size Car”

• Select “None” if you have no speakers.

Page 93

Controlling Audio

Crossover network setup

You can set a crossover frequency of speakers.

1 Touch [X’over].

X’over screen appears.

2 Touch the speaker to set.

3 Set each item as follows.

Phase Inversion*

Sets the phase of subwoofer output. Check [Phase Inversion] to shift the phase

180 degrees. (When subwoofer is selected on Speaker Select screen)

Only when “Tweeter” is set to “Small”,

“Middle”, “Large” in <Speaker Setup>.

Only when “Subwoofer” is set to a mode

other than “None” in <Speaker Setup>.

Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in <X’over>.

HPF FREQ

High Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen)

LPF FREQ

Low Pass Filter adjustment. (When subwoofer is selected on Speaker Select screen)

Slope*

Sets a crossover slope.

Gain

Adjusts the front speaker, rear speaker, or subwoofer level.

TW (Tweeter) Gain *

Adjusts the tweeter level. (When front is selected on Speaker Select screen)

9292

Page 94

Controlling General Audio

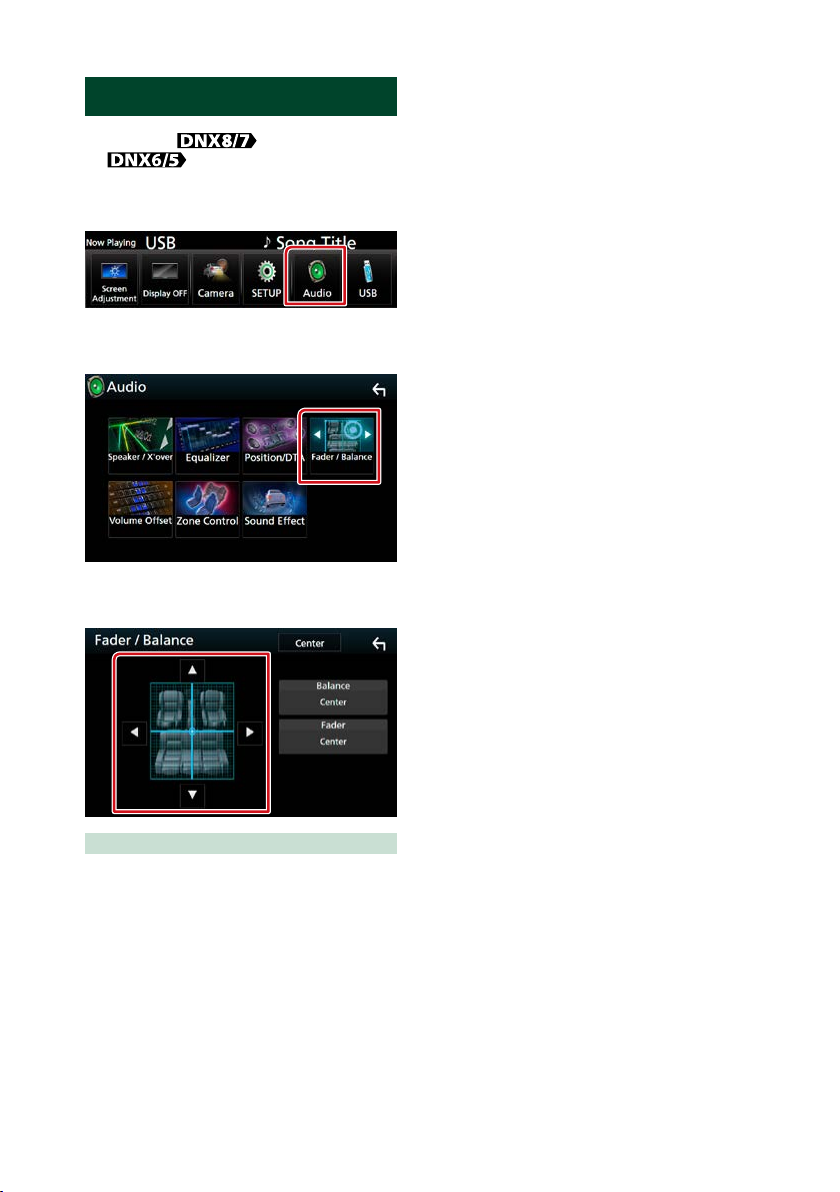

Controlling Audio

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Fader / Balance].

Fader / Balance screen appears.

4 Set each item as follows.

Fader / Balance

Adjust the volume balance around the touched area.

[C] and [D] adjust the right and left volume balance.

[R] and [S] adjust the front and rear volume balance.

Page 95

Controlling Audio

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Equalizer].

Equalizer screen appears.

4 Touch the screen and set the Graphic

Equalizer as desired.

Memory

Saves the adjusted equalizer curve to “User1” to “User4”.

Initialize

The current EQ curve returns to flat.

ALL SRC

Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen.

Bass EXT (Bass Extend Settings)

When turned on, the frequency lower than

62.5 Hz is set to the same gain level as 62.5 Hz.

SW Level

Adjusts the subwoofer volume. This setting is not available when subwoofer is set to “None”. See Speaker/ X’over setup (P.90).

Recall the EQ curve

1 Touch [Preset Select]. 2 Select EQ curve.

Gain level (light green boxed area)

Adjust the gain level by touching the each frequency bar.

You can select frequency bar and adjust its level by [R], [S].

Preset Select

Displays the screen to recall the preset equalizer curve.

9494

NOTE

• [iPod] is available only during iPod source.

Page 96

Controlling Audio

Save the EQ curve

1 Adjust the EQ curve. 2 Touch [Memory]. 3 Select where to save.

Volume Offset

Finely adjust the volume of the current source to minimize the difference in volume between different sources.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Volume Offset].

Volume Offset screen appears.

4 Touch [＋] or [−] to adjust the level.

Initialize

Returns to the initial settings.

* If you have increased the volume first, then

reduced the volume using the “Volume Offset”, the sound generated if you suddenly switch to another source may be extremely loud.

Page 97

Controlling Audio

Zone Control

You can select different sources for both front and rear positions in the vehicle.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Zone Control].

Zone Control screen appears.

4 Touch [Zone Select]. 5 Touch [Dual Zone].

6 Set each source as follows.

[Zone Select]

Touch [Single Zone] to turn off the dual zone function.

[Front Source] [Rear Source]

Select the audio source for each.

[Rear VOL.]

Adjusts the rear channel volume.

NOTE

• When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source.

• When the dual zone function is set to on, the following functions are not available.

– Output from the subwoofer

– Subwoofer Level/ Bass Boost (P.97)

– Equalizer Control/ Sound Effect/ Listening

Position (P. 94, 97, 98)

– Speaker Setup (P. 90)

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, SD, iPod, Disc, Mirroring, Bluetooth audio, Apple CarPlay or Android Auto as the Front Source, you cannot select USB, SD or iPod as the Rear Source.

9696

Page 98

Controlling Audio

Sound Effect

You can set sound effects.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Sound Effect].

Sound Effect screen appears.

4 Set each item as follows.

Bass Boost

Sets the amount of bass boost among “OFF”/ “1”/ “2”/ “3”.

Loudness

Sets the amounts of boost of low and high tones.

“OFF”, “Low”, “High”

Drive Equalizer+

The sound quality is automatically optimized to meet the current car speed by GPS.

“OFF”, “ON”

Space Enhancer

Select the feeling of sound space enhancement.

“OFF”/ “Small”/ “Medium”/ “Large”.

• This setting is not available during HD Radio tuner source.

Supreme

Turns ON/OFF the Supreme function. Technology to extrapolate and supplement

with proprietary algorithm, the high-frequency range that is cut off when encoding.

Realizer

Virtually makes the sound more realistic using the Digital Signal Processor (DSP) system.

Select the level from “OFF”/ “1”/ “2”/ “3”.

Stage EQ

You can adjust the height of speakers virtually to suit your listening position.

“OFF”/ “Low”/ “Middle”/ “High”.

Page 99

Controlling Audio

Listening Position/ DTA

You can adjust the sound effects according to your listening position.

1 Press the <MENU> button/

volume knob.

Popup menu appears.

2 Touch [Audio].

Audio screen appears.

3 Touch [Position/DTA].

• Set up Listening Position (P. 98)

• Set up Front Focus (P.100)

Listening Position

Adjust the sound delay time as nearer speakers to the selected seat have more delay time, so that the sound from each speaker arrive a listener at the same time.

1 Touch [Listening Position] in the

Position/DTA screen.

2 Select listening position from [Front R]

(Right front), [Front L] (Left front), [Front All] (All front), and [All].

9898

Page 100

Position DTA control

You can fine-adjust your listening position.

1 Touch [Adjust]. 2 Touch [Delay]. 3 Touch [T] or [U] to adjust the delay

time of the selected speaker.

4 Touch [Level]. 5 Touch [T] or [U] to adjust the sound

level of the selected speaker.

Controlling Audio

NOTE

• To return to the initial setting of Delay and Level, touch [Initialize] and [YES] in the confirmation screen.

Kenwood DNX893S, DNX693S, DNX573S, DNX7160BTS, DNX5160BTS Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

What Do You Want To Do?

Contents

Before Use

# WARNING

How to Read this Manual

Basic Operations

Functions of the Buttons on the Front Panel

Turning on the Unit

How to Play Media

Operating with the HOME Screen

Common Operations

Navigation Operation

OEM Features Operation

DVD/Video CD (VCD)

DVD/VCD Basic Operation

DVD Disc Menu Operation

DVD Setup

CD/Audio and Visual Files/iPod/APPS

APP/iPod settings

Music/Video Basic Operation

Search Operation

Mirroring Operation

Apple CarPlay Operation

Radio and HD Radio™ Tuner

Radio/HD Radio Tuner Basic Operation

Memory Operation

Selecting Operation

Receive Mode (HD Radio tuner only)

Bookmark (HD Radio tuner only)

Alert Message (HD Radio tuner only)

SiriusXM®

SiriusXM® Basic Operation

Storing Channels in Preset Memory

Preset select

Direct search

Category/Channel search

Replay

SmartFavorites, TuneStart™

TuneMix™

TuneScan™

SiriusXM Setup

Bluetooth Control

Registering and Connecting Bluetooth Unit

Playing Bluetooth Audio Device

Using Hands-Free Unit

Hands-Free Setup

Setting Up

Monitor Screen Setup

View Camera Control

System Setup

User Interface Setup

Special Setup

Security Setup

Display Setup

Camera Setup

Navigation Setup

AV Setup

Controlling Audio

Speaker/ X’over setup

Controlling General Audio

Equalizer Control

Volume Offset

Zone Control

Sound Effect

Listening Position/ DTA
