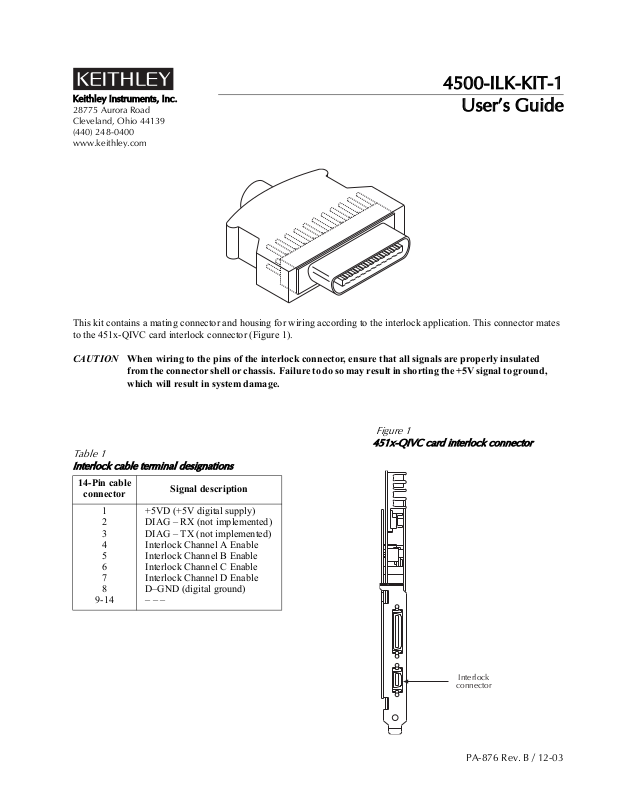

Keithley 4500-ILK-KIT-1 User Manual

4500-ILK-KIT-1

Keithley Instruments, Inc.

28775 Aurora Road
Cleveland, Ohio 44139
[phone]
www.keithley.com

This kit contains a mating connector and housing for wiring according to the interlock application. This connector mates
to the 451x-QIVC card interlock connector (Figure 1).

CAUTION When wiring to the pins of the interlock connector, ensure that all signals are properly insulated

from the co nnecto r shel l or ch assis . F ailure to do so may result in short ing the +5V si gnal t o ground,
which will result in system damage.

User’s Guide

Table 1
Interlock cable terminal designations

14-Pin cable

connector

1
2
3
4
5
6
7
8

9-14

Signal description

+5VD (+5V digital supply)
DIAG – RX (not implemented)
DIAG – TX (not implemented)
Interlock Channel A Enable
Interlock Channel B Enable
Interlock Channel C Enable
Interlock Channel D Enable
D–GND (digital ground)
–––

Figure 1
451x-QIVC card interlock connector

Interlock

connector

PA-876 Rev. B / 12-03
