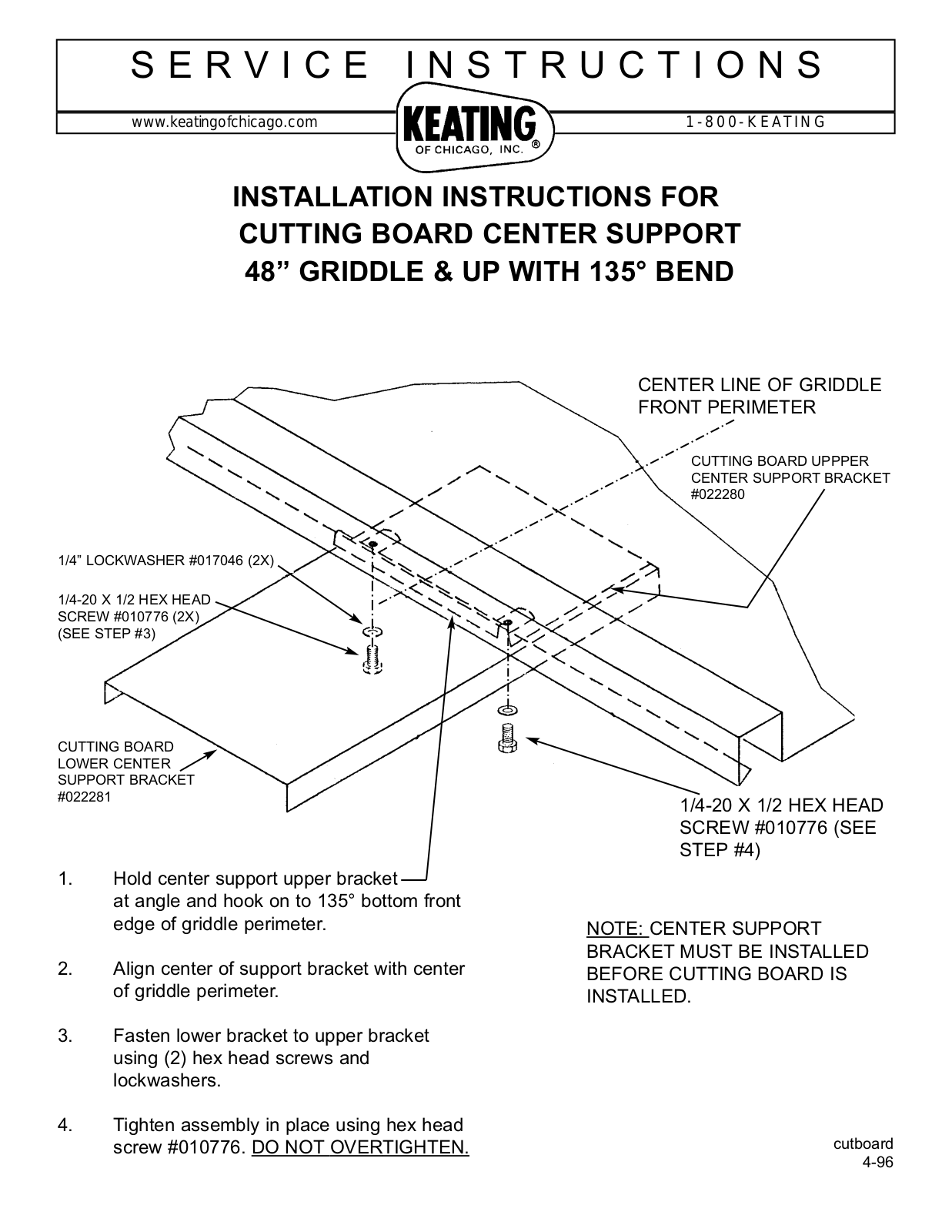

INSTALLATION INSTRUCTIONS FOR

CUTTING BOARD CENTER SUPPORT

48” GRIDDLE & UP WITH 135° BEND

1/4” LOCKWASHER #017046 (2X)

1/4-20 X 1/2 HEX HEAD
SCREW #010776 (2X)
(SEE STEP #3)

1/4-20 X 1/2 HEX HEAD
SCREW #010776 (SEE
STEP #4)

NOTE:

CENTER SUPPORT
BRACKET MUST BE INSTALLED
BEFORE CUTTING BOARD IS
INSTALLED.

CUTTING BOARD
LOWER CENTER
SUPPORT BRACKET
#022281

CUTTING BOARD UPPPER
CENTER SUPPORT BRACKET
#022280

CENTER LINE OF GRIDDLE
FRONT PERIMETER

1. Hold center support upper bracket
at angle and hook on to 135° bottom front
edge of griddle perimeter.

2. Align center of support bracket with center
of griddle perimeter.

3. Fasten lower bracket to upper bracket
using (2) hex head screws and
lockwashers.

4. Tighten assembly in place using hex head
screw #010776. DO NOT

OVERTIGHTEN.
