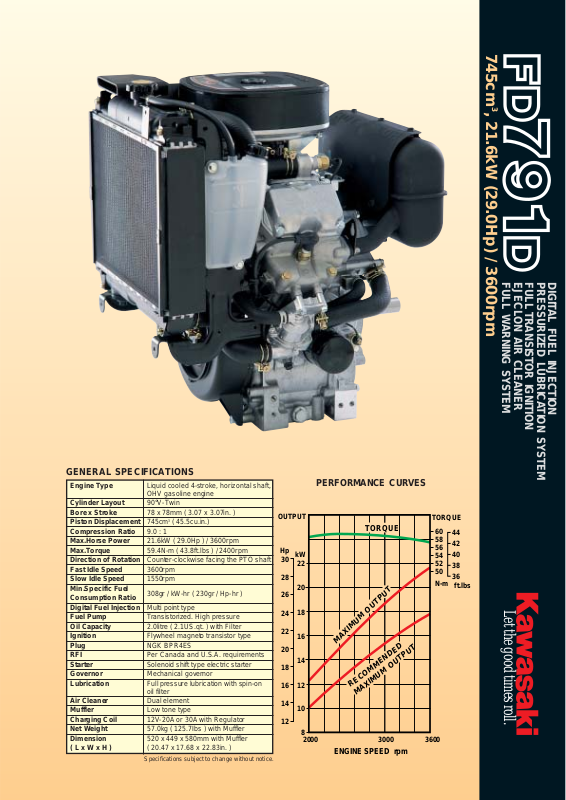

Kawasaki FD791D User Manual

DIGIT AL FUEL INJECTION

PRESSURIZED LUBRICA TION SYSTEM

FULL TRANSISTOR IGNITION

EJECLON AIR CLEANER

FULL WARNING SYSTEM

745cm

3

, 21.6kW (29.0Hp) / 3600rpm

TORQUE

10

8

12

14

16

22

18

20

kW

58
56
54
52

36

38

40

42

44

ft.lbs

50

60

N-m

12

14

16

18

20

22

24

26

Hp

28

30

OUTPUT

2000 3000

3600

ENGINE SPEED rpm

RECOMMENDED

MAXIMUM OUTPUT

MAXIMUM OUTPUT

TORQUE

PERFORMANCE CURVES

Let the good times roll.

Engine Type Liquid cooled 4-stroke, horizontal shaft,

OHV gasoline engine

Cylinder Layout 90°V-Twin
Bore x Stroke 78 x 78mm ( 3.07 x 3.07in. )
Piston Displacement 745cm3( 45.5cu.in.)
Compression Ratio 9.0 : 1
Max.Horse Power 21.6kW ( 29.0Hp ) / 3600rpm
Max.Torque 59.4N-m ( 43.8ft.lbs ) / 2400rpm
Direction of Rotation Counter-clockwise facing the PTO shaft
Fast Idle Speed 3600rpm
Slow Idle Speed 1550rpm
Min.Specific Fuel

308gr / kW-hr ( 230gr / Hp-hr )

Consumption Ratio
Digital Fuel Injection

Multi point type

Fuel Pump Transistorized. High pressure
Oil Capacity 2.0litre ( 2.1US.qt. ) with Filter
Ignition Flywheel magneto transistor type
Plug NGK BPR4ES
RFI Per Canada and U.S.A. requirements
Starter Solenoid shift type electric starter
Governor Mechanical governor
Lubrication Full pressure lubrication with spin-on

oil filter

Air Cleaner Dual element
Muffler Low tone type
Charging Coil 12V-20A or 30A with Regulator
Net Weight 57.0kg ( 125.7Ibs ) with Muffler
Dimension 520 x 449 x 580mm with Muffler

( L x W x H ) ( 20.47 x 17.68 x 22.83in. )

Specifications subject to change without notice.

GENERAL SPECIFICATIONS

FD791D : DIMENSIONAL SPECIFICATIONS

520 (20.47)

30 (1.18)

137 (5.39)

Unit : mm ( in. )

116.5 (4.59) 116.5 (4.59)

RK

WATER DRAIN

OIL DRAIN

98.5 (3.88)

11 (0.43)

8 (0.31)

197 (7.76)

178 (7.01)

153.4 (6.04)

89 (3.50)

62 (2.44)

82 (3.23)

297 (11.69)

81 (3.19)

25 (0.98)

R

3

.5

M10x1.5
96 (3.78)

4 (0.16)

15 (0.59)

12-M10x1.5
DEPTH22 (0.87)

164.3 (6.47)

54.5 (2.15)

29.5 (1.16)

80 (3.15)

80 (3.15)

580 (22.83)

574 (22.60)

155.5 (6.12)

Ø28.5 (1.12)

6.3 (0.25)

25 (0.98)

71.5 (2.81)

313 (12.32)

235.5 (9.27)

58.4 (2.30)

41.3 (1.63)

75)

.

(5

75

D

0

46.

.C.

1

P

Ø

.00)

5

127 (

Ø

30 (1.18)

58.4 (2.30) 58.4 (2.30)

115 (4.53) 115 (4.53)

225 (8.86)

41.3 (1.63)

45°

°

45

224 (8.82)

164.3 (6.47)

54.5 (2.15)

29.5 (1.16)

16.5 (0.65)

8 -M10X1.5
DEPTH19 (0.75)

4-M8X1.25
DEPTH16 (0.63)

160 (6.30)

184.2 (7.25)

PTO SHAFT DIMENSIONS (TAPER TYPE)

52 (2.05)

76.2 (3.00)

92.2 (3.63)

28 (1.10) 102 (4.02)

Ø35 (1.38)

R

2

(0

4 (0.16)

TAPER 3/16

5/16 - 24UNF-2B

.08

)

76.7 (3.02)

92.5 (3.64)

184.2 (7.25)

Ø22.155 (0.87)
