Karcher T100 User Manual

T 100

T-Racer

English

Français

Español

5.961-443 (01/05)

English

Safety Instructions

Selection of the nozzles

ATTENTION!

Do not use the accessory without having
read the instructions for use.
Please observe the safety instructions
of your pressure washer.
The T-Racer must not be used by
children.
Only trigger the gun of the pressure
washer if the T-Racer is located on the
surface to be cleaned.
There must be no persons in the
immediate vicinity of the cleaning head.
Turn off the pressure washer when
examining or changing the T-Racer and after
the completion of the cleaning operation.
Maximum water temperature allowed is
104 °F/ 60 °C. Please follow the
instructions for your pressure washer.

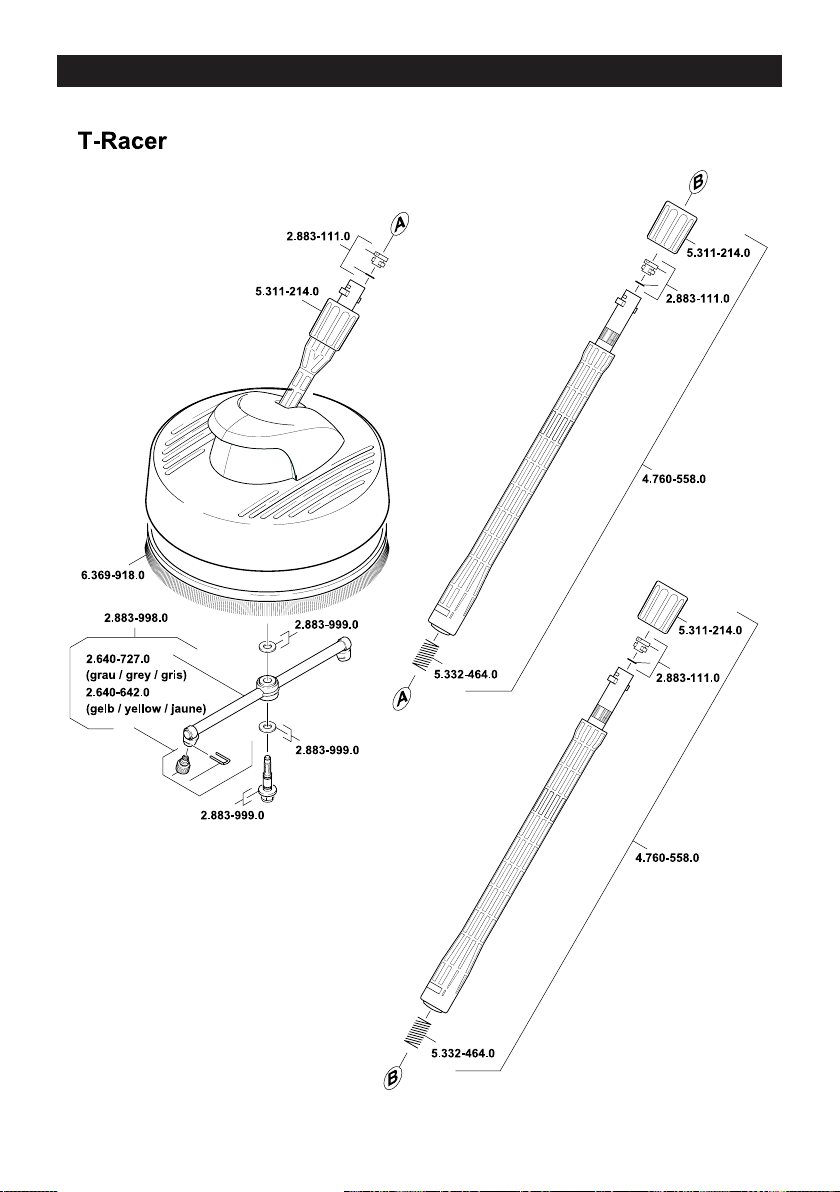

Included Accessories

 T-Racer

 Union nut  Handle

 Extension tubes (2x)

 Union nut

 High-pressure nozzles (2x, grey)

For pressure washers with a pressure
from 1700 psi to 2300 psi.
➜ Use the yellow nozzles (premounted).

For pressure washers with a pressure
from 1200 psi to 1650 psi.

➜ Use the grey nozzles.

To ensure a trouble free operation of your
pressure washer you must replace the
two yellow nozzles with the grey nozzles.

Exchange of nozzles (2x)

1. Remove the clip

2. Pull out the yellow nozzle

3. Insert the grey nozzle

4. Re-insert the clip

The T-Racer can be used with all Kärcher
pressure washers with bajonet guns from the
model year 1992 up to 1850 PSI and Kärcher
gasoline pressure washers up to 2300 PSI.
The T-Racer is ideally suited for the
cleaning of floor and wall surfaces made of
materials such as wood, concrete, tile and
natural stone. It has not been designed for
commercial use.

2

Cleaning floor surfaces

English

Cleaning wall surfaces

Connect the T-Racer and the extension
tubes with the trigger gun.

Attaching the extension tubes

1. Press one extension tube into the bayo­net catch of the trigger gun.

2. Turn it by 90° until it locks into place.

3. Tighten the union joint.

Repeat the above steps for the other two
connections.

Connect the T-Racer directly with the trigger
gun.

Always hold the T-Racer with both
hands during the cleaning of walls.
Do not reach under the edge of the
T-Racer while the device is in operation.

CAUTION!

§ The T-Racer is not suited for scouring or
scrubbing!

§ Do not run over free-standing corners!

Kärcher Customer Support USA

Call: 1-800-537-4129 for help
or visit our website:

www.karcher-usa.com

Kärcher Customer Service CDN

Call: 1-800-465-4980 for help
or visit our website:

www.karcher.ca

3
