Mode l HD 30 0 0 Part No. 1.187 -1 16

High Pressure Washer Operator Manual

Specifications

Ma x. Operating pres sure 3000 PS I Ma x. Water volume 3.2 G P M E ngine 9 HP Honda

GX 270

In US A Ca ll:

1 - 80 0- 5 37 - 412 9

or vis it our we bs ite :

www. karc he r-us a. c om

In Ca n a da C a ll:

1 - 80 0- 4 65 - 498 0

or vis it our we bs ite :

www. karc he r.c a

NEVER!

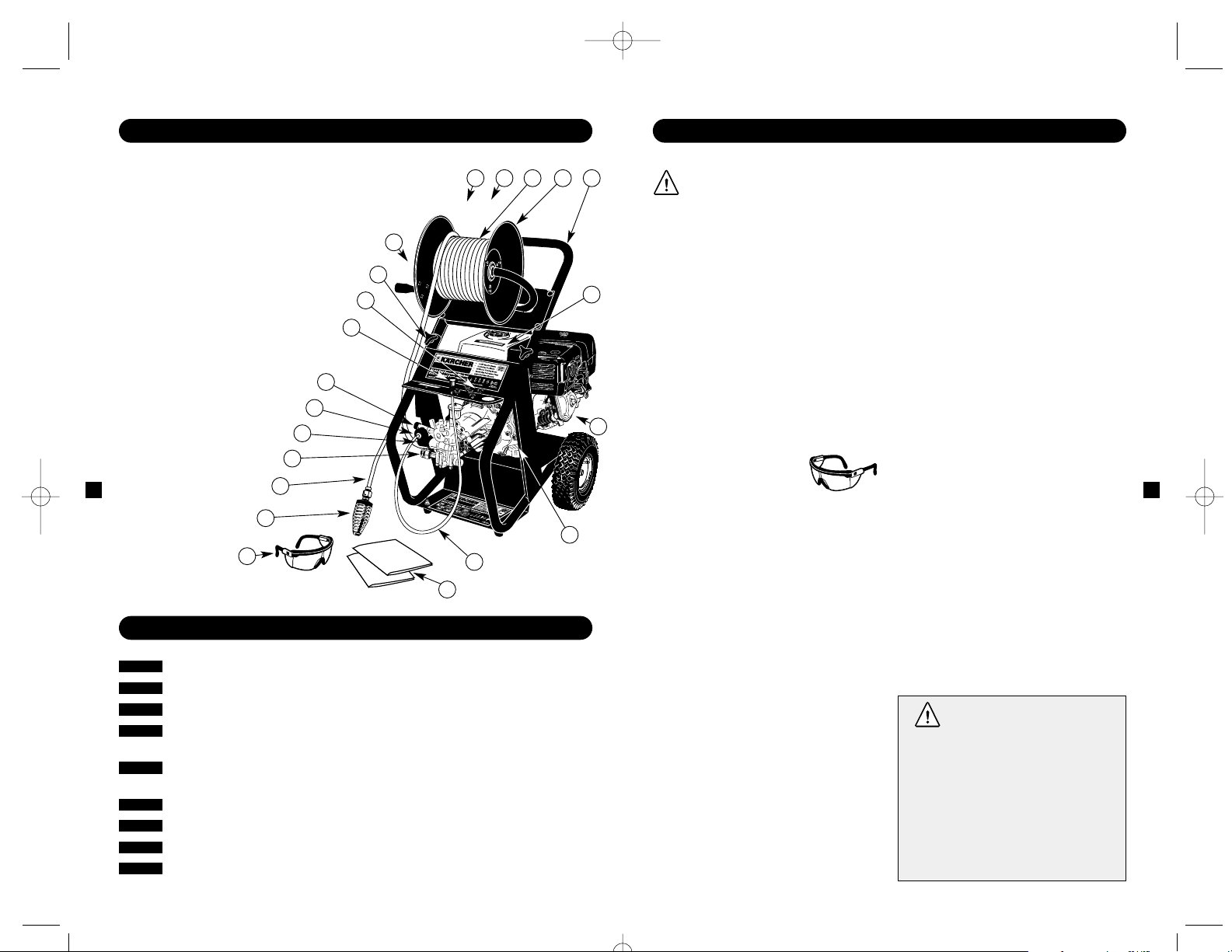

Model HD 3000 OVERVIEW

Item Description

1. High pressure outlet

2. Water inlet with garden hose connector and filter

3. Detergent suction tube

4. Knob Assembly (two each, Bolt & Knob)

5. High pressure hose

6. Hose Reel

7. Detergent filter

8. Handle

9. Trigger gun (not pictured)

10. Trigger gun safety lock (not pictured)

11. Pull start (not pictured)

12. Gas tank

13. Oil fill cap (not pictured)

14. Spray wand

15. Quick connect nozzles (5)

16. Pressure control

17. Detergent dosage control

18. Gun/hose storage handle (not pictured)

19. Dirtblaster

nozzle

20. Safety goggles

21. Operator manuals

Features:

• Low oil sensor

• Thermal

protection sensor

Never point nozzle at people or animals.

Never drink alcohol or use drugs while operating this equipment.

Never spray electrical connections, electrical outlets or fixtures.

Never add fuel with the engine running or operate where fuel has been spilled.

Never touch hot surfaces or allow accessories to contact hot surfaces.

Never operate in an enclosed space, exhaust fumes are dangerous.

Never operate near utilities with open flames.

Never operate pressure washer without the water turned on.

Never use hot water.

IMPORTANT PRECAUTIONS – Read First!

Safety Warnings

When using this product, basic precautions should always be followed:

• Read all the instructions before using the product.

• Fire hazard! Do not add fuel with the engine running. Do not operate if fuel has been spilled. Instead, move the machine to a different location and avoid creating sparks.

• Operate and fuel machine in a well ventilated area, free of devices featuring an open pilot or flame such as boilers, water heaters, etc.

• High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, electrical devices, or the machine itself.

• Wear safety goggles.

• Do not use acids, alkalines, solvents, or any flammable material in this product. These products can cause physical injuries to the operator and irreversible damage to the machine.

• The machine has hot surfaces which can cause burns. Operate the unit in a safe environment and away from children.

• Do not allow the high pressure hose to come into contact with the muffler guard.

• Do not leave the machine running unattended.

• Learn how to stop the machine and release pressure quickly. Be thoroughly familiar with the controls.

• Stay alert — watch what you are doing.

• Do not operate the product when fatigued or under the influence of alcohol or drugs.

• Do not stand on unstable surfaces. Stand with both feet balanced at all times.

• Avoid tipping the machine on its side.

• The Gun Safety Lock PREVENTS the trigger from accidentally being engaged. This safety feature DOES NOT lock trigger in the on position.

Water Supply (Cold Water Only)

• Water hose must be at least 3/4 inch in diameter.

• Flow rate of water supply must not fall below 2.5 GPM (gallons per minute).

• Flow rate can be determined by running the water for one minute into an empty 5-gallon container.

• The water supply temperature must not exceed 104°F/40°C.

• Never use the pressure washer to draw in water contaminated with solvents, e.g. paint thinners, gasoline, oil, etc.

• Always prevent debris from being drawn into the unit by using a clean water source.

We strongly recommend that this high pressure washer not be left running for periods of 5 minutes or longer without the trigger gun being engaged.

This Kärcher high pressure washer is equipped with thermal protection to extend the life of your pressure washer. The thermal protector will automatically activate at a predetermined high temperature ejecting hot water before resetting. This ensures that the pump does not become damaged.

Caution

• Follow the maintenance instruc-

tions specified in the manual.

• This machine has been designed

for use with cleaning detergents supplied or recommended by the manufacturer. The use of other cleaning detergents may affect the operation of the machine and void the warranty.

HD3000 Manual 9/20/02 5:28 PM Page 2

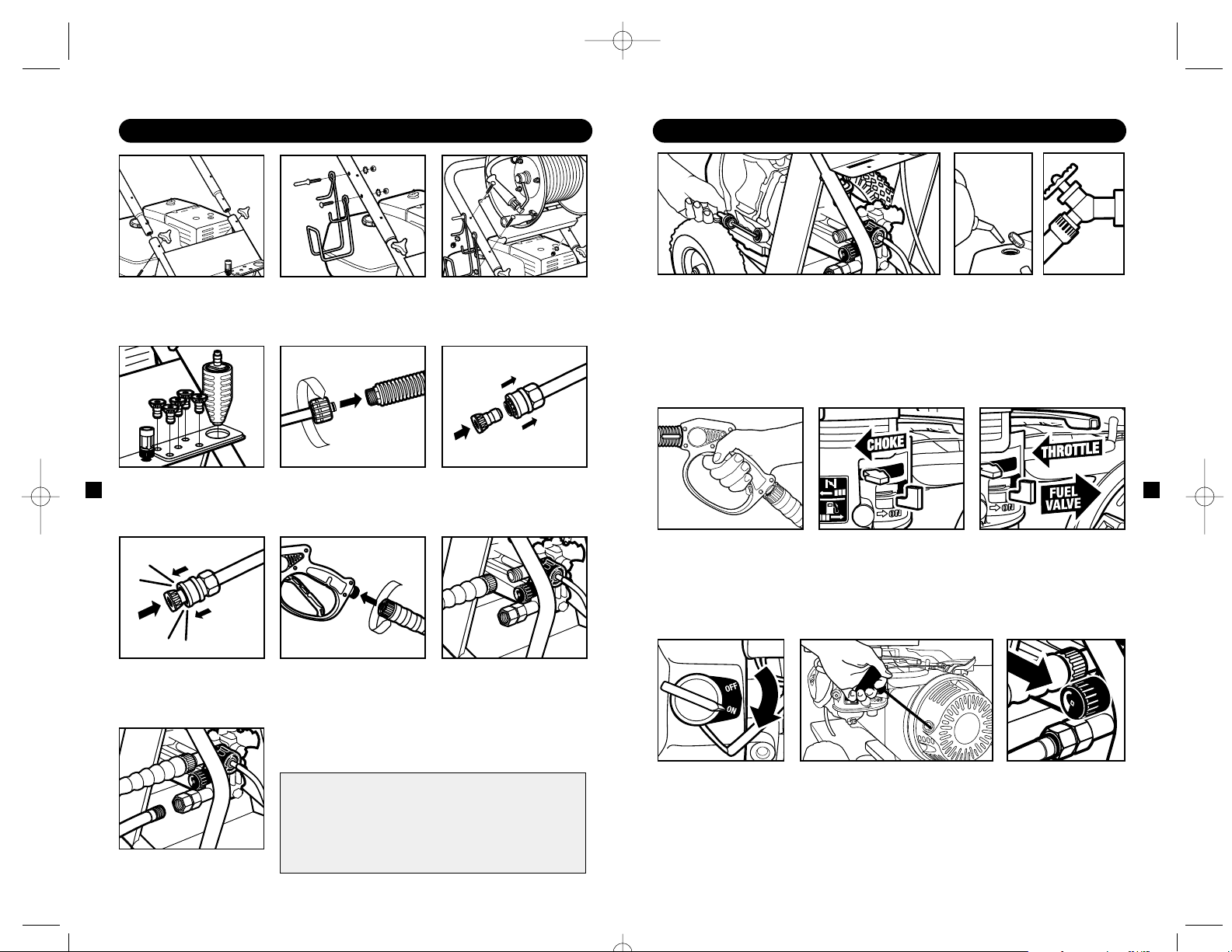

ASSEMBLY INSTRUCTIONS

Step 3 Attach the reel

to the handle. Align holes, insert bolts, and tighten with nuts.

Step 2 Attach the

gun/hose storage handle.

Step 4 Place the quick

connect nozzles in the nozzle holder.

OPERATING INSTRUCTIONS

Step 9 Connect the

high pressure hose to the unit’s high pressure outlet.

Step 3

Connect garden hose to the cold water source and turn water on completely.

Never use hot water.

Step 4 Trigger the gun

to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.

Step 5 Slide the choke

lever to the left to the “CLOSED” position (on a warm engine, leave the choke lever in the open position).

Step 9 Adjust pressure

control to desired setting.

Step 6 Slide the fuel

valve to the “ON” position. Slide the throttle lever left about 1/3 of the way toward the fast position.

Step 7 Turn the engine

switch to the “ON” position.

Step 8 Pull the starter

handle. If the engine fails to start after 3 pulls, squeeze the trigger gun to release pressure, and repeat step.

After the engine is warm and running smoothly, slide the choke lever to the right (open) and throttle to the left (fast).

Step 6 Pull the spring-

loaded collar of the wand back to insert your choice of quick connect nozzle.

Step 7 Release the collar

and push the nozzle until the collar clicks. Pull the nozzle to make sure it is seated properly.

Step 8 Attach the

high pressure hose to the spray gun.

Step 1 Check oil level. Oil level should be level

with the bottom of the oil filler neck. Be sure the machine is level when checking the oil level. (Refer to the engine’s operating manual for seasonal grades.)

We recommend that the oil be changed after the first 5 hours of use, then once every 50 hours.

Note: Improper oil levels will cause low oil sensor to shut off engine.

Step 2

Fill gas tank with unleaded gasoline. Do not use leaded gasoline.

Step 5 Attach the

wand to the spray gun.

Important!

Do not run the engine with a high or low oil level as this can cause engine damage. If you have further questions regarding the engine, please refer to the engine’s operating manual included with the unit.

Step 10 Connect the

garden hose to unit’s water inlet.

Step 1 Attach the handle

to the frame of the pressure washer. Align holes, insert bolts, and tighten with knobs.

HD3000 Manual 9/20/02 5:28 PM Page 4

USING THE ACCESSORIES

This wand features a 0º pencil jet which rotates 360º for maximum dirt cutting action, effectively increasing cleaning performance up to 50%. This wand combines the cleaning performance of a 0º pencil jet with the surface coverage of a wide angle nozzle.

Not recommended for soft materials, siding, painted surfaces, decks or autos.

Dirtblaster®nozzle

The five color-coded quick connect nozzles provide a wide array of spray widths from 0° to 65° and are easily accessible when placed in the convenient rubber nozzle holder, which is provided on the front of the machine.

Red nozzle = 0°

Yellow nozzle = 15°

Green nozzle = 25°

White nozzle = 40°

Black detergent

nozzle

WORKING WITH DETERGENTS

Detergents can only be applied with the black nozzle.

Step 1 Install the black quick-connect

low pressure nozzle for detergent application at low pressure.

Step 4 With the engine running, pull

trigger to operate unit. Liquid detergent is drawn into the unit and mixed with water. Apply detergent to work area. Do not allow detergent to dry on surface.

Step 2 Adjust the dosage control at

the beginning of the detergent tube for light (1), or maximum (6) detergent coverage.

Step 3 Fill a container with Kärcher

detergent. Place the filter end of detergent suction tube into the detergent.

Caution

Never use:

• Bleach, Chlorine products and other

corrosive chemicals

• Liquids containing solvents

(i.e., paint thinners, gasoline, oils)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products These chemicals will harm the unit and will damage the surface being cleaned.

For best results see Cleaning Tips on pages 8 & 9 for specific information on how to clean different surfaces.

Always Use Kärcher Detergents for Best Results.

Kärcher biodegradable detergents are specially formulated to protect the environment and your pressure washer. The special formula won’t clog the suction tube filter and will protect the internal parts of the pressure washer for a longer life. For Kärcher Detergents, check your retailer or call:

The following Kärcher detergents are available:

• Vehicle Wash • House Wash

• Degreaser • Deck Wash

• All Purpose Cleaner

USA: 1-800-537-4129

www.karcher-usa.com

CAN: 1-800-465-4980

www.karcher.ca

WARNING

TO AVOID SERIOUS INJURY, NEVER POINT SPRAY NOZZLE AT YOURSELF, OTHER PERSONS OR ANIMALS.

HD3000 Manual 9/20/02 5:28 PM Page 6

Step 2 Tur n

off the engine.

Step 3 Slide

fuel valve to the “OFF” position.

Step 4 Tur n

off water supply.

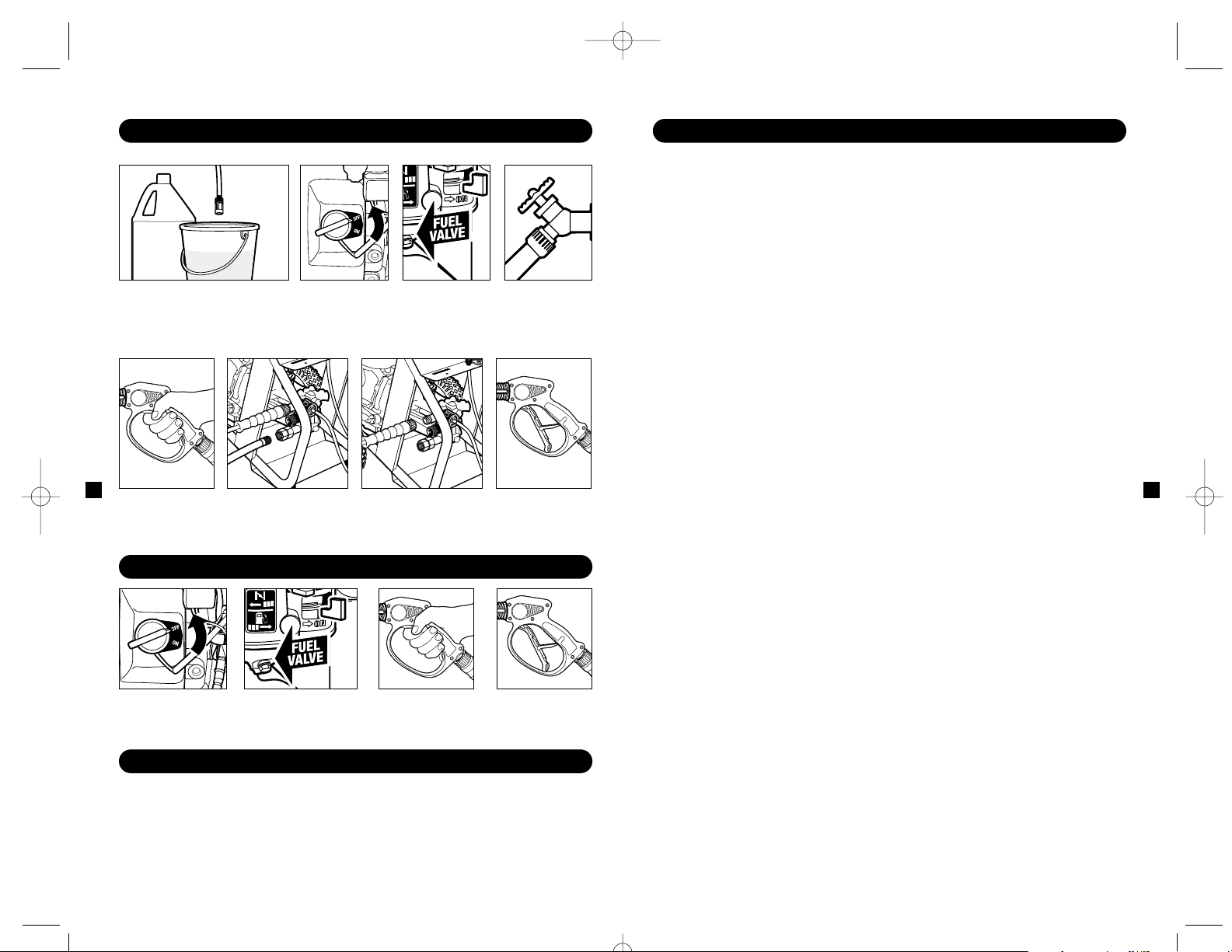

SHUTTING DOWN & CLEAN-UP

WINTERIZING AND LONG-TERM STORAGE

1. Disconnect all water connections.

2. Start the machine for a few seconds, until the remaining water exits. Turn off immediately.

3. Drain the gas and oil from the engine.

4. Do not allow high pressure hose to become kinked.

5. Store the machine and accessories in a room which does not reach freezing temperatures.

Caution: Failure to follow the above directions will result in damage to the pump assembly and accessories.

TAKING A BREAK... five minutes or more

Step 6 Disconnect

garden hose from water inlet on the unit.

Step 7 Disconnect

high pressure hose from high pressure outlet.

Step 8

Engage the gun safety lock.

Step 1 Remove deter-

gent suction tube from container and insert into one gallon of fresh water. Siphon water at low pressure for one minute.

Step 2 Slide

fuel valve to the off position.

Step 3 Press

trigger to release water pressure.

Step 4 Engage

gun safety lock.

Step 1 Tur n off

the engine.

CLEANING TIPS

Deck Cleaning

(with or without detergent)

Pre-rinse deck and surrounding area with fresh water. If using Kärcher Deck Wash, place detergent suction tube directly into cleaning solution and apply to surface at low pressure. For best results, limit your work area to smaller sections of approximately 25 square feet. Allow Kärcher Deck Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a long sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. Always clean from top to bottom and from left to right. When moving on to a new section of the cleaning surface, be sure to overlap the previous section to eliminate stop marks and ensure a more even cleaning result.

Caution: Do not use Dirtblaster

nozzle on wood surface as it may cause damage.

House Siding

(with or without detergent)

Pre-rinse cleaning surface with fresh water. If using Kärcher House Wash, place detergent suction tube directly into cleaning solution and apply to surface at low pressure (for best results, limit your work area to sections of approximately 6 feet and always apply detergent from bottom to top). Allow Kärcher House Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface, if surface appears to be drying, simply wet down surface with fresh water. If needed, use special Wash Brush Attachment to remove stubborn dirt. Rinse at high pressure from top to bottom in an even sweeping motion keeping the spray nozzle approximately 6 inches from the cleaning surface.

Caution: Do not use Dirtblaster

nozzle on siding as it may cause damage.

Cement Patios, Brick and Stone

(with or without detergent)

Pre-rinse cleaning surface with fresh water. If using Kärcher All Purpose Cleaner, place detergent suction tube directly into cleaning solution and apply to surface at low pressure. For best results, limit your work area to smaller sections of approximately 25 square feet. Allow Kärcher All Purpose Cleaner to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. Always clean from top to bottom and from left to right. For removing extremely stubborn stains, use Kärcher Dirtblaster

Nozzle.

Cars, Boats & Motorcycles

(with or without detergent)

Pre-rinse vehicle with fresh water. If using Kärcher Vehicle Wash, place detergent suction tube directly into cleaning solution and apply to surface at low pressure. For best results, clean one side of vehicle at a time and always apply detergent from bottom to top, do not allow detergent to dry on surface. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 6-8 inches from the cleaning surface (distance should increase when rinsing pin-striping or other sensitive surfaces). Always clean from top to bottom and from left to right. For best results, wipe surface dry with a chamois or soft dry cloth.

Caution: Do not use Dirtblaster

nozzle

on vehicles as it may cause damage.

Step 5 Press

trigger to release water pressure.

HD3000 Manual 9/20/02 5:28 PM Page 8

CLEANING TIPS

– continued

Barbeque Grills, Outdoor Power Equipment & Gardening Tools

(with or without detergent)

Pre-rinse cleaning surface with fresh water. If using Kärcher All Purpose Cleaner or Degreaser, place detergent suction tube directly into cleaning solution and apply detergent at low pressure. Allow Kärcher detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For removing extremely stubborn dirt, it may be necessary to move the spray nozzle even closer to the surface for greater dirt cutting action. To remove caked on mud from garbage cans, lawn mower blades, wheelbarrows or other non-sensitive metal surfaces, you may want to use the Kärcher Dirtblaster

Nozzle.

Caution: Do not use Dirtblaster®spray nozzle on cloth, plastic or other sensitive surfaces as it may cause damage.

Patio & Lawn Furniture

(with or without detergent)

Pre-rinse furniture and surrounding area with fresh water. If using Kärcher All Purpose Cleaner, place detergent suction tube directly into cleaning solution and apply to surface at low pressure. Allow Kärcher All Purpose Cleaner to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For best results, clean from top to bottom and from left to right.

Caution: Do not use Dirtblaster

nozzle on patio or lawn furniture as it may cause damage.

Recommendations

• Before cleaning any surface an inconspic-

uous area should be cleaned to test spray pattern and distance for maximum cleaning results.

• If painted surfaces are pealing or chipping,

use extreme caution as pressure washer may remove the loose paint from the surface.

OPTIONAL CLEANING ACCESSORIES

• Dirtblaster®nozzle

• Extension Wand 80”

• Rotating Wash Brush

• Sand Blasting Attachment

• Hose Reel

• Pipe Drain Cleaner

• Extension Hose 30’

• Detergent Tray

Optional cleaning accessories are available to further enhance your cleaning capabilities. See accessories order form for product descriptions and ordering instructions.

TROUBLESHOOTING

Symptom Cause Solution

Engine will not start.

Unit does not reach high pressure.

Output pressure varies high and low.

Fuel valve is in “OFF” position. Slide the fuel valve lever to “ON” position.

Choke is not in correct position. Slide choke lever left to “CLOSED” position.

Engine throttle is not in correct position.

Slide the throttle left 1/3 of the way to the fast position.

Pressure built up in the high pressure washer.

Squeeze the trigger to release the pressure.

Engine switch in “OFF” position. Turn engine switch “ON”.

Black detergent nozzle is attached.

Remove black detergent nozzle and attach a high pressure nozzle.

Diameter of garden hose is too small.

Replace with a 3/4 inch garden hose.

Water supply is restricted.

Check garden hose for kinks, leaks and blockage.

Not enough inlet water supply. Open water source full force.

Water inlet filter is clogged. Remove filter and rinse out

in warm water.

Not enough inlet water supply. Turn water on full force. Check garden

hose for kinks, leaks or blockage.

Pump is sucking air. Check that hoses and fittings are air

tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges through the nozzle.

Water inlet filter is clogged.

Remove filter and rinse out in warm water.

Discharge nozzle is obstructed.

Blow out or remove debris with a fine needle.

Calcified gun, hose or spray wand.

Run distilled vinegar through detergent suction tube.

No gasoline. Fill gas tank.

Low oil level sensor activated.

Add oil.

Pump pressure control is in low pressure position.

Turn pump pressure control to high pressure position.

USA: 1-800-537-4129

www.karcher-usa.com

CAN: 1-800-465-4980

www.karcher.ca

HD3000 Manual 9/20/02 5:28 PM Page 10

TROUBLESHOOTING

– continued

Symptom Cause Solution

No detergent.

Garden hose connection leaks.

Pump is noisy.

Water leaks from pump.

Oil Drip.

Detergent is too thick. Dilute detergent. For best results,

use Kärcher detergent.

Filter on detergent suction tube is clogged.

Run warm water through filter to remove debris.

Detergent filter valve is at lowest setting.

Set detergent filter valve to a higher setting.

Damaged or clogged detergent suction tube.

Remove obstruction or replace detergent suction tube.

A high pressure nozzle is attached.

Replace with black detergent nozzle.

Discharge nozzle is obstructed.

Blow out or remove debris with fine needle.

Loose fittings. Tighten fittings.

Missing/worn rubber washer. Insert new washer.

Spray wand not properly attached.

Broken o-ring.

Check that hoses and fittings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges through the nozzle.

Loose fittings. Check that all fittings are tight.

Call service center.

Water seals are damaged or worn.

Thermal protection device will auto reset.

Thermal protection device is activated.

Call Kärcher customer service hotline and order an o-ring.

Pump is sucking air.

Oil seals are damaged or worn.

Call service center.

Spray wand leaks.

Slide the spray wand into the gun. Turn the wand collar clockwise onto the gun threads until tight.

Detergent suction tube not properly connected to the machine.

Check connection.

If you encounter any additional difficulties not listed, please call our service center for help.

Kärcher Customer Support USA

USA: 1-800-537-4129

www.karcher-usa.com

CAN: 1-800-465-4980

www.karcher.ca

HD3000 Manual 9/20/02 5:28 PM Page 12

+ 14 hidden pages
