Karcher G 2000 MK User Manual
G 2000 MK
English 2
Español 17
Français 32
9.139-204.0 05/07
HIGH PRESSURE WASHER OPERATOR MANUAL
Model Overview 3
Important Safety Instructions 4
Assembly Instructions 6
Operating Instructions 6
Using the Accessories 9
Working with Detergents 9
Taking a Break 10
Shutting Down & Clean-Up 10
Winterizing and Long-Term Storage 10
Maintenance Instructions 11
Cleaning Tips 13
Troubleshooting 15
Specifications
Operating pressure 2000 PSI
Water volume 2.0 GPM
Detergent suction 0.15 - 0.20 GPM
Engine 87cc
Grow A154 F
Part No. 1.133-621.0
Serial no.
Safety Alert Symbols
DANGER
indicates “an imminently hazardous situation which, if not avoided, will result in death
or serious injury.”
WARNING
indicates “a potentially hazardous situation
which, if not avoided, could result in death
or injury.”
CAUTION
indicates “a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury or in property damage incidents.”
Warning information should be emphasized
and understood.
If the operator is not fluent in English, the
manufacturer’s instructions and warnings
shall be read to and discussed with the operator in the operator’s native language by
the purchaser/owner, making sure that the
operator comprehends its contents.
Owner and/or user must study and maintain
for future reference the manufacturers’ instructions.
Kärcher Customer Support USA
Call: 1-800-537-4129 for help or visit our
website:
www.karcher-usa.com/home
Please take a moment to register your pressure washer online at
www.karcher-usa.com/warranty
Kärcher Customer Service CDN
Call: 1-800-537-4129 for help or visit our
website:
www.karcher-canada.com
Kärcher Customer Support Mexico
Call: 01-800-024-13-13 for help or visit our
website: www.karcher.com.mx
Owner/User Responsibility
The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using
this pressure washer.
2 English

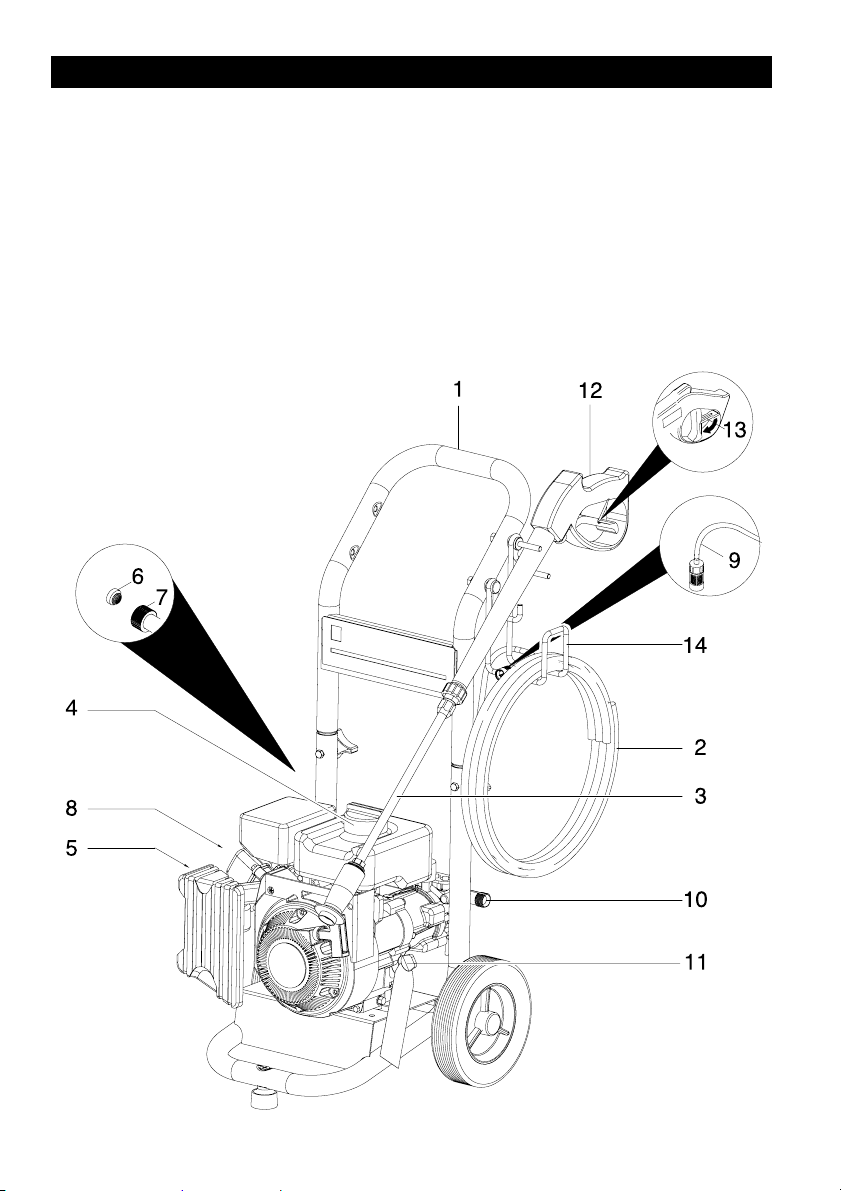

MODEL OVERVIEW
1 Handle
2 High pressure hose
3 Spray wand
4Gas tank
5Choke
(not shown)
6 Water inlet filter
7 Water inlet with garden hose connector
8 Spark plug
(not shown)
9 Detergent suction tube with filter
10 High pressure outlet
11 Dipstick
12 Trigger gun
13 Trigger gun safety lock
14 Gun/hose storage hanger
For engine details see engine manual.
English 3
IMPORTANT SAFETY INSTRUCTIONS
Read the operating instructions of the
engine manufacturer before start-up
and follow the safety instructions carefully.
WARNING
When using this product basic precautions
should always be followed, including the
following:
Read all the instructions before using
the product.
To reduce the risk of injury, close super-
vision is necessary when a product is
used near children.
Know how to stop the product and bleed
pressures quickly. Be thoroughly familiar with the controls.
Stay alert – watch what you are doing.
Do not operate the product when fa-
tigued or under the influence of alcohol
or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unstable
support. Keep good footing and balance
at all times.
Wear safety goggles.
Follow the maintenance instructions
specified in the manual.
WARNING
Risk of Injection or Injury – Do Not Direct Discharge Stream At Persons.
High pressure jets can be dangerous if
misused. The jet must not be directed at
persons, animals, electrical devices, or
the unit itself.
Do not spray electrical connections,
electrical outlets or fixtures.
WARNING
Risk Of Explosion – Do not spray flammable liquids.
Do not use acids, alkaline, solvents, or
any flammable material in this product.
These products can cause physical in-
juries to the operator and irreversible
damage to the machine.
WARNING
Gun Kicks Back – Hold with both hands.
The Trigger Gun Safety Lock prevents
the trigger from accidentally being engaged. This safety feature DOES NOT
lock trigger in the ON position.
CAUTION
Risk of Asphyxiation – Use this product only
in a well ventilated area.
Operate and fuel machine in a well ven-
tilated area, free of devices featuring an
open pilot or flame such as boilers, water heaters, etc.
CAUTION
Risk of Fire – Do not add fuel when the
product is operating.
Do not operate if fuel has been spilled.
Instead, move the machine to a different location and avoid creating sparks.
Do not remove the gas tank cap or add
fuel while the engine is running or hot.
Add fuel after the engine has cooled by
waiting 2 or more minutes after the engine is stopped.
Do not smoke when adding fuel
Do not allow the high pressure hose to
come into contact with the muffler
guard.
Do not leave the machine running unat-
tended.
Avoid tipping the machine on its side.
Do not operate the machine with the
muffler or the air cleaner removed. Especially for the muffler, check the tightness of mounting screw, damage and
leakage periodically, and if abnormality
is found, repair or replace it.
Occasionally inspect the fuel system
componets to check for cracks and
leaks. Replace components when necessary.
4 English
WARNING
Do not check for spark with the spark
plug removed.
Do not touch the high-voltage cord or
spark plug cap.
Do not stop the machine by using the
choke lever.
Do not unreasonably adjust the engine
speed.
Do not place hands or feet near moving
or rotating parts.
Do not operate machine with combusti-
ble material in the muffler area.
CAUTION
Do not touch hot surfaces or allow ac-
cessories to contact hot surfaces.
The machine has hot surfaces which
can cause burns. Operate the unit in a
safe environment and away from children.
Remove trash, grass and other debris
from around the cooling fins and recoil
starter.
Allways use new gasoline. Old gasoline
could cause build up in the carburetor
which could cause poor engine opera-
tion.
SAVE THESE INSTRUCTIONS
WATER SUPPLY
(Cold Water Only)
CAUTION
When connecting the water inlet to the
water supply mains, local regulations of
your water company must be observed.
In some areas the unit must not be connected directly to the public drinking water supply. This is to ensure that there is
no feedback of chemicals into the water
supply. Direct connection via a receiver
tank or backflow preventer, for example, is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
Garden hose must be at least 5/8 inch in
diameter.
Flow rate of water supply must not fall
below 2.8 GPM (gallons per minute).
Flow rate can be determined by running
the water for one minute into an empty
5-gallon container.
The water supply temperature must not
exceed 104°F/40°C.
Never use the pressure washer to draw
in water contaminated with solvents,
e.g. paint thinners, gasoline, oil, etc.
Always prevent debris from being
drawn into the unit by using a clean wa-
ter source. Use additional water filter.
Do not operate pressure washer without
the water turned on.
English 5

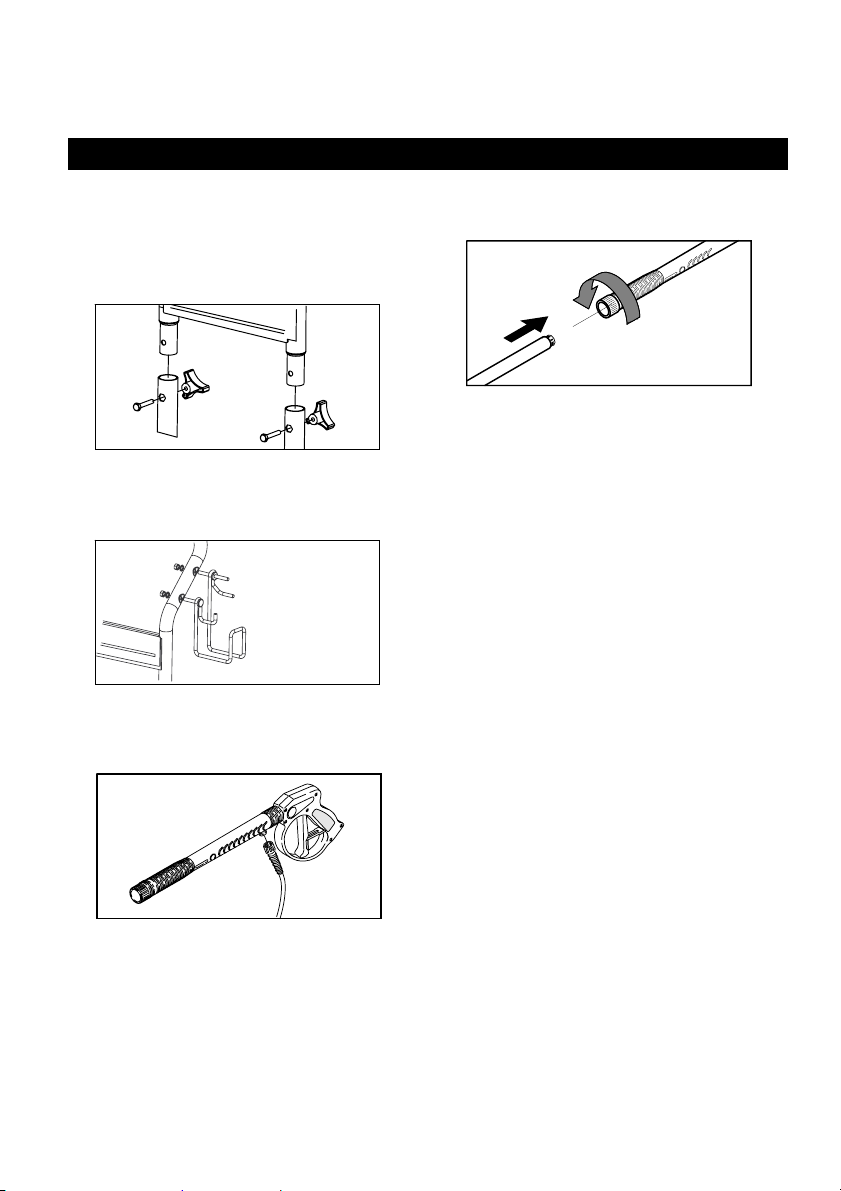

ASSEMBLY INSTRUCTIONS
Î STEP 1:
Attach the handle to the frame of the
pressure washer. Align holes, insert
bolts, and tighten with knobs.
Î STEP 2:
Mount the gun/hose storage hanger.
OPERATING INSTRUCTIONS
Please follow the instructions step-by-step.
Failure to follow the instructions explicitly
could lead to premature failure of the engine.
CAUTION
Engine shipped without oil. Before starting
engine, fill with oil. Do not over-fill. Do not
run the engine with a high or low oil level as
this can cause engine damage.
Î STEP 1:
Add the oil (1 bottle of SAE 15W 40SF/
SJ) supplied wiht your pressure washer
to the engine crankcase only. Failure to
add engine oil will cause engine failure.
This type of failure is not covered by the
manufacturer’s warranty.
Oil amount should not exceed 10 oz /
300ml.

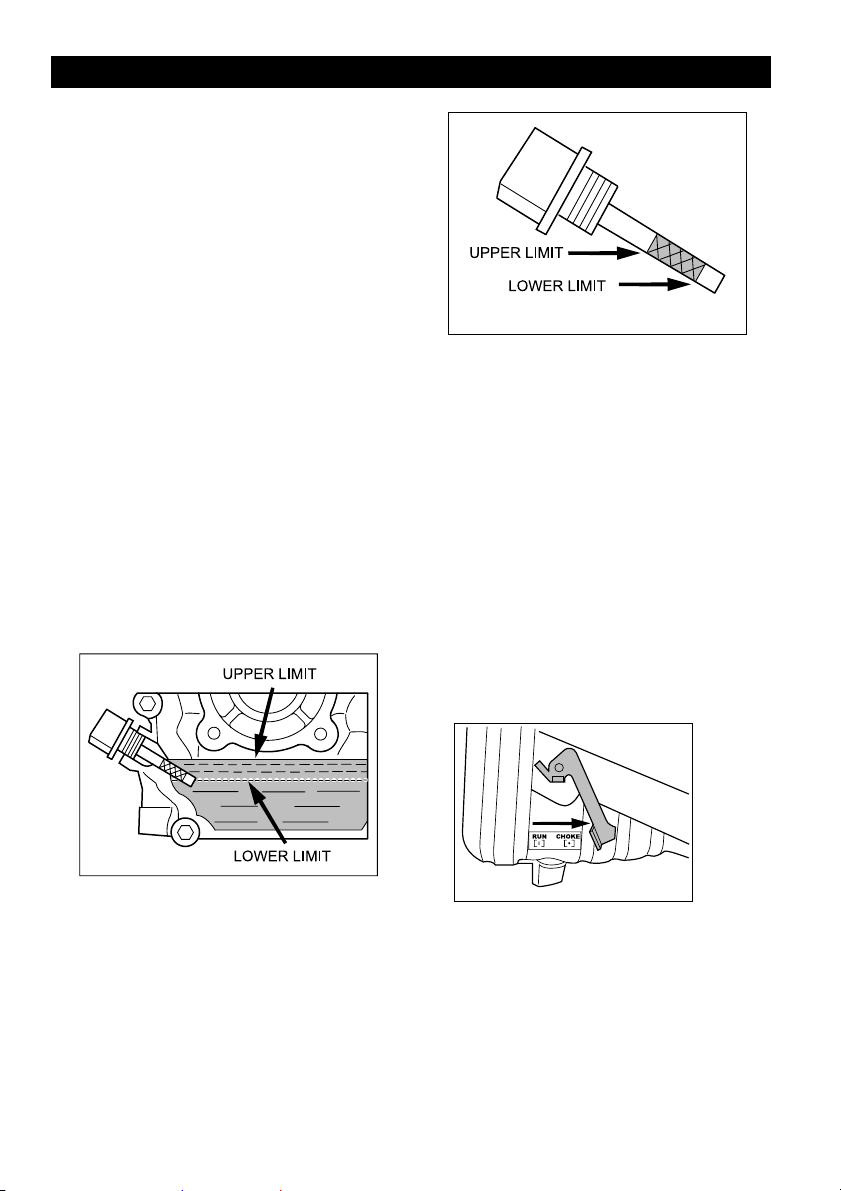

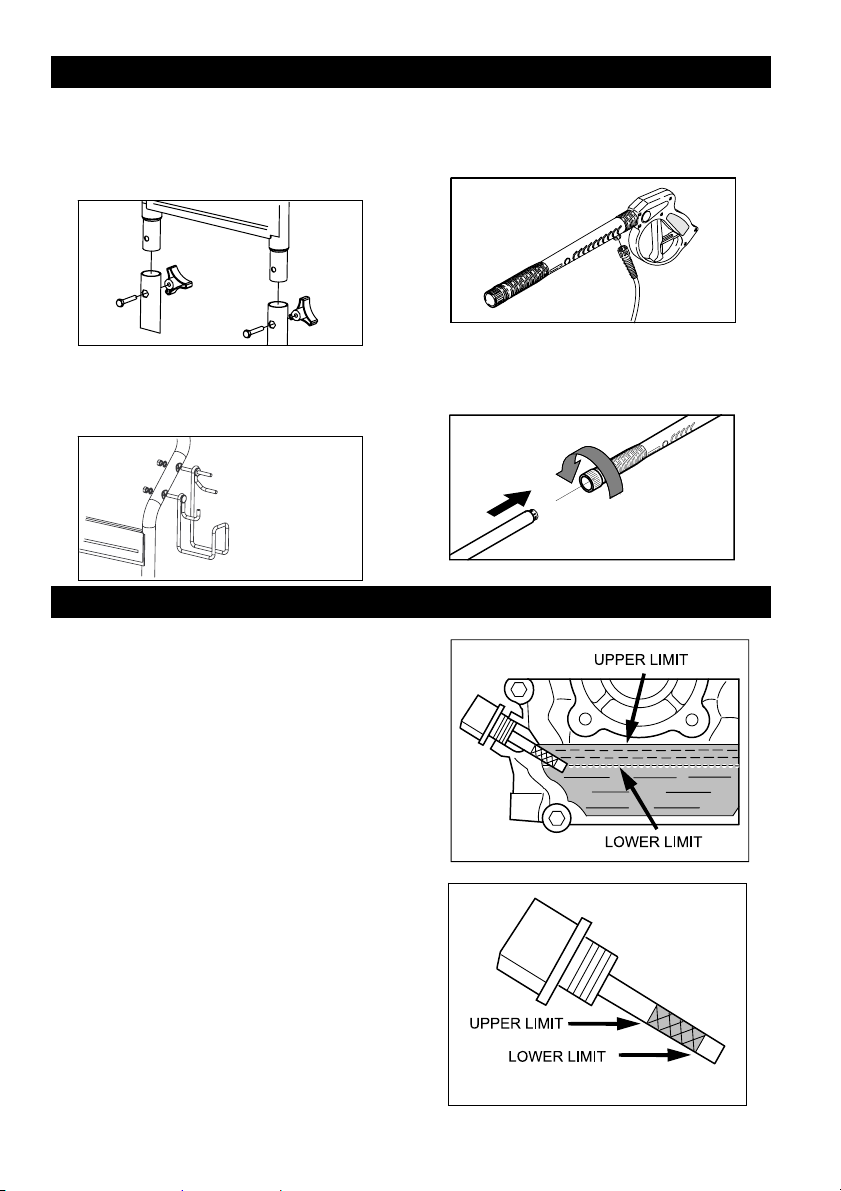

Below indicates the optimal levels when
adding or checking oil.
Î STEP 3:
Attach the high pressure hose to the
spray gun.
Î STEP 4:
Attach the wand to the spray gun.
6 English
CAUTION
Too much oil can cause the engine to overheat. Signs include but are not limited to the
following: a decrease in engine performance, oil leaking from the governor arm,
an oil seal, or the air filter.
To correct this, immediately drain the oil
from the engine and make sure you are using the correct amount of oil as shown previously.

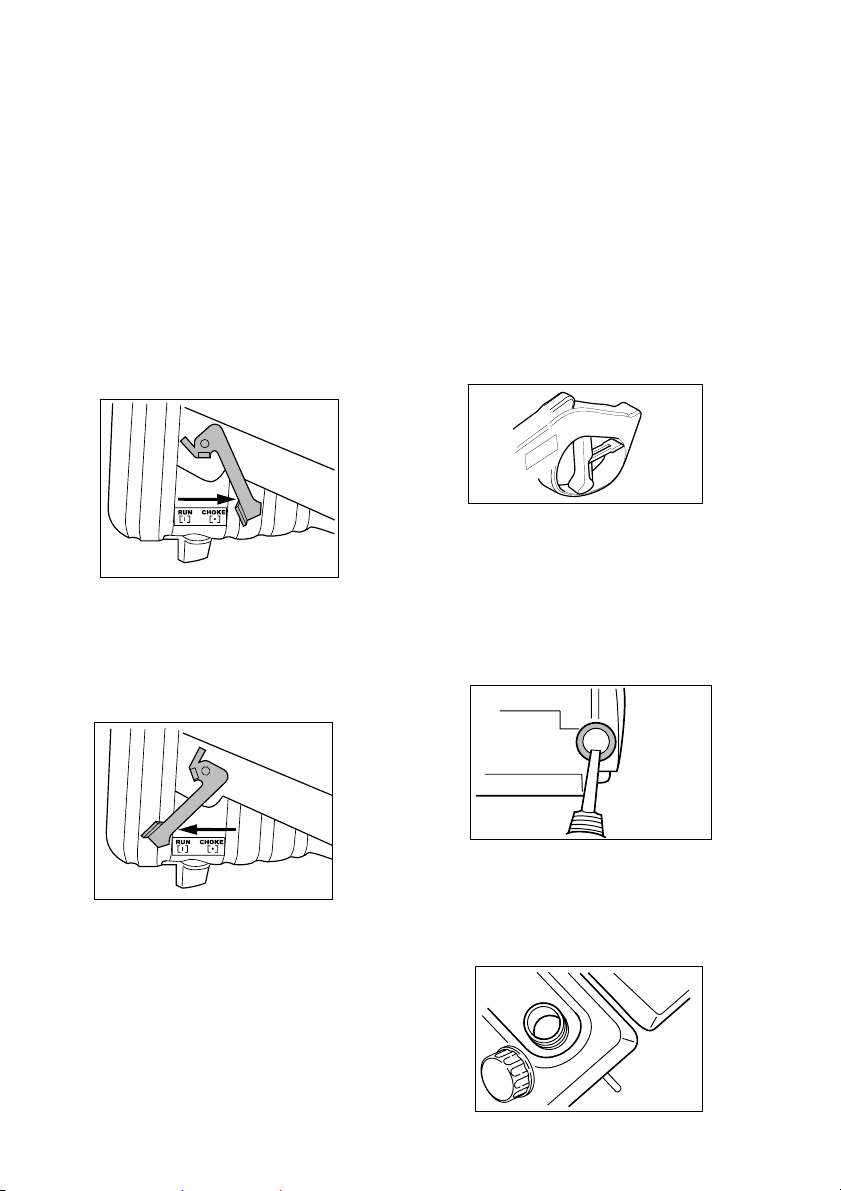

Î STEP 2:
Before starting the engine, move the
CHOKE lever to the CHOKE position
as indicated.
After engine has warmed and idles
smoothly, move CHOKE lever to the
RUN position as indicated.
Î STEP 4:
Connect garden hose to unit’s water in-
let.
Î STEP 5:
Connect garden hose to the cold water
source and turn water on completely.
Do not use hot water.
Î STEP 6:
If the trigger gun safety lock is engaged,
please disengage.
Hold the trigger gun open until all
trapped air is eliminated from the low
pressure water stream.
Î STEP 7:
Check oil level.
Please see STEP1 for details on min/
max levels
Warm engine starting:
Move the CHOKE lever to the CHOKE
position as indicated in the previous
step. Once you have achieved stable
idle, move CHOKE lever back to RUN
position.
Î STEP 3:
Connect the high pressure hose to the
unit’s high pressure outlet.
Î STEP 8:
Fill gas tank with unleaded gasoline.
Do not use leaded gasoline.
Do not mix oil into the gasoline.
English 7

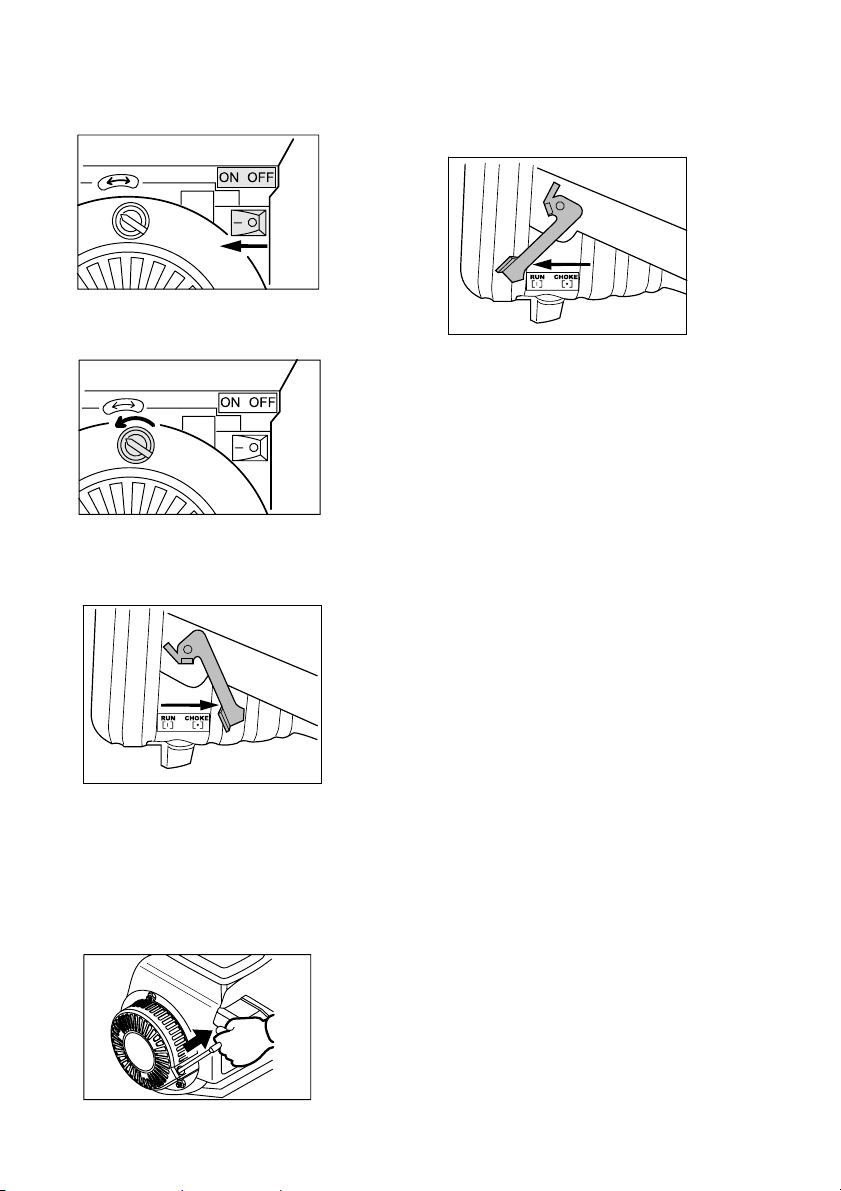

Î STEP 9:
Push the engine switch to the ON position.
Î STEP 10:
Open fuel valve.
Î STEP 11:
Set CHOKE lever to the CHOKE position.
Î STEP 13:
Move back the CHOKE lever to the
RUN position as indicated.
NOTE:
– Always check engine oil and gasoline
before operating your pressure washer.
– Do NOT overfill engine oil
– Move CHOKE lever to the RUN position
once the engine runs warm and stable.
– A WARM start require the CHOKE lever
to be in the CHOKE position.
Î STEP 12:
Pull the starter handle.
If the engine fails to start after 3 pulls,
squeeze the trigger gun to release pressure, and repeat step.
8 English
USING THE ACCESSORIES
High / Low pressure nozzle
This nozzle features four positions. The
high setting (+) provides a steady powerful
high pressure spray pattern, for general
cleaning. The low setting (-) creates a low
presure spray pattern.
Note: Detergent is applied with the nozzle
set at low pressure.
WORKING WITH DETERGENTS
Î STEP 1:
Slide spray wand tip to low pressure position.
Î STEP 2:
Fill a container with Kärcher detergent.
Place the filter end of detergent suction
tube into the container.
After pulling backwards to high pressure,
turn wand left or right to change the spray
pattern between point jet and flat jet.
WARNING
To avoid serious injury never point
spray nozzle at yourself, other persons
or animals.
Î STEP 4:
Always draw fresh water through the
detergent suction tube when the cleaning job is done, to rinse/flush any remaining detergents from the injection
system.
For best results see Cleaning Tips for
specific information on how to clean different surfaces.
Î STEP 3:
With the engine running, pull trigger to
operate unit.
Liquid detergent is drawn into the unit
and mixed with water.
Apply detergent to work area.
Do not allow detergent to dry on surface.
Detergents
CAUTION
This unit has been designed for use with
cleaning detergents recommended by the
manufacturer. The use of other cleaning
detergents may affect the operation of the
machine and void the warranty.
Always Use Kärcher Detergent for Best
Results
Kärcher biodegradable detergents are specially formulated to protect the environment
and your pressure washer. The special formula won’t clog the suction tube filter and
will protect the internal parts of the pressure
washer for a longer life. For Kärcher Deter-
English 9
gents, check your retailer or visit our website:
www.karcher-usa.com/home
Kärcher detergents available in USA /
Mexico:
– All Purpose & Vehicle Cleaner
– Exterior House Cleaner
– Deck & Patio Cleaner
– Heavy Duty Degreaser
Kärcher detergents available in Canada:
– Vehicle Wash
– Pressure Wash
– Deck & Fence Wash
TAKING A BREAK ..five minutes or more
Î STEP 1:
Push the engine switch to the OFF position.
SHUTTING DOWN & CLEAN-UP
Î STEP 1:
Remove detergent suction tube from
container and insert into 1 gallon of
fresh water.
Siphon water at low pressure for one
minute.
Î STEP 2:
Push the engine switch to the OFF position.
Î STEP 3:
Close the fuel valve.
– Degreaser
CAUTION
Never use:
– Bleach, Chlorine products and other
corrosive chemicals
– Liquids containing solvents (i.e., paint
thinners, gasoline, oils)
– Tri-sodium phosphate products
– Ammonia products
– Acid-based products
These chemicals will harm the unit and will
damage the surface being cleaned.
Use of these items will void the warranty.
Î STEP 2:
Release trigger and engage gun safety
lock.
Î STEP 4:
Turn off the water source.
Î STEP 5:
Press trigger to release water pressure.
Î STEP 6:
Release trigger and engage gun safety
lock.
Î STEP 7:
Disconnect the garden hose from the
water inlet on the unit.
Î STEP 8:
Disconnect the high pressure hose from
the high pressure outlet.
WINTERIZING AND LONG-TERM STORAGE
Î 1: Disconnect all water connections.
Î 2: Turn on the machine for a few sec-
onds, until the water which had remained in the pump exits, turn off
immediately.
Î 3: Do not allow high pressure hose to
become kinked.
Î 4: Store the machine and accessories in
a room which does not reach freezing
temperatures. DO NOT store near fur-
10 English
nace or other sources of heat as it may
dry out the pump seals.
CAUTION
Failure to follow the above directions will result in damage to the pump assembly and
accessories and will void the warranty.
Kärcher also recommends the regular practice of using a pump protector like “Kärcher
Pump Guard” to prevent cold weather damage during storage in the winter months.
MAINTENANCE INSTRUCTIONS
Kärcher pump
Initial Use
All Kärcher pumps ship with oil already inside direct from the factory. There is no
need to add oil.
Pump Inspection
You should routinely make a visual inspection of the pressure washer’s pump. If you
notice oil leaking around the pump seals,
you should take the pressure washer to a
Change the oil within the first 20 hours.
Subsequent oil changes should be every 40
hours.
Kärcher-Authorized Service Center for repair. (You can locate a service center in
your area online at www.karcher-usa.com/
service.)
Pump Maintenance
The pump on your Kärcher pressure washer does not require maintenance. Any attempts to service or alter the pump may
damage your pressure washer and void
your product warranty.
Engine
Clean the air filter every 40 hours.
English 11
Regular inspection table:
Inspection and tightening of bolts and nuts. x
Check engine oil and add if necessary. x
Before every use
Every 20 hours
Every 40 hours
Every 100 hours
Change of engine oil only
first
time
Check for fuel and oil leaks. x
Check and cleaning of air filter x
Clean around the recoil starter x
Clean the muffler cover. x
Check and clean the spark plug. x
Removal of carbon in combustion chamber. by distributor only
Check and adjustment of valve clearance. by distributor only
Replace the fuel lines. 3 years (or when necessary)
x
12 English
CLEANING TIPS
Deck Cleaning
(with or without detergent). Pre-rinse
deck and surrounding area with fresh water. If using Kärcher Deck Wash, apply to
surface at low pressure. For best results,
limit your work area to smaller sections of
approximately 25 square feet. Allow Deck
Wash to remain on surface 1-3 minutes. Do
not allow detergent to dry on surface. Rinse
at high pressure in a long sweeping motion
keeping the spray nozzle approximately 36 inches from the cleaning surface. Always
clean from top to bottom and from left to
right. When moving on to a new section of
the cleaning surface, be sure to overlap the
previous section to eliminate stop marks
and ensure a more even cleaning result.
몇 CAUTION
Do not use Dirtblaster spray nozzle on
wood surface as it may cause damage.
House Siding
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If using
Kärcher Pressure Wash, apply to surface at
low pressure (for best results, limit your
work area to sections of approximately 6
feet and always apply detergent from bottom to top). Allow Pressure Wash to remain
on surface 1-3 minutes. Do not allow detergent to dry on surface, if surface appears to
be drying, simply wet down surface with
fresh water. If needed, use special wash
brush attachment (not included) to remove
stubborn dirt. Rinse at high pressure from
top to bottom in an even sweeping motion
keeping the spray nozzle approximately 6
inches from the cleaning surface.
몇 CAUTION
Do not use Dirtblaster spray nozzle on
siding as it may cause damage.
Cement Patios, Brick and Stone
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If using
Kärcher Pressure Wash or Degreaser, apply to surface at low pressure. For best results, limit your work area to smaller
sections of approximately 25 square feet.
Allow Pressure Wash or Degreaser to remain on surface 1-3 minutes. Do not allow
detergent to dry on surface. Rinse at high
pressure in a sweeping motion keeping the
spray nozzle approximately 3-6 inches from
the cleaning surface. Always clean from top
to bottom and from left to right. For removing extremely stubborn stains, use the Dirtblaster Nozzle.
Cars, Boats & Motorcycles
(with or without detergent). Pre-rinse ve-
hicle with fresh water. If using Kärcher
Touchless Vehicle Wash, apply to surface
at low pressure. For best results, clean one
side of vehicle at a time and always apply
detergent from bottom to top, do not allow
detergent to dry on surface. If needed, use
special wash brush attachment (not included) to remove stubborn dirt. Rinse at high
pressure in a sweeping motion keeping the
spray nozzle approximately 6-8 inches from
the cleaning surface (distance should increase when rinsing pin-striping or other
sensitive surfaces). Always clean from top
to bottom and from left to right. For best results, wipe surface dry with a chamois or
soft dry cloth.
몇 CAUTION
Do not use Dirtblaster spray nozzle on
vehicles as it may cause damage.
English 13
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If using
Kärcher Pressure Wash or Degreaser, apply detergent at low pressure. Allow Pressure Wash to remain on surface 1-3
minutes. Do not allow detergent to dry on
surface. Rinse at high pressure keeping the
spray nozzle approximately 3-6 inches from
the cleaning surface. For removing extremely stubborn dirt, it may be necessary
to move the spray nozzle even closer to the
surface for greater dirt cutting action.
몇 CAUTION
Do not use Dirtblaster spray nozzle on
cloth, plastic or other sensitive surfaces
as it may cause damage.
Patio & Lawn Furniture
(with or without detergent). Pre-rinse fur-
niture and surrounding area with fresh water. If using Pressure Wash, apply to
surface at low pressure. Allow Pressure
Wash to remain on surface 1-3 minutes. Do
not allow detergent to dry on surface. If
needed use special Wash Brush Attachment (not included) to remove stubborn dirt.
Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For
best results, clean from top to bottom and
from left to right.
몇 CAUTION
Do not use Dirtblaster spray nozzle on
patio or lawn furniture as it may cause
damage.
Recommendations
Before cleaning any surface an incon-
spicuous area should be cleaned to test
spray pattern and distance for maxi-
mum cleaning results.
If painted surfaces are peeling or chip-
ping, use extreme caution as pressure
washer may remove the loose paint
from the surface.
When using on surfaces which might
come in contact with food, flush surfac-
es with plenty of drinking water.
For additional cleaning tips, visit our
website at www.karcher-usa.com/
home
Optional Accessories
Optional accessories are available to further enhance your cleaning capabilities.
Please check our website www.karcherusa.com/home for pricing and up-to-date
information.
14 English
TROUBLESHOOTING
CAUTION
Remove the spark plug cable to prevent accidental ignition of the engine before making any repair.
Symptom Cause Solution
Engine will not start No gasoline Fill gas tank
Engine switch is in the OFF position. Push the engine switch to the ON
position.
Fuel valve is closed Open fuel valve.
Unit does not reach
high pressure.
Output pressure
varies high and low.
Water pressure built up in the machine.
Diameter of garden hose is too
small.
Water supply is restricted. Check garden hose for kinks,
Not enough inlet water supply. Turn water on full force. Check
Water inlet filter is clogged. Remove filter and rinse out in
Spray wand is on low pressure position.
Not enough inlet water supply. Turn water on full force. Check
Pump is sucking air. Check that hoses and fittings are
Water inlet filter is clogged. Remove filter and rinse out in
Spray nozzle is obstructed. Blow out or remove debris with a
Calcified gun, hose or spray wand. Run distilled vinegar through de-
Squeeze the trigger to release
the pressure.
Replace with a 5/8 inch or larger
garden hose.
leaks and blockage.
garden hose for kinks, leaks or
blockage.
warm water.
Slide spray wand tip to low pressure position.
garden hose for kinks, leaks or
blockage.
air tight. Turn off machine and
purge pump by squeezing trigger
gun until a steady flow of water
emerges through the nozzle.
warm water.
fine needle.
tergent suction tube.
English 15
Loading...
