JVC UX-V9MD User Manual

MICRO COMPONENT SYSTEM

UX-V9MD

REMOTE CONTROL RM-RXUV9MD

DIMMER SLEEP

DISPLAY FM MODE TAPE

AUX

AUTO

PRESET

AHB PRO

PROGRAM RANDOM REPEAT

BASS TREBLE CANCEL

EDIT

CHARA

TITLE

SET

DOWN

TUNER

BAND

VOLUME

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0247-005A

[A]

Warnings, Cautions and Others

Caution — switch!

Disconnect the mains plug to shut the power off completely. The switch in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1 Do not remove screws, covers or cabinet. 2 Do not expose this appliance to rain or moisture.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the

areas shown by the dimensions below.

3 Bottom: Place on the level surface. Maintain an

adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

1 CLASS 1 LASER PRODUCT

DANGER:

Invisible laser radiation when open and interlock failed

or defeated. Avoid direct exposure to beam.

CAUTION:

Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS

1 CLASSIFICATION LABEL, PLACED ON EXTERIOR SURFACE

CLASS 1 LASER PRODUCT

2 WARNING LABEL, PLACED INSIDE THE UNIT

Front view

15 cm

MICRO COMPONENT SYSTEM

UX-V9MD

STANDBY / ON

1 cm 1 cm

TAPE / AUX

PHONES

DOWN UPMULTI CONTROL

BAND

OPEN / CLOSE

TUNER CD

EJECT

UX-V9MD

Side view

15 cm

UX-V9MD

15 cm

10 cm

G-1

Thank you for purchasing the JVC Micro Component System. We hope it will be a valued addition to your home, giving you years of enjoyment. Be sure to read this instruction manual carefully before operating your new stereo system. In it you will find all the information you need to set up and use the system. If you have a query that is not answered by the manual, please contact your dealer.

Features

Here are some of the things that make your System both powerful and simple to use.

The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music.

■

• With JVC’s

Player with a single touch.

The System incorporates Active Hyper Bass PRO circuitry to faithfully reproduce low frequency sounds.

■

A 45-station preset capability (30 FM and 15 AM (MW/LW)) in addition to auto-seek and manual tuning.

■

Versatile CD options include repeat, random and program play.

■

Versatile MD Player provides playback function, recording function, editing function of the tracks in the MD, title function to give title to

■

the MD and tracks. Sampling rate converter which supports 3 digital sources Incorporated.

■

• 32 kHz, 44.1 kHz and 48 kHz.

COMPU PLAY

you can turn on the System and automatically start the Radio, CD Player, or MD

■ Timer functions; Daily Timer and Sleep Timer.

You can connect various external units, such as a CD player, tape deck, etc. as a music source.

■

How This Manual Is Organized

• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section ‘Common Operations’,

and not repeated under each function.

• The names of buttons/controls and display messages are written in all capital letters: e.g. TUNER BAND, “NO DISC”.

• System functions are written with an initial capital letter only: e.g. Normal Play.

Use the table of contents to look up specific information you require. We have enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.

IMPORTANT CAUTIONS

1. Installation of the System

■

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)

• Leave sufficient distance between the System and a TV.

• Do not use the System in a place subject to vibrations.

2. Power cord

■

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

3. Malfunctions, etc.

■

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the System.

■■

Features ............................................................................... 1

How This Manual Is Organized ..........................................1

IMPORTANT CAUTIONS ................................................1

Getting Started .........................................................2

Common Operations ................................................6

Using the Tuner ........................................................8

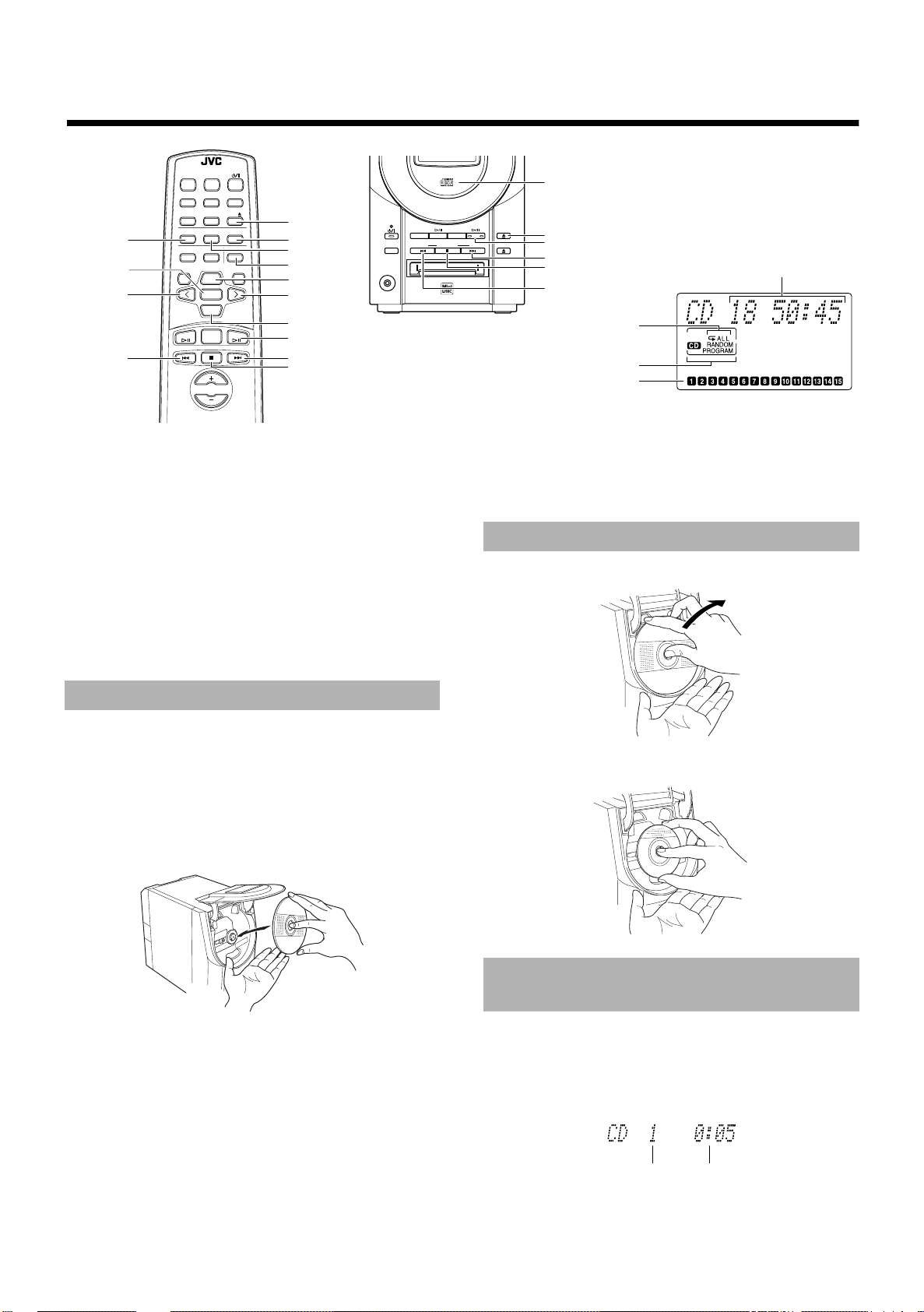

Using the CD Player ...............................................10

Using the MD Player (Listening to an MD)............12

Recording onto an MD............................................14

Using the MD Player (Editing) ...............................16

Using External Equipment .....................................21

Using the Timers ............................................ ... ... .. 22

Table of Contents

Information on MDs (Minidiscs)............................ 24

MD (Minidisc) Messages........................................ 25

Minidisc Limitations....... ... .... ... ... ... ... .... ... ... ... .... ... . 25

Rules of Digital Dubbing........................................ 26

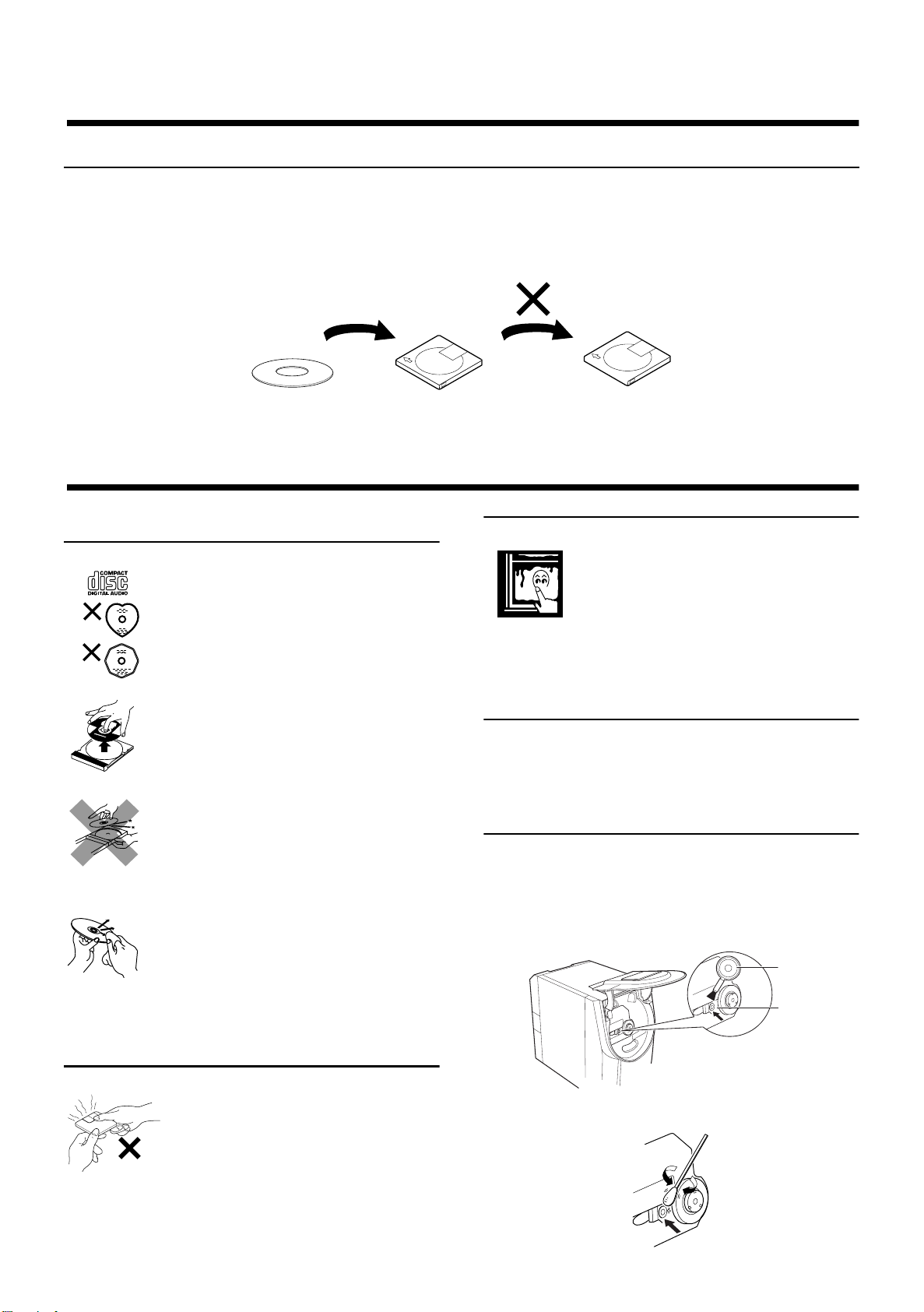

Care And Maintenance ........................... ... ... .... ... . 26

Troubleshooting .................................................... 27

Specifications ....................................... ................. 28

■■

Remote sensor

Getting Started

Accessories

Make sure that you have all of the following items, which are supplied with the System.

Power Cord (1) AM Loop Antenna (1) Remote Control (1) Batteries (2) FM Wire Antenna (1)

If any of these items are missing, contact your dealer immediately.

How To Put Batteries In the Remote Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6P(SUM-3)/AA(15F)

CAUTION: Handle batteries properly.

To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Do not use an old battery with a new one.

• Do not use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m (23 feet) away. You need to point the Remote Control at the remote sensor on the System’s front panel.

CAUTION: Make all connections before plugging the System into an AC power outlet.

FM wire antenna (supplied)

Turn the loop until you have the best reception.

Connecting the FM Antenna

Rear Panel of the Unit

Using the Supplied Wire Antenna

OPTICAL DIGITAL IN (

)

AUX2

Using the Coaxial Type Connector (Not Supplied)

A 75-ohm antenna with coaxial type connector (IEC or DIN45 325) should be connected to the FM 75-ohm COAXIAL terminal.

If reception is poor, connect the outdoor antenna.

FM outdoor antenna

(Not supplied)

Note: Before attaching a 75 ohm coaxial lead (the kind with a

Connecting the AM (MW/LW) Antenna

Rear Panel of the Unit

OPTICAL DIGITAL IN (

)

AUX2

Coaxial cable

round wire going to an outdoor antenna), disconnect the supplied FM Wire Antenna.

AM loop antenna (Supplied)

Attach the AM loop to its base by snapping the tabs on the loop into the slot in the base.

ANTENNA

FM (75Ω) COAXIAL

CAUTION: To avoid noise, keep antennas away from the System, the connecting cord and the AC power cord.

AM EXT

AM LOOP

CAUTION: Make all connections before plugging the System into an AC power outlet.

Connecting the Speakers

For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System.

1. Open each of the terminals and insert the speaker wires firmly, then close the terminals.

2. Connect the red (+) and black (–) wires of the right side speaker to the red (+) and black (–) terminals marked R on the System. Connect the red (+) and black (–) wires of the left side speaker to the red (+) and black (–) terminals marked L on the System.

Note: Since both speakers are the same, you can put either one to the right or left side.

Black

SPEAKERS IMPEDANCE MIN 4

Right side (rear side) Left side (rear side)

CAUTION: A TV may display irregular colors if located near the speakers. If this happens, set the speakers away from the TV.

Removing the speaker grilles

The speaker grilles can be removed.

When removing, Attaching the speaker grille

1. Insert your fingers at the top and pull towards you.

2. Also pull the bottom towards you.

Speaker grille

Connecting External Equipment

Connect a signal cord (not supplied) between the System’s LINE IN (AUX1)/LINE OUT terminals and the output/input terminals of the external MD recorder, tape deck, etc. You can then listen to the external source through the System

Pin-plug x 2

, or record the System’s CD player, MD player, or tuner to the external unit.

Signal cord (not supplied)

Pin-plug x 2

MD recorder or tape deck (not supplied)

LINE OUT

LINE IN (

AUX1

)

Pin-plug x 2

Signal cord (not supplied)

Pin-plug x 2

Connecting a CD Player, etc (Digital Input (AUX2))

Unplug the cap and connect an (not supplied) optical digital cord between the System’s OPTICAL DIGITAL IN (AUX2) terminal and the o utput terminal of the CD player, etc. You can listen to the digital input signal from the CD player, etc.

Cap

CD player, etc. (not supplied)

OPTICAL DIGITAL IN (

)

AUX2

Optical digital cord (not supplied)

Connecting the AC Power Cord

Firmly insert the supplied AC power cord into the AC inlet on the back of the Unit.

AC IN

Power cord

CAUTIONS:

• ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM TO AVOID MALFUNCTION OR DAMAGE TO THE SYSTEM.

• BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET WHEN GOING OUT OR WHEN THE SYSTEM IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME.

Now you can plug the AC power cord into the wall outlet, and your System is at your command!

COMPU PLAY

JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, an MD, or turn on the radio with a single press of the play button for that function. One Touch Operation turns the power on for you, then starts the function you have specified. If the System is not ready (no CD in place, for example), the System still powers on so you can insert a CD. How One Touch Operation works in each case is explained in the section dealing with that function. The COMPU PLAY buttons are:

On the Unit

CD #¥8 button TUNER BAND button MD #¥8 button TAPE/AUX button

On the Remote Control

CD #8 button TUNER BAND button MD #8 button TAPE/AUX button

AUTOMATIC POWER ON

The System automatically turns on with the following operation.

• When you press the CD tion does not change the function to CD. When you press the button to turn off the System, the CD cover will automatically closed if it is opened.

• When you insert an MD, the System automatically turns on. However, this operation does not change the function to MD.

button, the System automatically turns on and the CD cover opens to allow CD insertion. However, this opera-

■■

MD TUNER CD

OPEN / CLOSE

EJECT

PHONES

TAPE / AUX

BAND

STANDBY / ON

DOWN UPMULTI CONTROL

DIMMER

DISPLAY

AHB PRO

BASS

TREBLE

Common Operations

REMOTE CONTROL RM-RXUV9MD

DIMMER SLEEP

AUTO

PRESET

SET

DOWN

TUNER

BAND

AUX

CHARA

AHB PRO

MD REC

AHB PRO

PRESET TUNING

VOLUME

CLOCK

SLEEP

TIMER/ SNOOZE

STANDBY/ON indicator

CLOCK

VOLUME+,–

DISPLAY FM MODE TAPE

AHB PRO

PROGRAM RANDOM REPEAT

BASS TREBLE CANCEL

EDIT TITLE

PHONES

VOLUME+,–

VOLUME

Turning the Power On and Off

Turning the System On ——————

Press the button.

The display comes on and “HELLO” is displayed once. The STANDBY/ON indicator lights in green. The System comes on ready to continue in the mode it was in when the power was last turned off.

■ For example, if the last thing you were doing was listening to a

CD, you are now ready to listen to a CD again. If you wish, you can change to another source.

■ If you were listening to the Tuner last, the Tuner comes on play-

ing the station it was last set to.

Turning the System Off ——————

Press the button again.

“GOOD BYE” is displayed and the display goes out, except for the clock display. The STANDBY/ON indicator lights in red.

■ Some power is always consumed even though power is turned

off (called Standby Mode).

■ To switch off the System completely, unplug the AC power cord

from the wall outlet. When you unplug the AC power cord, the clock will be reset to 0:00 after about 20 minutes.

Adjusting the Volume

Press the VOLUME + button to increase the volume or press the VOLUME – button to decrease it.

You can adjust the volume level between 0 and 50.

CAUTION: DO NOT turn on the System and/or start playing any source without first setting the VOLUME control to minimum, as a sudden blast of sound could damage your hearing, speakers and/ or headphones.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on headphones.

Adjusting the Brightness (DIMMER)

You can adjust the brightness of the backlighting for the display.

When the System is Turned On ——

To make the brightness of the backlighting darker, press the DIMMER button on the Remote Control. To make the brightness brighter, press the DIMMER button on the Remote Control again.

When the System is Turned Off (STANDBY MODE) —————————

To turn on the backlighting, press the DIMMER button on the Remote Control. The brightness is the same as for darker one mentioned above. To turn off the backlighting, press the DIMMER button on the Remote Control again.

Reinforcing the Bass Sound

Second Hand

Minute Hand

Hour Hand

(AHB PRO)

You can reinforce the bass sound to maintain rich, full bass at low volume (you can use this effect only for playback): To get the effect, press the AHB (Active Hyper Bass) PRO button. The “BASS” indicator lights up on the display. To cancel the effect, press the button again. The “BASS” indicator goes out.

Showing the Time (DISPLAY)

In Standby mode, the digital clock and analog clock appear on the display at the same time. Only the analog clock is displayed when a music source is selected. You can see the analog clock at all times.

When the System is turned on, you can display the digital clock at any time.

Using the CLOCK button on the Unit:

Each time you press the button, the display changes between the normal display and the digital clock.

Tone Control (BASS/TREBLE)

You can control the tone by changing the bass and treble. The analog clock acts to display the bass and treble settings. By pressing either the BASS or TREBLE button on the Remote Control, you can visually see the current tone control settings.

Examples:

FLAT Fully boosted

( )

BASS Control ———————————

You can adjust the bass level (low frequency range level) between –6 and +6. (0: Flat)

1. Press the BASS button on the Remote Con-

■

trol.

2. Press the UP or DOWN button on the

■

Remote Control to adjust the bass level.

DOWN

BASS

( )

Using the DISPLAY button on the Remote Control:

By pressing the button repeatedly, the clock will be displayed.

Example: Normal display Clock = (back to the beginning)

To let the clock work, you need to set the clock beforehand.

Note:

(See “Setting the Clock” on page 22.)

Remaining time (recordable capacity) of MD

TREBLE Control ——————————

You can adjust the treble level (high frequency range level) between –6 and +6. (0: Flat)

1. Press the TREBLE button on the Remote

■

Control.

2. Press the UP or DOWN button on the

■

Remote Control to adjust the treble level.

DOWN

TREBLE

■■

REMOTE CONTROL RM-RXUV9MD

DIMMER SLEEP

DISPLAY FM MODE TAPE

AUX

AHB PRO

AUTO

PRESET

PROGRAM RANDOM REPEAT

BASS TREBLE CANCEL

EDIT

TITLE

CHARA

SET

DOWN

TUNER BAND

VOLUME

(After 1 second)

SET

DOWN

SET STORED

TUNER

BAND

SET

(Within 5 seconds)

FM = 30, AM = 15

When changing the Band

Using the Tuner

STANDBY/ON

TAPE / AUX

MD TUNER CD

PHONES

DOWN UPMULTI CONTROL

Band display, Frequency display, Preset channel

SET

FM MODE AUTO PRESET

DOWN TUNER BAND

When the System is in use, the display shows other items as well. For simplicity, we show here only the items described in this section.

You can listen to FM and AM (MW/LW) stations. Stations can be tuned in manually, automatically, or from preset memory storage.

■ Before listening to the radio:

• Make sure that both the FM and AM (MW/LW) antennas are correctly connected. (See page 3).

One Touch Radio —————————

Just press the TUNER BAND button to turn on the System and start playing the station you were last tuned to.

■ You can switch from any other sound source to the radio by

pressing the TUNER BAND button.

Tuning In a Station

1. Press the TUNER BAND button.

■

The Band and Frequency you were last tuned to appear on the display. (If the last station was selected using the preset number, the preset number appears first.) Each time you press the button, the band alternates between FM and AM (MW/LW).

TUNER

BAND

FMAM

BAND

TUNER

FMAM

BAND

OPEN / CLOSE

EJECT

TUNER BAND

¢ 4

PRESET

TUNING

FM mode indicators

MD REC

AHB PRO

PRESET TUNING

VOLUME

Select the desired preset number using the UP, DOWN, > and < button on the Remote Control. After 1 second the display will show the preset number’s band and frequency Example: Press the UP button until the preset number 12 “P12”

appears.

DOWN

■ Preset Tuning using the Unit (Possible only after pre-

setting stations)

Press the PRESET TUNING button to select the desired preset number. Its band and frequency are displayed.

Presetting Stations

You can preset up to 30 FM stations and up to 15 AM (MW/LW) stations using the Remote Control.

Note: Preset numbers may have been set to factory test frequen-

cies prior to shipment. This is not a malfunction. You can preset the stations you want into memory by following one of the presetting methods below.

Manual Presetting —————————

SLEEP

CLOCK

TIMER/ SNOOZE

2. Select a station using one of the following

■

■ Manual Tuning

■ Auto Tuning

■ Preset Tuning using the Remote Control (Possible

(on the Remote Control) (on the Unit)

methods.

Press the

4 or ¢ button on the Unit or the Remote Control

repeatedly to move from frequency to frequency until you find the station you want.

If you press and hold the 4 or ¢ button on the Unit or the Remote Control for one second or more, the frequency changes down, or up, automatically until a station is found.

only after presetting stations)

1. Select a band by pressing the TUNER

■

BAND button.

2. Press the 4 or ¢ button to tune in a sta-

■

tion.

3. Press the SET button.

■

“SET” will blink for 5 seconds. Within 5 seconds, proceed to the next step. When the display returns to the one set in STEP 2 after 5 seconds, press the SET button again.

+ 21 hidden pages
