JVC KW-XR611, KW-XR611E User Manual [fr]

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

ENGLISH

FRANÇAIS

KW-XR611

CD RECEIVER / RÉCEPTEUR CD

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany

EN, FR

Cher(e) client(e), Cet appareil est conforme aux directives et normes européennes en vigueur concernant la compatibilité électromagnétique et à la sécurité électrique.

Représentant européen de la société Victor Company of Japan, Limited: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Allemagne

For canceling the display demonstration, see page 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

For installation and connections, refer to the separate manual. / Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0667-003A

[E/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be

Battery

Products

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Notice:

The sign Pb below the symbol for batteries indicates that this battery contains lead.

2 ENGLISH

How to read this manual

The following icons/symbols are used to indicate:

Press and hold the button(s)

[Hold]

until the desired operation begins.

Turn the control dial.

Turn the control dial to make a selection, then press to confirm.

( <XXXX> Menu setting item

Reference page number

XX)

Continued on the next page

How to reset your unit

Your preset adjustments will also be erased (except the registered Bluetooth device). ( 13, 14)

How to forcibly eject a disc

[Hold]

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc,

10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

CONTENTS

3 How to read this manual 3 How to reset your unit 3 How to forcibly eject a disc

Canceling the display demonstration

4 Setting the clock 5 Preparing the remote controller

(RM-RK50)

6 Basic operations 7 Listening to the radio 10 Listening to a disc 12 Listening to the USB device 13 Using the Bluetooth ® device

14 Using a Bluetooth mobile phone 16 Using a Bluetooth audio player 16 Changing the Bluetooth settings

18 Listening to the iPod/iPhone 20 Listening to the DAB tuner 21 Listening to the other external

components

22 Selecting a preset sound mode 23 Menu operations

27 Selecting the variable buttons and

display color illumination

28 Creating your own day and night

colors—USER

29 Maintenance 30 More about this unit 33 Troubleshooting 38 Specifications

3ENGLISH

Canceling the display demonstration

1 Turn on the power.

[Hold]

(Initial setting)

Setting the clock

1 Turn on the power.

3 Select <CLOCK>.

[Hold]

(Initial setting)

4 Select <DEMO OFF>.

6 Finish the procedure.

6 Adjust the minute.

7 Select <24H/12H>.

4 Select <CLOCK SET>.

5 Adjust the hour.

4 ENGLISH

8 Select <24 HOUR> or

<12 HOUR>.

9 Finish the procedure.

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet

If the effectiveness of the remote controller decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

This unit is equipped with the steering wheel remote control function. Before operating, connect a JVC's OE remote adapter (not supplied) which matches your car to the steering wheel remote input terminal on the rear of the unit.

• For details, refer also to the instructions supplied with the remote adapter.

5ENGLISH

Basic operations

Ejects the disc

Control dial

When you press or hold the following button(s)...

Main unit

Loading slot

Remote

controller

Turns on.

• When the power is on, pressing /I/ATT on the remote controller also mutes the sound or pauses. Press /I/ATT again to cancel muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Display window

Remote sensor

• DO NOT expose to bright sunlight.

General operation

Selects preset station.

USB (Universal Serial Bus) input terminal

Auxiliary input jack

6 ENGLISH

Main unit

Remote

controller

Adjusts the volume level.

— Selects items.

• Mutes the sound while listening to a source. If the source is “CD,”

—

“USB,” or “USB-IPOD,” playback pauses. Press the control dial again to cancel muting or resume playback.

• Confirms selection.

General operation

• Enters repeat mode menu (

—

• Enters random mode menu directly ( 11, 19) if pressed RND.

Selects the sound mode.

• Enters tone level adjustment directly ( 22) if pressed and held EQ BASS-TRE on the main unit.

• Enters <COLOR> setting directly (

—

• Enters <COLOR SETUP> setting directly ( 28) if pressed and held.

• Returns to the previous menu.

• Activates/deactivates TA Standby Reception.

—

• Enters PTY Searching mode if pressed and held.

• Switches the controlling terminal for iPod playback if pressed and

Power off : Checks the current clock time.

—

Power on : Changes the display information.

held. (

18, 27)

11, 19) directly if pressed RPT.

27).

Listening to the radio

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

]

“FM” or “AM”

Manual search

[Hold]

“M” flashes, then press the button repeatedly.

7ENGLISH

When an FM stereo broadcast is hard to receive

[Hold]

]

<TUNER> ] <MONO> ] <MONO ON> Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to select <MONO OFF>.

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset number “04.”

]

“92.50MHz”

[Hold]

“PRESET MODE” flashes.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

[Hold]

]

<TUNER> ] <SSM> ] <SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18> “SSM” flashes and local stations with the strongest signals are searched and stored automatically.

To preset another 6 stations, repeat the above procedure by selecting one of the other 6 SSM setting ranges.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

•

Pressing and holding the number buttons (1 – 6) can also store the current station to the selected number buttons (1 – 6).

Selecting a preset station

• Pressing the number buttons (1 – 6) can also select the preset stations (1 – 6).

Changing the display information (for non-FM Radio Data System and AM station)

Frequency = Clock = (back to the beginning)

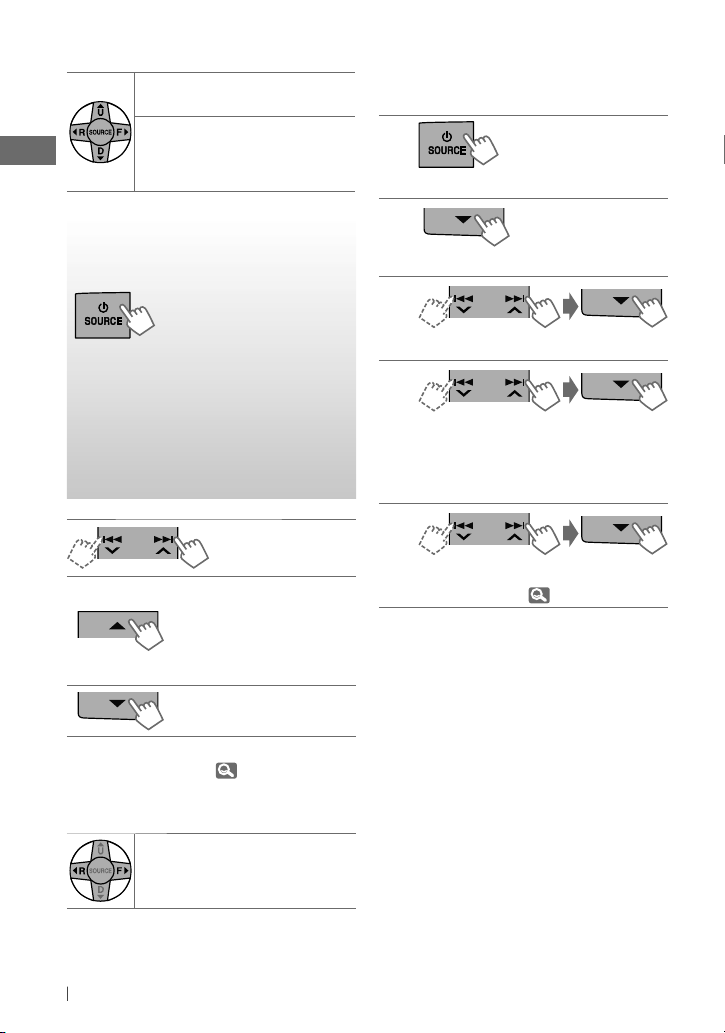

Using the remote controller

5 U

/ D ∞: Changes the preset

stations

2 R

/ F 3: Searches for stations

8 ENGLISH

The following features are available only for FM Radio Data System stations.

Searching for your favourite FM Radio Data System programme—

You can tune in to a station broadcasting your favourite programme by searching for a PTY code.

PTY Search

[Hold]

The last selected PTY code appears.

To activate TA Standby Reception

If the TP indicator lights up, TA Standby Reception is activated. If the TP indicator flashes, TA Standby Reception is not yet activated.

• To activate the reception, tune in to another station providing Radio Data System signals required for TA Standby Reception.

• To deactivate the reception, press again.

T/P BACK

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favourite PTY programme from any source other than AM.

]

Select one of your favourite programme types or a PTY code, and start searching.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM.

• The volume changes to the preset TA volume level if the current level is lower than the preset level. (<TA VOLUME>, 24)

To activate and select your favourite PTY code for PTY Standby Reception, see

<PTY-STANDBY> ( If the PTY indicator lights up, PTY Standby Reception is activated. If the PTY indicator flashes, PTY Standby Reception is not yet activated.

• To activate the reception, tune in to another station providing these signals.

• To deactivate the reception, select <PTY OFF> ( 24) for the PTY code. The PTY indicator goes off.

• When a DAB tuner is connected, TA/PTY Standby Reception also searches for services ( 21).

• The unit will not switch to Traffic Announcement or PTY programme when a call connection is established through “BT-PHONE.”

24).

9ENGLISH

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals.

Programme A broadcasting on different frequency areas (01 – 05)

To change the Network-Tracking Reception setting, see <AF-REG> ( 24).

• When the DAB tuner is connected, refer to “Tracing the same programme—Alternative Frequency Reception (DAB AF),” ( 21).

Listening to a disc

Automatic station selection—

Programme Search

Usually when you select a preset number, the station preset in that number is tuned in. If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting. (<P-SEARCH>,

Changing the display information

Station name (PS) = Station Frequency = Programme type (PTY) = Clock = (back

to the beginning)

24)

]

Turn on the power.

Stopping playback and ejecting the disc

“NO DISC” appears. Press

SOURCE

to listen to

another playback source.

10 ENGLISH

All tracks will be played repeatedly until you change the source or eject the disc.

Prohibiting disc ejection

[Hold]

To cancel the prohibition, repeat the same procedure.

Selects folder of the MP3/WMA

Selecting the playback modes

You can use only one of the following playback modes at a time.

Selects track

Fast-forwards or

[Hold]

reverses the track

Selecting a folder/track on the list

While listening to a disc....

]

Enter the list menu.

]

Select your desired item. MP3/WMA: Select your desired folder, then the desired track by repeating this step.

• If the MP3/WMA disc contains many tracks, you can fast search (±10, ±100, ±1000) through the disc by turning the control dial quickly.

• To return to the previous menu, press

T/P BACK

Using the remote controller

5 U

/ D ∞: Selects folder of the

MP3/WMA

2 R

/ F 3: Selects track

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

]

“REPEAT” or “RANDOM”

• Pressing and holding the control dial will enter the playback mode menu. Turn the control dial to make a selection (REPEAT or RANDOM), then press to confirm.

REPEAT TRACK RPT : Repeats current track FOLDER RPT : Repeats current folder

RANDOM FOLDER RND : Randomly plays all tracks

of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

Changing the display information

Disc title/Album name/performer (folder name)* = Track title (file name)* = Current track number with the elapsed playing time

Current track number with the clock time

(back to the beginning)

* If the current disc is an audio CD (except for CD

Text), “NO NAME” appears.

If an MP3/WMA file does not have Tag

information or <TAG DISPLAY> is set to <TAG OFF> ( 23), folder name and file name appear.

11ENGLISH

Listening to the USB device

This unit can play MP3/WMA files stored on a USB mass storage class device. You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, etc. to the unit.

• You can also connect an Apple iPod/iPhone to the USB input terminal. For details of the operations, 18.

]

Turn on the power.

If you have turned off the power (without detaching the USB device)...

Pressing playback starts from where it has been stopped previously.

• If a different USB device is currently attached,

SOURCE

turns on the power and

playback starts from the beginning.

All tracks will be played repeatedly until you change the source or detach the USB device.

Stopping playback and detaching the USB device

Straightly pull it out from the unit. “NO USB” appears. Press another playback source.

You can operate the USB device in the same way you operate the files on a disc. ( 10,

11)

SOURCE

to listen to

USB input terminal USB memory

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after attaching USB device or turn on the power.

• For more details about USB operations,

32.

12 ENGLISH

Using the Bluetooth ® device

For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA200 (not supplied) to the expansion port on the rear of this unit.

• Refer to pages i and ii at the end of the manual to check the countries where you may use the Bluetooth ® function.

• For details, refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.

To use a Bluetooth device through the unit (“BT-PHONE” and “BT-AUDIO”) for the first time, you need to establish a Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered on the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“BT-PHONE” and “BT-AUDIO”).

Registration (Pairing) methods

Use either of the following items (“OPEN” or “SEARCH” ) in the Bluetooth menu to register and make the unit ready to establish a new Bluetooth connection with a device. “OPEN” : Connection is established by

operating the Bluetooth device.

“SEARCH” : Connection is established by

operating the unit.

Registering using “OPEN”

Preparation: Operate the device to turn on its Bluetooth function.

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE” ] “OPEN”

]

Enter a PIN (Personal Identification Number) code in to the unit. You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in to the unit.

Repeat step 3 until you have finished

entering the PIN code.

“OPEN..” flashes. Use the Bluetooth device to search and

connect. On the device to be connected, enter the same PIN code you have just entered for this unit. “CONNECTED” appears. Now connection is established and you can use the device through the unit.

The device remains registered even after you disconnect the device. Use “CONNECT“ (or activate “AUTO CNNCT”) to connect the same device from next time on. (

17)

13ENGLISH

Registering using “SEARCH / SPECIAL”

]

“BT-PHONE” or “BT-AUDIO”

]

“NEW DEVICE”

]

“SEARCH” : To search for available devices The unit searches and displays the list of the available devices. “UNFOUND” appears if no available device is detected.

– – – – – or – – – – –

]

“SPECIAL” : To connect a special device The unit displays the list of the preset devices.

]

Select a device you want to connect.

For available devices...

]

Enter the specific PIN code of the device to the unit.

• Refer to the instructions supplied with

the device to check the PIN code. Use the Bluetooth device to connect. Now connection is established and you can use the device through the unit.

For special device...

Use “OPEN” or “SEARCH” to connect.

Connecting/disconnecting/ deleting a registered device

]

“BT-PHONE” or “BT-AUDIO”

]

Select a device you want to

connect/disconnect/delete.

]

“CONNECT” or “DISCONNECT” : To

connect/disconnect the selected device

– – – – – or – – – – –

]

“DELETE” ] “YES” : To delete the

selected device

You can set the unit to connect the Bluetooth device automatically when the unit is turned on. ( “AUTO CNNCT,”

17)

Using a Bluetooth mobile phone

]

“BT-PHONE”

]

Bluetooth menu

! Make a call or setting using

the Bluetooth setting menu. ( 17)

14 ENGLISH

When a call comes in....

The source is automatically changed to “BT-PHONE.”

• The display will flash in blue. (<RING COLOR>,

25)

When “AUTO ANSWER” is activated....

The unit answers the incoming calls automatically. (

• When “AUTO ANSWER” is deactivated, press any button (except the incoming call.

• You can adjust the microphone volume level. ( 17)

To end the call

Hold any button (except

17)

SOURCE

/ 0) to answer

SOURCE

/ 0).

When a text message comes in....

If the mobile phone is compatible with text message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTOMATIC” ( 17), the unit rings to inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears and the display illuminate in blue. (<RING COLOR>,

25)

Making a call

]

“BT-PHONE”

]

Select “DIAL” menu.

]

Select a calling method.

PHONE BOOK* j MISSED* j NUMBER j VOICE DIAL j REDIAL* j RECEIVED* j (back to

the beginning) * Displays only when your mobile phone

is equipped with these functions and is compatible with this unit.

For REDIAL, RECEIVED, MISSED

]

Repeat step 4 to select a name (if it is

acquired) or a phone number.

For PHONE BOOK

]

Repeat step 4 to select a name or a

phone number.

For NUMBER

]

Enter a phone number.

]

Confirm.

For VOICE DIAL

]

Speak the name you want to call

when “SAY NAME” appears.

• If your mobile phone does not support the voice recognition system, “ERROR” appears.

• Using voice tags may be difficult in a noisy environment or during an emergency.

To return to the previous menu, press

15ENGLISH

Using the remote controller

5 U

2 R

/ F 3 /

5 U

/ F 3 /

[Hold]

/ D ∞ /

SOURCE

: Answers calls

: Rejects calls

Using a Bluetooth audio player

]

“BT-AUDIO”

If playback does not start, operate the Bluetooth audio player to start playback. Operate the Bluetooth audio player to pause (if playback does not pause when you change the source).

Reverse skips/forward skips

Pauses/starts playback* * Operation may be different

according to the connected Bluetooth audio player.

Enter setting menu (Device list)

For connecting/disconnecting/deleting a registered device,

Using the remote controller

14.

2 R

/ F 3: Reverse skips/forward

skips

Changing the Bluetooth settings

]

“BT-PHONE” or “BT-AUDIO”

]

Bluetooth menu

]

“SETTINGS”

]

Select a setting item.

AUTO CNNCT j AUTO ANSWER *1

MSG INFO *2 j MIC SETTING *1

VERSION *3 j (back to the

beginning)

]

Change the setting accordingly. For

setting menu, 17.

Appears only when a Bluetooth phone is connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text message (notified through JVC Bluetooth adapter).

*3 Bluetooth Audio: Shows only “Version.”

16 ENGLISH

Setting menu [Initial: Underlined]

AUTO CNNCT (connect)

When the unit is turned on, the connection is established automatically with...

OFF: No Bluetooth device. LAST: The last connected Bluetooth device. ORDER: The available registered Bluetooth

device found at first.

AUTO ANSWER

Only for the device being connected for “BT-PHONE.” ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info)

Only for the device being connected for “BT-PHONE.” AUTOMATIC: The unit informs you of the

arrival of a message by ringing and displaying “RCV MESSAGE” (receiving message).

• The display illuminate in blue. (<RING COLOR>,

MANUAL: The unit does not inform you of

the arrival of a message.

MIC SETTING (microphone setting)

Only for the device being connected for “BT-PHONE.” Adjust microphone volume connected to the Bluetooth adapter, [LEVEL 01/02/03].

25)

Warning messages

ERROR CNNCT (Error Connection) The device is registered but the connection

has failed. Use “CONNECT” to connect the device again. ( 14)

ERROR

Try the operation again. If “ERROR” appears

again, check if the device supports the function you have tried.

UNFOUND

No available Bluetooth device is detected

by “SEARCH.”

LOADING * The unit is updating the phone book.

PLEASE WAIT

The unit is preparing to use the Bluetooth

function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

RESET 8

Check the connection between the adapter

and this unit.

* Displays only when your mobile phone

is equipped with these functions and is compatible with this unit.

Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

VERSION

The Bluetooth software and hardware versions are shown.

17ENGLISH

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the USB input terminal on the control panel.

Apple iPod/iPhone

USB input terminal

There are two control terminals:

• <HEAD MODE> Control by this unit.

• <IPOD MODE> Control by the connected iPod/iPhone.

Preparation: Select the controlling terminal, <HEAD MODE> or <IPOD MODE> for iPod playback:

• Press and hold

• Make the selection from <IPOD SWITCH> setting, 27.

The operations explained below are under <HEAD MODE>.

T/P BACK

button.

]

“USB-IPOD”

Playback starts automatically.

USB 2.0 cable (accessory of the iPod/iPhone)

]

Select a song.

Caution:

• Avoid using the iPod/iPhone if it might hinder your safety while driving.

• Make sure all important data has been backed up to avoid losing the data.

• Disconnecting the iPod/iPhone will stop playback. Press playback source.

• For details, refer also to the instructions supplied with your iPod/iPhone.

SOURCE

to listen to another

[Hold]

Pauses or resumes playback

Selects track

Fast-forwards or reverses the track

18 ENGLISH

Selecting a track from the menu

Selecting the playback modes

]

Select the desired menu.

PLAYLISTS j ARTISTS j ALBUMS

SONGS j PODCASTS j GENRES j COMPOSERS j AUDIOBOOKS j (back to the

beginning)

]

Select the desired track. Repeat this procedure until the desired track is selected.

• If the selected menu contains many tracks, you can fast search (±10, ±100, ±1000) through the menu by turning the control dial quickly.

• To return to the previous menu, press

T/P BACK

Using the remote controller

2 R

/ F 3: Selects track

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

]

“REPEAT” or “RANDOM”

• Pressing and holding the control dial will enter the playback mode menu. Turn the control dial to make a selection (REPEAT or RANDOM), then press to confirm.

REPEAT ONE RPT : Functions the same as

“Repeat One” of the iPod

ALL RPT : Functions the same as

“Repeat All” of the iPod

RANDOM ALBUM RND : Functions the same as

“Shuffle Albums” of the iPod

SONG RND : Functions the same as

“Shuffle Songs” of the iPod

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

• “ALBUM RND” is not available for some iPod.

• To return to the previous menu, press

T/P BACK

Changing the display information

Notice: When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

Album name/performer = Track title = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

19ENGLISH

Listening to the DAB tuner

Before operating, connect the JVC DAB tuner, KT-DB1000 (not supplied) to the expansion port on the rear of the unit.

• For details, refer also to the instructions supplied with the JVC DAB tuner.

]

“DAB”

]

Search for an ensemble.

When an ensemble is tuned in,

searching stops. To stop searching, press the same button again.

Manual search for an ensemble

“M” flashes, then press

[Hold]

Storing DAB services in memory

You can preset six DAB services (primary).

Ex.: Storing an ensemble (primary service) into the preset number “04.”

Select a service (steps ~ to ! ).

1 2

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

•

Pressing and holding the number buttons (1 – 6) can also store the current service to the selected number buttons (1 – 6).

the button repeatedly.

[Hold]

]

Select a service (primary or

secondary) to listen to.

Selecting a preset service

• Pressing the number buttons (1 – 6) can also select the preset services (1 – 6).

Changing the display information

Service name = Ensemble name = Channel number

Frequency = Clock =

(back to the beginning)

Using the remote controller

5 U

/ D ∞: Changes the DAB

preset stations

2 R

/ F 3: Searches for DAB

stations

20 ENGLISH

Tracing the same programme—

Alternative Frequency Reception (DAB AF)

You can keep listening to the same programme by activating the Alternative Frequency Reception.

• While receiving a DAB service: When driving in an area where a service

cannot be received, this unit automatically tunes in to another ensemble or FM Radio Data System station, broadcasting the same programme.

• While receiving an FM Radio Data System station:

When driving in an area where a DAB service

is broadcasting the same programme as the FM Radio Data System station is broadcasting, this unit

automatically tunes in to the DAB

service.

When shipped from the factory, Alternative Frequency Reception is activated. To deactivate the Alternative Frequency Reception,

24.

Listening to the other external components

You can connect an external component to:

• EXT INPUT: Expansion port on the rear of this unit using the following adapters (not supplied): – KS-U57, Line Input Adapter – KS-U58, AUX Input Adapter Preparation: Make sure <EXT ON> is selected for the <SRC SELECT>

(

26)

• AUX IN: AUX (auxiliary) input jack on the control panel. Preparation: Make sure <AUX ON> is selected for the <SRC SELECT> = <AUX IN> setting.

( 26)

For details, refer also to the instructions supplied with the adapter or external components.

<EXT IN> setting.

]

“EXT INPUT” or “AUX IN”

Ÿ Turn on the connected component and start playing the source. !

]

Adjust the volume.

⁄ Adjust the sound as you want. ( 22)

21ENGLISH

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug (not supplied)

Selecting a preset sound mode

Portable audio player,

etc.

You can select a preset sound mode suitable for the music genre.

FLAT = NATURAL = DYNAMIC = VOCAL BOOST = BASS BOOST = USER = (back to

the beginning)

While listening, you can adjust the tone level of the selected sound mode.

[Hold]

Adjust the level (–06 to +06) of the selected tone (BASS / MID / TRE). The sound mode is automatically stored and changed to “USER.”

Storing your own sound mode

You can store your own adjustments in memory.

[Hold]

]

<PRO EQ> ] <BASS / MIDDLE /

TREBLE>

Adjust the sound elements of the selected tone.

Tone : BASS

Frequency : 60 Hz, 80 Hz, 100 Hz, 200 Hz Level : –06 to +06 Q : Q1.0, Q1.25, Q1.5, Q2.0

Tone : MIDDLE

Frequency : 0.5 kHz, 1.0 kHz, 1.5 kHz,

2.5 kHz Level : –06 to +06 Q : Q0.75, Q1.0, Q1.25

Tone : TREBLE

Frequency : 10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz Level : –06 to +06 Q : Q FIX

Repeat steps 2 and 3 to adjust other

tones. The adjustments made will be stored automatically in “USER.”

The current sound mode changes to “USER” automatically.

22 ENGLISH

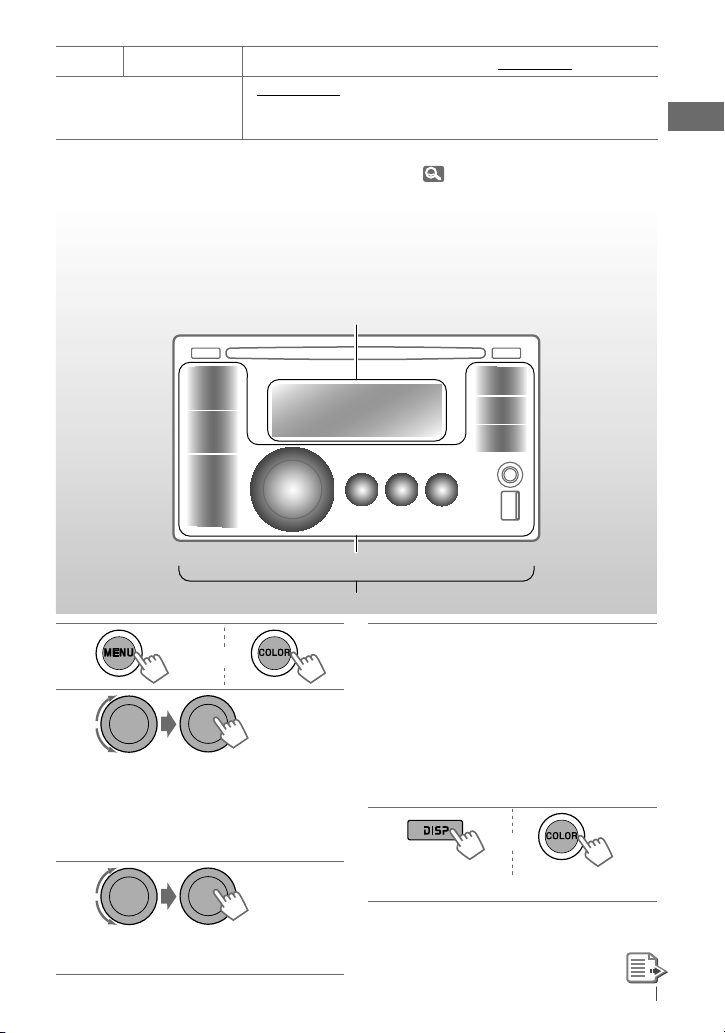

Menu operations

1 2 3

[Hold]
