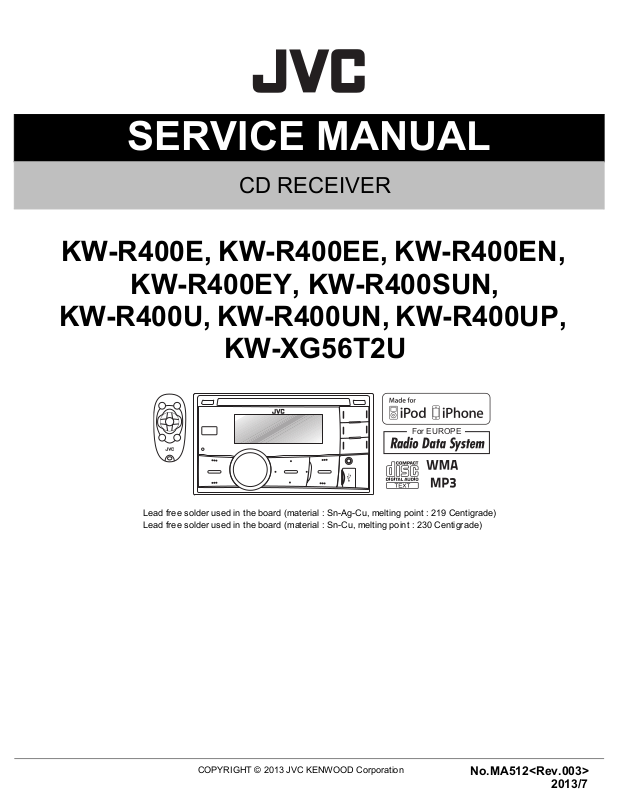

Page 1
SERVICE MANUAL
CD RECEIVER
MA512<Rev.003>20137SERVICE MANUAL
KW-R400E, KW-R400EE, KW-R400EN,
KW-R400EY, KW-R400SUN,
KW-R400U, KW-R400UN, KW-R400UP,
KW-XG56T2U
For EUROPE
COPYRIGHT © 2013 JVC KENWOOD Corporation
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
COPYRIGHT © 2013 JVC KENWOOD Corporation
No.MA512<Rev.003>
2013/7
Page 2
SPECIFICATION
For ASIA
AUDIO AMPLIFIER SECTION
Maximum Power Output 50 W per channel
Continuous Power Output (RMS) 20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 1% total
harmonic distortion.
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out or Subwoofer-Out Level/Impedance 4.8 V/20 kΩ load (full scale)
Output Impedance ≤ 600Ω
TUNER SECTION
FM Frequency Range 87.5 MHz to 108.0 MHz
Usable Sensitivity 9.3 dBf (0.8 µV/75Ω)
50 dB Quieting Sensitivity 16.3 dBf(1.8 µV/75 Ω)
Alternate Channel Selectivity
(400 kHz)
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 40 dB
AM Frequency Range 531 kHz to 1 611 kHz
Sensitivity/Selectivity 20 µV/40 dB
65 dB
CD PLAYER SECTION
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate (Full Speed) Max. 12 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA
Maximum Supply Current DC 5 V 1 A
GENERAL
Power Requirement (Operating Voltage) DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size approx.178 mm × 100 mm × 156 mm
(For KW-R400U, KW-R400UN, KW-R400UP)
approx.178 mm × 100 mm × 152 mm (For KW-XG56T2U)
Panel Size approx.184 mm × 112 mm × 22 mm
(For KW-R400U, KW-R400UN, KW-R400UP)
approx.200 mm × 100 mm × 28 mm (For KW-XG56T2U)
Mass 1.4 kg (excluding accessories)(Except KW-R400SUN)
1.6 kg (excluding accessories)(For KW-R400SUN)
• Subject to change without notice.
(No.MA512<Rev.003>)2/16
Page 3
SPECIFICATION
For EUROPE
AUDIO AMPLIFIER SECTION
Maximum Power Output 50 W per channel
Continuous Power Output (RMS) 20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 1% total
harmonic distortion.
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out or Subwoofer-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance ≤ 600Ω
TUNER SECTION
FM Frequency Range 87.5 MHz to 108.0 MHz
Usable Sensitivity 9.3 dBf (0.8 µV/75Ω)
50 dB Quieting Sensitivity 16.3 dBf(1.8 µV/75 Ω)
Alternate Channel Selectivity
(400 kHz)
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 40 dB
AM Frequency Range MW: 531 kHz to 1 611 kHz
Sensitivity/Selectivity MW: 20 µV/40 dB LW: 50 µV
CD PLAYER SECTION
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate (Full Speed) Max. 12 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA
Maximum Supply Current DC 5 V 1 A
GENERAL
Power Requirement (Operating Voltage) DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size approx.182 mm × 111 mm × 160 mm
Panel Size approx.188 mm × 117 mm × 18 mm
Mass 1.7 kg (excluding accessories)
• Subject to change without notice.
65 dB
LW: 153 kHz to 279 kHz
(No.MA512<Rev.003>)3/16
Page 4
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4 Critical parts for safety

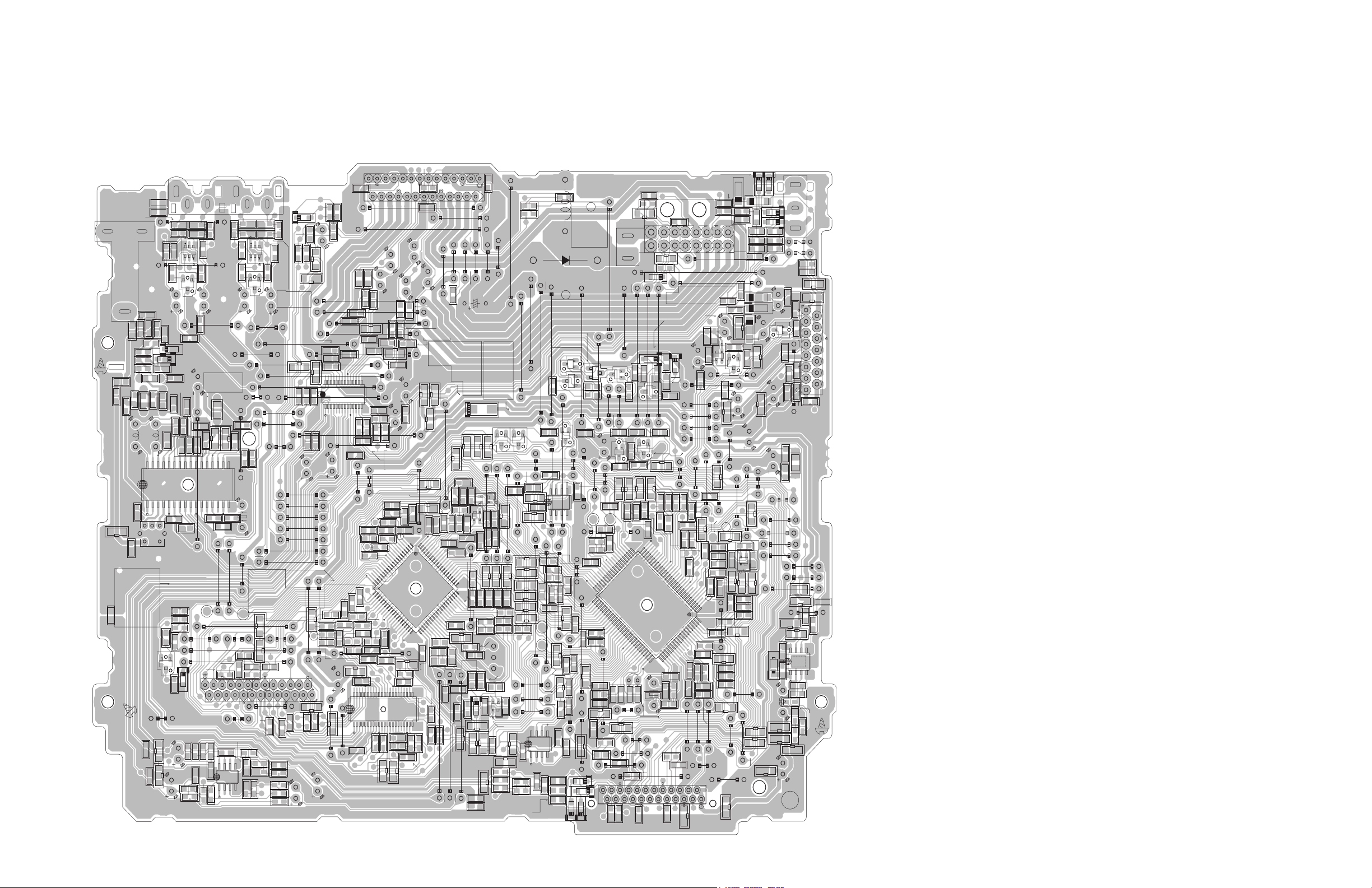

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
(No.MA512<Rev.003>)4/16
Page 5
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.7 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connector on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
SOLDER
(No.MA512<Rev.003>)5/16
Page 6
1.8 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
(No.MA512<Rev.003>)6/16
Page 7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1 Main body (Used model: KW-R400E)
3.1.1 Removing the Front panel (See Fig.1)
(1) Remove the 2 screws A attaching the both side of the Front
panel.
(2) Disengage 4 hooks a engaged both side of the Front panel.
(2) Remove the 3 screws C attaching the Bottom chassis.
(See Fig.3)
(3) Remove the 3 screws D and 1 screw E attaching the Heat
sink. (See Fig.3)
(4) Remove the 3 screws F and 1 screw G attaching the Rear
bracket. (See Fig.3)
A hook a
Fig.1
3.1.2 Removing the Bottom chassis (See Fig.2, 3)
(1) Remove the 2 screws B attaching the both side of the Bot-
tom chassis. (See Fig.2)
F
G
D
E
C
Fig.3
3.1.3 Removing the Electric unit (See Fig.4, 5)
(1) Remove the 2 screws H and one screw J attaching the
Side plate. (See Fig.4)
F
B
HHJ
Fig.4
Fig.2
(No.MA512<Rev.003>)7/16
Page 8
(2) Remove the 3 screws K attaching the Electric unit. (See
Fig.5)
(3) Disconnect B-B connector CN502
nected the CD mechanism and Electric unit. (See Fig.5)
of the Electric unit con-
CN502
K
Fig.5
3.1.4 Removing the CD mechanism (See Fig.6)
(1) Remove the 3 screws L attaching the CD mechanism.
3.2 CD mechanism assembly section
3.2.1 Removing the Mecha control board
(1) Solder the short land on the pickup. (See Fig. 1)
SOLDER
K
Fig.1
(2) Remove the 8 wires from the Mecha control board. (See
Fig.2)
L
Fig.6
3.1.5 Removing the Switch unit (See Fig.7)
(1) Remove the Volume knob.
(2) Remove the 13 screws M attaching the Switch unit.
M
M
L
BLACK
RED
WHITE
YELLOW
ORANGE
ORANGE
WHITE
YELLOW
Fig.2
(3) Disconnect the flexible wire from the pickup connected to
the connector CN102
Fig.3)
(4) Remove the 2 screws A attaching the Mecha control board.
(See Fig.3)
on the Mecha control board. (See
A
CN102
M
Fig.7
Fig.3
(No.MA512<Rev.003>)8/16
Page 9
3.2.2 Removing the Traverse mechanism (See Fig.4, 5)
(1) Remove the 5 springs from the traverse mechanism. (See
Fig.4)
Fig.4
(2) Remove the 3 screws B attaching the bottom frame as-
sembly. (See Fig.5)
(3) Remove the 3 dumpers from the bottom frame assembly.
(See Fig.5)
B
(2) Remove the shaft from the TM base. (See Fig.7)
(3) Disengage the hook a on the pickup from the TM base.
(See Fig.7)
shaft
B
Fig.5
3.2.3 Removing the Pickup (See Fig.6, 7)
(1) Remove the 2 screws C attaching the feed bracket assem-
bly. (See Fig.6)
CC
Fig.7
3.2.4 Removing the Spindle motor (See Fig.8. 9)
(1) Remove the HC CL. Spring from the HC CL. base and the
TM base, and then lift up the HC CL. base. (See Fig.8)
HC CL. spring
[ SIDE VIEW ]
Fig.8
Fig.6
(No.MA512<Rev.003>)9/16
Page 10
(2) Remove the HC CL. base from the holes on the TM base.
(See Fig.9)
Fig.9
(3) Remove the 2 screws D attaching the spindle motor. (See
Fig.10)
D
3.2.5 Removing the Loading motor
(1) Remove the roller arm assembly from the bottom frame as-
sembly. (See Fig.11)
Fig.11
(2) Remove the 2 screws E attaching the loading motor as-
sembly, and then remove the loading motor assembly in
the direction of the arrow. (See Fig.12)
Fig.10
E
Fig.12
(No.MA512<Rev.003>)10/16
Page 11
SECTION 4
ADJUSTMENT
4.1 Service Test mode
Default status immediately after the mode activation
Operating Key: [MENU] → [DOWN] (7sec)
4.1.1 Mode content
Syscon shall display the following information after entering this mode. The operation shown below shall be workable.
Display content Detail
S R V T E S T
4.1.2 Common operation mode for all sources.
means Press aud hold.
Operation Display content Detail
EQ
MENU
UP
DOWN
BRIGHTNESS
/ TAG / iPod /
SD
BRIGHTNESS
/ TAG / iPod /
SD
CD error
information
display mode
Syscon version
display
Power ON
duration display
Disc operation
duration display
Disc eject
number of times 00001 - 99999 are displayed in "XXXXX"
Disc eject
number of times
clear
Force Power
OFF information
display
Force Power
OFF information
clear
Transit to CD error information display mode
S Y S #
P O N T M 0 H X X
P O N T M X X X X X
C D T M 0 H X X
C D T M X X X X X
E J C N T X X X X X
E J C N T 0 0 0 00
P O F F - --
P O F F P N L
P O F F - --
The display is released when another operation is executed.
# = Display of destination.
J = USA
@ @ @
R = EUROPE
E = EASTERN-EUROPE
U = OTHERS(e.g. ASIA)
@@@ = Syscon version number
00 - 50 are displayed in "XX".
For less than 1 hour, the display is indicated
per 10 minutes.
00001 - 10922 are displayed in "XXXXX".
MAX 10922 (hours).
00 - 50 are displayed in "XX".
For less than 1 hour, the display is indicated
per 10 minutes.
00001 - 10922 are displayed in "XXXXX".
MAX 10922 (hours).
Clear Disc Eject number of times by pressing
for 2 seconds when it is displayed.
No force Power OFF
Force Power OFF due to Syscon-Panel
communication error.
Will not show in JK12 Models.
Clear Force Power OFF information by
pressing for 2 seconds when it is displayed.
Will not show in JK12 Models.
(No.MA512<Rev.003>)11/16
Page 12
4.1.3 CD error information display mode
Operation Display content Detail
CD mecha error
log display
CD load error
information
display
CD eject error
information
display
Move
between DISP
(Forward
search)
item with
M E C H E R #AXX
L O A D E R # X X
E J E C T E R # X X
/
C N T L O S E
CD time code
error count
information
display (count
skip)
CD time code
error count
information
display (no count
update)
EQ CD error
information clear
EQ Mode release CD error information display mode release Back to default status, All lights on
C D D A XX
C D R O M X X
C N T S T A Y
C D D A XX
C D R O M X X
CD error information all clear
M E C H A E R 1 - -
Mecha error history 1,2,3 (latest)
# = History No. (1,2,3)
XX: kind of errors, "--" when there is none.
00: No Error
04: TOC read Error
05: Unknown CD
06: Heat Error
0A: Update Error
0D: Hold Error
15: Unknown Disc
99: Mecha Error
Load error switch 1,2
# = History No. (1,2)
XX: numbers of errors, "--" when there is
none
History No. 2 is un-used
Eject error switch 1,2,3,4
# =History No. (1,2,3,4)
XX: numbers of errors, "--" when there is
none
History No.3 is un-used
History No.1: Eject before SW1 is on.
History No.2: Eject until SW1 and SW2 is
on.
History No.3: Eject between SW2 on and
Eject end
CD-DA error count number information
CD-DA error count numbers
XX: numbers of errors and "--" when there
is none
Can only be checked via debugger by jap
member
CD-ROM (compressed file) error count numbers
XX: numbers of errors and "--" when there is
none
Can only be checked via debugger by jap
member
CD time code error count information (count
not updated) mode display
CD-DA error count numbers
XX: numbers of errors and "--" when there is
none
CD-ROM (compressed file) error count numbers
XX: numbers of errors and "--" when there is
none
Clear CD error information by pressing for 2
seconds when it is displayed.
(No.MA512<Rev.003>)12/16
Page 13
4.2 DC error information mode
* The receiver is connected with the DC power supply (with the power supply turned off).
Operating Key: [MENU] → [UP] → [DC power supply turned ON]
4.2.1 Mode content
Syscon shall display the following information after entering this mode. The operation shown below shall be workable.
Display content Detail
D C E R R
D C O K
When DC error is detected (in case that one of capacitor leakage, wrong
connection or other detection is found).
When DC error is not detected (in case that none of capacitor leakage,
wrong connection or other detection is found).
4.2.2 Mode operation specification
means Press aud hold
Operation Display content Detail
UP DC ERR1
display
UP DC ERR1
clear
DOWN DC ERR2
display
DOWN DC ERR2
clear
D C 1 E R R
D C 1 O K
D C 1 O K
D C 2 4
D C 2 0
When wrong connection & DC error in other detection
duration is detected.
When wrong connection & DC error in other detection
duration is not detected.
Clear detection information when wrong connection & DC error in other detection duration is displayed.(Clear data flash)
Display detecting number of times in capacitor leakage
detection duration (0~4)
Clear number of times for detection information in capacitor leakage detection duration.(Clear data flash)
(No.MA512<Rev.003>)13/16
Page 14
4.3 DC Offset error description
A
4.3.1 DC Offset detection circuit design
• Purpose:
To prevent breakdown, burning and emitting smoke from customer's car speaker when occur DC offset between speaker
output "+" and "-".
•Target:
Detect DC offset, then stop the Power Amp operation and shift
to specified condition.
4.3.2 Possible causes of DC offset at speaker output lines
(1) Mis-connection for Speaker output for example touch to car
body or battery line.
(2) Current leak of coupling capacitor for Power IC input.
(3) Current leak of Ac-GND capacitor for Power IC Ac-GND.
(4) Capacitor shorted of above parts due to foreign object.
C-tc
E-Vol
Win_TC
Win_In
DC Error
C-in
C-in
R3
C-in
C-in
C-ac2C-ac1
Sw5V
R2
R1
C3
R4
Audio Pwr Amp
In 1
In 2
In 3
In 4
AcGnd
Offset Detect
Out
Micon
ADC In
4.3.5 Manipulate after detect DC Offset
• If detected error 10 consecutive times, and 10th error occurred
in "Mis-connect detection period", judge as "Mis-connect".
• If detected error 10 consecutive times, and 10th error occurred
in "Capacitor leak detection period", judge as "Capacitor leak ".
• If detected error 10 consecutive times, and 10th error occurred
in "Other detection period" and detected another 10 errors consecutively, then judge as "Other".
• If judge as "Mis-connect".
- turn off speaker output.
-display "MIS WIRING" → "CHK WIRING" → "THEN RESET"
→ "UNIT".
- key access disable except button of Eject, Reset and service
mode
- record error in EEPROM "DC1 ERR"
- Set is able to be recovered by Reset button.
• If judge as "Capacitor leak ".
- turn off speaker output.
-display "WIRING" → "CHK WIRING" → "THEN RESET" →
"UNIT".
- key access disable except button of Eject, Reset and service
mode
- record error in EEPROM "DC2 #" (# means counter number)
- Set can be recovered by pressing the Reset button before
the capacitor leak error counter reach "DC2 4".
After that, only clear the counter back to "0" can recover the
set.
• If judge as "Other" (manipulation same as mis-connect)
4.3.6 How to clear the DC offset error recorded in EEPROM
Refer to "DC error information mode".
4.3.3 Type of checking
4.3.3.1 To detect DC Offset Error
• Mis-connection
- Short any one speaker out line to GND or Vcc
• Capacitor leak
- Parallel 330kΩ to either any one of coupling cap or Ac-GND
cap (to simulate current leakage of capacitor)
- Shorted either any one of coupling cap or Ac-GND cap.
4.3.3.2 To avoid mis-judge music as DC offset error
• Low frequency signal (17Hz or 20Hz) is more prone to cause
mis-detection.
- Play 17Hz (or 20Hz) signal and make sure micon will not de-
tect and judge this as happen DC offset error.
4.3.4 Detection Timing chart
50ms
or more
PWIC_STBY
PWIC_MUTE
UD_MUTE
2.0sec or more
Missconnect
detection period
1.5sec or more
0.8sec
0.7sec or more
1.0sec
Capacitor leak
detection period
Other (miss detection etc.)
detection period
(No.MA512<Rev.003>)14/16
Page 15
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
(No.MA512<Rev.003>)15/16
Page 16
JVC KENWOOD Corporation
Car Electronics Business Group 2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525, Japan
(No.MA512<Rev.003>)
Printed in Japan
VSE
Page 17

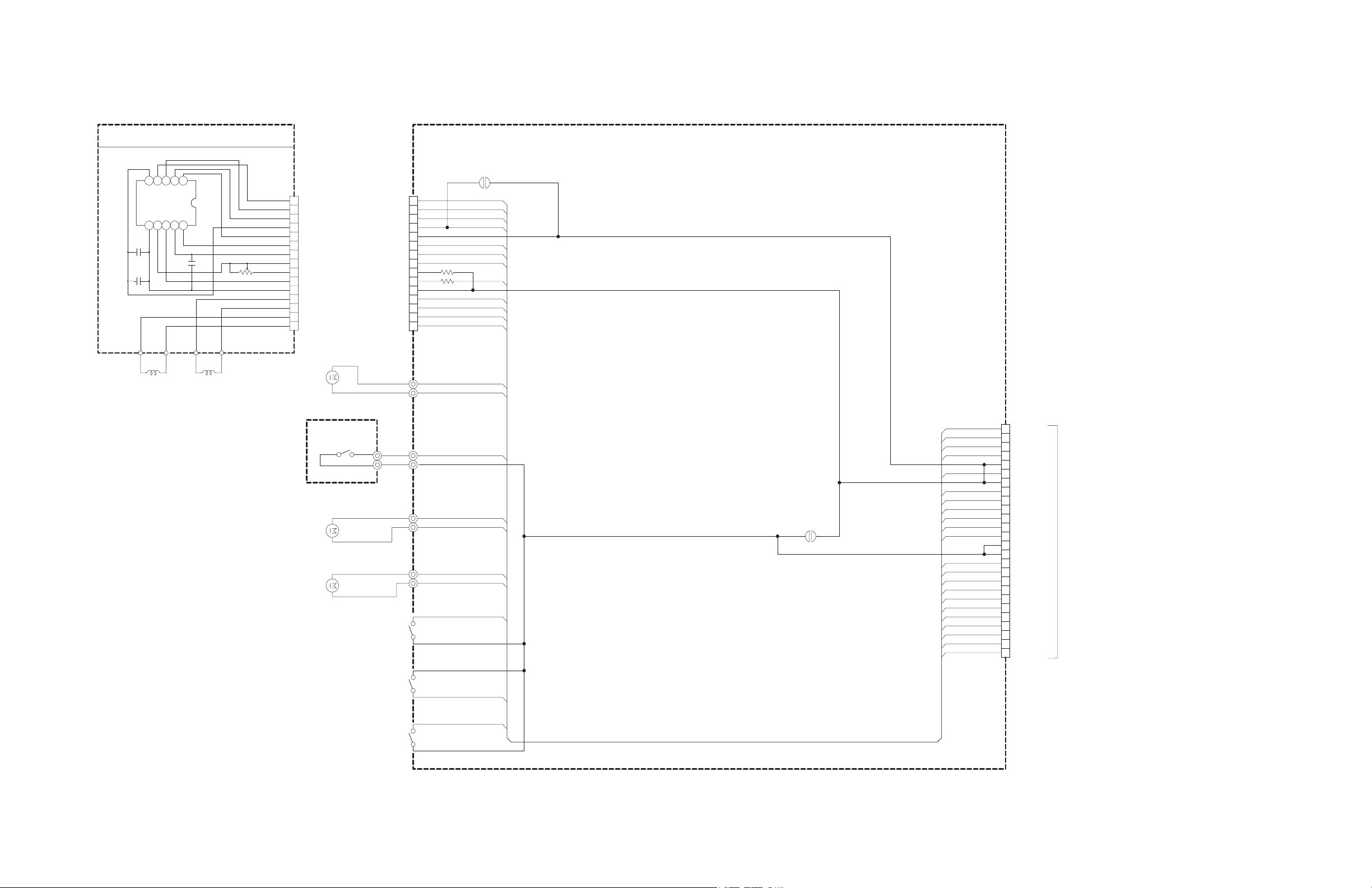

SCHEMATIC DIAGRAMS
13
CD RECEIVER
KW-R400E KW-R400EE KW-R400EN
KW-R400EY KW-R400SUN KW-R400U
KW-R400UN KW-R400UP KW-XG56T2U
(No.MA512<Rev.003>)1/
Page 18
■ PRECAUTIONS ON SCHEMATIC DIAGRAMS
z Due to the improvement in performance, some part numbers shown in the circuit diagrams
may not agree with those indicated in the Parts List.
z The parts numbers, values and rated voltage etc. in the Schematic Diagrams are for
reference only.
z Since the circuit diagrams are standard ones, the circuits and circuit constants may be
subject to change for improvement without any notice.
■ PRECAUTIONS ON PARTS LIST
z
The parts identified by the symbol are critical for safety. Whenever replacing these parts, be sure to
use specified ones to secure the safety.
z
The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No.
columns will not be supplied.
z
P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No.
columns will be supplied.
z
When ordering chips, screws etc., place bulk orders (unit of tens) whenever possible to improve
shipping efficiency.
z
There are cases where the actual implemented parts in the sets and the service parts are different.
When ordering parts, make sure to refer to the Parts List.
■
PRECAUTIONS ON SERVICE
Certain parts of the power circuits and the GNDs differ according to the models. Care must be
taken for the following points as the differences are indicated separately in the LIVE GND ( ) and
the ISOLATED (NEUTRAL) GND ( ).
1. Do not touch the LIVE GND, or do not touch the LIVE GND and the ISOLATED (NEUTRAL)
GND at the same time. It may cause an electric shock.
Before pulling out the chassis or other parts, make sure to pull out the power cord from the
wall outlet first.
2. Do not short circuit between the LIVE GND and ISOLATED (NEUTRAL) GND, or never
measure the LIVE GND and ISOLATED (NEUTRAL) GND at the same time using measuring
instruments (oscilloscope, etc.). It may blow fuses or damage other parts.
■ DEVIATION TOLERANCE RANGE
DEVIATION TOLERANCE RANGE
F G J K M N R H Z P
± 1% ± 2% ± 5% ±10% ±20% ±30%
+30%
-10%
+50%
-10%
+80%
-20%
+100%
-0%
13
(No.MA512<Rev.003>)2/
Page 19
IC981
DC DC
IC901
REGULATOR
EPROM
IC771
MICOM
IC701
IC681
REMOCON
IC661
LCD DRIVER
IC580
LPF
IC540
MP3 LSI
& INT. SRAM
IC501
BTL DRIVER
IC301
POWER AMP
IC161
E-VOLUME
IC1
TUNER IC
J321
L&R
RR/SWR
RL/SWL
L&R / Subwoofer
Line Out (Rear)
SWL/SWR
FRONT LEFT(+)
FRONT LEFT(-)
FRONT RIGHT(+)
FRONT RIGHT(-)
REAR LEFT(+)
REAR RIGHT(+)
REAR RIGHT(-)
MEMORY
REAR LEFT(-)
FL/FR
TUL
TUR
SDA TU/EVOL
SCL TU/EVOL
J1
Ant Jack
MUTE
E-MUTE
RLOUT
FROUR
RROUT
FL OUT
MUTE
CDR
CDL
CIRCUITRY
OFFSET
DC_ERR
R-AUXL
R-AUXG
R-AUXR
SDA TU/EVOL
SCL TU/EVOL
CN901
POWER CONNECTOR
Rear AUX-IN / Bluetooth Adapter
AMP STBY
BU DET
AMP MUTE
CTRL2
TEL MUTE
CTRL1
D-
D+
FREQ SEL
F-AUXG
F-AUXR
F-AUXL
SURGE DET
J120
BU-DET/
FWR
REV
DRV_Mute
BTL_DMO
BTL_FMO
BCK
LRCK
DATA
BTL_FOO
BTL_TRO
Vref
DSPL
DSPR
CMD_SO
CMD_SI
ELECTRIC UNIT
FEED +
FEED -
FOCUS +
SP -
SP +
FOCUS -
TRK -
LOAD +
LOAD -
LD
CN502
CN101
TRK +
FCC CABLE
VF1, VF2
VT1, VT2
CD_MD
BLOCK DIAGRAM
FEED +
PWS
SWITCH
POSITION SET
CD PLAYER UNIT
FEED -
FOCUS +
FOCUS -
SW1
SW2
SPINDLE-
SPINDLE+
MOTOR
LOAD&FEED
MOTOR
SPINDLE
RGBCLK
VFDCLK
CMD_CCE
CDR_RESET
CD_MUTE
SRAM STB
VFDCE
SYSDA
PANDATA
VOL2
VOL1
VFDBLK
PSW
SW2
SW1
SW3
REMOCON
JS601
VOL1
VOL2
F-AUXL
F-AUXG
F-AUXR
D662,D663
D649 to D659,
Backlight LED
D693,D694
D627 to D646,
P2
LCDCL
LCDDA
LCDCE
P1
P3
SWITCH UNIT
CN701
CN601
VT1, VT2
LD
FOCUS +
FOCUS -
CD_MD
VF1, VF2
TRK -
TRK +
PICK UP
S601 to S617
KEY MATRIX
KEY2
KEY0
KEY1
D-
D+
AUX-R
AUX-L
AUX-G
CN603
COM1
COM4
COM3
COM2
LCD 1
S1 to S50
J601
ROTARY ENCODER
CMD_BUCK
SW1,SW2
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)3/
Page 20
SURGE DET
CONDITION
---FM MODE. ( )CD MODE.AM MODE.
27K
22K
R785
REMOTE
*
1.77V
3.2V3.2V
0.56V
3.2V
1.9V
2.68V
0.56V
2.68V
1.48V
2.68V
1.03V
VOLTAGE
KW-R400E KW-R500UKW-R500EKW-R400UKW-R400EE KW-R500J
R765
R767
STAGE 2
STAGE 1
R766
STAGE SETTING
R764
0 ohm
0 ohm
*
*
*
0V
U VERSIONSJ/E/EE VERSIONS
1.6V
3.3V
3.3V
8.2V
0V
0V
1V
1V
1V
1.1V
3.3V
5.25V
7.1V
KW-R500J
KW-R500E
KW-R400U
KW-R400EE
47K
8.2K
39K
KW-R500U
-
47K
15K
33K
KW-R500E
-
8.2K
39K
22K
27K
8.2K
39K
8.2K
39K
KW-R400UKW-R400EE
-
47K
27K
22K
KW-R500J
D704
R777
-
KW-R500U
KW-R500J
KW-R500E
KW-R400E
KW-R400U
KW-R400EE
OE
MODELS
*
*
QAM1330-001KW-R500U
QAM1329-001KW-R500J
QAM1345-001KW-R500E
QAM1328-001KW-R400U
QAM1344-001
*
*
10 ohm
4.7K
R310
R701
750
360K
LCDCLKNCLCDDA
LCDCE
NC
22k
22k
LTC024EUB-X
LTC044EUB-X
47k
47k
10k
22k
LTA024EUB-X
10k
LTC014EUB-X
22k
*
FOR KW-R500 SERIES ONLY
--47K
910
KW-R500U
KW-R400E
R759
R737RGBCLK
REAR/SUBW R
REAR/SUBW L
USB5V
USB5V
D-
D+
USBGND
USBGND
KEY1
KEY0
KEY2
LCDDA
LCDCL
LCDCE
VOL2
VOL1
RGBCLK
REMOCON
11.5V
RESET
GND
AUX-R
AUX-GND
AUX-L
QAM1345-001
KW-R400EE
KW-R400E
MODELS POWER CORD
IC161
FRONT-L
FRONT-R
D100,D101,D110,D111:DZ2J062/M/-X
*
MODELS
6.8K
5.1K
NIL
0 ohm
R365~R368
R361~R364
R169
*
*
R160
NIL
NIL
*
NIL
0 ohmR9
*
KW-R400E
STAGE 2
STAGE 1
8.2K
39K
15K
33K
R767
R765
R766
R764
STAGE SETTING
R400X SERIES R500X SERIES
R82
NIL
0 ohm
0.1
NIL
0.047C80
C166
NQL553J-27NJ
NIL
IC80
100 ohm
NIL MFI341S213-X
Ipod
L161
QNN0815-0012 pairs
KW-R400 SERIES
J321
KW-R500 SERIES
MODELS
QNN0802-001
* REMARK
1 pair
OTHER VERSIONJ VERSION
NIL10P
NILNQL103J-10NX
C28
L10
TUNER
R168
TDA7720-XTDA7718B-X
NIL
NIL
R151,
R150,R152
E-VOL IC
QEKJ1CM-226Z-S
*
*
*
*
*
*
*
S.GND
*
*
*
*
*
*
MAINGND
(3.3V)
(3.3V)
(3.3V)
(3.3V)
(3.3V)
(3.3V)
(0V)
(0V)
(0V)
(0V)
3.3V
(0V)
3.3V
3.3V
(3.3V)
3.3V
(7.9V)
14.4V
*
*
*
*
*
FOR U VERSION ONLY
*
VDD5V
3.3V
3.3V
*
*
0V
0V
3.3V
0V
3.3V
0V
3.3V
3.3V
0V
3.3V
3.3V
QMFZ064-100-J1
3.3V
0V
0V
0V
2.9V
0V
0V
0.6V
3.3V
3.3V
3.3V
4V4V4V4V4V
4V
14.3V
3.3V
1.6V
0V
14.3V
4.9V
4.9V
4.9V
14.3V
4.4V
1.2V
8.6V
0V
1.2V
11.5V
3.3V 3.3V
2.6V
0V
0V
4.9V
4.6V4.6V
3.3V0V
0V
3.3V
3.3V
0V
0V
0V
0.6V
0.6V
0.6V
3.3V
3.3V
3.3V
0V
0V
1.5V
3.3V
0V
0V
0V
0V
1.5V
3.3V
0V
0V
3.3V
1.48V
2.6V
3.3V
3.3V
0V
(3.3V)
3.3V
3.3V
3.3V
3.3V
3.3V
1V
1.6V
0V
3.3V
3.3V
0V
(3.3V)0V3.3V
0V
0V
0V
3.3V
3.3V
3.3V
3.3V
3.3V
(3.3V)
0V
3.3V
2.5V
3.3V
3.3V
0V
0V
0V
0V
3.3V
0V0V0V0V0V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V0V3.3V
3.3V
D120,D121,D130,D131:DZ2J062/M/-X
L703:NQR0502-001X
(1/8W)
QEZ0936-278
FOR U VERSION ONLY
*
*
*
*
(1/8W)
C301-C304:QTE1C66-474Z
FRONT AUX
C305-C308:NCB21CK-474X-A
USE ONLY
DETAIL DEBUGGING
GND
BTLGND
IPOD CP CIRCUIT
DC-DC USB5V
EPROM
0V
3.3V
REAR AUX
0V
0V
0V
0V
LINE MUTE
POWER IC MUTE
BU DET
ILMI
TEL MUTE
ANT
ACC IN
REMOTE OUT
OE REMOTE
TEL MUTE
ILL
4V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
1.5V
1.5V
3.0V
6.8V
6.8V
(1/10W)
QTE1V67-475Z
QTE1V67-475Z
3.3V
3.3V
3.3V
0V
0.0V
0.0V 3.3V
3.3V
E.VOLUME
3.5V
5V
2.0V
1.8V
2.9V
4.2V
8.5V
8.5V
0V
(1/8W)
2.2V
4.5V
NOTES
ALL E.CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE(uF)/RATED VOLTAGE(V)
ALL CAPACITANCE VALUES ARE IN uF(P=pF)
ALL RESISTANCE VALUES ARE IN OHM.
ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.
ALL RESISTORS ARE 1/16W 5% METAL GLAZE RESISTOR.
UNLESS OTHERWISE SPECIFIED.2.
1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL
0V
REAR LEFT(+)
0V
FRONT LEFT(+)
FRONT RIGHT(+)
0V
5.6V
REAR RIGHT(+)
REAR LEFT(-)
FRONT LEFT(-)
FRONT RIGHT(-)
REAR RIGHT(-)
ACC
REMOTE/P-con
MEMORY
0V
0V
7.1V
0V
0V
*POWER CORD ASS'Y
0V
ANTENNA
FUSE 10A
8.5V
0V
7.0V
14.4V
3.6V
3.3V
3.9V
3.3V
3.3V
0V6.2V
6.2V
3.2V
3.5V
0.4V
3.8V
7.0V
3.8V
7.0V
7.1V
7.1V
7.2V
7.2V
7.2V
7.2V
7.2V
7.2V
7.2V
7.1V
8.5V
3.1V
3.1V
0V
0V
0V
0V
1.4V
0V
REGULATOR
LINE OUT
0V
CPU
(1/10W)
(1/10W)
TOMIC
POWER AMP.
TUNER
FM/AM
COMPONENTS IN ( ) INDICATE NOT USE.3.
(1/10W)
4MHz
ANT
TUNER CD
(1/8W)
RESET
MAIN PWB: GEB10322A
SDATUVR
SCLTUVR
FL-
FL+
RL-
RL+
RR+
RR-
FR+
FR-
PON_CD
FREQ_SEL
KEY1
DC_ERR
KEY2
VOL2
VOL1
RROUT
HC1-2
SDA
SDATUVR
SCLTUVR
SCLTUVR
RGBCLK
D-
D+
KEY0
LCDDA
LCDCL
LCDCE
VOL2
VOL1
REMOCON
RESET
RL/SUBL
RR/SUBR
FREQ_SEL
FROUT
FLOUT
REMOCON
CD.R
CD.L
RR+
RR-
KEY2
KEY1
KEY2
KEY0
SW3.3V
OFFSET2
BEEP
A9V
USBPON
RAUX-L
RAUX-G
RAUX-R
FAUX-L
FAUX-G
FAUX-R
USBPON
FROUT
RROUT
RLOUT
FLOUT
VDD3.3V
FAUX-R
FAUX-G
RAUX-G
RAUX-R
HC1-2
RSTCP
RESET
RAUX-L
CD8V
OFFSET
SDATUVR
REV
FWD
LCDDA
D-
D+
RLOUT
BU_DET
RESET
PSW
FAUX-L
CMDREQ
SDACP
SCKCP
BSIF_REQ
GATE
CMDBUCK
CMDSI
CMDSO
CMDCCE
DIMMER_IN
RGBCLK
RL/SUBL
RR/SUBR
SCKCP
SDACP
RSTCP
DRVMUTE
CDRESET
SW3
SW2
SW1
PSW
AMP_STBY
OFFSET2
MUTE
DIMMER_IN
BU_DET
TELMUTE
CDMUTE
SRAMSTB
AMP_MUTE
LCDCE
SW3
SW2
SW1
DRVMUTE
REV
FWD
CDMUTE
SRAMSTB
CDRESET
CMDCCE
CMDBUCK
CMDSI
CMDSO
LRCK
BCK
GATE
DATA
BSIF_REQ
CMDREQ
PON_CD
CD.L
CD.R
TELMUTE
BU_DETDATA
BCK
LRCK
LCDCL
MUTE
E_MUTE
AMP_MUTE
AMP_STBY
TU.R
TU.L
OFFSET
DC_ERR
BEEP
RL-
FL-
FR-
RL+
FL+
FR+
E_MUTE
TU.L
TU.R
!
!
!
!
sure to use the specified one.
When replacing those parts make
Parts are safety assurance parts.!
!
!
!
!
!
!
F901
X1
QAX0952-001Z
X701
QAX0966-001Z
X702
QAX0401-001
SWCLK
TP1
TRDA2
TP7
TP15
TEST4
SCL
TRCLK
TP10
TRDA0
TP9
TRDA1
TP8
TRDA3
TP6
RST
TEST3
TEST2
TEST5
TP12
SN
GND
TEST1
VDD
SWDIO
TP2
SDA
R364
R362
R361
R751
22k
R304
0
R753
3.3k
R340
330
OPEN
R883
R701
R347
4.7k
R780
47k
R363
R365
R754
3.3k
R757
100k
R167 2.2k
R4
4.7k
R349
4.7k
R752
R6
220
R10
R739
10k
R2 680k
R303
R7
220
R1 680k
R3
R112
470
R778
270
R779
270
R341
22k
R351
22k
R770 4.7k
R758
100k
R366
R367
R790
27
R789
27
R722
47k
R165
100
R163
100
R302
47k
R781
330
R786
10K
R775
15k
R784
10K
R783
100K
R310
R132
470
R776
15k
R368
R150
R373
R746
47k
R720
47K
R169
R168
R750
3.3k
R893
12k
R987
R891
10k
R965
10K
R785
R161
10k
R162 0
R8
22
R782
820
R721
1M
R342
180
R771 4.7k
R100
0
R730
47k
R728 47k
R102
0
R110
0
R904
R738
2.2k
R737
910
R732
4.7k
R894
0
R952
330
R951
1K
R981
91K
R772 4.7k
R773
4.7k
R715
100
R907
1.5M
R908
4.7k
R909
27k
R131
47K
R892
68k
R121
47K
R881
27k
R974
47k
R973
20k
R971
10k
R972
10k
R111
47K
R101
47K
R970
47k
R332
180
R759
47k
R307
0
R352
180
R743
47k
R742
47k
R306
R749
3.3k
R718 47k
R774
4.7k
R320
330
R357
4.7k
R322
180
R321
22k
R331
22k
R330
330
R731
47k
R358
4.7k
R323
0
R333
0
R723
47k
R762 4.7k
R747
24k
R733
4.7k
R768 4.7k
R311
0
R791
0
R793 0
R976
68k
R350
330
R975
47k
R788
R9
R152
R160
R702
2.2K
R901
10k
20
R794
R906
5.6K
270
R962
110K
R986
R851
4.7k
R882
4.7k
R11
R763
4.7k
R764
R941 4.7k
R795
47k
4.7k
R983
27K
R982
R760
10k
R756
10k
R713
910
R727
47k
R902
3.9k
R712
100
R741 10k
R740 10k
R736
47k
22
R995
R735
47k
R765
R766
R767
R151
R744
47k
R724
4.7k
R703
910
R704
R706
220
1K
R777
R725
47k
R82
100
R726 47k
R708
100
Q781
LTC024EUB-X
Q952
LTC044EUB-X
Q881
LTC014EUB-X
Q782
LTA024EUB-X
Q780
LTA024EUB-X
2SC1623A/5-6/-X
Q970
2SC1623A/5-6/-X
Q971
Q951
2SA812A/5-6/-X
L701
4.7u
L7
4.7
L901
QQR1883-001
L981
22u
L6
560u
L5
560u
L2
1.8u
L161
L982
4.7u
L3
0.27u
L9
0.47u
L1
0.47u
L8
4.7u
L10
NQR0007-002X
R130
L703
NQR0007-002X
R122
NQR0007-002X
R120
NQR0251-002X
L11
NQR0251-002X
L12
KEY0100
KEY199
KEY298
STAGE 197
STAGE 296
TEL MUTE95
AVCC394
ENC293
RGB_CLK92
NO USE91
NO USE90
/NMI89
D-88
D+87
DVSS86
DVCC385
X284
CVSS83
X182
CVCC381
XT280XT1
79
REGVCC3
78NC77
USB_PON
76
SCL CP
75
SDA CP
74
BSIF-REQ
73
CP RESET
72
SCL TU EVOL EEPROM
71
SDA TU EVOL EEPROM
70
CMD_REQ
69
DRVMUTE
68
GATE
67
REV
66
FWD
65
SWCLK
64
SWDIO
63
DVSS
62
DVCC3
61
BU_DET(PS2)
60
CMD_BUCK
59
CMD_SI
58
CMD_SO
57
CMD_CCE
56
CD_RST
55
CD_MUTE
54
PON_CD
53
SRAMSTB
52
SW3 (LOAD END)
51
SW2 (EJECT END)
50
SW1 49
PSW(RST SW) 48
AMP MUTE 47
RCA MUTE 46
NC 45
HC1_2 44
NC 43
AMP STBY 42
DIMMER 41
NC 40
PNO_FL 39
NO USE 38
SN 37
DVSS 36
DVCC3 35
TEST1 34
DC OFFSET DET 33
PON_PANEL 32
REG1-1 31
NC30NC29NC28NC27NC26NC25NC24ACC DET(PS1)23REG1-322DATA21BCK20LRCK19REG2-218REC2-117REMO16DVSS15FREQ_SEL14VFD/LCD_CL13VFD_PAN_DA/NC
12
VFD/LCD_DA11REG1-210VFD_CE9VFD_INH8BEEP7MODE6/RESET5VREFH4AVSS3ENC12DC OFFSET DET
1
IC701
JCV8019
AMRFIN
1
AMRFDEC
2
FMRFIN23FMRFIN14GNDRF5VCC6AMRFAGC7LOUT8ROUT9AGND10AMIFAGC211MPXIN12MPXOUT13RSSI14TEST15XTAL
16
DGND
17
SCL
18
SDA
19
VREF
20
VREG
21
VCC
22
GNDRF
23
VCO
24
PLL1
25
PLLREF
26
PLL2
27
AMSELIN128AMSELIN2
29
AMIFAGC1
30
AMSELOUT1
31
AMSELOUT2
32
IC1
TEF6614TV1S4-X
SE1L1SE1R2SE2L3SE2R4SE3L5SE3R6QD1L7QD1G8QD1R9QD2L10QD2G11QD2G_QP2R12QD2R_DSEL13CREF
14
GND
15
SWR
16
SWL
17
OUTRF
18
OUTRR
19
OUTLR
20
OUTLF
21
WINTC
22
MUTE
23
VDD
24
SCL
25
SDA
26
DC_ERR
27
WIN_IN
28
IC161
TAB
1
GND
2
OUTFR-
3
STBY
4
OUTFR+
5
VCC1/2
6
OUTRR-
7
GND
8
OUTRR+
9
RIPPLE
10
INFR
11
INRR
12
PRE-GND
13
INRL
14
INFL
15
AC-GND
16
OUTRL+
17
GND
18
OUTRL-
19
VCC3/4
20
OFFSET
25
GND
24
OUTFL-
23
MUTE
22
OUTFL+
21
TB2931HQ
IC301
EXT15ANT OUT14SW5V13VDD5V12ACCOUT11ACC IN10GND9CTRL18VCC7CTRL26AUDIO OUT5AUDIO F4CD OUT3ILM F2ILM OUT
1
IC901 LV5680P
LX
1
GND
2
VC
3
FB4SYNC
5
EN
6
BST
7
VCC
8
BD9673EFJ-X
IC981
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WPIN
7
VDD
8
IC771
BR24T02FJ-W-X
MODE1
1
NC
2
nRST
3
VCC4VSS
5
SCL
6
SDA
7
MODE0
8
MFI341S2313-X
IC80
6
5
4
3 2
1
Q341
IMX9-W
654
3 2 1
Q321
IMX9-W
VIN
4
VOUT3GND
2
CTRL
1
IC931
XC6213B332NG-X
VDD
4
RST
3
GND2NC
1
IC702
XC6120N282NG-X
8 7
6 4
321
QQR1872-001
L4
D781
BAW56-TP-X
-
D321
BAW56-TP-X
-
D341
BAW56-TP-X
-
D783
BAW56-TP-X
-
D891
BAW56-TP-X
D780
BAW56-TP-X
-
DZ2J062/M/-X
D704
D121
RKZ6.8B2KG-X
D971
D100
RKZ6.8B2KG-X
D970
D120
D110
D101
D111
D131
D130
RKS801KF-X
D1
D901
1N5401-BPC04
D942
MBRX130-TP-X
D941
MBRX130-TP-X
D902
MBRX130-TP-X
D851
MBRX130-TP-X
D852
MBRX130-TP-X
D782
RKS801KF-X
D981
DB22306-X
RKS801KF-X
D2
C168
C903
47/16
C24
100/16
C901
2700/16
C320
10/50
QEKJ1CM-106Z-S
C160
10/16
C350
10/50
C330 10/50
QEKJ1EM-107Z-S
C172
100/16
C309
22/16V
C174 4.7/35
C162 4.7/35
C881
22/16
C963
100/10
C910
10/25
C904
47/16
C932
330/6.3
C704
100/16
C913 330/6.3
C340
10/50
C906
100/16
C907
330/6.3
QERF1CM-106Z-E
C310
10/16
0.47
C301
N
0.47
C304
N
0.47
C303
N
0.47
C302
N
C716 0.1
C933
0.1
C931
0.1
C984 0.1
C724
18p
C902
0.47
C703
0.01
C725
15p
C177
1
C989
10
10
C908
C909
C891
0.1
10
C987
C368
C941
0.1
C122
1
C990 0.1
C727
27P
C954
0.1
C912 0.1
C120
C316
C317
C318
C319
C728
0.01
C6
6P
C1
1000P
C2 7p
470p
C26
2p
C27
C131
1
C731
0.1
C732
C8
0.1
C733 10
C28
C29
C130
C915
C706
0.1
C121
1
C111
1
C102
1
2p
C794
C986
C101
1
C911
C719
1
C992
C110
C351
100p
C720
10
C994
C780
0.1
C729
0.1
C341
100p
C321
100p
C100
C308
0.47
C307
0.47
C306
0.47
C305
0.47
NCB21AK-105X-A
C313
1
C132
0.1
C331
100p
C712
0.1
C713
0.1
C714
0.1
C715
0.1
C171 1
C170 1
C169 1
C80
0.047
C985 10
C983
6800p
10
C981
C982
C708
0.1
C711
0.1
C311
C723
0.047
C705 0.1
C5
15p
C314
1
C173
1
C166
C315
1
C312
C702
10p
C21
0.1
C161
1
C4
0.22
C701
10p
C10
1
C19 0.1
C13 1
C851
C15
0.1
C16
0.01
C942
C18
0.01
C12
0.01
C11
0.01
C17 0.1
C23 0.1
C905
0.1
C7
27P
C14
0.22
C22
0.1
C717
0.1
C718 0.47
C112
0.1
C20
12p
C3
1000P
G
3
R
2
L
1
J120
QNS0307-001
GND
J321
GND
2
1
QNB0190-001
J1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
QGB1004K1-24
CN701
18171615141312111098765432
1
CN901
QNZ0607-001
To ELECTRIC UNIT-2
ELECTRIC UNIT-1
CN601
To SWITCH UNIT
L&R
L&R / Subwoofer
Line Out (Rear)
Bluetooth Adapter
Rear AUX-IN /
POWER CONNECTOR
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)4/
Page 21
3.6V
0V
3.6V
3.6V0V0V
0V
0V
0V
0V
1.6V
1.6V
3.6V
0V
3.6V
0V
0V
3.6V
3.6V0V3.6V
0V
3.5V
9.7V
0V
7V
1.4V
12.5V
4.4V
5V
7V
7V
3.3V
1.6V
1.6V
1.6V
3.6V
3.6V
7V
S.GND
1.7V
0V
3.3V
1.5V
3.3V
1.6V
1.6V
1.6V
3.3V
1.5V
1.6V
VDD5V
1.9V
2.4V
3.0V
1.5V
3.3V
0V
0V
0V
4.6V
4.6V
4.6V
4.6V
1.6V
1.4V
1.6V
0.9V
3.3V
0V
3.3V
2.5V
0V0V3.3V
0V
0V
2.5V
0V
0V
3.3V
3.3V
1.4V
1.5V
3.3V
1.5V
0V
0V
0V
0V
0V
3.3V
3.3V
0V
0V
1.7V
0V
1.6V
1.9V
1.6V
3.3V
1.9V
1.6V
0V
1.6V
0V0V0V0V0V0V0V
0V
1.5V
1.6V
1.6V
1.9V
1.9V
1.8V
1.9V
1.9V
1.6V
0V
2.2V
0V
0V
1.6V
1.3V
1.6V
1.6V
3.3V
1.6V
1.6V
1.3V
MAIN PWB: GEB10322A
-
4.2V
4.2V
+
4.2V
0v
4.2V
4.2V
8.5V
VCC
4.2V
GND
-
+
CD LPF
BTLGND
LASER DIODE CIRCUIT
16.9344MHz
MAINGND
BTL_DMO
BTL_FMO
BTL_TRO
BTL_FOO
SP-
FOCUS-
FOCUS+
TRK+
TRK-
VREF
DRVMUTE
LOAD+
LOAD-
SP+
FEED+
FEED-
VREF
DSPL
DSPL
BTL_TRO
CD.L
A9V
CD.R
VREF
VREF
DSPR
BTL_FOO
BTL_FMO
BTL_DMO
VT2
HC1-2
HC1-2
FOCUS-
FOCUS+
VT1
VF1
CD8V
PON_CD
FWD
REV
TRK+
FEED+
LOAD+
LOAD-
PSW
SW3
SW2
SP+
SP-
FEED-
CD_MD
SW1
VF2
TRK-
SW3
CD_MD
PSW
SW2
SW1
DRVMUTE
REV
FWD
CDMUTE
VT1
VT2
VF2
VF1
SRAMSTB
CDMUTE
SRAMSTB
CDRESET
CDRESET
CMDCCE
CMDBUCK
CMDSI
CMDSO
CMDCCE
CMDBUCK
CMDSO
CMDSI
LRCK
BCK
GATE
DATA
BSIF_REQ
CMDREQ
CMDREQ
BSIF_REQ
GATE
DATA
BCK
LRCK
PON_CD
DSPR
!
!
sure to use the specified one.
When replacing those parts make
Parts are safety assurance parts.!
3 2 1
X540
QAX0929-001Z
TSDO
VREF
TE
AFR
FE
/DET
IPTFOK
RF
R587
47K
R595
R556
0
R579
10k
R582
220k
R590 10k
R563
100
R562
100
R589 10k
R564
100
R561
100
R599
47k
R560
100
R559
100
R565 10K
R596
R593
20k
R566 10K
R588
220K
R584 10k
R567 100
R568 100
R569 100
R577
10K
R576
10K
R572 100K
R571 10K
R518
0
R517
R516 33k
R510 47K
R507
56K
R514
R504
270k
R570 100
R574
15K
R573
330K
R530
0
R547 4.7
R540
220
R553 47K
R545
2.2M
R558
1M
R549
1K
R546
R5020R503 0
R581 47k
R598 47k
R548 100K
R592
20k
R554
4.7
R583 10k
R597
10k
R594 10
R555
4.7
R534
R506
30K
R557
470
R550
4.7K
R575
3.3k
R505
100K
R513 0
R508 0
R512 0
R509 0
R511
13K
R501
110K
R519
33K
Q540
2SA2188/F/-X
NQR0502-001X
L561
NQR0502-001X
L564
NQR0502-001X
L565
NQR0502-001X
L563
NQR0502-001X
L562
NQR0502-001X
L531
VCoF 80
PVREF 79
LPFo
78
LPFN
77
TMAX
76
PDo 75
VDDM1
74
/SRAMSTB 73
VSS-1
72
VDD-1 71
TEST 70
/RST 69
MS
68
/CCE 67
BUCK 66
BUS3 65
BUS2 64
BUS1 63
BUS0 62
VDD3
61
Pio7
60
Pio6
59
Pio5
58
Pio4
57
Pio3
56
Pio2
55
Pio1
54
Pio0
53
VSS-2
52
VDD1-2
51
XVDD3
50
Xo
49
Xi
48
XVSS3
47
DVSS3L
46
Lo
45
DVDD3L
44
DVDD3R
43
Ro
42
DVSS3R
41
CDMoN340
Pio14/CDMoN239
Pio13/CDMoN138
Pio12/CDMoN0/FGiN37
Pio1136
Pio1035
Pio934
Pio833
VDD1-332
DMo31
FMoS30
FMo29
VSS-328
TRo27
Foo26
AVDD325
TEi24
RFRP23
RFZi22
FSMoNiT21
LDo
20
MDi
19
AVSS3
18
VRo
17
TNi
16
TPi
15
FPi1
14
FPi2
13
FNi1
12
FNi2
11
RVSS3
10
RFo
9
AGCi
8
DCoFC
7
RFEQo
6
RFRPI
5
RFI
4
SLCO
3
RVDD3
2
VCOI
1
JCV8022
IC540
VO3+
44
VO2-
43
VO2+
42
VO1-
41
VO1+
40NC39NC38NC37
PGND2
36
VM2
35
VIN134VIN233VIN3
32NC31
VIN4
30NC29
SWREG
28
GND
27FB26
REG0
25
VREF
24
TSDO
23
EN122EN221REG520VCC19NC18NC17NC16VCONT15REV14FWD13VG12CP11CPC10VM19PGND18NC7NC6LO-5LO+4VO4-3VO4+2VO3-
1
LV8281VR-X
IC501
1234
5 6 7 8
NJM4565E-X
IC580
VIN
4
VOUT3GND
2
CTRL
1
IC531
XC6213B152NG-X
VIN
4
VOUT3GND
2
CTRL
1
IC530
XC6213B332NG-X
VIN
4
VOUT3GND
2
CTRL
1
IC532
XC6213B152NG-X
D502
GS1J-LTP-X
D503
RKS801KF-X
D540
C514
100/10
QERF1EM-475Z-E
C584
4.7/25
QERF1EM-475Z-E
C586
4.7/25
QEKJ0JM-476Z-S
C590
47/6.3
QEKJ0JM-476Z-S
C591
47/6.3
C550 10
C510
C509
C508
C531
0.1
C530
1
C552
0.033
C553 4700p
C554 330P
C555 680P
C556 0.068
C557 0.033
C532
1
C546 1
C548 68p
C549
0.1
C547
0.015
C545 0.1
C544 3300p
C543
0.01
C541 2200p
C540 0.1
C533
0.1
C511
470p
470P
C512
C572
0.015
C574 0.01
C573
0.1
C571
47p
C569
0.1
C567 1
C534
0.1
C513
0.1/16
C503
C575
C576
1500p
C592
C585
68p
C582
C535
0.1
C593
C595
68p
C587
68p
C516 0.1
C588
0.1
C504 0.1
C570
0.1
C583
C594
68p
C561 10
C562 10
C565
0.1
C564
0.1
C559
0.1
C542 0.1
C568
0.1
C566
0.1
C558
0.1
C551
0.1
C505
0.047
C506
0.22
C507 0.1
C501
0.1
TRK-
26
TRK+
25
FOCUS+
24
FOCUS-
23
GND
22
LD
21
GND
20
SPINDLE-
19
SPINDLE+
18
FEED-
17
FEED+
16
LOAD+
15
LOAD-
14
HC1_2
13
GND
12
MD
11
VREF
10
VT1
9
PSW
8
VT2
7
SW1
6
VF2
5
SW2
4
D3.3V
3
SW3
2
VF1
1
CN502
QGF1040F1-26
ELECTRIC UNIT-2
To ELECTRIC UNIT-1
CN101
To CD PLAYER UNIT
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)5/

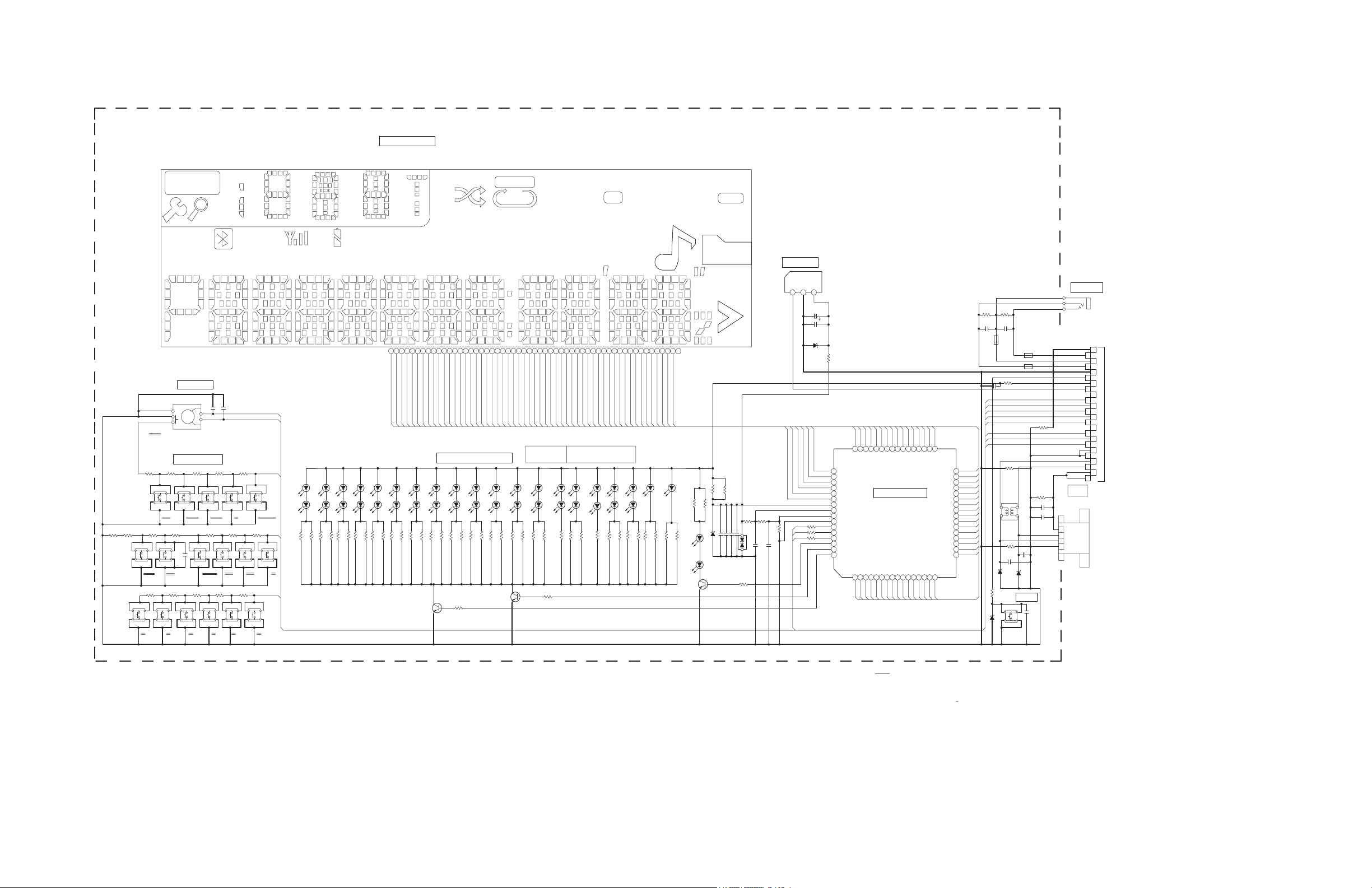

Page 22
D649 - D659
0.7V
0V
( )
NI NI
KLB-16B-X
(BLUE)
(1/8W)
USBGND
D+
D-
GND
REMOCON
11.5V
RESET
RESET
REG
PTY
HD
LOUD
ST
Tr
HOLD
P
TAG
MENU
AF
TP
D629 - D646
D662 - D664
D627 - D628
USB
(1/8W)
(1/8W)
5
6
(1/8W)
3
4
(1/8W)
1
2
(1/8W)
EQ
EQ
(1/8W)EQ(1/8W)
EQ
BRIGHT
BRIGHT
(1/8W)
FWD
RWD
(1/8W)
DOWN
DOWN
(1/8W)
UP
UP
(1/8W)
VOL
VOL VOL
(1/8W)
VOL
(1/8W)
BACK
BACK
(1/8W)
MENU
(1/8W)
MENU
SOURCE
SOURCE
(1/8W)
DIPLAY
(1/8W)
EJECT
(1/8W)
(1/8W)
(1/8W)
S601~S617: NSW0246-001X
46 3 15 2
1.6v
0V
0V
0.7V
0.3V
(1/8W)
2.4V
2.4V
D-
D+
GND
USB
VCC
2.4V
2.4V
2.4V
AUX-IN
B
A
COM
COM
SW
BACK LIGHT
SELECT
1.7V
3.2V
NAF0029-001X
BRIGHTNESS EQ
POWER/SRC
T --- TANTAL CAPACITOR.
NOTES
ALL E.CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE(uF)/RATED VOLTAGE(V)
ALL CAPACITANCE VALUES ARE IN uF(P=pF)
ALL RESISTANCE VALUES ARE IN OHM.
ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.
UNLESS OTHERWISE SPECIFIED.2.
1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL
(1/8W)
COMPONENTS IN ( ) INDICATE NOT USE.3.
OV 3.3V
SW PWB:GEB10329A
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
2.4V
1.6v
1.6V
2.4V
2.4V
2.4V
2.4V
2.4V
0V
5.1V
ENCODER
LCD DISPLAY
REMOCON
VDD
3.3V
GNDOUT
BACK
DISP
LCD DRIVER
LIGHTING DISPLAYKEY MATRIC
ALL RESISTORS ARE 1/16W +5% METAL GLAZE RESISTOR.
DOWN UP
MENUEJECT
B-SKIPF-SKIP
2.4V
2.4V
USB5V
VOL2
VOL1
VDD
KEY1
KEY0
KEY2
LCDDA
LCDCL
LCDCE
VOL2
VOL1
AUX-R
AUX-GND
AUX-L
COM4
COM3
COM2
COM1
S39
S38
S37
S36
S35
S34
S33
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S18
S17
S16
S15
S14
S13
S12
S11
S10S9S8S7S6S5S4S3S2S1S40
S41
S42
S43
S44
S45
S46
S47
S48
S49
S50
VDD1
S1S2S3S4S5
S16
KEY2
P3
P2
P1
VDD2
KEY0
KEY1
S34
S6S7S8S9S10
S11
S12
S13
S14
S15
S17
S19
S18
S21
S23
S20
S24
S26
S25
S28
S27
S29
S30
S32
S31
S33
S35
S36
S37
S38
S40
S39
S41
S42
S43
S44
S45
S47
S48
S46
COM1
COM3
S50
S49
S22
COM2
COM4
LCDDA
LCDCE
LCDCL
NSW0246-001X
S618
S611 S610 S606S607S608S609
S601S602S603S604S605
S617 S614S615S616 S612S613
R605
2.7k
R624
1K
R667
100
R692
100
R622
R625
820
R663
1K
R641
R662
1K
R602
820
R657
820
R640
R660
470
R601
820
R656
820
R639
R694
R693
R655
820
R654
820
R675
R671
R638
R653
820
R658
R633
R637
R627
R636
R681
330
R652
820
R650
820
R677
R672
R634
R649
820
R664
1K
R617
3.9K
R648
820
R618
10K
R604
1.8k
R632
R647
820
R603
1.2k
R613
820
R631
R646
820
R630
R691
10K
470
R659
R645
820
R629
R678
0
R661
R644
820
R628
R670
470
R668
1.5K
R607
820
R616
2.7k
R643
820
R669
2.7k
R642
820
R611
2.7k
R609
1.2k
R626
R621
R614
1.2k
R610
1.8k
R666
100
R620
R623
1K
R665
100
R676
1.5
R615
1.8k
R608
820
R612
820
2SC6046-X
Q632
LSCR523UB-X
Q633
Q631
LF691
NQR0682-001X
L674
NQR0007-002X
L670
NQR0007-002X
L673
NQR0007-002X
3 4
12
5
QSW1231-002
JS601
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16151413121110987654321
PT16580-LQ
IC661
IC681
KSM-2003TN5B
D661
D664
D643 D653
D693
D627
D629
D630
D628
D631
D632D634
D633
D636
D635
D638
D662 D637
D640
D639
D663 D642
D641
D644
D658
D646
D645D649
D650
D694
LW812-001A-X
D651
D652D659
D665
D667
D668
D666
D654
D655D657
D656
D660
RKZ5.1B2KG-X
D695
D691
DZ2J051/M/-X
D692
DZ2J051/M/-X
D681
RKZ3.3B2KG-X
C681
C662
1
C691
10
C692
0.0047
C672
0.0047
C671
C665
1
C679
27p
C680
27p
C682
0.1
C661
C683
0.1
C667
C668
C669
C670
C693
C663
0.1
C664
0.1
3
2
1
QNS0299-001
J601
5554535251504948474645444342414039383736353433323130292827262524232221201918171615141312111098765432
1
QLD0700-001
LCD1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
QGB1004J2-24X
CN601
4
3
2
1
QNZ1076-001
CN603
SWITCH UNIT
CN701
UNIT-1
To ELECTRIC
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)6/
Page 23
LVB11141-A2
SW GND
LD
SW3
FOCUS-
LD
VR
MD
VT2
TRACKING+
Vc
VF2
VT1
GND
Vcc
TRACKING-
VF1
FOCUS+
GND
VT1
GND
VF1
FOCUS+
Vc
VF2
Vcc
TRACKING-
GND
FOCUS-
LD
VT2
VR
TRACKING+
MD
109876
5 4 3 2 1
HDU-120
0.1
1k
0.1
1
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
PICKUP A'SSY
OPTIMA-750B1
FOCUSING COIL TRACKING COIL
SPINDLE+
MD
PSW/REST
SW2
FEED+
SPINDLE-
TRACKING-
SW1
FOCUS-
VT1
Vcc
LVB11141-A1
MOTOR
MOTOR
MOTOR
LOAD
FEED
SPINDLE
LOADING-
LOADING+
GND
FEED-
TRACKING+
FOCUS+
GND
VREF(Vc)
VF1
VT2
VF2
SW GND
REST SW
SW2
TR-
LD
LD
SW1
SW2
SW3
VT2
VCC
LO-
VT1
VC
MD
VF2
REST
VF1
LO+
FO+
SP-
FO-
FE+
FE-
TR+
SP+
SW1
SW3
TR-
TR+
FO+
FO-
MD
VF1
VC
VT1
VT2
VCC
VF2
LO+
LO-
FE-
FE+
REST
SP-
SP+
MGND
FE+
FE-
LO+
SP-
SP+
LO-
REST
SL1
SL2
NSW0291-001X
SW2
NSW0291-001X
SW4
NSW0291-001X
SW3
13
NSW0291-001X
SW1
R1 130
B1
0
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
QGF1044F2-26X
CN101
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
QGF0522F3-15W
CN102
CD PLAYER UNIT
CN502
To ELECTRIC UNIT-2
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)7/
Page 24

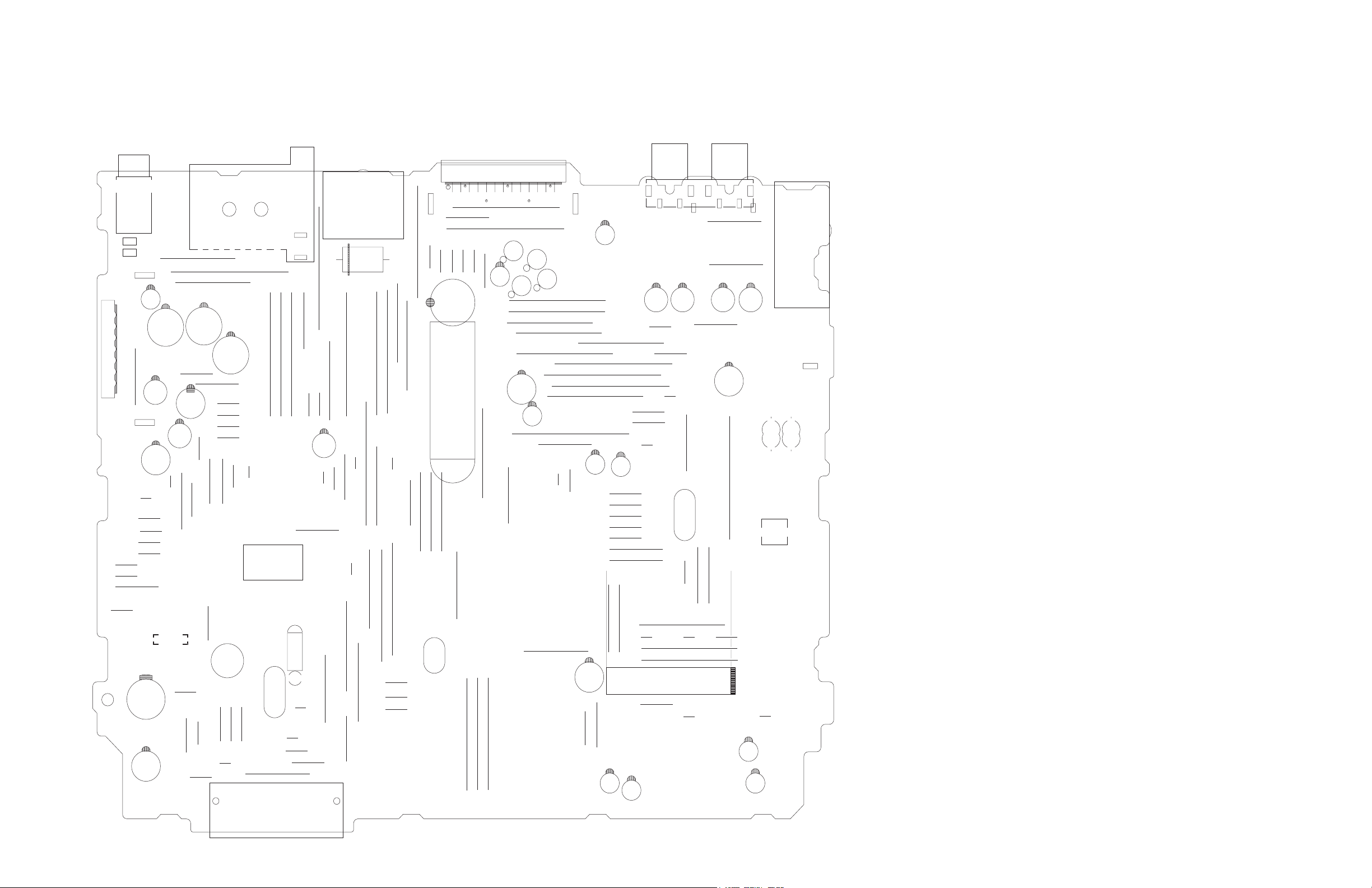

ELECTRIC UNIT
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
S1A
1
1
AGEA10322-
B925
B551
C913
B924
MARK
UL
C963
B503
B782
B784
B911
B186
B189
B190
B175
B185
B184
B5
B4
B180
B179
B178
B301
B529
B528
B527
B765
B307
B535
IC301
IC901
J120
L901
B763
B913
B764
B790
B791
B191
B766
B767
B792
B768
B762
B174
B173
B183
B181
L981
B540
B532
B533
B534
B538
B531
B167
B780
B779
B776
B966
B965
B963
B962
B777
B956
B785
B954
B775
B973
B760
B773
B972
B971
B953
B952
B951
B991
B949
B948
B947
B774
B941
B188
B940
B168
B163
B171
B172
B918
B989
B912
B910
B908
B905
B904
B903
B902
B936
B935
B916
B921
B302
B303
B304
B305
B979
B980
B310
B981
B960
B165
B984
B983
C584
B985
C586
B783
B974
C591
B978
B977
C514
B975
B794
B761
R902
B10
X540
B990
CN502
B793
B781
B933
B789
B115
B934
B788
B787
B982
B988
B108
B987
B109
B986
B101
B102
B955
B976
B786
B111
CN701
C704
B107
C330 C320
B104
B110
B106
B105
C881
C907
C304
N
C303
N
C301
N
C302
N
C932
C310
J1
X701
X1
X702
B944
J321
B795
R901
L4
C590
B117
L5
L6
D901
CN901
C162
C906
C903
C172
C340
C350
C901
C24
PbF
C174
C160
C309
C910
C904
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)8/
Page 25
P1A
T1A
B
B
E
E
VREF
RXM
TXM
T.M
1
1
A
A
1
1
1
1
1
1
GEB10322A
1
D
D
1
ARF
C
C
I
L
C
C732
C731
R790
R789
L531
L565
L564
L563
R788
D503
R783
D783
Q782
Q781
C728
C316
C317
C318
C319
R786
R373
R168
R401
R534
C727
D902
C913
C990
F101
R457
L561
R965
C963
L562
C595
R599
R579
C594
R598
R597
R784
C724
R987
R448
R459
R904
R739
R744
R738
R737
R732
R894
C985
C725
R470
R475
R952
R951
C120
R446
C576
R785
C132
R132
R962
C27
R577
C575
C535
R303
R304
R576
C368
C122
R121
D120
D121
C313
R306
IC301
RST
SN
SCL
SDA
R479
IC901
J120
R514
R517
R510
C532
R440
L901
C305
C306
C307
C308
R482
R451
R423
R405
C982
R409
R983
C983
R782
R428
R438
R102
R439
R100
R463
R982
R464
R981
C981
R10
R404
L981
R431
C26
R429
C984
D981
R414
R400
IC701
L10
R455
R437
C533
B970
B969
R860
R421
B964
B961
R861
B958
B957
C780
R991
R992
R993
C720
R761
R467
R468
R747
R419
B950
B946
B945
B943
D2
D1
B942
IC981
C729
IC532
R530
IC531
IC530
R760
R756
B939
L161
C995
R110
B938
B937
R989
R454
R11
R307
R718
R988
C353
R795
C719
R593
R592
R990
C582
C585
R589
C584
R594
IC580
C994
R745
R584
R583
R587
R582
C583
R590
C587
C586
R581
C588
R588
C513
C503
R575
R550
D540
C551
C550
R548
R546
Q540
R547
B968
C992
R734
L9
L2
C991
C591
R518
D502
R506
R511
R507
C516
R504
C504
R503
R502
R501
R519
C511
C512
C509
C510
C508
C514
R549
R545
C552
C553
C554
C555
C556
C557
C794
R794
R902
R553
C986
R986
C546
C548
C549
C547 C545
C544
C543
C541
C540
R540
R573
R574
C572
C574
C573
C571
C569
C567
R570
R571
R572
R569
R568
R567
R566
R565
R559
R560
R562
R564
R561
R563
R556
C534
C530
C531
C570
R554
R555
C561
C562
C565
C564
C559
C542
C568
C566
C558
R557
X540
R558
R595
C592
C593
R596
IC540
CN502
R403
R508
R768
R755
R712
C501
L703
R741
R740
R733
GND
VDD
SWDIO
SWCLK
R151
R150
R793
R311
R362
R361
C171
C170
C169
R777
D704
R363
R82
C80
IC80
C987
L982
C989
R792
R776
R775
C708
C711
CN701
R774
R773
R772
R771
R770
R779
R778
IC771
C723
R767
R766
R765
R764
R763
R762
R791
C704
R759
C716
R758
R757
R469
R752
R754
R753
R751
R750
R749
R743
R742
R736
R735
R731
B967
R730
R728
R715
R713
R727
R708
R726
R725
R706
R704
R703
R724
R723
R702
C715
C714
C713
C712
C130
R131
D131
R169
C121
C131
R130
R122
R120
R13
C352
R365 R366
R367
D130
R333
R323
C331
R358
R330
Q321
R331
R321
R322
R357
C330
R320
R332
C320
D321
C321
R368
R364
R516
C341
C351
D781
D780
R970
R972
R971
R973
R974
D971
D970
Q971
Q970
C706
C881
R881
R892
R909
R908
R907
C912
Q951
C954
Q952
C907
C911
C941
R460
R458
C304
C303
C301
C302
C507
C506
C932
C703
C933
IC931
C310
C6
L3
R8
C902
R505
C931
R513
C505
R162
C177
R161
C908
C909
C891
D891
R891
R893
J1
IC501
X701
X1
X702
C915
R512
R340
R995
R111
R101
R720
J321
R746
R1
R310
R781
R302
R163
R165
R722
R351
R341
R509
R112
R160
R9
R7
R6
R349
R4
C993
R167
R780
R347
R721
L701
R701
R883
R2
R342
R352
R976
R350
R975
R152
R901
R906
R851
R882
L7
R994
R941
R3
Q881
Q780
L4
C590
L8
L5
L6
IC1
IC161
R465
Q341
IC702
D341
D100
D110
D101
D111
D851
D941
D901
D942
D852
D782
CN901
C110
C100
C168
C162
C906
C903
C172
C340
C350
C29
C901
C24
C28
C174
C160
TP3
C733
C309
R495
C910
C904
C705
C5
C314
C173
C166
C315
C312
C8
L11
C702
C21
C161
C4
C701
C2
C10
C101
C19
C13
C851
C15
C16
C942
C18
C102
C12
C111
C11
C17
C23
C905
L12
C7
C14
C22
L1
C717
C718
C112
C9
C1
C20
C3
C311
ELECTRIC UNIT
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)9/
Page 26

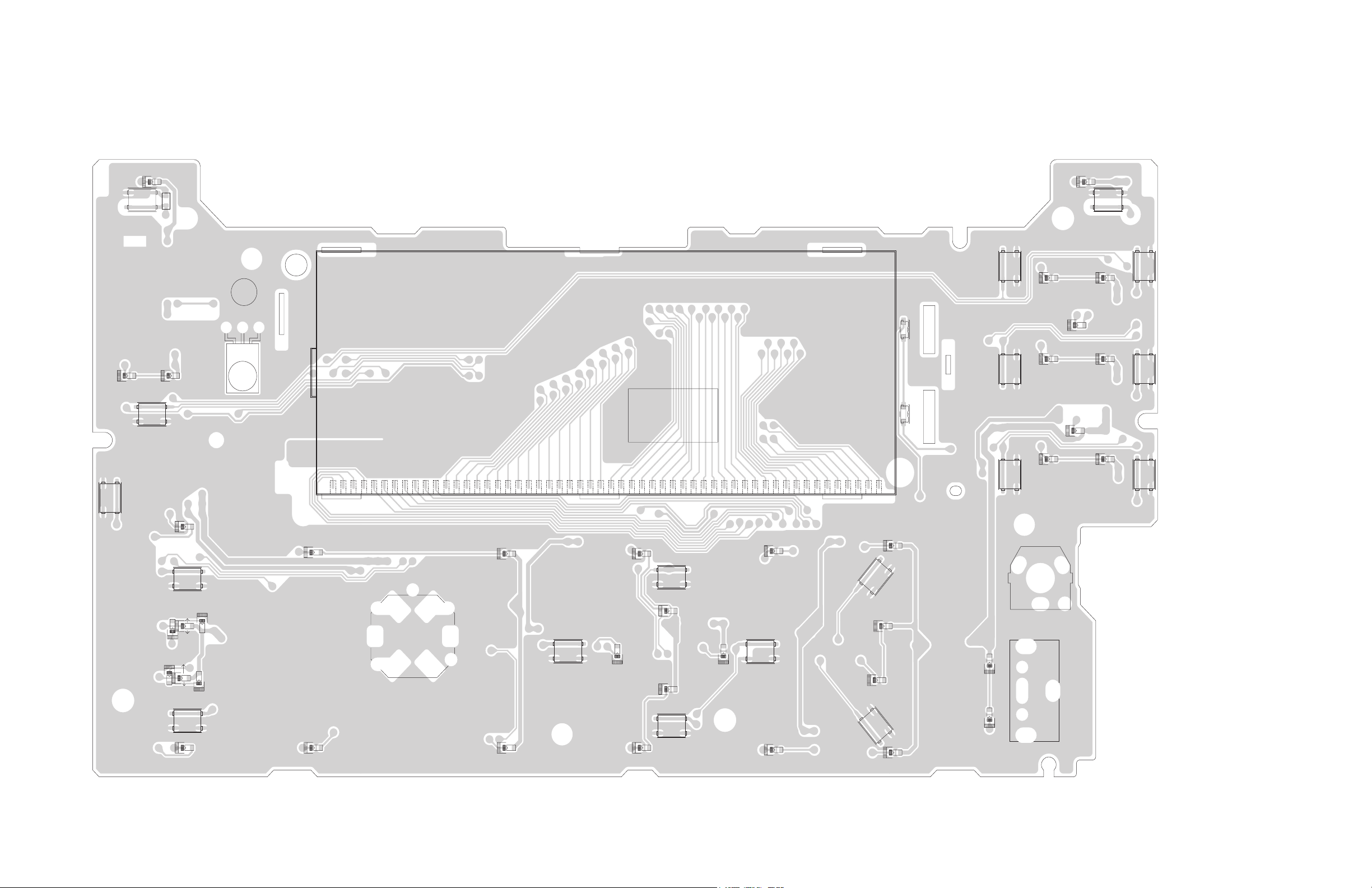

SWITCH UNIT
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
F1A
R696
R695
S1A
GEA10329- A
D668
D667
D664
LCD1
S618
D653
D662
D663
D658
D659
D656
D657
D655 D654
D652
D651
D650
D649
D666
D665
C693
D645
D646
D643
D644
D641
D642
D639
D640
D637D638
D635
D636
D633
D634
D632
D631
D630 D629
D627
D693
S613
S612S616
S615
S614
S617
D628
CN603
S605
S604
S603
S602
S601
S609
S608
S607
S606
JS601
S610
S611
J601
IC681
D694
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)10/
Page 27
P1A
GEB10329A
T1A
1
R694
C670
C669
C668
C667
R670
MARK
UL
PbF
CN601
D695
C683
R692
R622
R625
R641
R657
R640
R656
R639
R655
R654
R638
R653
R637
R636
R652
R693
R650
R634
R649
R633
R648
R632
R647
R631
R646
R630
R645
R629
R644
R628
R627
R643
R642
R626
R621
R624
R620
R623
C681
D681
R612
R615
R614
R616
R613
L673
L670
L674
R677
R675
C680
C679
R676
C665
R678
C671
C672
R669
Q633
R668
Q632
R661
Q631
R658
R659
D692
R691
LF691
CN603
C692
D691
C691
R618
R617
C662
C661
IC661
R681
JS601
R601
R660
R602
R662
R663
R605
R671
R672
R664
R604
R603
R611
R609
R610
R608
R607
R665
R666
R667
J601
IC681
D661
D660
C663
C664
C682

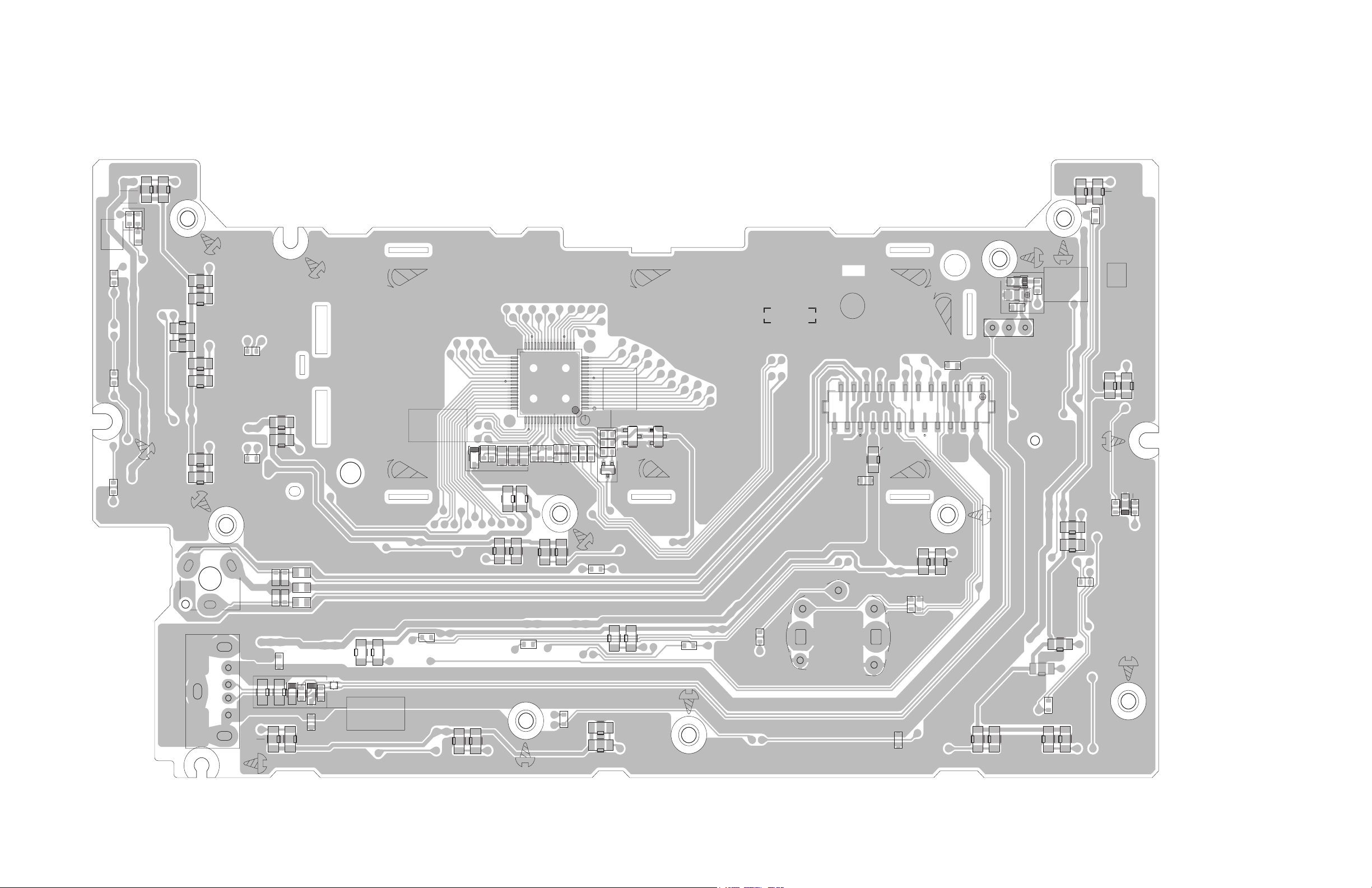

SWITCH UNIT
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)11/
Page 28
CN101
A1
SW1
B1
PbF
SW2
SW3
WHT
LO+
YEL
LO-
REST
ORG
ORG
MGND
SL1
WHT
FE-
SP-
SP+
RED
BLK
YEL
FE+
CN102
R1
LVA11141-
P2A
MARK
UL
SW1
SW3
SW2
C
N
1
0
2
B1
R1
CN101

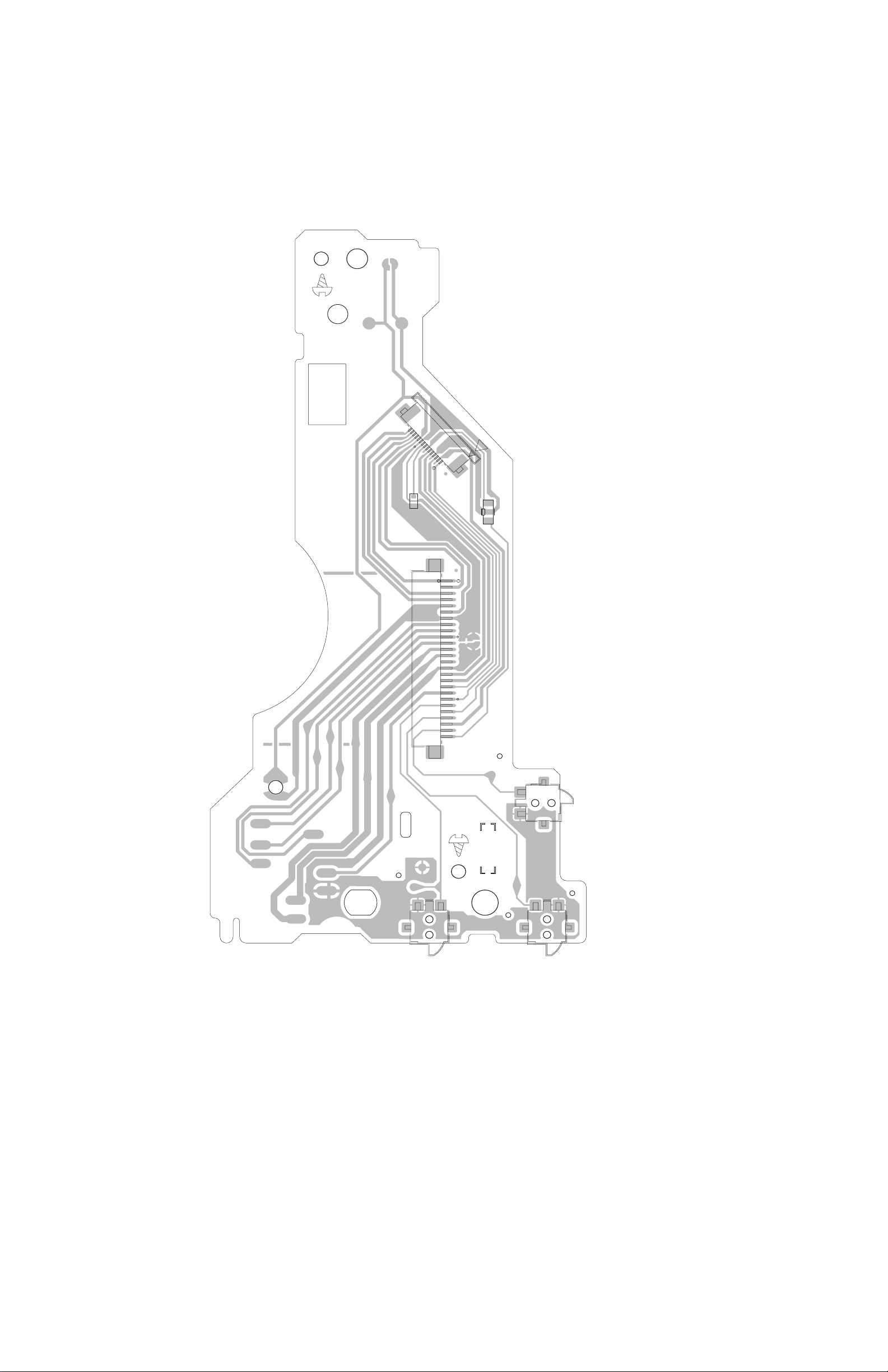

CD PLAYER UNIT-1
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)12/
Page 29
PbF
P2A
LVA11141-A2
SW4
SW4

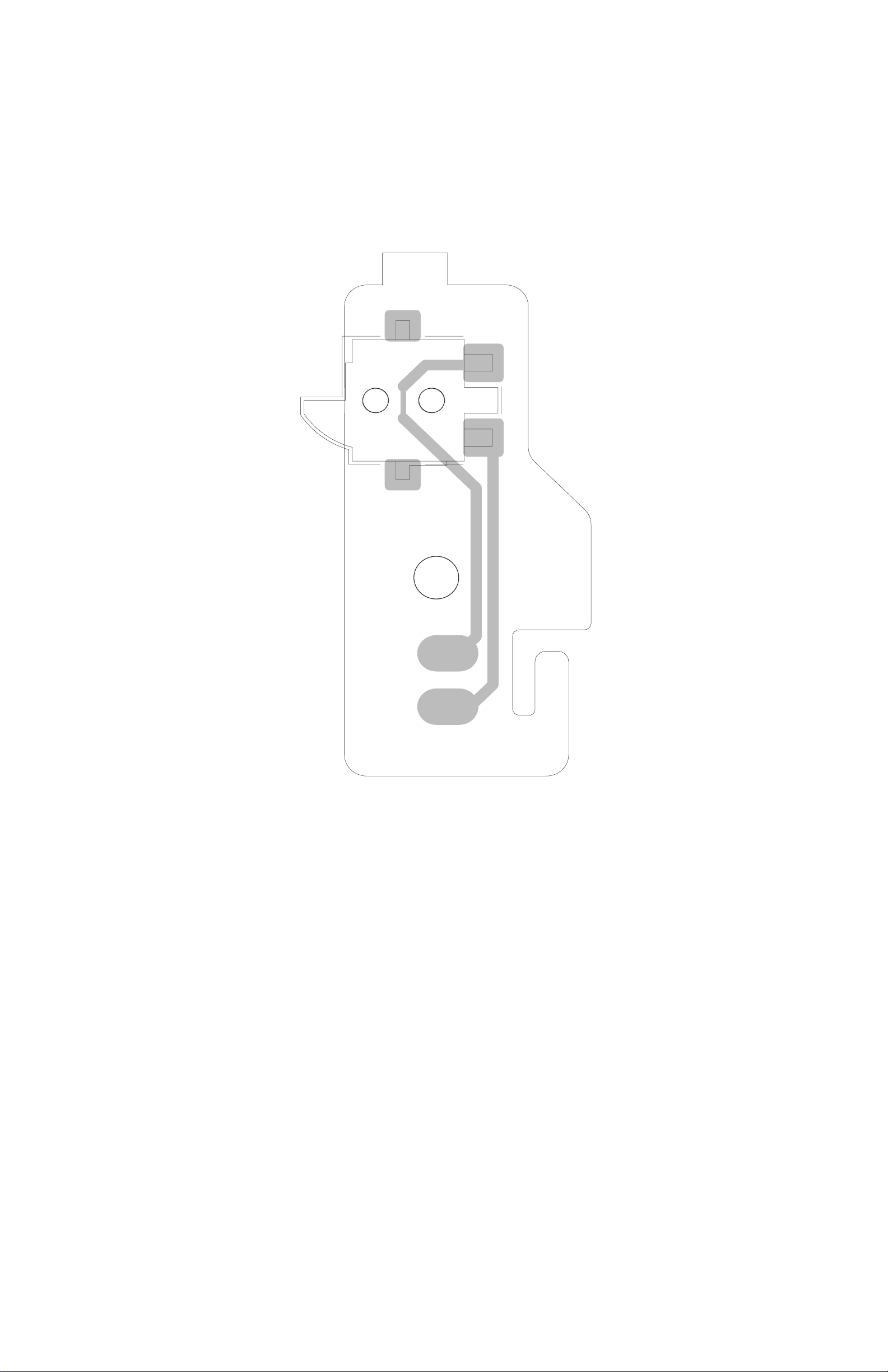

CD PLAYER UNIT-2
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
created date:2013-06-28No.MA512
13
(No.MA512<Rev.003>)13/
Page 30
PARTS LIST
23
CD RECEIVER
KW-R400E KW-R400EE KW-R400EN
KW-R400EY KW-R400SUN KW-R400U
KW-R400UN KW-R400UP KW-XG56T2U
(No.MA512<Rev.003>)1/
Page 31
■ PRECAUTIONS ON SCHEMATIC DIAGRAMS
z Due to the improvement in performance, some part numbers shown in the circuit diagrams
may not agree with those indicated in the Parts List.
z The parts numbers, values and rated voltage etc. in the Schematic Diagrams are for
reference only.
z Since the circuit diagrams are standard ones, the circuits and circuit constants may be
subject to change for improvement without any notice.
■ PRECAUTIONS ON PARTS LIST
z
The parts identified by the symbol are critical for safety. Whenever replacing these parts, be sure to
use specified ones to secure the safety.
z
The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No.
columns will not be supplied.
z
P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No.
columns will be supplied.
z
When ordering chips, screws etc., place bulk orders (unit of tens) whenever possible to improve
shipping efficiency.
z
There are cases where the actual implemented parts in the sets and the service parts are different.
When ordering parts, make sure to refer to the Parts List.
■
PRECAUTIONS ON SERVICE
Certain parts of the power circuits and the GNDs differ according to the models. Care must be
taken for the following points as the differences are indicated separately in the LIVE GND ( ) and
the ISOLATED (NEUTRAL) GND ( ).
1. Do not touch the LIVE GND, or do not touch the LIVE GND and the ISOLATED (NEUTRAL)
GND at the same time. It may cause an electric shock.
Before pulling out the chassis or other parts, make sure to pull out the power cord from the
wall outlet first.
2. Do not short circuit between the LIVE GND and ISOLATED (NEUTRAL) GND, or never
measure the LIVE GND and ISOLATED (NEUTRAL) GND at the same time using measuring
instruments (oscilloscope, etc.). It may blow fuses or damage other parts.
■ DEVIATION TOLERANCE RANGE
DEVIATION TOLERANCE RANGE
F G J K M N R H Z P
± 1% ± 2% ± 5% ±10% ±20% ±30%
+30%
-10%
+50%
-10%
+80%
-20%
+100%
-0%
23
(No.MA512<Rev.003>)2/
Page 32
PA1
N
N
N
N
M
M
LCD1
L
L
K
J
H
H
G
FC1
F901
F
F
F
E
E
E
E
E
E
D
D
C
C
C
B
B
B
A
A
A
A
A
A
A
233
229
228
228
227
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
a
a
702
721
732
722
730
724
723
726
731
701
725
Parts with the exploded numbers larger than 700 are not supplied.
Block No. M1MM

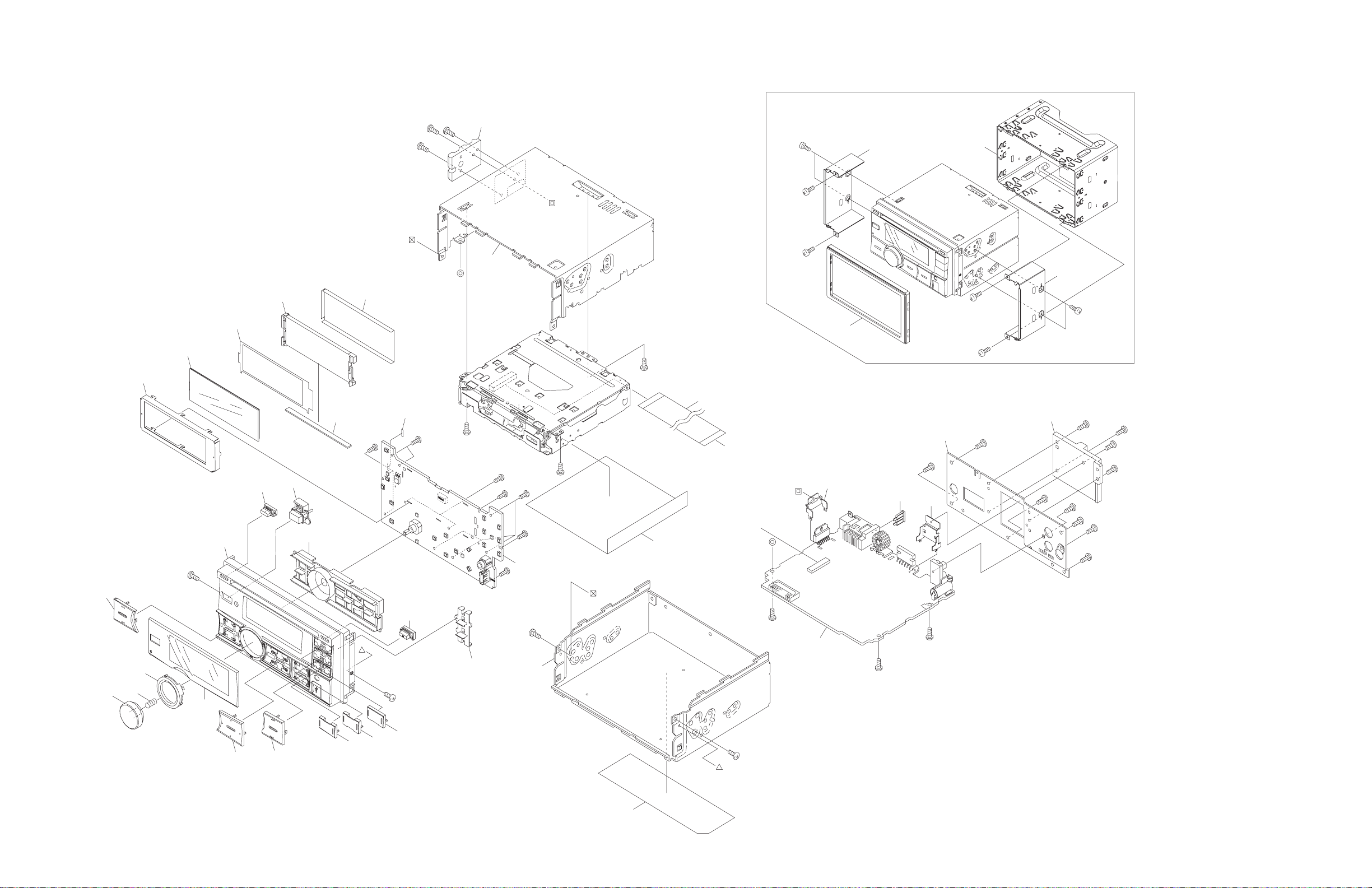

EXPLODED VIEW (UNIT)
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)3/
Page 33
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
EXPLODED VIEW (UNIT) <M1MM>
! F901 QMFZ064-100-J1 FUSE 10A 1 A,B,C,D,E,F,G,H
FC1 WJT0277-001A-E E-CARD WIRE 1 A,B,C,D,E,F,G,H
LCD1 QLD0700-001 LCD MODULE 1 A,B,C,D,E,F,G,H
PA1 GE34823-008A FRONT PANEL ASSY 1 A,B,C,D
PA1 GE34823-007A FRONT PANEL ASSY 1 E,F,G,H
A QYSDSF2006ZA TAP SCREW M2 x 6mm 13 A,B,C,D,E,F,G,H
B QYSDST2604ZA TAP SCREW M2.6 x 4mm 3 A,B,C,D,E,F,G,H
C GE40377-002A SCREW 3 A,B,C,D,E,F,G,H
D QYSDST2606ZA TAP SCREW M2.6 x 6mm 2 A,B,C,D,E,F,G,H
E QYSDST2606ZA TAP SCREW M2.6 x 6mm 6 A,B,C,D,E,F,G,H
F GE40377-001A SCREW 3 A,B,C,D,E,F,G,H
G QYSDSF2608ZA TAP SCREW M2.6 x 8mm 1 A,B,C,D,E,F,G,H
H GE40377-002A SCREW 2 A,B,C,D,E,F,G,H
J GE40377-003A SPECIAL SCREW 1 A,B,C,D,E,F,G,H
K QYSDST2608ZA TAP SCREW M2.6 x 8mm 1 A,B,C,D,E,F,G,H
L QYSDST2004ZA TAP SCREW M2 x 4mm 2 A,B,C,D,E,F,G,H
M QYSSSP5008ZA SCREW M5 x 8mm 4 A,B,C,D
N QYSDST2604ZA TAP SCREW M2.6 x 4mm 4 A,B,C,D
201 GE20304-001A FINDER 1 A,B,C,D,F,G,H
201 GE20304-017A FINDER 1 E
202 GE34802-001A EJECT BUTTON 1 A,B,C,D,E,F,G,H
203 GE34803-001A DISP. BUTTON 1 A,B,C,D,E,F,G,H
204 GE34804-001A LIGHT STRIP 1 A,B,C,D,E,F,G,H
205 GE34806-001A PRESET BTN 1 2 1 A,B,C,D,F,G,H
205 GE34806-002A PRESET BTN 1 2 1 E
206 GE34807-001A PRESET BTN 3 4 1 A,B,C,D,F,G,H
206 GE34807-003A PRESET BTN 3 4 1 E
207 GE34808-001A PRESET BTN 5 6 1 A,B,C,D,F,G,H
207 GE34808-002A PRESET BTN 5 6 1 E
208 GE34812-001A NAVI BUTTON 1 A,B,C,D,E,F,G,H
209 GE34815-001A EQ BUTTON 1 A,B,C,D,F,G,H
209 GE34815-007A EQ BUTTON 1 E
210 GE34816-002A MENU BUTTON 1 A,B,C,D
210 GE34816-004A MENU BUTTON 1 E
210 GE34816-001A MENU BUTTON 1 F,G,H
211 GE40582-001A SRC BTN ASSY 1 A,B,C,D,F,G,H
211 GE40582-003A SRC BTN ASSY 1 E
212 GE34820-002A VOL KNOB 1 A,B,C,D
212 GE34820-001A VOL KNOB 1 E,F,G,H
213 GE40127-005A KNOB SPRING 1 A,B,C,D,E,F,G,H
214 GE34817-002A RIM COVER 1 A,B,C,D
214 GE34817-001A RIM COVER 1 E,F,G,H
215 GE34813-001A RIM LENS 1 A,B,C,D,E,F,G,H
216 GE34821-001A LCD CASE 1 A,B,C,D,E,F,G,H
217 GE34822-001A LCD LENS 1 A,B,C,D,E,F,G,H
218 GE40572-002A LIGHT SHT(UNI) 1 A,B,C,D,E,F,G,H
219 GE40574-001A REFL. SHT(UNI) 1 A,B,C,D,E,F,G,H
220 QNZ1077-001 RUBBER CONNE 1 A,B,C,D,E,F,G,H
227 LV22425-007A SLEEVE ASSY 1 A,B,C,D
228 LV37151-004A SUPPORT BKT 2 A,B,C,D
229 GE20225-005A TRIM PLATE 1 A,B,C,D
233 GE40466-020A SPACER 1 E
(No.MA512<Rev.003>)4/
Page 34
PA1
LCD1
L
L
K
J
H
H
G
FC1
F901
F
F
F
E
E
E
E
E
E
D
D
C
C
C
B
B
B
A
A
A
A
A
A
A
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
702
721
732
722
730
724
723
726
731
701
725
Parts with the exploded numbers larger than 700 are not supplied.
Block No. M2MM

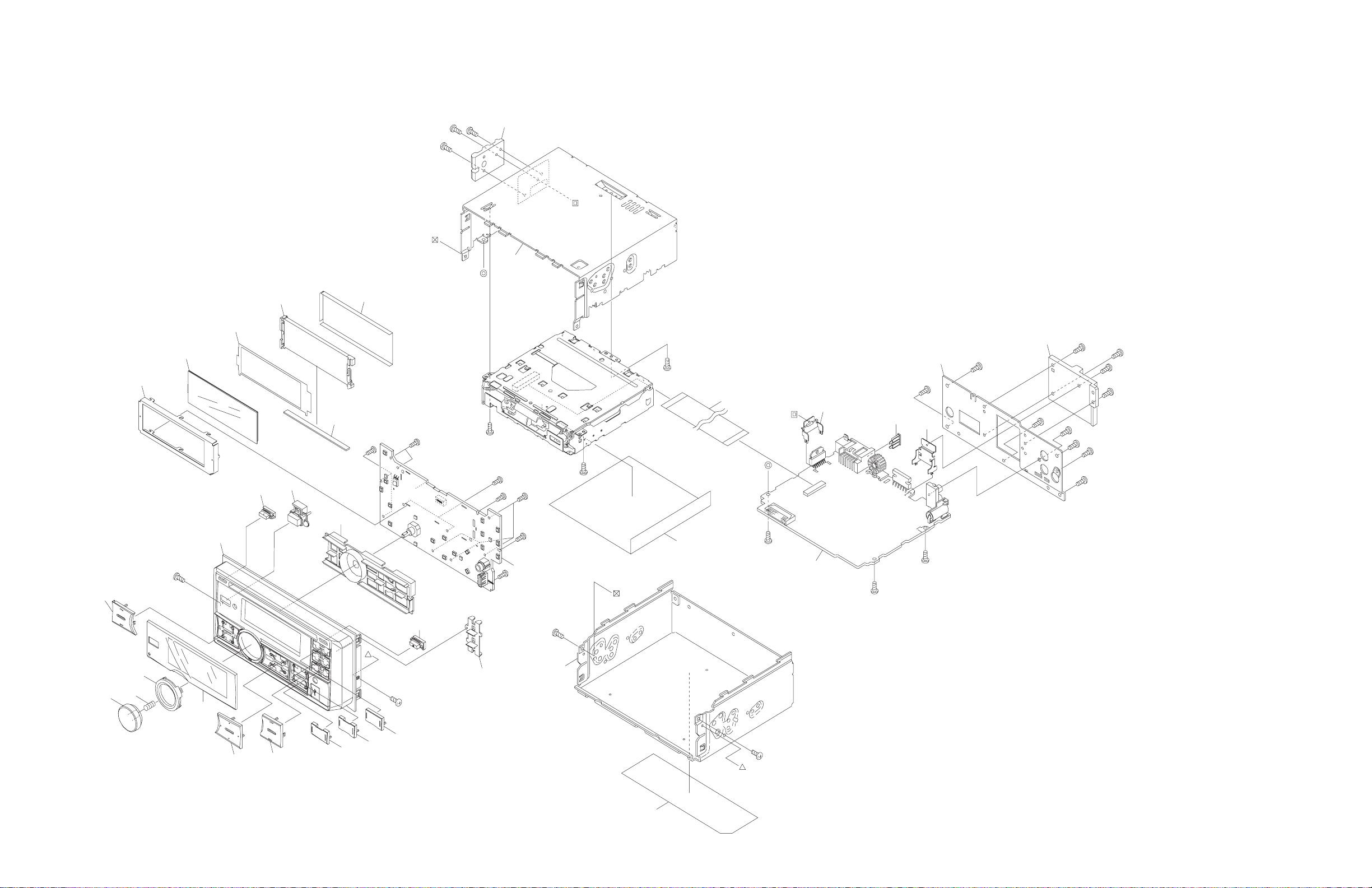

EXPLODED VIEW (UNIT) ONLY XG56T2U
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)5/
Page 35
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
EXPLODED VIEW (UNIT) ONLY XG56T2U <M2MM>
! F901 QMFZ064-100-J1 FUSE 10A 1 I
FC1 WJT0277-001A-E E-CARD WIRE 1 I
LCD1 QLD0700-001 LCD MODULE 1 I
PA1 GE35035-002A FRONT PANEL ASSY 1 I
A QYSDSF2006ZA TAP SCREW M2 x 6mm 13 I
B QYSDST2604ZA TAP SCREW M2.6 x 4mm 3 I
C GE40377-002A SCREW 3 I
D QYSDST2606ZA TAP SCREW M2.6 x 6mm 2 I
E QYSDST2606ZA TAP SCREW M2.6 x 6mm 6 I
F GE40377-001A SCREW 3 I
G QYSDSF2608ZA TAP SCREW M2.6 x 8mm 1 I
H GE40377-002A SCREW 2 I
J GE40377-003A SPECIAL SCREW 1 I
K QYSDST2608ZA TAP SCREW M2.6 x 8mm 1 I
L QYSDST2004ZA TAP SCREW M2 x 4mm 2 I
201 GE20304-011A FINDER 1 I
202 GE34802-001A EJECT BUTTON 1 I
203 GE34803-001A DISP. BUTTON 1 I
204 GE34804-001A LIGHT STRIP 1 I
205 GE34806-001A PRESET BTN 1 2 1 I
206 GE34807-001A PRESET BTN 3 4 1 I
207 GE34808-001A PRESET BTN 5 6 1 I
208 GE34812-001A NAVI BUTTON 1 I
209 GE34815-001A EQ BUTTON 1 I
210 GE34816-001A MENU BUTTON 1 I
211 GE40582-002A SRC BTN ASSY 1 I
212 GE34820-001A VOL KNOB 1 I
213 GE40127-005A KNOB SPRING 1 I
214 GE34817-001A RIM COVER 1 I
215 GE34813-001A RIM LENS 1 I
216 GE34821-001A LCD CASE 1 I
217 GE34822-001A LCD LENS 1 I
218 GE40572-002A LIGHT SHT(UNI) 1 I
219 GE40574-001A REFL. SHT(UNI) 1 I
220 QNZ1077-001 RUBBER CONNE 1 I
(No.MA512<Rev.003>)6/
Page 36
K
K
J
H
H
G
G
G
FPC1
F
E
DPU1
DM3
DM2
DM1
D
C
B
B
A
A
44
43
42
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
19
18
17
16
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
11.7mm ± 0.1mm
12.7mm ± 0.1mm
x2
x2
(CD PLAYER) (1/2)901
Parts with the exploded numbers larger than 900 are not supplied.
BOTTOM VIEW
SIDE VIEW
JVG-31N
1771E
Grease
JVS-1003
G332
Block No.MBMM

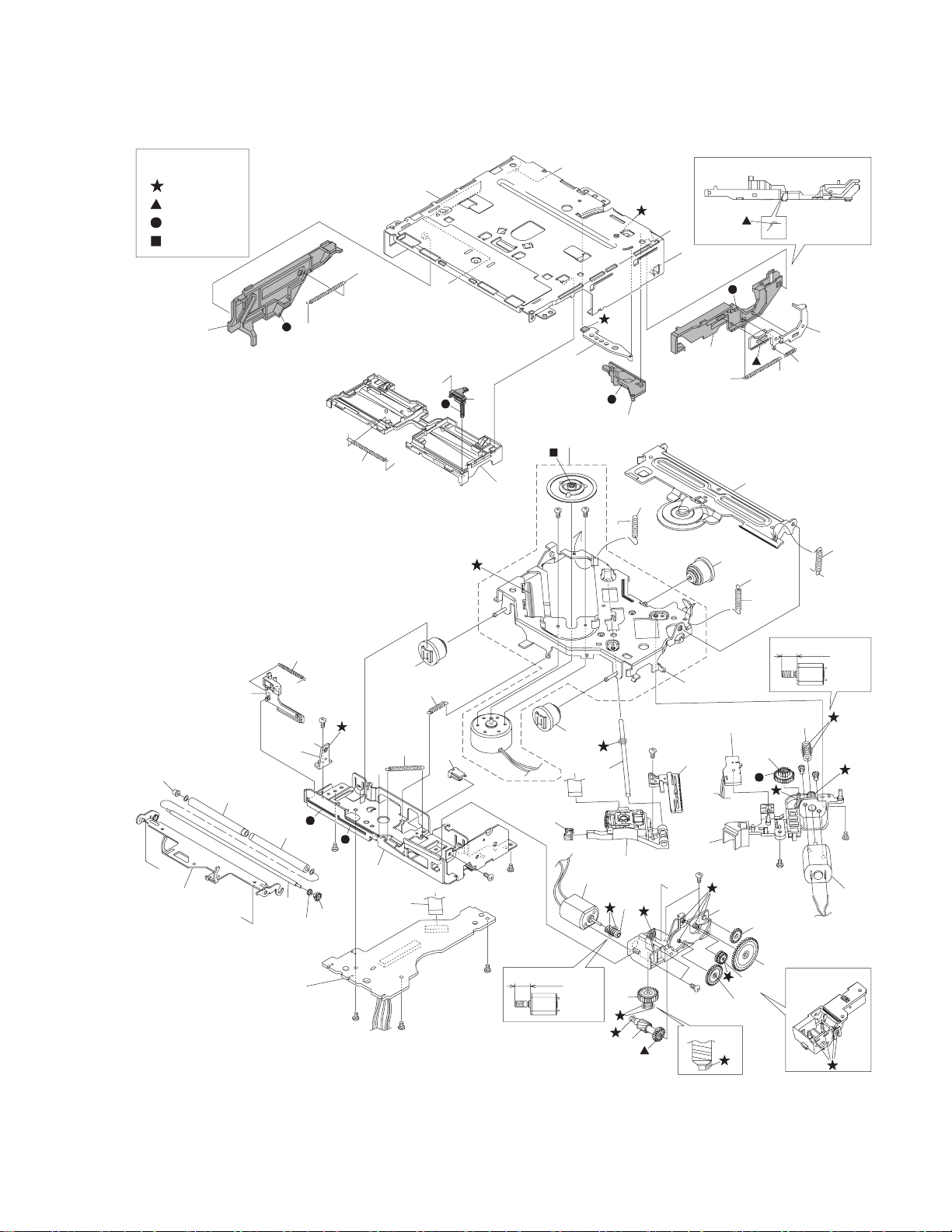

EXPLODED VIEW (CD MECHANISM: FLM-HC3-1D)
BOTTOM VIEW
(CD PLAYER) (2/2)901
a
a
k
k
j
j
h
h
g
f
g
f
e
e
d
b
b
a
d
a
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)7/
Page 37
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
EXPLODED VIEW (CD MECHANISM: FLM-HC3-1D) <MBMM>
DM1 CM-FLMHC1D SPINDLE MOTOR ASSY 1
DM2 QAR0144-003 MOTOR 2.0V DC 1
DM3 QAR0144-003 MOTOR 2.0V DC 1
! DPU1 QAL1226-001 PICK UP 1
FPC1 QAL0817-003 FPC 1
A QYSPSPT2025MA SCREW M2 x 2.5mm 2
B VKZ4539-054 MINI SCREW 2
C QYSPSGT1745ZA TAP SCREW M1.7 x 4.5mm 1
D VKZ4539-054 MINI SCREW 1
E QYSPSPT2025MA SCREW M2 x 2.5mm 2
F VKZ4539-054 MINI SCREW 2
G VKZ4539-054 MINI SCREW 3
H VKZ4539-054 MINI SCREW 2
J VKZ4539-054 MINI SCREW 1
K LV45449-001A WASHER 2
1 LV11685-004A TOP FRAME 1
2 LV38953-002A TRIGGER PLATE 1
3 LV38952-001A FL SLIDER(B) 1
4 LV22826-003A LOAD CAM 1
5 LV38951-001A TRIGGER RACK 1
6 LV45415-001A TRIGGER SPRING 1
7 LV22827-001A FL SLIDER(L) 1
8 LV45416-001A LOAD CAM SPRING 1
9 LV45417-001A FL SLIDERSPRING 1
10 LV11689-001A DISC GUIDE 1
11 LV38957-001A SW SLIDER(R) 1
12 LV45505-001A SW ACT SPRING 1
13 LV22828-001A FEED BRACKET 1
14 LV36814-201A F WORM GEAR 1
15 LV36815-002A F WHEEL GEAR 1
16 LV36904-001A DAMPER 2
17 LV37061-001A DAMPER 1
18 LV45422-001A SUS SPRING(F) 1
19 LV45423-001A SUS SPRING(B) 2
20 LV38960-001A FEED RACK 1
21 LV36813-201A SUB GUIDE CAP 1
22 LV44555-001A MAIN SHAFT 1
23 LV38950-002A HC CL.BASE ASSY 1
24 LV45421-001A HC CL.SPRING 1
25 LV11686-003A BOTTOM FRAME 1
26 LV38954-003A R.ARM GUIDE 1
27 LV39496-001A SW ACTUATOR (2) 1
28 LV45505-001A SW ACT SPRING 1
29 LV38962-001A WIRE GUIDE 1
30 LV11688-001A LOADING BASE 1
31 LV38963-001A D.WORM GEAR 1
32 LV38964-001A D.WHEEL GEAR 1
33 LV38965-002A ACT GEAR(1) 1
34 LV38966-001A ACT GEAR(2) 1
35 LV38967-001A ACT GEAR(3) 1
36 LV38968-001A ROLLER ACT GEAR 1
37 LV38969-001A DRIVE GEAR 1
38 LV11690-001A ROLLER ARM 1
39 LV45654-003A ROLLER SHAFT 2 1
40 LV45412-001A RA COLLAR(R) 1
41 LV38970-001A HC ROLLER GEAR 1
42 LV45424-001A HC ROLLER 2
43 LV45648-001A RA COLLAR(L) 2 1
44 LV45418-001A R.ARM SPRING 1
(No.MA512<Rev.003>)8/
Page 38
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
ELECTORIC UNIT <01>
! IC1 TEF6614TV1S4-X IC 1
IC161 TDA7718B-X IC 1 A,B,C,D
IC161 TDA7720-X IC 1 E,F,G,H,I
! IC301 TB2931HQ IC 1
! IC501 LV8281VR-X IC 1
IC530 XC6213B332NG-X IC 1
IC531 XC6213B152NG-X IC 1
IC532 XC6213B152NG-X IC 1
! IC540 JCV8022 IC 1
IC580 NJM4565E-X IC 1 A,B,C,D,F,G,H,I
! IC701 JES220F IC 1 A,B,C,D,F,G,H
! IC701 JES256A IC 1 E
! IC701 JES220D IC 1 I
IC702 XC6120N282NG-X IC 1
IC771 BR24T02FJ-W-X IC 1
! IC901 LV5680P IC 1
IC931 XC6213B332NG-X IC 1
IC981 BD9673EFJ-X IC 1
Q321 IMX9-W PAIR TRANSISTOR 1
Q540 2SA2188/F/-X TRANSISTOR 1
Q780 LTA024EUB-X DIGI TRANSISTOR 1
Q781 LTC024EUB-X DIGI TRANSISTOR 1
Q782 LTA024EUB-X DIGI TRANSISTOR 1
Q881 LTC014EUB-X DIGI TRANSISTOR 1
Q951 2SA812A/5-6/-X TRANSISTOR 1 A,B,C,D,F,G,H,I
Q951 2SA812/5-6/-X TRANSISTOR 1 E
Q952 LTC044EUB-X DIGI TRANSISTOR 1
Q970 2SC1623A/5-6/-X TRANSISTOR 1 A,B,C,D,F,G,H,I
Q970 2SC1623/5-6/-X TRANSISTOR 1 E
Q971 2SC1623A/5-6/-X TRANSISTOR 1 A,B,C,D,F,G,H,I
Q971 2SC1623/5-6/-X TRANSISTOR 1 E
D1 RKS801KF-X SI DIODE 1
D2 RKS801KF-X SI DIODE 1
D100 RKZ6.2B2KG-X Z DIODE 1
D101 RKZ6.2B2KG-X Z DIODE 1
D110 RKZ6.2B2KG-X Z DIODE 1
D111 RKZ6.2B2KG-X Z DIODE 1
D120 RKZ6.2B2KG-X Z DIODE 1
D121 RKZ6.2B2KG-X Z DIODE 1
D130 RKZ6.2B2KG-X Z DIODE 1
D131 RKZ6.2B2KG-X Z DIODE 1
D321 BAW56-TP-X SI DIODE 1
D502 GS1J-LTP-X DIODE 1
D540 RKS801KF-X SI DIODE 1
D704 RKZ6.2B2KG-X Z DIODE 1 A,C,D
D704 DZ2J062/M/-X Z DIODE 1 I
D780 BAW56-TP-X SI DIODE 1
D781 BAW56-TP-X SI DIODE 1
D782 RKS801KF-X SI DIODE 1
D783 BAW56-TP-X SI DIODE 1
D851 MBRX130-TP-X SB DIODE 1 E,F,G,H,I
D852 MBRX130-TP-X SB DIODE 1 E,F,G,H,I
D891 BAW56-TP-X SI DIODE 1
! D901 1N5401-BPC04 SI DIODE 1
D902 MBRX130-TP-X SB DIODE 1
D941 MBRX130-TP-X SB DIODE 1
D942 MBRX130-TP-X SB DIODE 1
D970 RKZ6.8B2KG-X Z DIODE 1
D971 RKZ6.8B2KG-X Z DIODE 1
D981 DB22306-X SB DIODE 1
C1 NCB31HK-102X C CAPACITOR 1000pF 50V K 1
C2 NDC31HJ-7R0X C CAPACITOR 7pF 50V J 1
C3 NCB31HK-102X C CAPACITOR 1000pF 50V K 1
C4 NCB31CK-224X C CAPACITOR 0.22uF 16V K 1
C5 NDC31HJ-150X C CAPACITOR 15pF 50V J 1
C6 NDC31HJ-6R0X C CAPACITOR 6pF 50V J 1
C7 NDC31HJ-270X C CAPACITOR 27pF 50V J 1
C10 NCB21CK-105X C CAPACITOR 1uF 16V K 1
C11 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C12 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C13 NCB21CK-105X C CAPACITOR 1uF 16V K 1
C14 NCB31CK-224X C CAPACITOR 0.22uF 16V K 1
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C16 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C17 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C18 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C19 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C20 NDC31HJ-120X C CAPACITOR 12pF 50V J 1
C21 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C22 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C23 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C24 QEKJ1CM-107Z E CAPACITOR 100uF 16V M 1
C26 NDC31HJ-471X C CAPACITOR 470pF 50V J 1
C27 NDC31HJ-2R0X C CAPACITOR 2pF 50V J 1
C101 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C102 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C111 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C112 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
(No.MA512<Rev.003>)9/
Page 39
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
C121 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C122 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C131 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C132 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C160 QEKJ1CM-106Z-S E CAPACITOR 10uF 16V M 1
C161 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C162 QTE1V67-475Z E CAPACITOR 4.7uF 35V 1 A,B,C,D,F,G,H,I
C162 QEQF1CM-475Z-E E CAPACITOR 4.7uF 16V M 1 E
C169 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C170 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C171 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C172 QEKJ1CM-107Z-S E CAPACITOR 100uF 16V M 1
C173 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C174 QTE1V67-475Z E CAPACITOR 4.7uF 35V 1 A,B,C,D,F,G,H,I
C174 QEQF1CM-475Z-E E CAPACITOR 4.7uF 16V M 1 E
C177 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C301 QTE1C66-474Z E CAPACITOR 0.47uF 16V 1
C302 QTE1C66-474Z E CAPACITOR 0.47uF 16V 1
C303 QTE1C66-474Z E CAPACITOR 0.47uF 16V 1
C304 QTE1C66-474Z E CAPACITOR 0.47uF 16V 1
C305 NCB21CK-474X-A C CAPACITOR 0.47uF 16V K 1
C306 NCB21CK-474X-A C CAPACITOR 0.47uF 16V K 1
C307 NCB21CK-474X-A C CAPACITOR 0.47uF 16V K 1
C308 NCB21CK-474X-A C CAPACITOR 0.47uF 16V K 1
C309 QEKJ1CM-226Z-S E CAPACITOR 22uF 16V M 1
C310 QERF1CM-106Z-E E CAPACITOR 10uF 16V M 1
C311 NCB31HK-223X C CAPACITOR 0.022uF 50V K 1
C312 NCB31HK-223X C CAPACITOR 0.022uF 50V K 1
C313 NCB21AK-105X-A C CAPACITOR 1uF 10V K 1
C314 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C315 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C320 QEKJ1HM-106Z E CAPACITOR 10uF 50V M 1
C321 NDC31HJ-101X C CAPACITOR 100pF 50V J 1
C330 QEKJ1HM-106Z E CAPACITOR 10uF 50V M 1
C341 NDC31HJ-101X C CAPACITOR 100pF 50V J 1
C501 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C504 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C505 NCB31HK-473X C CAPACITOR 0.047uF 50V K 1
C506 NCB31CK-224X C CAPACITOR 0.22uF 16V K 1
C507 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C513 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C514 QERF1AM-107Z E CAPACITOR 100uF 10V M 1
C530 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C531 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C532 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C533 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C534 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C535 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C540 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C541 NCB31HK-222X C CAPACITOR 2200pF 50V K 1
C542 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C543 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C544 NCB31HK-332X C CAPACITOR 3300pF 50V K 1
C545 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C546 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C547 NCB31HK-153X C CAPACITOR 0.015uF 50V K 1
C548 NDC31HJ-680X C CAPACITOR 68pF 50V J 1
C549 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C550 NCB20JK-106X-R C CAPACITOR 10uF 6.3V K 1
C551 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C552 NCB31HK-333X C CAPACITOR 0.033uF 50V K 1
C553 NCB31HK-472X C CAPACITOR 4700pF 50V K 1
C554 NDC31HJ-331X C CAPACITOR 330pF 50V J 1
C555 NDC31HJ-681X C CAPACITOR 680pF 50V J 1
C556 NCB31CK-683X C CAPACITOR 0.068uF 16V K 1
C557 NCB31HK-333X C CAPACITOR 0.033uF 50V K 1
C558 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C559 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C561 NCB20JK-106X C CAPACITOR 10uF 6.3V K 1
C562 NCB20JK-106X C CAPACITOR 10uF 6.3V K 1
C564 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C565 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C566 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C567 NCB31AK-105X C CAPACITOR 1uF 10V K 1
C568 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C569 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C570 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C571 NDC31HJ-470X C CAPACITOR 47pF 50V J 1
C572 NCB31HK-153X C CAPACITOR 0.015uF 50V K 1
C573 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C574 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C576 NCB31HK-152X C CAPACITOR 1500pF 50V K 1
C582 NCB31HK-102X C CAPACITOR 1000pF 50V K 1 E
C583 NCB31HK-102X C CAPACITOR 1000pF 50V K 1 E
C584 QERF1EM-475Z-E E CAPACITOR 4.7uF 25V M 1 A,B,C,D,F,G,H,I
C585 NDC31HJ-680X C CAPACITOR 68pF 50V J 1 A,B,C,D,F,G,H,I
C586 QERF1EM-475Z-E E CAPACITOR 4.7uF 25V M 1 A,B,C,D,F,G,H,I
C587 NDC31HJ-680X C CAPACITOR 68pF 50V J 1 A,B,C,D,F,G,H,I
C588 NCB31CK-104X C CAPACITOR 0.1uF 16V 1 A,B,C,D,F,G,H,I
C590 QEKJ0JM-476Z-S E CAPACITOR 47uF 6.3V M 1 A,B,C,D,F,G,H,I
(No.MA512<Rev.003>)10/
Page 40
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
C591 QEKJ0JM-476Z-S E CAPACITOR 47uF 6.3V M 1 A,B,C,D,F,G,H,I
C592 NDC31HJ-101X C CAPACITOR 100pF 50V J 1 E
C593 NDC31HJ-101X C CAPACITOR 100pF 50V J 1 E
C594 NDC31HJ-680X C CAPACITOR 68pF 50V J 1 A,B,C,D,F,G,H,I
C595 NDC31HJ-680X C CAPACITOR 68pF 50V J 1 A,B,C,D,F,G,H,I
C701 NDC31HJ-100X C CAPACITOR 10pF 50V J 1
C702 NDC31HJ-100X C CAPACITOR 10pF 50V J 1
C703 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C704 QEKJ1CM-107Z E CAPACITOR 100uF 16V M 1
C705 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C706 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C708 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C711 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C712 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C713 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C714 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C715 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C716 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C717 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C718 NCB31AK-474X C CAPACITOR 0.47uF 10V K 1
C723 NCB31EK-473X C CAPACITOR 0.047uF 25V K 1
C724 NDC31HJ-180X C CAPACITOR 18pF 50V J 1
C725 NDC31HJ-150X C CAPACITOR 15pF 50V J 1
C728 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C729 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C731 NCB21CK-104X C CAPACITOR 0.1uF 16V K 1
C733 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C780 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C794 NDC31HJ-2R0X C CAPACITOR 2pF 50V J 1
C881 QERF1CM-226Z E CAPACITOR 22uF 16V M 1
C891 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C901 QEZ0936-278 E CAPACITOR 2700uF 1
C902 NCB31EK-474X C CAPACITOR 0.47uF 25V K 1
C903 QEKJ1CM-476Z E CAPACITOR 47uF 16V M 1
C904 QEKJ1CM-476Z E CAPACITOR 47uF 16V M 1
C905 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C906 QEKJ1CM-107Z E CAPACITOR 100uF 16V M 1
C907 QERF0JM-337Z E CAPACITOR 330uF 6.3V M 1
C908 NCJ11EK-106X-R C CAPACITOR 10uF 25V 1 E,F,G,H,I
C910 QEKJ1EM-106Z E CAPACITOR 10uF 25V M 1
C912 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C913 QERF0JM-337Z E CAPACITOR 330uF 6.3V M 1
C931 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C932 QERF0JM-337Z E CAPACITOR 330uF 6.3V M 1
C933 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C941 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C954 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C963 QERF1AM-107Z E CAPACITOR 100uF 10V M 1
C981 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C983 NCB31HK-682X C CAPACITOR 6800pF 50V K 1
C984 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C985 NCJ11EK-106X-R C CAPACITOR 10uF 25V 1
C987 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C989 NCJ11EK-106X-R C CAPACITOR 10uF 25V 1
C990 NCB31HK-104X C CAPACITOR 0.1uF 50V K 1
C991 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C993 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C994 NCB10JK-106X-A C CAPACITOR 10uF 6.3V K 1
C995 NCB31AK-105X C CAPACITOR 1uF 10V K 1
R1 NRSA63J-684X MG RESISTOR 680kΩ 1/16W J 1
R2 NRSA63J-684X MG RESISTOR 680kΩ 1/16W J 1
R4 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R6 NRSA63J-221X MG RESISTOR 220Ω 1/16W J 1
R7 NRSA63J-221X MG RESISTOR 220Ω 1/16W J 1
R8 NRS181J-220X MG RESISTOR 22Ω 1/8W J 1
R9 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R13 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R100 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J 1
R101 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R102 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J 1
R110 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J 1
R111 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R112 NRSA63J-471X MG RESISTOR 470Ω 1/16W J 1
R120 NQR0007-002X FERRITE BEADS 1
R121 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R122 NQR0007-002X FERRITE BEADS 1
R130 NQR0007-002X FERRITE BEADS 1
R131 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R132 NRSA63J-471X MG RESISTOR 470Ω 1/16W J 1
! R150 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
! R151 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 E,F,G,H,I
! R152 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
R160 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
! R161 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R162 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R163 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R165 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R167 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J 1
(No.MA512<Rev.003>)11/
Page 41
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
R168 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1 A,B,C,D
R169 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1 E,F,G,H,I
R302 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R304 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R307 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R310 NRS181J-100X MG RESISTOR 10Ω 1/8W J 1 A,B,C,D
R310 NRS181J-751X MG RESISTOR 750Ω 1/8W J 1 E,F,G,H,I
R311 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R320 NRSA63J-331X MG RESISTOR 330Ω 1/16W J 1
R321 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J 1
R322 NRSA63J-181X MG RESISTOR 180Ω 1/16W J 1
R323 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R330 NRSA63J-331X MG RESISTOR 330Ω 1/16W J 1
R333 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R341 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J 1
R342 NRSA63J-181X MG RESISTOR 180Ω 1/16W J 1
R357 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R358 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R361 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
R361 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J 1 E,F,G,H,I
R362 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
R362 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J 1 E,F,G,H,I
R363 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
R363 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J 1 E,F,G,H,I
R364 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1 A,B,C,D
R364 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J 1 E,F,G,H,I
R365 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J 1 E,F,G,H,I
R366 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J 1 E,F,G,H,I
R367 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J 1 E,F,G,H,I
R368 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J 1 E,F,G,H,I
R400 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R401 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R403 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R404 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R405 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R409 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R414 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R419 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R421 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R423 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R428 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R429 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R431 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R437 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R438 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R439 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R440 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R448 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R451 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R454 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R455 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R457 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R458 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R459 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R460 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R463 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R465 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R467 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R469 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R470 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R475 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R479 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R482 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R495 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R501 NRSA63J-114X MG RESISTOR 110kΩ 1/16W J 1
R502 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R503 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R504 NRSA63J-274X MG RESISTOR 270kΩ 1/16W J 1
R505 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 1
R506 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J 1
R507 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J 1
R508 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R509 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R510 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R511 NRSA63J-133X MG RESISTOR 13kΩ 1/16W J 1
R512 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R513 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R516 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J 1
R518 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R519 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J 1
R530 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R540 NRSA63J-221X MG RESISTOR 220Ω 1/16W J 1
R545 NRSA63J-225X MG RESISTOR 2.2MΩ 1/16W J 1
R547 NRSA63J-4R7X MG RESISTOR 4.7Ω 1/16W J 1
R548 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 1
R549 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1
R550 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R553 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R554 NRSA02J-4R7X MG RESISTOR 4.7Ω 1/10W J 1
R555 NRSA02J-4R7X MG RESISTOR 4.7Ω 1/10W J 1
(No.MA512<Rev.003>)12/
Page 42
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
R556 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R557 NRSA63J-471X MG RESISTOR 470Ω 1/16W J 1
R558 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J 1
R559 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R560 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R561 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R562 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R563 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R564 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R565 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R566 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R567 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R568 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R569 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R570 NRS181J-101X MG RESISTOR 100Ω 1/8W J 1
R571 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R572 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 1
R573 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J 1
R574 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J 1
R575 NRS181J-332X MG RESISTOR 3.3kΩ 1/8W J 1
R576 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R577 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R579 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R581 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R582 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R583 NRS181J-103X MG RESISTOR 10kΩ 1/8W J 1 A,B,C,D,F,G,H,I
R584 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R587 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R588 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R589 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R590 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R592 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R593 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R594 NRS181J-100X MG RESISTOR 10Ω 1/8W J 1 A,B,C,D,F,G,H,I
R595 NRSA63J-202X MG RESISTOR 2kΩ 1/16W J 1 E
R596 NRSA63J-202X MG RESISTOR 2kΩ 1/16W J 1 E
R597 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R598 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R599 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R701 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1 A,B,C,D
R701 NRSA63J-364X MG RESISTOR 360kΩ 1/16W J 1 E,F,G,H,I
R702 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J 1
R703 NRSA63J-911X MG RESISTOR 910Ω 1/16W J 1
R706 NRSA63J-221X MG RESISTOR 220Ω 1/16W J 1
R708 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R712 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R713 NRSA63J-911X MG RESISTOR 910Ω 1/16W J 1
R715 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R718 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1 A,B,C,D,F,G,H,I
R720 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R721 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J 1
R722 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R723 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R724 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R725 NRS181J-473X MG RESISTOR 47kΩ 1/8W J 1
R726 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R727 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R728 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R730 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R731 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R732 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R733 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R734 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R735 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R736 NRS181J-473X MG RESISTOR 47kΩ 1/8W J 1
R738 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J 1
R739 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R740 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R741 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R742 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R743 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R744 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R746 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R747 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J 1
R749 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J 1
R750 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J 1
R751 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J 1
R753 NRS181J-332X MG RESISTOR 3.3kΩ 1/8W J 1
R754 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J 1
R755 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R756 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R757 NRSA02J-104X MG RESISTOR 100kΩ 1/10W J 1
R758 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 1
R760 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R761 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R762 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R763 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R764 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J 1 A,C,D
(No.MA512<Rev.003>)13/
Page 43
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
R764 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J 1 B
R764 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J 1 E,F,G,H
R764 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J 1 I
R765 NRS181J-822X MG RESISTOR 8.2kΩ 1/8W J 1
R766 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J 1 A,C,D
R766 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J 1 B
R766 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J 1 E,F,G,H
R766 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J 1 I
R767 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J 1
R768 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R770 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R771 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R772 NRS181J-472X MG RESISTOR 4.7kΩ 1/8W J 1
R773 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R774 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R775 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J 1
R776 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J 1
R777 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1 A,C,D,I
R778 NRSA63J-271X MG RESISTOR 270Ω 1/16W J 1
R779 NRS181J-271X MG RESISTOR 270Ω 1/8W J 1
R780 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R781 NRSA63J-331X MG RESISTOR 330Ω 1/16W J 1
R782 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R783 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 1
R784 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R785 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J 1
R786 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R789 NRSA63J-270X MG RESISTOR 27Ω 1/16W J 1
R790 NRSA63J-270X MG RESISTOR 27Ω 1/16W J 1
R791 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R792 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R794 NRSA63J-200X MG RESISTOR 20Ω 1/16W J 1
R795 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R851 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1 E,F,G,H,I
R860 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R861 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R881 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J 1
R882 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R891 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R892 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J 1
R893 NRS181J-123X MG RESISTOR 12kΩ 1/8W J 1
R894 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R901 QRE141J-103Y C RESISTOR 10kΩ 1/4W J 1
R902 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J 1
R906 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J 1
R907 NRSA63J-155X MG RESISTOR 1.5MΩ 1/16W J 1
R908 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R909 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J 1
R941 NRS181J-472X MG RESISTOR 4.7kΩ 1/8W J 1
R951 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1
R952 NRSA63J-331X MG RESISTOR 330Ω 1/16W J 1
R962 NRS181J-271X MG RESISTOR 270Ω 1/8W J 1
R965 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R970 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R971 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R972 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R973 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J 1
R974 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 1
R975 NRSA02J-473X MG RESISTOR 47kΩ 1/10W J 1
R976 NRSA02J-683X MG RESISTOR 68kΩ 1/10W J 1
R981 NRSA63D-913X MG RESISTOR 91kΩ 1/16W D 1
R982 NRSA63D-273X MG RESISTOR 27kΩ 1/16W D 1
R983 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J 1
R986 NRSA63D-114X MG RESISTOR 110kΩ 1/16W D 1
R988 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R989 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R990 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R991 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R992 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R994 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
R995 NRS181J-220X MG RESISTOR 22Ω 1/8W J 1
L1 NQL093K-R47X P COIL 0.47uH K 1
L2 NQL093K-1R8X P COIL 1.8uH K 1
L3 NQL093K-R27X P COIL 0.27uH K 1
L4 QQR1872-001 RF COIL 1
L5 QQL244J-561Z COIL 560uH J 1
L6 QQL244J-561Z COIL 560uH J 1
L7 NQL79GM-4R7X COIL 4.7uH M 1
L8 NQL093K-4R7X P COIL 4.7uH K 1
L9 NQL093K-R47X P COIL 0.47uH K 1
L11 NQR0251-002X FERRITE BEADS 1
L12 NQR0251-002X FERRITE BEADS 1
L531 NQR0502-001X FERRITE BEADS 1
L561 NQR0502-001X FERRITE BEADS 1
L562 NQR0502-001X FERRITE BEADS 1
L563 NQR0502-001X FERRITE BEADS 1
L564 NQR0502-001X FERRITE BEADS 1
L565 NQR0502-001X FERRITE BEADS 1
L701 NQL79GM-4R7X COIL 4.7uH M 1
L703 NQR0502-001X FERRITE BEADS 1
(No.MA512<Rev.003>)14/
Page 44
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
L901 QQR1883-001 CHOKE COIL 1 A,B,C,D,F,G,H,I
L901 QQR1883-002 CHOKE COIL 1 E
L981 QQL92AK-220Z COIL 22uH K 1
L982 NQLH25M-4R7X COIL 4.7uH M 1
B937 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B938 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B942 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B943 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B945 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B946 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B950 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B957 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B958 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B961 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
B964 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
B967 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
B968 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
B969 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
B970 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
CN502 QGF1040F1-26 CONNECTOR FFC/FPC (1-26) 1
CN701 QGB1004K1-24 CONNECTOR B-B (1-24) 1
CN901 QNZ0607-001 CAR CONNECTOR 1
J1 QNB0190-001 ANT TERMINAL 1
J120 QNS0307-001 3.5 JACK 1
J321 QNN0802-001 PIN JACK 1
X1 QAX0952-001Z CRYSTAL 1
X540 QAX0929-001Z C RESONATOR 1
X701 QAX0966-001Z CRYSTAL 1
X702 QAX0401-001 CRYSTAL 32.768KHz 1
SWITCH UNIT <02>
IC661 PT16580-LQ IC 1
IC681 KSM-2003TN5B IR DETECT UNIT 1 A,B,C,D,F,G,H,I
Q632 2SC6046-X TRANSISTOR 1
Q633 LSCR523UB-X TRANSISTOR 1
D627 SML-D12V8W-X LED 1 A,B,C,D,F,G,H,I
D627 SML-311WT/JK/X LED 1 E
D628 SML-D12V8W-X LED 1 A,B,C,D,F,G,H,I
D628 SML-311WT/JK/X LED 1 E
D629 KLB-16B-X LED 1 A,B,C,D,F,G,H
D629 SML-311WT/JK/X LED 1 E
D629 SML-D12V8W-X LED 1 I
D630 KLB-16B-X LED 1 A,B,C,D,F,G,H
D630 SML-311WT/JK/X LED 1 E
D630 SML-D12V8W-X LED 1 I
D631 KLB-16B-X LED 1 A,B,C,D,F,G,H
D631 SML-311WT/JK/X LED 1 E
D631 SML-D12V8W-X LED 1 I
D632 KLB-16B-X LED 1 A,B,C,D,F,G,H
D632 SML-311WT/JK/X LED 1 E
D632 SML-D12V8W-X LED 1 I
D633 KLB-16B-X LED 1 A,B,C,D,F,G,H
D633 SML-311WT/JK/X LED 1 E
D633 SML-D12V8W-X LED 1 I
D634 KLB-16B-X LED 1 A,B,C,D,F,G,H
D634 SML-311WT/JK/X LED 1 E
D634 SML-D12V8W-X LED 1 I
D635 KLB-16B-X LED 1 A,B,C,D,F,G,H
D635 SML-311WT/JK/X LED 1 E
D635 SML-D12V8W-X LED 1 I
D636 KLB-16B-X LED 1 A,B,C,D,F,G,H
D636 SML-311WT/JK/X LED 1 E
D636 SML-D12V8W-X LED 1 I
D637 KLB-16B-X LED 1 A,B,C,D,F,G,H
D637 SML-311WT/JK/X LED 1 E
D637 SML-D12V8W-X LED 1 I
D638 KLB-16B-X LED 1 A,B,C,D,F,G,H
D638 SML-311WT/JK/X LED 1 E
D638 SML-D12V8W-X LED 1 I
D639 KLB-16B-X LED 1 A,B,C,D,F,G,H
D639 SML-311WT/JK/X LED 1 E
D639 SML-D12V8W-X LED 1 I
D640 KLB-16B-X LED 1 A,B,C,D,F,G,H
D640 SML-311WT/JK/X LED 1 E
D640 SML-D12V8W-X LED 1 I
D641 KLB-16B-X LED 1 A,B,C,D,F,G,H
D641 SML-311WT/JK/X LED 1 E
D641 SML-D12V8W-X LED 1 I
D642 KLB-16B-X LED 1 A,B,C,D,F,G,H
D642 SML-311WT/JK/X LED 1 E
D642 SML-D12V8W-X LED 1 I
D643 KLB-16B-X LED 1 A,B,C,D,F,G,H
D643 SML-311WT/JK/X LED 1 E
D643 SML-D12V8W-X LED 1 I
D644 KLB-16B-X LED 1 A,B,C,D,F,G,H
D644 SML-311WT/JK/X LED 1 E
D644 SML-D12V8W-X LED 1 I
D645 KLB-16B-X LED 1 A,B,C,D,F,G,H
D645 SML-311WT/JK/X LED 1 E
D645 SML-D12V8W-X LED 1 I
(No.MA512<Rev.003>)15/
Page 45
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
D646 KLB-16B-X LED 1 A,B,C,D,F,G,H
D646 SML-311WT/JK/X LED 1 E
D646 SML-D12V8W-X LED 1 I
D649 KLB-16B-X LED 1 A,B,C,D,F,G,H
D649 SML-311WT/JK/X LED 1 E
D649 SML-D12V8W-X LED 1 I
D650 KLB-16B-X LED 1 A,B,C,D,F,G,H
D650 SML-311WT/JK/X LED 1 E
D650 SML-D12V8W-X LED 1 I
D651 KLB-16B-X LED 1 A,B,C,D,F,G,H
D651 SML-311WT/JK/X LED 1 E
D651 SML-D12V8W-X LED 1 I
D652 KLB-16B-X LED 1 A,B,C,D,F,G,H
D652 SML-311WT/JK/X LED 1 E
D652 SML-D12V8W-X LED 1 I
D653 KLB-16B-X LED 1 A,B,C,D,F,G,H
D653 SML-311WT/JK/X LED 1 E
D653 SML-D12V8W-X LED 1 I
D654 KLB-16B-X LED 1 A,B,C,D,F,G,H
D654 SML-311WT/JK/X LED 1 E
D654 SML-D12V8W-X LED 1 I
D655 KLB-16B-X LED 1 A,B,C,D,F,G,H
D655 SML-311WT/JK/X LED 1 E
D655 SML-D12V8W-X LED 1 I
D656 KLB-16B-X LED 1 A,B,C,D,F,G,H
D656 SML-311WT/JK/X LED 1 E
D656 SML-D12V8W-X LED 1 I
D657 KLB-16B-X LED 1 A,B,C,D,F,G,H
D657 SML-311WT/JK/X LED 1 E
D657 SML-D12V8W-X LED 1 I
D658 KLB-16B-X LED 1 A,B,C,D,F,G,H
D658 SML-311WT/JK/X LED 1 E
D658 SML-D12V8W-X LED 1 I
D659 KLB-16B-X LED 1 A,B,C,D,F,G,H
D659 SML-311WT/JK/X LED 1 E
D659 SML-D12V8W-X LED 1 I
D660 RKZ5.1B2KG-X SB DIODE 1
D662 KLB-16B-X LED 1 A,B,C,D,F,G,H
D662 SML-311WT/JK/X LED 1 E
D662 SML-D12V8W-X LED 1 I
D663 KLB-16B-X LED 1 A,B,C,D,F,G,H
D663 SML-311WT/JK/X LED 1 E
D663 SML-D12V8W-X LED 1 I
D664 KLB-16B-X LED 1 A,B,C,D,F,G,H
D664 SML-311WT/JK/X LED 1 E
D664 SML-D12V8W-X LED 1 I
D681 RKZ3.3B2KG-X Z DIODE 1 A,B,C,D,F,G,H,I
D691 DZ2J051/M/-X Z DIODE 1 A,B,C,D,E,F,G,H
D691 RKZ5.1B2KG-X SB DIODE 1 I
D692 DZ2J051/M/-X Z DIODE 1 A,B,C,D,E,F,G,H
D692 RKZ5.1B2KG-X SB DIODE 1 I
D693 LW812-001A-X LED 1
D694 LW812-001A-X LED 1
C661 NCB31HK-103X C CAPACITOR 0.01uF 50V K 1
C662 NCB21CK-105X C CAPACITOR 1uF 16V K 1
C663 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C664 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C665 NCB31CK-105X C CAPACITOR 1uF 16V K 1
C671 NCB31HK-472X C CAPACITOR 4700pF 50V K 1
C672 NCB31HK-472X C CAPACITOR 4700pF 50V K 1
C679 NDC31HJ-270X C CAPACITOR 27pF 50V J 1
C680 NDC31HJ-270X C CAPACITOR 27pF 50V J 1
C682 NCB31HK-104X C CAPACITOR 0.1uF 50V K 1 A,B,C,D,F,G,H,I
C683 NCB31CK-104X C CAPACITOR 0.1uF 16V 1
C691 NCJ11EK-106X-R C CAPACITOR 10uF 25V 1
R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R602 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R603 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J 1
R604 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J 1
R605 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J 1
R607 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R608 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R609 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J 1
R610 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J 1
R611 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J 1
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R613 NRSA63J-821X MG RESISTOR 820Ω 1/16W J 1
R614 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J 1
R615 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J 1
R616 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J 1
R617 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J 1
R618 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R620 NRS181J-122X MG RESISTOR 1.2kΩ 1/8W J 1 E
R621 NRS181J-122X MG RESISTOR 1.2kΩ 1/8W J 1 E
R623 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1
R624 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1
R625 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R625 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
(No.MA512<Rev.003>)16/
Page 46
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
R642 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R642 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R643 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R643 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R644 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R644 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R645 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R645 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R646 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R646 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R647 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R647 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R648 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R648 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R649 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R649 NRS181J-122X MG RESISTOR 1.2kΩ 1/8W J 1 I
R650 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R650 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R652 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R652 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R653 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R653 NRS181J-102X MG RESISTOR 1kΩ 1/8W J 1 I
R654 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1
R655 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1
R656 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1
R657 NRS181J-821X MG RESISTOR 820Ω 1/8W J 1 A,B,C,D,E,F,G,H
R657 NRS181J-122X MG RESISTOR 1.2kΩ 1/8W J 1 I
R659 NRS181J-471X MG RESISTOR 470Ω 1/8W J 1
R660 NRS181J-471X MG RESISTOR 470Ω 1/8W J 1
R662 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1
R663 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1
R664 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J 1
R665 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R666 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R667 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
R668 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J 1
R669 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J 1
R670 NRS181J-471X MG RESISTOR 470Ω 1/8W J 1
R676 NRS181J-1R5X MG RESISTOR 1.5Ω 1/8W J 1
R678 NRSA63J-0R0X MG RESISTOR 0Ω 1/10W J 1
R681 NRSA63J-331X MG RESISTOR 330Ω 1/16W J 1 A,B,C,D,F,G,H,I
R691 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 1
R692 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 1
L670 NQR0007-002X FERRITE BEADS 1
L673 NQR0007-002X FERRITE BEADS 1
L674 NQR0007-002X FERRITE BEADS 1
CN601 QGB1004J2-24X CONNECTOR B-B (1-24) 1
CN603 QNZ1076-001 USB CONNECTOR 1
J601 QNS0299-001 3.5 JACK 1 A,B,C,D,E,F,G,H
J601 QNS0298-001 3.5 JACK 1 I
JS601 QSW1231-002 ROTARY ENCODER 1
LF691 NQR0682-001X CHOKE COIL 1
S601 NSW0246-001X TACT SWITCH 1
S602 NSW0246-001X TACT SWITCH 1
S603 NSW0246-001X TACT SWITCH 1
S604 NSW0246-001X TACT SWITCH 1
S605 NSW0246-001X TACT SWITCH 1
S606 NSW0246-001X TACT SWITCH 1
S607 NSW0246-001X TACT SWITCH 1
S608 NSW0246-001X TACT SWITCH 1
S609 NSW0246-001X TACT SWITCH 1
S610 NSW0246-001X TACT SWITCH 1
S611 NSW0246-001X TACT SWITCH 1
S612 NSW0246-001X TACT SWITCH 1
S613 NSW0246-001X TACT SWITCH 1
S614 NSW0246-001X TACT SWITCH 1
S615 NSW0246-001X TACT SWITCH 1
S616 NSW0246-001X TACT SWITCH 1
S617 NSW0246-001X TACT SWITCH 1
S618 NSW0246-001X TACT SWITCH 1
CD PLAYER UNIT (FLM-HC3-1D)IN CD MECHA <03>
R1 NRSA63J-131X MG RESISTOR 130Ω 1/16W J 1
B1 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J 1
CN101 QGF1044F3-26X CONNECTOR FFC/FPC (1-26) 1
CN102 QGF0522F3-15W CONNECTOR FFC/FPC (1-15) 1
SW1 NSW0349-001X DETECT SWITCH 1
SW2 NSW0349-001X DETECT SWITCH 1
SW3 NSW0349-001X DETECT SWITCH 1
SW4 NSW0349-001X DETECT SWITCH 1
(No.MA512<Rev.003>)17/
Page 47

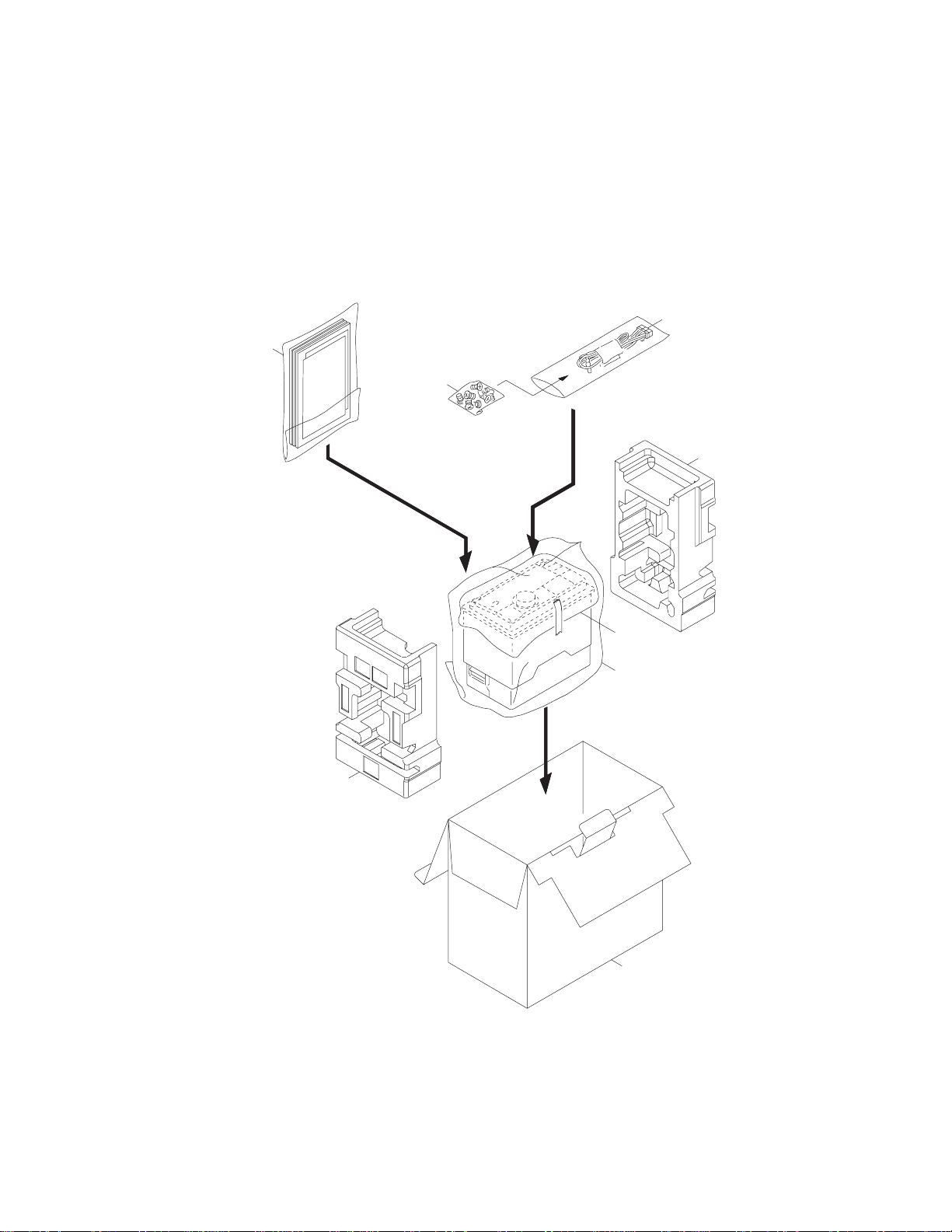

P3
P2
P1
DC1
A11A10
A8A7A6A5
A4A3A2A1
,
, ,,
,,,,
804
803
801
802
PACKING AND ACCESSORIES (E,EE,EN,EY)
Parts with the exploded numbers larger than 700 are not supplied.
No additional / supplemental order of WARRANTY CARDs are available.
Block No.M3MM
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)18/
Page 48
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
PACKING AND ACCESSORIES (E,EE,EN,EY) <M3MM>
! DC1 QAM1345-001 DC CORD 1 A,C,D
! DC1 QAM1344-001 DC CORD 1 B
A1 GET0789-001A INST BOOK GER 1 A,C,D
A1 GET0790-001A INST BOOK RUS UKR 1 B
A2 GET0789-003A INST BOOK ENG FRE 1 A,C
A2 GET0789-005A INST BOOK POL GER 1 D
A3 GET0789-002A INST BOOK DUT SPA ITA POR 1 A
A3 GET0789-004A INST BOOK SWE DAN FIN 1 C
A3 GET0789-006A INST BOOK RUM BUL CZE HUN 1 D
A4 GET0789-007A INSTALL MANUAL GER 1 A,C,D
A4 GET0790-002A INSTALL MANUAL RUS UKR 1 B
A5 GET0789-009A INSTALL MANUAL ENG FRE 1 A,C
A5 GET0789-011A INSTALL MANUAL POL GER 1 D
A6 GET0789-008A INSTALL MANUAL DUT SPA ITA POR 1 A
A6 GET0789-010A INSTALL MANUAL SWE DAN FIN 1 C
A6 GET0789-012A INSTALL MANUAL RUM BUL CZE HUN 1 D
A7 ------------ WARRANTY CARD BT-54045-1 1 A,B,C,D
A8 LVT2328-001A RUSSIAN SHEET 1 B,D
A10 QYSDSP5008ZA SCREW M5 x 8mm 8 A,B,C,D
A11 QYSSSP5008ZA SCREW M5 x 8mm 4 A,B,C,D
P1 GE34873-001A INNER CARTON 1 A,C,D
P1 GE34876-001A INNER CARTON 1 B
P2 GE10280-003A CUSHION L 1 A,B,C,D
P3 GE10281-001A CUSHION R 1 A,B,C,D
(No.MA512<Rev.003>)19/
Page 49

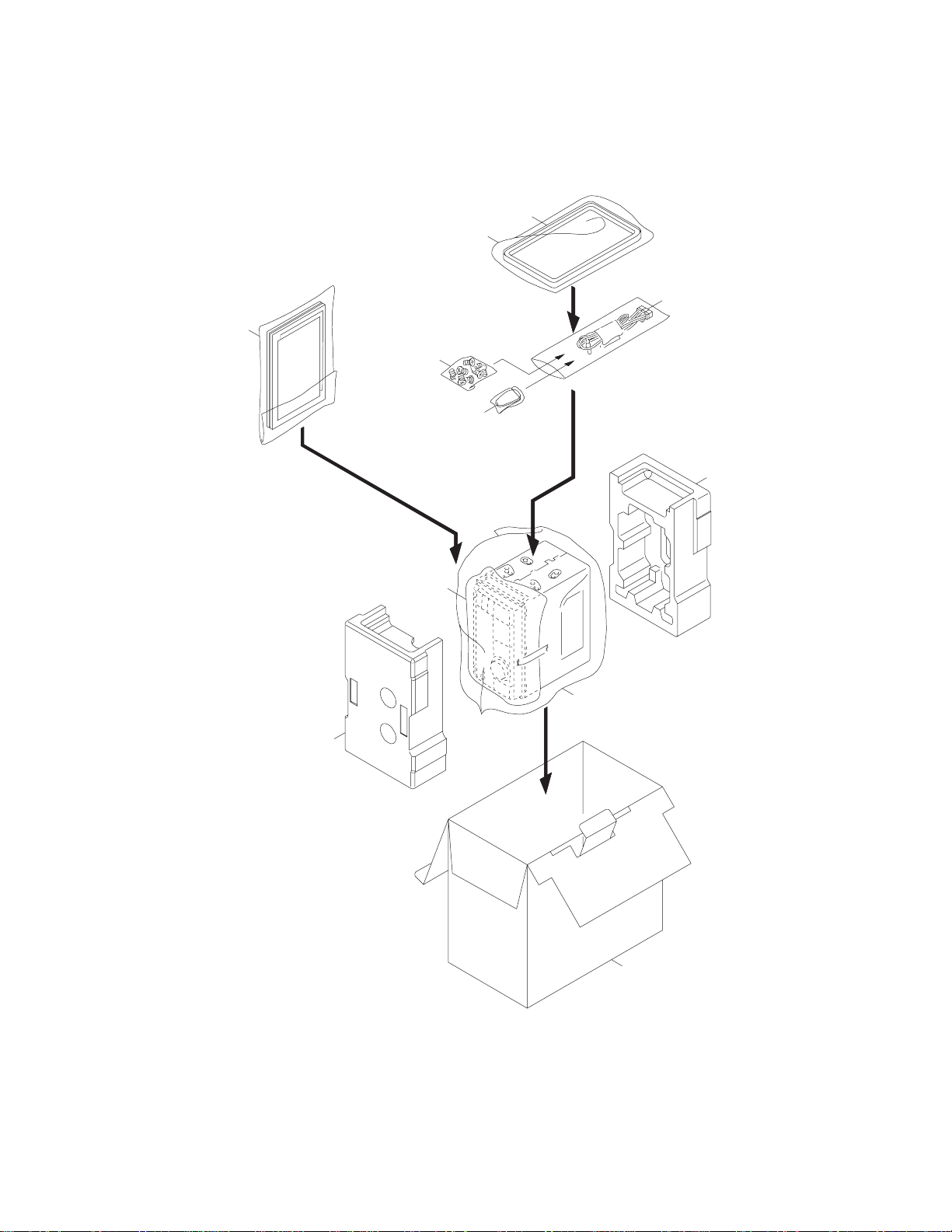

RC1
P3
P2
P1
DC1
A12
A11A10
A5A4
A2A1
,
,
,
802
804
803
801
805
PACKING AND ACCESSORIES (SUN,U,UN,UP)
Parts with the exploded numbers larger than 700 are not supplied.
No additional / supplemental order of WARRANTY CARDs are available.
Block No.M4MM
,
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)20/
Page 50
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
PACKING AND ACCESSORIES (SUN,U,UN,UP) <M4MM>
! DC1 QAM1504-001 DC CORD 1 E
! DC1 QAM1328-001 DC CORD 1 F,G,H
RC1 RM-RK52M REMOCON UNIT 1 F,G,H
A1 GET0922-001A INST BOOK INA 1 E
A1 GET0788-001A INST BOOK ENG RUS THA ARA PER 1 F
A1 GET0788-004A INST BOOK ENG IND 1 G
A1 GET0788-003A INST BOOK KOR 1 H
A2 GET0788-002A INST BOOK CHI(TAIWAN) 1 F
A4 GET0788-005A INSTALL MANUAL ENG RUS THA PER ARA 1 F
A4 GET0788-008A INSTALL MANUAL ENG IND 1 G
A4 GET0788-007A INSTALL MANUAL KOR 1 H
A5 GET0788-006A INSTALL MANUAL CHI(TAIWAN) 1 F
A10 QYSDSP5008ZA SCREW M5 x 8mm 6 E
A10 QYSDSP5008ZA SCREW M5 x 8mm 8 F,G,H
A11 QYSSSP5008ZA SCREW M5 x 8mm 8 F,G,H
A12 GE20224-005A TRIM PLATE 1 E,F,G,H
P1 GE34870-001A INNER CARTON 1 F,G,H
P2 GE10332-001A CUSHION F 1 F,G,H
P3 GE10333-001A CUSHION R 1 F,G,H
(No.MA512<Rev.003>)21/
Page 51

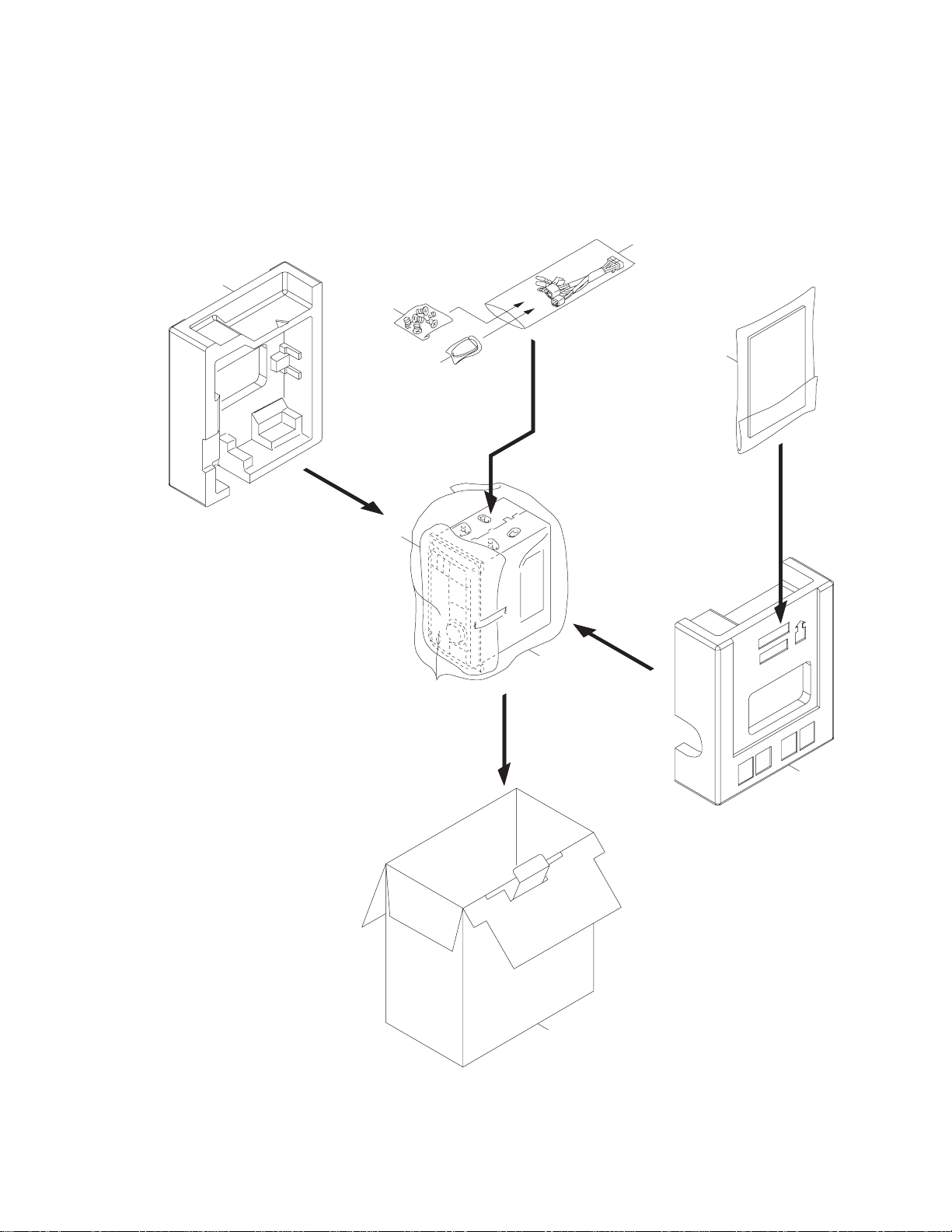

RC1
P3
P2
P1
DC1
A10
A1
802
804
803
801
PACKING AND ACCESSORIES (ONLY XG56T2U)
Parts with the exploded numbers larger than 700 are not supplied.
No additional / supplemental order of WARRANTY CARDs are available.
Block No.M5MM
created date:2013-06-28No.MA512
23
(No.MA512<Rev.003>)22/
Page 52
MODEL MARK MODEL MARK MODEL MARK MODEL MARK
23
KW-R400E A KW-R400EE B KW-R400EN C KW-R400EY D
KW-R400SUN E KW-R400U F KW-R400UN G KW-R400UP H
KW-XG56T2U I
Safe Symbol No. Parts No. Parts Name Description QTY Local
PACKING AND ACCESSORIES (ONLY XG56T2U) <M5MM>
! DC1 QAM1431-002 DC CORD 1 I
RC1 RM-RK52M REMOTE CONTROL UNI 1 I
A1 GET0818-001A INST BOOK VIT 1 I
A10 QYSDSP5008ZA SCREW M5 x 8mm 6 I
P1 GE34079-001A INNER CARTON 1 I
P2 GE10340-001A CUSHION TOP 1 I
P3 GE10341-001A CUSHION BOTTOM 1 I
T
(No.MA512<Rev.003>)23/
Page 53
REVISION INFORMATION
CD RECEIVER
KW-R400E, KW-R400EE, KW-R400EN,
KW-R400EY, KW-R400SUN, KW-R400U,
KW-R400UN, KW-R400UP, KW-XG56T2U
■ OVERVIEW
Add KW-R400SUN
■ DETAILS
COVER SECTION
Title Line No.MA512<Rev.002> No.MA512<Rev.003> Description
Revision Rev.002 Rev.003
Issue Date 2012/04 2013/07
Model No. KW-R400E,
Copyright COPYRIGHT (C) 2012 JVC KENWOOD
SPECIFICATION 40
KW-R400EE,
KW-R400EN,
KW-R400EY,
KW-R400U,
KW-R400UN,
KW-R400UP,
KW-XG56T2U
Corporation
Mass
1.4 kg (excluding accessories)
KW-R400E,
KW-R400EE,
KW-R400EN,
KW-R400EY,
KW-R400SUN,
KW-R400U,
KW-R400UN,
KW-R400UP,
KW-XG56T2U
COPYRIGHT (C) 2013 JVC KENWOOD
Corporation
Mass
1.4 kg (excluding accessories)(Except
KW-R400SUN)
1.6 kg (excluding accessories)(For
KW-R400SUN)
COPYRIGHT © 2013 JVC KENWOOD Corporation
MA512-R003
2013/07
Page 54
STANDARD SCHEMATIC DIAGRAMS
Exploded View
Diagram Name No.MA512<Rev.002> No.MA512<Rev.003> Description
Menu PACKING AND ACCESSORIES
(U,UN,UP)
Menu EXPLODED VIEW (CD MECHANISM) EXPLODED VIEW (CD MECHANISM:
PACKING AND ACCESSORIES
(SUN,U,UN,UP)
FLM-HC3-1D)
Description of Major ICs
Diagram Name No.MA512<Rev.002> No.MA512<Rev.003> Description
Menu 01IC771: R1EX24002ASAA-X
R1EX24002ASAA-X.xml
-
PARTS LIST
MODEL No. LIST
Model No. No.MA512<Rev.003>
KW-R400E 01
KW-R400EE 02
KW-R400EN 03
KW-R400EY 04
KW-R400SUN 05
KW-R400U 06
KW-R400UN 07
KW-R400UP 08
KW-XG56T2U 09
EXPLODED VIEW (UNIT) [M1MM]
Symbol or
!
M1MM 201 ------------ GE20304-017A FINDER (Addition) 1 05
M1MM 205 ------------ GE34806-002A PRESET BTN 1 2 (Addition) 1 05
M1MM 206 ------------ GE34807-003A PRESET BTN 3 4 (Addition) 1 05
M1MM 207 ------------ GE34808-002A PRESET BTN 5 6 (Addition) 1 05
M1MM 209 ------------ GE34815-007A EQ BUTTON (Addition) 1 05
M1MM 210 ------------ GE34816-004A MENU BUTTON (Addition) 1 05
M1MM 211 ------------ GE40582-003A SRC BTN ASSY (Addition) 1 05
M1MM 233 ------------ GE40466-020A SPACER (Addition) 1 05
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
EXPLODED VIEW (CD MECHANISM: FLM-HC3-1D) [MBMM]
Symbol or
!
MBMM 13 or LV22828-002A ------------ FEED BRACKET (Deletion) 1 01,02,03,04,06,07,08,09
MBMM 39 LV45654-002A LV45654-003A ROLLER SHAFT 2 1 01,02,03,04,05,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
2 (MA512-R003)
Page 55
ELECTORIC UNIT [01]
Symbol or
!
! 01 IC701 ------------ JES256A IC (Addition) 1 05
! 01 IC701 ------------ JES220F IC (Addition) 1 01,02,03,04,06,07,08
! 01 IC701 JES220D ------------ IC (Deletion) 1 01,02,03,04,06,07,08,09
! 01 IC701 ------------ JES220D IC (Addition) 1 09
01 IC771 or R1EX24002ASAA-X ------------ IC (Deletion) 1 01,02,03,04,06,07,08,09
01 Q321 or KTC812T-X ------------ PAIR
01 Q780 or DRA5124E-X ------------ DIGI
01 Q781 or DRC5124E-X ------------ DIGI
01 Q782 or DRA5124E-X ------------ DIGI
01 Q881 or DRC5114E-X ------------ DIGI
01 Q951 ------------ 2SA812/5-6/-X TRANSISTOR (Addition) 1 05
01 Q951 or ISA1530AC1/QR/X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 Q952 or DRC5144E-X ------------ DIGI
01 Q970 ------------ 2SC1623/5-6/-X TRANSISTOR (Addition) 1 05
01 Q970 or 2SC3928A/QR/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 Q971 ------------ 2SC1623/5-6/-X TRANSISTOR (Addition) 1 05
01 Q971 or 2SC3928A/QR/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 D1 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D2 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D100 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D101 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D110 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D111 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D120 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D121 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D130 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D131 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D321 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D502 or 1SR154-400-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D540 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D704 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,03,04
01 D780 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D781 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D782 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D783 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D891 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D970 or DZ2J068/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D971 or DZ2J068/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 C162 ------------ QEQF1CM-475Z-E E CAPACITOR (Addition) 1 05
01 C174 ------------ QEQF1CM-475Z-E E CAPACITOR (Addition) 1 05
01 C582 ------------ NCB31HK-102X C CAPACITOR (Addition) 1 05
01 C583 ------------ NCB31HK-102X C CAPACITOR (Addition) 1 05
01 C592 ------------ NDC31HJ-101X C CAPACITOR (Addition) 1 05
01 C593 ------------ NDC31HJ-101X C CAPACITOR (Addition) 1 05
01 R595 ------------ NRSA63J-202X MG RESISTOR (Addition) 1 05
01 R596 ------------ NRSA63J-202X MG RESISTOR (Addition) 1 05
01 L901 ------------ QQR1883-002 CHOKE COIL (Addition) 1 05
01 B937 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B938 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B942 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B943 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B945 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B946 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B950 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B957 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B958 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B961 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B964 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B967 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B968 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B969 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
(Deletion) 1 09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(MA512-R003) 3
Page 56
Symbol or
!
01 B970 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 J1 or QNB0348-001 ------------ ANT TERMINAL (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
SWITCH UNIT [02]
Symbol or
!
02 Q633 or DSC5001/RS/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
02 D627 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D628 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D629 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D630 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D631 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D632 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D633 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D634 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D635 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D636 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D637 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D638 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D639 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D640 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D641 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D642 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D643 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D644 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D645 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D646 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D649 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D650 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D651 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D652 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D653 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D654 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D655 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D656 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D657 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D658 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D659 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D660 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
02 D662 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D663 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D664 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D681 or DZ2J033/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
02 D691 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 09
02 D692 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 09
02 R620 ------------ NRS181J-122X MG RESISTOR (Addition) 1 05
02 R621 ------------ NRS181J-122X MG RESISTOR (Addition) 1 05
02 CN603 or QNZ1057-001 ------------ USB CONNECTOR (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
CD PLAYER UNIT (FLM-HC3-1D)IN CD MECHA [03]
Symbol or
!
03 B1 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
03 CN101 QGF1044F2-26X QGF1044F3-26X CONNECTOR 1 01,02,03,04,05,06,07,08,09
03 SW1 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW1 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW2 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW2 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW3 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW3 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW4 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW4 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
4 (MA512-R003)
Page 57
PACKING AND ACCESSORIES (E,EE,EN,EY) [M3MM]
Symbol or
!
! M3MM DC1 QAM1345-001 QAM1345-001 DC CORD 1 01,03,04
! M3MM DC1 QAM1344-001 QAM1344-001 DC CORD 1 02
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
PACKING AND ACCESSORIES (SUN,U,UN,UP) [M4MM]
Symbol or
!
! M4MM DC1 ------------ QAM1504-001 DC CORD (Addition) 1 05
! M4MM DC1 QAM1328-001 QAM1328-001 DC CORD 1 06,07,08
M4MM A1 ------------ GET0922-001A INST BOOK (Addition) 1 05
M4MM A10 ------------ QYSDSP5008ZA SCREW (Addition) 6 05
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
PACKING AND ACCESSORIES (ONLY XG56T2U) [M5MM]
Symbol or
!
! M5MM DC1 QAM1431-002 QAM1431-002 DC CORD 1 09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
(MA512-R003) 5
Page 58
JVC KENWOOD Corporation
Car Electronics Business Group 2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525, Japan
(MA512-R003)
Printed in Japan
No.MA512<Rev.002> VSE
Page 59
REVISION INFORMATION
CD RECEIVER
KW-R400E, KW-R400EE, KW-R400EN,
KW-R400EY, KW-R400SUN, KW-R400U,
KW-R400UN, KW-R400UP, KW-XG56T2U
■ OVERVIEW
Add KW-R400SUN
■ DETAILS
COVER SECTION
Title Line No.MA512<Rev.002> No.MA512<Rev.003> Description
Revision Rev.002 Rev.003
Issue Date 2012/04 2013/07
Model No. KW-R400E,
Copyright COPYRIGHT (C) 2012 JVC KENWOOD
SPECIFICATION 40
KW-R400EE,
KW-R400EN,
KW-R400EY,
KW-R400U,
KW-R400UN,
KW-R400UP,
KW-XG56T2U
Corporation
Mass
1.4 kg (excluding accessories)
KW-R400E,
KW-R400EE,
KW-R400EN,
KW-R400EY,
KW-R400SUN,
KW-R400U,
KW-R400UN,
KW-R400UP,
KW-XG56T2U
COPYRIGHT (C) 2013 JVC KENWOOD
Corporation
Mass
1.4 kg (excluding accessories)(Except
KW-R400SUN)
1.6 kg (excluding accessories)(For
KW-R400SUN)
COPYRIGHT © 2013 JVC KENWOOD Corporation
MA512-R003
2013/07
Page 60
STANDARD SCHEMATIC DIAGRAMS
Exploded View
Diagram Name No.MA512<Rev.002> No.MA512<Rev.003> Description
Menu PACKING AND ACCESSORIES
(U,UN,UP)
Menu EXPLODED VIEW (CD MECHANISM) EXPLODED VIEW (CD MECHANISM:
PACKING AND ACCESSORIES
(SUN,U,UN,UP)
FLM-HC3-1D)
Description of Major ICs
Diagram Name No.MA512<Rev.002> No.MA512<Rev.003> Description
Menu 01IC771: R1EX24002ASAA-X
R1EX24002ASAA-X.xml
-
PARTS LIST
MODEL No. LIST
Model No. No.MA512<Rev.003>
KW-R400E 01
KW-R400EE 02
KW-R400EN 03
KW-R400EY 04
KW-R400SUN 05
KW-R400U 06
KW-R400UN 07
KW-R400UP 08
KW-XG56T2U 09
EXPLODED VIEW (UNIT) [M1MM]
Symbol or
!
M1MM 201 ------------ GE20304-017A FINDER (Addition) 1 05
M1MM 205 ------------ GE34806-002A PRESET BTN 1 2 (Addition) 1 05
M1MM 206 ------------ GE34807-003A PRESET BTN 3 4 (Addition) 1 05
M1MM 207 ------------ GE34808-002A PRESET BTN 5 6 (Addition) 1 05
M1MM 209 ------------ GE34815-007A EQ BUTTON (Addition) 1 05
M1MM 210 ------------ GE34816-004A MENU BUTTON (Addition) 1 05
M1MM 211 ------------ GE40582-003A SRC BTN ASSY (Addition) 1 05
M1MM 233 ------------ GE40466-020A SPACER (Addition) 1 05
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
EXPLODED VIEW (CD MECHANISM: FLM-HC3-1D) [MBMM]
Symbol or
!
MBMM 13 or LV22828-002A ------------ FEED BRACKET (Deletion) 1 01,02,03,04,06,07,08,09
MBMM 39 LV45654-002A LV45654-003A ROLLER SHAFT 2 1 01,02,03,04,05,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
2 (MA512-R003)
Page 61
ELECTORIC UNIT [01]
Symbol or
!
! 01 IC701 ------------ JES256A IC (Addition) 1 05
! 01 IC701 ------------ JES220F IC (Addition) 1 01,02,03,04,06,07,08
! 01 IC701 JES220D ------------ IC (Deletion) 1 01,02,03,04,06,07,08,09
! 01 IC701 ------------ JES220D IC (Addition) 1 09
01 IC771 or R1EX24002ASAA-X ------------ IC (Deletion) 1 01,02,03,04,06,07,08,09
01 Q321 or KTC812T-X ------------ PAIR
01 Q780 or DRA5124E-X ------------ DIGI
01 Q781 or DRC5124E-X ------------ DIGI
01 Q782 or DRA5124E-X ------------ DIGI
01 Q881 or DRC5114E-X ------------ DIGI
01 Q951 ------------ 2SA812/5-6/-X TRANSISTOR (Addition) 1 05
01 Q951 or ISA1530AC1/QR/X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 Q952 or DRC5144E-X ------------ DIGI
01 Q970 ------------ 2SC1623/5-6/-X TRANSISTOR (Addition) 1 05
01 Q970 or 2SC3928A/QR/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 Q971 ------------ 2SC1623/5-6/-X TRANSISTOR (Addition) 1 05
01 Q971 or 2SC3928A/QR/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
01 D1 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D2 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D100 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D101 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D110 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D111 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D120 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D121 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D130 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D131 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D321 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D502 or 1SR154-400-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D540 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D704 or DZ2J062/M/-X ------------ Z DIODE (Deletion) 1 01,03,04
01 D780 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D781 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D782 or DA2J101-X ------------ SI DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D783 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D891 or MC2836-X ------------ DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D970 or DZ2J068/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 D971 or DZ2J068/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
01 C162 ------------ QEQF1CM-475Z-E E CAPACITOR (Addition) 1 05
01 C174 ------------ QEQF1CM-475Z-E E CAPACITOR (Addition) 1 05
01 C582 ------------ NCB31HK-102X C CAPACITOR (Addition) 1 05
01 C583 ------------ NCB31HK-102X C CAPACITOR (Addition) 1 05
01 C592 ------------ NDC31HJ-101X C CAPACITOR (Addition) 1 05
01 C593 ------------ NDC31HJ-101X C CAPACITOR (Addition) 1 05
01 R595 ------------ NRSA63J-202X MG RESISTOR (Addition) 1 05
01 R596 ------------ NRSA63J-202X MG RESISTOR (Addition) 1 05
01 L901 ------------ QQR1883-002 CHOKE COIL (Addition) 1 05
01 B937 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B938 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B942 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B943 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B945 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B946 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B950 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B957 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B958 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B961 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B964 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B967 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B968 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 B969 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
(Deletion) 1 09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(Deletion) 1 01,02,03,04,06,07,08,09
TRANSISTOR
(MA512-R003) 3
Page 62
Symbol or
!
01 B970 ------------ NRSA63J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
01 J1 or QNB0348-001 ------------ ANT TERMINAL (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
SWITCH UNIT [02]
Symbol or
!
02 Q633 or DSC5001/RS/-X ------------ TRANSISTOR (Deletion) 1 01,02,03,04,06,07,08,09
02 D627 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D628 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D629 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D630 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D631 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D632 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D633 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D634 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D635 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D636 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D637 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D638 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D639 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D640 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D641 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D642 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D643 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D644 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D645 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D646 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D649 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D650 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D651 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D652 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D653 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D654 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D655 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D656 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D657 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D658 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D659 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D660 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
02 D662 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D663 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D664 ------------ SML-311WT/JK/X LED (Addition) 1 05
02 D681 or DZ2J033/M/-X ------------ Z DIODE (Deletion) 1 01,02,03,04,06,07,08,09
02 D691 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 09
02 D692 or DZ2J051/M/-X ------------ Z DIODE (Deletion) 1 09
02 R620 ------------ NRS181J-122X MG RESISTOR (Addition) 1 05
02 R621 ------------ NRS181J-122X MG RESISTOR (Addition) 1 05
02 CN603 or QNZ1057-001 ------------ USB CONNECTOR (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
CD PLAYER UNIT (FLM-HC3-1D)IN CD MECHA [03]
Symbol or
!
03 B1 ------------ NRS181J-0R0X MG RESISTOR (Addition) 1 01,02,03,04,05,06,07,08,09
03 CN101 QGF1044F2-26X QGF1044F3-26X CONNECTOR 1 01,02,03,04,05,06,07,08,09
03 SW1 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW1 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW2 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW2 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW3 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW3 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
03 SW4 NSW0291-001X NSW0349-001X DETECT SWITCH 1 01,02,03,04,05,06,07,08,09
03 SW4 or NSW0233-001X ------------ DETECT SWITCH (Deletion) 1 01,02,03,04,06,07,08,09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
4 (MA512-R003)
Page 63
PACKING AND ACCESSORIES (E,EE,EN,EY) [M3MM]
Symbol or
!
! M3MM DC1 QAM1345-001 QAM1345-001 DC CORD 1 01,03,04
! M3MM DC1 QAM1344-001 QAM1344-001 DC CORD 1 02
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
PACKING AND ACCESSORIES (SUN,U,UN,UP) [M4MM]
Symbol or
!
! M4MM DC1 ------------ QAM1504-001 DC CORD (Addition) 1 05
! M4MM DC1 QAM1328-001 QAM1328-001 DC CORD 1 06,07,08
M4MM A1 ------------ GET0922-001A INST BOOK (Addition) 1 05
M4MM A10 ------------ QYSDSP5008ZA SCREW (Addition) 6 05
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
PACKING AND ACCESSORIES (ONLY XG56T2U) [M5MM]
Symbol or
!
! M5MM DC1 QAM1431-002 QAM1431-002 DC CORD 1 09
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
(MA512-R003) 5
Page 64
JVC KENWOOD Corporation
Car Electronics Business Group 2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525, Japan
(MA512-R003)
Printed in Japan
No.MA512<Rev.002> VSE
Page 65

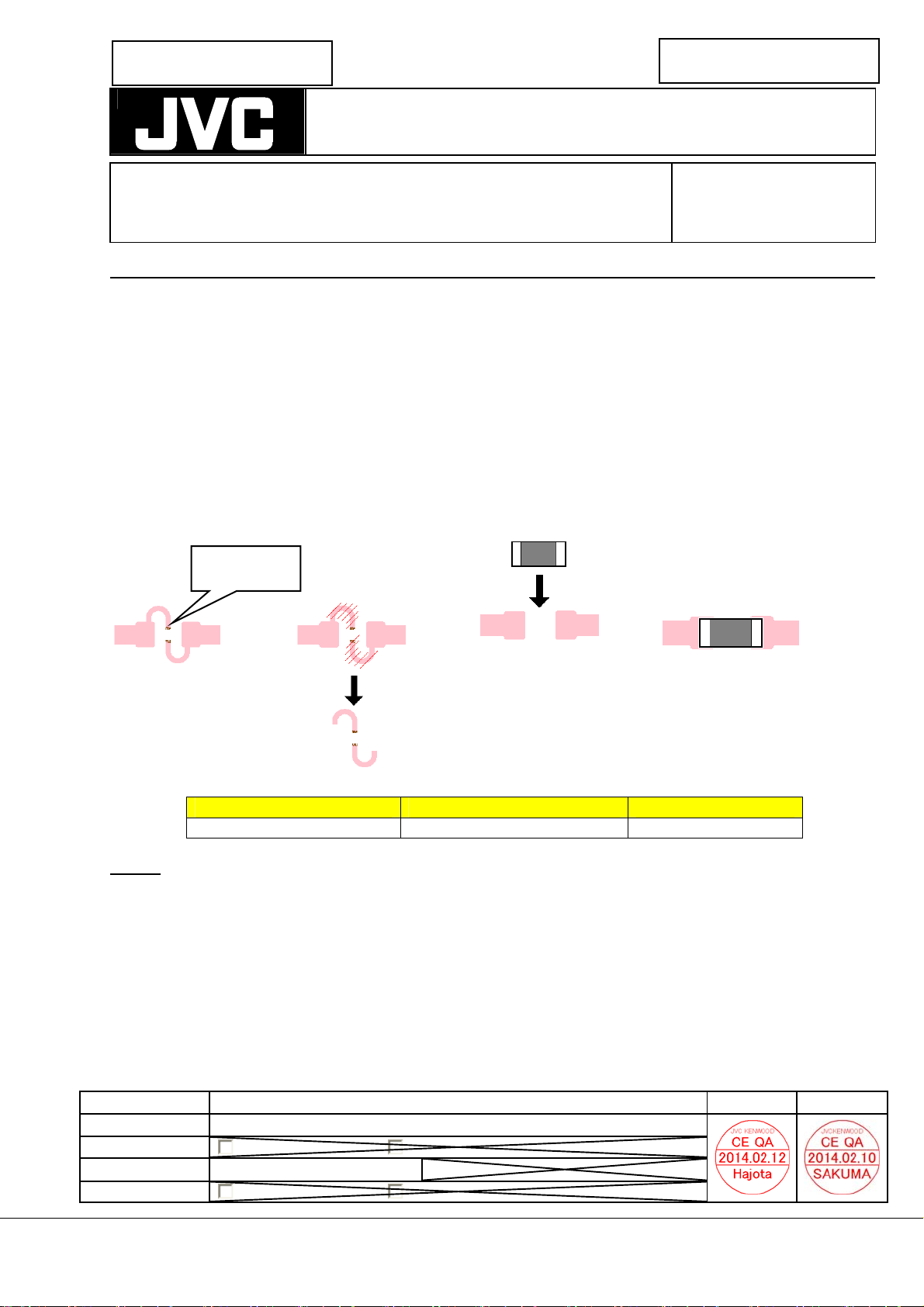

GENRE : CAR
No. BM00-14-001E
Service T echnical Report
Model Application
ALL A
SUBJECT :
How to repair a bout fusible pa tte rn
DATE : Feb 10 th 2014
< Purpose of pattern fuse >
In order to prevent serious damage to a signal pattern of receiver, a fusible pattern is prepared in
the GND line of RCA Terminal. This damage may take due to improper hookup with an external
equipment via RCA line (e.g. No hookup the GND line of Amplifier (or CD changer or RCA signal line)
with the VCC line are shorted).
<Repair Procedure>
1. Check a fusible pattern whether it was opened or not.
2. If open the pattern as shown below, clean the pattern before soldering a fuse.
3. Add following parts to the fusible pattern.
4. Check the output level.
Blown point
Parts Name Parts Number Spec
Chip fuse
NMFZ032-4R0X-H
4A
NOTE:
This information is indicated in the service manual for 2014 models and later.
<After finished repair>
Due to improper hookup, this issue was occurred.
Thus, please notice following information to your customer when unit back to your customer.
Things to be checked before install the receiver.
1. Check the GND line of external amplifier (or other equipment) which must hookup properly.
2. Check whether GND line is not shorted to the Battery terminal or not. (Do not short the lines)
Repair Code A(S): 6N11 B: C(P): D(C): 702 APPROVED WRITER
IRIS Code Symptom: 510 Section: OUT PCB: P Defect: 7 Repair: K
Old Stock Parts
Product Change Lot S/No.
Rework Request
Replace Running chang e
Forever Remar ks
JVC KENWOOD Corporation
Car Electronics Segment, Car Electronics Consumer Div. Consumer Quality Assurance Dpt. Third Group
2.32
©COPYRIGHT 2014 JVC KENWOOD All Rights Reserved. GSS P-4-2-2-BE(0)
Page 66
No. MA-SB-00154 1/3
Service Bulletin
Model Service Manual No. Priority
KD-R431E,KD-R432E,
KD-R437EE,KD-R48EE,
KD-R430J,KD-R438J,
KD-R439UR,KD-R531E,
KD-R537EE,KD-A535J,
KD-R538J,KD-R530J,
KW-R400E,KW-R400EE,
KW-R500E,KW-R500J,
KD-R436U,KD-R435U,
KD-R438UF,KD-R434UI,
KD-R536U,KD-R538UF,
KW-R400U,KW-R500U,
KW-XG56T2U
MA503
MA504
MA512
MA514
MA524
( )S. All product.
( )A. Items in JVC / Dealer stock / Service return
goods.
( )B. JVC stock / Units returned for Service.
( )C. Sold items returned for Service.
(X )D. Only Units related to this bulletin.
( )E. Others.
SUBJECT : DATE : Jan. 20, 2012
Change of subwoofer setting
<Improvement >
This software update increases the sound level of the Sub-Woofer which is connected to the external
amplifier.
<Procedure>
Please update the software.
Please download the file from “SMIS” of JS-NET.
Zip file name: 118.zip
Please refer from page 2 to page 3 about the update procedure.
Caution : Do not turn off the unit while updating the software.
<Performed at factory>
February production (plan) 077X0001~
JVC KENWOOD Corporation
Car electronics businesss group
Market Quality Assurance Dept, Quality Assurance Div.
2.32
2967-3 Ishikawa-machi Hachioji-shi, Tokyo, 192-8525
COPYRIGHT 2011 JVC KENWOOD Corporation, All Rights Reserved.
Page 67
No. MA-SB-00154 2/3

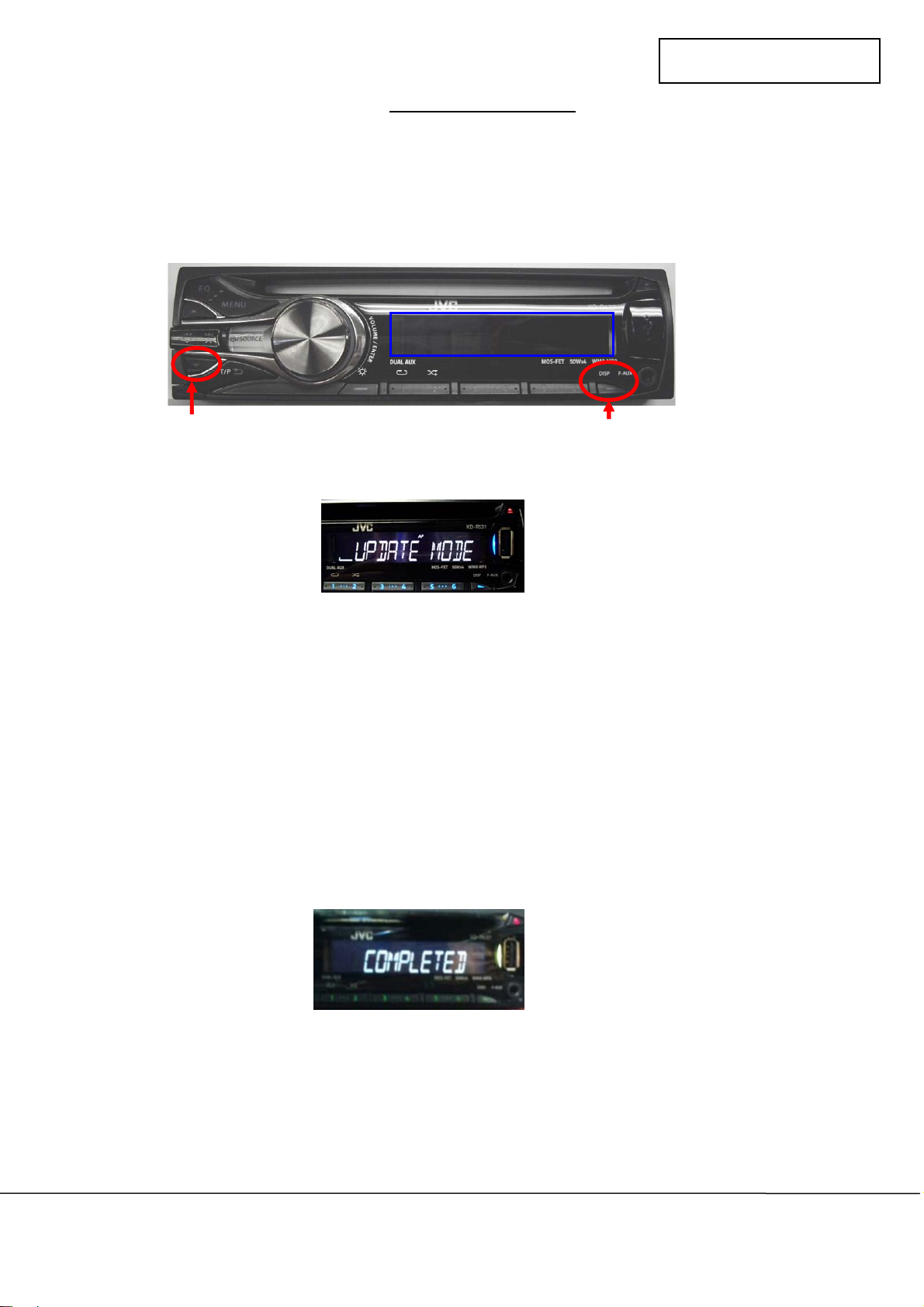

Update procedure
Preparation:
Take care for no power shut down.
Please unpack the downloaded ZIP file. (Extracted file name: J12S221.rom)
Write the file “J12S221.rom” onto a CD-R in ISO-9660 format with “Disc at Once”.
1) Push and hold [DOWN] and [DISP] keys simultaneously more than 2 seconds.
Display
Display
[DOWN]
[DOWN]
2) Upon entering the Update Mode, the following message is appearing on the Display.
[DISP]
[DISP]
UPDATE MODE => VER ### => INSERT CD => TO UPDATE
3) Insert the “Update CD-ROM” to the unit and the update will start automatically.
4) The following message will shows up on the display during updating the software.
PLEASE WAIT => READING => UPDATING ##
5) The update takes around 10minits. And during this update, the “UPDATING ##” will count up from
“01” to “99”.
After the update is finished, the disc will eject automatically and the following message shows up
on the display.
JVC KENWOOD Corporation
Car electronics businesss group
Market Quality Assurance Dept, Quality Assurance Div.
2.32
2967-3 Ishikawa-machi Hachioji-shi, Tokyo, 192-8525
COPYRIGHT 2011 JVC KENWOOD Corporation, All Rights Reserved.
Page 68
No. MA-SB-00154 3/3

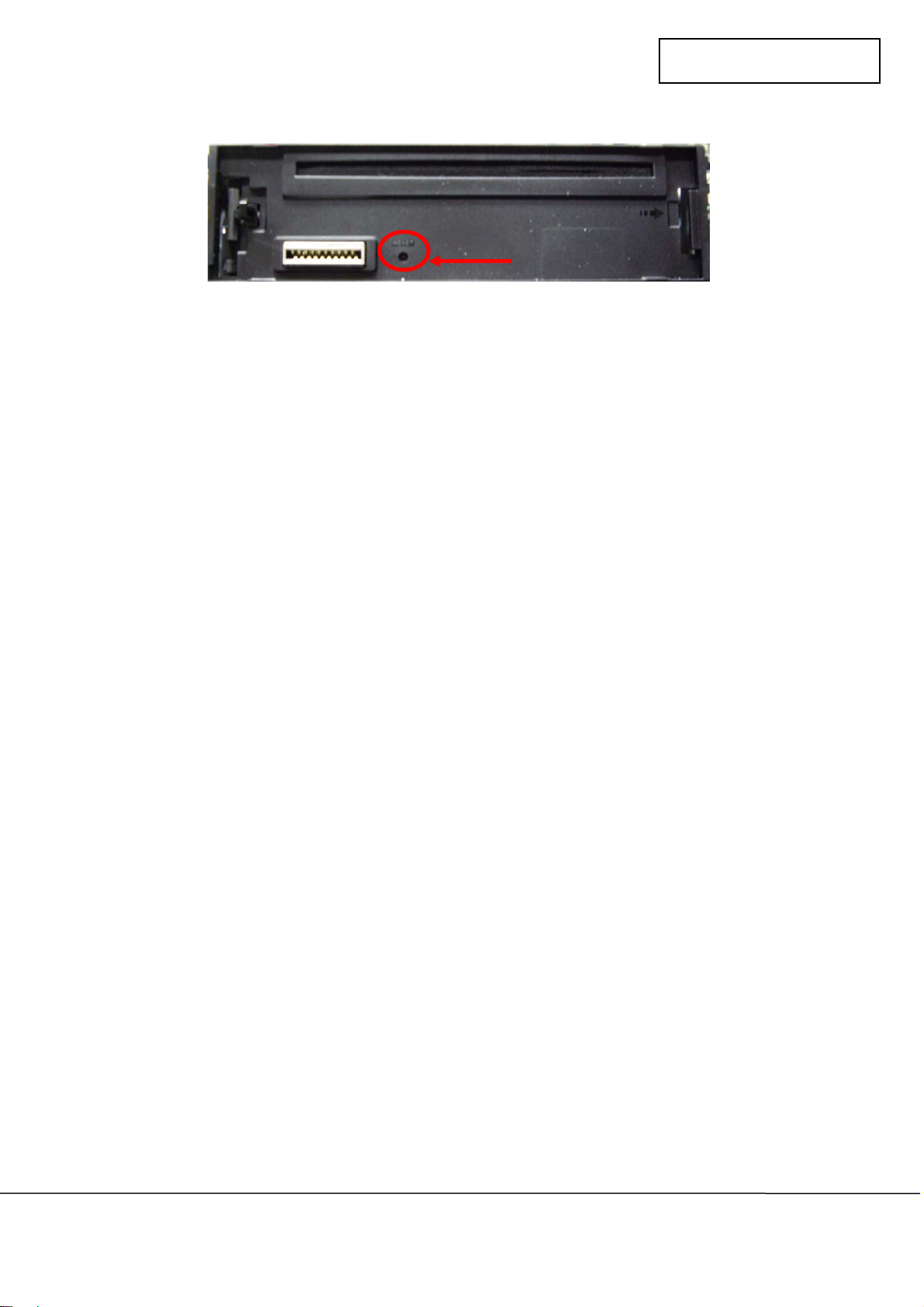

6) After shows up “COMPLETED” on the display, please detach the faceplate and push the reset
button as located on the following picture.
RESET BUTTONRESET BUTTON
7) Restart the receiver and finish the update.
Confirm the version number.
Push and hold [DOWN] and [DISP] keys simultaneously more than 2 seconds.
After update, the version number is “x118”.
JVC KENWOOD Corporation
Car electronics businesss group
Market Quality Assurance Dept, Quality Assurance Div.
2.32
2967-3 Ishikawa-machi Hachioji-shi, Tokyo, 192-8525
COPYRIGHT 2011 JVC KENWOOD Corporation, All Rights Reserved.
Loading...
