Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
Power Output20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N
Signal-to-Noise Ratio80 dBA (reference: 1 W into 4 Ω)
Load Impedance4 Ω (4 Ω to 8 Ω allowance)
Audio Output Level LINE OUT
(FRONT/REAR)/CENTER OUT/SUBWOOFER
Color SystemNTSC
Video Output (composite)1 Vp-p/75 Ω
Other TerminalsInputLINE IN, VIDEO IN, CAMERA IN, USB input terminal, Antenna input
Frequency RangeFM (with channel interval set to 100 kHz or 200 kHz) 87.5 MHz to 107.9 MHz
FM (with channel interval set to 50 kHz)87.5 MHz to 108.0 MHz
AM (with channel interval set to 10 kHz)530 kHz to 1 710 kHz
AM (with channel interval set to 9 kHz)531 kHz to 1 602 kHz
FM TunerUsable Sensitivity11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz)65 dB
Frequency Response40 Hz to 15 000 Hz
Stereo Separation35 dB
AM TunerSensitivity/Selectivity20 µV/35 dB
Signal Detection SystemNon-contact optical pickup (semiconductor laser)
Frequency ResponseDVD, fs=48 kHz16 Hz to 22 000 Hz
Dynamic Range93 dB
Signal-to-Noise Ratio95 dB
Wow and FlutterLess than measurable limit
Compatible File SystemFAT 32/16/12
Capacity8 Mbytes to 2 Gbytes
Data Transfer RateMaximum 10 Mbps
USB StandardsUSB 1.1
Data Transfer RateFull SpeedMaximum 12 Mbytes
Compatible DeviceMass storage class
Compatible File SystemFAT 32/16/12
Max. CurrentLess than 500 mA/5V
Screen Size7 inch wide liquid crystal display
Number of Pixel336 960 pixels: 480 × 3 (horizontal) × 234 (vertical)
Drive MethodTFT (Thin Film Transistor) active matrix format
Color SystemNTSC/PAL
Aspect Ratio16:9 (wide)
Power RequirementOperating VoltageDC 14.4 V (11 V to 16 V allowance)
Grounding SystemNegative ground
Allowable Storage Temperature-10°C to +60°C (14°F to 140°F)
Allowable Operating Temperature0°C to +40°C (32°F to 104°F)
Dimensions (W × H × D)
With trim plate and sleeve attached
Mass (approx.)3 kg (6.7 lbs) (including trims and sleeve)
Output2nd AUDIO OUT, VIDEO OUT
OthersCD changer, OE REMOTE
FM/AM TUNER
DVD/CD
DVD, fs=192 kHz16 Hz to 88 000 Hz
VCD/CD16 Hz to 20 000 Hz
SD
USB
Low SpeedMaximum 1.5 Mbytes
MONITOR
GENERAL
Installation Size (approx.)182 mm × 111 mm × 160 mm (7-3/16" × 4-3/8" × 6-5/16")
Panel Size (approx.)188 mm × 117 mm × 10 mm (7-7/16" × 4-5/8" × 7/16")
Design and specifications are subject to change without notice.
1-2 (No.MA320)
KW-AVX800E, KW-AVX800EU, KW-AVX800EE
AMPLIFIER
Maximum Power OutputFront/Rear50 W per channel
Continuous Power Output (RMS)Front/Rear20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8%
Level±10 dB
Signal-to-Noise Ratio70 dB
Audio Output Level LINE OUT
(FRONT/REAR)/CENTER OUT/ SUBWOOFER
Color SystemNTSC/PAL
Video Output (composite)1 Vp-p/75 Ω
Other TerminalsInputLINE IN, VIDEO IN, CAMERA IN, USB input terminal, Antenna input
Frequency RangeFM87.5 MHz to 108.0 MHz
AM531 kHz to 1 602 kHz
FM TunerUsable Sensitivity11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz)65 dB
Frequency Response40 Hz to 15 000 Hz
Stereo Separation35 dB
AM TunerSensitivity/Selectivity20 µV/35 dB
Signal Detection SystemNon-contact optical pickup (semiconductor laser)
Frequency ResponseDVD, fs=48 kHz16 Hz to 22 000 Hz
Dynamic Range93 dB
Signal-to-Noise Ratio95 dB
Wow and FlutterLess than measurable limit
Compatible File SystemFAT 32/16/12
Capacity8 Mbytes to 2 Gbytes
Data Transfer RateMaximum 10 Mbps
USB
USB StandardsUSB 1.1
Data Transfer RateFull SpeedMaximum 12 Mbytes
Compatible DeviceMass storage class
Compatible File SystemFAT 32/16/12
Max. CurrentLess than 500 mA/5V
Screen Size7 inch wide liquid crystal display
Number of Pixel336 960 pixels: 480 × 3 (horizontal) × 234 (vertical)
Drive MethodTFT (Thin Film Transistor) active matrix format
Color SystemNTSC/PAL
Aspect Ratio16:9 (wide)
Power RequirementOperating VoltageDC 14.4 V (11 V to 16 V allowance)
Grounding SystemNegative ground
Allowable Storage Temperature-10°C to +60°C
Allowable Operating Temperature0°C to +40°C
Dimensions (W × H × D)Installation Size (approx.)178 mm × 100 mm × 160 mm
Design and specifications are subject to change without notice.
1-4 (No.MA320)
1.1Safety Precautions
SECTION 1
PRECAUTION
!
!
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
(No.MA320)1-5
1.2Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron plate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.4Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land before the card wire is disconnected from the connector on the pickup unit.
(If the card wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the card wire.
Flexible wire
1-6 (No.MA320)
CN101
Short-circuit points
Mechanism control board
1.5Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
(No.MA320)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
1-8 (No.MA320)
SECTION 3
DISASSEMBLY
3.1Main body
3.1.1 Removing the FRONT PANEL assembly
(See Fig.1 to 4)
(1) From the bottom side of main body, insert the screwdriver
to hole of the third gear from hole a of the bottom chassis,
and then turn the gear to clockwise until FRONT PANEL
assembly comes up. (See Fig.1)
(2) Remove the two screws A attaching the both side of the
FRONT PANEL assembly. (See Fig.2)
(3) Remove the four screws B attaching the both side of the
FRONT PANEL assembly. (See Fig.2)
(4) Remove the one screw C attaching the FPC GUIDE. (See
Fig.3)
(5) Remove the one screw D attaching the FRONT CHASSIS.
(See Fig.3)
(6) Disconnect the card wire from MONITOR assembly con-
nected to connector CN401
bly. (See Fig.4)
(7) Disengage two hooks a engaged FRONT CHASSIS. (See
Fig.2)
of the PANEL BOARD assem-
C
Fig.3
B
Fig.1
hook a
A
hole a
B
D
CN401
Fig.4
hook a
Fig.2
(No.MA320)1-9
3.1.2 Removing the HEAT SINK
(See Fig.5)
(1) Remove the four screws E and two screws F attaching the
HEAT SINK.
E
3.1.3 Removing the REAR BRACKET
(See Fig.6, 7)
(1) Remove the three screws G attaching the REAR HEAT
SINK. (See Fig.6)
(2) Remove the eleven screws H attaching the REAR BRACK-
ET. (See Fig.6)
(3) Disconnect the connector wire from FAN connected to con-
nector CN906
of the SUB BOARD assembly. (See Fig.7)
EE
F
Fig.5
G
HH HH
Fig.6
CN906
1-10 (No.MA320)
Fig.7
3.1.4 Removing the TOP CHASSIS assembly
(See Fig.8 to 11)
(1) Disconnect the card wire from TOP CHASSIS assembly
connected to connector CN702
sembly. (See Fig.8)
(2) Remove the two screws J attaching the FRONT BOARD
assembly. (See Fig.8)
(3) Disconnect the connector wire from MAIN BOARD assem-
bly connected to connector CN902
sembly. (See Fig.9)
(4) Disconnect the card wire from MAIN BOARD assembly
connected to connector CN904
sembly. (See Fig.9)
(5) From left side of MAIN BODY, remove the two screws K at-
taching the TOP CHASSIS assembly. (See Fig.10)
(6) From right side of MAIN BODY, remove the two screws L
attaching the TOP CHASSIS assembly. (See Fig.11)
of the MAIN BOARD as-
of the SUB BOARD as-
of the SUB BOARD as-
CN702
J
Fig.8
CN902CN904
Fig.9
K
Fig.10
K
LL
Fig.11
(No.MA320)1-11
3.1.5 Removing the MAIN BOARD assembly
(See Fig.12)
(1) Disconnect the connector wire from the MECHA SWITCH
BOARD assembly connected to connector CN764 of the
MAIN BOARD assembly.
(2) Remove the four screws M attaching the MAIN BOARD as-
sembly.
CN764
3.1.6 Removing the MID CHASSIS
(See Fig.13)
(1) Remove the four screws N attaching the MID CHASSIS.
M
Fig.12
M
NN
3.1.7 Removing the SUB BOARD assembly
(See Fig.14, 15)
(1) Disconnect the card wire from CONNECTION BOARD as-
sembly connected to connector CN907
assembly. (See Fig.14)
(2) Remove the five screws P attaching the SUB BOARD as-
sembly. (See Fig.15)
of the SUB BOARD
Fig.13
CN907
Fig.14
P
PP
1-12 (No.MA320)
Fig.15
3.1.8 Removing the DVD MECHANISM assembly
(See Fig.16 to 18)
(1) Remove the two screws Q attaching the FRONT PCB
BRACKET. (See Fig.16)
(2) Remove the three screws R attaching the SUB PCB
BRACKET. (See Fig.17)
(3) Remove the three screws S attaching the DVD MECHA-
NISM assembly. (See Fig.18)
QQ
Fig.16
3.1.9 Removing the CONNECTION BOARD assembly
(See Fig.19)
(1) Takeout the INSULATOR.
(2) Disconnect the card wire from FRONTEND BOARD as-
sembly connected to connector CN301
CONNECTION BOARD assembly.
(3) Remove the four screws T attaching the CONNECTION
BOARD assembly.
and CN303 of the
S
S
T
CN301
R
Fig.17
S
Fig.18
T
T
CN303
T
Fig.19
(No.MA320)1-13
3.2Monitor section
3.2.1 Removing the FRONT BRACKET assembly
(See Fig.1)
(1) Remove the two screws A attaching the FPC COVER.
(2) Remove the four screws B attaching the FRONT BRACK-
ET assembly.
(3) Remove the two screws C attaching he FRONT BRACKET
assembly.
3.2.2 Removing the PANEL BOARD assembly
(See Fig.2)
(1) Disconnect the connector wire from LCD module connect-
ed to connector CN471
(2) Disconnect the card wire from SWITCH BOARD assembly
connected to connector CN431
PANEL BOARD assembly.
(3) Remove the four screws D attaching the PANEL BOARD
assembly.
of the PANEL BOARD assembly.
, CN511 and CN591 of the
A
C
A
B
B
Fig.1
CN471
DD
3.2.3 Removing the LCD module
(See Fig.3)
(1) Remove the six screws E attaching the PANEL BRACKET
assembly. (See Fig.3)
(2) Disengage seven hook a engaged PANEL BRACKET.
E
hook a
CN431CN511
Fig.2
hook
Fig.3
a
hook
a
CN591
E
EE
1-14 (No.MA320)
3.3DVD mechanism assembly
3.3.1 Removing the mechanism control board
(See Fig.1)
Caution:
Before disconnecting the flexible wire extending from the DVD
pickup, solder the short-circuit point on the flexible wire using
a grounding soldering iron. If you do not follow this instruction,
the DVD pickup may be damaged.
(1) Turn over the body, and solder the short-circuit points on
the flexible wire extending from the DVD pickup.
(2) Disconnect the flexible wire from connector CN101
mechanism control board.
(3) Disconnect the card wire from connector CN201
mechanism control board.
(4) Disconnect the flexible wire from connector CN202
mechanism control board.
(5) Unsolder two soldered points a on the mechanism control
board and remove the wire extending from the feed motor.
(6) Remove the screw A attaching the lug wire.
(7) Remove the two screws B and screw C attaching the
mechanism control board.
Caution:
• As the flexible wire to be connected to CN101
attach it to the mechanism control board using a double
tape.
• After reassembling, unsolder the short-circuit points.
on the
on the
on the
, make sure to
Flexible wire
Double tape
CN101
B
Short-circuit points
A
Lug wire
B
CN201
Feed motor
a
C
CN202
Mechanism control board
Fig.1
(No.MA320)1-15
3.3.2 Removing the top cover
(See Fig.2)
(1) Remove the two screws D attaching the top cover on the
back of the body.
(2) Remove the top cover upward.
Reference:
When reassembling, set part b of the top cover under the
bending part c of the chassis frame.
3.3.3 Removing the mechanism section
(See Fig.2 to 4)
• Remove the top cover.
(1) From the bottom of the body, remove the screw E attaching
the lug wire. (See Fig.2.)
(2) Remove the two screws F attaching the right and left stop-
pers on the front side. (See Fig.2.)
(3) Remove the two floating springs on the bottom of the body.
(See Fig.3.)
(4) Move the mechanism section upward and remove from the
chassis frame.
The three damper springs come off from the dampers.
(See Fig.4.)
Caution:
• When reassembling, reattach the damper spring to the
damper respectively and insert the three shafts on the bottom of the mechanism to the dampers.
• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.
Floating spring
Fig.3
Mechanism section
Stopper
F
Top cover
Stopper
F
D
D
b
c
E
Lug wire
Damper SP.(F)
(Silver)
Damper (F)
(Black)
Damper SP.(F)
(Silver)
Damper (F)
(Black)
Fig.4
Damper SP.(R)
(Red)
Damper (R)
(Purple)
Chassis frame
1-16 (No.MA320)
Fig.2
3.3.4 Removing the clamper unit
(See Fig.5 to 7)
• Remove the top cover and the mechanism section.
(1) Remove the clamper2 spring on the bottom of the mecha-
nism section. (See Figs.5.and 6.)
(2) Release the part d of the clamper spring from the bending
part of the chassis base assembly. (See Fig.7.)
(3) Move the clamper unit in the direction of the arrow and turn.
Release the two joints e and f, then remove the clamper
unit upward. (See Fig.6.)
3.3.5 Reattaching the clamper unit
(See Fig.5 to 9)
(1) Attach the clamper spring to the clamper unit. (See Fig.8.)
(2) Move the clamper unit to set the side joints e and f to each
boss of the chassis base assembly. Make sure that part g
is inserted to the notch of the chassis base assembly. (See
Figs.5 and 9.)
(3) Move the part d of the clamper spring to the outside of the
bending part of the chassis base assembly. (See Fig.7.)
(4) Attach the clamper2 spring to the chassis base assembly.
(See Figs.5 and 6.)
Caution:
When reattaching, temporarily hook the end of the clamper
spring as shown in the figure to make the work easy. (See
Fig.8.)
Clamper unit
Clamper2 spring
Chassis base assembly
Fig.6
Clamper spring
Clamper spring
f
Clamper2 spring
Chassis base assembly
g
d
Chassis base assembly
Fig.7
e
Fig.5
(No.MA320)1-17
Clamper unit
Clamper unit
Clamper spring
Fig.8
1-18 (No.MA320)
Fig.9
g
Notch
3.3.6 Removing the front unit
(See Fig.10 to 12)
• Remove the top cover and the mechanism section.
(1) Disconnect the flexible wire from connector CN202
mechanism control board at the bottom of the body. (See
Fig.10.)
(2) Remove the screw G attaching the front unit on the top of
the body. (See Fig.11.)
(3) Move the front unit toward the front to release joint h, and
release two joints i and j on the right side of the chassis
base assembly. Then remove the front unit upward. (See
Figs.11 and 12.)
(4) Remove the two screws H attaching the switch board. (See
Fig.12.)
Reference:
You can remove the switch board only without removing the
front unit.
Caution:
When reassembling, attach the flexible wire extending from
the switch board using the double tape. (See Figs.10 and 12.)
Mechanism control board
on the
G
Front unit
h
Fig.11
CN202
Double tape
Fig.10
Flexible wire
Double tape
j
i
H
Switch board
Front unit
G
Fig.12
h
(No.MA320)1-19
3.3.7 Removing the loading arm assembly
(See Fig.13 , 14)
• Remove the top cover, the mechanism section and the front
unit.
(1) From the top of the body, move the loading arm assembly
from the front side upward, and release the bosses from
the right and left joints k and m of the chassis base assembly.
(2) Release the boss from notch n of the connect arm on the
right side of the body, and release the boss from notch p of
the slide cam assembly on the left side.
m
Loading arm assembly
Side cam
assembly
p
m
k
Fig.13
Loading arm assembly
k
n
n
Connect arm
1-20 (No.MA320)
Fig.14
3.3.8 Removing the rod (L)(R)/roller assembly
(See Fig.15 and 16)
• Remove the top cover, the mechanism section, the front unit
and the loading arm assembly.
(1) Release the rod (L) and (R) from the joints q at the bottom
of the loading arm assembly (See Fig.15.)
(2) Remove the roller assembly from the loading arm assem-
bly. (See Fig.16.)
(3) Remove the two collars and washer from the roller assem-
bly. (See Fig.16.)
Caution:
After attaching the loading arm assembly to the roller assembly, attach the rod (L) and (R). Attach the rods to the right and
left collars of the roller. (See Fig.15.)
When reattaching the rod (L) and (R) to the loading arm assembly, engage each joint as shown in Fig.15. As joints q of
the rod (L), let the rod through q before reattaching it.
Collar
Collar
Rod(R)Rod(L)
q
q
q
Collar
Rod(L)
Rod(R)
q
Loading arm assembly
Fig.15
Roller assembly
Loading arm assembly
q
Rod(L)
q
Collar
Washer
Rod(R)
Fig.16
(No.MA320)1-21
3.3.9 Removing the DVD pickup assembly
(See Fig.17 to 19)
• Remove the mechanism control board.
(1) From the bottom of the body, turn the feed gear in the di-
rection of the arrow to move the DVD pickup outwards.
(See Fig.17.)
(2) Remove the screw J attaching the thrust spring. (See
Fig.17.)
(3) Remove the DVD pickup assembly upward on the L.S.gear
side and release from sub shaft at joint r. Move the lead
screw of the DVD pickup assembly in the direction of the
arrow to release from joint s. (See Fig.18.)
Caution:
• When releasing the lead screw at joint s, the L.S.collar
comes off at the end of the lead screw. When reassembling, reattach the L.S.collar to the lead screw and
engage joint s. (See Fig.18.)
• When reattaching the L.S.collar, reattach it to the point
s of the lead screw, and to the rod (M). Make sure that
the L.S.collar is set on the rod (M) spring. (See Fig.18.)
(4) Remove the screw K attaching the rack spring/ rack plate
on the DVD pickup. (See Fig.19.)
(5) Pull out the lead screw. (See Fig.19.)
Caution:
Perform adjustment after replacing the pickup.
DVD Pickup assembly
DVD Pickup assembly
Feed gear
J
Thrust spring
Fig.17
s
L.S.collar
Rod(M)
Lead screw
Sub shaft
L.S.collar
r
L.S.gear
Fig.18
K
Rack spring
Lead screw
Rack plate
DVD Pickup
Fig.19
1-22 (No.MA320)
3.3.10 Removing the spindle motor
r
(See Fig.20)
• Remove the mechanism control board.
Remove the two screws L attaching the spindle motor on the
bottom of the body.
Caution:
Perform adjustment when reattaching the spindle motor.
3.3.11 Removing the feed motor assembly
(See Fig.21 and 22)
• Remove the mechanism control board.
(1) Remove the feed TRI. spring on the bottom of the body.
(See Fig.21.)
(2) Remove the two screws M attaching the feed motor as-
sembly. (See Fig.21.)
(3) Remove the slit washer from the motor H. assembly and
pull out the worm wheel. (See Fig.22.)
Remove the two screws N attaching the feed motor. (See
Fig.22.)
Spindle motor
Feed TRI. spring
L
Fig.20
M
Feed motor assembly
Fig.21
Slit washer
Worm wheel
Feed moto
N
Motor H. assembly
Fig.22
(No.MA320)1-23
SECTION 4
ADJUSTMENT
4.1Test instruments required for adjustment
(1) Digital oscilloscope (100MHz)
(2) Jitter meter
(3) Digital tester
(4) Electric voltmeter
(5) Tracking offset meter
(6) Test Disc : VT501 or VT502
(7) Extension studs : STDV001-3P
(8) Extension cable :
Be sure to attach the heat sink and rear bracket onto the power
amplifier IC and regulator IC respectively, before supply the
power. If voltage is applied without attaching these parts, the
power amplifier IC and regulator IC will be destroyed by heat.
(1) Attach the front chassis assembly to the main board.
(2) Attach the heat sink and rear bracket to the main board.
(3) Attach the extension studs to the DVD mechanism assembly.
(4) Connect the DVD mechanism assembly and the main board with a extension cable.
Bottom view
g
CN404
EXTJD001-60PF
h
CN375
EXTJD001-14PF
CN401
a
CN376
EXTXC004-20P
b
EXTFP001-26P
EXTCN001-6P
i
EXTDV002-44PF
CN305
f
CN381
e
EXTDV002-7PF
EXTDV002-44PF
CN301
CN302
EXTCN001-6P
CN764
f
EXTXC004-20P
EXTJD001-60PF
h
EXTJD001-14PF
CN303
i
CN702
CN701
b
EXTFP001-26P
CN903
a
g
EXTLX001-4P
CN703
CN907
e
EXTDV002-7PF
c
EXTDV001-23PF
CN705
EXTDV001-23PF
EXTLX001-4P
CN902
d
d
c
CN904
1-24 (No.MA320)
4.4Adjustment method for jitter
After replacing the pickup, set the unit in the service mode to display a jitter value on the LCD.
Confirm that the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If it is within 12%, then adjustment is not necessary.
If the measured jitter value is outside the 12% tolerance range, perform the following adjustments.
4.4.1 Adjustment procedure
(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD.
(2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it.
(Do not turn a screw more than a half turn at a time, but adjust the screws in the cycle of the same level is turned in the pair of
b+c and the same level is turned in the pair of a+b.)
(3) After completing the adjustment, secure the screws with screw lock paint.
c
b
a
Jitter value adjustment procedure (Pickup horizontal level adjustment relative to the DVD recording surface)
(For the adjustment tool use a 3 mm wrench and not a screwdriver, this procedure will make the adjustment easier.)
3 mm wrench
(No.MA320)1-25
4.5Jitter value conversion table
Load the test DVD and set the unit to the service mode. A jitter value converted to the hex value is displayed on the LCD.
Refer to the corresponding decimal notation value shown in the following Jitter Conversion Table.
The adjustment is OK if the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If the measured jitter value is outside the 12% tolerance range, adjust it to minimize the difference between the measured value and
the displayed value.
4.6.1 Service mode 1 (Indication of a service mode 1 is nothing.)
Keep this state more 2 seconds
while continuing pressing the
[STANDBY/ON ATTENUATOR] button
and [OPEN] button sequentially.
Screen indication
NO EJECT?
EMERGENCY EJECT?*1*2
Exchanging it operate a menu of a service mode with the [UP] button and [DOWN]
button. Operate choice of a menu with a [ENT] button.
*1 : When an [ENT] button is pushed in NO EJECT indication, it is set by an EJECT
prohibition mode.
When an [ENT] button is pushed in EJECT OK indication, it is set by a normal
mode.
*2 : Forced EJECT movement
A screen becomes normal indication after an ENT button was pushed.
[ VOLUME - ]
[ VOLUME + ]
FF Button
[ OPEN ]
4.6.2 Service mode 2
Keep this state more 2 seconds
while continuing pressing the
[AV MENU or TP/PTY] button, [OPEN]
button and TOUCH PANEL [UP]
button sequentially.
Screen indication
SERVICE MODE 2
INITIALIZE ALL
INITIALIZE
INITIALIZE DVD
INITIALIZE BT
TOUCH PANEL CALIBRATION
Exchanging it operate a menu of a service mode with the [UP] button
and [DOWN] button. Operate choice of a menu with a [ENT] button.
(No.MA320)1-27
INITIALIZE ALL
NOW
INITIALIZE ALL
INITIALIZE
NOW
INITIALIZE
INITIALIZE DVD
INITIALIZE DVD
OK **
INITIALIZE ALL (Each EEPROM is initialized by
a factory shipment state.)
INITIALIZE ALL
OK **
Main micon EEPROM initialization (user entry
domain, error history, speaker setting, subarea
of J-version, data to pre-set )
Panel micon EEPROM initialization (picture
adjustment data)
DVD unit EEPROM initialization (except
a permanent domain)
Bluetooth (Module/Hideaway) EEPROM
initialization
After clear completion, a screen returns to
normal indication after OK indication was
displayed for three seconds.
INITIALIZE (Initialization of a user area of each
EEPROM)
INITIALIZE
OK **
Main micon EEPROM initialization (a user entry
domain )
(a user entry domain, speaker setting, subarea
of J-version, data to pre-set )
Panel micon EEPROM initialization (picture
adjustment data )
DVD unit EEPROM initialization (except
a permanent domain)
After clear completion, a screen returns to
normal indication after OK indication was
displayed for three seconds.
Full initialization of EEPROM of a DVD unit
( It is included a permanent domain)
After clear completion, this indication is continued till an effective key is input.
INITIALIZE BT
INITIALIZE BT
OK **
TOUCH PANEL CALIBRATION
+
++
1-28 (No.MA320)
Full initialization of EEPROM of Bluetooth ( Module/Hideaway )
After clear completion, this indication is continued till an effective key is input.
Push the center of a + character displayed in turn.
+
+
4.6.3 Service mode 3
Keep this state more 2 seconds
while continuing pressing the
[AV MENU/TP PTY] button, [VOLUME -]
button and TOUCH PANEL [ DOWN]
button sequentially.
Screen indication
SERVICE MODE 3
SERVICE MODE
INITIALIZE ALL
RUNNING MODE
Exchanging it operate a menu of a service mode with the [UP] button
and [DOWN] button. Operate choice of a menu with a [ENT] button.
SERVICE MODE
SERVICE MODE
VERSION
AREA/REGION
TEMPERATURE
MEMORY CHECK
DVD NTSC/PAL
DVD CHECK MODE
Exchanging it operate
a menu of a service mode
with the [UP] button and
[DOWN] button.
Operate choice of a menu
with a [ENT] button.
Return to previous menu
with a [BACK] button.
SERVICE MODE
ERROR READ
ERROR CLEAR
BT VERSION
VERSION
MAIN
V**** [**]
JD9
CH
PANEL
****
******
V**** V*** [**]
P.ADJ
**
Micon version indication
Main micon version and ROM correction
version
JD9 version
CH version
Panel micon version and ROM correction
version
00 : Panel No adjustment (factory use)
01 : Complete Panel adjustment
(factory use)
Area and region indication
Main micon area
JD9 area
JD9 region
CPPM Y : Finished with a note
N : Non-note
**** : Check sum
TEMPERATURE Temperature data reading
Temperature data by the temperature sensor in the main micon
and JD9-PCB is read every 5 seconds and displayed in hex numbers.
MEMORY CHECK (It is displayed only at the time of the disc insertion)
Memory residual quantity indication mode
Data residual quantity of a disc is displayed by LCD.
About the playback control-related key ([FSKIP], [BSKIP], [UP],
[DOWN], [VOL]), only movement is effective.
Indication does not change as memory residual quantity indication.
About cancellation of this mode, press the
[STANDBY/ON ATTENUATOR] button.
Clear of each error history
A screen returns to following indication
after clear completion.
Bluetooth version indication
Software version of BT core
Hardware version of BT Module
Software version of BT Module
Software version of BT Hideaway controlle
BT Address
INITIALIZE ALL (Each EEPROM is initialized
by a factory shipment state.)
Main micon EEPROM initialization (user entry
domain, error history, speaker setting, subarea
of J-version, data to pre-set )
Panel micon EEPROM initialization (picture
adjustment data)
DVD unit EEPROM initialization (except
a permanent domain)
Bluetooth module EEPROM initialization
After clear completion, a screen returns to
normal indication after OK indication was
displayed for three seconds.
RUNNING MODE
See "Running mode" for details.
1-30 (No.MA320)
4.6.4 Service mode 4
Keep this state more 2 seconds
while continuing pressing the
[BACK] button, [MENU] button
and [DISP] button sequentially.
Screen indication
SERVICE MODE 4
RDS S MODE
MONITOR S MODE
Exchanging it operate a menu of a service mode with the [UP] button and [DOWN] button.
Operate choice of a menu with a [ENT] button.
RDS S MODE
RDS service mode (Only RDS model)
4.7DVD check mode
DVD CHECK MODE
NORMAL PLAY
EF OUT-TRACKING OFF
EF IN-TRACKING OFF
CD-LASER ON
DVD-LASER ON
DVDx1 JITTER MODE
Exchanging it operate a menu of a service mode with the [UP] button and [DOWN] button.
Operate choice of a menu with a [ENT] button.
Command Mechanism unit operation Indication contents
NORMAL PLAY
EF OUT-TRACKING OFF
EF IN-TRACKING OFF
CD-LASER ON
DVD-LASER ON
DVDx1 JITTER MODE
EEPROM DATA DISP
EEPROM DATA CLEAR
TEMPERATURE
SEARCH & JITTER
MONITOR
PLAY
STOP
OPEN
MONITOR S MODE
R/W CHROMA 1
R/W CHROMA 2
DATA CLEAR
Start at normal speed
(After start, jitter is measured by an inner position.)
Tracking off the outermost position of CD
Tracking off the innermost position of CD
CD_LD lights and laser current is displayed.
DVD_LD lights and laser current is displayed
DVD x1 jitter measuring mode
(for use in mechanism adjustment)
Contents of EEPROM is displayed.
Contents of EEPROM is initialized.
Temperature indication
The search and jitter measurement to an appointed
position of DVD.
Monitor terminal setting
DVD x1 stopped start
(After start, jitter is measured by an inner position.)
Disc stopped, LD-OFF
OPEN
*See "Monitor adjustment" for details.
CHROMA DATA read/write of NTSC/PAL signal processing IC
CHROMA DATA read/write of TFT driver IC
Clear of CHROMA DATA of 1,2 (return to an initial value)
DVD CHECK MODE
EEPROM DATA DISP
EEPROM DATA CLEAR
DVD CHECK MODE
STOP
OPEN
TEMPERATURE
SEARCH & JITTER
MONITOR
PLAY
Laser current value, jitter value
For EF phase error
For EF phase error
Laser current value, jitter value
Laser current value, jitter value
Laser current value, jitter value
EEPROM address
EEPROM contents
EEPROM address
EEPROM contents
Temperature is displayed in hex
numbers.
Position measured with VT-501
jitter value
Not displayed.
Not displayed.
Not displayed.
(No.MA320)1-31
4.8Error code tables
4.8.1 Mechanism error code
Error contentsDetails Error codeDetailed error code
Disc loading error
B1 time out
C1 time out
D1 time out
C2 time out
B2 time out
A2 time out
F1 time out
A0 (Switch state without existence)
G1 time out
G2 time out
Eject error
F2 time out
A1 time out
B1 time out
C1 time out
D1 time out
C2 time out
B2 time out
A0 (Switch state without existence)
Error in loading wait
Loading re-execution NG Eject
Eject re-execution NG Loading
Loading of a running mode
Disc was pulled out in a wait.
Running mode error
Running mode error
NO DISC judgment
It is NO DISC by start failure
It is stopped by playback inability.
Logic format NG
TOC lead movement of a CD is not completed.
Even if TOC reading passes after the end with
CD running mode for 30 seconds, the first track
access is not finished.
Even if first track passes after the end with
CD running mode for 30 seconds, the last track
access is not finished.
Even if T1 access passes in a DVD running
mode for 30 seconds, it is not finished.
Even if T12 access passes in a DVD running
mode for 30 seconds, it is not finished.
Even if T24 access passes in a DVD running
mode for 30 seconds, it is not finished.
Read-in area read operation of DVD is not
completed.
Adjustment of L1 layer of DVD is not finished
normally. (including focus jump failure)
Judgment without disc
Start is impossible
Stop in running mode playback
Logic format analysis inability or
non-correspondence logic format
0x84
0x80
0x80
0x80
0x80
0x80
0x84
0x80
0x80
0x80
0x80
0x80
0x0059
0x0060
0x0061
0x0069
0x0070
0x0071
0x0072
0x0074
0x0090
0x0091
0x0093
0x0094
1-32 (No.MA320)
4.8.3 Error codes of panel mechanism
PANEL ANGLE
1
Panel
Close
Main Body
2
3
4
Open
10 degrees
20 degrees
30 degrees
Open
Details
Open error
1. Time out error by OPEN position cannot detect.
Close error (ANGLE 1 error)
1. Time out error by ANGLE 1 position cannot detect.
Angle positioning error
Moving to 10 degrees (ANGLE 2 error)
1. Time out error by ANGLE 2 position cannot detect at moving to open position.
2. Missing to ANGLE 1 and detected ANGLE 2 position at moving to open position.
3. Time out error by ANGLE 2 cannot detect at moving close position.
Moving to 20 degrees (ANGLE 3 error)
1. Time out error by ANGLE 3 position cannot detect at moving to open position.
2. Missing to ANGLE 2 and detected ANGLE 3 position at moving to open position.
3. Time out error by ANGLE 3 cannot detect at moving close position.
Moving to 30 degrees (ANGLE 4 error)
1. Time out error by ANGLE 4 position cannot detect at moving to open position.
2. Missing to ANGLE 3 and detected ANGLE 4 position at moving to open position.
3. Time out error by ANGLE 4 cannot detect at moving close position.
Abnormal switch position at moving panel
The Panel move to open and close position, detected abnormal switch position.
Error code
(Service mode)
0A0001
0B0006
0D0021
0D0022
0D0023
0E0031
0E0032
0E0033
0F0041
0F0042
0F0043
0A0000
(No.MA320)1-33
4.9Running mode
IndicationExplanationOperation contents of 1 cycleIn mecha error In disc error
RUNNING1 MECHA
RUNNING2 MECHA
Door mecha running 1
Door mecha running 2
Panel close Panel open
Panel close Panel open
-
Panel detach position
Panel angle RETRY
Retry
3 position
Panel angle 1 position
Stop
Stop
Retry
Stop
Retry
Stop
Retry
Stop
Stop
Retry
Retry
RUNNING3 DVD
RUNNING4 DVD
RUNNING5 DVD
RUNNING6 DVD
RUNNING7 DVD
RUNNING8 DVD
DVD+Door mecha running1
DVD+Door mecha running2
DVD+Door mecha running3
DVD+Door mecha running4
DVD+Door mecha running5
DVD+Door mecha running6
Panel angle 2 position NO RETRY
Loading Eject
Wait for 5 seconds+Door open/close
Loading Eject
Wait for 5 seconds+Door open/close
Loading Playback Eject
Wait for 5 seconds+Door open/close
Loading Playback Eject
Wait for 5 seconds+Door open/close
Loading Playback Eject
Wait for 5 seconds+Door open/close
Loading Playback Eject
Wait for 5 seconds+Door open/close
* Cancellation of running1,2 : Press the [EJECT] key
* In running 1,2 cancellation, a door does not stop at the position and moves to a panel position.
* Cancellation of running3 to 8 : Press the [POWER] key
* The number of count and an error cord are displayed in running.
Playback contents in a running mode
CD
The first track is played for 30 seconds. The last track is played for 30 seconds.
(The last track is played in the case of less than till the last for 30 seconds.)
DVD
2layer disc (Pit disc)
Title 1 (the L0 layer internal circumference) is played for 30 seconds.
Title 12 (L0 layer circumference) is played for 30 seconds.
Title 24 (L1layer internal circumference) is played for 30 seconds.
-
-
-
-
-
2layer disc (Recordable disc)
Title 1 (the L0 layer internal circumference) is played for 30 seconds.
Title 13 (L0 layer circumference) is played for 30 seconds.
Title 24 (L1layer internal circumference) is played for 30 seconds.
1layer disc
First chapter of title 1 is played for 30 seconds. The last chapter of title 1 is played for 30 seconds.
1-34 (No.MA320)
4.10 Monitor adjustment
* When adjusting, switch on the main unit and insert a test disc (VT-501). And play the test disc and pause it.
(Exit for VCO FREE-RUN adjustment)
1. Set the service mode 4.
2. Exchanging it operate a menu of a service mode with the [UP] button and [DOWN] button.
3. Change data with the [B.SKIP]/[F.SKIP] buttons.
4. Write data with a [ENT] button.
R/W CHROMA 1
Indication
Contrast
Color (NTSC)
Color (PAL)
Color (SECAM)
Tint (NTSC)
Tint (PAL)
Tint (SECAM)
Sharpness
Brightness
ABL off
Sub Contrast
White Lim
Black Lim
Gamma 1
Gamma 2
Sub Brt R
Sub Brt B
Drive R (NTSC)
Drive R (PAL)
Drive R (SECAM)
RY Gain
RY Phase (NTSC)
RY Phase (PAL)
RY Phase (SECAM)
Drive G (NTSC)
Drive G (PAL)
Drive G (SECAM)
GY Gain
GY Phase (NTSC)
GY Phase (PAL)
GY Phase (SECAM)
Drive B (NTSC)
Drive B (PAL)
Drive B (SECAM)
Com Amp
Com DC
AFC2 Phase
DRVSEL
Unknown 1
Unknown 2
LPF
Unknown 3
Minimum
value
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
Maximum
value
7F
7F
7F
7F
7F
7F
7F
3F
FF
01
0F
0F
0F
FF
FF
0F
0F
3F
3F
3F
01
01
01
01
3F
3F
3F
01
01
01
01
3F
3F
3F
FF
FF
07
03
01
01
01
01
Initial
value
3F
3F
3F
3F
3F
3F
3F
20
40
01
05
F0
0F
80
80
50
05
2F
2F
2F
00
00
00
00
2F
2F
2F
00
00
00
00
2F
2F
2F
80
80
10
00
00
00
10
00
Reference
register value
48
39
3C
3A
40
42
41
24
C7
01
06
F0
0F
3E
42
05
04
1C
1C
24
01
00
00
00
18
18
20
00
00
00
00
1C
1C
2B
87
82
10
00
00
00
10
00
Adjust
Adjust
Adjust
Adjust
Adjust
Adjust
Adjust
Fix
Adjust
Fix
Adjust
Fix
Fix
Fix
Fix
Adjust
Adjust
Adjust
Adjust
Adjust
Fix
Fix
Fix
Fix
Adjust
Adjust
Adjust
Fix
Fix
Fix
Fix
Adjust
Adjust
Adjust
Adjust
Adjust
Fix
Fix
Fix
Fix
Fix
Fix
Detail
Contrast control
Color control
Color control
Color control
Tint control
Tint control
Tint control
Sharpness control
Brightness control
Auto brightness limiter off
Controls the Y amplitude
White clipping voltage for RGB signal
exceeding over white
White clipping voltage for RGB signal
exceeding over white
Correction peak point
Boost gain correction peak point
Sub brightness control for R output signal
Sub brightness control for R output signal
Gain control for RGB video signal
Gain control for RGB video signal
Gain control for RGB video signal
Relative amplitude of R-Y color
difference signal
Relative phase of G-Y color
difference signal
Relative phase of G-Y color
difference signal
Relative phase of G-Y color
difference signal
Gain control for RGB video signal
Gain control for RGB video signal
Gain control for RGB video signal
Relative amplitude of R-Y color
difference signal
Relative phase of G-Y color
difference signal
Relative phase of G-Y color
difference signal
Relative phase of G-Y color
difference signal
Gain control for RGB video signal
Gain control for RGB video signal
Gain control for RGB video signal
Common pulse amplitude
Reference DC output
AFC2 phase control
Driving ability of pulse output stage
LPF
(No.MA320)1-35
IndicationMinimum
DOTCLK Freq. Range
EXCHFI
PLL offset (NTSC)
PLL offset (PAL)
PLL offset (SECAM)
VD Phase (NTSC)
HD Phase (NTSC)
S GP Phase
S-ID Sense
S-ID M
HP Boost
P/N ID S
BPF/HPF
SECAM R-Y Black Adj
SECAM B-Y Black Adj
Gamma2-R
Gamma2-G
Gamma2-B
VD Phase (PAL)
VD Phase (SECAM)
HD Phase (PAL)
HD Phase (SECAM)
value
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
Maximum
value
07
03
3F
3F
3F
07
1F
03
01
01
01
01
01
0F
0F
03
03
03
07
07
1F
1F
Initial
value
00
00
2F
2F
2F
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
Reference
register value
07
00
1E
2B
2B
04
04
00
00
00
00
00
00
09
08
00
00
00
03
03
05
05
Detail
Fix
DOTCLK adjustment
Fix
VD phase phase
Fix
DOTCLK adjustment
Fix
DOTCLK adjustment
Fix
DOTCLK adjustment
Fix
VD out phase
Fix
HD out phase
Fix
SECAM gate pulse phase
Fix
SECAM ID sensitivity
Fix
SECAM ID mode
Fix
Enhance the higher side of SECAM
bell filter
Fix
PAL / NTSC ID sensitivity for digital
comb filter
Fix
Select chroma BPF frequency response
Fix
R-Y black level adjust for SECAM
Fix
R-Y black level adjust for SECAM
Fix
Fix
Fix
Fix
VD out phase
Fix
VD out phase
Fix
HD out phase
Fix
HD out phase
R/W CHROMA 2
IndicationMinimum
USER-BRIGHT
SUB-BRIGHT R
SUB-BRIGHT B
CONTRAST
SUB-CONTRAST R
SUB-CONTRAST B
GAMMA 1
GAMMA 2
COM-LEVEL
COM-DC (NTSC)
VCO 11 (NTSC)
VCO 11 (PAL)
LPF
TRAP
SLCLP1
SLCLP0
H-POSITION (NTSC)
S/H-POSITION
HDO-POSITION
SLPAIR
BLK-POSITION
S/H-POSITION2
H POSITION (NTSC)
H-POSITION (PAL)
VCO 33 (NTSC)
VCO 33 (PAL)
COM-DC (PAL)
H POSITION (PAL)
Victor company of Japan, Limited
Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MA320)
Printed in Japan
VPT
PARTS LIST
KW-AVX800J,KW-AVX800E,KW-AVX800EU
KW-AVX800EE,KW-AVX800U,KW-AVX800UN
KW-AVX800A
* All printed circuit boards and its assemblies are not available as service parts.
MA320
- Contents -

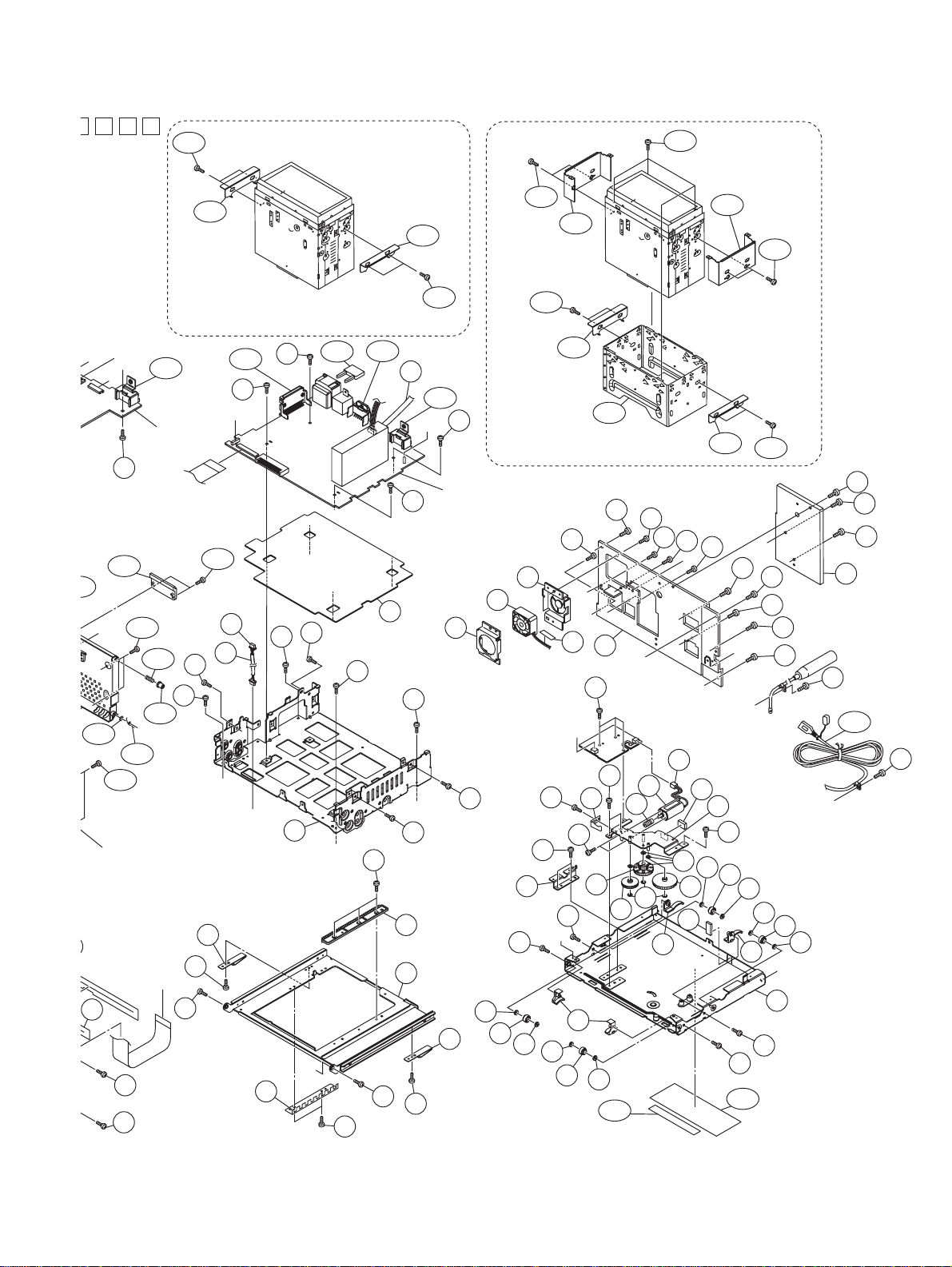

Exploded view of general assembly and parts list (Block No.M1)

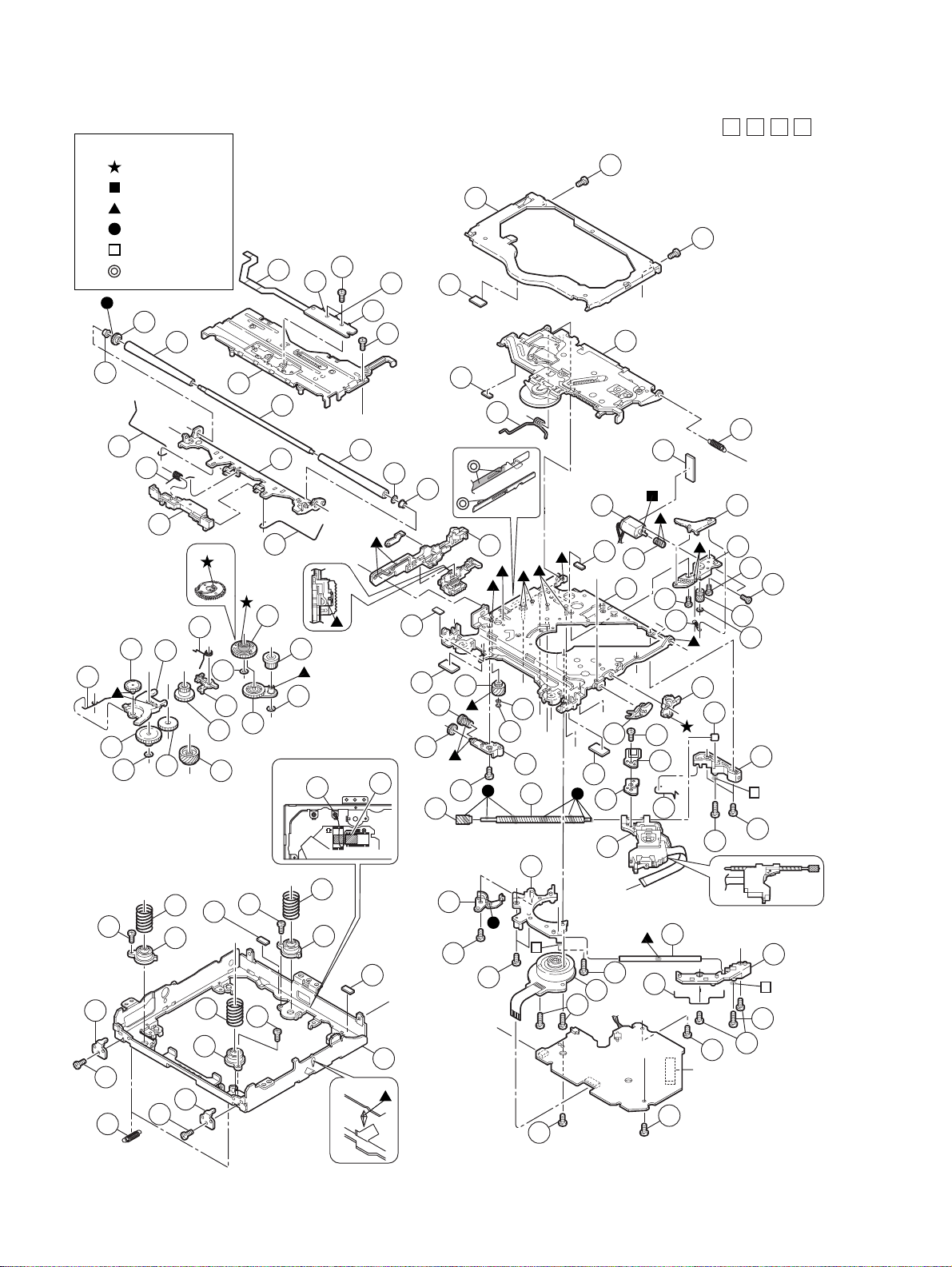

DVD mechanism assembly and parts list (Block No.MJ)
Electrical parts list (Block No.01~05)
Packing materials and accessories parts list (Block No.M3)
C1NCB31AK-474XC CAPACITOR0.47uF 10V KE,EU,EE
C2NCB31HK-102XC CAPACITOR1000pF 50V K E,EU,EE
C3NCB31HK-472XC CAPACITOR4700pF 50V K E,EU,EE
C4NCB31HK-103XC CAPACITOR0.01uF 50V KE,EU,EE
C5NCB31HK-103XC CAPACITOR0.01uF 50V KJ,U,UN,A
C7NCF31HZ-473XC CAPACITOR0.047uF 50V Z
C8QETN1EM-107ZE CAPACITOR100uF 25V M
C9NCB31CK-104XC CAPACITOR0.1uF 16V K
C10NDC31HJ-101XC CAPACITOR100pF 50V J
C11NCB31HK-104XC CAPACITOR0.1uF 50V KE,EU,EE
C12QETN1CM-107ZE CAPACITOR100uF 16V M
C14QETN1AM-227ZE CAPACITOR220uF 10V M
C15NCB31HK-103XC CAPACITOR0.01uF 50V K
C17QETN1EM-476ZE CAPACITOR47uF 25V M
C18NCB31CK-473XC CAPACITOR0.047uF 16V K
C19QETN1EM-476ZE CAPACITOR47uF 25V M
C20NCB31HK-103XC CAPACITOR0.01uF 50V K
C31NCB31HK-103XC CAPACITOR0.01uF 50V KE,EU,EE
C32QERF1CM-476ZE CAPACITOR47uF 16V ME,EU,EE
C33NDC31HJ-330XC CAPACITOR33pF 50V JE,EU,EE
C34NDC31HJ-330XC CAPACITOR33pF 50V JE,EU,EE
C35NDC31HJ-561XC CAPACITOR560pF 50V JE,EU,EE
C36NCB31HK-331XC CAPACITOR330pF 50V KE,EU,EE
Part No.Part NameDescriptionLocal
3-9
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C37QERF1CM-106ZE CAPACITOR10uF 16V ME,EU,EE
C52NCB31HK-103XC CAPACITOR0.01uF 50V K
C53NCB31HK-103XC CAPACITOR0.01uF 50V K
C54QETN1EM-476ZE CAPACITOR47uF 25V M
C55QETN1HM-105ZE CAPACITOR1uF 50V M
C56QETN1HM-105ZE CAPACITOR1uF 50V M
C57QETN1HM-105ZE CAPACITOR1uF 50V M
C61QETN1HM-105ZE CAPACITOR1uF 50V M
C62QETN1HM-105ZE CAPACITOR1uF 50V M
C63QETN1HM-105ZE CAPACITOR1uF 50V M
C64QETN1HM-105ZE CAPACITOR1uF 50V M
C65QETN1HM-105ZE CAPACITOR1uF 50V M
C66QETN1HM-105ZE CAPACITOR1uF 50V M
C71NCB31HK-103XC CAPACITOR0.01uF 50V K
C72NCB31HK-103XC CAPACITOR0.01uF 50V K
C111NCB31HK-223XC CAPACITOR0.022uF 50V K J
C111NCB31HK-153XC CAPACITOR0.015uF 50V K E,EU,EE,
C112QETN1HM-475ZE CAPACITOR4.7uF 50V M
C113NCB31HK-821XC CAPACITOR820pF 50V K
C120QETN1HM-105ZE CAPACITOR1uF 50V M
C121QETN1HM-105ZE CAPACITOR1uF 50V M
C122QETN1HM-105ZE CAPACITOR1uF 50V M
C124NCB31CK-104XC CAPACITOR0.1uF 16V K
C142QETN1HM-105ZE CAPACITOR1uF 50V M
C151QETN1HM-475ZE CAPACITOR4.7uF 50V M
C152NDC31HJ-101XC CAPACITOR100pF 50V J
C161QETN1HM-475ZE CAPACITOR4.7uF 50V M
C162NDC31HJ-101XC CAPACITOR100pF 50V J
C165NCB31HK-102XC CAPACITOR1000pF 50V K
C172NFV81CM-105XMF CAPACITOR1uF 16V M
C173NDC31HJ-101XC CAPACITOR100pF 50V J
C182NFV81CM-105XMF CAPACITOR1uF 16V M
C183NDC31HJ-101XC CAPACITOR100pF 50V J
C211NCB31HK-223XC CAPACITOR0.022uF 50V K J
C211NCB31HK-153XC CAPACITOR0.015uF 50V K E,EU,EE,
C212QEKC1HM-475ZE CAPACITOR4.7uF 50V M
C213NCB31HK-821XC CAPACITOR820pF 50V K
C220QETN1HM-105ZE CAPACITOR1uF 50V M
C221QETN1HM-105ZE CAPACITOR1uF 50V M
C222QETN1HM-105ZE CAPACITOR1uF 50V M
C224NCB31CK-104XC CAPACITOR0.1uF 16V K
C242QETN1HM-105ZE CAPACITOR1uF 50V M
C251QETN1HM-475ZE CAPACITOR4.7uF 50V M
C252NDC31HJ-101XC CAPACITOR100pF 50V J
C261QETN1HM-475ZE CAPACITOR4.7uF 50V M
C262NDC31HJ-101XC CAPACITOR100pF 50V J
C265NCB31HK-102XC CAPACITOR1000pF 50V K
C272NFV81CM-105XMF CAPACITOR1uF 16V M
C273NDC31HJ-101XC CAPACITOR100pF 50V J
C282NFV81CM-105XMF CAPACITOR1uF 16V M
C283NDC31HJ-101XC CAPACITOR100pF 50V J
C321QETN1EM-107ZE CAPACITOR100uF 25V M
C322NCF31HZ-473XC CAPACITOR0.047uF 50V Z
C323QETN1HM-475ZE CAPACITOR4.7uF 50V M
C324NCB31CK-104XC CAPACITOR0.1uF 16V K
C325QETN1HM-226ZE CAPACITOR22uF 50V M
C341NCB31CK-105XC CAPACITOR1uF 16V K
C342NCB31CK-105XC CAPACITOR1uF 16V K
C343NCB31CK-104XC CAPACITOR0.1uF 16V K
C344NCB31CK-104XC CAPACITOR0.1uF 16V K
C351QETN1HM-106ZE CAPACITOR10uF 50V M
C352NCB31HK-102XC CAPACITOR1000pF 50V K
C361QETN1HM-475ZE CAPACITOR4.7uF 50V M
C362NCB31CK-223XC CAPACITOR0.022uF 16V K
C363NDC31HJ-101XC CAPACITOR100pF 50V J
C371NCB31HK-103XC CAPACITOR0.01uF 50V K
C372QETN1HM-106ZE CAPACITOR10uF 50V M
C373QETN1HM-106ZE CAPACITOR10uF 50V M
C374NCB31HK-103XC CAPACITOR0.01uF 50V K
C375QETN1EM-476ZE CAPACITOR47uF 25V M
C376QETN1HM-226ZE CAPACITOR22uF 50V M
C377QETN1HM-225ZE CAPACITOR2.2uF 50V M
C378QETN1HM-106ZE CAPACITOR10uF 50V M
C381QETN1HM-475ZE CAPACITOR4.7uF 50V M
C383NDC31HJ-221XC CAPACITOR220pF 50V J
C384NDC31HJ-221XC CAPACITOR220pF 50V J
U,UN,A
U,UN,A
C385QETN1HM-106ZE CAPACITOR10uF 50V M
C386NCB31HK-103XC CAPACITOR0.01uF 50V K
C701NCB31CK-473XC CAPACITOR0.047uF 16V K J,U,UN,A
C702NCB31HK-102XC CAPACITOR1000pF 50V K
C703NCB30JK-105XC CAPACITOR1uF 6.3V K
C704NCB30JK-105XC CAPACITOR1uF 6.3V K
C708NDC31HJ-270XC CAPACITOR27pF 50V J
C709NDC31HJ-220XC CAPACITOR22pF 50V J
C710QETN0JM-108ZE CAPACITOR1000uF 6.3V M
C711NCB31CK-104XC CAPACITOR0.1uF 16V K
C712NCB31HK-102XC CAPACITOR1000pF 50V K
C721NCB31HK-471XC CAPACITOR470pF 50V K
C731NCB31HK-103XC CAPACITOR0.01uF 50V K
C732QETN1EM-476ZE CAPACITOR47uF 25V M
C801QETN1HM-106ZE CAPACITOR10uF 50V M
C802NCB31HK-104XC CAPACITOR0.1uF 50V K
C803QETN1AM-227ZE CAPACITOR220uF 10V M
C804NCB31CK-104XC CAPACITOR0.1uF 16V K
C805NCB31HK-103XC CAPACITOR0.01uF 50V K
C806QETN1AM-227ZE CAPACITOR220uF 10V M
C807QETN1HM-226ZE CAPACITOR22uF 50V M
C808NCB31HK-102XC CAPACITOR1000pF 50V K
C809NCB31CK-104XC CAPACITOR0.1uF 16V K
C811QETN1HM-226ZE CAPACITOR22uF 50V M
C823NCB31HK-104XC CAPACITOR0.1uF 50V K
C824NCB31HK-472XC CAPACITOR4700pF 50V K
C827QEZ0595-477ZE CAPACITOR470uF 25V M
C828QEZ0595-477ZE CAPACITOR470uF 25V M
C829NCB31HK-104XC CAPACITOR0.1uF 50V K
C830NCB31CK-105XC CAPACITOR1uF 16V K
C831QETN1AM-227ZE CAPACITOR220uF 10V M
C832NCB31HK-103XC CAPACITOR0.01uF 50V K
C834NCB31CK-104XC CAPACITOR0.1uF 16V K
C835NCB31HK-103XC CAPACITOR0.01uF 50V K
C836NCB31HK-103XC CAPACITOR0.01uF 50V K
C837NCB31CK-104XC CAPACITOR0.1uF 16V K
C838QETN0JM-108ZE CAPACITOR1000uF 6.3V M
C840NCB31CK-105XC CAPACITOR1uF 16V K
C841QETN1EM-476ZE CAPACITOR47uF 25V M
C844QETN1EM-476ZE CAPACITOR47uF 25V M
C845NCB31HK-104XC CAPACITOR0.1uF 50V K
C847QETN1HM-226ZE CAPACITOR22uF 50V M
C848NCB30JK-105XC CAPACITOR1uF 6.3V K
C849NCB31HK-104XC CAPACITOR0.1uF 50V K
C853QEZ0723-338E CAPACITOR3300uF 160V M
C854QETN1HM-225ZE CAPACITOR2.2uF 50V M
C855QETM1EM-108E CAPACITOR1000uF 25V M
C861NCB31HK-104XC CAPACITOR0.1uF 50V K
C864NCB31HK-104XC CAPACITOR0.1uF 50V K
C865NCB31HK-104XC CAPACITOR0.1uF 50V K
C871NCB31HK-472XC CAPACITOR4700pF 50V K
C872NCB31HK-104XC CAPACITOR0.1uF 50V K
C873NCJ11EK-106X-RC CAPACITOR10uF 25V
C873or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C874NCJ11EK-106X-RC CAPACITOR10uF 25V
C874or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C875NCB31HK-103XC CAPACITOR0.01uF 50V K
C876QEZ0595-477ZE CAPACITOR470uF 25V M
C877NCB31HK-103XC CAPACITOR0.01uF 50V K
C878NCB31HK-103XC CAPACITOR0.01uF 50V K
C879NCB31HK-103XC CAPACITOR0.01uF 50V K
C881NCB31HK-103XC CAPACITOR0.01uF 50V K
C882NCB31HK-103XC CAPACITOR0.01uF 50V K
C3801QETN1EM-107ZE CAPACITOR100uF 25V M
C3802NCF31HZ-473XC CAPACITOR0.047uF 50V Z
C8033NCB31CK-105XC CAPACITOR1uF 16V K
C8042NCJ11EK-106X-RC CAPACITOR10uF 25V
C8042 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C8043NCJ11EK-106X-RC CAPACITOR10uF 25V
C8043 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C8044QETN1EM-476ZE CAPACITOR47uF 25V M
C8046NCB31HK-222XC CAPACITOR2200pF 50V K
C8047NCB31HK-682XC CAPACITOR6800pF 50V K
C8048NDC31HJ-221XC CAPACITOR220pF 50V J
C8061QETN1EM-476ZE CAPACITOR47uF 25V M
C8062NCB21CK-105XC CAPACITOR1uF 16V K
C8063NCB31EK-104XC CAPACITOR0.1uF 25V K
C8065NCF21CZ-105XC CAPACITOR1uF 16V Z
3-10
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C8066NCF21HZ-105XC CAPACITOR1uF 50V Z
C8067NCB31HK-104XC CAPACITOR0.1uF 50V K
C8068NCF21HZ-105XC CAPACITOR1uF 50V Z
C8069QETN1EM-107ZE CAPACITOR100uF 25V M
C8071NCB31CK-104XC CAPACITOR0.1uF 16V K
C8073NCB31CK-104XC CAPACITOR0.1uF 16V K
C8074NCB31HK-272XC CAPACITOR2700pF 50V K
C8075NCB31CK-104XC CAPACITOR0.1uF 16V K
C8076NCB31HK-103XC CAPACITOR0.01uF 50V K
C8091QETN1EM-476ZE CAPACITOR47uF 25V M
C8092NCB31CK-104XC CAPACITOR0.1uF 16V K
C8093NCB31CK-105XC CAPACITOR1uF 16V K
C8501QETN1HM-104ZE CAPACITOR0.1uF 50V M
C8605QETN1EM-107ZE CAPACITOR100uF 25V M
C8607NCB31HK-102XC CAPACITOR1000pF 50V K
C8701NCB31HK-102XC CAPACITOR1000pF 50V K
C8801NCB31HK-104XC CAPACITOR0.1uF 50V KJ,U,UN,A
C8802NCB31HK-104XC CAPACITOR0.1uF 50V K
L1NQL334J-4R7XCOIL4.7uH J
L701NQR0022-005XFERRITE BEADS
L702NQL79GM-100XCOIL10uH M
L822NQL63EM-470XCOIL47uH M
L824NQL79GM-220XCOIL22uH M
L825NQL79GM-220XCOIL22uH M
L826NQL79GM-220XCOIL22uH M
L827NQL79GM-220XCOIL22uH M
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
3-12
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
L828NQL79GM-220XCOIL22uH M
L851QQR0703-001CHOKE COIL
L873NQL63EM-470XCOIL47uH M
L8041NQLD7EM-470XCOIL47uH M
L8061NQL79GM-220XCOIL22uH M
L8062NQL79GM-220XCOIL22uH M
L8063NQL79GM-220XCOIL22uH M
L8601NQL52EM-220XCOIL22uH M
C9501QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9502QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9503NCB31HK-103XC CAPACITOR0.01uF 50V K
C9504QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9505NCB31HK-473XC CAPACITOR0.047uF 50V K
C9506NCB31CK-223XC CAPACITOR0.022uF 16V K
C9507QEKJ1HM-105ZE CAPACITOR1uF 50V M
C9508QEKJ1HM-105ZE CAPACITOR1uF 50V M
C9509QEKJ1HM-105ZE CAPACITOR1uF 50V M
C9510QEKJ1HM-475ZE CAPACITOR4.7uF 50V M
C9511QEKJ1HM-475ZE CAPACITOR4.7uF 50V M
C9512NCB31HK-102XC CAPACITOR1000pF 50V K
C9531QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9532QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9533NCB31CK-104XC CAPACITOR0.1uF 16V K
C9535NCB31CK-104XC CAPACITOR0.1uF 16V K
C9536QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9537QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9538QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9539QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9540NCB31CK-104XC CAPACITOR0.1uF 16V K
C9542NCB31CK-104XC CAPACITOR0.1uF 16V K
C9543QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9544NCB31CK-104XC CAPACITOR0.1uF 16V K
C9545QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9546QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9547QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9548NCB31CK-104XC CAPACITOR0.1uF 16V K
C9549QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9550QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9551QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9552NCB31HK-103XC CAPACITOR0.01uF 50V K
C9553NCB21CK-105XC CAPACITOR1uF 16V K
C9554QEKJ1CM-107ZE CAPACITOR100uF 16V M
C9555NCB31CK-104XC CAPACITOR0.1uF 16V K
C9556NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C9557NCB31CK-104XC CAPACITOR0.1uF 16V K
C9558QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9559NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C9560QEKJ0JM-337ZE CAPACITOR330uF 6.3V M
C9561QEKJ0JM-337ZE CAPACITOR330uF 6.3V M
C9562NCB31HK-102XC CAPACITOR1000pF 50V K
C9563QEKJ1CM-476ZE CAPACITOR47uF 16V M
C9564NCB31CK-104XC CAPACITOR0.1uF 16V K
C9622NCB31CK-104XC CAPACITOR0.1uF 16V K
C9624QEZ0850-157ZE CAPACITOR150uF
C9904NCB31HK-472XC CAPACITOR4700pF 50V K
C9905NCB31HK-104XC CAPACITOR0.1uF 50V K
C9906NCB31HK-103XC CAPACITOR0.01uF 50V K
C9907NCB31HK-103XC CAPACITOR0.01uF 50V K
C9908QEKJ1EM-106ZE CAPACITOR10uF 25V M
C9909NCF21HZ-105XC CAPACITOR1uF 50V Z
C9913NCB31HK-102XC CAPACITOR1000pF 50V K
C9914NDC31HJ-101XC CAPACITOR100pF 50V J
C9915NDC31HJ-101XC CAPACITOR100pF 50V J
C9916NDC31HJ-101XC CAPACITOR100pF 50V J
C9917NDC31HJ-101XC CAPACITOR100pF 50V J
C9918NDC31HJ-101XC CAPACITOR100pF 50V J
C9919NDC31HJ-101XC CAPACITOR100pF 50V J
C9920NDC31HJ-101XC CAPACITOR100pF 50V J
C9924QEKJ1AM-227ZE CAPACITOR220uF 10V M
C9925QEKJ1CM-107ZE CAPACITOR100uF 16V M
L9503NQL79GM-470XCOIL47uH M
L9504NQL79GM-470XCOIL47uH M
L9505NQL79GM-470XCOIL47uH M
L9506NQL79GM-470XCOIL47uH M
L9507NQL79GM-470XCOIL47uH M
L9508NQL79GM-470XCOIL47uH M
L9509NQL79GM-470XCOIL47uH M
L9610NQR0536-001XCHOKE COIL
L9901NQLD7EM-470XCOIL47uH M
C1001NCB31HK-392XC CAPACITOR3900pF 50V K
C1002NDC31HJ-471XC CAPACITOR470pF 50V J
C1003NCB31HK-471XC CAPACITOR470pF 50V K
C1101NCB31HK-392XC CAPACITOR3900pF 50V K
C1102NCB31HK-471XC CAPACITOR470pF 50V K
C1103NCB31HK-471XC CAPACITOR470pF 50V K
C1201NCB31HK-392XC CAPACITOR3900pF 50V K
C1202NCB31HK-471XC CAPACITOR470pF 50V K
C1203NCB31HK-471XC CAPACITOR470pF 50V K
C2001NCB31HK-392XC CAPACITOR3900pF 50V K
C2002NDC31HJ-471XC CAPACITOR470pF 50V J
C2003NCB31HK-471XC CAPACITOR470pF 50V K
C2101NCB31HK-392XC CAPACITOR3900pF 50V K
C2102NCB31HK-471XC CAPACITOR470pF 50V K
Part No.Part NameDescriptionLocal
TRANSISTOR
3-14
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C2103NCB31HK-471XC CAPACITOR470pF 50V K
C2201NCB31HK-392XC CAPACITOR3900pF 50V K
C2202NCB31HK-471XC CAPACITOR470pF 50V K
C2203NCB31HK-471XC CAPACITOR470pF 50V K
C3002NBE41AM-476XTA E CAPACITOR47uF 10V M
C3003NCB31CK-104XC CAPACITOR0.1uF 16V K
C3006NCB31CK-104XC CAPACITOR0.1uF 16V K
C3007NBE41AM-476XTA E CAPACITOR47uF 10V M
C3008NCB31CK-104XC CAPACITOR0.1uF 16V K
C3009NBE41AM-476XTA E CAPACITOR47uF 10V M
C3010NBE41CM-226XTA E CAPACITOR22uF 16V M
C3011NCB31CK-104XC CAPACITOR0.1uF 16V K
C3101NCB31HK-331XC CAPACITOR330pF 50V K
C3102NBE41AM-476XTA E CAPACITOR47uF 10V M
C3103NCB31CK-104XC CAPACITOR0.1uF 16V K
C3106NCB31CK-104XC CAPACITOR0.1uF 16V K
C3107NBE41AM-476XTA E CAPACITOR47uF 10V M
C3108NCB31CK-104XC CAPACITOR0.1uF 16V K
C3109NBE41AM-476XTA E CAPACITOR47uF 10V M
C3110NBE41CM-226XTA E CAPACITOR22uF 16V M
C3111NCB31CK-104XC CAPACITOR0.1uF 16V K
C3202NBE41AM-476XTA E CAPACITOR47uF 10V M
C3203NCB31CK-104XC CAPACITOR0.1uF 16V K
C3206NCB31CK-104XC CAPACITOR0.1uF 16V K
C3207NBE41AM-476XTA E CAPACITOR47uF 10V M
C3208NCB31CK-104XC CAPACITOR0.1uF 16V K
C3209NBE41AM-476XTA E CAPACITOR47uF 10V M
C3210NBE41CM-226XTA E CAPACITOR22uF 16V M
C3211NCB31CK-104XC CAPACITOR0.1uF 16V K
C3401NCB31HK-103XC CAPACITOR0.01uF 50V K
C3505NCB31HK-102XC CAPACITOR1000pF 50V K
C3506NCB31HK-102XC CAPACITOR1000pF 50V K
C3507NBE41AM-476XTA E CAPACITOR47uF 10V M
C3508NCB31CK-104XC CAPACITOR0.1uF 16V K
C3601NCB31HK-103XC CAPACITOR0.01uF 50V K
C3602NCB31HK-103XC CAPACITOR0.01uF 50V K
C3603NCB31HK-103XC CAPACITOR0.01uF 50V K
C3604NCB31HK-102XC CAPACITOR1000pF 50V K
C3605NBE41AM-476XTA E CAPACITOR47uF 10V M
C3606NBE41CM-226XTA E CAPACITOR22uF 16V M
C3607NBE41CM-226XTA E CAPACITOR22uF 16V M
C3608NBE41AM-476XTA E CAPACITOR47uF 10V M
C3610NCB31HK-103XC CAPACITOR0.01uF 50V K
C3611NCB31HK-103XC CAPACITOR0.01uF 50V K
C3612NCB31HK-103XC CAPACITOR0.01uF 50V K
C3701NEAF1CM-226XE CAPACITOR22uF 16V M
C3702NCB31CK-105XC CAPACITOR1uF 16V K
C3703NCJ11EK-106X-RC CAPACITOR10uF 25V
C3703 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C3704NCJ11EK-106X-RC CAPACITOR10uF 25V
C3704 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C3705NCB31HK-103XC CAPACITOR0.01uF 50V K
C3706NCJ11EK-106X-RC CAPACITOR10uF 25V
C3706 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C3707NEAF1CM-226XE CAPACITOR22uF 16V M
C3708NCB31HK-103XC CAPACITOR0.01uF 50V K
C3709NEAF1CM-226XE CAPACITOR22uF 16V M
C3710NCB31CK-105XC CAPACITOR1uF 16V K
IC411TC203G04AFG0011IC(DIGITAL)
IC412TC74VHC74FT-XIC
IC413TC7WT241FU-XIC
IC421NJM4565V-XIC
IC472TC7SET08FU-J-XIC(DIGITAL)
IC473OZ964ISN-XIC
IC474TPCP8402JVC-XPOWER MOS FET
IC475TPCP8402JVC-XPOWER MOS FET
IC481MB90099PFV145EXIC
IC482TC74VHC123AFT-XIC
IC483TC74VHC74FT-XIC
IC484TC7SH32FU-XIC
IC485TC7SH08FU-XIC
IC491RS-771-XRM.RECEIVER
C401NCB20JK-106XC CAPACITOR10uF 6.3V K
C402NCB20JK-106XC CAPACITOR10uF 6.3V K
C403NCBA1AK-104WC CAPACITOR0.1uF 10V K
C404NCB30JK-105XC CAPACITOR1uF 6.3V K
C405NCBA1AK-104WC CAPACITOR0.1uF 10V K
C406NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C407NCB31CK-224XC CAPACITOR0.22uF 16V K
C408NCBA1CK-103WC CAPACITOR0.01uF 16V K
C409NCBA1CK-103WC CAPACITOR0.01uF 16V K
C410NCB31CK-224XC CAPACITOR0.22uF 16V K
C413NCBA1AK-104WC CAPACITOR0.1uF 10V K
C414NCB30JK-105XC CAPACITOR1uF 6.3V K
C415NCBA1AK-104WC CAPACITOR0.1uF 10V K
C416NCBA1AK-104WC CAPACITOR0.1uF 10V K
C417NCBA1AK-104WC CAPACITOR0.1uF 10V K
C418NCBA1AK-473WC CAPACITOR0.047uF 10V K
C419NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C420NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C421NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C422NCBA1AK-104WC CAPACITOR0.1uF 10V K
C423NBE21CM-106XTA E CAPACITOR10uF 16V M
C424NDC31HJ-390XC CAPACITOR39pF 50V J
C425NDC31HJ-390XC CAPACITOR39pF 50V J
C426NDC31HJ-390XC CAPACITOR39pF 50V J
C427NCB20JK-106XC CAPACITOR10uF 6.3V K
C428NCBA1AK-104WC CAPACITOR0.1uF 10V K
C430NCB31AK-474XC CAPACITOR0.47uF 10V K
C431NCBA1HK-102WC CAPACITOR1000pF 50V K
C432NBE20JM-226XTA E CAPACITOR22uF 6.3V M
C433NCBA1AK-104WC CAPACITOR0.1uF 10V K
C434NDCA1HJ-100WC CAPACITOR10pF 50V J
C435NCBA1CK-103WC CAPACITOR0.01uF 16V K
C436NCB31CK-224XC CAPACITOR0.22uF 16V K
C438NCB30JK-105XC CAPACITOR1uF 6.3V K
C439NCBA1AK-104WC CAPACITOR0.1uF 10V K
C440NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C442NCBA1AK-104WC CAPACITOR0.1uF 10V K
C443NBE41AM-476XTA E CAPACITOR47uF 10V M
C444NCBA1CK-103WC CAPACITOR0.01uF 16V K
C445NCBA1CK-103WC CAPACITOR0.01uF 16V K
C446NCB30JK-105XC CAPACITOR1uF 6.3V K
C447NCBA1CK-103WC CAPACITOR0.01uF 16V K
C448NCB21AK-225XC CAPACITOR2.2uF 10V K
C450NCBA1CK-103WC CAPACITOR0.01uF 16V K
C481NCB20JK-106XC CAPACITOR10uF 6.3V K
C482NCBA1AK-104WC CAPACITOR0.1uF 10V K
C483NCBA1AK-104WC CAPACITOR0.1uF 10V K
C485NCBA1CK-103WC CAPACITOR0.01uF 16V K
C486NCB31HK-392XC CAPACITOR3900pF 50V K
C487NCBA1AK-104WC CAPACITOR0.1uF 10V K
C501NBE20JM-476XTA E CAPACITOR47uF 6.3V M
C502NCBA1AK-104WC CAPACITOR0.1uF 10V K
C503NCBA1AK-104WC CAPACITOR0.1uF 10V K
C504NCB31CK-473XC CAPACITOR0.047uF 16V K
C505NCB31CK-473XC CAPACITOR0.047uF 16V K
C506NCBA1AK-104WC CAPACITOR0.1uF 10V K
C507NCBA1AK-104WC CAPACITOR0.1uF 10V K
C508NCBA1CK-103WC CAPACITOR0.01uF 16V K
C509NCBA1AK-104WC CAPACITOR0.1uF 10V K
C510NCB30JK-105XC CAPACITOR1uF 6.3V K
C511NCBA1AK-104WC CAPACITOR0.1uF 10V K
C512NCBA1AK-104WC CAPACITOR0.1uF 10V K
C513NCBA1AK-104WC CAPACITOR0.1uF 10V K
C514NCBA1AK-104WC CAPACITOR0.1uF 10V K
C515NCBA1AK-473WC CAPACITOR0.047uF 10V K
C516NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C517NCBA1AK-473WC CAPACITOR0.047uF 10V K
C518NDC31HJ-471XC CAPACITOR470pF 50V J
C519NCBA1AK-473WC CAPACITOR0.047uF 10V K
C520NCB20JK-106XC CAPACITOR10uF 6.3V K
C522NCBA1AK-104WC CAPACITOR0.1uF 10V K
C601NCB20JK-106XC CAPACITOR10uF 6.3V K
C602NCB31CK-105XC CAPACITOR1uF 16V K
C603NCB31CK-105XC CAPACITOR1uF 16V K
C604NCB31CK-105XC CAPACITOR1uF 16V K
C605NCB20JK-106XC CAPACITOR10uF 6.3V K
C606NDCA1HJ-180WC CAPACITOR18pF 50V J
C607NDCA1HJ-180WC CAPACITOR18pF 50V J
C608NDCA1HJ-101WC CAPACITOR100pF 50V J
C609NCBA1CK-103WC CAPACITOR0.01uF 16V K
C610NCBA1AK-104WC CAPACITOR0.1uF 10V K
C611NDCA1HJ-101WC CAPACITOR100pF 50V J
C612NCB30JK-105XC CAPACITOR1uF 6.3V K
C613NDCA1HJ-101WC CAPACITOR100pF 50V J
C614NCB30JK-105XC CAPACITOR1uF 6.3V K
C615NDCA1HJ-101WC CAPACITOR100pF 50V J
C616NCBA1CK-103WC CAPACITOR0.01uF 16V K
C617NCB31HK-103XC CAPACITOR0.01uF 50V K
C618NCBA1CK-103WC CAPACITOR0.01uF 16V K
C619NCBA1CK-103WC CAPACITOR0.01uF 16V K
C620NCBA1CK-103WC CAPACITOR0.01uF 16V K
C621NCBA1CK-103WC CAPACITOR0.01uF 16V K
C622NCBA1AK-104WC CAPACITOR0.1uF 10V K
C623NCBA1CK-103WC CAPACITOR0.01uF 16V K
C624NCBA1AK-104WC CAPACITOR0.1uF 10V K
C625NCBA1AK-104WC CAPACITOR0.1uF 10V K
C626NCBA1CK-103WC CAPACITOR0.01uF 16V K
C627NCBA1AK-104WC CAPACITOR0.1uF 10V K
C628NCBA1AK-104WC CAPACITOR0.1uF 10V K
C629NCB20JK-106XC CAPACITOR10uF 6.3V K
C630NCBA1CK-103WC CAPACITOR0.01uF 16V K
C631NCBA1AK-104WC CAPACITOR0.1uF 10V K
C632NDCA1HJ-101WC CAPACITOR100pF 50V J
C633NCBA1CK-103WC CAPACITOR0.01uF 16V K
C634NCB30JK-105XC CAPACITOR1uF 6.3V K
C635NCBA1CK-103WC CAPACITOR0.01uF 16V K
C636NCBA1CK-103WC CAPACITOR0.01uF 16V K
C637NCBA1AK-104WC CAPACITOR0.1uF 10V K
C638NCB30JK-105XC CAPACITOR1uF 6.3V K
C639NDCA1HJ-101WC CAPACITOR100pF 50V J
C640NCB30JK-105XC CAPACITOR1uF 6.3V K
C641NCBA1AK-104WC CAPACITOR0.1uF 10V K
C642NCB20JK-106XC CAPACITOR10uF 6.3V K
C643NCBA1CK-103WC CAPACITOR0.01uF 16V K
C644NCBA1CK-103WC CAPACITOR0.01uF 16V K
C645NCBA1AK-104WC CAPACITOR0.1uF 10V K
C646NCBA1CK-103WC CAPACITOR0.01uF 16V K
C647NCBA1AK-104WC CAPACITOR0.1uF 10V K
C648NCBA1CK-103WC CAPACITOR0.01uF 16V K
C649NCBA1AK-104WC CAPACITOR0.1uF 10V K
C650NCBA1AK-104WC CAPACITOR0.1uF 10V K
C651NCBA1CK-103WC CAPACITOR0.01uF 16V K
C652NCB20JK-106XC CAPACITOR10uF 6.3V K
C653NCBA1CK-103WC CAPACITOR0.01uF 16V K
C654NCBA1AK-104WC CAPACITOR0.1uF 10V K
C655NCB20JK-106XC CAPACITOR10uF 6.3V K
C656NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4101NBE20JM-476XTA E CAPACITOR47uF 6.3V M
3-17
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C4102NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4103NCB30JK-105XC CAPACITOR1uF 6.3V K
C4104NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4105NBE20JM-476XTA E CAPACITOR47uF 6.3V M
C4106NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4107NCBA1HK-102WC CAPACITOR1000pF 50V K
C4108NCB30JK-105XC CAPACITOR1uF 6.3V K
C4110NBE20JM-476XTA E CAPACITOR47uF 6.3V M
C4111NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4118NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4119NCB31HK-152XC CAPACITOR1500pF 50V K
C4120NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4121NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4201NCJ11EK-106X-RC CAPACITOR10uF 25V
C4201 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4202NCB31CK-104XC CAPACITOR0.1uF 16V K
C4203NCJ21CK-106X-RC CAPACITOR10uF 16V K
C4204NCB31CK-104XC CAPACITOR0.1uF 16V K
C4205NCB31CK-104XC CAPACITOR0.1uF 16V K
C4206NCB31CK-104XC CAPACITOR0.1uF 16V K
C4207NCB20JK-475XC CAPACITOR4.7uF 6.3V K
C4208NCB31CK-105XC CAPACITOR1uF 16V K
C4301NQR0450-001XEMI FILTER0.022uF 50V M
C4302NQR0450-001XEMI FILTER0.022uF 50V M
C4303NCB31CK-104XC CAPACITOR0.1uF 16V K
C4304NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4305NCB31HK-104XC CAPACITOR0.1uF 50V K
C4306NCB31CK-104XC CAPACITOR0.1uF 16V K
C4307NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4308NBE20JM-476XTA E CAPACITOR47uF 6.3V M
C4309NBE41AM-476XTA E CAPACITOR47uF 10V M
C4310NCJ11EK-106X-RC CAPACITOR10uF 25V
C4310 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4311NCJ11EK-106X-RC CAPACITOR10uF 25V
C4311 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4312NCJ21CK-106X-RC CAPACITOR10uF 16V K
C4313NDCA1HJ-180WC CAPACITOR18pF 50V J
C4314NDCA1HJ-180WC CAPACITOR18pF 50V J
C4315NDCA1HJ-100WC CAPACITOR10pF 50V J
C4316NDCA1HJ-100WC CAPACITOR10pF 50V J
C4317NDCA1HJ-100WC CAPACITOR10pF 50V J
C4318NDCA1HJ-180WC CAPACITOR18pF 50V J
C4319NDCA1HJ-180WC CAPACITOR18pF 50V J
C4320NDCA1HJ-180WC CAPACITOR18pF 50V J
C4321NDCA1HJ-180WC CAPACITOR18pF 50V J
C4322NDCA1HJ-180WC CAPACITOR18pF 50V J
C4323NDCA1HJ-180WC CAPACITOR18pF 50V J
C4701NQR0450-001XEMI FILTER0.022uF 50V M
C4706NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4707NCB30JK-105XC CAPACITOR1uF 6.3V K
C4709NCB21AK-225XC CAPACITOR2.2uF 10V K
C4710NCBA1CK-103WC CAPACITOR0.01uF 16V K
C4711NCB31AK-474XC CAPACITOR0.47uF 10V K
C4712NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4713NDCA1HJ-101WC CAPACITOR100pF 50V J
C4714NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4715NCB31HK-473XC CAPACITOR0.047uF 50V K
C4717NDC31HJ-221XC CAPACITOR220pF 50V J
C4718NDCA1HJ-101WC CAPACITOR100pF 50V J
C4719NDCA1HJ-101WC CAPACITOR100pF 50V J
C4720NCB31HK-682XC CAPACITOR6800pF 50V K
C4720 or NDC31EJ-682XC CAPACITOR6800pF 25V J
C4721NCBA1AK-104WC CAPACITOR0.1uF 10V K
C4722NDCA1HJ-101WC CAPACITOR100pF 50V J
C4723NDCA1HJ-101WC CAPACITOR100pF 50V J
C4724NCB31HK-473XC CAPACITOR0.047uF 50V K
C4725NCB31HK-473XC CAPACITOR0.047uF 50V K
C4726NCJ11EK-106X-RC CAPACITOR10uF 25V
C4726 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4727NCJ11EK-106X-RC CAPACITOR10uF 25V
C4727 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4728NCJ11EK-106X-RC CAPACITOR10uF 25V
C4728 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4729NCJ11EK-106X-RC CAPACITOR10uF 25V
C4729 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4730NCJ11EK-106X-RC CAPACITOR10uF 25V
C4730 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4731NCB11CK-225XC CAPACITOR2.2uF 16V K
C4732NCB31HK-473XC CAPACITOR0.047uF 50V K
C4733NCZ1011-220XC CAPACITOR22pF
C4734NCB31HK-333XC CAPACITOR0.033uF 50V K
C4735NCB31HK-392XC CAPACITOR3900pF 50V K
C4736NCF21HZ-105XC CAPACITOR1uF 50V Z
C4737NCF21HZ-105XC CAPACITOR1uF 50V Z
C4738NCJ11EK-106X-RC CAPACITOR10uF 25V
C4738 or NCJ11EK-106X-AC CAPACITOR10uF 25V K
C4901NCBA1AK-104WC CAPACITOR0.1uF 10V K
C5001NCB20JK-475XC CAPACITOR4.7uF 6.3V K
L401NQL79GM-220XCOIL22uH M
L402NQL79GM-220XCOIL22uH M
L405NQL79GM-220XCOIL22uH M
L406NQL085J-180XCOIL18uH J
L407NQL085J-180XCOIL18uH J
L408NQL085J-180XCOIL18uH J
L409NQL79GM-220XCOIL22uH M
L410NQL79GM-220XCOIL22uH M
L412NQL79GM-220XCOIL22uH M
L421NQL79GM-220XCOIL22uH M
L422NQL79GM-220XCOIL22uH M
L481NQL79GM-100XCOIL10uH M
L501NQL79GM-100XCOIL10uH M
L601NQL79GM-100XCOIL10uH M
L602NQL79GM-100XCOIL10uH M
L4101NQL79GM-100XCOIL10uH M
L4301NQL79GM-470XCOIL47uH M
L4302NQL79GM-470XCOIL47uH M
L4701NQL79GM-470XCOIL47uH M
L4702NQL79GM-470XCOIL47uH M
L4703NQL52EM-100XCOIL10uH M
T471NQR0636-001C FL TRANSF
C1NCB31CK-104XC CAPACITOR0.1uF 16V K
C2NCB31CK-104XC CAPACITOR0.1uF 16V K
C3NCB31CK-104XC CAPACITOR0.1uF 16V K
C4NCB31CK-104XC CAPACITOR0.1uF 16V K
C5NCB31CK-104XC CAPACITOR0.1uF 16V K
C6NCB31CK-104XC CAPACITOR0.1uF 16V K
C7NCB31CK-104XC CAPACITOR0.1uF 16V K
C8NCB31CK-104XC CAPACITOR0.1uF 16V K
C9NCB31CK-104XC CAPACITOR0.1uF 16V K
C11NCB31CK-104XC CAPACITOR0.1uF 16V K
C12NCB31CK-104XC CAPACITOR0.1uF 16V K
C13NCB31CK-104XC CAPACITOR0.1uF 16V K
C14NCB31CK-104XC CAPACITOR0.1uF 16V K
C15NCB31CK-104XC CAPACITOR0.1uF 16V K
C16NCB31CK-104XC CAPACITOR0.1uF 16V K
C17NCB31CK-104XC CAPACITOR0.1uF 16V K
C18NCB31CK-104XC CAPACITOR0.1uF 16V K
C20NCB31CK-104XC CAPACITOR0.1uF 16V K
C21NCB31CK-104XC CAPACITOR0.1uF 16V K
C22NCB31CK-104XC CAPACITOR0.1uF 16V K
C101NCB31CK-104XC CAPACITOR0.1uF 16V K
C102NCB31CK-104XC CAPACITOR0.1uF 16V K
C103NCB31CK-104XC CAPACITOR0.1uF 16V K
C104NCB31CK-104XC CAPACITOR0.1uF 16V K
C105NBE41AM-476XTA E CAPACITOR47uF 10V M
C106NBE41AM-476XTA E CAPACITOR47uF 10V M
C108NBE41AM-476XTA E CAPACITOR47uF 10V M
C111NCB31CK-104XC CAPACITOR0.1uF 16V K
C112NCB31CK-104XC CAPACITOR0.1uF 16V K
C201NEAF1CM-107XE CAPACITOR100uF 16V M
C202NCB31CK-104XC CAPACITOR0.1uF 16V K
C203NDC31HJ-271XC CAPACITOR270pF 50V J
C204NDC31HJ-151XC CAPACITOR150pF 50V J
C205NCB31HK-681XC CAPACITOR680pF 50V K
C206NCB31HK-561XC CAPACITOR560pF 50V K
C211NEAF1CM-107XE CAPACITOR100uF 16V M
C212NCB31CK-104XC CAPACITOR0.1uF 16V K
C213NCB31CK-104XC CAPACITOR0.1uF 16V K
C221NCB31HK-223XC CAPACITOR0.022uF 50V K
C222NCB31HK-103XC CAPACITOR0.01uF 50V K
C238NCB31CK-104XC CAPACITOR0.1uF 16V K
C239NCB31CK-104XC CAPACITOR0.1uF 16V K
C240NCB31CK-104XC CAPACITOR0.1uF 16V K
C251NCB31CK-104XC CAPACITOR0.1uF 16V K
C252NEAF1CM-107XE CAPACITOR100uF 16V M
C253NCB31CK-104XC CAPACITOR0.1uF 16V K
C254NBE21AM-106XTA E CAPACITOR10uF 10V M
C255NCB31CK-104XC CAPACITOR0.1uF 16V K
C256NCB31CK-473XC CAPACITOR0.047uF 16V K
C257NCB31HK-102XC CAPACITOR1000pF 50V K
C258NCB31HK-102XC CAPACITOR1000pF 50V K
C259NCB31HK-102XC CAPACITOR1000pF 50V K
C264NCB31HK-103XC CAPACITOR0.01uF 50V K
C265NCB31CK-104XC CAPACITOR0.1uF 16V K
C266NCB31CK-104XC CAPACITOR0.1uF 16V K
C267NCB31HK-103XC CAPACITOR0.01uF 50V K
C268NCB31HK-153XC CAPACITOR0.015uF 50V K
C301NBE41AM-476XTA E CAPACITOR47uF 10V M
C302NBE40JM-476XTA E CAPACITOR47uF 6.3V M
C305NCB31CK-104XC CAPACITOR0.1uF 16V K
C308NCB31CK-104XC CAPACITOR0.1uF 16V K
C309NCB31CK-104XC CAPACITOR0.1uF 16V K
C310NCB31HK-103XC CAPACITOR0.01uF 50V K
C311NCB31CK-104XC CAPACITOR0.1uF 16V K
C312NCB21CK-105XC CAPACITOR1uF 16V K
C313NCB31CK-104XC CAPACITOR0.1uF 16V K
C315NCB31CK-104XC CAPACITOR0.1uF 16V K
C316NCB31CK-105XC CAPACITOR1uF 16V K
C317NCB31CK-104XC CAPACITOR0.1uF 16V K
C318NCB31CK-104XC CAPACITOR0.1uF 16V K
C319NCB31CK-104XC CAPACITOR0.1uF 16V K
C320NCB31CK-104XC CAPACITOR0.1uF 16V K
C321NCB31CK-104XC CAPACITOR0.1uF 16V K
C322NCB31CK-104XC CAPACITOR0.1uF 16V K
C323NCB31CK-104XC CAPACITOR0.1uF 16V K
C324NCB21CK-105XC CAPACITOR1uF 16V K
C325NDC31HJ-120XC CAPACITOR12pF 50V J
C326NDC31HJ-120XC CAPACITOR12pF 50V J
C327NCB31CK-104XC CAPACITOR0.1uF 16V K
C328NCB31CK-104XC CAPACITOR0.1uF 16V K
C330NCB31CK-104XC CAPACITOR0.1uF 16V K
C331NCB31CK-333XC CAPACITOR0.033uF 16V K
C332NCB31CK-104XC CAPACITOR0.1uF 16V K
C333NCB31CK-104XC CAPACITOR0.1uF 16V K
C335NCB31CK-104XC CAPACITOR0.1uF 16V K
C336NCB31CK-104XC CAPACITOR0.1uF 16V K
C337NCB31HK-183XC CAPACITOR0.018uF 50V K
C338NCB31HK-562XC CAPACITOR5600pF 50V K
C339NCB31CK-104XC CAPACITOR0.1uF 16V K
C340NCB21CK-105XC CAPACITOR1uF 16V K
C341NCB21CK-105XC CAPACITOR1uF 16V K
C347NCB31CK-104XC CAPACITOR0.1uF 16V K
C348NCB31AK-684XC CAPACITOR0.68uF 10V K
C349NCB31CK-104XC CAPACITOR0.1uF 16V K
C350NCB31AK-684XC CAPACITOR0.68uF 10V K
C358NDC31HJ-5R0XC CAPACITOR5pF 50V J
C359NDC31HJ-5R0XC CAPACITOR5pF 50V J
C364NBE40JM-476XTA E CAPACITOR47uF 6.3V M
C365NCB31CK-104XC CAPACITOR0.1uF 16V K
C366NCB21CK-105XC CAPACITOR1uF 16V K
C369NBE40JM-476XTA E CAPACITOR47uF 6.3V M
C371NCB21CK-105XC CAPACITOR1uF 16V K
C381NCB31CK-104XC CAPACITOR0.1uF 16V K
C382NCB31CK-104XC CAPACITOR0.1uF 16V K
C383NCB31CK-104XC CAPACITOR0.1uF 16V K
C391NCB31CK-104XC CAPACITOR0.1uF 16V K
C392NCB31CK-104XC CAPACITOR0.1uF 16V K
C393NCB31CK-104XC CAPACITOR0.1uF 16V K
C394NCB31CK-104XC CAPACITOR0.1uF 16V K
C396NCB31CK-104XC CAPACITOR0.1uF 16V K
C397NBE20JM-226XTA E CAPACITOR22uF 6.3V M
C451NCB31CK-104XC CAPACITOR0.1uF 16V K
C452NCB31CK-104XC CAPACITOR0.1uF 16V K
C453NCB31CK-104XC CAPACITOR0.1uF 16V K
C454NCB31CK-104XC CAPACITOR0.1uF 16V K
C481NCB31CK-104XC CAPACITOR0.1uF 16V K
C491NCB31CK-104XC CAPACITOR0.1uF 16V K
R30NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R31NRSA6AD-153WMG RESISTOR15kΩ 1/16W D
R32NRSA6AD-153WMG RESISTOR15kΩ 1/16W D
R33NRS181F-330XMG RESISTOR33
R34NRS181F-330XMG RESISTOR33
R35NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R36NRSA6AD-221WMG RESISTOR220
R38NRSA6AD-102WMG RESISTOR1k
R39NRSA6AD-221WMG RESISTOR220Ω 1/16W D
R40NRSA6AD-221WMG RESISTOR220
R41NRSA6AD-102WMG RESISTOR1k
R42NRSA6AD-221WMG RESISTOR220Ω 1/16W D
R43NRSA6AD-221WMG RESISTOR220Ω 1/16W D
R44NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R45NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R46NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R101NRSA6AD-910WMG RESISTOR91Ω 1/16W D
R102NRSA6AD-910WMG RESISTOR91Ω 1/16W D
R103NRSA63D-432XMG RESISTOR4.3kΩ 1/16W D
R104NRSA63D-242XMG RESISTOR2.4kΩ 1/16W D
R105NRS125J-120XMG RESISTOR12Ω 1/2W J
R106NRSA63J-2R2XMG RESISTOR2.2Ω 1/16W J
R107NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R108NRSA63J-471XMG RESISTOR470Ω 1/16W J
R109NRSA63J-331XMG RESISTOR330
R110NRSA63J-0R0XMG RESISTOR0
R111NRSA63D-432XMG RESISTOR4.3kΩ 1/16W D
R112NRSA63D-242XMG RESISTOR2.4k
R113NRS125J-120XMG RESISTOR12
R114NRSA63J-2R2XMG RESISTOR2.2Ω 1/16W J
R115NRSA6AD-102WMG RESISTOR1k
R116NRSA63J-471XMG RESISTOR470
R117NRSA63J-331XMG RESISTOR330Ω 1/16W J
R118NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
Ω
1/8W F
Ω
1/8W F
Ω
1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/2W J
Ω
1/16W D
Ω
1/16W J
3-21
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
R119NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R120NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R121NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R122NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R123NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R124NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R125NRS125J-1R0XMG RESISTOR1Ω 1/2W J
R126NRSA02J-0R0XMG RESISTOR0Ω 1/10W J
R129NRSA6AD-104WMG RESISTOR100kΩ 1/16W D
R201NRS125J-1R0XMG RESISTOR1Ω 1/2W J
R202NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R203NRSA6AD-303WMG RESISTOR30kΩ 1/16W D
R204NRSA6AD-273WMG RESISTOR27kΩ 1/16W D
R205NRSA6AD-273WMG RESISTOR27kΩ 1/16W D
R206NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R207NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R208NRSA6AD-203WMG RESISTOR20kΩ 1/16W D
R209NRSA6AD-223WMG RESISTOR22kΩ 1/16W D
R211NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R219NRSA6AD-153WMG RESISTOR15kΩ 1/16W D
R220NRSA6AD-183WMG RESISTOR18kΩ 1/16W D
R221NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R222NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R223NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R224NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R231NRSA6AD-272WMG RESISTOR2.7kΩ 1/16W D
R232NRSA6AD-153WMG RESISTOR15kΩ 1/16W D
R233NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R234NRSA6AD-394WMG RESISTOR390kΩ 1/16W D
R235NRSA6AD-682WMG RESISTOR6.8kΩ 1/16W D
R246NRSA6AD-220WMG RESISTOR22Ω 1/16W D
R251NRS125J-R47XMG RESISTOR0.47Ω 1/2W J
R252NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R253NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R254NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R255NRSA6AD-203WMG RESISTOR20kΩ 1/16W D
R256NRSA6AD-470WMG RESISTOR47Ω 1/16W D
R257NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R258NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R259NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R260NRSA6AD-470WMG RESISTOR47Ω 1/16W D
R300NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R301NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R303NRSA6AD-270WMG RESISTOR27Ω 1/16W D
R304NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R305NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R306NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R307NRSA6AD-102WMG RESISTOR1k
R308NRSA6AD-223WMG RESISTOR22k
R309NRSA6AD-104WMG RESISTOR100kΩ 1/16W D
R312NRSA63J-0R0XMG RESISTOR0
R313NRSA63J-0R0XMG RESISTOR0
R314NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R315NRSA63J-0R0XMG RESISTOR0
R316NRSA63J-0R0XMG RESISTOR0
R318NRSA63D-332XMG RESISTOR3.3kΩ 1/16W D
R319NRSA6AD-223WMG RESISTOR22kΩ 1/16W D
R320NRSA6AD-101WMG RESISTOR100Ω 1/16W D
R323NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R326NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R327NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R328NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R329NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R332NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R333NRSA63D-162XMG RESISTOR1.6kΩ 1/16W D
R334NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R335NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R336NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R337NRSA63J-0R0XMG RESISTOR0
R340NRSA63D-303XMG RESISTOR30k
R346NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R347NRSA6AD-473WMG RESISTOR47k
R348NRSA6AD-473WMG RESISTOR47k
R349NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R351NRSA6AD-221WMG RESISTOR220
R352NRSA63J-105XMG RESISTOR1M
R353NRSA6AD-101WMG RESISTOR100Ω 1/16W D
R354NRSA6AD-101WMG RESISTOR100Ω 1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
R362NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R363NRSA6AD-151WMG RESISTOR150Ω 1/16W D
R364NRSA6AD-151WMG RESISTOR150Ω 1/16W D
R365NRSA63D-911XMG RESISTOR910Ω 1/16W D
R366NRSA63D-202XMG RESISTOR2kΩ 1/16W D
R368NRSA63D-203XMG RESISTOR20kΩ 1/16W D
R370NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R372NRSA6AD-331WMG RESISTOR330Ω 1/16W D
R373NRSA6AD-331WMG RESISTOR330Ω 1/16W D
R378NRSA6AD-101WMG RESISTOR100Ω 1/16W D
R379NRSA6AD-101WMG RESISTOR100Ω 1/16W D
R380NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R381NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R382NRSA6AD-123WMG RESISTOR12kΩ 1/16W D
R383NRSA63J-105XMG RESISTOR1MΩ 1/16W J
R384NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R385NRSA6AD-102WMG RESISTOR1kΩ 1/16W D
R391NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R392NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R393NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R394NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R396NRSA6AD-473WMG RESISTOR47kΩ 1/16W D
R399NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R403NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R405NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R481NRSA6AD-103WMG RESISTOR10kΩ 1/16W D
R491NRSA63D-472XMG RESISTOR4.7kΩ 1/16W D
R492NRSA63J-0R0XMG RESISTOR0Ω 1/16W J
R618NRSA63J-181XMG RESISTOR180Ω 1/16W J
R619NRSA63J-181XMG RESISTOR180Ω 1/16W J
R620NRSA63J-181XMG RESISTOR180Ω 1/16W J
L303NQL044K-100XCOIL0.26Ω 10uH K
L305NQR0129-002XFERRITE BEADS
L306NQR0129-002XFERRITE BEADS
L307NQR0129-002XFERRITE BEADS
L451NQL044K-100XCOIL0.26Ω 10uH K
No additional / supplemental order of WARRANTY CARDs are available
P4
Block No.
3
M
M
M
P3
A1, A3, A4,
A6, A17,A18
P3
A1, A3,
A4,
A6, A8,
A7(Only E),
A19(Only EE)
P3
A1, A3, A4
Only J
E,EU,EE
U,UN,A
A14
P6
P2
A13
A9, A10, A11
KIT
A12
E,EU,U
P3
A2, A5
A16
P5
A15
3-24
P7
P1
The parts without symbol number are not service.
Packing and Accessories
Symbol No.Part No.Part NameDescriptionLocal
A 1LVT1665-001AINST BOOKENG FRE SPAJ
A 1LVT1666-001AINST BOOKENG GER FOR DUTE
A 1LVT1666-003BINST BOOKENG FRE SPAEU
A 1LVT1666-005AINST BOOKENG RUS UKREE
A 1LVT1667-002AINST BOOKENG CHI(TAIWAN) THAU
A 1LVT1667-004AINST BOOKENG INAUN
A 1LVT1667-001AINST BOOKENGA
A 2LVT1666-002AINST BOOKSPA ITA SWE PORE
A 2LVT1666-004BINST BOOKTUR PEREU
A 2LVT1667-003AINST BOOKARA KOR PERU
A 3LVT1665-002AINSTALL MANUALENG FRE SPAJ
A 3LVT1666-006AINSTALL MANUALENG GER FORE
A 3LVT1666-008AINSTALL MANUALENG FRE SPAEU
A 3LVT1666-010AINSTALL MANUALENG RUS UKREE
A 3LVT1667-006AINSTALL MANUALENG CHI(TAIWAN) THAU
A 3LVT1667-008AINSTALL MANUALENG INAUN
A 3LVT1667-005AINSTALL MANUALENGA
A 4LVT1672-001AINST SHEETSPA ITA SWE POR
A 5LVT1666-007AINSTALL MANUALSPA ITA SWE PORE
A 5LVT1666-009AINSTALL MANUALENG FRE SPAEU
A 5LVT1667-007AINSTALL MANUALARA KOR PERU
A 6------------WARRANTY CARDBT-51018-5J
A 6------------WARRANTY CARDBT-54031-1E,EU,EE
A 7VND3050-002IDENTITY CARDE
A 8VND3046-001SERIAL TICKETE,EU,EE
A 9QYSDSP5008ZASCREWM5 x 8mm(x8)
A10QYSSSP5008ZASCREWM5 x 8mm(x8)
A11LV41478-001ACORD CONNECTER(x2)
A12RM-RK251REMOCON
A13------------BATTERY(x2)
A14QAM1005-002CAR CABLEJ
A14QAM1005-003CAR CABLEE,EU,EE
A14QAM1005-004CAR CABLEU,UN,A
A15LV22463-002ATRIM PLATEJ,E,EU,EE
A15LV22464-001ATRIM PLATE(NIS)U,UN,A
A16LV44661-003ACAUTION SHEETJ,E,EU,EE
A16LV44661-004ACAUTION SHEETU,UN,A
A17BT-51041-1REGIS. CARDBT-51041-1J
A18------------WARRANTY CARDBT-52006-2J
A19LVT1749-001AERRATA SHEETEE
KITSRW-AVX800ESCREW PARTS KITA9 A10 A11
P 1LV37482-002ACARTONJ
P 1LV37483-001ACARTONE
P 1LV37485-001ACARTONEU,EE
P 1LV37486-001ACARTONU,UN,A
P 2QPC03504015PPOLY BAG35cm x 40cm
P 3FSPG4002-001POLY BAGJ,EE,UN,A
P 3FSPG4002-001POLY BAG(x2)E,EU,U
P 4QPA00801205POLY BAG8cm x 12cm
P 5FSPG4002-001POLY BAG
P 6LV11394-002ACUSHION TOP(E)J,E,EU,EE
P 6LV11396-003ACUSHION TOPU,UN,A
P 7LV11395-002ACUSHION BOT(E)J,E,EU,EE
P 7LV11397-002ACUSHION BOTTOMU,UN,A
Block No. [M][3][M][M]
3-25

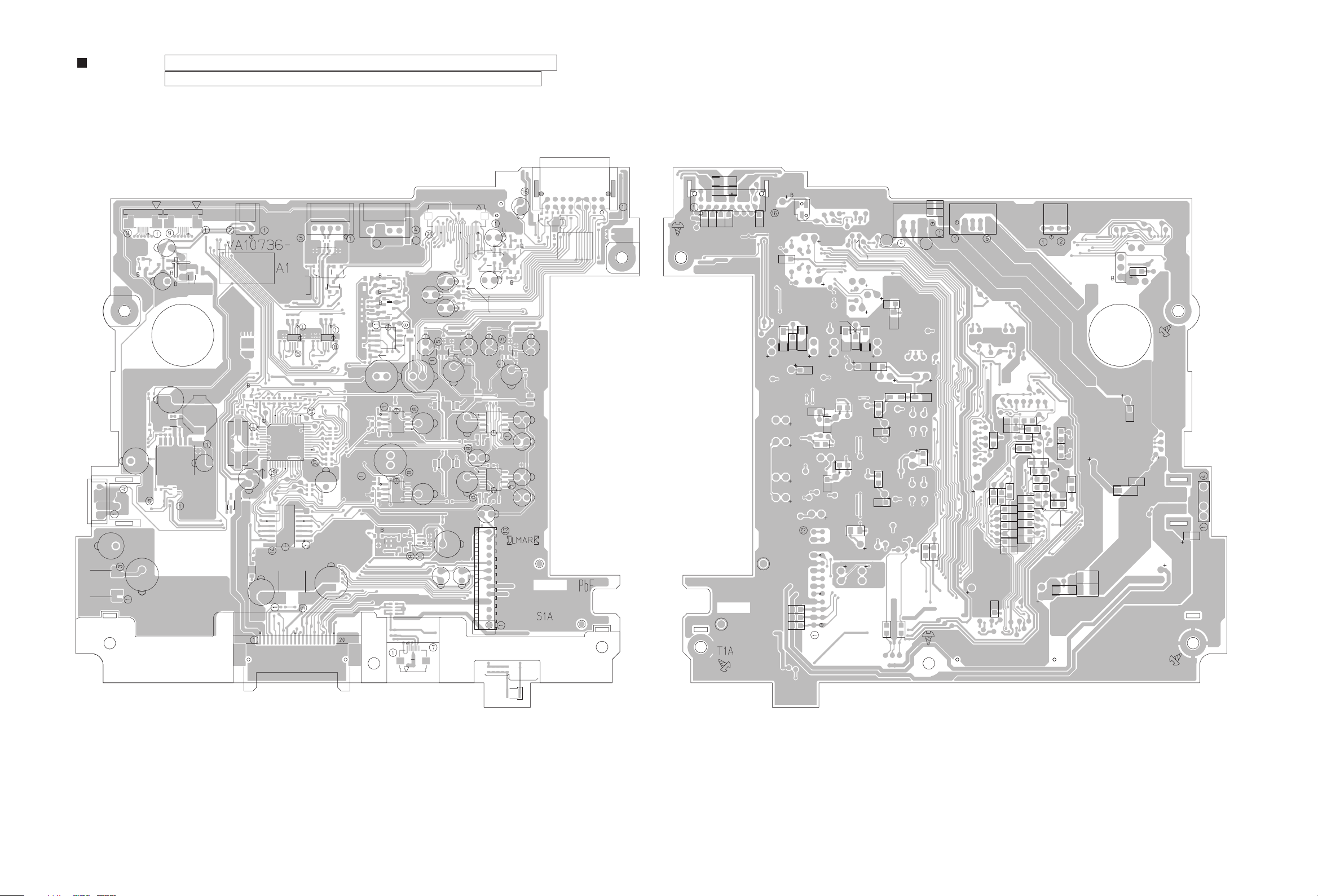

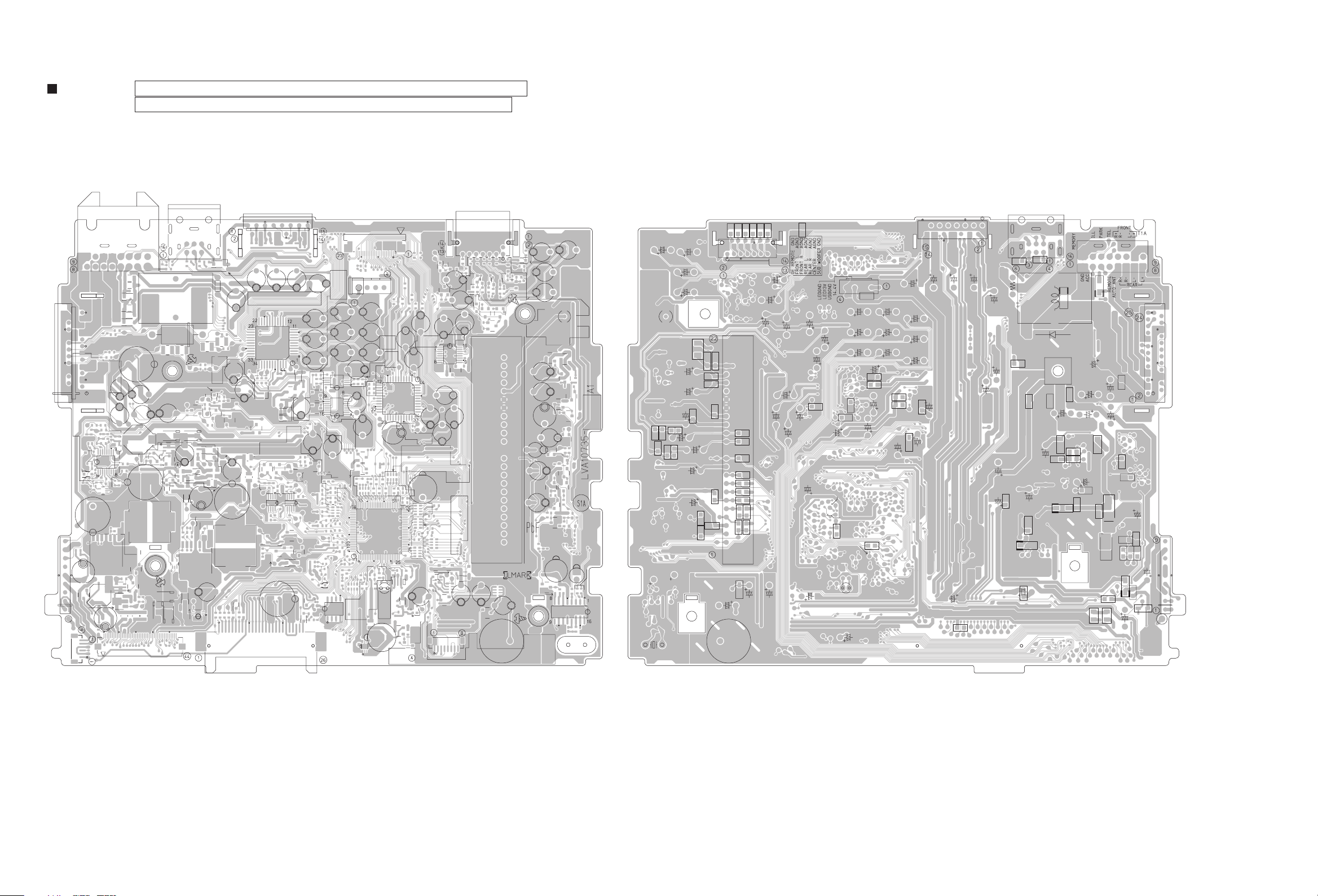

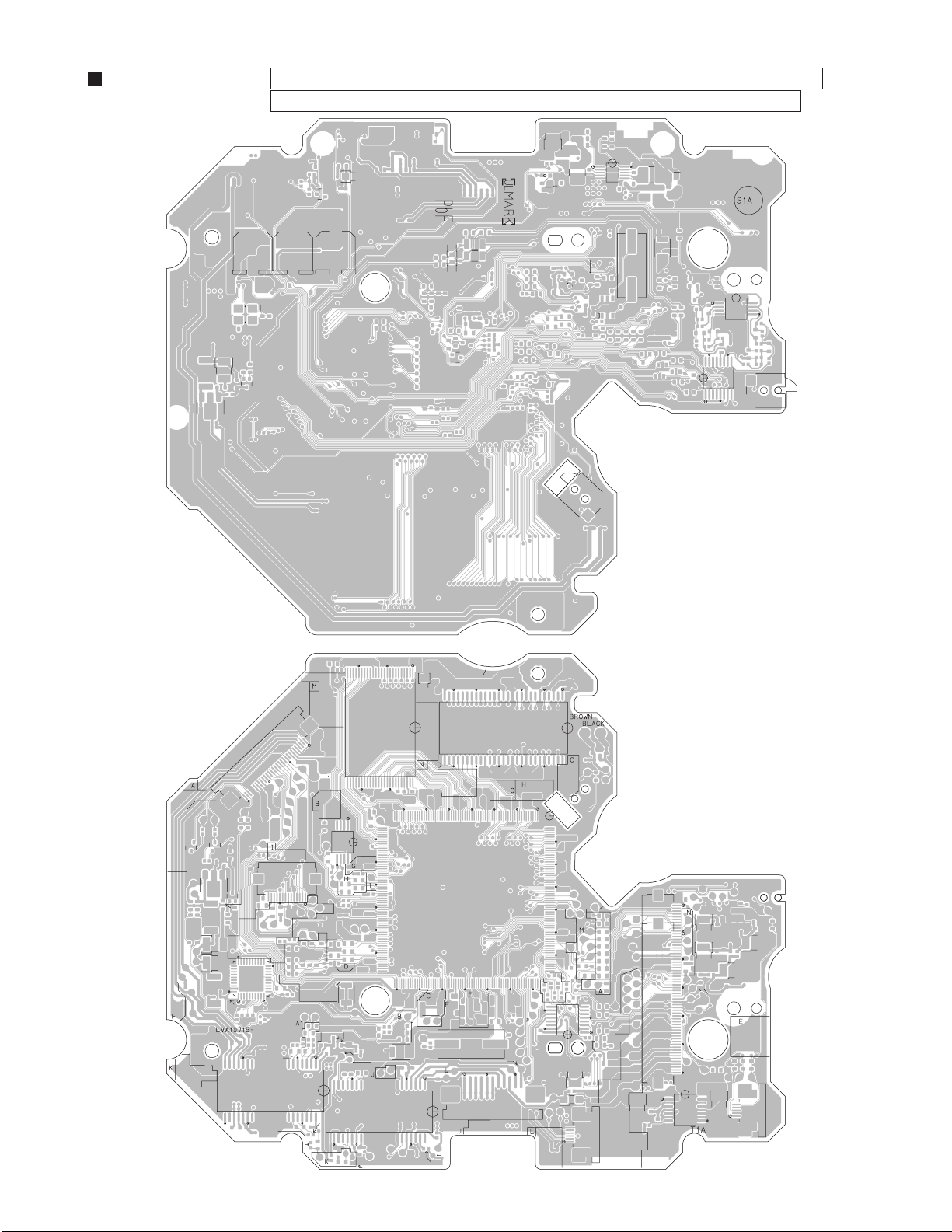

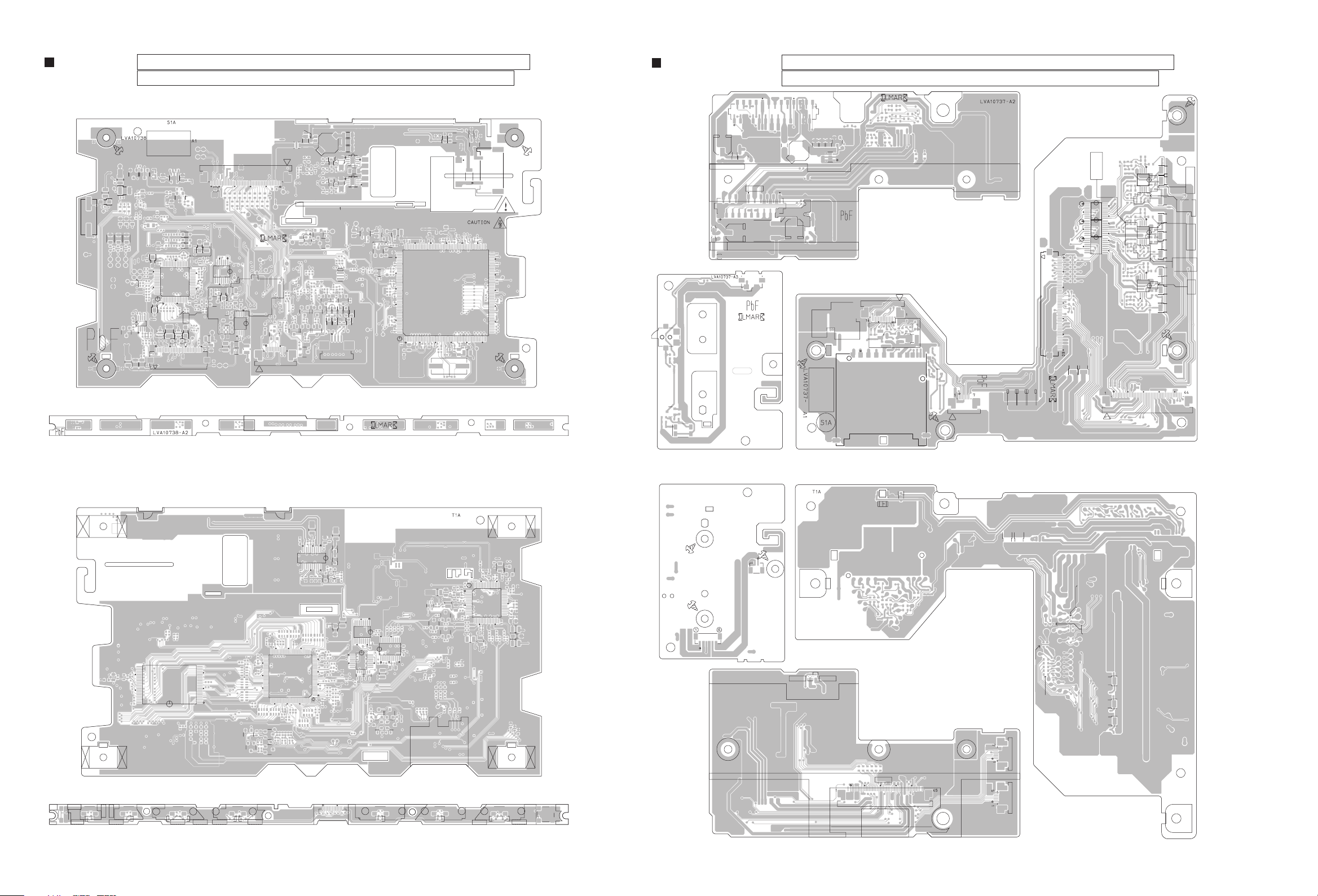

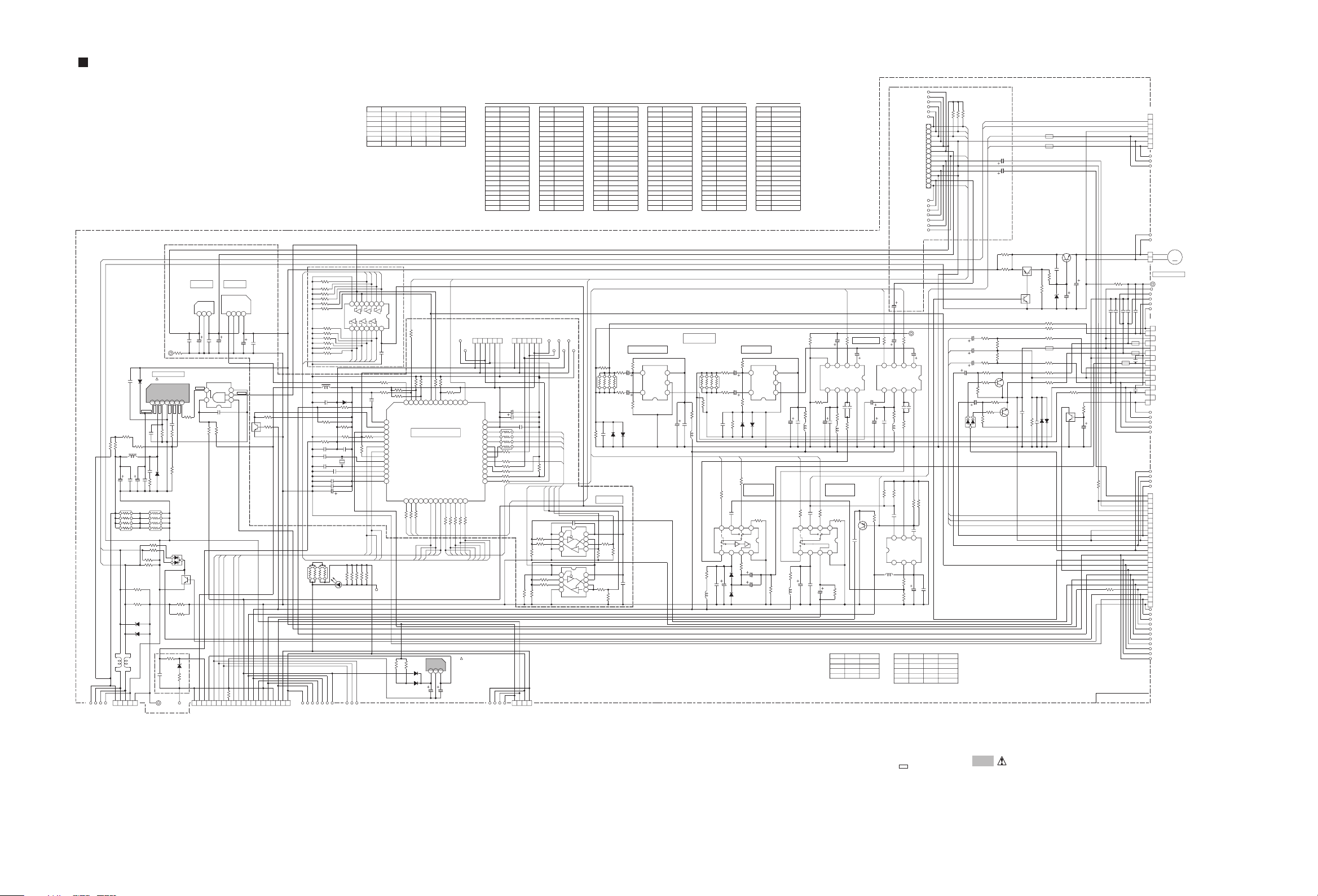

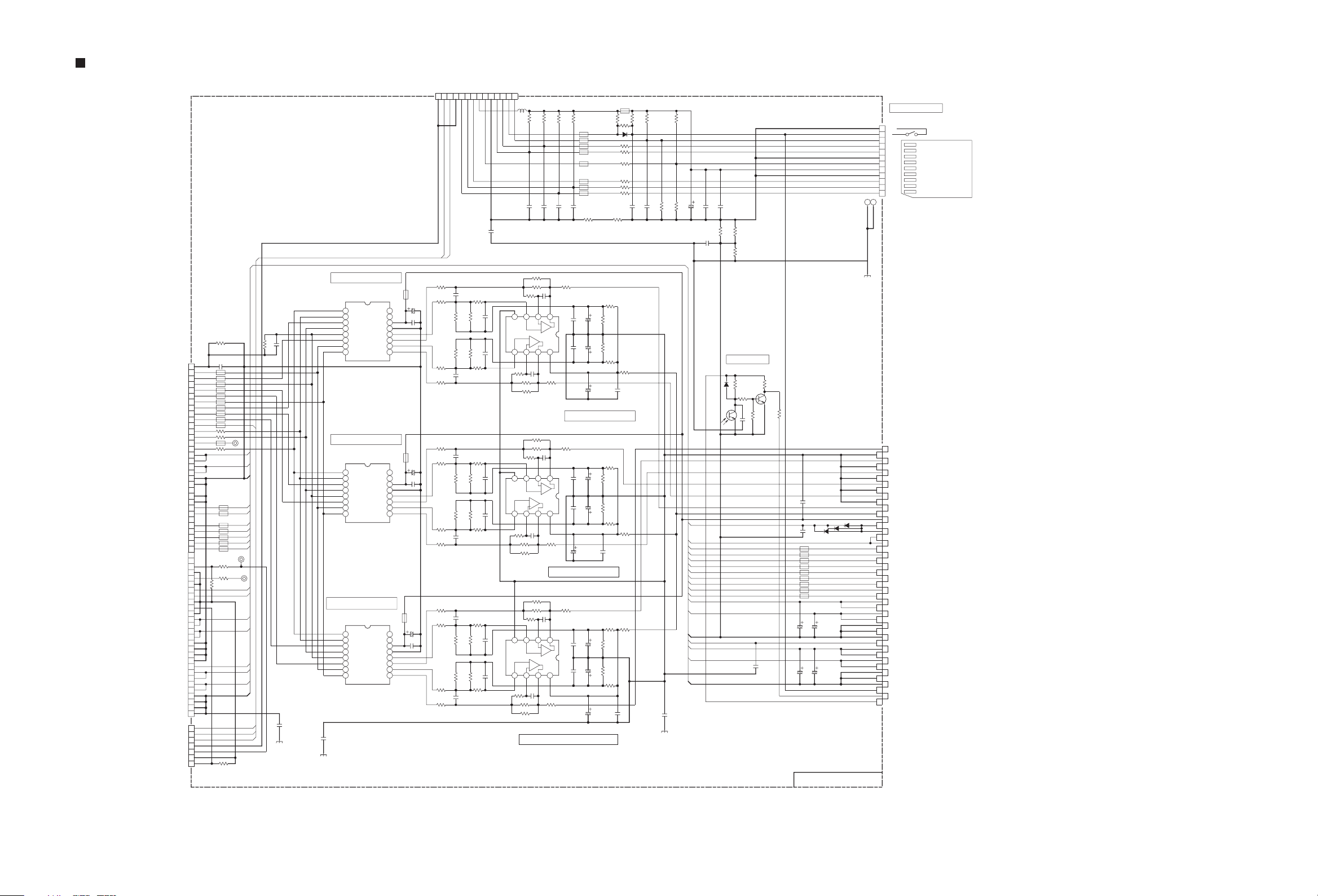

SCHEMATIC DIAGRAMS
DVD RECEIVER WITH MONITOR
KW-AVX800J,KW-AVX800E,KW-AVX800EU
KW-AVX800EE,KW-AVX800U,KW-AVX800UN
KW-AVX800A
CD-ROM No.SML200705
(for J)
(for J)
(for E,EU,EE)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
Contents
Block diagram

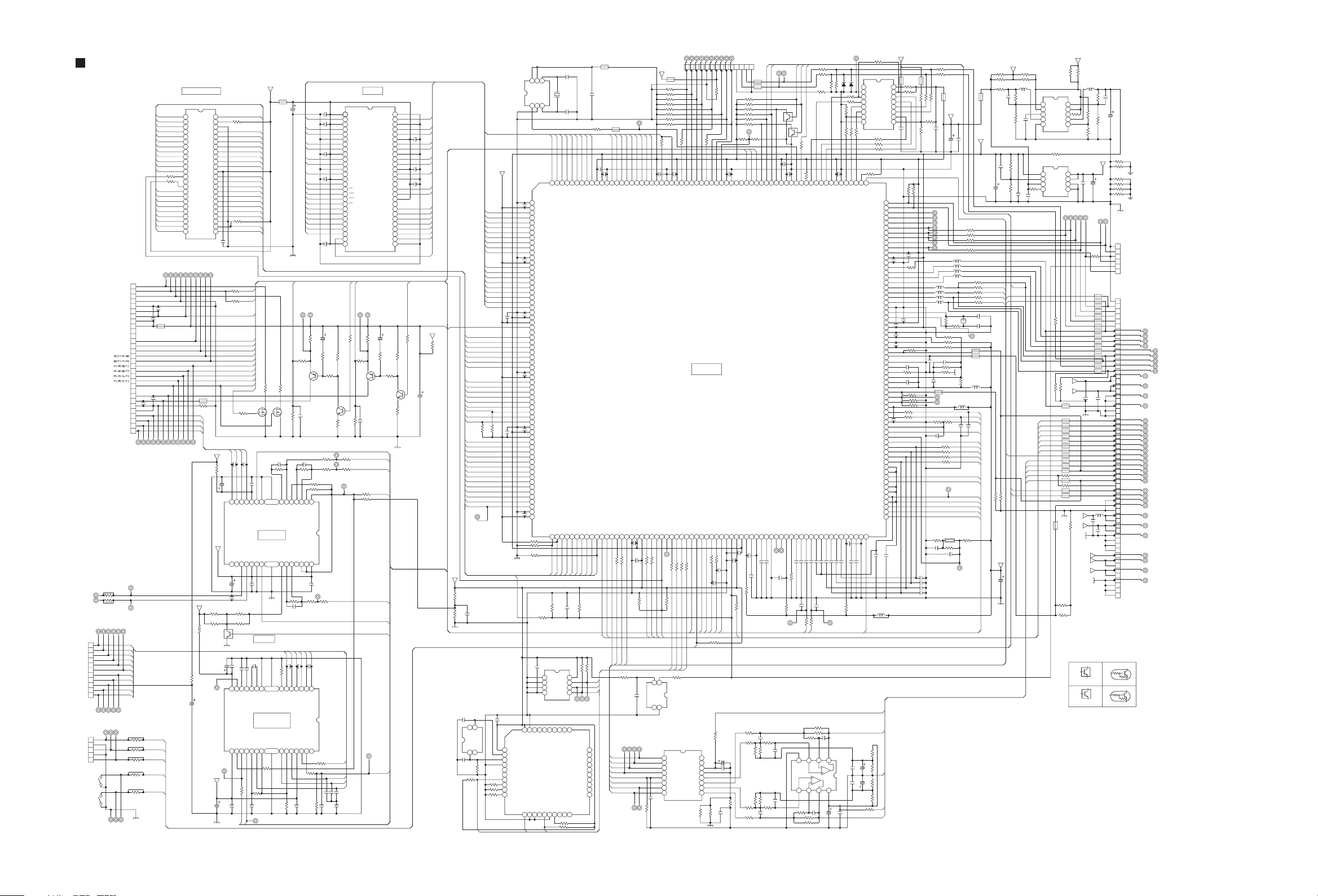

Standard schematic diagrams
Printed circuit boards
2-1
2-2
2-8 to 11
COPYRIGHT 2007 Victor Company of Japan, Limited.
No.MA320SCH
2007/5
Safety precaution
!
!
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Block diagram
DVD section
CD VR
FOCUS
&
TRACKING
COIL
PICK UP
LOAD
&
FEED
MOTOR
SPINDLE
MOTOR
TOUCH
PAN EL
LCD
MODULE
S4901 to S4908
KEYMATRIX
IC491
REMOCON
SW1
to
SW3
DVD VR
CD/DVD
A, B, C, D, E, F, RF+/LPC1, LPC2, HAGUP
CN101
DVD LD
CD LD
F+/T+/-
FLM+/-
M
M
VH
H1+/H2+/-
CN201
H3+/SM1 to 3
IC398
FLASH
IC399
SDRAM
CN202
SW2, SW3
LCD Display control & Touch senser
CN591CN471
VCOM
CN431
CX, L/R
CPV
STV1
STH1 to 2
CPH1 to 3
OE1 to 3
KEY1, KEY2, KEYIN1, KENIN2, RESETSW
Key,Lighting & Remocon
Q106,Q107
Q101
Q102
Q103
Q104
IC201
DRIVER
IC251
SPINDLE
MOTOR
DRIVER
NEXOE, NEXCE
NEXWE, /FL_RST
EXADT0 to 15
EXADR16 to 20
EXDAT0 to 15
MA0 to 11, MDQ0 to 15
ROM
DQM0, DQM1, BA0, BA1
MCK, NWE, NCSM
NCAS, NRAS
SW1
SW4,SW5
L-END SW
REST SW
Q503 to Q509
TOUCH SENSE AMP.
IC421
Q421
to Q425
VCOM
DRIVER
IC411
IC413
Timing
LR-CHG
IC472 to IC475
CFL DRIVER
D4901 to D4910
LIGHTING DISPLAY
CD
WP, CLK, CMD
LPCO1
DVDLDCUR
LPCO2
CDLDCUR
/DRVMUTE
TRDRV, FODRV
TRSDRV
DRVCONT
LDIN
LM
Q231
SPDRV
/SPMUTE
FG
Q301
TRVSW
SW4
IC301
DVN
DATA0 to 3
TRANSCEIVER
DAC0CS, DAC1CS, DAC2CS
ADOUT0 to 2
DCLK, DDATA, DACPDN
SRCK, LRCK, DACCK
UCS, SCS, SCLK
U2SDT, S2UDT
CPURST, LRMUTE, /ENUSB
VIDEO.Y, VIDEO.C
I2CSCL
I2CSDT
EPCS
USBCLK
1.2V REG.
Q302
TP-O-X, TP-O-Y, TP-I-X, TP-I-Y, TP-SEN
DVD-C, DVD-Y/COMP
X401
4.433618MHZ
COM_DC
COM_OUT
RED
GREEN
BLUE
DOTCLK
TC-POL
CRM-HD
CRM-VD
CTL
NT/PAL, TC-RST, JUST, SIDE1, HPOS0 to 3, COPY, ZOOM
IC401
Q407
CROMA
IC403
BLANK SW
BLON, BLDIM, FCTL-ON
CFL-F-CTL, CFLPWR
BLUE3-1 to 3
RED-LED
REMOCON
GDC-R
GDC-G
GDC-B
GDC-CSYNC
CRM-SDA
CRM-CLK
OSD-R
OSD-G
OSD-B
OSD-16
OSD-BLK
WIDEBLK_IN
CN491
KEYIN1
KENIN2
CN511
KEY1, KEY2
BLUE3-1 to 3, RED-LED
RESETSW, REMOCON
CN304
SD
SLOT
CN404
IC306
USB
HDD4 to 11
D+/-
CN401
IC481
EPROM
X351
27MHz
X354
IC308
48MHz
D1.2V
IC302
2V to
D2V
SW1
SW4
D0 to 15, WE0, RE
A0 to 20, WE1, VSEL
GDC_CS, GDC_CLK
IC601
GDC_INT, GDC_RDY
GDCRST
IC602
GDC
IC481
to IC485
IC412
X601
12MHz
OSDSO
OSDCS
OSDCLK
OSDRST
OSD
BLANKTC-BLK
VD, HD
KEYIN
Q502
IC603,Q601 to Q603
2.5VPANEL3.3V
GDC 2.5 REG.
WP, CLK, CMD
CN303
DATA0 to 3
USBD+/-
DCLK
DDATA
DACPDN
DAC0CS
DAC1CS
DAC2CS
ADOUT0 to 2
