JVC KW-AVX800 Instruction Manual

DVD RECEIVER WITH MONITOR KW-AVX800

RECEPTOR DVD CON MONITOR KW-AVX800

ENGLISHESPAÑOL

RÉCEPTEUR DVD ET MONITEUR KW-AVX800

For canceling the display demonstration, see page 8. Para cancelar la demonstración en pantalla, consulte la página 8. Pour annuler la démonstration des affichages, référez-vous à la page 8.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

FRANÇAIS

LVT1665-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

ENGLISH

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit and wire any cable in locations where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

• The driver must not put on the headphones while driving.

CAUTION

This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

ENTER

NO EJECT?

EMERGENCY EJECT?

Back

at the same time

• If this does not work, reset the unit.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you wear a glove, take it off).

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Exit

INTRODUCTION

Playable disc type ............................ 4

Basic operations—

Monitor panel/touch panel ............ 5

Basic operations—

Remote controller (RM-RK251) ...... 6

OPERATIONS

Before operating the unit ................ 8

Common operations ........................ 9

Listening to the radio ...................... 10

Disc operations ................................ 13

Dual Zone operations ....................... 27

SD operations .................................. 30

USB operations ................................ 32

EXTERNAL DEVICES

Bluetooth® operations—

Cellular phone/audio player .......... 34

Listening to the CD changer .............. 41

Listening to the satellite radio ......... 43

Listening to the iPod/D. Player ......... 46

Using other external components ..... 48

SETTINGS

Sound equalization .......................... 51

Assigning titles to the sources .......... 52

Menu operations ............................. 53

REFERENCES

Maintenance ................................... 64

More about this unit ........................ 65

Troubleshooting .............................. 72

Specifications .................................. 78

INTRODUCTION

ENGLISH

Playable disc type

Disc type Recording format, file type, etc. Playable

DVD DVD Video (Region Code: 1)*

ENGLISH

DVD Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R*2/-RW, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: ISO 9660 level 1, level 2, Romeo, Joliet• DVD-RAM cannot be played.

DVD Video

DVD-VR (non-CPRM only)

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

Dual Disc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD

VCD (Video CD)

CD-ROM

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the monitor. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). *3 It is possible to play back finalized +R/+RW (Video format only) discs. However, the use of +R double layer disc is

not recommended.

*4 This unit can play back AAC files encoded using iTunes.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Basic operations — Monitor panel/touch panel

Display <AV Menu>.

• ☞ page 53.

Display <Source Menu>.

• ☞ pages 9 and 27.

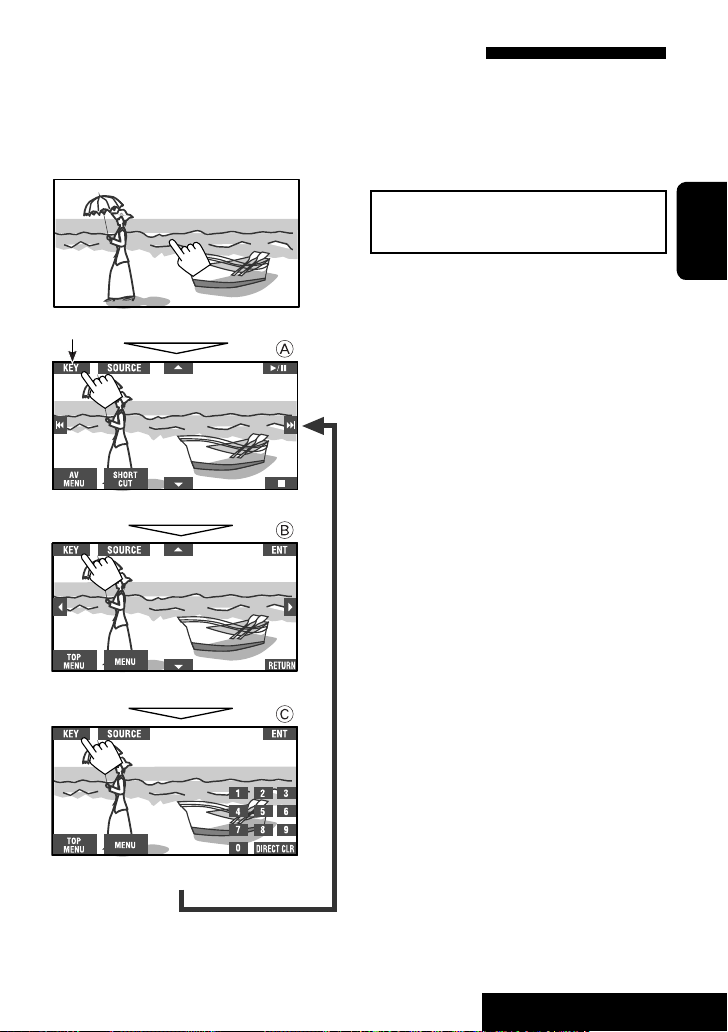

Display and erase the Short Cut windows.

Available functions vary among the sources. For details, see each source operation section.

ENGLISH

Change the display information.

Change the sources.

• ☞ page 9.

Display <AV Menu>.

• ☞ page 53.

• Turn on the power.

• Turn off the power [Hold].

• Attenuate the sound (if the power is on).

Reset the unit.

• Use only when the internal system malfunctions.

• For details on the touch panel operations,

see each source operation sections.

Adjust the volume.

• Display the <Open/Tilt> screen

• Eject the disc and display the <Open/Tilt> screen [Hold].

• Close the monitor panel when the <Open/Tilt> screen is displayed.

• [OPEN]: Open the monitor panel.

• [EJECT]: Eject the disc.

• [CLOSE]: Close the monitor panel.

• [TILT +/–]: Tilt the monitor panel.

• [Exit]: Erase this screen.

• Shaded icons cannot be used at that time.

Remote sensor

INTRODUCTION

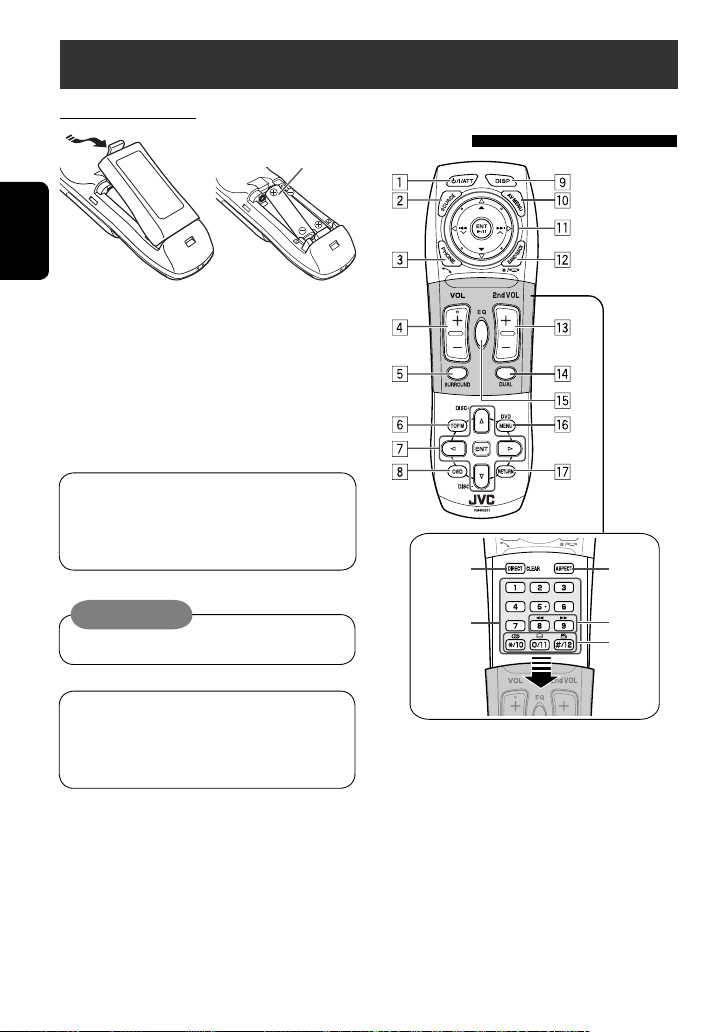

Basic operations — Remote controller (RM-RK251)

Installing the battery

ENGLISH

If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

R03/LR03/AAA

Caution:

• Do not expose batteries to heat or flame.

Main elements and features

;

a s

IMPORTANT:

If Dual Zone is activated (☞ page 27), the remote controller functions only for operating the DVD/CD player.

1*1 • Turns on the power.

• Attenuates the sound if the power is on.

• Turns off the power if pressed and held (while the power is on).

2*1 Selects the source. 3*1 • Displays <Dial Menu>.

• Displays <Redial> list if pressed and held.

• Answers incoming calls.

1,2

Adjusts the volume level.

1,2

Selects surround mode.

6 • DVD/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Original Program screen.

7 • Makes selection/settings.

• ~: Skips back or forward by 5 minutes for DivX/MPEG1/MPEG2.

• DISC +/– buttons: Changes discs for “CD-CH.”

8 Shows the on-screen bar.

Changes the display information.

9* p Display or erase <AV Menu>. q For disc/SD/USB operations:

• 6: Plays/pauses.

• 5 / ∞

DVD: Selects the title/group. DVD-VR: Selects the program/playlist. SD/USB/other discs (except VCD/CD): Selects

the folders.

• 4 / ¢:

– Press briefly: reverse skip/forward skip. – Press and hold: reverse search/forward search.

For FM/AM operations:

• 5 / ∞: Selects the preset stations.

• 4 / ¢: Functions to search for stations.

– Press briefly: Auto Search – Press and hold: Manual Search

For satellite tuner operations:

• 5 / ∞: Selects the categories.

• 4 / ¢:

– Selects a channel rapidly if pressed and held. – Selects a channel if pressed.

For Apple iPod/JVC D. player operations:

• ∞: Pauses/stops or resumes playback.

• 5: Enters the main menu (then 5 / ∞ / 4 / ¢ work as the menu selecting

buttons).*

• 4 / ¢ (in menu selecting mode)

– Selects an item if pressed briefly. (Then, press

∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

For Bluetooth operations:

• 4 / ¢: reverse skip/forward skip (for audio operation)

• 6: Answers incoming calls (for “Bluetooth PHONE”), plays/pauses (for “Bluetooth AUDIO”)

w TUNER/SAT: Selects the bands. DISC/SD/USB: Stops play. Bluetooth PHONE: Ends the call. Bluetooth AUDIO: Plays/pauses.

• This button does not function as the BACK button for this model.

Adjusts the volume level through the 2nd AUDIO

OUT plug.

r*2 Activates or deactivates Dual Zone.

1,2

Selects the sound mode.

t* y • DVD Video/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Play List screen.

u RETURN button

• For VCD: Returns to the PBC menu.

i DISC/SD/USB: Switches number entry mode.

• Also functions as CLEAR button to erase the misentry after entering the wrong number.

o • Enter the numbers.

• FM/AM/SAT: Selects the preset station/channel directly.

• CD changer: Selects the disc directly.

;*1 Changes the aspect ratio of the playback pictures. a Reverse search/forward search for disc/SD/USB

operations.

s • DVD Video: Selects audio language ( ),

subtitles ( ), angle ( ).

• DVD Audio: Selects audio stream (

• DVD-VR: Turn on/off subtitles (

), and

selects audio channel ( )

• DivX: Selects audio language ( ), subtitles ( ).

• VCD: Selects audio channel ( ).

*1 If Dual Zone is activated, these buttons cannot be

used.

*2 These buttons can be used only when the slide cover is

closed.

*3 5 : Returns to the previous menu. ∞ : Confirms the selection.

ENGLISH

INTRODUCTION

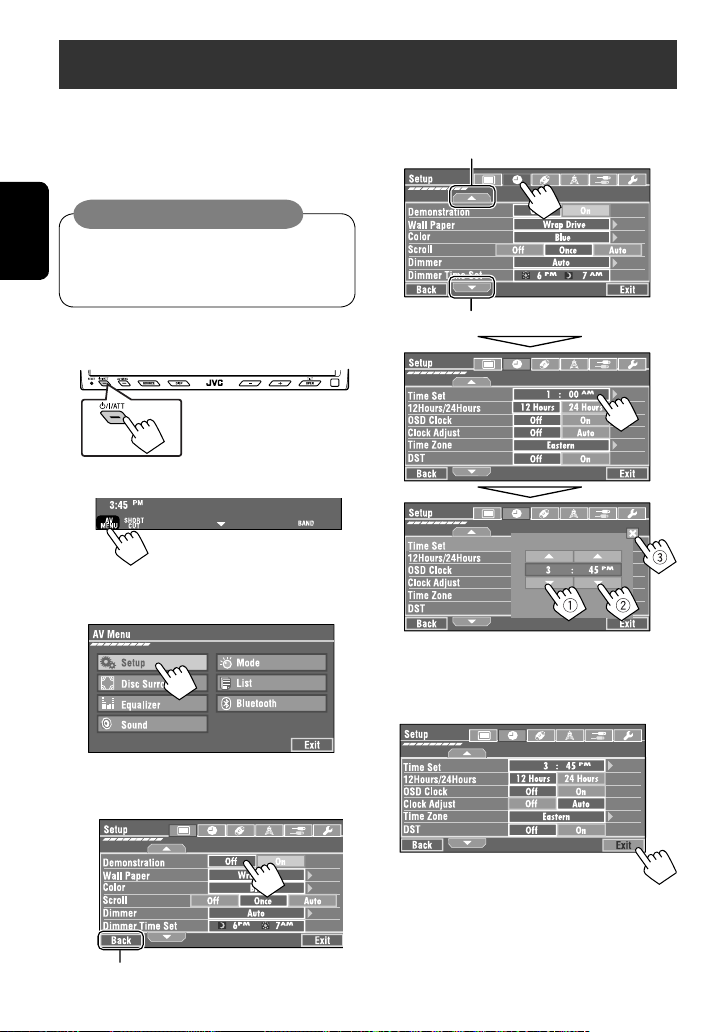

Before operating the unit

Cancel the display demonstration and set the clock (☞ pages 54 and 55 for details).

• Non-available items will be displayed being shaded

ENGLISH

on the AV Menu screens.

Indication language:

In this manual, English indications are used for purpose of explanation. You can select the indication language on the monitor. (☞ page 55)

~ Turn on the power.

Ÿ Display <AV Menu>.

! Display the <Setup> menu.

@ Set the clock settings.

Moves to the preceding menu page

Moves to the succeeding menu page

• To do the other clock settings, ☞ page 55.

⁄ Cancel the display demonstrations.

Select <Off>.

Return to the previous screen.

¤ Finish the procedure.

Common operations

Selecting the playback source

• Available sources depend on the external components you have connected, media you have attached, and the <Input> settings you have made

pages 58 and 59).

(☞

On the touch panel:

☞ page 27

On the monitor panel:

Exit

Changing the display information

• Available display information varies among the playback sources.

On the monitor panel only:

• Each time you press DISP, the display changes to show the various information.

Ex. When the playback source is a DivX disc.

Playback picture screen (only for video sources)

Source information screen

Preset station (service) list, track (file) list, or phone number list

ENGLISH

TUNER = SAT = DISC (DVD/VCD/CD) = SD = USB =CD-CH, iPod, D.PLAYER, or EXT-IN = Bluetooth PHONE = Bluetooth AUDIO = AV-IN =(back to the beginning)

• You cannot select these sources if they are not ready.

Back to the beginning

Animation screen

Navigation screen (When <

Navigation> is

selected for <

(☞ page 58).

AV Input>):

OPERATIONS

Listening to the radio

Preset No.

Assigned station name ( “No Name” appears.

☞ page 52). If no name is assigned,

ENGLISH

Band

Sound mode

☞ page 51

Tuner indicators

☞ page 9

Press [SOURCE], then press [TUNER]. (☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [BAND]. ! Press [4] or [¢] to search for a station—Auto Search.

• Manual Search: Hold either [4]or [¢] until “Manual Search” appears on the display, then press it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

When an FM stereo broadcast is hard to receive

1 Press [AV MENU].

☞ page 51

: Buttons on the

touch panel. In the explanation, they are indicated inside [ ].

• You can also use AV MENU on the monitor panel.

2 Press [Mode].

Reception improves, but stereo effect will be lost.

• The MONO indicator lights up.

To restore stereo effect, select <Off>.

Tuning in to stations with sufficient signal strength

This function works only for FM bands. Once you have activated this function (selected <Local>), it always works when searching for FM stations.

1 Press [AV MENU].

FM station automatic presetting —SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

1 Press [AV MENU].

ENGLISH

• You can also use AV MENU on the monitor panel.

2 Press [Mode].

Only stations with sufficient signal strength will be detected.

• The DX indicator goes off, then the LO indicator lights up.

• You can also use AV MENU on the monitor panel.

2 Press [Mode].

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

OPERATIONS

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

1 Display the Preset List.

ENGLISH

2 Tune in to a station you want to preset.

3 Select a preset number.

Selecting preset stations

On the remote:

On the unit:

To select directly on the touch panel

To select from the Preset List

The station selected in step 2 is now stored in preset number 4.

Disc operations

The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends on its internal program).

If a disc does not have any disc menu, all tracks in it will be played repeatedly until you change the source or eject the disc.

” appears on the monitor, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

ENGLISH

~ Open the monitor panel.

<Open/Tilt> menu appears.

• Shaded icons cannot be used at that time.

• By pressing and holding the button, you can open the monitor panel and eject the disc.

Ÿ Press [OPEN].

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

! Insert a disc.

Label side

Monitor panel closes automatically. If not, press [CLOSE].

Caution:

Do not place your finger behind the monitor panel.

• [OPEN]: Open the monitor panel.

• [EJECT]: Eject the disc.

• [CLOSE]: Close the monitor panel.

• [TILT +/–]: Tilt the monitor panel.

• [Exit]: Erase this screen.

OPERATIONS

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information (☞ page 9).

ENGLISH

Disc type *

Audio format

Playback mode

Speaker/signal

indicators

(

☞ page 65)

: Buttons on the touch panel. In the explanation,

they are indicated inside [ ].

These buttons also work when they are not shown

on the touch panel (while watching pictures on the screen).

BONUS indicator

(

☞ page 23)

DVD Video: Title no./Chapter no./Playing time

DVD-VR: Program no. (or Playlist no.)/Chapter no./Play time

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select chapter Hold: Reverse/forward search [5 ∞] Select title/program/playlist

Group no./Track no./Playing time

Sampling frequency/Bit rate/Recorded signal channel no.

Surround mode (

☞ page 24)

☞ page 19

Reproduced sound indicator— MULTI CH/LR ONLY (

☞ page66)

B.S.P indicator (

☞ page 23)

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search [5 ∞] Select group

*1 DVD-VR also indicates either PRG (program) or PLAY (playlist) playback.

Search speed: x2 ] x10.

☞ page 19

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information (☞ page 9).

For DivX/MPEG1/MPEG2: Folder no./Track no./Playing time For JPEG: Folder no./Track no.

Disc type

(☞ page 24)

Total track no. included in the disc

Surround mode *

ENGLISH

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search for DivX/MPEG1/MPEG2 [5 ∞] Press: Select folder Hold: Display Folder list

PBC indicator

lights up when PBC is

in use.

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search

*2 Search speed: x2 ] x10. *3 Surround mode and sound mode cannot be used at the

same time.

*4 Search speed: ¡1 ] ¡2.

Track no./Playing time

☞ page 19

Total track no. included in the disc

Total play time

☞ page 19

OPERATIONS

Track no./Playing time

ENGLISH

Sound mode *

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search

(MP3/WMA/WAV/AAC)

(☞ page 51)

Audio format

☞ page 19

• While playing a DTS-CD

DTS indicator

Speaker/signal

indicators

(

☞ page 65)

Folder no./Track no./Playing time

Only for CD Text

Total track no. included in the disc

Total play time

Tag data appears only when it is recorded

☞ page 19

[3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search [5 ∞] Press: Select folder Hold: Display Folder list

*2 Search speed: x2 ] x10. *5 “No Name” appears for conventional CDs.

Total track no. included in the disc

Operation buttons on the monitor screen

You can display the following operation buttons while watching the playback pictures on the monitor.

• While the operation buttons are displayed, aspect ratio is fixed to <Full> (☞ page 55).

• If no operation is done for about 5 seconds, the operation buttons disappears (except when a disc menu is displayed).

☞ pages 20 to 22 on how the operation buttons particularly work for a variety of the discs.

To erase the operations, touch the screen again.

ENGLISH

Touch the screen (center portion).

Touch [KEY].

[SOURCE] Display the <Source Menu> [

AV MENU] Display the <AV Menu>

[

SHORT CUT

] Display the Short Cut buttons [3 / 8] Start and pause playback [7] Stop playback [4 ¢] Press: Select track Hold: Reverse/forward search [5 ∞] Select folders

• The above buttons also work when they are not shown on

the touch panel (while watching pictures on the screen).

While a disc menu is played back for DVD, [KEY] is automatically displayed. On the disc menu, you can select a menu item directly by touching it on the screen.

For DVD/VCD/DivX menu operation playback [2 3 5 ∞] Select the menu items [

ENT] Confirm the selection

[

TOP MENU]Display the disc menu

[

MENU] Display the disc menu RETURN] Return to the previous menu or display the

[

menu (only for VCD with PBC)

For entering the numbers [

DIRECT CLR] Switch between chapter/track entry and

Erase the last entry when you enter a wrong

[

0]–[9]=[ENT] Enter the number

Ex. To enter “105”: press [

title/group/folder entry

number

1], [0], [5], then [ENT]

OPERATIONS

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

ENGLISH

• You can also use AV MENU on the monitor panel.

Disc type Intro Repeat Random

—

— Track: Repeats current track —

—

Track: Plays the first 15

seconds of each track (for VCD: PBC not in use)

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

—

Chapter: Repeats current

Title: Repeats current title

Chapter: Repeats current

Program: Repeats current

Track: Repeats current track*1

Track: Repeats current track* Folder: Repeats all tracks of

Track: Repeats current track Folder: Repeats current folder

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

chapter

program (not available for Playlist playback).

(for VCD: PBC not in use)

the current folder

Disc (All): Randomly plays all

tracks (for VCD: PBC not in use)

Folder: Randomly plays all

tracks of current folder, then tracks of next folders

Disc (All): Randomly plays all

tracks

—

*1 You can also use [SHORT CUT] to turn on and off Track Repeat

Folder: Repeats current folder

—

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

• You can also use AV MENU on the monitor panel.

Prohibiting disc ejection

You can lock a disc in the loading slot.

NO EJECT?

EMERGENCY EJECT?

Back

at the same time

ENTER

Exit

ENGLISH

Select a folder (1), then a track (2).

Selected track starts playing. (* Press to move to the previous/next pages of the list) 1 Current folder list number/total folder list

number

2 Current track list number/total track list

number of the current folder

• Track List can also be accessed by pressing DISP on the monitor panel.

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

Using Short Cut Icons

You can easily access the some frequently used functions by using [SHORT CUT] on the touch panel.

• You can also use AV MENU on the monitor panel.

• For video software:

Aspect ratio (

☞ page 55)

Surround (

☞ page 24)

Sound mode (

• For audio software:

Turn on or off Track Repeat (Repeat play:

☞ page 51)

☞ page 18)

Selected track starts playing.

OPERATIONS

Operations using the remote controller—RM-RK251

: Stop playback.

ENGLISH

: Start playback/pause (if pressed during playback).

: Reverse/forward search*2. (No sound can be heard.)

(Slow motion*3 during pause. No sound can be heard.)

: Press: Select chapter (during playback or pause).

Hold: Reverse/forward search*4.

: Select title (during playback or pause).

*1 Erases the misentry of the number. *2 Search speed: x2 ] x5 ] x10

] x20 ] x60

*3 Slow motion speed: 1/32 ] 1/16

] 1/8 ] 1/4 ] 1/2

*4 Search speed: x2 ] x10 *5 Search speed: ¡1 ] ¡2

] ¡3

*6 Search speed: ¡1 ] ¡2

= = :

Select chapter. Select title (when not playing).

(twice) = = :

Select title (during playback or pause).

: Select aspect ratio.

: Select audio language.

: Select subtitle language.

: Select view angle.

: Stop playback.

: Start playback/pause (if pressed during playback).

: Reverse/forward search*2.

: Press: Select track.

Hold: Reverse/forward search*4.

: Select group.

= = :

Select track.

(twice) = = :

Select group.

: Select aspect ratio.

: Select audio stream.

Using menu driven features

1 2 Select an item you want

to start play.

Using menu driven features

1 2 Select an item you want

to start play.

: Stop playback.

: Start playback/pause (if pressed during playback).

: Reverse/forward search*5. (No sound can be heard.)

: Press: Select track.

Hold: Reverse/forward search*

. (No sound can be heard.)

: Select folder.

: Select aspect ratio.

: Select audio language. (DivX only)

: Select subtitle language. (DivX only)

ENGLISH

= = :

Select track (within the same folder).

(twice) = = :

Select folder.

For DivX6: Using menu driven features

1 2 Select an item you want to start play.

: Stop playback.

: Start playback/pause (if pressed during

playback).

: Reverse/forward search*2. (No sound

can be heard.)

(Slow motion*3 during pause. No sound

can be heard.)

• Reverse slow motion does not work.

: Press: Select chapter (during playback or

pause).

Hold: Reverse/forward search*

: Select program.

Select playlist (during playback or

pause).

: Select aspect ratio. : Select audio channel (ST: stereo, L: left,

R: Right).

: Turn on/off subtitle.

While playing...

Back/advance the scenes by 5 minutes.

Current playback position

2nd press

1st press

2nd press

3rd press

= = : Select chapter. Select program (when not playing).

(twice) = = : Select program/playlist (during playback or

pause).

Using Original Program/Play List screens

( ☞ page 23)

1 : For Original Program

: For Play List

2 Select an item you want to start playing.

3 To erase the screen.

OPERATIONS

: Stop playback.

: Start playback. (Slide show: each file is

shown for a few seconds.)

ENGLISH

Shows the current file until you change it if pressed during Slide show.

: Select track.

: Stop playback.

: Start playback/pause (if

pressed during playback).

: Reverse/forward search*2.

Press: Select track.

Hold: Reverse/forward search*4.

: Select folder.

: Select aspect ratio.

= = :

Select track (within the same folder).

(twice) = = :

Select folder.

: Stop playback.

: Start playback/pause (if pressed during

playback).

: Reverse/forward search*2.

(Forward slow motion*3 during pause. No

sound can be heard.)

• Reverse slow motion does not work.

: Press: Select track.

Hold: Reverse/forward search*4 (No sound

can be heard.) : Select aspect ratio. : Select audio channel (ST: stereo, L: left, R:

Right).

: Stop playback.

: Start playback/pause (if pressed during playback).

: Reverse/forward search*2.

: Press: Select track.

Hold: Reverse/forward search*

= = :

Select track.

: Select folder.

= = :

Select track (within the same folder).

(twice) = = :

Select folder.

= = :

Select track.

During PBC playback...

= = :

Select an item on the menu. To return to the previous menu, press

To cancel PBC playback

2 Start the desired track.

= =

• To resume PBC, press / .

*2 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *3 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4

] 1/2

*4 Search speed: x2 ] x10

Playing back a bonus group

If a DVD Audio including a “bonus group” is detected, the BONUS indicator lights up on the source information screen.

To play a bonus group...

1 Select the bonus group.

• The bonus group is usually recorded as the last group.

2 Enter the key number.

: Move the entry position

: Select a number

• “key number” (a kind of password) for the bonus group is not open to public. The way of getting the key number depends on the disc.

3 Follow the interactive instructions shown on

the monitor.

Using the list screens

You can use Original Program and Play List screen anytime while playing DVD-VR with its data recorded.

ENGLISH

1 Display the Original Program/Play List

screen.

2 Select an item you want.

Selecting browsable still picture

When a disc including browsable still pictures is detected, the B.S.P indicator lights up on the source information screen.

When disc shows the BSP selecting icons such as @ or # on the screen...

1 Select an item you want to display.

To erase the screen

1 Program/Play list number 2 Recording date 3 Recording source (TV station, the input

terminal of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/play list* 6 Highlight bar (current selection) 7 Creating date of play lists 8 Total number of chapters included in the playlist 9 Playback time

The title of the original program or play list may

not be displayed depending on the recording equipment.

OPERATIONS

Enjoying surround sounds

You can enjoy multi-channel surround playback through the front, center, surround speakers.

• After connecting the center speaker, make

sure to activate the center speaker; otherwise,

ENGLISH

no sound comes out of the center speaker (☞

page 57).

• Surround mode can also be used for “USB” and “SD.”

MULTI: For multi-channel encoded sources such as

Dolby Digital*1, DTS*2, and DVD Audio. (When activated, “MULTI” is shown on the source information screen.)

Dolby Pro Logic II (Movie/Music): For 2 channel

sources except for DivX/MPEG1/MPEG2 discs.

To turn on the surround...

• You can also use AV MENU on the monitor panel.

• Auto: When multi-channel digital signals come in, “MULTI” surround is activated.

When 2-channel or 2.1-channel signals come in,

“4CH STEREO” is activated.

• Through: All incoming channel signals are sent to the corresponding speakers.

• Dolby PL II Movie: Activates Dolby Pro Logic II Movie.

• Dolby PL II Music: Activates Dolby Pro Logic II Music. You can adjust <Panorama> and <Center Width> setting (☞below).

Only when selecting <Dolby PL II Music>

After step 4 above...

1 Activate <Panorama>.

• Off: Deactivates surround.

• On: Activates surround = go to the following steps.

• Panorama: Select <On> to add wraparound sound effect.

2 Adjust <Center Width>.

Operations using the on-screen bar

These operations are possible on the monitor using the remote controller, while playing the following discs—DVD/VCD/DivX/MPEG1/MPEG2/JPEG.

1 Display the on-screen bar. (☞page 26)

ENGLISH

• Center Width: Adjust the center image so it may be heard only from the center speaker, only form the left/right front speaker as a “phantom” center image, or various combination of these speakers. As the number increases, the “phantom” effect becomes stronger (normally select <04>).

On the remote controller:

• You cannot change the <Dolby PL II Music> settings using the remote controller.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

*2 “DTS” and “DTS Digital Surround” are registered

trademarks of DTS, Inc.

2 Select an item.

3 Make a selection.

If a pop-up menu appears...

• For entering time/numbers...

To remove the on-screen bar

: Move the entry position

: Select a number

Continued on the next page

OPERATIONS

On-screen bar

Information

ENGLISH

Operation

Above example is of DVD Video. Items shown on the bar vary due to the disc type.

1 Disc type 2 • DVD: Audio signal format

• VCD: PBC

3 Playback mode *

DVD Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD Audio: T. RPT: Track repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat JPEG: F. RPT: Folder repeat VCD: T. RPT: Track repeat A. RND: All (Disc) random T. INT: Track intro 4 Playback information Current title/chapter Current group/track

Current program/chapter

Current playlist/chapter Current track Current folder/track Current folder/file

5 Time indication

Elapsed playing time of the disc Remaining title time (for DVD)

Remaining disc time (for others)

Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion

Pause

Stop

7 Operation icons

Change time indication (see 5)

Time Search (Specify a certain scene

by entering time.) Title Search (by its number) Chapter Search (by its number)

Group Search (by its number)

Track Search (by its number) Repeat play * Intro play * Random play *

Change the audio language, and

audio stream, or audio channel Change or erase the subtitle language Change the view angle

Change the browsable still pictures

(pages). The numbers in the indicator

shows the current page/total page

number

*1 ☞ page 18 *2 Not applicable for DVD-VR

Dual Zone operations

You can enjoy a disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while listening to any other source than “SD” and “USB” through the speakers.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

When the main source is “SD” or “USB,” “DISC” and “DISC SURROUND” cannot be displayed.

• OFF: Deactivates Dual Zone.

• DISC: Activates Dual Zone without applying Headphone Surround*.

• DISC SURROUND: Activates Dual Zone and applies Headphone Surround*.

To select a different source (main source) to listen through the speakers:

Press SOURCE on the monitor panel.

• You cannot select “SD” and “USB” for the main source.

• By using the buttons on the monitor panel, you can operate the newly selected main source without affecting Dual Zone (DISC) operations.

On the remote controller:

• When the main source is “SD” or “USB,” the DUAL

button does not work.

2 Adjust the volume through the 2nd AUDIO

OUT plug.

Operate the DVD/CD player.

* JVC original headphone virtual surround system. This

surround will also work for the main source “DISC” if “DISC SURROUND” is selected as the sub-source. This surround does not work for DivX/MPEG1/MPEG2 discs.

ENGLISH

Ex. When [DISC SURROUND] is selected.

OPERATIONS

Operations using the control screen

For discs except DVD and VCD:

While Dual Zone is on, the external monitor using the remote controller.

ENGLISH

The control screen automatically appears when you insert a disc. (For DivX/MPEG1/MPEG2/JPEG; while not playing.)

• When Dual Zone is off, you can only watch the control screen, but cannot operate it.

1 Current folder( highlighted bar) 2 Current folder number/total folder number 3 Folder list 4 Selected playback mode (☞ page 29) 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track number/total number of tracks in the

current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV/AAC) 9 Track list p Current track (highlighted)

* If tag data includes “Jacket Picture” (baseline JPEG), it

will be displayed.

these operations are possible on

Ex.: MP3/WMA

To select a folder or track

1 Select “Folder” column or “Track” column on

the control screen.

2 Select a folder or track.

• If necessary, press ENT to start playback.

 

Ex.: CD Text

1 Playback mode selection window: appears when

OSD is pressed (☞ page 29).

2 Selected playback mode (☞ page 29) 3 Elapsed playing time of the current track 4 Operation status 5 Current track number/total number of tracks on the

disc

6 Track information 7 Track list 8 Current track (highlighted bar)

To select a track

• If necessary, press ENT to start playback.

To change the playback modes

You can also change the playback modes.

• For CD/MP3/WMA/WAV/AAC: Intro/Repeat/Random

• For DivX/MPEG1/MPEG2/JPEG: Repeat



2 Only for CD/MP3/WMA/WAV/AAC: Select a

playback mode.

3 Select your desired option.

Operations using the list screen

For discs except DVD, VCD, and CD

While Dual Zone is on, the external monitor using the remote controller.

1 After stopping playback, display the list

screen.

2 Select a folder on the list.

these operations are possible on

ENGLISH

Selectable playback mode

CD: T. RPT: Track repeat A. RND: All random T. INT: Track intro MP3/WMA/WAV/AAC: T. RPT: Track repeat F. RPT: Folder repeat F. RND: Folder random A. RND: All random T. INT: Track intro F. INT: Folder intro DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat JPEG: F. RPT: Folder repeat

3 Select a track on the list.

• To go back to the folder list, press .

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

OPERATIONS

SD operations

This unit can play the JPEG/MP3/WMA/WAV/AAC* files stored in SD card.

• You can operate the SD card in the same way you

ENGLISH

operate the files on discs (except OSD operation and those on the external monitor). (☞ page 15 to 25)

• All tracks in the SD card will be played repeatedly until you change the source.

• You cannot select “SD” when Dual Zone is in use.

• Make sure all important data has been backed up.

~ Open the monitor panel.

<Open/Tilt> menu appears.

• Shaded icons cannot be used at that time.

Ÿ Press [OPEN].

! Insert a SD card.

Push in the SD card until you hear a clicking sound. The source changes to “SD” and playback starts.

⁄ Close the monitor panel.

• If <Open/Tilt> menu is still displayed.

• If <Open/Tilt> menu is not displayed.

You can also press [CLOSE] on the <Open/ Tilt> menu.

*1 This unit can play back AAC files encoded using

iTunes. This unit cannot play back AAC files purchased from the iTunes Store.

To eject the SD card

Push in the SD card lightly.

Caution:

Do not place your finger behind the monitor panel.

Caution:

• Do not release your finger quickly; otherwise, the SD card may pop up out from the loading slot.

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

ENGLISH

• You can also use AV MENU on the monitor panel.

File type Intro Repeat Random

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

—

You can also use [SHORT CUT] to turn on and off Track Repeat.

Track: Repeats current track * Folder: Repeats all tracks of

Folder: Repeats current folder

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Folder: Randomly plays all

tracks of current folder,

the current folder

then tracks of next folders

SD (All): Randomly plays all

tracks

—

OPERATIONS

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player *1, portable HDD, etc. to the unit.

ENGLISH

USB cable from the rear of the unit

•

You cannot connect a computer to the USB ( ) terminal of the unit.

Ÿ Press [SOURCE], then press [USB]. (☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

This unit can play the DivX/JPEG/MPEG1/MPEG2* MP3/WMA/WAV/AAC*3 files stored in USB mass storage class device.

• You can operate the USB device in the same way you operate the files on discs (except OSD operation and those on the external monitor). (☞ page 15 to 25)

• All tracks in the USB device will be played repeatedly until you change the source.

• You cannot select “USB” when Dual Zone is in use.

• Make sure all important data has been backed up.

*1 Except for JVC D. Player XA-HD500. *2 Except for MPEG2 files recorded by JVC Everio

camcorder (extension code <.mod>).

*3 This unit can play back AAC files encoded using

iTunes. This unit cannot play back AAC files purchased from the iTunes Store.

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading...” is flashing on the monitor screen.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

ENGLISH

• You can also use AV MENU on the monitor panel.

File type Intro Repeat Random

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

—

You can also use [SHORT CUT] to turn on and off Track Repeat.

Track: Repeats current track * Folder: Repeats all tracks of

Track: Repeats current track Folder: Repeats current folder

Folder: Repeats current folder

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Folder: Randomly plays all

tracks of current folder,

the current folder

then tracks of next folders

USB (All): Randomly plays all

tracks

—

OPERATIONS

Bluetooth® operations — Cellular phone/audio player

For Bluetooth operations, it is required to connect the Bluetooth Adapter (KS-BTA200) to the CD changer jack on the rear.

ENGLISH

• Refer also to the instructions supplied with the Bluetooth Adapter and the Bluetooth device.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

To use a Bluetooth device through the unit (“Bluetooth PHONE” and “Bluetooth AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“Bluetooth PHONE” and “Bluetooth AUDIO”).

Registering a Bluetooth device

Registration (Pairing) methods

Use either of the following items in the <Bluetooth> menu to register and establish the connection with a device.

• Select “Bluetooth PHONE” or “Bluetooth AUDIO” as the source to operate the <Bluetooth> menu.

Menu item To do

Open Make the unit ready to establish

a new Bluetooth connection. Connection is established by operating the Bluetooth device.

Search Make the unit ready to establish

a new Bluetooth connection. Connection is established by operating this unit.

To register using <Open>

Preparation: Operate the device to turn on its

Bluetooth function.

• You can also use AV MENU on the monitor panel.

• Make sure “New Device” is selected. If not, press [5] or [∞] to select it.

Go to other menu items

4 Enter a PIN (Personal Identification

Number)* code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

You can enter [0] – [9] only.

• [BS]: Erases the previous character before the cursor.

• [Del]: Erases the character on the cursor.

• [Enter]: Confirms the entry.

5 Use the Bluetooth device to connect, while

“Open...” is displayed on the screen.

Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

The device remains registered even after you disconnect the device. Use <Connect> (or activate <Auto Connect>) to connect the same device from next time. (☞ the following, and pages 62 and 63)

To register using <Search>

1 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

• Make sure “New Device” is selected. If not, press [5] or [∞] to select it.

2 Press [Bluetooth]. 3 Press [Search].

The unit searches for available devices and displays the list of them. (If no available device is detected, “Device Unfound” appears.)

4 Select a device you want to connect. 5 Enter the specific PIN code of the device.

• Refer to the instructions supplied with the device to check the PIN code.

6 Use the Bluetooth device to connect, while

“Connecting...” is displayed on the screen.

Now connection is established and you can use the device through the unit.

To connect a special device <Special Device>

1 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

2 Press [Bluetooth]. 3 Press [Special Device].

The unit displays the list of the preset devices.

4 Select a device you want to connect. 5 Use <Open> (or <Search>) to connect.

To connect/disconnect a registered device

1 Select “Bluetooth PHONE” or “Bluetooth

AUDIO,” then select a registered device you want to connect/disconnect.

2 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

3 Press [Bluetooth]. 4 Press [Connect] or [Disconnect].

• Select <Connect> to connect the selected device.

• Select <Disconnect> to disconnect the selected device.

To delete a registered device

1 Select “Bluetooth PHONE” or “Bluetooth

AUDIO,” then select a registered device you want to delete.

2 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

3 Press [Bluetooth]. 4 Press [Delete Pair].

Confirmation screen appears. Press [Yes].

ENGLISH

EXTERNAL DEVICES

Using the Bluetooth cellular phone

Sound mode

ENGLISH

☞ page 51)

(

Bluetooth icon lights up when

the adapter is

connected.

page 38

☞

: Buttons on the touch panel. In the

explanation, they are indicated inside [ ].

*1 When a cellular phone with audio function is connected, appears.

This adjustment does not affect the volume level of the other sources.

Adjust the volume of the incoming calls

[

AV MENU

[5 ∞] Select the registered device (“New Device” appears when a new device can be

~ Press [SOURCE], then press [Bluetooth PHONE]. (☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [AV Menu].

• You can also use AV MENU on the monitor panel.

! Press [Bluetooth]. ⁄ Establish the connection with a device, then make a

call (or settings using the <Bluetooth> menu).

☞ pages 62 and 63

When a call comes in...

The source is changed to “Bluetooth PHONE” automatically.

When <Auto Answer> is deactivated... To answer the incoming call

• Press any button on the monitor panel (except /ATT or +/–).

• Press the message displayed on the touch panel.

Status of the device Signal strength/Battery remainder (only when the information comes from the device)

] Hold: Activates <Voice Dialing>

registered.)

Name and phone number (if acquired)

When <Auto Answer> is activated...

The unit answers the incoming calls automatically. (☞ page 63)

To end the call

• Hold any button on the monitor panel (except /ATT or +/–).

• Hold the message displayed on the touch panel.

• You can adjust the microphone volume. (☞ page 63)

When an Text Message comes in...

If the cellular phone is compatible with Text Message, you can read the messages on the monitor.

• You cannot edit or send a message through the unit.

When <Message Info> is set to <Auto>...

The unit rings and the following screen is displayed on the monitor to inform you of the arrival of the message. (☞ page 63)

To read the message, press [Yes]. The source is changed to “Bluetooth PHONE.”

To read the message later, press [No].

• The message is stored into <Message> = <Unread>. (☞ page 62)

When <Message Info> is set to <Manual>...

Access the message list to read a message. (☞ page 63)

To make a call

• You can also use AV MENU on the monitor panel.

Select a calling method, then call.

Cancel

• Redial: Shows the list of the phone numbers you have dialed.

• Received Calls: Shows the list of the received calls.

• Phonebook: Shows the phone book of the connected cellular phone.

• Missed Calls: Shows the list of the missed calls.

• Phone number: Shows the phone number

entry screen = “How to enter phone number” (☞ page 38).

• Voice Dialing: (Only when the connected cellular phone has the voice recognition system): = Speak the name you want to call.

ENGLISH

To stop ringing (canceling the outgoing call)

Hold any button on the monitor panel (except /ATT or +/–).

EXTERNAL DEVICES

How to enter phone number

• You cannot use the remote controller to enter phone numbers.

ENGLISH

You can enter [0] – [9], [*], [#] (up to 32 numbers)

• [BS]: Erases the previous character before the cursor.

• [Del]: Erases the character on the cursor.

• [Preset]: Goes to Preset List. You can preset the entered number by selecting preset number (☞ page 39)

• [Dial]: Calls the entered number.

• You can easily access <Dial Menu> by pressing

[SHORT CUT] on the touch panel, then...

You can also access <Dial Menu> by holding

SOURCE on the monitor panel.

• You can easily activate <Voice Dialing> by

pressing [SHORT CUT] on the touch panel, then...

To redial the dialed numbers

When using the remote controller, you can display <Redial> list anytime (except when Dual Zone is in use).

You can also activate <Voice Dialing> by

holding [AV MENU].

Presetting the phone numbers

You can preset up to six phone numbers.

1 Select the phone number you want to preset

from <Phonebook>, <Redial>, <Received Calls>, or <Missed Calls>.

1 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

2 Press [Bluetooth]. 3 Press [Dial Menu], then...

Ex.: Selecting <Received Calls>

2 Select a telephone number to store.

3 Select a preset number.

To call a preset number

ENGLISH

You can use the following buttons on the remote controller for the Bluetooth phone operations.

: • Displays <Dial Menu>/Answer

the incoming call.

• Displays <Redial> list if pressed and held (regardless of the current source).

Now “Tom” is stored into preset no. 1.

: End the call.

: Adjust the volume.

: Make a call to the preset

numbers.

EXTERNAL DEVICES

Using the Bluetooth audio player

ENGLISH

Sound mode

(

☞ page 51)

Bluetooth icon lights up when

the adapter is

connected.

Status of the device Signal strength/Battery remainder (only when the information comes from the device)

☞ page 51

: Buttons on the touch panel. In the

explanation, they are indicated inside [ ].

[3 / 8] [7] Start and pause playback [4 ¢] Reverse/forward search [5 ∞] Select the registered device (“New Device” appears when a new device can be

registered.)

*1 When a cellular phone with audio function is connected, appears. *2 Indicates the button pressed. It may be different from the operation status. *3 You cannot select “New Device” when a Bluetooth audio player is connected.

~ Press [SOURCE], then press [Bluetooth

AUDIO].

(☞ page 9)

You can use the following buttons on the remote controller for the Bluetooth audio operations.

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Start playback.

• See page 34 for connecting a new device.

• See pages 35 for connecting/disconnecting a registered device.

• See page 35 for deleting a registered device.

: Start and pause playback.

: Reverse/forward skip.

: Adjust the volume.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit our JVC web site.

Listening to the CD changer

MP3 indicator

Disc no.

Sound mode

(

☞ page 51)

☞ page 42

: Buttons on the touch panel. In the

explanation, they are indicated inside [ ].

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

Preparation: Make sure <Changer> is selected for <External Input>. (☞ page 59)

Folder no./Track no./Play time

~ Press [SOURCE], then press [CD-CH]. (☞

page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ex. while playing an MP3 disc

ENGLISH

Tag data appears only when it is recorded.

Total track no. included in the disc

[4 ¢] Press: Select track Hold: Reverse/forward search [5 ∞] Press: Select folders (only for MP3) Hold: Display Disc list

⁄ Select a disc to start playing.

To go to the other list

• If you select an MP3 disc, the Track list of the current folder appears. You can select a track and start playing. (☞ also page 19)

• You can also use AV MENU on the monitor panel.

! Display the Disc List.

• If you select a folder on the list, you can start playing the first track of the folder.

EXTERNAL DEVICES

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat for an MP3 disc (for CDs, ☞

page 18)

ENGLISH

1 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

2 Press [Mode]. 3

Disc type Intro Repeat Random

Track: Plays the first 15

seconds of each track

Disc: Plays the first 15 seconds

of the first track of all loaded discs

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

Disc: Plays the first 15 seconds

of the first track of all loaded discs

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Track: Repeats current track Disc: Repeats all tracks of the

current disc

Track: Repeats current track Folder: Repeats all tracks of

the current folder

Disc: Repeats all tracks of the

current disc

Disc: Randomly plays all tracks

of the current disc

All: Randomly plays all tracks

of all loaded discs

Folder: Randomly plays all

tracks of current folder, then tracks of next folders

Disc: Randomly plays all tracks

of the current disc

All: Randomly plays all tracks

of all loaded discs

• You can easily turn on or off Track Repeat by pressing [SHORT CUT] on the touch panel, then...

☞ page 51

You can use the following buttons on the remote controller to operate the CD changer.

: Select disc.

: Select folder (MP3 only).

: Press: Select track.

Hold: Reverse/forward search.

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS Radio DLP—Down Link Processor, for listening to the SIRIUS Satellite radio.

• XMDirectTM Universal Tuner Box—With a JVC Smart Digital Adapter (XMDJVC100: not supplied), for listening to the XM Satellite radio.

ENGLISH

For SIRIUS Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “SAT” for the source.

• ☞ also page 9.

JVC DLP starts updating all the SIRIUS channels. (☞ “GCI update” column below.)

• Once completed, JVC DLP tunes in to the preset channel, CH184.

3 Check your SIRIUS ID, see page 58.

4 Contact SIRIUS on the internet at <http://

activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“Subscription Updated Press Any Key to Continue” appears on the monitor once subscription has been completed.

For XM Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “SAT” for the source.

• ☞ also page 9.

XMDirect all the XM channels. “Channel 1” is tuned in automatically. (☞ “GCI update” column below.)

3 Check your XM Satellite radio ID labelled on

the casing of the XMDirect Box, or tune in to “Channel 0” (see page 44).

4 Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

Universal Tuner Box starts updating

Universal Tuner

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically, and no sound can be heard. For SIRIUS: “Channel is Updating XX% completed” appears. For XM : “UPDATING” appears.

• Update takes a few minutes to complete.

• Do not press any button or perform any operation until updating is completed.

EXTERNAL DEVICES

Tuning in to a channel you want

Preset No.

ENGLISH

Band

Sound mode

(

☞ page 51)

Signal Reception

indicator

For SIRIUS Radio

~ Press [SOURCE], then press [SAT].

(

☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [BAND].

! Press [5] or [∞] to select a category.

• To select a channel from all categories, select <All>.

⁄ Press [4] or [¢] to make a

channel to listen.

• Holding either button changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

☞ page 9

Channel No.

☞ page 45

: Buttons on the

touch panel. In the explanation, they

Only for SIRIUS

are indicated inside [ ].

For XM Radio

~ Press [SOURCE], then press [SAT].

(

☞ page 9)

Ÿ Press [BAND].

! Press [5] or [∞] to select a category.

• To select a channel from all categories (including non-categorised channels), skip this step.

• If you do not select a channel within 15 seconds, the category selected is canceled. You can select a channel from all categories now.

⁄ Press [4] or [¢] to select a

channel to listen.

• Holding either button changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

Storing channels in memory

You can preset six channels for each band. Ex.: Storing a channel into preset number 4

1 Display the Preset List.

• If you want to select a channel by channel name, first select a channel, then display the Preset List.

2 Tune in to a station you want to preset.

3 Select a preset number.

The station selected in step 2 is now stored in preset number 4.

Selecting preset channels

On the remote only:

Selecting on the lists

You can select a channel using the lists—Category list/Channel list.

1 Press [AV MENU] on the touch panel or AV

MENU on the monitor panel.

2 Press [List].

3 Select a category (1), then a channel (2)

from the selected category.

* Press to move to the previous/next pages of the

list

1 Current category number/total category

number

2 Current channel number/total channel

number of the current category

• <List> menu can also be accessed by pressing [SHORT CUT] on the touch panel, then...

☞ page 51

☞ page 58

(only

SIRIUS Satellite

radio)

ENGLISH

EXTERNAL DEVICES

Listening to the iPod/D. player

ENGLISH

Sound mode

(

☞ page 51)

: Buttons on the touch panel. In the

explanation, they are indicated inside [ ].

Track no./Play time

☞ page 47

[4 ¢] Press: Select track Hold: Reverse/forward search

[5] Enter player’s menu [∞] Pause/stop play

• To resume, press again.

It is required to connect the interface adapter (KSPD100 for Apple iPod or KS-PD500 for JVC D. player) to the CD changer jack on the rear.

Preparation:

Make sure <iPod> or <D. player> is selected for <External Input>. (☞ page 59)

~ Press [SOURCE], then press [iPod] or

[D.PLAYER]

Playback starts automatically.

• You can also use SOURCE on the monitor

(☞ page 9)

panel. Press it repeatedly.

Ÿ Press [4] or [¢] to select a track.

Selecting a track from the player’s menu

1 Press [5] to enter the player’s menu.

“SEARCH” flashes on the monitor during menu operations.

• This mode will be canceled if no operations are

done for about 5 seconds.

2 Press [4] or [ ¢] to select the desired

item.

Press: Select an item. Hold: Skip 10 items at a time if more than 10

items.

For iPod:

Playlists Ô Artists Ô Albums Ô Songs Ô Genres Ô Composers Ô (back to the

beginning)

For D. player:

Playlist Ô Artist Ô Album Ô Genre Ô Track Ô (back to the beginning)

3 Press [∞] to confirm the selection.

4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu, press [5].

Selecting playback modes

• You can also use AV MENU on the monitor panel.

3 Select an appropriate option.

Repeat One: Functions the same as “Repeat

One” or “Repeat Mode All: Functions the same as “Repeat All” or “Repeat Mode = All.”

Random Album: Functions the same as

“Shuffle Albums” of the iPod. Song/On: Functions the same as “Shuffle Songs” or “Random Play

= On.”

• When the playback modes are selected, the corresponding indicators lights up alternately on the monitor.

To cancel, select <Off>.

= One.”

ENGLISH

• You can easily turn on or off Track Repeat by

pressing [SHORT CUT] on the touch panel, then...

EXTERNAL DEVICES

☞ page 51

Using other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN plugs.

ENGLISH

Assigned title (☞ page 52)

: Buttons on the touch panel. In the explanation, they are indicated inside [ ]. These buttons also work when they are not shown on the touch panel (while watching pictures on the

screen).

Sound mode (

☞ page 51)

• You can easily access to <Aspect> setting menu by pressing [SHORT CUT] on the touch panel, then...

~ Press [SOURCE], then press [AV-IN]. (☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Turn on the connected component and start playing the source.

☞

page 51

To display the operation buttons (☞ page 17) while watching the playback picture

Touch the screen (center portion).

• If no operations are done for about 5 seconds, the operation buttons disappear.

• [KEY] does not work when the source is “AV-IN.”

Touch the screen (center portion).

Navigation screen

You can also connect a Navigation System to the VIDEO IN plug so that you can watch the navigation screen.

Preparation: Make sure <Navigation> is selected for <AV Input>. (☞ page 58)

To view the navigation screen (and listen to the navigation guidance)*

~ Press DISP on the monitor panel repeatedly. (☞ page 9)

• The aspect ratio of the navigation screen is fixed to <Full> regardless of the <Aspect> setting (☞ page

55)

* If your Navigation System is equipped with the voice guidance function.

To display the operation buttons (☞ page 17) while viewing the navigation screen

• The operation buttons displayed on the screen vary among the playback sources.

ENGLISH

Touch the screen (center portion).

• If no operations are done for about 5 seconds, the operation buttons disappear.

• The above buttons except [KEY] also work when they are not shown on the touch panel (while viewing the navigation screen).

When <Navigation> is selected for <AV Input>. (☞ page 58)

• You can use the source <AV-IN> for listening to an audio source connected to the LINE IN plugs.

• Some status messages such as volume level will not appear on the monitor.

Touch the screen (center portion).

EXTERNAL DEVICES

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).

Assigned title (☞ page 52)

ENGLISH

Sound mode

(

☞ page 51)

☞ page 51

: Buttons on the touch panel. In the explanation, they are indicated inside [ ].

Preparation: Make sure <External> is selected for <External Input>. (☞ page 59)

~ Press [SOURCE], then press [EXT-IN]. (☞ page 9)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Turn on the connected component and start playing the source.

EXTERNAL DEVICES

Sound equalization

You can select a preset sound mode for 2-channel sources.

Selecting sound mode

• You can also use AV MENU on the monitor panel.

! Select a sound mode.

While playing any source other than

“Bluetooth PHONE,” <Equalizer> menu can be easily accessed by pressing [SHORT CUT] on the touch panel, then...

Storing your own adjustment

You can store your adjustment into User1, User2, and User3.

1 Repeat steps ~ and Ÿ, then in step !...

2 Adjust (1), then store (2).

ENGLISH

Move to other 6 sound modes

• For preset values of each sound mode, ☞ page

70.

• For multi-channel source, the sound mode is temporarily canceled.

Ex. When storing into [User 2].

SETTINGS

Assigning titles to the sources

ENGLISH

Buttons on the touch panel. In the explanation, they are indicated inside [ ].

You can assign titles as follows.

FM/AM stations Up to 16 characters—up to 30

stations.

AV-IN EXT-IN

Up to 16 characters.

~ Select the source. (☞ page 9)

• For FM/AM stations: Select the band, then tune into a station.

Ÿ Display <Title Entry> screen.

• You can also use AV MENU on the monitor panel.

! Assign a title.

You can enter up to 16 characters (for available characters, ☞ page 70).

• [Store]: Confirm the entry.

• [2/3]: Moves the cursor.

• [BS]: Erases the previous character before the cursor.

• [Del]: Erases the character on the cursor.

• [Cap]: Changes the upper/lower cases.

• [Space]: Enter a space.

• [Change]: Change the character set.

⁄ Finish the procedure.

Menu operations

ENGLISH

The following steps are one of the fundamental procedures. Some of the settings do not open the sub-setting window, but just selecting an option will change the setting.

Ex. Changing the <AV Input> setting

• You can also use AV MENU on the monitor panel.

Non-available items will be displayed being shaded.

Continued on the next page

SETTINGS

Setup

Menu items Selectable settings, [reference page]

Demonstration Off: Cancels.

ENGLISH

Wall Paper You can select the background picture of the monitor.

Color You can select the color of the <Wall Paper>.

Scroll Off: Cancels.

Dimmer Off: Cancels.

Display

Dimmer Time Set Sets the Dimmer On/Off times.

Dimmer Level You can preset the brightness for dimmer.

Bright You can adjust brightness of the monitor.

Picture Adjust*

On: Activates the demonstration on the monitor. To stop it temporarily,

touch the monitor screen.

Warp Drive

Blue

X-Face, Wave, Ring

Sky, Green, Red, Yellow, Purple, Dark-Blue, Dark-Sky, Dark-

Green, Dark-Red, Brown, Black

Once: Scrolls the disc information once. Auto: Repeats scrolling (5-second intervals).

• Holding DISP on the monitor panel scrolls the information regardless of this setting.

On: Activates dimmer. Auto: Dims the monitor when you turn on the headlights.* Dimmer Time Set : Activates the Dimmer Time setting below.

00 (brightest) to 10 (darkest); Initial 05

–15 (darkest) to +15 (brightest); Initial 00

You can adjust the following to make the monitor clear and legible for watching the playback picture. The setting will be stored—one for “DISC/SD/USB,” (common) and the other for “AV-IN.”

–15 to +15; Initial 0 Bright: Adjust if the picture is too bright or too dark. Contrast: Adjust the contrast. Color: Adjust the color of the picture—lighter or darker. Tint: Adjust the tint if the human skin color is unnatural.

• Press [5] or [∞] to adjust.

Initial: Underlined

The ILLUMINATION CONTROL lead connection is required. (☞ Installation/Connection Manual)

Adjustable only when the source is a disc/SD/USB containing pictures or movies, or “AV-IN.”

Menu items Selectable settings, [reference page]

Aspect*

You can change the aspect ratio of the picture.

Regular:

For 4:3 original pictures

Full:

For 16:9 original pictures

Panorama:

Display

For viewing 4:3 pictures naturally on the wide screen

Aspect ratio of incoming signal

4:3 16:9

ENGLISH

Auto:

•

For “DISC”:

Aspect ratio is automatically

selected to match to the incoming signals.

•

For the other video sources:

fixed to <

Regular

Language*

Select the indication language shown on the monitor.

English, Spanish, French, German, Italian, Dutch, Swedish, Danish, Russian

Time Set

Initial 1:00AM, ☞ [8]

12Hours/24Hours Select either 12-hour system or 24-hour system.

12 Hours, 24 Hours, ☞ [8]

OSD Clock When <On> is selected, the clock time is displayed on the playback

Clock

pictures. The clock time is displayed in large on the animation screen (☞ page 9)

Off, On

Clock Adjust*

Off : Cancels. Auto : The built-in clock is automatically adjusted using the clock time

data provided via the satellite radio channel.

Not adjustable when no picture is shown.

After you change the indication language setting, turn off then on the power so that your setting takes effect.

Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected.

Continued on the next page

SETTINGS

Aspect ratio is

Menu items Selectable settings, [reference page]

Time Zone*5 *

Select your residential area from one of the following time zones for clock adjustment. Alaska, Pacific, Mountain, Central, Eastern, Atlantic,

ENGLISH

Clock

DST* Time)

5 *6

(Daylight Saving

Newfoundland

Activates this if your residential area is subject to DST.

Off : Cancels. On : Activates daylight saving time.

Menu Language*

Select the initial disc menu language; Initial English (☞ also page

71).

Audio Language*

Subtitle*

Select the initial audio language; Initial English (☞ also page 71).

Select the initial subtitle language or erase the subtitle (Off); Initial Off (☞ also page 71).

OSD Language*

Select the on-screen language used for the external monitor connected to the VIDEO OUT plug; Initial English.

Monitor Type*

16:9 4:3LB

Select the monitor type to watch a wide screen picture on the external monitor.

16:9 : Select when the aspect ratio of the external monitor is 16:9. 4:3LB (Letterbox)/4:3PS (Pan Scan): Select when the aspect ratio of

4:3PS

Disc

the external monitor is 4:3. Refer to the illustrations on the left to see how the pictures are shown on the monitor.

OSD Position*

File Type*

Position 1 Position 2

Select the position of the on-screen bar, ☞ [25].

1: Higher position 2: Lower position

Select playback file type when a disc/SD/USB contains different types of files. You can store this setting separately for each source —“DISC/ SD/USB.”

Audio: Plays back audio files. Picture: Plays back JPEG files. Video: Plays back DivX/MPEG1/MPEG2 files. (Not applicable to “SD”)

Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected.

Appears only when <Clock Adjust> is set to <Auto>.

Selectable only for “DISC,” “SD,” and “USB.” (Playback stops when you change the setting.)

Menu items Selectable settings, [reference page]

Divx Regist. (Registration)*7This unit has its own Registration Code. Once you have played back a

file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

D. (Dynamic) Range Compres. (Compression)*

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.

Auto: Select to apply the effect to multi-channel encoded software. On: Select to always use this function.

Speaker Size*

You can adjust the speaker size setting. As you change the speaker size, the speaker on the screen changes its size. When <None> or <Off> is selected, the speaker is shaded.

• L/R (Front): Small, Large

• C (Center): None, Small, Large

• LS/RS (Surround): None, Small, Large

• SW (Subwoofer): On, Off

• Speaker size: <Large> for 13-cm (5-1/8 inches) diameter or more;

Disc

<Small> for 13 cm (5-1/8 inches) or less.

• If you select <Large> or <Small> for non-connected speakers, the incoming signals for the non-connected speakers will not come out of any other speakers.

• Front speakers and surround speakers cannot be adjusted separately for left and right speakers.

Regardless of the setting above...

• No sound comes out of the subwoofer while playing Dolby Pro Logic II Movie or Music if the front speaker is set to <Large>.

• No sound comes out of the center speaker when surround is deactivated.

Speaker Level*

You can adjust the output level of the ac tivated speakers (☞ <Speaker Size> above), monitoring the test tone. L/C/R/RS/SW*9/LS: : adjust the output level of each speaker in the

range of –10dB to +10dB; Initial 00dB.

ENGLISH

• Press [Test] to turn on and off the test tone.

Selectable only for “DISC,” “SD,” and “USB.” (Playback stops when you change the setting.)

Selectable only for “DISC,” “SD,” and “USB.”

This subwoofer level setting takes effect only when surround is activated. (☞ also page 24)

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

Speaker Distance*

8, 10

You can adjust the speaker output timing. L/C/R/RS/LS: adjust the speaker distance from the listening position in

the range of 15cm/6 inches to 600 cm/240 inches in 15-cm/6-

ENGLISH

Disc

inch step; Initial 120 cm/48 inches (for center speaker), 150 cm/60 inches (for other speakers).

• Press [cmÔinch] to change the measuring unit—cm and inch.

IF Band Width Auto: Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

Wide: Subject to the interference from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

Area Setting US : When using in North/Central/South America. FM/AM intervals are

Tuner

set to 200 kHz/10 kHz.

Europe : When using in any other areas. FM/AM intervals are set to 50

kHz (100 kHz during auto search)/9 kHz.

South America : When using in South American countries where FM

interval is 100 kHz. AM interval is set to 10 kHz.

SIRIUS ID*

AV Input*

Your SIRIUS identification number appears on the monitor.

You can determine the use of LINE IN and VIDEO IN plugs. Off: Select when no component is connected (“AV-IN” is skipped while

selecting the source).

Audio&video: Select when connecting an AV component such as a

Input

VCR. ☞ [48]

Audio: Select when connecting an audio component such as a digital

audio player. ☞ [48]

Navigation : Select when connecting a Navigation System. ☞ [49]

Selectable only for “DISC,” “SD,” and “USB.”

This setting does not take effect for MPEG1/MPEG2 and DivX with MP3 audio track.

Appears only when SIRIUS Satellite Radio is connected.

Not selectable when “AV-IN” is selected as the source.

Menu items Selectable settings, [reference page]

Camera Input*

Off: Select when no rear view camera is connected to the CAMERA IN

plug.

Normal: Select when connecting the rear view camera to the CAMERA

IN plug. The picture from the camera is displayed as it is taken.

Mirror: The mirror image of the picture taken by the camera is

displayed on the monitor.

• While the pictures through the camera are shown on the monitor, no message will be displayed.

Input

External Input*

For connecting an external component to the CD changer jack on the rear.

Changer/iPod/D. player*15: CD changer, iPod, or D. player

☞ [42, 46]

External: Any other than the above. ☞ [50]

• For connecting the Bluetooth adapter, JVC DLP/XMDJVC100, this setting is not required. It is automatically detected.

Beep Off: Cancels.

On: Activates the key-touch tone.

Telephone Muting*

Off: Cancels. Muting1, Muting2: Select either one which mutes the sounds while

using the cellular phone.

Power LED Flash Off: Cancels.

Others

On: When the ignition is turned off, the lamp on the

flashes.

ENGLISH

button

TouchPanel Sens. Change the sensitivity of the touch panel. As the number decreases,

sensitivity become higher. 1/2/3; Initial 2

Initialize Initialize all settings you have made in <AV Menu>. Press and hold

[Enter] to initialize the settings, then reset the unit (☞ page 3)

Reverse lamp lead connection is required. See Installation/Connection Manual (separate volume). The rear view through the camera appears on the monitor in <Full> aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position. When you press DISP on the control panel, or when you shift the gear to another position other than the reverse (R) position, the rear view screen is cleared.

Not selectable when the component connected to the CD changer jack is selected as the source.

The name of the component detected through the CD changer jack is shown.

The TEL MUTING lead connection is required. See Installation/Connection Manual (separate volume).

Continued on the next page

SETTINGS

Disc Surround*

Menu items Selectable settings, [reference page]

Surround

ENGLISH

Surround Mode

Panorama

Center Width*

Selectable only for “DISC”, “SD,” and “USB.”

This setting takes effect only when the center speaker is activated.

On, Off, ☞ [24]

Auto, Through, Dolby PLII Movie, Dolby PLII Music, ☞ [24]

On, Off, ☞ [24]

00 to 07; Initial 04, ☞ [25]

Equalizer

Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3, ☞ [51]

Sound

Menu items Selectable settings, [reference page]

Fader/Balance Adjust fader—speaker output balance between the front and rear speakers.

• Upmost—front only (F6)

• Downmost—rear only (R6) When using a two-speaker system, set the fader to the center (0). Adjust balance—speaker output balance between the left and right speakers.

• Leftmost—left only (L6)

• Rightmost—right only (R6)

Volume Adjust Adjust and store auto-adjustment volume level for each source, comparing to

the FM volume level. The volume level will automatically increase or decrease when you change the source. –12 to +12; Initial 00

• For Disc/SD/USB: An auto-adjustment level is commonly used when playing DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC files

Subwoofer Phase Select either <Normal> or <Reverse>, which reproduces a better sound.

Subwoofer Level*

Adjust the subwoofer output level. Level: –06 to +08; Initial 00

High Pass Filter Through: Select when the subwoofer is not connected.

On: Select when the subwoofer is connected.

This subwoofer level setting takes effect only when surround is deactivated. (☞ also page 24)

Crossover Adjust the crossover frequency between the front/rear speakers and the

subwoofer.

80Hz, 120Hz, 150Hz

Amplifier Gain You can change the maximum volume level of this unit.

Off: Deactivates the built-in amplifier. Low: VOL 00 to 30 (Select this if the maximum power of the speakers is less

than 50 W)

High: VOL 00 to 50

Rear Speaker

You can activate/deactivate the rear speakers. Off, On

This setting takes effect only when Dual Zone is activated. (☞ also page 27)

Mode*

Menu items Selectable settings, [reference page]

ENGLISH

Mono

DX/Local

SSM

Title Entry

Intro/Repeat/Random

Items listed under <Mode> vary among the playback sources.

Only for FM. (Off, On), ☞ [10]

Only for FM. (Local, DX), ☞ [11]

Only for FM. Press and hold to start SSM. ☞ [11]

Only for FM/AM stations, AV-IN, and EXT-IN. ☞ [52]

☞ [18, 31, 33, 42, 47]

List

For “DISC”: Folder List and Track List (☞ page 19) For “CD-CH”: Disc List, Folder List, and Track List (☞ page 41) For “SAT”: Category List and Channel List (☞ page 45)

• For the other playback sources, you can display a list by pressing DISP on the monitor panel (☞ page 9).

Continued on the next page

SETTINGS

Bluetooth*

Menu items Selectable settings, [reference page]

Dial Menu *

ENGLISH

Message*

Select the method to make a call. ☞ [37]

You can read a message from the following message histories.

Unread: Messages you have not read. Read: Messages you have read. Unsent: Messages you have not sent. Sent: Messages you have sent.

• The number of messages in each history is also shown on the monitor.

Open

☞ [34]

☞ [35]

Special Device Only for “New Device.”

Shows the list of Bluetooth devices which require some special procedure to establish Bluetooth connection. Select a device you want to connect.

• After selecting the device, use <Open> or <Search> (☞ above) for connection.

• Once the connection is established, it is registered in the unit. You can connect the unit and the device by using <Connect> (☞ below) from the next time.

Connect Only for the registered devices.

After selecting a device from among the registered devices (☞ page 34, 35), establish the connection with it.

Disconnect Only for the device being connected.

Disconnect the current device before connecting another device.

Delete Pair Only for the registered devices.

Delete the registered devices.

Selectable only for “Bluetooth PHONE” or “Bluetooth AUDIO.” Select a device (or “New Device”) before operating the

menu.

Only for the device connected for “Bluetooth PHONE.”

Selectable only when the source is “Bluetooth PHONE” and the device is compatible with Text Message.

When operating the Bluetooth device, refer also to the instructions supplied with the device.

Menu items Selectable settings, [reference page]

Auto Connect *

When the unit is turned on, the connection is established automatically with...

Off: No Bluetooth device. Last: The last connected Bluetooth device. Order: The available registered Bluetooth device found at first.

Auto Answer *

Off: The unit does not answer the calls automatically. Answer the calls

manually.

On: The unit answers the incoming calls automatically.

Settings

Message Info *

Reject: The unit rejects all incoming calls.

Auto: The unit informs you of the arrival of a message by ringing and

displaying “Receiving Message.” To read the message, ☞ page 37.

Manual: The unit does not informs you of the arrival of a message.

MIC Setting *

Adjust microphone volume connected to the Bluetooth adapter. 01/02/03 Initial 02

Version *

Selectable only for “Bluetooth PHONE.”

The Bluetooth software and hardware versions are shown.

*26 Only for the device connected for “Bluetooth PHONE.” Not selectable when “New Device” is selected. *27 If you wish to receive more information about Bluetooth, visit our JVC web site.

ENGLISH

SETTINGS

Maintenance

Moisture condensation

Moisture may condense on the lens inside the unit in

ENGLISH

the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Warped disc

Sticker

Sticker residue

Stick-on label

More about this unit

General

Turning on the power

• By pressing SOURCE on the monitor panel, you can also turn on the power. If the source is ready, playback starts.

FM/AM

Storing stations in memory

• When SSM is over, received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can also play back 8 cm (3-3/16 inch) discs.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded in the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the monitor. Eject the disc.

Ejecting a disc

• If “No disc“ appears after removing a disc, reattach a disc or select another playback source.

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Speaker/signal indicators for DVD

Speaker indicators

• The speaker indicators—square around the letters lights in light blue when the corresponding speakers are set to <Large> or <Small>.

• The center speaker indicator—square around “C” lights in light blue, when the center speaker is set to <Large> or <Small> and when surround is activated.

• Sounds come out of the speakers whose speaker indicators are lit.

• The SW indicator lights up when <SW (Subwoofer)> is set to <On>.

• The signal indicators indicate the incoming signals—L (front left) / R (front right) / C (center) / LFE (low frequency effect) / LS (left surround) / RS (right surround) / S (monaural surround).

• If the speaker is activated, but the signals corresponding to the speaker are not coming in, the signal indicators changes their color from white to black to indicate no signals coming in.

Changing the source

• If you change the source with Dual Zone deactivated, playback also stops without ejecting the disc.

Next time you select “DISC” for the playback source,

disc play starts from where it has been stopped previously.

Signal indicators

ENGLISH

Continued on the next page

REFERENCES

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however,

ENGLISH

unclosed sessions will be skipped while playing.

• This unit can recognize a total 25 characters for file/ folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

Playing DVD audio

• Some DVD Audios prohibit downmix. When you play back such a disc, “LR ONLY” appears on the monitor and the unit plays back the left front and right front signals.

• “MULTI CH” appears on the monitor after a beep when you try to play a multi-channel disc with Surround turned <Off>.

Playing DVD-VR

• This unit cannot play back CPRM (Content Protection for Recordable Media) protected files.

• For details about DVD-VR format and play list, refer to the instructions supplied with the recording equipment.

File playback

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, <.avi> (regardless of the letter case—upper/lower).

• This unit supports the DivX files whose resolution is 720 x 576 pixels or less.

• This unit supports DivX 6.x, 5.x, 4.x, and 3.11.

• Audio stream should conform to MP3 or Dolby Digital.

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The maximum bit rate for video signals (average) is as follows. – DVD: 4 Mbps – USB: 2 Mbps

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG2

files recorded by JVC Everio camcorders.

• The stream format should conform to MPEG system/ program stream.

The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is as follows. – DVD: 4 Mbps – USB: 2 Mbps

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• It is recommended that you record a file at 640 x 480 resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV) 48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3). This unit can also show WAV/WMA/AAC Tag.

• This unit can play back files recorded in VBR (variable bit rate).

• Files recorded in VBR have a discrepancy in elapsed time indication.

• This unit cannot play back the following files:

MP3 files encoded with MP3i and MP3 PRO format.

– – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional,

and voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA/AAC files copy-protected with DRM. – AAC files encoded by using any other application

than iTunes. – AAC files purchased from the iTunes Store. – Files which have the data such as AIFF, ATRAC3,

etc.

Enjoying surround sounds

• If <Surround> is set to <On>, “MULTI” surround playback automatically starts for multi-channel encoded discs.

• You cannot activate surround for MPEG multi-channel DVD Video, DivX 2-channel and MPEG 2-channel sources. If <Surround> is set to <On>, stereo sounds are emitted only through the front speakers. “FRONT 2CH” appears on the source information screen.

• When “FIX” appears on the source information screen, no sound comes out of the subwoofer.

• When If <Surround> is set to <Auto>, downsampling is performed for DVD Video (LPCM only), DVD-VR (LPCM only), and DVD Audio with fs=88.2 kHz/96 kHz and higher.

• If “No SD Card“ appears after removing an SD card, reattach an SD card or select another playback source.

• When the SD card has no playable fils, or has not been formatted correctly, “Cannot play this SD card Check the SD card” appears on the monitor. Replace the SD card. Do not pull out or attach the SD card while “Now Reading...” is shown on the monitor.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total 25 characters for file/ folder names.

USB

• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the monitor.

• The unit cannot recognize a USB device whose rating is other than 5 V and does not exceed 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total 25 characters for file/ folder names.

ENGLISH

Continued on the next page

REFERENCES

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in

ENGLISH

a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

• Connection Error: The device is registered but the connection has failed. Use <Connect> to connect the device again. (☞ page 35)

• Error: Try the operation again. If “Error” appears again, check if the device supports the function you have tried.

• Device Unfound: No available Bluetooth device is detected by <Search>.

• Loading: The unit is updating the phone book and/ or Text Message.

• Please Wait...: The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

• Reset 08: Check the connection between the adapter and this unit.

Icons for phone types

• These icons indicate the phone type set on the device.

: Cellular phone

: Household phone

: Office

: General

: Other than above

Satellite radio operations

• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KSU100K (not supplied) to the CD changer jack on the rear. (Select “EXT-IN” as the source.)

By turning on/off the power of the unit, you can turn

on/off the JVC PnP. However, you cannot control it from this unit.

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

CD changer

• If you select a folder, which does not include any music files, on the list (☞ page 45), you will hear a beep. Select another folder including music files.

iPod/D. player operations

• When you turn on this unit, the iPod or D. player is charged through the adapter connected to this unit.

• While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.

• The text information may not be displayed correctly.

• If the text information includes more than 8 characters, it scrolls on the display. This unit can display up to 40 characters.

Notice:

When operating an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/car/ support/ks-pd100/index.html> For D. player users: <http://www.jvc.co.jp/ english/car/support/ks-pd500/index.html>

Menu settings

• If you change the <Amplifier Gain> setting from <High> to <Low> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3PS> is selected, the screen size may become <4:3LB> for some discs.

ENGLISH

Continued on the next page

REFERENCES

Characters shown on the monitor

In addition to the roman alphabet (A – Z, a – z), and < , (comma)>, and < . (period)>, the following characters will be used to show the

ENGLISH

various information on the monitor.

• You can also use the following characters to assign titles. (☞ page 52).

Numbers and symbols

Upper and lower cases

Sound

mode

Flat 00 00 00 00 00 00 00

Hard Rock +03 +03 +01 00 00 +02 +01

R&B +03 +02 +02 00 +01 +01 +03

Pop 00 +02 00 00 +01 +01 +02

Jazz +03 +02 +01 +01 +01 +03 +02

Dance +04 +02 00 –02 –01 +01 +01

Country +02 +01 00 00 00 +01 +02

Reggae +03 00 00 +01 +02 +02 +03

Classic +02 +03 +01 00 00 +02 00

User 1/2/3 00 00 00 00 00 00 00

Preset equalizing values

60 Hz

150 Hz

400 Hz

1 kHz

2.5 kHz

6.3 kHz

About sounds reproduced through the rear terminals

• Speaker out/analog discrete output—LINE OUT

15 kHz

(FRONT/REAR)/CENTER OUT/SUBWOOFER: Multi-channel signals are emitted for a multichannel encoded software. (When Dual Zone is activated, the signal emitted through 2nd AUDIO OUT plugs are emitted for the main source “DISC.”)

• 2nd AUDIO OUT: 2-channel signal is emitted when Dual Zone is activated. When playing a multichannel encoded disc, multi-channel signals are downmixed (except for some DVD Audio).

Language codes (for DVD/DivX language selection)

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KL Greenlandic OC Occitan ST Sesotho AB Abkhazian FI Finnish KM Cambodian OM (Afan) Oromo SU Sundanese AF Afrikaans FJ Fiji KN Kannada OR Oriya SW Swahili AM Ameharic FO Faroese KO Korean (KOR) PA Panjabi TA Tamil AR Arabic FY Frisian KS Kashmiri PL Polish TE Telugu AS Assamese GA Irish KU Kurdish PS Pashto, Pushto TG Tajik AY Aymara GD Scots Gaelic KY Kirghiz PT Portuguese TH Thai AZ Azerbaijani GL Galician LA Latin QU Quechua TI Tigrinya BA Bashkir GN Guarani LN Lingala RM BE Byelorussian GU Gujarati LO Laothian RN Kirundi TL Tagalog BG Bulgarian HA Hausa LT Lithuanian RO Rumanian TN Setswana BH Bihari HI Hindi LV Latvian, Lettish RW Kinyarwanda TO Tonga BI Bislama HR Croatian MG Malagasy SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MI Maori SD Sindhi TS Tsonga BO Tibetan HY Armenian MK Macedonian SG Sangho TT Tatar BR Breton IA Interlingua ML Malayalam SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MN Mongolian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MO Moldavian SK Slovak UR Urdu CS Czech IN Indonesian MR Marathi SL Slovenian UZ Uzbek CY Welsh IS Icelandic MS Malay (MAY) SM Samoan VI Vietnamese DZ Bhutani IW Hebrew MT Maltese SN Shona VO Volapuk EL Greek JI Yiddish MY Burmese SO Somali WO Wolof EO Esperanto JW Javanese NA Nauru SQ Albanian XH Xhosa ET Estonian KA Georgian NE Nepali SR Serbian YO Yoruba EU Basque KK Kazakh NO Norwegian SS Siswati ZU Zulu

Rhaeto-Romance

TK Turkmen

ENGLISH

REFERENCES

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).

ENGLISH

Symptoms Remedies/Causes

• No sound comes out of the center speaker.

• No sound comes out of the rear speakers, and subwoofer.

• No sound comes out of the subwoofer while playing in stereo.

• The monitor is not clear and legible. Sunshine from the windscreen may cause this symptom.

• You cannot select “SD” and “USB” as the

General

source.

• The remote controller does not work.

• “Position Error Push Open Key” appears on the monitor.

• “Mecha Error Push Reset” appears on the monitor, and the panel does not move.

• “SD Loading Error” appears on the monitor. SD is not inserted fully. Fully insert it into the slot to close

• Center speaker is not activated. (☞ page 57)

• Center speaker is used only for surround playback. No sound comes out for stereo playback.

• Rear speakers and subwoofer are not activated. (☞ page 57)

• When Dual Zone is in use, this is normal with <Off> selected for <Rear Speaker>. (☞ page 61)

This happens while playing some discs with <Auto> selected for <Surround Mode> (☞ page 24). Cancel surround.

Adjust <Bright>. (☞ page 54)

Deactivate Dual Zone. (☞ page 27) (While Dual Zone is activated, you cannot select them as the source.)

Deactivate Dual Zone. (☞ page 27) (While Dual Zone is activated, the remote controller only functions for operating the DVD/CD player.)

The monitor panel angle has been forcibly adjusted, or its adjustment has been interrupted while opening or closing. Press OPEN/TILT (CLOSE).

Reset the unit (☞ page 3).

the monitor panel.

Symptoms Remedies/Causes

• “No Signal” appears. • Change the source.

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

General

• The buttons on the monitor panel do not work.

• The unit does not work at all.

• SSM automatic presetting does not work.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Disc can be neither recognized nor played .

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Playback does not start. • Insert the disc correctly again.

• The playback picture is not clear and legible.

• Sound and pictures are sometimes interrupted or distorted.

Disc in general

• No playback picture appears on the monitor. Parking brake lead is not connected properly.

• No picture appears on the external monitor. • Connect the video cord correctly.

• “Eject Error” or “Loading Error” appears on the monitor.

• “Region code error” appears on the monitor when you insert a DVD Video.

When the monitor panel is open, only VOL +/– and OPEN/TILT (CLOSE) button work. The other buttons do not function.

Reset the unit. (☞ page 3)

Store stations manually. (☞ page 11)

Eject the disc forcibly. (☞ page 3)

Unlock the disc. (☞ page 19)

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

• The format of files is not supported by the unit.

Adjust items in <Picture Adjust>. (☞ page 54)

• Stop playback while driving on rough roads.

• Change the disc.

(☞ Installation/Connection Manual)

• Select the correct input on the external monitor.

Changing the source by pressing SOURCE will solve this error.

Region code is not correct. (☞ page 4)

ENGLISH

Continued on the next page

REFERENCES

Symptoms Remedies/Causes

• Disc cannot be played back. • Change the disc.

• Record the tracks using a compliant application in the

appropriate discs. (☞ page 4)

ENGLISH

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks are not played back as you have intended them to play.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/AAC

• “Not Support” appears on the monitor and track skips.

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks cannot play back as you have intended them to play.

• “Now Reading...” keeps flashing on the monitor.

SD/USB

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

• Add appropriate extension codes to the file names.

another file.

Playback order may differs from the one played back using other players.

how the tracks are recorded.

The track is unplayable.

another file.

Playback order may differs from the one played back using other players.

• Readout time varies depending on the SD card/USB device.

• Do not use too many hierarchy and folders.

• Turn off the power then on again.

For available characters, ☞ page 70.

The tracks are not properly copied into the SD card/USB device. Copy tracks again, and try again.

Symptoms Remedies/Causes

• Bluetooth device does not detect the unit. This unit can be connected with one Bluetooth cellular phone and one Bluetooth audio device at a time. While connecting a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.

• The unit does not detect the Bluetooth

device.

• The unit does not make pairing with the

Bluetooth device.

• Echo or noise occurs. Adjust the microphone unit position.

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth

Bluetooth

• The sound is interrupted or skipped during

playback of a Bluetooth audio device.

• “New Device” cannot be selected for

“Bluetooth AUDIO.”

• The connected audio device cannot be

controlled.

• “Reset 08” appears on the monitor. Check the connection between the adapter and this unit.

• “No Disc” appears on the monitor. Insert a disc into the magazine.

• “No Magazine” appears on the monitor. Insert the magazine.

• “Cannot play this disc Check the disc”

CD changer

appears on the monitor.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device. After the device

detects the unit, select <Open> on the unit to connect the device. (☞ page 34)

• Enter the same PIN code for both the unit and target

device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”

• Select the device name from <Special Device>, then

try to connect again. (☞ pages 35, 62)

audio device.

• Move the car to place where you can get a better signal

reception.

• Reduce the distance between the unit and the Bluetooth

audio device.

• Disconnect the device connected for “Bluetooth PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the device

again.

Bluetooth audio device is being connected. To select “New Device,” disconnect it. (☞ page 35)

Check whether the connected audio device supports AVRCP (Audio Video Remote Control Profile).

Disc does not include playable files. Replace the disc with playable files.

ENGLISH

Continued on the next page

REFERENCES

Symptoms Remedies/Causes

• “Reset 08” appears on the monitor. Connect this unit and the CD changer correctly and press the reset button of the CD changer.

• “Reset 01” – “Reset 07” appears on the

ENGLISH

monitor.

CD changer

• The CD changer does not work at all.

• “CALL 1-888-539-SIRIUS TO SUBSCRIBE”

appears on the monitor.

• “No Signal” or “NO SIGNAL” appears on the

monitor.

• “No Antenna” or “ANTENNA” appears on the

monitor.

• “No CH” appears on the monitor for about 5

seconds, then returns to the previous display when listening to the SIRIUS Satellite radio.

• “CH–––” appears on the display for about

2 seconds, then returns to the previous channel while listening to the XM Satellite radio.

• “NO NAME” appears on the monitor. No text information for the selected channel.

Satellite radio

• “UPDATING” appears on the monitor and no

sound can be heard.

• “OFF AIR” appears on the monitor while

listening to the XM Satellite radio.

• “LOADING” appears on the monitor while

listening to the XM Satellite radio.

• “Reset08” flashes on the monitor. Reconnect this unit and the Satellite radio correctly and

• Satellite radio does not work at all. Reconnect the Satellite radio after a few seconds.

• The iPod/D. player does not turn on or does

not work.

• Sound is distorted. Deactivate the equalizer either on this unit or the iPod/

• “Disconnect” appears on the monitor. Check the connecting cable and its connection.

iPod/D. player

• For iPod: Playback stops. The headphones are disconnected during playback. Restart

Press the reset button of the CD changer.

Reset the unit. (☞ page 3)

Starts subscribing SIRIUS Satellite radio. (☞ page 43)

Move to an area with stronger signals.

Connect the antenna firmly.

No broadcast on the selected channel. Select another channel or continue listening to the previous channel.

Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.

The receiver is updating the channel information and it takes a few minutes to complete.

Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel.

The unit is loading the channel information and audio. Text information is temporarily unavailable.

reset the unit.

• Check the connecting cable and its connection.

•

Charge the battery.

• For D. player: Update the firmware version.

D. player.

playback.

Symptoms Remedies/Causes

• No sound can be heard.

• “Error 01” appears on the monitor when connecting a D. player.

• “No Files” or “No Track” appears on the monitor.

• “Reset 01” – “Reset 07” appears on the monitor.

iPod/D. player

• “Reset 08” appears on the monitor. Check the connection between the adapter and this unit.

• The iPod’s or D. player’s controls do not work after disconnecting from this unit.

• No picture appears on the monitor. • Turn on the video component if it is not on.

AV-IN

• Playback picture is not clear and legible.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, inc. and are used under license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

• iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio”, the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Disconnect the D. player from the adapter. Then, connect them again.

No tracks are stored. Import tracks to the iPod or D. player.

Disconnect the adapter from both this unit and iPod/ D. player. Then, connect them again.

Reset the iPod or D. player.

• This unit is not connected to the video component correctly. Connect it correctly.

Adjust items in <Picture Adjust>. (☞ page 54)

ENGLISH

REFERENCES

Specifications

Power Output: 20 W RMS × 4 Channels at 4 Ω and

≤ 1% THD+N

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

ENGLISH

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range: Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,

Level: ±10 dB

Audio Output Level

LINE OUT (FRONT/ REAR)/CENTER OUT/

AMPLIFIER

SUBWOOFER: Color System: NTSC Video Output (composite): 1 Vp-p/75 Ω Other Terminals: Input: LINE IN, VIDEO IN, CAMERA IN, USB input

Frequency Range:

Line-Out Level/Impedance: 5.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Output: 2nd AUDIO OUT, VIDEO OUT

Others: CD changer, OE REMOTE

FM (with channel interval set to 100 kHz or 200 kHz):

FM (with channel interval set to 50 kHz):

AM (with channel interval set to 10 kHz):

AM (with channel interval set to 9 kHz): 531 kHz to 1 602 kHz

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

FM/AM TUNER

AM Tuner Sensitivity/Selectivity: 20 μV/35 dB

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Frequency Response: DVD, fs=48 kHz: 16 Hz to 22 000 Hz

DVD/CD

Dynamic Range: 93 dB

Signal-to-Noise Ratio: 95 dB

Wow and Flutter: Less than measurable limit

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 35 dB

DVD, fs=192 kHz: 16 Hz to 88 000 Hz

VCD/CD: 16 Hz to 20 000 Hz

6.3 kHz, 15 kHz

terminal, Antenna input

87.5 MHz to 107.9 MHz

87.5 MHz to 108.0 MHz

530 kHz to 1 710 kHz

Compatible File System: FAT 32/16/12

Capacity 8 Mbytes to 2 Gbytes

Data Transfer Rate Maximum 10 Mbps

USB Standards: USB 1.1

Data Transfer Rate Full Speed: Maximum 12 Mbytes

USB

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Max. Current: Less than 500 mA/5V

Screen Size: 7 inch wide liquid crystal display

Number of Pixel: 336 960 pixels: 480 x 3 (horizontal) × 234 (vertical)

Drive Method: TFT (Thin Film Transistor) active matrix format

MONITOR

Color System: NTSC/PAL

Aspect Ratio: 16:9 (wide)

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Storage Temperature:

Allowable Operating Temperature:

Dimensions (W × H × D):

GENERAL

•

With trim plate and

sleeve attached

Low Speed: Maximum 1.5 Mbytes

–10°C to +60°C

0°C to +40°C

Installation Size (approx.): 182 mm × 111 mm × 160 mm

(14°F to 140°F)

(32°F to 104°F)

(7-3/16” × 4-3/8” × 6-5/16”)

Panel Size (approx.):

188 mm × 117 mm × 10 mm

(7-7/16” × 4-5/8” × 7/16”)

Mass (approx.):

3 kg

(6.7 lbs) (including trims and sleeve)

ENGLISH

Required space for the monitor ejection

CAUTION: When ejecting the monitor, keep an open

space for the monitor to come out. If not, the monitor may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

100 (3-15/16)

160 (

6-5/16)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

90.4 (3-9/16) Unit: mm (inch)

REFERENCES

Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y

Muchas gracias por la compra de un producto JVC.

obtener un máximo disfrute de esta unidad.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el

3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire

(Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar

4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.

usuario; encargue el servicio a personal técnico cualificado.

fijamente el haz.

directamente con instrumental óptico.

ESPAÑOL

IMPORTANTE (EE.UU.)

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: – Reoriente la antena receptora o cámbiela de lugar. – Aumente la separación entre el equipo y el

aparato receptor.

– Enchufe el equipo a una toma de corriente situada

en un circuito distinto del aparato receptor.

– Consulte a su distribuidor o a un técnico experto

en radio/televisión.

Precaución

Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.

[Sólo Unión Europea]

ADVERTENCIAS: Para evitar daños y accidentes

• NO instale ninguna unidad ni tienda cables en los lugares donde;

– puede obstaculizar las maniobras del volante

de dirección y de la palanca de cambios.

– puede obstaculizar la operación de los

dispositivos de seguridad, como por ejemplo, bolsas de aire.

– pueda obstruir la visibilidad.

• NO opere la unidad mientras maneja.

Si es necesario operar la unidad mientras maneja,

asegúrese de mirar atentamente en todas las direcciones.

• El conductor no debe mirar el monitor mientras conduce.

• El conductor no deberá ponerse los auriculares mientras conduce.

PRECAUCIÓN

Este producto tiene una lámpara fluorescente que contiene mercurio. La eliminación de estos materiales puede estar regulado en su comunidad debido a cuestiones medioambientales. Para obtener información sobre la eliminación o el reciclaje, póngase en contacto con las autoridades locales o, en los EE.UU., con la Electronic Industries Alliance: http://www. eiae.org.

Cómo reposicionar su unidad

• También se borrarán los

ajustes preestablecidos por usted.

Cómo expulsar el disco por la fuerza

ENTER

NO EJECT?

EMERGENCY EJECT?

Back

simultáneamente

• Si esto no funciona, reinicialice la unidad.

Precauciones sobre el monitor:

• El monitor incorporado a esta unidad ha sido fabricado con tecnología de alta precisión, pero puede contener algunos puntos inefectivos. Estos es inevitable y no es ningún signo de anomalía.

• No exponga el monitor a la luz directa del sol.

• No opere el panel táctil utilizando un bolígrafo o una herramienta similar puntiaguda.

Toque los botones del panel táctil directamente

con su dedo (sáquese el guante, si lo tiene puesto).

• Cuando la temperatura sea muy baja o muy alta... – Ocurren cambios químicos en el interior,

produciendo un mal funcionamiento.

– Puede suceder que las imágenes no aparezcan

claramente o que se muevan con lentitud. En tales entornos, puede suceder que las imágenes no estén sincronizadas con el sonido, o que la calidad del sonido se deteriore.

Para fines de seguridad...

• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.

• Detenga el automóvil antes de efectuar cualquier operación complicada.

Temperatura dentro del automóvil...

Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.

Exit

Contenido

INTRODUCCIÓN

Tipo de disco reproducible ................ 4

Operaciones básicas—

Panel del monitor/panel táctil ....... 5

Operaciones básicas—

Control remoto (RM-RK251) ........... 6

OPERACIONES

Antes de utilizar la unidad ................ 8

Operaciones comunes ...................... 9

Para escuchar la radio ...................... 10

Operaciones de los discos ................. 13

Operaciones de Zona Dual ................ 27

Operaciones de SD ........................... 30

Operaciones de USB ......................... 32

DISPOSITIVOS EXTERNOS

Operaciones Bluetooth®—Teléfono

celular/reproductor de audio ......... 34

Escuchando el cambiador de CD ........ 41

Para escuchar la radio satelital ......... 43

Escuchando el iPod/reproductor D. ... 46

Uso de otros componentes externos ... 48

AJUSTES

Ecualización de sonido ..................... 51

Asignación de títulos a la fuente ....... 52

Operaciones de los menús ................ 53

REFERENCIAS

Mantenimiento ............................... 64

Más sobre este receptor ................... 65

Localización de averías ..................... 72

Especificaciones ............................... 78

INTRODUCCIÓN

ESPAÑOL

Tipo de disco reproducible

Tipo de disco Formato de grabación, tipo de archivo, etc. Reproducible DVD DVD Vídeo (Códigos regionales: 1)*

DVD Audio DVD-ROM

DVD Grabable/reescribible (DVD-R*2/-RW, +R/+RW*3)

ESPAÑOL

• DVD Vídeo: Puente UDF

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/ MP3/WMA/WAV/AAC: ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

DVD Vídeo DVD-VR (sólo sin CPRM) DivX/MPEG1/MPEG2 JPEG MP3/WMA/WAV/AAC* MPEG4 DVD+VR

• Los discos DVD-RAM no se pueden reproducir.

Dual Disc Lado DVD

Lado no-DVD

CD/VCD CD de audio/CD-Text (CD-DA)/DTS-CD

VCD (Vídeo CD) CD-ROM CD-I (CD-I Ready)

CD Grabable/reescribible (CD-R/-RW)

• ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

CD-DA MP3/WMA/WAV/AAC* JPEG DivX/MPEG1/MPEG2

MPEG4

*1 Si inserta un disco DVD Vídeo con un código de región incorrecto aparecerá “Region code error” en el monitor. *2 También es posible reproducir un DVD-R grabado en formato “multi-border” (excepto discos de doble capa). *3 Es posible reproducir discos finalizados +R/+RW (sólo formato de vídeo). Sin embargo, no se recomienda usar

discos +R de doble capa.

*4 Esta unidad puede reproducir archivos AAC codificados con iTunes.

Precaución sobre la reproducción de DualDisc

El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.

Operaciones básicas — Panel del monitor/panel táctil

Visualice el <AV Menu>.

• ☞ página 53.

Visualice el <Source Menu>.

• ☞ páginas 9 y 27.

Visualice y borre las ventanas Short Cut (atajo).

Las funciones disponibles varían según las fuentes. Para los detalles, consulte la sección de funcionamiento de cada fuente.

ESPAÑOL

Cambia la información en pantalla.

Cambia las fuentes.

• ☞ página 9.

Visualice el <AV Menu>.

• ☞ página 53.

• Enciende el sistema.

• Apaga el sistema [Sostener].

• Atenúa el sonido (si el sistema está encendido).

Reinicialice la unidad.

• Se utiliza sólo debido a un malfuncionamiento interno del sistema.

• Para los detalles sobre las operaciones

del panel táctil, consulte las secciones de funcionamiento de cada fuente.

Ajuste el volumen.

• Visualiza la pantalla <Open/Tilt>

• Expulsa el disco y visualiza la pantalla <Open/Tilt> [Sostener].

• Cierra el panel del monitor cuando se visualiza la pantalla <Open/Tilt>.

• [OPEN]: Abra el panel del monitor.

• [EJECT]: Saque el disco.

• [CLOSE]: Cierre el panel del monitor.

• [TILT +/–]: Incline el panel del monitor.

• [Exit]: Borra esta pantalla.

• Los iconos sombreados no se pueden usar en ese momento.

Sensor remoto

INTRODUCCIÓN

Operaciones básicas — Control remoto (RM-RK251)

Instalación de la pila

R03/LR03/AAA

ESPAÑOL

Si disminuye la efectividad o el radio de acción del control remoto, cambie ambas pilas.

Antes de utilizar el control remoto:

• Apunte el control remoto directamente hacia el sensor remoto del receptor.

• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).

El receptor está equipado con la función de control remoto en el volante de dirección.

• Para la conexión, consulte el Manual de instalación/conexión (volumen separado).

Precaución:

• No exponga las pilas al calor o las llamas.

Elementos principales y funciones

;

a s

IMPORTANTE:

Si se activa la Zona Dual (☞ página 27), el control remoto funcionará sólo para controlar el reproductor DVD/CD.

1*1 • Enciende la unidad.

• Atenúa el sonido si el sistema está encendido.

• Desconecta la alimentación si lo pulsa y mantiene pulsado (mientras la alimentación está conectada).

2*1 Seleccione la fuente. 3*1 • Visualiza <Dial Menu>.

• Visualiza la lista <Redial> si lo pulsa y mantiene pulsado.

• Contesta las llamadas entrantes.

1,2

Ajusta el nivel de volumen.

1,2

Selecciona el modo Surround.

6 • DVD/DivX 6: Muestra el número de disco.

• VCD: Reanuda la reproducción de PBC.

• DVD-VR: Muestra la pantalla Original

Program (programa original).

7 • Efectúa la selección/los ajustes.

• ~: Salta 5 minutos hacia atrás o adelante

para DivX/MPEG1/MPEG2.

• Botones DISC +/–: Cambia los discos para

“CD-CH”.

8 Muestra la barra en pantalla.

Cambia la información en pantalla.

9* p Visualiza o borra <AV Menu>. q Para operaciones de disco/SD/USB:

• 6: Reproduce/pone en pausa.

• 5 / ∞ DVD: Selecciona el título/grupo. DVD-VR: Selecciona el programa/lista de

reproducción.

SD/USB/otros discos (excepto VCD/CD):

Selecciona las carpetas.

• 4 / ¢: – Pulse brevemente: salto hacia atrás/salto

hacia adelante.

– Pulse y mantenga pulsado: búsqueda hacia

atrás/búsqueda hacia adelante.

Para operaciones de FM/AM:

• 5 / ∞: Selecciona las emisoras

preajustadas.

• 4 / ¢: Funciona para la búsqueda de emisoras.

– Pulse brevemente: Búsqueda automática – Pulse y mantenga pulsado: Búsqueda manual

Para las operaciones del sintonizador

satelital:

• 5 / ∞: Selecciona las categorías.

• 4 / ¢:

– Selecciona rápidamente un canal si lo pulsa

y mantiene pulsado.

– Selecciona un canal al pulsarlo.

Para las operaciones de Apple iPod/

reproductor D. de JVC:

• ∞: Pone en pausa/detiene o reanuda la reproducción.

• 5: Entra al menú principal (seguidamente, 5 / ∞ / 4 / ¢ funcionan como botones selectores de menú).*

• 4 / ¢ (en el modo de selección de menú)

– Selecciona una opción si lo pulsa

brevemente. (Seguidamente, pulse ∞ para confirmar la selección).

– Salta 10 opciones simultáneamente si lo pulsa

y mantiene pulsado.

Para operaciones Bluetooth:

• 4 / ¢: salto hacia atrás/salto hacia adelante (para operación de audio)

• 6: Contesta las llamadas entrantes (para “Bluetooth PHONE”), Reproduce/pone en pausa (para “Bluetooth AUDIO”)

w TUNER/SAT: Selecciona las bandas. DISC/SD/USB: Detiene la reproducción. Bluetooth PHONE: Finaliza la llamada. Bluetooth AUDIO: Reproduce/pone en pausa.

• En este modelo, este botón no funciona como el botón BACK.

Ajusta el volumen a través de la clavija 2nd

AUDIO OUT.

Activa o desactiva la Zona Dual.

1,2

Selecciona el modo de sonido.

y • DVD Vídeo/DivX 6: Muestra el número de disco.

• VCD: Reanuda la reproducción de PBC.

• DVD-VR: Muestra la pantalla Play List (lista de reproducción).

u Botón RETURN

• Para VCD: Vuelve al menú PBC.

i DISC/SD/USB: Cambia el modo de entrada de

número.

• Funciona también como botón CLEAR para borrar la entrada errónea después de introducir el número incorrecto.

o • Introduce los números.

• FM/AM/SAT: Selecciona directamente la emisora preajustada/servicio.

• Cambiador de CD: Selecciona el disco directamente.

;*1 Cambia la relación de aspecto de las imágenes

reproducidas.

a Búsqueda hacia atrás/búsqueda hacia adelante

para las operaciones de disco/SD/USB.

s • DVD Vídeo: Selecciona el idioma de audio

( ), subtítulos ( ), ángulo ( ).

• DVD Audio: Selecciona el flujo de audio ( ).

• DVD-VR: Activa/desactiva subtítulos ( ) y selecciona el canal de audio ( ).

• DivX: Selecciona el idioma de audio ( ), subtítulos ( ).

• VCD: Selecciona el canal de audio ( ).

*1 Estos botones no se pueden utilizar si está activada la

Zona Dual.

Estos botones se pueden usar solamente cuando la

cubierta deslizante está cerrada.

5 : Vuelve al menú anterior.

* ∞ : Confirma la selección.

INTRODUCCIÓN

ESPAÑOL

Antes de utilizar la unidad

Cancele la demostración en pantalla y ponga el reloj en hora (☞ páginas 54 y 55 para más detalles).

• Las opciones no disponibles aparecerán sombreadas en las pantallas AV Menu.

Idioma para las indicaciones:

En este manual, se utilizan indicaciones en inglés para las explicaciones. Podrá seleccionar el idioma de

ESPAÑOL

indicación que desea en el monitor. (☞ página 55)

~ Encienda la unidad.

Ÿ Visualice el <AV Menu>.

! Visualice el menú <Setup>

(configuración).

@ Realice los ajustes del reloj.

Se desplaza a la página del menú anterior

Se desplaza a la página del menú siguiente

• Para realizar otros ajustes del reloj, ☞ página 55.

⁄ Cancele las demostraciones en pantalla.

Seleccione <Off>.

Vuelve a la pantalla anterior

¤ Finalice el procedimiento.

Operaciones comunes

Selección de la fuente de reproducción

• La disponibilidad de las fuente depende de los componentes externos que ha conectado, del medio conectado y de los ajustes <Entrada> realizados por usted (☞ páginas 58 y 59).

En el panel táctil:

☞ página 27

En el panel del monitor:

Exit

Cambio de la información en pantalla

• La información en pantalla disponible varía según las fuentes de reproducción.

En el panel del monitor solamente:

ESPAÑOL

• Cada vez que pulsa el botón DISP, la pantalla cambia para mostrarle diversas informaciones.

Ej.: Cuando la fuente de reproducción es un disco DivX.

Pantalla de la imagen de reproducción (sólo para fuentes de vídeo)

Pantalla de información de fuente

Lista de emisoras preajustadas (servicios), lista de pistas (archivos), o lista de números telefónicos

TUNER = SAT = DISC (DVD/VCD/CD) = SD = USB =CD-CH, iPod, D.PLAYER, o EXT-IN = Bluetooth PHONE = Bluetooth AUDIO = AV-IN =(vuelta al comienzo)

• Podrá seleccionar algunas fuentes si no están preparadas.

Vuelta al comienzo

Pantalla de animación

Pantalla de navegación (Cuando se ha seleccionado <

Navigation> para

AV Input>):

(☞ página 58).

OPERACIONES

Para escuchar la radio

N° de preajuste

Banda

Modo de sonido

☞ página 51

ESPAÑOL

Indicadores del

sintonizador

☞ página 9

Pulse [SOURCE], luego pulse [TUNER]. (☞ página 9)

• También puede usar SOURCE en el panel del monitor. Púlselo repetidamente.

Nombre asignado a la emisora ( ningún nombre asignado, aparecerá “No Name”.

☞ página 52). Si no hay

☞

página 51

: Botones en el

panel táctil: En las explicaciones, se indican dentro de [ ].

Ÿ Pulse [BAND]. ! Pulse [4] o [¢] para efectuar la búsqueda de una emisora—Búsqueda automática.

• Búsqueda manual: Sostenga [4] o [¢] hasta que aparezca “Manual Search” en la pantalla y, a continuación, presiónelo repetidamente.

• El indicador ST se enciende al recibir una radiodifusión FM estéreo con una intensidad de señal suficientemente potente.

Cuando una radiodifusión en FM estéreo sea difícil de recibir

1 Pulse [AV MENU].

• También puede usar AV MENU en el panel del monitor.

2 Pulse [Mode].

Se consigue mejorar la recepción, pero se pierde el

efecto estereofónico.

• El indicador MONO se enciende.

Para restablecer el efecto estéreo, seleccione <Off>.

Para sintonizar emisoras con un señal suficientemente fuerte

Esta función funciona sólo para las bandas FM. Una vez activada (se selecciona <Local>), esta función siempre funcionará al efectuar la búsqueda de emisoras FM.

1 Pulse [AV MENU].

Preajuste automático de emisoras FM—SSM (Memoria secuencial de las emisoras más fuertes)

Esta función funciona sólo para las bandas FM. Se pueden preajustar seis emisoras para cada banda.

1 Pulse [AV MENU].

• También puede usar AV MENU en el panel del monitor.

2 Pulse [Mode].

Se detectan solamente las emisoras con una señal suficientemente fuerte.

• El indicador DX se apaga y el indicador LO se enciende.

ESPAÑOL

• También puede usar AV MENU en el panel del monitor.

2 Pulse [Mode].

Las emisoras FM locales con las señales más intensas serán exploradas y almacenadas automáticamente en la banda FM.

OPERACIONES

Preajuste manual

Ej.: Almacenando una emisora FM de 92,5 MHz en el

número de preajuste 4 de la banda FM1.

1 Visualice la lista de preajustes.

ESPAÑOL

2 Sintonice la emisora que desea preajustar.

3 Seleccione un número de preajuste.

Selección de emisoras preajustadas

En el control remoto:

En la unidad:

Para seleccionar directamente sobre el panel táctil

Para seleccionar de la lista de preajustes

La emisora seleccionada en el paso 2 ha sido almacenada en el número de preajuste 4.

Operaciones de los discos

El tipo de disco se detecta automáticamente, y la reproducción se inicia automáticamente (para algunos discos: el inicio automático depende de su programa interno).

Si el disco no dispone de ningún menú de disco, todas las pistas del mismo serán reproducidas repetidamente hasta que usted cambie la fuente o expulse el disco.

Si aparece “

• En algunos casos, puede suceder que no se acepte la operación aunque no se visualice “ ”.

~ Abra el panel del monitor.

Aparece el menú <Open/Tilt>.

• Los iconos sombreados no se pueden usar en ese

• Si pulsa y mantiene pulsado el botón, podrá abrir

Ÿ Pulse [OPEN].

” en el monitor, significa que la unidad no puede aceptar la operación intentada.

! Inserte un disco.

Lado de la etiqueta

momento.

el panel del monitor y expulsar el disco.

El panel del monitor se cierra automáticamente. Si no lo hace, pulse [CLOSE].

Precaución:

No introduzca el dedo detrás del panel del monitor.

ESPAÑOL

Precaución sobre el ajuste de volumen:

Los discos producen muy poco ruido al compararse con otras fuentes. Antes de reproducir un disco, baje el volumen para evitar daños a los altavoces debido a un repentino aumento del nivel de salida.

• [OPEN]: Abra el panel del monitor.

• [EJECT]: Saque el disco.

• [CLOSE]: Cierre el panel del monitor.

• [TILT +/–]: Incline el panel del monitor.

• [Exit]: Borra esta pantalla.

OPERACIONES

Mientras se reproducen los siguientes discos, pulse .

• Cada vez que pulsa el botón, la pantalla cambia para mostrarle una información diferente (☞ página 9).

Tipo de disco *

Formato de audio

ESPAÑOL

Indicadores de

altavoz/señal

(

☞ página 65)

Indicador BONUS

(

Modo de

reproducción

: Botones en el panel táctil: En las explicaciones, se

indican dentro de [ ].

Estos botones también funcionan cuando no se

muestran en el panel táctil (mientras mira las imágenes de la pantalla).

☞ página 23)

DVD-VR: Nº de programa (o Nº de lista de reproducción)/Nº de capítulo/Tiempo de reproducción

DVD Vídeo: Nº de título/Nº de capítulo/tiempo de reproducción

Frecuencia de muestreo/ velocidad de bits/Nº de canal de la señal grabada

Modo Surround (

☞ página 24)

☞ página 19

[3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar un capítulo Sostener: Búsqueda hacia atrás/adelante [5 ∞] Selecciona el título/programa/lista de

reproducción

Nº de grupo/Nº de pista/tiempo de reproducción

Indicador de sonido reproducido— MULTI CH/LR ONLY (

☞ página 66)

Indicador B.S.P (

☞ página 23)

[3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante [5 ∞] Selecciona el grupo

*1 DVD-VR también indica reproducción PRG (programa) o PLAY (lista de reproducción).

Velocidad de búsqueda: x2 ] x10.

☞ página 19

Mientras se reproducen los siguientes discos, pulse .

• Cada vez que pulsa el botón, la pantalla cambia para mostrarle una información diferente (☞ página 9).

Para DivX/MPEG1/MPEG2: Nº de carpeta/Nº de pista/tiempo de reproducción Para JPEG: Nº de carpeta/Nº de pista

Tipo de disco

Modo Surround *

(☞ página 24)

Número total de pistas incluidas en el disco

ESPAÑOL

[3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante para DivX/MPEG1/MPEG2 [5 ∞] Pulse: Selecciona la carpeta Sostener: Visualiza la lista de carpetas

El indicador PBC

se enciende mientras

se está usando PBC.

[3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante

*2 Velocidad de búsqueda: x2 ] x10. *3 El modo Surround y el modo de sonido no se pueden utilizar

simultáneamente.

*4 Velocidad de búsqueda: ¡1 ] ¡2.

Nº de pista/tiempo de reproducción

☞ página 19

Número total de pistas incluidas en el disco

Tiempo de reproducción total

☞ página 19

OPERACIONES

Nº de pista/tiempo de reproducción

Modo de sonido *

(☞ página 51)

ESPAÑOL

[3 / 8] Inicia y pone en pausa la

[7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia

(MP3/WMA/WAV/AAC)

reproducción

atrás/adelante

Formato de audio

☞ página 19

• Mientras reproduce un DTS-CD

Indicador DTS

Indicadores de

altavoz/señal

(

☞ página 65)

Nº de carpeta/Nº de pista/tiempo de reproducción

Sólo para CD-Text *

Número total de pistas incluidas en el disco

Tiempo de reproducción total

Los datos de etiqueta aparecen solamente cuando están grabados

☞ página 19

[3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante

[5 ∞] Pulse: Selecciona la carpeta Sostener: Visualiza la lista de carpetas

*2 Velocidad de búsqueda: x2 ] x10. *5 Aparece “No Name” para los CDs convencionales.

Número total de pistas incluidas en el disco

Botones de operación en la pantalla del monitor

Podrá visualizar los siguientes botones de operación mientras mira las imágenes de reproducción en el monitor.

• Mientras se están visualizando los botones de funcionamiento, la relación de aspecto se fija en <Full> (☞ página 55).

• Si no realiza ninguna operación en el lapso de unos 5 segundos, los botones de operación desaparecen (salvo que se esté visualizando un menú de disco).

☞ páginas 20 a 22 para saber cómo funcionan específicamente los botones de operación para los diversos discos.

Para borrar las operaciones, toque la pantalla otra vez.

Toque la pantalla (parte central).

Toque [KEY].

[SOURCE] Visualiza <Source Menu> [

AV MENU] Visualiza <AV Menu>

[

SHORT CUT

] Visualiza los botones Short Cut (atajo) [3 / 8] Inicia y pone en pausa la reproducción [7] Pare la reproducción [4 ¢] Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante [5 ∞] Selecciona carpetas

• Los botones anteriores también funcionan cuando no se

muestran en el panel táctil (mientras mira las imágenes de la pantalla).

Mientras se reproduce un menú de disco, [KEY] se visualiza automáticamente. En el menú de disco, podrá seleccionar directamente una opción del menú tocándola sobre la pantalla.

Para la operación del menú de reproducción de DVD/VCD/DivX [2 3 5 ∞] Selecciona las opciones del menú [

ENT] Confirma la selección

[

TOP MENU] Visualiza el menú de disco

[

MENU] Visualiza el menú de disco

[

RETURN] Vuelve al menú anterior o visualiza el menú

Para introducir los números [

DIRECT CLR] Cambia entre entrada de capítulo/pista y

Borra la última entrada cuando usted

[

0]–[9]=[ENT] Introduce el número

Ej. Para introducir “105”: pulse [

(sólo para VCD con PBC)

entrada de título/grupo/carpeta

introduce un número incorrecto

1], [0], [5], luego [ENT]

ESPAÑOL

OPERACIONES

Selección de los modos de reproducción

Podrá utilizar solamente uno de los siguientes modos de reproducción—Introducciones musicales/repetida/ aleatoria. Ej.: Para seleccionar repetición de pista

• También puede usar AV MENU en el panel del monitor.

ESPAÑOL

Tipo de disco

Intro Repeat Random

—

— Track: Repetir la pista actual —

—

Track: Se reproducen los

primeros15 segundos de cada pista (para VCD: PBC no se utiliza)

Track: Se reproducen los

primeros15 segundos de cada pista

Folder: Se reproducen los

primeros 15 segundos de la primera pista de cada carpeta

—

Al seleccionar uno de los modos de reproducción, el indicador correspondiente se enciende en la pantalla de información de fuente.

Para cancelar, seleccione <Off>.

Chapter: Repite el capítulo actual Title: Repite el título actual

Chapter: Repite el capítulo actual Program: Repite el programa

actual (no disponible para la reproducción de la lista de reproducción).

Track: Repetir la pista actual*

(para VCD: PBC no se utiliza)

Track: Repetir la pista actual* Folder: Se repiten todas las

pistas de la carpeta actual

Track: Repetir la pista actual Folder: Repita la carpeta actual

—

Disc (All): Se reproducen

aleatoriamente todas las pistas (para VCD: PBC no se utiliza)

Folder: Reproduce

aleatoriamente todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas

Disc (All): Reproducir

aleatoriamente todas las pistas

—

*1 También puede usar [SHORT CUT] para activar y desactivar la repetición de pista

Folder: Repita la carpeta actual

—

Selección de pistas en la lista

Si un disco incluye carpetas, podrá visualizar las listas de carpetas/pistas (archivo) y luego iniciar la reproducción.

• También puede usar AV MENU en el panel del monitor.

Seleccione una carpeta (1), luego una pista

(2).

Prohibición de la expulsión del disco

Podrá bloquear un disco en la ranura de carga.

ENTER

NO EJECT?

EMERGENCY EJECT?

Back

simultáneamente

Para cancelar la prohibición, repita el mismo procedimiento que para seleccionar <EJECT OK?>.

Exit

Usando los iconos Short Cut (atajo)

Puede acceder fácilmente a algunas funciones utilizadas frecuentemente utilizando [SHORT CUT] en el panel táctil.

ESPAÑOL

Se empieza a reproducir la pista seleccionada. (* Pulse para desplazarse a las páginas anterior/ siguiente de la lista)

1 Número actual de lista de carpetas/número

total de la lista de carpetas

2 Número actual de la lista de pistas/número

total de la lista de pistas de la carpeta actual

• También se puede acceder a la lista de pistas pulsando DISP en el panel del monitor.

Se empieza a reproducir la pista seleccionada.

• También puede usar AV MENU en el panel del monitor.

• Para software de vídeo:

Relación de aspecto (

☞ página 55)

Surround (

☞ página 24)

Modo de sonido (

☞ página 51)

• Para software de audio:

Para activar o desactivar la repetición de pista (Reproducción repetida:

☞ página 18)

OPERACIONES

Operaciones utilizando el control remoto—RM-RK251

: Pare la reproducción.

ESPAÑOL

: Inicia la reproducción/pausa (si lo pulsa durante la

(Cámara lenta*3 durante la pausa. El sonido no se escucha.)

Sostener: Búsqueda hacia atrás/adelante*4.

reproducción).

: Búsqueda hacia atrás/adelante*2. (El sonido no se escucha.)

: Pulse: Seleccionar un capítulo (durante la reproducción o la

pausa).

: Seleccionar un título (durante la reproducción o la pausa).

*1 Borra la entrada errónea del número. *2 Velocidad de búsqueda: x2 ] x5

] x10 ] x20 ] x60

*3 Velocidad a cámara lenta: 1/32 ]

1/16 ] 1/8 ] 1/4 ] 1/2

*4 Velocidad de búsqueda: x2 ] x10 *5 Velocidad de búsqueda: ¡1 ]

¡2 ] ¡3

*6 Velocidad de búsqueda: ¡1 ]

¡2

= = :

Seleccionar un capítulo. Seleccionar un título (cuando no se está

reproduciendo).

(dos veces) = = :

Usando las funciones de control por menú

1 2 Seleccione el ítem

que desea reproducir.

Seleccionar un título (durante la

reproducción o la pausa).

: Selecciona una relación de aspecto. : Seleccionar el idioma de audio. : Seleccionar el idioma de los subtítulos. : Seleccionar el ángulo de visión.

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa durante la reproducción).

: Búsqueda hacia atrás/adelante*2.

: Pulse: Seleccionar la pista.

Sostener: Búsqueda hacia atrás/adelante*

: Selecciona un grupo.

= = :

Selecciona la pista.

(dos veces) = = :

Selecciona un grupo.

: Selecciona una relación de aspecto.

Usando las funciones de control por menú

1 2 Seleccione el ítem

que desea reproducir.

: Selecciona flujo de audio.

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa durante la reproducción).

: Búsqueda hacia atrás/adelante*5. (El sonido no se escucha.)

: Pulse: Seleccionar la pista.

Sostener: Búsqueda hacia atrás/adelante*

. (El sonido no se escucha.)

: Selecciona la carpeta.

= = :

Seleccionar la pista (dentro de la misma carpeta).

(dos veces) = = :

Mientras se está reproduciendo...

Retrocede/avanza las escenas 5 minutos.

Selecciona la carpeta.

Para DivX6: Usando las funciones de control por menú

1 2 Seleccione el ítem que desea reproducir.

2ª pulsación

Posición de reproducción actual

1ª pulsación

: Selecciona una relación

de aspecto.

: Seleccionar el idioma de

audio. (Soló DivX)

: Seleccionar el idioma de

los subtítulos. (Soló DivX)

3ª pulsación

2ª pulsación

ESPAÑOL

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa

durante la reproducción).

: Búsqueda hacia atrás/adelante*2. (El

sonido no se escucha.)

(Cámara lenta*3 durante la pausa. El

sonido no se escucha.)

• La cámara lenta hacia atrás no funciona.

: Pulse: Seleccionar un capítulo (durante la

reproducción o la pausa).

Sostener: Búsqueda hacia atrás/

adelante*4.

: Selecciona el programa.

Selecciona una lista de reproducción

(durante la reproducción o la pausa). : Selecciona una relación de aspecto. : Selecciona el canal de audio (ST: estéreo,

L: izquierdo, R: derecho). : Activa/desactiva los subtítulos.

= = : Seleccionar un capítulo. Selecciona un programa (cuando no se está

reproduciendo).

(dos veces) = = : Selecciona un programa/lista de reproducción

(durante la reproducción o la pausa).

Uso de las pantallas Programa original/Lista de reproducción

(☞ página 23)

1 : Para el programa original : Para la lista de reproducción 2 Selecciona una opción deseada para iniciar la

reproducción.

3 Para borrar la pantalla.

OPERACIONES

: Pare la reproducción.

: Inicia la reproducción. (Slide show: se

muestra cada archivo durante unos segundos). Muestra el archivo actual hasta que lo cambie, si lo pulsa durante la presentación de diapositivas.

: Selecciona la pista.

: Selecciona la carpeta.

ESPAÑOL

: Selecciona una relación de aspecto.

= = :

Seleccionar la pista (dentro de la misma

Selecciona la carpeta.

carpeta).

(dos veces) = = :

: Pare la reproducción.

: Inicia la reproducción/pausa

(si lo pulsa durante la reproducción).

: Búsqueda hacia atrás/adelante*2.

Pulse: Seleccionar la pista.

Sostener: Búsqueda hacia atrás/adelante*4.

: Selecciona la carpeta.

= = :

Seleccionar la pista (dentro de la misma

carpeta).

(dos veces) = = :

Selecciona la carpeta.

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa

durante la reproducción).

: Búsqueda hacia atrás/adelante*2.

(Cámara lenta hacia adelante*3 durante la

pausa. El sonido no se escucha.)

• La cámara lenta hacia atrás no funciona. : Pulse: Seleccionar la pista.

Sostener: Búsqueda hacia atrás/

adelante*4 (El sonido no se escucha).

: Selecciona una relación de aspecto. : Selecciona el canal de audio (ST: estéreo,

L: izquierdo, R: derecho).

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa durante

la reproducción).

: Búsqueda hacia atrás/adelante*2.

:Pulse: Seleccionar la pista.

Sostener: Búsqueda hacia atrás/adelante*4.

= = :

Selecciona la pista.

= = :

Selecciona la pista.

Durante la reproducción PBC...

= = :

Seleccione una opción en el menú. Para volver al menú anterior, pulse

Para cancelar la reproducción PBC

2 Inicie la pista deseada.

= =

• Para reanudar PBC, pulse / .

*2 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20

] x60

*3 Velocidad a cámara lenta: 1/32 ] 1/16 ] 1/8 ]

1/4 ] 1/2

*4 Velocidad de búsqueda: x2 ] x10

JVC KW-AVX800 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ENGLISH

Contents

Playable disc type

Basic operations — Monitor panel/touch panel

Basic operations — Remote controller (RM-RK251)

Before operating the unit

Common operations

Listening to the radio

Disc operations

Dual Zone operations

SD operations

USB operations

Bluetooth® operations — Cellular phone/audio player

Listening to the CD changer

Listening to the satellite radio

Listening to the iPod/D. player

Using other external components

Sound equalization

Assigning titles to the sources

Menu operations

Maintenance

More about this unit

Troubleshooting

Specifications
