JVC KS-F353R, KS-F350R, KS-FX453R, KS-FX450R User Manual

CASSETTE RECEIVER

CASSETTEN-RECEIVER RADIOCASSETTE RADIO/CASSETTESPELER

ENGLISH

DEUTSCH

KS-FX453R/KS-FX450R KS-F353R/KS-F350R

KS-FX453R

/I ATT

40Wx4

SEL

DISP

MO/FIND

789101112

SSM

CD CHANGER CONTROL

KS-FX453R

PROG

CD-

SOUND

PTY

RDS

KS-F353R

/I ATT

40Wx4

SEL

DETACHABLE CONTROL PANEL

DISP

SSM

KS-F353R

PROG

SOUND

RDS

PTY

For installation and connections, refer to the separate manual. Angaben zu Einbau und Verkabelung entnehmen Sie bitte der gesonderten Anleitung. Pour l’installation et les raccordements, se référer au manuel séparé. Zie de afzonderlijke handleiding voor details aangaande het installeren en verbinden van het toestel.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

KS-FX450R

/I ATT

40Wx4

DISP

SEL

MO/FIND

KS-F350R

/I ATT

40Wx4

DISP

SEL

CD CHANGER CONTROL

789101112

SSM

DETACHABLE CONTROL PANEL

SSM

KS-FX450R

KS-F350R

PROG

CD-

SOUND

PTY

RDS

PROG

SOUND

RDS

PTY

FRANÇAIS

NEDERLANDS

FSUN3101-311

[E]

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

BASIC OPERATIONS....................................................3

ENGLISH

RADIO BASIC OPERATIONS .........................................4

Listening to the radio .....................................................................4

Storing stations in memory............................................................ 5

Tuning into a preset station ...........................................................7

RDS OPERATIONS.......................................................8

What you can do with RDS EON .................................................. 8

Other convenient RDS functions and adjustments.................... 14

TAPE OPERATIONS .................................................... 16

Listening to a tape ........................................................................16

SOUND ADJUSTMENTS .............................................17

Selecting preset sound modes ...................................................... 17

Adjusting the sound......................................................................18

Storing your own sound adjustments ......................................... 19

OTHER MAIN FUNCTIONS .........................................20

Setting the clock ............................................................................ 20

Changing the general settings......................................................22

Detaching the control panel ......................................................... 25

CD CHANGER OPERATIONS

(ONLY FOR KS-FX453R/KS-FX450R) ....................................

Playing CDs ................................................................................... 26

Selecting CD playback modes......................................................28

MAINTENANCE.........................................................29

To extend the lifetime of the unit.................................................29

TROUBLESHOOTING .................................................30

SPECIFICATIONS .......................................................31

Note:

For secur ity reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

* For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

* Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

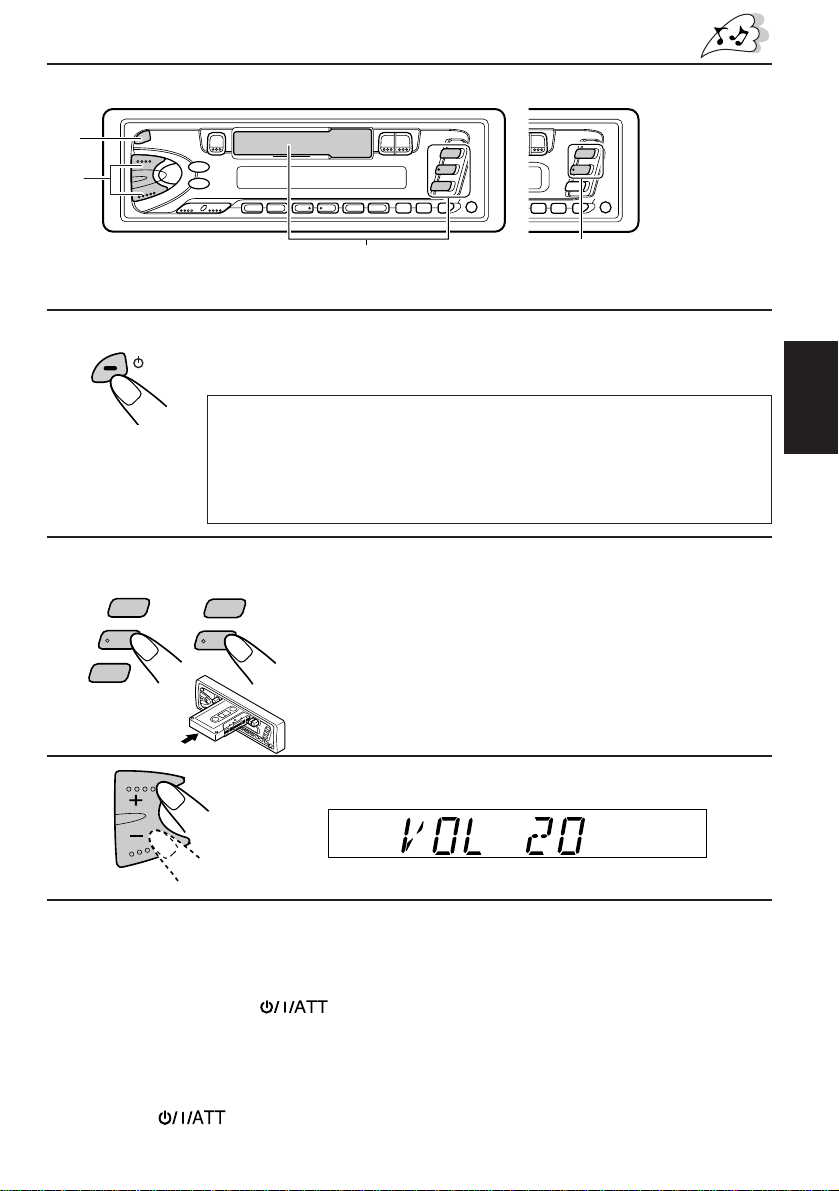

BASIC OPERATIONS

KS-FX453R/KS-FX450R KS-F353R/KS-F350R

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 20.

/ I /ATT

KS-FX453R KS-FX450R

– CH

Note on One-T ouch Operation:

• When you select tuner as a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

• If the cassette is already in the cassette compartment, tape play starts automatically.

KS-F353R KS-F350R

Turn on the power.

Play the source.

To operate the tuner, see pages 4 – 15. To operate the tape deck, see page 16.

ONLY FOR KS-FX453R/KS-FX450R: To operate the CD changer, see pages 26 – 28.

Adjust the volume.

ENGLISH

Volume level appears.

Adjust the sound as you want (see pages 17 – 19).

To drop the volume in a moment

Press briefly while listening to any source. “A TT” starts flashing on the display , and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

To turn off the power

Press for more than 1 second.

RADIO BASIC OPERATIONS

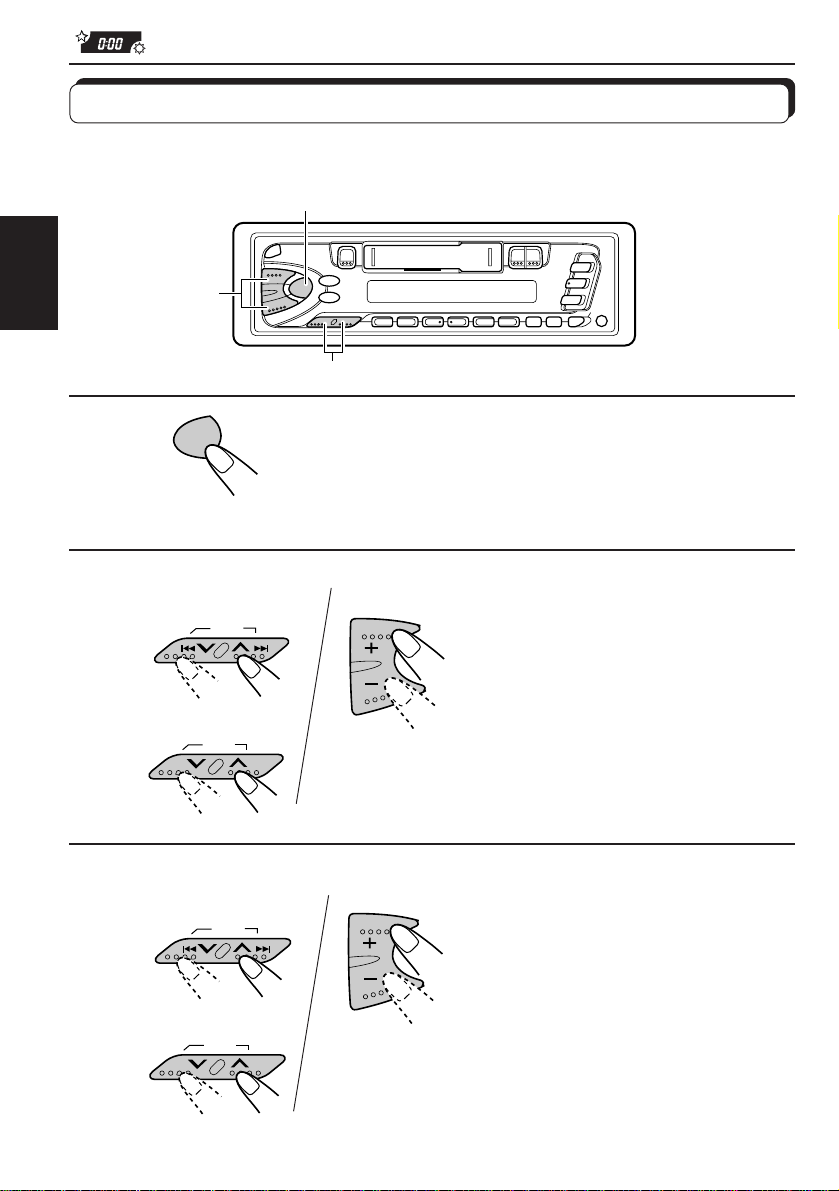

Listening to the radio

ENGLISH

/ I /ATT

Note on One-T ouch Operation:

When you select a band in step 2 below , the power automatically comes on. You do not have to press this button to turn on the power.

Note:

When a cassette is in the cassette compartment, you cannot select the tuner . Be sur e to eject the cassette from the cassette compartment to listen to the radio.

FM1 FM2

KS-FX453R KS-FX450R

SSM

KS-F353R KS-F350R

Turn on the power.

Select the band (FM1, FM2, FM3 or AM).

You can select any one of FM1, FM2, and FM3 to listen to an FM station.

FM3

Start searching a station.

When a station is received, searching stops.

SSM

To search stations of higher frequencies.

To search stations of lower frequencies.

To stop searching before a station is received, press the same button you have pressed for searching.

To tune in a particular frequency manually:

1 Select the band (FM or AM).

Press FM or AM.

2 Press and hold

Now you can manually change the frequency while “M” is flashing.

3 Press

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM — MW/LW) until you release the button.

or repeatedly until the frequency you want is reached.

or until “M” starts flashing on the display.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

ENGLISH

Select the FM band number (FM1, FM2

or FM3) you want to store FM stations into.

FM1 FM2 FM3

KS-FX453R/KS-FX450R

SSM

KS-F353R/KS-F350R

SSM

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No. 1 (lowest frequency) to No. 6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Press and hold both buttons for more than 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into preset number 1 of the FM1 band

ENGLISH

213

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

SSM

Select the FM1 band.

Tune into a station of 88.3 MHz.

See page 4 to tune into a station.

Press and hold the button for more than 2 seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other

preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are er ased when the po wer supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 5 and 6.

DISP

ENGLISH

MO/RND (for KS-FX453R/KS-FX450R)

MO (for KS-F353R/KS-F350R)

FM1 FM2

FM3

Select the band (FM1, FM2, FM3 or AM) you want.

Select the number (1 – 6) for the preset station you want.

To change the display information while receiving an FM RDS station

Press DISP. Each time you press the button, the display changes as follows:

PS NAME (Station name)

CLOCK (Clock time)

When an FM stereo broadcast is hard to receive:

Press MO/RND (mono/random: for KS-FX453R/KS-FX450R) or MO (mono: for KS-F353R/ KS-F350R) while listening to an FM stereo broadcast. The MO (mono) indicator lights up on the display. The sound you hear becomes monaural but reception will be improved.

KS-FX453R KS-FX450R

MO/RND

KS-F353R KS-F350R

Lights up when receiving an FM broadcast in stereo.

FREQ (Station frequency)

PTY (Programme type)

To restore the stereo effect, press the button again.

RDS OPERATIONS

What you can do with RDS EON

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the station send their station names, as well as

ENGLISH

information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “EON (Enhanced Other Networks).” The EON indicator lights up while receiving an FM station with the EON data. By using the EON data sent from a station, you can tune into a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as tape.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• TP (Traffic Programme) search

• And some other functions

Tracing the same programme automatically (NetworkTracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tune in another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.) Two types of the RDS data are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

RDS

To use Network-Tracking Reception, press and hold TP/RDS (Traffic Programme/Radio Data System: for KS-FX453R/KSFX450R) or RDS (for KS-F353R/KS-F350R) for more than 1 second. Each time you press and hold the button, NetworkTracking Reception modes change as follows:

Mode 1 Mode 2 Mode 3

Mode 1

The AF indicator lights up but the REG indicator does not. Network-Tracking is activated with Regionalization set to “off.” Switches to another station within the same network when the receiving signals from the current station become weak.

Note:

In this mode, the programme may differ from the one currently received.

Mode 2

Both the AF indicator and the REG indicator light up. Network-Tracking is activated with Regionalization set to “on.” Switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak.

Mode 3

Neither the AF indicator nor the REG indicator lights up. Network-Tracking is deactivated.

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency A

ENGLISH

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency D

Using Standby Reception

Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) and Traffic Announcement (TA) from the current source — another FM station and Tape (or CD: for KS-FX453R/KS-FX450R only).

ENGLISH

Note:

Standby Reception will not work if you are listening to an AM station.

TA Standby Reception

KS-FX453R KS-FX450R

RDS

KS-F353R KS-F350R

• When you press TP/RDS (for KS-FX453R/KS-FX450R) or TP (for KSF353R/KS-F350R) while listening to an FM station, the TP indicator is lit during reception of a TP (Traffic Programme) station and the TA standby mode is engaged.

Note:

When the station being received is not a TP station, the TP indicator flashes. Press

or to engage the T A standby mode . “SEARCH” appear s on the display, and

TP station search starts. When a TP station is tuned in, the TP indicator is lit.

• If you are listening to a tape (or CD: for KS-FX453R/KS-FX450R only), and wish to listen to a TP station, press TP/RDS (for KS-FX453R/KS-FX450R) or TP (for KS-F353R/KS-F350R) to enter the TA standby mode. (The TP indicator lights up.)

If a traffic programme starts broadcasting while the T A standby mode is active, “TRAFFIC” appears and the playback source changes to the FM band. The volume increases to the preset TA volume level and the traffic programme can be heard (see page 14).

To deactivate the TA standby mode, press TP/RDS (for KS-FX453R/KSFX450R) or TP (for KS-F353R/KS-F350R) again.

PTY Standby Reception

PTY

• When you press PTY while listening to an FM station, the PTY indicator is lit during reception of a PTY station and the PTY standby mode is engaged. The selected PTY name stored on page 12 flashes for 5 seconds.

Note:

When the station being received is not a PTY station, the PTY indicator flashes. Press

or to engage the PTY standby mode. “SEARCH” appears on the display, and PTY station search starts. When a PTY station is tuned in, the PTY indicator is lit.

• If you are listening to a tape (or CD: for KS-FX453R/KS-FX450R only), and

wish to listen to a selected PTY broadcast, press PTY to enter the PTY standby mode. (The PTY indicator lights up.)

If the selected PTY programme starts broadcasting while the PTY standby mode is active, the selected PTY name appears and the playback source changes to the FM band. The selected PTY programme can then be heard.

To deactivate the PTY standby mode, press PTY again.

Selecting Your Favorite Programme for PTY Standby Reception

You can select your favorite programme for PTY Standby Reception to store in memory. When shipped from the factory, “NEWS” is stored as the programme type for PTY Standby Reception.

1, 4

ENGLISH

SEL

KS-FX453R/KS-FX450R

SSM

Press and hold SEL (select) for more than 2 seconds to enter the general setting mode (see page 22).

KS-F353R/KS-F350R

SSM

Select “PTY STBY (standby)” if not shown on the display.

Select one of twenty-nine PTY codes. (See page 15.)

Selected code name appears on the display and is stored into memory.

Searching Your Favorite Programme

You can search one of your 6 favorite programme types stored in memory. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To change the factory preset settings, see page 12. To search your favorite programme, see page 13.

SEL

Finish setting.

POP M

ROCK M

EASY M

CLASSICS

AFFAIRS

VARIED

To store your favorite programme types

1, 5

ENGLISH

SEL

KS-FX453R/KS-FX450R

SSM

Press and hold SEL (select) for more than 2 seconds to enter the general setting mode (see page 22).

KS-F353R/KS-F350R

SSM

Select “PTY SRCH (search)” if not shown on the display.

Select one of twenty-nine PTY codes. (See page 15.)

Selected code name appears on the display.

• If the code already stored in memory is selected, it will flash on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

The selected code name will flash on the display.

SEL

Finish setting.

To search your favorite programme type

ENGLISH

PTY

Press and hold PTY (programme type) for more than 1 second while listening to an FM station.

The last selected PTY code appears.

Select one of PTY codes stored in preset number buttons (1 to 6).

Ex. When “ROCK M” is stored in preset number button 2.

PTY search for your favorite programme starts after 5 seconds.

• If there is a station broadcasting a programme of the same PTY code you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Changing the display mode while listening to an FM

ENGLISH

station

You can change the initial indication on the display to station name (PS NAME), station frequency (FREQ), or clock time (CLOCK) while listening to an FM RDS station.

• See also “Changing the general settings” on page 22.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press or to select “DISPMODE (display mode).”

3. Press + or – to set to the desired indication — PS NAME (station name), FREQ (station frequency), or CLOCK (clock time).

Note:

By pressing DISP, you can also change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

PS NAME (Station name)

CLOCK (Clock time)

* Then, the display goes back to the original indication in several seconds.

FREQ (Station frequency)

PTY (Programme type)

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings” on page 22.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press + or – to the desired volume.

or to select “TA VOL (volume).”

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjust automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings” on page 22.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press or to select “AUTO ADJ (adjust).”

3. Press – to select “ADJ OFF.” Now automatic clock adjustment is canceled.

T o reactivate clock adjustment, repeat the same procedure and select “ADJ ON” in step 3 by pressing the + button.

Note:

It takes about 2 minutes to adjust the time using the CT data. So, you must tune to the station for more than 2 minutes continuously; otherwise, the clock time will not be adjusted.

PTY codes

NEWS: News AFFAIRS: T opical programmes

expanding on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

topics SPORT: Sport events EDUCA TE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

regional culture SCIENCE: Programmes on natural

science and technology VARIED: Other programmes like

comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce,

trading, the Stock Market,

etc. CHILDREN: Entertainment programmes

for children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with

any aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people

can express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking,

fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in

that country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in

an investigative style

ENGLISH

TAPE OPERATIONS

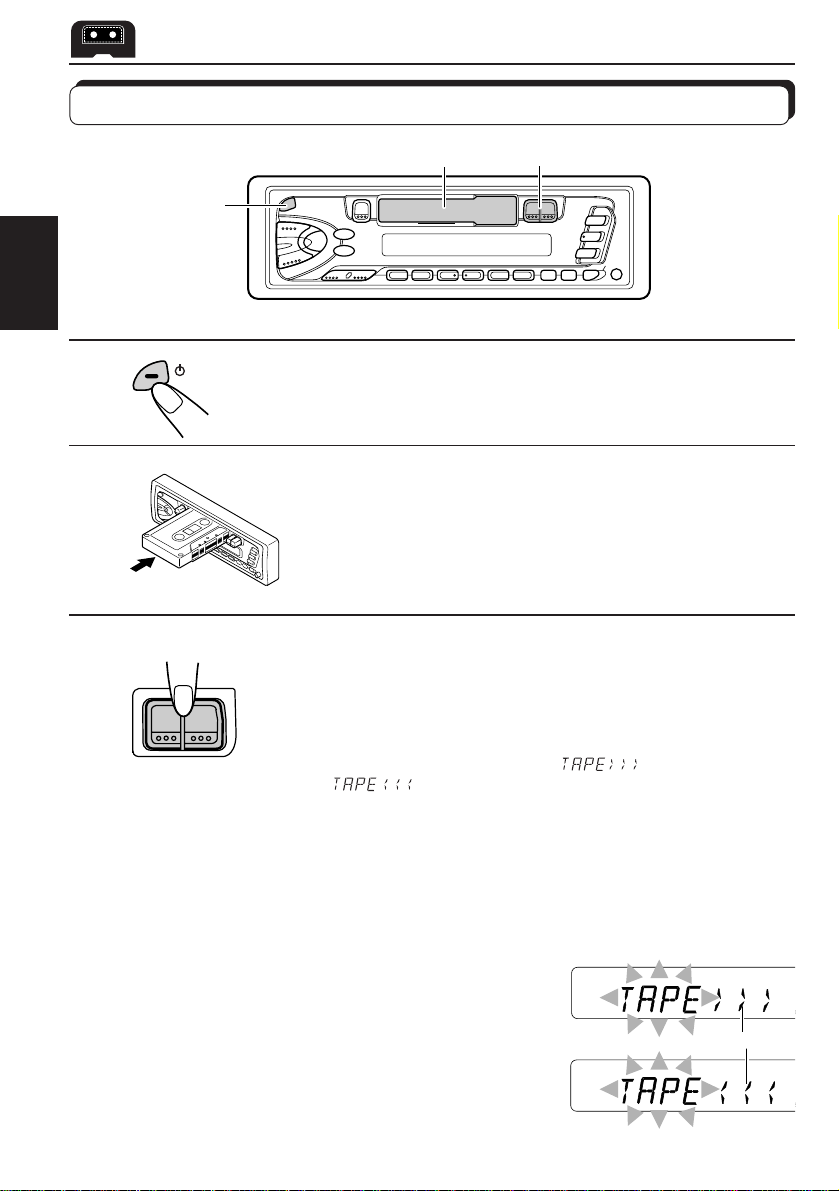

Listening to a tape

ENGLISH

/ I /ATT

Turn on the power.

Insert a cassette.

When one side of the tape reaches its end during play, the other side of the tape automatically starts playing. (Auto Reverse)

Select the tape direction.

• Press both buttons at the same time.

Each time you press both buttons, the tape direction changes alternatively – forward (

) and reverse ( ).

To stop play and eject the cassette

Press 0. Tape play stops and the cassette ejects from the cassette compartment. Y ou can hear the last received station (or CD playback from the CD changer: for KS-FX453R/ KS-FX450R).

• You can also eject the cassette with the unit turned off.

To fast-wind a tape

Press either ¡ or 1. The tape will be wound in the direction of the arrows (¡ or 1). To restart playback, press ¡ or 1 lightly.

Tape direction

SOUND ADJUSTMENTS

Selecting preset sound modes

You can select a preset sound adjustment suitable to the music genre.

SOUND

Each time you press SOUND, the sound mode changes as follows.

SOUND

Indication For: Preset values

Bass Treble Loudness SCM OFF (Flat sound) 00 00 On BEAT Rock or disco music +2 00 On POP Light music +4 +1 Off SOFT Quiet background music +1 –3 Off

ENGLISH

Notes:

• You can adjust the preset sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 19.

• T o adjust only the bass and tr eble reinfor cement levels to your pr eference , see “Adjusting the sound” on page 18.

• When one of the sound modes is selected, it is shown on the display as follows:

For example, when “POP” is selected.

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

SEL

Indication To do: Range

BAS Adjust the bass –6 (min.) — +6 (max.) (Bass)

TRE Adjust the treble –6 (min.) — +6 (max.) (Treble)

FAD Adjust the front and rear speaker R6 (rear only) — F6 (front only) (Fader)* balance

BAL Adjust the left and right speaker L6 (left only) — R6 (right only) (Balance) balance

LOUD

(Loudness)

VOL Adjust the volume 00 (min.) — 50 (max.) (Volume)

Boost low and high frequencies to produce a well-balanced sound at low volume level.

Select the item you want to adjust.

ON — OFF

Note:

* If you are using a two-speaker system, set the fader level to “00.”

Adjust the level.

Press the + button to turn on the loudness function, and the – button to turn it off.

Note:

Normally the + and – buttons work as the volume contr ol buttons. So you do not have to select “VOL” to adjust the volume level.

Storing your own sound adjustments

You can adjust the sound modes (BEAT, POP, SOFT: see page 17) to your preference and store your own adjustments in memory.

ENGLISH

SOUND

5 seconds

SEL

5 seconds

SOUND

Within

1, 4

Call up the sound mode you want to adjust.

See page 17 for details.

Select “BAS”, “TRE” or “LOUD.”

Adjust the bass or treble level or turn the loudness function ON/OFF.

See page 18 for details.

Press and hold SOUND until the sound mode you have selected in step 1 flashes on the display.

Your setting is stored in memory.

Repeat the same procedure to store other settings.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on page 17.

OTHER MAIN FUNCTIONS

Setting the clock

You can also set the clock system either to 24 hours or 12 hours.

ENGLISH

2, 3, 4

1, 5

2, 3, 4

SEL

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

Press and hold SEL (select) for more than 2 seconds to enter the general setting mode.

SSM

Set the hour. 1 Select “CLOCK H (Hour)” if

not shown on the display.

SSM

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M (Minute).”

SSM

2 Adjust the minute.

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

SSM

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

ENGLISH

SEL

To check the current clock time (changing the display mode)

Press DISP repeatedly . Each time you press the button, the display mode changes as follows.

During tuner operation: During tape operation:

• For FM RDS stations

• For AM and other FM stations

See page 14.

Frequency

Clock

Start the clock.

Play mode

Clock

During CD operation:

ONLY FOR KS-FX453R/KS-FX450R

Clock

Elapsed playing time

Disc number

Changing the general settings

You can change the items listed on the next page to your preference.

ENGLISH

Basic Procedure

1, 4

SEL

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

SEL

SSM

Press and hold SEL (select) for more than 2 seconds to enter the general setting mode.

Select the item you want to adjust. (See page 23.)

Select or adjust the item selected above.

Finish setting.

SEL

CLOCK H Hour adjustment CLOCK M Minute adjustment 24H/12H 24/12-hour time

AUTO ADJ Automatic setting of

DISPMODE Display mode

CH DISP* Changer display PTY STBY PTY standby PTY SRCH PTY search

TA VOL Traffic announcement

TEL Audio mute for

KS-FX453R/KS-FX450R

KS-F353R/KS-F350R

Select.

display

the clock

volume

cellular phone system

SSM

* ONLY FOR KS-FX453R/KS-FX450R.

Finish the setting

Set.

Back

12H 24H 24H

PS NAME

TIME

29 programme types (See page 15.)

VOL (00-50)

OFF

Advance AdvanceBack

FREQ

CLOCK

DISC

(See page 11.)

MUTING 1

MUTING 2

Factorypreset settings

SEL

0:00

ADJ ON

PS NAME

DISC

NEWS 11

VOL (20) 14

OFF 24

ENGLISH

See page

15ADJ OFF ADJ ON

Selecting the initial CD information display

(ONLY FOR KS-FX453R/KS-FX450R) You can select what type of the CD playback information to be initially shown on the display when you start playing a CD. When shipped from the factory, the disc number and track

ENGLISH

number information is selected to be shown.

• DISC: Disc number and track number appear on the display.

• TIME: Elapsed playing time appears on the display.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press + or – to select the desired mode. The initial CD information display changes as follows:

¢ or 4 to select “CH DISP (changer display).”

TIME

To see the other information while playing a CD, press DISP. Each time you press the button, the information changes alternately.

DISC

Selecting the telephone muting

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2,” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute the sounds.

• MUTING 2: Select this if this setting can mute the sounds.

• OFF: Cancels the telephone muting.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press + or – to select the desired mode. The telephone muting mode changes as follows:

or to select “TEL (telephone)”.

MUTING 1 MUTING 2

OFF

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

ENGLISH

How to detach the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Lift and pull the control panel out of the unit.

How to attach the control panel

Insert the left side of the control panel into the groove on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

Put the detached control panel into the provided case.

Note on cleaning the connectors:

If you frequently detach the contr ol panel, the connectors will deteriorate. T o minimize this possibility , periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

CD CHANGER OPERATIONS

This section is ONL Y FOR KS-FX453R/KS-FX450R, when used with a JVC CD automatic changer (separately purchased).

We recommend that you use one of the CH-X series with your unit. If you have another CD automatic changer, consult your JVC IN-CAR ENTERTAINMENT dealer for connections.

ENGLISH

• F or e xample, if your CD automatic chang er is one of the KD-MK series, you need a cord (KS-U15K)

for connecting it to this unit.

Before operating your CD automatic changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO CD” or “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If “RESET 1 - RESET 8” appears on the display , something is wrong with the connection between this unit and the CD changer. If this happens, check the connection, connect the connecting cord(s) firmly if necessary , then press the reset button of the CD changer.

Playing CDs

CD-

Note on One-Touch Operation:

When you press CD-CH, the power automatically comes on. You do not have to press

to turn on the power.

Number buttons

Select the CD automatic changer.

Playback starts from the first track of the first disc. All tracks of all discs are played back.

Disc number

CD-CH

Track number

To fast-forward or reverse the track

SSM

Press and hold track.

Press and hold 4

¢, while playing a CD, to fast-forward the

, while playing a CD, to reverse the

track.

To go to the next tracks or the previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the

SSM

beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4

briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively , the beginning of the previous tracks is located and played back.

To go to a particular disc directly

7 8 9 10 11 12

ENGLISH

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Ex. When disc number 3 is selected

Disc number

Track number

Selecting CD playback modes

ENGLISH

MO/RND

To play back tracks at random (Random Play)

Each time you press MO/RND (mono/random) while playing a

MO/RND

Mode RND Indicator Plays at random

RND1 Lights All tracks of the current disc, then the tracks of

RND2 Flashes All tracks of all discs inserted in the magazine.

CD, CD random play mode changes as follows:

RND1 RND2 Cancelled

(Random1) (Random2)

the next disc, and so on.

MAINTENANCE

To extend the lifetime of the unit

This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below.

To clean the heads

• Clean the heads after every 10 hours of use using a wet-type head cleaning tape (available at an audio store). When the head becomes dirty , you may realize the following symptoms:

– Sound quality is reduced. – Sound level decreases. – Sound drops out.

• Do not play dirty or dusty tapes.

• Do not touch the highly-polished head with any metallic or magnetic tools.

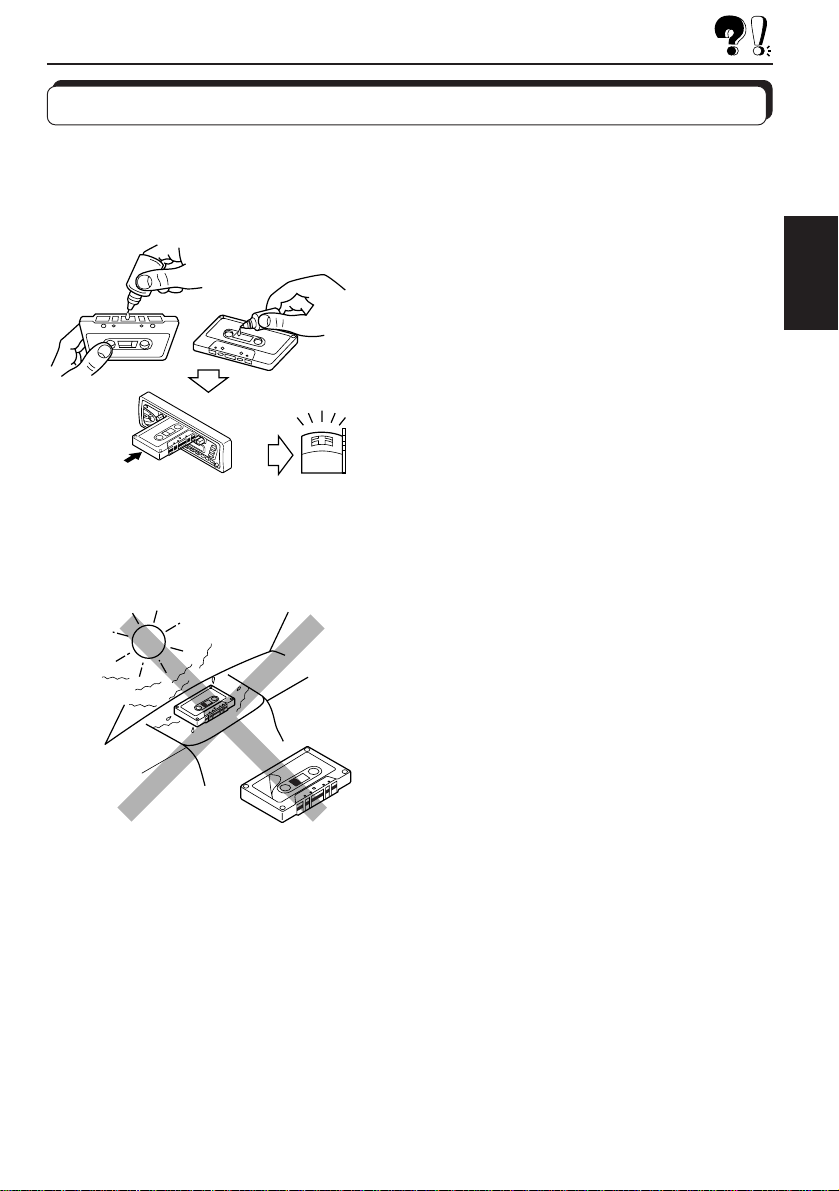

To keep the tape clean

• Always store the tapes to their storage cases after use.

• Do not store tapes in the following places: – Subject to direct sunlight – With high humidity – At extremely hot temperatures

ENGLISH

CAUTIONS:

• Do not play the tapes with peeling labels; otherwise, they can damage the unit.

• Tighten tapes to remove slack since loose tape may become entangled with the mechanism.

• Do not leave a cassette in the cassette compartment after use, as the tape may become slack.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms

ENGLISH

• A cassette tape cannot be inserted.

• Cassette tapes become hot.

• Tape sound is at very low level and sound quality is degraded.

• Sound is sometimes interrupted.

• Sound cannot be heard from the speakers.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

• Static noise while listening to the radio.

• “NO CD” or “NO DISC” appears on the display.

Causes

You have tried to insert a cassette in the wrong way.

This is not a malfunction. The tape head is dirty.

Connections are not good.

The volume control is turned to the minimum level.

Connections are incorrect.

Signals are too weak.

The antenna is not connected firmly.

No CD is in the magazine.

CDs are inserted incorrectly.

Remedies

nsert the cassette with the

exposed tape facing right.

Clean it with a head cleaning tape.

Check the cords and connections.

Adjust it to the optimum level.

Check the cords and connections.

Store stations manually.

Connect the antenna firmly.

Insert CDs into the magazine.

Insert them correctly.

• “RESET 8” appears on the display.

• “RESET 1 – RESET 7” appears on the display.

This unit is not connected to a CD changer correctly.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

+ 92 hidden pages
