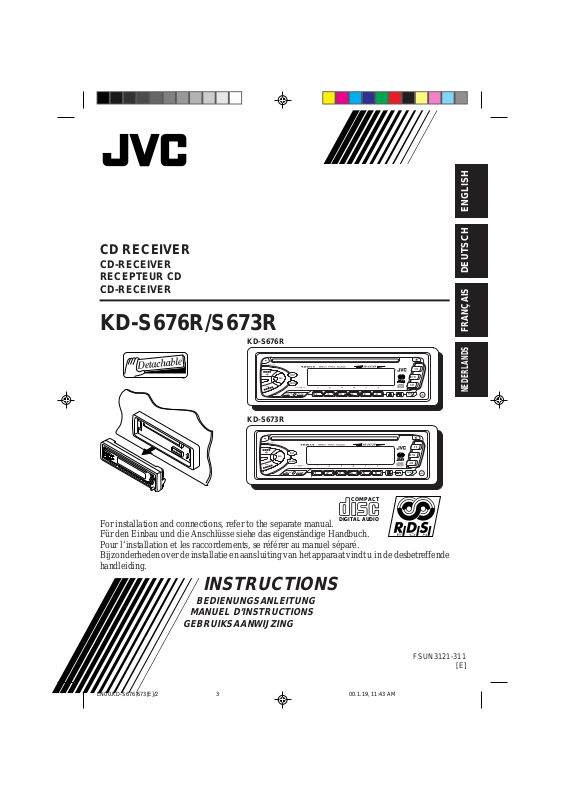

JVC KD-S673R User Manual [en, de, fr]

CD RECEIVER

COMPACT

DIGITAL AUDIO

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

ENGLISH

DEUTSCH

KD-S676R/S673R

KD-S676R

KD-S673R

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

FRANÇAIS

NEDERLANDS

FSUN3121-311

[E]

Position And Reproduction Of Labels

Bottom panel of the main unit

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funkti on. Undgåudsæ ttelse for stråling. (d)

ENGLISH

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e )

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren urkopplad. Betrakta strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet

är

alttiina näkymättömälle

lasersäteilylle. Älä katso säteeseen. (f)

Name/Rating plate

CLASS 1 LASER PRODUCT

Caution: This product contains a laser component of higher laser class than Class 1.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. A void direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

IMPORTANT FOR LASER

Press and hold both the SEL (Select) and (Standby/On/ATT) buttons at the same time for several seconds. This will reset the built-in microcomputer. NOTES: Your preset adjustments — such as preset

channels or sound adjustments — will also be erased. If a CD is in the unit, it will eject when you reset the unit. Pay attention not to drop the CD.

(Standby/On/ATT)

SEL (Select)

BEFORE USE

★

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

★

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

BASIC OPERATIONS.................................................... 4

RADIO OPERATIONS................................................... 5

Listening to the radio .....................................................................5

Storing stations in memory............................................................ 6

FM station automatic preset: SSM .............................................. 6

Manual preset .............................................................................. 7

Tuning into a preset station ........................................................... 8

RDS OPERATIONS....................................................... 9

What you can do with RDS EON ..................................................9

Tracing the same programme automatically

(Network-Tracking Reception) ................................................ 9

Using Standby Reception .......................................................... 11

Selecting Your Favorite Programme for

PTY Standby Reception ............................................................ 12

Searching Your Favorite Programme ........................................ 12

Other convenient RDS functions................................................. 15

Automatic selection of the station

when using the number buttons ........................................... 15

Changing the display mode while listening to an FM station ..... 15

Setting the TA volume level ....................................................... 15

Automatic clock adjustment ..................................................... 16

CD OPERATIONS ...................................................... 17

Playing a CD ................................................................................. 17

Locating a track or a particular portion on a CD .....................18

Selecting CD playback modes .....................................................19

Prohibiting CD ejection ............................................................... 19

ENGLISH

SOUND ADJUSTMENTS ............................................. 20

Adjusting the sound......................................................................20

Turning on/off the loudness function ............................................... 21

Using the Sound Control Memory .............................................. 22

Selecting and storing the sound modes .................................... 22

Recalling the sound modes ....................................................... 23

Canceling Advanced SCM ........................................................... 24

Storing your own sound adjustments .........................................25

OTHER MAIN FUNCTIONS ......................................... 26

Setting the clock ............................................................................26

Selecting the level display ............................................................ 28

Changing the general settings .....................................................29

Detaching the control panel .........................................................32

MAINTENANCE ........................................................ 33

Handling CDs................................................................................ 33

TROUBLESHOOTING ................................................. 34

SPECIFICATIONS ....................................................... 35

ENGLISH

BASIC OPERATIONS

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 26.

Turn on the power.

Select the source.

To operate the tuner, see pages 5 – 16. To operate the CD player, see pages 17 – 19.

/I/ATT

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

C D

F M

A M

Adjust the volume.

Volume level indicator

Volume level appears

Adjust the sound as you want (see pages 20 – 25).

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display , and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

To turn off the power

Press for more than 1 second.

RADIO OPERATIONS

Listening to the radio

ENGLISH

A M

F M

FM1 FM2

To search stations of higher frequencies.

To search stations of lower frequencies.

Select the band (FM1, FM2, FM3 or AM).

You can select any one of FM1, FM2 and FM3 to listen to an FM station.

FM3

Volume level indicator

selected band appears

Start searching a station.

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

To tune in a particular frequency without searching:

1 Press FM or AM to select the band. 2 Press and hold

Now you can manually change the frequency while “M” is flashing.

3 Press

• If you hold down the button, the frequency k eeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM – MW/LW ) until you release the button.

¢ or 4 repeatedly until the frequency you want is reached.

¢ or 4 until “M” starts flashing on the display.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)

ENGLISH

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

F M

FM1 FM2 FM3

Select the FM band number (FM1, FM2 or FM3) you want to store FM stations into.

Press and hold the both buttons f or more than 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you hav e selected (FM1, FM2 or FM3). These stations are preset in the n umber buttons — No. 1 (lowest frequency) to No. 6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band

F M

Select the FM1 band.

Tune into a station of 88.3 MHz.

See page 5 to tune into a station.

ENGLISH

Press and hold the button for more than 2 seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are er ased when the po wer supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station. Remember that you must store stations first. If you hav e not stored them yet, see pages 6 and

ENGLISH

DISP

MO/RND

FM1 FM2

FM3

Select the band (FM1, FM2, FM3 or AM) you want.

Select the number (1 – 6) for the preset station you want.

To change the display information while receiving an FM RDS station

Press DISP. Each time you press the button, the display changes as follows:

PS NAME (Station name)

CLOCK (Clock time)

When an FM stereo broadcast is hard to receive:

Press MO/RND (mono/random) while listening to an FM stereo broadcast. The MO (mono) indicator lights up on the display. The sound you hear becomes monaural but reception will be improved.

FREQ (Station frequency)

PTY (Programme type)

MO/RND

Lights up when receiving an FM broadcast in stereo

To restore the stereo effect, press the button again.

RDS OPERATIONS

What you can do with RDS EON

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the station send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “EON (Enhanced Other Networks).” The EON indicator lights up while receiving an FM station with the EON data. By using the EON data sent from a station, you can tune into a different station of a different network broadcasting your fa vorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• TP (Traffic Programme) search

• And some other functions

Tracing the same programme automatically (NetworkTracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tune in another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.) Two types of the RDS data are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

ENGLISH

RDS

T o use Netw ork-Tracking Reception, press and hold TP/RDS (T raffic Prog ramme/Radio Data System) for more than 1 second. Each time you press and hold the button, Network-Tracking Reception modes change as follows:

Mode 1 Mode 2 Mode 3

AF indicator REG indicator

AF REG

Mode 1

The AF indicator lights up but the REG indicator does not. Network-Tracking is activated with Regionalization set to “off.”

ENGLISH

Switches to another station within the same network when the receiving signals from the current station become weak.

Note:

In this mode, the programme may differ from the one currently received.

Mode 2

Both the AF indicator and the REG indicator light up. Network-Tracking is activated with Regionalization set to “on.” Switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak.

Mode 3

Neither the AF indicator nor the REG indicator lights up. Network-Tracking is deactivated.

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency D

Using Standby Reception

Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme T ype) and Traffic Announcement (TA) from the current source (another FM station and CD).

Note:

Standby Reception will not work if you are listening to an AM station.

TA Standby Reception

ENGLISH

RDS

• When you press TP/RDS while listening to an FM station, the TP indicator is lit during reception of a TP (Traffic Progr amme) station and the TA standby mode is engaged.

Note:

When the station being received is not a TP station, the TP indicator flashes. Press

¢ or 4 to engage the TA standby mode. “SEARCH” appears on the display, and TP station sear ch starts. When a TP station is tuned in, the TP indicator is lit.

• If you are listening to a CD, and wish to listen to a TP station, press TP/

RDS to enter the TA standby mode. (The TP indicator lights up.)

If a traffic programme starts broadcasting while the TA standby mode is activ e, “TRAFFIC” appears and the playback source changes to the FM band. The volume increases to the preset TA volume level and the traffic programme can be heard (see page 15).

To deactivate the TA standby mode, press TP/RDS again.

PTY Standby Reception

PTY

• When you press PTY while listening to an FM station, the PTY indicator is

lit during reception of a PTY station and the PTY standby mode is engaged. The selected PTY name stored on page 13 flashes for 5 seconds.

Note:

When the station being received is not a PTY station, the PTY indicator flashes. Press the display, and PTY station search starts. When a PTY station is tuned in, the PTY

¢ or 4 to engage the PTY standby mode. “SEARCH” appears on

indicator is lit.

• If you are listening to a CD, and wish to listen to a selected PTY broadcast,

press PTY to enter the PTY standby mode. (The PTY indicator lights up.)

If the selected PTY programme starts broadcasting while the PTY standby mode is active, the selected PTY name appears and the playback source changes to the FM band. The selected PTY programme can then be heard.

To deactivate the PTY standby mode, press PTY again.

Selecting Your Favorite Programme for PTY Standby Reception

You can select your favorite programme for PTY Standby Reception to store in memory. When shipped from the factory, “NEWS” is stored as the programme type for PTY Standby

ENGLISH

Reception.

1, 4

SEL

Press and hold SEL for more than 2 seconds to enter the general setting mode (see page

29).

Select “PTY STBY (standby)” if not shown on the display.

Select one of twenty-nine PTY codes. (See page 16.)

Selected code name appears on the display and is stored into memory.

Searching Your Favorite Programme

You can search one of your 6 favorite programme types stored in memory. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To change the factory preset settings, see page 13. To search your favorite programme, see page 14.

SEL

Finish the setting.

POP M

ROCK M

EASY M

CLASSICS

AFFAIRS

VARIED

To store your favorite programme types

1, 5

ENGLISH

SEL

Press and hold SEL for more than 2 seconds to call up the general setting mode (see page

29).

Select “PTY SRCH (search)” if not shown on the display.

Select one of twenty-nine PTY codes. (See page 16.)

Selected code name appears on the display.

• If the code already stored in memory is selected, it will flash on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

The selected code name will flash on the display.

SEL

Finish the setting.

To search your favorite programme type

ENGLISH

PTY

Press and hold PTY for more than 1 second while listening to an FM station.

The last selected PTY code appears.

Select one of PTY codes stored in preset number buttons (1 to 6).

Ex. When “ROCK M” is stored in preset number button 2.

PTY search for your favorite programme starts after 5 seconds.

• If there is a station broadcasting a programme of the same PTY code you have selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code you have selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in another frequency broadcasting the same programme as the original preset station is broadcasting. In case no other station is tuned in, you can also search all receivable frequencies for the same programme. (Programme search) To activate programme search, follow the procedure below.

• Programme search takes a while.

• See also “Changing the general settings” on page 29.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press the + button and set to "ON". Now programme search is activated.

To cancel programme search, repeat the same procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME), station frequency (FREQ), or clock time (CLOCK) while listening to an FM RDS station.

• See also “Changing the general settings” on page 29.

¢ or 4 to select “P(programme)-SEARCH.”

ENGLISH

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press + or – to set to the desired indication — PS NAME (station name), FREQ (station frequency), or CLOCK (clock time).

Note:

By pressing DISP, you can also change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

* Then, the display goes back to the original indication in several seconds.

¢ or 4

to select “DISPMODE (display mode).”

PS NAME (Station name)

CLOCK (Clock time)

FREQ (Station frequency)

PTY (Programme type)

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings” on page 29.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

3. Press + or – to the desired volume.

¢ or 4

to select “TA VOL (volume).”

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjust automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

ENGLISH

• See also “Changing the general settings” on page 29.

1. Press and hold SEL (select) for more than 2 seconds to call up the general setting mode.

2. Press

¢ or 4

3. Press – to select “ADJ OFF.” Now automatic clock adjustment is canceled.

T o reactivate clock adjustment, repeat the same procedure and select “ADJ ON” in step 3 by pressing the + button.

Note:

It takes about 2 minutes to adjust the time using the CT data. So, you must tune to the station for more than 2 minutes continuously; otherwise, the clock time will not be adjusted.

PTY codes

NEWS: News AFFAIRS: Topical programmes

expanding on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

regional culture SCIENCE: Programmes on natural

science and technology VARIED: Other programmes like

comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce,

trading, the Stock Market,

etc. CHILDREN: Entertainment programmes

for children

to select “AUTO ADJ (adjust).”

SOCIAL: Programmes on social RELIGION: Programmes dealing with

PHONE IN: Programmes where people

TRAVEL: Programmes about travel

LEISURE: Programmes concerned with

JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

activities any aspect of belief or faith,

or the nature of existence or ethics

can express their views either by phone or in a public forum

destinations, package tours, and travel ideas and opportunities

recreational activities such as gardening, cooking, fishing, etc.

another nation or region, in that country’s language

factual matters, presented in an investigative style

Playing a CD

CD OPERATIONS

Insert a disc into the loading slot.

The unit turns on, draws a CD and starts playback automatically.

• When a CD is inserted upside down, the CD ejects automatically.

Total playing time of the inserted disc

Note on One-Touch Operation:

When a CD is already in the loading slot, pr essing CD turns on the unit and starts playback automatically.

Total track number of the inserted disc

Elapsed playing time

ENGLISH

Current track

CAUTION on Volume Setting

CDs produces very little noise compar ed with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a CD and adjust it as required during playback.

To stop play and eject the CD

Press 0. CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station). If you change the source to AM or FM, the CD play also stops (without ejecting the CD this time).

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

• You can eject the CD even when the unit is turned off.

Locating a track or a particular portion on a CD

ENGLISH

Number buttons

To fast forward or reverse the track

Press and hold ¢, while playing a CD, to fast forward the track.

Press and hold 4

, while playing a CD, to reverse the track.

To go to the next track or the previous track

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutiv ely, the beginning of the next tracks is located and played back.

Press 4

briefly, while playing a CD , to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

7 8 9 10 11 12

Press the number button corresponding to the track number to star t its playback.

• To select a track number from 1 – 6:

Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12:

Press and hold 1 (7) – 6 (12) for more than 1 second.

Selecting CD playback modes

MO/RND

To play back tracks at random (Random Play)

You can play back all tracks on the CD at random.

MO/RND

Each time you press MO/RND (Mono/Random) while playing a CD, CD random play mode turns on and off alternatively. When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

ENGLISH

• To select the next track at random, press

¢ briefly.

Prohibiting CD ejection

You can prohibit the CD ejection and can “lock” a CD in the loading slot. Press and hold CD and 0 for more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds, and the CD is “locked.” T o cancel the prohibition and “unlock” the CD, press and hold CD and 0 for more than 2

seconds again. The CD ejects automatically.

SOUND ADJUSTMENTS

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

Equalization pattern indicator

Select the item you want to adjust.

Indication To do: Range

BAS Adjust the bass –6 (min.) — +6 (max.) (Bass)

TRE Adjust the treble –6 (min.) — +6 (max.) (Treble)

FAD Adjust the front and rear speaker R6 (rear only) — F6 (front only) (Fader)* balance

BAL Adjust the left and right speaker L6 (left only) — R6 (right only) (Balance) balance

LOUD See page 21 See page 21 (Loudness)

VOL Adjust the volume 00 (min.) — 50 (max.) (Volume)

Note:

* If you are using a two-speaker system, set the fader level to “00.”

Adjust the level.

Equalization pattern changes as you adjust the bass or treble

Note:

Normally the + and – buttons work as the volume contr ol buttons. So you do not have to select “VOL” to adjust the volume level.

Turning on/off the loudness function

The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce well-balanced sound at low volume level. Each time you press + or –, the loudness function turns on and off alternatively.

ENGLISH

Using the Sound Control Memory

You can select and store a preset sound adjustment suitable to each playback source. (Advanced SCM)

ENGLISH

Selecting and storing the sound modes

Once you select a sound mode, it is stored in memory, and will be recalled every time you select the same source. A sound mode can be stored each of the following sources — FM1, FM2, FM3, AM and CD.

• If you do not want to store the sound mode separately for each playback source, but want to use the same sound mode for all the sources, see “Canceling Advanced SCM” on page

24.

”Link“ indicator/ sound mode indicators

Equalization pattern indicator

SCM

Indication For: Preset values

SCM OFF (Flat sound) 00 00 On BEAT Rock or disco music +02 00 On SOFT Quiet background music +01 –03 Off POP Light music +04 +01 Off

Select the sound mode you want.

Each time you press the button, the sound mode changes as follows.

• If the “Link” indicator is lit on the display (with “SCM LINK” set to “LINK ON” — see page 24), the selected sound mode can be stored in memory for the current source, and the effect applies to the current source.

• If the “Link” indicator is NOT lit on the display (with “SCM LINK” set to “LINK OFF”), the selected sound mode effect applies to any source.

Bass Treble Loudness

Recalling the sound modes

ENGLISH

Notes:

• You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 25.

• T o adjust the bass and tr eble reinfor cement levels or to turn on/of f the loudness function temporarily , see pages 20 and 21. (Your adjustments will be cancelled if another source is selected.)

A M

F M

C D

Select the source while the “Link” indicator is lit on the display.

The “Link” indicator starts flashing, and the sound mode stored in memory for the selected source is recalled.

Equalization pattern of the selected sound mode appears

Sound mode indicator

Canceling Advanced SCM

You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources.

ENGLISH

When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources. LINK ON: Advanced SCM (different SCMs for different sources) LINK OFF: Conventional SCM (one SCM for all sources)

1,4

Press and hold SEL for more than 2 seconds to call up the general setting mode (see page

29).

Select “SCM LINK” if not shown on the display.

Select the desired mode — “LINK ON” or “LINK OFF”.

Finish the setting.

Storing your own sound adjustments

You can adjust the sound modes (BEAT, SOFT, POP: see page 22) to your preference and store your own adjustments in memory.

1, 4

ENGLISH

SCM

Within

5 seconds

SEL

Within

5 seconds

Within

5 seconds

SCM

Call up the sound mode you want to adjust.

See page 22 for details.

Select “BAS”, “TRE” or “LOUD.”

Adjust the bass or treble level or turn the loudness function ON/OFF.

See page 20 for details.

Press and hold SCM until the sound mode you have selected in step 1 flashes on the display.

Your setting is stored in memory.

Repeat the same procedure to store other settings.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on page 22.

OTHER MAIN FUNCTIONS

Setting the clock

You can also set the clock system either to 24 hours or 12 hours.

ENGLISH

2, 3, 4

1, 5

2, 3, 4

SEL

Press and hold SEL for more than 2 seconds to call up the general setting mode (see page 29).

Set the hour. 1 Select “CLOCK H (Hour)” if

not shown on the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M (Minute).” 2 Adjust the minute.

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

SEL

To check the current clock time (changing the display mode)

Press DISP repeatedly . Each time you press the button, the displa y mode changes as follows .

During tuner operation:

Clock

Note:

For the indication change during RDS operation, see page 15.

• If the unit is not in use when you press DISP, the power turns on, the clock time is shown for 5 seconds, then the power turns off.

Frequency

Finish the setting.

During CD operation:

Clock

Elapsed playing time

ENGLISH

Selecting the level display

You can select the level display according to your preference. When shipped from the factory, “VOL 2” is selected.

ENGLISH

VOL 1: Shows the volume level indicator and the equalization pattern indicator. VOL 2: Alter nates “VOL 1” setting and illumination display. OFF: Erase the volume level indicator and the equalization pattern indicator.

Equalization pattern indicator

3 1,4 2

Volume level indicator

Press and hold SEL for more than 2 seconds to call up the general setting mode (see page

29).

Select “LEVEL” if not shown on the display.

Select the desired mode — “VOL 1”, “VOL 2” or “OFF”.

Finish the setting.

Changing the general settings

You can change the items listed on the next page to your preference.

Basic Procedure

SEL

ENGLISH

1, 4

Press and hold SEL for more than 2 seconds to call up the general setting mode.

Select the item you want to adjust. (See page 30.)

SEL

Adjust the item selected above.

Finish the setting.

SEL

ENGLISH

SEL

Select.

CLOCK H Hour adjustment CLOCK M Minute adjustment SCM LINK Sound control

memory linkage

24H/12H 24/12-hour time

display

AUTO ADJ Automatic setting of

the clock

DISPMODE Display mode

PTY STBY PTY standby PTY SRCH PTY search TA V OL Traffic announcement

volume

P-SEARCH Programme search

TEL Audio mute for

cellular phone system

LEVEL Level display

Finish the setting

Factorypreset

Set.

Back

12H 24H 24H

PS NAME

29 programme types (See page 16.)

VOL (00-50)

ON OFF

OFF

Advance AdvanceBack

LINK OFFLINK ON LINK ON

FREG

CLOCK

MUTING 1

MUTING 2

VOL 1

VOL 2

settings

PS NAME

(See page 12.)

0:00

NEWS 12

VOL (20)

OFF OFF

VOL 2

See page

16OFF ON

+ 108 hidden pages
