CD RECEIVER KD-S670
ENGLISH
RECEPTOR CON CD KD-S670
RECEPTEUR CD KD-S670
RM-RK31
COMPACT
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retain this information for future
reference.
Model No.
DIGITAL AUDIO
ESPAÑOL
FRANÇAIS
Serial No.
GET0011-001A
[J]
INFORMATION (For USA)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
ENGLISH
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT FOR LASER PRODUCTS
Precautions:
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to beam.
3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave
all servicing to qualified service personnel.
4. CAUTION: This CD player uses invisible laser radiation, however, is equipped with safety
switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the
safety switches.
5. CAUTION: Use of controls, adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
How to reset your unit
Press and hold both the SEL (Select) and
(Standby/On/ATT) buttons at the same time for
several seconds.
This will reset the built-in microcomputer.
NOTES: Your preset adjustments — such as preset
channels or sound adjustments — will also be
erased.
If a CD is in the unit, it will eject when you reset
the unit. Pay attention not to drop the CD.
BEFORE USE
For safety....
*
• Do not raise the volume level too much, as this
will block outside sounds, making driving
dangerous.
• Stop the car before performing any complicated
operations.
2
(Standby/On/ATT)
SEL (Select)
Temperature inside the car....
*
If you have parked the car for a long time in hot
or cold weather, wait until the temperatur e in the
car becomes normal before operating the unit.
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
How to reset your unit.......................................................................... 2
BASIC OPERATIONS ....................................................4
RADIO OPERATIONS ................................................... 5
Listening to the radio .....................................................................5
Storing stations in memory............................................................ 6
FM station automatic preset: SSM ...............................................6
Manual preset .............................................................................. 7
Tuning into a preset station ........................................................... 8
Other convenient tuner functions .................................................9
Scanning broadcast stations ........................................................9
Selecting FM reception sound ...................................................... 9
CD OPERATIONS....................................................... 10
Playing a CD .................................................................................10
Locating a track or a particular portion on a CD ..................... 11
Selecting CD playback modes......................................................12
Other convenient CD functions ................................................... 12
Prohibiting CD ejection .............................................................. 12
SOUND ADJUSTMENTS .............................................13
Adjusting the sound......................................................................13
Turning on/off the loudness function ............................................... 14
Using the Sound Control Memory ..............................................15
Selecting and storing the sound modes ..................................... 15
Recalling the sound modes ........................................................ 16
Canceling Advanced SCM ...........................................................17
Storing your own sound adjustments ......................................... 18
OTHER MAIN FUNCTIONS .........................................19
Setting the clock............................................................................ 19
Selecting the level display ............................................................21
Detaching the control panel ......................................................... 22
ENGLISH
REMOTE OPERATIONS...............................................23
Installing the battery ....................................................................23
Using the remote controller .........................................................24
MAINTENANCE.........................................................25
Handling CDs................................................................................ 25
TROUBLESHOOTING .................................................26
SPECIFICATIONS .......................................................27
3
1

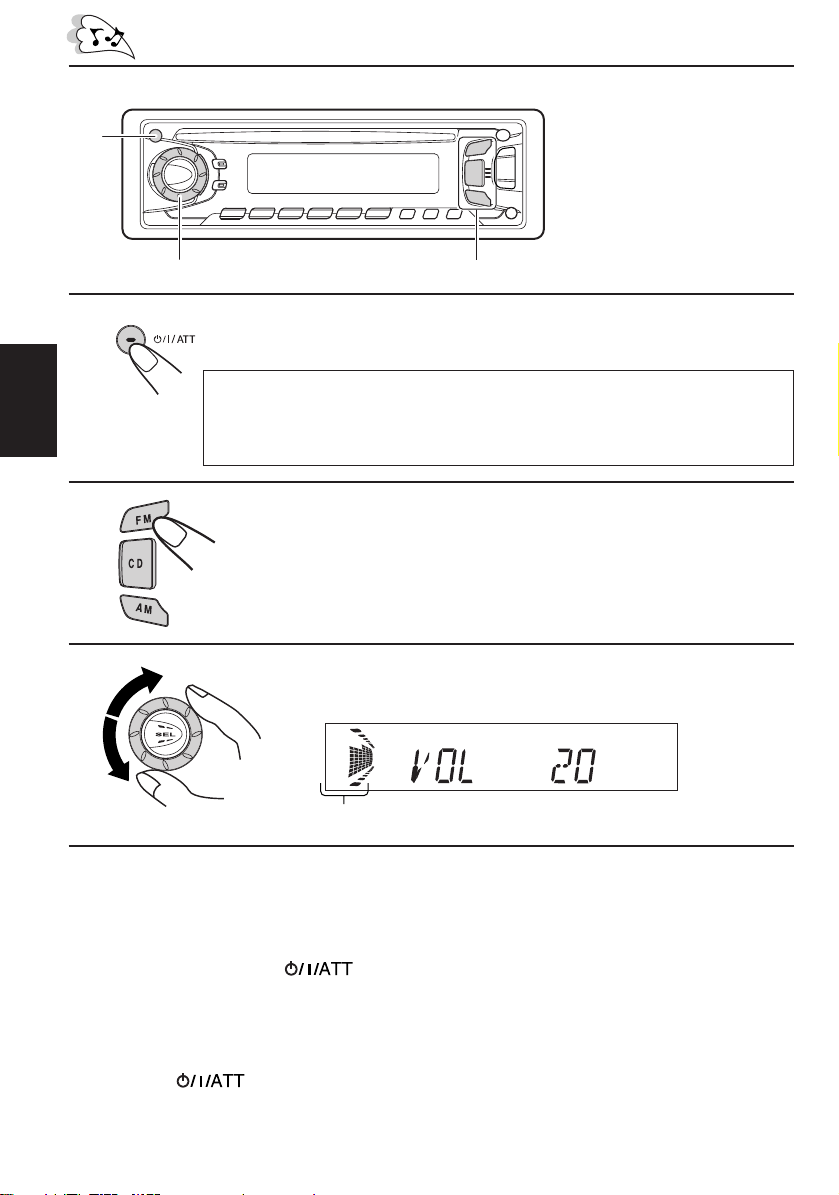

BASIC OPERATIONS
ENGLISH
1
2
3
Note:
When you use this unit for the
first time, set the built-in
clock correctly, see page 19.
3
2
Turn on the power.
Note on One-Touch Operation:
When you select a source in step 2 below, the power automatically comes on.
You do not have to press this button to turn on the power.
Select the source.
To operate the tuner, see pages 5 – 9.
To operate the CD player, see pages 10 – 12.
Adjust the volume.
Volume level indicator
Volume level appears
4
Adjust the sound as you want (see pages 13 – 18).
To drop the volume in a moment
Press briefly while listening to any source. “AT T” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the button briefly again.
To turn off the power
Press for more than 1 second.
4
RADIO OPERATIONS

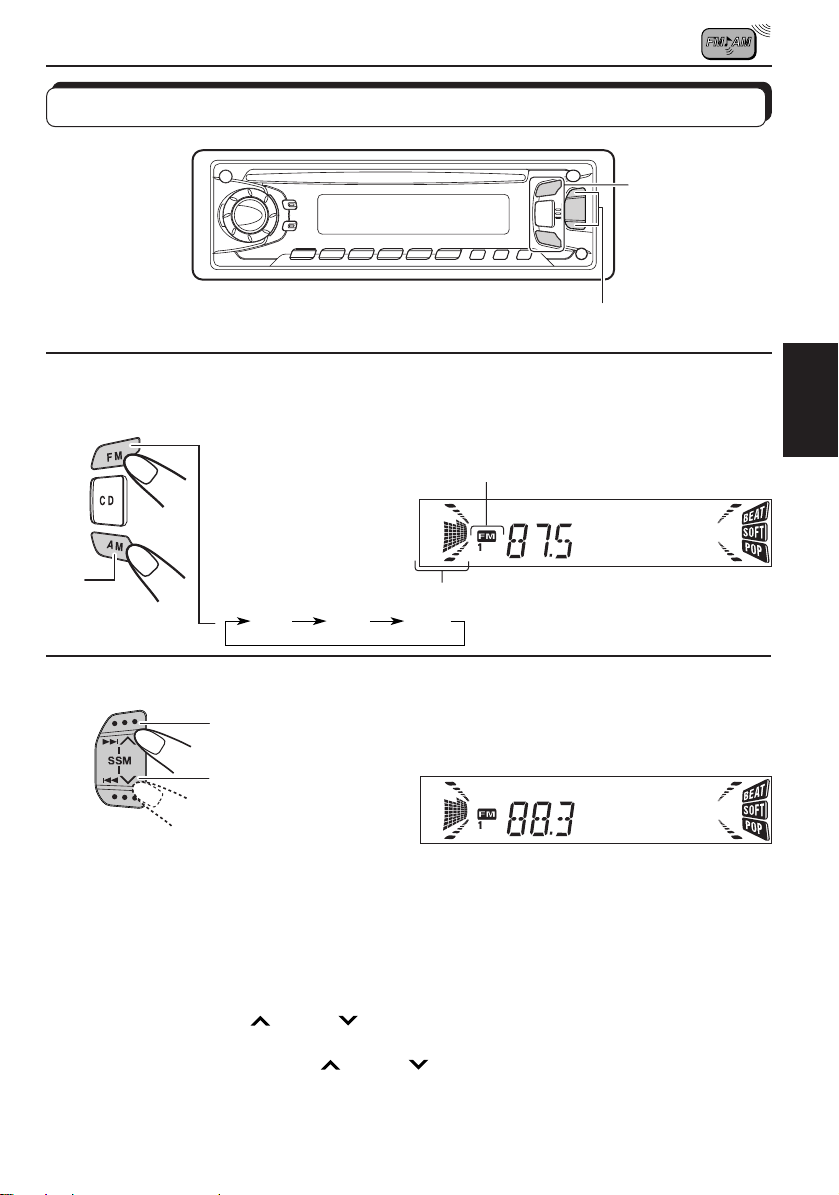

Listening to the radio
1
2
AM
Select the band (FM1, FM2, FM3 or AM).
You can select any one of FM1, FM2, and FM3 to listen to an
FM station.
Audio or volume level indicator
FM1 FM2 FM3
To search stations
of higher
frequencies.
To search stations
of lower
frequencies.
1
2
selected band appears
Start searching a station.
When a station is received, searching stops.
ENGLISH
To stop searching before a station is received, press the same button you have pressed
for searching.
To tune in a particular frequency without searching:
1 Select the band (FM or AM).
Press FM or AM repeatedly.
2 Press and hold ¢
Now you can manually change the frequency while “M” is flashing.
3 Press ¢
• If you hold down the button, the frequency keeps changing until you release the button.
or 4 repeatedly until the frequency you want is reached.
or 4 until “M” starts flashing on the display.
5
Storing stations in memory
You can use one of the following two methods to store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
ENGLISH
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).
1
2
1
FM1 FM2 FM3
Select the FM band number (FM1, FM2 or
FM3) you want to store FM stations into.
2
Press and hold the both buttons for more than
2 seconds.
“SSM” appears, then disappears when
automatic preset is over.
Local FM stations with the strongest signals are searched and stored automatically in the
band number you have selected (FM1, FM2 or FM3). These stations are preset in the number
buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).
When automatic preset is over, the station stored in number button 1 will be automatically
tuned in.
6

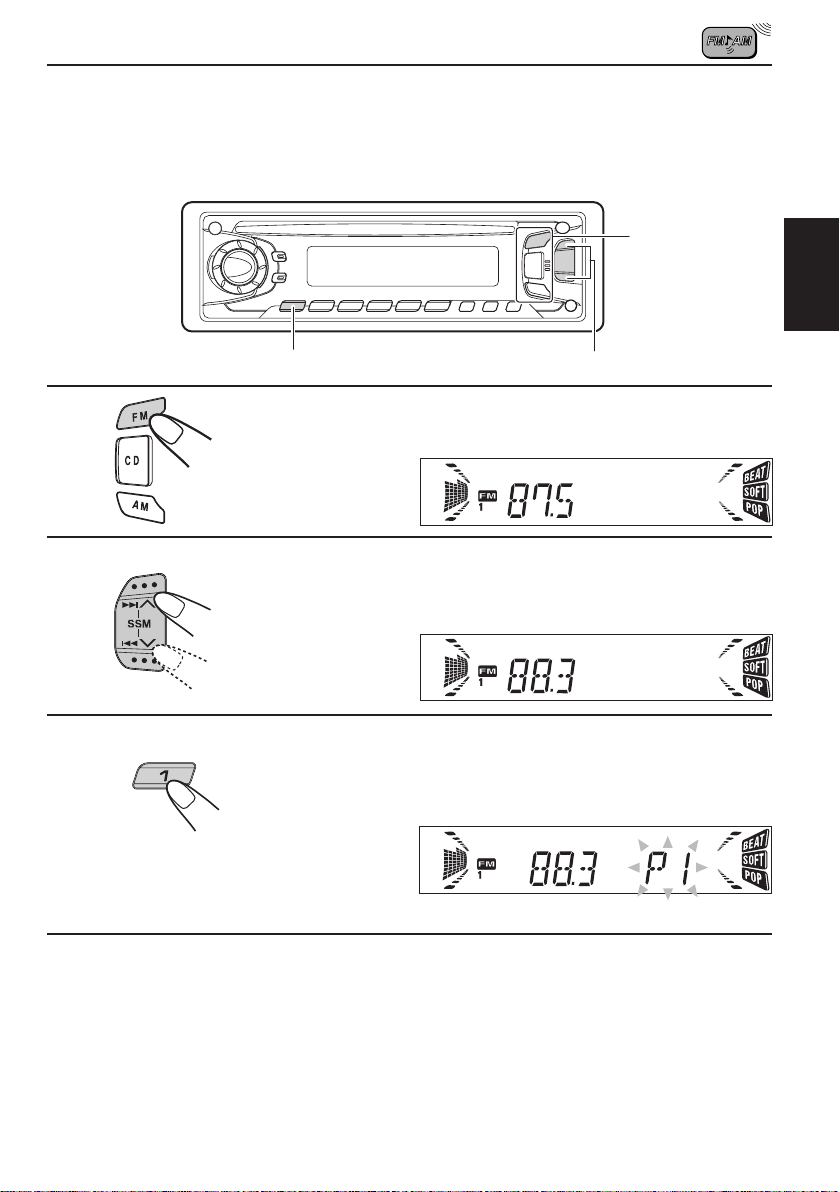

Manual preset
You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.
EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band
1
3
2
1
Select the FM1 band.
2
Tune into a station of 88.3 MHz.
See page 5 to tune into a station.
ENGLISH
3
Press and hold the button for more than 2
seconds.
“P1” flashes for a few seconds.
4
Repeat the above procedure to store other stations into other
preset numbers.
Notes:
• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations ar e erased when the power supply to the memory cir cuit is interrupted (for example,
during battery replacement). If this occurs, preset the stations again.
7

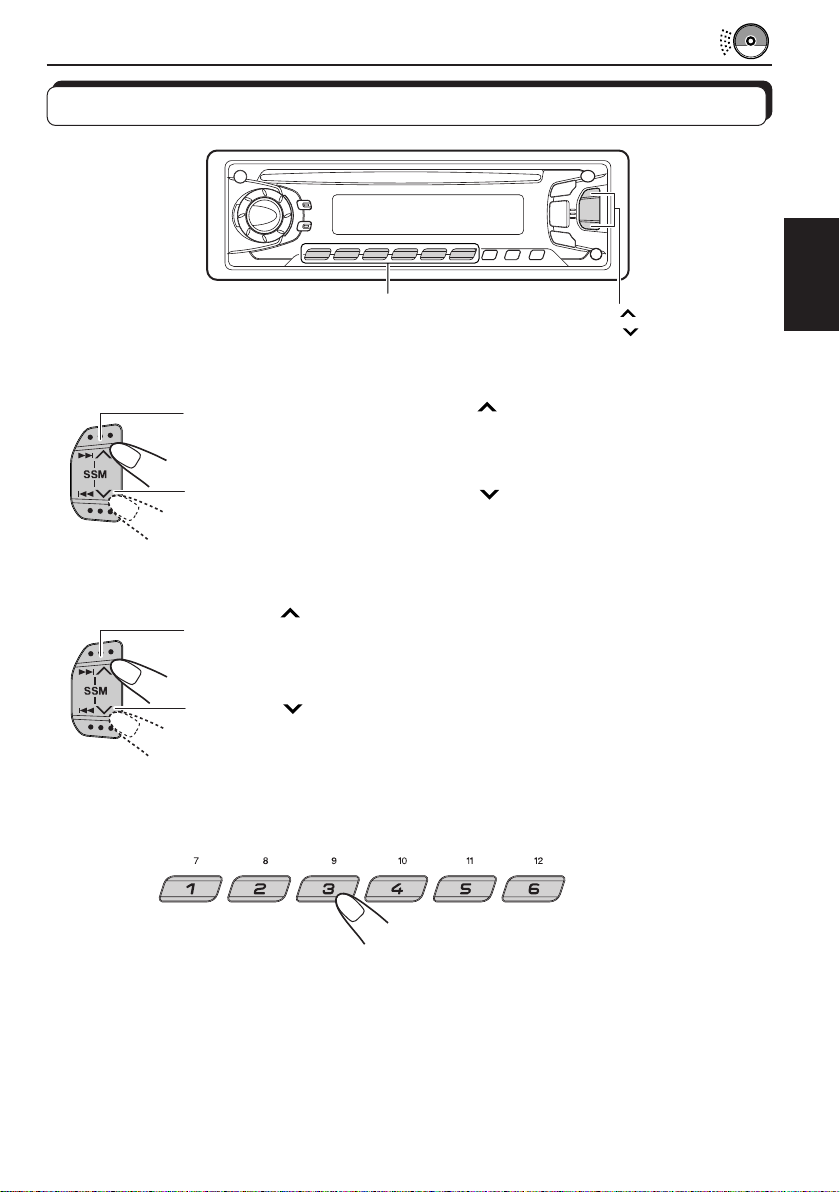

Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If you have not stored them yet, see pages 6
ENGLISH
and 7.
1
2
1
2
Select the band (FM1, FM2, FM3 or AM) you
want.
FM1 FM2 FM3
AM
Select the number (1 – 6) for the preset station
you want.
8
Other convenient tuner functions
MO/RNDRPT/SCAN
Scanning broadcast stations
When you press RPT/SCAN while listening to the radio, station scanning starts. Each time a
broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency number flashes
on the display), and you can check what program is now being broadcasted.
If you want to listen to that program, press the same button again to stop scanning.
Selecting FM reception sound
When an FM stereo broadcast is hard to receive:
Press MO/RND (Mono/Random) while listening to an FM stereo broadcast. The sound you
hear becomes monaural but reception will be improved.
A
ENGLISH
Lights up when receiving an FM broadcast in stereo.
To restore the stereo effect, press the same button again.
9
CD OPERATIONS

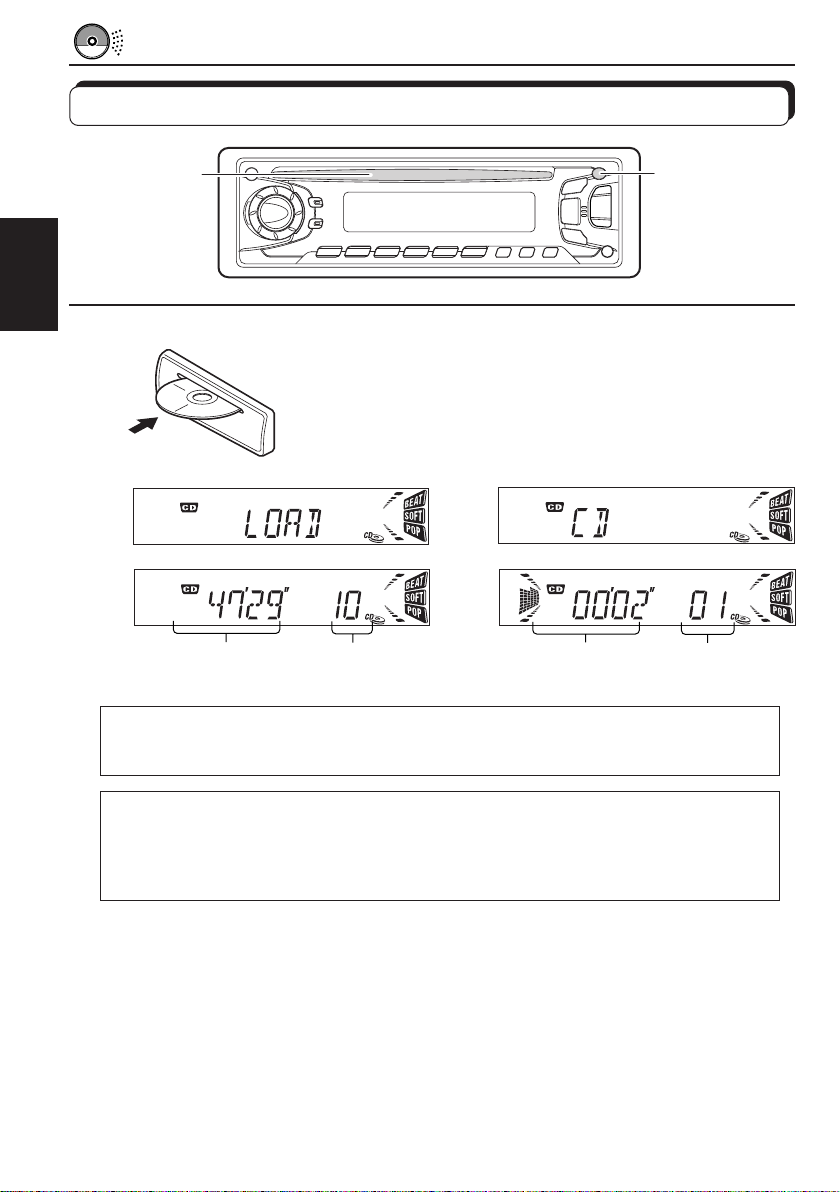

Playing a CD
ENGLISH
1
Note on One-Touch Operation:
When a CD is already in the loading slot, pr essing CD turns on the unit and starts playback
automatically.
1
Total playing time of
the inserted disc
0
Insert a disc into the loading slot.
The unit turns on, draws a CD and starts playback
automatically.
• When a CD is inserted upside down, “EJECT” appears on
the display and the CD automatically ejects.
A
A
Total track number
of the inserted disc
Elapsed playing
time
Current track
CAUTION on Volume Setting
CDs produces very little noise compar ed with other sources. If the volume level is adjusted
for the tuner, for example, the speakers may be damaged by the sudden increase in the
output level. Therefore, lower the volume before playing a CD and adjust it as required
during playback.
To stop play and eject the CD
Press 0.
CD play stops and the CD automatically ejects from the loading slot. The source changes to
the tuner (you will hear the last received station).
If you change the source to FM or AM, the CD play also stops (without ejecting the CD this
time).
• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into
the loading slot to protect it from dust. (CD play will not start this time.)
• You can eject the CD even when the unit is turned off.
10
Locating a track or a particular portion on a CD
ENGLISH
Number buttons
To fast forward or reverse the track
Press and hold ¢ , while playing a CD, to fast forward the track.
Press and hold
4 , while playing a CD, to reverse the track.
To go to the next track or the previous track
Press ¢ briefly, while playing a CD, to go ahead to the beginning of
the next track. Each time you press the button consecutively, the beginning
of the next tracks is located and played back.
Press 4
briefly, while playing a CD, to go back to the beginning of the
current track. Each time you press the button consecutively, the beginning
of the previous tracks is located and played back.
To go to a particular track directly
¢
4
Press the number button corresponding to the track number to start its
playback.
• To select a track number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a track number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than 1 second.
11
Selecting CD playback modes
ENGLISH
RPT/SCAN
MO/RND
To play back tracks at random (Random Play)
You can play back all tracks on the CD at random.
Each time you press MO/RND (Mono/Random) while playing a CD, CD
random play mode turns on and off alternatively.
When the random mode is turned on, the RND indicator lights up on the
display and a track randomly selected starts playing.
To play back tracks repeatedly (Repeat Play)
You can play back the current track repeatedly.
Each time you press RPT/SCAN (Repeat/Scan) while playing a CD, CD
repeat play mode turns on and off alternatively.
When the repeat mode is turned on, the RPT indicator lights up on the
display.
Track number of the currently playing track
Other convenient CD functions
Prohibiting CD ejection
You can prohibit the CD ejection and can “lock” a CD in the loading slot.
Press and hold CD and 0 for more than 2 seconds. “EJECT” flashes on the display for about
5 seconds, and the CD is “locked.”
To cancel the prohibition and “unlock” the CD, press and hold CD and 0 for more than 2
seconds again. “EJECT” appears on the display, and the CD ejects from the loading slot.
12
SOUND ADJUSTMENTS
Adjusting the sound
You can adjust the treble/bass sound and the speaker balance.
2
ENGLISH
1
Equalization pattern indicator
1
Select the item you want to adjust.
Indication To do: Range
BAS Adjust the bass –06 (min.) — +06 (max.)
(Bass)
TRE Adjust the treble –06 (min.) — +06 (max.)
(Treble)
FAD Adjust the front and rear speaker R06 (rear only) — F06 (front only)
(Fader)* balance
BAL Adjust the left and right speaker L06 (left only) — R06 (right only)
(Balance) balance
VOL Adjust the volume 00 (min.) — 50 (max.)
(Volume)
Note:
* If you are using a two-speaker system, set the fader level to “00.”
2
Adjust the level.
Equalization pattern changes as
you adjust the bass or treble.
Note:
Normally the control dial works as the volume control. So you do
not have to select “VOL” to adjust the volume level.
13
Turning on/off the loudness function
The human ear is less sensitive to low and high frequencies at low volumes.
The loudness function can boost these frequencies to produce well-balanced sound at low
ENGLISH
volume level.
Each time you press LOUD, the loudness function turns on and off alternatively.
@A
14
Using the Sound Control Memory
You can select and store a preset sound adjustment suitable to each playback source.
(Advanced SCM)
Selecting and storing the sound modes
Once you select a sound mode, it is stored in memory, and will be recalled every time you
select the same source. A sound mode can be stored each of the following sources — FM1,
FM2, FM3, AM or CD.
• If you do not want to store the sound mode separately for each playback source, but want to
use the same sound mode for all the sources, see “Canceling Advanced SCM” on page 17.
”SCM“ indicator
and sound mode
indicators
ENGLISH
Equalization pattern indicator
1
1
Select the sound mode you want.
Each time you press the button, the sound mode changes as follows.
• When “SCM LINK” is set to “LINK ON”, the selected sound mode can
be stored in memory for the current source and the effect applies only
to the current source. Each time you change the playback source, the
SCM indicator flashes on the display.
• When “SCM LINK” is set to “LINK OFF”, the selected sound mode
effect applies to any source.
Indication For: Preset values
Bass Treble Loudness
SCM OFF (Flat sound) 00 00 On
BEAT Rock or disco music +02 00 On
SOFT Quiet background music +01 –03 Off
POP Light music +04 +01 Off
15

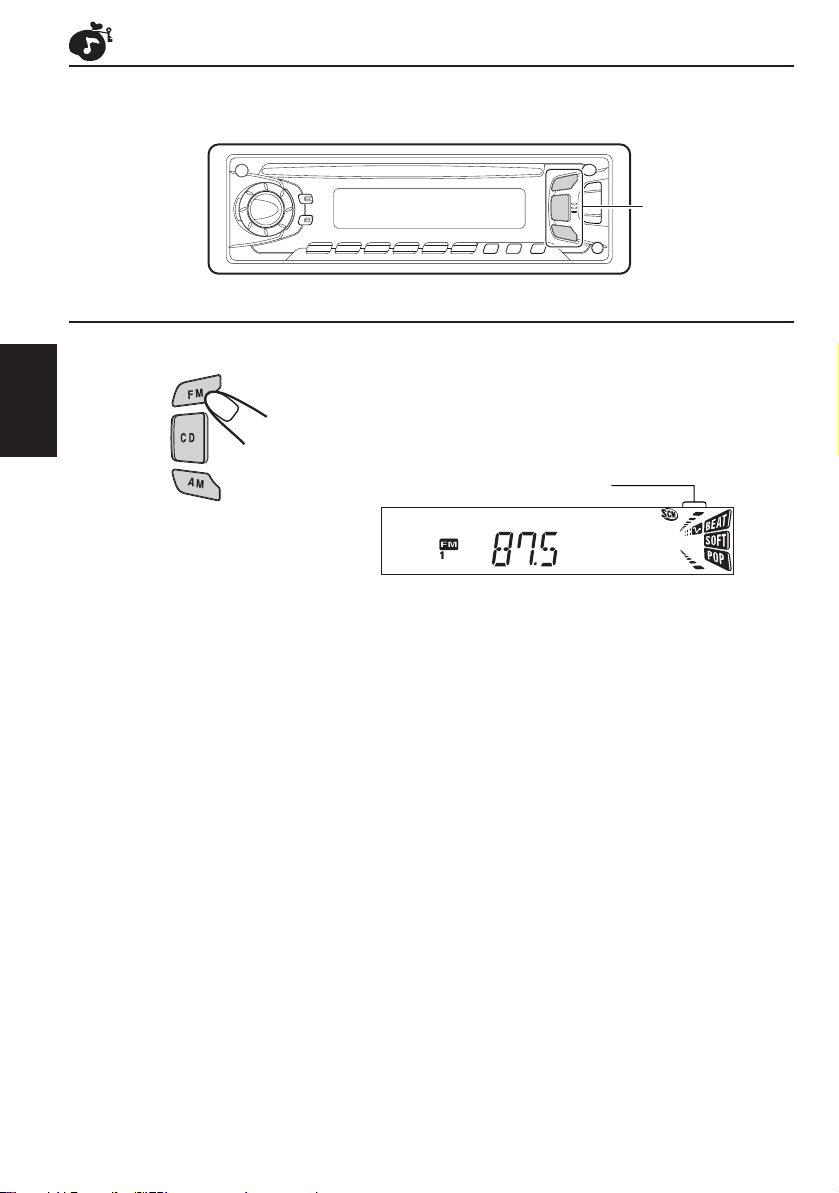

Recalling the sound modes
ENGLISH
1
1
When “SCM LINK” is set to “LINK ON,” select
the source.
The sound mode stored in memory for the selected source
is recalled.
Sound mode indicator
Notes:
• You can adjust each sound mode to your preference, and store it in memory.
If you want to adjust and store your original sound mode, see “Storing your own sound adjustments”
on page 18.
• T o adjust the bass and treble r einfor cement levels or to turn on/off the loudness function temporarily ,
see pages 13 and 14. (Your adjustments will be cancelled if another source is selected.)
16
Canceling Advanced SCM
You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes
and the playback sources.
When shipped from the factory, a different sound mode can be stored in memory for each
source so that you can change the sound modes simply by changing the sources.
LINK ON: Advanced SCM (different SCMs for different sources)
LINK OFF: Conventional SCM (one SCM for all sources)
3
1, 4 2
ENGLISH
1
2
3
4
Press and hold SEL for more than 2 seconds.
“CLOCK H,” “CLOCK M,” “SCM LINK,” or “LEVEL” appears
on the display.
Select “SCM LINK” if not shown on the display.
Select the desired mode — “LINK ON” or
“LINK OFF”.
Finish the setting.
17
Storing your own sound adjustments
You can adjust the sound modes (BEAT, SOFT, POP: see page 15) to your preference and
store your own adjustments in memory.
ENGLISH
3
2
1
2
3
4
Within
5 seconds
Within
5 seconds
Within
5 seconds
2
1, 4
Call up the sound mode you want to adjust.
See page 15 for details.
To adjust the bass or treble sound level
Select “BAS” or “TRE.”
To turn on or off the loudness function
Each time you press LOUD, the loudness
function turns on and off alternatively. (= go to step 4)
Adjust the bass or treble level.
See page 13 for details.
Press and hold SCM until the sound mode
you have selected in step 1 flashes on the
display.
Your setting is stored in memory.
5
Repeat the same procedure to store other settings.
To reset to the factory settings
Repeat the same procedure and reassign the preset values listed in the table on page 15.
18
OTHER MAIN FUNCTIONS
3
Setting the clock
1
2
2, 3
1.
1, 4 2,
2.
DISP
Press and hold SEL for more than 2
seconds.
“CLOCK H,” “CLOCK M,” “SCM LINK,” or “LEVEL”
appears on the display.
Set the hour.
1. Select “CLOCK H” if not shown on the
display.
2. Adjust the hour.
ENGLISH
3
4
1.
2.
Set the minute.
1. Select “CLOCK M.”
2. Adjust the minute.
Start the clock.
19
To check the current clock time (changing the display mode)
Press DISP repeatedly. Each time you press the button, the display mode changes as follows.
During tuner operation:
ENGLISH
Frequency
Clock
During CD operation:
Elapsed
playing time
Clock
• If the unit is not in use when you press DISP, the power turns on, the clock time is shown for
5 seconds, then the power turns off.
20
Selecting the level display
You can select the level display according to your preference.
When shipped from the factory, “AUDIO 2” is selected.
AUDIO 1: Shows the audio level indicator and the equalization pattern indicator.
AUDIO 2: Alternates “AUDIO 1” setting and illumination display.
OFF: Erases the audio level indicator and the equalization pattern indicator.
3
ENGLISH
1
2
3
1, 4
Equalization pattern indicator
and Level indicator
2
Press and hold SEL for more than 2 seconds.
“CLOCK H,” “CLOCK M,” “SCM LINK,” or “LEVEL” appears
on the display.
Select “LEVEL” if not shown on the display.
Select the desired mode —“AUDIO 1”, AUDIO
2” or “OFF”.
4
Finish the setting.
21
Detaching the control panel
You can detach the control panel when leaving the car.
When detaching or attaching the control panel, be careful not to damage the connectors on
ENGLISH
the back of the control panel and on the panel holder.
How to detach the control
panel
Before detaching the control panel, be sure
to turn off the power.
1
Unlock the control panel.
2
Lift and pull the control panel
out of the unit.
3
Put the detached control
panel into the case provided.
How to attach the control
panel
1
Insert the left side of the
control panel into the groove
on the panel holder.
2
Press the right side of the
control panel to fix it to the
panel holder.
Note on cleaning the connectors:
If you frequently detach the contr ol panel, the
connectors will deteriorate.
T o minimize this possibility , periodically wipe
the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.
22
Connectors
REMOTE OPERATIONS
Before using the remote controller:
• Aim the remote controller directly at the remote sensor
on the main unit. Make sure there is no obstacle in
between.
• Do not expose the remote sensor to strong light (direct
sunlight or artificial lighting).
Installing the battery
When the controllable range or effectiveness of the remote controller decreases, replace
the battery.
1. Remove the battery holder.
(back side)
1)
2)
1) Push out in the direction indicated by the arrow
using a ball point pen or a similar tool.
2) Remove the battery holder.
Remote sensor
ENGLISH
Lithium coin battery
(product number:
CR2025)
(back side)
WARNING:
• Store the batteries in a place which children cannot reach.
If a child accidentally swallows the battery, immediately consult a doctor.
• Do not recharge, short, disassemble or heat the batteries or dispose of in a fire.
Doing any of these things may cause the batteries to give off heat, crack or start a fire.
• Do not leave the batteries with other metallic materials.
Doing this may cause the batteries to give off heat, crack or start a fire.
• When throwing away or saving the batteries, wrap in tape and insulate; otherwise, , it may cause
the batteries to give off heat, crack or start a fire.
• Do not poke the batteries with tweezers or similar tools.
Doing this may cause the batteries to give off heat, crack or start a fire.
2. Place the battery.
Slide the battery into the holder with the + side facing
upwards so that the battery is fixed in the holder.
3. Return the battery holder.
Insert again the battery holder pushing it until you
hear a clicking sound.
23
Using the remote controller
1 Functions the same as the button on the main unit.
5
ENGLISH
1
2
3
4
RM-RK31
2 • Functions as the BAND button while listening to the radio.
6
7
Each time you press the button, the band changes.
• Does not function as the PROG button.
3 • Functions as the PRESET button while listening to the radio.
Each time you press the button, the preset station number
increases, and the selected station is tuned in.
4 Functions the same as the control dial on the main unit.
Note: These buttons cannot be used for the clock (CLOCK H,
5 Selects the sound mode.
Each time you press SCM (Sound Control Memory), the mode
changes.
6 Selects the source.
Each time you press FUNC (function), the source changes.
7 • Searches stations while listening to the radio.
• Fast forwards or reverses the track if pressed and held
while listening to a CD.
• Skips to the beginning of the next tracks or goes back to
the beginning of the current (or previous tracks) if pressed
briefly while listening to a CD.
CLOCK M), SCM LINK and LEVEL (see pages 19, 17 and
21).
24
Loading...
