JVC KD-S656R, KD-S653R User Manual

CD RECEIVER

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

KD-S656R/S653R

ENGLISH

DEUTSCH

FRANÇAIS

Detachable

KD-S656R

/ATT

SEL

KS-S656R

3 5 W x 4

SSM

RND

TP/RDS

RPT

PTY

DISP

SOUND

KD-S653R

/ATT

3 5 W x 4

SSM

SEL

KS-S653R

RND

TP/RDS

RPT

PTY

DISP

SOUND

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG MANUEL D'INSTRUCTIONS GEBRUIKSAANWIJZING

NEDERLANDS

LVT0148-001A

[E]

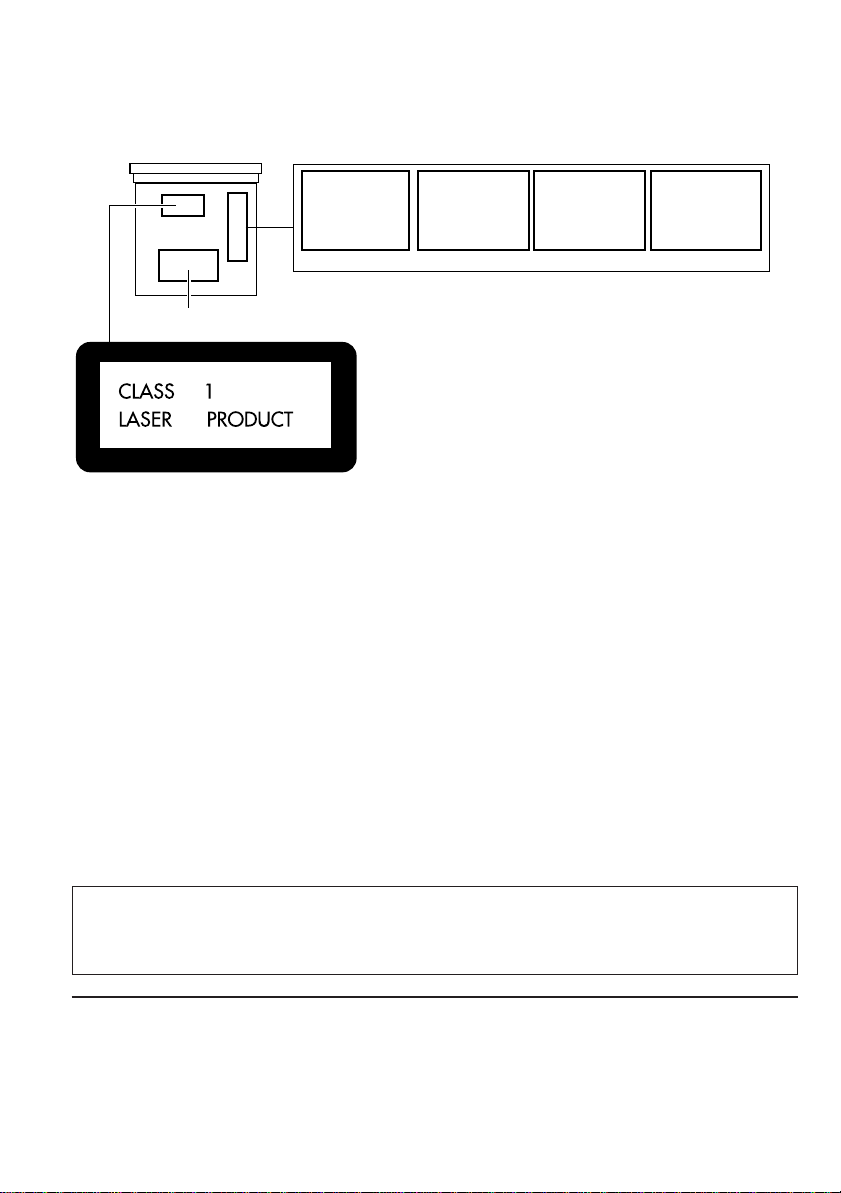

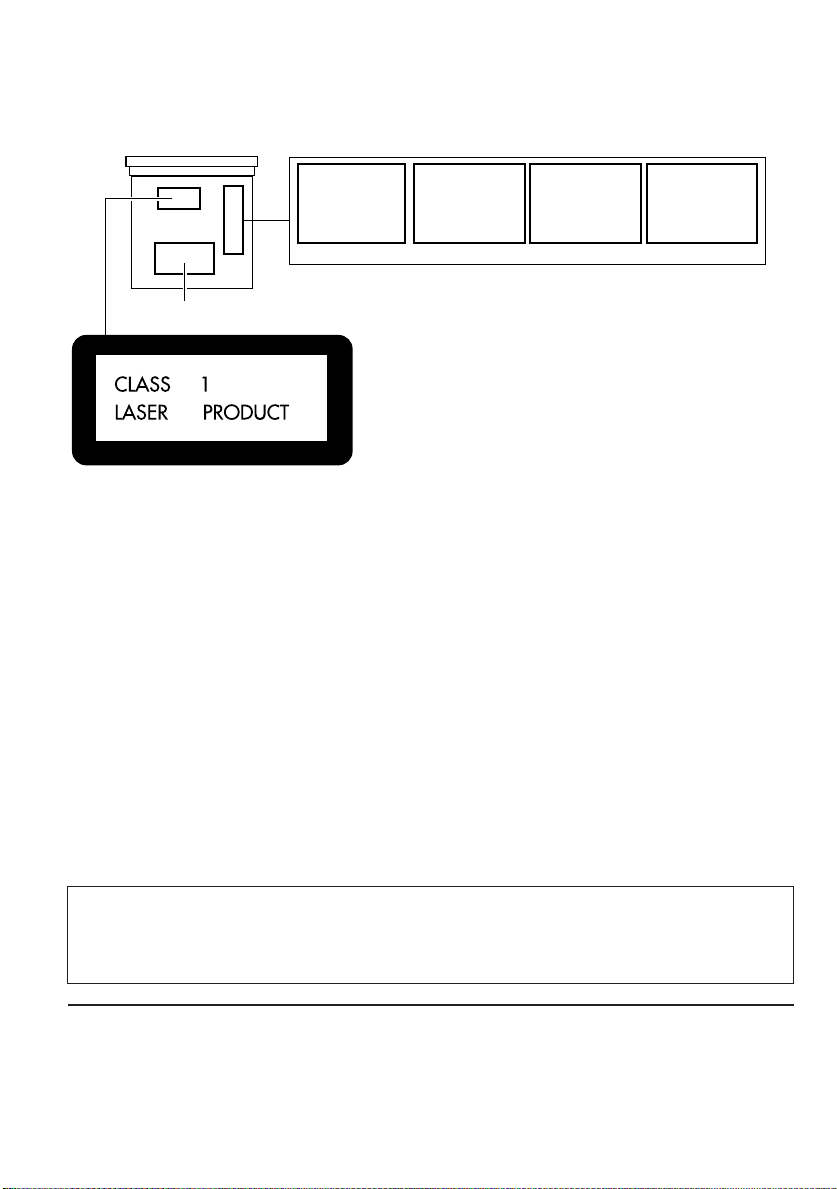

Position And Reproduction Of Labels

Bottom panel of the main unit

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funkti on. Undgåudsæ ttelse for stråling. (d)

Name/Rating plate

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TOBEAM. (e)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. A void

Caution: This product contains a laser component of higher laser class than Class 1.

direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet

är

alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

* For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

• Stop the car before performing any complicated operations.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

BASIC OPERATIONS ....................................................4

RADIO OPERATIONS ...................................................5

Listening to the radio ..................................................................... 5

Storing stations in memory ............................................................ 6

FM station automatic preset:SSM ................................................6

Manual preset.............................................................................. 7

Tuning into a preset station ........................................................... 8

When an FM stereo broadcast is hard to receive ........................8

RDS OPERATIONS .......................................................9

What you can do with RDS EON ..................................................9

Tracing the same programme automatically

(Network-Tracking Reception).................................................9

Using Standby Reception.......................................................... 11

Selecting Your Favorite Programme for

PTY Standby Reception............................................................ 12

Searching Your Favorite Programme..........................................12

Other convenient RDS functions.................................................15

Automatic selection of the station

when using the number buttons ............................................15

Changing the display mode while listening to an FM station..... 15

Setting the TA volume level ........................................................15

Automatic clock adjustment...................................................... 16

ENGLISH

CD OPERATIONS....................................................... 17

Playing a CD ................................................................................. 17

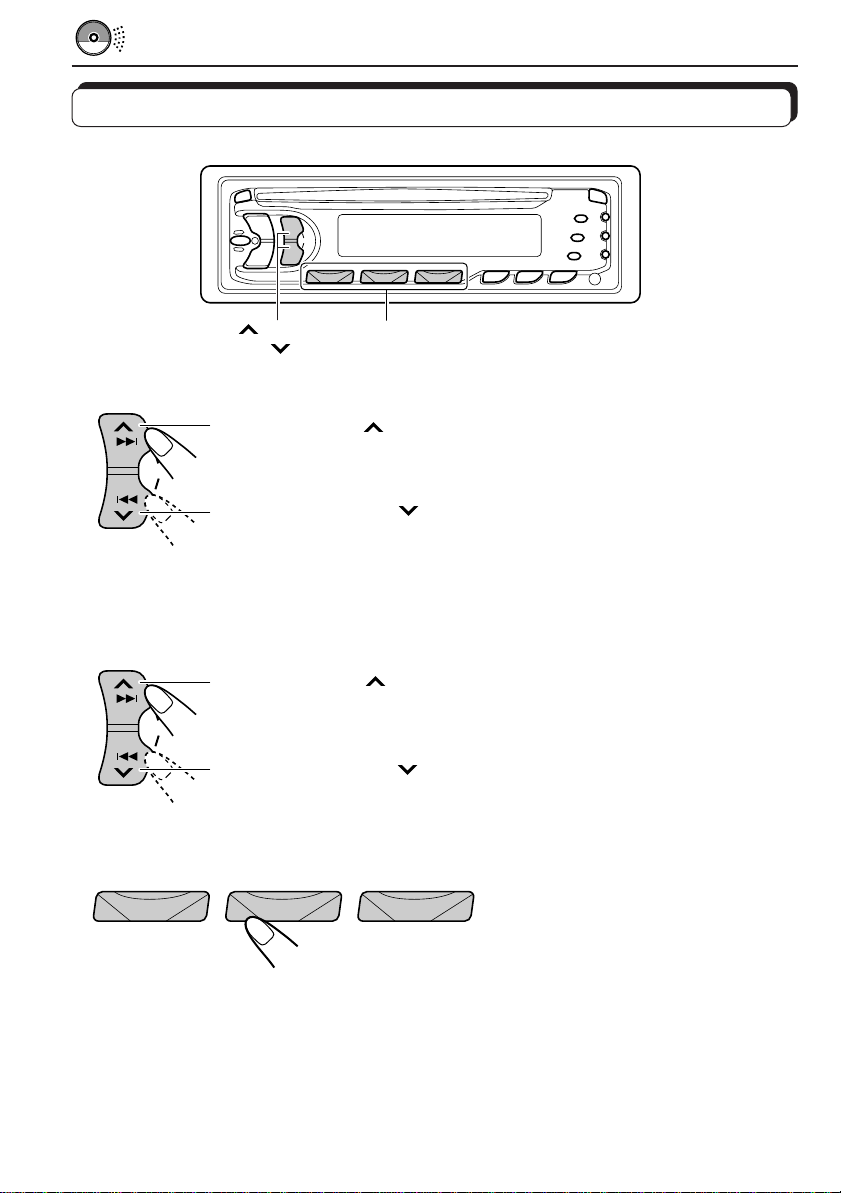

Locating a track or a particular portion on a CD .....................18

Selecting CD playback modes......................................................19

Prohibiting CD ejection ............................................................... 19

SOUND ADJUSTMENTS .............................................20

Selecting preset sound modes ...................................................... 20

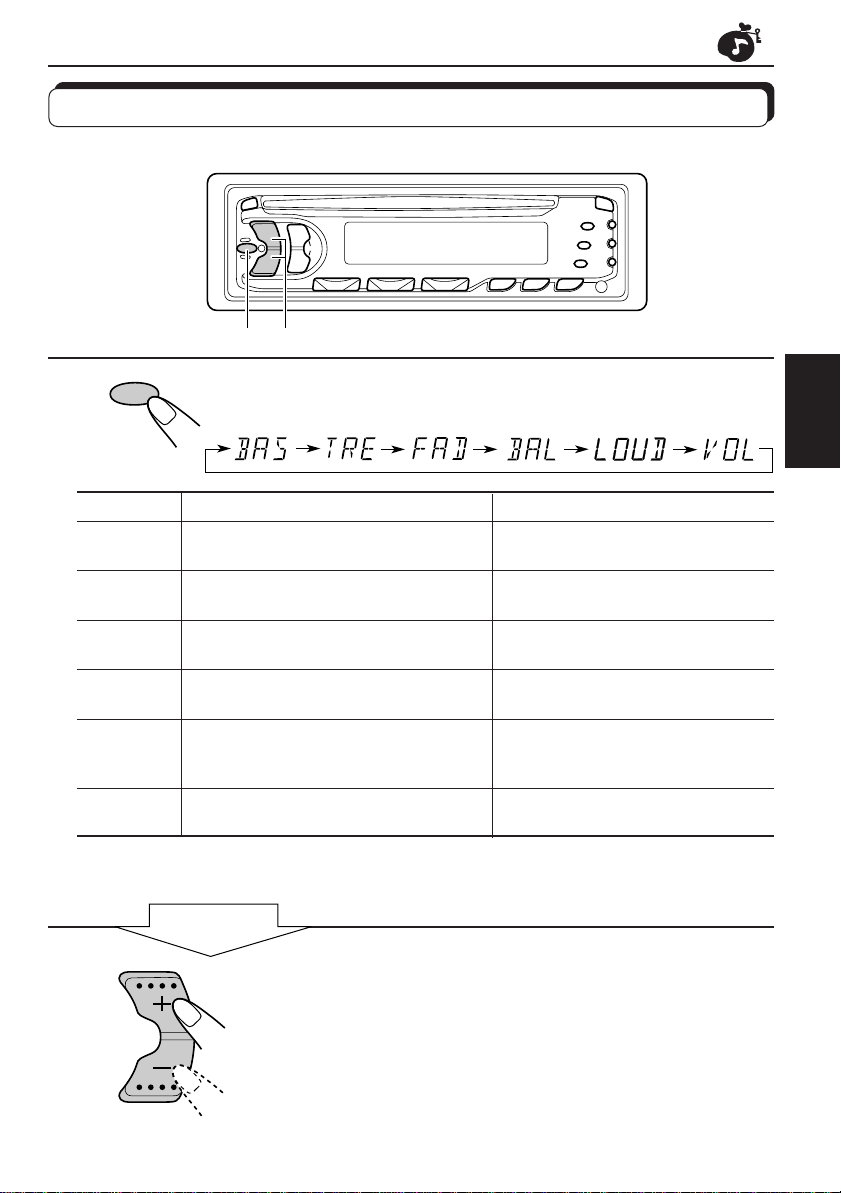

Adjusting the sound......................................................................21

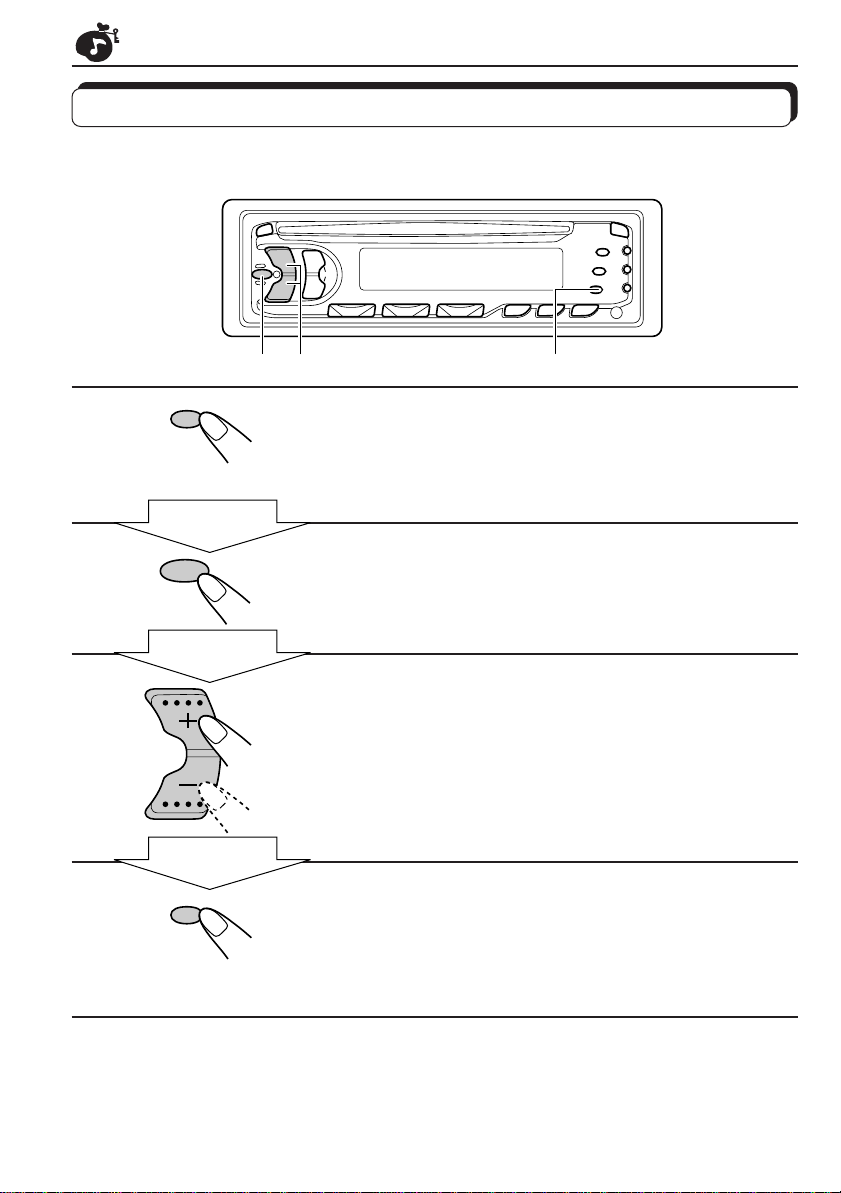

Storing your own sound adjustments .........................................22

OTHER MAIN FUNCTIONS .........................................23

Setting the clock ............................................................................ 23

Changing the general settings......................................................25

Detaching the control panel ......................................................... 26

MAINTENANCE .........................................................27

Handling CDs ................................................................................ 27

TROUBLESHOOTING .................................................28

SPECIFICATIONS .......................................................29

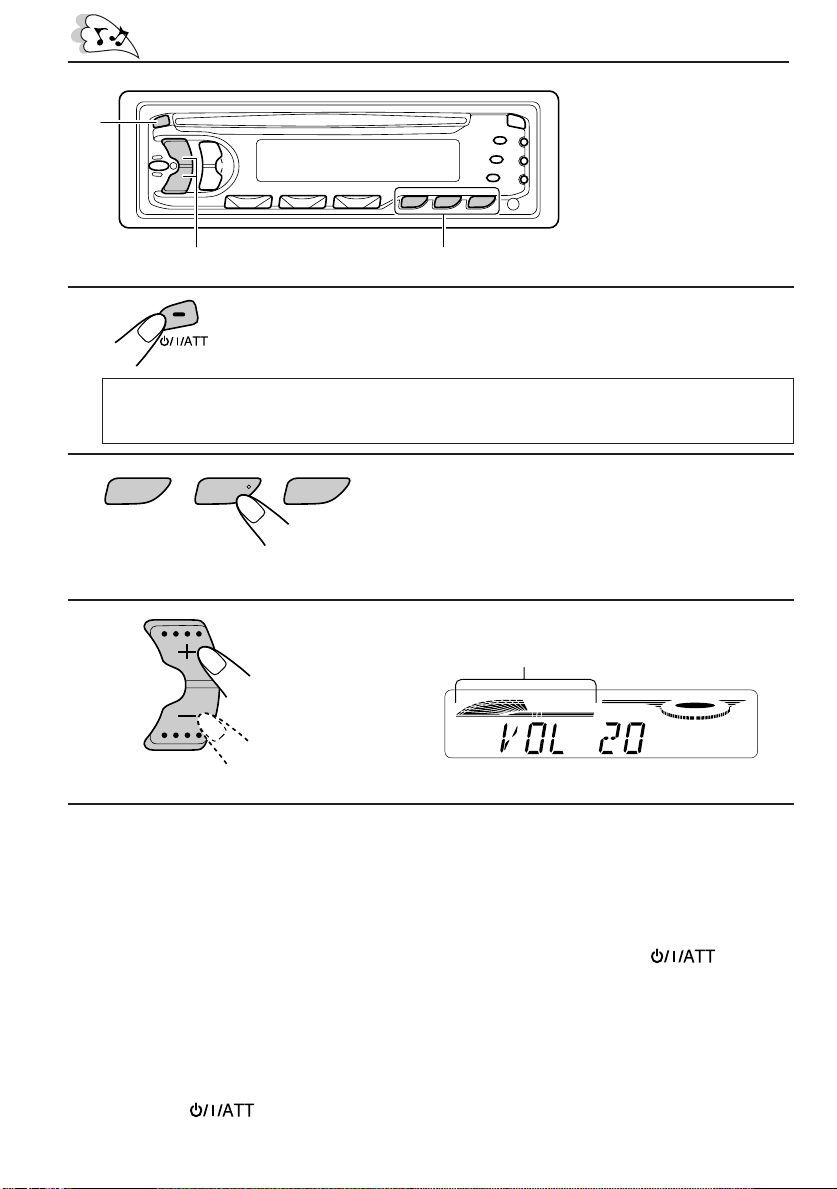

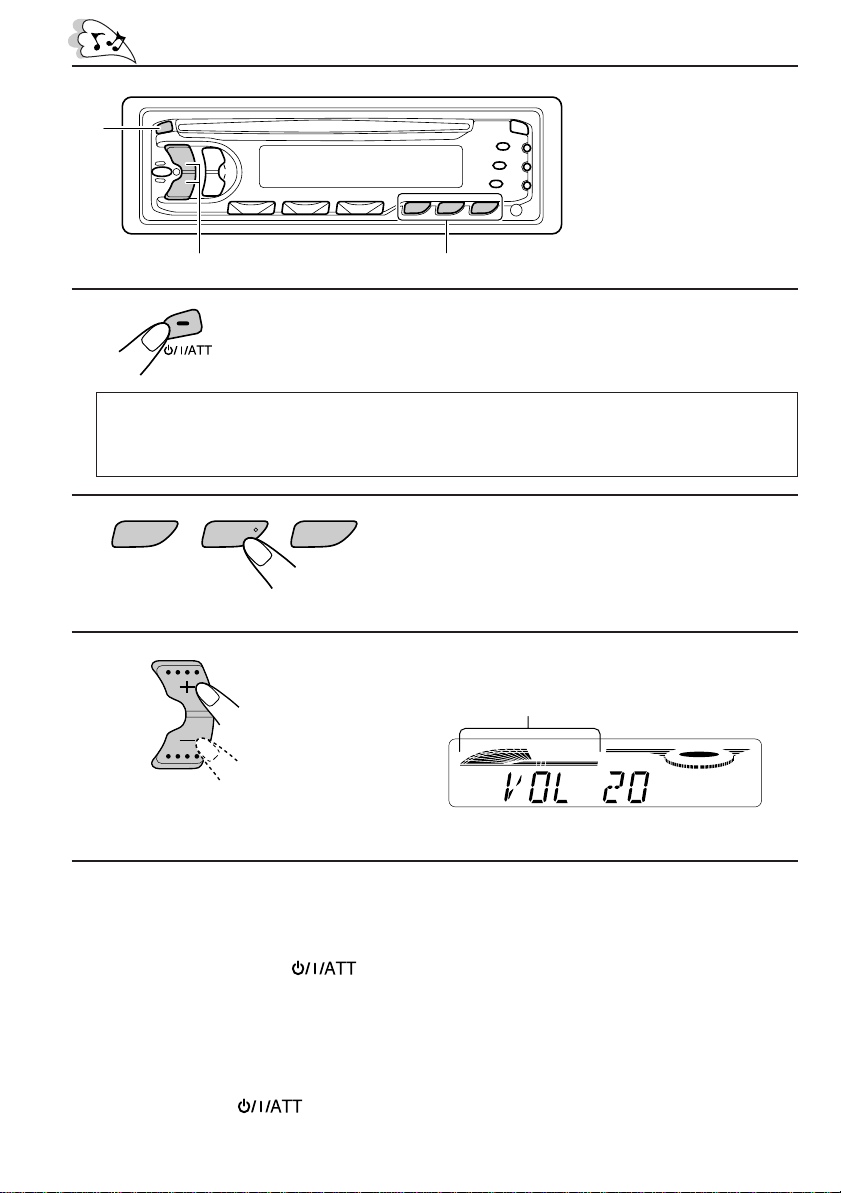

BASIC OPERATIONS

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 23.

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

F MA M C D

Select the source.

To operate the tuner, see pages 5 – 16. To operate the CD player, see pages 17 – 19.

Adjust the volume.

Volume level indicator

Volume level appears.

Adjust the sound as you want (see pages 20 – 22).

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display , and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

To turn off the power

Press and hold for more than 1 second.

RADIO OPERATIONS

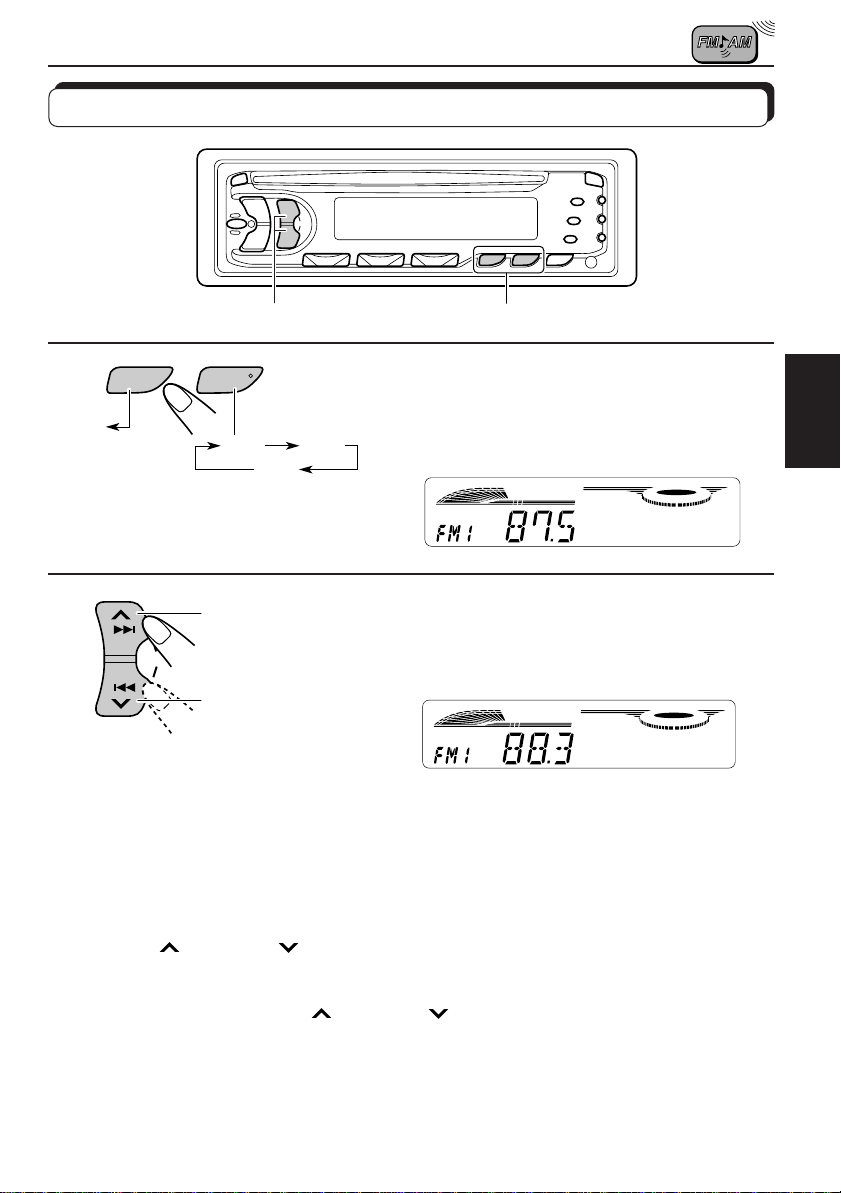

Listening to the radio

ENGLISH

Select the band (FM1, FM2, FM3

F MA M

or AM).

FM1AMFM2

FM3

SSM

To stop searching before a station is received, press the same button you have pressed for searching.

To search stations of higher frequencies.

To search stations of lower frequencies.

To tune in a particular frequency without searching:

1 Select the band (FM or AM).

Press FM or AM.

2 Press and hold

Now you can manually change the frequency while “M” is flashing.

3 Press

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and

¢ or 4 repeatedly until the frequency you want is reached.

9kHz intervals for AM-MW/LW) until you release the button.

¢ or 4 until “M” starts flashing on the display.

Y ou can select an y one of FM1, FM2, and FM3 to listen to an FM station.

Start searching a station.

When a station is received, searching stops.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations:SSM (Strong-station Sequential Memory)

• Manual preset of both FM and AM stations

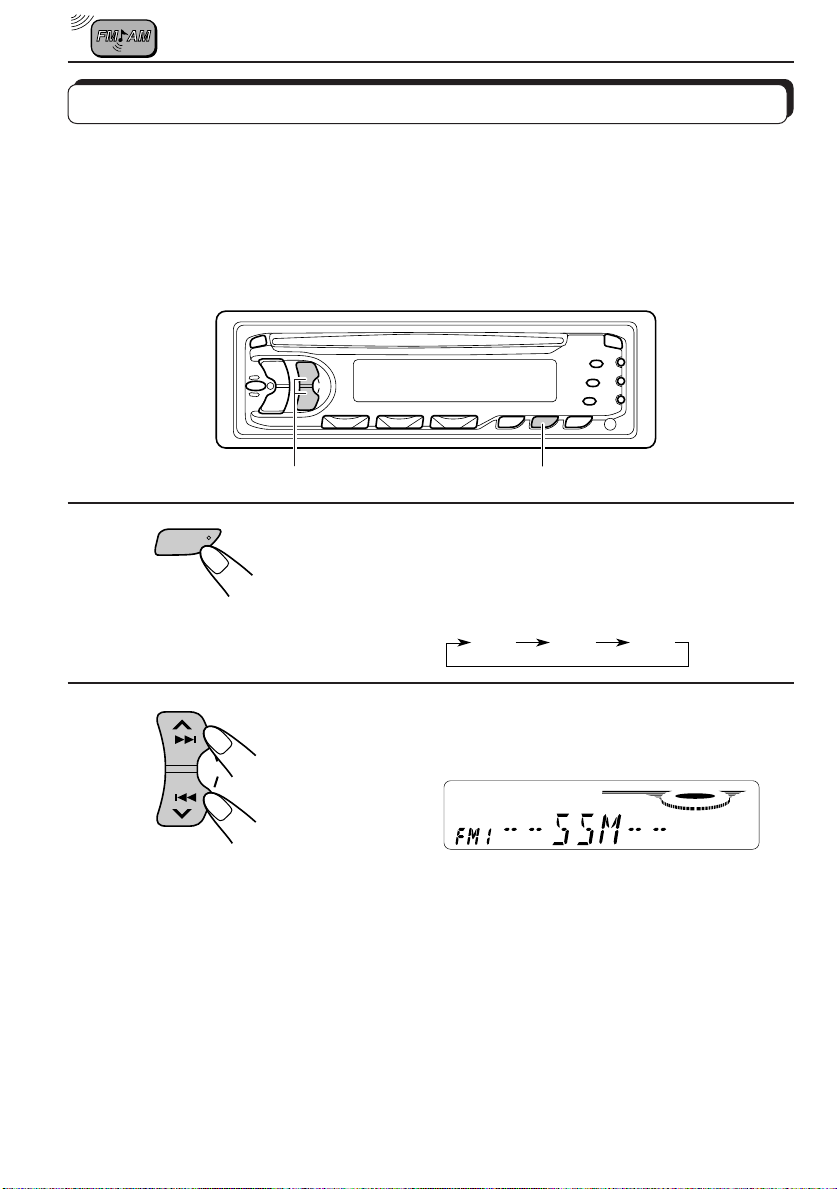

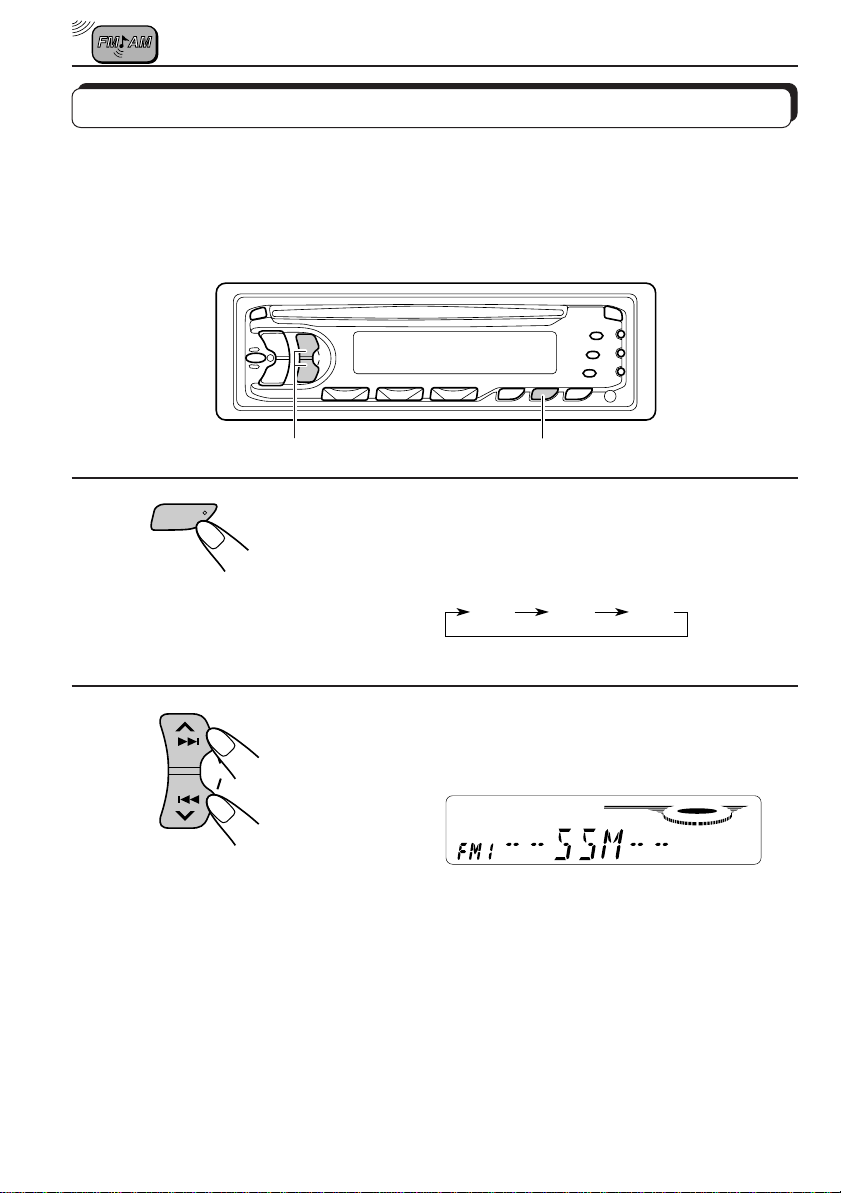

FM station automatic preset:SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

F M

Select the FM band number (FM1, FM2 or FM3) you want to store FM stations into.

FM1 FM2 FM3

Press and hold both buttons for more than 2

SSM

Local FM stations with the strongest signals are searched and stored automatically in the band number you hav e selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No. 1 (lowest frequency) to No. 6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

seconds.

“SSM” appears, then disappears when automatic preset is over.

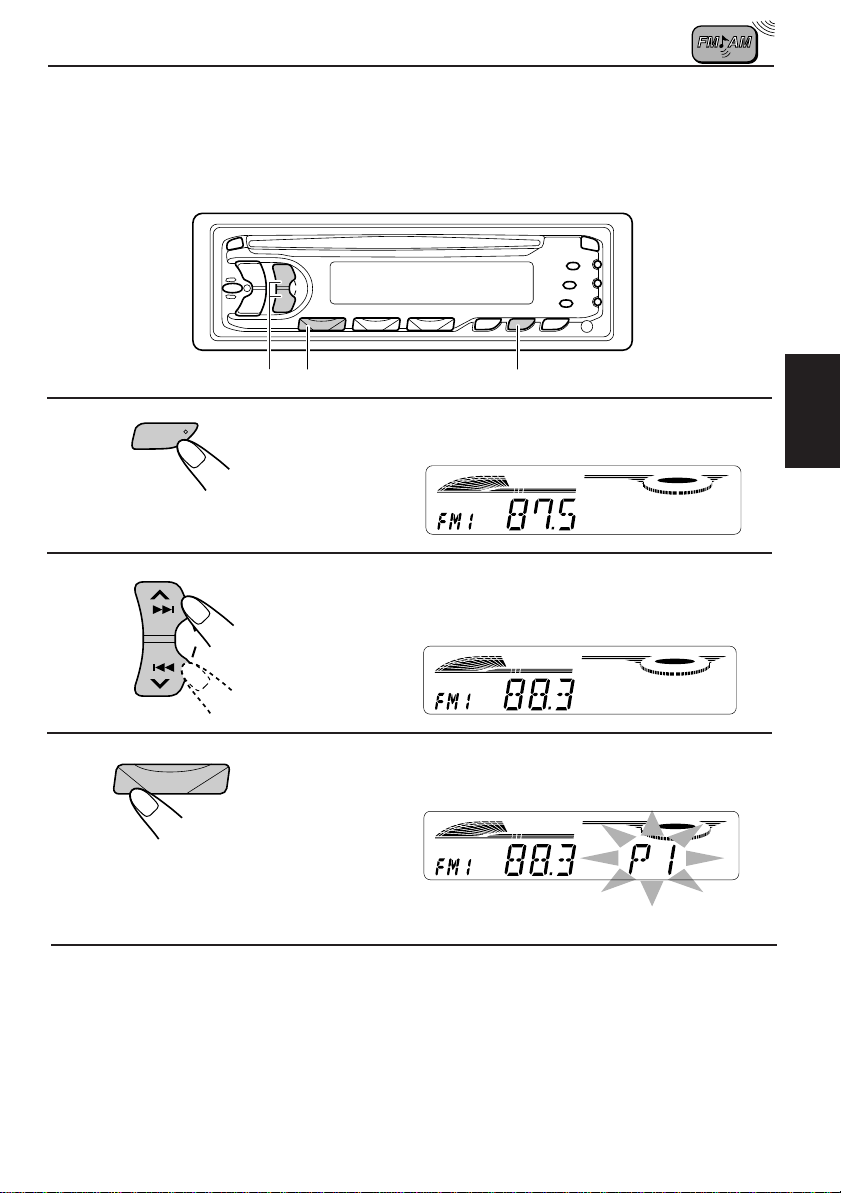

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band

12 3

ENGLISH

F M

Select the FM1 band.

Tune into a station of 88.3 MHz.

See page 5 to tune into a station.

Press and hold the button for more than 2

SSM

seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power suppl y to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7.

F MA M

Select the band (FM1, FM2, FM3 or AM) you want.

FM1AMFM2

FM3

123456

Select the number (1 – 6) for the preset station you want.

When an FM stereo broadcast is hard to receive

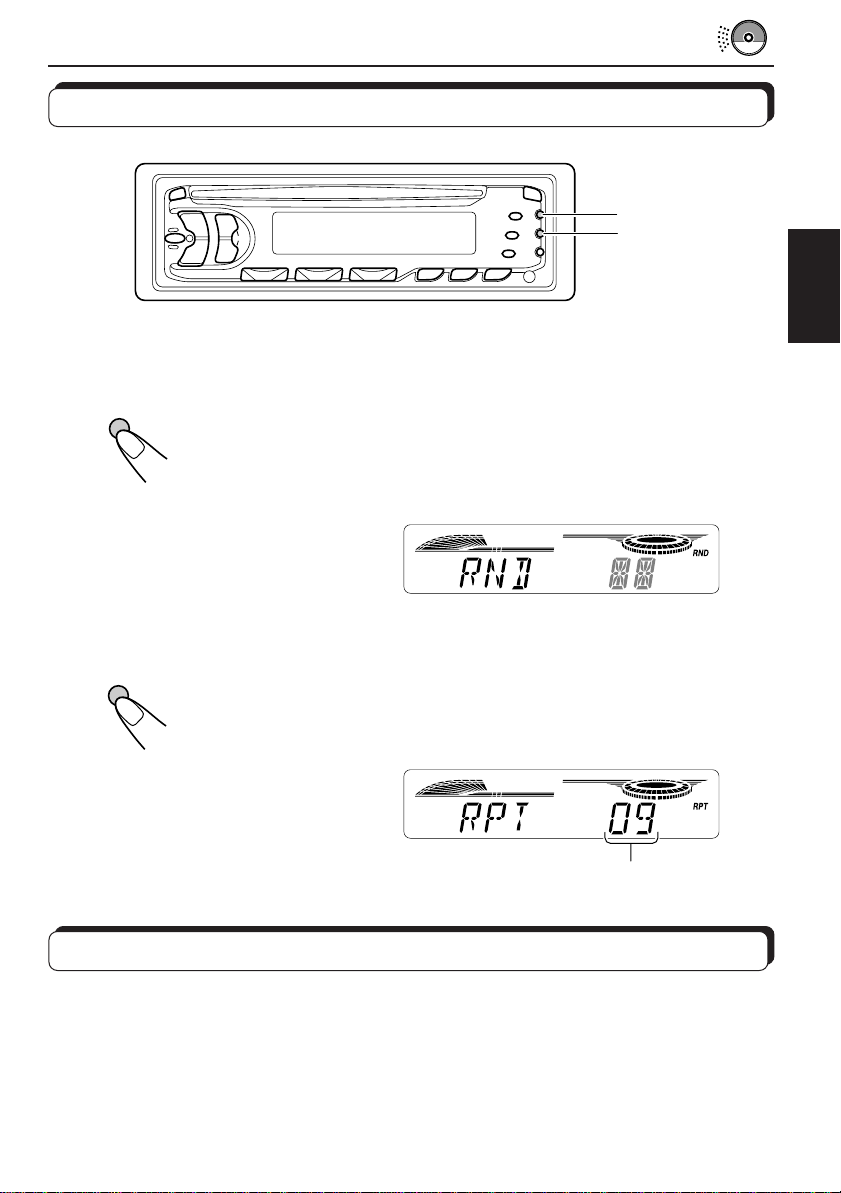

MO/RND

Press MO/RND (Mono/Random) while listening to an FM stereo broadcast.

The “MO” (Mono) indicator lights up on the display. The sound you hear becomes monaural but reception will be improved.

Lights up when receiving an FM broadcast in stereo.

To restore the stereo effect, press the same button again.

RDS OPERATIONS

What you can do with RDS EON

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “EON (Enhanced Other Networks).” The EON indicator lights up while receiving an FM station with the EON data. By using the EON data sent from a station, you can tune into a different station of a different networ k broadcasting your favorite prog ramme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS signals, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• TA (Traffic Announcement) search

• And some other functions

Tracing the same programme automatically (NetworkTracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.) Two types of the RDS signals are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency) data. Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception, Press and hold TP/RDS (Traffic

TP/RDS

Programme/Radio Data System) for more than 1 second. Each time you press and hold the button, Network-Tracking Reception modes change as follows:

ENGLISH

Mode 1 Mode 2 Mode 3

Mode 1 (AF: on / REG: off)

Network-Tracking is activated with Regionalization set to “off.” Switches to another station within the same network when the receiving signals from the current station become weak.

Note:

In this mode, the programme may differ from the one currently received.

Mode 2 (AF: on / REG: on)

Network-Tracking is activated with Regionalization set to “on.” Switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak.

Mode 3 (AF: off / REG: off)

Network-Tracking is deactivated.

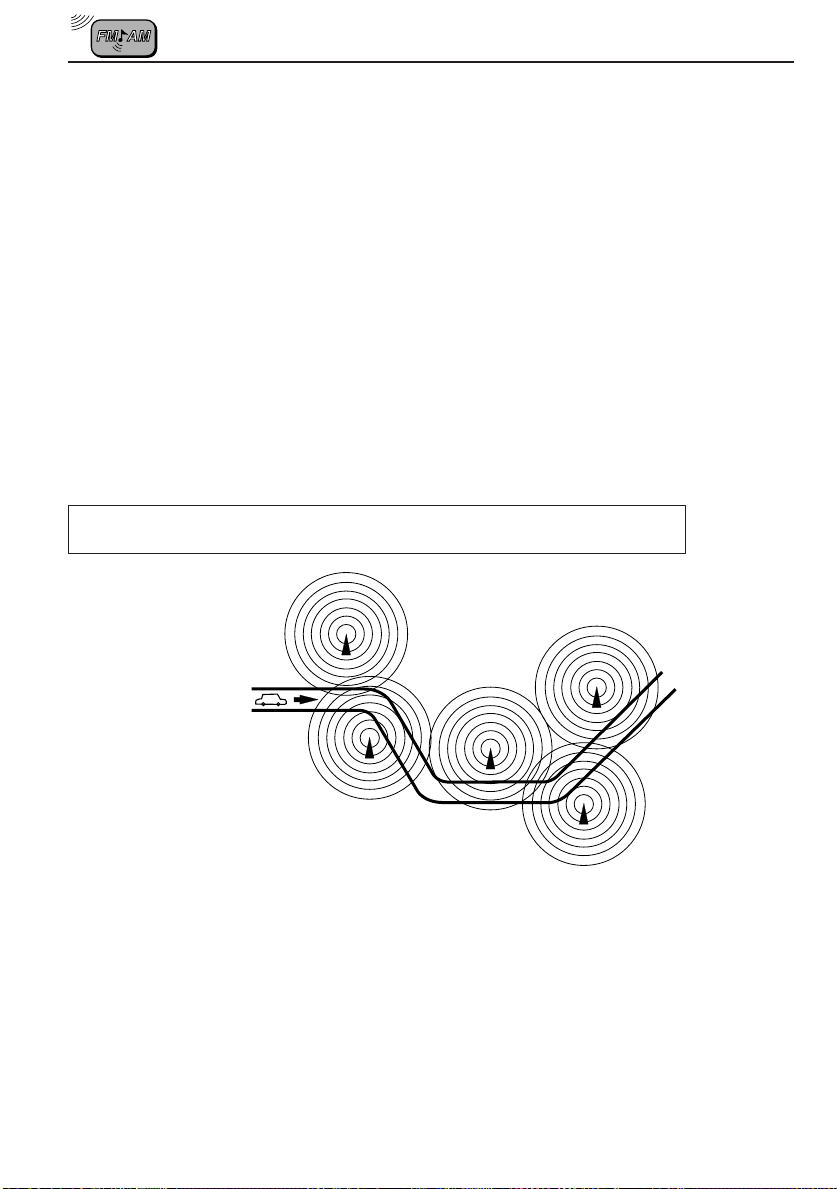

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

Using Standby Reception

Standby Reception allows the unit to switch temporar ily to your favorite programme (PTY: Programme Type) and T raffic Announcement (T A) from the current source (another FM station and CD).

Note:

Standby Reception will not work if you are listening to an AM station.

TA Standby Reception

• When you press TP/RDS while listening to an FM station, the TP indicator

TP/RDS

is lit during reception of a TP (T r affic Programme) station and the T A standb y mode is engaged.

Note:

When the station being received is not a TP sta tion, the TP indicator f lashes. Press

¢ or 4 to engage the TA standby mode. “SEARCH” appears on the display, and TP station searc h starts. When a TP station is tuned in, the TP indicator is lit.

• If you are listening to a CD, and wish to listen to a TP station, press TP/

RDS to enter the TA standby mode. (The TP indicator lights up.)

If a traffic programme starts broadcasting while the T A standb y mode is active , “TRAFFIC” appears and the playback source changes to the FM band. The volume increases to the preset TA volume level and the traffic programme can be heard.

To deactivate the TA standby mode, press TP/RDS again.

PTY Standby Reception

• When you press PTY while listening to an FM station, the PTY indicator is

PTY

lit during reception of a PTY station and the PTY standby mode is engaged. The selected PTY name stored on page 12 flashes for 5 seconds.

ENGLISH

Note:

When the station being received is not a PTY station, the PTY indicator f lashes. Press the display, and PTY station search starts. When a PTY sta tion is tuned in, the PTY indicator is lit.

• If you are listening to a CD , and wish to listen to a selected PTY broadcast,

If the selected PTY programme starts broadcasting while the PTY standby mode is active, the selected PTY name appears and the playback source changes to the FM band. The selected PTY programme can then be heard.

To deactivate the PTY standby mode, press PTY again.

¢ or 4 to engage the PTY standby mode. “SEARCH” appears on

press PTY to enter the PTY standby mode. (The PTY indicator lights up.)

Selecting Your Favorite Programme for PTY Standby Reception

You can select your favorite programme for PTY Standby Reception to store in memory. When shipped from the factory, “NEWS” is stored as the programme type for PTY Standby Reception.

1, 4

SEL

Press and hold SEL for more than 2 seconds to call up the general settings mode (see page

25).

SSM

Select “PTY STBY”(Standby) if not sho wn on the display.

Select one of twenty-nine PTY codes. (See the table on page 16.)

Selected code name appears on the display and is stored into memory.

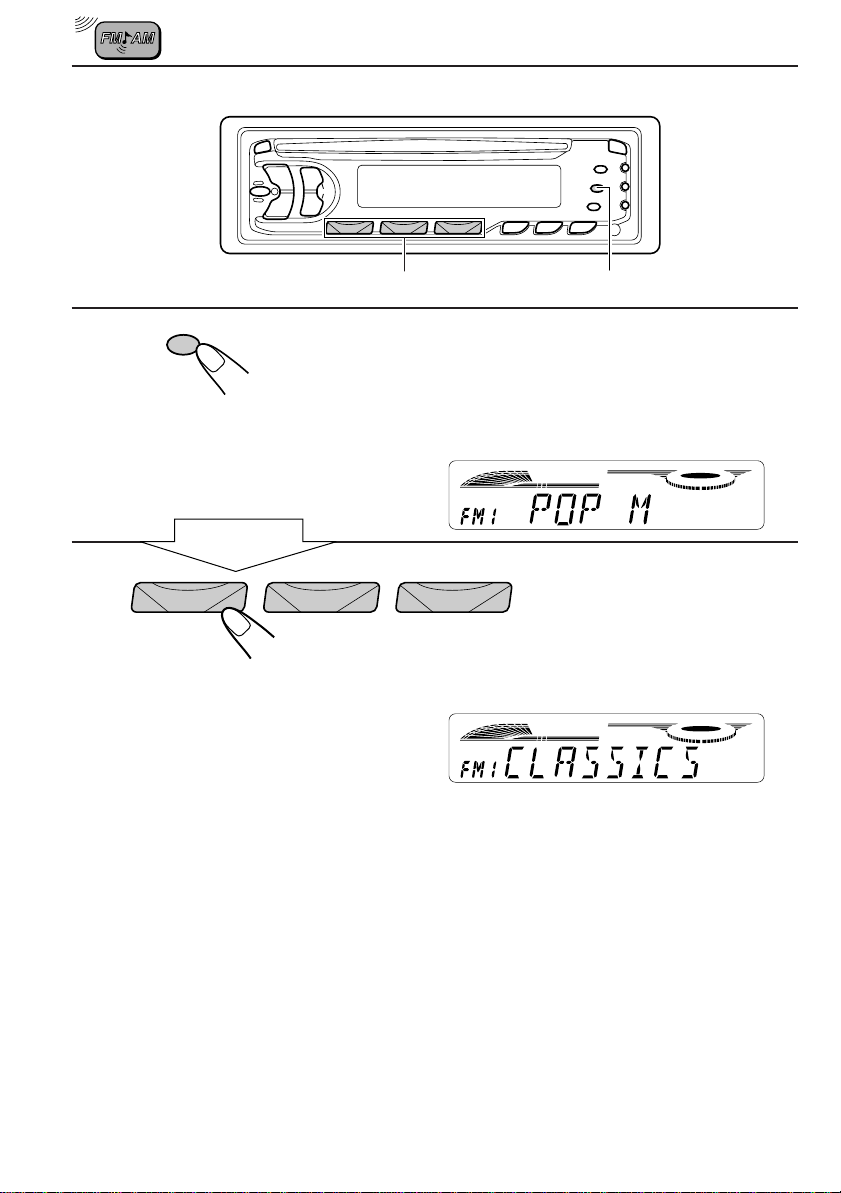

Searching Your Favorite Programme

You can search one of your 6 favorite programme types stored in memory. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see page 13. To search your favorite programme, see page 14.

SEL

POP M

Finish setting.

ROCK M

EASY M

CLASSICS

AFFAIRS

VARIED

To store your favorite programme types

ENGLISH

1, 5

SEL

Press and hold SEL f or more than 2 seconds to call up the general settings mode (see page

25).

Select “PTY SRCH”(Search) if not shown on

SSM

the display.

Select one of twenty-nine PTY codes. (See the table on page 16.)

Selected code name appears on the display.

• If the code already stored in memory is selected, it will flash on the display.

123456

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

The PTY code starts flashing.

SEL

Finish setting.

To search your favorite programme type

PTY

Press and hold PTY for more than 1 second while listening to an FM station.

The last selected PTY code appears.

Within

5 seconds

123456

Select one of the PTY codes stored in the preset number buttons (1 to 6).

Ex. When “CLASSICS” is stored in the preset number button 2.

PTY search for your favorite programme starts after 5 seconds.

• If there is a station broadcasting a programme of the same PTY code you have selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code you have selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit starts searching another station broadcasting the same programme as the original preset station is broadcasting, then if any station broadcasting the same programme is found, the station will be tuned in.

Changing the display mode while listening to an FM station

Y ou can change the initial indication on the displa y to station frequency, station name (PS), or clock time while listening to an FM RDS station.

• See also “Changing the general settings” on page 25.

1. Press and hold SEL (select) for more than 2 seconds to call up the general settings mode.

2. Select “DISPMODE” with

3. Set to the desired indication (station frequency, clock time, or station name) with the lev el control buttons (+,–).

Note:

By pressing DISP, you can also change the display while listening to an FM RDS station. Each time you press the button, the display changes to show the following:

¢ or 4 .

ENGLISH

Station name

* The display returns to the initially preset mode after a short while.

Frequency

PTY (Programme type)

Clock time

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings” on page 25.

1. Press and hold SEL (select) for more than 2 seconds to call up the general settings mode.

2. Select “TA VOL” with

3. Set to the desired volume level with the level control buttons (+,–).

¢ or 4 .

Automatic clock adjustment

When shipped from the factory , the cloc k built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings” on page 25.

1. Press and hold SEL (select) for more than 2 seconds to call up the general settings mode.

2. Select “AUTO ADJ” with

3. Select “ADJ OFF” with the level control buttons (+,–).

Now automatic clock adjustment is canceled.

To reactivate clock adjustment, repeat the same procedure and select “ADJ ON” in step 3 with the level control buttons (+,–).

Note:

It takes about 2 minutes to adjust the time using the CT data. So, you must tune to the station for more than 2 minutes continuously; otherwise, the clock time will not be adjusted.

PTY codes

NEWS: News AFFAIRS: Topical programmes

expanding on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

regional culture SCIENCE: Programmes on natural

science and technology VARIED: Other programmes like

comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce,

trading, the Stock Market,

etc. CHILDREN: Entertainment programmes

for children

¢ or 4 .

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with

any aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people

can express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned

with recreational activities such as gardening,

cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in

that country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented

in an investigative style

Playing a CD

CD OPERATIONS

ENGLISH

Insert a disc into the loading slot.

The unit turns on, draws a CD and starts playback automatically.

Total playing time of the inserted disc

Note on One-Touch Operation:

When a CD is alr eady in the loading slot, pressing CD tur ns on the unit and starts playback automatically.

CAUTION on Volume Setting

CDs produces very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a CD and adjust it as required during playback.

Total track number of the inserted disc

Elapsed playing time

Current track

To stop play and eject the CD

Press 0. CD play stops and the CD automatically ejects from the loading slot. If you change the source to AM or FM, the CD play also stops (without ejecting the CD this time).

• If the ejected disc is not removed for about 15 seconds , the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

• You can eject the CD even when the unit is turned off.

Locating a track or a particular portion on a CD

Number buttons

To fast forward or reverse the track

Press and hold ¢ , while playing a CD, to fast forward the track.

SSM

Press and hold 4

, while playing a CD, to reverse the track.

To go to the next track or the previous track

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next tr ack. Each time y ou press the button consecutiv ely, the beginning

SSM

of the next track is located and played back. Press 4

briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutiv ely , the beginning of the previous track is located and played back.

To go to a particular track directly

78 9101112

123456

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6:

Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12:

Press and hold 1 (7) – 6 (12) for more than 1 second.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back all tracks on the CD at random.

RND

Each time you press MO/RND (Mono/Random) while playing a CD, CD random play mode turns on and off alternatively. When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

RPT

Each time you press RPT (Repeat) while playing a CD, CD repeat play mode turns on and off alternatively. When the repeat mode is turned on, the RPT indicator lights up on the display.

MO/RND

RPT

ENGLISH

Track number of the currently playing track

Prohibiting CD ejection

You can prohibit the CD ejection and can “lock” a CD in the loading slot. Press and hold CD and 0 for more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds, and the CD is “locked.” To cancel the prohibition and “unlock” the CD, press and hold CD and 0 f or more than 2

seconds again. “EJECT” appears on the display, and the CD ejects from the loading slot.

SOUND ADJUSTMENTS

Selecting preset sound modes

You can select a preset sound adjustment suitable to the music genre:

SOUND

Each time you press SOUND, the sound mode changes as follows.

SOUND

Indication For: Preset values

Bass Treble Loudness SCM OFF (Flat sound) 00 00 On BEAT Rock or disco music +2 00 On SOFT Quiet background music +1 –3 Off POP Light music +4 +1 Off

Notes:

• You can adjust the preset sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 22.

• T o adjust only the bass and treble r einfor cement levels to your pr efer ence, see “Adjusting the sound” on page 21.

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

SEL

Select the item you want to adjust.

Indication To do: Range

BAS Adjust the bass. –6 (min.) — +6 (max.) (Bass)

TRE Adjust the treble. –6 (min.) — +6 (max.) (Treble)

FAD Adjust the front and rear speaker R6 (rear only) — F6 (front only) (Fader)* balance.

BAL Adjust the left and right speaker L6 (left only) — R6 (right only) (Balance) balance.

LOUD Boost low and high frequencies to

(Loudness)

VOL Adjust the volume. 00 (min.) — 50 (max.) (Volume)

Note:

* If you are using a two-speaker system, set the fader level to “00” (centre).

produce a well-balanced sound at low volume level.

Within

5 seconds

ON — OFF

Adjust the level.

Press the + button to turn on the loudness function, and the – button to turn it off.

Note:

Normally the + and – buttons work as the volume control buttons. So you do not have to select “VOL” to adjust the volume level.

Storing your own sound adjustments

You can adjust the sound modes (BEAT, SOFT, POP: see page 20) to your preference and store your own adjustments in memory.

2 3 1, 4

SOUND

Call up the sound mode you want to adjust.

See page 20 for details.

Within

5 seconds

SEL

Select “BAS” (Bass), “TRE” (T reble) or “LOUD” (Loudness).

Within

5 seconds

Adjust the bass or treble level or turn the loudness function ON/OFF.

See page 21 for details.

Within

5 seconds

SOUND

Press and hold the botton until the sound mode you ha ve selected in step 1 flashes on the display.

Your setting is stored in memory.

Repeat the same procedure to store other settings.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on page 20.

OTHER MAIN FUNCTIONS

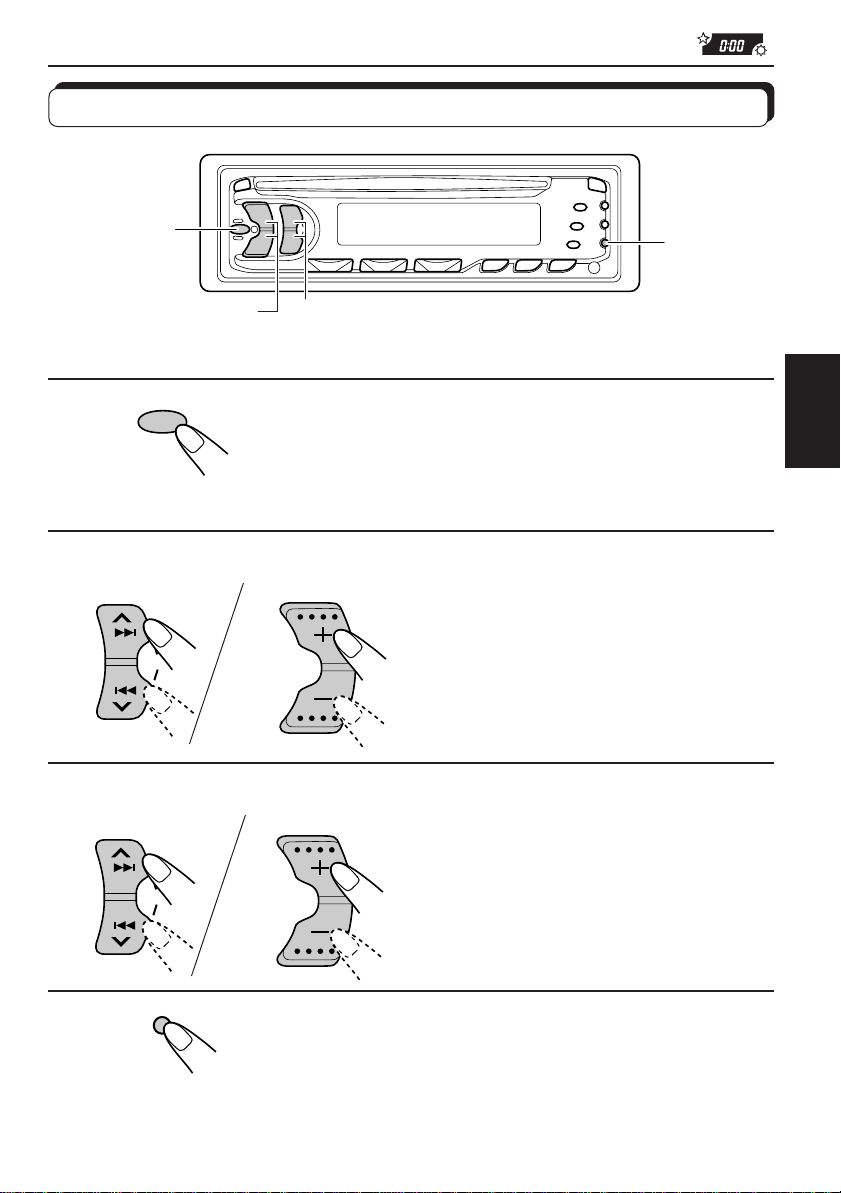

Setting the clock

ENGLISH

SEL

SSM

3, 5

2, 4

Press and hold SEL for more than 2 seconds to call up the general settings mode.

Set the hour. 1 Select “CLOCK H” if not

shown on the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M.”

SSM

2 Adjust the minute.

DISP

Start the clock.

To check the current clock time

Press DISP. Each time you press the button, indications change as follows:

During tuner operation:

DISP

To check the current clock time while the unit is turned off, press DISP. The power turns on, the clock time is shown for 5 seconds, then the power turns off.

Note:

For the indication change during RDS operation, see page 15.

During CD operation:

Clock

Frequency

Elapsed playing time

Changing the general settings

You can change the setting of the items listed below.

ENGLISH

SEL

123

2 3

SSM

SEL

Select each mode.

Select.

Hour adjustment

Minute adjustment 24/12-hour time

display Automatic setting

of the clock

Display mode

SSM

Back

12H 24H 24H

ADJ OFF ADJ ON ADJ ON

Press and hold SEL for more than 2 seconds to set the general setting mode.

Set the desired mode.

Set.

Advance

FREQPS NAME

CLOCK

settings

0:00

PS NAME

See pageFactory-preset

23-24

—

PTY standby PTY search

Traffic announcement volume

• Press SEL when the setting is complete.

29 programme types (See page 16.)

VOL (00-50) VOL (00-50) VOL (20)

NEWS

See page 12.

11-12 13-14

11, 15

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

How to detach the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Lift and pull the control panel out of the unit.

How to attach the control panel

Insert the left side of the control panel into the groov e on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

Put the detached control panel into the provided case.

Note on cleaning the connectors:

If you frequently detach the contr ol panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

MAINTENANCE

Handling CDs

This unit has been designed only to reproduce the CDs bearing the mark. Other discs cannot be played back.

How to handle CDs

When removing a CD from its case, press down the centre holder of the case and lift the CD out, holding it by the edges.

• Always hold the CD by the edges. Do not touch its recording surface. When storing a CD into its case, gently insert the CD around the

centre holder (with the printed surface facing up).

• Make sure to store CDs into the cases after use.

To keep CDs clean

A dirty CD may not play correctly . If a CD does becomes dirty , wipe it with a soft cloth in a straight line from centre to edge.

To play new CDs

New CDs may have some rough spots around the inner and outer edges. If such a CD is used, this unit may reject the CD. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

COMPACT

DIGITAL AUDIO

Centre holder

ENGLISH

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the CD and leave the unit turned on for a few hours until the moisture evaporates.

CAUTIONS:

• Do not insert 8cm (3 3/16") CDs (single CDs) into the loading slot. (Such CDs cannot be ejected.)

• Do not insert any CD of unusual shape – like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose CDs to direct sunlight or any heat sour ce or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray , thinner, benzine, etc.) to clean CDs.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the CD, but will be annoying. We recommend that you stop CD play while driving on such rough roads.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service centre.

Symptoms

• CD cannot be played back.

• CD sound is sometimes interrupted.

• “NO DISC” appears on the display.

• Sound cannot be heard from the speakers.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

Causes

CD is inserted upside down. You are driving on rough

roads. CD is scratched. Connections are incorrect.

No CD is in the loading slot (or in the magazine).

CD is inserted incorrectly.

The volume control is turned to the minimum level.

Connections are incorrect.

Signals are too weak.

Remedies

Insert the CD correctly. Stop CD play while driving on

rough roads. Change the CD. Check the cords and

connections. Insert CD.

Insert it correctly.

Adjust it to the optimum level.

Check the cords and connections.

Store stations manually.

• Static noise while listening to the radio.

• CD can be neither played back nor ejected.

• The unit does not work at all.

The antenna is not connected firmly.

The CD player may function incorrectly.

The built-in microcomputer may function incorrectly due to noise, etc.

Connect the antenna firmly.

Press same time for more than 2 seconds. Be careful not to drop CD when it is ejected.

Press same time for more than 2 seconds to reset the unit. (The clock setting and preset stations stored in memory are erased.)

and 0 at the

and SEL at the

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output

Front: 35 watts per channel Rear: 35 watts per channel

Continuous Power Output (RMS)

Front: 15 watts per channel into 4 Ω, 40

to 20,000 Hz at no more than 0.8% total harmonic distortion.

Rear: 15 watts per channel into 4 Ω, 40

to 20,000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 to 8 Ω allowance) Tone Control Range

Bass: ±10 dB at 100 Hz

Treble:±10 dB at 10 kHz Frequency Response: 40 to 20,000 Hz Signal-to-Noise Ratio: 70 dB

TUNER SECTION

Frequency Range

FM: 87.5 to 108.0 MHz

AM: (MW) 522 to 1,620 kHz

(LW) 144 to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 to 15,000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 to 20,000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement

Operating Voltage: DC 14.4 volts (11 to

16 volts allowance) Grounding System: Negative ground

Allowable working temperature:

0°C to +40°C Dimensions (W x H x D)

Installation Size: 182 x 52 x 150 mm

Panel Size: 188 x 58 x 14 mm Mass: 1.3 kg (2.9 lbs) (excluding accessories)

Design and specifications subject to change without notice.

ENGLISH

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Abbildung und Position der am Gerät befindlichen Aufkleber

Geräteunterseite

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TOBEAM. (e)

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funkti on. Undgåudsæ ttelse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet

är

alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

Typenschild

Achtung:

Caution:

Die Klassifikation der Laserkomponente in

This product contains a laser component

diesem Gerät liegt über Laser-Klasse 1.

of higher laser class than Class 1.

WICHTIG FÜR LASERGERÄTE

Vorsichtsmaßregeln:

1. LASER-PRODUKT DER KLASSE 1

2. GEFAHR: Unsichtbare Laserstrahlung bei Öffnung und fehlerhafter oder beschädigter Sperre. Direkten Kontakt mit dem Strahl vermeiden!

3. ACHTUNG: Das Gehäuseoberteil nicht abnehmen. Das Gerät enthält keinerlei Teile, die vom Benutzer gewartet werden können. Über lassen Sie W artungsarbeiten qualifizierten Kundendienst-Fachleuten.

4. ACHTUNG: Der Compact Disc-Player arbeitet mit unsichtbaren Laserstrahlen und ist mit Sicherheitsschaltern ausgestattet, die die Aussendung von Strahlen verhindern, wenn bei Öffnen des CDHalters die Sicherheitssperren gestört oder beschädigt sind. Es ist gefährlich, die Sicherheitsschaltung zu deaktivieren.

5. ACHTUNG: Falls die Verwendung der Regler, Einstellungen oder Handhabung von den hierin gegebenen Anleitungen abweichen, kann es zu einer gefährlichen Strahlenfreisetzung kommen.

Hinweis:

Zu diesem Gerät wird eine Identifikationskarte mitgeliefert, auf der die Gerätechassis-Nummer vermerkt ist. Heben Sie diese Karte getrennt vom Gerät auf. Im Falle eines Diebstahls kann sie die Geräteidentifizierung erleichtern.

VOR DEM GEBRAUCH

* Für die Sicherheit...

• Die Lautstärke nicht zu laut stellen, da dadurc h Außengeräusche überdeckt und das Autofahr en gefährlich wird.

• Das Auto vor dem Durchführen von

* Temperatur im Auto...

Wenn Sie das Auto für lange Zeit in heißem oder kaltem Wetter parken, bitte warten, bis sich die Temperatur im Auto sich normalisiert hat, bevor Sie das Gerät einschalten.

komplizierten Bedienschritten anhalten.

+ 84 hidden pages

JVC KD-S656R, KD-S653R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
