JVC KD-R400 User Manual
CD RECEIVER
KD-R400
ENGLISHESPAÑOLFRANÇAIS
RECEPTOR CON CD
RÉCEPTEUR CD
For canceling the display demonstration, see page 7.
Para cancelar la demostración en pantalla, consulte la página 7.
Pour annuler la démonstration des affichages, référez-vous à la page 7.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
KD-R400
KD-R400
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet. Retain
this information for future
reference.
Model No.
Serial No.
GET0576-001A
[J]
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
INFORMATION (For U.S.A.)
ENGLISH
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Caution:
Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

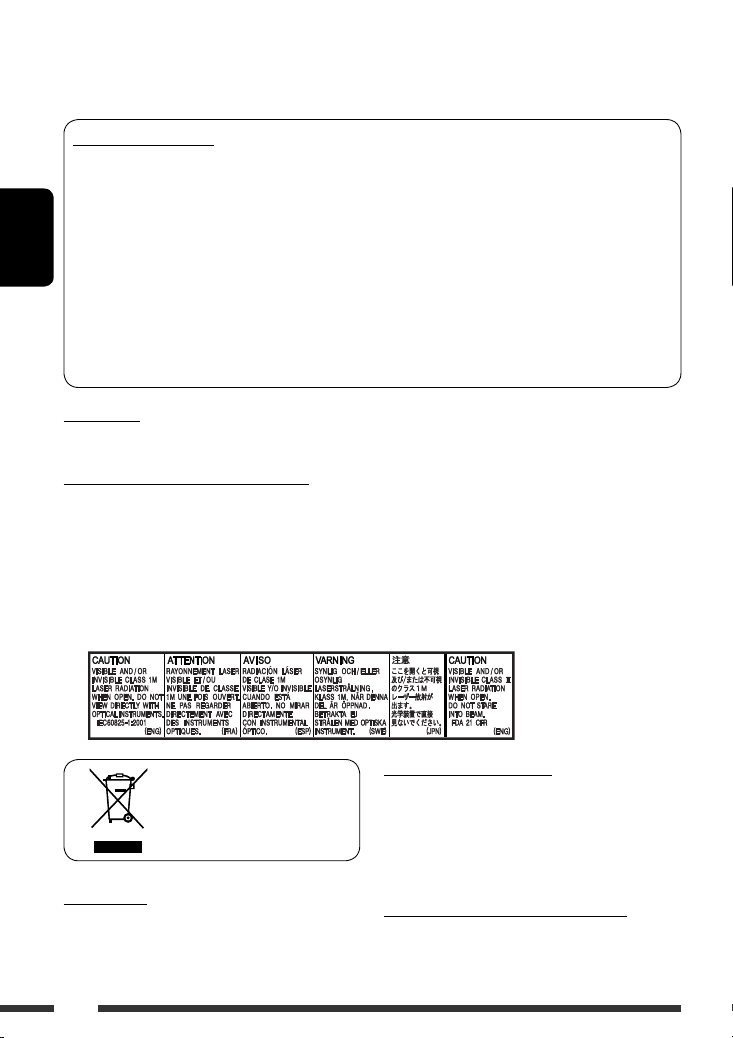

IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.
(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
Warning:
If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
2
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.

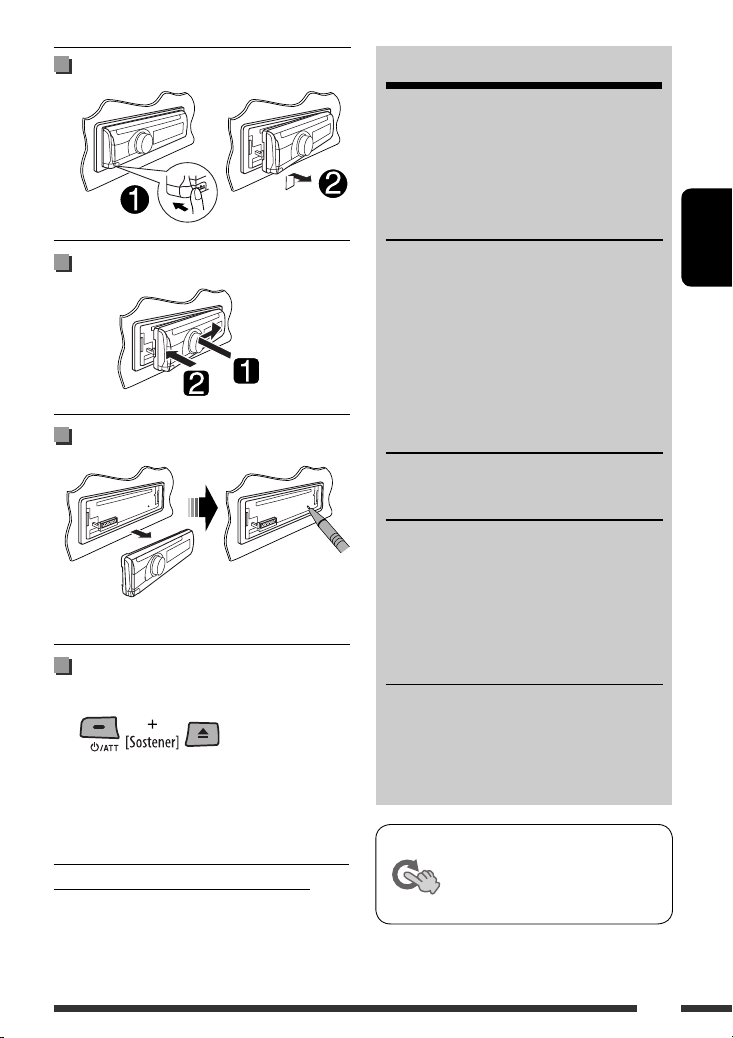

Detaching the control panel
Attaching the control panel
How to reset your unit
• Your preset adjustments will also be erased.
CONTENTS
Detaching the control panel ......................... 3
Attaching the control panel ......................... 3
How to reset your unit ................................. 3
How to forcibly eject a disc ........................... 3
OPERATIONS
Basic operations ........................................... 4
• Using the control panel ............................... 4
• Using the remote controller (RM-RK50) ...... 6
Preparation .................................................. 7
Listening to the radio ................................... 8
Disc operations ............................................. 9

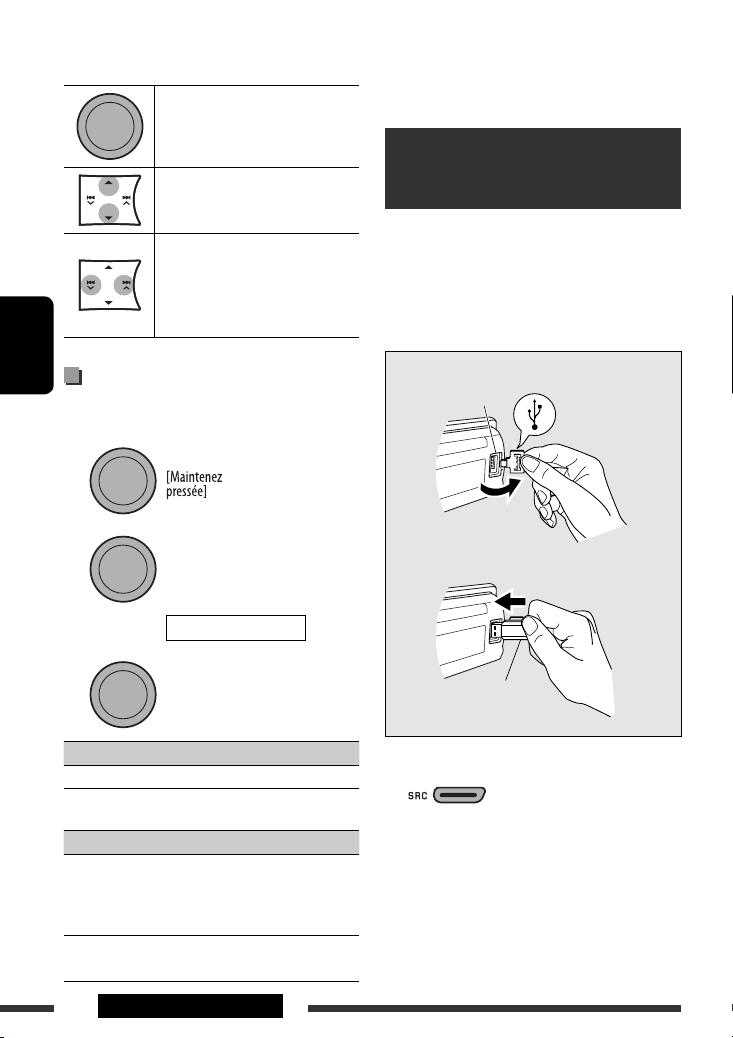

Listening to the USB device .......................... 10
EXTERNAL DEVICES

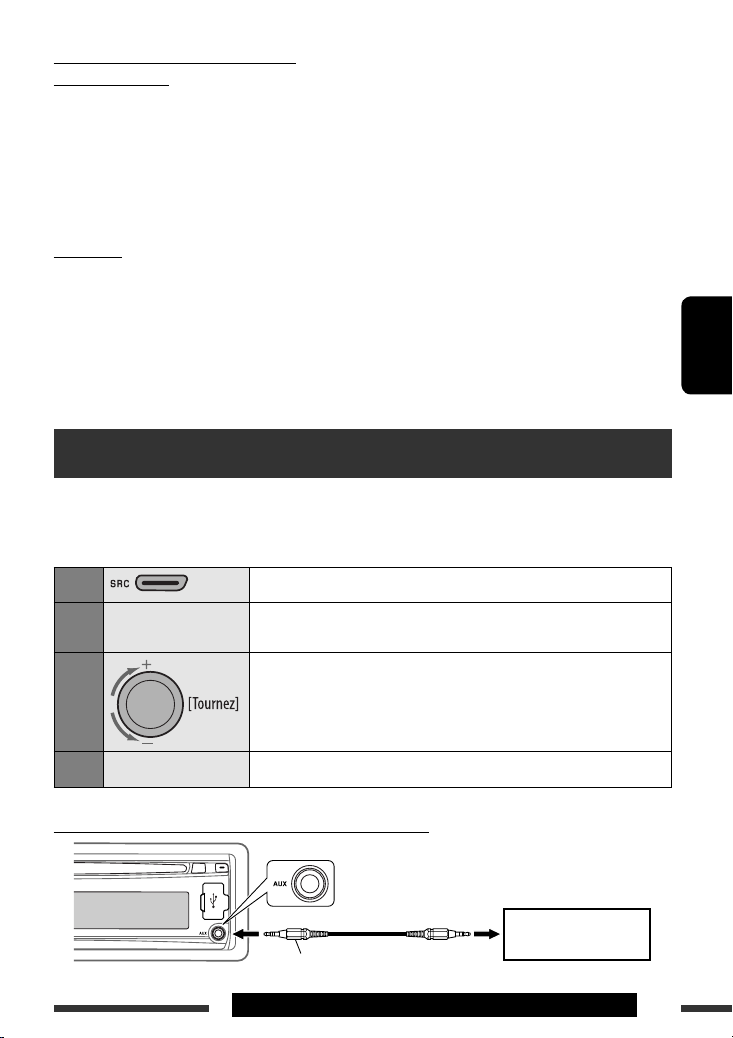

Listening to the other external
components .............................................. 11
SETTINGS
Selecting a preset sound mode .................... 12
Title assignment .......................................... 13
Menu operations .......................................... 14

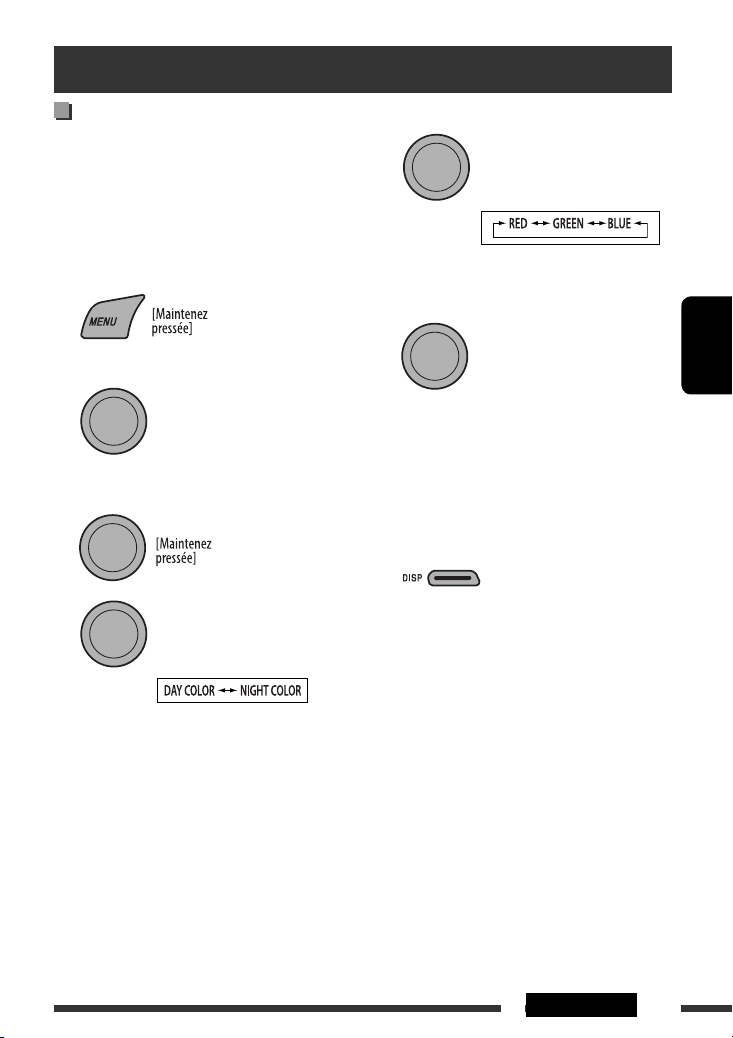

Color settings ............................................... 17
ENGLISH
How to forcibly eject a disc
• You can forcibly eject the loaded disc even if the disc is
locked. To lock/unlock the disc, see page 9.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Caution on volume setting:
Digital devices (CD/USB) produce very little noise
compared with other sources. Lower the volume before
playing these digital sources to avoid damaging the
speakers by sudden increase of the output level.
REFERENCES
More about this unit .................................... 18
Troubleshooting ........................................... 21
Maintenance ................................................ 23
Specifications ............................................... 24
This mark is used to indicate...
Turn the control dial to make a
selection, then press to confirm the
selection.
3
Basic operations
Using the control panel
ENGLISH
1 • FM/AM: Select preset station.
• CD/USB: Select folder.
2 • Turn on the power.
• Attenuate the sound (if the power is on).
• Turn off the power [Hold].
3 Select the source.
FM = AM *2 = CD *3 = USB = AUX IN *2 =
(back to the beginning)
4 • Enter list operations.
9 Select the sound mode.
p Detach the panel.
q Change the display information.
w • FM/AM: Search for station.
• CD/USB: Select track.
e Return to the previous menu.
r Remote sensor
t AUX (auxiliary) input jack
y USB (Universal Serial Bus) input jack
• Enter Menu setting [Hold] .
5 • Control the volume *
• Confirm the selection [Press] .
• FM: Enter SSM preset mode [Hold] .
• CD/USB: Enter playback mode [Hold] .
Pause/resume playback *4 [Press] .
6 Loading slot
7 Display window
8 Eject disc.
4
or select items [Turn].
*1 Also known as “Control dial” in this manual.
*2 You cannot select these sources if they were disabled
in the Menu (see “SRC SELECT” in “Menu
operations” on page 16).
*3 You cannot select “CD” as the playback source if no
disc is in the unit.
*4 You can still adjust the volume during pause when
the selected source is CD/USB.
Before resume playback, check to be sure that you
have not raise the volume level too much.
You can change the display and button illumination (see “COLOR” on page 15).
4
Display window
ENGLISH
1 Tr (track) indicator
2 Source display / Track number / Folder number /
Time countdown indicator
3 DISC indicator
4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,
ROCK, POPS, USER
5 Playback mode / item indicators—RND (random),
(disc), (folder), RPT (repeat)
6 EQ (equalizer) indicator
7 LOUD (loudness) indicator
8 Disc information indicators—
TAG (Tag information), (track/file), (folder)
9 Main display
p Tuner reception indicators—ST (stereo),
MO (monaural)
5OPERATIONS
Using the remote controller (RM-RK50)
Installing the lithium coin battery (CR2025)
ENGLISH
For USA-California Only:
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material—special
handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Caution:
• Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.
If the effectiveness of the remote controller
decreases, replace the battery.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
Remote sensor
This unit is equipped with the steering wheel
remote control function.
• See the Installation/Connection Manual (separate
volume) for connection.
1 • Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 • Changes the preset stations.
• Changes the folder of the MP3/WMA.
3 Adjusts the volume level.
4 Selects the sound mode.
5 Selects the source.
6 • Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if pressed and
held.
• Changes the tracks if pressed briefly.
Warning (to prevent accidents and damage):
• Do not install any battery other than CR2025 or its
equivalent.
• Do not leave the remote controller in a place (such
as dashboards) exposed to direct sunlight for a long
time.
• Store the battery in a place where children cannot
reach.
• Do not recharge, short, disassemble, heat the battery,
or dispose of it in a fire.
• Do not leave the battery with other metallic
materials.
• Do not poke the battery with tweezers or similar
tools.
• Wrap the battery with tape and insulate when
throwing away or saving it.
6

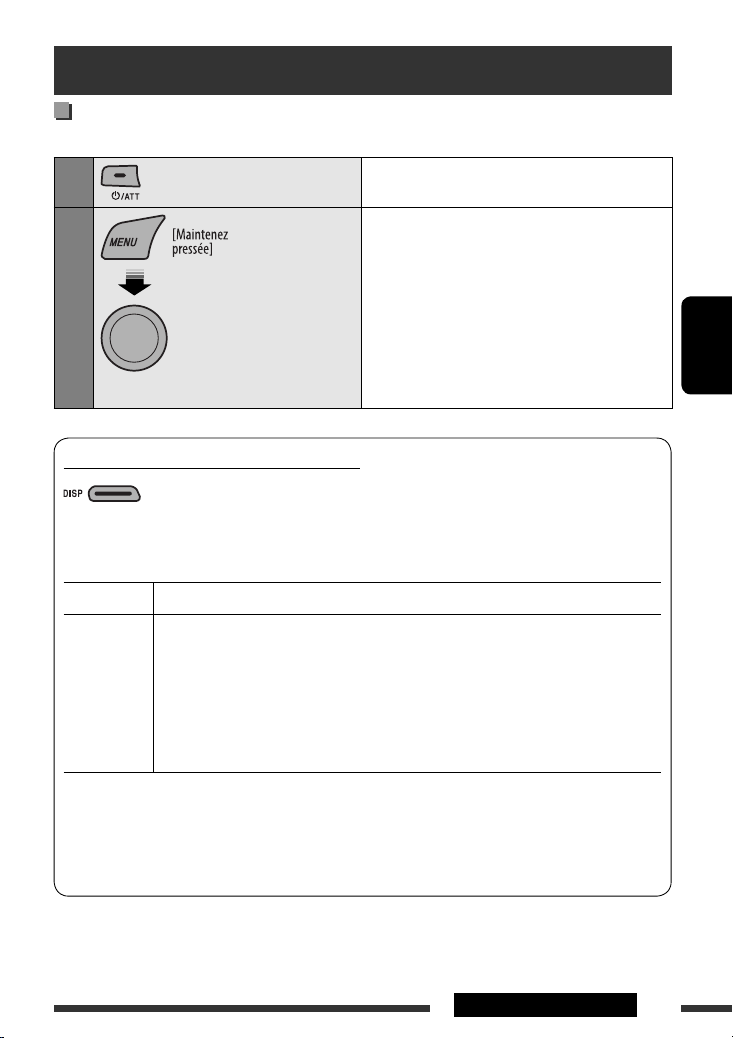

Preparation
Canceling the display demonstration and setting the clock
• See also page 14.
1
Turn on the power.
ENGLISH
2
Press and hold until
the main menu is
called up.
[Turn] = [Press]
• Repeat this
procedure.
Cancel the display demonstrations
Select “DEMO,” then “DEMO OFF.”
Set the clock
Select “CLOCK” = “CLOCK SET.”
Adjust the hour, then press control dial once to proceed to adjust
the minute.
• To return to the previous menu, press BACK.
Changing the display information
When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF,”
(see page 14).
When the power is turned on: The display information of the current source changes as follows:
FM/AM Frequency = Clock = Station name *1 = (back to the beginning)
2
CD
CD/USB
1
*
If no title is assigned to a station, “NO NAME” appears. To assign a title to a station, see page 13.
*2 If the current disc is an audio CD, “NO NAME” appears.
*3 If an MP3/WMA file does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 14),
folder name and file name appear.
Audio CD/CD Text: Disc title/performer *
elapsed playing time = Current track number with the clock time =
(back to the beginning)
MP3/WMA: Album name/performer (folder name) *3 = Track title (file name) *3 =
Current track number with the elapsed playing time = Current track
number with the clock time = (back to the beginning)
= Track title *2 = Current track number with the
7OPERATIONS
Listening to the radio
1
2
ENGLISH
Select “FM” or “AM.”
Search for a station to listen—Auto Search.
When a station is tuned in, searching stops. To stop searching, press the same
button again.
• You can also search for a station manually—Manual Search. Hold either one of
the buttons until “M” flashes on the display, then press it repeatedly.
• When receiving an FM stereo broadcast with sufficient signal strength, the ST
indicator lights up on the display.
Improving the FM reception
When an FM stereo broadcast is hard to receive,
activate monaural mode for better reception.
• See also page 15.
[Turn] = [Press]
Reception improves, but stereo effect will be lost.
• The MO indicator lights up on the display.
Storing stations in memory
Automatic presetting (FM)— SSM (Strongstation Sequential Memory)
You can preset up to 18 stations for FM.
1 While listening to a station...
2 Select the preset number range you want to
store.
To restore the stereo effect, repeat the same
procedure to select “MONO OFF.” The MO indicator
goes off.
8
3
Local FM stations with the strongest signals are
searched and stored automatically.
• To stop searching, press 4 /¢ .
To preset other 6 stations, repeat from step 1 again.
Manual presetting (FM/AM)
You can preset up to 18 stations for FM and 6 stations
for AM.
Ex.: Storing FM station of 92.50 MHz into preset
number “04.”
1
2 Select preset number “04.”
Disc operations
3
Selecting preset station
or
ENGLISH
[Turn] = [Press]
1
2
Stop playing and ejecting the disc
• “NO DISC” appears. Press SRC to listen to another
playback source.
Prohibiting disc ejection
To cancel the prohibition, repeat the same
procedure.
Turn on the power.
Insert a disc.
All tracks will be played repeatedly until you change
the source or eject the disc.
Selecting a track/folder
[Turn] = [Press]
• For MP3/WMA discs, select the desired folder,
then the desired track by repeating the control dial
procedures.
• To return to the previous menu, press BACK.
Continued on the next page
9OPERATIONS
Pressing (or holding) the following buttons allows you
to...
[Press] Pause/resume playback.
• To cancel repeat play or random play, select
“RPT OFF” or “RND OFF.”
• To return to the previous menu, press BACK.
ENGLISH
MP3/WMA: Select folder
[Press] Select track
[Hold] Reverse/fast-forward track
Selecting the playback modes
You can use only one of the following playback modes
at a time.
1
2
[Turn] = [Press]
REPEAT Ô RANDOM
3
[Turn] = [Press]
REPEAT
TRACK RPT : Repeats current track
FOLDER RPT : MP3/WMA: Repeats current folder
RANDOM
FOLDER RND : MP3/WMA: Randomly plays all
tracks of current folder, then
tracks of next folders
ALL RND : Randomly plays all tracks
Listening to the USB
device
This unit can play MP3/WMA tracks stored in a USB
device.
All tracks will be played repeatedly until you change the
source or detach the USB device.
USB input jack
USB memory
If a USB device has been attached...
Playback starts from where it has been stopped
previously.
• If a different USB device is currently attached,
playback starts from the beginning.
10
OPERATIONS
To stop play and detach the USB device
Straightly pull it out from the unit.
• Press SRC to listen to another playback source.
You can operate the USB device in the same way you
operate the files on a disc. (See pages 9 and 10.)
Cautions:
• Avoid using the USB device if it might hinder your
safety driving.
• Do not pull out and attach the USB device repeatedly
while “READING” is shown on the display.
• Do not start the car engine if a USB device is
connected.
• This unit may not be able to play the files depending
on the type of USB device.
• Operation and power supply may not work as
intended for some USB devices.
• You cannot connect a computer to the USB input
terminal of the unit.
• Make sure all important data has been backed up to
avoid losing the data.
• Do not leave a USB device in the car, expose to direct
sunlight, or high temperature to avoid deformation
or cause damages to the device.
• Some USB devices may not work immediately after
you turn on the power.
• For more details about USB operations, see pages 19
and 20.
Listening to the other external components
You can connect an external component to AUX (auxiliary) input jack on the control panel.
Preparation: Make sure “AUX ON” is selected in the “SRC SELECT”
= “AUX IN” setting, see page 16.
ENGLISH
1
2
—
3
4
—
Select “AUX IN.”
Turn on the connected component and start playing the source.
Adjust the volume.
Adjust the sound as you want (see pages 12 and 13).
Connecting an external component to the AUX input jack
3.5 mm (3/16”) stereo mini plug
(not supplied)
OPERATIONS & EXTERNAL DEVICES
Portable audio player, etc.
11
Selecting a preset sound mode
You can select a preset sound mode suitable to the music genre.
• See also page 14.
ENGLISH
Preset value setting for each sound mode
Sound
mode
USER 60 Hz 00 Q1.25 1.0 kHz 00 Q1.0 10.0 kHz 00 —
ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 —
CLASSIC 80 Hz +01 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —
POPS 100 Hz +02 Q1.25 1.0 kHz +01 Q1.25 10.0 kHz +02 —
HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 —
JAZZ 80 Hz +03 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —
Freq.: Frequency Q: Q-slope
BASS MIDDLE TREBLE LOUD
Freq. Level Q Freq. Level Q Freq. Level Q
Selecting from Menu.
or
[Turn] = [Press]
• See below and page 13 for “USER” settings.
Preset value
(loudness)
OFF
Storing your own sound mode
You can store your own adjustments in memory.
1 Select “USER” for “EQ.”
[Turn] = [Press]
12
2 While “USER” is shown on the display...
3 Select a tone.
Title assignment
[Turn] = [Press]
4 Adjust the sound elements of the selected
tone.
[Turn] = [Press]
1 Adjust the frequency.
2 Adjust the level.
3 Adjust the Q-slope.
Sound
elements
Frequency 60 Hz
Level –06 to
Q Q1.0
Range/selectable items
BASS MIDDLE TREBLE
80 Hz
100 Hz
200 Hz
+06
Q1.25
Q1.5
Q2.0
0.5 kHz
1.0 kHz
1.5 kHz
2.5 kHz
–06 to
+06
Q0.75
Q1.0
Q1.25
10.0 kHz
12.5 kHz
15.0 kHz
17.5 kHz
–06 to
+06
Fixed
5 Repeat steps 3 and 4 to adjust other sound
characteristics.
The adjustment made will be stored automatically.
You can assign titles to 30 station frequencies (FM and
AM) using 8 characters (maximum) for each title.
1 Select “FM” or “AM.”
2 Show the title entry screen.
3 Assign a title.
1 Select a character.
2 Move to the next (or previous) character
position.
3 Repeat steps 1 and 2 until you finish
entering the title.
4 Finish the procedure.
ENGLISH
To erase the entire title
In step 2 above...
SETTINGS
13
Menu operations
1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.
ENGLISH
Category Menu items Selectable settings, [reference page]
DEMO
Display
DEMO
demonstration
CLOCK DISP *
Clock display
CLOCK
CLOCK SET
Clock setting
EQ
EQ
Equalizer
DIMMER
Dimmer
2
SCROLL*
Scroll
DISPLAY
TAG DISPLAY
Tag display
1
*
If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select
“CLOCK OFF” to save the car’s battery.
*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
• DEMO ON
• DEMO OFF
1
• CLOCK ON
• CLOCK OFF
: Adjust the hour, then the minute, [7].
(Initial: 1:00)
: Select a preset sound mode suitable to the music genre.
USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ
• DIMMER ON
• DIMMER OFF
• SCROLL ONCE
• SCROLL AUTO
• SCROLL OFF
Pressing DISP for more than one second can scroll the display regardless of the
setting.
• TAG ON
• TAG OFF
[Turn] = [Press]
: Display demonstration will be activated automatically if no
operation is done for about 20 seconds, [7].
: Cancels.
: Clock time is shown on the display at all times when the
power is turned off.
: Cancels; pressing DISP will show the clock time for about
5 seconds when the power is turned off, [7].
: Dims the display and button illumination.
: Cancels.
: Scrolls the displayed information once.
: Repeats scrolling (at 5-second intervals).
: Cancels.
: Shows the Tag information while playing MP3/WMA
tracks.
: Cancels.
• To return to the previous menu,
press BACK.
• To exit from the menu, press
DISP or MENU.
Initial: Underlined
14
Category Menu items Selectable settings, [reference page]
AREA
Tuner channel
interval
• AREA US
• AREA EU
: When using in North/Central/South America. AM/FM
intervals are set to 10 kHz/200 kHz.
: When using in any other areas. AM/FM intervals are set to
9 kHz/50 kHz (100 kHz during auto search).
• AREA SA
: When using in South American countries where FM interval
is 100 kHz. AM interval is set to 10 kHz.
3
MONO *
Monaural mode
TUNER
IF BAND
Intermediate
frequency band
• MONO ON
• MONO OFF
• AUTO
• WIDE
: Activate monaural mode to improve FM reception, but
stereo effect will be lost, [8].
: Restore the stereo effect.
: Increases the tuner selectivity to reduce interference noises
between adjacent stations. (Stereo effect may be lost.)
: Subject to interference noises from adjacent stations, but
sound quality will not be degraded and the stereo effect
will remain.
COLOR
MENU
COLOR
COLOR 01
– COLOR 29,
USER
MENU COLOR
Menu color
: Select one of the preset or user color for display and button (except EQ/
/0) illumination.
(For customize color settings, “USER,” see page 17.)
• OFF
• ON
: Cancels.
: Changes the display and button (except EQ/ /0)
illumination during menu, list search and playback mode
operations.
5
R06 – F06 : Adjust the front and rear speaker output balance.
(Initial: 00)
5
L06 – R06 : Adjust the left and right speaker output balance.
(Initial: 00)
• LOUD OFF
• LOUD ON
: Cancels.
: Boost low and high frequencies to produce a well-balanced
AUDIO
FADER*4, *
Fader
BALANCE *
Balance
LOUD
Loudness
sound at a low volume level.
3
*
Displayed only when the source is “FM.”
*4 If you are using a two-speaker system, set the fader level to “00.”
*5 This adjustment will not affect the subwoofer output.
ENGLISH
Continued on the next page
SETTINGS
15
Category Menu items Selectable settings, [reference page]
VOL ADJUST
Volume adjust
ENGLISH
VOL ADJ –05
—
VOL ADJ +05
(Initial: VOL
ADJ 00)
: Preset the volume adjustment level of each source (except
FM), compared to the FM volume level. The volume level
will automatically increase or decrease when you change the
source.
• Before making an adjustment, select the source you want to
adjust.
• “VOL ADJ FIX” appears on the display if “FM” is selected as
the source.
L/O MODE
Line output
mode
• SUB.W
• REAR
: Select if the REAR LINE OUT terminals are used for connecting
a subwoofer (through an external amplifier).
: Select if the REAR LINE OUT terminals are used for connecting
the speakers (through an external amplifier).
AUDIO
SUB.W FREQ *
Subwoofer
cutoff frequency
SUB.W LEVEL *
Subwoofer level
BEEP
Key touch tone
AMP GAIN *
Amplifier gain
control
AM *
AM station
AUX IN *
SRC SELECT
Auxiliary input
6
*
Displayed only when “L/O MODE” is set to “SUB.W.”
6
• LOW
• MID
• HIGH
6
SUB.W 00
— SUB.W 08
• BEEP OFF
• BEEP ON
7
• LOW POWER
: Frequencies lower than 72 Hz are sent to the subwoofer.
: Frequencies lower than 111 Hz are sent to the subwoofer.
: Frequencies lower than 157 Hz are sent to the subwoofer.
: Adjust the subwoofer output level.
(Initial: SUB.W 04)
: Deactivates the key touch tone.
: Activates the key touch tone.
: VOLUME 00 – VOLUME 30 (Select if the maximum power
of each speaker is less than 50 W to prevent damaging the
speaker.)
• HIGH POWER
8
• AM OFF
• AM ON
9
• AUX OFF
• AUX ON
: VOLUME 00 – VOLUME 50
: Disable “AM” in source selection.
: Enable “AM” in source selection, [4].
: Disable “AUX IN” in source selection.
: Enable “AUX IN” in source selection, [4].
*7 The volume level automatically changes to “VOLUME 30” if you change to “LOW POWER” with the volume level
set higher than “VOLUME 30.”
*8 Displayed only when any source other than “AM” is selected.
*9 Displayed only when any source other than “AUX IN” is selected.
16
Color settings
Creating your own color
—USER Color
You can create your own colors—“DAY COLOR” or
“NIGHT COLOR.”
DAY COLOR: Used when “DIMMER” is set to
“DIMMER OFF.”
NIGHT COLOR: Used when “DIMMER” is set to
“DIMMER ON.”
1
2
Select “COLOR” = “USER.”
[Turn] = [Press]
3 While “USER” is shown on the display...
4
[Turn] = [Press]
5 Select a primary color.
[Turn] = [Press]
6 Adjust the level (00 to 31) of the selected
primary color.
[Turn] = [Press]
If “00” is selected for all the primary colors, nothing
appear on the display.
7 Repeat steps 5 and 6 to adjust other primary
colors.
8 Exit from the setting.
• If no operation is done for about 30 seconds, the
operation will be canceled.
ENGLISH
SETTINGS
17
More about this unit
Basic operations
Turning on the power
ENGLISH
• By pressing SRC button on the unit, you can also turn
on the power. If the source is ready, playback also
starts.
Turning off the power
• If you turn off the power while listening to a track,
playback will start from where it had been stopped
previously next time you turn on the power.
General
• If you change the source while listening to a disc,
playback stops.
Next time you select “CD” as the playback source,
playback will start from where it had been stopped
previously.
• If no operation is done for about 30 seconds after
pressing MENU button, the operation will be
canceled.
Tuner operations
Storing stations in memory
• During SSM search...
– All previously stored stations are erased and the
stations are stored anew.
– When SSM is over, the station stored in the lowest
preset number will be automatically tuned in.
• When storing a station manually, the previously
preset station is erased when a new station is stored
in the same preset number.
Disc operations
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does not comply
with the “Compact Disc Digital Audio” standard.
Therefore, the use of Non-DVD side of a DualDisc on
this product may not be recommended.
General
• This unit has been designed to reproduce
CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs
(Rewritable) in audio CD (CD-DA), MP3/WMA
formats.
• When a disc is inserted upside down, “PLEASE” and
“EJECT” appear alternately on the display. Press 0 to
eject the disc.
• MP3 and WMA “tracks” (words “file” and “track” are
used interchangeably) are recorded in “folders.”
• While fast-forwarding or reversing on an MP3 or
WMA disc, you can only hear intermittent sounds.
Playing a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can only play back files of the same type as
those detected first if a disc includes both audio CD
(CD-DA) files and MP3/WMA files.
• This unit can play back multi-session discs; however,
unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not play back on this
unit because of their disc characteristics, or for the
following reasons:
– Discs are dirty or scratched.
– Moisture condensation has occurred on the lens
inside the unit.
– The pickup lens inside the unit is dirty.
– The files on the CD-R/CD-RW are written using the
“Packet Write” method.
– There are improper recording conditions (missing
data, etc.) or media conditions (stained, scratched,
warped, etc.).
18
• CD-RWs may require a longer readout time since the
reflectance of CD-RWs is lower than that of regular
CDs.
• Do not use the following CD-Rs or CD-RWs:
– Discs with stickers, labels, or a protective seal stuck
to the surface.
– Discs on which labels can be directly printed by an
ink jet printer.
Using these discs under high temperature or high
humidity may cause malfunctions or damage to the
unit.
Playing an MP3/WMA disc
• This unit can play back MP3/WMA files with the
extension code <.mp3> or <.wma> (regardless of
the letter case—upper/lower).
• This unit can show the names of albums, artists
(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or
2.4) for MP3 files and for WMA files.
• This unit can display only one-byte characters. No
other characters can be correctly displayed.
• This unit can play back MP3/WMA files meeting the
conditions below:
– Bit rate of MP3: 32 kbps — 320 kbps
– Sampling frequency of MP3:
32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)
16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)
– Bit rate of WMA: 32 kbps — 320 kbps
– Sampling frequency of WMA: 22.05 kHz, 32 kHz,
44.1 kHz, 48 kHz
– Disc format: ISO 9660 Level 1/Level 2, Romeo,
Joliet, Windows extension.
• The maximum number of characters for file/folder
names vary depending on the disc format used
(includes 4 extension characters—<.mp3> or
<.wma>).
– ISO 9660 Level 1: up to 12 characters
– ISO 9660 Level 2: up to 31 characters
– Romeo: up to 64 characters
– Joliet: up to 32 characters
– Windows extension: up to 64 characters
• This unit can recognize a total of 512 files,
255 folders, and 8 hierarchical levels.
• This unit can play back files recorded in VBR (variable
bit rate).
Files recorded in VBR have a discrepancy in the
elapsed time display, and do not show the actual
elapsed time. In particular, this difference becomes
noticeable after performing the search function.
• This unit cannot play back the following files:
– MP3 files encoded in MP3i and MP3 PRO format.
– MP3 files encoded in an inappropriate format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded in lossless, professional, and
voice format.
– WMA files which are not based upon Windows
Media ® Audio.
– WMA files copy-protected with DRM.
– Files which have data such as AIFF, ATRAC3, etc.
• The search function works but search speed is not
constant.
Playing MP3/WMA tracks from a USB device
• While playing from a USB device, the playback order
may differ from other players.
• This unit may be unable to play back some USB
devices or some files due to their characteristics or
recording conditions.
• Depending on the shape of the USB devices and
connection ports, some USB devices may not be
attached properly or the connection might be loose.
• Connect one USB mass storage class device to the unit
at a time. Do not use a USB hub.
• If the connected USB device does not have the correct
files, “CANNOT PLAY” appears.
• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or
2.4) for MP3 files and for WMA files.
ENGLISH
Continued on the next page
REFERENCES
19
• This unit can play back MP3/WMA files meeting the
conditions below:
– Bit rate of MP3: 32 kbps — 320 kbps
– Sampling frequency of MP3:
32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)
16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)
ENGLISH
– Bit rate of WMA: 32 kbps — 320 kbps
– Sampling frequency of WMA: 22.05 kHz, 32 kHz,
44.1 kHz, 48 kHz
• This unit can play back MP3 files recorded in VBR
(variable bit rate).
• The maximum number of characters for:
– Folder names : 32 characters
– File names : 32 characters
– MP3 Tag : 64 characters
– WMA Tag : 32 characters
• This unit can recognize a total of 5 000 files, 255
folders (255 files per folder including folder without
unsupported files), and of 8 hierarchies.
• This unit does not support SD card reader.
• This unit cannot recognize a USB device whose rating
is other than 5 V and exceeds 500 mA.
• USB devices equipped with special functions such as
data security functions cannot be used with the unit.
• Do not use a USB device with 2 or more partitions.
• This unit may not recognized a USB device connected
through a USB card reader.
• This unit may not play back files in a USB device
properly when using a USB extension cord.
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and MP3 PRO format.
– MP3 files encoded in an inappropriate format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded in lossless, professional, and
voice format.
– WMA files not based on Windows Media® Audio.
Ejecting a disc or removing a USB device
• If the ejected disc is not removed within 15 seconds,
it is automatically inserted into the loading slot again
to protect it from dust.
• After ejecting a disc or removing a USB device,
“NO DISC” or “NO USB“ appears and you cannot
operate some of the buttons. Insert another disc,
reattach a USB device, or press SRC to select another
playback source.
Title assignment
• If you try to assign titles to more than 30 station
frequencies, “NAME FULL” appears. Delete unwanted
titles before assignment.
Menu operations
• If you change the “AMP GAIN” setting from
“HIGH POWER” to “LOW POWER” while
the volume level is set higher than “VOLUME 30,”
the unit automatically changes the volume level to
“VOLUME 30.”
20
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
Symptoms Remedies/Causes
• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.
• Check the cords and connections.
• The unit does not work at all. Reset the unit (see page 3).
• “AUX IN” cannot be selected. Check the “SRC SELECT” = “AUX IN” setting (see
General
• Nothing appear on the display. Check the USER Color settings (see page 17)
• SSM automatic presetting does not work. Store stations manually.
• Static noise while listening to the radio. Connect the antenna firmly.
FM/AM
• “AM” cannot be selected. Check the “SRC SELECT”
• Disc cannot be played back. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be
skipped.
• Disc can neither be played back nor ejected. • Unlock the disc (see page 9).
• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.
Discs in general
• “NO DISC” appears on the display. Insert a playable disc into the loading slot.
• “PLEASE” and “EJECT“ appear alternately
on the display.
• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format
• Noise is generated. Skip to another track or change the disc. (Do not add the
MP3/WMA playback
page 16).
= “AM” setting (see
page 16).
• Insert a finalized CD-R/CD-RW.
• Finalize the CD-R/CD-RW with the component which
you used for recording.
• Eject the disc forcibly (see page 3).
• Change the disc.
• Check the cords and connections.
Press
0, then insert a disc correctly.
compliant with ISO 9660 Level 1, Level 2, Romeo, or
Joliet.
• Add the extension code <.mp3> or <.wma> to the
file names.
extension code <.mp3> or <.wma> to non-MP3 or
WMA tracks.)
ENGLISH
Continued on the next page
REFERENCES
21
Symptoms Remedies/Causes
• A longer readout time is required
(“READING” keeps flashing on the display).
ENGLISH
• Tracks do not play back in the order you
have intended them to play.
• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by
• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder
MP3/WMA playback
• The correct characters are not displayed
(e.g. album name).
• Noise is generated. The track played back is not an MP3/WMA track. Skip to
• “READING” keeps flashing on the display. • Readout time varies depending on the USB device.
• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder
• Tracks/folders are not played back in the
order you have intended.
USB device playback
• “CANNOT PLAY” flashes on the display.
• “NO USB” appears on the display.
• The unit cannot detect the USB device.
• Correct characters are not displayed (e.g.
album name).
• While playing a track, sound is sometimes
interrupted.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
Do not use too many hierarchical levels and folders.
The playback order is determined when the files are
recorded.
how the tracks are recorded on the disc.
that contains MP3/WMA tracks.
* Folder that is physically empty or folder that contains
data but does not contain valid MP3/WMA track.
This unit can only display letters (upper case), numbers,
and a limited number of symbols.
another file. (Do not add the extension code <.mp3> or
<.wma> to non-MP3 or WMA tracks.)
• Do not use too many hierarchy or folders.
• Turn off the power then on again.
• Reattach the USB device again.
that contains MP3/WMA tracks.
* Folder that is physically empty or folder that contains
data but does not contain valid MP3/WMA track.
The playback order is determined by the write-in time
stamp. The first track/folder written into the USB device
will be the first track/folder for playback.
• Attach a USB device that contains tracks encoded in an
appropriate format.
• Reattach the USB device again.
This unit can only display letters (upper case), numbers,
and a limited number of symbols.
The MP3/WMA tracks have not been properly copied into
the USB device.
Copy MP3/WMA tracks again into the USB device, and
try again.
22
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.
To minimize this possibility, periodically wipe the
connectors with a cotton swab or cloth moistened with
alcohol, being careful not to damage the connectors.
Connectors
Moisture condensation
Moisture may condense on the lens inside the unit in
the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur, the unit may malfunction. In this
case, eject the disc and leave the unit turned on for a
few hours until the moisture has evaporated.
How to handle discs
When removing a disc from its
case, press down the center holder
of the case and lift the disc out,
holding it by the edges.
• Always hold the disc by the edges. Do not touch its
recording surface.
When storing a disc in its case, gently insert the
disc around the center holder (with the printed surface
facing up).
• Make sure to store discs in cases after use.
Center holder
To keep discs clean
A dirty disc may not play correctly.
If a disc does become dirty, wipe it with
a soft cloth in a straight line from center
to edge.
• Do not use any solvents (for example, conventional
record cleaner, spray, thinner, benzine, etc.) to clean
discs.
To play new discs
New discs may have some rough spots
around the inner and outer edges. If
such a disc is used, this unit may reject
the disc.
To remove these rough spots, rub the edges with a
pencil or ball-point pen, etc.
Do not use the following discs:
Single CD
—8 cm (3-3/16”) disc Warped disc
Sticker and sticker residue Stick-on label
Unusual shape
C-thru Disc (semi-
transparent disc)
ENGLISH
Transparent or semi-
transparent parts on its
recording area
23REFERENCES
Loading...
